RTK GPS Expansion Pack Overview
The RTK GPS Expansion Pack for the Carlson Surveyor+ and the Juniper Systems TK6000 handheld incorporates a high accuracy NovAtel RTK GPS receiver and an EDGE class wireless modem (GSM). This combination enables precision measurements to be made with a small, lightweight handheld device. The NovAtel RTK GPS receiver incorporates state-of-the-art positioning technology using GPS and GLONASS dual frequency receivers, which feature NovAtel’s AdVance RTK and ALIGN technologies.
There is a North American model (U.S. and Canada) and an International model (European CE Marking).
Batteries
It is strongly recommended that two baery packs be
used in the handheld. This should provide approximately six hours of continuous operation.
GPS Receiver Operation
Support for the precision GPS receiver in the RTK GPS
expansion pack is provided by the application soware
supplier. Please consult the document provided by your
application soware provider for the proper operation of the GPS receiver with your specic application soware.
2RTK GPS Expansion Pack
The GPS receiver uses COM port 7 and COM port 8 with a default of 9600 baud, 8 data, no parity, 1 stop bit.
GPS Antenna
For the GPS antenna, we recommend using the Novatel dual frequency, dual constellation antenna model 702-GG.
Wireless Modem Operation
The following steps are required to get the GSM modem ready to use (these steps are described in this manual):
Set up a wireless service data account for the GSM
modem and receive a SIM (Subscriber Identication
Module) card.
Install the SIM card in the wireless modem, and seal
the card portal.
Install the expansion pack and antennas on the
handheld.
Run the setup program to congure the wireless
modem.
CAUTION:   Damage to the RTK GPS expansion pack can
!!
occur if it is installed or removed while the handheld in running or in suspend. Ensure the handheld has been
completely powered o before installing or removing the
RTK GPS Expansion Pack. This is done by holding the
power buon down until the power menu pops up and
selecting the Power O option.
RTK GPS Expansion Pack 3
GSM Account Set Up and Activation Process
Follow these steps to set up a wireless account for the data modem:
1. Contact your wireless provider to obtain an account
and SIM card. Since you already have the equipment, and all you need is to set up an account, it is best to work directly with the wireless provider, i.e.; AT&T, T-Mobile, Vodafone, etc.
2. When you contact the wireless provider, inform them
that you have a wireless data modem and need to set up data service for this device. Your company may already have a business account with a provider. If so, you can add the account you need for this device to your business account.
3. Be prepared to provide the following information
when seing up an account:
Billing Information and business ID such as your Federal Tax I.D. or VAT number.
The wireless services required: You need data only service. You probably want an unlimited data plan. You do not need voice or messaging services (the modem does not support them).
4RTK GPS Expansion Pack
The modem’s 15-character IMEI number: This is shown on the Cell Modem Setup screen shown below:
4. You may be asked for the modem’s model number.
This number allows the carrier to verify this modem has been approved for use on their network. The internal modem module is a MultiTech model MTSMC-E1.
IMPORTANT: Do not confuse this number with the
model number of the handheld computer which is not needed by the carrier.
RTK GPS Expansion Pack 5
Inserting the SIM Card into the Wireless Modem 
Insert the SIM Card into the RTK GPS Expansion Pack wireless modem as follows:
1. Remove the rubber cover with SIM printed on it from the RTK GPS Expansion Pack.
2. Insert the SIM card carefully, making sure that the card is inserted in the correct orientation. The beveled corner on the card lines up with the outline on the socket, with the gold electrical contacts facing towards the socket.
CAUTION: There is space
!!
!!
between the case and the socket. When inserting the card make sure that the card is inserted into the connector and not into the space above or below the connector.
3. Replace the rubber cover. Run a nger around the outside edge to make sure the gasket is ush with the
case.
CAUTION: If the rubber cover is not replaced the unit
is no longer sealed and the warranty is void.
6RTK GPS Expansion Pack
Attaching the Expansion Pack to the Handheld
Follow these instructions to aach the RTK GPS
Expansion Pack to the handheld:
1. Power o the handheld by holding down the power buon for a few seconds and selecting Power O from the Power Buon menu.
2. Loosen the top four screws on the back of the handheld as shown.
3. Remove the cover and screws from the handheld. (The cover is not used with the pack. Place the cover and
screws someplace where you can nd them in the
future.)
4. Slide the top of the hand strap up to detach it from
the back. Remove the boom of the hand strap. (The
hand strap is not used with the pack. Place the hand
strap someplace where you can nd it in the future.)
5. Place the RTK GPS Expansion Pack on the back of the handheld and insert the four screws included with it.
6. Tighten the screws to aach the pack.
RTK GPS Expansion Pack 7
Attaching the Antennas to the Expansion Pack
Follow these instructions to aach the antennas to the
RTK GPS Expansion Pack:
1. Aach the GSM modem antenna North American or
International) to the RTK GPS expansion pack. The GSM modem antenna connector is the smaller of the two coaxial connectors (SMA) on the top of the pack.
Use the knurled ring at the boom of the antenna
to tighten the antenna. Do not twist on the antenna rod to tighten the antenna. Do not over-tighten it—it
should only be nger tight.
IMPORTANT: The RTK GPS Expansion Pack should
not be operated without having the cell modem antenna connected.
2. Aach the GPS antenna cable to the GPS antenna
connector. The GPS antenna connector (TNC) is the larger coaxial connector on the top of the pack.
Running the Cell Modem Setup Utility
Run the Cell Modem Setup utility program to congure the internal wireless modem for the specic wireless
network that you have an account with.
1. The Cell Modem Setup utility should already be installed on the handheld, located in Start > Program. If the utility is not there, go to: hp://www.junipersys.
com/Juniper-Systems/support/Downloads/TK6000-
Ultra-Rugged-Field-PC. Follow the instructions on
8RTK GPS Expansion Pack
the screen to download the utility directly to the handheld (you need a method to connect to the internet from your handheld like Wi-Fi) or to your desktop PC (you need a USB communications cable and ActiveSync or Windows Mobile Device Center for the utility to be transferred to your handheld from the desktop PC).
2. To start the utility, Tap Start > Programs > Cell Modem Setup.
3. This screen is displayed. This is a reminder to close any open application programs so that you will not lose any data when the handheld resets to complete the conguration process. Tap Yes to continue.
4. A screen is displayed that allows you to select
seings that are unique to every wireless provider
and are required for the modem to connect to the
RTK GPS Expansion Pack 9
internet. Congure the APN (Access Point Name),
username, and password.
Depending on your wireless provider, there may only
be one selection. Select one of the choices presented on this screen and tap on the Congure buon at
the boom of the screen. The handheld performs a reset to congure the modem with the seings you
selected.
Wireless providers occasionally change these
seings. You may need to congure the modem with one of these seings and then test the conguration
by using Internet Explorer to see if you can connect to the internet and locate a website. If it does not connect as expected, then you may need to run Cell Modem Setup again, choose one of the other selections on the list, and repeat the test.
10RTK GPS Expansion Pack
It is best to get this information (APN, username, and
password) directly from your wireless provider when you subscribe and enter it manually as outlined in the next step.
5. If the only selection in the list is “Other”, you must obtain that information (APN, user name, and password) from the wireless provider and manually enter this information.
Select “Other” on the list and then tap on the
Congure buon at the boom of the screen. The
following screen is shown Enter the information into
each eld specied and then tap OK. The handheld performs a reset to congure the modem.
Note: Some wireless provider seings only specify the
APN, and the username and password are blank. If so, enter the APN and leave the username, password elds blank and then tap OK.
RTK GPS Expansion Pack 11
If you cannot determine the correct seings, leave all the
elds blank and select OK. In many instances this work.
View Current Settings
To view current seings, launch the Cell Modem Setup
utility and tap on the Menu buon at the boom of the screen. Select the About menu item. A screen showing the
current seings is shown.
12RTK GPS Expansion Pack
GSM Modem Operation
The following icons may be displayed on the status bar at the top of the screen. They indicate various states related to the operation of the wireless modem in the expansion pack:
No SIM Card—This icon noties the user that: a) no
SIM card is installed and b) it will be impossible to create an internet connection using the cell modem until a valid SIM card is installed.
No Internet Connection—This icon is displayed
when there is no internet connection present or if the internet connection has been dropped. Most programs automatically establish an internet connection (Internet Explorer is one example). To (re)establish an internet connection when the RTK GPS Expansion Pack is properly installed and has a valid SIM card installed,
simply run the application and aempt to access the
internet.
You may need to consult with your application supplier to determine the capabilities of the application.
Internet Connection icon—This icon is displayed
when an internet connection is present.
Signal Strength icon—This icon is displayed when an internet connection has been established using the cell
modem. It contains either the leer E or G and 0 to 4
bars. The E indicates EDGE and the G indicates GPRS.
RTK GPS Expansion Pack 13
The quality of the wireless modem signal and the data transmission speed is dependent on the signal strength displayed.
0 bars: There is not a reliable signal. Don’t aempt to
send data. If no bars are displayed it may be necessary
to move to another location with beer signal strength in order to send and receive data eectively.
1 bar: Signal strength is weak and the data
transmission speed will be slow.
2–4 bars: Signal strength is strong and transmission
speed will be faster.
Troubleshooting
SIM Card Missing or Not Working

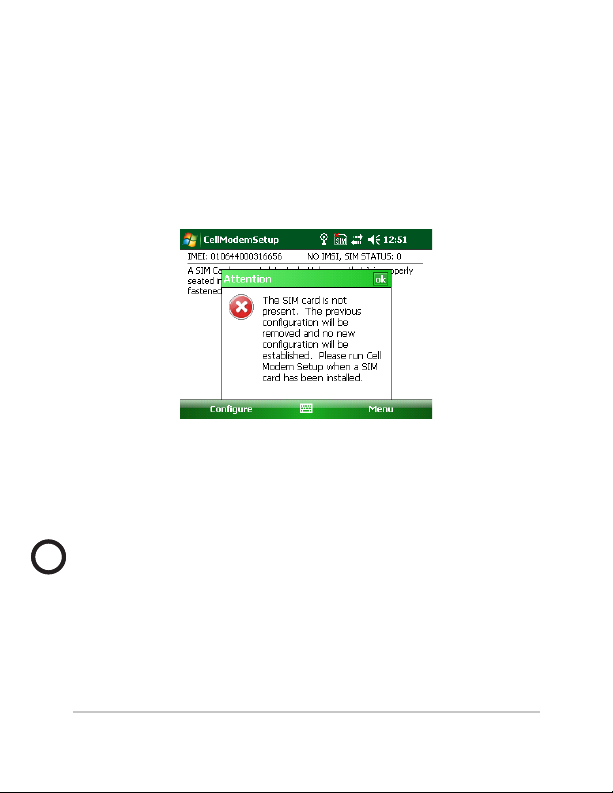

If there are problems with the SIM card, the main Cell Modem Setup screen indicates that it is missing:
14RTK GPS Expansion Pack
The IMSI number is an indication from the SIM card. It is unique to each card.
Conguration is not possible if the SIM card is not
detected. If a SIM card has been installed and there is still an error a new SIM card may be required. You can obtain a new SIM card from your wireless provider.
Sending AT Commands
This screen is used for troubleshooting by a qualied
technician. There is no need to use it unless directed by a service technician.
CAUTION: There is no warranty for use of this dialog as
!!
it can cause the modem to become unresponsive and even potentially cause damage to your equipment.
RTK GPS Expansion Pack 15
To send AT commands directly to the modem, tap Menu > Commands to view this screen:
The current port is displayed along with the current baud rate. In this example, the GSM modem has not yet been
congured. Port: is “COM5.” When it is congured, Port:
will be “VCA1.”
Type commands in the command box and press Enter to send commands directly to the modem. Responses are displayed in the box above the command box. This may be useful for diagnosing problems.
16RTK GPS Expansion Pack
Uninstall/Deactivate RTK GPS Expansion Pack 
When removing the expansion pack from the handheld, you should go through this procedure to de-activate the
pack, and remove all conguration seings for the pack.
1. To uninstall the RTK GPS Expansion Pack, launch the
Cell Modem Setup utility and tap Menu, then Remove Conguration.
2. The modem congurations will be removed from the
handheld. During the process the handheld performs a reset to complete this process
3. Power o the handheld by holding down the power
buon for several seconds and select Power O from the displayed menu. Once the handheld powers o
you can remove the RTK GPS Expansion Pack.
RTK GPS Expansion Pack 17
Wireless Safety
CAUTION: Maintain a separation distance of at least 20
!!
cm (8 inches) between the transmier’s antenna and the
body of the user and nearby persons.
RF Interference Issues
It is important to follow any special regulations regarding the use of radio equipment due in particular to the possibility of radio frequency, RF, interference. Please follow the safety advice given below carefully.
Switch OFF your cell modem when in an aircra. The
use of cellular telephones in an aircra may endanger the operation of the aircra, disrupt the cellular
network and is illegal.
Switch OFF your cell modem in hospitals and any
other place where medical equipment may be in use.
Respect restrictions on the use of radio equipment
in fuel depots, chemical plants or where blasting operations are in progress.
There may be a hazard associated with the operation
of your cell modem close to inadequately protected personal medical devices such as hearing aids and pacemakers. Consult the manufacturers of the medical device to determine if it is adequately protected.
18RTK GPS Expansion Pack
Operation of your cell modem close to other electronic
equipment may also cause interference if the equipment is inadequately protected. Observe any warning signs and manufacturers’ recommendations.
Maintenance of Your RTK GPS Expansion Pack
Your expansion pack is the product of advanced
engineering, design, and crasmanship and should be
treated with care. The suggestions below will help you to
enjoy this product for many years.
Do not aempt to disassemble the expansion pack.
There are no user serviceable parts inside.
Do not place the expansion pack alongside computer
discs, credit or travel cards, or other magnetic media.
The modem may aect the information contained on
discs or cards.
Compliance and Regulatory Information
United States and Canada
In compliance with the FCC rules, 47 CFR 15.19(a)(3), and
the Industry Canada rules, the following statement must appear on the device or in the user documentation.
This Class B digital apparatus complies with Canadian
ICES-003. This device also complies with Part 15 of the
RTK GPS Expansion Pack 19
FCC Rules. Operation of this equipment is subject to the
following two conditions:
1. The device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired operation.
In compliance with the FCC rules, 47 CFR 15.105(b), the user must be notied that this equipment has
been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment
o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
20RTK GPS Expansion Pack
Connect the equipment into an outlet on a circuit
dierent from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
In compliance with the FCC rules, 47 CFR 15.21, the user must be notied that changes or modications to the Field
PC that are not expressly approved by the manufacturer could void the user’s authority to operate the equipment.
Only approved accessories may be used with this equipment. In general, all cables must be high quality, shielded, correctly terminated, and normally restricted to two meters in length. Wall chargers approved for this product employ special provisions to avoid radio interference and should not be altered or substituted.
This device is approved for co-location with the P700
Wi-Fi transceiver and BC04 Bluetooth transceiver radios
integrated in the main units. This device must not be
co-located or operating in conjunction with any other antenna or transmier.
This device operates in compliance with the FCC radio frequency exposure limits for an uncontrolled environment. Users must follow instructions provided in the user documentation to satisfy compliance with FCC radio frequency exposure requirements.
RTK GPS Expansion Pack 21
There cannot be any alteration to the authorized antenna system. The antenna shipped with the GSM modem is the only one authorized for use. An antenna must be used when the pack is on the device. Using the wrong antenna or using the pack without an antenna voids the warranty.
This wireless modem is compliant with FCC regulations when operated within the temperature range of -20°C to
+54°C. Do not operate the wireless modem outside of this
temperature range.
European Union (CE Marking)
Products bearing the CE marking comply with the
2004/108/EC (EMC Directive), 1999/5/EC (R&TTE Directive), 2006/95/EC (Low Voltage Directive) issued by the
Commission of the European Community.
CE compliance of this device is valid only if powered
with/by a CE-marked wall charger provided by the
manufacturer. Compliance with these directives implies conformity to the following European Norms (in parentheses are the equivalent international standards and regulations):
EN 55022 (CISPR 22) Electromagnetic Interference
EN 55024 (IEC 61000-4-2, 3, 4, 5, 6, 8, 11) Electromagnetic
Immunity
EN 60950 (IEC 60950) Product Safety
ETSI EN 300 328 Radio
22RTK GPS Expansion Pack
ETSI EN 301 489-1, -7, EMC for Radio Equipment
ETSI EN 301 511 GSM
ETSI EN 300 440 GPS
The telecommunication functions of this device may be used in the following EU and EFTA countries: Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovak Republic, Romania, Slovenia, Spain, Sweden, Switzerland, and United Kingdom.
RTK GPS Expansion Pack 23
Specications
GPS Receiver 
Manfactu rer: Novatel
Channel Con guration
14 GPS L1,
14 GPS L2
12 GLONASS L1,
12 GLONASS L2
2 SBAS
Horizontal Position Accuracy (RMS)
Single Point L1 1.5 m
Single Point L1/L2 1.2 m
SBAS2 0.6 m
DGPS 0.4 m
RT-203 0.2 m
RT-2 1 cm+1 ppm
Measurement Precision (RMS)
GPS GLO
L1 C/A Code 4 cm 15 cm
L1 Carrier Phase 0.5 mm 1.5 mm
L2 P(Y) Code 8 cm
L2 Carrier Phase 1 mm 1.5 mm
Data Rat e
Measurements 20 Hz
Position 20 Hz
Time to First Fix
Cold Start4 60 s
Hot Start5 35 s
Signal Reacquisition
L1 0.5 s (typical)
L2 1.0 s (typical)
Time Accuracy6 20 ns RMS
Velocity Accuracy 0.03 m/s RMS
Velocity7 515 m/s
GSM Modem 
MultiTech MTSMC-E1
GPRS and EDGE Modes
Quad Band GPRS, 850, 900, 1800, EDGE 1900 MHz
Dual Band Antenna
- North America: 850, 1900 MHz
- International: 900, 1800 MHz
Data only
Does not support voice or messagi ng
Automatically reconnects aer a suspend/resume
P/N 22835-02 Copyright 10/2010
24RTK GPS Expansion Pack
Loading...
