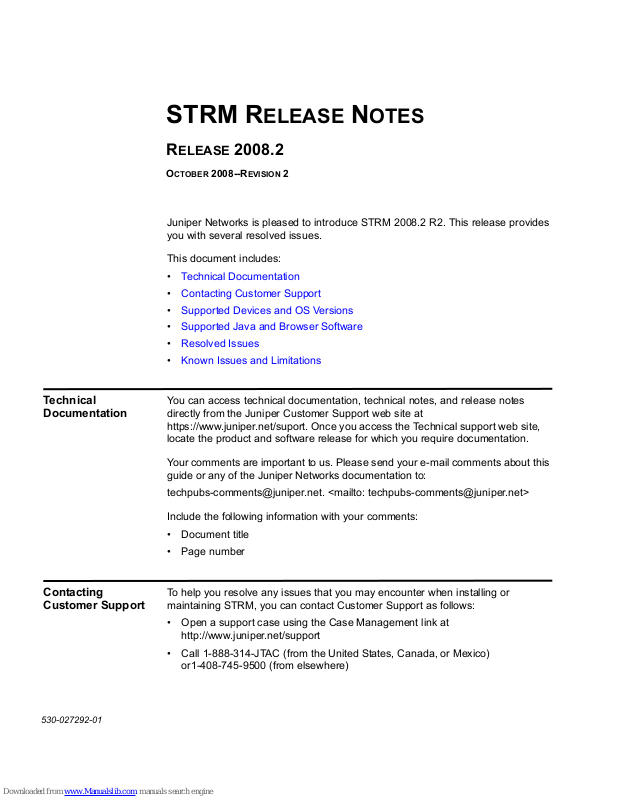

Page 1
STRM RELEASE NOTES
RELEASE 2008.2
OCTOBER 2008--REVISION 2
Juniper Networks is pleased to introduce STRM 2008.2 R2. This release provides
you with several resolved issues.
This document includes:
• Technical Documentation
• Contacting Customer Support
• Supported Devices and OS Versions
• Supported Java and Browser Software
• Resolved Issues
• Known Issues and Limitations
Technical
Documentation
Contacting
Customer Support
You can access technical documentation, technical notes, and release notes
directly from the Juniper Customer Support web site at
https://www.juniper.net/suport. Once you access the Technical support web site,
locate the product and software release for which you require documentation.
Your comments are important to us. Please send your e-mail comments about this
guide or any of the Juniper Networks documentation to:
[email protected]. <mailto: [email protected]>
Include the following information with your comments:
• Document title
• Page number
To help you resolve any issues that you may encounter when installing or
maintaining STRM, you can contact Customer Support as follows:
• Open a support case using the Case Management link at
http://www.juniper.net/support
• Call 1-888-314-JTAC (from the United States, Canada, or Mexico)
or1-408-745-9500 (from elsewhere)
530-027292-01
Page 2
2 STRM Release Notes
Supported Devices
and OS Versions
STRM 2008.2 R2 supports platforms from multiple vendors. Table 1-1 lists Juniper
Networks device families and operating systems that support NSM. The table
shows whether a device requires STRM to forward logs through NSM.
Table 1-1 Supported Juniper Networks Devices and OS Versions
Logs Sent
Logs Sent Directly to
Device Family OS
ISG with IDP 6.0, 6.1.0r2 No Yes
Firewall/VPN 6.0, 6.1.0r2 Yes Yes
Standalone IDP 4.1 Yes Yes
J-series 8.5, 9.0, 9.1,
9.2r1.10
Secure Access (SA) 6.2 Yes No
Infranet Controller
(IC)
EX-Series 9.1R2.10 Yes No
2.2 Yes No
STRM from Device
Yes No
Through NSM to
STRM
Note: For STRM to correctly process logs from SA and IC, the logs should be sent
from the devices in WELF format. To enable WELF format on the device: Under
System > Logs > Events > Settings, select the WELF filter for the syslog (STRM)
server entry in this table.
To parse logs from IC devices, the IC device needs to be manually added under
Sensor Devices.
Supported Java
STRM supports the following versions of Java and browsers:
and Browser
Software
• Java version 1.5 and later
• Internet Explorer version 7
• Firefox version 2.0
Resolved Issues This section describes the resolved issues in STRM 2008.2 R2:
Offense Now Includes Associated Events
Previously, if an event associated with an offense included a destination IP
address of 0.0.0.0, the event did not appear in the Offense interface summary or
Events list. This no longer occurs.
STRM Now Reports DDOS Attacks Correctly in the Interface
Previously, after the upgrade process, STRM failed to report DDOS attacks
accurately. This resulted in a significant increase in the number of recorded
offenses. This no longer occurs and the DDOS attacks are reported appropriately.
530-027292-01
Page 3
Resolved Issues 3
Tomcat Server Now Restarts Properly After Upgrade Process
Previously, after upgrading your STRM system, the Tomcat server failed to restart.
This was due to a missing file for the netVigilance Secure Scout scanner in the
upgrade. This no longer occurs and the Tomcat server restarts properly.
NTP Settings Now Persisted After Upgrade
Previously, after you upgraded your STRM system, the NTP settings were not
persisted. This required you to reset your NTP settings using the web-based
system administration interface. This no longer occurs and NTP settings are
persisted after the upgrade process.
Identity Table Now Updated After Upgrade
Previously, after the upgrade process, the identity table was no longer updated.
This may have caused DSMs to no longer function. This no longer occurs and the
identity table is updated after the upgrade process.
Upgrade Process No Longer Fails for Deployments with Encrypted Tunnels
Previously, if your deployment included encryption tunnels, the upgrade process
failed. This no longer occurs.
STRM No Longer Displays FlowViews Error After Upgrade
Previously, after the upgrade process, the following error appeared:
initializing FlowViews
. This error was caused by an additional line in the
Error
application configuration file that resulted in the FlowViews not being initialized.
This no longer occurs.
Applying Multiple Patches No Longer Corrupts Configuration File
Previously, if you installed multiple patches and enforced the changes (Host
Context component should restart automatically), the STRM configuration file was
corrupted. This caused a disruption in service. This no longer occurs and installing
multiple patches no longer corrupts the system.
STRM Now Able To Effectively Process Events for Large Number of Sensor
Devices.
Previously, if your deployment consisted of a large number of Sensor Devices,
your STRM system experienced reduced performance when events were
processed. This no longer occurs.
During a Restart, an Error No Longer Appears Regarding the Tomcat Server
Any changes to STRM using the web-based system administration interface
requires the Tomcat server to restart. This server may take 1 to 2 minutes to
restart. Previously, if you attempted to access the STRM interface during the
restart, a fatal error message appeared. This no longer occurs.
530-027292-01
Page 4
4 STRM Release Notes
Continuous Use of STRM Over Extended Period of Time No Longer Causes
Interface Failure
Previously, if you continued to use a session of the STRM interface for an
extended period of time, a failure occurred in your browser requiring you to restart
your system. This no longer occurs
Restoring Configuration Information for Deployment with Encrypted
Systems No Longer Fails
Previously, if you attempted to restore configuration information in a deployment
that included encrypted systems and then deployed all changes, the restore
process failed for the encrypted systems. This no longer occurs.
Accessing Right-Click Menu in Event Viewer No Longer Causes Java Error
Using the right mouse button (right click) in the Event Viewer allows you to access
additional menu options. Previously, if pop-ups were disabled in your web browser,
a Java error occurred.
Reports No Longer Stops Generating Multiple Reports When One Report
Times Out
Using the Reports interface, you can schedule multiple reports to generate within
the same time frame. All reports that are scheduled to be generated within the
same time frame are generated sequentially. Previously, when generating multiple
reports and a report in the queue required an extensive amount of time to
generate, the report generator timed out. This caused the current report and all
subsequent reports in the queue to fail the report generation process. In STRM
2008.2 R2, when generating multiple reports and the time to generate a report
exceeds the maximum time limit, the report generator skips the current report and
starts to process the next report in the list. Then, a red exclamation mark appears
beside the report in the Report interface to indicate that an issue occurred with the
generation of the report.
The end <time> Option Now Functions Properly When Checking Log
Integrity
check_ariel_integrity.sh command allows you to check the integrity of
The
event and flow logs to determine if the logs have been modified. Previously, if you
attempted to use the end <time> option, no results were returned and no errors
appeared. This no longer occurs.
DSMs Installed Prior to Upgrading Now Appear in User Interface
Previously, any DSMs that were installed prior to upgrading did not appear in the
Sensor Device Type drop-down list box in the STRM interface after the upgrade
process was complete. This no longer occurs. Any DSMs that you install prior to
upgrading now appear in the STRM interface after the upgrade process is
complete.
530-027292-01
Page 5
Resolved Issues 5
Error No Longer Occurs When Viewing Flows for Application View
Previously, in the Network Surveillance interface, when using the View Flows
function to obtain additional information on the Application view, an error appeared
indicating that no data was found. This no longer occurs.
Event Graphs In Dashboard No Longer Stop Plotting Data After Performing a
Soft Clean SEM
In the Administration Console, you can clean the SIM model using the Soft Clean
option, which closes all offenses in the database. Previously, this action resulted in
the event graphs in the Dashboard to stop plotting data. This no longer occurs.
Accessing the RIght-Click Menu Options in Offense Manager No Longer
Causes Error
Previously, in the Offense Manager, if you attempted to access the menu options
available using the right mouse button (right-click), a Java script error may have
appeared. This no longer occurs.
Reports Now Distributed Properly to Users
Previously, if an administrative user created a report and configured the report to
be distributed to another user, the designated user did not receive the report. No
error appeared and no e-mail was received. This no longer occurs and reports are
distributed properly.
Known Issues and
Limitations
General An auto-discovered EX-Series Ethernet Switch may appear incorrectly as a
This section describes the known issues and limitations for the following areas:
• General
• Deployment Editor
• Network Surveillance
• Dashboard
• Offense Manager
• Reports
“Juniper Networks Routing Platform” device.
Workaround: Add the EX-Series Ethernet Switch manually.
Objects Menu Tree May Not Appear in Equation Editor After Adding a New
Custom View
If you create a new Custom View and then open the Equation Editor, the menu tree
displaying network objects may not appear the first time you attempt to access the
menu tree. However, if you choose a new object using the drop-down list box, the
menu tree appears.
Workaround: Close the Equation Editor window and re-open.
530-027292-01
Page 6
6 STRM Release Notes
Configuring an Asset Profile View of 0 Causes Errors
In the STRM System Settings, you can configure the Asset Profile View parameter
to specify the views you wish the system to use when accumulating asset profile
data. By default, the list includes the following views: 1, 2, 15, and 16. If you set a
view to 0, an error appears in the log files. Also, if you upgrade to STRM 2008.2,
any Asset Profile View set to 0 is automatically changed to a value of 16.
Workaround: None.
Exporting Information Using CSV/XML Export may be Blocked Using Internet
Explorer 7
If you wish to download information (such as events, assets, or flows), using the
STRM Export function, you can select the Notify When Done option that enables
the browser to notify you when the download is complete. However, if you are
using Internet Explorer 7, a warning appears requiring you to select an option
menu to download the file. When you select the option menu, the browser
refreshes to the STRM Dashboard and the exported file is not downloaded.
Workaround: In Internet Explorer 7, change the Security Settings > Downloads >
Automatic Prompting for file downloads option to Enable.
Deployment Editor Able to Configure Scanner Assignments for Last Entered IP Address
When configuring scanner assignments, you are able to enter multiple IP
addresses; however, scanner assignment configurations are applied only to the IP
address that was entered last.
Workaround: Create scanner assignments for one CIDR address at a time.
Network Surveillance Graph By Lines Option May Display Multiple Lines with Same Color
When you are viewing a graph that includes multiple network view objects, the
graph may display multiple view objects using the same color since the colors are
based on the network. For example, if you are viewing the Chat, Mail, and Web
components in an Application View, each data set is different, however, since they
are based on the same network, STRM interprets the data as one, displaying each
component with the same color.
Workaround: None
Sentry Wizard Sensitivity Slider Is Reading From Lowest To Highest
When setting the alert sensitivity in the Sentry Wizard, the slider has a reading of 0
to 100. Increasing the slider to a higher number results in a lower sensitivity
reading.
Workaround: Position the slider to zero to increase the sensitivity rating.
Dashboard Time Series Charts Displays 6 Hours as Days
In the Network Surveillance interface, you can create a view and configure the new
view to display data in the Dashboard. However, if you wish to view the data for the
530-027292-01
Page 7
Resolved Issues 7
new view for a 6 hour time period in a Time Series chart, the Dashboard displays
the 6 hours as a day value.
Workaround: Change the Time Series chart to display 8 hours and then back to 6
hours to refresh the Dashboard.
Offense Manager Sorting Columns in Offense Search Results Causes Interface to Display
Inaccurate Search Results
If you search for offense and then sort a column in the search results, the display
reverts to a list of offenses that is not valid for the defined search.
Workaround: When defining your search parameters, choose your desired sort
option from Sort by drop-down list box.
An IP Address Previously Identified as a Remote Attacker Can Not Be
Created as an Offense When Creating a New Network
Even if your network hierarchy is not defined, STRM can start generating offenses.
However, STRM records all generated offenses as remote offenses since no local
systems are defined in your network hierarchy. If this occurs, any IP address that
has been previously defined as a remote attacker can not be created as an offense
when defining your network.
Workaround: You must restart the Event Correlation System (ECS). From the
command prompt, type
service ecs restart. Also, make sure your network
hierarchy is defined.
Overlapping CIDR(s) in Network Hierarchy Configuration Allows Users to
View Assets to Which They Have No Access
If your network hierarchy configuration includes overlapping CIDR ranges, a STRM
non-administrative user is able to view assets for which they have no access. They
can view a list of the restricted assets by clicking Search or Show All in the Asset
Profile window of the Offense Manager. However, an error appears if the user
attempts the edit the asset or view detailed information.
Workaround: None.
Viewing a List of Attackers May Display Blank Pages
The Offense Manager allows you to view a list of attackers for a network. If your
system includes closed offenses that have been removed from the database, the
list of attackers may not return the same number of results as the attacker count. If
the list of attacker results are returned over multiple pages, there may be several
blank pages at the end of the results. All results are included in the output.
Workaround: Click on the previous page to view information.
Exported Attacker List to XML or CSV Does Not Include Target Count
The Offense Manager allows you to export an Attacker list in XML or CSV formats.
Currently, the exported list includes a target count of zero.
Workaround: None.
530-027292-01
Page 8
8 STRM Release Notes
Reports A No Response E-mail May be Received When Attempting to E-mail
Step 1 Locate the following files:
Step 2 In the files, change the reporting address.
Step 3 From the STRM Web user interface, do a “Deploy All”.
Generated Report
When you generate a report and attempt to send a generated report to an e-mail
address, the e-mail containing the report is received from the
[email protected] e-mail address instead of the address specified in
your system settings.
Workaround:
/opt/qradar/conf/templates/reporting.properties
•
• /opt/qradar/conf/reporting.properties
To: the address specified in your system settings.
Copyright Notice
Copyright © 2008 Juniper Networks, Inc. All rights reserved. Juniper Networks and the Juniper Networks logo are registered trademarks of Juniper Networks Inc.
in the United States and other countries. All other trademarks, service marks, registered trademarks, or registered service marks in this document are the property of
Juniper Networks or their respective owners. All specifications are subject to change without notice. Juniper Networks assumes no responsibility for any inaccuracies
in this document or for any obligation to update information in this document. Juniper Networks reserves the right to change, modify, transfer, or otherwise revise
this publication without notice.
Part Number 530-027292-01
530-027292-01
Loading...
