Juniper SRX4100 User Manual

Download

SRX4100 Services Gateway Hardware

Published

2020-05-20

Guide

Juniper Networks, Inc. 1133 Innovation Way Sunnyvale, California 94089 USA 408-745-2000 www.juniper.net

Juniper Networks, the Juniper Networks logo, Juniper, and Junos are registered trademarks of Juniper Networks, Inc. in the United States and other countries. All other trademarks, service marks, registered marks, or registered service marks are the property of their respective owners.

Juniper Networks assumes no responsibility for any inaccuracies in this document. Juniper Networks reserves the right to change, modify, transfer, or otherwise revise this publication without notice.

SRX4100 Services Gateway Hardware Guide

The information in this document is current as of the date on the title page.

YEAR 2000 NOTICE

Juniper Networks hardware and software products are Year 2000 compliant. Junos OS has no known time-related limitations through the year 2038. However, the NTP application is known to have some difficulty in the year 2036.

END USER LICENSE AGREEMENT

The Juniper Networks product that is the subject of this technical documentation consists of (or is intended for use with) Juniper Networks software. Use of such software is subject to the terms and conditions of the End User License Agreement (“EULA”) posted at https://support.juniper.net/support/eula/. By downloading, installing or using such software, you agree to the terms and conditions of that EULA.

About the Documentation | ix

Documentation and Release Notes | ix

Using the Examples in This Manual | ix

Merging a Full Example | x

Merging a Snippet | xi

Documentation Conventions | xi

Documentation Feedback | xiv

Requesting Technical Support | xiv

Self-Help Online Tools and Resources | xv

Creating a Service Request with JTAC | xv

iii

Overview

SRX4100 Services Gateway Overview | 17

Field-Replaceable Units in SRX4100 Services Gateways | 18

Benefits of the SRX4100 Services Gateway | 18

SRX4100 Chassis | 18

SRX4100 Services Gateway Chassis Overview | 19

SRX4100 Services Gateway Front Panel | 19

Chassis Status LEDs | 20

Management Port LEDs | 21

HA Port LEDs | 21

Network Port LEDs | 22

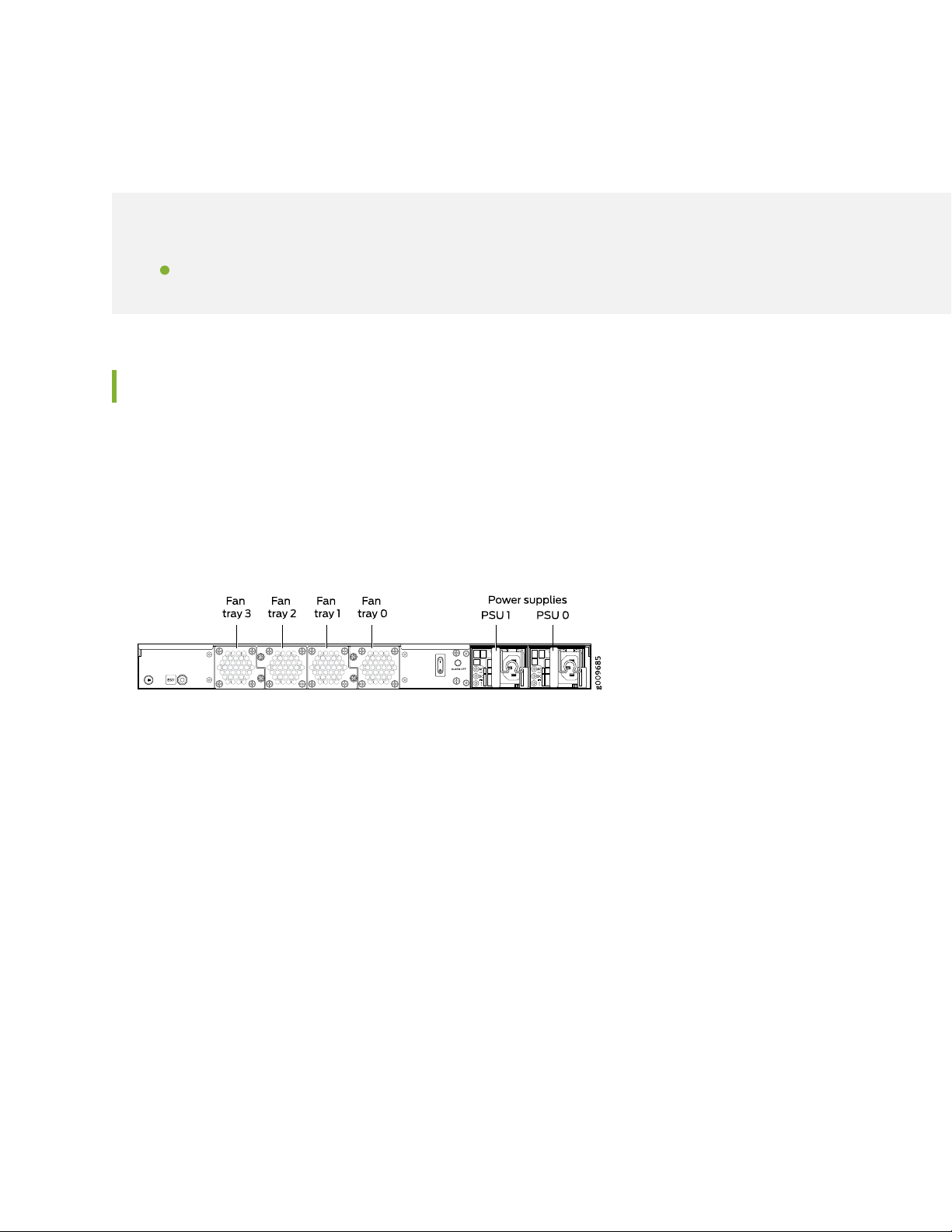

SRX4100 Services Gateway Back Panel | 22

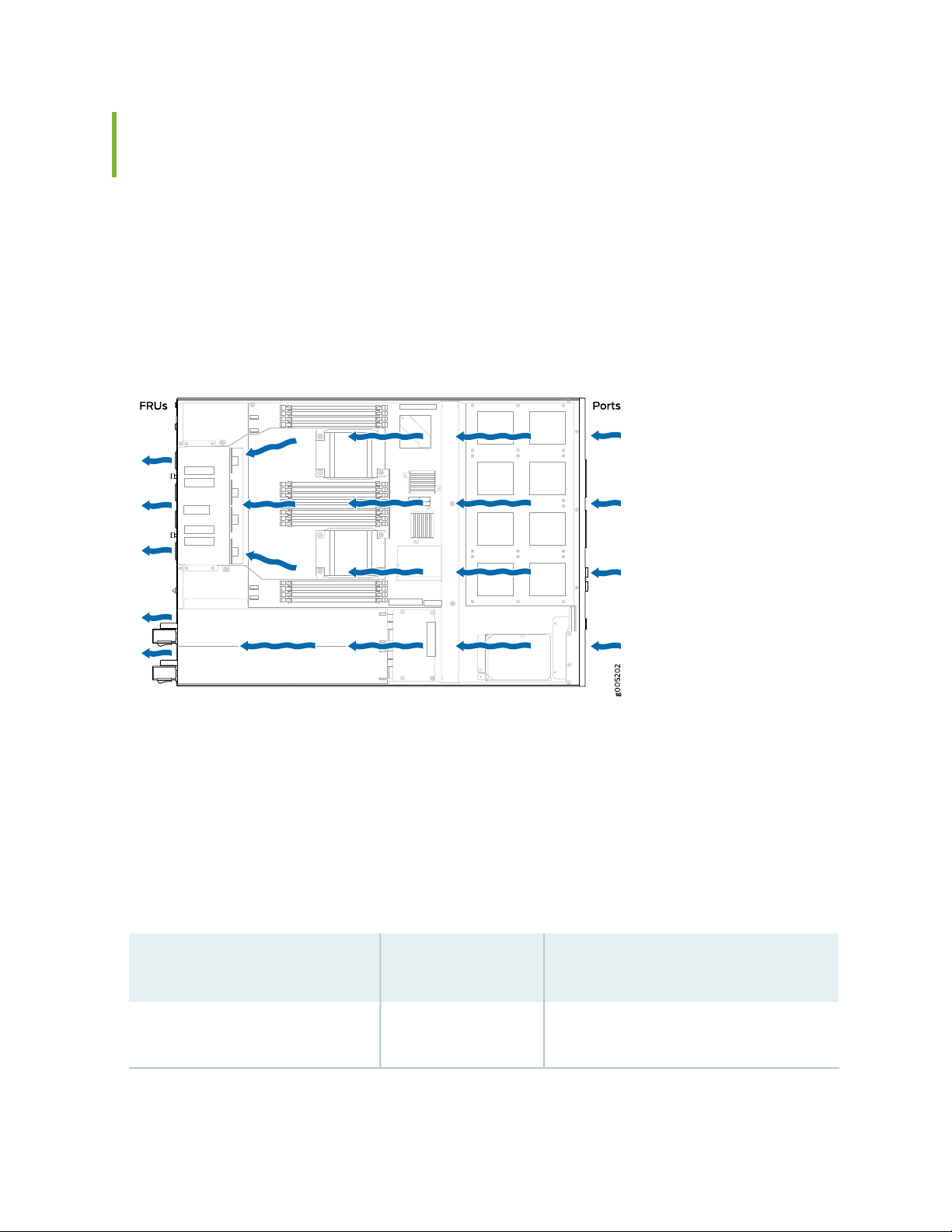

SRX4100 Cooling System | 23

SRX4100 Power System | 24

SRX4100 Power Supply | 25

AC Power Supply | 25

DC Power Supply | 27

AC Power Supply Specifications for SRX4100 Services Gateways | 28

AC Power Cord Specifications for the SRX4100 Services Gateway | 29

DC Power Supply Specifications for SRX4100 Services Gateways | 30

Site Planning, Preparation, and Specifications

SRX4100 Site Preparation Checklist | 33

SRX4100 Site Guidelines and Requirements | 34

General Site Installation Guidelines | 35

SRX4100 Services Gateway Environmental Specifications | 35

Site Electrical Wiring Guidelines | 35

SRX4100 Services Gateway Physical Specifications | 37

Clearance Requirements for Airflow and Hardware Maintenance for SRX4100 Services

Gateways | 38

SRX4100 Services Gateway Rack Requirements | 39

Cabinet Requirements for SRX4100 Services Gateways | 40

SRX4100 Transceiver Specifications and Pinouts | 41

Pluggable Transceivers Supported on SRX4100 Services Gateways | 41

SFP+ Direct Attach Copper Cables for SRX4100 Services Gateways | 42

Management Port Connector Pinout Information for an SRX4100 Services Gateway | 43

Console Port Connector Pinout Information for an SRX4100 Services Gateway | 43

Initial Installation and Configuration

SRX4100 Installation Overview | 46

Unpacking and Mounting the SRX4100 | 46

Unpacking the SRX4100 Services Gateway | 46

Verifying Parts Received with the SRX4100 Services Gateway | 47

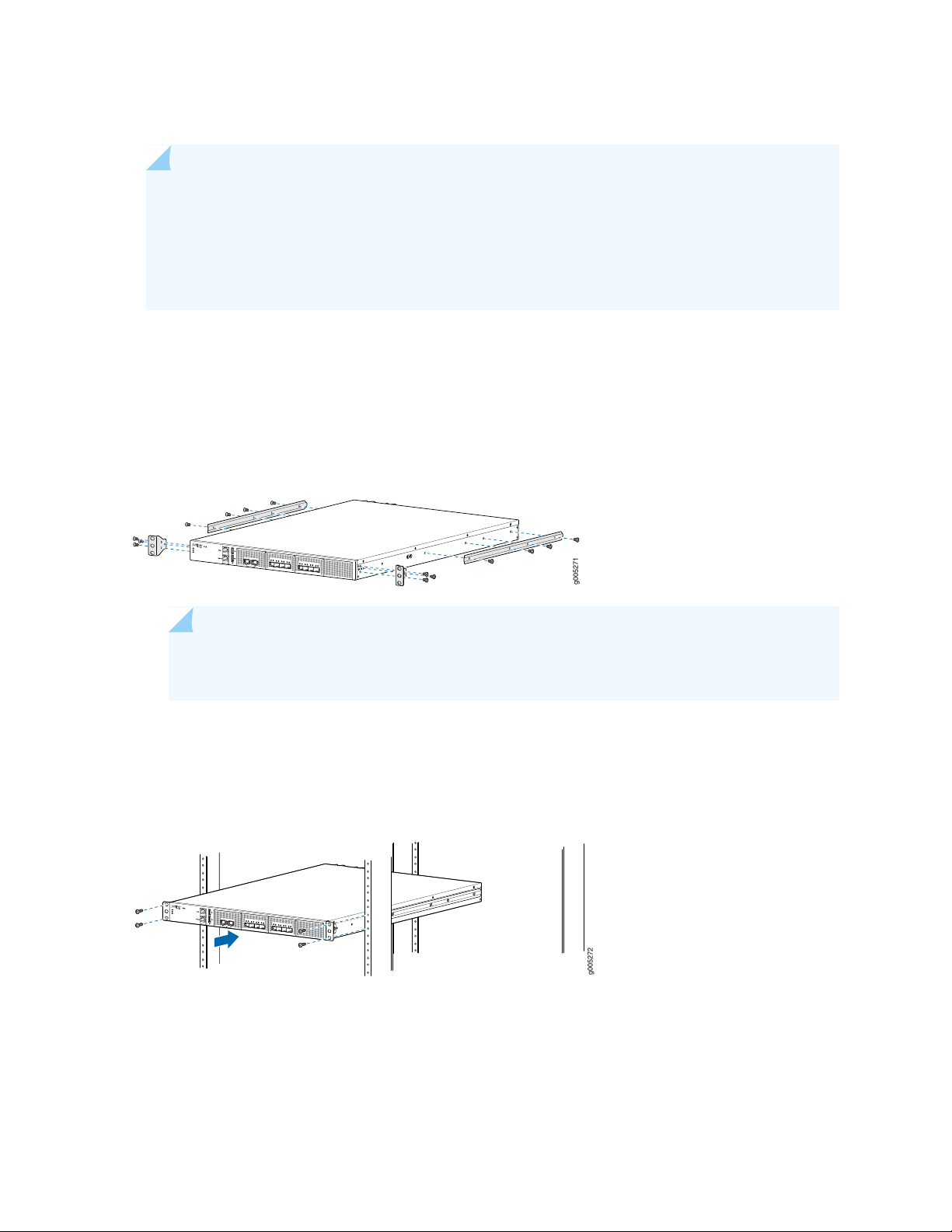

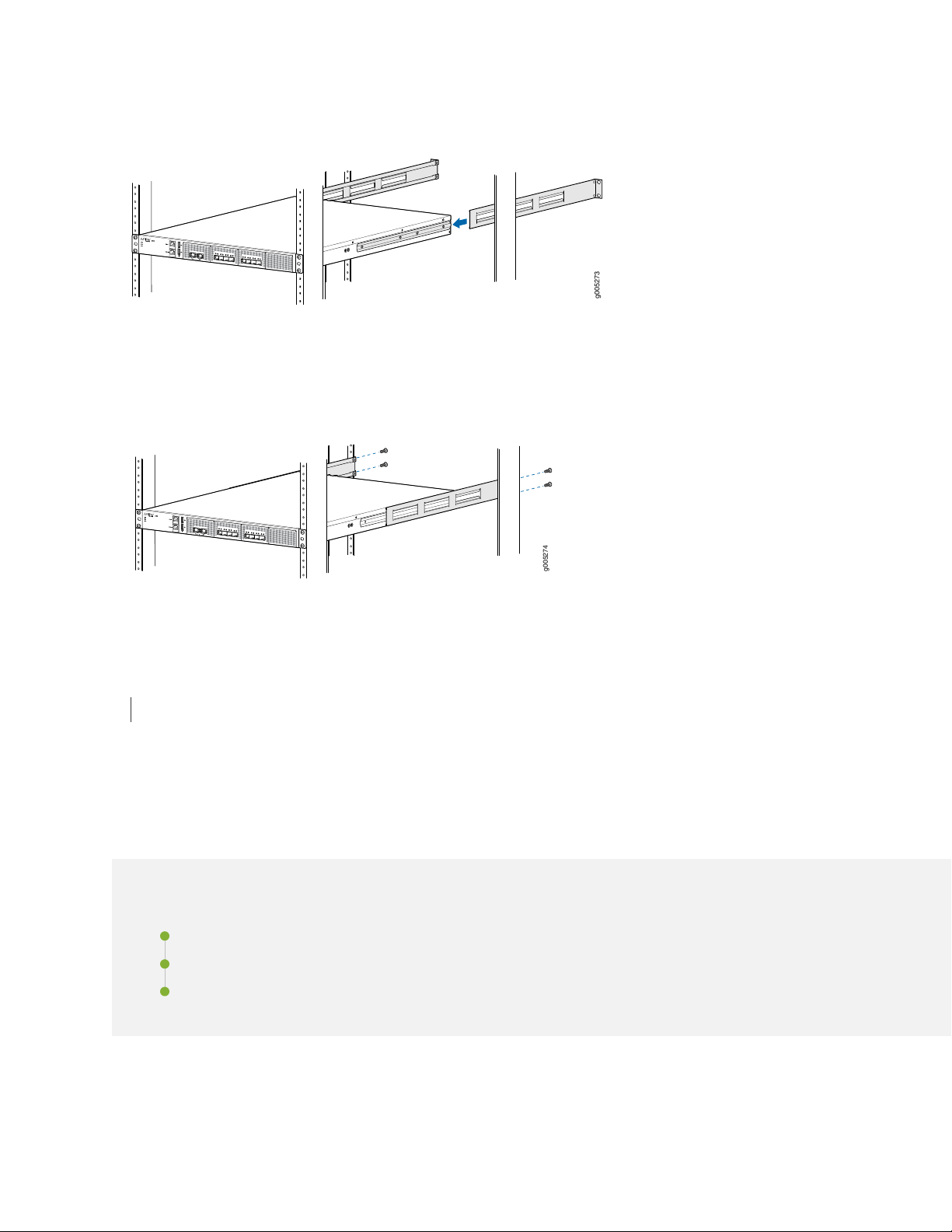

Installing the SRX4100 Services Gateway in a Rack | 48

Connecting the SRX4100 to Power | 50

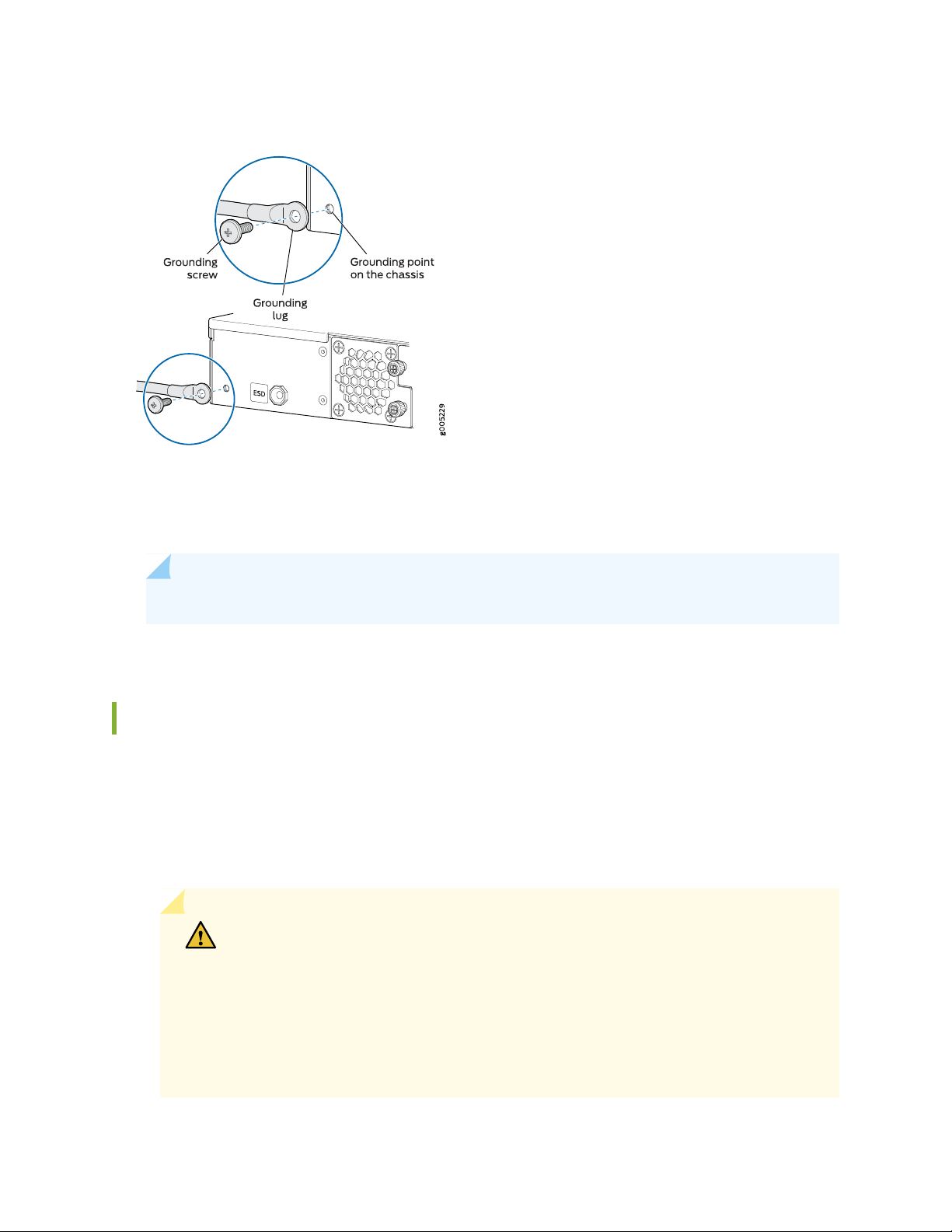

Connecting the SRX4100 Services Gateway Grounding Cable | 51

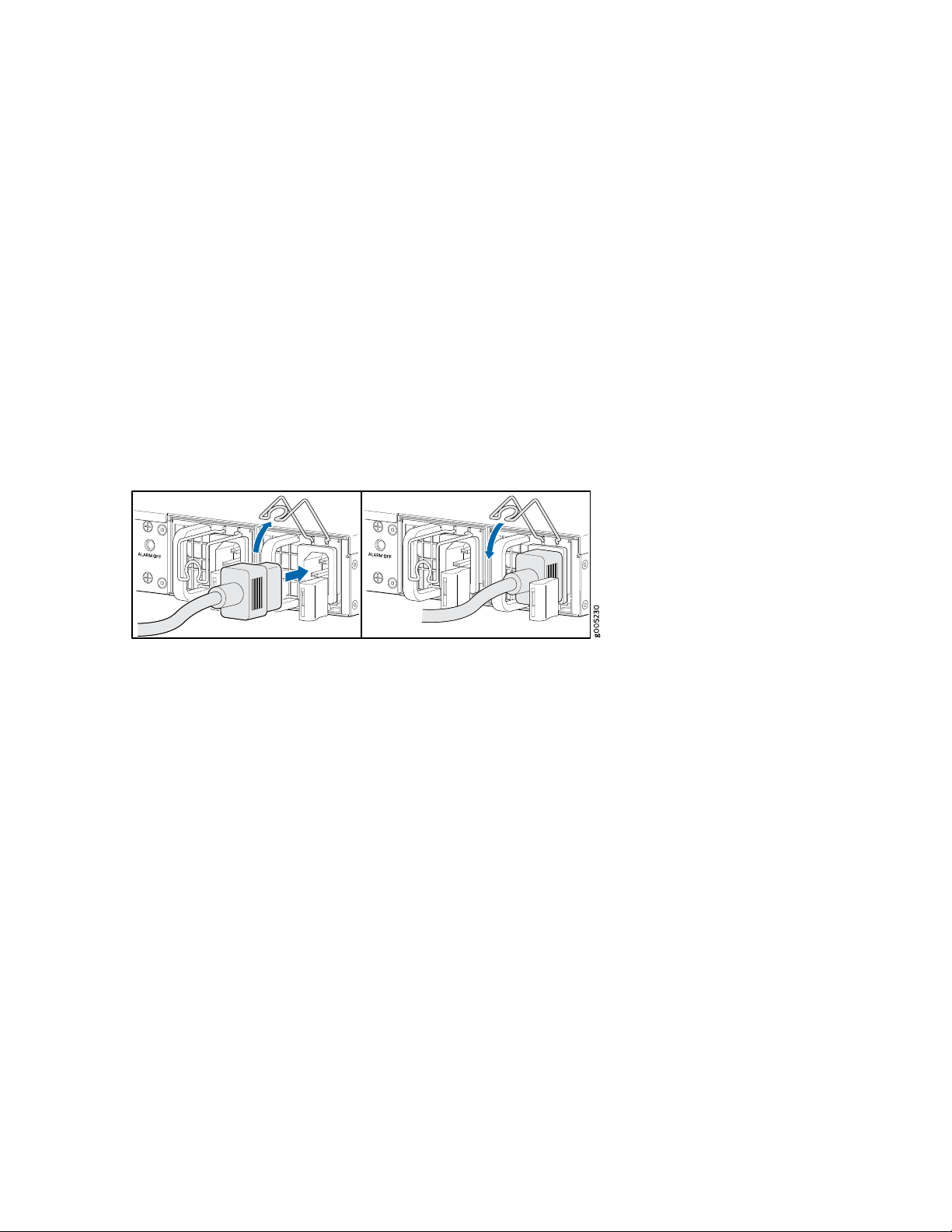

Connecting AC Power to an SRX4100 Services Gateway | 52

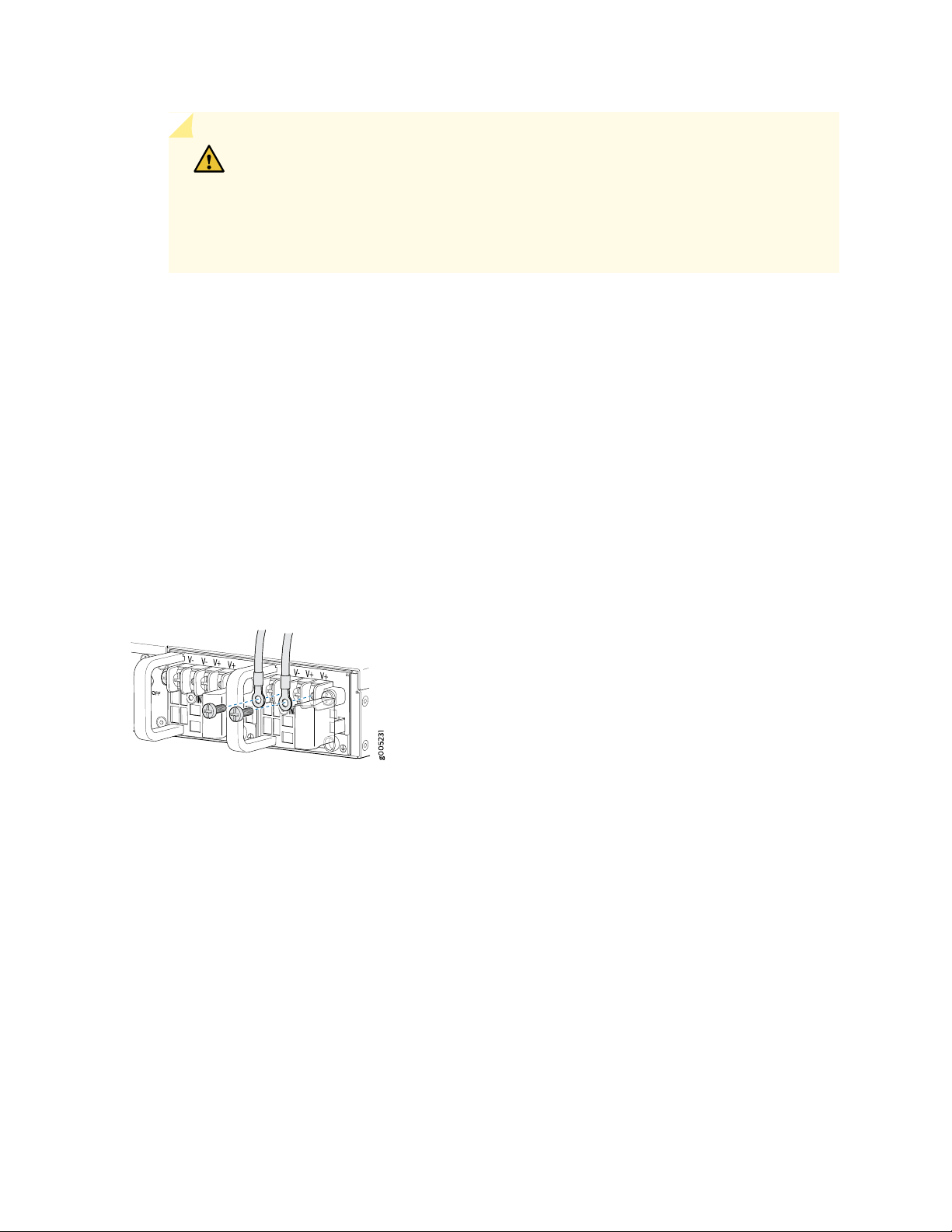

Connecting DC Power to an SRX4100 Services Gateway | 54

Connecting the SRX4100 Services Gateway to a Management Console | 56

Configuring Junos OS on the SRX4100 | 57

SRX4100 Services Gateway Software Configuration Overview | 57

SRX4100 Services Gateway Factory-Default Settings | 57

Viewing Factory-Default Settings | 58

Configuring the SRX4100 Services Gateway | 58

Maintaining Components

Routine Maintenance Procedures for the SRX4100 | 62

Maintaining the SRX4100 Power System | 62

Replacing an AC Power Supply on the SRX4100 | 63

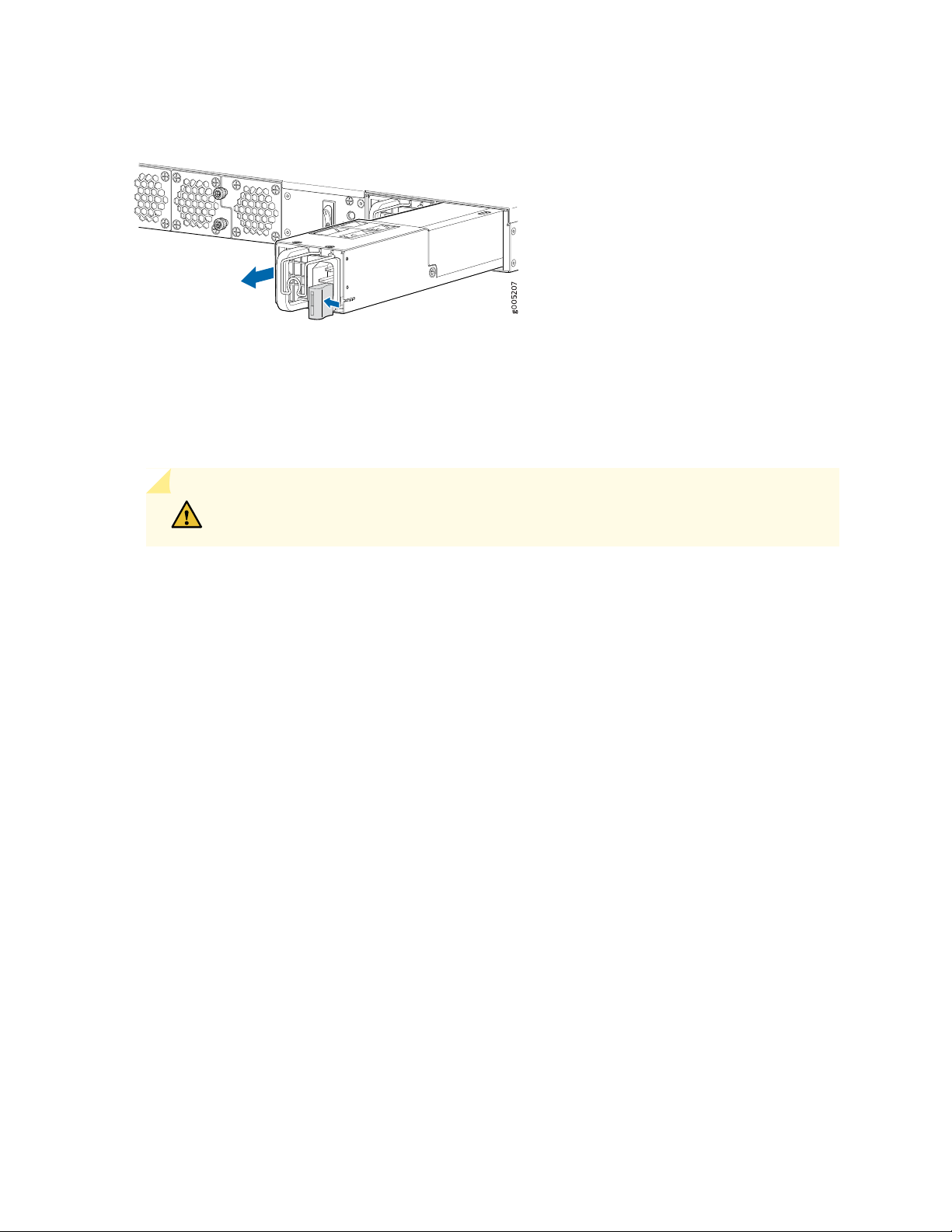

Removing an AC Power Supply from an SRX4100 Services Gateway | 63

Installing an AC Power Supply in an SRX4100 Services Gateway | 64

Replacing a DC Power Supply on the SRX4100 | 65

Removing a DC Power Supply from an SRX4100 Services Gateway | 66

Installing a DC Power Supply in an SRX4100 Services Gateway | 67

Maintaining the SRX4100 Cooling System | 68

Replacing the SRX4100 Services Gateway Fan Tray | 68

Troubleshooting Hardware

Troubleshooting the SRX4100 | 71

Troubleshooting Resources for the SRX4100 Services Gateway | 71

Monitoring Chassis Alarms on a SRX4100 Services Gateway | 71

Using the RESET Button on the SRX4100 Services Gateway | 73

Contacting Customer Support and Returning the Chassis or Components

Returning the SRX4100 Chassis or Components | 75

Contacting Customer Support | 75

Returning a SRX4100 Services Gateway or Component to Juniper Networks | 76

Locating the Serial Number on the SRX4100 Services Gateway or Component | 77

Listing the SRX4100 Services Gateway Component Details with the CLI | 77

Locating the Chassis Serial Number ID Label | 78

Locating the Serial Number ID Labels on FRUs | 78

Packing a SRX4100 Services Gateway or Component for Shipping | 78

Packing the SRX4100 Services Gateway for Shipment | 79

Packing the SRX4100 Services Gateway Components for Shipment | 80

Safety and Compliance Information

General Safety Guidelines and Warnings | 83

Definitions of Safety Warning Levels | 84

Restricted Access Area Warnings | 88

Qualified Personnel Warning | 91

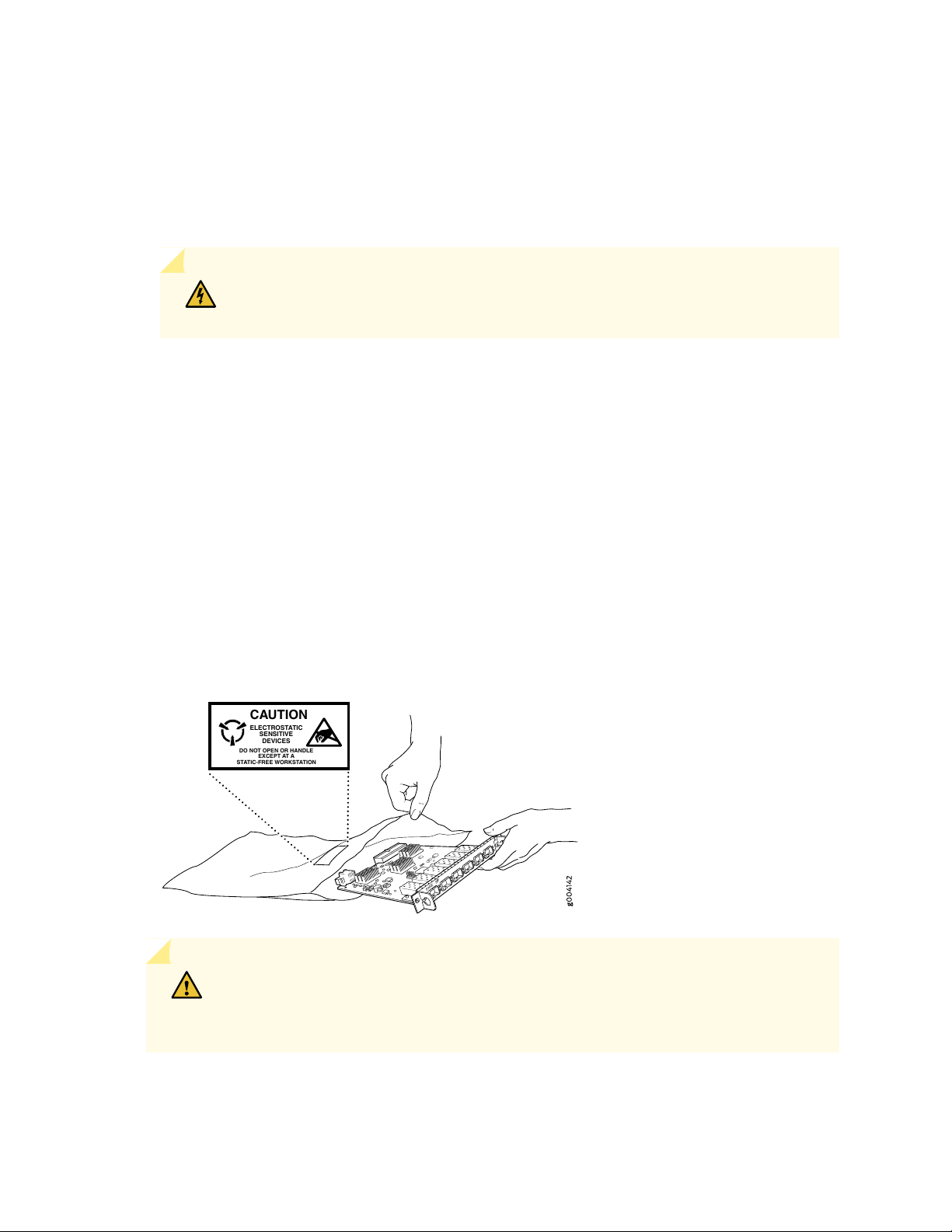

Prevention of Electrostatic Discharge Damage | 91

Fire Safety Requirements | 93

Fire Suppression | 93

Fire Suppression Equipment | 93

Laser and LED Safety Guidelines and Warnings | 94

General Laser Safety Guidelines | 94

Class 1 Laser Product Warning | 95

Class 1 LED Product Warning | 96

Laser Beam Warning | 97

Radiation from Open Port Apertures Warning | 98

Maintenance and Operational Safety Guidelines and Warnings | 99

Battery Handling Warning | 100

Jewelry Removal Warning | 101

Lightning Activity Warning | 103

Operating Temperature Warning | 104

Product Disposal Warning | 106

General Electrical Safety Guidelines and Warnings | 107

Safety Guidelines and Warnings | 107

Grounded Equipment Warning | 108

Backplane Energy Hazard Warning | 108

Multiple Power Supplies Disconnection Warning | 109

Power Disconnection Warning | 110

vii

TN Power Warning | 111

Copper Conductors Warning | 112

AC Power Electrical Safety Guidelines | 112

DC Power Electrical Safety Guidelines | 113

DC Power Disconnection Warning | 115

DC Power Grounding Requirements and Warning | 117

DC Power Wiring Sequence Warning | 119

DC Power Wiring Terminations Warning | 122

Action to Take After an Electrical Accident | 124

Agency Approvals | 124

Acoustic Noise Compliance Statements | 126

EMC Requirements | 126

Canada | 126

European Community | 127

Israel | 127

Japan | 127

United States | 127

viii

About the Documentation

IN THIS SECTION

Documentation and Release Notes | ix

Using the Examples in This Manual | ix

Documentation Conventions | xi

Documentation Feedback | xiv

Requesting Technical Support | xiv

Use this guide to install hardware and perform initial software configuration, routine maintenance, and troubleshooting for the SRX4100 Services Gateway. After completing the installation and basic configuration procedures covered in this guide, refer to the Junos OS documentation for information about further software configuration.

Documentation and Release Notes

To obtain the most current version of all Juniper Networks®technical documentation, see the product documentation page on the Juniper Networks website at https://www.juniper.net/documentation/.

If the information in the latest release notes differs from the information in the documentation, follow the product Release Notes.

Juniper Networks Books publishes books by Juniper Networks engineers and subject matter experts. These books go beyond the technical documentation to explore the nuances of network architecture, deployment, and administration. The current list can be viewed at https://www.juniper.net/books.

Using the Examples in This Manual

If you want to use the examples in this manual, you can use the load merge or the load merge relative command. These commands cause the software to merge the incoming configuration into the current candidate configuration. The example does not become active until you commit the candidate configuration.

If the example configuration contains the top level of the hierarchy (or multiple hierarchies), the example is a full example. In this case, use the load merge command.

If the example configuration does not start at the top level of the hierarchy, the example is a snippet. In this case, use the load merge relative command. These procedures are described in the following sections.

Merging a Full Example

To merge a full example, follow these steps:

1. From the HTML or PDF version of the manual, copy a configuration example into a text file, save the file with a name, and copy the file to a directory on your routing platform.

For example, copy the following configuration to a file and name the file ex-script.conf. Copy the ex-script.conf file to the /var/tmp directory on your routing platform.

system {

scripts {

commit {

file ex-script.xsl;

}

} } interfaces {

fxp0 {

disable; unit 0 {

family inet {

address 10.0.0.1/24;

}

} }

2. Merge the contents of the file into your routing platform configuration by issuing the load merge configuration mode command:

[edit] user@host# load merge /var/tmp/ex-script.conf load complete

Merging a Snippet

To merge a snippet, follow these steps:

1. From the HTML or PDF version of the manual, copy a configuration snippet into a text file, save the file with a name, and copy the file to a directory on your routing platform.

For example, copy the following snippet to a file and name the file ex-script-snippet.conf. Copy the ex-script-snippet.conf file to the /var/tmp directory on your routing platform.

commit {

file ex-script-snippet.xsl; }

2. Move to the hierarchy level that is relevant for this snippet by issuing the following configuration mode command:

[edit] user@host# edit system scripts [edit system scripts]

3. Merge the contents of the file into your routing platform configuration by issuing the load merge relative configuration mode command:

[edit system scripts] user@host# load merge relative /var/tmp/ex-script-snippet.conf load complete

For more information about the load command, see CLI Explorer.

Documentation Conventions

Table 1 on page xii defines notice icons used in this guide.

Table 1: Notice Icons

xii

DescriptionMeaningIcon

Indicates important features or instructions.Informational note

Caution

Indicates a situation that might result in loss of data or hardware damage.

Alerts you to the risk of personal injury or death.Warning

Alerts you to the risk of personal injury from a laser.Laser warning

Indicates helpful information.Tip

Alerts you to a recommended use or implementation.Best practice

Table 2 on page xii defines the text and syntax conventions used in this guide.

Table 2: Text and Syntax Conventions

ExamplesDescriptionConvention

Fixed-width text like this

Italic text like this

Represents text that you type.Bold text like this

Represents output that appears on the terminal screen.

Introduces or emphasizes important

•

new terms.

Identifies guide names.

•

Identifies RFC and Internet draft

•

titles.

To enter configuration mode, type the configure command:

user@host> configure

user@host> show chassis alarms

No alarms currently active

A policy term is a named structure

•

that defines match conditions and actions.

Junos OS CLI User Guide

•

RFC 1997, BGP Communities

•

Attribute

Table 2: Text and Syntax Conventions (continued)

xiii

ExamplesDescriptionConvention

Italic text like this

Text like this

< > (angle brackets)

| (pipe symbol)

Represents variables (options for which you substitute a value) in commands or configuration statements.

Represents names of configuration statements, commands, files, and directories; configuration hierarchy levels; or labels on routing platform components.

variables.

Indicates a choice between the mutually exclusive keywords or variables on either side of the symbol. The set of choices is often enclosed in parentheses for clarity.

Configure the machine’s domain name:

[edit] root@# set system domain-name

domain-name

To configure a stub area, include

•

the stub statement at the [edit protocols ospf area area-id]

hierarchy level.

The console port is labeled

•

CONSOLE.

stub <default-metric metric>;Encloses optional keywords or

broadcast | multicast

(string1 | string2 | string3)

# (pound sign)

[ ] (square brackets)

Indention and braces ( { } )

; (semicolon)

GUI Conventions

Indicates a comment specified on the same line as the configuration statement to which it applies.

Encloses a variable for which you can substitute one or more values.

Identifies a level in the configuration hierarchy.

Identifies a leaf statement at a configuration hierarchy level.

rsvp { # Required for dynamic MPLS only

community name members [ community-ids ]

[edit] routing-options {

static {

route default {

nexthop address; retain;

}

Table 2: Text and Syntax Conventions (continued)

xiv

ExamplesDescriptionConvention

Bold text like this

> (bold right angle bracket)

Represents graphical user interface (GUI) items you click or select.

Separates levels in a hierarchy of menu selections.

In the Logical Interfaces box, select

•

All Interfaces.

To cancel the configuration, click

•

Cancel.

In the configuration editor hierarchy, select Protocols>Ospf.

Documentation Feedback

We encourage you to provide feedback so that we can improve our documentation. You can use either of the following methods:

Online feedback system—Click TechLibrary Feedback, on the lower right of any page on the Juniper

•

Networks TechLibrary site, and do one of the following:

Click the thumbs-up icon if the information on the page was helpful to you.

•

Click the thumbs-down icon if the information on the page was not helpful to you or if you have

•

suggestions for improvement, and use the pop-up form to provide feedback.

E-mail—Send your comments to techpubs-comments@juniper.net. Include the document or topic name,

•

URL or page number, and software version (if applicable).

Requesting Technical Support

Technical product support is available through the Juniper Networks Technical Assistance Center (JTAC). If you are a customer with an active Juniper Care or Partner Support Services support contract, or are

covered under warranty, and need post-sales technical support, you can access our tools and resources online or open a case with JTAC.

JTAC policies—For a complete understanding of our JTAC procedures and policies, review the JTAC User

•

Guide located at https://www.juniper.net/us/en/local/pdf/resource-guides/7100059-en.pdf.

Product warranties—For product warranty information, visit https://www.juniper.net/support/warranty/.

•

JTAC hours of operation—The JTAC centers have resources available 24 hours a day, 7 days a week,

•

365 days a year.

Self-Help Online Tools and Resources

For quick and easy problem resolution, Juniper Networks has designed an online self-service portal called the Customer Support Center (CSC) that provides you with the following features:

Find CSC offerings: https://www.juniper.net/customers/support/

•

Search for known bugs: https://prsearch.juniper.net/

•

Find product documentation: https://www.juniper.net/documentation/

•

Find solutions and answer questions using our Knowledge Base: https://kb.juniper.net/

•

Download the latest versions of software and review release notes:

•

https://www.juniper.net/customers/csc/software/

Search technical bulletins for relevant hardware and software notifications:

•

https://kb.juniper.net/InfoCenter/

Join and participate in the Juniper Networks Community Forum:

•

https://www.juniper.net/company/communities/

Create a service request online: https://myjuniper.juniper.net

•

To verify service entitlement by product serial number, use our Serial Number Entitlement (SNE) Tool:

https://entitlementsearch.juniper.net/entitlementsearch/

Creating a Service Request with JTAC

You can create a service request with JTAC on the Web or by telephone.

Visit https://myjuniper.juniper.net.

•

Call 1-888-314-JTAC (1-888-314-5822 toll-free in the USA, Canada, and Mexico).

•

For international or direct-dial options in countries without toll-free numbers, see

https://support.juniper.net/support/requesting-support/.

CHAPTER

Overview

SRX4100 Services Gateway Overview | 17

SRX4100 Chassis | 18

SRX4100 Cooling System | 23

SRX4100 Power System | 24

SRX4100 Services Gateway Overview

IN THIS SECTION

SRX4100 Services Gateway Overview | 17

Field-Replaceable Units in SRX4100 Services Gateways | 18

Benefits of the SRX4100 Services Gateway | 18

SRX4100 Services Gateway Overview

The Juniper Networks SRX4100 Services Gateway is a high-performance, scalable mid-range services gateway, which consolidates security, next-generation firewall, and advanced threat prevention capabilities to provide secure connectivity. The services gateway supports 20 Gbps IMIX throughput and is suited for small to medium enterprises and data centers.

The SRX4100 Services Gateway supports advanced threat prevention through Sky Advanced Threat Prevention (Sky ATP) and Spotlight Secure Threat Intelligence, in addition to key features such as VPN, IPS, and UTM.

The chassis is 1 U high and is designed for rack installation. The services gateway is shipped with dual power supplies and is available in both AC-powered and DC-powered versions:

SRX4100 (AC) — SRX4100 Services Gateway with dual AC power supplies

•

SRX4100 (DC) — SRX4100 Services Gateway with dual DC power supplies

•

The SRX4100 Services Gateway comes with 64 GB of DDR4 memory and two 240-GB solid-state drives (SSDs) in a redundant array of independent disks (RAID). Both disks are configured as a RAID-1 mirror (data is concurrently written to both SSDs). If one SSD becomes inoperable, the other SSD continues to be active.

The services gateway runs the Junos OS and can be managed using the CLI, Junos Space, and J-Web.

SEE ALSO

SRX4100 Services Gateway Physical Specifications | 37 SRX4100 Services Gateway Environmental Specifications | 35

Field-Replaceable Units in SRX4100 Services Gateways

Field-replaceable units (FRUs) are components that you can replace at your site. The FRUs on the SRX4100 Services Gateway are hot-removable and hot-insertable. You can remove and replace them without powering off the services gateway. The services gateway supports the following FRUs:

AC power supplies

•

DC power supplies

•

Fan trays

•

SEE ALSO

SRX4100 Power Supply | 25

Benefits of the SRX4100 Services Gateway

High performance—The SRX4100 supports up to 40-Gbps firewall throughput (up to 20-Gbps of IMIX

•

firewall throughput) and is suited for enterprise campus and data center edge deployments.

Advanced threat protection—The SRX4000 line of services gateways supports the intrusion prevention

•

system (IPS), Juniper Sky Advanced Threat Prevention (Juniper Sky ATP), antivirus, and antispam features, which protect against potential vulnerabilities. Juniper Sky ATP protects against zero-day attacks and other unknown threats.

SRX4100 Chassis

IN THIS SECTION

SRX4100 Services Gateway Chassis Overview | 19

SRX4100 Services Gateway Front Panel | 19

SRX4100 Services Gateway Back Panel | 22

SRX4100 Services Gateway Chassis Overview

The 4100 Services Gateway chassis is a rigid sheet metal structure that houses all the other hardware components. The chassis measures 1.75 in. high, 17.48 in. wide, and 25 in. deep. The chassis installs in standard 600-mm deep (or larger) enclosed cabinets or 19-in. equipment racks.

CAUTION: Before removing or installing components of a functioning services

gateway, attach an electrostatic discharge (ESD) strap to an ESD point and place the other end of the strap around your bare wrist. Failure to use an ESD strap could result in damage to the device.

The services gateway must be connected to earth ground during normal operation.

SRX4100 Services Gateway Front Panel

Figure 1 on page 19 shows the front panel of the SRX4100 Services Gateway.

Figure 1: SRX4100 Services Gateway Front Panel

Table 3 on page 19 lists the components on the front panel of the services gateway.

Table 3: SRX4100 Services Gateway Components on the Front Panel

DescriptionComponentNumber

Gigabit Ethernet port to connect to the device over the network.Management port1

Two USB 2.0 ports that accept a USB storage device.USB ports2

HA ports3

Two 10-Gigabit Ethernet ports, CTL (control port) and FAB (fabric port), to synchronize data and maintain state information in a chassis cluster setup. These ports support enhanced small form-factor pluggable (SFP+) transceivers.

Table 3: SRX4100 Services Gateway Components on the Front Panel (continued)

g005228

Power

Status

SSD

DescriptionComponentNumber

SFP+ ports4

Console port6

Eight 1-Gigabit Ethernet/10-Gigabit Ethernet SFP+ ports for network traffic.

Indicate component and system status at a glance.LEDs5

Connects a laptop to the services gateway for CLI management. The port uses an RJ-45 serial connection, is configured as DTE, and supports the RS-232 (EIA-232) standard.

Returns the services gateway to the factory-default configuration.Reset button7

Chassis Status LEDs

Figure 2 on page 20 shows the LEDs on the front panel, and Table 4 on page 20 describes the LEDs.

Figure 2: SRX4100 Services Gateway Front Panel LEDs

Table 4: SRX4100 Services Gateway Front Panel LEDs

DescriptionLED

Solid green—receiving powerPower

•

Status

Solid green—operating normally

•

Solid red—critical alarm

•

Hardware component failure

•

Software module failure

•

Fan failure (atleast one)

•

Blinking red—noncritical alarm

•

The other HA node is in the lost, disabled, or ineligible state.

•

Off—the system is not receiving power

•

Table 4: SRX4100 Services Gateway Front Panel LEDs (continued)

DescriptionLED

Blinking green—indicates hard disk drive (SSD) activitySSD

•

Management Port LEDs

The management port has two LEDs that indicate link activity and status of the management port.

Table 5 on page 21 describes the LEDs.

Table 5: Management Port LEDs

DescriptionLED

Link/Activity (LED on the left)

Speed (LED on the right)

Solid amber—A link is established, but there is no activity on the link.

•

Blinking amber—There is link activity.

•

Off—There is no link established.

•

Solid green—100-Mbps link is established.

•

Solid amber—1000-Mbps link is established.

•

Off—There is no link established.

•

HA Port LEDs

Each HA port has one status LED located between the ports. Figure 3 on page 21 shows the LEDs. The upper LED (callout 1) displays the status for the port on the right and the lower LED (callout 2) displays the status for the port on the left. Table 6 on page 22 describes the LEDs.

Figure 3: HA Port LEDs

Table 6: HA Port LEDs

DescriptionLED

Status LED

Solid amber—A link is established.

•

Blinking amber—There is link activity.

•

Off—There is no link established.

•

Network Port LEDs

Each SFP+ port has two status LEDs located above the port. Table 7 on page 22 describes the LEDs.

Figure 4 on page 22 shows the LEDs.

Figure 4: Network Port LEDs

Table 7: Network Port LEDs

DescriptionLEDCallout

Link (LED on the left)

Speed/Activity (LED on the right)

Solid green—There is link activity.

•

Off—There is no link established.

•

Solid amber—10 G/1 G link is established.

•

Blinking amber—There is activity on the 10 G/1 G link.

•

Off—There is no link established.

•

SRX4100 Services Gateway Back Panel

Figure 5 on page 23 shows the back panel of the SRX4100 Services Gateway, and Table 8 on page 23 lists

and describes the back panel components.

Figure 5: SRX4100 Services Gateway Back Panel

Table 8: SRX4100 Services Gateway Back Panel Components

DescriptionComponentNumber

Connects the services gateway chassis to earth ground.Grounding point1

Use the Power switch to power on or power off the services gateway.Power switch2

Alarm Off button3

ESD point4

Fan trays5

Power supply6

Use this button to turn off an alarm triggered because of an abnormal DC output voltage caused by any of the following:

Only one power supply unit is plugged in.

•

The AC power cord is not plugged in.

•

The power supply unit is not functional and there is no DC output.

•

For personal safety, while working on the services gateway, use the ESD outlet to plug in an ESD grounding strap to prevent your body from sending static charges to the services gateway.

Four fan trays for cooling the services gateway and its components. Each fan tray contains two fans.

Three fan trays are required for proper air flow across the chassis internal components. The fourth fan tray provides redundancy.

Two power supply slots. Each power supply contains a power cord outlet. Two 650-W DC or AC power supplies are provided with the services gateway.

SRX4100 Cooling System

The cooling system for the services gateway consists of four fan trays located at the rear of the chassis. Each fan tray contains two fans, so there are a total of eight fans. The fans draw cool air through vents on

the front of the chassis and exhaust the air through the back of the chassis. See Figure 6 on page 24. The airflow produced by the fans keeps device components within the acceptable temperature range.

If any one of the four fan trays fails, the services gateway generates a warning but keeps the system running. If the temperature keeps rising, the services gateway lowers the power consumption by reducing the performance or shutting down some of the chassis components. However, if the ambient maximum temperature exceeds the warning level and the system cannot be adequately cooled, then the services gateway shuts down the system and hardware components completely.

The fan trays are hot-swappable field-replaceable units (FRUs). The fans are not field-replaceable.

Figure 6: Airflow Through the Chassis

RELATED DOCUMENTATION

Clearance Requirements for Airflow and Hardware Maintenance for SRX4100 Services Gateways | 38

SRX4100 Power System

IN THIS SECTION

SRX4100 Power Supply | 25

AC Power Supply Specifications for SRX4100 Services Gateways | 28

AC Power Cord Specifications for the SRX4100 Services Gateway | 29

DC Power Supply Specifications for SRX4100 Services Gateways | 30

SRX4100 Power Supply

IN THIS SECTION

AC Power Supply | 25

DC Power Supply | 27

The SRX4100 Services Gateway is shipped with two AC or two DC power supply units preinstalled in the rear panel. Each power supply provides power to all components in the services gateway. If one power supply fails or is removed, the remaining power supply redistributes the electrical load without interruption. Each power supply is cooled by its own internal cooling system.

AC Power Supply

Each AC power supply weighs approximately 2.3 lb and consists of one AC appliance inlet, a fan, and LEDs for monitoring the status of the power supply. The AC power supply is a hot-insertable and hot-removable field-replaceable unit (FRU) when the second power supply is installed and running. You can install the replacement power supply without powering off the services gateway. The AC power supply gives an output of 650 W and supports both low line voltage (100–127 VAC) and high line voltage (200–240 VAC).

Figure 7 on page 25 shows the AC power supply.

Figure 7: AC Power Supply

Figure 8 on page 26 shows the location of the LEDs on an AC power supply. Each AC power supply

faceplate contains three LEDs that indicate the status of the power supplies.

Figure 8: AC Power Supply LEDs

Table 9 on page 26 describes the AC power supply LEDs.

Table 9: AC Power Supply LEDs

DescriptionStateColorLED

OffUnlitAC

SteadyGreen

Indicates one of the following:

Power input voltage is not within the normal operating

•

range.

No power input.

•

Input power present and is within the normal operating range.

No DC power output or abnormal DC output.OffUnlitDC

DC power output is within the normal operating range.On steadilyGreen

Power supply unit failure.On steadilyAmber! (Fault)

Invalid power supply unit.Blinking

Power supply unit is functioning normally.OffUnlit

NOTE:

If both the AC LED and the DC LED are unlit, either the AC power cord is not installed properly

•

or the power supply fuse has failed.

If the AC LED is lit and the DC LED is unlit, the AC power supply is installed properly, but the

•

power supply has an internal failure.

DC Power Supply

Each DC power supply weighs approximately 2.2 lb and has two independent pairs of DC input lugs, a fan, and LEDs for monitoring the status of the power supply. The DC power supply in the services gateway is a hot-insertable and hot-removable field-replaceable unit (FRU) when the second power supply is installed and running. You can install a replacement power supply without powering off the services gateway. The DC power supply gives an output of 650 W. Figure 9 on page 27 shows the DC power supply.

Figure 9: DC Power Supply

The DC power supply requires a dedicated circuit breaker rated for 9 A (–48 VDC) minimum, or as required by local code.

Figure 10 on page 27 shows the location of the LEDs on a DC power supply. Each DC power supply

faceplate contains three LEDs that indicate the status of the power supplies.

Figure 10: DC Power Supply LEDs

Table 10 on page 28 describes the DC power supply LEDs.

Table 10: DC Power Supply LEDs

DescriptionStateColorLED

OffUnlitIN

On steadilyGreen

Indicates one of the following:

Power input voltage is not within the normal operating

•

range.

No power input.

•

Input power present and is within the normal operating range.

No DC power output or abnormal DC output.OffUnlitOUT

DC power output is within the normal operating range.On steadilyGreen

Power supply unit failure.On steadilyAmber! (Fault)

Invalid power supply unit.Blinking

Power supply unit is functioning normally.OffUnlit

AC Power Supply Specifications for SRX4100 Services Gateways

Table 11 on page 28 lists the specifications for an AC power supply.

Table 11: AC Power Supply Specifications

SpecificationItem

AC input voltage

AC input current rating

AC output power

Operating range:

Low-voltage line—100–127 VAC

•

High-voltage line—200–240 VAC

•

50–60 HzAC input line frequency

Low-voltage line—4 A

•

High-voltage line—2 A

•

Low-voltage line—650 W

•

High-voltage line—650 W

•

Table 11: AC Power Supply Specifications (continued)

SpecificationItem

440 WMaximum System Power Requirement

1500 BTU/HourSystem Thermal Output = (Maximum System Power

Requirement ) * 3.41

Note: 1 W = 3.41 BTU/Hour

AC Power Cord Specifications for the SRX4100 Services Gateway

A detachable AC power cord is supplied with the AC power supplies. The coupler is type C13 as described by International Electrotechnical Commission (IEC) standard 60320.

NOTE: In North America, AC power cords must not exceed 4.5 m (approximately 14.75 ft) in

length, to comply with National Electrical code (NEC) Section 400-8 (NFPA 75, 5-2.2) and 210-52, and Canadian Electrical Code (CEC) Section 4-010(3).

Table 12 on page 29 provides power cord specifications, and Figure 11 on page 30 depicts the plug on

the AC power cord provided for each country or region.

Table 12: AC Power Cord Specifications

Plug StandardsElectrical SpecificationCountry

AS/NZ 3112-1993250 VAC, 10 A, 50 HzAustralia

250 VAC, 10 A, 50 HzChina

GB2099.1 1996 and GB 1002 1996 (CH1-10P)

CEE (7) VII250 VAC, 10 A, 50 HzEurope (except Italy and United Kingdom)

CEI 23-16/VII250 VAC, 10 A, 50 HzItaly

Japan

JIS 8303125 VAC, 12 A, 50 or 60

NEMA 5-15125 VAC, 10 A, 60 HzNorth America

Table 12: AC Power Cord Specifications (continued)

Plug StandardsElectrical SpecificationCountry

BS 1363A250 VAC, 10 A, 50 HzUnited Kingdom

Figure 11: AC Plug Types

NOTE: Power cords and cables must not block access to services gateway components or drape

where people might trip on them.

CAUTION: The AC power cord for the services gateway is intended for use with the

services gateway only and not for any other use.

DC Power Supply Specifications for SRX4100 Services Gateways

Table 13 on page 30 lists the power supply specifications for a DC power supply.

Table 13: DC Power Supply Specifications

SpecificationsItem

DC input voltage

Minimum operating voltage: –40 VDC

•

Nominal operating voltage: –48 VDC

•

Operating voltage range: –40 VDC through –72 VDC

•

9 A maximum at nominal operating voltageDC input current rating

650 WOutput power

RELATED DOCUMENTATION

Connecting the SRX4100 to Power | 50 Maintaining the SRX4100 Power System | 62

CHAPTER

Site Planning, Preparation, and

Specifications

SRX4100 Site Preparation Checklist | 33

SRX4100 Site Guidelines and Requirements | 34

SRX4100 Transceiver Specifications and Pinouts | 41

SRX4100 Site Preparation Checklist

Table 14 on page 33 provides a checklist of tasks you need to perform when preparing a site for installing

the SRX4100 Services Gateway.

Table 14: Site Preparation Checklist for SRX4100 Services Gateway Installation

Performed ByAdditional InformationItem or Task

Power

Measure distance between external power sources and device installation site.

Locate sites for connection of system grounding.

NotesDate

Calculate the power consumption and requirements.

Environment

Verify that environmental factors such as temperature and humidity do not exceed device tolerances.

Rack or Cabinet

Verify that your rack or cabinet meets the minimum requirements for the installation of the device.

“AC Power Supply Specifications for SRX4100 Services Gateways” on page 28

“DC Power Supply Specifications for SRX4100 Services Gateways” on page 30

“SRX4100 Services Gateway Environmental Specifications” on page 35

“SRX4100 Services Gateway Rack Requirements” on page 39

“Cabinet Requirements for SRX4100 Services Gateways” on page 40

Plan rack location, including required space clearances.

Table 14: Site Preparation Checklist for SRX4100 Services Gateway Installation (continued)

Performed ByAdditional InformationItem or Task

Secure the rack or cabinet to the floor and building structure.

Cables

Acquire cables and connectors:

Determine the number of cables needed

•

based on your planned configuration.

Review the maximum distance allowed for

•

each cable. Choose the length of cable based on the distance between the hardware components being connected.

NotesDate

Plan the cable routing and management.

RELATED DOCUMENTATION

SRX4100 Installation Overview | 46

SRX4100 Site Guidelines and Requirements

IN THIS SECTION

General Site Installation Guidelines | 35

SRX4100 Services Gateway Environmental Specifications | 35

Site Electrical Wiring Guidelines | 35

SRX4100 Services Gateway Physical Specifications | 37

Clearance Requirements for Airflow and Hardware Maintenance for SRX4100 Services Gateways | 38

SRX4100 Services Gateway Rack Requirements | 39

Cabinet Requirements for SRX4100 Services Gateways | 40

General Site Installation Guidelines

To plan and create an acceptable operating environment for your services gateway and prevent environmentally caused equipment failures:

Follow the prescribed electrostatic discharge (ESD) prevention procedures to prevent damaging the

•

equipment. Static discharge can cause components to fail completely or intermittently over time.

Follow prescribed airflow guidelines to ensure that the cooling system functions properly. The airflow

•

around the chassis must be unrestricted. Allow sufficient clearance between the front and back of the chassis and adjacent equipment. Ensure that there is adequate circulation in the installation location.

Keep the area around the chassis clear and free from dust.

•

SRX4100 Services Gateway Environmental Specifications

Table 15 on page 35 provides the required environmental conditions for normal SRX4100 Services Gateway

operations. In addition, the site must be as dust-free as possible because dust can clog air intake vents, reducing the efficiency of the cooling system.

Table 15: Environmental Specifications

ValueDescription

No performance degradation up to 6,562 feet (2000 meters).Altitude

Relative humidity

Temperature

Normal operation ensured in relative humidity range of 5% through 90%, noncondensing.

Normal operation ensured in temperature range of 32° F through 104° F (0° C

•

through 40° C).

Nonoperating storage temperature in shipping container: –40° F through 158°

•

F (–40° C through 70° C).

Site Electrical Wiring Guidelines

Table 16 on page 36 describes the factors you must consider while planning the electrical wiring at your

site.

CAUTION: It is particularly important to provide a properly grounded and shielded

environment and to use electrical surge-suppression devices.

Table 16: Site Electrical Wiring Guidelines

GuidelineSite Wiring Factor

Signaling limitations

Radio frequency interference (RFI)

Electromagnetic compatibility (EMC)

To ensure that signaling functions optimally:

Install wires correctly.

•

Improperly installed wires can emit radio interference.

Do not exceed the recommended distances or pass wires between buildings.

•

The potential for damage from lightning strikes increases if wires exceed recommended distances or if wires pass between buildings.

Shield all conductors.

•

The electromagnetic pulse (EMP) caused by lightning can damage unshielded conductors and destroy electronic devices.

To reduce or eliminate the emission of RFI from your site wiring:

Use twisted-pair cable with a good distribution of grounding conductors.

•

Use a high-quality twisted-pair cable with one ground conductor for each data signal

•

when applicable, if you must exceed the recommended distances.

Provide a properly grounded and shielded environment and use electrical surge-suppression devices.

Strong sources of electromagnetic interference (EMI) can cause the following damage:

Destruction of the signal drivers and receivers in the device.

•

Electrical hazards as a result of power surges conducted over the lines into the

•

equipment.

TIP: If your site is susceptible to problems with EMC, particularly from lightning or radio

transmitters, you might want to seek expert advice.

WARNING: Some ports are designed for use as intrabuilding interfaces only Type 2

or Type 4 ports, the battery return connection is to be treated as an Isolated DC return (that is, DC-I), as defined in GR-1089-CORE and require isolation from the exposed OSP cabling. To comply with NEBS requirements and protect against lightning surges and commercial power disturbances, the intrabuilding port(s) of the device MUST NOT be metallically connected to interfaces that connect to the OSP or its wiring. The intrabuilding port(s) of the device is suitable for connection to intrabuilding or unexposed wiring or cabling only. The addition of primary protectors is not sufficient protection to connect these interfaces metallically to OSP wiring.

SRX4100 Services Gateway Physical Specifications

The SRX4100 Services Gateway chassis is a rigid sheet metal structure that houses all the components.

Table 17 on page 37 lists the physical specifications of the SRX4100 Services Gateway chassis.

Table 17: Physical Specifications for the Services Gateway Chassis

ValueDescription

1.75 in. (4.45 cm)Chassis height

17.48 in. (44.40 cm)Chassis width

25 in. (63.50 cm)Chassis depth

Weight

Services gateway with 2 AC power supplies: 29 lb (13.15 kg)

•

Services gateway with 2 DC power supplies: 28.8 lb (13.06 kg)

•

AC power supply: 2.3 lb (1.04 kg)

•

DC power supply: 2.2 lb (0.99 kg)

•

You can mount the SRX4100 Services Gateway on a standard 19-in. four-post rack or in a standard 19-in. enclosed cabinet.

SEE ALSO

SRX4100 Services Gateway Front Panel | 19 SRX4100 Services Gateway Back Panel | 22

Clearance Requirements for Airflow and Hardware Maintenance for SRX4100 Services Gateways

When planning the installation site, you need to allow sufficient clearance around the services gateway. Consider the following:

For the cooling system to function properly, the airflow around the chassis must be unrestricted. See

•

Figure 12 on page 38.

Figure 12: Airflow Through the Chassis

If you are mounting the services gateway on a rack or cabinet along with other equipment, ensure that

•

the exhaust from other equipment does not blow into the intake vents of the chassis.

For service personnel to remove and install hardware components, there must be adequate space at the

•

front and back of the services gateway as indicated in Table 18 on page 38.

Table 18 on page 38 provides information about the clearance requirements for maintaining optimum

airflow and the distances necessary to facilitate easy maintenance of the services gateway.

Table 18: Clearance Requirements for the SRX4100 Services Gateway

Recommended ClearanceLocation

34.25 in. (87 cm)Front of the chassis

Requirement for Clearance

Space for service personnel to remove and install hardware components

Table 18: Clearance Requirements for the SRX4100 Services Gateway (continued)

Recommended ClearanceLocation

Requirement for Clearance

17.4 in. (44.2 cm)Rear of the chassis

rack or cabinet edge

6.0 in. (15.24 cm)Between both sides of the chassis and any non-heat-producing surface such as a wall or cabinet side

Space for service personnel to remove and install hardware components

Space for cable management and organization2.5 in. (6.35 cm)Between front-mounting flange and

Space for the cooling system to function properly and to maintain unrestricted airflow around the chassis

SEE ALSO

SRX4100 Cooling System | 23

SRX4100 Services Gateway Rack Requirements

The SRX4100 Services Gateway is designed to be installed on four-post racks. Table 19 on page 39 provides the rack requirements and specifications for the services gateway.

Table 19: Rack Requirements

GuidelinesRack Requirement

Rack type

Mounting bracket hole spacing

Use a four-post rack that provides bracket holes or hole patterns spaced at 1 U (1.75 in. or 4.45 cm) increments and that meets the size and strength requirements to support the weight.

A U is the standard rack unit defined in Cabinets, Racks, Panels, and Associated Equipment (document number EIA-310–D) published by the Electronics Industry Association (http://www.eia.org).

The holes in the mounting brackets are spaced at 1 U (1.75 in. or 4.45 cm), so that the device can be mounted in any rack that provides holes spaced at that distance.

Table 19: Rack Requirements (continued)

GuidelinesRack Requirement

Rack size and strength

Rack connection to building structure

Ensure that the rack complies with the size and strength standards of a 19-in. rack

•

as defined in Cabinets, Racks, Panels, and Associated Equipment (document number EIA-310–D) published by the Electronics Industry Association (http://www.eia.org).

The rack must be strong enough to support the weight of the services gateway.

•

Ensure that the spacing of rails and adjacent racks provides for proper clearance

•

around the services gateway and rack.

Secure the rack to the building structure.

•

If earthquakes are a possibility in your geographical area, secure the rack to the floor.

•

Secure the rack to the ceiling brackets as well for maximum stability.

•

SEE ALSO

Installing the SRX4100 Services Gateway in a Rack | 48

Cabinet Requirements for SRX4100 Services Gateways

You can install the SRX4100 Services Gateway in a 19 in. (48.7 cm) cabinet. Table 20 on page 40 provides the cabinet requirements and specifications.

Table 20: Cabinet Requirements and Specifications

Cabinet Requirement

Cabinet size

Cabinet clearance

Guideline

You can mount the services gateway in a cabinet that contains a 19-in. rack as defined in Cabinets, Racks, Panels, and Associated Equipment (document number EIA-310–D) published by the Electronics Industry Association (http://www.ecianow.org/standards-practices/standards/).

The outer edges of the mounting brackets extend the width of the chassis to 19 in. (48.2

•

cm).

The minimum total clearance inside the cabinet is 30 in. (76.2 cm) between the inside

•

of the front door and the inside of the rear door.

Table 20: Cabinet Requirements and Specifications (continued)

Cabinet Requirement

Guideline

Cabinet airflow requirements

When you mount services gateway in a cabinet, you must ensure that ventilation through the cabinet is sufficient to prevent overheating.

Install the services gateway as close as possible to the front of the cabinet so that the

•

cable management system clears the inside of the front door. Installing the chassis close to the front of the cabinet maximizes the clearance in the rear of the cabinet for critical airflow.

Ensure adequate cool air supply to dissipate the thermal output of the services gateway.

•

Route and dress all cables to minimize the blockage of airflow to and from the chassis.

•

A cabinet larger than the minimum required provides better airflow and reduces the

•

chance of overheating.

SRX4100 Transceiver Specifications and Pinouts

IN THIS SECTION

Pluggable Transceivers Supported on SRX4100 Services Gateways | 41

SFP+ Direct Attach Copper Cables for SRX4100 Services Gateways | 42

Management Port Connector Pinout Information for an SRX4100 Services Gateway | 43

Console Port Connector Pinout Information for an SRX4100 Services Gateway | 43

Pluggable Transceivers Supported on SRX4100 Services Gateways

The ports on the SRX4100 Services Gateway supports SFP+ transceivers. The following are the transceivers supported on the services gateway:

EX-SFP-1GE-T

•

EX-SFP-10GE-ER

•

SRX-SFP-10GE-ER

•

SRX-SFP-10GE-LR

•

SRX-SFP-10GE-SR

•

JNP-10G-SR-8PACK

•

SRX-SFP-1GE-LH

•

SRX-SFP-1GE-LX

•

SRX-SFP-1GE-SX

•

JNP-1G-SX-8PACK

•

SRX-SFP-1GE-T

•

NOTE: The SRX4100 Services Gateway supports only 1000 Mbps speed on SRX-SFP-1GE-T

and EX-SFP-1GE-T; 10-Mbps and 100-Mbps speeds are not supported.

JNP-1G-T-8PACK

•

For the full specifications of these transceivers, see The Hardware Compatibility Tool.

NOTE: When using 1-gigabit transceivers, the name of the interface follows the convention

xe-0/0/port-number but the interface operates at 1-Gbps speed.

SFP+ Direct Attach Copper Cables for SRX4100 Services Gateways

Small form-factor pluggable plus transceiver (SFP+) direct attach copper (DAC) cables are suitable for short distances of up to 23 ft (7 m), making them ideal for highly cost-effective networking connectivity within a rack and between adjacent racks. The SRX4100 Services Gateway supports the following 1 m and 3 m long DAC cables:

SRX-SFP-10GE-DAC-1M

•

SRX-SFP-10GE-DAC-3M

•

For the full specifications of these transceivers, see The Hardware Compatibility Tool.

Management Port Connector Pinout Information for an SRX4100 Services Gateway

The port on the front panel labeled MGMT is an autosensing 10/100/1000-Mbps Ethernet RJ-45 receptacle that accepts an Ethernet cable for connecting the services gateway to a management LAN (or other device that supports out-of-band management). Two LEDs on the port indicate link activity on the port and the administrative status of the port.

Table 21 on page 43 provides the pinout information for the RJ-45 connector for the management port.

An RJ-45 cable, with a connector attached, is supplied with the services gateway.

Table 21: Management Port Connector Pinout Information

SignalPin

TX+1

TX-2

RX+3

Termination network4

Termination network5

RX-6

Termination network7

Termination network8

Console Port Connector Pinout Information for an SRX4100 Services Gateway

The console port is an RS-232 serial interface that uses an RJ-45 connector to connect to a console management device. The default baud rate for the console port is 9600 baud.

Table 22 on page 44 provides the pinout information for the RJ-45 console connector. An Ethernet cable

that has an RJ-45 connector at either end and an RJ-45 to DB-9 serial port adapter are supplied with the services gateway.

Table 22: Console Port Connector Pinout Information

DescriptionSignalPin

Request to SendRTS1

Data Terminal ReadyDTR2

Transmit DataTXD3

Signal GroundGround4

Signal GroundGround5

Receive DataRXD6

Data Set ReadyDSR/DCD7

Clear to SendCTS8

CHAPTER

Initial Installation and Configuration

SRX4100 Installation Overview | 46

Unpacking and Mounting the SRX4100 | 46

Connecting the SRX4100 to Power | 50

Connecting the SRX4100 Services Gateway to a Management Console | 56

Configuring Junos OS on the SRX4100 | 57

SRX4100 Installation Overview

To install and connect an SRX4100 Services Gateway:

1. Follow instructions in “Unpacking the SRX4100 Services Gateway” on page 46.

2. Install power supplies if they are not preinstalled. See:

Installing an AC Power Supply in an SRX4100 Services Gateway on page 64

•

Installing a DC Power Supply in an SRX4100 Services Gateway on page 67

•

3. Mount the services gateway as described in “Installing the SRX4100 Services Gateway in a Rack” on

page 48.

4. Connect the grounding cable as described in “Connecting the SRX4100 Services Gateway Grounding

Cable” on page 51.

5. Follow instructions for connecting power as appropriate for your site. See:

Connecting AC Power to an SRX4100 Services Gateway on page 52

•

Connecting DC Power to an SRX4100 Services Gateway on page 54

•

6. Perform initial configuration by following the instructions in “Configuring the SRX4100 Services

Gateway” on page 58.

Unpacking and Mounting the SRX4100

IN THIS SECTION

Unpacking the SRX4100 Services Gateway | 46

Verifying Parts Received with the SRX4100 Services Gateway | 47

Installing the SRX4100 Services Gateway in a Rack | 48

Unpacking the SRX4100 Services Gateway

The services gateway is shipped in a cardboard carton, secured with foam packing material. The carton also contains an accessory box and quick-start instructions.

CAUTION: The services gateway is maximally protected inside the cardboard carton.

Do not unpack it until you are ready to begin installation.

To unpack the services gateway:

1. Move the cardboard carton to a staging area as close to the installation site as possible, where you have enough room to remove the components from the chassis.

2. Open the carton.

3. Pull out the packing material holding the services gateway in place.

4. Verify the parts received against the inventory (packing list). The packing list specifies the part numbers and carries a brief description of each part in your order.

5. Save the shipping carton and packing materials in case you need to move or ship the services gateway at a later time.

Verifying Parts Received with the SRX4100 Services Gateway

A packing list is included in each shipment. Check the parts in the shipment against the items on the packing list. The packing list specifies the part numbers and descriptions of each part in your order.

If any part is missing, contact a customer service representative.

NOTE: The parts shipped with your services gateway can vary depending on the configuration

you ordered.

Table 23 on page 47 lists the parts and their quantities in the packing list.

Table 23: Parts List for a Fully Configured Services Gateway

QuantityComponent

1Services gateway

2 AC or DCPower supply (preinstalled)

Table 23: Parts List for a Fully Configured Services Gateway (continued)

QuantityComponent

2AC power cord appropriate for your geographical location (only for AC models)

1Rack mount kit

1Documentation Roadmap and Product Warranty

1ROHS Card

1End User License Agreement

1Safety Guide

1DB-9 to RJ-45 cable

2RJ-45 cables

Installing the SRX4100 Services Gateway in a Rack

You can mount the services gateway on four posts in a 19-in. rack or cabinet by using the rack-mount kit shipped with the device. (The remainder of this topic uses rack to mean rack or cabinet.)

Before mounting the device on four posts in a rack:

1. Verify that the site meets the requirements described in “SRX4100 Site Preparation Checklist” on

page 33.

2. Place the rack or cabinet in its permanent location, allowing adequate clearance for airflow and maintenance, and secure it to the building structure.

3. Verify that the rack or cabinet meets the specific requirements described in “SRX4100 Services Gateway

Rack Requirements” on page 39 and “Cabinet Requirements for SRX4100 Services Gateways” on page 40.

4. Remove the services gateway from the shipping carton (see “Unpacking the SRX4100 Services Gateway”

on page 46).

Ensure that you have the following parts and tools available:

Phillips (+) screwdriver, number 2

•

Fourteen flat-head screws (provided with the rack mount kit)

•

Eight rack-mounting screws to secure the chassis to the rack (not provided with the rack mount kit)

g005271

g005272

•

NOTE:

Installing the device in a rack requires two people: one person lifts the device while the other

•

secures it to the rack.

If you are installing multiple devices in one rack, install the lowest one first and proceed upward

•

in the rack.

To mount the services gateway in a four-post rack:

1. Attach the mounting ears to the front of the chassis, using the screws provided. Then, attach the fixed brackets to the rear of the device, using the screws provided.

Figure 13: Attaching the Mounting Ears and Fixed Brackets

NOTE: Ensure that the rear of the device is supported throughout the process of mounting

the device into the rack.

2. Slide the device into the rack, and secure the mounting ears to the rack, using the mounting screws.

Figure 14: Securing the Mounting Ears to the Rack

3. Slide the adjustable brackets into the fixed brackets attached to the rear of the device.

Figure 15: Attaching the Adjustable Brackets

g005273

g005274

4. Secure the adjustable brackets to the rack, using the mounting screws.

Figure 16: Securing the Adjustable Brackets to the Rack

RELATED DOCUMENTATION

Configuring Junos OS on the SRX4100 | 57

Connecting the SRX4100 to Power

IN THIS SECTION

Connecting the SRX4100 Services Gateway Grounding Cable | 51

Connecting AC Power to an SRX4100 Services Gateway | 52

Connecting DC Power to an SRX4100 Services Gateway | 54

Connecting the SRX4100 Services Gateway Grounding Cable

To meet safety and electromagnetic interference (EMI) requirements and to ensure proper operation, the services gateway must be adequately grounded before power is connected. You must provide a grounding lug to connect the services gateway to earth ground.

You ground the services gateway by connecting a grounding cable to earth ground and then attaching it to the chassis grounding point located on the back panel of the device using an M5 x 10 mm grounding screw.

CAUTION: Before you connect power to the services gateway, a licensed electrician

must attach a cable lug to the grounding cable that you supply. A cable with an incorrectly attached lug can damage the services gateway (for example, by causing a short circuit).

Ensure that you have the following parts and tools available:

Electrostatic discharge (ESD) grounding wrist strap

•

Phillips (+) screwdriver, number 2

•

16 AWG single-strand wire grounding cable (green and yellow wire)

•

Grounding lug (ring-type, vinyl-insulated TV14-6R lug, or equivalent)

•

One metric M5 x 10 mm grounding screw

•

To connect the services gateway to earth ground:

1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to the ESD point on the chassis.

2. Connect one end of the grounding cable to a proper earth ground, such as the rack in which the services gateway is mounted.

3. Place the grounding lug attached to the grounding cable over the grounding point.

4. Secure the grounding cable lug to the grounding point with the screw. See Figure 17 on page 52.

Figure 17: Connecting the Grounding Cable

5. Dress the grounding cable and verify that it does not touch or block access to the services gateway components and that it does not drape where people could trip on it.

NOTE: When removing the chassis, turn off the power, and disconnect the grounding cable.

Connecting AC Power to an SRX4100 Services Gateway

Ensure that you have a power cord appropriate for your geographical location available to connect AC power to an SRX4100 Services Gateway. Before you begin connecting AC power:

Ensure that you have taken the necessary precautions to prevent electrostatic discharge (ESD) damage.

•

Ensure that you have connected the device chassis to earth ground.

•

CAUTION: Before you connect power to the services gateway, a licensed electrician

must attach a cable lug to the grounding cable that you supply. A cable with an incorrectly attached lug can damage the device (for example, by causing a short circuit).

To meet safety and electromagnetic interference (EMI) requirements and to ensure proper operation, you must properly ground the services gateway chassis before connecting power.

To connect AC power:

1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to the ESD point on the rear of the chassis.

2. Ensure that the power supplies are fully inserted in the chassis and the latches are secure.

3. Locate the power cords shipped with the services gateway; the cords have plugs appropriate for your geographical location.

4. Insert the coupler end of the power cord into the AC power cord inlet on the AC power supply faceplate.

5. Push the power cord retainer onto the power cord. See Figure 18 on page 53.

Figure 18: Connecting AC Power

6. If the AC power source outlet has a power switch, set it to the off (0) position.

7. Insert the power cord plug into an AC power source outlet.

8. Dress the power cord appropriately. Verify that the power cord does not block the air exhaust and access to services gateway components or drape where people could trip on it.

9. If the AC power source outlet has a power switch, set it to the on (|) position.

10. Repeat steps 4 through 8 for the second AC power supply.

11. Verify that the AC and DC LEDs on each power supply are lit green. If the fault status (!) LED is lit amber, remove power from the power supply, and replace the power supply (see “Removing an AC

Power Supply from an SRX4100 Services Gateway” on page 63). Do not remove the power supply until

you have a replacement power supply ready. The power supplies must be installed in the services gateway to ensure proper airflow.

Connecting DC Power to an SRX4100 Services Gateway

Before you begin connecting DC power to an SRX4100 Services Gateway:

Ensure that you have taken the necessary precautions to prevent electrostatic discharge (ESD) damage.

•

Ensure that you have connected the chassis to earth ground.

•

CAUTION: Before you connect power to the services gateway, a licensed electrician

must attach a cable lug to the grounding cable that you supply. A cable with an incorrectly attached lug can damage the device (for example, by causing a short circuit).

To meet safety and electromagnetic interference (EMI) requirements and to ensure proper operation, you must properly ground the services gateway chassis before connecting power.

Ensure that you have the following parts and tools available:

DC power source cables (14–16 AWG) with ring lug (Molex 190700069 or equivalent)

•

Phillips (+) screwdriver, number 2

•

Multimeter

•

To connect DC power:

1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to the ESD point on the rear of the chassis.

2. Verify that the DC power cables are correctly labeled before making connections to the power supply. In a typical power distribution scheme where the return is connected to chassis ground at the battery plant, you can use a multimeter to verify the resistance of the -48V and RTN DC cables to chassis ground.

The cable with very high resistance (indicating an open circuit) to chassis ground is negative (–) and

•

will be installed on the V– (input) DC power input terminal.

The cable with very low resistance (indicating a closed circuit) to chassis ground is positive (+) and

•

will be installed on the V+ (return) DC power input terminal.

CAUTION: You must ensure that power connections maintain the proper polarity.

The power source cables might be labeled (+) and (–) to indicate their polarity. There is no standard color coding for DC power cables. The color coding used by the external DC power source at your site determines the color coding for the leads on the power cables that attach to the terminal studs on each power supply.

3. Ensure that the input circuit breaker is open so that the voltage across the DC power source cable leads is 0 V and that the cable leads will not become active while you are connecting DC power.

4. Remove the terminal block cover. The terminal block cover is a piece of clear plastic that snaps into place over the terminal block.

5. Remove the screws on the terminals using the screwdriver.

6. Secure each positive (+) DC source power cable lug to a RTN (return) terminal. Secure each negative (–) DC source power cable lug to a -48V (input) terminal.

Figure 19: Connecting DC Power

7. Tighten the screws on the power supply terminals until snug using the screwdriver. Do not overtighten.

8. Replace the terminal block cover.

9. Close the input circuit breaker.

10. The device powers on as soon as power is provided to the power supply.

11. Verify that the IN and OUT LEDs on the power supply are lit green and are on steadily.

RELATED DOCUMENTATION

SRX4100 Power Supply | 25

Connecting the SRX4100 Services Gateway to a Management Console

Use the CONSOLE port on the services gateway to connect to a management console. The CONSOLE port accepts a cable that has an RJ-45 connector.

To connect the services gateway to a management console:

1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to the ESD point on the chassis.

2. Connect the RJ-45 end of the DB9-to-RJ-45 cable into the CONSOLE port on your services gateway.

3. Connect the other end of the cable to the serial port on the management device.

4. Start your asynchronous terminal emulation application (such as Microsoft Windows HyperTerminal) and select the appropriate COM port to use (for example, COM1).

5. Configure the serial port settings:

Baud rate—9600

•

Parity—N

•

Data bits—8

•

Stop bits—1

•

Flow control—none

•

Configuring Junos OS on the SRX4100

IN THIS SECTION

SRX4100 Services Gateway Software Configuration Overview | 57

SRX4100 Services Gateway Factory-Default Settings | 57

Viewing Factory-Default Settings | 58

Configuring the SRX4100 Services Gateway | 58

SRX4100 Services Gateway Software Configuration Overview

The services gateway is shipped with Junos OS preinstalled and ready to be configured when the services gateway is powered on. If you are setting up the services gateway for the first time, use the CLI to perform the initial configuration.

SRX4100 Services Gateway Factory-Default Settings

Your services gateway comes configured with a factory-default configuration.

Table 24 on page 57 and Table 25 on page 57 lists the factory-default settings.

Table 24: Factory-Default Settings - Interfaces

IP AddressInterface

192.168.1.1/24fxp0

Table 25: Factory-Default Settings - Services

Services

SSH

HTTPS

NETCONF over SSH

Viewing Factory-Default Settings

To view the factory-default settings on your services gateway:

1. Log in as the root user and provide your credentials.

2. View the list of default config files:

user@host>file list /etc/config

3. View the required default config file.

user@host> file show /etc/config/<config file name>

When you commit changes to the configuration, a new configuration file is created, which becomes the active configuration. If the current active configuration fails, you can use the load factory-default command to revert to the factory-default configuration.

Configuring the SRX4100 Services Gateway

This procedure explains how you can create an initial configuration using CLI commands to connect the services gateway to the network.

NOTE: Before you can use J-Web to configure your services gateway, you must access the CLI

to configure the root authentication.

1. Connect the RJ-45 end of the DB9-to-RJ-45 cable into the CONSOLE port on your services gateway.

2. Connect the other end of the cable to the serial port on the management device.

3. Log in to the services gateway as root. When the services gateway is powered on with the factory-default configuration, you do not need to enter a password.

4. At the (%) prompt, type cli to start the CLI and press Enter. The prompt changes to an angle bracket (>) when you enter CLI operational mode.

root%cli

root>

5. At the (>) prompt, type configure and press Enter. The prompt changes from > to # when you enter configuration mode.

root> configure

Entering configuration mode

[edit]

root#

6. Set the root authentication password by entering a cleartext password, an encrypted password, or an SSH public key string (DSA or RSA).

[edit]

root# set system root-authentication plain-text-password

New password: password

Retype new password: password

7. Configure the route for the management interface (optional, required only if you do not connect the MGMT port directly to the management device).

[edit]

root# set routing-options static route <destination prefix> next-hop <gateway>

8. Commit the configuration to activate it on the services gateway.

[edit]

root# commit

commit complete

9. Connect the MGMT port on the device to the Ethernet port on the management device using an RJ-45 cable.

10. Configure an IP address on the 192.168.1.0/24 subnetwork for the management device. By default, the management interface is configured with the 192.168.1.1/24 IP address. If you need to change the IP address, perform the following steps or else proceed to 11.

a. Delete the default management interface IP address:

root# delete interface fxp0 unit 0 family inet address 192.168.1.1/24

b. Configure a new IP address for the management interface:

root# set interfaces fxp0 unit 0 family inet address address/prefix-length

c. Commit the configuration changes.

root# commit

d. Configure an IP address for the management device. Ensure that the IP address is on the same

subnetwork as the management interface (fxp0).

11. Launch a Web browser from the management device and access the services gateway using the URL

https://192.168.1.1.

If you changed the management interface IP address in 10, then use the URL https://<management IP address> to access the services gateway.

NOTE: As the system-generated certificate is not trusted by default, an alert is displayed.

You can ignore this alert and proceed to access the services gateway.

The J-Web login page is displayed. This indicates that you have successfully completed the initial configuration and that your services gateway is ready for use.

NOTE: To access the J-Web interface, your management device requires one of the following

supported browsers:

Microsoft Internet Explorer version 9.0 or 10.0

•

Mozilla Firefox version 38 (or later)

•

12. Log in as root and proceed with configuring the settings based on your requirements.

CHAPTER

Maintaining Components

Routine Maintenance Procedures for the SRX4100 | 62

Maintaining the SRX4100 Power System | 62

Maintaining the SRX4100 Cooling System | 68

Routine Maintenance Procedures for the SRX4100

For optimum performance of the services gateway, perform the following preventive maintenance procedures regularly:

Inspect the installation site for moisture, loose wires or cables, and excessive dust.

•

Make sure that airflow is unobstructed around the services gateway and into the air intake vents. Make

•

sure that all power and grounding cables are arranged so that they do not obstruct access to other services gateway components.

Check the status LEDs on the front panel of the services gateway.

•

Periodically inspect the site to ensure that the grounding and power cables connected to the services

•

gateway are securely in place and that there is no moisture accumulating near the services gateway.

RELATED DOCUMENTATION

Troubleshooting Resources for the SRX4100 Services Gateway | 71 Monitoring Chassis Alarms on a SRX4100 Services Gateway | 71

Maintaining the SRX4100 Power System

IN THIS SECTION

Replacing an AC Power Supply on the SRX4100 | 63

Replacing a DC Power Supply on the SRX4100 | 65

Replacing an AC Power Supply on the SRX4100

IN THIS SECTION

Removing an AC Power Supply from an SRX4100 Services Gateway | 63

Installing an AC Power Supply in an SRX4100 Services Gateway | 64

The power supplies are hot-removable and hot-insertable field-replaceable units (FRUs) installed in the rear panel of the services gateway. You can remove and replace them without powering off the services gateway or disrupting services gateway functions.

Ensure that you have the following parts and tools available:

ESD grounding strap

•

Antistatic bag or an antistatic mat

•

Replacement power supply

•

Removing an AC Power Supply from an SRX4100 Services Gateway

To remove a power supply from the services gateway (see Figure 20 on page 64):

1. Place the antistatic bag or the antistatic mat on a flat, stable surface.

2. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist and connect the strap to the ESD point on the chassis.

3. If the AC power source outlet has a power switch, set it to the off (0) position and pull out the power cord connected to the power source outlet.

4. Remove the power cord from the power supply faceplate.

5. Slide the ejector lever toward the left until the power supply is unseated.

6. Grasp the power supply handle and pull firmly to slide the power supply halfway out of the chassis.

7. Place one hand under the power supply to support it and slide it completely out of the chassis. Take care not to touch power supply components, pins, leads, or solder connections.

Figure 20: Removing an AC Power Supply

8. Place the power supply in the antistatic bag or on the antistatic mat placed on a flat, stable surface.

Installing an AC Power Supply in an SRX4100 Services Gateway

CAUTION: Do not mix AC and DC power supplies in the same chassis.

To install an AC power supply (see Figure 21 on page 65):

1. Attach the ESD grounding strap to your bare wrist, and connect the strap to the ESD point on the chassis.

2. If the power supply slot has a cover panel on it, with one hand slide the ejector lever toward the left until it stops and using the other hand pull the handle of the cover panel outward to remove it. Save the cover panel for later use.

3. Taking care not to touch power supply pins, leads, or solder connections, remove the power supply from the bag.

4. Using both hands, place the power supply in the power supply slot on the rear panel of the services gateway and slide it in until it is fully seated and the ejector lever fits into place. You will hear a distinct click when the power supply is fully seated in the chassis.

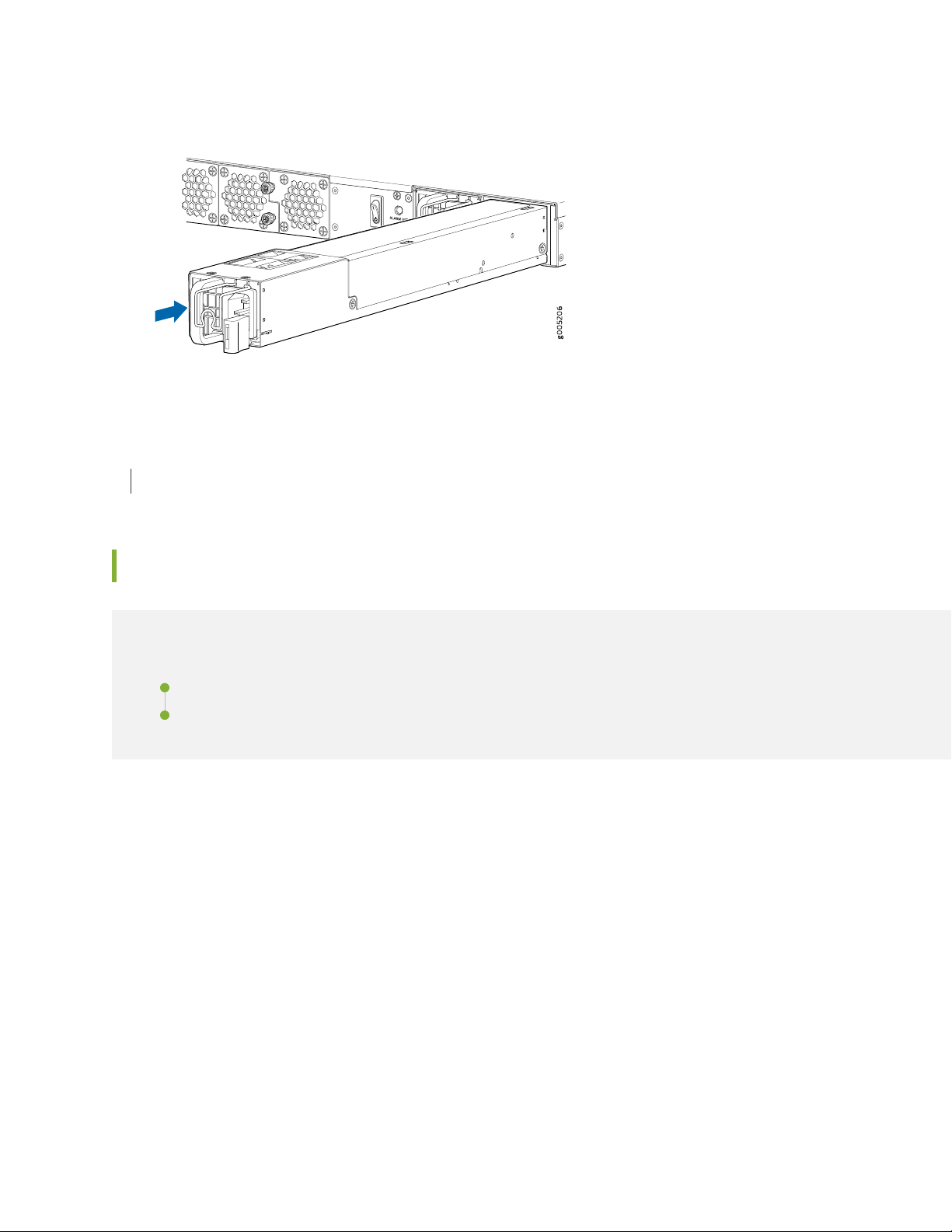

Figure 21: Installing an AC Power Supply

SEE ALSO

Connecting AC Power to an SRX4100 Services Gateway | 52

Replacing a DC Power Supply on the SRX4100

IN THIS SECTION

Removing a DC Power Supply from an SRX4100 Services Gateway | 66

Installing a DC Power Supply in an SRX4100 Services Gateway | 67

Ensure that you have the following parts and tools available:

ESD grounding strap

•

Phillips (+) screwdriver, number 2

•

Antistatic bag or an antistatic mat

•

Replacement power supply

•

Removing a DC Power Supply from an SRX4100 Services Gateway

g0052 0 9

To remove a DC power supply (see Figure 22 on page 66):

1. Place the antistatic bag or the antistatic mat on a flat, stable surface.

2. Attach the ESD grounding strap to your bare wrist, and connect the strap to the ESD point on the chassis.

3. Make sure that the voltage across the DC power source cables leads is 0 V and that there is no chance that the cables might become active during the removal process.

4. Remove the plastic cover from the input terminals by sliding the cover either to the left or right.

5. Unscrew the locking screws counterclockwise by using the screwdriver.

6. Remove the cable lugs from the input DC terminals.

7. Slide the ejector lever toward the left until the power supply is unseated.

8. Grasp the power supply handle and pull firmly to slide the power supply halfway out of the chassis.

9. Taking care not to touch power supply pins, leads, or solder connections, place one hand under the power supply to support it. Grasp the power supply handle with your other hand and pull the power supply completely out of the chassis.

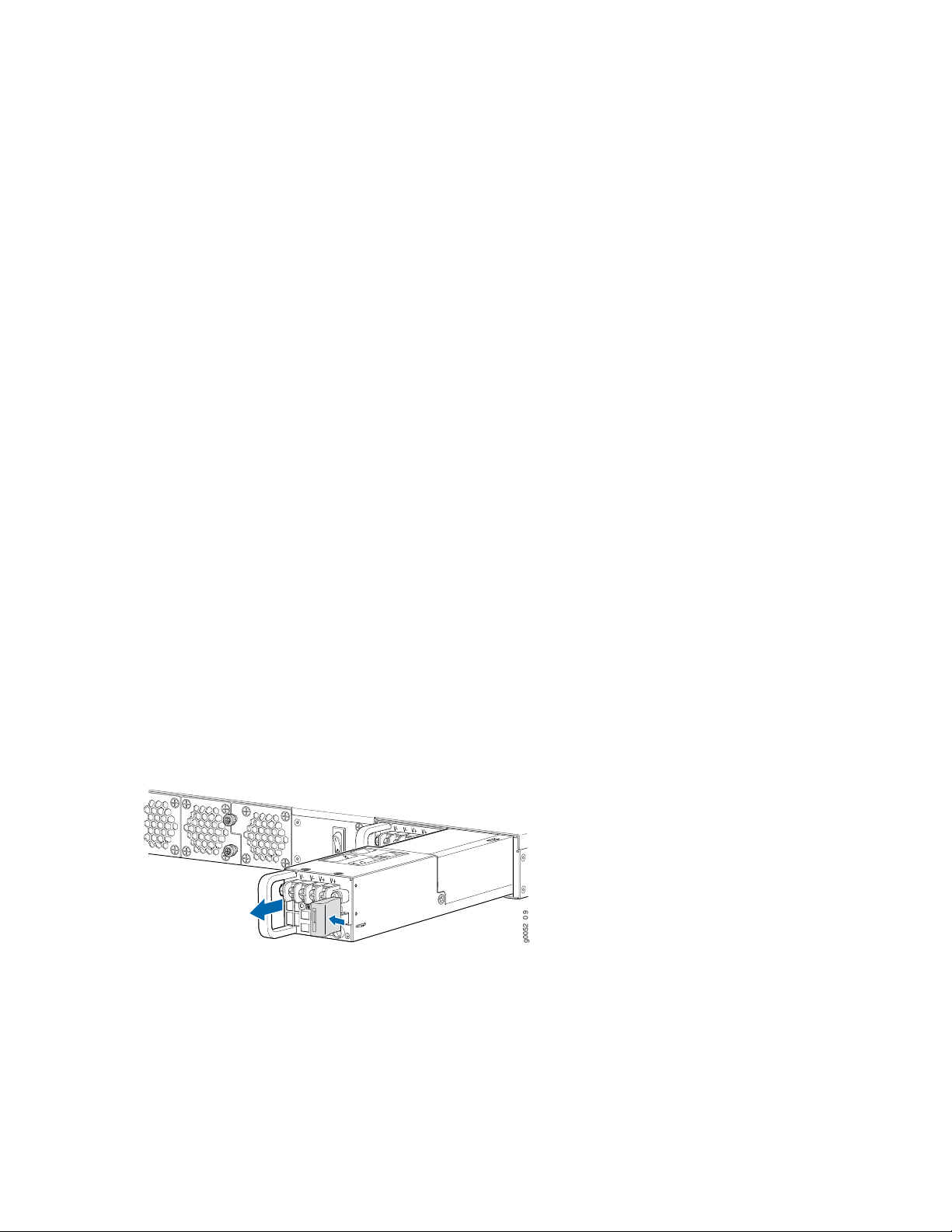

Figure 22: Removing a DC Power Supply

10. Place the power supply in the antistatic bag or on the antistatic mat placed on a flat, stable surface.

Installing a DC Power Supply in an SRX4100 Services Gateway

CAUTION: Do not mix AC and DC power supplies in the same chassis.

To install a DC power supply (see Figure 23 on page 67):

1. Attach the ESD grounding strap to your bare wrist, and connect the strap to the ESD point on the chassis.

2. Taking care not to touch power supply pins, leads, or solder connections, remove the power supply from the bag.

3. Using both hands, place the power supply in the power supply slot on the rear panel of the services gateway and slide it in until it is fully seated and the ejector lever fits into place. You will hear a distinct click when the power supply is fully seated in the chassis.

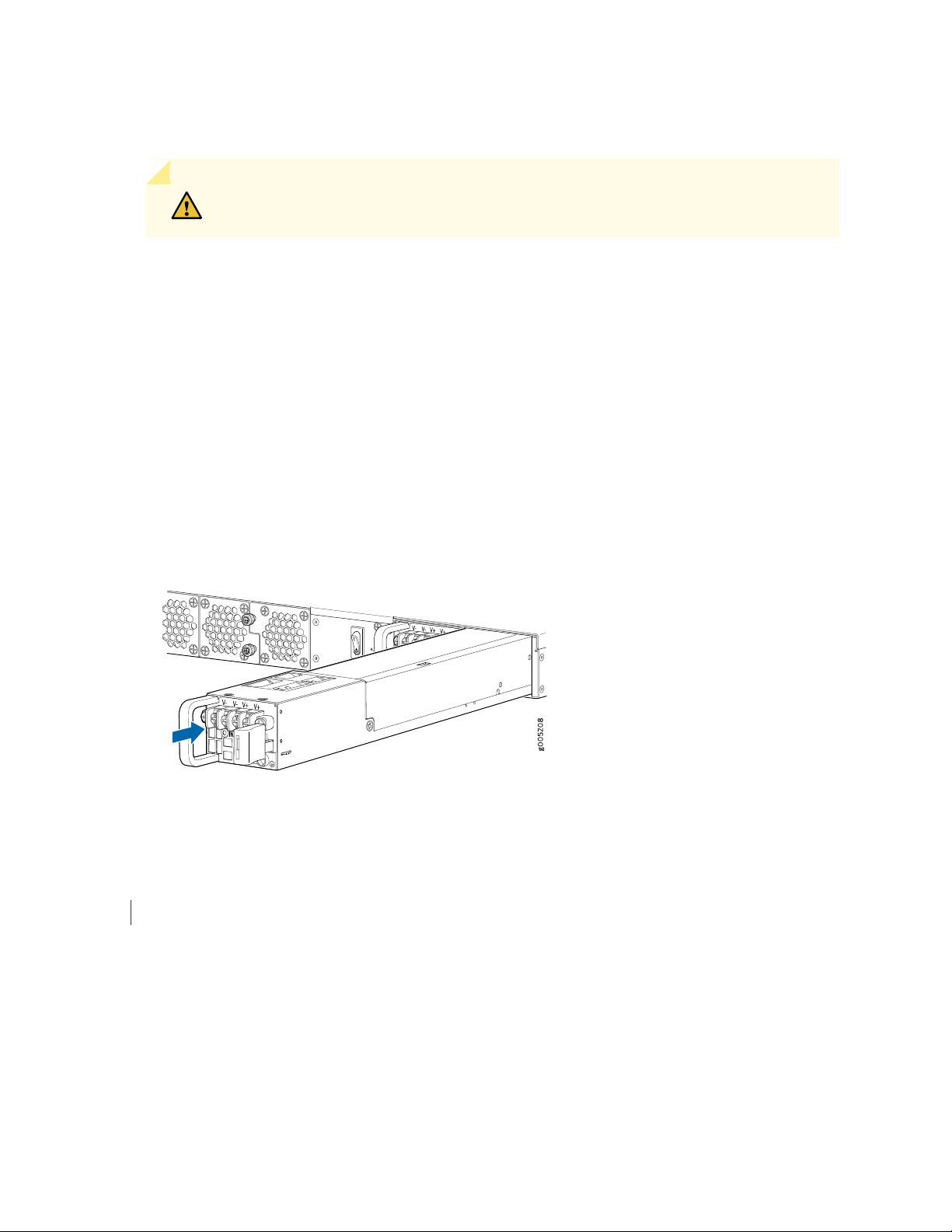

Figure 23: Installing a DC Power Supply

SEE ALSO

Connecting DC Power to an SRX4100 Services Gateway | 54

Maintaining the SRX4100 Cooling System

IN THIS SECTION

Replacing the SRX4100 Services Gateway Fan Tray | 68

Replacing the SRX4100 Services Gateway Fan Tray

To replace the fan tray:

1. Identify the physical location of the faulty fan tray on the rear panel of the chassis. Figure 24 on page 68 shows how the fan trays are numbered.

Figure 24: SRX4100 Services Gateway Fan Tray Numbering

2. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to the ESD point on the chassis.

3. Loosen the captive screws on the fan tray faceplate.

4. Grasp the captive screw and pull out the fan tray completely out of the chassis.

5. Insert the replacement fan tray straight into the chassis.

6. Tighten the captive screw on the fan tray faceplate to secure it in the chassis.

RELATED DOCUMENTATION

SRX4100 Cooling System | 23

CHAPTER

Troubleshooting Hardware

Troubleshooting the SRX4100 | 71

Troubleshooting the SRX4100

IN THIS SECTION

Troubleshooting Resources for the SRX4100 Services Gateway | 71

Monitoring Chassis Alarms on a SRX4100 Services Gateway | 71

Using the RESET Button on the SRX4100 Services Gateway | 73

Troubleshooting Resources for the SRX4100 Services Gateway

To troubleshoot a services gateway, use the Junos OS command-line interface (CLI) and LEDs on the chassis:

LEDs—When the services gateway detects an alarm condition, the status LED on the front panel glows

•

red.

CLI—The CLI is the primary tool for controlling and troubleshooting hardware, Junos OS, and network

•

connectivity. Use the CLI to display more information about alarms. CLI commands display information about network connectivity derived from the ping and traceroute utilities. For information about using the CLI to troubleshoot Junos OS, see the appropriate Junos OS configuration guide.

JTAC—If you need assistance during troubleshooting, you can contact the Juniper Networks Technical

•

Assistance Center (JTAC) by using the Web or by telephone. If you encounter software problems, or problems with hardware components not discussed here, contact JTAC.

Monitoring Chassis Alarms on a SRX4100 Services Gateway

You can monitor chassis alarms through the Status LED. When the services gateway detects an alarm condition, the Status LED on the front panel glows red. The level of severity can be either major (steady red) or minor (blinking red). To view a more detailed description of the alarm cause, issue the show chassis alarms command.

Table 26 on page 72 describes alarms that can occur for the services gateway chassis component.

Table 26: Alarms for Services Gateway Chassis Components

Alarm SeverityActionAlarm ConditionsComponent

Fan

At least one of the fans have failed.

The services gateway chassis temperature is too warm.

Check and adjust the room

•

temperature, if possible.

Check the air flow and ensure

•

that the airflow through the services gateway is unobstructed.

Open a support case using the

•

Case Manager link at

https://www.juniper.net/support/

or call 1-888-314-5822 (toll-free within the United States and Canada) or 1-408-745-9500 (from outside the United States).

Check the room temperature.

•

Check the air flow.

•

Open a support case using the

•

Case Manager link at

https://www.juniper.net/support/

or call 1-888-314-5822 (toll-free within the United States and Canada) or 1-408-745-9500 (from outside the United States).

Steady red (major)

Yellow (minor)

A power supply unit is not present.

AC power cord is not connected.

Steady red (major)Replace the power supply.A power supply has failed.Power supply

Install a power supply unit in the empty slot. The services gateway requires two power supply units to be installed.

Verify and ensure that the AC power cord is connected properly.

Using the RESET Button on the SRX4100 Services Gateway

If a configuration fails or denies management access to the services gateway, you can use the RESET button to restore the services gateway to the factory-default configuration.

CAUTION: Pressing and holding the RESET button for 5 seconds or more deletes all

configurations (backup configurations and rescue configuration) on the device, and loads and commits the factory configuration.

You can change the default operation of the RESET button by limiting how the button resets the services gateway:

To prevent the RESET button from setting the services gateway to the factory-default configuration

•

and deleting all other configurations, enter the following command. You can still press and quickly release the button to reset it to the rescue configuration.

user@host# set chassis config-button no-clear

To prevent the RESET button from setting the services gateway to the rescue configuration, enter the

•

following command. You can still press and hold the button for 15 seconds or more to reset the services gateway to the factory-default configuration.

user@host# set chassis config-button no-rescue

To disable the button and prevent the services gateway from resetting to either configuration, enter the

•

following command:

user@host# set chassis config-button no-clear no-rescue

The no-rescue option prevents the RESET button from loading the rescue configuration. The no-clear option prevents the RESET button from deleting all configurations on the services gateway.

To return the function of the RESET button to its default behavior, remove the config-button statement from the services gateway configuration.

RELATED DOCUMENTATION

SRX4100 Services Gateway Front Panel | 19

CHAPTER

Contacting Customer Support and

Returning the Chassis or Components

Returning the SRX4100 Chassis or Components | 75

Returning the SRX4100 Chassis or Components

IN THIS SECTION

Contacting Customer Support | 75

Returning a SRX4100 Services Gateway or Component to Juniper Networks | 76

Locating the Serial Number on the SRX4100 Services Gateway or Component | 77

Packing a SRX4100 Services Gateway or Component for Shipping | 78

Contacting Customer Support

Once you have located the serial numbers of the device or component, you can return the device or component for repair or replacement. For this, you need to contact Juniper Networks Technical Assistance Center (JTAC).

You can contact JTAC 24 hours a day, 7 days a week, using any of the following methods:

On the Web: Using the Service Request Manager link at https://support.juniper.net/support/

•

By telephone:

•

From the US and Canada: 1-888-314-JTAC

•

From all other locations: 1-408-745-9500

•

NOTE: If contacting JTAC by telephone, enter your 12-digit service request number followed

by the pound (#) key if this is an existing case, or press the star (*) key to be routed to the next available support engineer.

When requesting support from JTAC by telephone, be prepared to provide the following information:

Your existing service request number, if you have one

•

Details of the failure or problem

•

Type of activity being performed on the services gateway when the problem occurred

•

Configuration data displayed by one or more show commands

•

Your name, organization name, telephone number, fax number, and shipping address

•

The support representative validates your request and issues a Return Materials Authorization (RMA) number for return of the device or component.

Returning a SRX4100 Services Gateway or Component to Juniper Networks

To return a services gateway or component to Juniper Networks for repair or replacement, follow this procedure:

1. Determine the part number and serial number of the services gateway or component. See “Locating

the Serial Number on the SRX4100 Services Gateway or Component” on page 77.

2. Obtain a Return Materials Authorization (RMA) number from JTAC. See “Contacting Customer Support”

on page 75.

NOTE: Do not return the services gateway or any component to Juniper Networks unless

you have first obtained an RMA number. Juniper Networks reserves the right to refuse shipments that do not have an RMA. Refused shipments are returned to the customer via collect freight.

3. Pack the services gateway or component for shipping.

For more information about return and repair policies, see the customer support webpage at

https://www.juniper.net/support/guidelines.html.

For product problems or technical support issues, open a support case using the Case Manager link at

https://www.juniper.net/support/ or call 1-888-314-JTAC (within the United States) or 1-408-745-9500

(outside the United States).

Locating the Serial Number on the SRX4100 Services Gateway or Component

IN THIS SECTION

Listing the SRX4100 Services Gateway Component Details with the CLI | 77

Locating the Chassis Serial Number ID Label | 78

Locating the Serial Number ID Labels on FRUs | 78

If you are returning a services gateway or hardware component to Juniper Networks for repair or replacement, you must locate the serial number of the services gateway or component. You must provide the serial number to the Juniper Networks Technical Assistance Center (JTAC) when you contact them to obtain Return Materials Authorization (RMA).

If the services gateway is operational and you can access the CLI, you can list serial numbers for the services gateway and for some components with a CLI command. If you do not have access to the CLI or if the serial number for the component does not appear in the command output, you can locate the serial number ID label on the physical device or component.

Listing the SRX4100 Services Gateway Component Details with the CLI

Before contacting Juniper Networks to request a Return Materials Authorization (RMA), you must find the serial number on the SRX4100 Services Gateway or component. To list all the SRX4100 Services Gateway components and their serial numbers, enter the following CLI command:

user@host> show chassis hardware

Hardware inventory: Item Version Part number Serial number Description Chassis DJ2716AR0001 SRX4100 Mainboard REV 01 650-071676 16071005283 SRX4100 Routing Engine 0 BUILTIN BUILTIN SRX Routing Engine FPC 0 BUILTIN BUILTIN FEB PIC 0 BUILTIN BUILTIN 8x10G-SFP Xcvr 0 REV 01 740-021309 L16G12902 SFP+-10G-LR Xcvr 1 REV 01 740-021309 66T027400947 SFP+-10G-LR Xcvr 2 REV 01 740-021309 ATR06HJ SFP+-10G-LR Xcvr 3 REV 01 740-021309 66T027400948 SFP+-10G-LR
