Page 1

JunosE™ Software for E Series™ Broadband Services Routers

Physical Layer Configuration Guide

Release

11.2.x

Published: 2010-06-17

Page 2

Juniper Networks, Inc. 1194 North Mathilda Avenue Sunnyvale, California 94089 USA 408-745-2000 www.juniper.net

Juniper Networks, Junos, Steel-Belted Radius, NetScreen, and ScreenOS are registered trademarks of Juniper Networks, Inc. in the United States and other countries. The Juniper Networks Logo, the Junos logo, and JunosE are trademarks of Juniper Networks, Inc. All other trademarks, service marks, registered trademarks, or registered service marks are the property of their respective owners.

Juniper Networks assumes no responsibility for any inaccuracies in this document. Juniper Networks reserves the right to change, modify, transfer, or otherwise revise this publication without notice.

Products made or sold by Juniper Networks or components thereof might be covered by one or more of the following patents that are owned by or licensed to Juniper Networks: U.S. Patent Nos. 5,473,599, 5,905,725, 5,909,440, 6,192,051, 6,333,650, 6,359,479, 6,406,312, 6,429,706, 6,459,579, 6,493,347, 6,538,518, 6,538,899, 6,552,918, 6,567,902, 6,578,186, and 6,590,785.

JunosE™ Software for E Series™ Broadband Services Routers Physical Layer Configuration Guide

Writing: Krupa Chandrashekar,Subash BabuAsokan, MarkBarnard, Bruce Gillham, Sarah Lesway-Ball, Helen Shaw, Brian Wesley Simmons, Fran Singer, Michael Taillon Editing: Benjamin Mann Illustration: Nathaniel Woodward Cover Design: Edmonds Design

Revision History July 2010—FRS JunosE 11.2.x

The information in this document is current as of the date listed in the revision history.

YEAR 2000 NOTICE

Juniper Networks hardware and software products are Year 2000 compliant. The Junos OS has no known time-related limitations through the year 2038. However, the NTP application is known to have some difficulty in the year 2036.

Page 3

END USER LICENSE AGREEMENT

READ THIS END USER LICENSE AGREEMENT (“AGREEMENT”) BEFORE DOWNLOADING, INSTALLING, OR USING THE SOFTWARE.

BY DOWNLOADING, INSTALLING, OR USING THE SOFTWARE OR OTHERWISE EXPRESSING YOUR AGREEMENT TO THE TERMS CONTAINED HEREIN, YOU (AS CUSTOMER OR IF YOU ARE NOT THE CUSTOMER, AS A REPRESENTATIVE/AGENT AUTHORIZED TO BIND THE CUSTOMER) CONSENT TO BE BOUND BY THISAGREEMENT. IF YOU DONOT OR CANNOT AGREE TO THETERMS CONTAINED HEREIN, THEN (A) DO NOT DOWNLOAD, INSTALL, OR USE THE SOFTWARE, AND (B) YOU MAY CONTACT JUNIPER NETWORKS REGARDING LICENSE TERMS.

1. The Parties. The parties to this Agreement are (i) Juniper Networks, Inc. (if the Customer’s principal office is located in the Americas) or Juniper Networks(Cayman)Limited (if theCustomer’s principal office islocated outside theAmericas) (such applicable entity beingreferred to herein as“Juniper”), and (ii)the personor organization that originally purchased fromJuniper or an authorized Juniperresellerthe applicable license(s) for use of the Software (“Customer”) (collectively, the “Parties”).

2. The Software. In this Agreement, “Software” means the program modules and features of the Juniper or Juniper-supplied software, for which Customer has paid the applicable license or support fees to Juniper or an authorized Juniper reseller, or which was embedded by Juniper in equipment which Customer purchased from Juniper or an authorized Juniper reseller. “Software”also includes updates, upgrades and new releases of such software. “Embedded Software” means Software which Juniper has embedded in or loaded onto the Juniper equipment and any updates, upgrades, additions or replacements which are subsequently embedded in or loaded onto the equipment.

3. License Grant. Subject to payment of the applicablefees andthe limitations and restrictions setforth herein, Juniper grants toCustomer a non-exclusive and non-transferable license, without right to sublicense, to use the Software, in executable form only, subject to the following use restrictions:

a. Customer shall use Embedded Software solely as embedded in, and for execution on, Juniper equipment originally purchased by Customer from Juniper or an authorized Juniper reseller.

b. Customer shall use the Software on a single hardware chassis having a single processing unit, or as many chassis or processing units for which Customer has paid the applicable license fees; provided, however, with respect to the Steel-Belted Radius or Odyssey Access Client software only, Customer shall use such Software on a single computer containing a single physical random access memory space and containing any number of processors. Use of the Steel-Belted Radius or IMS AAA software on multiple computers or virtual machines (e.g., Solaris zones) requires multiple licenses, regardless of whether such computers or virtualizations are physically contained on a single chassis.

c. Product purchase documents, paper or electronic user documentation, and/or the particular licenses purchased by Customer may specify limitsto Customer’s use of the Software. Such limitsmay restrict useto a maximumnumber ofseats, registeredendpoints, concurrent users, sessions, calls, connections, subscribers, clusters, nodes, realms, devices, links, ports or transactions, or require the purchase of separate licenses to use particular features, functionalities, services, applications, operations, or capabilities, or provide throughput, performance, configuration, bandwidth, interface, processing, temporal, or geographical limits. In addition, such limits may restrict the use of the Software to managing certain kinds of networks or require the Software to be used only in conjunction with other specific Software. Customer’s use of the Software shall be subject to all such limitations and purchase of all applicable licenses.

d. For any trial copy of the Software, Customer’s right to use the Software expires 30 days after download, installation or use of the Software. Customer may operate the Software after the 30-day trial period only if Customer pays for a license to do so. Customer may not extend or create an additional trial period by re-installing the Software after the 30-day trial period.

e. The Global Enterprise Edition of the Steel-Belted Radius software may be used by Customer only to manage access to Customer’s enterprise network. Specifically, service provider customers are expressly prohibited from using the Global Enterprise Edition of the Steel-Belted Radius software to support any commercial network access services.

The foregoing license is not transferable or assignable by Customer. No license is granted herein to any user who did not originally purchase the applicable license(s) for the Software from Juniper or an authorized Juniper reseller.

4. Use Prohibitions. Notwithstanding the foregoing, the license provided herein does not permit the Customer to, and Customer agrees not to and shall not: (a) modify, unbundle, reverse engineer, or create derivative works based on the Software; (b) make unauthorized copies of the Software (except as necessary for backup purposes); (c) rent, sell, transfer, or grant any rights in and to any copy of the Software,in any form, toany third party; (d) remove anyproprietary notices, labels,or markson orin any copy ofthe Software orany product in which the Software is embedded; (e) distribute any copy of the Software to any third party, including as may be embedded in Juniper equipment sold in thesecondhand market; (f) useany ‘locked’ or key-restricted feature, function, service,application, operation, orcapability without first purchasing the applicable license(s) and obtaining a valid key from Juniper, even if such feature, function, service, application, operation, or capability is enabled without a key; (g) distribute any key for the Software provided by Juniper to any third party; (h) use the

Page 4

Software in any manner that extends or is broader than the uses purchased by Customer from Juniper or an authorized Juniper reseller; (i) use Embedded Software on non-Juniper equipment; (j) use Embedded Software (or make it available for use) on Juniper equipment that the Customer did not originally purchase from Juniper or an authorized Juniper reseller; (k) disclose the results of testing or benchmarking of the Software to any third party without the prior written consentof Juniper; or (l) use the Software in any manner other than as expressly provided herein.

5. Audit. Customer shall maintain accurate records as necessary to verify compliance with this Agreement. Upon request by Juniper, Customer shall furnish such records to Juniper and certify its compliance with this Agreement.

6. Confidentiality. The Parties agree that aspects of the Software and associated documentation are the confidential property of Juniper. As such, Customer shall exercise all reasonable commercial efforts to maintain the Softwareand associated documentation inconfidence, which at a minimum includes restricting access to the Software to Customer employees and contractors having a need to use the Software for Customer’s internal business purposes.

7. Ownership. Juniper and Juniper’s licensors, respectively, retain ownership of all right, title, and interest (including copyright) in and to the Software, associated documentation, and all copies of the Software. Nothing in this Agreement constitutes a transfer or conveyance of any right, title, or interest in the Software or associated documentation, or a sale of the Software, associated documentation, or copies of the Software.

8. Warranty, Limitation of Liability, Disclaimer of Warranty. The warranty applicable to the Software shall be as set forth in the warranty statementthat accompaniesthe Software (the “Warranty Statement”).Nothing in thisAgreementshall giverise to anyobligation tosupport the Software. Support services may be purchased separately. Any such support shall be governed by a separate, written support services agreement. TO THE MAXIMUM EXTENT PERMITTED BY LAW, JUNIPER SHALL NOT BE LIABLE FOR ANY LOST PROFITS, LOSS OF DATA, OR COSTS ORPROCUREMENT OFSUBSTITUTE GOODSOR SERVICES,OR FORANYSPECIAL, INDIRECT,OR CONSEQUENTIALDAMAGES ARISING OUTOF THIS AGREEMENT,THE SOFTWARE,OR ANY JUNIPEROR JUNIPER-SUPPLIED SOFTWARE. IN NOEVENT SHALL JUNIPER BE LIABLE FOR DAMAGES ARISING FROM UNAUTHORIZED OR IMPROPER USE OF ANY JUNIPER OR JUNIPER-SUPPLIED SOFTWARE. EXCEPT AS EXPRESSLY PROVIDED IN THE WARRANTY STATEMENT TO THE EXTENT PERMITTED BY LAW, JUNIPER DISCLAIMS ANY AND ALL WARRANTIES IN AND TO THE SOFTWARE (WHETHER EXPRESS, IMPLIED, STATUTORY, OR OTHERWISE), INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NONINFRINGEMENT. IN NO EVENT DOES JUNIPER WARRANT THAT THE SOFTWARE, OR ANY EQUIPMENT OR NETWORK RUNNING THE SOFTWARE, WILL OPERATE WITHOUT ERROR OR INTERRUPTION, OR WILL BE FREE OF VULNERABILITY TO INTRUSION OR ATTACK. In no event shall Juniper’s or its suppliers’ or licensors’ liability to Customer, whether in contract, tort (including negligence), breach of warranty, or otherwise, exceed the price paid by Customer for the Software that gave rise to the claim, or if the Software is embedded in another Juniper product, the price paid by Customer for such other product. Customer acknowledges and agrees that Juniper has set its prices and entered into this Agreement in reliance upon the disclaimers of warranty and the limitations of liability set forth herein, that the same reflect an allocation of risk between the Parties (including the risk that a contract remedy may fail of its essential purpose and cause consequential loss), and that the same form an essential basis of the bargain between the Parties.

9. Termination. Any breach of this Agreement or failure by Customer to pay any applicable fees due shall result in automatic termination of the license granted herein. Upon such termination, Customer shall destroy or return to Juniper all copies of the Software and related documentation in Customer’s possession or control.

10. Taxes. All license fees payable under this agreement are exclusive of tax. Customer shall be responsible for paying Taxes arising from the purchase of the license, or importation or use of the Software. If applicable, valid exemption documentation for each taxing jurisdiction shall be provided to Juniper prior to invoicing, and Customer shall promptly notify Juniper if their exemption is revoked or modified. All payments made by Customer shall be net of any applicable withholding tax. Customer will provide reasonable assistance to Juniper in connection with such withholding taxes by promptly: providing Juniper with valid tax receipts and other required documentation showing Customer’s payment of any withholding taxes; completing appropriate applications that would reduce the amount of withholding tax to be paid; and notifying and assisting Juniper in any audit or tax proceeding related to transactions hereunder. Customer shall comply with all applicable tax laws and regulations, and Customer will promptly pay or reimburse Juniper for all costs and damages related to any liability incurred by Juniper as a result of Customer’s non-compliance or delay with its responsibilities herein. Customer’s obligations under this Section shall survive termination or expiration of this Agreement.

11. Export. Customer agrees to comply with all applicable export laws and restrictions and regulations of any United States and any applicable foreign agency or authority, and not to export or re-export the Software or any direct product thereof in violation of any such restrictions, laws or regulations, or without all necessary approvals. Customer shall be liable for any such violations. The version of the Software supplied to Customer may contain encryption or other capabilities restricting Customer’s ability to export the Software without an export license.

Page 5

12. Commercial Computer Software. The Software is “commercial computer software” and is provided with restricted rights. Use, duplication, or disclosure by the United States government is subject to restrictions set forth in this Agreement and as provided in DFARS

227.7201 through 227.7202-4, FAR 12.212, FAR 27.405(b)(2), FAR 52.227-19, or FAR 52.227-14(ALT III) as applicable.

13. Interface Information. To the extent required by applicable law, and at Customer's written request, Juniper shall provide Customer with the interface information needed to achieve interoperability between the Software and another independently created program, on payment of applicable fee, if any. Customer shall observe strict obligations of confidentiality with respect to such information and shall use such information in compliance with any applicable terms and conditions upon which Juniper makes such information available.

14. Third Party Software. Any licensor of Juniperwhose softwareis embedded in the Software and any supplier of Juniper whose products or technology are embedded in (or services are accessed by) the Software shall be a third party beneficiary with respect to this Agreement, and such licensor or vendor shall have the right to enforce this Agreement in its own name asif it were Juniper.In addition, certain third party software may be provided with the Software and is subject to the accompanying license(s), if any, of its respective owner(s). To the extent portions of the Software are distributed under and subject to open source licenses obligating Juniper to make the source code for such portions publicly available (such as the GNU General Public License (“GPL”) or the GNU Library General Public License (“LGPL”)), Juniper will make such source code portions (including Juniper modifications, as appropriate) available upon request for a period of up to three years from the date of distribution. Such request can be made in writing to Juniper Networks, Inc., 1194 N. Mathilda Ave., Sunnyvale, CA 94089, ATTN: General Counsel. You may obtain a copy of the GPL at http://www.gnu.org/licenses/gpl.html, and a copy of the LGPL

at http://www.gnu.org/licenses/lgpl.html .

15. Miscellaneous. This Agreement shall be governed by the laws of the State of California without reference to its conflicts of laws principles. The provisions of the U.N. Convention for the International Sale of Goods shall not apply to this Agreement. For any disputes arising under this Agreement, the Parties hereby consent to the personal and exclusive jurisdiction of, and venue in, the state and federal courts within Santa Clara County, California. This Agreement constitutes the entire and sole agreement between Juniper and the Customer with respect to the Software, and supersedes all prior and contemporaneous agreements relating to the Software, whether oral or written (including any inconsistent terms contained in a purchase order), except that the terms of a separate written agreement executed by an authorized Juniper representative and Customer shall govern to the extent such terms are inconsistent or conflict with terms contained herein. No modification to this Agreement nor any waiver of any rights hereunder shall be effective unless expressly assented to in writing by the party to be charged. If any portion of this Agreement is held invalid, the Parties agree that such invalidity shall not affect the validity of the remainder of this Agreement. This Agreement and associated documentation has been written in the English language, and the Parties agree that the English version will govern. (For Canada: Les parties aux présentés confirment leur volonté que cette convention de même que tous les documents y compris tout avis qui s'y rattaché, soient redigés en langue anglaise. (Translation: The parties confirm that this Agreement and all related documentation is and will be in the English language)).

Page 6

Page 7

Abbreviated Table of Contents

About the Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix

Part 1 Chapters

Chapter 1 Configuring Channelized T3 Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Chapter 2 Configuring T3 and E3 Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Chapter 3 Configuring Unchannelized OCx/STMx Interfaces . . . . . . . . . . . . . . . . . . . . . 71

Chapter 4 Configuring Channelized OCx/STMx Interfaces . . . . . . . . . . . . . . . . . . . . . . 105

Chapter 5 Configuring Ethernet Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

Chapter 6 Managing Tunnel-Service and IPSec-Service Interfaces . . . . . . . . . . . . . . 207

Part 2 Index

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227

Page 8

JunosE 11.2.x Physical Layer Configuration Guide

Page 9

Table of Contents

About the Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix

E Series and JunosE Documentation and Release Notes . . . . . . . . . . . . . . . . . . . . xix

Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix

E Series and JunosE Text and Syntax Conventions . . . . . . . . . . . . . . . . . . . . . . . . xix

Obtaining Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxi

Documentation Feedback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxi

Requesting Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxi

Self-Help Online Tools and Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxii

Opening a Case with JTAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxii

Part 1 Chapters

Chapter 1 Configuring Channelized T3 Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

MDL/FDL Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

MDL Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

FDL Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Timeout of Received MDL and FDL Messages . . . . . . . . . . . . . . . . . . . . . . 4

Frequency of FDL Path Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Higher-Level Protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Platform Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

CT3/T3-F0 Line Modules and CT3/T3 12 I/O Modules . . . . . . . . . . . . . . . . . . . 6

Exchanging Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Interface Stack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Numbering Scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

T3 Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

T1 Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Fractional T1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

HDLC Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Before You Configure an Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Configuration Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Configuring a T3 Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Configuring MDL Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Other Optional Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Configuring T1 Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Optional Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Configuring FDL Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Configuring an HDLC Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Optional Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Configuration Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Page 10

JunosE 11.2.x Physical Layer Configuration Guide

Testing Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Testing at the T3 Layer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Testing at the T1 Layer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Monitoring Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Setting a Baseline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Displaying Counters and Time Intervals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Output Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Chapter 2 Configuring T3 and E3 Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

MDL Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Higher-Level Protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Platform Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

COCX-F3 Line Modules and Associated I/O Modules . . . . . . . . . . . . . . . . . . . 47

OCx/STMx/DS3-ATM Line Modules and 4xDs3 ATM I/O Modules . . . . . . . . 48

CT3/T3-F0 Line Modules and CT3/T3 12 I/O Modules . . . . . . . . . . . . . . . . . . 48

Interface Stack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Numbering Scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Before You Configure an Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Configuration Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Configuring a T3 or an E3 Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Configuring Fractional T3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Configuring an HDLC Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Configuration Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Testing Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Sending BERT Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Enabling Local, Network, and Payload Loopback . . . . . . . . . . . . . . . . . . . . . . 61

Enabling Remote Loopback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Monitoring Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Setting a Baseline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Displaying Counters and Time Intervals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Output Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Chapter 3 Configuring Unchannelized OCx/STMx Interfaces . . . . . . . . . . . . . . . . . . . . . 71

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

APS and MSP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

MDL Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Timeout of Received MDL Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Configuring MDL Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Optional Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Optional Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Automatic Switchover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Manual Switchover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Switching Mechanisms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Reversion After Switchover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Page 11

Table of Contents

Communication Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Higher-Level Protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Platform Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

OCx/STMx/DS3-ATM Line Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

OCx/STMx POS Line Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

OC48 Line Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

OC3/STM1 GE/FE Line Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

ES2 4G Line Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

E120 Router Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

E320 Router Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

OCx/STMx ATM IOAs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

OCx/STMx POS IOAs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Numbering Scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

ERX7xx Models, ERX14xx Models, and the ERX310 Router . . . . . . . . . . . 79

E120 and E320 Routers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Interface Specifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Exchanging Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Configuration Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Configuring the SONET/SDH Layers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Configuring APS/MSP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Configuring the Working Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Configuring the Protect Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Configuring SONET/SDH Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Configuration Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Configuring APS Event Collection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Manual Switching to a Redundant Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Testing Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Loopback Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Testing Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Monitoring SONET/SDH Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Monitoring Interface Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Monitoring APS/MSP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Chapter 4 Configuring Channelized OCx/STMx Interfaces . . . . . . . . . . . . . . . . . . . . . . 105

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

SONET APS and SDH MSP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

MDL/FDL Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

MDL Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

FDL Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Timeout of Received MDL and FDL Messages . . . . . . . . . . . . . . . . . . . . 106

Frequency of FDL Path Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Higher-Level Protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Platform Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

cOCx/STMx FO Line Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Interface Stack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

SONET/SDH VT Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

T3 Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

HDLC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Page 12

JunosE 11.2.x Physical Layer Configuration Guide

Numbering Scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Before You Configure an Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

Configuration Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

SONET/SDH Configuration Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

T1/E1 Configuration Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

T3 Configuration Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

HDLC Channel Configuration Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Configuration Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Example 1: Configuring Interfaces in SONET Mode . . . . . . . . . . . . . . . . . . . . 137

Example 2: Configuring Interfaces in SDH Mode . . . . . . . . . . . . . . . . . . . . . . 138

Example 3: Configuring Frame Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Example 4: Configuring PPP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Testing Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Sending BERT Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Receiving BERT Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

Enabling Local or Network Loopback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

Enabling Remote Loopback Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

Testing Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Monitoring Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Setting a Baseline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Output Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Monitoring APS/MSP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166

Chapter 5 Configuring Ethernet Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

Ethernet Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

Ethernet Interface Platform Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

Numbering Scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

Interface Specifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

Fast Ethernet I/O Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

FE-8 I/O Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

FE-8 SFP I/O Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

Configuring Higher Layers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Configuring an Unframed E1 Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Configuring T1 and E1 Lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Configuring T1 Interfaces to Send FDL Messages . . . . . . . . . . . . . . . . . . 123

Disabling Interfaces and Channel Groups . . . . . . . . . . . . . . . . . . . . . . . . 125

Configuring Higher Layers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Configuring T3 Line Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Configuring T3 Interfaces to Send MDL Messages . . . . . . . . . . . . . . . . . 128

Configuring T1 Channels on T3 Interfaces . . . . . . . . . . . . . . . . . . . . . . . . 129

Configuring T1 Channels to Send FDL Messages . . . . . . . . . . . . . . . . . . . 132

Configuring Higher Layers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Optional Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

ERX7xx Models, ERX14xx Models, and the ERX310 Router . . . . . . . . . . 169

E120 and E320 Routers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

Page 13

Table of Contents

Gigabit Ethernet I/O Modules and IOAs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

GE I/O Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

GE-2 SFP I/O Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

Ports on GE-2 SFP I/O Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

Bandwidth and Line Rate Considerations . . . . . . . . . . . . . . . . . . . . . . . . 172

GE-8 I/O Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

Bandwidth and Line Rate Considerations . . . . . . . . . . . . . . . . . . . . . . . . 173

Managing High-Density Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173

OC3-2 GE APS I/O Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

ES2-S1 GE-4 IOA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

ES2-S1 GE-8 IOA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

ES2 4G LM Combination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

ES2 10G LM Combination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

ES2 10G ADV LM Combination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

ES2-S3 GE-20 IOA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

ES2 10G LM Combination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

Bandwidth and Line Rate Considerations . . . . . . . . . . . . . . . . . . . . . . . . 181

Managing High-Density Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181

ES2 10G ADV LM Combination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181

Bandwidth and Line Rate Considerations . . . . . . . . . . . . . . . . . . . . . . . . 182

Managing High-Density Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182

10-Gigabit Ethernet IOAs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182

ES2-S1 10GE IOA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182

Managing High-Density Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

ES2-S2 10GE PR IOA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

ES2 10G Uplink LM Combination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

ES2 10G LM Combination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184

ES2 10G ADV LM Combination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

Ethernet References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186

High-Density Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187

Managing Port Redundancy on Gigabit Ethernet I/O Modules . . . . . . . . . . . . . . . 188

Configuration Tasks for Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189

Configuring the Physical Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190

Disabling Ethernet Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195

Monitoring Ethernet Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196

Setting Statistics Baselines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196

Using Ethernet show Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196

Page 14

JunosE 11.2.x Physical Layer Configuration Guide

Chapter 6 Managing Tunnel-Service and IPSec-Service Interfaces . . . . . . . . . . . . . . 207

Tunnel-Service and IPSec-Service Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207

Types of Tunnel-Server Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208

Types of Tunnel-Service Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208

Tunnel-Service Interface Platform Considerations . . . . . . . . . . . . . . . . . . . . . . . 209

Supported Modules for Dedicated Tunnel-Server Ports . . . . . . . . . . . . . . . . 209

Supported Modules for Shared Tunnel-Server Ports . . . . . . . . . . . . . . . . . . . 210

Numbering Scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211

Interface Specifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211

Supported Applications for Dedicated and Shared Tunnel-Server Ports . . . 212

Redundancy and Interface Distribution of Tunnel-Service Interfaces . . . . . . . . . 212

SMs, ES2-S1 Service IOA, and Shared Tunnel-Server Modules . . . . . . . . . . . 213

ISMs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214

Tunnel-Service Interface Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215

Provisioning Tunnel-Service Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215

Exchanging Tunnel-Server Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216

Unprovisioned Tunnel-Service Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217

Configuring Tunnel-Server Ports and Tunnel-Service Interfaces . . . . . . . . . . . . . 217

Identifying the Physical Location of the Tunnel-Server Port . . . . . . . . . . . . . 217

Provisioning the Maximum Number of Interfaces on a Tunnel-Server

Reserving Bandwidth on Shared Tunnel-Server Ports . . . . . . . . . . . . . . . . . . 218

Verifying the Tunnel-Server Interface Configuration . . . . . . . . . . . . . . . . . . . 219

Unprovisioning Tunnel-Service Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . 219

Monitoring Tunnel-Service Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221

Dedicated Tunnel-Server Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208

Shared Tunnel-Server Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208

ERX7xx Models, ERX14xx Models, and the ERX310 Router . . . . . . . . . . 209

E120 and E320 Routers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210

ERX14xx Models and the ERX310 Broadband Services Router . . . . . . . 210

E120 and E320 Routers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210

ERX7xx Models, ERX14xx Models, and the ERX310 Router . . . . . . . . . . . 211

E120 and E320 Routers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211

Static IP Tunnel-Service Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213

Dynamic Tunnel-Service Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213

Interface Allocation for Shared Tunnel-Server Modules . . . . . . . . . . . . . 214

Bandwidth Limitations of Shared Tunnel-Server Ports . . . . . . . . . . . . . 215

Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217

Part 2 Index

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227

Page 15

List of Figures

Part 1 Chapters

Chapter 1 Configuring Channelized T3 Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Figure 1: Stack for Channelized T3 Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Figure 2: T1 Channels and DS0 Timeslots on a T3 Line . . . . . . . . . . . . . . . . . . . . . . 8

Chapter 2 Configuring T3 and E3 Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

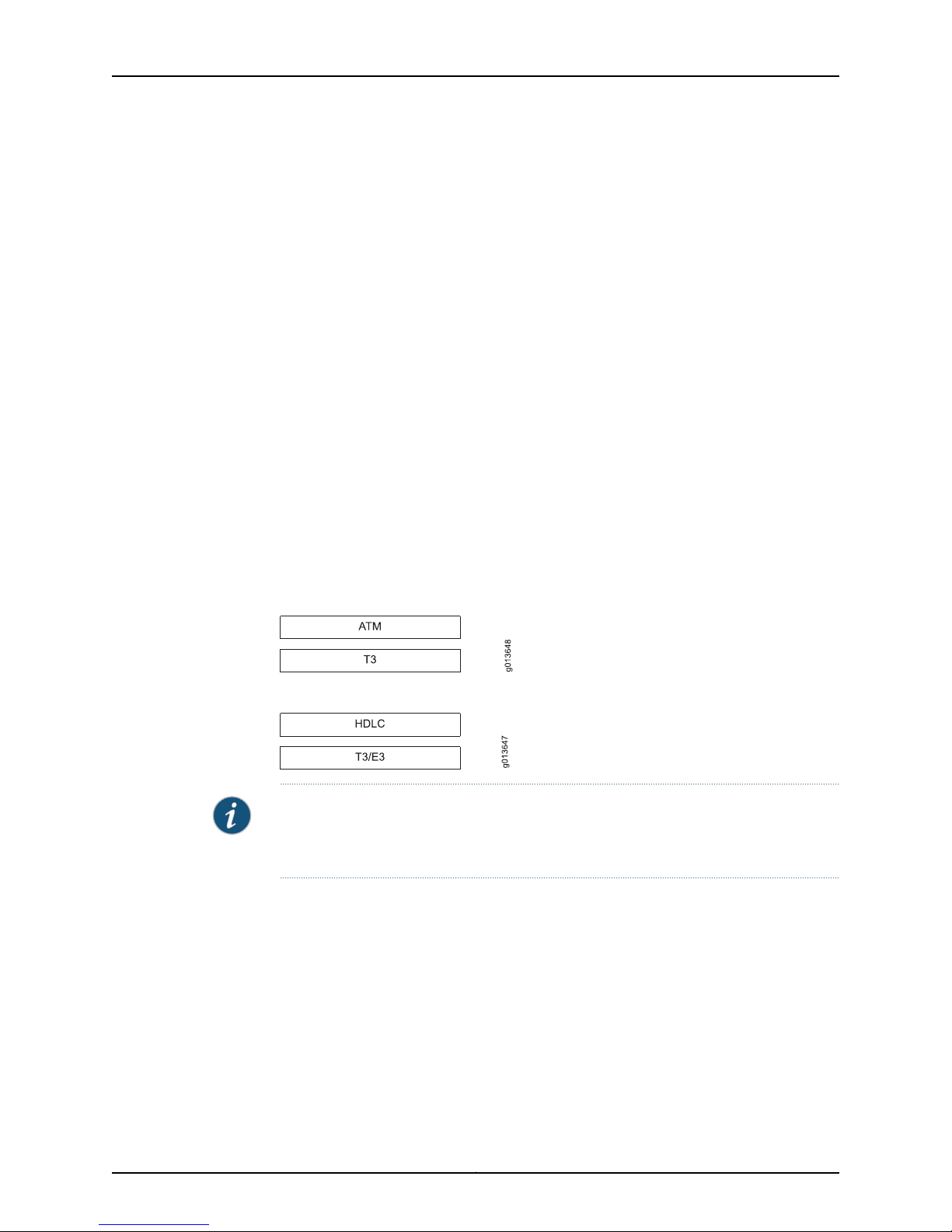

Figure 3: Stack for T3 ATM Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Figure 4: Stack for T3 Frame and E3 Frame Interfaces . . . . . . . . . . . . . . . . . . . . . 49

Chapter 3 Configuring Unchannelized OCx/STMx Interfaces . . . . . . . . . . . . . . . . . . . . . 71

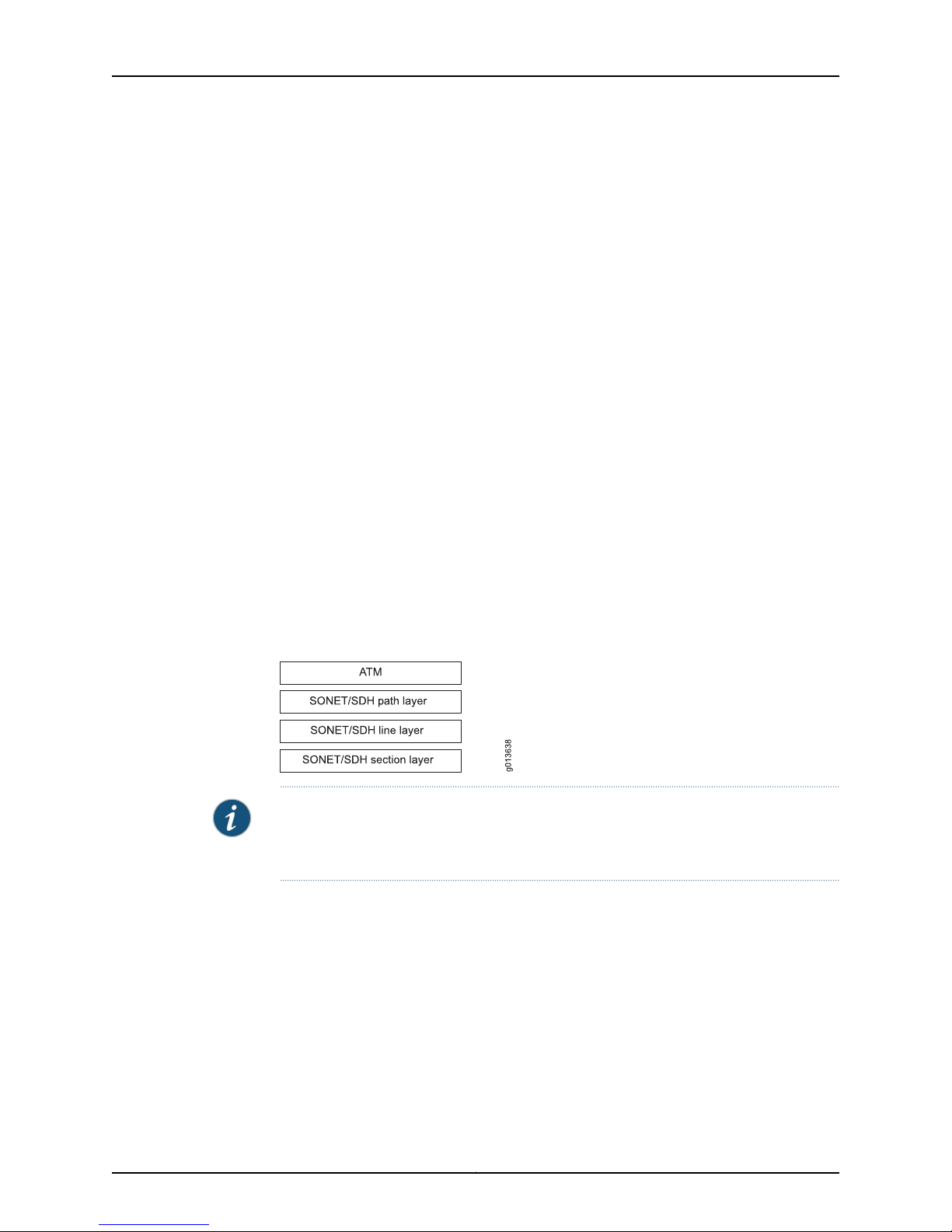

Figure 5: Interface Stack for OCx/STMx/DS3-ATM Interfaces . . . . . . . . . . . . . . . . 76

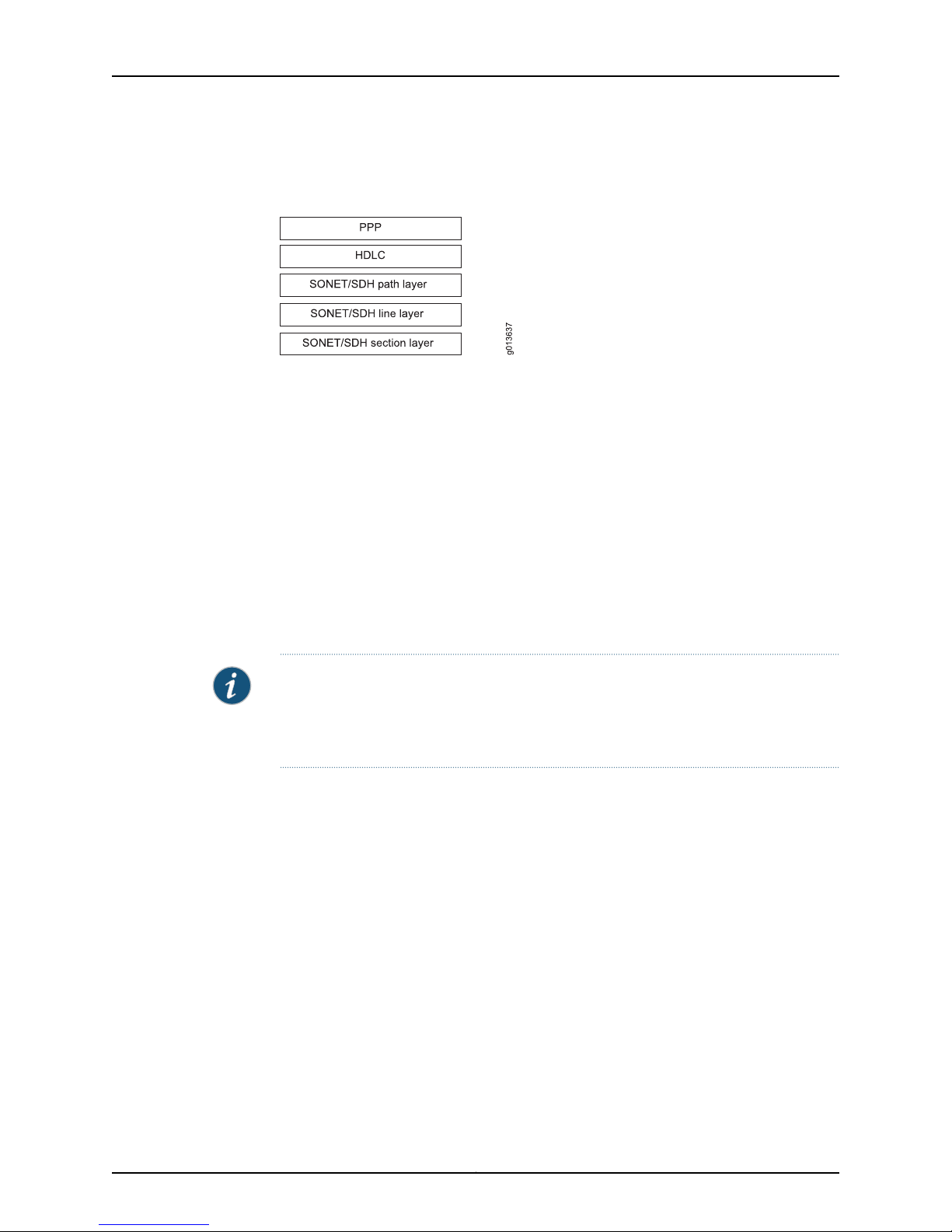

Figure 6: Interface Stack for OCx/STMx POS and OC48/STM16 Interfaces . . . . . 77

Figure 7: Interface Stack for OCx/STMx POS Interfaces . . . . . . . . . . . . . . . . . . . . . 79

Chapter 4 Configuring Channelized OCx/STMx Interfaces . . . . . . . . . . . . . . . . . . . . . . 105

Figure 8: Stack for cOCx/STMx Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Figure 9: SONET Multiplexing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Figure 10: SDH Multiplexing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Figure 11: Configuring Fractional T1 in SONET Mode . . . . . . . . . . . . . . . . . . . . . . . 137

Figure 12: Configuring Fractional E1 and Unframed E1 in SDH Mode . . . . . . . . . . . 138

Chapter 6 Managing Tunnel-Service and IPSec-Service Interfaces . . . . . . . . . . . . . . 207

Figure 13: Interface Stacking for Tunnel-Service Interfaces . . . . . . . . . . . . . . . . . 207

Page 16

JunosE 11.2.x Physical Layer Configuration Guide

Page 17

List of Tables

About the Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix

Table 1: Notice Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xx

Table 2: Text and Syntax Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xx

Part 1 Chapters

Chapter 1 Configuring Channelized T3 Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Table 3: MDL and FDL Message Strings and Message Types . . . . . . . . . . . . . . . . . . 4

Table 4: Sample T1 Subchannel/Timeslot Assignments . . . . . . . . . . . . . . . . . . . . . 8

Chapter 2 Configuring T3 and E3 Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Table 5: MDL Message Strings and Message Types . . . . . . . . . . . . . . . . . . . . . . . . 46

Chapter 3 Configuring Unchannelized OCx/STMx Interfaces . . . . . . . . . . . . . . . . . . . . . 71

Table 6: Sample Pairings for Valid APS/MSP Groups . . . . . . . . . . . . . . . . . . . . . . . 72

Table 7: Explanation of K1 Byte . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Table 8: Explanation of K2 Byte . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Chapter 4 Configuring Channelized OCx/STMx Interfaces . . . . . . . . . . . . . . . . . . . . . . 105

Table 9: MDL and FDL Message Strings and Message Types . . . . . . . . . . . . . . . . 106

Table 10: Tributary Standards That cOCx/STMx Interfaces Support . . . . . . . . . . 110

Table 11: Identifiers for SONET/SDH VT Controllers . . . . . . . . . . . . . . . . . . . . . . . . 111

Table 12: Definitions for Identifiers for SONET/SDH VT Controllers . . . . . . . . . . . . 111

Table 13: Identifiers for T3 Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Chapter 5 Configuring Ethernet Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

Table 14: Average Data Rate for ERX310 router or in Slots 2 or 4 of an ERX1440

Table 15: Average Data Rate When Installed in All Other Slots on an ERX1440

Table 16: Average Data Rate for One ES2-S1 GE-8 IOA Installed with an ES2 4G

Table 17: Average Data Rate for Two ES2-S1 GE-8 IOAs Installed with an ES2

Table 18: Average Data Rate for ES2-S1 GE-8 IOA Combined with Other IOA

Table 19: Average Data Rate for One ES2-S1 GE-8 IOA Installed with an ES2 10G

Table 20: Average Data Rate for Two ES2-S1 GE-8 IOAs Installed with an ES2

Table 21: Average Data Rate for One ES2-S1 GE-8 IOA Installed with an ES2 10G

router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173

LM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

4G LM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176

Types in Same Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

LM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

10G LM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

ADV LM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

Page 18

JunosE 11.2.x Physical Layer Configuration Guide

Table 22: Average Data Rate for Two ES2-S1 GE-8 IOAs Installed with an ES2

10G ADV LM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

Table 23: Average Data Rate for One ES2-S3 GE-20 IOA Installed with an ES2

10G LM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181

Table 24: Average Data Rate for One ES2-S3 GE-20 IOA Installed with an ES2

10G ADV LM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182

Chapter 6 Managing Tunnel-Service and IPSec-Service Interfaces . . . . . . . . . . . . . . 207

Table 25: Sample Capacity, Configuration, and Utilization Values for

Tunnel-Service Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216

Page 19

About the Documentation

•

E Series and JunosE Documentation and Release Notes on page xix

•

Audience on page xix

•

E Series and JunosE Text and Syntax Conventions on page xix

•

Obtaining Documentation on page xxi

•

Documentation Feedback on page xxi

•

Requesting Technical Support on page xxi

E Series and JunosE Documentation and Release Notes

For a list of related JunosE documentation, see

http://www.juniper.net/techpubs/software/index.html .

If the information in the latest release notes differs from the information in the documentation, follow the JunosE Release Notes.

To obtain the most current version of all Juniper Networks®technical documentation,

see the product documentation page on the Juniper Networks website at

http://www.juniper.net/techpubs/.

Audience

This guide is intended for experienced system and network specialists working with Juniper Networks E SeriesBroadband Services Routers in an Internet access environment.

E Series and JunosE Text and Syntax Conventions

Table 1 on page xx defines notice icons used in this documentation.

Page 20

JunosE 11.2.x Physical Layer Configuration Guide

Table 1: Notice Icons

Table 2 on page xx defines text and syntax conventions that we use throughout the E Series and JunosE documentation.

DescriptionMeaningIcon

Indicates important features or instructions.Informational note

Indicates a situation that might result in loss of data or hardware damage.Caution

Alerts you to the risk of personal injury or death.Warning

Alerts you to the risk of personal injury from a laser.Laser warning

Table 2: Text and Syntax Conventions

Representscommands and keywords in text.Bold text like this

Fixed-width text like this

Italic text like this

Plus sign (+) linking key names

Syntax Conventions in the Command Reference Guide

Representsinformationas displayed on your terminal’s screen.

•

Emphasizes words.

•

Identifies variables.

•

Identifies chapter, appendix, and book names.

keys simultaneously.

ExamplesDescriptionConvention

•

Issue the clock source command.

•

Specify the keyword exp-msg.

host1(config)#traffic class low-loss1Represents text that the user must type.Bold text like this

host1#show ip ospf 2

Routing Process OSPF 2 with Router ID 5.5.0.250 Router is an Area Border Router (ABR)

•

There are two levels of access: user and privileged.

•

clusterId, ipAddress.

•

Appendix A, System Specifications

Press Ctrl + b.Indicates that you must press two or more

terminal lengthRepresents keywords.Plain text like this

mask, accessListNameRepresents variables.Italic text like this

Page 21

Table 2: Text and Syntax Conventions (continued)

About the Documentation

ExamplesDescriptionConvention

| (pipe symbol)

or variable to the left or to the right of this symbol. (The keyword or variable can be either optional or required.)

[ ]* (brackets and asterisk)

that can be entered more than once.

Represent required keywords or variables.{ } (braces)

Obtaining Documentation

To obtain the most current version of all Juniper Networks technical documentation, see the Technical Documentation page on the Juniper Networks Web site at

http://www.juniper.net/.

To download complete sets of technical documentation to create your own documentation CD-ROMs or DVD-ROMs, see the Portable Libraries page at

http://www.juniper.net/techpubs/resources/index.html

diagnostic | lineRepresents a choice to select one keyword

[ internal | external ]Represent optional keywords or variables.[ ] (brackets)

[ level1 | level2 | l1 ]*Represent optional keywords or variables

{ permit | deny } { in | out }

{ clusterId | ipAddress }

Copies of the Management Information Bases (MIBs) for a particular software release are available for download in the software image bundle from the Juniper Networks Web site athttp://www.juniper.net/.

Documentation Feedback

We encourage you to provide feedback, comments, and suggestions so that we can improve the documentation to better meet your needs. Send your comments to

techpubs-comments@juniper.net, or fill out the documentation feedback form at

https://www.juniper.net/cgi-bin/docbugreport/. If you are using e-mail, be sure to include

the following information with your comments:

•

Document or topic name

•

URL or page number

•

Software release version

Requesting Technical Support

Technical productsupport isavailablethrough the Juniper NetworksTechnical Assistance Center (JTAC). If you are a customer with an active J-Care or JNASC support contract,

Page 22

JunosE 11.2.x Physical Layer Configuration Guide

or are covered under warranty, and need post-sales technical support, you can access our tools and resources online or open a case with JTAC.

•

JTAC policies—For a complete understanding of our JTAC procedures and policies, review the JTAC User Guide located at

http://www.juniper.net/us/en/local/pdf/resource-guides/7100059-en.pdf .

•

Product warranties—For product warranty information, visit

http://www.juniper.net/support/warranty/ .

•

JTAC hours of operation—The JTAC centers have resources available 24 hours a day, 7 days a week, 365 days a year.

Self-Help Online Tools and Resources

For quick and easy problem resolution, Juniper Networks has designed an online self-service portal called the Customer Support Center (CSC) that provides you with the following features:

•

Find CSC offerings: http://www.juniper.net/customers/support/

•

Search for known bugs: http://www2.juniper.net/kb/

•

Find product documentation: http://www.juniper.net/techpubs/

•

Find solutions and answer questions using our Knowledge Base: http://kb.juniper.net/

•

Download the latest versions of software and review release notes:

http://www.juniper.net/customers/csc/software/

•

Search technical bulletins for relevant hardware and software notifications:

https://www.juniper.net/alerts/

•

Join and participate in the Juniper Networks Community Forum:

http://www.juniper.net/company/communities/

•

Open a case online in the CSC Case Management tool: http://www.juniper.net/cm/

To verifyservice entitlement byproductserial number, use our SerialNumber Entitlement (SNE) Tool: https://tools.juniper.net/SerialNumberEntitlementSearch/

Opening a Case with JTAC

You can open a case with JTAC on the Web or by telephone.

•

Use the Case Management tool in the CSC at http://www.juniper.net/cm/ .

•

Call 1-888-314-JTAC (1-888-314-5822 toll-free in the USA, Canada, and Mexico).

For international or direct-dial options in countries without toll-free numbers, see

http://www.juniper.net/support/requesting-support.html .

Page 23

PART 1

Chapters

•

Configuring Channelized T3 Interfaces on page 3

•

Configuring T3 and E3 Interfaces on page 45

•

Configuring Unchannelized OCx/STMx Interfaces on page 71

•

Configuring Channelized OCx/STMx Interfaces on page 105

•

Configuring Ethernet Interfaces on page 167

•

Managing Tunnel-Service and IPSec-Service Interfaces on page 207

Page 24

JunosE 11.2.x Physical Layer Configuration Guide

Page 25

CHAPTER 1

Configuring Channelized T3 Interfaces

Use theproceduresdescribed inthis chapterto configure channelized T3(CT3) interfaces on E Series Broadband Services Routers.

This chapter contains the following sections:

•

Overview on page 3

•

Platform Considerations on page 5

•

References on page 9

•

Before You Configure an Interface on page 9

•

Configuration Tasks on page 10

•

Configuration Example on page 22

•

Testing Interfaces on page 22

•

Monitoring Interfaces on page 27

Overview

MDL/FDL Support

Channelized T3 interfaces are supported by the modules described in this chapter. Configurationproceduresfor all channelized T3 physicalinterfacesare identical; however, the capabilities of the modules differ. Each port on a CT3 module offers a total bidirectional rate of 43.008 Mbps.

This section describes the features of channelized T3 interfaces. For information about configuring channelized T3 interfaces over SONET/SDH, see “Configuring Channelized OCx/STMx Interfaces” on page 105.

Channelized T3 interfaces on some line modules support maintenance data link (MDL) messages at the T3 level and facilities data link (FDL) messages at the T1 level. For a list of theline modules that support MDL and FDL, see ERX Module Guide, Appendix A, Module Protocol Support.

You can use MDL and FDL messages to determine the status of a link and to display statistics for the remote end of a connection. MDL and FDL messages do not interfere with other data transmitted over the link.

Page 26

JunosE 11.2.x Physical Layer Configuration Guide

MDL Standards

You can configure channelized T3 interfaces to send MDL messages that comply with ANSI T1.107a-1990 Standard for Telecommunications—Digital Hierarchy – Supplement to Formats Specification (August 1990). MDL messages identify a particular link by sharing common codes for data such as the equipment identifier, line identifier, frame identifier, and unit.

FDL Standards

Similarly, you can configure T1 channels to send FDL messages that comply with either or both of the following standards:

•

ANSI T1.403-1989 Standard for Telecommunications—Network and Customer InstallationInterfaces– DS1Metallic Interface – Robbed-bit SignalingStateDefinitions (1989)

FDL messages that comply with the ANSI standard identify a particular link by sharing common codes for data such as theequipment identifier, line identifier, frame identifier, and unit.

•

AT&T Technical Reference 54016—Requirements for Interfacing Digital Terminal Equipment to Services Employing the ExtendedSuperframe Format (September 1989)

FDL messages that comply with the AT&T standard identify a particular link by sharing performance data and do not use common codes for data such as the equipment identifier, line identifier, frame identifier, and unit.

Timeout of Received MDL and FDL Messages

When a line module receives an MDL or FDL message string, it stores the strings for a period of 10 seconds after the last message was received. If the line module does not receive another message of any type containing the same string within 10 seconds, it erases the local copy of the message.

Most MDL and FDL message strings are common to all three types of messages that can be transmitted: path identifications, idle signals, and test signals.Certain message strings, however, are unique to a particular message type. Table 3 on page 4 briefly describes each MDL/FDL message string and indicates, with a checkmark (✓), the types of messages in which it can be sent.

Table 3: MDL and FDL Message Strings and Message Types

Message String

Path MessageDescription

Idle Signal Message

Test Signal Message

✓✓✓Equipment identification codeeic

✓✓✓Frame identification codefic

✓––Generator numbergenerator

✓✓✓Line identification codelic

––✓Facility identification codepfi

Page 27

Chapter 1: Configuring Channelized T3 Interfaces

Table 3: MDL and FDL Message Strings and Message Types (continued)

Message String

Path MessageDescription

Idle Signal Message

Test Signal Message

–✓–Equipment port numberport

✓✓✓Unit identification codeunit

As long as another message of any type containing the same string is received within 10 seconds, the line module retains the local copy of the message string and resets the 10-second timer for that string.

For example, if a line module receives an MDL or FDL test signal message containing an eic string, and then receives an idle signal message within 10 seconds that also contains an eic string, it retains the local copy of the most recent eic string received and resets the 10-second timer for that message. However, if 10 seconds pass without the line module receiving a path identification, test signal, or idle signal message containing an eic string, the line module erases the local copy of the eic message string.

For message strings that are unique to a particular message type, the line module must receive another message of the same type containing this string in order to retain the local copy of the string and reset the timer. For example, if the line module receives a test signal messagecontaining agenerator string and does not receive another test signal message within 10 seconds, it will erase the local copy of the generator string.

Frequency of FDL Path Messages

E Series Routers transmit FDL path identifier messages every second. This behavior complies with the ANSI T1.403 specification (see “References” on page 9 for more information) and is consistent with the MDL implementation for E Series Routers.

Higher-Level Protocols

See ERX Module Guide, Appendix A, Module Protocol Support for information about the higher-level protocols that channelized T3 interfaces support.

Platform Considerations

You can configure channelized T3 interfaces on the following Juniper Networks E Series Broadband Services Routers:

•

ERX1440 router

•

ERX1410 router

•

ERX710 router

•

ERX705 router

•

ERX310 router

Page 28

JunosE 11.2.x Physical Layer Configuration Guide

NOTE: The Juniper Networks E120 and E320 Broadband ServicesRoutersdo not support

configuration of channelized T3 interfaces.

For detailed information about the modules that support channelized T3 interfaces on ERX7xx models, ERX14xx models, and the ERX310 router:

•

See ERX Module Guide, Table 1, Module Combinations for detailedmodule specifications.

•

See ERX Module Guide, Appendix A, Module Protocol Support for information about the protocols and applications that channelized T3 modules support.

CT3/T3-F0 Line Modules and CT3/T3 12 I/O Modules

ERX7xx models, ERX14xx models, and the ERX310 router support the CT3/T3-F0 line module and CT3/T3 12 I/O module. The CT3/T3-F0 line module and CT3/T3 12 I/O module support both channelized and unchannelized T3 operation. You can configure a mixture of channelized and unchannelized ports on these modules. For information about configuring unchannelized T3 ports, see “Configuring Channelized T3 Interfaces” on page 3.

Exchanging Modules

Interface Stack

ERX14xx models supportup to 12 CT3/T3-F0line modules and 12 CT3/T3 12I/O modules, ERX7xx models support up to 5 CT3/T3-F0 line modules and 5 CT3/T3 12 I/O modules, and the ERX310 router supports up to two CT3/T3-F0 line modules and two CT3/T3 12 I/O modules. Each CT3/T3 12 I/O module has 12 physical T3 (DS3) ports. Each port uses two SMB connectors: one for the transmit (TX) connection and one for the receive (RX) connection.

CT3/T3-F0 linemodules and CT3/T3 12 I/Omodules support the following in channelized mode:

•

28 asynchronous T1 (DS1) channels per T3 port

•

24 DS0 channels (64-Kbps) per T1 interface

•

166 DS0 channels per T3 port

If you replace a CT3/T3 line module and a CT3/T3 I/O module with a CT3/T3-F0 line module and a CT3/T3 12 I/O module or vice versa, you must erase the configuration of the existing modules. See the slot accept command in Managing Modules in the JunosE System Basics Configuration Guide.

Figure 1 on page 7 shows the stack for a channelized T3 interface. To configure a channelized T3 interface, configure a T3 controller, followed by a T1 channel, and then a fractional T1 channel. Finally, you must configure a High-Speed Data Link Control (HDLC) data channel on the interface.

Page 29

Numbering Scheme

Chapter 1: Configuring Channelized T3 Interfaces

Figure 1: Stack for Channelized T3 Interface

For more information about the layers in a channelized T3 interface, see “Numbering Scheme” on page 7.

NOTE: For a detailed description of interface types and specifiers, see Interface Types

and Specifiers in JunosE Command Reference Guide. For information about interfaces, see Planning Your Network in JunosE System Basics Configuration Guide.

This section describes how to identify each layer in a channelized T3 interface stack.

T3 Controllers

A T3 controller on a channelized T3 interface is identified using the slot/port format where:

•

slot—Number of the slot in which the line module resides in the chassis.

In ERX7xx models, line module slots are numbered 2-6; slots 0 and 1 are reserved for SRP modules. In ERX14xx models, line module slots are numbered 0–5 and 8–13; slots 6 and 7 are reserved for SRP modules. In an ERX310 router, line module slots are numbered 0–2; slot 0 is reserved for the SRP module.

•

port—Number of the port on the I/O module. On a CT3/T3 12 I/O module, ports are numbered 0–11.

For information about installing line modules and I/O modules in ERX routers, see ERX Hardware Guide, Chapter 4, Installing Modules.

T1 Channels

A T3 line consists of 28 T1 channels (or data streams). A T1 channel is identified by its number in the range 1–28.

Each T1 channel is an aggregate of 24 DS0 timeslots, as shown in Figure 2 on page 8. To configure an entire T1 line, assign 24 timeslots to each channel.

Page 30

JunosE 11.2.x Physical Layer Configuration Guide

Figure 2: T1 Channels and DS0 Timeslots on a T3 Line

Fractional T1

Fractional T1 is a portion of a T1 line. To configure fractional T1 on a channelized T3 interface, you assign a range of DS0 timeslots to a T1 channel and subchannel. A subchannel is group of timeslots. Subchannel numbers range from 1–24 and do not necessarily correspond to DS0 timeslots. The subchannel number identifies a fractional T1 channel.

For example, you might make the assignments for subchannels 1–6 as listed in Table 4 on page 8.

Table 4: Sample T1 Subchannel/Timeslot Assignments

DS0 TimeslotSubchannel

1–4, 10, 22–241

5–62

7–93

114

12–15, 20–215

16–196

To configure the subchannels listed in Table 4 on page 8, use the following command to specify the T3 controller in chassis slot 0, port 1.

host1(config)#controller t3 0/1

Then assign the timeslots to channel 1, subchannel 1.

host1(config-controll)#t1 1/1 timeslots 1-4,10,22-24 host1(config-controll)#t1 1/2 timeslots 5-6 host1(config-controll)#t1 1/3 timeslots 7-9 host1(config-controll)#t1 1/4 timeslots 11 host1(config-controll)#t1 1/5 timeslots 12-15,20-21 host1(config-controll)#t1 1/6 timeslots 16-19

Page 31

References

Chapter 1: Configuring Channelized T3 Interfaces

HDLC Channels

To identify an HDLC channel or the complete channelized T3 interface, use the format slot/port:T1 channel/subchannel. Refer to the preceding sections for definitions of the variables.

For more information about channelized T3 interfaces, consult the following resources:

•

RFC 1661—The Point-to-Point Protocol (PPP) (July 1994)

•

RFC 2495—Definitions of Managed Objects for the DS1, E1, DS2 and E2 Interface Types (January 1999)

•

RFC 2495—Definitions of Managed Objects for the DS1, E1, DS2 and E2 Interface Types (January 1999)

•

ANSI T1.107a-1990 Standardfor Telecommunications—Digital Hierarchy– Supplement to Formats Specification (August 1990)

•

ANSI T1.403-1989 Standard for Telecommunications—Network and Customer InstallationInterfaces– DS1Metallic Interface – Robbed-bit SignalingStateDefinitions (1989)

•

AT&T Technical Reference 54016—Requirements for Interfacing Digital Terminal Equipment to Services Employing the ExtendedSuperframe Format (September 1989)

For more information about bit error rate test (BERT) patterns, see:

•

ITU O.151—Error performance measuring equipment operating at the primary rate and above (October 1992)

•

ITU O.153—Basic parameters for the measurement of error performance at bit rates below the primary rate (October 1992)

•

T1M1.3 Working Group—A Technical Report on Test Patterns for DS1Circuits(November

1993)

•

ANSI T1.404-1994 Standard for Telecommunications—Network-to-Customer – DS3 Metallic Interface Specification (1994)

Before You Configure an Interface

Before you configure a channelized T3 interface, verify the following:

•

You have installed the line module and the I/O module correctly.

•

Each configured line module is able to transmit data to and receive data from your switch connections.

For more information about installing line modules and I/O modules, see the ERX Hardware Guide.

You should also have the following information available:

Page 32

JunosE 11.2.x Physical Layer Configuration Guide

•

Framing type, clock source, cable length, and the loopback method for each T3 controller

•

Framing type and clock source for each T1 channel

•

Timeslot mapping and line speed for each fractional T1 channel

•

HDLCchannel information, such asdata inversion information, cyclic redundancy check (CRC) type, idle character, maximum transmission unit (MTU), and maximum receive unit (MRU)

Configuration Tasks

To configure a channelized T3 interface:

1. Configure a T3 controller.

2. (Optional) Configure MDL settings.

3. (Optional) Configure other settings for the interface.

4. Configure T1 channels and subchannels.

5. Configure HDLC channels.

Configuring a T3 Controller

To configure a T3 controller:

1. Access Controller Configuration mode by specifying the T3 controller.

2. Enable the T3 controller.

T3 controllers are disabled by default.

controller t3

Use to specify a T3 controller in slot/port format.•

• slot—Number of the slot in which the line module resides in the chassis

• port—Number of the port on the I/O module

• Example

host1(config)#controller t3 0/1

host1(config-controll)#no shutdown

• There is no no version.

• See controller t3.

shutdown

• Use to disable a T3 controller.

• The T3 interface is disabled by default.

Page 33

Chapter 1: Configuring Channelized T3 Interfaces

• Example

host1(config-controll)#no shutdown

• Use the no version to restart a disabled interface.

• See shutdown.

Configuring MDL Messages

You can configure a channelized T3 interface to send MDL messages. MDL messages are supported only when T3 framing uses C-bit parity, the default setting.

To configure a channelized T3 interface to send MDL messages:

1. Specify a T3 interface.

host1(config)#controller t3 8/0

2. (Optional) Configure the interface to operate in an MDL carrier environment.

host1(config-controll)#mdl carrier

3. Specify the MDL messages.

mdl carrier

mdl string

host1(config-controll)#mdl string eic "ERX1410" host1(config-controll)#mdl string fic "FG786" host1(config-controll)#mdl string lic "Bldg 10" host1(config-controll)#mdl string pfi "Site 25" host1(config-controll)#mdl string port 0800 host1(config-controll)#mdl string unit 080001

4. Enable transmission of MDL messages.

host1(config-controll)#mdl transmit path-id host1(config-controll)#mdl transmit idle-signal host1(config-controll)#mdl transmit test-signal

• Use to specify that an interface is used in the carrier environment.

• Example

host1(config-controll)#mdl carrier

• Use the no version to restore the default situation, in which the interface does not

operate in the carrier environment.

• See mdl carrier.

• Use to specify an MDL message.

• Example

host1(config-controll)#mdl string port 0800

• Use the no version to restore the default value to the specified MDL message or to all

MDL messages.

• See mdl string.

Page 34

JunosE 11.2.x Physical Layer Configuration Guide

mdl transmit

• Use to enable transmission of MDL messages.

• Specify the keyword path-id to transmit path identifications every second.

• Specify the keyword idle-signal to send idle signals every second.

• Specify the keyword test-signal to transmit test signals every second.

• Example

host1(config-controll)#mdl transmit test-signal

• Use the no version to disable transmission of the specified MDL message or all MDL

messages.

• See mdl transmit.

Other Optional Tasks

The following configuration tasks are optional when you configure a T3 controller:

•

Specify a cable length.

cablelength

clock source

•

Change the clock source.

•

Change the framing format.

•

Enable or disable SNMP link status processing.

•

Assign a text description or an alias to the interface.

• Use to adjust the transmit power appropriate to the length of the T3 cable.

• Specify a cable length in the range 1–450 feet.

• Therouter supports twotransmitpowers, one fora cablelength 1–225 feet and another

for a cable length 226–450feet. Therefore, it is not necessary for youto know the exact length of your cable. You only need to know if the cable length is greater than 225 feet. For example, if your cable size exceeds 225 feet, specify any number greater than 225 (and less than 451).

• Example

host1(config-controll)#cablelength 300

• Use the no version to restore the default value, 0 feet.

• See cablelength.

• Use to configure the transmit clock source for a T3 controller.

• Configure one end of the line as internal and the other end as line.

• Specify the keyword line to use a transmit clock recovered from the line’s receive data

stream.

Page 35

description

Chapter 1: Configuring Channelized T3 Interfaces

• Specify the keywords internal module to use the line module’s internal clock as the

transmit clock.

• Specify the keywords internal chassis to use the router’s clock as the transmit clock.

• Example

host1(config-controll)#clock source internal module

• Use the no version to revert to the default, line.

• See clock source.

• Use to assign a text description or an alias to a channelized T3 interface.

• You can use this command to help you identify the interface and keep track ofinterface

connections.

• The description or alias can be a maximum of 80 characters.

• Use “show controllers t3” on page 29 to display the text description.

framing

snmp trap ip link-status

• Example

host1(config-controll)#description toronto ct3 interface

• Use the no version to remove the text description or alias.

• See description.

• Use to configure the framing format for a T3 controller.

• Specify either m23 or c-bit framing.

• Choose the framing format that is compatible with the framing format of the Telco

network device at the other end of the line.

• Select c-bit framing if you intend to configure MDL messages.

• Example

host1(config-controll)#framing c-bit

• Use the no version to restore the default value, c-bit.

• See framing.

• Use to enable SNMP link status processing on a T3 controller.

• Example

host1(config-controll)#snmp trap link-status

• Use the no version to disable SNMP link status processing.

• See snmp trap ip link-status.

Page 36

JunosE 11.2.x Physical Layer Configuration Guide

Configuring T1 Channels

To configure T1 channels and subchannels:

1. From Global Configuration mode, specify the T3 controller in slot 0, port 1.

host1(config)#controller t3 0/1

2. Assign a range of timeslots to a channel and subchannel.

For example, assign the following range of timeslots: 1, 3–8, and 10 to channel 2, subchannel 1. Timeslots 2, 9, and 11–24 are available for other subchannels.

host1(config-controll)#t1 2/1 timeslots 1,3-8,10

Optional Tasks

The T1 channel configuration commandsenable you tospecify optionsfor a singlechannel, multiple individual channels, ranges of channels, or any combination of the three types of specifications. For example:

host1(config-controll)#t1 2,4,6-15,20-25 clock source line

controller t3

t1 clock source

The following configuration tasks are optional when you configure T1 channels:

•

Disable T1 channels.

•

Change the clock source.

•

Assign a text description or an alias to the interface.

•

Change the framing format.

•

Enable or disable SNMP link status processing.

•

Configure FDL messages.

Use to specify a T3 controller in slot/port format.•

• slot—Number of the slot in which the line module resides in the chassis

• port—Number of the port on the I/O module

• Example

host1(config)#controller t3 0/1

• There is no no version.

• See controller t3.

• Use to configure the transmit clock source for T1 channels.

• The router supports internal and line clocking.

Page 37

t1 description

Chapter 1: Configuring Channelized T3 Interfaces

• If you specify internal clocking, the interface transmits data using the line module or

the chassis as the internal clock. You must specify one of the following for internal clocking:

• module—Specifies internal clock is from the line module itself

• chassis—Specifies internal clock is from the configured router clock

• If you specify line clocking, the interface transmits data with a clock recovered from

the line’s receive data stream.

• Example

host1(config-controll)#t1 2,4-10 clock source line

• Use the no version to restore the default value, line.

• See t1 clock source.

• Use to assign a text description or an alias to T1 or fractional T1 channels on a CT3

module.

t1 framing

• You can use this command to help you identify the interface and keep track ofinterface

connections.

• The description or alias can be a maximum of 80 characters.

• Use “show controllers t3” on page 29 to display the text description.

• Examples

host1(config-controll)#t1 2 description london t1 interface host1(config-controll)#t1 2/1 description london first ft1 interface

• Use the no version to remove the text description or alias.

• See t1 description.

• Use to configure the framing format for T1 channels.

• You must specify either esf (extended superframe) or sf (superframe) framing.

• The framing format you choose must be compatible with the framing format at the

other end of the line.

• Example

host1(config-controll)#t1 2 framing sf

• Use the no version to restore the default value, esf.

• See t1 framing.

t1 shutdown

Page 38

JunosE 11.2.x Physical Layer Configuration Guide

• Use to disable T1 channels or a subchannel.

• To disable channels or a subchannel, specify one or more T1 channels or a subchannel

in channel or channel/subchannel format.

• channel—One or more T1 channels, or a range of channels in the range 1–28

• subchannel—Subchannel from 1–24

• The T1 interface is enabled by default.

• Example

host1(config-controll)#t1 4-15,18,21,25-27 shutdown

• Use the no version to restart a disabled interface.

• See t1 shutdown.

t1 snmp trap link-status

• Use to enable SNMP link status processing on T1 channels.

• To enableor disable SNMPon aninterface,specify T1channels orsubchannel inchannel

or channel/subchannel format.

t1 timeslots

• channel—One or more T1 channels, or a range of channels in the range 1–28

• subchannel—Subchannel from 1–24

• Example

host1(config-controll)#t1 2 snmp trap link-status

• Use the no version to disable SNMP link status processing.

• See t1 snmp trap link-status.

• Use to assign a range of DS0 timeslots to a subchannel as a single data stream.

• To configure a subchannel, specify a T1 channel in channel/subchannel format and a

range of timeslots.

• channel—T1 channel in the range 1–28

• subchannel—Number from 1–24

• dash—Represents a range of timeslots; a comma separates timeslots. For example,

1-10, 15-18 assigns timeslots 1–10 and 15–18.

• Example

host1(config-controll)#t1 2/1 timeslots 1,3-8,10

• You canspecify aline speed that appliesto all DS0 timeslots assigned to asubchannel.

The default line speed is 64 Kbps.

• Use the no version to delete the fractional T1 circuit.

• See t1 timeslots.

Page 39

Chapter 1: Configuring Channelized T3 Interfaces

Configuring FDL Messages

To configure T1 channels to send FDL messages:

1. Specify a T3 interface.

host1(config)#controller t3 8/0

2. Specify the standard for transmission of FDL messages on both ends of the T1

connection.

host1(config-controll)#t1 1 fdl ansi

3. (Optional) Configure one or more T1 channels to operate in an FDL carrier

environment.

host1(config-controll)#t1 1 fdl carrier

4. (ANSI signals) Specify the FDL messages.

host1(config-controll)#t1 1 fdl string eic "ERX1410" host1(config-controll)#t1 1 fdl string fic "HY0019" host1(config-controll)#t1 1 fdl string lic "Bldg 10" host1(config-controll)#t1 1 fdl string unit 080001 host1(config-controll)#t1 1 fdl string pfi "Site 25" host1(config-controll)#t1 1 fdl string port 0800 host1(config-controll)#t1 1 fdl string generator "Test generator"

t1 fdl

5. Enable transmission of FDL messages.

host1(config-controll)#t1 1 fdl transmit path-id

6. (Optional) Specify thatthe router should generate yellow alarms for theT1 channels.

host1(config-controll)#t1 1 yellow generate

7. (Optional) Specify that the router should detect yellow alarms for the T1 channels.

host1(config-controll)#t1 1 yellow detect

• Use to specify the FDL standard for the channel.

• Specify one or more T1 channels or a range of channels in the range 1–28.

• Specify the keyword ansi to support the ANSI FDL standard (see “References” on

page 9).

• Specify the keyword att to support the AT&T FDL standard (see “References” on

page 9).

• Specify the keyword all to support both the ANSI and AT&T standards

• Specify the keyword none to remove the current FDL mode settings

• You can configure a different standard on each T1 channel.

• Example

host1(config-controll)#t1 14-20,24 fdl att

Page 40

JunosE 11.2.x Physical Layer Configuration Guide

• Use the no version to restore the default, none.

• See t1 fdl.

t1 fdl carrier

• Use to specify that T1 channels are used in the carrier environment.

• Example

host1(config-controll)#t1 6 fdl carrier

• Use the no version to restore the default situation, in which the T1 channels do not

operate in the carrier environment.

• See t1 fdl carrier.

t1 fdl string

• Use to specify an FDL message as defined in the ANSI T1.403 specification.

t1 fdl transmit

NOTE: The router sends these FDL messagesonly if youhave issued the t1 fdl command with the ansi or all keyword and then issued the t1 fdl transmit command.

• Example

host1(config-controll)#t1 6 fdl string eic "ERX1440"

• Use the no version to restore the default value to the specified FDL message or to all

FDL messages.

• See t1 fdl string.

• Use to configure the router to send the specified type of FDL message.

• By default, the router sends only FDL performance data messages.

NOTE: The router sends FDL messages specified with “t1 fdl string” on page 18 only if you have issued the t1 fdl command with the ansi or all keyword. If you specified the att keyword with the t1 fdl command, the router sends only performance data.

• Specify the keyword path-id to transmit path identifications every second.

• Specify the keyword idle-signal to send idle signals every second.

• Specify the keyword test-signal to transmit test signals every second.

• Example

host1(config-controll)#t1 28 fdl transmit path-id

Page 41

t1 yellow detect

t1 yellow generate

Chapter 1: Configuring Channelized T3 Interfaces

• Use the no version to disable transmission of the specified FDL message or all FDL

messages.

• See t1 fdl transmit.

• Use to detect yellow alarm for T1 channels.

• By default, T1 channels detect alarms.

• Example

host1(config-controll)#t1 6,10-14,19 yellow detect

• Use the no version to disable detection of yellow alarms.

• See t1 yellow.

• Use to generate a yellow alarm when a loss of frame or loss of signal condition is

detected on T1 channels.

• By default, T1 channels generate alarms.

• Example

host1(config-controll)#t1 6,10-14,19 yellow generate

• Use the no version to disable generation of yellow alarms.

• See t1 yellow.

Configuring an HDLC Channel

You must configure an HDLC channel for each group of fractional T1 lines and each full T1 line.

To configure an HDLC channel, specify a serial interface (for example, HDLC channel in slot 0, port 1, channel 1, subchannel 5).

host1(config)#interface serial 0/1:1/5

Optional Tasks

The following configuration tasks are optional when you configure an HDLC channel on a channelized T3 interface:

•

Configure the CRC.

•

Specify the HDLC idle character.

•

Enable data inversion on the interface.

•

Set the time interval for monitoring bit and packet rates.

•

Set the MRU.

•

Set the MTU.

•

Assign a text description or an alias to the serial interface.

Page 42

JunosE 11.2.x Physical Layer Configuration Guide

crc

• Use to configure the size of the CRC.

• The CRC is an error-checking technique that uses a calculated numeric value to detect

errors in transmitted data.

• 16 and 32 indicate the number of bits per frame that are used to calculate the frame

check sequence (FCS). Both the sender and receiver must use the same setting.

• Use a 32-bit CRC when transmitting long streams at fast rates and to provide better

ongoing error detection.

• Example

host1(config-if)#crc 32

• Use the no version to restore the default value, 16.

• See crc.

idle-character

interface serial

• Use to configure the HDLC idle character.

• The idle character is sent between HDLC packets.

• Specify one of the following idle characters:

• flags—Sets the idle character to 0x7E

• marks—Sets the idle character to 0xFF

• Example

host1(config-if)#idle-character marks

• Use the no version to restore the default value, 0x7E (flags).

• See idle-character.

Use to configure a serial interface in the slot/port:channel/subchannel format.•

• slot—Number of the slot in which the line module resides in the chassis

• port—Number of the port on the I/O module

• channel—T1 channel

• subchannel—Subchannel in the range 1–24

• Example

host1(config)#interface serial 0/1:1/5

• Use the no version to disable the interface.

• See interface serial.

invert data

Page 43

load-interval

Chapter 1: Configuring Channelized T3 Interfaces

• Use to enable data stream inversion for the interface.

• Enable data stream inversion only if it is turned on at the other end of the line.

• Example

host1(config-if)#invert data

• Use the no version to disable data inversion.

• See invert data.

• Use to set the time interval at which the router calculates bit and packet rate counters.

• You can choose a multiple of 30 seconds, in the range 30–300 seconds.

• Example

host1(config-if)#load-interval 90

• Use the no version to restore the default value, 300 seconds.

• See load-interval.

mru

mtu

• Use to configure the MRU size for the interface.

• Specify a value in the range 4–9996 bytes.

• You should coordinate this value with the network administrator on the other end of

the line.

• If you configure a different MRU value in higher-level protocols, such as IP, the router

uses the lower value. This can produce unexpected behavior in your network.

• Example

host1(config-if)#mru 1600

• Use the no version to restore the default, 1600 bytes.

• See mru.

• Use to configure the MTU size for the interface.

• Specify a value in the range 4–9996 bytes.

• You should coordinate this value with the network administrator on the other end of

the line.

• If you configure a different MTU value in higher-level protocols, such as IP, the router

uses the lower value. This can produce unexpected behavior in your network.

• Example

host1(config-if)#mtu 1600

Page 44

JunosE 11.2.x Physical Layer Configuration Guide

• Use the no version to restore the default, 1600 bytes.

• See mtu.

serial description

• Use to assign a text description or an alias to a serial HDLC interface.

• You can use this command to help you identify the interface and keep track ofinterface

connections.

• The description or alias can be a maximum of 80 characters.

• Use “show interfaces serial” on page 41 to display the text description.

• Example

host1(config-if)#serial description ottawa012 hdlc channel

• Use the no version to remove the text description or alias.

• See serial description.

Configuration Example

The following example illustrates how to configure the layers on a channelized T3 interface:

host1(config)#controller t3 0/1 host1(config-controll)#no shutdown host1(config-controll)#framing c-bit host1(config-controll)#clock source internal module host1(config-controll)#cablelength 220 host1(config-controll)#t1 2 framing esf lihost1(config-controll)#t1 2 clock source internal host1(config-controll)#t1 2 loopback local host1(config-controll)#t1 2/1 timeslots 1,3-8,10 host1(config-controll)#exit host1(config)#interface serial 0/1:2/1 host1(config-if)#invert data host1(config-controll)#exit

Testing Interfaces

If you want to run loopback tests or bit error rate tests on channelized T3 interfaces, you must enable testing at the T3 or T1 layer. See “Interface Stack”on page 6for adescription of the layers.

For a list of the modules that support bit error rate tests (BERTs) and remote loopback, see ERX Module Guide, Appendix A, Module Protocol Support.

NOTE: BERTs are supported on frame-based channelized T3 interfaces, with the

exception of the CT3/T3 line module used with the 3-port CT3/T3 I/O module.

Page 45

Testing at the T3 Layer

Chapter 1: Configuring Channelized T3 Interfaces

To enable testing at the T3 layer:

1. Change the clock source to internal.

host1(config-controll)#clock source internal module

2. Configure one of the following tests:

•

Set the loopback to local to test the line without connecting to the network.

host1(config-controll)#loopback local

•

Set the loopback to network to test the line connected to the network.

host1(config-controll)#loopback network line

3. (Optional) Configure one of the following tests for remote loopback:

•

Set the loopback to remote to request that a remote device connected on a T3 interface enter into a loopback.

bert

host1(config-controll)#loopback remote

•

Configure the T3 interface to enable or disable the ability to enter into a loopback initiated by a remote device, as follows:

•

Issue the equipment customer loopback command to enable the router to enter into loopback when it receives an appropriate signal from the remote device.

host1(config-controll)#equipment customer loopback

•

Issue theequipment networkloopback command to disable the ability toenter into loopback initiated by a remote device.

host1(config-controll)#equipment network loopback

4. Configure the line to run bit error rate tests.

host1(config-controll)#bert pattern 2^15 time 20

• Use to enable bit error rate tests using the specified pattern on a channelized T3

interface.

• Unlike other configuration commands, bert is not stored in NVRAM.

• Specify one of the following test patterns:

• 0s—Repetitive test pattern of all zeros, 00000...

• 1s—Repetitive test pattern of all ones, 11111...

• 2^9—Pseudorandom test pattern, 511 bits in length

• 2^11—Pseudorandom test pattern, 2047 bits in length

• 2^15—Pseudorandom test pattern, 32,767 bits in length

Page 46

JunosE 11.2.x Physical Layer Configuration Guide

• 2^20—Pseudorandom test pattern, 1,048,575 bits in length

• 2^20-QRSS—Pseudorandom QRSS test pattern, 1,048,575 bits in length

• 2^23—Pseudorandom test pattern, 8,388,607 bits in length

• alt-0-1—Repetitive alternating test pattern of zeros and ones, 01010101...

• Specify the duration of the test in the range 1–1440 minutes.

• Example

host1(config-controll)#bert pattern 2^15 interval 20

• Use the no version to stop the test that is running.

• See bert.

equipment loopback

• Use to enableor disablethe router’s ability to enterinto a loopback initiated by a remote

device connected on a channelized T3 interface.

loopback

NOTE: Remote loopback is available only on channelized T3 interfaces configured to use C-bit framing.

• Specify one of the following loopback options:

• customer—Enables therouter to enterinto loopback whenit receives an appropriate

signal from the remote interface

• network—Disables the router’s ability to enter into loopback when it receives an

appropriate signal from the remote interface

• Examples

host1(config-controll)#equipment customer loopback host1(config-controll)#equipment network loopback

• Use theno version to disable the router’s abilityto be placed in loopback by the remote

device.

• See equipment loopback.

• Use to configure a loopback.

• Specify one of the following loopback options.

• local—Loops the databack toward the router; onsupportedline modules, also sends

an alarm indication signal (AIS) out toward the network

• network—Loops the data toward the network before the framer processes the data

Page 47

Testing at the T1 Layer

Chapter 1: Configuring Channelized T3 Interfaces

• payload—Loops the data toward the network after the framer processes the data

• remote—Sends a far end alarm code in the C-bit framing, as defined in ANSI T1.404,

to notify the remote end to activate or (when you use the no version) deactivate the line loopback

NOTE: Remote loopback is available only on channelized T3 interfaces configured to

use C-bit framing.

• Example

host1(config-controll)#loopback local

• Use the no version to restore the default configuration, no loopback.

• See loopback.

t1 bert

The T1 channel testing commands enable you to specify testing parameters for a single channel, multiple individual channels, ranges ofchannels, orany combination of thethree types of specifications. For example:

host1(config-controll)#t1 3,6-15,22,25-27 loopback local

To enable testing at the T1 layer:

1. Configure one of the following loopback tests.

•

Set the loopback to local to test the line without connecting to the network.

host1(config-controll)#t1 2 loopback local

•

Set the loopback to network to test the line connected to the network.

host1(config-controll)#t1 2 loopback network line

•

Set the loopback to remote-loopback to enable acceptance of loopback commands issued from a remote router.

host1(config-controll)#t1 2 remote-loopback

2. Configure the line to run bit error rate tests.

host1(config-controll)#t1 2 bert pattern 2^11 time 10 unframed

• Use to enable bit error rate tests using the specified pattern on a T1 interface.

• Unlike other configuration commands, bert is not stored in NVRAM.

• Specify one of the following test patterns:

Page 48

JunosE 11.2.x Physical Layer Configuration Guide

NOTE: The CT3/T3-F0 line module supports only the 2^11, 2^15, and 2^20-O153 options.

• 0s—Repetitive test pattern of all zeros, 00000...

• 1s—Repetitive test pattern of all ones, 11111...

• 2^11—Pseudorandom test pattern, 2047 bits in length

• 2^15—Pseudorandom test pattern, 32,767 bits in length

• 2^20-O153—Pseudorandom test pattern, 1,048,575 bits in length

• 2^20-QRSS—Pseudorandom QRSS test pattern, 1,048,575 bits in length

• 2^23—Pseudorandom test pattern, 8,388,607 bits in length

• alt-0-1—Repetitive alternating test pattern of zeros and ones, 01010101...

t1 loopback

NOTE: The BERT patterns supported when testing the T1 layer vary depending on the line module and I/O module assembly you are using.

• Specify the duration of the test in the range 1–1440 minutes.

• Optionally, specify the unframed keyword to overwrite the framing bits.

• Example

host1(config-controll)#t1 2 bert pattern 2^11 interval 10 unframed

• Use the no version to stop the test that is running.

• See t1 bert.

• Use to configure a loopback.

• Specify one of the following options:

NOTE: The CT3/T3-F0 line module does not support the remote line inband option.

• local—Loops the router output data back toward the router at the T1 framer; on

supported line modules, also sends an alarm indication signal (AIS) out toward the network

• network { line | payload }—Specify the line keyword to loop the data back toward

the network before the T1 framer and automatically set a localloopback at the HDLC controllers. Specify the payload keyword to loop the payload data back toward the

Page 49

Chapter 1: Configuring Channelized T3 Interfaces

network at the T1 framer and automatically set a local loopback at the HDLC controllers.

• remote line fdl ansi—Sends a repeating 16-bit ESF data link code word (00001110

11111111) tothe remote endrequesting that it enter intoa network line loopback. Specify the ansikeywordto enable the remote linefacilities data link (FDL) ANSI bit loopback on the T1 channel, according to the ANSI T1.403 Specification.

• remote line fdl bellcore—Sends a repeating 16-bit ESF data link code word

(00010010 11111111) to the remote end requesting that it enter into a network line loopback. Specify the bellcore keyword to enable the remote line facilities data link (FDL) Bellcore bit loopback on the T1 channel, per the Bellcore TR-TSY-000312 Specification.

• remote line inband—Sends a repeating 5-bit inband pattern (00001) to the remote

end requesting that it enter into a network line loopback

• remote payload [ fdl ] [ ansi ]—Sends a repeating, 16-bit, ESF data link code word

(00010100 11111111)to the remote endrequesting that it enter intoa networkpayload loopback. Enables the remote payload facilities data link (FDL) ANSI bit loopback on the T1 channel. You can optionally specify fdl and ansi.

• If you do not specify an option, the router will set a local loopback for the channel.

• Example

• Use the no version to deactivate loopback. If you specify the remote keyword, the no

• See t1 loopback.

t1 remote-loopback

• Use to enable the acceptance of loopback commands issued from a remote router.

• Example

• Use the no version to restorethe factory default, which is to reject loopback commands

• See t1 remote-loopback.

Monitoring Interfaces

host1(config-controll)#t1 2 loopback local

version sends the 16-bit ESF data link code word or inband pattern to deactivate the loopback at the remote end based on the last activate request sent to the remote end. If you do not specify the remote keyword, the no version clears the local loopback configuration.

host1(config-controll)#t1 2 remote-loopback

issued from a remote router.

From User Exec mode, use the following show commands to monitor and display the T3 interface, T1 interface, and HDLC serial data channel information:

•

Monitor channelized T3 interfaces on a slot and port.

Page 50

JunosE 11.2.x Physical Layer Configuration Guide

host1#show controllers t3 0/1

•

Monitor a T1 interface.

host1#show controllers t3 0/1:1

•

Monitor fractional T1 subchannels.

host1#show controllers t3 ft1

•

Monitor the state of the serial interface or a slot/port.

host1#show controllers t3 serial 0/1

Setting a Baseline

You can set a statistics baseline for serial interfaces, subinterfaces, and/or circuits using the baseline interface serial command. Use the delta keyword withthe showcommands to display statistics with the baseline subtracted.

Displaying Counters and Time Intervals

Counters and time intervals are MIB statistics, which are defined in the following specifications:

•

RFC 2495—Definitions of Managed Objects for the DS1, E1, DS2 and E2 Interface Types (January 1999)

•

RFC 2496—Definitions of Managed Objects for the DS3/E3 Interface Types (January

1999)

The show controllers t3 slot/port all command displays the following information:

•

T3 current interval counters—Counters for the current interval

•

T3 last interval counters—Counters for the previous interval

•

T3 24-hour total counters—Cumulative counters for the last 24 hours or since the interface was started

•

The last 24 hours of 15-minute reporting intervals (96 intervals)

The show controllers t3 slot/port: channel all command displays the following information:

•

T1 current interval counters—Counters for the current interval

•

T1 last interval counters—Counters for the previous interval

•

T1 24-hour total counters—Cumulative counters for the last 24 hours or since the interface was started

•

The last 24 hours of 15-minute reporting intervals (96 intervals)

Output Filtering

You can use theoutput filtering feature of the show command to include or exclude lines of outputbased on a text string you specify. See CommandLine Interface in JunosE System Basics Configuration Guide, for details.

Page 51

baseline interface serial

show controllers t1

show controllers t3

Chapter 1: Configuring Channelized T3 Interfaces

• Use to set a statistics baseline for serial interfaces.

• The router implements the baseline by reading and storing the statistics at the time

the baseline is set and subtracting this baseline whenever baseline-relative statistics are retrieved.

• Use the optional delta keyword with the show interfaces serial commands to view

the baseline statistics.

• Example

host1#baseline interface serial 2/0:1/1

• There is no no version.

• See baseline interface.

• Use to display data and MIB statistics for a T3 interface or a T1 channel.

• Use the brief keyword to display the administrative and operational status of all

configured T3 interfaces, or to display abbreviated information for the specified T3 interface.

• For definitions of the MIB statistics for a T3 interface, see RFC 2496—Definitions of

Managed Objects for the DS3/E3 Interface Types (January 1999).

• For definitions of the MIB statistics for a T1 channel, see RFC 2495—Definitions of

Managed Objects for the DS1, E1, DS2 and E2 Interface Types (January 1999).

• Field descriptions for T3 interface (T1 channel not specified)

• Description—Text description or alias if configured for the interface

• ifAdminStatus—One of the following administrative states of the interface:

• ifAdminUp—Interface is administratively enabled

• ifAdminDown—Interface is administratively disabled

• ifAdminTesting—Interface is administratively configured in a testing state

• snmp trap link-status—Status of SNMP trapping (enabled or disabled)

• alarms detected—One of the following T3 alarms:

• No alarm present—No alarms present on the line

• Rcv RAI Failure—Remote device is sending a far end alarm failure

• Xmt RAI Failure—Local device is sending a far end alarm failure

• Rcv AIS—Remote device is sending an alarm indication signal (AIS)

• Xmt AIS—Local device is sending an AIS

Page 52

JunosE 11.2.x Physical Layer Configuration Guide

• Rcv LOF—Loss of one or more frames from the remote end

• Rcv LOS—Loss of signal at the local end

• Undefined line status—Indicates that the line is in an undefined state

NOTE: The alarms detected field does not appear for interfaces that you disabled in the software.

• framing—Type of framing format

• line code—Type of line code format

• clock source—Type of clock source

• cable length—Cable length, in feet

• Loopback—State of loopback for the controller: enabled or disabled. If loopback is

enabled, one of the following states is displayed:

• Diagnostic—Loops the data back toward the router and sends an AIS toward the

network

• Payload—Loops the data toward the network after the framer has processed the

data

• Line—Loops the data toward the network before the data reaches the framer

• MDL Transmit Path—Status of path transmission: active or not active

• MDL Transmit Test-Signal—Status of test signal: active or not active

• MDL Transmit Idle-Signal—Status of idle signal: active or not active

• Equipment Identification Code—eic string for MDL

• Line Identification Code—lic string for MDL

• Frame Identification Code—fic string for MDL

• Unit Identification Code—unit string for MDL

• Facility Identification Code—pfi string for MDL

• Port Code—port string for MDL

• Generator Number—generator string for MDL

• BERT test—Number of current test and total number of tests

Page 53

Chapter 1: Configuring Channelized T3 Interfaces

• Test interval—Length of the BERT test

• status—Sync (controller issynchronized with remotedevice) or NoSync(controller

is not synchronized with remote device)

• Synccount—Number of times the pattern detector synchronized withthe incoming

data pattern

• Received bit count—Number of bits received

• Error bit count—Number of bits with errors

• Number of valid intervals—Number of 15-minute intervals since the line module was

last powered on or reset

• Time elapse in current interval—Reported in 15-second intervals

• P-bit errored seconds—Number oferrored seconds encounteredby aT3 inthe current

interval

• P-bit severely errored seconds—Number of severely errored seconds encountered

by a T3 in the current interval

• Severely errored frame seconds—Number of severely errored framing seconds

encountered by a T3 in the current interval

• Unavailable seconds—Number of unavailable seconds encountered by a T3 in the

current interval

• Line code violations—Number of line code violations encountered by a T3 in the

current interval

• P-bit coding violations—Number of coding violations encountered by a T3 in the

current interval

• Line errored seconds—Number of line errored seconds encountered by a T3 in the

current interval

• C-bit coding violations—Number of C-bit coding violations encountered by a T3 in

the current interval

• C-bit errored seconds—Number of C-bit errored seconds encountered by a T3 in the

current interval

• C-bit severely errored seconds—Number of C-bit severely errored seconds

encountered by a T3 in the current interval

• Example 1—In this example, a T3 interface is specified.

host1#show controllers t3 2/0

DS3 2/0 Description: toronto ct3 interface ifAdminStatus = ifAdminDown snmp trap link-status = enabled No alarms detected

Page 54

JunosE 11.2.x Physical Layer Configuration Guide

Framing is C-BIT, Line Code is B3ZS, Clock Source is Line Cable Length is 0 ft Loopback Disabled MDL Transmit Path is not active MDL Transmit Test-Signal is active MDL Transmit Idle-Signal is not active Equipment Identification Code is ERX-1400 Line Identification Code is Bldg 10 Frame Identification Code is null string Unit Identification Code is 080001 Facility Identification Code is Site 25 Port Code is Port 0800 Generator Number is null string Number of valid interval - 96 Time elapse in current interval - 861 Ds3 Current Interval Counters P-bit errored seconds = 0 P-bit severely errored seconds = 0 Severely errored frame seconds = 0 Unavailable seconds = 0 Line code violations = 0 P-bit coding violations = 0 Line errored seconds = 0 C-bit coding violations = 0 C-bit errored seconds = 0 C-bit severely errored seconds = 0 Ds3 Last Interval Counters P-bit errored seconds = 0 P-bit severely errored seconds = 0 Severely errored frame seconds = 0 Unavailable seconds = 0 Line code violations = 0 P-bit coding violations = 0 Line errored seconds = 0 C-bit coding violations = 0 C-bit errored seconds = 0 C-bit severely errored seconds = 0 Ds3 24 Hour Total Counters P-bit errored seconds = 0 P-bit severely errored seconds = 0 Severely errored frame seconds = 0 Unavailable seconds = 0 Line code violations = 0 P-bit coding violations = 0 Line errored seconds = 0 C-bit coding violations = 0 C-bit errored seconds = 0 C-bit severely errored seconds = 0

• Example 2—In this example, the brief keyword is specified.

host1#show controllers t3 brief

Interfaces ifAdminStatus OperationalStatus 5/0(channelized) up up 5/1(channelized) up up 5/2(channelized) up down 5/3(channelized) down down 5/4(channelized) down down 5/5(channelized) down down 5/6(channelized) down down

Page 55

Chapter 1: Configuring Channelized T3 Interfaces

5/7(channelized) down down 5/8(channelized) down down 5/9(channelized) down down 5/10(channelized) down down 5/11(channelized) down down 3/0(channelized) down down 3/1(channelized) down down 3/2(channelized) down down 4/0:1/1(unchannelized) up down 4/2:1/1(channelized) up lowerLayerDown

• Field descriptions for a T1 channel

• Description—Text description or alias if configured for the interface

• ifOperStatus—Physical state of the interface:

• ifOperDown—Interface is not functioning

• ifOperLowerLayerDown—Lower layer in the interface stack is not functioning

• ifOperNotPresent—Module has been removed from the chassis

• ifOperTesting—Interface is being tested

• ifOperUp—Interface is functioning

• Yellow Alarm detection—Status of yellow alarm detection: active or not active

• Yellow Alarm generation—Status of yellow alarm generation: active or not active

• snmp trap link-status—Status of SNMP trapping (enabled or disabled)

• Framing—Type of framing format

• Clock source—Type of clock source

• Loopback state—Type of loopback (if enabled) and status: enabled or disabled

• Last remote loopback request sent—None or deactivate

• FDL—Status of FDL: standard configured or not configured

• FDL Transmit Path—Status of path transmission: active or not active

• FDL Transmit Idle-Signal—Status of idle signal: active or not active

• FDL Transmit Test-Signal—Status of test signal: active or not active

• Equipment Identification Code—eic string for FDL

• Line Identification Code—lic string for FDL

• Frame Identification Code—fic string for FDL

• Unit Identification Code—unit string for FDL

• Facility Identification Code—pfi string for FDL

Page 56

JunosE 11.2.x Physical Layer Configuration Guide

• Port Code—port string for FDL

• Generator Number—generator string for FDL

• BERT test—Number of current test and total number of tests

• Test interval—Length of the BERT test

• status—Sync (controller issynchronized with remotedevice) or NoSync(controller

is not synchronized with remote device)

• Synccount—Number of times the pattern detector synchronized withthe incoming

data pattern

• Received bit count—Number of bits received

• Error bit count—Number of bits with errors

• Number of valid intervals—Number of 15-minute intervals since the line module was

last powered on or reset

• Time elapse in current interval—Statistics are reported in 15-minute intervals

• Errored seconds—Number of errored seconds encountered by a T1 in the current

interval

• Severely errored seconds—Number of severely errored seconds encountered by a

T1 in the current interval

• Severely errored frame seconds—Number of severely errored framing seconds

encountered by a T1 in the current interval

• Unavailable seconds—Number of unavailable seconds encountered by a T1 in the

current interval

• Clock slip seconds—Number of clock slipsencountered by a T1in the current interval

• Path code violations—Number ofcoding violations encounteredby aT1 in the current

interval

• Line errored seconds—Number of line errored seconds encountered by a T1 in the

current interval

• Bursty errored seconds—Number of bursty errored seconds encountered by a T1 in

the current interval

• Degraded minutes—Number of minutes that a T1 line is degraded

• Line code violations—Number of line code violations encountered by a T1 in the

current interval

• Example 1—In this example, a T1 channel and the brief keyword are specified.

host1#show controllers t1 2/0:1 brief

DS3 2/0:1

Page 57

Chapter 1: Configuring Channelized T3 Interfaces

ifOperStatus = ifOperUp Yellow Alarm detection is active Yellow Alarm generation is active snmp trap link-status = disabled Framing is D4, Line Code is Ami, Clock Source is Internal - Module Allocated Ds0 time slot map = 0x0 Loopback Enabled - Diagnostic Last Remote Loopback Request Sent - Deactivate FDL is not configured FDL Transmit Path-Id is not active FDL Transmit Test-Signal is not active FDL Transmit Idle-Signal is not active Equipment Identification Code is the null string Line Identification Code is the null string Frame Identification Code is the null string Unit Identification Code is the null string Facility Identification Code is the null string Port Code is the null string Generator Number is the null string BERT test - 2 in 23 Test Interval 1 minute(s), Complete Sync count = 1 Received bit count = 92148912 Error bit count = 17 Number of valid interval - 90 Time elapse in current interval - 580

• Example 2—In this example, the brief keyword is specified for all T1 channels.

host1#show controllers t1 brief

Interfaces ifAdminStatus OperationalStatus 5/0:1(framed) up lowerLayerDown 5/0:2(framed) up lowerLayerDown 5/0:3(framed) up lowerLayerDown 5/0:4(framed) up lowerLayerDown 5/0:5(framed) up lowerLayerDown 5/0:6(framed) up lowerLayerDown ... 5/2:26(framed) up lowerLayerDown 5/2:27(framed) up lowerLayerDown 5/2:28(framed) up lowerLayerDown

• Example 3—In this example, a T1 channel is specified.

host1#show controllers t1 1/0:1

DS1 1/0:1 Description: toronto t1 channel ifOperStatus = ifOperUp Yellow Alarm detection is active Yellow Alarm generation is active snmp trap link-status = disabled Framing is D4, Line Code is Ami, Clock Source is Internal - Module Allocated Ds0 time slot map = 0x0 Last Remote Loopback Request Sent - Deactivate FDL is not configured FDL Transmit Path-Id is not active FDL Transmit Test-Signal is not active FDL Transmit Idle-Signal is not active Equipment Identification Code is the null string Line Identification Code is the null string

Page 58

JunosE 11.2.x Physical Layer Configuration Guide

Frame Identification Code is the null string Unit Identification Code is the null string Facility Identification Code is the null string Port Code is the null string Generator Number is the null string BERT test - 2 in 23 Test Interval 1 minute(s), Complete Sync count = 1 Received bit count = 92148912 Error bit count = 17 Number of valid interval - 90 Time elapse in current interval - 580

Ds1 Current Interval Counters Errored seconds = 0 Severely errored second = 0 Severely errored frame seconds = 0 Unavailable seconds = 0 Clock slip seconds = 0 Path code violations = 0 Line errored seconds = 0 Bursty errored seconds = 0 Degraded minutes = 0 Line code violations = 0

show controllers t3 ft1

Ds1 Last Interval Counters Errored seconds = 0 Severely errored second = 0 Severely errored frame seconds = 0 Unavailable seconds = 0 Clock slip seconds = 0 Path code violations = 0 Line errored seconds = 0 Bursty errored seconds = 0 Degraded minutes = 0 Line code violations = 0

Ds1 24 Hour Total Counters Errored seconds = 25 Severely errored second = 7 Severely errored frame seconds = 25 Unavailable seconds = 0 Clock slip seconds = 6 Path code violations = 18 Line errored seconds = 0 Bursty errored seconds = 0 Degraded minutes = 0 Line code violations = 0

• See show controllers t1.

• See show controllers t3.

• Use to display information about the state of a fractional T1 subchannel.

• Field descriptions

• Description—Text description or alias if configured for the interface

• ifOperStatus—Physical status of the interface

Page 59

Chapter 1: Configuring Channelized T3 Interfaces

• ifOperUp—Interface is functioning

• ifOperTesting—Interface is being tested

• ifOperNotPresent—Module has been removed from the chassis

• ifOperDown—Interface is not functioning

• snmp trap link-status of SNMP trapping (enabled or disabled)

• Ds0 time slot map—Fractional T1 subchannel

• Ds0 mode—Base data rate: either Nx56 or Nx64

• The ft1 option displays the state of the serial interface.

• The optional slot and port parameters display information about a specific slot and

port.

• Example

host1#show controllers t3 ft1

show controllers t3 remote

Ft1 Interface at 2/0:1/1 Description: toronto ft1 interface ifOperStatus = ifOperLowerLayerDown snmp trap link-status = disabled Ds0 time slot map = 0x1 Ds0 mode = Nx64

• See show controllers t3.

• Use to displayMIB statistics for the remote end of a channelized T3 interface configured

for MDL or for the remote end of a T1 channel configured for FDL.

• Specify the all option to display detailed information for all 15-minute intervals.

• For definitions of the MIB statistics for a T3 interface, see RFC 2496—Definitions of

Managed Objects for the DS3/E3 Interface Types (January 1999).

• For definitions of the MIB statistics for a T1 channel, see RFC 2495—Definitions of

Managed Objects for the DS1, E1, DS2 and E2 Interface Types (January 1999).

• Field descriptions for a T3 interface

• Far End MDL Carrier bit—Status of MDL configuration on remote device connected

to T3 interface

• set—MDL is configured for carrier mode

• not set—MDL is not configured for carrier mode

• Far End Equipment Identification Code—eic string sent by remote device for MDL

• Far End Line Identification Code—lic string sent by remote device for MDL

• Far End Frame Identification Code—fic string sent by remote device for MDL

Page 60

JunosE 11.2.x Physical Layer Configuration Guide

• Far End Unit Identification Code—unit string sent by remote device for MDL

• Far End Facility Identification Code—pfi string sent by remote device for MDL

• Far End Generator Number—generator string sent by remote device for MDL

• Far End Port Number—port string sent by remote device for MDL

• Number of valid intervals—Number of 15-minute intervals since the line module was

last powered on or reset

• Time elapse incurrent interval—Number of secondsthat have passed inthe 15-minute

(900-second) interval

• C-bit errored seconds—Number of C-bit errored seconds encountered by a T3 in the

current interval

• C-bit severely errored seconds—Number of C-bit severely errored seconds

encountered by a T3 in the current interval

• C-bit coding violations—Number of C-bit coding violations encountered by a T3 in

the current interval

• Unavailable seconds—Number of unavailable seconds encountered by a T3 in the

current interval

• Invalid seconds—Number of seconds when statistics were not collected

• Example—In this example, a T3 interface is specified.

host1#show controllers t3 5/0 remote

Far End MDL Carrier bit is not set Far End Equipment Identification Code is the null string Far End Line Identification Code is the null string Far End Frame Identification Code is the null string Far End Unit Identification Code is the null string Far End Facility Identification Code is the null string Far End Generator Number is the null string Far End Port Number is the null string

Number of valid interval - 3 Time elapse in current interval - 756

Ds3 Current Interval Counters C-bit errored seconds = 0 C-bit severely errored seconds = 0 C-bit coding violations = 0 Unavailable seconds = 0 Invalid seconds = 0 Ds3 Last Interval Counters C-bit errored seconds = 0 C-bit severely errored seconds = 0 C-bit coding violations = 0 Unavailable seconds = 0 Invalid seconds = 0

Ds3 24 Hour Total Counters C-bit errored seconds = 1

Page 61

Chapter 1: Configuring Channelized T3 Interfaces

C-bit severely errored seconds = 1 C-bit coding violations = 330 Unavailable seconds = 0 Invalid seconds = 0

• Field descriptions for a T1 channel

• DS1—Identifier of T1 channel

• Number of valid intervals—Number of 15-minute intervals since the line module was

last powered on or reset

• Time elapse incurrent interval—Number of secondsthat have passed inthe 15-minute

(900-second) interval

• Far End FDL Carrier bit—Status of FDL configuration on remote device connected to

T1 channel

• set—FDL is configured for carrier mode

• not set—FDL is not configured for carrier mode

• Far End Equipment Identification Code—eic string sent by remote device for FDL

• Far End Line Identification Code—lic string sent by remote device for FDL

• Far End Frame Identification Code—fic string sent by remote device for FDL

• Far End Unit Identification Code—unit string sent by remote device for FDL

• Far End Facility Identification Code—pfi string sent by remote device for FDL

• Far End Generator Number—generator string sent by remote device for FDL

• Far End Port Number—port string sent by remote device for FDL

• Errored seconds—Number of errored seconds encountered by a T1 in the current

interval

• Severely errored seconds—Number of severely errored seconds encountered by a

T1 in the current interval

• Severely errored frame seconds—Number of severely errored framing seconds

encountered by a T1 in the current interval

• Unavailable seconds—Number of unavailable seconds encountered by a T1 in the

current interval

• Clock slip seconds—Number of clock slipsencountered by a T1in the current interval

• Path code violations—Number ofcoding violations encounteredby aT1 in the current

interval

• Line errored seconds—Number of line errored seconds encountered by a T1 in the

current interval

Page 62

JunosE 11.2.x Physical Layer Configuration Guide

• Bursty errored seconds—Number of bursty errored seconds encountered by a T1 in

the current interval

• Degraded minutes—Number of minutes that a T1 line is degraded

• Example—In this example, a T1 channel is specified.

host1#show controllers t1 10/1:1 remote

DS1 10/1:1 Number of valid interval - 0 Time elapse in current interval - 0

Far End FDL Carrier bit is not set Far End Equipment Identification Code is the null string Far End Line Identification Code is the null string Far End Frame Identification Code is the null string Far End Unit Identification Code is the null string Far End Facility Identification Code is the null string Far End Port Number is the null string Far End Generator Number is the null string

DS1 Current Interval Counters Errored seconds = 0 Severely errored second = 0 Severely errored frame seconds = 0 Unavailable seconds = 0 Clock slip seconds = 0 Path code violations = 0 Line errored seconds = 0 Bursty errored seconds = 0 Degraded minutes = 0

show controllers t3 serial

DS1 24 Hour Total Counters Errored seconds = 0 Severely errored second = 0 Severely errored frame seconds = 0 Unavailable seconds = 0 Clock slip seconds = 0 Path code violations = 0 Line errored seconds = 0 Bursty errored seconds = 0 Degraded minutes = 0

• See show controllers t3 remote.

• Use to display the state of the serial interface.

• Field descriptions

• Description—Text description or alias if configured for the interface

• ifOperStatus—Physical status of the interface

• ifOperUp—Interface is functioning

• ifOperTesting—Interface is being tested

Page 63

Chapter 1: Configuring Channelized T3 Interfaces

• ifOperNotPresent—Module has been removed from the chassis

• ifOperDown—Interface is not functioning

• snmp trap link-status of SNMP trapping (enabled or disabled)

• Crc type checking—Size of the cyclic redundancy check (CRC)

• Hdlc mru—Current size of the maximum receive unit (MRU)

• Hdlc mtu—Current size of the maximum transmission unit (MTU)

• Hdlc interface speed—Current line speed of the interface

• Ds0 time slot map—T1 subchannel

• Invert data disabled—Status of the data inversion feature

• The optional slot and port parameters display information about a specific slot and

port.

• Use the slot/port:channel/subchannel option to display information about a specific

interface.

• Example

host1#show controllers t3 serial

Serial Interface at 2/0:1/1 ifOperStatus = ifOperLowerLayerDown snmp trap link-status = disabled Crc type checking - CRC16 Hdlc mru = 9996 Hdlc mtu = 9996 Hdlc interface speed = 64000 Ds0 time slot map = 0x1 Invert data disabled, Ds0 mode = Nx64

Serial Interface at 2/1:1/1 ifOperStatus = ifOperLowerLayerDown snmp trap link-status = disabled Crc type checking - CRC16 Hdlc mru = 9996 Hdlc mtu = 9996 Hdlc interface speed = 64000 Ds0 time slot map = 0x1 Invert data disabled, Ds0 mode = Nx64

Found 2 Serial Interfaces

• See show controllers t3.

show interfaces serial

• Use to display information about the serial interfaces you specify.

• Field descriptions

Page 64

JunosE 11.2.x Physical Layer Configuration Guide

• Fractional Interface—Location of a channelized T1 or E1 interface

• Description—Text description or alias if configured for the interface

• ifOperStatus—Administrative status of the interface

• ifOperUp—Interface is functioning

• ifOperTesting—Interface is being tested

• ifOperNotPresent—Module has been removed from the chassis

• ifOperDown—Interface is not functioning

• ifOperLowerDown—Lower layer in the interface stack is not functioning

• snmp trap link-status—Enabled or disabled

• Encapsulation—Layer 2 encapsulation display; options include: ppp, frame-relay

ietf, mlppp, mlframe-relay ietf, hdlc

• Crc type checking—Size of the CRC

• Hdlc mru—Current size of the MRU

• Hdlc mtu—Current size of the MTU

• Hdlc interface speed—Current line speed of the interface

• Hdlc idle-character—Current idle character

• Invert data disabled—Status of the data inversion feature

• Ds0 time slot map—Channelized T1 or E1 channel group

• Ds0 mode—Nx56 or Nx64

• 5 minute input rate—Data rates based on the traffic received in the last five minutes

• 5 minute output rate—Data rates based on the traffic sent in the last five minutes

• Interface statistics

• Packets received—Number of packets received on the interface

• Bytes received—Number of bytes received on the interface

• Erroredpackets received—Number ofpackets with errors received on the interface

• Packets sent—Number of packets sent on the interface

• Bytes sent—Number of bytes sent on the interface

• Errored packets sent—Number of packets with errors sent from the interface

• Example

Page 65

Chapter 1: Configuring Channelized T3 Interfaces

host1#show interfaces serial 0/1:2 brief

Serial Interface at 0/1:2 Description: ottawa012 hdlc channel ifOperStatus = ifOperUp snmp trap link-status = disabled Encapsulation hdlc Crc type checking - CRC16 Hdlc mru = 1600 Hdlc mtu = 1600 Hdlc interface speed = 768000 Hdlc idle-character marks Invert data disabled Ds0 time slot map = 0xfff Ds0 mode = Nx64

Serial Interface at 13/0:2 Description: ottawa013 hdlc channel ifOperStatus = ifOperUp snmp trap link-status = disabled Crc type checking - CRC16 Hdlc mru = 1600 Hdlc mtu = 1600 Hdlc interface speed = 768000 Invert data disabled Ds0 time slot map = 0xfff000 Ds0 mode = Nx64

Found 2 Serial Interfaces

• See show interfaces.

Page 66

JunosE 11.2.x Physical Layer Configuration Guide

Page 67

CHAPTER 2

Configuring T3 and E3 Interfaces

Use theproceduresdescribed in this chapter toconfigureT3 andE3 interfaceson ESeries Broadband Services Routers.

This chapter contains the following sections:

•

Overview on page 45

•

Platform Considerations on page 47

•

References on page 50

•

Before You Configure an Interface on page 50

•

Configuration Tasks on page 51

•

Configuration Examples on page 59

•

Testing Interfaces on page 60

•

Monitoring Interfaces on page 63

Overview

MDL Support

Unchannelized T3 (DS3) and E3 interfaces are supported by the modules described in this chapter.

Throughout this chapter, interfaces on modules that provide ATM support are called T3/E3 ATM interfaces. Similarly, interfaces on modules that provide frame (HDLC) support are called T3/E3 frame interfaces.

This section describes the features of unchannelized T3/E3 interfaces. For information about configuring unchannelized T3(DS3) interfacesover SONET/SDH, see “Configuring Channelized OCx/STMx Interfaces” on page 105.

T3 interfaces on some line modules support maintenance data link (MDL) messages. For alist ofthe line modules that supportMDL, seeERX Module Guide, Appendix A, Module Protocol Support.

You can use MDL messages to determine the status of a link and to display statistics for the remote end of a connection. MDL messages do not interfere with other data transmitted over the link.

Page 68

JunosE 11.2.x Physical Layer Configuration Guide

MDL Standards

You can configure T3 interfaces to send MDL messages that comply with ANSI T1.107a-1990 Standard for Telecommunications—Digital Hierarchy – Supplement to Formats Specification (August 1990). MDL messages identify a particular link by sharing common codes for data such as the equipment identifier, line identifier, frame identifier, and unit.

Timeout of Received MDL Messages

When a line module receives an MDL message string, it stores the strings for a period of 10 seconds after the last message was received. If the line module does not receive another message of any type containing the same string within 10 seconds, it erases the local copy of the message.

Most MDL message strings are common to all three types of messages that can be transmitted: path identifications, idle signals, and test signals. Certain message strings, however, are unique to a particular message type. Table 5 on page 46 briefly describes each MDL message string and indicates, with a checkmark (✓), the types of messages in which it can be sent.

Table 5: MDL Message Strings and Message Types

Message String

Path MessageDescription

Idle Signal Message

For example, if a line module receives an MDL test signal message containing an eic string, and then receives a idle signal message within 10 seconds that also contains an eic string, it retains the local copy of the most recent eic string received and resets the 10-second timer for that message. However, if 10 seconds pass without the line module receiving a path identification, test signal, or idle signal message containing an eic string, the line module erases the local copy of the eic message string.

Test Signal Message

✓✓✓Equipment identification codeeic

✓✓✓Frame identification codefic

✓––Generator numbergenerator

✓✓✓Line identification codelic

––✓Facility identification codepfi

–✓–Equipment port numberport

✓✓✓Unit identification codeunit

Page 69

Higher-Level Protocols

See ERX Module Guide, Appendix A, Module Protocol Support for information about the higher-level protocols that T3 and E3 interfaces support.

Platform Considerations

You can configure unchannelized T3 and unchannelized E3 interfaces on the following E Series Broadband Services Routers:

•

ERX1440 router

•

ERX1410 router

•

ERX710 router

Chapter 2: Configuring T3 and E3 Interfaces

•

ERX705 router

•

ERX310 router

NOTE: The E120 and E320 Broadband Services Routers do not support configuration

of unchannelized T3/E3 interfaces.

For detailed information aboutthe modules that support unchannelized T3/E3 interfaces on ERX7xx models, ERX14xx models, and the ERX310 router:

•

See ERX Module Guide, Table 1, Module Combinations for detailedmodule specifications.

•

See ERX Module Guide, Appendix A, Module Protocol Support for information about the protocols and applications that unchannelized T3/E3 modules support.

COCX-F3 Line Modules and Associated I/O Modules

ERX7xx models, ERX14xx models, and the ERX310 router support the COCX-F3 line modules and associated I/O modules.

ERX14xx models support up to twelve COCX-F3 line modules and twelve corresponding I/O modules, ERX7xx models support up to five of these line modules and five corresponding I/O modules, and the ERX310 router supports up to two of these line modules and two corresponding I/O modules. There are twelve physical T3/E3 (DS3) ports per I/O module. Each port uses two SMB connectors: one for the transmit (TX) connection and one for the receive (RX) connection.

COCX-F3 line modules and associated I/O modules support the following:

Page 70

JunosE 11.2.x Physical Layer Configuration Guide

•

Clocking

•

Redundancy

•

Frame Relay logical interface support

•

Unique IP interface support for each PPP or Frame Relay PVC interface

•

HDLC

•

Fractional T3 (T3 only)

•

Line speeds of 45 Mbps (T3) and 34 Mbps (E3)

OCx/STMx/DS3-ATM Line Modules and 4xDs3 ATM I/O Modules

ERX7xx models, ERX14xx models, and the ERX310 router support the OCx/STMx/DS3-ATM line modules and 4xDS3 ATM I/O modules.

ERX14xx models support up to twelve OCx/STMx/DS3-ATM line modules and twelve 4xDS3 ATM I/O modules, the ERX7xx models support up to five of these line modules and five corresponding I/O modules, and the ERX310 router supports up to two of these line modules andtwo corresponding I/O modules.There are four physical T3(DS3) ports per I/O module. Each port uses twoBNC connectors: one forthe transmit(TX) connection and one for the receive (RX) connection.

OCx/STMx/DS3-ATM line modules pair with 4xDS3 ATM I/O modules to support the following:

•

Clocking

•

Redundancy

•

Frame Relay logical interface support

•

Unique IP interface support for each PPP or Frame Relay PVC interface

•

Line speeds of 45 Mbps

CT3/T3-F0 Line Modules and CT3/T3 12 I/O Modules

ERX7xx models, ERX14xx models, and the ERX310 Broadband Services Router support the CT3/T3-F0 line modules and CT3/T3 12 I/O modules.

The CT3/T3-F0 line module and CT3/T3 12 I/O module support both channelized and unchannelized T3 operation. You can configure a mixture of channelized and unchannelized ports on these modules. To configure these modules to support unchannelized T3 operation, issue no “channelized” on page 51 . (See “Configuration Tasks” on page 51 .) For information about configuring channelized T3 ports, see “Configuring T3 and E3 Interfaces” on page 45.

ERX14xx models support up to twelve CT3/T3-F0 line modules and twelve CT3/T3 12 I/O modules, ERX7xx models support up to five of these line modules and five corresponding I/O modules, and the ERX310 Broadband Services Router supports up to two of these linemodules andtwo corresponding I/Omodules. There are twelve physical

Page 71

Interface Stack

Chapter 2: Configuring T3 and E3 Interfaces

T3 (DS3) ports per I/O module. Each port uses two SMB connectors: one for the transmit (TX) connection and one for the receive (RX) connection.

CT3/T3-F0 line modules and CT3/T3 12 I/O I/O modules to support the following:

•

Clocking

•

Redundancy

•

Frame Relay logical interface support

•

Unique IP interface support for each PPP or Frame Relay PVC interface

•

Line speeds of 45 Mbps

Figure 3 on page 49 shows the stack for T3 ATM interfaces. Figure 4 on page 49 shows the stack for T3 frame and E3 frame interfaces.

To configure a T3 ATM interface, first configure a T3 controller. To configure ATM parameters, see Configuring ATM in JunosE Link Layer Configuration Guide .

Numbering Scheme

To configure a T3 frame or E3 frame interface, first configure a T3 or E3 controller, and then configure a High-Speed Data Link Control (HDLC) data channel on the controller.

Figure 3: Stack for T3 ATM Interfaces

Figure 4: Stack for T3 Frame and E3 Frame Interfaces

NOTE: For a detailed description of interface types and specifiers, see Interface Types and Specifiers in JunosE Command Reference Guide. For information about interfaces, see Planning Your Network in JunosE System Basics Configuration Guide.

This section describes how to identify T3 and E3 interfaces.

A T3/E3 controller on an ATM or frame interface is identified using the slot/port format, where:

•

slot—Number of the slot in which the line module resides in the chassis. In ERX7xx models, line module slots are numbered 2-6 (slots 0 and 1 are reserved for SRP modules). In ERX14xx models, line module slots are numbered 0–5 and 8–13 (slots 6 and 7 are reserved for SRP modules). In the ERX310 router, the line module slots are numbered 0–2 (slot 0 is reserved for the SRP module).

Page 72

JunosE 11.2.x Physical Layer Configuration Guide

•

port—Number of the port on the I/O module. On the CT3/T3 12 I/O and E3-12 FRAME I/O modules, ports are numbered 0–11.

For information about installing line modules and I/O modules in ERX routers, see ERX Hardware Guide, Chapter 4, Installing Modules.

References

For more information about T3 and E3 interfaces, consult the following resources:

•

RFC 1661—The Point-to-Point Protocol (PPP) (July 1994)

•

RFC 2364—PPP over AAL5 (July 1998)

•

RFC 2496—Definitions of Managed Objects for the DS3/E3 Interface Types (January

1999)

•

RFC 2516—Method for Transmitting PPP over Ethernet (PPPoE) (February 1998)

•

RFC 2684—Multiprotocol Encapsulation over ATM Adaptation Layer 5 (September

1999)

•

ANSI T1.107a-1990 Standardfor Telecommunications—Digital Hierarchy– Supplement to Formats Specification (August 1990)

For more information about bit error test (BERT) patterns, see:

•

ITU O.151—Error performance measuring equipment operating at the primary rate and above (October 1992)

•

ITU O.153—Basic parameters for the measurement of error performance at bit rates below the primary rate (October 1992)

•

ANSI T1.404-1994 Standard for Telecommunications—Network-to-Customer – DS3 Metallic Interface Specification (1994)

Before You Configure an Interface

Before you configure aT3 oran E3 interface,verify that you have installed the line modules and I/O modules correctly.

You need the following information for each T3 controller:

•

Framing type

•

Clock source

•

Cable length

You also need HDLC channel information, such asdata inversion information, for interfaces that support HDLC.

Page 73

Configuration Tasks

Chapter 2: Configuring T3 and E3 Interfaces

Configure a T3 interface by entering Global Configuration mode and performing the following tasks:

1. Configure a T3 controller.

2. (Optional) Configure MDL settings.

3. (Optional) Configure other settings for the interface.

4. Configure HDLC channels for T3 frame and E3 frame controllers.

5. (Optional) Configure fractional T3 for T3 frame controllers.

6. Use the appropriate show commands to verify your configuration.

E3 interface configuration tasks are identical to T3 interface configuration tasks, except that the CLI commands contain e3 instead of t3.

For example, you configure an E3 controller with the controller e3 command instead of the controller t3 command.

Configuring a T3 or an E3 Controller

To configure a T3 or an E3 controller:

1. Select the T3 or E3 controller from Global Configuration mode.

host1(config)#controller t3 3/2

2. Enable the T3 or E3 controller.

host1(config-controll)#no shutdown

3. (CT3/T3-F0 line module only) Enable unchannelized operation for this controller.

host1(config-controll)#no channelized

channelized

• Use to enable channelized T3 operation on an interface of a CT3/T3-F0 line module.

• Example

host1(config-controll)#channelized

• Use the no version to enable unchannelized T3 operation on an interface for a

CT3/T3-F0 line module.

• See channelized.

controller e3

Use to specify an E3 controller in slot/port format.•

• slot—Number of the slot in which the line module resides in the chassis

Page 74

JunosE 11.2.x Physical Layer Configuration Guide

• port—Number of the port on the I/O module

• Example

host1(config)#controller e3 3/2

• There is no no version.

• See controller e3.

controller t3

Use to specify a T3 controller in slot/port format.•

• slot—Number of the slot in which the line module resides in the chassis

• port—Number of the port on the I/O module

• Example

host1(config)#controller t3 0/1

• There is no no version.

shutdown

• See controller t3.

• Use to disable a T3 or an E3 controller.

• The T3 or E3 interface is disabled by default.

• Example

host1(config-controll)#shutdown

• Use the no version to restart a disabled interface.

• See shutdown.

Configuring MDL Messages

You can configure a T3 interface to send MDL messages. MDL messages are supported only when T3 framing uses C-bit parity, the default setting.

To configure a T3 interface to send MDL messages:

1. Specify a T3 interface.

host1(config)#controller t3 8/0

2. (Optional) Configure the interface to operate in an MDL carrier environment.

host1(config-controll)#mdl carrier

3. Specify the MDL messages.

host1(config-controll)#mdl string eic "ERX1410" host1(config-controll)#mdl string fic "FG786" host1(config-controll)#mdl string lic “ Bldg 10" host1(config-controll)#mdl string pfi "Site 25" host1(config-controll)#mdl string port 0800

Page 75

mdl carrier

mdl string

Chapter 2: Configuring T3 and E3 Interfaces

4. Enable transmission of MDL messages.

host1(config-controll)#mdl transmit path-id host1(config-controll)#mdl transmit idle-signal host1(config-controll)#mdl transmit test-signal

• Use to specify that an interface is used in the carrier environment.

• Example

host1(config-controll)#mdl carrier

• Use the no version to restore the default situation, in which the interface does not

operate in the carrier environment.

• See mdl carrier.

• Use to specify an MDL message.

• Example

mdl transmit

host1(config-controll)#mdl string port 0800

• Use the no version to restore the default value to the specified MDL message or to all

MDL messages.

• See mdl string.

• Use to enable transmission of MDL messages.

• Specify the keyword path-id to transmit path identifications every second.

• Specify the keyword idle-signal to send idle signals every second.

• Specify the keyword test-signal to transmit test signals every second.

• Example

host1(config-controll)#mdl transmit test-signal

• Use the no version to disable transmission of the specified MDL message or all MDL

messages.

• See mdl transmit.

Optional Tasks

The following configuration tasks are optional for T3 and E3 interfaces:

•

Specify the cable length (T3 only).

•

Change the clock source.

•

Change the framing format.

Page 76

JunosE 11.2.x Physical Layer Configuration Guide

•

Enable cell scrambling (ATM interfaces only).

•

Assign a text description or an alias to the interface.

cablelength

• Use to adjust the transmit power appropriate to the length of a T3 cable.

• Specify a cable length in the range 1–450 feet.

• The router supports two transmit powers, one for a cable length between 1–225 feet

and another for a cable length between 226–450 feet. Therefore, it is not necessary to know the exact size of your cable. You only need to know if the cable size is greater than 225 feet. For example, if your cable size exceeds 225 feet, specify any number greater than 225 and less than 451.

• Example

host1(config-controll)#cablelength 300

• Use the no version to restore the default, 0 feet.

• See cablelength.

clock source

description

• Use to configure the transmit clock source for a T3 or E3 line.

• Use a transmit clock on the line’s receive data stream, except in rare cases such as

back-to-back router tests. When performing back-to-back router tests, configure one end of the line as internal and the other end as line.

• Specify the keyword line to use a transmit clock on the line’s receive data stream.

• Specify the keywords internal module to use the line module’s internal clock.

• Specify the keywords internal chassis to use the router’s clock.

• Example

host1(config-controll)#clock source internal module

• Use the no version to revert to the default, line.

• See clock source.

• Use to assign a text description or an alias to a T3 or E3 interface.

• You can use this command to help you identify the interface and keep track ofinterface

connections.

• The description or alias can be a maximum of 80 characters.

• Use “show controllers t3” on page 64 or “show controllers e3” on page 64 to display

the text description.

• Example

host1(config-controll)#description westford t3 interface

Page 77

ds3-scramble

e3-scramble

Chapter 2: Configuring T3 and E3 Interfaces

• Use the no version to remove the text description or alias.

• See description.

• Use to enable cell scrambling in a T3 ATM interface.

• Example

host1(config-controll)#ds3-scramble

• Use the no version to turn off cell scrambling on the interface.

• See ds3-scramble.

• Use to enable cell scrambling in an E3 ATM interface.

• Example

host1(config-controll)#e3-scramble

framing

• Use the no version to turn off cell scrambling on the interface.

• See e3-scramble.

• Use to configure the framing format for a T3 or E3 line.

• For a T3 line, you must specify one of the following:

• T3 FRAME—c-bit or m23 (the default is c-bit)

• T3 ATM—cbitadm, cbitplcp, m23adm, or M23plcp (the default is cbitplcp)

• For an E3 line, you must specify one of the following:

• E3 FRAME—g751 or g832 (the default is g751)

• Choose a framing format that is compatible with the framing format of the network

device at the other end of the line.

• Example

host1(config-controll)#framing m23

• Use the no version to restore the default value.

• See framing.

Configuring Fractional T3

You can configure fractionalT3 on T3 frame interfaces.E3 frameinterfaces donot support fractional E3.

Fractional T3 is a portion of a T3 transmission service and provides a set of lines with a speed that is greater than T1 (1.544 Mbps), but less than T3 (44.736 Mbps).

Page 78

JunosE 11.2.x Physical Layer Configuration Guide

To configure fractional T3:

1. Set the DSU mode for the lines.

2. Set the speed of the fractional T3 lines.

3. Enable scrambling of the payload.

CAUTION: Complete all three steps at the same time. Otherwise, the interface might

drop packets unexpectedly.

dsu bandwidth

• Use to set the speed for the fractional T3 lines.

• If you issue this command, be sure to issue the dsu mode and scramble commands.

Otherwise, the interface might drop packets unexpectedly.

• The router offers a set of speeds in increments that depend on the DSU mode you

specify. The actual speed of the fractional T3 lines will be the value closest to the fractional bandwidth you specify.

dsu mode

• Example

host1(config-controll)#dsu bandwidth 10000

• Use the no version to clear the bandwidth.

• If you issue the no version, be sure to issue the no dsu mode and no scramble

commands. Otherwise, the interface might drop packets unexpectedly.

• See dsu bandwidth.

• Use to set the DSU mode for the lines.

• Specify 0 for Digital Link mode or 2 for Larscom mode.

• If you issue this command, be sure to issue the dsu bandwidth and scramble

commands. Otherwise, the interface might drop packets unexpectedly.

• Example

host1(config-controll)#dsu mode 0

• Use the no version to clear the DSU mode.

• If you issue the no version, be sure to issue the no dsu bandwidth and no scramble

commands. Otherwise, the interface might drop packets unexpectedly.

• See dsu mode.

scramble

• Use to enable cell scrambling on a T3 frame interface.

• If you issue this command, be sure to issue the dsu mode and dsu bandwidth

commands. Otherwise, the interface might drop packets unexpectedly.

Page 79

• Example

host1(config-controll)#scramble

• Use the no version to turn off cell scrambling on the interface.

• If you issue the no version, be sure to issue the no dsu mode and no dsu bandwidth

commands. Otherwise, the interface might drop packets unexpectedly.

• See scramble.

Configuring an HDLC Channel

You must configure an HDLC channel for each T3 frame or E3 frame controller.

To configure an HDLC channel, configure a serial interface (for example, HDLC channel in slot 0, 1).

host1(config)#interface serial 0/1

Optional Tasks

The following configuration tasks are optional when you configure an HDLC channel on a T3/E3 frame interface:

Chapter 2: Configuring T3 and E3 Interfaces

crc

•

Configure the cyclic redundancy check (CRC).

•

Configure the HDLC idle character.

•

Enable data inversion on the interface.

•

Set the time interval for monitoring bit and packet rates.

•

Set the maximum receive unit (MRU).

•

Set the maximum transmit unit (MTU).

•

Assign a text description or an alias to the serial interface.

• Use to configure the size of the CRC.

• Specify the number of bits per frame (16 or 32) that are used to calculate the frame

check sequence (FCS). Both the sender and receiver must use the same setting.

• The CRC is an error-checking technique that uses a calculated numeric value to detect

errors in transmitted data.

• A 32-bit CRC should be used to protect longer streams at faster rates and, therefore,

provide better ongoing error detection.

• Example

host1(config-if)#crc 32

• Use the no version to restore the default value, 16.

• See crc.

idle-character

Page 80

JunosE 11.2.x Physical Layer Configuration Guide

• Use to configure the HDLC idle character.

• The idle character is sent between HDLC packets.

• Specify one of the following idle characters:

• flags—Sets the idle character to 0x7E

• marks—Sets the idle character to 0xFF

• Example

host1(config-if)#idle-character marks

• Use the no version to restore the default value, 0x7E (flags).

• See idle-character.

interface serial

Use to configure a serial interface in the slot/port format.•

• slot—Number of the slot in which the line module resides in the chassis

invert data

load-interval

• port—Number of the port on the I/O module

• Example

host1(config)#interface serial 3/0

• Use the no version to disable the interface.

• See interface serial.

• Use to enable data stream inversion for the interface.

• Enable data stream inversion only if it is turned on at the other end of the line.

• Example

host1(config-if)#invert data

• Use the no version to disable the feature.

• See invert data.

• Use to set the time interval at which the router calculates bit and packet rate counters.

• Choose a multiple of 30 seconds, in the range 30–300 seconds.

• Example

host1(config-if)#load-interval 90

• Use the no version to restore the default value, 300 seconds.

• See load-interval.

mru

Page 81

mtu

Chapter 2: Configuring T3 and E3 Interfaces

• Use to configure the MRU size for the interface.

• Specify a value in the range 4–9996 bytes.

• Coordinate this value with the network administrator on the other end of the line.

• If you set this parameter to a different value for another protocol, such as IP, the router

uses the lower value. This could produce unexpected behavior in your network.

• Example

host1(config-if)#mru 1500

• Use the no version to restore the default, 1600 bytes.

• See mru.

• Use to configure the MTU size for the interface.

• Specify a value in the range 4–9996 bytes.

• Coordinate this value with the network administrator on the other end of the line.

serial description

• If you set this parameter to a different value for another protocol, such as IP, the router

uses the lower value. This could produce unexpected behavior in your network.

• Example

host1(config-if)#mtu 1500

• Use the no version to restore the default, 1600 bytes.

• See mtu.

• Use to assign a text description or an alias to a serial HDLC interface.

• You can use this command to help you identify the interface and keep track ofinterface

connections.

• The description or alias can be a maximum of 80 characters.

• Use the show interfaces serial command to display the text description.

• Example

host1(config-if)#serial description boston09 hdlc channel

• Use the no version to remove the text description or alias.

• See serial description.

Configuration Examples

To configurea T3 interface,start at theGlobal Configuration mode, and issue the following commands:

host1(config)#controller t3 0/1

Page 82

JunosE 11.2.x Physical Layer Configuration Guide

host1(config-controll)#no shutdwon host1(config-controll)#framing c-bit host1(config-controll)#clock source internal module host1(config-controll)#cablelength 220 host1#exit

To configure an E3 interface, use the controller e3 command in place of the controller t3 command.

To configure HDLC channels on a T3 serial interface, issue the following commands:

host1(config)#controller t3 10/0 host1(config-controll)#exit host1(config)#interface serial 10/0 host1(config-subif)#encapsulation ppp host1(config-subif)#ip address 192.32.10.2 255.255.255.0

To configure fractional T3 on an interface, issue the following commands:

host1(config)#controller t3 10/0 host1(config-controll)#dsu mode 0 host1(config-controll)#dsu bandwidth 10000 host1(config-controll)#scramble

Testing Interfaces

Testing interfaces allows you to troubleshoot problems and to check the quality of links at various layers in the interface stack. The router supports the following test options:

•

Sending BERT Patterns

The router can send BERT patterns from different layers in the interface stack on frame-based T3 interfaces.

Transmission of BERT patterns to remote devices

Local loopback—Loops the data back toward the router; on supported line modules, also sends an alarm indication signal (AIS) out toward the network

Network loopback—Loops the data toward the network before the data reaches the frame

Payload loopback—Loops the data toward the network after the framer processes the data

Remote loopback—Provides the ability to:

•

Request that remote devices enter into loopback

•

Be placed in loopback by remote devices

For alist of the modulesthat supportbit errorrate tests, seeERX Module Guide, Appendix A, Module Protocol Support.

To send BERT patterns:

1. Select a controller.

Page 83

bert

Chapter 2: Configuring T3 and E3 Interfaces

host1(config)#controller t3 3/2

2. Configure a specific layer in the interface to generate BERT patterns.

host1(config-controll)#bert pattern 2^11 interval 10

For information about BERT patterns, see “References” on page 50.

• Use to enable bit error rate tests using the specified pattern on a T3 interface.

• Unlike other configuration commands, bert is not stored in NVRAM.

• Specify one of the following test patterns:

• 0s—Repetitive test pattern of all zeros, 00000...

• 1s—Repetitive test pattern of all ones, 11111...

• 2^9—Pseudorandom test pattern, 511 bits in length

• 2^11—Pseudorandom test pattern, 2047 bits in length

• 2^15—Pseudorandom test pattern, 32,767 bits in length

• 2^20—Pseudorandom test pattern, 1,048,575 bits in length

• 2^20-QRSS—Pseudorandom QRSS test pattern, 1,048,575 bits in length

• 2^23—Pseudorandom test pattern, 8,388,607 bits in length

• alt-0-1—Repetitive alternating test pattern of zeros and ones, 01010101...

• Specify the duration of the test in the range 1–1440 minutes.

• Example

host1(config-controll)#bert pattern 2^11 interval 10

• Use the no version to stop the test that is running.

• See bert.

Enabling Local, Network, and Payload Loopback

To enable local, network, or payload loopback testing of a T3 or E3 line, use the clock source and loopback commands from Controller Configuration mode.

1. Change the clock source to internal.

host1(config-controll)#clock source internal module

2. Specify a loopback.

host1(config-controll)#loopback local

Page 84

JunosE 11.2.x Physical Layer Configuration Guide

Enabling Remote Loopback

You can enable remote loopback capability on frame-based T3 interfaces configured to use C-bit framing. Remote loopback is not supported on E3ATM, E3 FRAME, and T3 ATM interfaces.

For a list of the modules thatsupport remote loopback, seeERX Module Guide, Appendix A, Module Protocol Support.

To enable remote loopback:

1. Change the clock source to internal.

host1(config-controll)#clock source internal module

2. Ensure that the line is configured to use C-bit framing, which is the default for

frame-based T3 interfaces.

host1(config-controll)#framing c-bit

3. Configure one of the following loopback tests:

equipment loopback

•

Set the loopback to remote to request that a remote device connected on a T3 interface enter into a loopback.

host1(config-controll)#loopback remote

•

Configure the T3 interface to enable or disable the ability to enter into a loopback initiated by a remote device, as follows:

•

Issue the equipment customer loopback command to enable the router to enter into loopback when it receives an appropriate signal from the remote device.

host1(config-controll)#equipment customer loopback

•

Issue theequipment networkloopback command to disable the ability toenter into loopback initiated by a remote device.

host1(config-controll)#equipment network loopback

• Use to enableor disablethe router’s ability to enterinto a loopback initiated by a remote

device connected on a T3 interface.

NOTE: Remote loopback is available only on frame-based T3 interfaces configured to

use C-bit framing.

• Specify one of the following loopback options:

• customer—Enables therouter to enterinto loopback whenit receives an appropriate

signal from the remote interface

Page 85

loopback

Chapter 2: Configuring T3 and E3 Interfaces

• network—Disables the router’s ability to enter into loopback when it receives an

appropriate signal from the remote interface

• Examples

host1(config-controll)#equipment customer loopback host1(config-controll)#equipment network loopback

• Use theno version to disable the router’s abilityto be placed in loopback by the remote

device.

• See equipment loopback.

• Use to configure a loopback.

• Specify one of the following loopback options:

• local—Loops the databack toward the router; onsupportedline modules, also sends

an alarm indication signal (AIS) out toward the network

• network—Loops the data toward the network before the framer processes the data

NOTE: Remote loopback is available only on frame-based T3 interfaces configured to

use C-bit framing.

• Example

• Use the no version to restore the default configuration, no loopback.

• See loopback.

Monitoring Interfaces

From User Exec mode, use the following show commands to monitor and display the T3 or E3 interface information:

• payload—Loops the data toward the network after the framer processes the data

• remote—Sends a far end alarm code in the C-bit framing, as defined in ANSI T1.404,

to notify the remote end to activate or (when you use the no version) deactivate the line loopback

host1(config-controll)#loopback local

host1#show controllers t3 0/1 host1#show controllers e3 3/2

Setting a Baseline

You can set a statistics baseline for serial interfaces using the baseline interface serial command. Use the delta keyword with the show commands to display statistics with the baseline subtracted.

Page 86

JunosE 11.2.x Physical Layer Configuration Guide

Displaying Counters and Time Intervals

Counters and time intervals are MIB statistics, which are defined in RFC 2496—Definitions of Managed Objects for the DS3/E3 Interface Types (January

1999).

The show controllers t3 slot/port all command displays the following interface information:

•

Status information

•

T3 current interval counters—Displays the counters for the current interval

•

T3 last interval counters—Displays the counters for the previous interval

•

T3 24-hour total counters—Displays the cumulative counters for the last 24-hours or since the interface was started

•

The last 24-hours of 15-minute reporting intervals (96 intervals)

The show controllers e3 slot/port all command displays identical information for an E3 controller (except where noted).

Output Filtering

baseline interface

show controllers e3

show controllers t3

• Use to set a statistics baseline for serial interfaces.

• The router implements the baseline by reading and storing the statistics at the time

the baseline is set and then subtracting this baseline whenever baseline-relative statistics are retrieved.

• Use the optional delta keyword with the show interfaces serial commands to view

the baseline statistics.

• Example

host1#baseline interface serial 2/0

• There is no no version.

• See baseline interface.

• Use to display the parameters and MIB statistics on an interface.

• Use the brief keyword to display the administrative and operational status of all

configured T3 or E3 interfaces, or to display abbreviated information for the specified T3 or E3 interface.

Page 87

Chapter 2: Configuring T3 and E3 Interfaces

• For definitions of the MIB statistics, see RFC 2496—Definitions of Managed Objects

for the DS3/E3 Interface Types (January 1999)

• Field descriptions

• Description—Text description or alias if configured for the interface

• ifAdminStatus—One of the following administrative states of the interface:

• ifAdminUp—Interface is administratively enabled

• ifAdminDown—Interface is administratively disabled

• ifAdminTesting—Interface is administratively configured in a testing state

• snmp trap link-status—Status of SNMP trapping (enabled or disabled)

• alarms detected—One of the following T3 alarms (not applicable for E3):

• No alarm present—No alarms present on the line

• Rcv RAI Failure—Remote device is sending a far end alarm failure

• Xmt RAI Failure—Local device is sending a far end alarm failure

• Rcv AIS—Remote device is sending an alarm indication signal (AIS)

• Xmt AIS—Local device is sending an AIS

• Rcv LOF—Loss of one or more frames from the remote end

• Rcv LOS—Loss of signal at the local end

NOTE: The alarms detected field does not appear for interfaces that you disabled in the software.

• framing—Type of framing format

• line code—Type of line code format

• clock source—Type of clock source

• cable length—Cable length, in feet (this field is not present for E3 controllers)

• Loopback—State of loopback for the controller: enabled or disabled. If loopback is

enabled, one of the following states is displayed:

• Diagnostic—Data loops back toward the router and sends an alarm AIS toward

• Payload—Data loops toward the network after the framer has processed the data

• Line—Data loops toward the network before the data reaches the framer

• loopback state—State of loopback for the controller: enabled or disabled

the network

Page 88

JunosE 11.2.x Physical Layer Configuration Guide

• DSU mode—Mode of the fractional T3 lines: Digital Link mode or Larscom mode

• DSU bandwidth—Speed of the fractional T3 lines

• DSU scramble—Status of scrambling for fractional T3: on or off

• MDL Transmit Path—Indicates whether the transmission is active or not active (T3

only)

• MDL Transmit Test-Signal—Indicates if the transmission is active or not active (T3

only)

• MDL Transmit Idle-Signal—Indicates if the transmission is active or not active (T3

only)

• Equipment Identification Code—eic string for MDL (T3 only)

• Line Identification Code—lic string for MDL (T3 only)

• Frame Identification Code—fic string for MDL (T3 only)

• Facility Identification Code—fic string for MDL (T3 only)

• Equipment Port—port string for MDL (T3 only)

• Unit Identification Code—unit string for MDL (T3 only)

• Facility Identification Code—pfi string for MDL (T3 only)

• Port Code—port string for MDL (T3 only)

• Generator Number—generator string for MDL (T3 only)

• BERT test—Number of current test and total number of tests (T3 only)

• Test interval—Length of the BERT test

• status—Sync (controller issynchronized with remotedevice) or NoSync(controller

is not synchronized with remote device)

• Synccount—Number of times the pattern detector synchronized withthe incoming

data pattern

• Received bit count—Number of bits received

• Error bit count—Number of bits with errors

• Number of valid intervals—Number of 15-minute intervals since the T3 or E3 module

was last powered on or reset

• Time elapse incurrent interval—Number of secondsthat have passed inthe 15-minute

(900 second) interval

• Errored seconds—Number of errored seconds encountered by an E3 (not applicable

for T3) in the current interval (this field is not present for T3 controllers)

Page 89

Chapter 2: Configuring T3 and E3 Interfaces

• P-bit errored seconds—Number of errored seconds encountered by a T3 (not

applicable for E3) in the current interval (this field is not present for E3 controllers)

• Severely errored seconds—Number of severely errored seconds encountered by an

E3 (not applicable for T3) in the current interval (this field is not present for T3 controllers)

• P-bit severely errored seconds—Number of severely errored seconds encountered

by a T3 (not applicable for E3) in the current interval (this field is not present for E3 controllers)

• Severely errored frame seconds—Number of severely errored framing seconds

encountered by a T3 or E3 in the current interval

• Unavailable seconds—Number of unavailable seconds encountered by a T3 or E3

in the current interval

• Line code violations—Number of line code violations encountered by a T3 or E3 in

the current interval

• P-bit coding violations—Number of coding violations encountered by a T3 (not

applicable for E3) in the current interval (this field is not present for E3 controllers)

• Coding violations—Number of coding violations encountered byan E3(not applicable

for T3) in the current interval (this field is not present for T3 controllers)

• Line errored seconds—Number of line errored seconds encountered by a T3 or E3 in

the current interval

• C-bit coding violations—Number of C-bit coding violations encountered by a T3(not

applicable for E3) in the current interval (this field is not present for E3 controllers)

• C-bit errored seconds—Number of C-bit errored seconds encountered by a T3 (not

applicable for E3) in the current interval (this field is not present for E3 controllers)

• C-bit severely errored seconds—Number of C-bit severely errored seconds

encountered by a T3 (not applicable for E3) in the current interval (this field is not present for E3 controllers)

• Example 1

host1#show controllers t3 2/0

DS3 2/0 Description: boston09 hdlc channel ifAdminStatus = ifAdminDown snmp trap link-status = enabled No alarms detected Framing is C-BIT, Line Code is B3ZS, Clock Source is Line Cable Length is 0 ft Loopback Disabled DSU Mode is Larscom DSU Bandwidth is 4000 DSU Scrambler is off MDL Transmit Path is not active MDL Transmit Test-Signal is active

Page 90

JunosE 11.2.x Physical Layer Configuration Guide

MDL Transmit Idle-Signal is not active Equipment Identification Code is ERX-1400 Line Identification Code is Bldg 10 Frame Identification Code is null string Unit Identification Code is 080001 Facility Identification Code is Site 25 Port Code is Port 0800 Generator Number is null string

Number of valid interval - 96 Time elapse in current interval - 861

Ds3 Current Interval Counters P-bit errored seconds = 0 P-bit severely errored seconds = 0 Severely errored frame seconds = 0 Unavailable seconds = 0 Line code violations = 0 P-bit coding violations = 0 Line errored seconds = 0 C-bit coding violations = 0 C-bit errored seconds = 0 C-bit severely errored seconds = 0

Ds3 Last Interval Counters P-bit errored seconds = 0 P-bit severely errored seconds = 0 Severely errored frame seconds = 0 Unavailable seconds = 0 Line code violations = 0 P-bit coding violations = 0 Line errored seconds = 0 C-bit coding violations = 0 C-bit errored seconds = 0 C-bit severely errored seconds = 0 Ds3 24 Hour Total Counters P-bit errored seconds = 0 P-bit severely errored seconds = 0 Severely errored frame seconds = 0 Unavailable seconds = 0 Line code violations = 0 P-bit coding violations = 0 Line errored seconds = 0 C-bit coding violations = 0 C-bit errored seconds = 0 C-bit severely errored seconds = 0

• Example 2—In this example, the brief keyword is specified.

host1#show controllers t3 brief

Page 91

show controllers t3 remote

Chapter 2: Configuring T3 and E3 Interfaces

5/10(channelized) down down 5/11(channelized) down down 3/0(channelized) down down 3/1(channelized) down down 3/2(channelized) down down 4/0:1/1(unchannelized) up down 4/2:1/1(channelized) up lowerLayerDown

• See show controllers e3.

• See show controllers t3.

• Use to display MIB statistics for the remote end of a T3 interface configured for MDL.
