Juniper JUNOSE 11.0.X MULTICAST ROUTING Configuration Manual
JUNOSe™ Software
for E Series™ Broadband Services Routers
Multicast Routing Configuration Guide
Release 11.0.x
Juniper Networks, Inc.
1194 North Mathilda Avenue
Sunnyvale, California 94089
USA
408-745-2000
www.juniper.net
Published: 2009-12-29
Juniper Networks, the Juniper Networks logo, JUNOS, NetScreen, ScreenOS, and Steel-Belted Radius are registered trademarks of Juniper Networks, Inc. in
the United States and other countries. JUNOSe is a trademark of Juniper Networks, Inc. All other trademarks, service marks, registered trademarks, or
registered service marks are the property of their respective owners.
Juniper Networks assumes no responsibility for any inaccuracies in this document. Juniper Networks reserves the right to change, modify, transfer, or
otherwise revise this publication without notice.
Products made or sold by Juniper Networks or components thereof might be covered by one or more of the following patents that are owned by or licensed
to Juniper Networks: U.S. Patent Nos. 5,473,599, 5,905,725, 5,909,440, 6,192,051, 6,333,650, 6,359,479, 6,406,312, 6,429,706, 6,459,579, 6,493,347,
6,538,518, 6,538,899, 6,552,918, 6,567,902, 6,578,186, and 6,590,785.
JUNOSe™ Software for E Series™ Broadband Services Routers Multicast Routing Configuration Guide
Release 11.0.x
Copyright © 2010, Juniper Networks, Inc.
All rights reserved. Printed in USA.
Writing: Mark Barnard, Diane Florio, Bruce Gillham, Sarah Lesway-Ball, Brian Wesley Simmons, Fran Singer, Sairam Venugopalan
Editing: Benjamin Mann
Illustration: Nathaniel Woodward
Cover Design: Edmonds Design
Revision History
January 2010—FRS JUNOSe 11.0.x
The information in this document is current as of the date listed in the revision history.
YEAR 2000 NOTICE
Juniper Networks hardware and software products are Year 2000 compliant. The JUNOS Software has no known time-related limitations through the year
2038. However, the NTP application is known to have some difficulty in the year 2036.
ii ■
END USER LICENSE AGREEMENT
READ THIS END USER LICENSE AGREEMENT (“AGREEMENT”) BEFORE DOWNLOADING, INSTALLING, OR USING THE SOFTWARE. BY DOWNLOADING,
INSTALLING, OR USING THE SOFTWARE OR OTHERWISE EXPRESSING YOUR AGREEMENT TO THE TERMS CONTAINED HEREIN, YOU (AS CUSTOMER
OR IF YOU ARE NOT THE CUSTOMER, AS A REPRESENTATIVE/AGENT AUTHORIZED TO BIND THE CUSTOMER) CONSENT TO BE BOUND BY THIS
AGREEMENT. IF YOU DO NOT OR CANNOT AGREE TO THE TERMS CONTAINED HEREIN, THEN (A) DO NOT DOWNLOAD, INSTALL, OR USE THE SOFTWARE,
AND (B) YOU MAY CONTACT JUNIPER NETWORKS REGARDING LICENSE TERMS.
1. The Parties. The parties to this Agreement are (i) Juniper Networks, Inc. (if the Customer’s principal office is located in the Americas) or Juniper Networks
(Cayman) Limited (if the Customer’s principal office is located outside the Americas) (such applicable entity being referred to herein as “Juniper”), and (ii)
the person or organization that originally purchased from Juniper or an authorized Juniper reseller the applicable license(s) for use of the Software (“Customer”)
(collectively, the “Parties”).
2. The Software. In this Agreement, “Software” means the program modules and features of the Juniper or Juniper-supplied software, for which Customer
has paid the applicable license or support fees to Juniper or an authorized Juniper reseller, or which was embedded by Juniper in equipment which Customer
purchased from Juniper or an authorized Juniper reseller. “Software” also includes updates, upgrades and new releases of such software. “Embedded
Software” means Software which Juniper has embedded in or loaded onto the Juniper equipment and any updates, upgrades, additions or replacements
which are subsequently embedded in or loaded onto the equipment.
3. License Grant. Subject to payment of the applicable fees and the limitations and restrictions set forth herein, Juniper grants to Customer a non-exclusive
and non-transferable license, without right to sublicense, to use the Software, in executable form only, subject to the following use restrictions:
a. Customer shall use Embedded Software solely as embedded in, and for execution on, Juniper equipment originally purchased by Customer from Juniper
or an authorized Juniper reseller.
b. Customer shall use the Software on a single hardware chassis having a single processing unit, or as many chassis or processing units for which Customer
has paid the applicable license fees; provided, however, with respect to the Steel-Belted Radius or Odyssey Access Client software only, Customer shall use
such Software on a single computer containing a single physical random access memory space and containing any number of processors. Use of the
Steel-Belted Radius or IMS AAA software on multiple computers or virtual machines (e.g., Solaris zones) requires multiple licenses, regardless of whether
such computers or virtualizations are physically contained on a single chassis.
c. Product purchase documents, paper or electronic user documentation, and/or the particular licenses purchased by Customer may specify limits to
Customer’s use of the Software. Such limits may restrict use to a maximum number of seats, registered endpoints, concurrent users, sessions, calls,
connections, subscribers, clusters, nodes, realms, devices, links, ports or transactions, or require the purchase of separate licenses to use particular features,
functionalities, services, applications, operations, or capabilities, or provide throughput, performance, configuration, bandwidth, interface, processing,
temporal, or geographical limits. In addition, such limits may restrict the use of the Software to managing certain kinds of networks or require the Software
to be used only in conjunction with other specific Software. Customer’s use of the Software shall be subject to all such limitations and purchase of all applicable
licenses.
d. For any trial copy of the Software, Customer’s right to use the Software expires 30 days after download, installation or use of the Software. Customer
may operate the Software after the 30-day trial period only if Customer pays for a license to do so. Customer may not extend or create an additional trial
period by re-installing the Software after the 30-day trial period.
e. The Global Enterprise Edition of the Steel-Belted Radius software may be used by Customer only to manage access to Customer’s enterprise network.
Specifically, service provider customers are expressly prohibited from using the Global Enterprise Edition of the Steel-Belted Radius software to support any
commercial network access services.
The foregoing license is not transferable or assignable by Customer. No license is granted herein to any user who did not originally purchase the applicable
license(s) for the Software from Juniper or an authorized Juniper reseller.
4. Use Prohibitions. Notwithstanding the foregoing, the license provided herein does not permit the Customer to, and Customer agrees not to and shall
not: (a) modify, unbundle, reverse engineer, or create derivative works based on the Software; (b) make unauthorized copies of the Software (except as
necessary for backup purposes); (c) rent, sell, transfer, or grant any rights in and to any copy of the Software, in any form, to any third party; (d) remove
any proprietary notices, labels, or marks on or in any copy of the Software or any product in which the Software is embedded; (e) distribute any copy of
the Software to any third party, including as may be embedded in Juniper equipment sold in the secondhand market; (f) use any ‘locked’ or key-restricted
feature, function, service, application, operation, or capability without first purchasing the applicable license(s) and obtaining a valid key from Juniper, even
if such feature, function, service, application, operation, or capability is enabled without a key; (g) distribute any key for the Software provided by Juniper
to any third party; (h) use the Software in any manner that extends or is broader than the uses purchased by Customer from Juniper or an authorized Juniper
reseller; (i) use Embedded Software on non-Juniper equipment; (j) use Embedded Software (or make it available for use) on Juniper equipment that the
Customer did not originally purchase from Juniper or an authorized Juniper reseller; (k) disclose the results of testing or benchmarking of the Software to
any third party without the prior written consent of Juniper; or (l) use the Software in any manner other than as expressly provided herein.
5. Audit. Customer shall maintain accurate records as necessary to verify compliance with this Agreement. Upon request by Juniper, Customer shall furnish
such records to Juniper and certify its compliance with this Agreement.
■ iii
6. Confidentiality. The Parties agree that aspects of the Software and associated documentation are the confidential property of Juniper. As such, Customer
shall exercise all reasonable commercial efforts to maintain the Software and associated documentation in confidence, which at a minimum includes
restricting access to the Software to Customer employees and contractors having a need to use the Software for Customer’s internal business purposes.
7. Ownership. Juniper and Juniper’s licensors, respectively, retain ownership of all right, title, and interest (including copyright) in and to the Software,
associated documentation, and all copies of the Software. Nothing in this Agreement constitutes a transfer or conveyance of any right, title, or interest in
the Software or associated documentation, or a sale of the Software, associated documentation, or copies of the Software.
8. Warranty, Limitation of Liability, Disclaimer of Warranty. The warranty applicable to the Software shall be as set forth in the warranty statement that
accompanies the Software (the “Warranty Statement”). Nothing in this Agreement shall give rise to any obligation to support the Software. Support services
may be purchased separately. Any such support shall be governed by a separate, written support services agreement. TO THE MAXIMUM EXTENT PERMITTED
BY LAW, JUNIPER SHALL NOT BE LIABLE FOR ANY LOST PROFITS, LOSS OF DATA, OR COSTS OR PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES,
OR FOR ANY SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES ARISING OUT OF THIS AGREEMENT, THE SOFTWARE, OR ANY JUNIPER OR
JUNIPER-SUPPLIED SOFTWARE. IN NO EVENT SHALL JUNIPER BE LIABLE FOR DAMAGES ARISING FROM UNAUTHORIZED OR IMPROPER USE OF ANY
JUNIPER OR JUNIPER-SUPPLIED SOFTWARE. EXCEPT AS EXPRESSLY PROVIDED IN THE WARRANTY STATEMENT TO THE EXTENT PERMITTED BY LAW,
JUNIPER DISCLAIMS ANY AND ALL WARRANTIES IN AND TO THE SOFTWARE (WHETHER EXPRESS, IMPLIED, STATUTORY, OR OTHERWISE), INCLUDING
ANY IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NONINFRINGEMENT. IN NO EVENT DOES JUNIPER
WARRANT THAT THE SOFTWARE, OR ANY EQUIPMENT OR NETWORK RUNNING THE SOFTWARE, WILL OPERATE WITHOUT ERROR OR INTERRUPTION,
OR WILL BE FREE OF VULNERABILITY TO INTRUSION OR ATTACK. In no event shall Juniper’s or its suppliers’ or licensors’ liability to Customer, whether
in contract, tort (including negligence), breach of warranty, or otherwise, exceed the price paid by Customer for the Software that gave rise to the claim, or
if the Software is embedded in another Juniper product, the price paid by Customer for such other product. Customer acknowledges and agrees that Juniper
has set its prices and entered into this Agreement in reliance upon the disclaimers of warranty and the limitations of liability set forth herein, that the same
reflect an allocation of risk between the Parties (including the risk that a contract remedy may fail of its essential purpose and cause consequential loss),
and that the same form an essential basis of the bargain between the Parties.
9. Termination. Any breach of this Agreement or failure by Customer to pay any applicable fees due shall result in automatic termination of the license
granted herein. Upon such termination, Customer shall destroy or return to Juniper all copies of the Software and related documentation in Customer’s
possession or control.
10. Taxes. All license fees payable under this agreement are exclusive of tax. Customer shall be responsible for paying Taxes arising from the purchase of
the license, or importation or use of the Software. If applicable, valid exemption documentation for each taxing jurisdiction shall be provided to Juniper prior
to invoicing, and Customer shall promptly notify Juniper if their exemption is revoked or modified. All payments made by Customer shall be net of any
applicable withholding tax. Customer will provide reasonable assistance to Juniper in connection with such withholding taxes by promptly: providing Juniper
with valid tax receipts and other required documentation showing Customer’s payment of any withholding taxes; completing appropriate applications that
would reduce the amount of withholding tax to be paid; and notifying and assisting Juniper in any audit or tax proceeding related to transactions hereunder.
Customer shall comply with all applicable tax laws and regulations, and Customer will promptly pay or reimburse Juniper for all costs and damages related
to any liability incurred by Juniper as a result of Customer’s non-compliance or delay with its responsibilities herein. Customer’s obligations under this
Section shall survive termination or expiration of this Agreement.
11. Export. Customer agrees to comply with all applicable export laws and restrictions and regulations of any United States and any applicable foreign
agency or authority, and not to export or re-export the Software or any direct product thereof in violation of any such restrictions, laws or regulations, or
without all necessary approvals. Customer shall be liable for any such violations. The version of the Software supplied to Customer may contain encryption
or other capabilities restricting Customer’s ability to export the Software without an export license.
12. Commercial Computer Software. The Software is “commercial computer software” and is provided with restricted rights. Use, duplication, or disclosure
by the United States government is subject to restrictions set forth in this Agreement and as provided in DFARS 227.7201 through 227.7202-4, FAR 12.212,
FAR 27.405(b)(2), FAR 52.227-19, or FAR 52.227-14(ALT III) as applicable.
13. Interface Information. To the extent required by applicable law, and at Customer's written request, Juniper shall provide Customer with the interface
information needed to achieve interoperability between the Software and another independently created program, on payment of applicable fee, if any.
Customer shall observe strict obligations of confidentiality with respect to such information and shall use such information in compliance with any applicable
terms and conditions upon which Juniper makes such information available.
14. Third Party Software. Any licensor of Juniper whose software is embedded in the Software and any supplier of Juniper whose products or technology
are embedded in (or services are accessed by) the Software shall be a third party beneficiary with respect to this Agreement, and such licensor or vendor
shall have the right to enforce this Agreement in its own name as if it were Juniper. In addition, certain third party software may be provided with the
Software and is subject to the accompanying license(s), if any, of its respective owner(s). To the extent portions of the Software are distributed under and
subject to open source licenses obligating Juniper to make the source code for such portions publicly available (such as the GNU General Public License
(“GPL”) or the GNU Library General Public License (“LGPL”)), Juniper will make such source code portions (including Juniper modifications, as appropriate)
available upon request for a period of up to three years from the date of distribution. Such request can be made in writing to Juniper Networks, Inc., 1194
N. Mathilda Ave., Sunnyvale, CA 94089, ATTN: General Counsel. You may obtain a copy of the GPL at http://www.gnu.org/licenses/gpl.html, and
a copy of the LGPL at http://www.gnu.org/licenses/lgpl.html.
15. Miscellaneous. This Agreement shall be governed by the laws of the State of California without reference to its conflicts of laws principles. The provisions
of the U.N. Convention for the International Sale of Goods shall not apply to this Agreement. For any disputes arising under this Agreement, the Parties
hereby consent to the personal and exclusive jurisdiction of, and venue in, the state and federal courts within Santa Clara County, California. This Agreement
constitutes the entire and sole agreement between Juniper and the Customer with respect to the Software, and supersedes all prior and contemporaneous
iv ■
agreements relating to the Software, whether oral or written (including any inconsistent terms contained in a purchase order), except that the terms of a
separate written agreement executed by an authorized Juniper representative and Customer shall govern to the extent such terms are inconsistent or conflict
with terms contained herein. No modification to this Agreement nor any waiver of any rights hereunder shall be effective unless expressly assented to in
writing by the party to be charged. If any portion of this Agreement is held invalid, the Parties agree that such invalidity shall not affect the validity of the
remainder of this Agreement. This Agreement and associated documentation has been written in the English language, and the Parties agree that the English
version will govern. (For Canada: Les parties aux présentés confirment leur volonté que cette convention de même que tous les documents y compris tout
avis qui s'y rattaché, soient redigés en langue anglaise. (Translation: The parties confirm that this Agreement and all related documentation is and will be
in the English language)).
■ v
vi ■
Abbreviated Table of Contents
About the Documentation xix
Part 1 Internet Protocol Version 4
Chapter 1 Configuring IPv4 Multicast 3
Chapter 2 Configuring IGMP 43
Chapter 3 Configuring PIM for IPv4 Multicast 79
Chapter 4 Configuring DVMRP 125
Part 2 Internet Protocol Version 6
Chapter 5 Configuring IPv6 Multicast 147
Chapter 6 Configuring Multicast Listener Discovery 183
Chapter 7 Configuring PIM for IPv6 Multicast 215
Part 3 Index
Index 243
Abbreviated Table of Contents ■ vii
JUNOSe 11.0.x Multicast Routing Configuration Guide
viii ■
Table of Contents
About the Documentation xix
E Series and JUNOSe Documentation and Release Notes ..............................xix
Audience ......................................................................................................xix
E Series and JUNOSe Text and Syntax Conventions .....................................xix
Obtaining Documentation ............................................................................xxi
Documentation Feedback .............................................................................xxi
Requesting Technical Support ......................................................................xxi
Self-Help Online Tools and Resources ...................................................xxii
Opening a Case with JTAC .....................................................................xxii
Part 1 Internet Protocol Version 4
Chapter 1 Configuring IPv4 Multicast 3
IPv4 Multicast Overview ..................................................................................3
Reverse-Path Forwarding ..........................................................................4

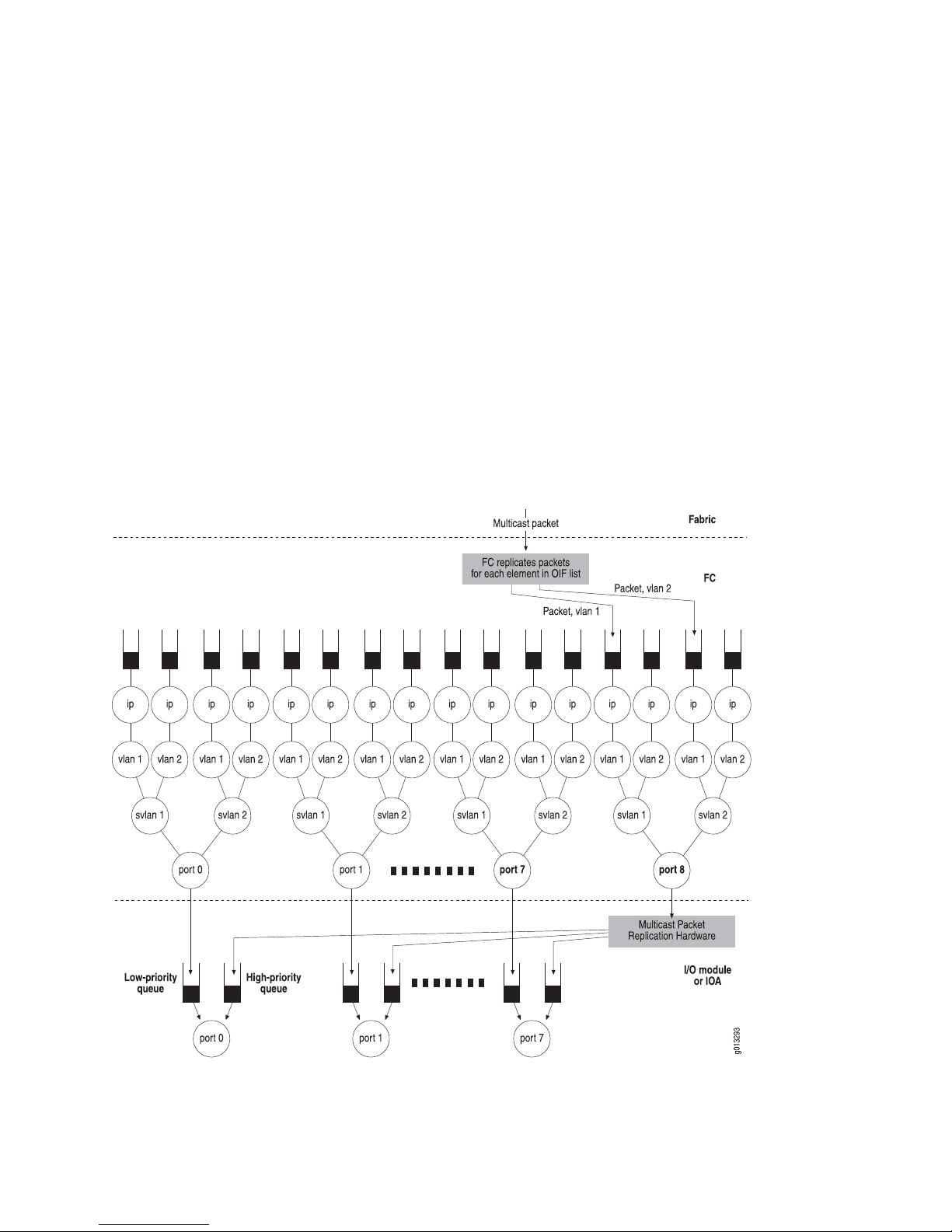

Multicast Packet Forwarding .....................................................................5
Platform Considerations ..................................................................................5
References ......................................................................................................6
Before You Begin .............................................................................................6
Configuring the Switch Fabric Bandwidth ........................................................6
Enabling IP Multicast .......................................................................................7
Defining Static Routes for Reverse-Path Forwarding ........................................7
Displaying Available Routes for Reverse-Path Forwarding ...............................7
Enabling and Disabling RPF Checks ................................................................9
Using Unicast Routes for RPF ..........................................................................9
Defining Permanent IP Multicast Forwarding Entries ....................................10
Defining a Multicast Bandwidth Map .............................................................10
Using the Autosense Mechanism ............................................................11
How Adaptive Mode Works ....................................................................11
Multicast Bandwidth Map Example .........................................................13
Configuring Multicast QoS Adjustment ..........................................................15
Multicast OIF Mapping Case ....................................................................15
Multicast Traffic Receipt Without Forwarding .........................................16
Activating Multicast QoS Adjustment Functions .............................................17
Configuring Hardware Multicast Packet Replication ......................................18
Supported Modules and Encapsulations ..................................................20
Relationship with OIF Mapping ...............................................................21
Hardware Multicast Packet Replication Considerations ...........................21
Table of Contents ■ ix
JUNOSe 11.0.x Multicast Routing Configuration Guide
Configuring Hardware Multicast Packet Replication ................................23
Monitoring Hardware Multicast Packet Replication .................................24
Port Statistics ...................................................................................24
IP and VLAN Statistics ......................................................................25
IGMP Statistics ..................................................................................25
Blocking and Limiting Multicast Traffic ..........................................................25
Blocking Mroutes ....................................................................................25
Limiting Interface Admission Bandwidth ................................................26
Enabling Interface Admission Bandwidth Limitation ........................26
OIF Interface Reevaluation Example ................................................26
Creating Mroute Port Limits ....................................................................27
Limiting Port Admission Bandwidth ........................................................27
Enabling Port Admission Bandwidth Control ....................................28
OIF Port Reevaluation Example ........................................................29
Deleting Multicast Forwarding Entries ...........................................................30
Monitoring IP Multicast Settings ....................................................................30
Support for Multicast Router Information ................................................39
BGP Multicasting ...........................................................................................40
Investigating Multicast Routes .......................................................................40
Chapter 2 Configuring IGMP 43
IGMP Overview .............................................................................................44
Group Membership Queries ....................................................................44
Group Membership Reports ....................................................................45
Leave Group Membership Messages .......................................................45
Platform Considerations ................................................................................45
References ....................................................................................................46
Before You Begin ...........................................................................................46
Configuring Static and Dynamic IGMP Interfaces ..........................................46
Enabling IGMP on an Interface ......................................................................48
Configuring IGMP Settings for an Interface ....................................................49
Specifying Multicast Groups ...........................................................................52
Assigning a Multicast Group to an Interface ...................................................53
Configuring Group Outgoing Interface Mapping ............................................53
Configuring Access Node Control Protocol for IGMP ......................................54
Configuring SSM Mapping .............................................................................54
Limiting the Number of Accepted IGMP Groups ............................................56
Including and Excluding Traffic .....................................................................57
Configuring Explicit Host Tracking ................................................................58
Accepting IGMP Reports from Remote Subnetworks .....................................60
Disabling and Removing IGMP ......................................................................61
Monitoring IGMP ...........................................................................................61
IGMP Proxy Overview ...................................................................................72
Configuring IGMP Proxy ................................................................................73
Establishing the IGMP Proxy Baseline ............................................................74
Monitoring IGMP Proxy .................................................................................75
x ■ Table of Contents
Table of Contents
Chapter 3 Configuring PIM for IPv4 Multicast 79
Overview .......................................................................................................80
PIM Dense Mode .....................................................................................80
Overriding Prunes ............................................................................81
Preventing Duplication .....................................................................81
PIM Sparse Mode ....................................................................................82
Joining Groups ..................................................................................84
Timers ..............................................................................................84
PIM Sparse Mode Bootstrap Router .........................................................84
PIM Sparse-Dense Mode .........................................................................85
PIM Source-Specific Multicast ..................................................................85
Platform Considerations ................................................................................86
References ....................................................................................................86
Before You Begin ...........................................................................................87
Enabling PIM on a VR ....................................................................................87
Disabling PIM on a VR ...................................................................................87
Enabling PIM on an Interface ........................................................................88
Setting a Priority to Determine the Designated Router ..................................89
Configuring the PIM Join/Prune Message Interval ..........................................89
Configuring an RP Router for PIM Sparse Mode and PIM Sparse-Dense
Mode ......................................................................................................90
Configuring a Static RP Router ................................................................90
Configuring an Auto-RP Router for PIM Sparse Mode ..............................90
Configuring an Auto-RP Router for PIM Sparse-Dense Mode ...................91
Configuring BSR and RP Candidates for PIM Sparse Mode ............................93
Migrating to BSR from Auto-RP .....................................................................94
Switching to an SPT for PIM Sparse Mode .....................................................94
Creating Multicast VPNs ................................................................................95
Creating Multicast VPNs Using the Default MDT .....................................95
Multicast VPN Configuration Example ..............................................95
Creating Multicast VPNs Using the Data MDT .........................................99
Data MDT Sources ............................................................................99
Data MDT Receivers .......................................................................100
Establishing a Data MDT Using ASM or SSM ...................................100
Configuring the Default MDT ..........................................................101
Configuring Data MDTs ..................................................................102
Using PIM Sparse Mode Join Filters .............................................................106
Configuring PIM SSM ...................................................................................106
Configuring the BFD Protocol for PIM ..........................................................108
Removing PIM .............................................................................................109
Resetting PIM Counters and Mappings ........................................................109
Monitoring PIM ...........................................................................................110
Monitoring PIM Events ..........................................................................111
Monitoring PIM Settings ........................................................................111
Table of Contents ■ xi
JUNOSe 11.0.x Multicast Routing Configuration Guide
Chapter 4 Configuring DVMRP 125
Overview .....................................................................................................125
Identifying Neighbors ...........................................................................126
Advertising Routes ................................................................................126
Platform Considerations ..............................................................................127
References ..................................................................................................128
Before You Begin .........................................................................................128
Enabling DVMRP on a VR ............................................................................128
Activating DVMRP on an Interface ..............................................................129
Configuring DVMRP Limits ..........................................................................129
Filtering DVMRP Reports .............................................................................130
Configuring DVMRP Summary Addresses ...................................................131
Changing the Metric for a Route ..................................................................132
Importing Routes from Other Protocols .......................................................132
Specifying Routes to Be Advertised .............................................................133
Preventing Dynamic Route Distribution ......................................................134
Exchanging DVMRP Unicast Routes ............................................................134
Disabling and Removing DVMRP ................................................................135
Clearing DVMRP Routes ..............................................................................136
Configuring DVMRP Tunnels .......................................................................136
Monitoring DVMRP .....................................................................................136
Part 2 Internet Protocol Version 6
Chapter 5 Configuring IPv6 Multicast 147
IPv6 Multicast Overview ..............................................................................147
Reverse-Path Forwarding ......................................................................148
Multicast Packet Forwarding .................................................................149
Platform Considerations ..............................................................................149
References ..................................................................................................150
Before You Begin .........................................................................................150
Configuring the Switching Fabric Bandwidth ...............................................150
Enabling IPv6 Multicast ...............................................................................150
Defining Static Routes for Reverse-Path Forwarding ....................................151
Displaying Available Routes for Reverse-Path Forwarding ...........................151
Enabling and Disabling RPF Checks ............................................................152
Using Unicast Routes for RPF ......................................................................153
Defining Permanent IPv6 Multicast Forwarding Entries ..............................153
Defining a Multicast Bandwidth Map ...........................................................154
Using the Auto-Sense Mechanism .........................................................155
How Adaptive Mode Works ..................................................................155
Multicast Bandwidth Map Example .......................................................157
Configuring Multicast QoS Adjustment ........................................................158
Multicast OIF Mapping Case ..................................................................158
Multicast Traffic Receipt Without Forwarding .......................................159
xii ■ Table of Contents
Table of Contents
Activating Multicast QoS Adjustment Functions ...........................................160
Configuring Hardware Multicast Packet Replication ....................................160
Supported Modules and Encapsulations ................................................163
Relationship with OIF Mapping .............................................................164
Hardware Multicast Packet Replication Considerations .........................164
Configuring Hardware Multicast Packet Replication ..............................165
Monitoring Optimized Multicast Packet Replication ..............................167
Port Statistics .................................................................................167
IP and VLAN Statistics ....................................................................167
MLD Statistics .................................................................................168
Blocking and Limiting Multicast Traffic ........................................................168
Blocking Mroutes ..................................................................................168
Limiting Interface Admission Bandwidth ..............................................169
Enabling Interface Admission Bandwidth Limitation ......................169
OIF Interface Reevaluation Example ..............................................169
Creating Mroute Port Limits ..................................................................170
Limiting Port Admission Bandwidth ......................................................170
Enabling Port Admission Bandwidth Control ..................................171
OIF Port Reevaluation Example ......................................................171
Deleting Multicast Forwarding Entries .........................................................172
Monitoring IPv6 Multicast Settings ..............................................................172
BGP Multicast ..............................................................................................181
Chapter 6 Configuring Multicast Listener Discovery 183
Overview .....................................................................................................184
Multicast Listener Queries .....................................................................184
Multicast Listener Reports .....................................................................185
Multicast Listener Done Messages .........................................................185
Platform Considerations ..............................................................................185
References ..................................................................................................186
Before You Begin .........................................................................................186
Configuring Static and Dynamic MLD Interfaces .........................................186
Enabling MLD on an Interface .....................................................................188
Configuring MLD Settings for an Interface ...................................................188
Specifying Multicast Groups .........................................................................191
Assigning a Multicast Group to an Interface .................................................192
Configuring Group Outgoing Interface Mapping ..........................................192
Configuring SSM Mapping ...........................................................................193
Limiting the Number of Accepted MLD Groups ...........................................194
Including and Excluding Traffic ...................................................................196
Configuring Explicit Host Tracking ..............................................................196
Disabling and Removing MLD .....................................................................198
Monitoring MLD ..........................................................................................199
MLD Proxy Overview ..................................................................................209
Configuring MLD Proxy ...............................................................................210
Setting the MLD Proxy Baseline ...................................................................211
Monitoring MLD Proxy ................................................................................212
Table of Contents ■ xiii
JUNOSe 11.0.x Multicast Routing Configuration Guide
Chapter 7 Configuring PIM for IPv6 Multicast 215
Overview .....................................................................................................215
PIM Sparse Mode ..................................................................................216
Joining Groups ................................................................................216
Timers ............................................................................................217
PIM Sparse Mode Bootstrap Router .......................................................217
PIM Source-Specific Multicast ................................................................217
Platform Considerations ..............................................................................218
References ..................................................................................................218
Before You Begin .........................................................................................219
Enabling and Disabling PIM on a VR ...........................................................219
Enabling PIM on an Interface ......................................................................220
Setting a Priority to Determine the Designated Router ................................220
Configuring the PIM Join/Prune Message Interval ........................................221
Configuring an RP Router for PIM Sparse Mode ..........................................222
Configuring BSR and RP Candidates for PIM Sparse Mode ..........................222
Switching to an SPT for PIM Sparse Mode ...................................................224
Configuring PIM Sparse Mode Remote Neighbors .......................................224
Using PIM Sparse Mode Join Filters .............................................................226
Configuring PIM SSM ...................................................................................227
Configuring the BFD Protocol for PIM ..........................................................229
Removing PIM .............................................................................................230
Resetting PIM Counters and Mappings ........................................................230
Monitoring PIM ...........................................................................................231
Monitoring PIM Events ..........................................................................231
Monitoring PIM Settings ........................................................................232
Part 3 Index
Index ...........................................................................................................243
xiv ■ Table of Contents
List of Figures
Part 1 Internet Protocol Version 4
Chapter 1 Configuring IPv4 Multicast 3
Figure 1: Example of Adaptive IPv4 Multicast Bandwidth Detection ..............12
Figure 2: Multicast OIF Mapping ....................................................................16
Figure 3: Multicast Traffic Receipt Without Forwarding .................................17
Figure 4: Packet Flow Without Hardware Multicast Packet Replication ..........18
Figure 5: Packet Flow with Hardware Multicast Packet Replication ...............19
Chapter 2 Configuring IGMP 43
Figure 6: Static and Dynamic IGMP Interfaces ...............................................47
Figure 7: Upstream and Downstream Interfaces ...........................................72
Chapter 3 Configuring PIM for IPv4 Multicast 79
Figure 8: Source-Rooted Tree ........................................................................80
Figure 9: PIM Dense Mode Operation ............................................................81
Figure 10: Detecting Duplication ...................................................................82
Figure 11: PIM Sparse Mode Operation .........................................................83
Figure 12: Shared Tree Versus SPT ................................................................83
Figure 13: Multicast VPNs ..............................................................................96
Part 2 Internet Protocol Version 6
Chapter 5 Configuring IPv6 Multicast 147
Figure 14: Example of Adaptive IPv6 Multicast Bandwidth Detection ..........155
Figure 15: Multicast OIF Mapping ................................................................159
Figure 16: Multicast Traffic Receipt Without Forwarding .............................160
Figure 17: Packet Flow Without Hardware Multicast Packet Replication ......161
Figure 18: Packet Flow with Optimized Multicast Packet Replication ..........162
Chapter 6 Configuring Multicast Listener Discovery 183
Figure 19: Static and Dynamic MLD Interfaces ............................................187
Figure 20: Upstream and Downstream Interfaces .......................................209
Chapter 7 Configuring PIM for IPv6 Multicast 215
Figure 21: Source-Rooted Tree ....................................................................216
Figure 22: Network on Which to Configure PIM SSM ...................................228
List of Figures ■ xv
JUNOSe 11.0.x Multicast Routing Configuration Guide
xvi ■ List of Figures
List of Tables
About the Documentation xix
Table 1: Notice Icons .....................................................................................xx
Table 2: Text and Syntax Conventions ..........................................................xx
Part 1 Internet Protocol Version 4
Chapter 1 Configuring IPv4 Multicast 3
Table 3: Function of Multicast Protocols on a Router .......................................4
Table 4: Adaptive Mode Algorithm Values .....................................................13
Chapter 2 Configuring IGMP 43
Table 5: IGMP Commands .............................................................................47
Chapter 4 Configuring DVMRP 125
Table 6: Sample Routing Table for a DVMRP Router ...................................126
Table 7: Sample DVMRP (S,G) Pair Table .....................................................127
Part 2 Internet Protocol Version 6
Chapter 5 Configuring IPv6 Multicast 147
Table 8: Function of Multicast Protocols on a Router ...................................148
Table 9: Adaptive Mode Algorithm Values ...................................................156
Chapter 6 Configuring Multicast Listener Discovery 183
Table 10: Static MLD Commands ................................................................187
List of Tables ■ xvii
JUNOSe 11.0.x Multicast Routing Configuration Guide
xviii ■ List of Tables
About the Documentation
■ E Series and JUNOSe Documentation and Release Notes on page xix
■ Audience on page xix
■ E Series and JUNOSe Text and Syntax Conventions on page xix
■ Obtaining Documentation on page xxi
■ Documentation Feedback on page xxi
■ Requesting Technical Support on page xxi
E Series and JUNOSe Documentation and Release Notes
For a list of related JUNOSe documentation, see
http://www.juniper.net/techpubs/software/index.html .
If the information in the latest release notes differs from the information in the
documentation, follow the JUNOSe Release Notes.
To obtain the most current version of all Juniper Networks® technical documentation,
see the product documentation page on the Juniper Networks website at
http://www.juniper.net/techpubs/.
Audience
This guide is intended for experienced system and network specialists working with
Juniper Networks E Series Broadband Services Routers in an Internet access
environment.
E Series and JUNOSe Text and Syntax Conventions
Table 1 on page xx defines notice icons used in this documentation.
E Series and JUNOSe Documentation and Release Notes ■ xix
JUNOSe 11.0.x Multicast Routing Configuration Guide
Table 1: Notice Icons
Table 2 on page xx defines text and syntax conventions that we use throughout the
E Series and JUNOSe documentation.
DescriptionMeaningIcon
Indicates important features or instructions.Informational note
Indicates a situation that might result in loss of data or hardware damage.Caution
Alerts you to the risk of personal injury or death.Warning
Alerts you to the risk of personal injury from a laser.Laser warning
Table 2: Text and Syntax Conventions
Represents commands and keywords in text.Bold text like this
Bold text like this
Fixed-width text like this
Represents text that the user must type.
Represents information as displayed on your
terminal’s screen.
Italic text like this
Emphasizes words.
■
Identifies variables.
■
Identifies chapter, appendix, and book
■
names.
Plus sign (+) linking key names
keys simultaneously.
Syntax Conventions in the Command Reference Guide
ExamplesDescriptionConvention
Issue the clock source command.
■
Specify the keyword exp-msg.
■
host1(config)#traffic class low-loss1
host1#show ip ospf 2
Routing Process OSPF 2 with Router
ID 5.5.0.250
Router is an Area Border Router
(ABR)
There are two levels of access: user and
■
privileged.
clusterId, ipAddress.
■
Appendix A, System Specifications
■
Press Ctrl + b.Indicates that you must press two or more
terminal lengthRepresents keywords.Plain text like this
| (pipe symbol)
xx ■ E Series and JUNOSe Text and Syntax Conventions
mask, accessListNameRepresents variables.Italic text like this
diagnostic | lineRepresents a choice to select one keyword
or variable to the left or to the right of this
symbol. (The keyword or variable can be
either optional or required.)
Table 2: Text and Syntax Conventions (continued)
About the Documentation
ExamplesDescriptionConvention
[ internal | external ]Represent optional keywords or variables.[ ] (brackets)
[ ]* (brackets and asterisk)
that can be entered more than once.
Represent required keywords or variables.{ } (braces)
Obtaining Documentation
To obtain the most current version of all Juniper Networks technical documentation,
see the products documentation page on the Juniper Networks Web site at
http://www.juniper.net/.
To download complete sets of technical documentation to create your own
documentation CD-ROMs or DVD-ROMs, see the CD-ROM and DVD-ROM
Documentation page at
http://www.juniper.net/techpubs/resources/cdrom.html
Copies of the Management Information Bases (MIBs) available in a software release
are included on the software CDs and at http://www.juniper.net/.
Documentation Feedback
[ level1 | level2 | l1 ]*Represent optional keywords or variables
{ permit | deny } { in | out }
{ clusterId | ipAddress }
We encourage you to provide feedback, comments, and suggestions so that we can
improve the documentation to better meet your needs. Send your comments to
techpubs-comments@juniper.net, or fill out the documentation feedback form at
https://www.juniper.net/cgi-bin/docbugreport/. If you are using e-mail, be sure to include
the following information with your comments:
■ Document or topic name
■ URL or page number
■ Software release version
Requesting Technical Support
Technical product support is available through the Juniper Networks Technical
Assistance Center (JTAC). If you are a customer with an active J-Care or JNASC support
contract, or are covered under warranty, and need post-sales technical support, you
can access our tools and resources online or open a case with JTAC.
■ JTAC policies—For a complete understanding of our JTAC procedures and policies,
review the JTAC User Guide located at
http://www.juniper.net/customers/support/downloads/7100059-EN.pdf .
Obtaining Documentation ■ xxi
JUNOSe 11.0.x Multicast Routing Configuration Guide
■ Product warranties—For product warranty information, visit
http://www.juniper.net/support/warranty/ .
■ JTAC hours of operation—The JTAC centers have resources available 24 hours a
day, 7 days a week, 365 days a year.
Self-Help Online Tools and Resources
For quick and easy problem resolution, Juniper Networks has designed an online
self-service portal called the Customer Support Center (CSC) that provides you with
the following features:
■
Find CSC offerings: http://www.juniper.net/customers/support/
■
Search for known bugs: http://www2.juniper.net/kb/
■
Find product documentation: http://www.juniper.net/techpubs/
■ Find solutions and answer questions using our Knowledge Base:
http://kb.juniper.net/
■ Download the latest versions of software and review release notes:
http://www.juniper.net/customers/csc/software/
■ Search technical bulletins for relevant hardware and software notifications:
https://www.juniper.net/alerts/
■ Join and participate in the Juniper Networks Community Forum:
http://www.juniper.net/company/communities/
■
Open a case online in the CSC Case Management tool: http://www.juniper.net/cm/
To verify service entitlement by product serial number, use our Serial Number
Entitlement (SNE) Tool: https://tools.juniper.net/SerialNumberEntitlementSearch/
Opening a Case with JTAC
You can open a case with JTAC on the Web or by telephone.
■
Use the Case Management tool in the CSC at http://www.juniper.net/cm/ .
■ Call 1-888-314-JTAC (1-888-314-5822 toll-free in the USA, Canada, and Mexico).
For international or direct-dial options in countries without toll-free numbers, see
http://www.juniper.net/support/requesting support.html .
xxii ■ Requesting Technical Support
Part 1
Internet Protocol Version 4
■ Configuring IPv4 Multicast on page 3
■ Configuring IGMP on page 43
■ Configuring PIM for IPv4 Multicast on page 79
■ Configuring DVMRP on page 125
Internet Protocol Version 4 ■ 1
JUNOSe 11.0.x Multicast Routing Configuration Guide
2 ■ Internet Protocol Version 4
Chapter 1
Configuring IPv4 Multicast
IPv4 multicast enables a device to send packets to a group of hosts rather than to a
list of individual hosts. This chapter describes how to configure IP multicast on the
E Series router; it contains the following sections:
■ IPv4 Multicast Overview on page 3
■ Platform Considerations on page 5
■ References on page 6
■ Before You Begin on page 6
■ Configuring the Switch Fabric Bandwidth on page 6
■ Enabling IP Multicast on page 7
■ Defining Static Routes for Reverse-Path Forwarding on page 7
■ Displaying Available Routes for Reverse-Path Forwarding on page 7
■ Enabling and Disabling RPF Checks on page 9
■ Using Unicast Routes for RPF on page 9
■ Defining Permanent IP Multicast Forwarding Entries on page 10
■ Defining a Multicast Bandwidth Map on page 10
■ Configuring Multicast QoS Adjustment on page 15
■ Activating Multicast QoS Adjustment Functions on page 17
■ Configuring Hardware Multicast Packet Replication on page 18
■ Blocking and Limiting Multicast Traffic on page 25
■ Deleting Multicast Forwarding Entries on page 30
■ Monitoring IP Multicast Settings on page 30
■ BGP Multicasting on page 40
■ Investigating Multicast Routes on page 40
IPv4 Multicast Overview
IPv4 defines three types of addresses: unicast, broadcast, and multicast. Each type
of address enables a device to send datagrams to selected recipients:
■ A unicast address enables a device to send a datagram to a single recipient.
IPv4 Multicast Overview ■ 3
JUNOSe 11.0.x Multicast Routing Configuration Guide
■ A broadcast address enables a device to send a datagram to all hosts on a
subnetwork.
■ A multicast address enables a device to send a datagram to a specified set of
hosts, known as a multicast group, in different subnetworks.
Multicast IP packets contain a class D address in the Destination Address fields of
their headers. A class D address is the IP address of a multicast group. See
“Configuring IGMP” on page 43 and JUNOSe IP, IPv6, and IGP Configuration Guide,
for information about class D addresses.
IP multicast improves network efficiency by enabling a host to transmit a datagram
to a targeted group of receivers. For example, for a host to send a large video clip to
a group of selected recipients would be time-consuming to unicast the datagram to
each recipient individually. If the host broadcasts the video clip throughout the
network, network resources are not available for other tasks. The host uses only the
resources it needs when multicasting the datagram.
Routers use multicast routing algorithms to determine the best route and transmit
multicast datagrams throughout the network. E Series routers support a number of
IP multicast protocols on virtual routers (VRs). Each VR handles the interoperability
of IP multicast protocols automatically. To start multicast operation on a VR, you
access the context for that VR and configure the desired protocols on the selected
interfaces. Table 3 on page 4 describes the function of each protocol that the router
supports.
Table 3: Function of Multicast Protocols on a Router
Protocol Independent Multicast Protocol (PIM)
Distance Vector Multicast Routing Protocol
(DVMRP)
BGP Multicasting Protocol
The router supports up to 16,384 multicast forwarding entries (multicast routes) at
any time.
Reverse-Path Forwarding
IP multicasting uses reverse path forwarding (RPF) to verify that a router receives a
multicast packet on the correct incoming interface. The RPF algorithm enables a
router to accept a multicast datagram only on the interface from which the router
sends a unicast datagram to the source of the multicast datagram.
FunctionProtocol
Discovers hosts that belong to multicast group.Internet Group Membership Protocol (IGMP)
Discovers other multicast routers to receive
multicast packets.
Routes multicast datagrams within autonomous
systems.
Routes multicast datagrams between
autonomous systems.
4 ■ IPv4 Multicast Overview
Chapter 1: Configuring IPv4 Multicast
When the router receives a multicast datagram from a source for a group, the router
verifies that the packet was received on the correct RPF interface. If the packet was
not received on the correct interface, the router discards the packet. Only packets
received on the correct RPF interface are considered for forwarding to downstream
receivers.
When operating in sparse-mode, the routers perform an RPF lookup to identify the
upstream router from which to request the data and then send join messages for the
multicast stream only to that router.
When operating in dense-mode, routers that have multiple paths to the source of
the multicast stream initially receive the same stream on more than one interface.
In this case, the routers perform an RPF lookup to identify multicast data streams
that are not arriving on the best path and send prune messages to terminate these
flows.
The RPF lookup need not always be towards the source of the multicast stream. The
lookup is done towards the source only when the router is using a source-rooted tree
to receive the multicast stream. If the router uses a shared tree instead, the RPF
lookup is toward a rendezvous point and not toward the source of the multicast
stream.
Multicast Packet Forwarding
Multicast packet forwarding is based on the source (S) of the multicast packet and
the destination multicast group address (G). For each (S,G) pair, the router accepts
multicast packets on an incoming interface (IIF), which satisfies the RPF check
(RPF-IIF). The router drops packets received on IIFs other than the RPF-IIF and notifies
the routing protocols that a packet was received on the wrong interface.
The router forwards packets received on the RPF-IIF to a list of outgoing interfaces
(OIFs). The list of OIFs is determined by the exchange of routing information and
local group membership information. The router maintains mappings of (S,G, IIF) to
{OIF1, OIF2…} in the multicast routing table.
You can enable two or more multicast protocols on an IIF. However, only one protocol
can forward packets on that IIF. The protocol that forwards packets on an IIF owns
that IIF. A multicast protocol that owns an IIF also owns the (S,G) entry in the multicast
routing table.
Platform Considerations
For information about modules that support IP multicasting on the ERX7xx models,
ERX14xx models, and the Juniper Networks ERX310 Broadband Services Router:
■ See ERX Module Guide, Table 1, Module Combinations for detailed module
specifications.
■ See ERX Module Guide, Appendix A, Module Protocol Support for information about
the modules that support IP multicasting.
For information about modules that support IP multicasting on the Juniper Networks
E120 and E320 Broadband Services Routers:
Platform Considerations ■ 5
JUNOSe 11.0.x Multicast Routing Configuration Guide
■ See E120 and E320 Module Guide, Table 1, Modules and IOAs for detailed module
specifications.
■ See E120 and E320 Module Guide, Appendix A, IOA Protocol Support for information
about the modules that support IP multicasting.
References
For more information about IP multicast, see the following resources:
■ A “ traceroute” Facility for IP Multicast—draft-ietf-idmr-traceroute-ipm-07.txt
(January 2001 expiration)
■ RFC 2858—Multiprotocol Extensions for BGP-4 (June 2000)
■ RFC 2932—IPv4 Multicast Routing MIB (October 2000)
■ RFC 3292—General Switch Management Protocol (GSMP) V3 (June 2002)
NOTE: IETF drafts are valid for only 6 months from the date of issuance. They must
be considered as works in progress. Refer to the IETF Web site at http://www.ietf.org
for the latest drafts.
Before You Begin
You can configure multicasting on IPv4 and IPv6 interfaces.
For information about configuring IP and IPv6 interfaces, see JUNOSe IP, IPv6, and
IGP Configuration Guide.
For information about configuring multicast on IPv6 interfaces, see “Configuring
IPv6 Multicast” on page 147.
Configuring the Switch Fabric Bandwidth
By default, the switch fabric for the Juniper Networks ERX1440, ERX310, E120, and
E320 Broadband Services Routers uses a bandwidth weighting ratio of 15:2 for
multicast-to-unicast weighted round robin (WRR). In the absence of strict-priority
traffic, and when both unicast and multicast traffic compete for switch fabric
bandwidth, the switch fabric allocates 15/17ths of the available bandwidth to multicast
traffic and 2/17ths of the available bandwidth to unicast traffic.
You can use the fabric weights command to change the ratio for multicast-to-unicast
traffic on the router switch fabric. For more information about the fabric weights
command, see JUNOSe System Basics Configuration Guide.
6 ■ References
Enabling IP Multicast
In this implementation, IP multicast works on virtual routers (VRs). By default, IP
multicast is disabled on a VR. To enable IP multicast on a VR, access the context for
a VR, and then issue the ip multicast-routing command.
ip multicast-routing
■ Use to enable IP multicast routing on the VR.
■ By default, IP multicast is disabled on the VR. In the disabled state, all multicast
■ Example
■ Use the no version to disable IP multicast routing on the VR (the default).
Chapter 1: Configuring IPv4 Multicast
protocols are disabled, and the VR forwards no multicast packets.
host1(config)#ip multicast-routing
■ See ip multicast-routing.
Defining Static Routes for Reverse-Path Forwarding
Use the ip rpf-route command to define reverse-path forwarding (RPF) to verify that
a router receives a multicast packet on the correct incoming interface.
ip rpf-route
■ Use to customize static routes that the router may use for RPF.
■ Specify the IP address and subnet mask of the destination network.
■ Specify either a next-hop IP address or an interface type and specifier, such as
atm 3/0. For details about interface types and specifiers, see Interface Types and
Specifiers in JUNOSe Command Reference Guide.
■ Optionally, specify the distance (number of hops) to the next-hop address.
■ Optionally, specify a route's tag number to identify a particular route in the
routing table.
■ Example
host1(config)#ip rpf-route 11.1.0.0 255.255.0.0 atm4/1.1 56 tag 25093
■ Use the no version to remove the static route.
■ See ip rpf-route.
Displaying Available Routes for Reverse-Path Forwarding
Use the show ip rpf-route command to display all available routes, only the routes
to a particular destination, or routes associated with a specific unicast protocol that
the router can use for Reverse-Path Forwarding (RPF).
Enabling IP Multicast ■ 7
JUNOSe 11.0.x Multicast Routing Configuration Guide
show ip rpf-route
■ Use to display routes that the router can use for RPF.
■ Specify the IP address and the network mask to view routes to a particular
destination.
■ Specify a unicast routing protocol to view routes associated with that protocol.
■ Field descriptions
■ Prefix—Value of the logical AND of the IP address of the destination network
and the subnet address
■ Length—Length of the subnet mask in bits
■ Type—Protocol type for the interface
■ Connect—Subnet directly connected to the interface
■ Static—Static route
■ protocol-name—Route learned through the named protocol
■ Next Hop—IP address of the next hop for this route
■ Dist—Distance configured for this route
■ Met—Learned or configured cost associated with this route
■ Intf—Type of interface and interface specifier for the next hop. For details
about interface types and specifiers, seeInterface Types and Specifiers in
JUNOSe Command Reference Guide.
■ Example 1
host1#show ip rpf-route
Protocol/Route type codes:
I1- ISIS level 1, I2- ISIS level2,
I- route type intra, IA- route type inter, E- route type external,
i- metric type internal, e- metric type external,
O- OSPF, E1- external type 1, E2- external type2,
N1- NSSA external type1, N2- NSSA external type2
L- MPLS label, V- VR/VRF, *- indirect next-hop
Prefix/Length Type Next Hop Dist/Met Intf
------------- ---- -------- -------- ------
10.10.0.112/32 Static 192.168.1.1 1/1 fastEthernet0/0
10.1.1.0/24 Connect 10.1.1.1 0/1 atm3/0.100
25.25.25.25/32 Connect 25.25.25.25 0/1 loopback0
■ Example 2
8 ■ Displaying Available Routes for Reverse-Path Forwarding
host1#show ip rpf-route static
Protocol/Route type codes:
I1- ISIS level 1, I2- ISIS level2,
I- route type intra, IA- route type inter, E- route type external,
i- metric type internal, e- metric type external,
O- OSPF, E1- external type 1, E2- external type2,
N1- NSSA external type1, N2- NSSA external type2
L- MPLS label, V- VR/VRF, *- indirect next-hop
Loading...
