Quick Start Guide
How to Set Up Your JSA7800 Appliance
IN THIS GUIDE
Overview | 1
Package Contents | 2
Front Panel | 2
Back Panel | 3
Physical Specifications | 3
Initial Configuration Process | 3
Step 1: Powering On the Appliance | 4
Step 2: Connecting the Management Device | 5
Step 3: Configuring a JSA7800 Appliance | 6
Step 4: Verifying the Settings | 12
Powering Off the Appliance | 12
References | 13
Overview
Juniper Secure Analytics 7800 (JSA7800) is an enterprise and carrier-class appliance that provides a scalable network
security management solution for medium-sized companies up to large global organizations.
The JSA7800 appliance is a 2-rack-unit (2-U), rack-mountable chassis with AC power supplies (or optional DC power
supplies), sixteen hot-swappable hard drives, 128-GB memory, and two 10-Gigabit Ethernet SFP+ interfaces and four
1-Gigabit Ethernet interfaces.
Package Contents
g100043
Power button
Reset button
LEDs
Hard drives 0-15 Empty slots 16-23
LockFront bezel
Following are the items available in the package:
JSA7800 appliance
•
End-User License Agreement
•
Warranty and Registration Information
•
Quick-Start Guide
•
Power cords
•
Rail adapters
•
DB9 adapter
•
Rail kit
•
Rail kit screws
•
2
Front Panel
Back Panel
g100044
Power
supplies
VGA
port
USB
ports
Dedicated
IPMI LAN port
COM
port
enp4s0f0eno3
eno1
eno4
eno2
enp4s0f1
10GbE SFP+
ports
g100045
Verifying the
Settings
Connecting the
Management
Device
Configuring a
JSA7800
Appliance
Powering On
the Device
Physical Specifications
3
3.5 in. x 17.2 in. x 24.8 in.Dimensions (H x W x D)
54.4 lbChassis weight
465 WAverage power
1699 BTU/hourMaximum thermal output
Full operation 1M to Front: 68.4 dBNoise level
Full operation 1M to Rear: 70.8 dB
Initial Configuration Process
Step 1: Powering On the Appliance
g000611
Power button
Reset button
LEDs
Power HDD
GLAN1
Information
GLAN2
Alert/Power fail
CAUTION: Before connecting the appliance to the power supply, attach an ESD strap to an ESD point
and place the other end of the strap around your bare wrist.
1. Plug the power cord into the AC receptacle on the rear panel. If your appliance contains two power supplies, plug a
power cord into each AC receptacle.
4
NOTE: Grounding for the appliances is provided through the power supply ground terminal. Ensure that
you connect the AC power supply module in the appliance to a grounded AC power outlet by using an AC
power cord (with the grounding pin) appropriate for your geographical location.
2. Plug the other end of the power cord into a wall socket.
3. Press the Power button on the front panel.
4. Note the following indications:
StateLED
Solid green— Indicates that the appliance is receiving power.Power
UnusedHard drive
5
StateLED
LAN
Information
Alert/Power Fail
LAN1— Indicates eno1 interface activity when blinking.
•
LAN2— Indicates eno2 interface activity when blinking.
•
Red (blinking)— Indicates a fan failure.
•
Solid red— Indicates an overheat condition, which might be caused by cables obstructing
•
the airflow in the system or the ambient room temperature being too warm.
Red (slowly blinking)— Indicates a power failure.
•
Solid blue —Indicates UID function is activated.
•
Solid red— Indicates a power supply failure.
•
Amber— Indicates that the appliance is operating normally.
•
Step 2: Connecting the Management Device
You can connect external devices using the ports on the back panel of the appliance.
1. If you use a laptop, connect the laptop to the DB-9 serial COM port on the back panel.
NOTE: When using a laptop to connect to the appliance, you must use a terminal program, such as
HyperTerminal, to connect to the appliance.
NOTE: If your laptop or PC does not have a DB-9 plug connector pin and you want to connect your laptop
or PC directly to the JSA7800 appliance, use a combination of a USB to DB-9 plug adapter and a DB-9 F/F
cable.
2. Select the appropriate COM port to use.
3. Configure the following COM port settings:
Bits per second = 9600
•
Stop bits =1
•
Data bits = 8
•
Parity = None
•
Step 3: Configuring a JSA7800 Appliance
6
1. At the console prompt, log in as root (default username). No password is required when you log in for the first time.
NOTE: The username is case sensitive.
2. Press Enter. The End User License Agreement (EULA) appears.
3. Read the information and press the Spacebar to advance each window until you have reached the end of the agreement.
4. Type YES to accept the agreement, then press Enter. The Appliance ID selection window appears.
7
NOTE: Use the up/down arrow keys to highlight another option and press the spacebar to make the selection.
Use the left/right arrow keys to select Next, Back or Cancel, then press Enter.
Selecting an Appliance ID and Tuning Your Appliance
1. Select the appliance ID and then press Enter to select Next.
2. Select one of the following setup types:
normal—Default setup
•
recovery—HA recovery setup
•
Configuring Date and Time for Your Appliance
8
1. Select the method you want to use to set the date and time.
Manual— Allows you to manually input the date and time. Select Next.
•
Server— Allows you to specify your time server. Select Next.
•

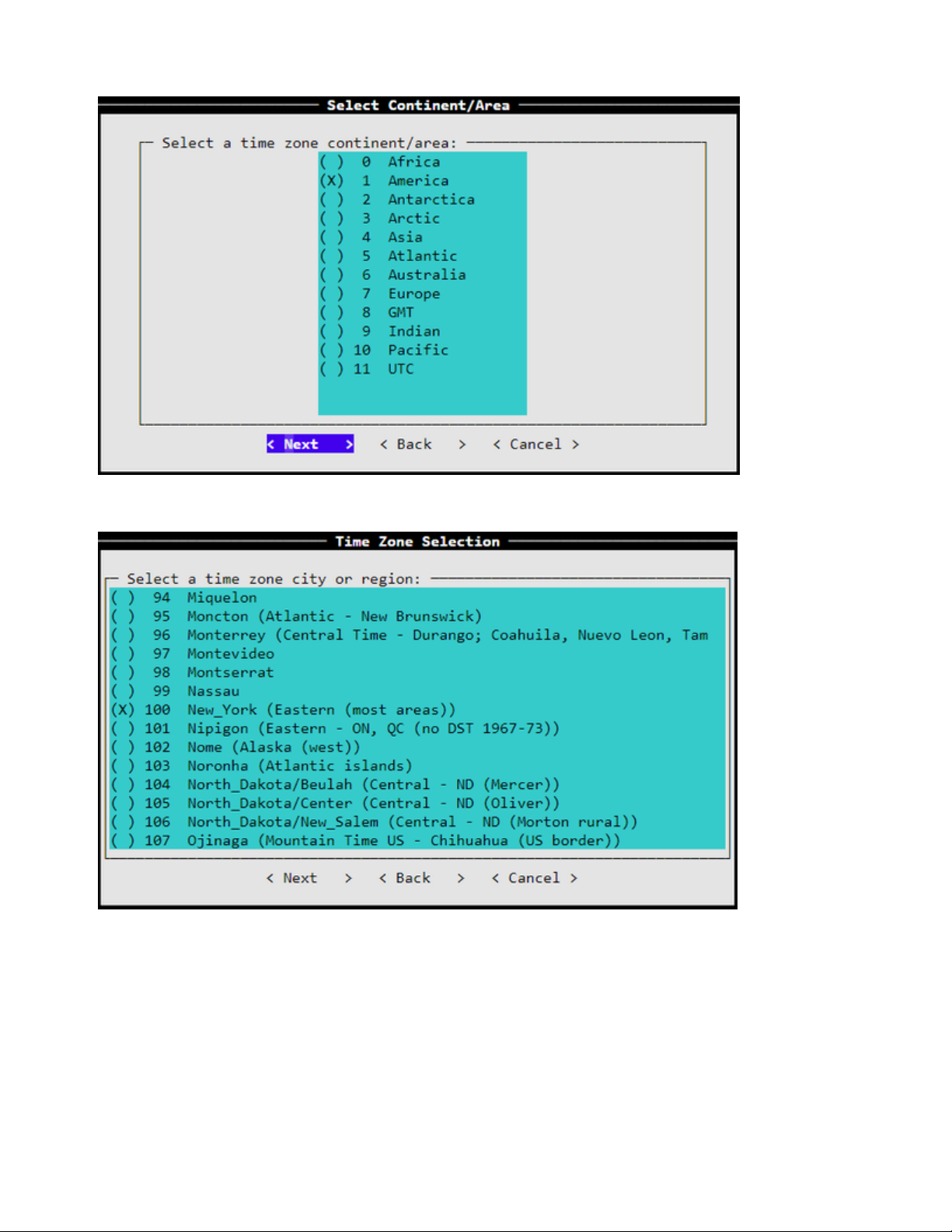

2. Select your time zone continent or area, and then select Next.
3. Select your time zone region, and then select Next.
9
Selecting the Internet Protocol and Configuring Your Appliance
1. Select one of the Internet protocols, IPv6 or IPv4.
10
2. Select Next. The Management Interface window appears.
3. Select the management interface, and then select Next.
4. Enter the values for the following parameters:
Hostname— Type a fully qualified domain name as the system hostname
•
IP Address, Network Mask, Gateway, and Primary DNS
•
Optional— Secondary DNS and Public IP.
•
Email server— E-mail server name. If you do not have an e-mail server, specify the local host in this field.
•
11
5. Enter the new admin password. Re-enter your new admin password to confirm.
NOTE: The Admin Password Setup screen appears only in case of TA/LA All-In-One or Console installation.
6. Select Next. The New Root Password window appears.
7. Enter your new root password. Re-enter your new root password to confirm, and select Finish.
12
A series of messages appears as JSA continues with the installation. Based on the appliance ID selected, the installation
process may take from several minutes to few hours to complete. TA "All-In-One" or Console installation may take up
to 2.5 hours. When the JSA installation process is complete, the message window appears.
Step 4: Verifying the Settings
Verify the appliance configuration settings:
1. Open your Web browser.
2. Log in to JSA with the username admin and the password <admin password>.
<admin password> is the new admin password that you set during the configuration process.
3. Click Login.
With this step, you have successfully completed the configuration, and your JSA7800 appliance is ready for use.
Powering Off the Appliance
You can power off the appliance in one of the following ways:
Graceful shutdown— Press and immediately release the Power button.
•
Forced shutdown— Press the Power button, and hold it for five seconds. Use this method only if the appliance is not
•
responding to the graceful shutdown method.
References
JSA Product Documentation
•
http://www.juniper.net/techpubs/en_US/release-independent/jsa/information-products/pathway-pages/jsa-series/product/
JSA7800 Hardware Documentation
•
http://www.juniper.net/techpubs/en_US/release-independent/jsa/information-products/pathway-pages/hardware/jsa7800-hw-guide.html
Technical Support
•
https://www.juniper.net/support/requesting-support.html
13
Safety Guide
•
https://www.juniper.net/documentation/hardware/safety-guide/translated/index.html
