How to Set Up Your JSA3500 and JSA5500 Appliances

Overview

Juniper SecureAnalytics 3500 (JSA3500)isanenterprise-classappliancethat providesascalable networksecurity management solution for medium-sized to large companies, including globally deployed organizations. It is also the base platform for an enterprise-class scalable secure analytics solution.
The JSA3500includes onboard event collection, correlation, and extensivereportingcapabilities, and is expandable with additional JSA appliances acting as event and flow collectors on a single appliance.
The JSA5500 is an enterprise and carrier-class appliance that provides a scalable network security management solution for medium-sized companies and scales to support large, globally deployed organizations.
The JSA5500 can be deployed as an all-in-one appliance or in a distributed setup as a console or as a dedicated event or flow processor. It can also be deployed as a store-and-forward event collector.
The JSA5500 appliance is a 2-U, rack-mountable chassis with redundant AC power supplies (optional DC power supplies), eight hot-swappable hard drives in a RAID10 array, 96 GB of memory, and four Gigabit Ethernet interfaces.

JSA3500 Front Panel

Table 1: JSA3500 Front Panel Ports
DescriptionCallout
Hard drive1
IOC expansion slots2
Network ports3
USB port4
JSA5500
g041456
4213 555
7 668
5
How to Set Up Your JSA3500 and JSA5500 Appliances
Table 1: JSA3500 Front Panel Ports (continued)

JSA3500 Back Panel

Table 2: JSA3500 Back Panel Ports
DescriptionCallout
Console port5
Fault LED6
Hardware disk activity LED7
Power LED8
DescriptionCallout

JSA5500 Front Panel

Table 3: JSA5500 Front Panel Ports
Cooling fans1
Power switch2
Redundant power supply slot3
Power supply4
DescriptionCallout
Power LED1
Hardware disk activity LED2
Fault LED3
USB port4
Hard drive5
Copyright © 2018, Juniper Networks, Inc.2
Table 3: JSA5500 Front Panel Ports (continued)

JSA5500 Back Panel

Table 4: JSA7500 Back Panel Ports
How to Set Up Your JSA3500 and JSA5500 Appliances
DescriptionCallout
IOC expansion slots6
Network ports7
Console port8

Hardware Specifications of JSA3500

3.5 in. x 17.26 in. x 17.72 in.Dimensions (H x W x D)
28lbWeight
1 year HW, 90 days SWWarranty
2x 80mm redundant hot swapFans
Panel Display
LEDs: Power, HD Activity, HW Alert
HD Activity and Fail LED on drive tray
DescriptionCallout
Cooling fans1
Power switch2
Redundant power supply3
Redundant power supply4
Power
Front-and-rear or mid-mount, flush or recessed mountingRack mountable
1 console, 4x RJ-45 10/100/1000Ports
AC Power Supply: 250 W hot-swap module
DC Power Supply : 560 W hot-swap module
5° C – 40° CTemperature operating
-40° C – 70° CTemperature storage
3Copyright © 2018, Juniper Networks, Inc.
How to Set Up Your JSA3500 and JSA5500 Appliances
8%- 90% non-condensingHumidity operating
5%- 95% non-condensingHumidity storage
10000 ft max.Altitude operating
40000 ft max.Altitude storage

Hardware Specifications of JSA5500

3.5 in. x 17.26 in. x 23.52 in.Dimensions (H x W x D)
44 lbWeight
1 year HW, 90 days SWWarranty
3x 80mm redundant hot swapFans
Panel Display

Before You Begin

LEDs: Power, HW
HD Activity, HD Alertand Fail LED on drive tray
Front-and-rear or mid-mount, flush or recessed mountingRack mountable
1 console, 4x RJ-45 10/100/1000Ports
560 W hot-swap modulePower
5° C – 40° CTemperature operating
-40° C – 70° CTemperature storage
8%- 90% non-condensingHumidity operating
5%- 95% non-condensingHumidity storage
10000 ft max.Altitude operating
40000 ft max.Altitude storage
Before you can install and configure your JSA appliance, you must have access to the following:
•
Java Requirements - You must install JavaTM Runtime Environment (JRE). You can download the required Java version at the following website: http://java.sun.com/. Ensure that you install JRE on your desktop system, not on the JSA system.
•
Browser Requirements - You must have Internet Explorer 8.0 or 9.0 or Firefox 10.0.
WARNING: Before performing the installation and configuration procedures in this document, see the safety
instructions and important regulatory information in the JSA Installation Guide and the JSA Hardware Installation Guide.
Copyright © 2018, Juniper Networks, Inc.4
How to Set Up Your JSA3500 and JSA5500 Appliances

Installing and Configuring JSA3500 and JSA5500 Step 1: Unpack Your Appliances

Unpack the shipping carton. Verify the contents against the included parts inventory. Save the shipping materials in case you need to move or ship the device later.
NOTE: Do not unpack the device until you are ready to begin installation.

Step 2: Install the Appliances in a Rack

1. Remove the rear screws on each side of the system’s front rails and the two small screws toward the front of the chassis.
2. Loosen the side-rail screws of the chassis and slide the front rail of the system backward, as far as it will move.
3. Tighten the side-rail screws. Insert the two small screws in the recessed holes on the front rails and tighten.
4. Do step 1 to step 3 again for the other side of the chassis.
5. Slide the rear-mount rail brackets into the backs of the front rails on either side of the chassis and align with your rear equipment
rack posts. Secure the rear-mount rail brackets to your equipment rack with two rack mount screws each.
6. Insert locking screws on the sides of the rear-mount brackets to secure the front and rear mounting brackets in place.
7. Verify that the mounting screws on one side of the rack are aligned with the mounting screws on the opposite side and that
the appliance is level.
For different rack-installation methods, see the JSA Hardware Installation Guide.

Step 3: Connect to External Devices

Connect external devices using the ports on the front panel of the appliance. If you use a laptop, connect the laptop to the RJ-45 console port on the front panel of the appliance. For JSA3500 and JSA5500, connect the laptop to the DB-9 serial console port on the front panel.

Step 4: Connect to the Network

1. Plug an Ethernet cable into the port labeled 0 on the front panel. For JSA3500 and JSA5500, the network ports are on the
back panel.
2. Plug the straight-through cable into the console port.
The management interface with port labeled 0 is the communications port for your appliance. The other monitoring interfaces allow you to connect to SPAN or TAP ports.

Step 5: Connect to Power Source and Power On the Appliance

1. Insert the appliance coupler end of the power cord into the AC receptacle on the rear panel of the appliance.
2. If your JSA contains two power supplies:
a. Plug a power cord into each of the AC receptacles.
b. Plug the other end of the power cord into an uninterruptible power supply (UPS) or a power distribution unit (PDU).
5Copyright © 2018, Juniper Networks, Inc.
How to Set Up Your JSA3500 and JSA5500 Appliances

Step 6: Configure JSA3500 and JSA5500 Appliances

NOTE: When using a laptop to connect to the appliance, you must use a terminal program, such as HyperTerminal,
to connect to the appliance. Be sure to set Connect Using to the appropriate COM port of the serial connector and Bits per second to 9600. You must also set Stop Bits (1), Data bits (8), and Parity (None).
1. Using a serial connection, log in as root (default username) and the password is not required:
Username: root
NOTE: The username is case sensitive.
2. Press Enter. The End User License Agreement (EULA) appears.
3. Read the information in the window. Press the Spacebar to advance each window until you have reached the end of the
agreement. Type YES to accept the agreement, then press Enter. The Appliance ID selection window appears as shown in
Figure 1.
Figure 1: JSA3500 Appliance ID Selection
4. Select the appliance ID and then press Enter to select Next.
For more information on the appliance ID, see the KB article KB14832 at https://kb.juniper.net/KB14832.
5. Select normal from the following types of setup:
•
normal—Default setup.
•
recovery—HA recovery setup.
6. Select Next. The Tuning Template window appears.
7. Select Enterprise to use to tune your appliance.
Copyright © 2018, Juniper Networks, Inc.6
8. Select Next. The Date and Time window appears.
9. Select the method you want to use to set the date and time.
•
Manual— Allows you to manually input the date and time. Select Next.
•
Server— Allows you to specify your time server. Select Next.
10. Select your time zone continent or area, and then select Next.
11. Select your time zone region, and then select Next.
12. Select one of the following Internet protocol:
•
IPv6—Internet Protocol version 6.
•
IPv4—Internet Protocol version 4.
13. Select Next. The Management Interface window appears.
14. Select port 0 to specify as the management interface and then select Next.
15. Enter the values for the following parameters to configure the JSA Settings:
•
Hostname - Type a fully qualified domain name as the system hostname.
•
IP Address - IP address of the system.
•
Network Mask - Network mask for the system.
How to Set Up Your JSA3500 and JSA5500 Appliances
•
Gateway - Default gateway address.
•
Primary DNS - Primary DNS server address.
•
Secondary DNS—Optional. Secondary DNS server address.
•
Public IP—Optional. Public IP address of the server.
•
Email server— E-mail server name. If you do not have an e-mail server, specify the local host in this field.
16. Select Next. The New Root Password window appears.
17. Enter your new password, and select Next. The Confirm New Root Password window appears.
18. Re-enter your new password to confirm, and select Finish. A series of messages appears as JSA continues with the installation;
this process takes from three-to-five minutes. When the JSA installation process is complete, the message window appears.

Step 7: Finish Installation

1. Select OK to complete the installation.
2. Type exit and press Enter.

Step 8: Verifying the Settings

Verify the appliance configuration settings:
1. Open your Web browser.

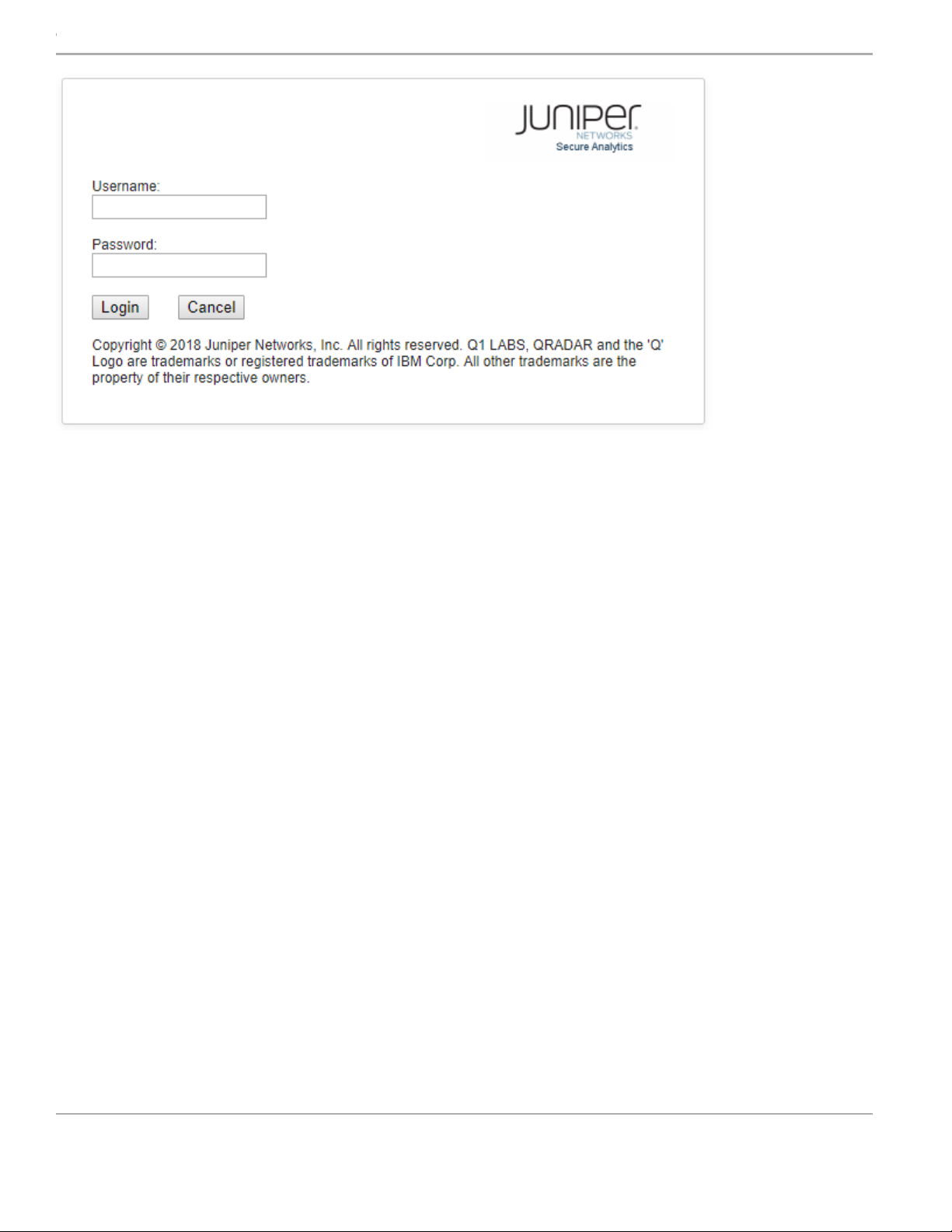

2. Log in to JSA with the username admin and the password <root password>.
<root password> is the new root password that you set during the configuration process.
7Copyright © 2018, Juniper Networks, Inc.
How to Set Up Your JSA3500 and JSA5500 Appliances
3. Click Login.
With this step, you have successfully completed the configuration, and your JSA7500 appliance is ready for use.

Powering Off the Appliance

You can power off the appliance in one of the following ways:
•
Graceful shutdown— Press and immediately release the Power button.
•
Forced shutdown— Press the Power button, and hold it for five seconds. Use this method only if the appliance is not responding to the graceful shutdown method.

References

•
JSA3500 Product Documentation
JSA3500 Product Documentation
•
JSA5500 Product Documentation
JSA5500 Product Documentation
•
JSA3500 and JSA5500 Hardware Documentation
JSA3500 and JSA5500 Hardware Guide
•
Technical Support
https://www.juniper.net/support/requesting-support.html
Juniper Networks, the Juniper Networks logo, Juniper, and Junos are registered trademarks of Juniper Networks, Inc. in the United States and other countries. All other trademarks, service marks, registered marks, or registered service marks are the property of their respective owners. Juniper Networks assumes no responsibility for any inaccuracies in this document. Juniper Networks reserves the right to change, modify, transfer, or otherwise revise this publication without notice. Copyright © 2019 Juniper Networks, Inc. All rights reserved. Part Number: 530-052346 Rev. Rev. 01, January 2019.
