3

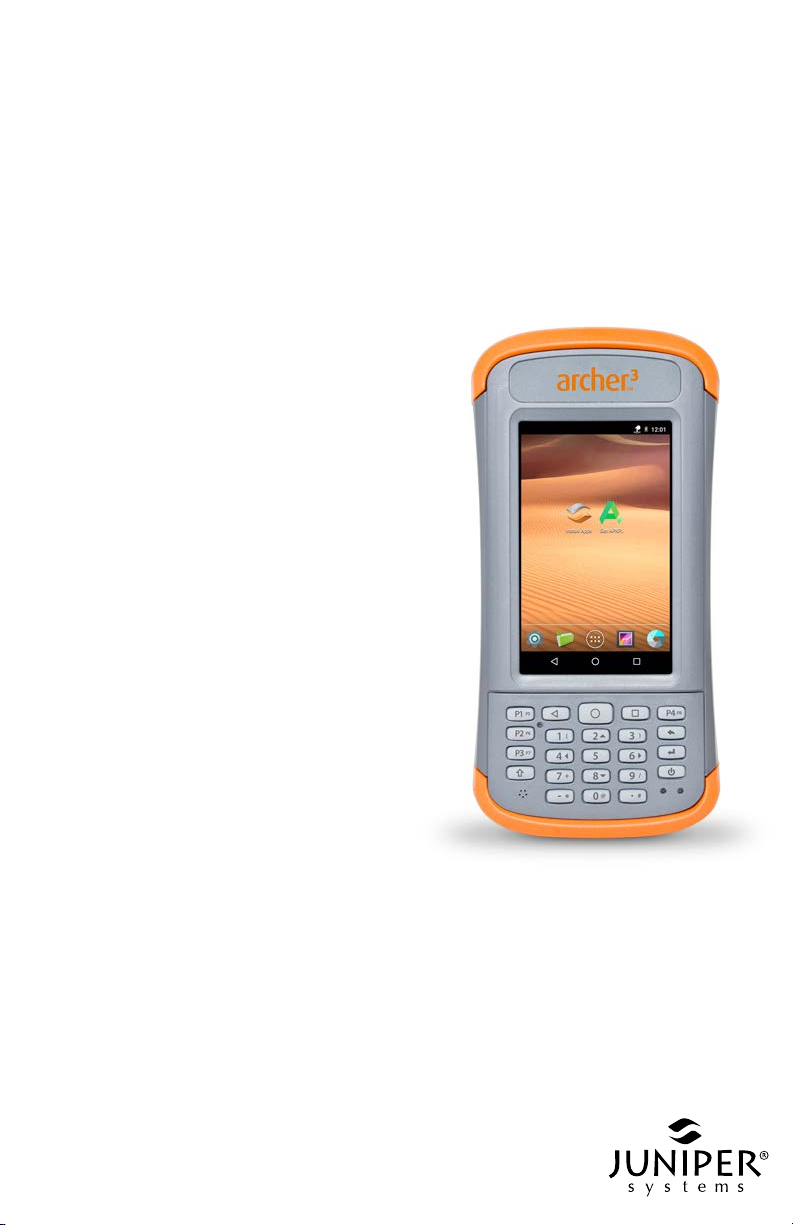

archer
owner’s manual
Copyright © March 2019 Juniper Systems, Inc. All rights
reserved. Information is subject to change without notice.
Juniper Systems® is a registered trademarks of Juniper
Systems, Inc. Archer Field PC™ and JSNav™ are recognized
trademark of Juniper Systems, Inc.
Android™ is a trademark of Google Inc.
The Bluetooth® word mark is owned by the Bluetooth SIG,
Inc. and any use of such marks by Juniper Systems, Inc. is
under license.
Google Earth™ mapping service is a trademark of Google,
Inc.
The names of other companies and products mentioned
herein may be the trademarks of their respective owners.
WARNING! This symbol indicates that failure to follow
!
directions could result in serious injury.
CAUTION: This symbol indicates that failure to follow
!
directions could result in damage to equipment or loss of
information.
Part Number 28226-02-C
tel: 435.753.1881
1132 W. 1700 N. Logan, UT 84321
ii Archer 3 Rugged Handheld Owner’s Manual
web: www.junipersys.com
l
Contents
1 Getting Started
The Anatomy of the Archer 3 2
Perform Initial Tasks 3
2 Standard Features
LED Activity Indicators 12
SD Cards 12
Connector I/O Module 13
Audio Features 14
Creating a Partnership 14
Suspend, Reset, Power Off, and Restore Defaults 15
A Storage, Maintenance and Recycling
Storing the Archer 3 and Battery Pack 20
Protecting the Touchscreen 21
Cleaning the Archer 3 21
Recycling the Archer 3 and Batteries 22
B Warranty and Repair Information
Limited Product Warranty 24
Extended Warranties 26
Repairing the Archer 3 27
C Warnings and Regulatory Information
Product Warnings 30
Certications and Standards 31
D Specifications
Archer 3 Rugged Handheld Specications 36
Index
iii
iv Archer 3 Rugged Handheld Owner’s Manual
1
Getting Started
Getting Started
The Archer 3 Rugged Handheld™ powered by Android™
features Bluetooth, Wi-Fi and a numeric keypad. Standard
accessories include a lithium-ion battery pack, AC wall
charger, USB micro client sync cable, hand strap, and a
capacitive blunt tip stylus and tether. A camera, GPS/GNSS,
and barcode scanner are options.
The Anatomy of the Archer 3
Front and Back Features
8
1
9
10
2
3
4
5
1 Bumper, Top
2 Touchscreen
3 Keypad
4 Sensor (option)
5 Microphone
6 Power Button
7 Led Indicators (charging
indicator on the right,
programmable indicator
on the left)
11
12
13
14
6
7
8 Barcode Window (option)
9 Camera Window (option)
10 Camera Flash and Flashlight
Window (option)
11 Speaker
12 Screw Holding Battery Door
in Place (1 of 4 captive screws)
13 Hand Strap with Stylus
Holder and Tether Ring
14 Door to Battery
Compartment and Card Slot
2 Archer 3 Rugged Handheld Owner’s Manual

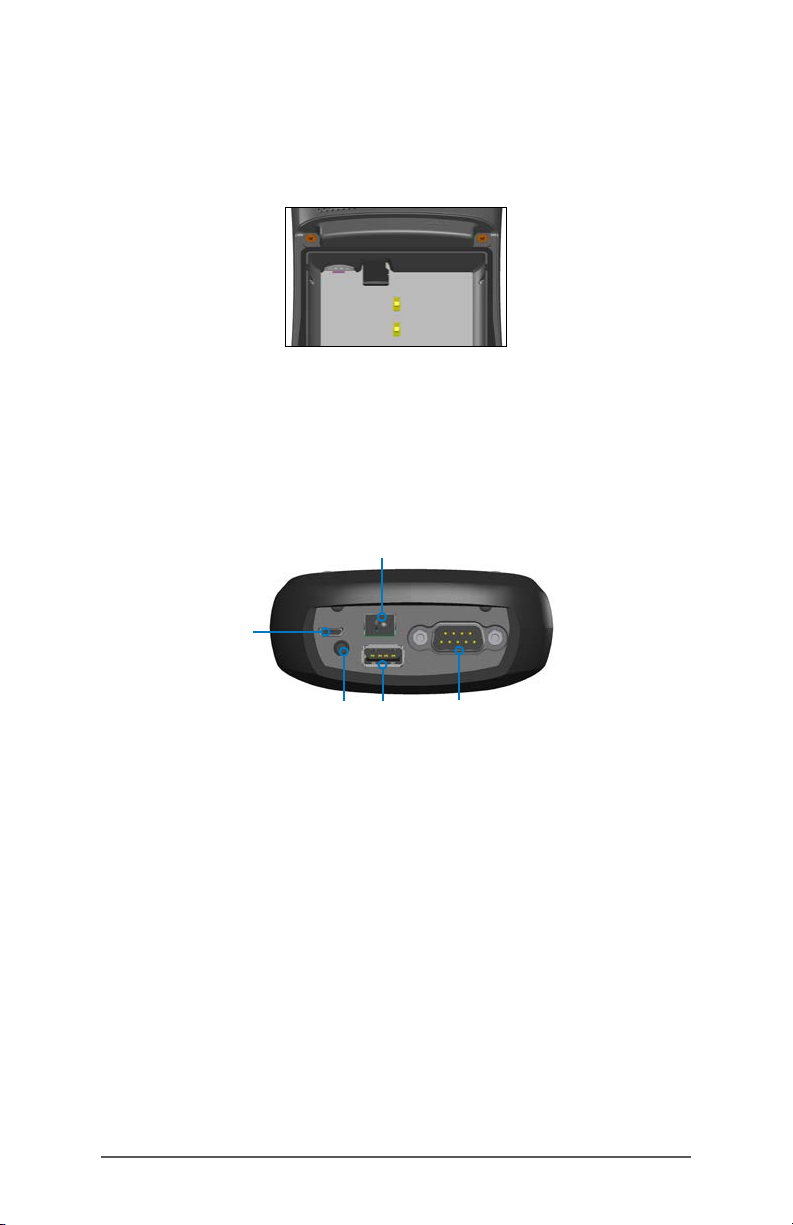

Battery Compartment and Card Slots
1
2
1 Battery Door, Screws, Hand
Strap (door removed)
2 Battery Pack
3 SD/SDHC Card Slot, Micro
4 Batter y Compartment
3 4
Connector Module and Barcode Reader
6
1
2
4
3
5
1 Connector Module
2 USB Client, Micro
3 Microphone/Speaker Jack
4 USB Host, Full Size
5 9 -pin Serial Port
6 12-24V DC Jack
7 Barcode Window (option)
7
Perform Initial Tasks
When you receive your Archer 3, perform the tasks outlined
in this section before rst use.
Review Documentation
A direct link to this manual posted on our website is located
in Settings > Device status > User’s Manual. The manual
will be updated during the life of the Allegro 3. Compare
version numbers to see if a document has changed.
Other documents including a quick start guide, release
notes, and product literature are available on our website in
Chapter 1 Getting Started 3
PDF format. A wealth of other user information is also posted
there. Go to: http://www.junipersys.com.
Apply a Screen Protector (Optional)
The touchscreen is extremely scratch resistant, so a screen
protector is not included with the Archer 3. If you decide to
apply one, refer to the installation instructions included with
your screen protector for specic details.
Install the Battery Pack and SD Card (Optional)
The Archer 3 uses a rechargeable Li-Ion battery pack. Install
and charge the battery pack as follows:
CAUTION: Power-off the Archer 3 before removing the
!
battery. If you remove the battery without powering-off
the handheld, you may damage the handheld and/or lose
data.
1. The battery compartment is accessed from the back of
the handheld. Loosen the four captive screws holding
the battery compartment door in place using a #1
Phillips screwdriver. Remove the door. You do not need
to remove the hand strap.
CAUTION: The Archer 3 is not sealed against water and
!
dust when the battery door is not installed.
2. If you are using a micro SD card for additional memory,
you can install it now before you install the battery pack
or at another time. See more details about installing an
SD card later in this manual.
4 Archer 3 Rugged Handheld Owner’s Manual
3. Place the Li-Ion battery pack in the compartment.
Make sure the symbols on the battery pack label align
with the symbols inside the compartment.
Line the symbols up
on the case and the
battery pack as shown
4. Replace the door and tighten the screws.
5. Plug the AC wall power charger that came with the
Archer 3 into a wall socket. Plug the other end into
the DC power jack on the Archer 3. The red LED on
the keypad blinks when the battery pack is charging.
Charge the battery pack for 4-6 hours at room
temperature.
Attach the Stylus Tether
A capacitive stylus and tether are included with the
handheld.
Note: A stylus is not required to use the touchscreen. The
optimal way to make selections is by nger touch.
One end of the tether is attached to the stylus. To attach it
to the hand strap, follow these steps:
Chapter 1 Getting Started 5
1. Pull the free tether loop through the tether ring on the
hand strap. Insert the stylus with the attached tether
through this loop and tighten the loop.
2. Place the stylus into the holder on the hand strap.
Turn the Archer 3 on
To turn the Archer 3 on, press and release the power key.
The handheld powers on and begins the startup process.
This takes several seconds. When it is complete, the Lock
screen is shown. Swipe up on this screen to unlock it. The
primary Home screen is shown.
6 Archer 3 Rugged Handheld Owner’s Manual
2
Standard Features
Standard Features
This chapter discusses the standard features included on all
Acher 3 models.
Operating System
This Archer 3 is powered by the Android operating system. If
you need additional information about Android, there is a
wealth of information on the internet.
Home Screen
The Home screen consists of the following elements:
Status Bar and Icons
Web Link for Downloading Apps
Favorite s Tray
Navigation Bar
Power Off or Restart
Press and briey hold the power button. You are asked if you
want to Power Off or Restart.
Note: The display automatically goes to sleep after a set
amount of time passes (you can adjust this in Settings). Press
the power key and the lock screen appears. After you swipe
up, the last screen that was opened is shown.
Quick Settings and Notications
Touch and hold the status bar from any screen to see the
Notication drawer. Any notications you should see are
8 Archer 3 Rugged Handheld Owner’s Manual
shown underneath the drawer. Swipe down twice from
the drawer and the Quick Settings tray is shown which lets
you to adjust some settings (screen brightness) and toggle
certain apps on and off (Bluetooth). Swipe left to see more
options. To close it, swipe the tray up.
Operating System Languages
The Android operating system is available in multiple
languages. Select Settings > Languages & input >
Language to view the options and make a selection. Some
unique Mesa 2 settings and apps like Touch Control and the
Barcode Connector are only available in English.
Display and Touchscreen
The Archer 3 has a bright color display and capacitive
touchscreen. It is easy to view outdoors and is sealed
against water and dust. The Archer 3 recognizes touch
gestures, making it easy to use a nger to make selections
and navigate. You can also use the ne tip capacitive stylus
included with the Archer 3 or optimize it for wet conditions.
To adjust display settings including the font size, brightness,
sleep interval, orientation, go to Settings > Display.
Chapter 2 Standard Features 9
Touchscreen Touch Control Setting
To adjust the Touchscreen Control setting, go to Settings
> Touch Control. Select the prole you want the screen
optimized for: Finger, Stylus, or Wet. As the new prole loads,
a progress bar is shown. You can try different proles to
see which one works best for the conditions the Archer 3 is
being used in.
Note: When using the Archer 3 in wet conditions, you must
use your nger or the blunt tipped stylus that is included.
A hard-tipped stylus will not work. Other third party styli
might work with the Mesa 2 touch proles, but we cannot
guarantee it.
Keyboard Features
The Archer 3 has a numeric keypad and function keys. The
keys are sealed and have backlight illumination. Some keys
have dual functions and are programmable. Go to Settings
> Keypad to see what the keys are set to and to make
adjustments
Power Management
The Archer 3 uses a Li-Ion rechargeable battery pack.
CAUTION: Only use batteries designed for the Archer 3 from
!
an approved vendor. Use of non-approved batteries may
void your product warranty.
Charging the Battery Pack
To charge the battery pack, suspend the handheld, then
refer to the instructions in Chapter 1, Getting Started. It
typically takes 4 to 5 hours to fully charge a battery pack.
We recommend that you keep the handheld battery pack
charging when it is not in use for up to two weeks. When you
plug the handheld into the wall charger that comes with it,
the batteries are prevented from being overcharged.
The Li-Ion battery pack is charged most efciently at room
temperature (68°F or 20°C). The battery pack will not charge
if it is too hot or too cold.
10 Archer 3 Rugged Handheld Owner’s Manual
CAUTION: The Archer 3 is not sealed against water and dust
!
when the battery door is not installed properly.
CAUTION: Power-off the Archer 3 before removing the
!
battery. If you remove the battery without powering-off
the handheld, you may damage the handheld and/or lose
data.
Battery Life
Battery life on a full charge is generally up to 20 hours. This
can vary depending on the applications used, backlight
usage, and radio usage.
Battery packs last approximately 1,000 to 3,000 charging
cycles before they need to be replaced. This is impacted by
applications and environmental factors.
Depending on the current charge on the battery, you may
see different displays when turning on the unit. If the battery
is completely discharged, you will see the following image.
The Archer 3 is designed to run in either of two power states,
battery power, or external power with battery installed.
The unit is not designed to run on external power without a
battery. Doing so can damage internal components of your
unit and void the warranty.
Summary of Options to Reduce Power Usage
You can adjust some settings to preserve power:
Turn off the display (suspend) after a set interval.
Dim the backlight after a set interval.
Disable radios when not in use.
Chapter 2 Standard Features 11
LED Activity Indicators
LED activity indicators are located on the keypad
underneath the power button.
Red LED on the right (associated with power adapter):
Blinking: AC adapter is plugged in, and the battery is
charging
Solid: AC adapter is plugged in, and the battery is full (not
charging)
Green LED on the left (associated with notications):
When the operating system has something to notify you
of, this LED behaves accordingly. For example, if you turn
on GPS/GNSS the green LED blinks periodically.
Blue LED on the left (associated with shift functions):
Solid: When you press the shift key, the blue LED lights
up and stays on until another key is pressed. If the shift
function is locked, the blue LED stays on.
SD Cards
The Archer 3 has a slot for a micro SD/SDXC card located in
the battery compartment. To insert or remove a card follow
these steps:
1. Power off the handheld by holding the power button until
the Power Button menu appears and selecting Power Off.
CAUTION: Power-off the Archer 3 before removing the
!
battery. If you remove the battery without powering-off
the handheld, you may damage the handheld and/or
lose data.
2. Loosen the screws to the battery compartment, and
remove the door. The hand strap remains attached.
CAUTION: The Archer 3 is not sealed against water and
!
dust when the battery door is not installed properly.
3. Remove the battery pack.
12 Archer 3 Rugged Handheld Owner’s Manual
4. An image on the battery compartment label shows the
correct location and orientation for the SD card (slot
on the right). Push the card into the slot to insert it. To
remove the SD card, pull it out.
5. Replace the battery pack, and attach the battery door.
6. Power up the handheld.
Connector I/O Module
The Archer 3 connector I/O module has the following jacks
and connectors:
5
1
3
2
1. USB client, micro B
2. Audio jack: 3.5mm; supports speaker, microphone or
stereo output (pin detect)
3. USB host, full size A
4. COM1: RS-232C 9-pin D-sub connector, 5 V @500 mA
available on pin 9 (ring in) under program control
5. Power input jack: 12 to 24 VDC for power input and
battery charging
The connector module is user-replaceable. Contact our
sales department or your supplier for details.
Note: The connectors are sealed and do not require a
connector protector to prevent water ingress.
4
Chapter 2 Standard Features 13
Audio Features
The Archer 3 has the following audio features:
Speaker - The speaker sound is loud and clear. Listen to
audio notes, video sound, and music les.
Microphone - Use the microphone to record audio notes
or add sound to a video when using the camera.
Audio Jack - The audio jack supports a stereo headset
or headset/microphone combination with 3.5mm
connections.
Bluetooth® Wireless Communication
The Archer 3 has built-in Bluetooth® wireless technology,
allowing you to connect it to other wireless devices with
Bluetooth technology. Minimum performance between
similar objects in an unobstructed environment is
approximately 100 feet (30 meters).
Creating a Partnership
To create a partnership between the Archer 3 and another
device with Bluetooth technology:
1. Turn both devices on.
2. Place them within at least 100 feet (30 meters) of one
another.
3. Make Bluetooth discoverable on both devices. Bluetooth
on the Archer 3 is off by default. To activate it, go to
Settings > Bluetooth. You can also pull down the Quick
Settings Tray and tap the Bluetooth symbol to turn it on.
Tap the word Bluetooth underneath the symbol. A list of
discoverable devices is shown. Tap MORE SETTINGS to
go to the settings screen.
4. In the Bluetooth settings screen, a list of all Bluetooth
devices within range is shown. Tap on the name of the
device in the list you would like to pair with. A Bluetooth
pairing request box is shown. If prompted, enter the PIN
or pass code of the device you want to pair with. You
should now be paired with the device.
14 Archer 3 Rugged Handheld Owner’s Manual
Wi-Fi Wireless Networking
The Acher 3 has built-in Wi-Fi wireless networking to connect
to the internet or an ofce network.
Connecting to a Wi-Fi Network
To use Wi-Fi, you need to be in range of a Wi-Fi access point
to make a connection. To set up Wi-Fi, follow these steps:
1. Go to Settings > Wi-Fi and tap Off in the upper left
hand corner to toggle it on. You can also pull down the
Quick Settings Tray and tap the Wi-Fi symbol to turn it
on. Tap the word Wi-Fi underneath the symbol. A list of
discoverable devices is shown. Tap MORE SETTINGS to
go to the settings screen.
2. The Acher 3 automatically starts scanning the area
for available Wi-Fi networks. A list is shown. Select
the network you want to use and enter the network
password (for locked networks). The Allegro 3
remembers the Wi-Fi network connections created.
3. Wi-Fi can be turned off and on and settings can be
managed from Settings > Wi-Fi screen. Tap the network
you selected to view information like Link speed. Tap
and hold to view other options like Modify network.
Note: Android does not support shared key WEP.
Suspend, Reset, Power Off, and Restore Defaults
Use the power button to suspend, reset, power off, or
restore the Archer 3 to its factory state. To access the Power
Button menu, press and hold the power button.
Chapter 2 Standard Features 15
Suspending and Resuming the Archer 3
We recommend suspending your handheld if you plan to
turn it off for less than two weeks. While it is suspended, you
should attach it to a wall charger when it is not in use.
Suspending the handheld is different from powering it off.
When the device is suspended it goes into a very low power
mode. Some battery power is used during suspend.
1. Press and release the power button . The backlight
shuts off. It can take several seconds to fully suspend,
especially when the cell modem is on.
2. To resume the device from suspend mode, press and
release the power button again. When it is resumed,
the handheld resumes where it was before it was
suspended.
3. There is also a Suspend option on the Power Button
menu.
Resetting the Archer 3
If the Archer 3 is unresponsive, slow, or programs won’t
launch, performing a reset might solve the issue. You
may be asked to perform a reset when an application is
installed.
CAUTION: Be aware that during a reset, applications are
!
closed and unsaved work may be lost.
Follow these steps to reset your Archer 3:
1. Save open les, and close any running programs.
2. Press and hold the power button until the Power
Button menu appears.
3. Tap Reset.
You can also reset the handheld by pressing the power
button for 10 seconds or until the screen goes dark. After
a few seconds, the handheld automatically turns on. This
method is useful if your Archer 3 locks up.
Powering Off and On the Archer 3
To preserve battery power, we recommend you power off
the Archer 3 if it will not be used for two weeks or longer.
16 Archer 3 Rugged Handheld Owner’s Manual
CAUTION: Be aware that when the Archer 3 is powered
!
off, it closes all programs and powers down all system
components except for the real-time clock. Unlike suspend
mode, the device resets when it is powered on again. Any
unsaved data is lost.
1. Save open les, and close any running programs.
2. If you are using external power, unplug it.
3. Press and hold the power button until the Power
Button menu appears.
4. Tap Power Off. A warning dialog appears. Tap OK.
To power on your handheld, press the power button.
Restoring the Archer 3 to its Factory State (Clean Boot)
Follow the steps below to restore user storage, settings, and
icons on your Archer 3 to their original factory defaults.
CAUTION: Restoring the Archer 3 to its original factory state
!
permanently erases data saved on the handheld, any
software you installed, and any changes you made to the
handheld, including changes to settings.
1. Back up les and programs you want to keep onto
another computer.
2. Save open les and close running programs on the
handheld. Press and hold the power button until the
Power Button menu appears. Tap Reset.
3. When the screen turns black, press and hold the
power button again. The bios screen is shown.
4. Move the top slider on the screen to the right to set or
clear factory defaults. This clean boots the handheld.
5. Tap Exit. The boot process continues.
Chapter 2 Standard Features 17
18 Archer 3 Rugged Handheld Owner’s Manual
A
Storage, Maintenance and Recycling
Storage, Maintenance, and Recycling
Follow the instructions in this chapter to properly maintain
and recycle the Archer 3.
Storing the Archer 3 and Battery Pack
When the handheld is not being charged and is suspended,
it draws a small amount of power. This power draw is used to
maintain the memory (RAM) of the handheld in the same state
it was when it was suspended. We recommend charging the
handheld each night or weekend when it is in suspend mode.
If the Archer 3 is not charged while in suspend mode and the
battery reaches a low charge, it automatically powers off to
prevent further drain on the battery.
Note: Data and programs are secure as long as they have
been saved, even if the battery pack becomes discharged.
The handheld does not depend on the battery to store the
data for extended periods.
Storing the Archer 3 for Less Than Two Weeks
To store the handheld for less than two weeks, complete the
following steps:
1. Close all applications.
2. Plug the handheld into the AC wall adapter that was
shipped with your unit.
Storing the Archer 3 for More than Two Weeks
To store the handheld for two weeks or more, complete the
following steps:
1. Charge the battery pack 30 to 50 percent.
2. Close all running programs, and power off the handheld
by holding the power button until the Power Button menu
appears and selecting Power Off.
CAUTION: Power-off the Archer 3 before removing the
!
battery. If you remove the battery without powering-off
the handheld, you may damage the handheld and/or
lose data.
3. Remove the battery pack.
4. Place the battery pack in a dry location.
20 Archer 3 Rugged Handheld Owner’s Manual
Protecting the Touchscreen
Protect the touchscreen from impact, pressure, or abrasive
substances that could damage it. To further protect the
touchscreen, apply a screen protector (optional accessory).
To apply a screen protector, follow the directions that come
with it in the package.
CAUTION: Be sure to replace the screen protector as often
!
as the screen protector instructions recommend.
Cleaning the Archer 3
Touchscreen
1. Disable the touchscreen by pressing the power button
until the Power Button menu appears. Tap on Disable TS.
2. Remove the screen protector if you want to clean
underneath it.
3. Apply warm water or a mild cleaning solution to a
microber cloth and gently wipe off the touchscreen.
CAUTION: Do not use tissues, paper towels, soft bristle
!
brushes, or harsh cleaning solutions on the touchscreen.
4. Rinse the touchscreen with water and dry it with a
microber cloth.
5. Apply a screen protector if you want to (not included).
To clean a screen protector, follow the instructions
provided with the package.
6. Enable the touchscreen by pressing the power button
until the Power Button menu appears. Use the arrow
keys to scroll to Enable TS. Press Enter
Case, Bumpers, and Connector Module
Make sure the battery door is securely installed. Use warm
water, a mild cleaning solution, and a soft bristle brush to
clean the case, bumpers, and connector module.
CAUTION: Do not direct a high-pressure stream of water
!
at the device to clean it. This action could break the seal,
causing water to get inside the device and voiding the
wa r ranty.
Appendix A Storage, Maintenance and Recycling 21
Safe Cleaners to Use
You can clean the Archer 3 safely with the following
cleaners:
Windex
Formula 409
Citrus Wonder Cleaner (Mer-Maids)
Citrus All Purpose Cleaner (Wonder Tablitz)
Greased Lightening
®
(S.C. Johnson & Son, Inc.)
®
(Clorox)
®
Multi-Purpose Cleaner and
Degreaser
Orange Clean
Fantastik
Oil Eater Orange Cleaner Citrus Degreaser (Kafko Intl.,
®
(Orange Glo International)
®
OxyPower® (S.C. Johnson @ Son, Inc.)
Ltd.)
CAUTION: Exposure to some cleaning solutions may
!
damage your device, including automotive brake cleaner,
isopropyl alcohol, carburetor cleaner, and similar solutions.
If you are uncertain about the strength or effect of a
cleaner, apply a small amount to a less visible location as a
test. If any visual change becomes apparent, promptly rinse
and wash with a known mild cleaning solution.
Recycling the Archer 3 and Batteries
When the Archer 3 reaches the end of its life, it must not
be disposed of with municipal waste. It is your responsibility
to dispose of your waste equipment by handing it over to
a designated collection point for the recycling of waste
electrical and electronic equipment. If you cannot nd a
location, contact Juniper Systems for information about
disposal.
The Li-Ion battery packs for your Archer 3 are recyclable.
Avoid placing them in the trash or municipal waste system.
To nd the nearest battery recycling center in the USA, visit
the Rechargeable Battery Recycling Corporation, www.
call2recycle.org.
22 Archer 3 Rugged Handheld Owner’s Manual
B
Warranty and Repair Information
Limited Product Warranty
Juniper Systems, Inc. (“JS”) warrants that the Archer 3
Rugged Handheld shall be free from defects in materials
and workmanship, under normal intended use, for a period
of 24 months from the date of shipment.
JS warrants that the following items shall be free from
defects in materials and workmanship, under normal
intended use, for a period of ninety (90) days from the date
of shipment:
battery packs,
media containing the Archer 3 programs,
desktop computer programs,
user documentation, and
accessories.
Warranty Exclusions
This warranty shall not apply if:
(i) the product has been set up improperly or has been
improperly installed or calibrated,
(ii) the product is operated in a manner that is not in
accordance with the user documentation,
(iii) the product is used for a purpose other than for which
it was designed,
(iv) the product has been used in environmental
conditions outside of those specied for the product,
(v) the product has been subject to any modication,
alteration, or change by or on behalf of customer
(except and unless modied, changed or altered by JS
or under direct supervision of JS),
(vi) the defect or malfunction results from misuse or
accident,
(vii)
the serial number on the product has been tampered
with or removed, or
(viii)
the product has been opened or tampered with in any
wa y.
This warranty is exclusive and JS will not assume and hereby
expressly disclaims any further warranties, whether express
24 Archer 3 Rugged Handheld Owner’s Manual
or implied, including, without limitation, any warranty as
to merchantability, tness for a particular purpose, non-
infringement or any warranties arising from the course of
performance, dealing, or usage of trade. JS specically
makes no warranties as to the suitability of its products for
any particular application. JS makes no warranties that
its products will meet your requirements or will work in
combination with any hardware or applications software
products provided by third parties,
the operation of its products will be uninterrupted or error
free, or
all defects in the product will be corrected.
JS shall not be responsible for software, rmware, information,
or memory data contained in, stored on, or integrated with
any products returned to JS for repair, whether under warranty
or not.
Remedy
In the event a defect in materials or workmanship is
discovered and reported to JS within the specied warranty
period, JS will, at its option, repair the defect or replace the
defective part or product. Replacement products may be
new or reconditioned. JS warrants any replaced or repaired
product for a period of ninety (90) days from the date of
return shipment, or through the end of the original warranty
period, whichever is longer.
Limitation of Liability
To the fullest extent allowed by law, the obligation of JS
shall be limited to the repair or replacement of the product.
JS shall in no event be liable for special, incidental, or
consequential, indirect, special or punitive damages of any
kind, or for loss of revenue or prots, loss of business, loss of
information or data, or other nancial loss arising out of or
in connection with the sale, installation, maintenance, use,
performance, failure, or interruption of any product. Any
responsibility and/or liability of JS shall, in connection with a
warranted product, be limited in the maximum amount to
the original purchase price.
Appendix B Warranty and Repair Information 25
Warranty Repairs
To obtain warranty repair or service on the Archer 3, submit
a repair order on our website at http://www.junipersys.com/
Juniper-Systems/support/Repairs or contact an authorized
repair center within the applicable warranty period.
Products returned for repair or service without proper
authorization may acquire an additional handling fee and/
or delay in the repair. The customer is responsible to prepay
all shipping costs when sending equipment to a repair
center. The repair center will return the repaired equipment
by the same method it was received with costs of shipping
prepaid.
Governing Law
This warranty is governed by the laws of Utah, U.S.A. and
excludes the United Nations Convention on Contracts for
the International Sale of Goods. The courts of Utah shall
have exclusive personal jurisdiction in case of any disputes
arising out of or in connection with this warranty.
Services and Materials Provided Under Warranty
Analysis of problem by service technician
Labor and materials required to x defective parts
Functional analysis performed after repair
Repair turnaround within 10 working days of receipt
unless special circumstances exist
Shipping costs to return device to customer
Extended Warranties
The Archer 3 can be warranted up to 5 years (including
the standard warranty period) through the purchase of an
extended warranty.
Extended warranties apply only to the Archer 3, not battery
packs, media containing the Archer 3 programs, desktop
computer programs, user documentation, and accessories.
Parts that are excessively worn are not covered under all
warranty plans. These may include, but are not limited to,
the keyboard elastomer and switch matrix, hand straps,
touchscreens, and connector modules.
26 Archer 3 Rugged Handheld Owner’s Manual
Warranty Information
Warranty information for the Archer 3 Rugged Handheld
is located on our website at http://www.junipersys.com/
Juniper-Systems/support/Warranty. You can evaluate and
order warranty extensions, check warranty status, and view
warranty terms and conditions.
Repairing the Archer 3
CAUTION: Do not attempt to repair the Archer 3 yourself. This
!
action voids the warranty.
Information about repairs, upgrades, and evaluations is
located on our website at http://www.junipersys.com/
Juniper-Systems/support/Repairs. You can locate a repair
center, submit a repair order, check repair status, view terms
and conditions, get shipping instructions, and view lead
times.
Before returning a unit, please get permission by submitting
a repair order from our website and waiting for conrmation
or by contacting a repair center directly. Be prepared to
provide the following information:
Product serial number (inside the battery compartment;
also found in System Information screen as described on
the following page)
Your name
Name and shipping address of company/university/
agency
Best contact method (phone, fax, email, cell/mobile)
Clear, highly-detailed description of the repair or
upgrade
Credit card/ purchase order number and billing address
(for a repair or upgrade that is not covered by the
standard warranty or an extended warranty policy)
Appendix B Warranty and Repair Information 27
System Information for your Archer 3
When you contact a repair center, you need some unique
system ID information for your Archer 3 (serial number,
model number, etc.). Go to Settings > About this device.
Information about software, hardware, the battery, the
network and radio, regulatory information, and legal
information can be viewed.
28 Archer 3 Rugged Handheld Owner’s Manual
C
Warnings and Regulatory Information
Product Warnings
Follow the warnings in this chapter to use the AR3 (Archer 3)
and accessories safely.
Battery Warnings
WARNING! This device is for professional use only.
!
This device comes with a lithium ion rechargeable batter y
pack. To reduce the risk of re or burns, do not disassemble,
crush, puncture, short external contacts, or expose the
battery pack to re.
Do not disassemble, open, crush, bend, deform, puncture,
or shred.
Do not modify or remanufacture, attempt to insert foreign
objects into the battery, immerse or expose to water or
other liquids, expose to re, explosion or other hazard.
Only use the battery for the system for which it is specied.
Only use the battery with a charging system that has
been qualied with the system per this standard. Use of an
unqualied battery or charger may present a risk of re,
explosion, leakage, or other hazard.
Do not short circuit a battery or allow metallic conductive
objects to contact battery terminals.
Replace the battery only with another battery that has
been qualied with the system.
Use of an unqualied battery may present a risk of re,
explosion, leakage or other hazard.
Promptly dispose of used batteries in accordance with local
regulations.
Battery usage by children should be supervised.
Avoid dropping the battery. If the battery is dropped,
especially on a hard surface, and the user suspects
damage, take it to a service center for inspection.
Improper battery use may result in a re, explosion or other
hazard.
30 Archer 3 Rugged Handheld Owner’s Manual
CAUTION: Risk of explosion if battery is replaced by incorrect
!
type.
Dispose of used batteries according to the instructions.
Wall Charger Warnings
WARNING! To reduce the risk of personal injury, electrical
!
shock, re or damage to the equipment:
Plug the wall charger into an electrical outlet that is easily
accessible at all times.
Do not place anything on the wall charger cord or any
of the other cables. Arrange them so that no one may
accidentally step on or trip over them.
Do not pull on a cord or cable. When unplugging the wall
charger from the electrical outlet, pull on the plug, not the
cord.
Use only wall chargers intended for the Archer 3. Using any
other external power source can damage your product
and void your warranty.
Certications and Standards
FCC - United States
In compliance with the FCC rules 47 CFR 15.19(a)(3), the
statements that follow must appear on the device or in the
user documentation.
This device complies with Part 15 of the FCC Rules.
Operation of this equipment is subject to the following two
conditions:
1. The device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
In compliance with the FCC rules, 47 CFR 15.105(b), the
user must be notied that this equipment has been tested
and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful
interference in a residential installation. This equipment
Appendix C Warnings and Regulatory Information 31
generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
In compliance with the FCC rules, 47 CFR 15.21, the user
must be notied that changes or modications to the
Rugged Handheld that are not expressly approved by the
manufacturer could void the user’s authority to operate the
equipment.
Only approved accessories may be used with this
equipment. In general, all cables must be high quality,
shielded, correctly terminated, and normally restricted
to two meters in length. Wall chargers approved for
this product employ special provisions to avoid radio
interference and should not be altered or substituted.
This device must not be co-located or operating in
conjunction with any other antenna or transmitter.
This cell modem is compliant with FCC regulations when
operated within the temperature range of -30°C to +50°C.
Do not operate the cell modem outside of this temperature
range.
Industry Canada
This device complies with ISED licence-exempt RSS
standard(s). Operation is subject to the following two
32 Archer 3 Rugged Handheld Owner’s Manual
conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including
interference that may cause undesired operation of the
device.
Any changes or modications not expressly approved by
the party responsible for compliance could void the user’s
authority to operate this equipment.
In compliance with Industry Canada rules, the following
statement must appear on the device or in the
user documentation:
This Class B digital apparatus complies with
Canadian ICES-003.
Radio Frequency Safety
This device has been evaluated for use in close proximity
to the body. Use only accessories approved by Juniper
Systems. The use of third party accessories may not comply
with FCC and international RF exposure requirements.
To comply with FCC and other national RF exposure
requirements do not co-locate this device with other
transmitters.
This device operates in compliance with the radio
frequency exposure limits for an uncontrolled environment.
Users must follow instructions provided in the user
documentation to satisfy compliance with radio frequency
exposure requirements.
There cannot be any alteration to the authorized antenna
system.
CE Marking (European Union)
Products bearing the CE marking comply with EU
Directive 2014/53/EU.
CE compliance of this device is valid only if powered
with/by a CE-marked wall charger provided by the
manufacturer. Cables connecting to the USB host port must
use a ferrite core/bead on the cable. The ferrite core must
be placed on the cable near the end that connects to the
Archer 3.
Appendix C Warnings and Regulatory Information 33
Declaration of Conformity
The Declaration of Conformity for CE Marking is available
at: http://www.junipersys.com/doc.
Class I and LED Product (Barcode Scanner)
CLASSIFIED EN/IEC 60825-1 2007 & AS/NZS 2211.1:2004”
Complies with 21 CFR 1040.10 & 1040.11 except for
deviations pursuant to Laser Notice No. 50 dated June 24,
2 0 07.
CAUTION: Use of controls or adjustments or performance of
!
procedures other than those specied herein may result in
hazardous radiation exposure.
This barcode scanner is not user-serviceable. Units requiring
service or repair must be returned to the factory.
This barcode scanner is not to be opened or modied
by the user. This product does not require scheduled
maintenance to remain compliant to the applicable
standards.
This laser product is designated as Class 1 during all
procedures of operation. For instructions on activating/
deactivating the laser aimer and LEDs, please read the
section on software operation.
Laser
Wavelength 650nm, nominal
Emission Repetitive Pulsed
Pulse Energy* 7uJ
Pulse Width 9 mSec
Pulse Rep Rate 55Hz, nominal
Divergence 1 Radian XY, approximately
Classication Class 1
LED (Australia New Zealand only)
Wavelength 635nm, peak
Bandwidth FWHM 20nm
Emission Repetitive Pulsed
Pulse Energy* <3.1uJ
34 Archer 3 Rugged Handheld Owner’s Manual
Pulse Width 0.98 mSec
Pulse Rep Rate 55 Hz, nominal
Divergence Extents: approach hemispheric
Classication Class 1
Laser & LEDs pulse alternately
* Energy for Classication Purposes
A label with the unit serial number is located on the rear
panel of the device
Appendix C Warnings and Regulatory Information 35
36 Archer 3 Rugged Handheld Owner’s Manual
D
Specifications
Archer 3 Rugged Handheld Specications
FEATURE SPECIFICATION
Operating
System
Processor 1.2 GHz ARM Cortex A9 i.MX6
Memory
Primary Data
Storage
Micro SD/SDXC
Card Slot
Physical
Features
Display Active viewing area: 4.3” (109 mm)
Touchscreen Capacitive touch interface optically
Android™ 7 AOSP by Google
English, French, German, Spanish,
Brazilian Portuguese (see complete
list in Settings)
2 GB RAM
16 GB Flash storage
Micro SD/SDXC slot, user accessible
Dimensions, standard: 3.6” wide x
7.25” long x 1.5” thick (91 mm x 184
mm x 38 mm)
Weight, with battery:
Standard - 1.3 lbs (590g),
Geo - 1.42 lbs (647g),
Durable hardened plastic in a shear-
proof, shock-resistant design
Strong chemical resistance
Easy to grip ergonomic form factor
Impact-absorbing bumpers
Comfortable, wide hand strap
color WVGA LCD TFT
800 x 480 pixel resolution
LCD backlight
Outdoor viewable
Portrait (default) or landscape
orientation
bonded to display to increase
visibility
Strengthened glass
Scratch-resistant screen
Touchscreen disable function
Touchscreen prole options
38 Archer 3 Rugged Handheld Owner’s Manual
FEATURE SPECIFICATION
Keyboard Numeric keypad
Modier function
Programmable keys and LEDs
Backlight
On-screen keyboard option
Batteries Rechargeable Li-Ion battery pack,
3.6VDC 12000mAh, 43.2Whr
Run time of up to 20 hours
Charging time 4 to 5 hours
Built-in battery intelligence
User-replaceable, eld rechargeable
Connector I/O
Module
RS-232C 9-pin D-sub connector,
+5VDC @ 500 mA available on ring in
pin 9 via software conguration
USB Host (Full A)
USB Client (Micro B)
12-24VDC jack for power input and
battery charging, 0-36V unregulated
3.5mm audio jack, supports speaker/
microphone or stereo output (pin
detect)
Docking contacts for charging
Connector protector
OEM congurable/customizable
Wireless
Connectivity
Bluetooth® wireless technology 4.2
BR/BDR/BLE “Smart Ready,” Class 1.5,
range greater than 100 feet (30 m)
Wi-Fi 802.11b/g/n with extended
range, U.S. and international
Audio Speaker, loud and clear
Microphone, low noise
3.5 mm audio jack, supports stereo
headset and microphone at the
same time (speaker disable)
LED Activity
Indicators
Red: power applied/charging status
Green: notication, application
programmable
Blue: shift function, application
programmable
Appendix D Specications 39
FEATURE SPECIFICATION
Temperature
Specications
Operating Temperature: –22° to 140°
F (–30° to 60° C).
Note: Bluetooth® wireless technology
is rated to –4° to 122° F (–20° to 50° C).
Storage Temperature: –22° to 158° F
(–30° to 70° C)
Battery Charging Temperature: 32° to
122° F (0° to 50° C)
Max use temperature for switching
the power supply is 104° F (40° C)
Shock
Resistance
Environmental
Ratings and
Standards
Withstands multiple 5 foot (1.5 m)
drops to concrete
Waterproof and dustproof
MIL-STD810G test procedures: Method
500.5 Low Pressure (Altitude); Method
501.5 High Temperature; Method
502.5 Low Temperature; Method
503.5 Temperature Shock; Method
506.5 Rain; Method 507.5 Humidity;
Method 510.5 Sand and Dust; Method
512.5 Immersion; Method 514.6
Vibration; Method 516.6 Shock
War ranties 24 months for Archer 3
90 days for accessories
Extended service and maintenance
plans
40 Archer 3 Rugged Handheld Owner’s Manual
FEATURE SPECIFICATION
Software
Included
Barcode Connector (Barcode
models)
Calculator
Calendar
Camera
Clock
Contacts
Downloads
Email
Files
Gallery
Geode Connect (Geo models)
Music
Opera
Search
Settings
Sound Recorder
Note: Software on individual units
may vary from this list.
Camera (Geo
models)
5MP resolution
Autofocus
LED illuminator
Video capture
JPEG image format
Juniper Geotagging; embed photo
with date, time and GPS/GNSS
position
Flash and ashlight
Appendix D Specications 41
FEATURE SPECIFICATION
GPS/GNSS (Geo
models)
High-sensitivity GPS, GLONASS,
Galileo, BeiDou, QZSS, SBAS receiver
2 to 5 meter typical accuracy
Post processing capability for
enhanced accuracy beyond 2 to 5
meters, BINR protocol
Enhanced performance under heavy
canopy
Integrated real-time SBAS capability,
support for WAAS, MSAS, EGNOS
File format NMEA-0183 version 4.0
output, default strings: GGA, GSA,
GLL, GSV, RMC, VTG, ZDA, GPS
72 GNSS tracking channels
GPS/GNSS signal quality indicator on
Juniper Home screen
Geode Connect application
42 Archer 3 Rugged Handheld Owner’s Manual
FEATURE SPECIFICATION
Barcode
Scanner (Geo
model option)
Imager and Decoder: Motorola/
Symbol SE4500 imager and PL3307C
400MHz decoder
Sensor Resolution: 752 X 480
Field of View: Horizontal 40°, vertical
25°
Reading Angles: Skew & pitch ±60°,
roll 360°
Read Range: 1” to 24” depending
on code type, size, and density
Symbologies: All common 1D, 2D
(PDF417, MicroPDF417, Composite,
RSS, TLC-39, Data matrix, QR code,
Micro QR code, Aztec, MaxiCode,
Postal codes, etc.)
Trigger Buttons: Programmable
Aiming Crosshair Pattern: Visible
with low light illumination
Barcode Connector™ Utility:
Wedge and conguration
Certication: Class 1 Laser and LED
Product
Power: 1.49W active, 0.54W standby,
8mW sleep; by default device
returns to sleep after 1 second of
inactivity
Certications
and Standards
FCC Class B
CE Marking (applicable EMC, R&TTE,
and LVD directives)
Industry Canada
EN60950 Safety
Bluetooth SIG qualication
USB client
Waterproof and dustproof
Designed to MIL-STD 810G
Optional Class I, II, III Division 2 for
hazardous locations
Appendix D Specications 43
FEATURE SPECIFICATION
Standard
Accessories
Li-Ion battery
Hand strap
USB micro client sync cable
AC wall charger with international
plug kit
- Inp ut: 100-24 0VAC, 50/60Hz, 0. 5A
- Output: 12VDC, 1.67A
Capacitive stylus and tether
Screwdriver
Quick Start Guide
Owner’s Manual (available on our
website)
Two-year warranty
Optional
Accessories
Shoulder strap
Serial cable
Vehicle charging adaptor
Holster case
Flip cover tted case
8GB micro SDHC memory card
Premium screen protectors
External GNSS antenna
See your sales associate for more
details on optional accessories.
Note: Specications are subject to change without notice.
44 Archer 3 Rugged Handheld Owner’s Manual
Index
Index
A
Anatomy of the Rugged Handheld 2
Audio Features 14
Audio Jack 14
Microphone 14
Speaker 14
B
Battery Pack 4, 10
Specications 37
Storage 20
Warnings 30
Bluetooth Wireless Communication 14
C
Care and Maintenance 20
Cleani ng 21
Storage 20
Cautions 4, 10, 11, 12, 16, 17, 20, 21, 22, 27, 31
Certications and Standards 31
Cleani ng 21
Connector Module 13
Cleani ng 21
D
Declaration of Conformity 33
Display 10
Backlight 10
Settings 9
E
Equipment Warnings 31
F
Features
Standard 8
46 Archer 3 Rugged Handheld Owner’s Manual
H
Home Screen 8
L
Limitation of Liability 25
M
Microphone 13, 14, 37
N
Notications 8
O
Operating System 36
P
Power Management 10
Battery Life 11
Battery Pack 10
Charging Battery Packs 11
Power Off 16
Product Warnings 30
Q
Quick Settings 8
R
Recycling the Rugged Handheld and Batteries 22
Repairing 27
System Information 28
Re set 16
Restore 17
Re sume 16
RS-232C Port 13, 37
S
Screen Protector 4
SD Cards 12
Speaker 37
Specications 36–43
Index 47
Status Bar 8
Storing the Rugged Handheld and Battery Pack 20
Suspend 16
System Information 27, 28
T
Temperature Specications 38
Touchscreen 9–11
Protecting the Touchscreen 21
Settings 9
Specications 36
Touch Control Setting 10
U
Updates, Operating System and Documentation 9
USB Client 13, 41
USB Host 13
W
Warnings 30, 31
War ranty 24 –27
Exclusions 24
Extended Warranties 26
Limitation of Liability 25
Remedy 25
Repairs 26
Services 26
Warranty Exclusions 24
Warranty Repairs 26
48 Archer 3 Rugged Handheld Owner’s Manual
Loading...
