Juniper ACX2000, ACX2100 User Manual

Download

ACX2000 and ACX2100 Universal Metro

Published

2020-11-10

Router Hardware Guide

Juniper Networks, Inc. 1133 Innovation Way Sunnyvale, California 94089 USA 408-745-2000 www.juniper.net

Juniper Networks, the Juniper Networks logo, Juniper, and Junos are registered trademarks of Juniper Networks, Inc. in the United States and other countries. All other trademarks, service marks, registered marks, or registered service marks are the property of their respective owners.

Juniper Networks assumes no responsibility for any inaccuracies in this document. Juniper Networks reserves the right to change, modify, transfer, or otherwise revise this publication without notice.

ACX2000 and ACX2100 Universal Metro Router Hardware Guide

The information in this document is current as of the date on the title page.

YEAR 2000 NOTICE

Juniper Networks hardware and software products are Year 2000 compliant. Junos OS has no known time-related limitations through the year 2038. However, the NTP application is known to have some difficulty in the year 2036.

END USER LICENSE AGREEMENT

The Juniper Networks product that is the subject of this technical documentation consists of (or is intended for use with) Juniper Networks software. Use of such software is subject to the terms and conditions of the End User License Agreement (“EULA”) posted at https://support.juniper.net/support/eula/. By downloading, installing or using such software, you agree to the terms and conditions of that EULA.

About the Documentation | ix

Documentation and Release Notes | ix

Using the Examples in This Manual | ix

Merging a Full Example | x

Merging a Snippet | xi

Documentation Conventions | xi

Documentation Feedback | xiv

Requesting Technical Support | xiv

Self-Help Online Tools and Resources | xv

Creating a Service Request with JTAC | xv

iii

Overview

ACX2000 and ACX2100 System Overview | 17

ACX2000 and ACX2100 Universal Metro Router Overview | 17

Benefits of the ACX2000 and ACX2100 Routers | 18

ACX2000 Router Description | 18

ACX2100 Router Description | 19

ACX2000 and ACX2100 Routers Hardware and CLI Terminology Mapping | 20

ACX2000 Hardware and CLI Terminology Mapping | 20

ACX2100 Hardware and CLI Terminology Mapping | 22

Packet Flow on ACX Series Routers | 24

Protocols and Applications Supported by ACX Series Routers | 26

ACX2000 Chassis Components | 47

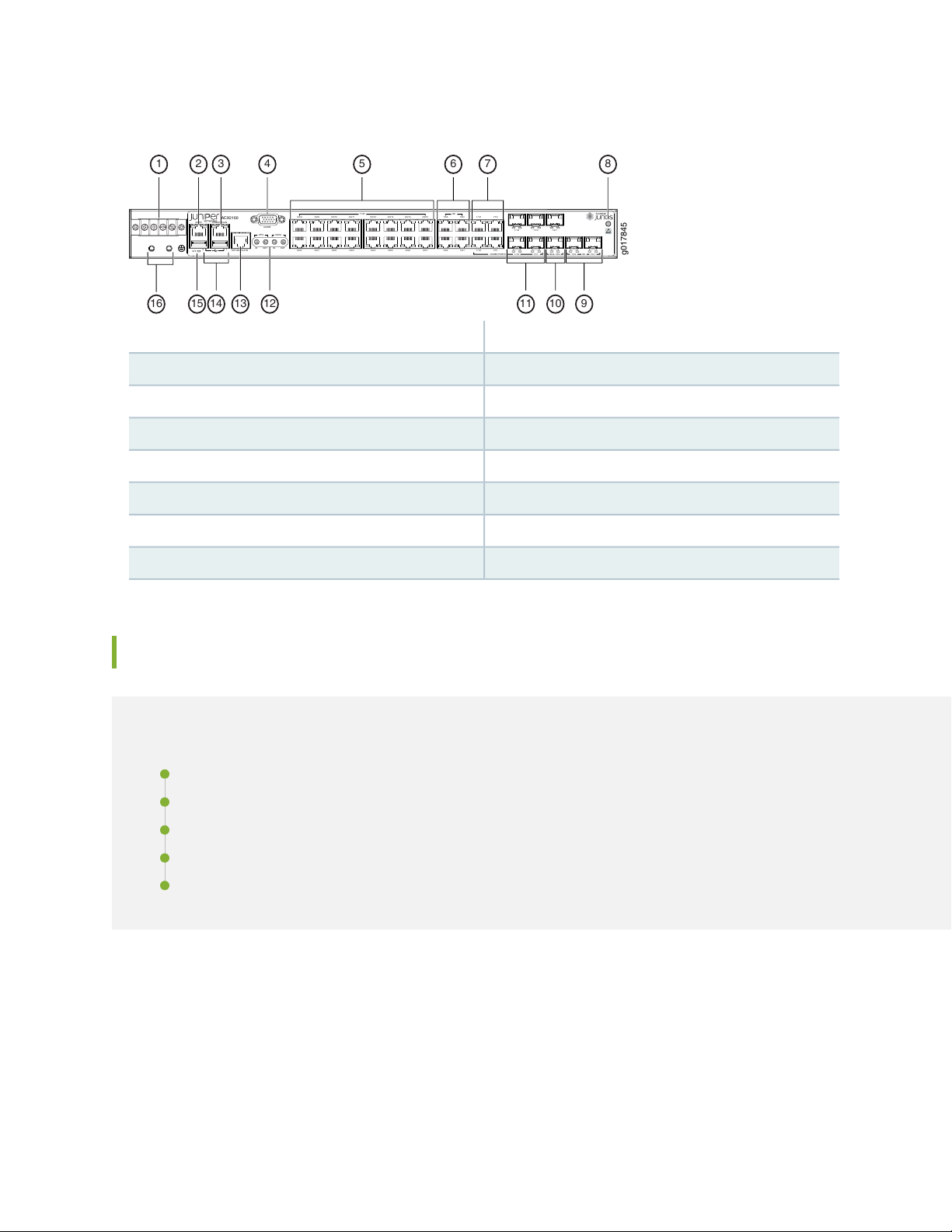

Front Panel of an ACX2000 Router | 47

Front Panel of an ACX2100 Router | 48

Uplink Ports on ACX2000 and ACX2100 Routers | 50

T1/E1 Ports | 51

Gigabit Ethernet RJ-45 Ports | 52

PoE Ports | 52

Gigabit Ethernet SFP Ports | 53

10-Gigabit Ethernet SFP+ Ports | 54

ACX2000 and ACX2100 Alarm Contact Port | 54

Clocking Ports on the ACX2000 and the ACX2100 Router | 56

LEDs on ACX2000 and ACX2100 Routers | 57

System LED on the Front Panel | 57

T1/E1 Port LEDs | 58

Ethernet Port LEDs | 58

PoE Port LEDs | 59

SFP and SFP+ Port LEDs | 59

Management and Console Port LEDs on the Front Panel | 60

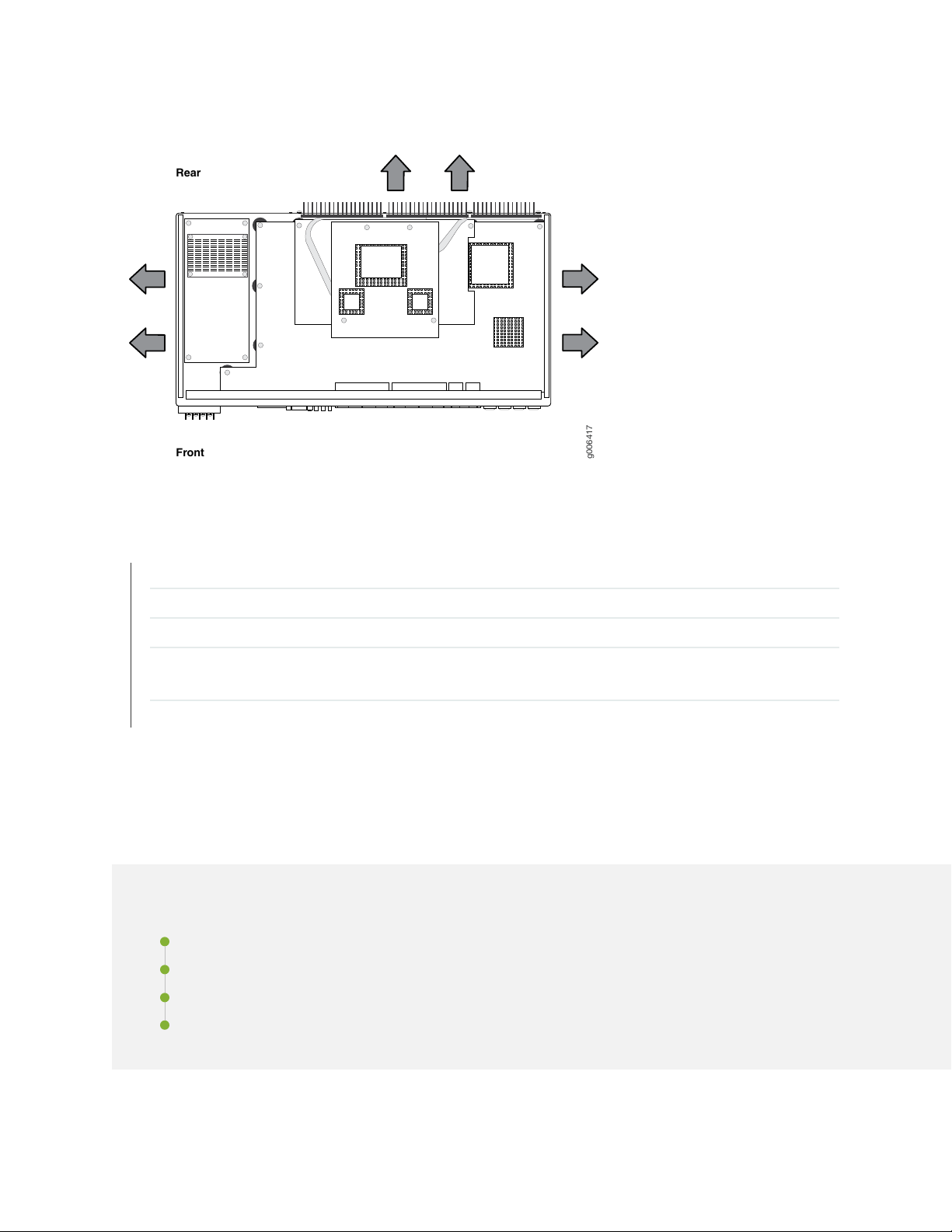

Cooling System and Airflow in an ACX2000 and ACX2100 Router | 60

ACX2000 Power System | 61

ACX2000 and ACX2100 Power Overview | 62

ACX2100 AC Power Specifications | 62

ACX2100 AC Power Cord Specifications | 63

ACX2000 and ACX2100 DC Power Specifications | 65

Site Planning, Preparation, and Specifications

Site Preparation Checklist for ACX2000 and ACX2100 Routers | 68

ACX2000 and ACX2100 Site Guidelines and Requirements | 69

General Site Guidelines | 70

Site Electrical Wiring Guidelines | 70

Clearance Requirements for Airflow and Hardware Maintenance on ACX2000 and ACX2100

Routers | 71

Chassis Physical Specifications for ACX2000 and ACX2100 Routers | 72

ACX2000 and ACX2100 Router Environmental Specifications | 73

ACX2000 and ACX2100 Chassis Grounding Cable and Lug Specifications | 74

Grounding Points Specifications | 74

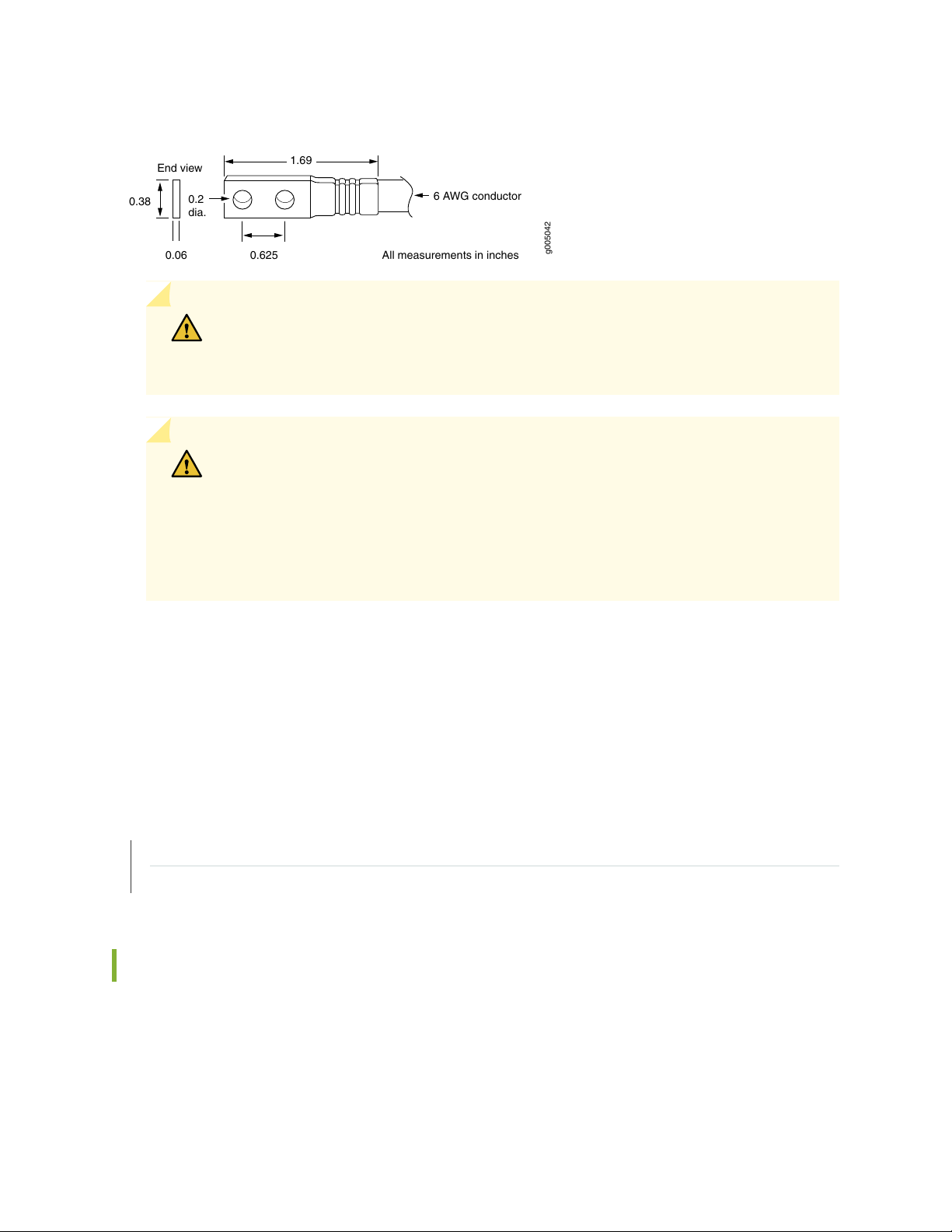

Grounding Cable Lug Specifications | 75

Grounding Cable Specifications | 76

Cabinet Requirements for ACX2000 and ACX2100 Routers | 76

Rack Requirements for ACX2000 and ACX2100 Routers | 78

ACX2000 and ACX2100 Network Cable and Transceiver Planning | 80

Determining Transceiver Support and Specifications | 80

Calculating Power Budget and Power Margin for Fiber-Optic Cables | 81

How to Calculate Power Budget for Fiber-Optic Cable | 81

How to Calculate Power Margin for Fiber-Optic Cable | 82

Fiber-Optic Cable Signal Loss, Attenuation, and Dispersion | 83

Signal Loss in Multimode and Single-Mode Fiber-Optic Cable | 83

Attenuation and Dispersion in Fiber-Optic Cable | 84

ACX2000 and ACX2100 Alarm, Management, and Clocking Cable Specifications and

Pinouts | 85

Alarm Contact Port Pinouts on the ACX2000 and ACX2100 Router | 85

Management Port Connector Pinout Information for ACX Series Routers | 87

Console or Auxiliary Port Connector Pinout on ACX Series Routers | 88

USB Port Specifications for an ACX Series Router | 89

Clocking Ports Specifications on the ACX2000 and the ACX2100 Router | 89

External Clocking Port Connector Specifications | 90

External Clocking Input Port Specifications | 90

Initial Installation and Configuration

Installing and Connecting an ACX2000 or ACX2100 Router Overview | 93

Unpacking and Mounting the ACX2000 and ACX2100 Routers | 94

Unpacking an ACX2000 or ACX2100 Router | 94

Parts Inventory (Packing List) for an ACX2000 and ACX2100 Router | 95

Installing the ACX2000 or ACX2100 Mounting Brackets | 96

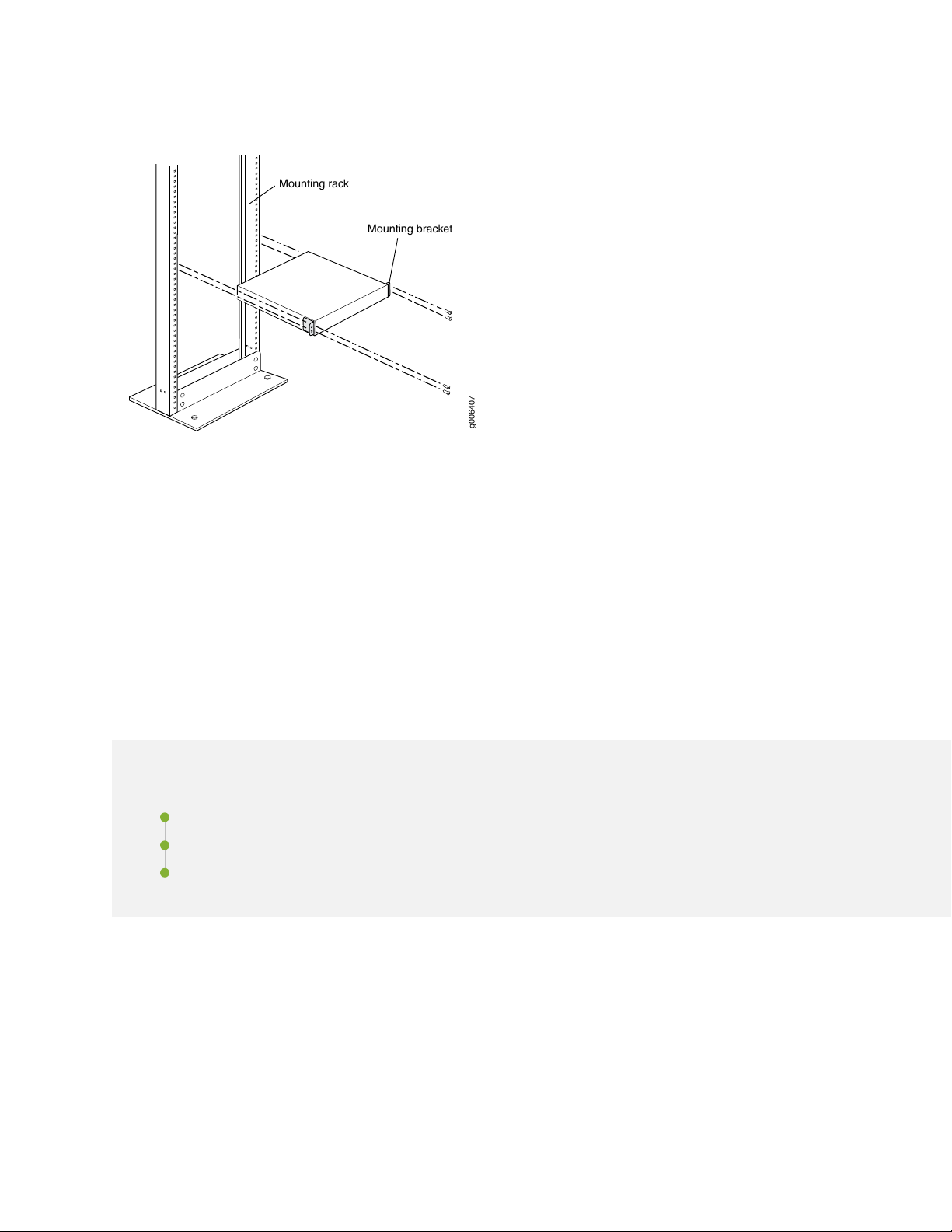

Installing the ACX2000 or ACX2100 Router in the Rack | 97

Connecting the ACX2000 and ACX2100 Routers to Power | 99

Connecting the ACX2000 or ACX2100 Router to Earth Ground | 100

Connecting DC Power Cables to the ACX2000 or ACX2100 Router | 102

Connecting AC Power Cords to the ACX2100 Router | 104

Connecting the ACX2000 and ACX2100 to External Devices | 105

Connecting ACX2000 or ACX2100 Routers to Management Devices | 106

Connecting the Router to a Network for Out-of-Band Management | 106

Connecting the Router to a Management Console or Auxiliary Device | 107

Connecting ACX2000 or ACX2100 Routers to External Clocking Devices | 108

Connecting 1-PPS and 10-MHz Timing Devices to the Router | 108

Connecting a T1 or E1 External Clocking Device to the Router | 109

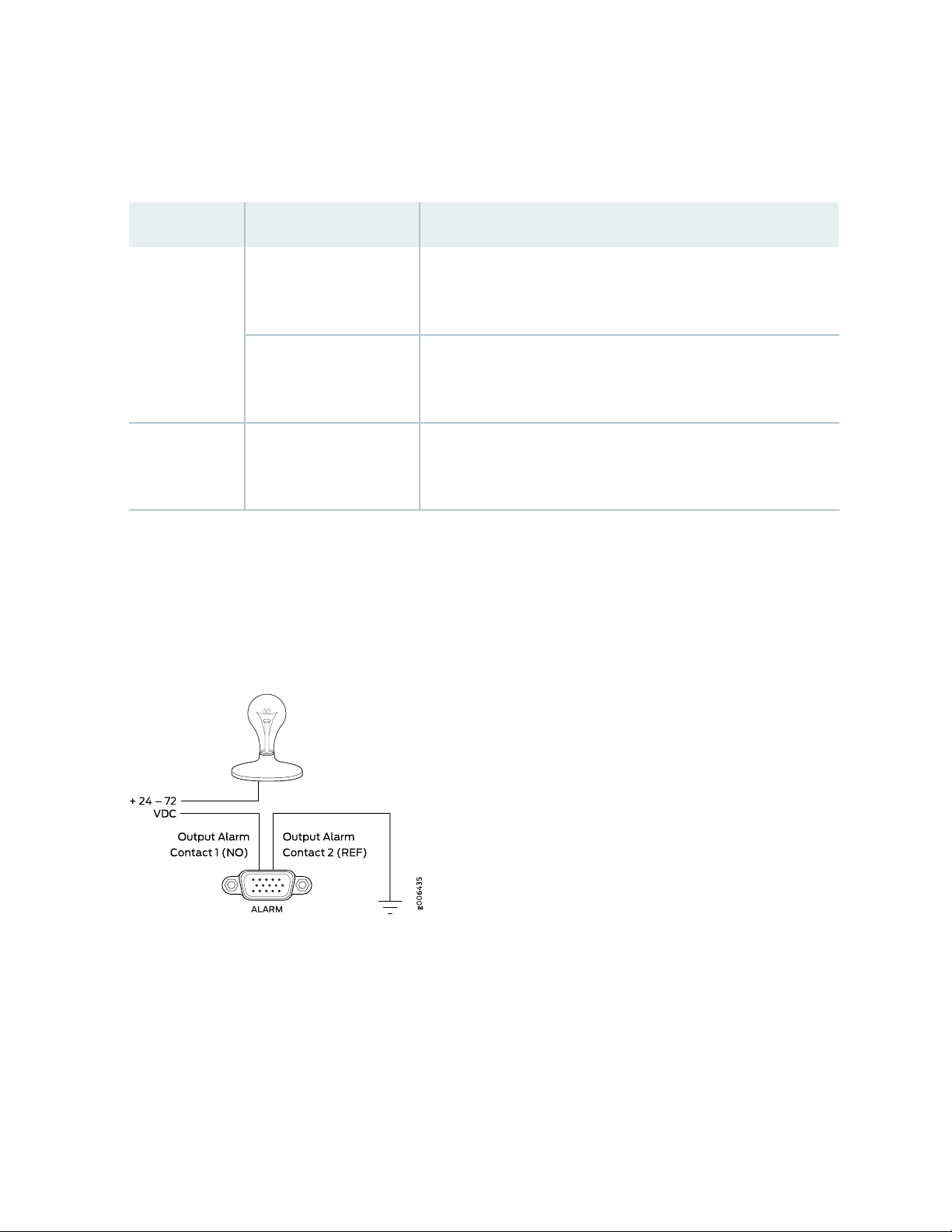

Connecting ACX2000 or ACX2100 Routers to an External Alarm-Reporting Device | 110

Initially Configuring the ACX2000 or ACX2100 Router | 111

Maintaining Components

Maintaining ACX2000 and ACX2100 Components | 117

Routine Maintenance Procedures for the ACX2000 and ACX2100 Router | 117

Maintaining Cables That Connect to ACX2000 or ACX2100 Network Ports | 117

Maintaining the ACX2000 and ACX2100 Uplink Ports | 118

Removing a Transceiver from the ACX2000 or ACX2100 | 119

Installing a Transceiver in the ACX2000 or ACX2100 | 121

Replacing an ACX2000 or ACX2100 Management Ethernet Cable | 122

Removing an ACX2000 or ACX2100 Management Ethernet Cable | 122

Installing an ACX2000 and ACX2100 Management Ethernet Cable | 123

Replacing an ACX2000 or ACX2100 Console or Auxiliary Cable | 123

Removing an ACX2000 or ACX2100 Console or Auxiliary Cable | 123

Installing an ACX2000 or ACX2100 Console or Auxiliary Cable | 124

Troubleshooting Hardware

Troubleshooting ACX2000 and ACX2100 | 126

Troubleshooting Resources for ACX2000 and ACX2100 Routers | 126

Command-Line Interface | 126

Front Panel LEDs | 126

Monitoring System Log Messages | 127

Alarm Types and Severity Classes on ACX Series Routers | 127

Alarm Types | 128

Alarm Severity Classes | 128

Verifying Active Alarms | 128

Contacting Customer Support and Returning the Chassis or Components

Contacting Customer Support and Returning the Chassis or Components | 131

How to Return a Hardware Component to Juniper Networks, Inc. | 131

Locating the Serial Number on a ACX2000 or ACX2100 Chassis or Component | 132

ACX2000 and ACX2100 Chassis Serial Number Label | 133

Guidelines for Packing Hardware Components for Shipment | 133

Packing the ACX Series Router for Shipment | 134

Safety and Compliance Information

General Safety Guidelines and Warnings | 137

Definitions of Safety Warning Levels | 138

Qualified Personnel Warning | 141

vii

Warning Statement for Norway and Sweden | 142

Installation Instructions Warning | 142

Chassis and Component Lifting Guidelines | 143

Restricted Access Warning | 144

Ramp Warning | 146

Rack-Mounting and Cabinet-Mounting Warnings | 147

Grounded Equipment Warning | 153

Radiation from Open Port Apertures Warning | 154

Laser and LED Safety Guidelines and Warnings | 155

General Laser Safety Guidelines | 155

Class 1 Laser Product Warning | 156

Class 1 LED Product Warning | 157

Laser Beam Warning | 158

Maintenance and Operational Safety Guidelines and Warnings | 158

Battery Handling Warning | 160

Jewelry Removal Warning | 161

Lightning Activity Warning | 163

Operating Temperature Warning | 164

Product Disposal Warning | 166

General Electrical Safety Guidelines and Warnings | 167

Action to Take After an Electrical Accident | 168

Prevention of Electrostatic Discharge Damage | 168

ACX2100 AC Power Electrical Safety Guidelines | 170

AC Power Disconnection Warning | 171

ACX2000 and ACX2100 DC Power Electrical Safety Guidelines | 172

DC Power Copper Conductors Warning | 173

DC Power Disconnection Warning | 174

viii

DC Power Grounding Requirements and Warning | 176

DC Power Wiring Sequence Warning | 178

DC Power Wiring Terminations Warning | 181

Midplane Energy Hazard Warning | 183

Multiple Power Supplies Disconnection Warning | 184

TN Power Warning | 185

Agency Approvals for ACX2000 and ACX2100 Routers | 185

Compliance Statements for NEBS for ACX2000 and ACX2100 Routers | 187

Compliance Statements for EMC Requirements for ACX2000 and ACX2100 Routers | 188

Canada | 188

European Community | 188

Israel | 188

Japan | 189

United States | 189

Compliance Statements for Environmental Requirements | 190

Compliance Statements for Acoustic Noise for ACX2000 and ACX2100 Routers | 190

About the Documentation

IN THIS SECTION

Documentation and Release Notes | ix

Using the Examples in This Manual | ix

Documentation Conventions | xi

Documentation Feedback | xiv

Requesting Technical Support | xiv

Use this guide to install hardware and perform initial software configuration, routine maintenance, and troubleshooting for the ACX2000 and ACX2100 Universal Metro router. After completing the installation and basic configuration procedures covered in this guide, refer to the Junos OS documentation for information about further software configuration.

Documentation and Release Notes

To obtain the most current version of all Juniper Networks®technical documentation, see the product documentation page on the Juniper Networks website at https://www.juniper.net/documentation/.

If the information in the latest release notes differs from the information in the documentation, follow the product Release Notes.

Juniper Networks Books publishes books by Juniper Networks engineers and subject matter experts. These books go beyond the technical documentation to explore the nuances of network architecture, deployment, and administration. The current list can be viewed at https://www.juniper.net/books.

Using the Examples in This Manual

If you want to use the examples in this manual, you can use the load merge or the load merge relative command. These commands cause the software to merge the incoming configuration into the current candidate configuration. The example does not become active until you commit the candidate configuration.

If the example configuration contains the top level of the hierarchy (or multiple hierarchies), the example is a full example. In this case, use the load merge command.

If the example configuration does not start at the top level of the hierarchy, the example is a snippet. In this case, use the load merge relative command. These procedures are described in the following sections.

Merging a Full Example

To merge a full example, follow these steps:

1. From the HTML or PDF version of the manual, copy a configuration example into a text file, save the file with a name, and copy the file to a directory on your routing platform.

For example, copy the following configuration to a file and name the file ex-script.conf. Copy the ex-script.conf file to the /var/tmp directory on your routing platform.

system {

scripts {

commit {

file ex-script.xsl;

}

} } interfaces {

fxp0 {

disable; unit 0 {

family inet {

address 10.0.0.1/24;

}

} }

2. Merge the contents of the file into your routing platform configuration by issuing the load merge configuration mode command:

[edit] user@host# load merge /var/tmp/ex-script.conf load complete

Merging a Snippet

To merge a snippet, follow these steps:

1. From the HTML or PDF version of the manual, copy a configuration snippet into a text file, save the file with a name, and copy the file to a directory on your routing platform.

For example, copy the following snippet to a file and name the file ex-script-snippet.conf. Copy the ex-script-snippet.conf file to the /var/tmp directory on your routing platform.

commit {

file ex-script-snippet.xsl; }

2. Move to the hierarchy level that is relevant for this snippet by issuing the following configuration mode command:

[edit] user@host# edit system scripts [edit system scripts]

3. Merge the contents of the file into your routing platform configuration by issuing the load merge relative configuration mode command:

[edit system scripts] user@host# load merge relative /var/tmp/ex-script-snippet.conf load complete

For more information about the load command, see CLI Explorer.

Documentation Conventions

Table 1 on page xii defines notice icons used in this guide.

Table 1: Notice Icons

xii

DescriptionMeaningIcon

Indicates important features or instructions.Informational note

Caution

Indicates a situation that might result in loss of data or hardware damage.

Alerts you to the risk of personal injury or death.Warning

Alerts you to the risk of personal injury from a laser.Laser warning

Indicates helpful information.Tip

Alerts you to a recommended use or implementation.Best practice

Table 2 on page xii defines the text and syntax conventions used in this guide.

Table 2: Text and Syntax Conventions

ExamplesDescriptionConvention

Fixed-width text like this

Italic text like this

Represents text that you type.Bold text like this

Represents output that appears on the terminal screen.

Introduces or emphasizes important

•

new terms.

Identifies guide names.

•

Identifies RFC and Internet draft

•

titles.

To enter configuration mode, type the configure command:

user@host> configure

user@host> show chassis alarms

No alarms currently active

A policy term is a named structure

•

that defines match conditions and actions.

Junos OS CLI User Guide

•

RFC 1997, BGP Communities

•

Attribute

Table 2: Text and Syntax Conventions (continued)

xiii

ExamplesDescriptionConvention

Italic text like this

Text like this

< > (angle brackets)

| (pipe symbol)

Represents variables (options for which you substitute a value) in commands or configuration statements.

Represents names of configuration statements, commands, files, and directories; configuration hierarchy levels; or labels on routing platform components.

variables.

Indicates a choice between the mutually exclusive keywords or variables on either side of the symbol. The set of choices is often enclosed in parentheses for clarity.

Configure the machine’s domain name:

[edit] root@# set system domain-name

domain-name

To configure a stub area, include

•

the stub statement at the [edit protocols ospf area area-id]

hierarchy level.

The console port is labeled

•

CONSOLE.

stub <default-metric metric>;Encloses optional keywords or

broadcast | multicast

(string1 | string2 | string3)

# (pound sign)

[ ] (square brackets)

Indention and braces ( { } )

; (semicolon)

GUI Conventions

Indicates a comment specified on the same line as the configuration statement to which it applies.

Encloses a variable for which you can substitute one or more values.

Identifies a level in the configuration hierarchy.

Identifies a leaf statement at a configuration hierarchy level.

rsvp { # Required for dynamic MPLS only

community name members [ community-ids ]

[edit] routing-options {

static {

route default {

nexthop address; retain;

}

Table 2: Text and Syntax Conventions (continued)

xiv

ExamplesDescriptionConvention

Bold text like this

> (bold right angle bracket)

Represents graphical user interface (GUI) items you click or select.

Separates levels in a hierarchy of menu selections.

In the Logical Interfaces box, select

•

All Interfaces.

To cancel the configuration, click

•

Cancel.

In the configuration editor hierarchy, select Protocols>Ospf.

Documentation Feedback

We encourage you to provide feedback so that we can improve our documentation. You can use either of the following methods:

Online feedback system—Click TechLibrary Feedback, on the lower right of any page on the Juniper

•

Networks TechLibrary site, and do one of the following:

Click the thumbs-up icon if the information on the page was helpful to you.

•

Click the thumbs-down icon if the information on the page was not helpful to you or if you have

•

suggestions for improvement, and use the pop-up form to provide feedback.

E-mail—Send your comments to techpubs-comments@juniper.net. Include the document or topic name,

•

URL or page number, and software version (if applicable).

Requesting Technical Support

Technical product support is available through the Juniper Networks Technical Assistance Center (JTAC). If you are a customer with an active Juniper Care or Partner Support Services support contract, or are

covered under warranty, and need post-sales technical support, you can access our tools and resources online or open a case with JTAC.

JTAC policies—For a complete understanding of our JTAC procedures and policies, review the JTAC User

•

Guide located at https://www.juniper.net/us/en/local/pdf/resource-guides/7100059-en.pdf.

Product warranties—For product warranty information, visit https://www.juniper.net/support/warranty/.

•

JTAC hours of operation—The JTAC centers have resources available 24 hours a day, 7 days a week,

•

365 days a year.

Self-Help Online Tools and Resources

For quick and easy problem resolution, Juniper Networks has designed an online self-service portal called the Customer Support Center (CSC) that provides you with the following features:

Find CSC offerings: https://www.juniper.net/customers/support/

•

Search for known bugs: https://prsearch.juniper.net/

•

Find product documentation: https://www.juniper.net/documentation/

•

Find solutions and answer questions using our Knowledge Base: https://kb.juniper.net/

•

Download the latest versions of software and review release notes:

•

https://www.juniper.net/customers/csc/software/

Search technical bulletins for relevant hardware and software notifications:

•

https://kb.juniper.net/InfoCenter/

Join and participate in the Juniper Networks Community Forum:

•

https://www.juniper.net/company/communities/

Create a service request online: https://myjuniper.juniper.net

•

To verify service entitlement by product serial number, use our Serial Number Entitlement (SNE) Tool:

https://entitlementsearch.juniper.net/entitlementsearch/

Creating a Service Request with JTAC

You can create a service request with JTAC on the Web or by telephone.

Visit https://myjuniper.juniper.net.

•

Call 1-888-314-JTAC (1-888-314-5822 toll-free in the USA, Canada, and Mexico).

•

For international or direct-dial options in countries without toll-free numbers, see

https://support.juniper.net/support/requesting-support/.

CHAPTER

Overview

ACX2000 and ACX2100 System Overview | 17

ACX2000 Chassis Components | 47

Cooling System and Airflow in an ACX2000 and ACX2100 Router | 60

ACX2000 Power System | 61

ACX2000 and ACX2100 System Overview

IN THIS SECTION

ACX2000 and ACX2100 Universal Metro Router Overview | 17

ACX2000 and ACX2100 Routers Hardware and CLI Terminology Mapping | 20

Packet Flow on ACX Series Routers | 24

Protocols and Applications Supported by ACX Series Routers | 26

ACX2000 and ACX2100 Universal Metro Router Overview

IN THIS SECTION

Benefits of the ACX2000 and ACX2100 Routers | 18

ACX2000 Router Description | 18

ACX2100 Router Description | 19

The ACX2000 and ACX2100 Universal Metro Routers are principally designed to provide superior management for rapid provisioning to the access network. The ACX Series routers support rich Gigabit Ethernet and 10-Gigabit Ethernet capabilities for uplink, along with support for legacy interfaces and Gigabit Ethernet interfaces for radio and NodeB connectivity in a compact form factor that is environmentally hardened and passively cooled. Seamless, end-to-end MPLS can be used to address legacy and emerging requirements to provide the foundation for a converged network that utilizes the same mobile backhaul infrastructure for business or residential services.

The ACX Series router is a single-board router with a built-in Routing Engine and one Packet Forwarding Engine. Because there is no switching fabric, the single Packet Forwarding Engine takes care of both ingress and egress packet forwarding:

Routing Engine—Provides Layer 3 routing services and network management.

•

Packet Forwarding Engine—Performs Layer 2 and Layer 3 packet switching, route lookups, and packet

•

forwarding.

The ACX Series router is powered by Junos OS, supporting extensive L2 and L3 features, IP and MPLS with traffic engineering, rich network management, fault management, service monitoring and Operation, Administration, and Maintenance (OAM) capabilities, and an open software development kit (SDK) system that allows providers to customize and integrate operations with their own management systems. For a list of related Junos OS documentation, see https://www.juniper.net/documentation/software/junos/.

As part of the mobile backhaul, the ACX Series router at the cell site and the MX Series router at the aggregation layer provide comprehensive end-to-end Ethernet, MPLS, and OAM features with the one Junos OS running on both platforms.

The compact routers are one rack unit (U; that is, 1.75 in., or 4.45 cm) tall. Several routers can be stacked in a single floor-to-ceiling rack for increased port density per unit of floor space.

The chassis is a rigid sheet metal structure that houses all the other router components. The chassis measures 1.75 in. (4.45 cm) high, 9.4 in. (24 cm) deep, and 17.5 in. (44.5 cm) wide. The outer edges of the mounting brackets extend the width to 19 in. (48 cm) (from the front-mounting brackets to the rear of the chassis). The chassis installs in standard 300-mm deep (or larger) enclosed cabinets, 19-in. equipment racks, or telco open-frame racks.

Benefits of the ACX2000 and ACX2100 Routers

Improved operational efficiency with zero-touch deployment (ZTD)—The ACX Series routers support

•

a zero-touch deployment (ZTD) model that significantly reduces the time for any new equipment installation and provisioning, resulting in improved operational efficiency.

Installation flexibility with an environmentally hardened design—Most ACX Series routers are temperature

•

hardened and support passive cooling for outdoor deployments in extreme weather conditions.

ACX2000 Router Description

The ACX2000 router contains sixteen T1/E1 ports, six Gigabit Ethernet ports, and two PoE ports. The ACX2000 router also supports installation of two Gigabit Ethernet SFP transceivers and two 10-Gigabit Ethernet SFP+ transceivers.

The ACX2000 router has one “pseudo” Flexible PIC Concentrator (FPC 0), and four “pseudo” PICs (PIC 0 through 3).

Figure 1 on page 19 shows the front view of the ACX2000 router. Figure 2 on page 19 shows the rear

view.

Figure 1: Front View of the ACX2000 Router

g006402

ACX2000

0/0/12

0/0/13

0/0/14

0/0/4

0/0/5

0/0/6

0/0/7

0/0/15

0/0/8

0/0/9

0/0/10

0/0/11

0/1/0

0/1/1

0/1/2

0/1/3POE

0/1/4

0/1/5

0/1/6

0/1/7POE

EXTREFCLK IN

g006403

g017844

g006403

Figure 2: Rear View of the ACX2000 Router

ACX2100 Router Description

The ACX2100 router contains sixteen T1/E1 ports, and four Gigabit Ethernet ports. The ACX2100 router also contains two ports for installing Gigabit Ethernet SFP transceivers and two ports for installing 10-Gigabit Ethernet SFP+ transceivers. The ports labeled COMBO PORTS provide an additional four copper Gigabit Ethernet ports or four Gigabit Ethernet SFP ports. You can use only one set of combination ports at a time.

The ACX2100 router has two “pseudo” Flexible PIC Concentrators (FPC 0 and FPC 1), and four “pseudo” PICs (PIC 0 through 3).

Figure 3 on page 19 shows the front view of the ACX2100 router. Figure 4 on page 19 shows the rear

view.

Figure 3: Front View of the ACX2100 Router

Figure 4: Rear View of the ACX2100 Router

SEE ALSO

Front Panel of an ACX2000 Router | 47 Front Panel of an ACX2100 Router | 48

ACX2000 and ACX2100 Routers Hardware and CLI Terminology Mapping

IN THIS SECTION

ACX2000 Hardware and CLI Terminology Mapping | 20

ACX2100 Hardware and CLI Terminology Mapping | 22

ACX2000 Hardware and CLI Terminology Mapping

Table 3 on page 20 describes the hardware terms used in ACX2000 router documentation and the

corresponding terms used in the Junos OS command line interface (CLI). Figure 5 on page 22 shows the port locations of the interfaces.

Table 3: CLI Equivalents of Terms Used in Documentation for ACX2000 Routers

Hardware Item (as displayed in the CLI)

FPC (n)

Description (as displayed in the CLI)

Abbreviated name of the Flexible PIC Concentrator (FPC)

Value (as displayed in the CLI)

Value of n is always 0.

Router chassis–ACX2000Chassis

The router does not have actual FPCs. In this case, FPC refers to the router itself.

Additional InformationItemin Documentation

“Chassis Physical Specifications for ACX2000 and ACX2100 Routers” on page 72

Interface Naming Conventions

Used in the Junos OS Operational

Commands

Table 3: CLI Equivalents of Terms Used in Documentation for ACX2000 Routers (continued)

Hardware Item (as displayed in the CLI)

Description (as displayed in the CLI)

Value (as displayed in the CLI)

Additional InformationItemin Documentation

PIC (n)

Abbreviated name of the Physical Interface Card (PIC)

6x 1GE (RJ-45)

•

2x 1GE (POE

•

RJ-45)

n is a value in the range of 0–3.

PIC 016x T1/E1 (RJ-48)

PIC 1One of the following:

PIC 22x 1GE (SFP)

PIC 32x 10GE (SFP+)

The router does not have actual PIC devices; see entries for PIC 0 through PIC 3 for the equivalent item on the router.

Built-in network ports on the front panel of the router

Built-in uplink ports on the front panel of the router

Interface Naming Conventions

Used in the Junos OS Operational

Commands

“ACX2000 and ACX2100 Universal Metro Router Overview” on page 17

Xcvr (n)

supply (n)

Abbreviated name of the transceiver

Built-in power supplyPower

equivalent to the number of the port in which the transceiver is installed.

always 0.

Optical transceiversn is a value

DC power supplyValue of n is

“Uplink Ports on ACX2000 and ACX2100 Routers” on page 50

“ACX2000 and ACX2100 Power Overview” on page 62

Table 3: CLI Equivalents of Terms Used in Documentation for ACX2000 Routers (continued)

ACX2000

MGMT

SYS 0 1

CONSOLE/AUX

ALARM

1PPS

10MHz

IN OUT

T1/E1

0/0/4

0/0/12

0/0/5

0/0/13

0/0/6

0/0/14

0/0/7

0/0/15

0/0/0

0/0/8

0/0/1

0/0/9

0/0/2

0/0/10

0/0/3

0/0/11

0/1/0

0/1/4

0/1/1

0/1/5

0/1/2

0/1/6

0/1/3POE

0/1/7POE

0/2/0

0/2/1 0/3/0 0/3/1

g006414

EXTREF CLKIN

FPC 0, PIC 2 GE 0/2/0-0/2/1

FPC 0, PIC 0 T1/E1 0/0/0-0/0/15

FPC 0, PIC 1 GE 0/1/0-0/1/7

FPC 0, PIC 3 XE 0/3/0-0/3/1

Hardware Item (as displayed in the CLI)

Description (as displayed in the CLI)

Value (as displayed in the CLI)

Additional InformationItemin Documentation

Fan

Fan–Fan

“Cooling System and Airflow in an ACX2000 and ACX2100

NOTE: ACX2000

Router” on page 60

routers are fanless models.

Figure 5: ACX2000 Interface Port Mapping

ACX2100 Hardware and CLI Terminology Mapping

Table 4 on page 22 describes the hardware terms used in ACX2100 router documentation and the

corresponding terms used in the Junos OS command line interface (CLI). Figure 6 on page 24 shows the port locations of the interfaces.

Table 4: CLI Equivalents of Terms Used in Documentation for ACX2100 Routers

Hardware

Value (as displayed in the CLI)

n is a value in the range of 0–1.

Router chassis–ACX2100Chassis

The router does not have actual FPCs. In this case, FPC refers to the router itself.

Item (as displayed in the CLI)

FPC (n)

Description (as displayed in the CLI)

Abbreviated name of the Flexible PIC Concentrator (FPC)

Additional InformationItemin Documentation

“Chassis Physical Specifications for ACX2000 and ACX2100 Routers” on page 72

Interface Naming Conventions

Used in the Junos OS Operational

Commands

Table 4: CLI Equivalents of Terms Used in Documentation for ACX2100 Routers (continued)

Hardware Item (as displayed in the CLI)

Description (as displayed in the CLI)

Value (as displayed in the CLI)

Additional InformationItemin Documentation

PIC (n)

Abbreviated name of the Physical Interface Card (PIC)

4x 1GE (RJ-45)

•

4x 1GE (SFP)

•

n is a value in the range of 0–3.

PIC 0 on FPC 016x T1/E1 (RJ-48)

PIC 0 on FPC 14x 1GE (RJ-45)

PIC 1 on FPC 1One of the following:

PIC 2 on FPC 12x 1GE (SFP)

The router does not have actual PIC devices; see entries for PIC 0 through PIC 3 for the equivalent item on the router.

Built-in network ports on the front panel of the router

Built-in uplink ports on the front panel of the router

Interface Naming Conventions

Used in the Junos OS Operational

Commands

“ACX2000 and ACX2100 Universal Metro Router Overview” on page 17

Xcvr (n)

Power supply (n)

Abbreviated name of the transceiver

Built-in power supply

PIC 3 on FPC 12x 10GE (SFP+)

equivalent to the number of the port in which the transceiver is installed.

always 0.

Built-in uplink ports on the front panel of the router

Optical transceiversn is a value

AC or DC power supplyValue of n is

“ACX2000 and ACX2100 Universal Metro Router Overview” on page 17

“Uplink Ports on ACX2000 and ACX2100 Routers” on page 50

“ACX2000 and ACX2100 Power Overview” on page 62

Table 4: CLI Equivalents of Terms Used in Documentation for ACX2100 Routers (continued)

g017849

ACX2100

MGMT CONSOLE/AUX

SYS

0 1

EXTREF CLKIN

ALARM

OUTIN IN OUT

0/0/8

0/0/0

0/0/9

0/0/1

0/0/10

0/0/2

0/0/11

0/0/3

0/0/12

0/0/4

0/0/13

0/0/5

0/0/6

0/0/14

0/0/7

0/0/15

1/0/0

1/0/2

1/0/1

1/1/11/1/0

1/0/3 1/1/2GE1/1/3

COMBOPORTS XE

1/3/0

1/3/1

T1/E1

1PPS 10MHz

1/1/0 1/1/1

1/2/0

1/1/2 1/1/3 1/2/1

FPC 0, PIC 0 T1/E1 0/0/0-0/0/15

FPC 1, PIC 0 GE 1/0/0-1/0/3

FPC 1, PIC 1 GE 1/1/0-1/1/3

FPC 1, PIC 2 GE 1/2/0-1/2/1

FPC 1, PIC 3 XE 1/3/0-1/3/1

Incoming packet

Ingress classification

In order of decreasing precedence:

MF classification (DFW) Fixed classification BA classification

Queuing Egress rewrite

Outgoing packet

g006408

Buffering Scheduling

Hardware Item (as displayed in the CLI)

Description (as displayed in the CLI)

Value (as displayed in the CLI)

Additional InformationItemin Documentation

Fan

Fan–Fan

“Cooling System and Airflow in an ACX2000 and ACX2100

NOTE: ACX2100

Router” on page 60

routers are fanless models.

Figure 6: ACX2100 Interface Port Mapping

Packet Flow on ACX Series Routers

The class-of-service (CoS) architecture for ACX Series routers is in concept similar to that for MX Series routers. The general architecture for ACX Series routers is shown in Figure 7 on page 24.

Figure 7: ACX Series Router Packet Forwarding and Data Flow

Based on the model, ACX Series routers contain a built-in Routing Engine and Packet Forwarding Engine and can contain both T1/E1 and Gigabit Ethernet Ports.

The Packet Forwarding Engine has one or two “pseudo” Flexible PIC Concentrators. Because there is no switching fabric, the single Packet Forwarding Engine takes care of both ingress and egress packet forwarding.

Fixed classification places all packets in the same forwarding class, or the usual multifield (MF) or behavior

g006428

Rate limiting

BA and fixed classification

Forwarding class and packet loss priority

MF classification

Policing can overwrite forwarding class and packet loss priority

Forwarding class and packet loss priority determine rewrite value

Scheduling and shaping

Scheduling and shaping Forwarding class Qn + packet loss priority

WRED

aggregate (BA) classifications can be used to treat packets differently. BA classification with firewall filters can be used for classification based on IP precedence, DSCP, IEEE, or other bits in the frame or packet header.

However, the ACX Series routers can also employ multiple BA classifiers on the same physical interface. The physical interfaces do not have to employ the same type of BA classifier. For example, a single physical interface can use classifiers based on IP precedence as well as IEEE 802.1p. If the CoS bits of interest are on the inner VLAN tag of a dual-tagged VLAN interface, the classifier can examine either the inner or outer bits. (By default, the classification is done based on the outer VLAN tag.)

Eight queues per egress port support scheduling using the weighted deficit round- robin (WDRR) mechanism, a form of round-robin queue servicing. The supported priority levels are strict-high and default (low). The ACX Series router architecture supports both weighted random early detect (WRED) and weighted tail drop (WTD).

All CoS features are supported at line rate.

The packet pipeline through an ACX Series router is shown in Figure 8 on page 25. Note that the rate limiting is done with an integrated architecture along with all other CoS functions. Scheduling and shaping are supported on the output side.

Figure 8: ACX Series Router Packet Handling

SEE ALSO

ACX2000 and ACX2100 Routers Hardware and CLI Terminology Mapping | 20

Configuring CoS on ACX Series Routers

Protocols and Applications Supported by ACX Series Routers

Table 5 on page 26 contains the first Junos OS Release support for protocols and applications on ACX

Series routers. A dash indicates that the protocol or application is not supported.

NOTE:

The [edit logical-systems logical-system-name] hierarchy level is not supported on ACX Series

•

routers.

The ACX Series routers does not support per-family maximum transmission unit (MTU)

•

configuration. The MTU applied to family inet gets applied to other families as well, even though it can be configured though CLI and visible in show interface extensive output. The only way to use higher MTU for a family is to manipulate the MTU, apply at interface or family inet levels, and let it calculate for each family automatically. MTU values are not limited to 1500 but can range between 256 to 9216.

For more information, see the Knowledge Base (KB) article KB28179 at:

https://kb.juniper.net/InfoCenter/index?page=content&id=KB28179.

Table 5: Protocols and Applications Supported by ACX Series Routers

Protocol or Application

Interface and Encapsulation Types

12.3x51

-D10

––––––Ethernet interfaces—40G

10G

only)

12.2R212.212.2R212.2Ethernet interfaces—1G,

12.3X54 –D15

15.1X54 –D20

–D20

ACX5448ACX500ACX5096ACX5048ACX4000ACX2200ACX2100ACX2000ACX1100ACX1000

18.2R112.3X54 –D20 (Indoor)

12.3X54 –D25 (Outdoor)

18.2R1–15.1X54

––––––12.2R212.2–12.2ATM interfaces (IMA

––––––12.2R212.2–12.2E1 interfaces

––––––12.2R212.2–12.2T1 interfaces

Table 5: Protocols and Applications Supported by ACX Series Routers (continued)

Protocol or Application

ACX5448ACX500ACX5096ACX5048ACX4000ACX2200ACX2100ACX2000ACX1100ACX1000

interfaces (SAToP, CESoP)

Layer 3

-12.2R212.2–12.2Circuit emulation

-D10

–––––SONET/SDH interfaces

-D10 (requires a MIC)

12.2R212.212.2R212.2Static routes

12.2R212.212.2R212.2OSPF

12.3X54 –D15

12.3x51

-D10

12.3x51

-D10

15.1X54 –D20

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

––––12.3x51

18.2R112.3X54

12.3X54 –D25 (Outdoor)

12.2R212.212.2R212.2IS-IS

12.3X54 –D15

12.3x51

-D10

15.1X54 –D20

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

18.2R112.3X54

Table 5: Protocols and Applications Supported by ACX Series Routers (continued)

Protocol or Application

ACX5448ACX500ACX5096ACX5048ACX4000ACX2200ACX2100ACX2000ACX1100ACX1000

Protocol (ICMP)

Protocol (ARP)

12.2R212.212.2R212.2BGP

12.2R212.212.2R212.2Internet Control Message

12.2R212.212.2R212.2Address Resolution

12.3X54 –D15

12.3x51

-D10

12.3x51

-D10

12.3x51

-D10

15.1X54 –D20

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

18.2R112.3X54

Detection (BFD) protocol

Configuration Protocol (DHCP)

12.2R212.212.2R212.2Bidirectional Forwarding

12.2R212.212.2R212.2Dynamic Host

12.3X54 –D15

12.3x51

-D10

12.3x51

-D10

15.1X54 –D20

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

18.2R112.3X54

Table 5: Protocols and Applications Supported by ACX Series Routers (continued)

Protocol or Application

ACX5448ACX500ACX5096ACX5048ACX4000ACX2200ACX2100ACX2000ACX1100ACX1000

(OSPF, IS-IS)

unit (MTU) range (256 to

9192)

12.2R212.212.2R212.2IP fast reroute (FRR)

12.2R212.212.2R212.2Maximum transmission

12.3R112.3R112.3R112.3R1Layer 3 VPNs

12.3X54 –D15

12.3x51

-D10

12.3x51

-D10

12.3x51

-D10

15.1X54 –D20

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

18.2R112.3X54

MPLS, VPLS, VPNs

12.2R212.212.2R212.2RSVP

12.2R212.212.2R212.2LDP (targeted and direct)

12.3X54 –D15

12.3x51

-D10

12.3x51

-D10

15.1X54 –D20

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

18.2R112.3X54

Table 5: Protocols and Applications Supported by ACX Series Routers (continued)

Protocol or Application

ACX5448ACX500ACX5096ACX5048ACX4000ACX2200ACX2100ACX2000ACX1100ACX1000

path (LSP)

12.2R212.212.2R212.2Static label-switched

12.2R212.212.2R212.2FRR

12.2R212.212.2R212.2Traffic engineering

12.3X54 –D15

12.3x51

-D10

12.3x51

-D10

12.3x51

-D10

15.1X54 –D20

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

18.2R112.3X54

Edge to Edge (PWE3 [signaled])

12.2R212.212.2R212.2E-LINE

12.2R212.2–12.2Pseudowire Emulation

12.3X54 –D15

12.3x51

-D10

12.3x51

-D10

15.1X54 –D20

–D20

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

18.2R112.3X54

18.2R1–15.1X54

Table 5: Protocols and Applications Supported by ACX Series Routers (continued)

Protocol or Application

ACX5448ACX500ACX5096ACX5048ACX4000ACX2200ACX2100ACX2000ACX1100ACX1000

monitoring on active and standby pseudowires

12.2R212.212.2R212.2Static Ethernet PWs

12.2R212.212.2R212.2Layer 2 circuits

12.2R212.212.2R212.2IEE802.1ag CC

12.3X54 –D15

12.3x51

-D10

12.3x51

-D10

12.3x51

-D10

15.1X54 –D20

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

18.2R112.3X54

Ethernet Layer 2

(EFM 802.3ah)

––––––VPLS

12.2R212.212.2R212.2Ethernet in the first mile

12.3X54 –D15

12.3x51

-D10

15.1X54 –D20

–D20

15.1X54 –D20

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

18.2R1–15.1X54

18.2R112.3X54

Table 5: Protocols and Applications Supported by ACX Series Routers (continued)

Protocol or Application

ACX5448ACX500ACX5096ACX5048ACX4000ACX2200ACX2100ACX2000ACX1100ACX1000

fault management (CFM)

interface-status type, length, and value (TLV)

QoS

control lists—ACLs)—family

inet

12.2R212.212.2R212.2802.1ag connectivity

12.2R212.212.2R212.2IEE802.1ag

12.2R212.212.2R212.2Firewall filters (access

12.3X54 –D15

12.3x51

-D10

12.3x51

-D10

12.3x51

-D10

15.1X54 –D20

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

18.2R112.3X54

match conditions for MPLS

traffic

ccc/any

12.3X54 –D25 (Outdoor)

12.2R212.212.2R212.2Standard firewall filter

12.2R212.212.2R212.2Firewall filters—family

12.3X54 –D15

12.3x51

-D10

12.3x51

-D10

15.1X54 –D20

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

18.2R112.3X54

Table 5: Protocols and Applications Supported by ACX Series Routers (continued)

Protocol or Application

ACX5448ACX500ACX5096ACX5048ACX4000ACX2200ACX2100ACX2000ACX1100ACX1000

interface

12.2R212.2R112.2R212.2R1Firewall - Port Mirroring

12.2R212.212.2R212.2Policing—per logical

12.2R212.212.2R212.2Policing—per physical

12.2R212.212.2R212.2Policing—per family

12.3X54 –D15

-D10

12.3x51

-D10

12.3x51

-D10

12.3x51

-D10

15.1X54 –D20

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

18.2R1-17.1R117.1R112.3x51

18.2R112.3X54

color blind)

12.3X54 –D25 (Outdoor)

12.2R212.212.2R212.2TrTCM (color aware,

12.2R212.212.2R212.2SrTCM (color aware,

12.3X54 –D15

12.3x51

12.3X54 –D15

-D10

12.3x51

-D10

15.1X54 –D20

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

18.2R112.3X54

Table 5: Protocols and Applications Supported by ACX Series Routers (continued)

Protocol or Application

ACX5448ACX500ACX5096ACX5048ACX4000ACX2200ACX2100ACX2000ACX1100ACX1000

12.2R212.212.2R212.2Host protection

12.2R212.212.2R212.2Eight queues per port

12.2R212.212.2R212.2Priority queuing

12.3X54 –D15

12.3x51

-D10

12.3x51

-D10

12.3x51

-D10

15.1X54 –D20

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

18.2R112.3X54

different priorities

12.2R212.212.2R212.2Rate control

12.2R212.212.2R212.2Scheduling with two

12.3X54 –D15

12.3x51

-D10

12.3x51

-D10

15.1X54 –D20

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

18.2R112.3X54

Table 5: Protocols and Applications Supported by ACX Series Routers (continued)

Protocol or Application

ACX5448ACX500ACX5096ACX5048ACX4000ACX2200ACX2100ACX2000ACX1100ACX1000

detection (WRED) drop profile (DP)

12.2R212.212.2R212.2Low-latency queue (LLQ)

12.2R212.212.2R212.2Weighted random early

12.2R212.212.2R212.2Classification—DSCP

12.3X54 –D15

12.3x51

-D10

12.3x51

-D10

12.3x51

-D10

15.1X54 –D20

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

18.2R112.3X54

802.1p

12.2R212.212.2R212.2Classification—MPLS EXP

12.2R212.212.2R212.2Classification—IEEE

12.3X54 –D15

12.3x51

-D10

12.3x51

-D10

15.1X54 –D20

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

18.2R112.3X54

Table 5: Protocols and Applications Supported by ACX Series Routers (continued)

Protocol or Application

ACX5448ACX500ACX5096ACX5048ACX4000ACX2200ACX2100ACX2000ACX1100ACX1000

12.2R212.212.2R212.2Rewrite—DSCP

12.2R212.212.2R212.2Rewrite MPLS EXP

12.2R212.212.2R212.2Rewrite 802.1p

12.3X54 –D15

12.3x51

-D10

12.3x51

-D10

12.3x51

-D10

15.1X54 –D20

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

18.2R112.3X54

to different values

Timing

1588-2008–backup clock

12.2R212.212.2R212.2Rewrite MPLS and DSCP

12.2R212.212.2R212.2Timing-1588-v2,

12.3X54 –D15

12.3x51

-D10

15.1X54 –D20

––12.3x51

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

18.2R112.3X54

Table 5: Protocols and Applications Supported by ACX Series Routers (continued)

Protocol or Application

ACX5448ACX500ACX5096ACX5048ACX4000ACX2200ACX2100ACX2000ACX1100ACX1000

timing supply (BITS)

12.2R212.212.2R212.2Synchronous Ethernet

12.2R212.212.2R212.2Building-integrated

12.2R212.212.2R212.2Clock synchronization

12.3X54 –D15

-D10

––12.3x51

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

––12.3x51

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

––12.3x51

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

18.2R112.3X54

-12.3X54

(multiple 1588 primaries)

OAM, Troubleshooting, Manageability, Lawful Intercept

-–––––––––Redundant clock

––––––Transparent clock

15.1X54 –D20

–D20

––––––––Grand Primary Clock

–D20 and

17.3R1 (Indoor)

12.3X54 –D25 (Outdoor)

18.2R1–15.1X54

-12.3X54

Table 5: Protocols and Applications Supported by ACX Series Routers (continued)

Protocol or Application

ACX5448ACX500ACX5096ACX5048ACX4000ACX2200ACX2100ACX2000ACX1100ACX1000

(NTP)

12.2R212.212.2R212.2Network Time Protocol

12.2R212.212.2R212.2SNMP

12.2R212.212.2R212.2802.1ag CFM

12.3X54 –D15

12.3x51

-D10

12.3x51

-D10

12.3x51

-D10

15.1X54 –D20

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

18.2R112.3X54

Performance Management

12.2R212.212.2R212.2802.3ah LFM

12.2R212.212.2R212.2Y.1731 Fault and

12.3X54 –D15

12.3x51

-D10

12.3x51

-D10

15.1X54 –D20

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

18.2R112.3X54

Table 5: Protocols and Applications Supported by ACX Series Routers (continued)

Protocol or Application

ACX5448ACX500ACX5096ACX5048ACX4000ACX2200ACX2100ACX2000ACX1100ACX1000

12.2R212.212.2R212.2MPLS OAM

12.2R212.212.2R212.2RMON

12.2R212.212.2R212.2Layer 2 traceroute

12.3X54 –D15

12.3x51

-D10

12.3x51

-D10

12.3x51

-D10

15.1X54 –D20

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

18.2R112.3X54

downloads

12.2R212.212.2R212.2DNS

12.2R212.212.2R212.2TFTP for software

12.3X54 –D15

12.3x51

-D10

12.3x51

-D10

15.1X54 –D20

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

18.2R112.3X54

Table 5: Protocols and Applications Supported by ACX Series Routers (continued)

Protocol or Application

ACX5448ACX500ACX5096ACX5048ACX4000ACX2200ACX2100ACX2000ACX1100ACX1000

mirroring)

12.2R212.212.2R212.2Port mirroring (local port

12.2R212.212.2R212.2Interface loopback

12.2R212.212.2R212.2Ethernet loopback

12.3X54 –D15

-D10

12.3x51

-D10

15.1X54 –D20

––12.3x51

15.1X54 –D20

––12.3x51

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

18.2R112.3X54

-12.3X54

stats

12.2R212.212.2R212.2Interface byte and packet

12.2R212.212.2R212.2Interface queue stats

12.3X54 –D15

12.3x51

-D10

12.3x51

-D10

15.1X54 –D20

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

18.2R112.3X54

Table 5: Protocols and Applications Supported by ACX Series Routers (continued)

Protocol or Application

ACX5448ACX500ACX5096ACX5048ACX4000ACX2200ACX2100ACX2000ACX1100ACX1000

connection by VLAN-ID

passive-monitor-mode

12.2R212.212.2R212.2Drop packet stats

12.2R212.212.2R212.2Distinguish each 802.1ag

12.2R212.212.2R212.2Interface

12.3X54 –D15

12.3x51

-D10

12.3x51

-D10

12.3x51

-D10

15.1X54 –D20

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

18.2R112.3X54

Security

––––––––Multipacket mirror

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

12.2R212.212.2R212.2TACACS AAA

12.3X54 –D15

12.3x51

-D10

15.1X54 –D20

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

-12.3X54

18.2R112.3X54

Table 5: Protocols and Applications Supported by ACX Series Routers (continued)

Protocol or Application

ACX5448ACX500ACX5096ACX5048ACX4000ACX2200ACX2100ACX2000ACX1100ACX1000

prevention

High Availability

12.2R212.212.2R212.2RADIUS authentication

12.2R212.212.2R212.2Control plane DOS

12.2R212.212.2R212.2MPLS FRR

12.3X54 –D15

12.3x51

-D10

12.3x51

-D10

12.3x51

-D10

15.1X54 –D20

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

18.2R112.3X54

ATM Transport

12.3X54 –D25 (Outdoor)

12.2R212.212.2R212.2BFD

12.2R212.2–12.2ATM over PWE3

12.3X54 –D15

12.3x51

-D10

15.1X54 –D20

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

18.2R112.3X54

-–––12.3x51

Table 5: Protocols and Applications Supported by ACX Series Routers (continued)

Protocol or Application

ACX5448ACX500ACX5096ACX5048ACX4000ACX2200ACX2100ACX2000ACX1100ACX1000

encapsulation: S6.1 ATM N to one cell mode (required as per standard)

AAL5 SDU encapsulation (optional)

12.2R212.212.2R212.2RFC4717 ATM

12.2R212.212.2R212.2RFC4717: S6.3—ATM

12.2R212.212.2R212.2ATM PWE3 control word

12.3X54 –D15

-D10

––12.3x51

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

––12.3x51

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

––12.3x51

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

-12.3X54

dynamic labels

12.2R212.212.2R212.2ATM PWE3 by means of

12.2R212.212.2R212.2ATM VPI/VCI swapping

12.3X54 –D15

-D10

––12.3x51

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

––12.3x51

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

-12.3X54

Table 5: Protocols and Applications Supported by ACX Series Routers (continued)

Protocol or Application

ACX5448ACX500ACX5096ACX5048ACX4000ACX2200ACX2100ACX2000ACX1100ACX1000

suppression

PW promiscuous mode: 1 PW per port and 1 PW per VPI

30 cells per packet)

12.2R212.212.2R212.2ATM idle/unassigned cell

12.2R212.212.2R212.2ATM support for N to 1

12.2R212.212.2R212.2Cell concatenation (1 to

12.3X54 –D15

-D10

––12.3x51

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

––12.3x51

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

––12.3x51

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

-12.3X54

VP and VC

ATM (IMA)

ATM Encapsulation

12.2R212.212.2R212.2Packet/byte counters per

12.2R212.212.2R212.2Inverse multiplexing over

12.3X54 –D15

-D10

––12.3x51

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

––12.3x51

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

-12.3X54

Table 5: Protocols and Applications Supported by ACX Series Routers (continued)

Protocol or Application

ACX5448ACX500ACX5096ACX5048ACX4000ACX2200ACX2100ACX2000ACX1100ACX1000

relay)

ATM Queuing

(CBR, nrt-VBR, UBR) to the UNI

categories to PW EXP bits

12.2R212.212.2R212.2AAL5 SDU (n-to-1 cell

12.2R212.212.2R212.2ATM service categories

12.2R212.212.2R212.2MAP ATM service

12.3X54 –D15

-D10

––12.3x51

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

––12.3x51

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

––12.3x51

–D20 (Indoor)

-12.3X54

12.3X54 –D25 (Outdoor)

12.2R212.212.2R212.2Input policing per VC

12.2R212.212.2R212.2VC output shaping

12.3X54 –D15

-D10

––12.3x51

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

––12.3x51

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

-12.3X54

Table 5: Protocols and Applications Supported by ACX Series Routers (continued)

Protocol or Application

ACX5448ACX500ACX5096ACX5048ACX4000ACX2200ACX2100ACX2000ACX1100ACX1000

MIBs

enterprise-specific MIBs

12.2R212.212.2R212.2Early packet discard

12.2R212.212.2R212.2Standard SNMP MIBs

12.2R212.212.2R212.2Juniper Networks

12.3X54 –D15

-D10

12.3x51

-D10

12.3x51

-D10

15.1X54 –D20

––12.3x51

15.1X54 –D20

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

12.3X54 –D25 (Outdoor)

–D20 (Indoor)

-12.3X54

18.2R112.3X54

SEE ALSO

ACX Series Universal Metro Routers

12.3X54 –D25 (Outdoor)

ACX2000 Chassis Components

IN THIS SECTION

Front Panel of an ACX2000 Router | 47

Front Panel of an ACX2100 Router | 48

Uplink Ports on ACX2000 and ACX2100 Routers | 50

ACX2000 and ACX2100 Alarm Contact Port | 54

Clocking Ports on the ACX2000 and the ACX2100 Router | 56

LEDs on ACX2000 and ACX2100 Routers | 57

Front Panel of an ACX2000 Router

The front panel of an ACX2000 router consists of the following components (see Figure 9 on page 48):

Chassis status LED labeled SYS

•

DC power terminals

•

Two USB ports for upgrading Junos OS

•

Management Ethernet port labeled MGMT

•

Console or auxiliary port labeled CONSOLE/AUX

•

Alarm contact port labeled ALARM—accepts a DE-15 alarm cable

•

External clocking input port labeled EXT REF CLK IN

•

External clocking ports supporting 1PPS and 10MHz input and output

•

Network ports and corresponding status LEDs:

•

Sixteen T1/E1 ports labeled 0/0/0 through 0/0/15

•

Six Gigabit Ethernet RJ-45 ports labeled 0/1/0 through 0/1/2 and 0/1/4 through 0/1/6

•

Two 65-W PoE Gigabit Ethernet ports labeled 0/1/3 POE and 0/1/7 POE that provide electrical

•

current to devices—such as IP phones, wireless access points, and security cameras—through network cables. These ports comply with IEEE 802.3af (PoE) and IEEE 802.3at (PoE+).

Two Gigabit Ethernet (GE) ports labeled 0/2/0 and 0/2/1 that accept SFP transceivers

•

Two 10-Gigabit Ethernet (XE) ports labeled 0/3/0 and 0/3/1 that accept SFP+ transceivers

•

Figure 9: Front Panel of the ACX2000 Router

ACX2000

MGMT

SYS 0 1

CONSOLE/AUX

ALARM

1PPS

10MHz

IN OUT

OUT

T1/E1

0/0/4

0/0/12

0/0/5

0/0/13

0/0/6

0/0/14

0/0/7

0/0/15

0/0/0

0/0/8

0/0/1

0/0/9

0/0/2

0/0/10

0/0/3

0/0/11

0/1/0

0/1/4

0/1/1

0/1/5

0/1/2

0/1/6

0/1/3POE

0/1/7POE

0/2/0

0/2/1 0/3/0 0/3/1

g006412

EXTREF CLKIN

1 2 3 4

1014

1112

8—1— 10-Gigabit Ethernet SFP+ portsDC terminals

9—2— Gigabit Ethernet SFP portsManagement Ethernet port

10—3— External clocking portsConsole or auxiliary port

11—4— External clocking input portAlarm contact port

12—5— USB portsT1/E1 and RJ-45 Gigabit Ethernet network ports

13—6— System LEDPoE Gigabit Ethernet ports

14—7— Grounding terminalsESD point

SEE ALSO

ACX2000 and ACX2100 Universal Metro Router Overview | 17 LEDs on ACX2000 and ACX2100 Routers | 57

Front Panel of an ACX2100 Router

The front panel of an ACX2100 router consists of the following components (see Figure 10 on page 49 and Figure 11 on page 50):

Chassis status LED labeled SYS

•

AC power inlets or DC terminals

•

Two USB ports for upgrading Junos OS

•

Management Ethernet port labeled MGMT

Console or auxiliary port labeled CONSOLE/AUX

Alarm contact port labeled ALARM—accepts a DE-15 alarm cable

External clocking input port labeled EXT REF CLK IN

External clocking ports supporting 1PPS and 10MHz input and output

g017846

ACX2100

MGMT CONSOLE/AUX

SYS

0 1

EXTREF CLKIN

ALARM

OUTIN IN OUT

0/0/8

0/0/0

0/0/9

0/0/1

0/0/10

0/0/2

0/0/11

0/0/3

0/0/12

0/0/4

0/0/13

0/0/5

0/0/6

0/0/14

0/0/7

0/0/15

1/0/0

1/0/2

1/0/1

1/1/11/1/0

1/0/3 1/1/2GE1/1/3

COMBOPORTS XE

1/3/0

1/3/1

T1/E1

1PPS 10MHz

1/1/0 1/1/1

1/2/0

1/1/2 1/1/3 1/2/1

1215

1 2

14 13

•

Network ports and corresponding status LEDs:

•

Sixteen T1/E1 ports labeled 0/0/0 through 0/0/15

•

Four Gigabit Ethernet (GE) ports labeled 1/0/0 through 1/0/3

•

Combination (COMBO) ports labeled 1/1/0 through 1/1/3, either:

•

Four Gigabit Ethernet RJ-45 ports

•

Four Gigabit Ethernet SFP ports

•

Two Gigabit Ethernet (GE) ports labeled 1/2/0 through 1/2/1 that accept SFP transceivers

•

Two 10-Gigabit Ethernet (XE) ports labeled 1/3/0 and 1/3/1 that accept SFP+ transceivers

•

Figure 10: Front Panel of the AC-Powered ACX2100 Router

9—1— Ten-Gigabit Ethernet SFP+ portsAC inlets

10—2— Gigabit Ethernet SFP portsManagement Ethernet port

11—3— Combination Gigabit Ethernet SFP portsConsole or auxiliary port

12—4— External clocking portsAlarm contact port

13—5— External clocking input portT1/E1 network ports

14—6— USB portsGigabit Ethernet network ports

15—7— System LEDCombination Gigabit Ethernet RJ-45 ports

8—ESD point

Figure 11: Front Panel of the DC-Powered ACX2100 Router

g017845

ACX2100

MGMT CONSOLE/AUX

SYS

0 1

EXTREF CLKIN

ALARM

OUTIN IN OUT

0/0/8

0/0/0

0/0/9

0/0/1

0/0/10

0/0/2

0/0/11

0/0/3

0/0/12

0/0/4

0/0/13

0/0/5

0/0/6

0/0/14

0/0/7

0/0/15

1/0/0

1/0/2

1/0/1

1/1/11/1/0

1/0/3 1/1/2GE1/1/3

COMBOPORTS XE

1/3/0

1/3/1

T1/E1

1PPS 10MHz

1/1/0 1/1/1

1/2/0

1/1/2 1/1/3 1/2/1

12 1089

1 2

1114

3 76

16 15

9—1— Ten-Gigabit Ethernet SFP+ portsDC terminals

10—2— Gigabit Ethernet SFP portsManagement Ethernet port

11—3— Combination Gigabit Ethernet SFP portsConsole or auxiliary port

12—4— External clocking portsAlarm contact port

13—5— External clocking input portT1/E1 network ports

14—6— USB portsGigabit Ethernet network ports

15—7— System LEDCombination Gigabit Ethernet RJ-45 ports

16—8— Grounding terminalsESD point

Uplink Ports on ACX2000 and ACX2100 Routers

IN THIS SECTION

T1/E1 Ports | 51

Gigabit Ethernet RJ-45 Ports | 52

PoE Ports | 52

Gigabit Ethernet SFP Ports | 53

10-Gigabit Ethernet SFP+ Ports | 54

Unless otherwise specified, the information about uplink ports applies to both ACX2000 and ACX2100 routers.

TIP: You can find information about the pluggable transceivers supported on your Juniper

Networks device by using the Hardware Compatibility Tool. In addition to transceiver and connector type, the optical and cable characteristics—where applicable—are documented for each transceiver. The Hardware Compatibility Tool allows you to search by product, displaying all the transceivers supported on that device, or category, displaying all the transceivers by interface speed or type. The Hardware Compatibility Tool is located at

https://apps.juniper.net/hct/.

The list of supported transceivers for the ACX2000 is located at

https://apps.juniper.net/hct/product/#prd=ACX2000. The list of supported transceivers for the

ACX2100 is located at https://apps.juniper.net/hct/product/#prd=ACX2100.

T1/E1 Ports

The router has sixteen T1/E1 ports located on the front panel. Table 6 on page 51 describes the ports in more detail.

Table 6: T1/E1 Port Features

DescriptionFeature

Line rate

Encapsulation

Framing

Diagnostic features

E1: 2.048 Mbps per channel

T1: 1.544 Mbps per channel

TDM (SAToP) mode

ATM PWE3/ATM IMA Mode

Superframe (D4)

Extended superframe (ESF)

Framed clear channel

T1/E1

T1 FDL

CSU

BERT

JIT

Table 6: T1/E1 Port Features (continued)

DescriptionFeature

Category 5 shielded twisted pairCable

100-ohm RJ-48 connectorConnector

0/0/0 through 0/0/15Port numbering (hardware)

Port numbering (software)

T1 framing (default): ct1-0/0/0 through ct1-0/0/15

E1 framing: ce1-0/0/0 through ce1-0/0/15

Gigabit Ethernet RJ-45 Ports

The front panel of the ACX2000 router has six Gigabit Ethernet RJ-45 ports, and the ACX2100 router has eight Gigabit Ethernet RJ-45 ports. Table 7 on page 52 describes the ports in more detail.

Table 7: RJ-45 Port Features

DescriptionFeature

Supported standards

10BASE-T Copper

•

100BASE-T

•

1000BASE-T

•

Category 5Cable

RJ-45Connector

Port numbering (hardware)

Port numbering (software)

ACX2000: 0/1/0 through 0/1/2 and 0/1/4 through 0/1/6

•

ACX2100: 1/0/0 through 1/0/3 and 1/1/0 through 1/1/3

•

ACX2000: ge-0/1/0 through ge-0/1/2 and ge-0/1/4 through ge-0/1/6

•

ACX2100: ge-1/0/0 through ge-1/0/3 and ge-1/1/0 through ge-1/1/3

•

PoE Ports

Each ACX2000 router has two PoE Gigabit Ethernet ports. These ports allow you to plug in devices that require both network connectivity and electric power such as IP phones, wireless access points, and security cameras. Table 8 on page 53 describes the ports in more detail.

Table 8: PoE Port Features

Gigabit Ethernet SFP Ports

DescriptionFeature

IEEE 802.3af (PoE) and IEEE 802.3at (PoE+)Supported standards

65 WPer port power limit

Copper Ethernet LAN cableCable

RJ-45Connector

0/1/3 POE and 0/1/7 POEPort numbering (hardware)

ge-0/1/3 and ge-0/1/7Port numbering (software)

The GE ports described in Table 9 on page 53 support small form-factor pluggable (SFP) transceivers.

NOTE: On the ACX2000 router, you can use Gigabit Ethernet transceivers in the GE ports, or

you can use 10-Gigabit Ethernet transceivers in the XE ports. Use one set of ports at a time. On the ACX2100 router, you can use both sets at the same time.

Table 9: SFP Port Features

DescriptionFeature

Supported standards

Cable

Connector

Port numbering (hardware)

See the Hardware Compatibility Tool for the specifications of transceivers supported on the ACX2000 or ACX2100. The list of supported transceivers for the ACX2000 is located at

https://pathfinder.juniper.net/hct/product/#prd=ACX2000. The list of

supported transceivers for the ACX2100 is located at

https://pathfinder.juniper.net/hct/product/#prd=ACX2100.

ACX2000: 0/2/0 and 0/2/1

•

ACX2100: 1/1/0 through 1/1/3 and 1/2/0 and 1/2/1

•

Port numbering (software)

ACX2000: ge-0/2/0 and ge-0/2/1

•

ACX2100: ge-1/1/0 through ge-1/1/3 and ge-1/2/0 and ge-1/2/1

•

10-Gigabit Ethernet SFP+ Ports

The XE ports described in Table 10 on page 54 support SFP+ transceivers.

NOTE: On the ACX2000 router, you can use Gigabit Ethernet transceivers in the GE ports, or

you can use 10-Gigabit Ethernet transceivers in the XE ports. Use one set of ports at a time. On the ACX2100 router, you can use both sets at the same time.

Table 10: SFP+ Port Features

DescriptionFeature

Supported standards

Cable

Connector

Port numbering (hardware)

Port numbering (software)

See the Hardware Compatibility Tool for the specifications of transceivers supported on the ACX2000 or ACX2100. The list of supported transceivers for the ACX2000 is located at

https://pathfinder.juniper.net/hct/product/#prd=ACX2000. The list of

supported transceivers for the ACX2100 is located at

https://pathfinder.juniper.net/hct/product/#prd=ACX2100.

ACX2000: 0/3/0 and 0/3/1

•

ACX2100: 1/1/0 through 1/1/3 and 1/2/0 and 1/2/1

•

ACX2000: xe-0/3/0 and xe-0/3/1

•

ACX2100: xe-1/3/0 through xe-1/3/1

•

ACX2000 and ACX2100 Alarm Contact Port

The ACX2000 and ACX2100 router has four external alarm contacts (also known as potential free contacts) for connecting the router to external alarm devices. The port labeled ALARM uses a 15-pin D-type connector. The external alarm contact has 15 pins that accept a single core wire from external alarm devices. A DE15 alarm cable is required to connect the ACX2000 and ACX2100 router to external alarm devices. Use the gauge wire appropriate for the external device that you are connecting.

Whenever a system condition triggers an alarm, the alarm relay contacts are activated, which in turn activates the external alarm devices. The alarm setting is open or closed.

You can connect and configure two output alarms and four input alarms. Two additional output alarms are reserved and are used to indicate major and minor system alarms. Each output and input alarm has two contacts for connecting the router to external alarm devices. Contact 1 of each alarm can be configured as Normally Open [NO] or Normally Closed [NC] through the CLI. Contact 2 of each alarm functions as a

reference [REF] or negative potential terminal for Contact 1 of the corresponding alarm and provides a current path for external alarm devices. Table 11 on page 55 describes the functions of the alarm contacts.

Table 11: Alarm Relay Contact Functions

FunctionContact NameContact Name

Normally Open (NO)Contact 1

Normally Closed (NC)

Reference (REF)Contact 2

Current is not flowing through Contact 1 and Contact 2 [REF] when operating normally. When the current flows, the closed alarm is generated.

Current is flowing through Contact 1 and Contact 2 [REF] when operating normally. When the current stops flowing, the open alarm is generated.

Provides the current path for the external alarm-reporting device and functions as a reference or negative potential terminal for Contact 1.

Figure 12 on page 55 shows an example of a wiring diagram for a simple output alarm-reporting device.

In this case the device is a light bulb that illuminates when the device encounters a condition that activates the red alarm LED and relay contacts. The alarm relay contacts can also be used to activate other devices such as bells or buzzers.

Figure 12: Sample Output Alarm-Reporting Device

Figure 13 on page 56 shows an example of a wiring diagram for a simple input alarm-reporting device. In

this case the push button switch is an alarm sensor that triggers an input alarm when a door-open condition occurs.

Figure 13: Sample Input Alarm-Reporting Device

SEE ALSO

Alarm Contact Port Pinouts on the ACX2000 and ACX2100 Router | 85

Clocking Ports on the ACX2000 and the ACX2100 Router

The clocking ports acquire the clock source and synchronize communication over time-division multiplexing (TDM) interfaces in the router. The clocking ports distribute a synchronized clock signal throughout the router by locking onto a clock signal originating from an internal clock source or by connecting to an external clock source.

The reference clock inputs can be T1/E1 line clocks, Ethernet recovered clocks, IEEE 1588v2 recovered clocks, or xDSL NTU-R timing. Externally available reference clocks are BITS T1/E1 rate clocks, 1 PPS, and 10 MHz. The four SubMiniature B (SMB) connectors and one RJ-48 port on the front panel of the router connect to external clock signal sources. The clocking ports provide the synchronized output clocks from any one of the above reference inputs based on the clock’s priority.

Internal clock sources within the router include:

External building-integrated timing system (BITS) timing port

•

10-MHz timing connectors (one input and one output)

•

1.544-MHz/2.048 MHz T1/E1 (RJ-48) ports for timing input or output

•

1 pulse-per-second (PPS) connectors (one input and one output)

•

Time-of-Day (TOD) RS232 port

•

SyncE support on RJ-45/SFP ports as timing input or output

•

Packet timing (IEEE 1588v2) includes:

•

Timing input when configured as Ordinary Clock (OC) or Boundary Clock (BC)

•

Timing output when configured as BC

•

SEE ALSO

Clocking Ports Specifications on the ACX2000 and the ACX2100 Router | 89

LEDs on ACX2000 and ACX2100 Routers

IN THIS SECTION

System LED on the Front Panel | 57

T1/E1 Port LEDs | 58

Ethernet Port LEDs | 58

PoE Port LEDs | 59

SFP and SFP+ Port LEDs | 59

Management and Console Port LEDs on the Front Panel | 60

Unless otherwise specified, the information about LEDs applies to both ACX2000 and ACX2100 routers.

System LED on the Front Panel

One bicolor LED labeled SYS indicates the status of the router. Table 12 on page 58 describes the system LED in more detail.

Table 12: System LED on the Front Panel

DescriptionStateColorLabel

Router is transitioning online.BlinkingGreenSYS

Router is functioning normally.On

steadily

Router has reported an alarm.BlinkingRed

Router has failed.On

steadily

T1/E1 Port LEDs

The front panel has sixteen T1/E1 ports, each with one pair of port LEDs. Table 13 on page 58 describes the LEDs in more detail.

Table 13: T1/E1 Port LEDs

DescriptionColorLocationName

Online with no alarms or failures.GreenLeftLink

Active with a local alarm; router has detected a failure.Red

Not enabled.–

Online with alarms for remote failures.YellowRightLink (remote alarms)

Ethernet Port LEDs

The front panel of the ACX2000 router has six Gigabit Ethernet RJ-45 ports, and the ACX2100 router has eight Gigabit Ethernet RJ-45 ports, each with one pair of port LEDs. Table 14 on page 59 describes the LEDs in more detail.

Table 14: Ethernet Port LEDs

DescriptionStateColorLocationName

Link is online.OnAmberRightLink

No link.Off–

The port is receiving data.BlinkingGreenLeftRX

The port is not receiving data.Off–

PoE Port LEDs

The front panel of the ACX2000 router has two PoE Gigabit Ethernet ports, each with one pair of port LEDs. Table 15 on page 59 describes the LEDs in more detail.

Table 15: PoE Port LEDs

DescriptionStateColorLocationName

Link is online.OnAmberRightLink

No link.Off–

The port is receiving data.BlinkingGreenLeftRX

The port is not receiving data.Off–

SFP and SFP+ Port LEDs

The front panel has Gigabit Ethernet SFP ports and 10-Gigabit Ethernet SFP+ ports, each with one pair of port LEDs. Table 16 on page 59 describes the LEDs in more detail.

Table 16: SFP and SFP+ Link LEDs

DescriptionStateColorLocationName

Link is online.OnAmberRightLink

No link.Off–

Table 16: SFP and SFP+ Link LEDs (continued)

DescriptionStateColorLocationName

The port is receiving data.BlinkingGreenLeftRX

The port is not receiving data.Off–

Management and Console Port LEDs on the Front Panel

Two RJ-45 ports, labeled MGMT and CONSOLE/AUX, each have a pair of LEDs that display the status of the port. Table 17 on page 60 describes the LEDs in more detail.

Table 17: Management and Console LEDs

DescriptionStateColorLocationName

Link is online.OnAmberRightLink/Activity

Indicates link activity.BlinkingYellow

No link.Off–

The port is receiving data.BlinkingGreenLeftRX

The port is not receiving data.Off–

SEE ALSO

Troubleshooting Resources for ACX2000 and ACX2100 Routers | 126

Cooling System and Airflow in an ACX2000 and ACX2100 Router

The ACX2000 and ACX2100 routers do not contain fans and are passively cooled by the heatsinks (see

Figure 14 on page 61).

Temperature sensors in the chassis monitor the temperature within the chassis. If the temperature inside the chassis rises above the threshold, the router shuts down automatically.

Figure 14: Cooling System and Airflow in an ACX2000 and ACX2100 Router

g006417

Front

Rear

ACX2000 Power System

IN THIS SECTION

ACX2000 and ACX2100 Power Overview | 62

ACX2100 AC Power Specifications | 62

ACX2100 AC Power Cord Specifications | 63

ACX2000 and ACX2100 DC Power Specifications | 65

ACX2000 and ACX2100 Power Overview

Both ACX2000 and ACX2100 routers are available as DC-powered models. The ACX2100 is also available as an AC-powered model. The power supply in the router is built along the front panel of the chassis, with the DC power terminals or AC inlets on the front to connect power to the router.

Table 18 on page 62 lists the power consumed by the routers.

Table 18: Power Consumed by ACX2000 and ACX2100 Routers

ValueDescription

Maximum power consumed by the router

SEE ALSO

ACX2000 and ACX2100 Universal Metro Router Overview | 17

Connecting DC Power Cables to the ACX2000 or ACX2100 Router | 102 ACX2000 and ACX2100 DC Power Electrical Safety Guidelines | 172

52.8 W @-60V and 0.88A (ACX2100- DC)

62.3 W @264V and 0.236A (ACX2100-AC)

ACX2100 AC Power Specifications

Table 19 on page 62 lists the AC power system electrical specifications.

Table 19: AC Power System Electrical Specifications

SpecificationItem

Operating range: 100 to 240 VACAC input voltage

50 to 60 Hz (nominal)AC input line frequency

2 A (100 VAC) or 1 A (240 VAC)AC system current rating

NOTE: We recommend that you use a dedicated customer site circuit breaker rated for

2 A (100 VAC) or 1 A (240 VAC), or as required by local code. Doing so enables you to operate the router in any configuration without upgrading the power infrastructure.

SEE ALSO

Connecting AC Power Cords to the ACX2100 Router | 104

ACX2100 AC Power Cord Specifications

Each AC power supply has a single AC appliance inlet that requires a dedicated AC power feed. Most sites distribute power through a main conduit that leads to frame-mounted power distribution panels, one of which can be located at the top of the rack that houses the router. An AC power cord connects each power supply to the power distribution panel.

You can order detachable AC power cords, each approximately 8 ft (2.5 m) long that supply AC power to the router. The C15 appliance coupler end of the cord, as described by International Electrotechnical Commission (IEC) standard 60320, inserts into the AC appliance inlet coupler. The plug end of the power cord fits into the power source receptacle that is standard for your geographic location.

Table 20 on page 63 provides specifications on the AC power cord provided for each country or region.

Table 20: AC Power Cord Specifications

Design StandardPlug TypeElectrical SpecificationModel NumberCountry

AS/NZZS 3112-2000SAA/3250 VAC, 10 A, 50 HzCBL-GP-C15-AUAustralia

GB2099, GB1002PRC/3250 VAC, 10 A, 50 HzCBL-GP-C15-CHChina

CEE (7) VIIVIIG250 VAC, 10 A, 50 HzCBL-GP-C15-EUEurope (except Italy, Switzerland, and United Kingdom)

CEI 23–16I/3G250 VAC, 10 A, 50 HzCBL-GP-C15-ITItaly

CBL-GP-C15-JPJapan

JIS 8303498GJ125 VAC, 15 A, 50 Hz or 60

Table 20: AC Power Cord Specifications (continued)

WARNING: The AC power cord for the router is intended for use with the router only

and not for any other use.

Design StandardPlug TypeElectrical SpecificationModel NumberCountry

CEE (7) VIIVIIG250 VAC, 10 A, 50 HzCBL-GP-C15-KRKorea

SEV 1011 / 6534-212G250 VAC, 10 A, 50 HzCBL-GP-C15-SZSwitzerland

NEMA 5-15498G125 VAC, 13 A, 60 HzCBL-GP-C15-USNorth America

BS 1363/ABS89/13250 VAC, 10 A, 50 HzCBL-GP-C15-UKUnited Kingdom

WARNING: The attached power cable is only for this product. Do not use the cable

for another product. Translation in Japanese follows:

NOTE: In North America, AC power cords must not exceed approximately 14.75 ft (4.5 m) in

length, to comply with National Electrical Code (NEC) Sections 400-8 (NFPA 75, 5-2.2) and 210-52, and Canadian Electrical Code (CEC) Section 4-010(3). You can order AC power cords that are in compliance.

CAUTION: Power cords and cables must not block access to device components or

drape where people could trip on them.

SEE ALSO

Connecting AC Power Cords to the ACX2100 Router | 104

ACX2000 and ACX2100 DC Power Specifications

The power supplies in DC-powered ACX2000 and ACX2100 routers are built in along the front left panel of the chassis with DC power terminals to connect power to the router. The power supplies are labeled PS0 and PS1.

When the ACX2100 router are operating normally and both power supplies are switched on, load sharing between them occurs automatically. When one power supply fails or is turned off, the other power supply immediately assumes the entire electrical load for the system. A single power supply can provide full power for as long as the router is operational.

NOTE: When only one power supply is available on an ACX2100 router, we recommend that

you connect both the power inputs to the same source. That is, connect both the DC power inputs of the ACX2100 router to the only available power supply. Doing so ensures that you get the maximum amount of hold-up time during a power failure.

ACX2000 and ACX2100 routers support a wide range of voltage ranges as shown in Table 21 on page 65.

Table 21: DC Power Electrical Specifications

SpecificationItem

DC input voltages

DC input currents

20 to 30 VDC

•

–39 to –56 VDC

•

–39 to –72 VDC

•

10 A @ 24 VDC

•

5 A @ –48 VDC

•

4 A @ –60 VDC

•

110 WPower supply output

65 W per port at 54 VPoE output

NOTE: We recommend that you provide at least 10.5 A @ 24 VDC and use a facility circuit

breaker rated for 10 A minimum. Doing so enables you to operate the router in any configuration without upgrading the power infrastructure, and allows the router to function at full capacity using multiple power supplies.

SEE ALSO

ACX2000 and ACX2100 DC Power Electrical Safety Guidelines | 172

DC Power Copper Conductors Warning | 173

DC Power Disconnection Warning | 174

DC Power Grounding Requirements and Warning | 176

DC Power Wiring Sequence Warning | 178

DC Power Wiring Terminations Warning | 181

CHAPTER

Site Planning, Preparation, and

Specifications

Site Preparation Checklist for ACX2000 and ACX2100 Routers | 68

ACX2000 and ACX2100 Site Guidelines and Requirements | 69

ACX2000 and ACX2100 Network Cable and Transceiver Planning | 80

ACX2000 and ACX2100 Alarm, Management, and Clocking Cable Specifications and Pinouts | 85

Site Preparation Checklist for ACX2000 and ACX2100 Routers

The checklist in Table 22 on page 68 summarizes the tasks you need to perform when preparing a site for router installation.

Table 22: Site Preparation Checklist

Environment

DatePerformed ByFor More InformationItem or Task

Verify that environmental factors such as temperature and humidity do not exceed router tolerances.

Power

Measure the distance between external power sources and router installation site.

Locate sites for connection of system grounding.

Calculate the power consumption and requirements.

Hardware Configuration

Choose the number and types of routers you want to install.

“ACX2000 and ACX2100 Router Environmental Specifications” on page 73

“ACX2000 and ACX2100 DC Power Specifications” on page 65

“ACX2100 AC Power Specifications” on page 62

“ACX2000 and ACX2100 Universal Metro Router Overview” on page 17

Rack or Cabinet

Verify that your rack or cabinet meets the minimum requirements for the installation of the router.

“Rack Requirements for ACX2000 and ACX2100 Routers” on page 78

“Cabinet Requirements for ACX2000 and ACX2100 Routers” on page 76

Table 22: Site Preparation Checklist (continued)

DatePerformed ByFor More InformationItem or Task

Plan rack or cabinet location, including required space clearances.

Secure the rack or cabinet to the floor and building structure.

Cables

Acquire cables and connectors:

Determine the number of cables needed

•

based on your planned configuration.

Review the maximum distance allowed

•

for each cable. Choose the length of cable based on the distance between the hardware components being connected.

Plan the cable routing and management.

“Clearance Requirements for Airflow and Hardware Maintenance on ACX2000 and ACX2100 Routers” on page 71

ACX2000 and ACX2100 Site Guidelines and Requirements

IN THIS SECTION

General Site Guidelines | 70

Site Electrical Wiring Guidelines | 70

Clearance Requirements for Airflow and Hardware Maintenance on ACX2000 and ACX2100 Routers | 71

Chassis Physical Specifications for ACX2000 and ACX2100 Routers | 72

ACX2000 and ACX2100 Router Environmental Specifications | 73

ACX2000 and ACX2100 Chassis Grounding Cable and Lug Specifications | 74

Cabinet Requirements for ACX2000 and ACX2100 Routers | 76

Rack Requirements for ACX2000 and ACX2100 Routers | 78

General Site Guidelines

Efficient device operation requires proper site planning and maintenance and proper layout of the equipment, rack or cabinet (if used), and wiring closet.

To plan and create an acceptable operating environment for your device and prevent environmentally caused equipment failures:

Keep the area around the chassis free from dust and conductive material, such as metal flakes.

•

Follow prescribed airflow guidelines to ensure that the cooling system functions properly and that

•

exhaust from other equipment does not blow into the intake vents of the device.

Follow the prescribed electrostatic discharge (ESD) prevention procedures to prevent damaging the

•

equipment. Static discharge can cause components to fail completely or intermittently over time.

Install the device in a secure area, so that only authorized personnel can access the device.

•

Site Electrical Wiring Guidelines

Table 23 on page 71 describes the factors you must consider while planning the electrical wiring at your

site.

WARNING: You must provide a properly grounded and shielded environment and use

electrical surge-suppression devices.

Table 23: Site Electrical Wiring Guidelines

Site Wiring Factor

Guidelines

Signaling limitations

Radio frequency interference

Electromagnetic compatibility

If your site experiences any of the following problems, consult experts in electrical surge suppression and shielding:

Improperly installed wires cause radio frequency interference (RFI).

•

Damage from lightning strikes occurs when wires exceed recommended distances or pass between

•

buildings.

Electromagnetic pulses (EMPs) caused by lightning damage unshielded conductors and electronic

•

devices.

To reduce or eliminate RFI from your site wiring, do the following:

Use a twisted-pair cable with a good distribution of grounding conductors.

•

If you must exceed the recommended distances, use a high-quality twisted-pair cable with one

•

ground conductor for each data signal when applicable.

If your site is susceptible to problems with electromagnetic compatibility (EMC), particularly from lightning or radio transmitters, seek expert advice.

Some of the problems caused by strong sources of electromagnetic interference (EMI) are:

Destruction of the signal drivers and receivers in the device

•

Electrical hazards as a result of power surges conducted over the lines into the equipment

•

Clearance Requirements for Airflow and Hardware Maintenance on ACX2000 and ACX2100 Routers

When planning the installation site, allow sufficient clearance around the rack (see Figure 15 on page 72):

For service personnel to remove and install hardware components, allow at least 2.16 in. (5.5 cm) in

•

front of the router.

The rack or cabinet must have an adequate supply of cooling air.

•

Ensure that the cabinet allows the chassis hot exhaust air to exit from the cabinet without recirculating

•

into the router.

When deploying the router in harsh environments where the router may operate between 131° F (55°

•

C) and 149° F (65° C), allow a 1–rack unit (U) gap above and below the router.

Ensure that there is a minimum 1 meter/second airflow in any direction.

•

Figure 15: ACX2000 and ACX2100 Chassis Dimensions and Clearance Requirements

RearFront

17.5"

(44.5 cm)

9.4"

(24 cm)

g006404

Front-mounting flange

19.2"

(48.7 cm)

2.16" (5.5 cm)

clearance required

for the cables

.75" (2 cm) clearance required for free airflow

3" (7.6 cm)

SEE ALSO

Installing and Connecting an ACX2000 or ACX2100 Router Overview | 93

Chassis Physical Specifications for ACX2000 and ACX2100 Routers

The ACX2000 router is a rigid sheet-metal structure that houses the hardware components.

Table 24 on page 72 summarizes the physical specifications of the ACX2000 router.

Table 24: Physical Specifications of the ACX2000 and ACX2100 Router Chassis

ValueDescription

1.75 in. (4.45 cm)Height

Width

17.5 in. (44.5 cm)

•

19.2 in. (48.7 cm) with mounting brackets attached

•

9.4 in. (24 cm)Depth

7 lb (3.2 kg)Weight

ACX2000 and ACX2100 Router Environmental Specifications

The router must be installed in a rack or cabinet housed in a dry, clean, well-ventilated, and temperature-controlled environment.

Ensure that these environmental guidelines are followed:

The site must be as dust-free as possible, because dust can clog air intake vents and filters, reducing the

•

efficiency of the router cooling system.

Maintain ambient airflow for normal router operation. If the airflow is blocked or restricted, or if the

•

intake air is too warm, the router might overheat, leading to the router temperature monitor shutting down the router to protect the hardware components.

NOTE: Depending on the ambient temperature, it may take up to 5 minutes for the router to

heat up to the operating temperature.

Table 25 on page 73 provides the required environmental conditions for normal router operation.

Table 25: Router Environmental Specifications

ValueDescription

No performance degradation to 10,000 ft (3048 m)Altitude

Relative humidity

Temperature

Commercial grade SFP/SFP+ temperature

Seismic

Normal operation ensured in relative humidity range of 5% to 90%, noncondensing

Harsh environment: –40°F (–40°C) to 149°F (65°C)

•

Central office environment: 23°F (–5°C) to 131°F (55°C)

•

Harsh environment: –40°F (–40°C) to 122°F (50°C)

•

Central office environment: –40°F (–40°C) to 104°F (40°C)

•

Designed to meet Telcordia Technologies Zone 4 earthquake requirements

Table 25: Router Environmental Specifications (continued)

ValueDescription

Configuration

Harsh environment:

•

PoE Power: 65-W each port (max spec)

•

1GB ports: Full traffic

•

10GB ports: Full traffic 1G ports

•

T1/E1 ports: Full traffic

•

SFP/SFP+: Extended temperature grade or industrial grade

•

Central office environment:

•

PoE Power: 30W each port (max spec)

•

1GB ports: Full traffic

•

10GB ports: Full traffic 1G ports

•

T1/E1 ports: Full traffic

•

SFP/SFP+: Extended temperature grade or industrial grade

•

NOTE: Install the router only in restricted areas, such as dedicated equipment rooms and

equipment closets, in accordance with Articles 110-16, 110-17, and 110-18 of the National Electrical Code, ANSI/NFPA 70.

ACX2000 and ACX2100 Chassis Grounding Cable and Lug Specifications

IN THIS SECTION

Grounding Points Specifications | 74

Grounding Cable Lug Specifications | 75

Grounding Cable Specifications | 76

Grounding Points Specifications

To meet safety and electromagnetic interference (EMI) requirements and to ensure proper operation, the router must be adequately grounded before power is connected. To ground ACX Series routers, you must

connect a grounding cable to earth ground and then attach it to the chassis grounding points using the

ACX2000

MGMT

SYS 0 1

CONSOLE/AUX

ALARM

1PPS

10MHz

OUT

IN OUT

T1/E1

0/0/4

0/0/12

0/0/5

0/0/13

0/0/6

0/0/14

0/0/7

0/0/15

0/0/0

0/0/8

0/0/1

0/0/9

0/0/2

0/0/10

0/0/3

0/0/11

0/1/0

0/1/4

0/1/1

0/1/5

0/1/2

0/1/6

0/1/3POE

0/1/7POE

0/2/0

0/2/1 0/3/0 0/3/1

g006433

EXTREF CLKIN

two paint piercing washers and two screws provided (see Figure 16 on page 75).

Two threaded holes are provided on the front of the router chassis for connecting the router to earth ground. The grounding points fit 0.5-inch-long SAE 10-32 screws (American). The grounding points are spaced at 0.625-in. (15.86-mm) centers.

Figure 16: Grounding Points on the ACX2000 and ACX2100 Router

1—Grounding points

NOTE: All bare grounding connection points to the router must be cleaned and coated with an

antioxidant solution before grounding the router.

NOTE: All surfaces on the router that are unplated must be brought to a bright finish and treated

with an antioxidant solution before connecting the router.

NOTE: All nonconductive surfaces on the router must be removed from all threads and connection

points to ensure electrical continuity.

Grounding Cable Lug Specifications

The grounding cable lug is used to secure the grounding cable to the grounding points on the ACX chassis. The grounding cable lug attaches to the grounding cable (see Figure 17 on page 76) and is secured to the router by two 0.5-inch-long SAE 10–32 screws. We recommend using paint-piercing washers between the grounding lug and the screws. The grounding cable lug, screws, and washers are not supplied with the router.

Figure 17: Grounding Cable Lug

All measurements in inches

0.2 dia.

6 AWG conductor

1.69

0.625

g005042

0.38

End view

0.06

CAUTION: Before router installation begins, a licensed electrician must attach a cable

lug to the grounding and power cables that you supply. A cable with an incorrectly attached lug can damage the router.

CAUTION: The maximum torque rating of the grounding screws on the router is 4.34

lb-in. (0.49 Nm). The grounding screws may be damaged if excessive torque is applied. Use only a torque-controlled driver to tighten screws. Use an appropriately sized driver, with a maximum torque capacity of 5 lb-in. or less. Ensure that the driver is undamaged and properly calibrated and that you have been trained in its use. You may wish to use a driver that is designed to prevent overtorque when the preset torque level is achieved.

Grounding Cable Specifications

You must provide one grounding cable that meets the following specifications: 6-AWG (4.11 mm2), minimum 90°C wire, or as required by the local code.

SEE ALSO

Connecting the ACX2000 or ACX2100 Router to Earth Ground | 100 Prevention of Electrostatic Discharge Damage | 168

Cabinet Requirements for ACX2000 and ACX2100 Routers

You can mount the router in a cabinet that contains a 19-in. (48.3 cm) rack.

Cabinet requirements consist of:

Cabinet size

•

Clearance requirements

•

Cabinet airflow requirements

•

Table 26 on page 77 provides the cabinet requirements and specifications for the router.

Table 26: Cabinet Requirements and Specifications for the ACX2000 and ACX2100 Router

GuidelinesCabinet Requirement

Cabinet size

Cabinet clearance

You can mount the router in a cabinet that contains a

•

19-in. (48.3 cm) rack as defined in Cabinets, Racks, Panels, and Associated Equipment (document number

EIA-310–D) published by the Electronics Industry Association (http://www.eia.org).

NOTE: The cabinet must meet the strength

requirements to support the weight of the router.

The minimum cabinet size must be able to

•

accommodate the maximum external dimensions of the router.

The outer edges of the mounting brackets extend the

•

width of the chassis to 19 in. (48.3 cm).

The minimum total clearance inside the cabinet is 30 in.

•

(76.2 cm) between the inside of the front door and the inside of the rear door.

Table 26: Cabinet Requirements and Specifications for the ACX2000 and ACX2100 Router (continued)

GuidelinesCabinet Requirement

Cabinet airflow requirements

When you mount the router in a cabinet, ensure that ventilation through the cabinet is sufficient to prevent overheating.

Ensure an adequate cool air supply to dissipate the

•

thermal output of the router or routers.

Ensure that the cabinet allows the chassis hot exhaust

•

air to exit the cabinet without recirculating into the router. An open cabinet (without a top or doors) that employs hot air exhaust extraction from the top allows the best airflow through the chassis. If the cabinet contains a top or doors, perforations in these elements assist with removing the hot air exhaust.

Install the router in the cabinet in a way that maximizes

•

the open space on the side of the chassis that has the hot air exhaust. This space maximizes the clearance for critical airflow.

Route and dress all cables to minimize the blockage of

•

airflow to and from the chassis.

Ensure that the spacing of rails and adjacent cabinets

•

allows for the proper clearance around the router and cabinet.

A cabinet larger than the minimum required provides

•

better airflow and reduces the chance of overheating.

SEE ALSO

Installing and Connecting an ACX2000 or ACX2100 Router Overview | 93

Rack Requirements for ACX2000 and ACX2100 Routers

You can mount the router on two-post racks or four-post racks.

Rack requirements consist of:

Rack type

•

Mounting bracket hole spacing

•

Rack size and strength

•

Rack connection to the building structure

•

Table 27 on page 79 provides the rack requirements and specifications for the router.

Table 27: Rack Requirements and Specifications for the Router

GuidelinesRack Requirement

Rack type

Mounting bracket hole spacing

Rack size and strength

Use a two-post rack or a four-post rack. You can mount the router on any two-post or four-post rack that provides bracket holes or hole patterns spaced at 1 U (1.75 in., or 4.45 cm) increments and that meets the size and strength requirements to support the weight.

A U is the standard rack unit defined in Cabinets, Racks, Panels, and Associated Equipment (document number EIA-310–D) published by the Electronics Industry Association (http://www.eia.org).

The rack must meet the strength requirements to support the weight of the chassis.

The holes in the mounting brackets are spaced at 1 U (1.75 in., or 4.45 cm) so that the router can be mounted in any rack that provides holes spaced at that distance.

Ensure that the rack complies with this standard:

•

A 19-in. (48.3 cm) rack as defined in Cabinets, Racks, Panels, and Associated Equipment

•

(document number EIA-310-D) published by the Electronics Industry Association (http://www.eia.org).

Ensure that the rack rails are spaced widely enough to accommodate the router chassis'

•

external dimensions . The outer edges of the front-mounting brackets extend the width of the chassis to 19.2 in. (48.7 cm).

The rack must be strong enough to support the weight of the router.

•

Ensure that the spacing of rails and adjacent racks allows for the proper clearance around

•

the router and rack.

Rack connection to building structure

Secure the rack to the building structure.

•

If earthquakes are a possibility in your geographical area, secure the rack to the floor.

•

Secure the rack to the ceiling brackets as well as to the wall or floor brackets for maximum

•

stability.

One pair of mounting brackets for mounting the router on two posts of a rack is supplied with each router. For mounting the router on four posts of a rack or cabinet, you can order a four-post rack-mount kit separately.

SEE ALSO

Installing and Connecting an ACX2000 or ACX2100 Router Overview | 93

ACX2000 and ACX2100 Network Cable and Transceiver Planning

IN THIS SECTION

Determining Transceiver Support and Specifications | 80

Calculating Power Budget and Power Margin for Fiber-Optic Cables | 81

Fiber-Optic Cable Signal Loss, Attenuation, and Dispersion | 83

Determining Transceiver Support and Specifications

You can find information about the pluggable transceivers supported on your Juniper Networks device by using the Hardware Compatibility Tool. In addition to transceiver and connector type, the optical and cable characteristics—where applicable—are documented for each transceiver. The Hardware Compatibility Tool allows you to search by product, displaying all the transceivers supported on that device, or category, displaying all the transceivers by interface speed or type. The Hardware Compatibility Tool is located at

https://apps.juniper.net/hct/.

Some transceivers support additional monitoring using the operational mode CLI command show interfaces diagnostics optics. Use the Hardware Compatibility Tool to determine if your transceiver supports monitoring. See the Junos OS documentation for your device for a description of the monitoring fields.

CAUTION: If you face a problem running a Juniper Networks device that uses a

third-party optic or cable, the Juniper Networks Technical Assistance Center (JTAC) can help you diagnose the source of the problem. Your JTAC engineer might recommend that you check the third-party optic or cable and potentially replace it with an equivalent Juniper Networks optic or cable that is qualified for the device.

SEE ALSO

show interfaces diagnostics optics (Gigabit Ethernet, 10-Gigabit Ethernet, 40-Gigabit Ethernet, 100-Gigabit Ethernet, and Virtual Chassis Port)

show interfaces diagnostics optics (SONET)

show interfaces diagnostics optics

Calculating Power Budget and Power Margin for Fiber-Optic Cables

Use the information in this topic and the specifications for your optical interface to calculate the power budget and power margin for fiber-optic cables.

TIP: You can use the Hardware Compatibility Tool to find information about the pluggable

transceivers supported on your Juniper Networks device.

To calculate the power budget and power margin, perform the following tasks:

How to Calculate Power Budget for Fiber-Optic Cable | 81

How to Calculate Power Margin for Fiber-Optic Cable | 82

How to Calculate Power Budget for Fiber-Optic Cable

To ensure that fiber-optic connections have sufficient power for correct operation, you need to calculate the link's power budget, which is the maximum amount of power it can transmit. When you calculate the power budget, you use a worst-case analysis to provide a margin of error, even though all the parts of an actual system do not operate at the worst-case levels. To calculate the worst-case estimate of power budget (PB), you assume minimum transmitter power (PT) and minimum receiver sensitivity (PR):

PB= PT– P

The following hypothetical power budget equation uses values measured in decibels (dB) and decibels referred to one milliwatt (dBm):

PB= PT– P

PB= –15 dBm – (–28 dBm)

PB= 13 dB

How to Calculate Power Margin for Fiber-Optic Cable

After calculating a link's power budget, you can calculate the power margin (PM), which represents the amount of power available after subtracting attenuation or link loss (LL) from the power budget (PB). A worst-case estimate of PMassumes maximum LL:

PM= PB– LL

PMgreater than zero indicates that the power budget is sufficient to operate the receiver.

Factors that can cause link loss include higher-order mode losses, modal and chromatic dispersion, connectors, splices, and fiber attenuation. Table 28 on page 82 lists an estimated amount of loss for the factors used in the following sample calculations. For information about the actual amount of signal loss caused by equipment and other factors, refer to vendor documentation.

Table 28: Estimated Values for Factors Causing Link Loss

Estimated Link-Loss ValueLink-Loss Factor

Higher-order mode losses

Modal and chromatic dispersion

Fiber attenuation

Single mode—None

Multimode—0.5 dB

Single mode—None

Multimode—None, if product of bandwidth and distance is less than 500 MHz-km

0.5 dBConnector

0.5 dBSplice

Single mode—0.5 dB/km

Multimode—1 dB/km

The following sample calculation for a 2-km-long multimode link with a power budget (PB) of 13 dB uses the estimated values from Table 28 on page 82 to calculate link loss (LL) as the sum of fiber attenuation

(2 km @ 1 dB/km, or 2 dB) and loss for five connectors (0.5 dB per connector, or 2.5 dB) and two splices (0.5 dB per splice, or 1 dB) as well as higher-order mode losses (0.5 dB). The power margin (PM) is calculated

as follows:

PM= PB– LL

PM= 13 dB – 2 km (1 dB/km) – 5 (0.5 dB) – 2 (0.5 dB) – 0.5 dB

PM= 13 dB – 2 dB – 2.5 dB – 1 dB – 0.5 dB

PM= 7 dB

The following sample calculation for an 8-km-long single-mode link with a power budget (PB) of 13 dB uses the estimated values from Table 28 on page 82 to calculate link loss (LL) as the sum of fiber attenuation

(8 km @ 0.5 dB/km, or 4 dB) and loss for seven connectors (0.5 dB per connector, or 3.5 dB). The power margin (PM) is calculated as follows:

PM= PB– LL

PM= 13 dB – 8 km (0.5 dB/km) – 7(0.5 dB)

PM= 13 dB – 4 dB – 3.5 dB

PM= 5.5 dB

In both examples, the calculated power margin is greater than zero, indicating that the link has sufficient power for transmission and does not exceed the maximum receiver input power.

Fiber-Optic Cable Signal Loss, Attenuation, and Dispersion

IN THIS SECTION

Signal Loss in Multimode and Single-Mode Fiber-Optic Cable | 83

Attenuation and Dispersion in Fiber-Optic Cable | 84

Signal Loss in Multimode and Single-Mode Fiber-Optic Cable

Multimode fiber is large enough in diameter to allow rays of light to reflect internally (bounce off the walls of the fiber). Interfaces with multimode optics typically use LEDs as light sources. However, LEDs are not coherent sources. They spray varying wavelengths of light into the multimode fiber, which reflects the light at different angles. Light rays travel in jagged lines through a multimode fiber, causing signal dispersion. When light traveling in the fiber core radiates into the fiber cladding, higher-order mode loss results. Together these factors limit the transmission distance of multimode fiber compared with single-mode fiber.

Single-mode fiber is so small in diameter that rays of light can reflect internally through one layer only. Interfaces with single-mode optics use lasers as light sources. Lasers generate a single wavelength of light, which travels in a straight line through the single-mode fiber. Compared with multimode fiber, single-mode fiber has higher bandwidth and can carry signals for longer distances.

Exceeding the maximum transmission distances can result in significant signal loss, which causes unreliable transmission.

Attenuation and Dispersion in Fiber-Optic Cable

Correct functioning of an optical data link depends on modulated light reaching the receiver with enough power to be demodulated correctly. Attenuation is the reduction in power of the light signal as it is transmitted. Attenuation is caused by passive media components, such as cables, cable splices, and connectors. Although attenuation is significantly lower for optical fiber than for other media, it still occurs in both multimode and single-mode transmission. An efficient optical data link must have enough light available to overcome attenuation.

Dispersion is the spreading of the signal over time. The following two types of dispersion can affect an optical data link:

Chromatic dispersion—Spreading of the signal over time resulting from the different speeds of light rays.

•

Modal dispersion—Spreading of the signal over time resulting from the different propagation modes in

•

the fiber.

For multimode transmission, modal dispersion, rather than chromatic dispersion or attenuation, usually limits the maximum bit rate and link length. For single-mode transmission, modal dispersion is not a factor. However, at higher bit rates and over longer distances, chromatic dispersion rather than modal dispersion limits maximum link length.

An efficient optical data link must have enough light to exceed the minimum power that the receiver requires to operate within its specifications. In addition, the total dispersion must be less than the limits specified for the type of link in Telcordia Technologies document GR-253-CORE (Section 4.3) and International Telecommunications Union (ITU) document G.957.

When chromatic dispersion is at the maximum allowed, its effect can be considered as a power penalty in the power budget. The optical power budget must allow for the sum of component attenuation, power penalties (including those from dispersion), and a safety margin for unexpected losses.

ACX2000 and ACX2100 Alarm, Management, and Clocking Cable Specifications and Pinouts

IN THIS SECTION

Alarm Contact Port Pinouts on the ACX2000 and ACX2100 Router | 85

Management Port Connector Pinout Information for ACX Series Routers | 87

Console or Auxiliary Port Connector Pinout on ACX Series Routers | 88

USB Port Specifications for an ACX Series Router | 89

Clocking Ports Specifications on the ACX2000 and the ACX2100 Router | 89

Alarm Contact Port Pinouts on the ACX2000 and ACX2100 Router

You can independently configure alarm input ports (0 to 3) to operate in Normally Open or Normally Closed mode, and to trigger a red alarm condition or a yellow alarm condition, or to ignore alarm conditions.

You can independently configure alarm output ports (0 and 1) can be configured to relay alarm information when the system condition goes to a red or yellow alarm condition and when the alarm output port is configured to trigger based on alarm input condition. Alarm output ports (2 and 3) are used to indicate major and minor system alarms and are normally in open mode.

Table 29 on page 85 shows the alarm contact connector pinouts.

Table 29: Alarm Contact Connector Pinouts

Pin Number

Input Alarm Port 0InputALARM_IN0_NO/NC1

FunctionCLI Port MappingDirectionSignal Definition

External alarm input 0 (if voltage on this pin is between 24V to 72V with reference to Pin 6, alarm input 0 is in closed condition)

Input Alarm Port 1InputALARM_IN1_REF2

External alarm input 1 (Reference for Pin

Table 29: Alarm Contact Connector Pinouts (continued)

Pin Number

FunctionCLI Port MappingDirectionSignal Definition

Input Alarm Port 2InputALARM_IN2_NO/NC3

Input Alarm Port 3InputALARM_IN3_NO/NC4

OutputALARM_OUT3_REF5

InputALARM_IN2_IN3_REF8

Reserved for Minor alarm

Input Alarm Port 0InputALARM_IN0_REF6

Input Alarm Port 1InputALARM_IN1_NO/NC7

Input Alarm Port 2 and Input Alarm Port 3

External alarm input 2 (if voltage on this pin is between 24V to 72V with reference to Pin 8, alarm input 2 is in closed condition)

External alarm input 3 (if voltage on this pin is between 24V to 72V with reference to Pin 8, alarm input 3 is in closed condition)

External alarm output 3 (this pin is connected to Pin 10 in closed condition)

External alarm input 0 (Reference for Pin

External alarm input 1 (if voltage on this pin is between 24V to 72V with reference to Pin 2, alarm input 1 is closed)

Common contact for external alarm input 3 and 4 (Reference for Pin 3 and Pin 4)

OutputALARM_OUT2_REF9

OutputALARM_OUT3_NO/NC10

Reserved for Major alarm

Reserved for Minor alarm

Output Alarm Port 0OutputALARM_OUT0_NO/NC11

Output Alarm Port 0OutputALARM_OUT0_REF12

Output Alarm Port 1OutputALARM_OUT1_NO/NC13

External alarm output 2 (this pin is connected to Pin 15 in closed condition)

External alarm output 3 (this pin is connected to Pin 5 in closed condition)

External alarm output 0 (this pin is connected to Pin 12 in closed condition)

External alarm output 0 (this pin is connected to Pin 11 in closed condition)

External alarm output 1 (this pin is connected to Pin 14 in closed condition)

Table 29: Alarm Contact Connector Pinouts (continued)

Pin Number

FunctionCLI Port MappingDirectionSignal Definition

Output Alarm Port 1OutputALARM_OUT1_REF14

OutputALARM_OUT2_NO/NC15

Reserved for Major alarm

External alarm output 1 (this pin is connected to Pin 13 in closed condition)

External alarm output 2 (this pin is connected to Pin 9 in closed condition)

SEE ALSO

ACX2000 and ACX2100 Universal Metro Router Overview | 17

Front Panel of an ACX2000 Router | 47 LEDs on ACX2000 and ACX2100 Routers | 57

Management Port Connector Pinout Information for ACX Series Routers

The management port— labeled MGMT— on an ACX Series router uses an RJ-45 connector to connect to a management device for out-of-band management.

The port uses an autosensing RJ-45 connector to support a 10/100BASE-T connection. Two LEDs indicate link activity on the port and the administrative status of the port.

Table 30 on page 87 provides the pinout information for the RJ-45 connector for the management port.

Table 30: Management Port Connector Pinout Information

DirectionDescriptionPin

In/OutTRD[0]-1

In/OutTRD[0]+2

In/OutTRD[1]-3

In/OutTRD[1]+4

In/OutTRD[2]-5

Table 30: Management Port Connector Pinout Information (continued)

DirectionDescriptionPin

In/OutTRD[2]+6

In/OutTRD[3]-7

In/OutTRD[3]+8

Console or Auxiliary Port Connector Pinout on ACX Series Routers

The port labeled CONSOLE/AUX on the front panel is an asynchronous serial interface that accept an RJ-45 connector. Use a cable with the pinouts described in Table 31 on page 88 to connect the Routing Engine to an auxiliary or console management device.

NOTE: You must use a shielded twisted pair (STP) cable for both outdoor and indoor deployments.

Table 31: Connector Pinout for the Console/Auxiliary Port

DirectionCPUDescriptionSignalPin

OutRouting EngineRequest to SendRTS1

Out1588 CPUTransmit DataTXD2

OutRouting EngineTransmit DataTXD3

––Signal GroundGround4

––Signal GroundGround5

InRouting EngineReceive DataRXD6

In1588 CPUReceive DataRXD7

InRouting EngineClear to SendCTS8

USB Port Specifications for an ACX Series Router

The following Juniper Networks USB flash drives have been tested and are officially supported for the USB port on all ACX Series routers:

RE-USB-1G-S

•

RE-USB-2G-S

•

RE-USB-4G-S

•

CAUTION: Any USB memory product that is not listed as supported for ACX Series

routers has not been tested by Juniper Networks. The use of any unsupported USB memory product could expose your ACX Series router to unpredictable behavior. Juniper Networks Technical Assistance Center (JTAC) can provide only limited support for issues related to unsupported hardware. We strongly recommend that you use only supported USB flash drives.

All USB flash drives used on ACX Series routers must have the following features:

USB 2.0 or later

•

Formatted with a FAT or MS-DOS file system

•

Clocking Ports Specifications on the ACX2000 and the ACX2100 Router

IN THIS SECTION

External Clocking Port Connector Specifications | 90

External Clocking Input Port Specifications | 90

Two sets of clocking ports allow you to connect the ACX2000 and ACX2100 router to external clocking devices.

External Clocking Port Connector Specifications

The external clocking port on the router contains four SMB connectors that support 10 MHz GPS and 1 pulse-per-second (PPS) signals. These signals can also be accessed through the External Clocking Input port. These signals are internally isolated and have surge protection. Use a Molex 50-ohm SMB connector or equivalent (not provided) to connect to the external clocking ports.

External Clocking Input Port Specifications

An external clocking input port labeled EXT REF CLK IN on the front panel of the router allows you to connect external clock signal sources.

The port uses an autosensing RJ-48 connector to support framed T1 or E1 signals. Two LEDs indicate link activity on the port and function in the same way as the T1/E1 ports. The clocking information is extracted from the input, but the data is discarded.

Table 32 on page 90 provides the pinout information for the RJ-48 connector for the external clocking

input port.

Table 32: External Clocking Input Port Connector Pinouts

DirectionDescriptionPin

InputEXT_CLKA_RRING_LINE1

InputEXT_CLKA_RTIP_LINE2

–Reserved3

OutputEXT_CLKA_TRING_LINE4

OutputEXT_CLKA_TTIP_LINE5

–Reserved6

–Reserved7

–Reserved8

SEE ALSO

Clocking Ports on the ACX2000 and the ACX2100 Router | 56

ACX2000 and ACX2100 Universal Metro Router Overview | 17

Front Panel of an ACX2000 Router | 47 LEDs on ACX2000 and ACX2100 Routers | 57

CHAPTER

Initial Installation and Configuration

Installing and Connecting an ACX2000 or ACX2100 Router Overview | 93

Unpacking and Mounting the ACX2000 and ACX2100 Routers | 94

Connecting the ACX2000 and ACX2100 Routers to Power | 99

Connecting the ACX2000 and ACX2100 to External Devices | 105

Initially Configuring the ACX2000 or ACX2100 Router | 111

Installing and Connecting an ACX2000 or ACX2100 Router Overview

To install and connect an ACX2000 or ACX2100 router:

1. Unpack the router and verify the parts received. See “Unpacking an ACX2000 or ACX2100 Router”

on page 94.

2. Install the mounting hardware for your rack or cabinet. See “Installing the ACX2000 or ACX2100

Mounting Brackets” on page 96.

3. Install the router. See “Installing the ACX2000 or ACX2100 Router in the Rack” on page 97.

4. Ground the router. See “Connecting the ACX2000 or ACX2100 Router to Earth Ground” on page 100.

5. Connect the power and power on the router.

AC-powered models—See “Connecting AC Power Cords to the ACX2100 Router” on page 104.

•

DC-powered models—See “Connecting DC Power Cables to the ACX2000 or ACX2100 Router” on

•

page 102.

6. Connect the router to external devices. See:

Connecting ACX2000 or ACX2100 Routers to Management Devices on page 106

•

Connecting ACX2000 or ACX2100 Routers to an External Alarm-Reporting Device on page 110

•

Connecting ACX2000 or ACX2100 Routers to External Clocking Devices on page 108

•

7. Configure the router. See “Initially Configuring the ACX2000 or ACX2100 Router” on page 111

Unpacking and Mounting the ACX2000 and ACX2100 Routers

IN THIS SECTION

Unpacking an ACX2000 or ACX2100 Router | 94

Parts Inventory (Packing List) for an ACX2000 and ACX2100 Router | 95

Installing the ACX2000 or ACX2100 Mounting Brackets | 96

Installing the ACX2000 or ACX2100 Router in the Rack | 97

Unpacking an ACX2000 or ACX2100 Router

The ACX2000 and ACX2100 routers are shipped in a cardboard carton, secured with foam packing material. The carton also contains an accessory box.

CAUTION: The routers are maximally protected inside the shipping carton. Do not

unpack the routers until you are ready to begin installation.

To unpack the router and prepare for installation, you need the following tools:

Blank panels to cover any slots not occupied by a component

•

To unpack the router:

1. Move the shipping carton to a staging area as close to the installation site as possible, but where you have enough room to remove the system components.

2. Position the carton so that the arrows are pointing up.

3. Open the top flaps on the shipping carton.

4. Remove the accessory box, and verify the contents in it against the parts inventory on the label attached to the carton.

5. Pull out the packing material holding the router in place.

6. Verify the chassis components received against the packing list included with the router. An inventory of parts provided with the router is provided in “Parts Inventory (Packing List) for an ACX2000 and

ACX2100 Router” on page 95.

7. Save the shipping carton and packing materials in case you need to move or ship the router later.

SEE ALSO

ACX2000 and ACX2100 Universal Metro Router Overview | 17 Site Preparation Checklist for ACX2000 and ACX2100 Routers | 68

Parts Inventory (Packing List) for an ACX2000 and ACX2100 Router

The ACX2000 and ACX2100 routers are shipped in a cardboard carton, secured with foam packing material. The carton also contains an accessory box.

The router shipment includes a packing list. Check the parts you receive in the router shipping carton against the items on the packing list. The packing list specifies the part number and description of each part in your order. The parts shipped depend on the configuration you order.

If any part on the packing list is missing, contact your customer service representative or contact Juniper Customer Care from within the U.S. or Canada by telephone at 1-888-314-5822. For international-dial or direct-dial options in countries without toll-free numbers, see

https://www.juniper.net/support/requesting-support.html.

Table 33 on page 95 lists the parts and their quantities in the packing list.

Table 33: Parts List for an ACX2000 and ACX2100 Router

QuantityComponent

1Router with built-in power supply

2Mounting brackets

8Mounting screws to attach the mounting brackets to the router chassis

4SFP dust cover

1RJ-45 cable and RJ-45 to DB-9 serial port adapter

Table 33: Parts List for an ACX2000 and ACX2100 Router (continued)

QuantityComponent

1Quick Start installation instructions

1Juniper Networks Product Warranty

1End User License Agreement

NOTE: You must provide additional mounting screws if needed that are appropriate for your

rack or cabinet to mount the chassis on a rack or a cabinet.

SEE ALSO

ACX2000 and ACX2100 Universal Metro Router Overview | 17

Installing the ACX2000 or ACX2100 Mounting Brackets

To attach the mounting brackets, you need the following tools:

Phillips (+) screwdriver, number 2

•

Two mounting brackets for front or rear mounting ship with the router (see Figure 18 on page 97 and

Figure 19 on page 97).

To attach both mounting brackets to either the front or rear of the chassis:

1. Align the bracket with the two sets of mounting holes.

2. Insert the four screws at the top and bottom of the bracket, and tighten each partially.

3. Tighten the four screws completely.

4. Repeat the procedure for the other bracket.

Figure 18: Installing the Mounting Brackets to the Front of the ACX2000 or ACX2100 Router

g006405

g006406

Figure 19: Installing the Mounting Brackets to the Rear of the ACX2000 or ACX2100 Router

Installing the ACX2000 or ACX2100 Router in the Rack

NOTE: The router can be installed horizontally in a rack or cabinet. For additional installation

options, contact JTAC.

To install the router in the rack (see Figure 20 on page 99):

CAUTION: Before front mounting the router in a rack, have a qualified technician

verify that the rack is strong enough to support the router's weight (about 7 lb (3.2 kg)) and is adequately supported at the installation site.

NOTE: One person must be available to lift the router while another secures it to the rack.

CAUTION: If you are mounting multiple units on a rack, mount the heaviest unit at

the bottom of the rack, and mount the other units from the bottom of the rack to the top in decreasing order of the weight of the units.

1. Ensure that the rack is in its permanent location and is secured to the building. Ensure that the installation site allows adequate clearance for both airflow and maintenance.

2. Position the router in front of the rack or cabinet.

3. Hold onto the bottom of the chassis, and carefully lift it so that the mounting brackets contact the rack rails.

WARNING: To prevent injury, keep your back straight and lift with your legs, not

your back. Avoid twisting your body as you lift. Balance the load evenly and be sure that your footing is solid.

4. Align the mounting brackets with the holes in the rack rails.

5. Install a mounting screw into each of the open mounting holes aligned with the rack, starting from the bottom.

6. Visually inspect the alignment of the router. If the router is installed properly in the rack, all the mounting screws on one side of the rack should be aligned with the mounting screws on the opposite side, and the router should be level.

Figure 20: Installing the Front-Mounted Router in the Rack

g006407

Mounting rack

Mounting bracket

SEE ALSO

Site Preparation Checklist for ACX2000 and ACX2100 Routers | 68

Connecting the ACX2000 and ACX2100 Routers to Power

IN THIS SECTION

Connecting the ACX2000 or ACX2100 Router to Earth Ground | 100

Connecting DC Power Cables to the ACX2000 or ACX2100 Router | 102

Connecting AC Power Cords to the ACX2100 Router | 104

Connecting the ACX2000 or ACX2100 Router to Earth Ground

To ground the router, you need the following tools:

Phillips (+) screwdriver, number 2

•

ESD grounding wrist strap

•

Two SAE 10-32 screws and flat washers (not provided)

•

Grounding lug, Panduit LCD6-14BH-L or equivalent (not provided)

•

Grounding cable, minimum 14 AWG (2 mm2) 90° C wire (not provided)

•

You ground the router by connecting a grounding cable to earth ground and then attaching it to the chassis grounding points. To ground the router:

1. Verify that a licensed electrician has attached the cable lug provided with the router to the grounding cable.

100

2. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to an approved site ESD grounding point. See the instructions for your site.

3. Ensure that all grounding surfaces are clean and brought to a bright finish before grounding connections are made.

4. Connect the grounding cable to a proper earth ground.

5. Detach the ESD grounding strap from the site ESD grounding point.

6. Wrap and fasten one end of the ESD grounding strap around your bare wrist, and connect the other end of the strap to an ESD point.

7. Place the grounding cable lug over the grounding points on the front of the chassis (see

Figure 21 on page 101).

8. Secure the grounding cable lug with the washers and screws. The holes are sized for SAE 10-32 screws. Apply 4 lb-in. (0.49 Nm) of torque to each screw. Do not overtighten the screw. (Use a number 2 Phillips screwdriver.)

Juniper ACX2000, ACX2100 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

About the Documentation

Documentation and Release Notes

Using the Examples in This Manual

Merging a Full Example

Merging a Snippet

Documentation Conventions

Documentation Feedback

Requesting Technical Support

Self-Help Online Tools and Resources

Creating a Service Request with JTAC

Overview

ACX2000 and ACX2100 System Overview

ACX2000 and ACX2100 Universal Metro Router Overview

Benefits of the ACX2000 and ACX2100 Routers

ACX2000 Router Description

ACX2100 Router Description

ACX2000 and ACX2100 Routers Hardware and CLI Terminology Mapping

ACX2000 Hardware and CLI Terminology Mapping

ACX2100 Hardware and CLI Terminology Mapping

Packet Flow on ACX Series Routers

Protocols and Applications Supported by ACX Series Routers

ACX2000 Chassis Components

Front Panel of an ACX2000 Router
