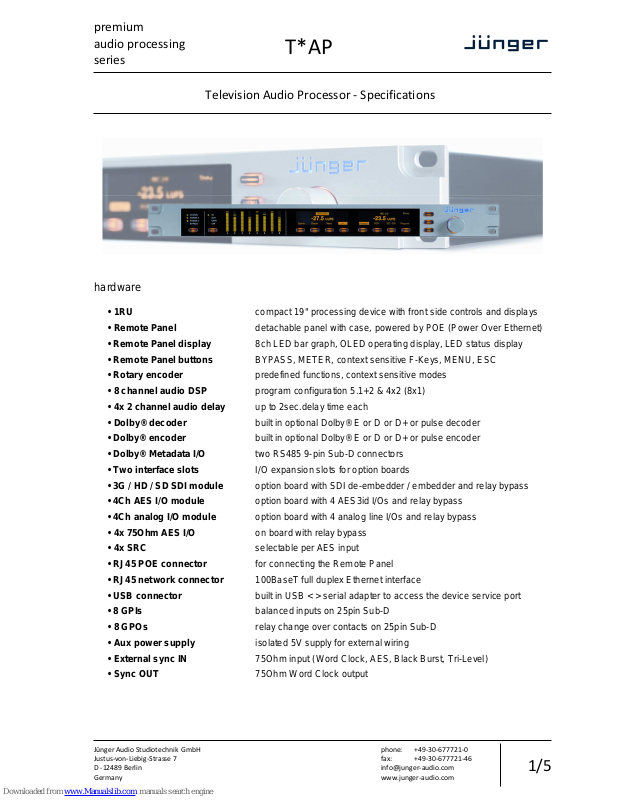

Page 1
premium
audio processing
series
T*AP
Television Audio Processor - Specifications
Jünger Audio Studiotechnik GmbH
Justus-von-Liebig-Strasse 7
D -12489 Berlin
Germany
phone: +49-30-677721-0
fax: +49-30-677721-46
[email protected]
www.junger-audio.com
1/5
hardware
• 1RU compact 19" processing device with front side controls and displays
• Remote Panel detachable panel with case, powered by POE (Power Over Ethernet)
• Remote Panel display 8ch LED bar graph, OLED operating display, LED status display
• Remote Panel buttons BYPASS, METER, context sensitive F-Keys, MENU, ESC
• Rotary encoder predefined functions, context sensitive modes
• 8 channel audio DSP program configuration 5.1+2 & 4x2 (8x1)
• 4x 2 channel audio delay up to 2sec.delay time each
• Dolby® decoder built in optional Dolby® E or D or D+ or pulse decoder
• Dolby® encoder built in optional Dolby® E or D or D+ or pulse encoder
• Dolby® Metadata I/O two RS485 9-pin Sub-D connectors
• Two interface slots I/O expansion slots for option boards
• 3G / HD / SD SDI module option board with SDI de-embedder / embedder and relay bypass
• 4Ch AES I/O module option board with 4 AES3id I/Os and relay bypass
• 4Ch analog I/O module option board with 4 analog line I/Os and relay bypass
• 4x 75Ohm AES I/O on board with relay bypass
• 4x SRC selectable per AES input
• RJ45 POE connector for connecting the Remote Panel
• RJ45 network connector 100BaseT full duplex Ethernet interface
• USB connector built in USB < > serial adapter to access the device service port
• 8 GPIs balanced inputs on 25pin Sub-D
• 8 GPOs relay change over contacts on 25pin Sub-D
• Aux power supply isolated 5V supply for external wiring
• External sync IN 75Ohm input (Word Clock, AES, Black Burst, Tri-Level)
• Sync OUT 75Ohm Word Clock output
Page 2
premium
audio processing
series
T*AP
Television Audio Processor - Specifications
Jünger Audio Studiotechnik GmbH
Justus-von-Liebig-Strasse 7
D -12489 Berlin
Germany
phone: +49-30-677721-0
fax: +49-30-677721-46
[email protected]
www.junger-audio.com
2/5
functional blocks
•
Input Conditioner gain
• Upmix from mono / stereo to 5.1, extra input, auto mode, 5.1 cross fade
• Compressor Reference Level, Range, Ratio, Processing
• LevelMagic™ Leveler, Transient Processor, brick wall Limiter
• Loudness Control EBU R128 or ITU-BS.1770 or level based
• Output Conditioner delay up to 2sec. per audio processor channel
• Monitor output monitors DSP software blocks
• Extra Delay lines 4x 2Ch delays up to 2 sec. each
• Signal routing assignment of signal paths to and from the DSP, the delays, the Dolby de-
and encoders and across I/O interfaces
• Metadata generator display, creation or modification of Dolby Metadata
• Sync selector manual selection of several sync sources, auto fall back
Wordclock, Video (Black Burst or Tri Level), AES, Interface Board
control
• Remote Panel detachable 19" (fan less)
• Browser based GUI standard web browser (IE 8, FireFox 3.x)
• Telnet access to the system console
• Third party remote via L-S-B Broadcast Technology GmbH Ember protocol, HTTP protocol
• VSM control virtual panels, L-S-B remote panel
• GPI 8 isolated inputs
• GPO 8 relay output
monitoring
• Power 1 front panel LED, GUI status, SNMP
• Power 2 front panel LED, GUI status, SNMP
• Temperature GUI status, SNMP
• Device status front panel LED, several GUI status displays, SNMP
• Fan speed SNMP
• Input Signal loss GUI status, SNMP
• Input Signal errors GUI status, SNMP
• Processing range GUI status, SNMP
• Internal module failure GUI status, SNMP
• SNMP agent SNMPv1 based GET and TRAP functions
• Loudness logging Junger Audio Loudness Logger - PC software for file logging:
live plot, bar graph display, offline display & analyzer
Page 3
premium
audio processing
series
T*AP
Television Audio Processor - Specifications
Jünger Audio Studiotechnik GmbH
Justus-von-Liebig-Strasse 7
D -12489 Berlin
Germany
phone: +49-30-677721-0
fax: +49-30-677721-46
[email protected]
www.junger-audio.com
3/5
technical data – Base Unit
• Power supply dual power supply, auto fail over
AC 85 V – 264 V, 50 Hz … 60 Hz
58W max
• AES input AES3id
24 Bit, 48 kHz, 0,32 … 1,2 Vpp
sample rate converters:
24 Bit, 32 kHz … 192 kHz, THD+N: < 130 dB @ 0 dBFS
• AES output AES3id
24 Bit, 48 kHz, nominal 1 Vpp @ 75 Ohm
power fail relay bypass
• Sync internal 48 kHz, +/- 10 ppm
• Sync input AES3id: 48 kHz, 0,32 … 1,2 Vpp @ 75 Ohm
Wordclock: 48 kHz, 1 … 3 V @ 75 Ohm
Video: Black Burst or Tri Level, 0.5 V … 1.0V @ 75 Ohm
• Sync output Wordclock: 2 V @ 75 Ohm
• Network RJ45 rear connector
10/100MBit Ethernet auto sense, full duplex, auto MDI/X
RJ45 front panel connector
10/100MBit Ethernet auto sense, full duplex, auto MDI/X
Power Over Ethernet IEEE 802.3af
• USB USB 2.0 connector to internal console interface
• GPI 3 V – 30 V balanced, auto polarity
• GPO relay change over contacts, 200mA/24V (DC/AC)
• Environmental operating temperature 0 ºC to 50 ºC
Base Unit - fan cooled
non operating -20 ºC to 70 ºC
humidity 90%, non condensing
• Dimensions 19", 1RU, depth 27 cm
and Weight net weight approx..5 kg, shipping weight 7,5 kg
technical data – Remote Panel
power supply POE (Power Over Ethernet), IEEE 802.3af
consumption 8 W
max cable length if connected with the Base Unit, 30m distance CAT.5E (26AWGx4P)
Dimensions 19", 1RU, depth 6 cm
Environmental operating temperature 0 ºC to 50 ºC
non operating temperature -20 ºC to 70 ºC
humidity 90%, non condensing
Page 4
premium
audio processing
series
T*AP
Television Audio Processor - Specifications
Jünger Audio Studiotechnik GmbH
Justus-von-Liebig-Strasse 7
D -12489 Berlin
Germany
phone: +49-30-677721-0
fax: +49-30-677721-46
[email protected]
www.junger-audio.com
4/5
technical data – interface boards – SDI De-Embedder / Embedder [SDI 150]
• SDI input standards (auto sensing)
3G - SMPTE 424/425M (Level A/B)
HD - SMPTE 292M
SD - SMPTE 259M
formats
1080p23.98, 24, 25, 29.97, 30, 50, 59.95, 60
1080i50, 59.94, 60
720p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
625i50
525i59.94, …
connector
BNC IEC 169-8)
75 Ohm
return Loss
> 15 dB (typ. > 18dB) from 5MHz to 1485 MHz
> 10 dB (typ. > 11 dB) from 1485 MHz to 2970 MHz
adaptive equalization, typical of Belden 1694A coaxial cable
250 m at 270 Mbps
250 m at 1.485 Gbps
150 m at 2.97 Gbps
jitter tolerance
Timing: > 2UI, Alignment: > 0.7 UI
• SDI output standards
3G - SMPTE 424/425M (Level A/B)
HD - SMPTE 292M
SD - SMPTE 259M
formats
1080p23.98, 24, 25, 29.97, 30, 50, 59.95, 60
1080i50, 59.94, 60
720p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
625i50
525i59.94, …
quantization
10Bit
connector
BNC IEC 169-8)
75 Ohm
return Loss
> 15 dB (typ. > 18dB) from 5MHz to 1485 MHz
> 10 dB (typ. > 11 dB) from 1485 MHz to 2970 MHz
signal level
800 mV +/- 10%
D.C. offset
0.0 V +/- 0.5 V
rise and fall time
< 135 ps at HD/3G, < 800 ps at SD
overshoot
< 10% of amplitude
output jitter
Timing: < 0.5 UI, Alignment: < 0.2 UI
Page 5
premium
audio processing
series
T*AP
Television Audio Processor - Specifications
Jünger Audio Studiotechnik GmbH
Justus-von-Liebig-Strasse 7
D -12489 Berlin
Germany
phone: +49-30-677721-0
fax: +49-30-677721-46
[email protected]
www.junger-audio.com
5/5
• Special features relay bypass (manual or automatic on power fail)
320 ms video delay (number of frames depends on the video format)
16 channel audio de-embedder / embedder
VANC (SMPTE 2020-2) de-embedder / embedder
16 x 16 de-embedder matrix (mono routing)
32 x 16 embedder matrix (mono routing)
320 ms audio delay per audio channel
automatic compensation of non processed audio signals for video delay
technical data – interface boards – 4x AES I/O [DD 188]
connector
25pin Sub-D female
inputs
110 Ohm balanced or 75 Ohm unbalanced jumper selection
0.3 V … 5.0 Vpp
sample rate converter
24 Bit, input sample rate 32 kHz … 192 kHz, THD+N < 130 dB @ 0 dBFS
outputs
110 Ohm balanced or 75 Ohm unbalanced jumper selection
4.0 Vpp balanced, 1.0 Vpp @ 75 Ohm
power fail relay bypass
technical data – interface boards – 4x analog I/O [AN 144]
connector
25pin Sub-D female
input
impedance: > 10 kOhm, electronically balanced
max input level: 0.0 dBu … +24 dBu adjustable in 0.5 dB steps
dynamic range: 115 dB
THD+N: @ -1 dBFS, 15 dBu: -90 dB
frequency response: 20 Hz … 22 kHz (+/- 0.25 dB)
crosstalk @ 20 kHz: > 100 dB
calibration gain mismatch: < 0.3 dB
output
impedance: 5 Ohm, electronically balanced
max. output level @ 0 dBFS: 0.0 dBu … +24 dBu adjustable in 0.5 dB steps
dynamic range: 110dB
THD+N @ -1 dBFS: 92 dB
frequency response: 20 Hz … 22 kHz (+/- 0.25 dB)
crosstalk @ 20 kHz: > 100 dB
gain mismatch balanced / unbalanced: < 0.3 dB
power fail relay bypass
warranty
standard Junger Audio limited parts and labor warranty
Specifications are subject to change without notice
