junger D*AP8 MAP EDITION User Manual

DAP8-MAP_manual_EN_160425.doc

D*AP8 MAP

Hardware features

• D*AP8 unit 1RU / 19" generic compact 8 channel processing unit

• X*AP RM1 optional 1RU detachable remote panel

• Dolby decoder optional built in Dolby D/D+/E decoder incl. metadata emulation

• Dolby encoder optional built in Dolby D/D+/AAC/HE-AAC or Dolby E encoder

• Dolby metadata I/O two 9-pin D-Sub connectors (RS485)

• 4x AES (BNC) I/O + SRC on board AES I/Os with relay bypass and (selectable) SRC per input

• Two interface slots expansion slots for optional I/O boards:
3-G/HD/SD-SDI, MADI, DANTE, 4x AES I/O, 4Ch Analog I/O,

8Ch Analog (speaker) Out

• RJ45 network connector 100BaseT full duplex Ethernet interface

• USB connector built in USB < > serial adapter to access the service port

• 8x GPI/O balanced inputs and relay contacts on a 25pin Sub-D

• Aux power supply isolated 5V supply for external GPI/O wiring

• External sync IN BNC input (Word Clock, AES, Black Burst, Tri-Level)

• Sync OUT BNC Word Clock output

Software features

• TP limiter Junger Audio true peak limiter control algorithm for speaker protection

• Speaker alignment delay, level and frequency response compensation, speaker identification

• Bas management for subwoofer and satellite speaker installations

• Solo- / In Place / Defeat individual speaker control

• Mute / DIM mutes / dims all speaker channels

• Delay, gain, polarity for input signal correction

• Downmix separate downmix circuits for program and AUX feed

• Dolby metadata generator generates RDD6 compliant metadata

• Dolby metadata emulation shows the effect of metadata for decoded Dolby (E, D, D-D plus)

or PCM signals

• Loudness measurement ITUBS.1770-1/ -2/ -3, EBU R128

• Loudness / level display X*AP RM1 display, J*AM Junger Application Manager

• SNMP agent SNMP v1 get (no set) and configurable traps (see MAP-MIB)

• Remote control X*AP RM1 remote panel, l-s-b EmBER+ protocol

and legacy GPI/Os

operating manual

D*AP8 MAP

1

Content

page
Introduction ………………………………………………………………………………………… 3

Hardware concept .......……………………………………………………………………………. 4

D*AP8 unit front panel view ………………………………………………………………………. 4
X*AP RM1 front panel view ……………………………………………………………………… 4
D*AP8 unit rear view ……………………………………………………………………………… 5

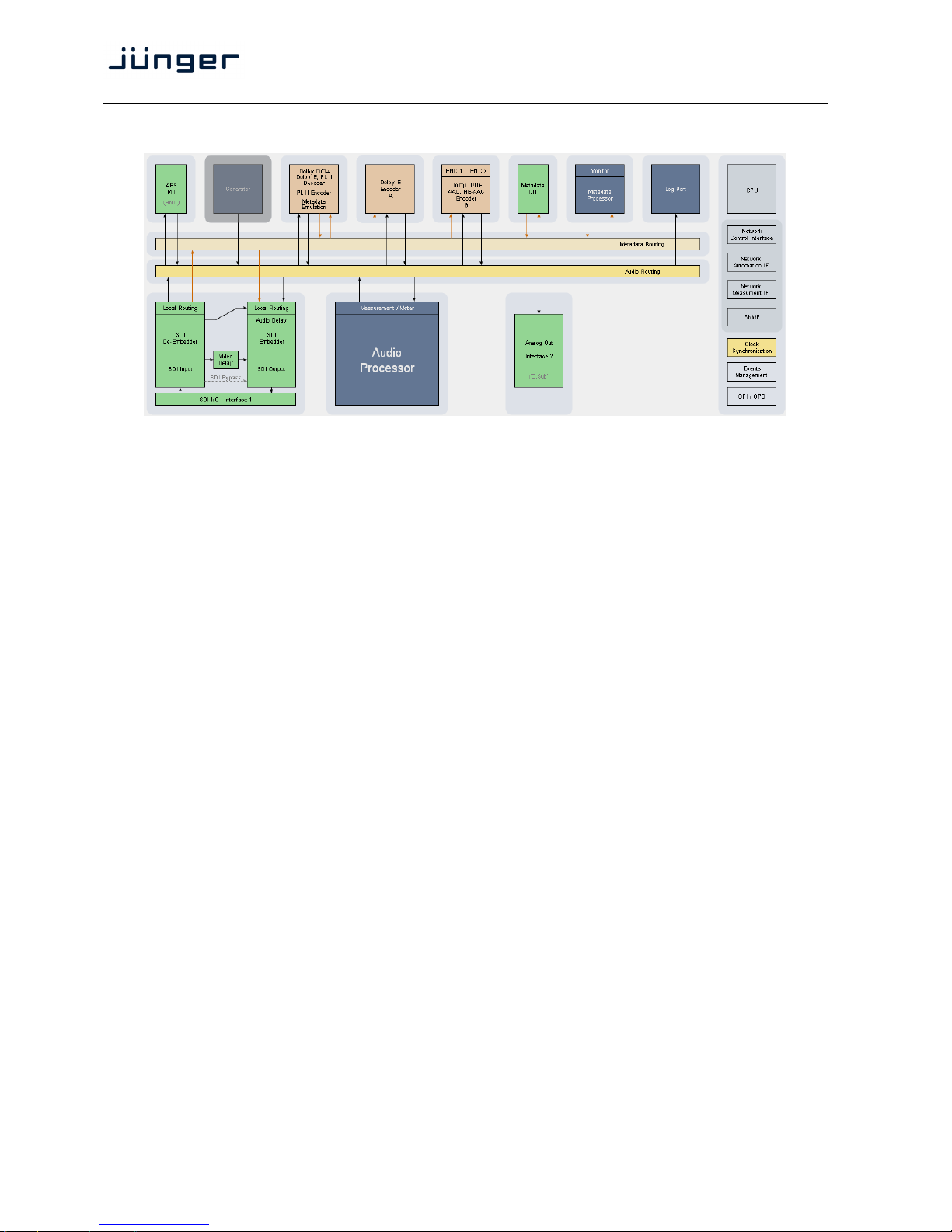

Block diagram ………………………………………………………………………………………. 6
Control, Operating & Event concept ……………………………………………………………… 7
Getting started – IP setup in general …………………………………………………………….. 8

Getting started – IP setup – via console interface ……………………................................. 8

Getting started – IP setup – via web browser …………………………………………………. 9
Getting started – basic X*AP RM1 remote panel operation …………………………………… 10
Operating – menu structure of the X*AP remote panel – operating display ………………. 10
Operating – menu structure of the X*AP remote panel – menu tree ………………………… 13
Setup GUI – connecting with the D*AP8 unit – AUDIO PROCESSOR – Overview ………. 14
Setup GUI – SYSTEM – System Status …………………………………………………………. 15
Setup GUI – SYSTEM – Overview ……………………………………………………………….. 16
Setup GUI – SYSTEM – Admin ………………………………………………………………….. 17
Setup GUI – SYSTEM – Setup …………………………………………………………………… 19
Setup GUI – SYSTEM – The preset concept in detail…………………………………………. 20
Setup GUI – SYSTEM – Remote Access – X*AP Remote …………………………………… 21
Setup GUI – SYSTEM – Remote Access – Mobile UI ………………………………………… 21
Setup GUI – SYSTEM – Preset Cleanup ……………………………………………………….. 22
Setup GUI – SYSTEM – SNMP …………………………………………………………………… 23
Setup GUI – SYSTEM – Backup / Restore ……………………………………………………. 24
Setup GUI – SYSTEM – Firmware Update …………………………………………………….. 25
Setup GUI – SYSTEM – Reboot …………………………………………………………………. 26
Setup GUI – INTERFACES – AES I/O …………………………………………………………… 27

Setup GUI – INTERFACES – SDI I/O Interface – Overview ……………………………........ 28

Setup GUI – INTERFACES – SDI I/O Interface – Local Routing ………………………........ 29

Setup GUI – INTERFACES – SDI I/O Interface – Setup ………………................................. 30

Setup GUI – INTERFACES – SDI I/O Interface – De-Embedder …………………………..... 30

Setup GUI – INTERFACES – SDI I/O Interface – Embedder …………………………............ 31

Setup GUI – INTERFACES – MADI Interface – Status / Setup …………………………........ 32

Setup GUI – INTERFACES – MADI Interface – Local Routing …………………………........ 34

Setup GUI – INTERFACES – Dante I/O Interface – Status ………………………….............. 36

Setup GUI – INTERFACES – Dante I/O Interface – Inputs ………………………….............. 36

Setup GUI – INTERFACES – Dante I/O Interface – Ouputs …………………………............ 38

Setup GUI – INTERFACES – Dante I/O Interface – Network ………………………….......... 38

Setup GUI – INTERFACES – 8 Ch Analog Interface …………………………...................... 40

Setup GUI – INTERFACES – 4 Ch Analog I/O Interface …………………………................ 40

Setup GUI – INTERFACES – AES Interface – Status / Setup ……………………................ 41

Setup GUI – ROUTING ……………………………………………………………………………. 42
Setup GUI – DOLBY PROCESSING in general ……………………………………………….. 44
Setup GUI – DOLBY PROCESSING – Decoder / Emulation ……………………………….. 44
Setup GUI – DOLBY PROCESSING – Decoder/Emulation – Decoder …………………….. 46
Setup GUI – DOLBY PROCESSING – Decoder/Emulation – Decoder/Emulation ……….. 47
Setup GUI – DOLBY PROCESSING – Metadata – Routing …………………………………. 49
Setup GUI – DOLBY PROCESSING – Metadata – Generator Setup ………………………. 49
Setup GUI – DOLBY PROCESSING – Metadata – Program x ………………………………. 50
Setup GUI – DOLBY PROCESSING – optional Dolby E Encoder – Encoder A …………… 52
Setup GUI – DOLBY PROCESSING – optional consumer format Encoder – Encoder B … 52
Setup GUI – AUDIO PROCESSOR – Overview ……………………………………………….. 55
Setup GUI – AUDIO PROCESSOR – Setup ……………………………………………………. 55

Setup GUI – AUDIO PROCESSOR – Input .………………………………….......................... 56

Setup GUI – AUDIO PROCESSOR – Downmix ……………………………………………….. 57
Setup GUI – AUDIO PROCESSOR – Solo/Mute ………………………………………………. 58
Setup GUI – AUDIO PROCESSOR – Volume …………………………………………………. 59
Setup GUI – AUDIO PROCESSOR – Matrix …………………………………………………… 60

D*AP8 MAP

2

Content

page
Setup GUI – AUDIO PROCESSOR – Output – Bass Management ………………………… 61

Setup GUI – AUDIO PROCESSOR – Output – Equalizer …………………………................ 63

Setup GUI – AUDIO PROCESSOR – Output – Speaker ……………………………………… 64
Mobile UI …………………………………………………………………………………………….. 66
Setup GUI – MEASURMENT ……………………………………………………………………… 68
Setup GUI – MEASURMENT – Setup …………………………………………………………… 68
Setup GUI – MEASURMENT – Loudness ……………………………………………………… 69
Setup GUI – MEASURMENT – Log Port Routing …………………………………………….. 70
Setup GUI – EVENTS – Overview ………………………………………………………………. 71
Setup GUI – EVENTS – Triggers – Sources – Remote Hotkeys ……………………………. 72
Setup GUI – EVENTS – Triggers – Sources – Network ……………………………………… 73
Setup GUI – EVENTS – Triggers – Sources – Parameters ………………………………….. 74
Setup GUI – EVENTS – Triggers – Configuration – Trigger Equation ……………………... 74
Setup GUI – EVENTS – Events – Preset Events ……………………………………………… 75
Setup GUI – EVENTS – Events – Parameter Events …………………………………………. 76
Setup GUI – EVENTS – Events – Measurement Events …………………………………….. 77
Setup GUI – EVENTS – Events – I/O Events ………………………………………………….. 77
Setup GUI – EVENTS – Actions – Event Actions …………………………………………….. 78
Setup GUI – EVENTS – Actions – Event Actions – Factory Defaults ………………………. 79
Technical Data – 8 Channel Surround Monitoring Audio Processor [D*AP8 MAP EDITION] 82
Technical Data – Option Board SDI I/O (3G/HD/SD) [O_DAP_SDI_a] ……………………… 83
Technical Data – Option Board 8 Ch Analog Out [O_DAP_8DA_a] …………………………. 84
Technical Data – Option Board 4 Ch Analog I/O [O_DAP_ADDA_a] ……………………….. 85
Technical Data – Option Board AES/EBU I/O [O_DAP_AES_a] …………………………….. 86
Technical Data – Option Board MADI I/O, BNC [O_DAP_MB_a] ……………………………. 86
Technical Data – Option Board MADI I/O, Optical [O_DAP_MO_MM_a] …………………… 87
Technical Data – Option Board MADI I/O, Optical [O_DAP_MO_SM_a] …………………… 87
Technical Data – Option Board Audio-over-IP DANTE™ [O_DAP_DANTE_a] ……………. 88
Technical Data – Rear Connectors – pin assignment ………………………………………... 88
Technical Data – Optional Interface Modules – pin assignment ……………………………. 89
Technical Data – GPI wiring ……………………………………………………………………… 90

Safety Information …..…………………………………………………………………………… 91
Warranty …………………………………………………………………………………………….. 91

D*AP8 MAP

3

Introduction

The MAP is a monitoring processor, assembled from the generic digital audio processor D*AP8 that runs the
MAP firmware and an optional X*AP RM1 remote panel. The bundle is designed to ease the quality
monitoring of surround and stereo signals for producers, editorial staff and engineers especially when it
comes to Dolby encoded signals.

For level and loudness measurement and logging applications the D*AP8 unit may be used as a
measurement box that sits close to the signal sources while measurement data will be streamed over the
network to a PC for live display and/or storing of such data.

A sophisticated audio processor at the heart of the MAP works. It renders the monitoring facility, audio
delays, speaker bass management as well as level and loudness measurements.

A Dolby metadata generator is provided for emulation of the influence of metadata on PCM audio signals
directly from the monitoring section of a mixing console. For live and post production it allows you to hear how
the metadata will influence the listening experience on the customers side without introduction of an
encoder / decoder. The emulation part incorporates a Dolby stream decoder. An optional Dolby consumer
format or a Dolby-E encoder can be added to the device.

The four AES3id I/Os on the motherboard may be complemented by a variety of interface modules that can
be installed as an option into the D*AP8 interface slots. For the MAP standalone application normally one slot
will be fitted with the eight channel analog speaker interface card.

Comprehensive routing set-ups allow almost every signal flow from hardware inputs, from and to optional
Dolby decoder / encoder, from the audio processor itself to the speakers, to hardware outputs as well as the
metadata I/Os, the metadata generator and the metadata emulator.

Routing paths, the enabling and disabling of audio processing blocks and the setting of processing
parameters can be pre-configured by individual presets dedicated to each function block. The content of the
presets can be displayed and edited off-line while the device is in use. These presets may either be recalled
on demand by the operator via the GUI, the X*AP RM1 remote panel hot keys or external systems, but may
also be part of complex scenarios defined by the administrator and automatically executed by the event
manager of the device or by operator intervention.

The MAP provides a web based setup GUI and can be controlled by an X*AP RM1 remote panel that
displays status and metering information and allows user intervention.

Junger Audios application manager J*AM is available as an add on and can be attached with a few simple
clicks to the MAP so that users can log loudness data as well as display it as a live plot on a PC screen in
real time or simply display level bar graphs. For production / post-production needs a built-in LTC reader will
be available in the near future. So loudness logging may then be performed in regard to relative time as well
as to time of day.

Completing the feature set of the MAP is the availability of an SNMP agent, which provides traps and status
polling.

As with most advanced tools, the MAP can be driven in a variety of ways, depending on requirements and
ideas of the user. These can range from simple and straightforward to quite complex set ups.
Although this manual explains the functions and general operation of the MAP, it does not give detailed
scenarios because the operational needs of today’s broadcasters vary so widely between organizations and
their work flows and cover so many different parameters – from ingest to studio operation, from master
control rooms to play-out, or even rebroadcast applications.

Junger Audio is more than happy to discuss your particular requirements with you and to convey your ideas
and solutions to other users of the Junger Audio Processors community.

D*AP8 MAP

4

Hardware concept

The MAP consists of a D*AP8 unit with MAP firmware that carries all relevant connectors and an optional

X*AP RM1 remote panel both in 19" 1RU format.

D*AP8 unit front panel view

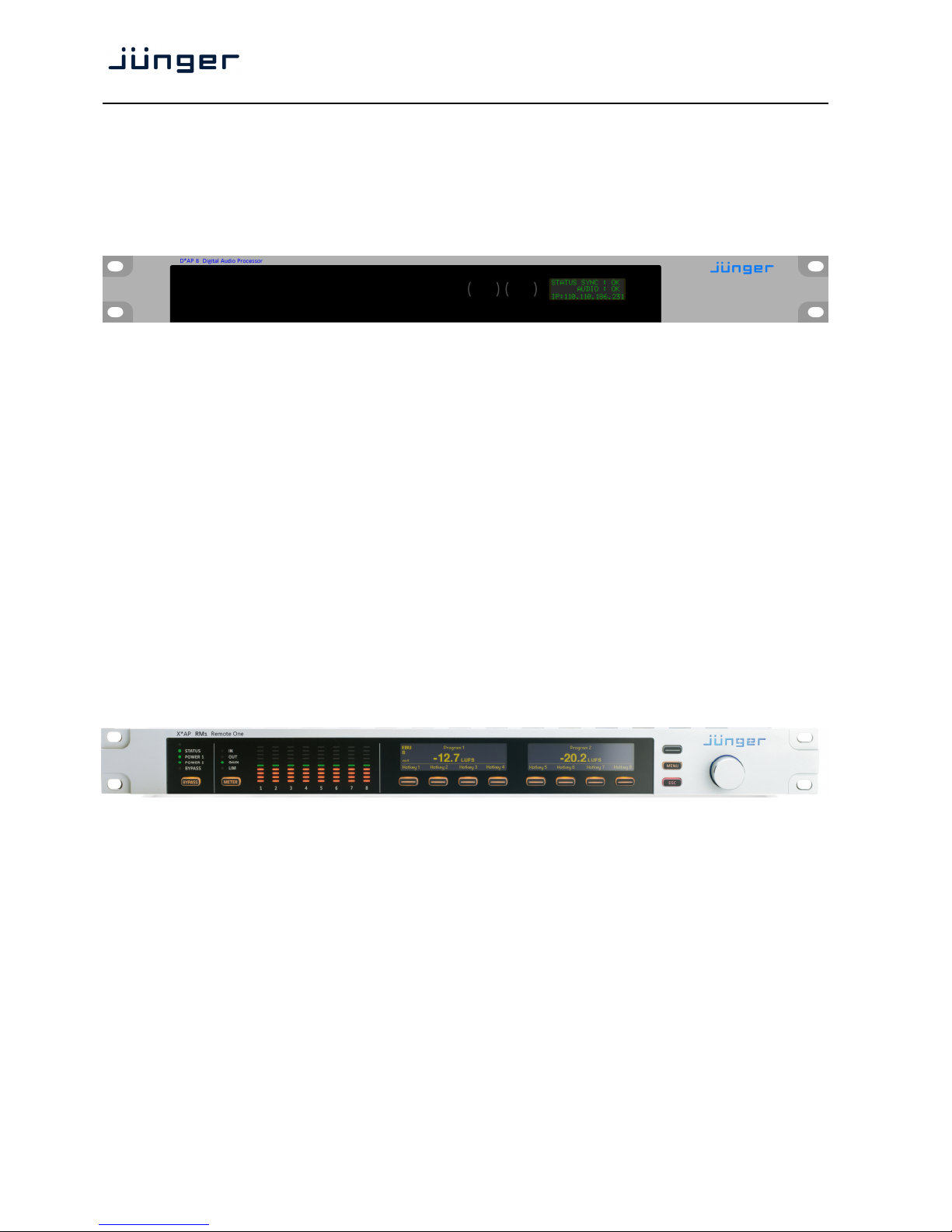

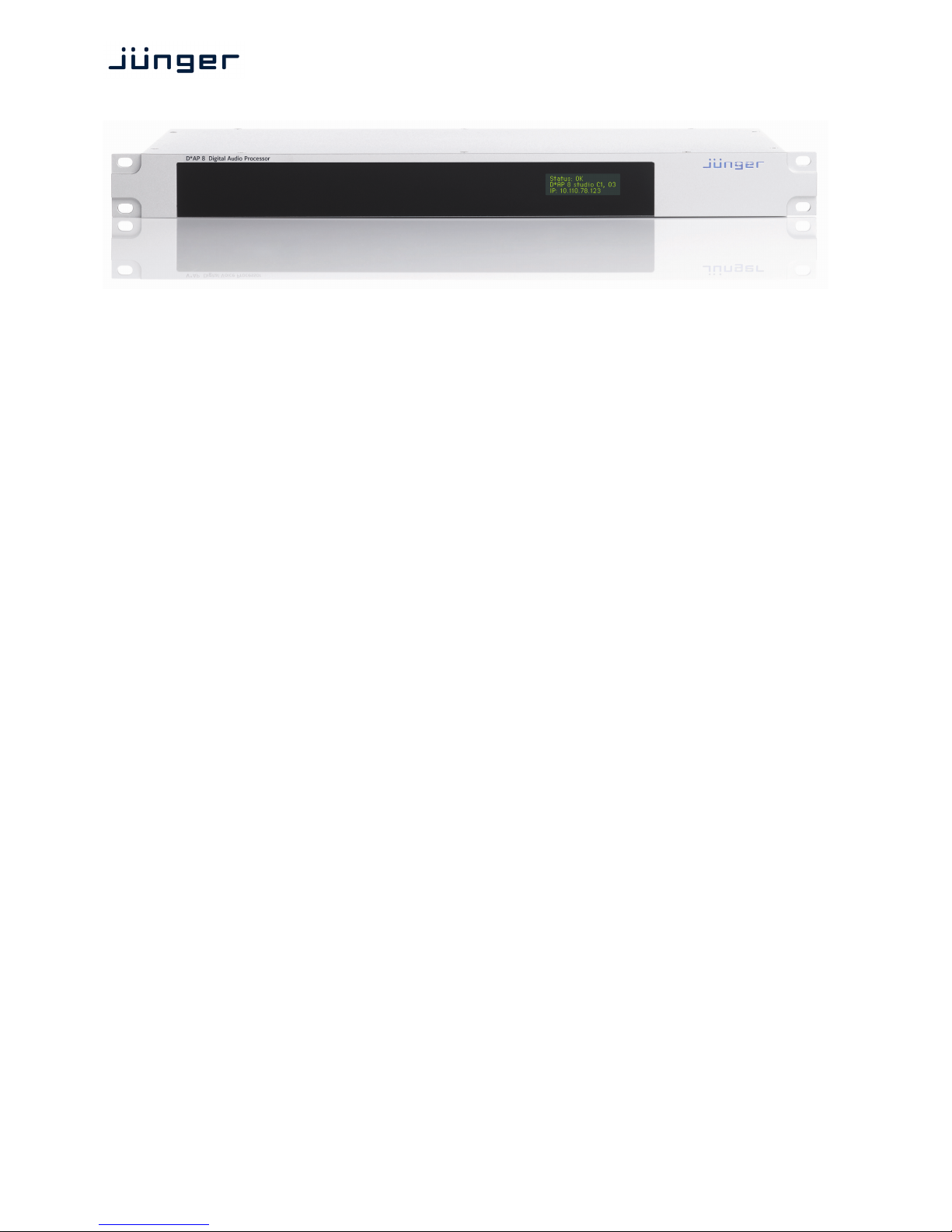

The front panel of the D*AP8 MAP has a three line status display and two hidden touch buttons ~ 2.5cm left
of the display. Button 1 = Home will switch back to the power up display no matter which display level you
are in. Button 2 controls the multi level display:

Level 1 Power up display [Device type, firmware version]
Level 2 Status [OK / Error] / Device Name / IP address
Level 3 IN peak meter (10x)
Level 4 OUT peak meter (10x)

The total number of display levels depends on the number of programs. For 5.1 + 2 mode (two programs) we
will have four more levels while for 4 x 2 (four programs) we will have eight more levels:

Level 5 - 8 Program 1 - 4 Out - short term loudness
Level 9 - 12 Program 1 - 4 Out - integrated loudness and integration time

The measures of the loudness displays depend on the setup of the respective loudness mode
(see AUDIO PROCESSOR > SETUP > Loudness Mode).

Display background Green = hardware status OK
color Red = hardware status ERROR

X*AP RM1 front panel view

The X*AP RM1 remote panel is powered by POE (Power Over Ethernet) or external wall plug PS and
designed to control multiple D*AP8 units one at a time. For details of operation see extra manual
"XAP_manual_EN_140328.pdf" or later.

D*AP8 MAP

5

D*AP8 unit rear view

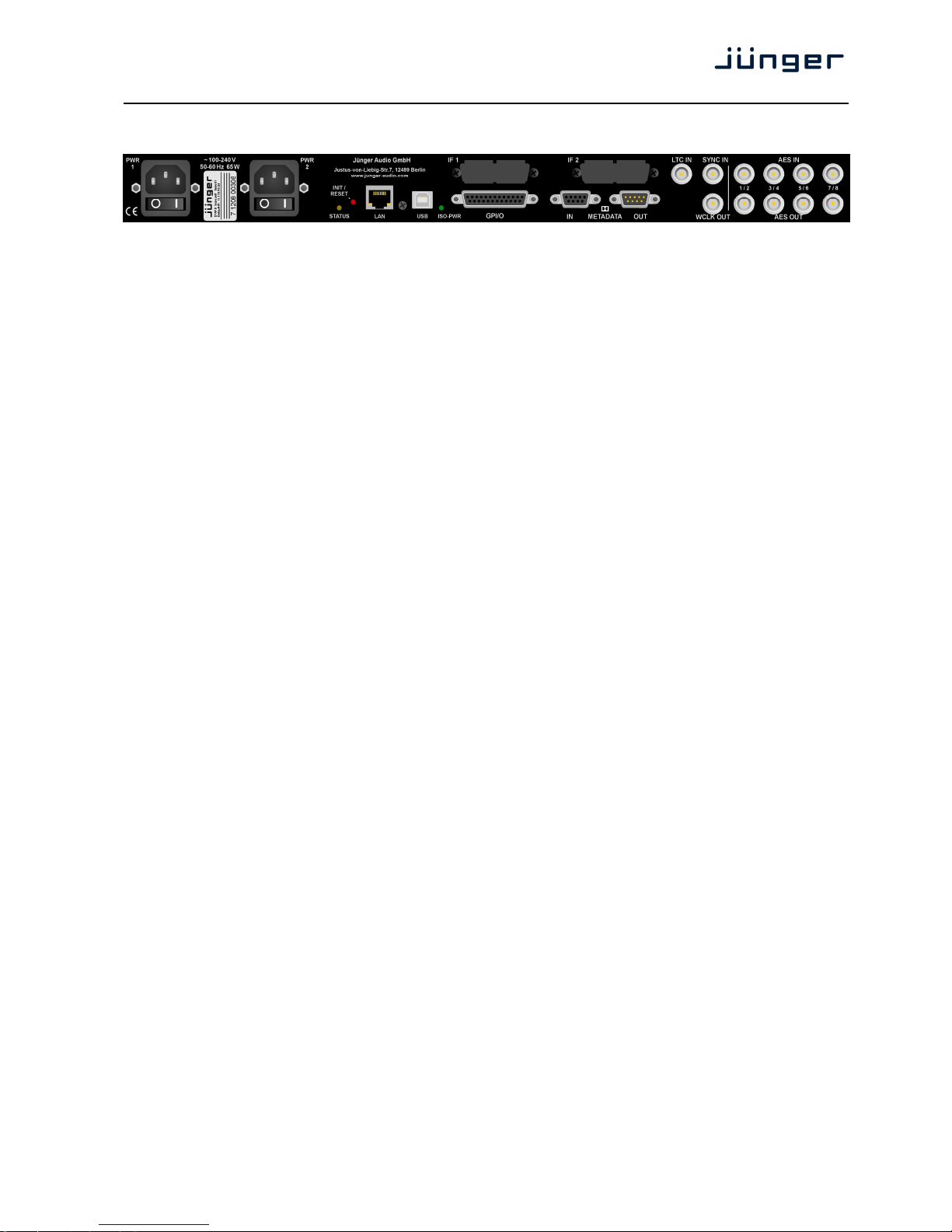

For fail safe operation the D*AP8 unit provides two independent power supplies. These power supplies
operate in load balance. The status of both PS are displayed on the D*AP8 unit front panel as well as on
the X*AP RM1 remote panel.

STATUS LED indicates the status of the device controller. It becomes green at the end of

a successful boot process

INIT / RESET pressing the INIT / RESET button briefly will warm start the device controller.
Holding down the button and release it until the STATUS LED did flash:
3 times initiates a cold start
4 times the device will be cold started with the previous firmware image
5 times will initialize the D*AP8 unit to factory default and will be cold started
Be patient it takes about 20 sec. Until the flashing starts.

LAN RJ45 socket for Ethernet connection to a LAN
USB USB 2.0 type B socket to connect the built in USB >> serial converter with an

external PC to reach the console interface of the system controller

ISO-PWR LED indicates that the isolated 5V power supply for GPI/O application is active
GPI/O 25pin Sub-D female connector to interface with the eight optical isolated general

purpose inputs and with the eight switch over relay general purpose outputs

Interface 1 slot to mount one of the optional interface boards (SDI, AES, analog)
Interface 2 slot to mount one of the optional interface boards (SDI, AES, analog)
METADATA IN 9pin Sub-D female connector to receive and send Dolby® serial metadata
METADATA OUT 9pin Sub-D male connector to send Dolby® serial metadata
LTC IN LTC timecode input not activated jet
SYNC IN 75Ohm BNC connector to connect with external sync sources
WCKL-OUT 75Ohm BNC connector to synchronize external devices to the D*AP8 unit

internal word clock

AES IN 1/2 – 7/8 AES3id inputs
AES OUT 1/2 – 7/8 AES3id outputs

D*AP8 MAP

6

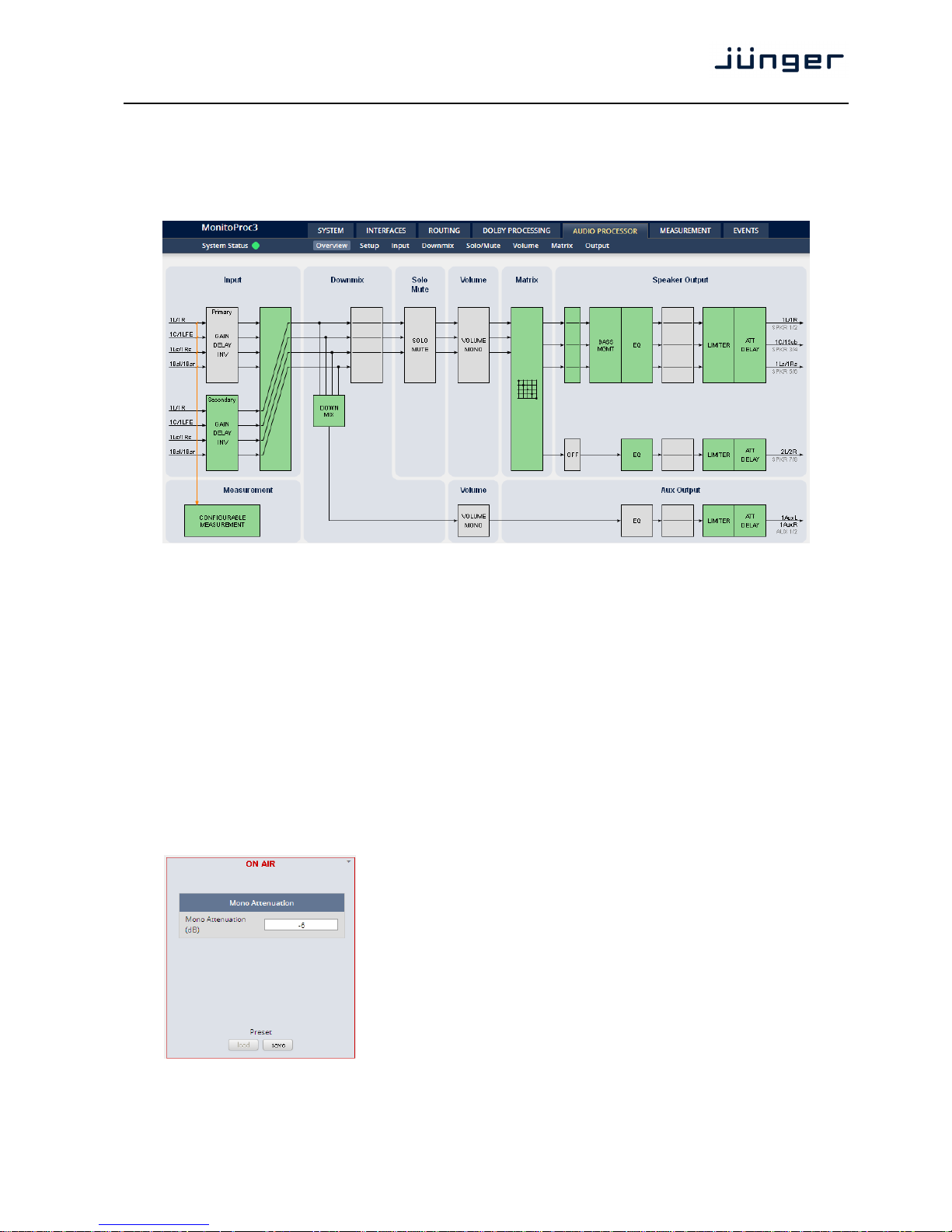

Block diagram

The above schematic shows the principal blocks of a fully loaded MAP.
The core of the unit is the audio processor. It has 2x eight inputs, eight outputs and a 2ch downmix

AUX output. It controls the speaker setup and settings during the monitoring session.
The device also provides the measurement data (true peak, level, loudness) for external applications like the

J*AM (Junger Application Manager) for logging and/or display on a PC or tablett screen via the Log Ports.
The Dolby Metadata Emulation is a hardware option that comes with the Dolby decoder. It is a functional

block that may be connected to the respective audio input / output signals via the device router.
Same applies for the metadata pathes that must be routed separately.

A Dolby encoder may be fitted as an option as well to provide encoded output to save the customers rack
space and installation cost.

On the motherboard you will find 4x AES3id I/Os which are bridged by relays in case of a power failure.
This hardware fail-over may be disabled for each I/O pair by internal jumpers.

Two interface slots which may carry option boards allow for extremely flexible interfacing of the MAP.
One of the interface slots will normally be equipped with an 8-channel analog line output board for direct
speaker connection while the other willl normally hold a 3G/HD/SD-SDI option board for TV production
applications.

For comprehensive metadata processing the unit has serial metadata I/O connectors. All metadata functions
are centralized in a metadata generator. Furthermore you will have the possibility to emulate the influence of
Dolby metadata on the audio signals for stereo or surround signals and down mixes, without the need to
involve an encoder and decoder.

The sync circuit can deal with all formats to integrate the device into digital facilities. Other devices may be
synchronized via the word clock output of the MAP. The frame reference for D-E encoding, may be shifted to
align the D-E guard band.

The MAP has eight balanced GPIs and eight SSR closure GPOs. This enables the user to simply recall
presets or call events, change device configurations and report general status information.

D*AP8 MAP

7

Control concept

The communication between the X*AP RM1 remote panel, the D*AP8 unit, setup and operating tools, is
based on TCP/IP over Ethernet.

The setup GUI utilizes web technology. At the time of editing this manual the functionality of the web GUI is
optimized for Firefox 45.x and higher.

The setup GUI can be complemented by other application programs running on MS Windows® XP,
W7, 8, 10 like the J.A. Application Manager J*AM.

An SNMP agent is also available on the device and may be explored via a SNMP monitoring system.
For 3rd party remote control Junger Audio highly recommends using the l-s-b EmBER+ protocol which is

widely distributed in the European broadcast industry where the user community is rapidly increasing
world wide. By the way, the X*AP RM1 remote panel and the D*AP8 unit "talk" Ember natively.

Operating concept

Further below you will see that the setup GUI for the device is grouped into several parameter areas.
You can reach the parameters via a 3-tier navigation via tabs which may have sub tabs and sub tabs may
have page embedded tabs or extra soft buttons for groups of parameters.

Each function block (parameter area) has dedicated presets. The presets can be recalled at any time during
operation, either by manual intervention via the web technology based GUI, automatically by the internal
event manager or by external applications.

For all relevant settings an ON AIR and a PRESET part exists. I.e. you may either edit the parameters
ON AIR or offline for the respective function block of the D*AP8.

The presets of the D*AP8 MAP are persistent by nature. You are working directly on the preset memory, i.e.
you must not worry about storing such presets. The D*AP8 MAP does it for you.

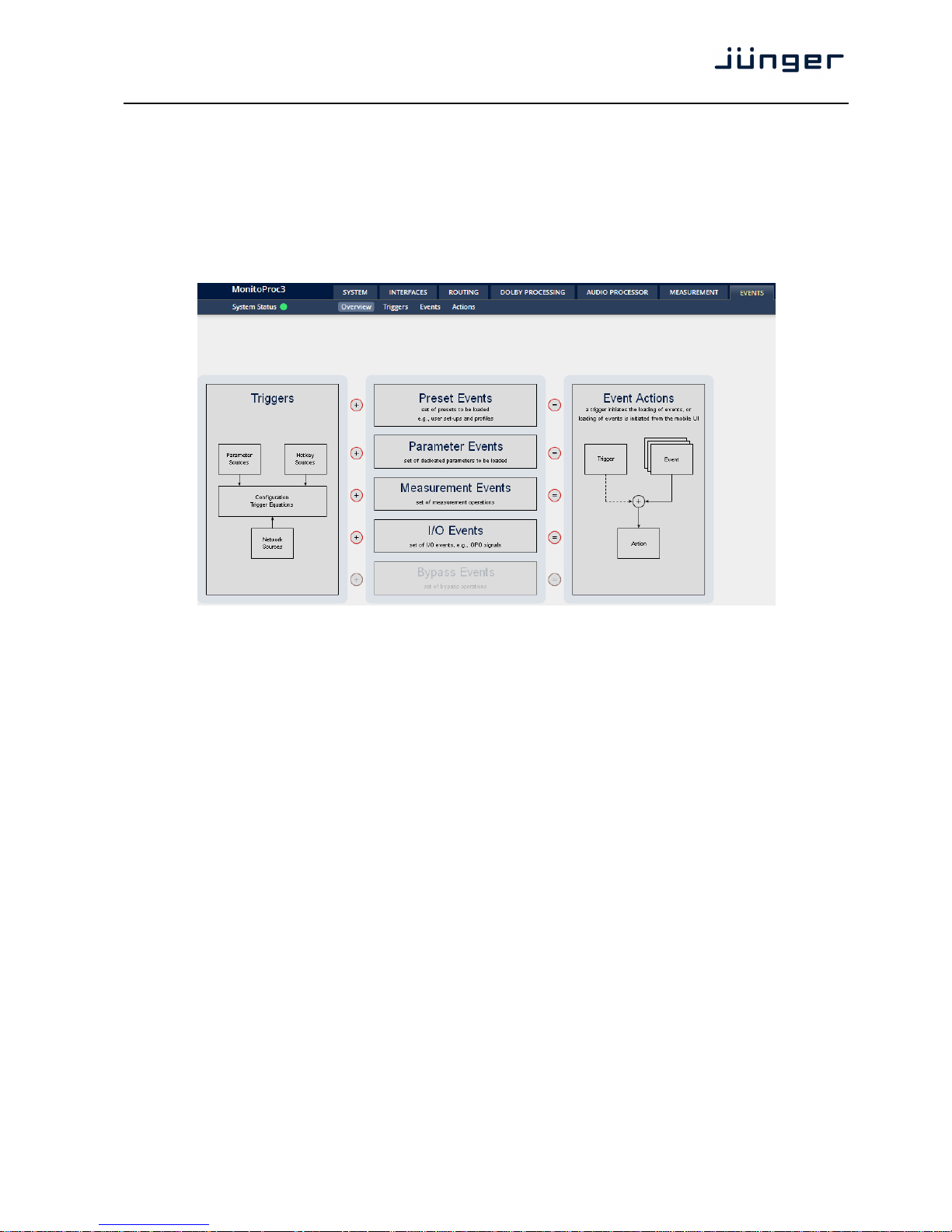

Event concept

The D*AP8 MAP incorporates a sophisticated event management system.
Events may be combined to perform actions. The D*AP8 MAP offers these event types:

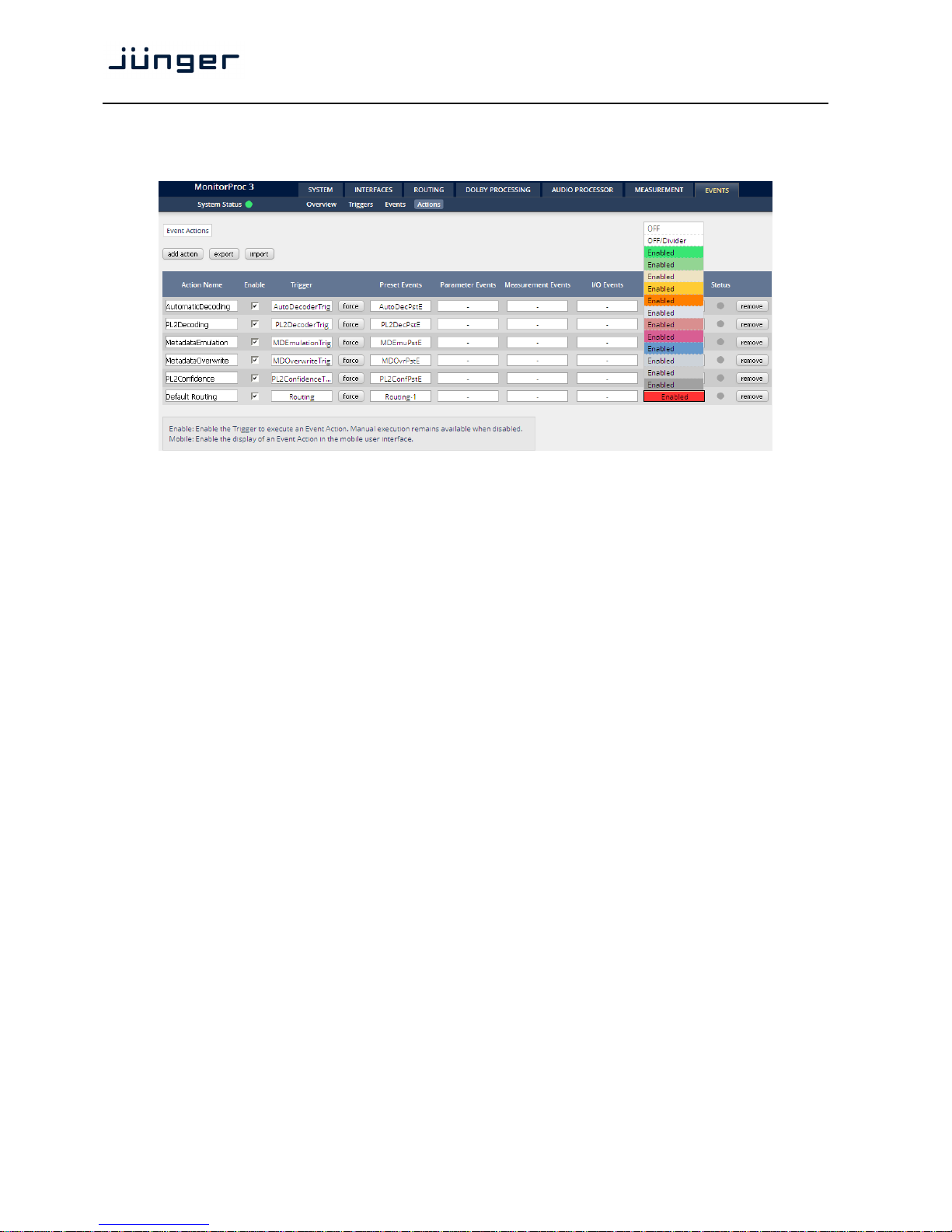

* Preset Events for System set-up, Interfaces, Routing, Audio Processing, Dolby related settings etc.
* I/O Events for GPOs
* Measurement Events for pre-configured measurement scenarios

These events may be combined with Actions which are fired by Triggers.
Triggers are defined by a logical combination (AND, OR, XOR) of two random trigger sources.

A trigger source may be GPIs, hotkeys of the X*AP RM1 remote panel, network commands, parameters,
other active events, other active triggers (nested trigger), or device status information (e.g. sync lost).

D*AP8 MAP

8

Getting started – IP setup in general

The process of installing a D*AP8 MAP into an IP network is as follows:

1. Ask the system service IT people for two unique IP addresses of the network,

for the netmask and if a gateway address is necessary

2. Assign the D*AP8 unit an unique IP address

You have two choices to assign the D*AP8 an IP address:
* From the serial console interface
* Via Web browser

3. Assign the X*AP RM1 remote panel a unique IP address configuration

4. Attach the D*AP8 unit to the X*AP RM1 remote panel

Important Note! If you are not familiar with setting up devices for IP communication, we highly recommend
you consult your system service or IT department to assist you.

Getting started – IP setup – via console interface

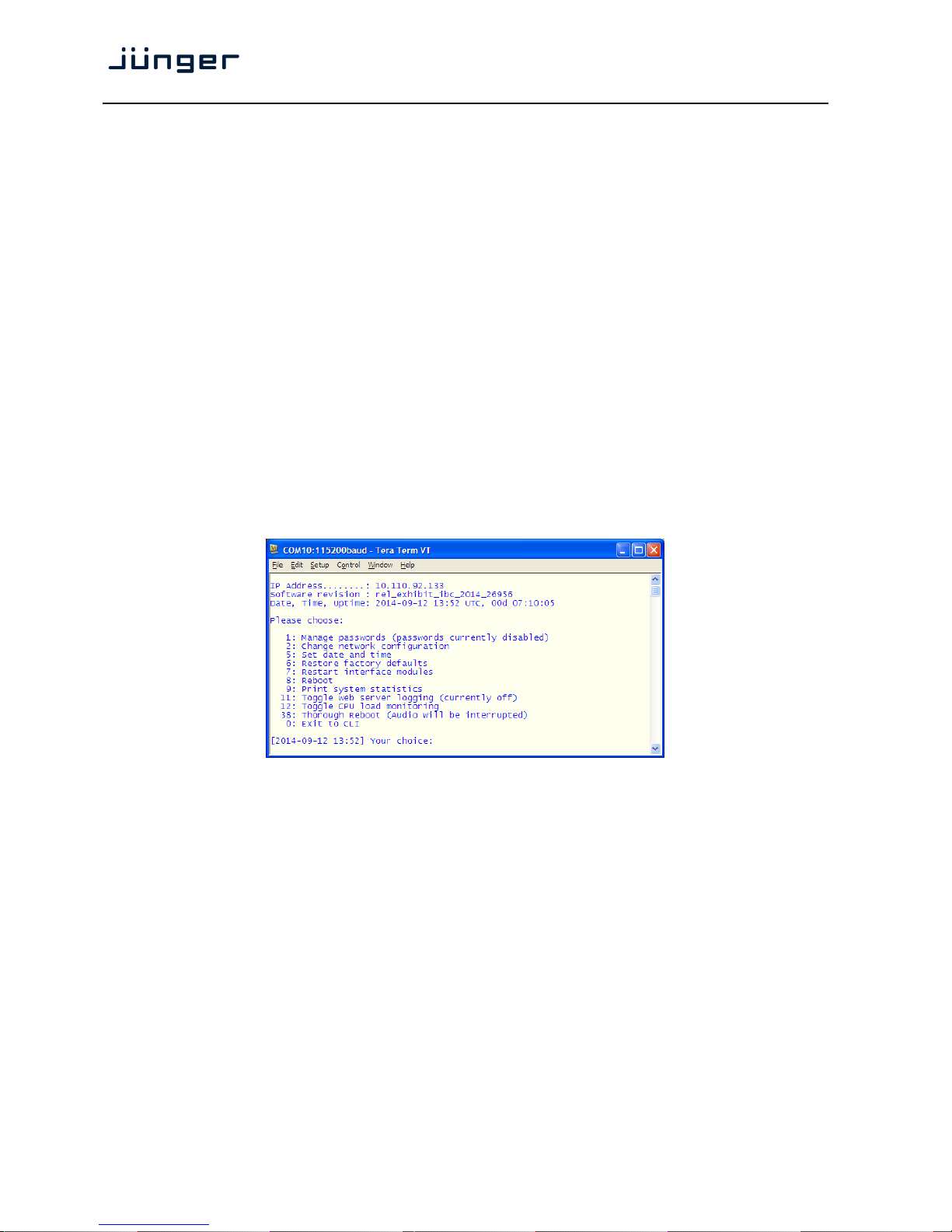

The tool to change the IP configuration of the D*AP8 unit can be selected via the console interface. You
must connect it with the PC via an USB A to B cable. This will install the driver for the built-in USB to serial
converter. Now you can open a terminal program. Here you must select the virtual COM port assigned by
the OS. The communication parameters are:

115200kBaud, 8, N, 1 no hand shake. Pressing <ENTER> will open the console menu:

Select item 2:

"[2014-08-22 12:01] Your choice: 2" <ENTER>

"Current network configuration"

IP Address: 10.110.24.128
Netmask ...: 255.255.0.0
Gateway ...: 10.110.0.1

You must enter the IP address and the netmask.

Enter new IP address, press ENTER to cancel: "192.168.176.78" <Enter>
Enter new netmask, press ENTER to cancel: "255.255.255.0" <Enter>

Important Note! The gateway entry is optional but you must take care that the gateway address matches the

network mask related to the device IP address!
If you are not sure simply enter 0.0.0.0. or leave it without an entry.

Enter new gateway, press ENTER to configure without gateway: <Enter>

Changing Network configuration
Network configuration has been changed. Please reboot the device
to activate the new settings.

D*AP8 MAP

9

Select item 8:

Do you want to reboot the device ? <ENTER>

Press small "y":

Do you want to reboot the device ? y <ENTER>

Rebooting the device ……..

After reboot has finished, the new IP configuration is active and will be displayed at the top of the
configuration menu.

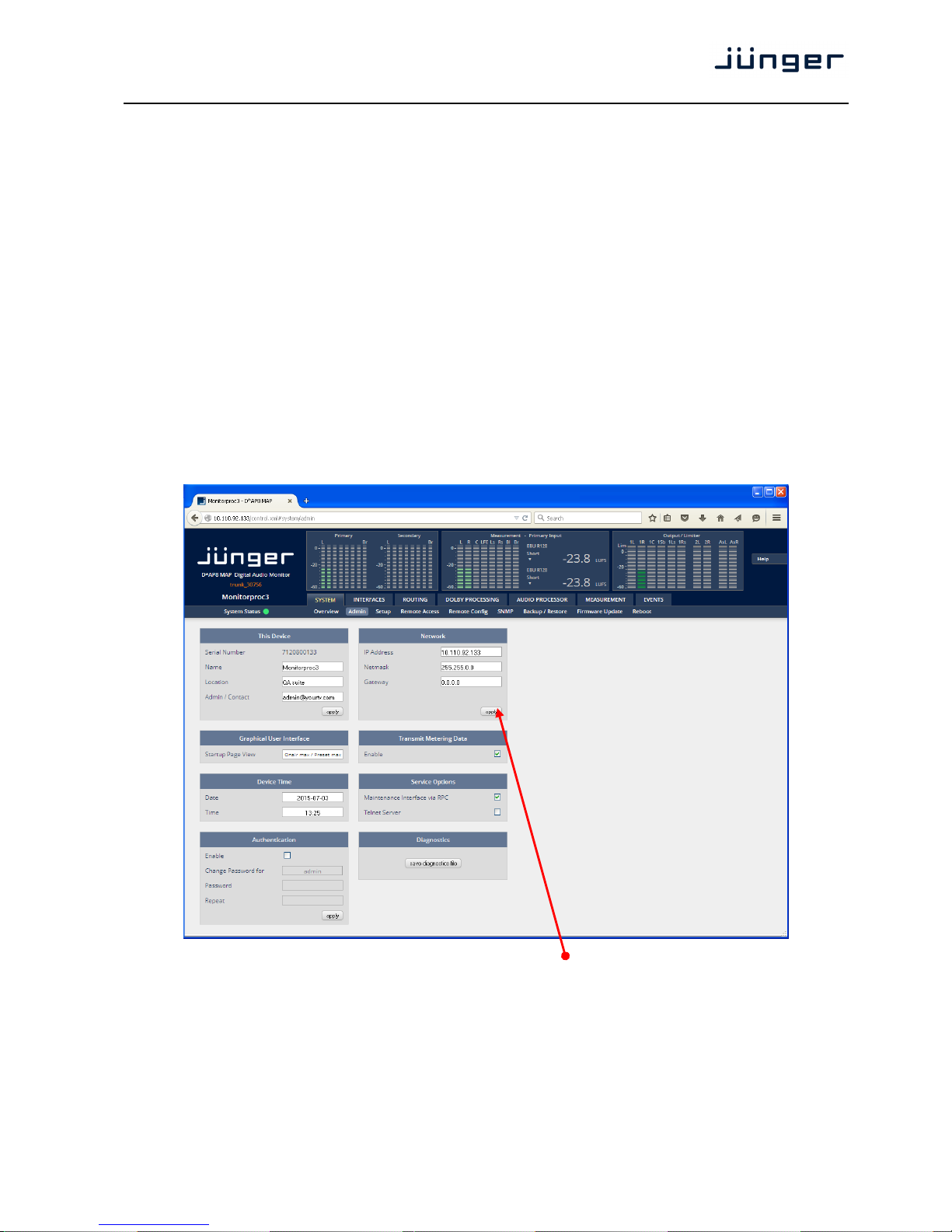

Getting started – IP setup of the D*AP8 unit – via web browser

* Read the default IP address printed on a label at the rear of the device.
* Set up network parameters of your PC to fit the default IP address of the D*AP8 unit

(e.g. default IP + 1 and net mask = 255.255.0.0).

* Connect the D*AP8 unit with the PC either via an Ethernet patch cable (if the PC

supports Auto-MDI(X) or an Ethernet cross over cable.

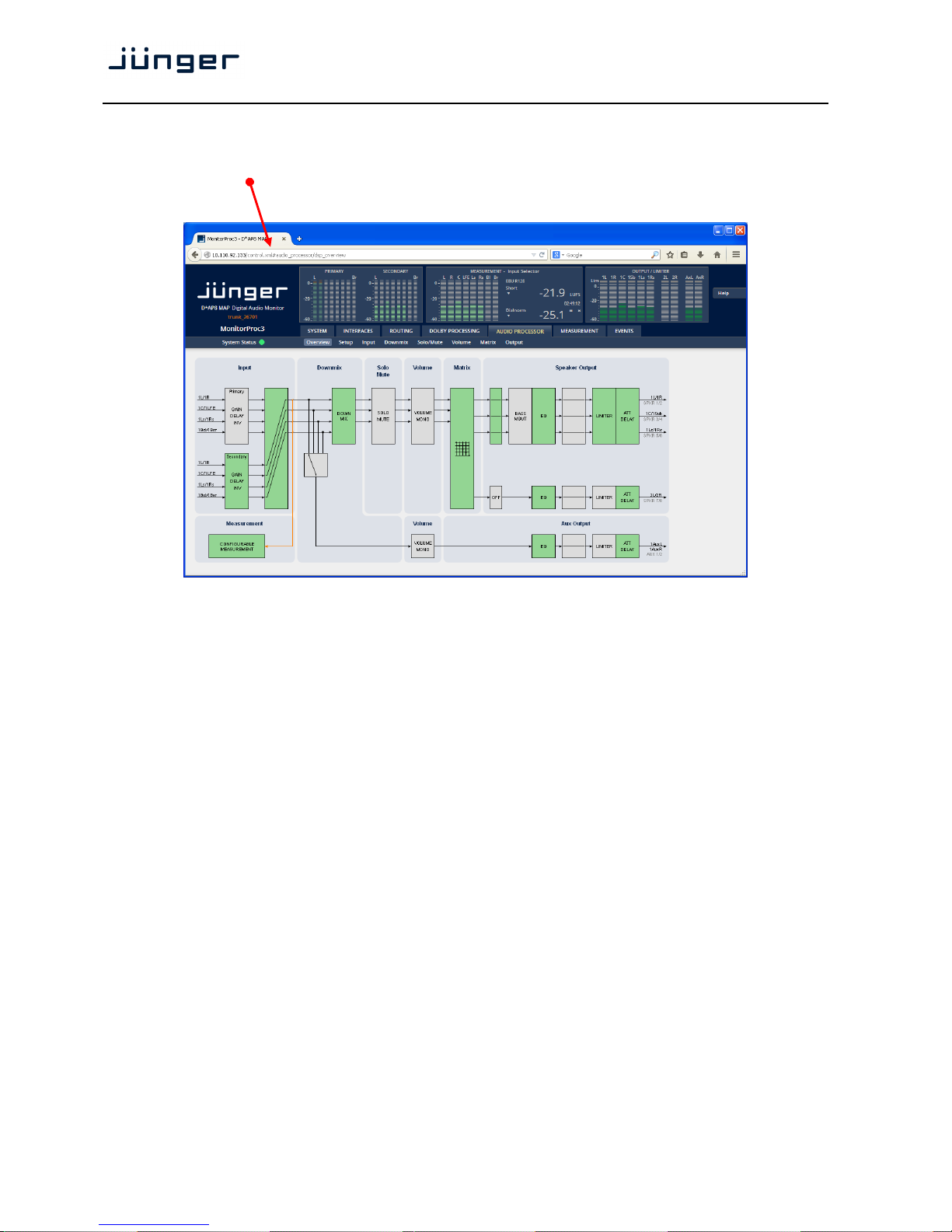

* Open a browser and type the IP address of the D*AP8 unit into the URL field and press <ENTER>.

This will open the AUDIO PROCESSOR tab sheet of the GUI.

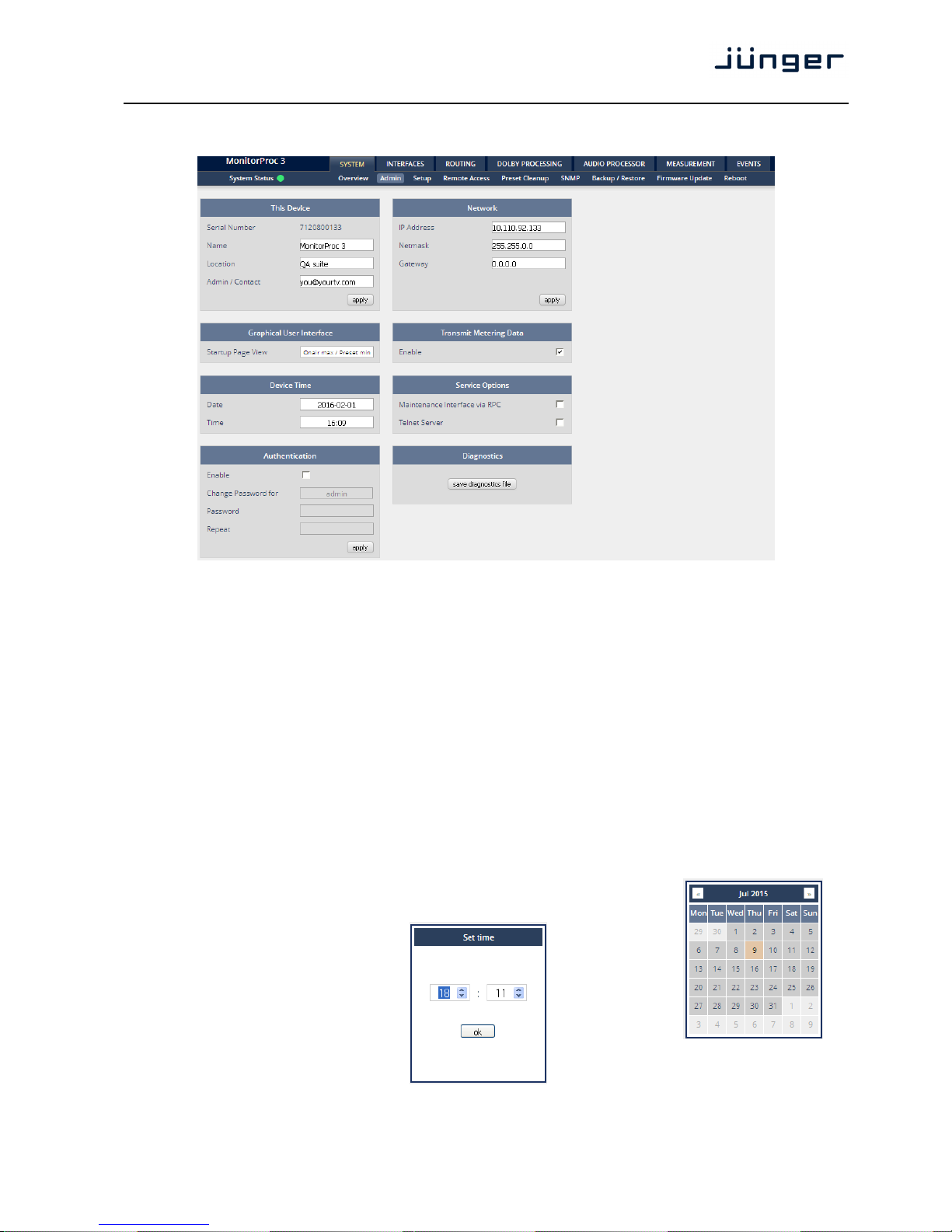

* Click on <SYSTEM> and afterwards the <Admin> tab:

Enter the desired network configuration and press <apply>
Afterwards you must reboot the D*AP8 unit in order to activate the new IP configuration.

Important Note! After reboot neither the web browser nor the X*AP RM1 remote panel will be able to
communicate with the D*AP8 device. You must fill in the new IP address in the URL field and change
the X*AP RM1 remote panel settings to attach this device with its new IP address.

D*AP8 MAP

10

Getting started – basic X*AP RM1 remote panel operation

Power up display – may show up to four D*AP4 MAPs enabled for remote control for this X*AP RM

1

remote panel. This example has just one D*AP8 unit named "MonitorProc 3" attached for remote control
while the status is "connect" (i.e. you may connect with that device). See X*AP RM1 manual for details.

Pressing one of these buttons will connect with the respective D*AP8 MAP.
Now the X*AP RM1 remote panel will gather all necessary information from that D*AP8 MAP
(may take a few seconds) and open up the main operating display:

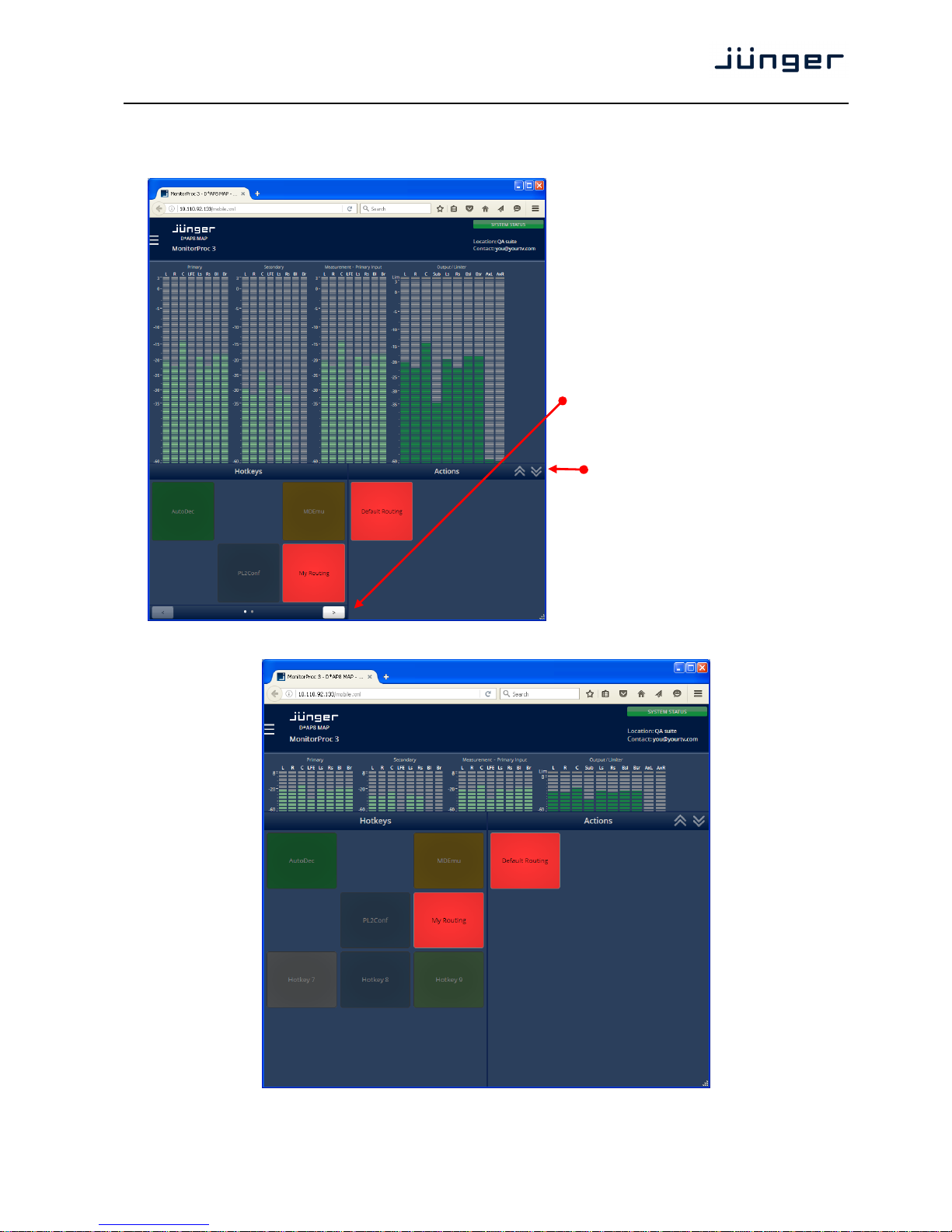

From here you may fire pre-defined hotkeys and observe the status of the volume setting.
Because this is the main operating display, the escape button will light up red to indicate that the power up
display is below the main operating display. Pressing <ESC> returns you back to the power up display
(device selection).

The hot keys may be programmed by the administrator of the device to recall global settings
(see EVENT management for details) and therefore may have dedicated names.

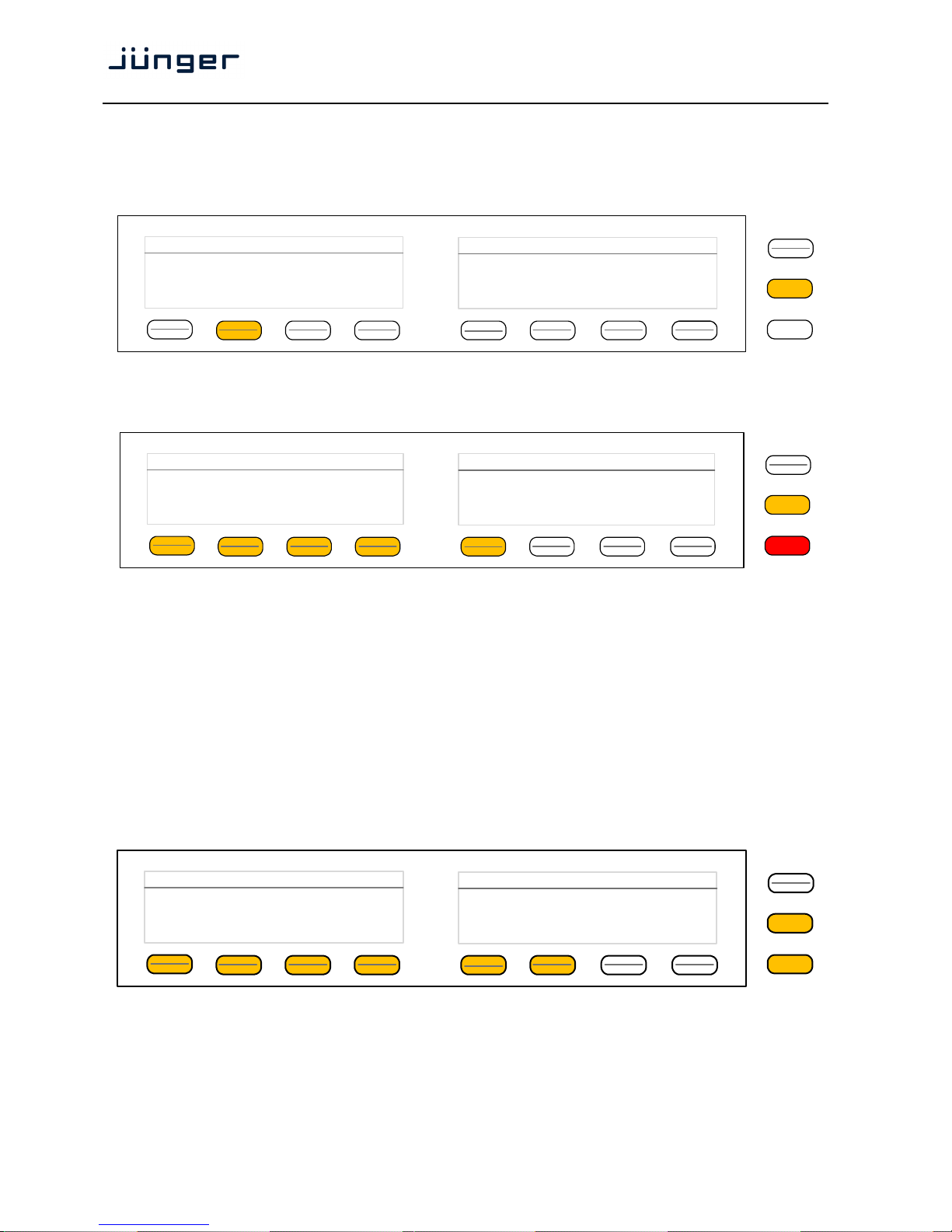

Operating – menu structure of the X*AP RM1 remote panel – operating display

Important Note! The functions described below expect a proper routing of the signal from hardware
interfaces to the audio processor and back (see ROUTING pane).

When pressing the <MENU> button, the first page of the operating menu opens up:

This menu allows for high level settings like the selection of the input (Primary / Secondary), converting signal
pairs to mono mute all speaker channels or DIM them by a pre-configured value.

The bold face number [-26 dB] on the right hand side show the actual value of the master volume setting.
This may be changed by turning the rotary encoder.

MENU

ESC

Primary 10.110.64.128

EBU R128
Meter

Input

Primary

L/R

Mono

Ls/Rs
Mono

MUTE

ALL

DIM

-20dB

-26

dB

MENU

ESC

Remote Panel select device to control

MonitorProc3

10.110.1.55
connect

MENU

ESC

Primary 10.110.64.128

-6dB

AutoDec PL2Dec MDOvr PL2Conf

MDOvr

D*AP8 MAP

11

Important Note! Pressing on the rotary encoder will activate the MUTE ALL function.

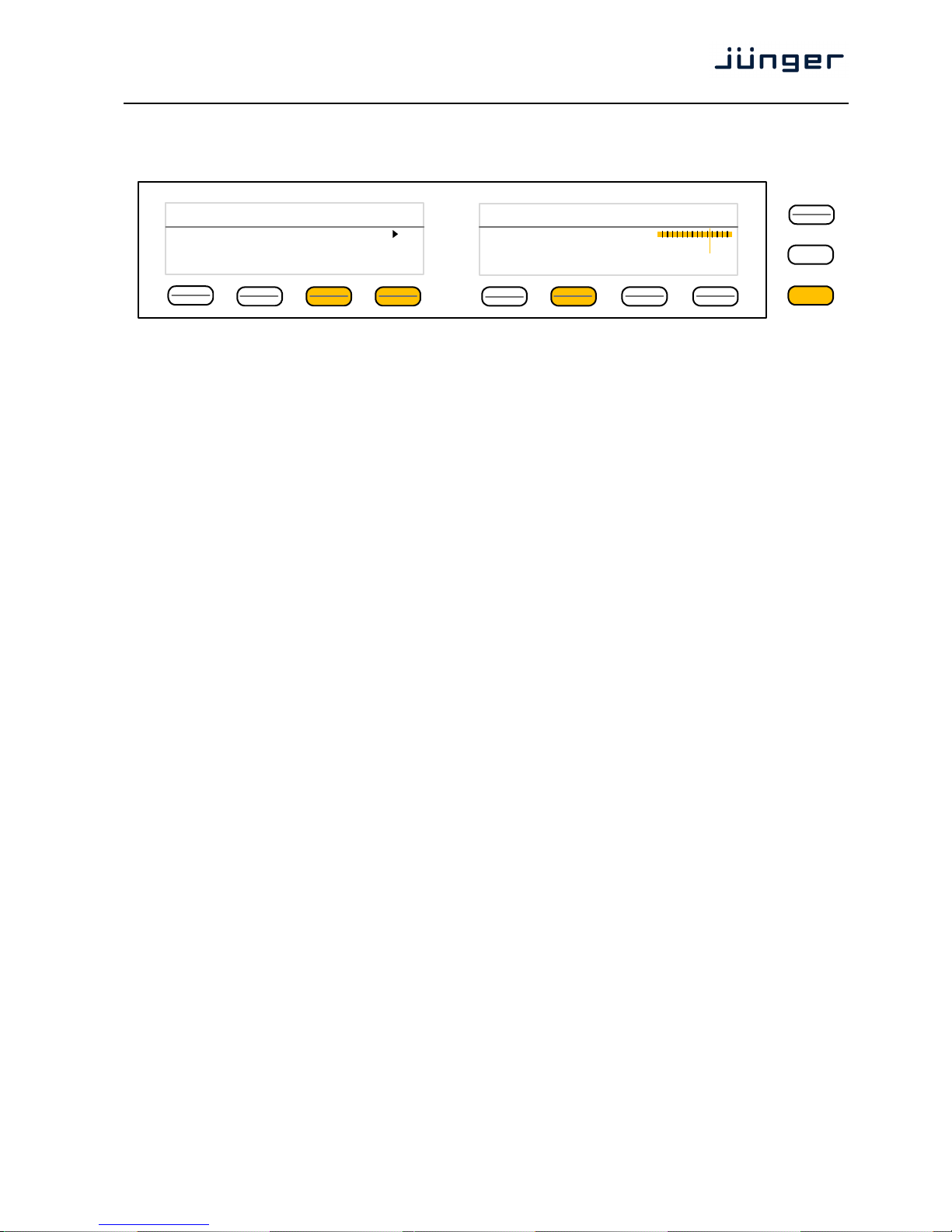

The first key <EBU R128 Meter> opens the loudness measurement display:

The highlighted keys will control the measurement process. The display represents the measurements of

Integrated- / Short Term- and Momentary-Loudness as well as LRA [LU] - the loudness range and
Max TPL [dBTP] - the maximum true peak level.

The measure for the EBU meter display is [LUFS] (Loudness Units Full Scale) as long as not defined
differently. For details pls. refer to the EBU-Tech 3341 document.
You may leave this display by pressing <ESC>. This will bring you back to the first page of the operating
display.

The second key <Input Primary / Secondary> switches between the primary and secondary inputs of the
audio processor (see block diagram AUDIO PROCESSOR > Overview).

The other keys will do what is written above tem.

MENU

ESC

EBU R128 Integrated LRA Time

[LUFS] [LU] hh:mm:ss

-22,3 6,4
00:12:15

Short Term Max TPL Momentary
[dBTP] Max

-19,7 -6.6 -12.0

reset max

pause

reset

D*AP8 MAP

12

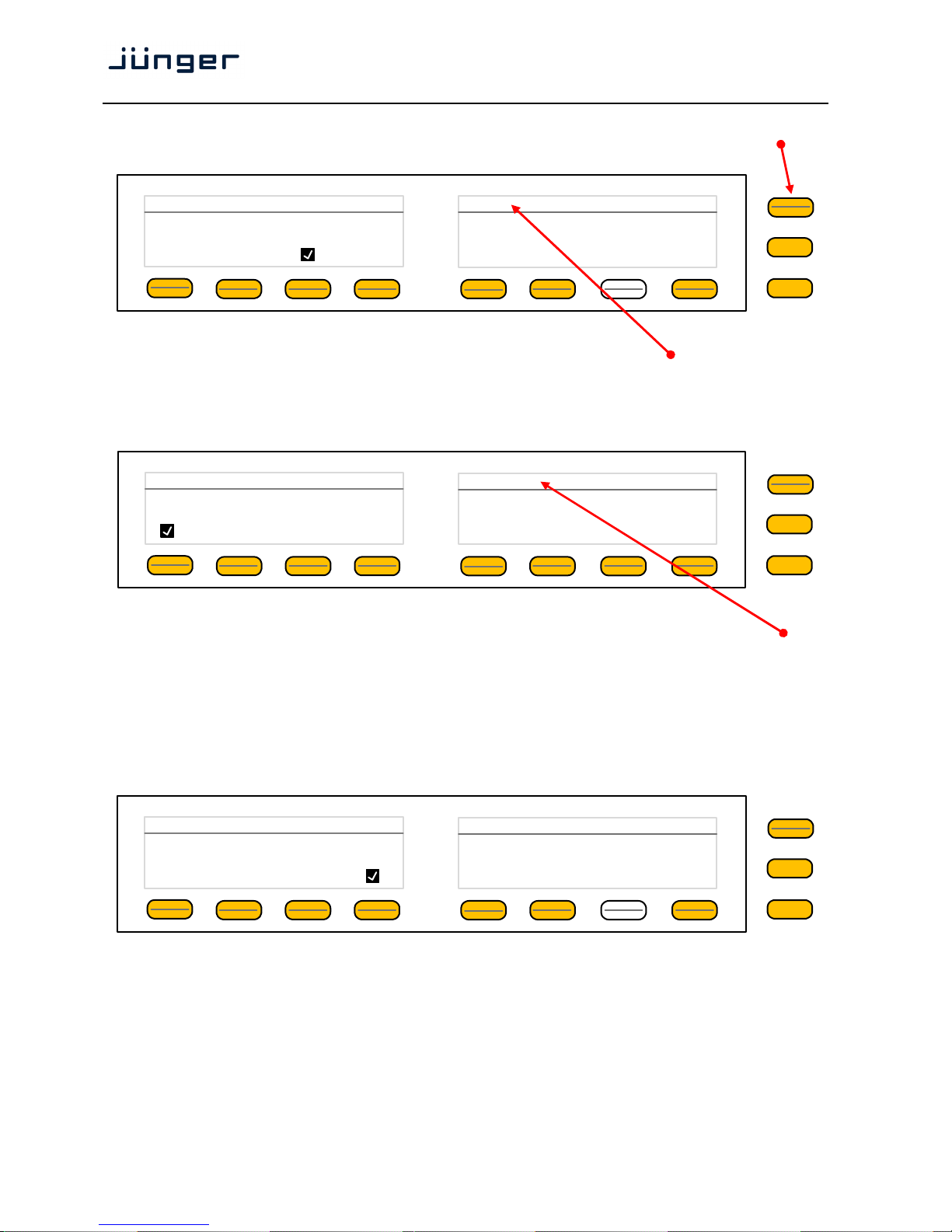

Pressing <MENU> again will open the "Mute" page.
It is the first of the three control pages. You will reach the others by pressing the <select> key here:

When you press one of the keys the respective speaker channel will be muted.
This will be indicated in the check box above that key. In addition the word "Mute"
will be displayed. It indicates on all three pages that one or all channels are muted.
<default> resets the selected function (MUTE C = OFF in the above example).

The next page is the "Solo" page:

When you press one of the keys the respective speaker channel will be put into solo mode.
This will be indicated in the check box above that key. In addition the word "Solo" will be displayed.
It indicates on all three pages that one or more channels are put into solo mode.
The way of listening in solo mode is set by key #7. It will change between:

Solo in Place
Solo to C
Solo to L/R

<default> resets the selected function (Solo L = OFF in the above example).
Page three finally offers the "Solo Defeat" settings:

The channel(s) indicated in the check box will not be turned off if another channel is put into solo mode.

<default> resets the selected function (Solo Def. LFE = OFF in the above example).

MENU

ESC

Primary 10.110.64.128

Mute -26dB >> Solo

MUTE

L

MUTE

R

MUTE

C

MUTE

LFE

MUTE

Ls

MUTE

Rs

default

MENU

ESC

Primary 10.110.64.128

Mute Solo -26dB >> Solo Defeat

Solo

L

Solo

R

Solo

C

Solo

LFE

Solo

Ls

Solo

Rs

defaultSolo in Place

MENU

ESC

Primary 10.110.64.128

Mute Solo -26dB >> Mute

Solo Def.LSolo Def.

R

Solo Def.CSolo Def.

LFE

Solo Def.LsSolo Def.

Rs

default

D*AP8 MAP

13

Operating – menu structure of the X*AP RM1 remote panel – menu tree

Power Up Display

<MENU> opens X*AP RM1 remote panel IP setup menu. See extra manual for details.

<Address> Setup
<Netmask> Setup
<Gateway> Setup
< empty >
Device 1 Setup IP & ON / OFF
Device 2 Setup IP & ON / OFF
Device 3 Setup IP & ON / OFF
Device 4 Setup IP & ON / OFF

<ESC> back to power up display

<connect> will connect with that particular D*AP8 unit and opens the main operating display:

Hotkey #
1 user defined
2 user defined
3 user defined
4 user defined
5 user defined
6 user defined
7 user defined
8 user defined

<ESC> will jump back to power up display

<MENU> opens operating displays:

Hotkey #

1 <EBU R128 Meter>
2 <Input>

Primary / Secondary

3 <L/R Mono>
4 <Ls/Rs Mono>
5 <Mute All>
6 <Dim>
7 <empty>
8 <empty>

<ESC> back to main operating display

<MENU> opens 3 more operating / setup pages:

< select> Mute Solo Solo Defeat

1 <Mute L <Solo L> <Solo Def. L>

2 <Mute R> <Solo R> <Solo Def. R>
3 <Mute C> <Solo C> <Solo Def. C>
4 <Mute LFE <Solo LFE> <Solo Def. LFE>
5 <Mute Ls> <Solo Ls> <Solo Def. Ls>
6 <Mute Rs> <Solo Rs> <Solo Def. Rs>
7 <empty> <Solo in Place> <empty>
<Solo to 1L+1L>
<Solo to 1C>
8 <default> <default> <default>

<MENU> back to operating display

<ESC> back to main operating display

D*AP8 MAP

14

Setup GUI – connecting with the D*AP8 unit – AUDIO PROCESSOR > Overview

You must open a browser and enter the IP address of the D*AP8 unit
into the URL field and press <Enter>. The browser will fetch the necessary information and open the
entrance page:

The entrance page is the AUDIO PROCESSOR pane with its sub pane Overview. If you are returning from
other pages or if you reload your browser content by pressing <F5> it may show a different page due to the
caching of the browser.

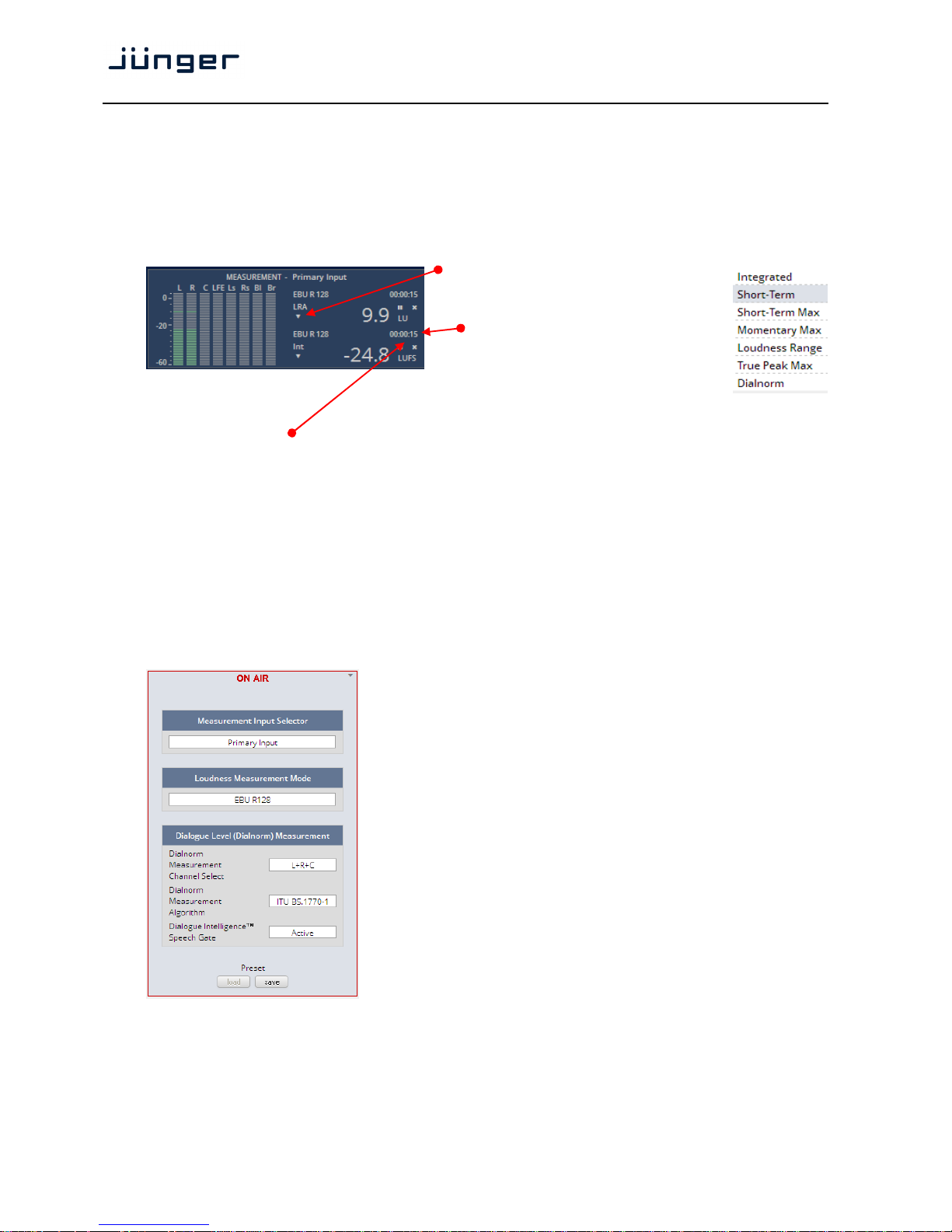

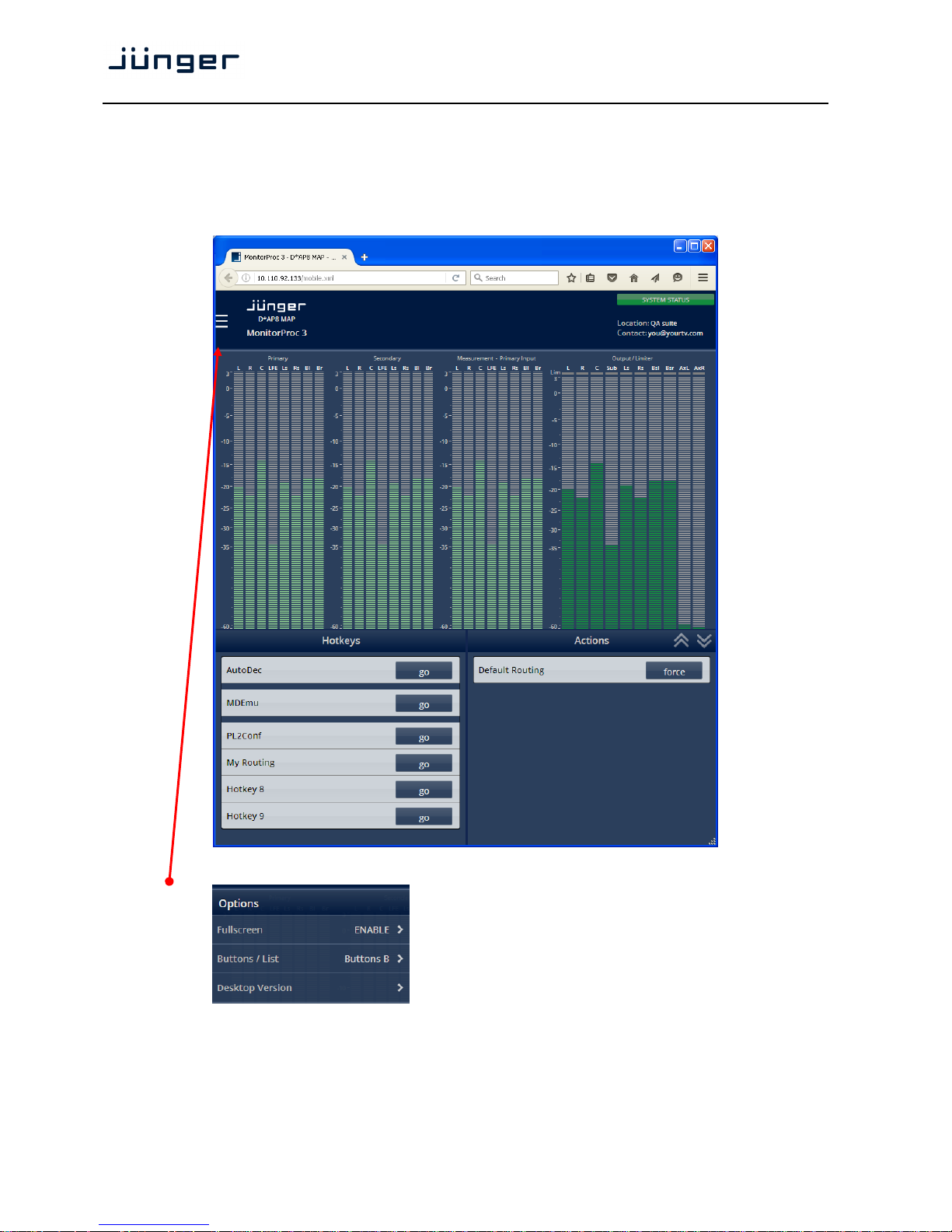

In the top area you have several bar graph displays for the two inputs (Primary / Secondary) of the audio
processor, the measurement block and on the right hand side the level display of the audio processor outputs
which in fact feed the speakers most of the time.

The display is rounded up by two numeric representations for loudness measurement.

On the following pages we will go through the various panes to perform the basic setup of the device.
You must setup the synchronization source. You may also give the device a name, tell it its location and

define an administrative contact which may be used by monitoring systems of your company (e.g. via SNMP).
You must setup the installed interface modules and finally set the signal routing

You will find those settings under the SYSTEM link.

D*AP8 MAP

15

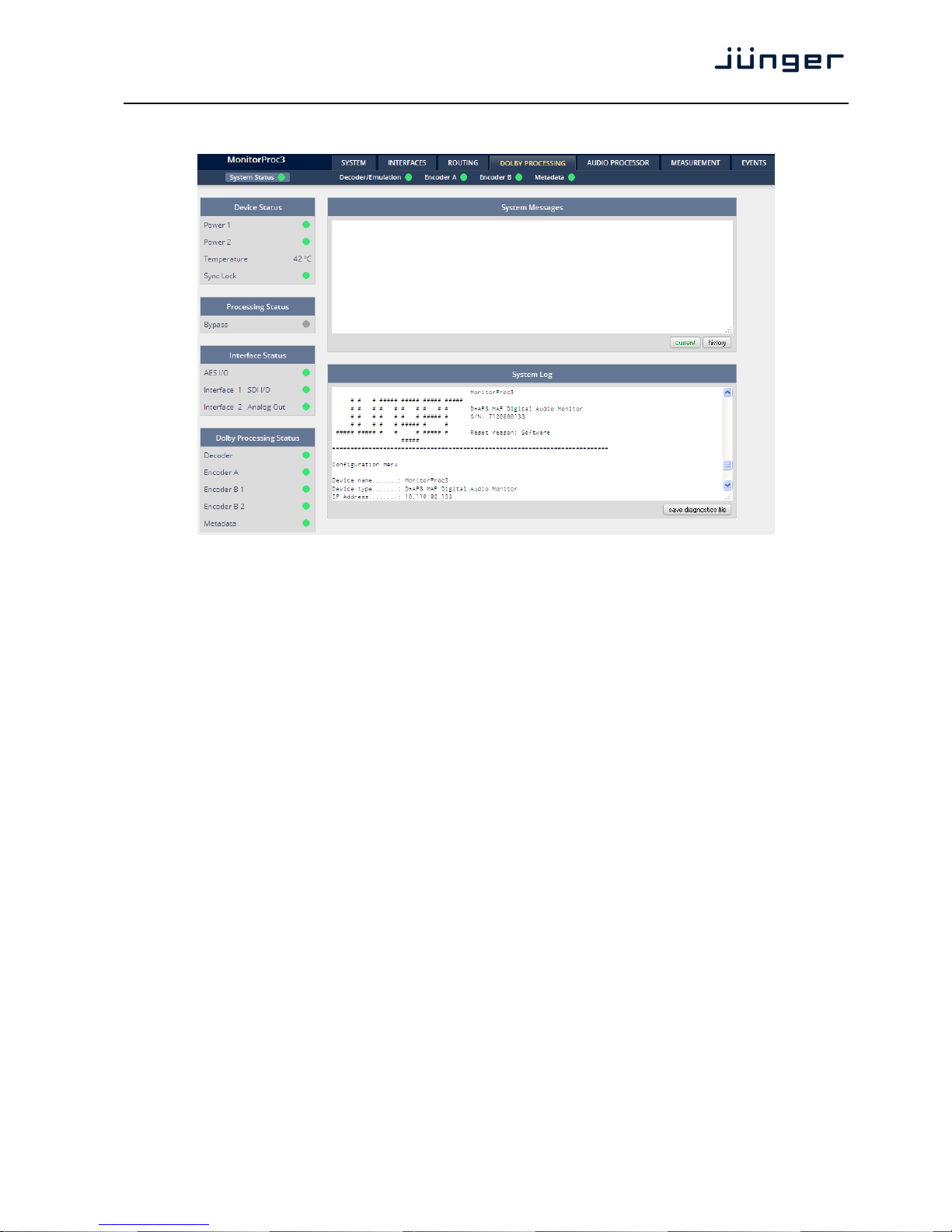

Setup GUI – SYSTEM – System Status

The System Status page provides a top level view of the various status information available
for the device.

Device Status provides the hardware status of the D*AP8 unit

Power 1 status of the first power supply (left hand side from rear)
Power 2 status of second power supply (right hand side from rear)
Temperature measured on the surface of the main PCB
Sync Lock turns red if the external sync source is removed or unstable

Processing Status

Bypass for the MAP is no bypass function implemented

Interface Status display depends on the number of installed interface modules

AES I/O turns red if an AES input that is internally in use (i.e. you have routed it to

an input of a function block) has detected an error

SDI I/O Interface turns red if the SDI input is not locked (not present or bad SDI signal)
Analog Out Interface turns red if the analog output card does not communicate

with the system controller

Dolby Processing Status

Decoder turns orange if the input signal is not Dolby encoded (PCM)
Encoder A status of the first D-E encoder (if license is installed)
Encoder B1 status of the first D-D/D-D+/AAC encoder (if optional CAT561 is installed)

status of the D-E encoder (if optional CAT569 is installed)
Encoder B2 status of the second D-D/D-D+/AAC encoder (if optional CAT561 is

installed)

Metadata status of the metadata sub system

D*AP8 MAP

16

System Messages <current> / <history>

Displays a list of messages produced by the system controller.

System Log The system controller activities will be logged. If there is a suspicious

behavior we recommend to warm-start the D*AP8 by pressing the rear

<INIT / RESET> button briefly. This will keep the log information for later

investigation. If you do a power cycle instead the previous
log information get lost.

<get diagnostics file> Pressing this soft button will start the assembly of files to help with

diagnostics. The packed .tar archive contains 3 files:

The console log from the System Status pane, the license file and the

status file. If you experience unexpected behavior of the device you may
be asked by the Junger service team to send such file by e-mail for
analysis.

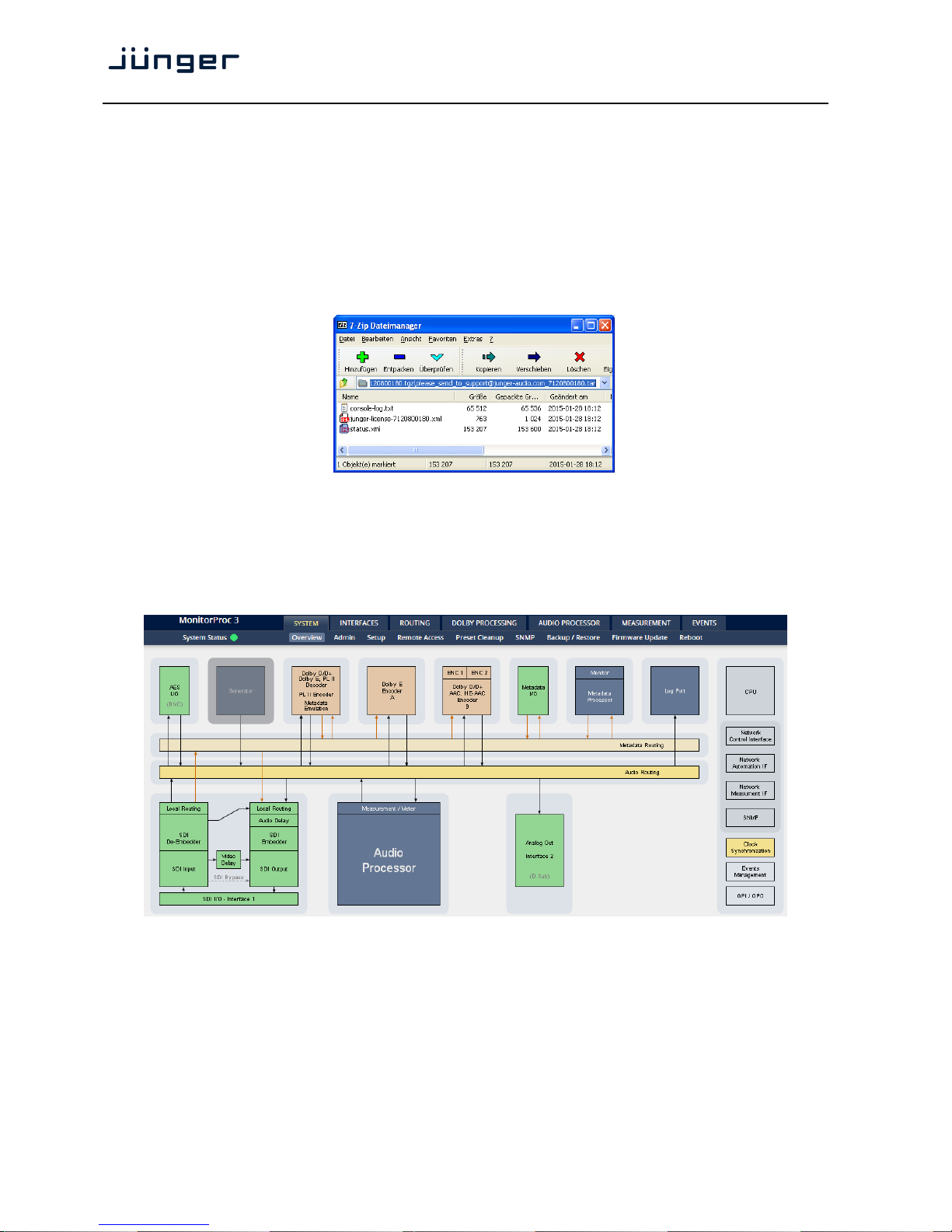

Setup GUI – SYSTEM – Overview

The graphic overview shows the main building blocks of the device including the options actually installed
such as a SDI interface module and the 8-channel analog output module.

You may click into the boxes and the respective page will open. The navigation is based on URLs so you
may use the <Back> navigation button of the browser to return to this page.

D*AP8 MAP

17

Setup GUI – SYSTEM – Admin

This Device Input fields for information utilized by higher level services.

Serial Number The electronic serial number. Printed on a label at rear of the device.
Name Give the device a meaningful name that may be used by name services

and SNMP management.

Location The place where the MAP is located (used by SNMP).
Admin / Contact e-mail address of a person in charge (used by SNMP).

Graphical User Interface

Startup Page View Defines the appearance of the parameter panes regarding preset editor

and on air parameter visibility (see below – for preset concept).

Device Time Allows you to set the device clock. At the factory it is set to

UTC (Coordinated Universal Time).

Date If you click into the Date input box, you will get a calendar tool:
Time If you click into the Time input box,

you will be able to set the device time:

D*AP8 MAP

18

Authentication To prevent non authorized people from

changing D*AP8 MAP settings the
administrator may assign passwords for
either the admin and/or an operator

(same applies for talent/artist). While the admin is allowed to set everything,

an operator is just allowed to load presets. Parameters will be reset if there
was an attempt from the operator to change it.

Enable [enable / disable]
The administrator may turn authentication off.

Change Password for [admin / operator]
Select which password you will set / change

Password key in a password
Default passwords are: admin (for admin) and operator (for operator).

Repeat repeat that password

Important Note! The authentication may be enabled / disabled from the console interface via USB

connection as well (see page 8 "1: Manage Password") but also via Telnet! If you have higher security
demands you should turn the Telnet server off. Authentication will be turned off and passwords will be reset if
one initializes the device to factory default (see Reboot - page 19, INIT/RESET rear button - page 4).

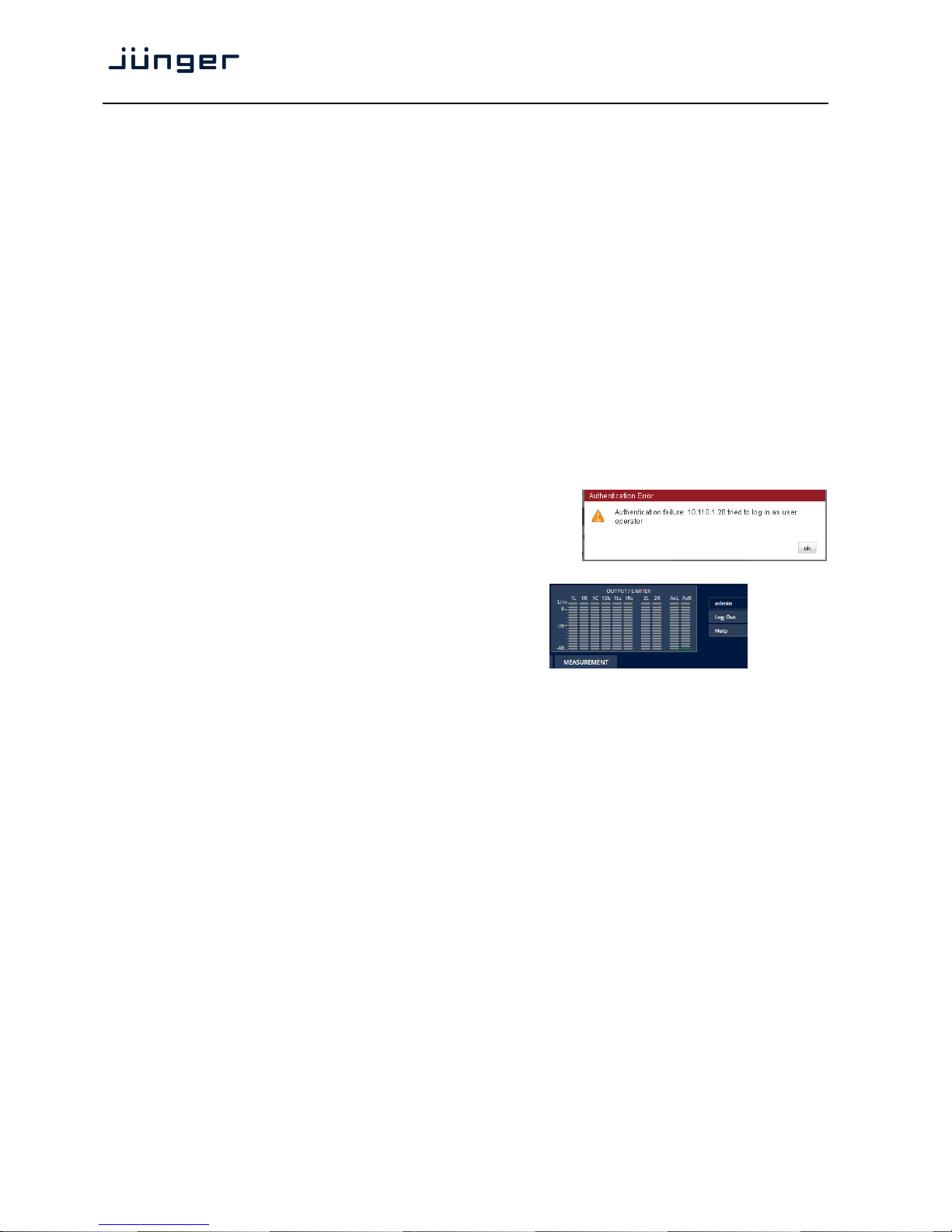

If there was an authentication failure, the admin will be notified
on next proper login about such conditions The pop up appears
as often as a login failed. It shows the IP address of the device
that caused the authentication failure.

After a correct login the status "who" (e.g. admin)
and a <Log Out> button are available from the GUI:

Network IP address setup, see above:
getting started – IP setup of the MAP – via web browser

IP Address The address of your choice – default [10.110.xxx.yyy]
Netmask The net mask of your network – default [255.255.0.0]
Gateway The optional gateway address – default [0.0.0.0]

Transmit Metering Data [ON / OFF]

Metering data will be streamed via UDP protocol. In order to receive such

data by external applications and the GUI, you must enable it.

Service Options

Maintenance Interface [ON / OFF]
via RPC For administrative use to enable communication with factory tools.

Telnet Server [ON / OFF]

Enables a telnet server to connect to the consol interface via

TCP (port 23). You must be aware about the security risks if you do that
over the internet!

Diagnostics

<get diagnostics file> It is a duplication of the soft button from the System Status pane.

D*AP8 MAP

19

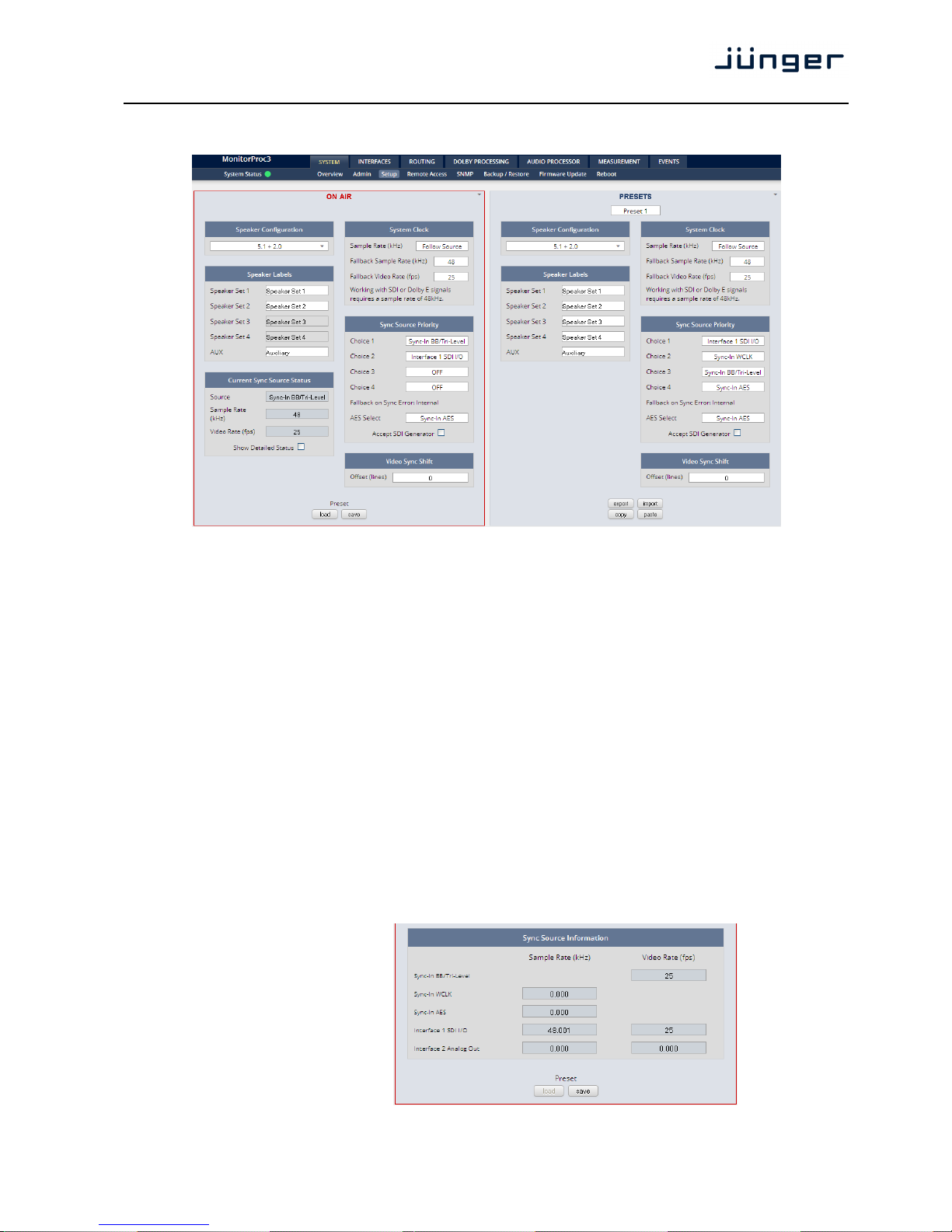

Setup GUI – SYSTEM – Setup

Speaker Configuration [4 x 2.0 / 5.1 + 2.0 / 7.1 / 2 x 2.1 + 2.0]
the MAP may drive up to 8 speakers. Here you may select between

possible speaker configurations. This will automatically configure
the bar graph display and relevant audio processing blocks.

Speaker Labels here you can set the label for the audio processor outputs

Speaker Set 1 - 4 depending on the speaker configuration you may assign up to four

independent labels.

AUX label box for the AUX output

Current Sync Source Status shows the status of the five tier sync priority circuit

Source active sync source
Sample Rate measured sample rate
Video Rate measured frame rate of the video sync
Show Detailed Status [ON / OFF]

If you enable the checkbox you will get extra information (see

below).

Sync Source Information Appears if Show Detailed Status check box is checked

D*AP8 MAP

20

System Clock

Sample Rate [Follow Input / 44.1 / 48]
Fallback Sample Rate [44.1 / 48]
Fallback Video rate [25 / 29,97 / 30]

Working with SDI or Dolby D signals, requires a sample rate of

48kHz

Sync Source Priority

Choice 1 – 4 [OFF / Internal / Sync-In WCLK / Input AES /

Interface 1 SDI I/O (if fitted) / Sync-In Black Burst/Tri-Level]

Fallback on Sync Error: If an sync error occurs the sync circuit will automatically
Internal fall back to internal.

AES Select [Sync-In AES / Input AES 1/2 BNC … AES 7/8 BNC]
Select from which physical input the AES sync must be taken.

Accept SDI Generator [ON / OFF]
If you run the SDI interface in generator mode and you want to

synchronize the MAP to the SDI generator.

Important note! It is not possible to gen lock the SDI generator. The generator will run on its own

internal 27MHz crystal clock.

Video Sync Shift For applications like Dolby E encoding it might be necessary to

move the timing reference point.

Offset (lines) [-1023 … 0 …. 1023]
The number of lines which the reference point can be moved in

either direction.

Setup GUI – SYSTEM - the preset concept in detail

The example above shows the preset concept of the D*AP8 MAP. It is a general feature of the device and
you will come across it in almost every area. For all relevant setting one set of ON AIR parameters and a
practically unlimited number of presets are available. The count depends on the NV memory space left.

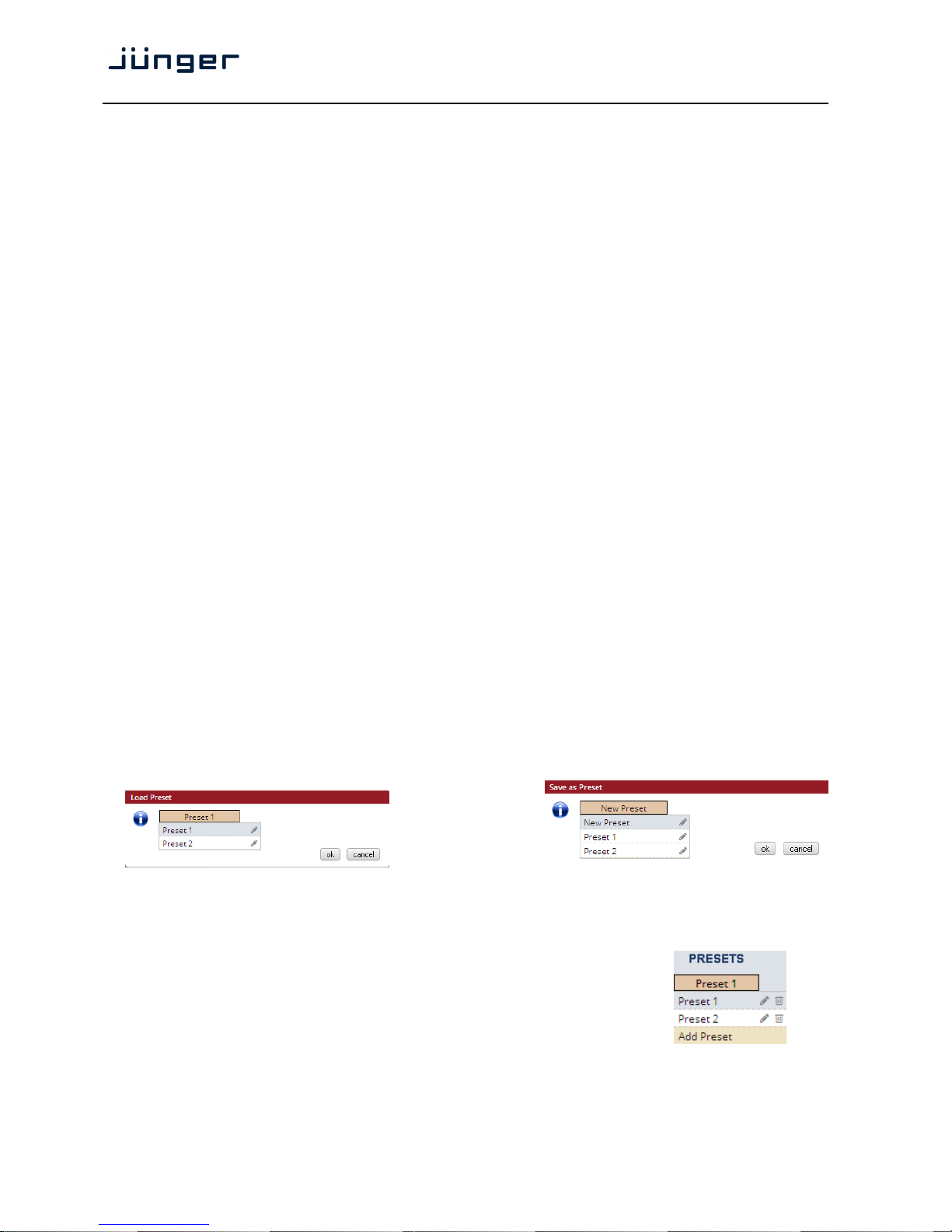

If you want to load parameters from a preset to the ON AIR area or save parameters from the ON AIR area
to a preset, you must press <load>: or <save>:

A dialog opens to select the desired preset. When you press <ok> the selected action will be executed.
When you press on the little pencil icon the preset name turns italic and you may edit it.

To generate a new preset offline, you must click into the preset name box below the PRESET headline:

The pull down offers "Add Preset". If you click on that option a new entry to
the list will be generated. Clicking on the small trash bin symbol will delete
that preset. You may change the default name "Preset x" by clicking on the
small pencil icon. Now the default name becomes italic and you may edit
that name.

If you have selected the new preset or one of the existing presets indicated by the name displayed at the
top, you may edit the parameter values.

D*AP8 MAP

21

Important Note! The presets of the D*AP8 MAP are persistent by nature. You are working directly on the
preset memory, i.e. you need not worry about storing such presets. The D*AP8 MAP does it for you.
On the other hand you must be aware that you are overwriting the actual preset settings! If you want to
keep the original values (e.g. from a factory preset) you must simply copy the content of the existing one to
the clip board, add a new preset, name it differently and paste the clip board to it.

At the bottom of the PRESET part you will find the soft buttons to <copy> the content of that preset to the
clip board or to <paste> the content of the clip board into an other preset which you have selected before
pasting.

You may also <export> or <import> the preset content to / from a file.

Setup GUI – SYSTEM – Remote Access – X*AP Remote

General functions and pre-settings of the EVENTS system are obtained via remote access from the
X*AP remote panel or from the Mobile UI on a tablet or smart-phone or even via a separate browser session.

At the moment of connecting a particular X*AP with a MAP the X*AP configuration will be transferred to that

X*AP. I.e. configuration must take place at the MAP. You must decide here which feature set a particular
X*AP is allowed to control:

Multiple X*AP remote panels may gain access to the MAP.
For each X*AP you may pre-set Feature Sets.

At the moment is only a "Standard Set" available.
But soon you will be able to manage

Profiles.
Profiles will be set up in the EVENTS > Preset Events (Profiles) area.

They will combine a number of presets of several processing blocks.

IP Address In the first line you will define the access

policy for an "unknown" X*AP that
connects with this VAP for the first time.
The other lines are used to pre-define
features for known X*APs. When
enabling an unknown X*AP to connect
with this MAP, the respective IP address
will be inserted automatically into the next
empty line.

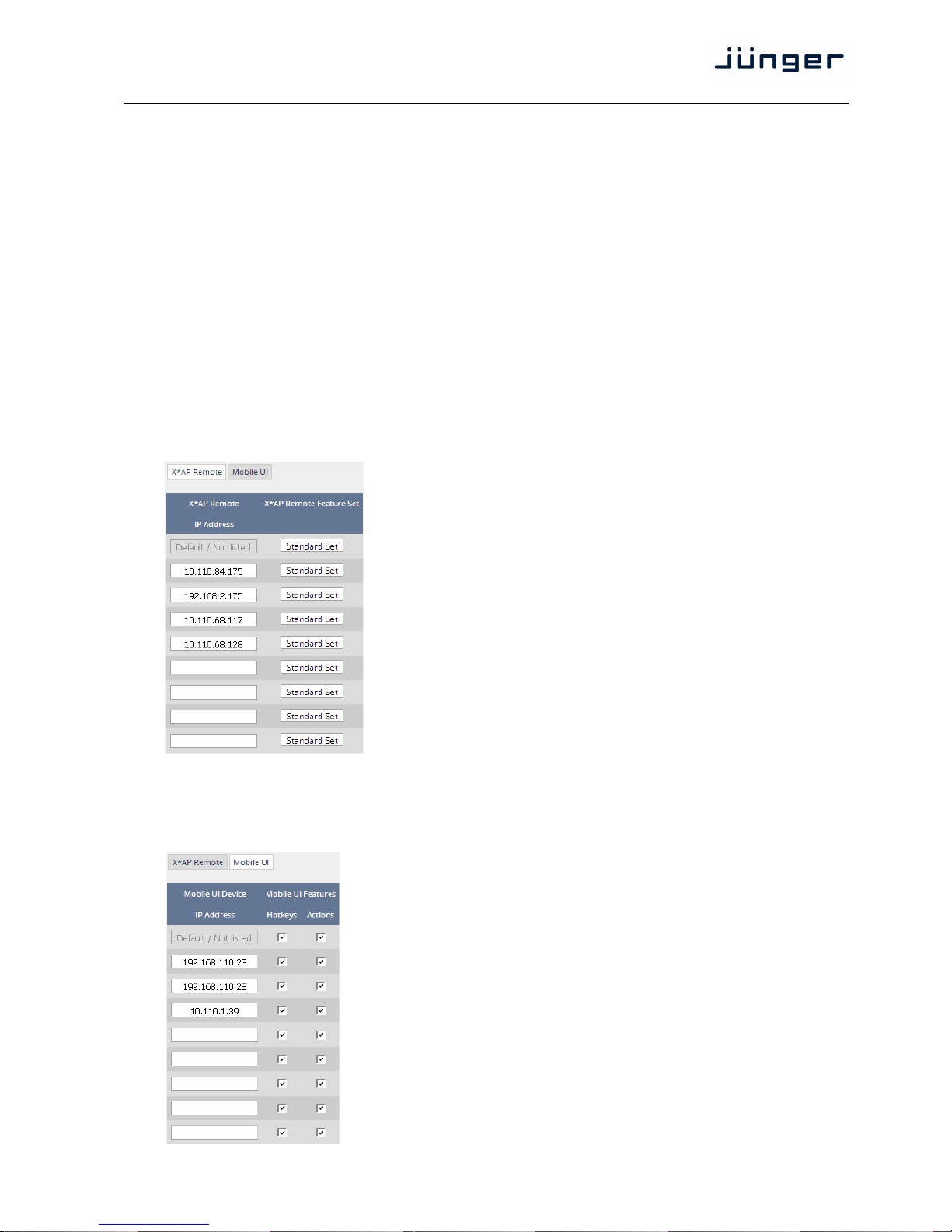

Setup GUI – SYSTEM – Remote Access – Mobile UI

For operator UIs on tablets, smart-phones or PCs you can assign the
features via its IP address:

IP Address When connecting from a mobile device

that is not pre-set, the respective IP

address will automatically be inserted.

Hotkeys [ON / OFF]

Turn it on if the UI shall display the

hotkeys of the X*AP that is connected
with this VAP.

Actions [ON / OFF]
Turn it on if the UI shall show actions to

trigger from the UI.

D*AP8 MAP

22

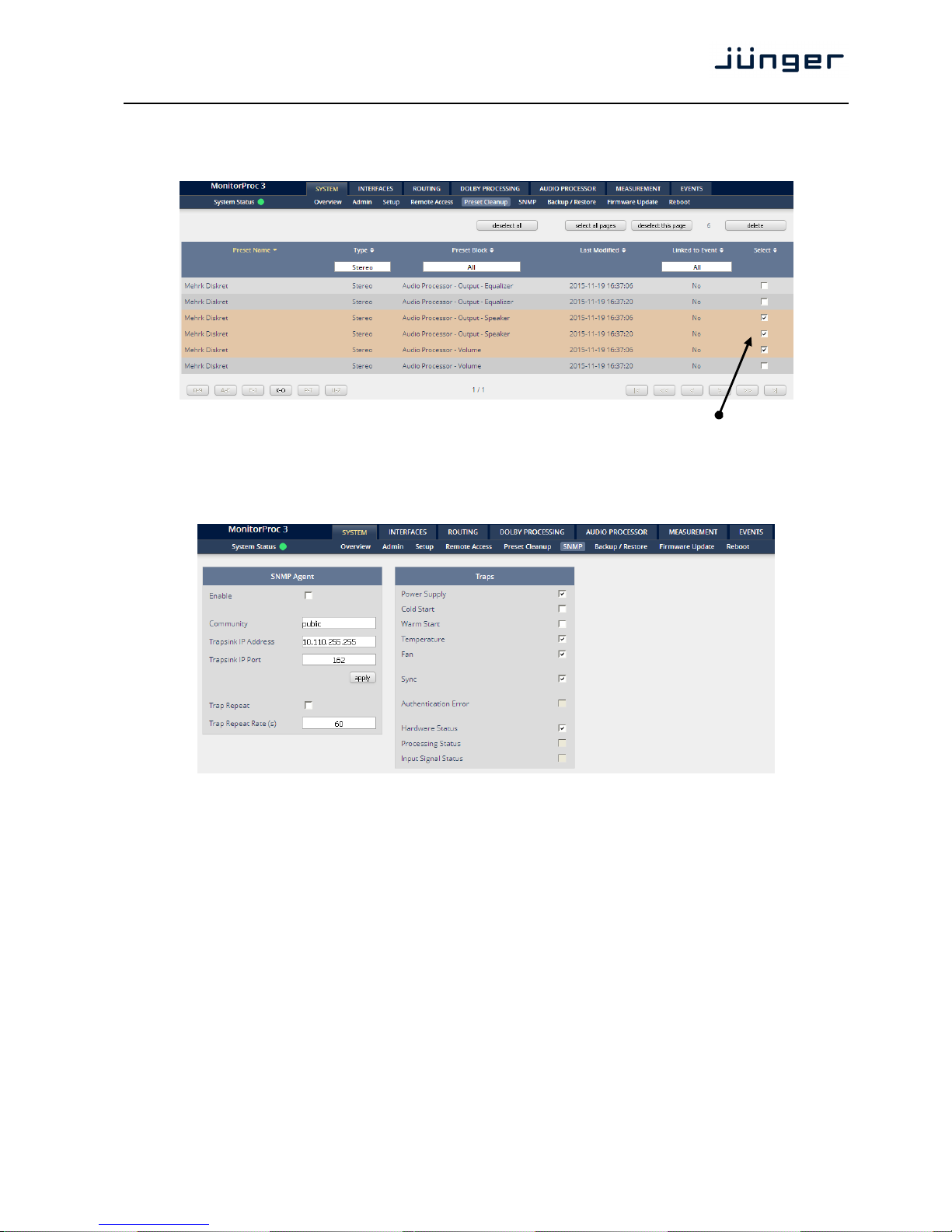

Setup GUI – SYSTEM – Preset Cleanup

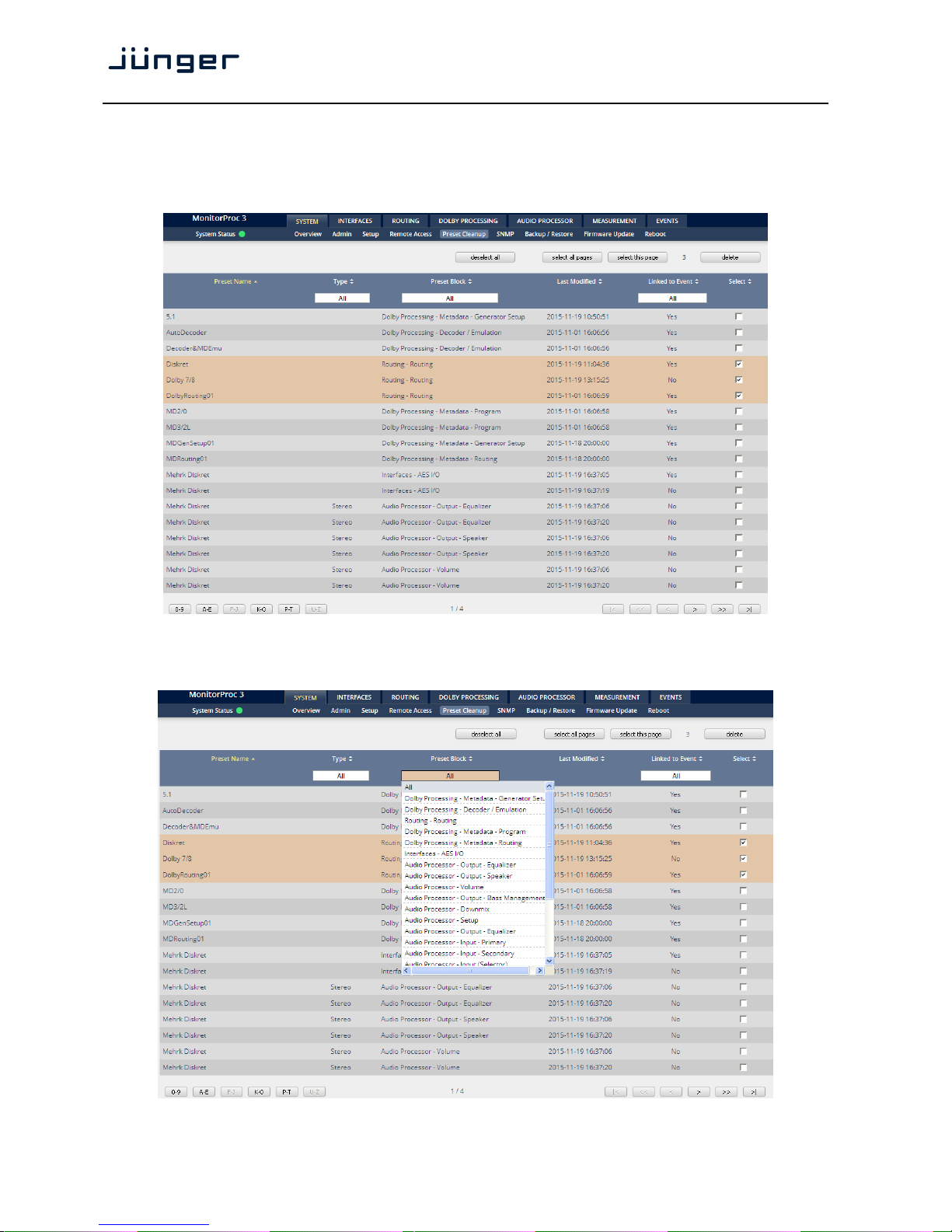

It is sometimes desirable to delete presets which are used by multiple events without going through all
processing blocks and deleting the respective presets one by one. This pane offers you a tool to delete
presets from a central access point:

You can sort the table by pressing on one of the column headlines. You can qualify your selection via the
"Type" selector and / or the "Preset Block", "Last Modified", "Linked to Event" column headlines.
The pull down lists allow reducing the number of presets displayed:

D*AP8 MAP

23

The soft buttons at the bottom left hand side may also be used to search through the table by sorting it
according to the first letter or leading number. The arrow buttons at the bottom right hand side can be used to
scroll through the table if the selection is too big for one page:

A selection is made by clicking on a line to activate the check box. Once you have made your selection
(highlighted lines), you can press the <delete> soft button to execute the process. This will remove the
selected presets permanently from the device.

Setup GUI – SYSTEM – SNMP

This pane is meant for basic settings of the SNMP Agent of the device. If you don't use SNMP based
system monitoring, you must not enable the SNMP agent.

D*AP8 MAP

24

Setup GUI – SYSTEM – Backup / Restore

Here you can backup the complete device and restore parts or all of it .If you press <save back up file>
the device controller will collect all necessary data and assemble it to an XML file.

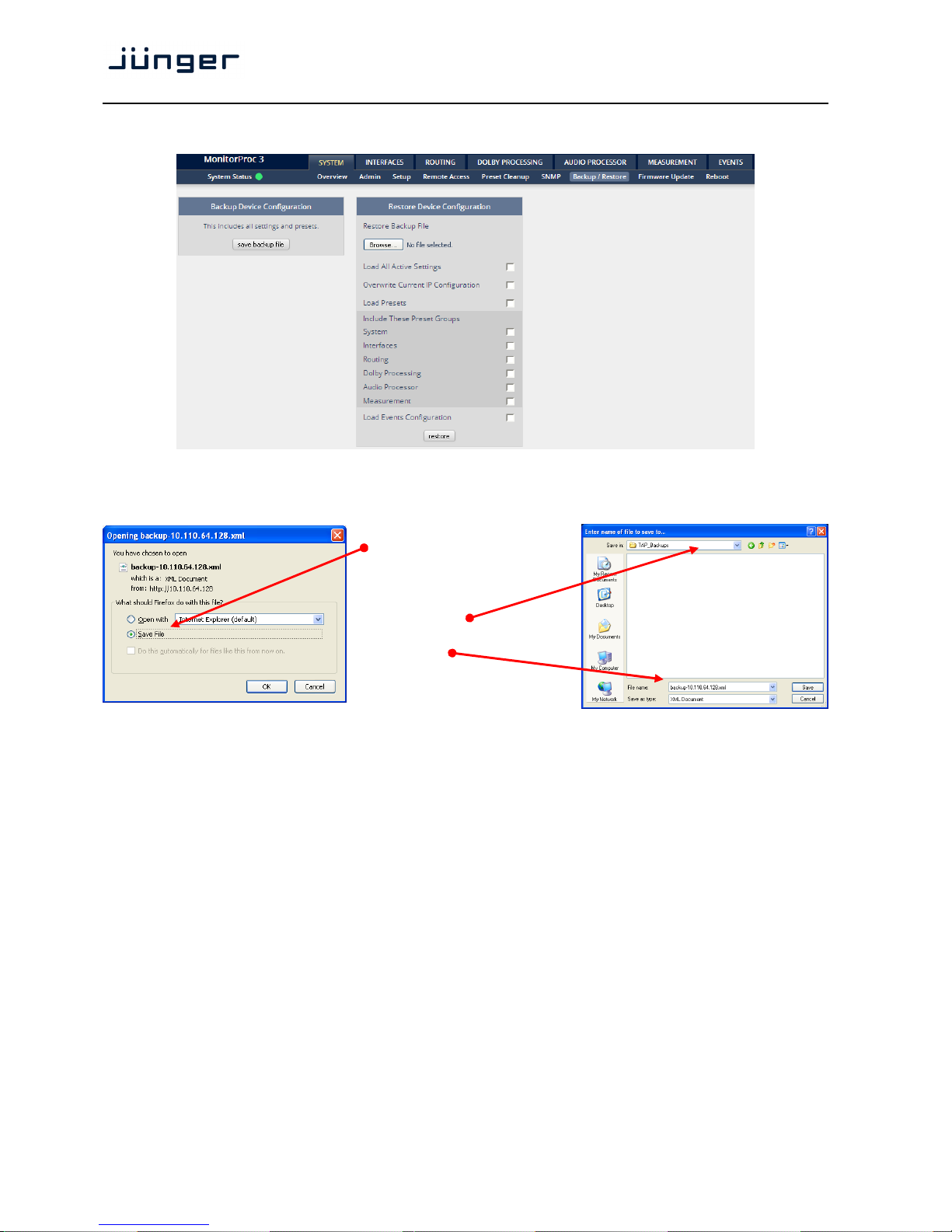

Finally you will get a pop up message:

You must select:
<Save File>.
After pressing <OK>, the
system file dialog opens:

Select a folder
and alter the default file name
if needed.

Similar applies to the restore process. You must <Browse …> for the desired backup file which you want to
restore and check the necessary option(s) under "Restore Device Configuration".

D*AP8 MAP

25

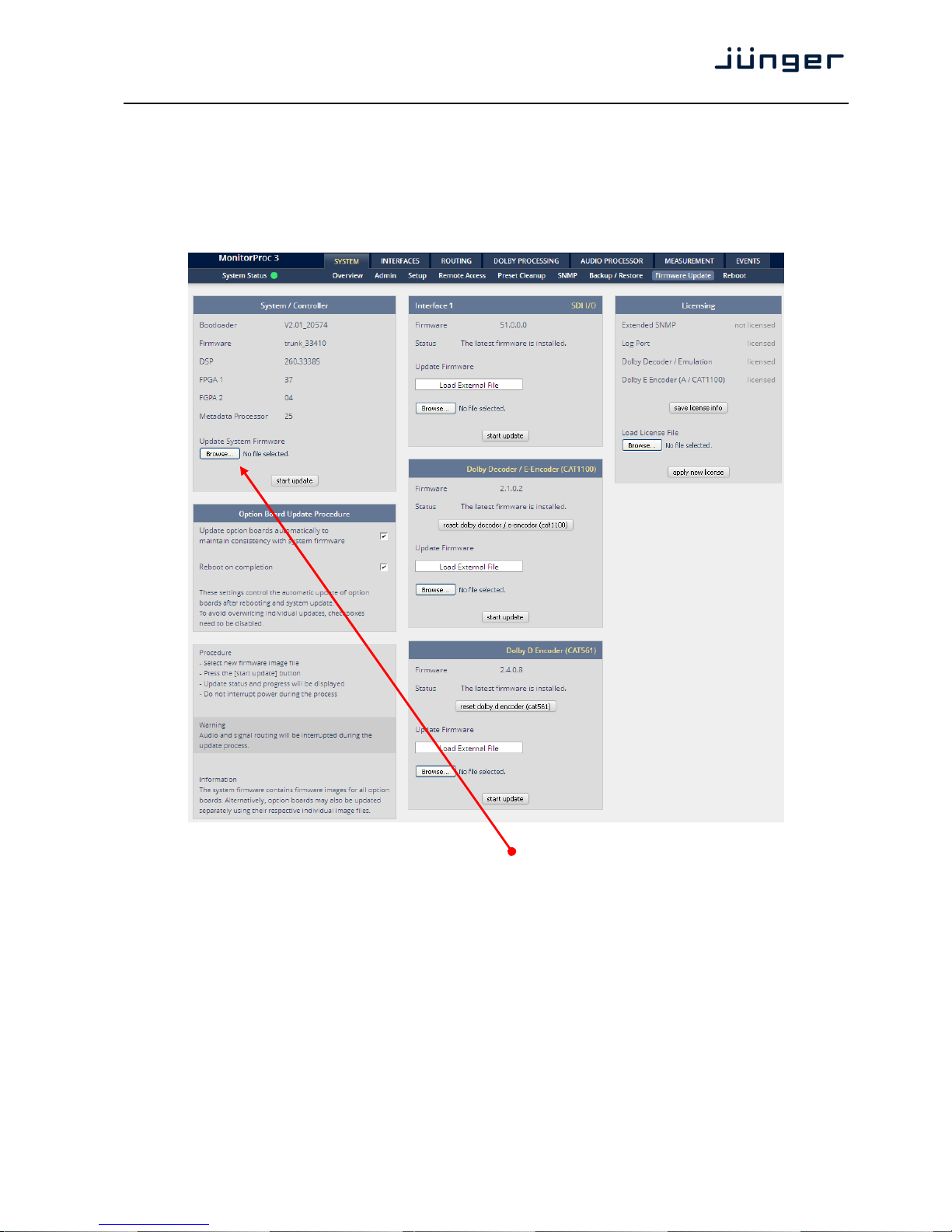

Setup GUI – SYSTEM – Firmware Update

The file to update the D*AP8 comes in ZIP format. You must unpack it to your PC's hard drive.
It contains also the manual a quick start guide the version history and a folder with the firmware for the
X*AP remote panel. The folder /base_unit_image contains the so called "image" file for the D*AP8. Here
an example: "rel_map_1_2_3-45678.img". It is a bundle that brings the latest firmware versions for all
interfaces and Dolby modules with it.

To update the D*AP8 MAP, you must <Browse …> for the respective firmware file (which you have
unzipped before) and press <start update>. If you do not want to upload all individual module firmware
files for any reason, you may take the "rel_map_1_2_3-basic-45678.img" file.
After finishing the update the device will automatically reboot

Important Note! After the update of the latest firmware image you must observe the Status messages
below the firmware version displays. If it indicates that you don't have the latest firmware installed you
should select the respective file via the drop down box and press the <start update> soft button
afterwards. But you can also upload an external file in case you need a specialized version for any reason
that is not contained in the uploaded firmware image.

D*AP8 MAP

26

Interface 1 You may also update the firmware of an optionally installed SDI board

or other interface boards.
Firmware Display of actual installed firmware.
Status [The latest firmware is installed / A firmware update is available]
Update Firmware [Load External File / x.y.z.]

You can decide if you want to upload it manually or take the latest

module firmware "x.y.z" that came with the release image

(recommended). You may <Browse…> the file system and select a file

of your choice.

Interface 2 If you have two interface boards installed, similar applies to the second

one.

Dolby Decoder / E-Encoder For the example above we have the optional Dolby decoder installed.
(CAT1100) It is based on the Dolby OEM board CAT1100.

The status says: "The latest firmware is installed".

<reset dolby decoder Pressing this soft button will warm start that module.
(cat1100)>

Dolby D Encoder (CAT561) For the example above we have installed the optional Dolby E encoder.
It is based on the Dolby OEM module CAT559.

<reset dolby d encoder Pressing this soft button will warm start that module - depending
(cat561)> on the Dolby module you may have installed.

Licensing Here you can see a list of the licensed options of your device.
<save license info> When you buy a license you must provide the "license info" file which

you may obtain here.

Load License File In return you will get a "license" file which you must apply to the device

here. You must <Browse …> to find the respective license file (which

you have unzipped before) and press <apply new license>.

Setup GUI – SYSTEM – Reboot

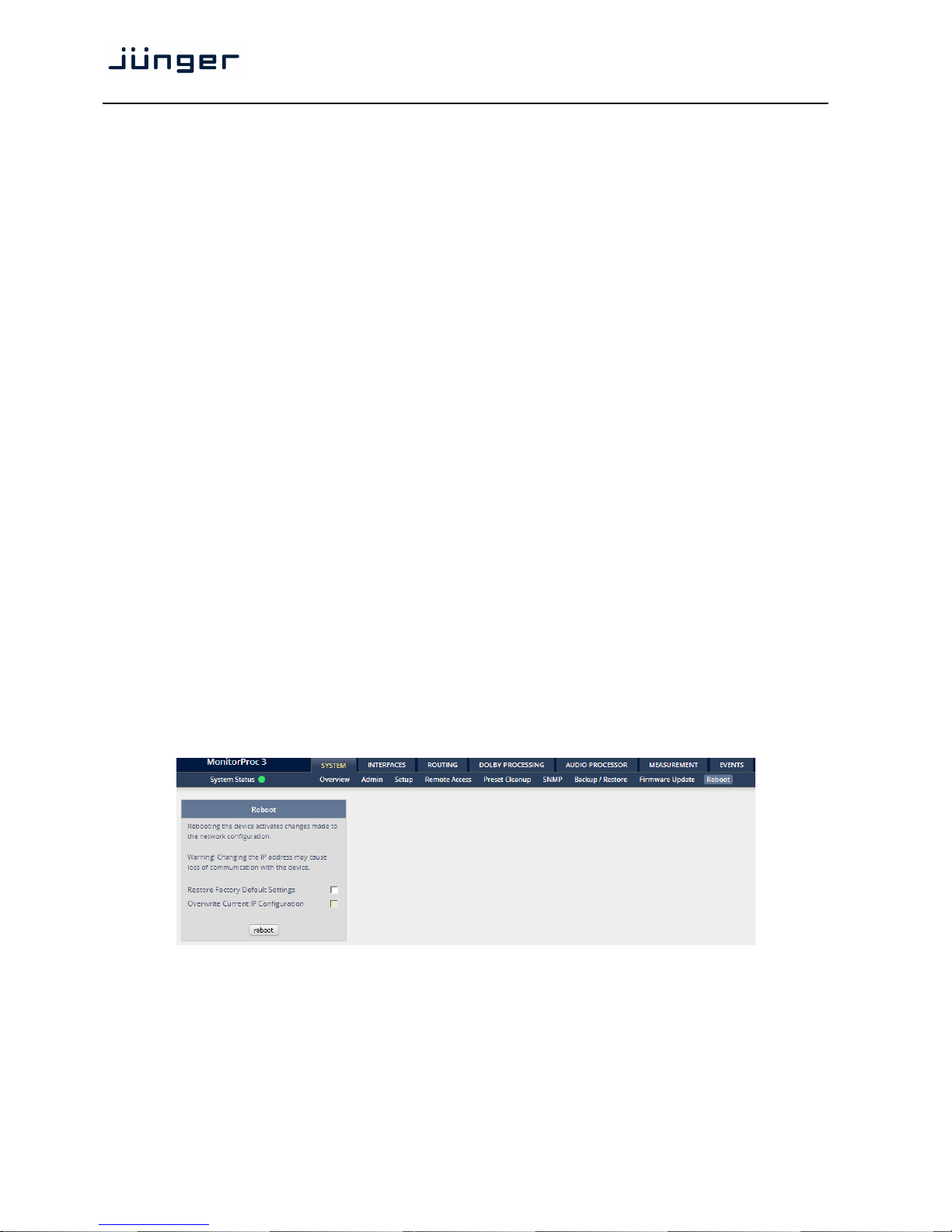

Restore Factory defaults Will clean up the parameter and preset memory and will initialize all

parameters to their factory default values and will reset passwords
and turn authentication off.

Overwrite Current IP You may exclude the current IP settings from this process
IP Configuration to keep your local settings.

D*AP8 MAP

27

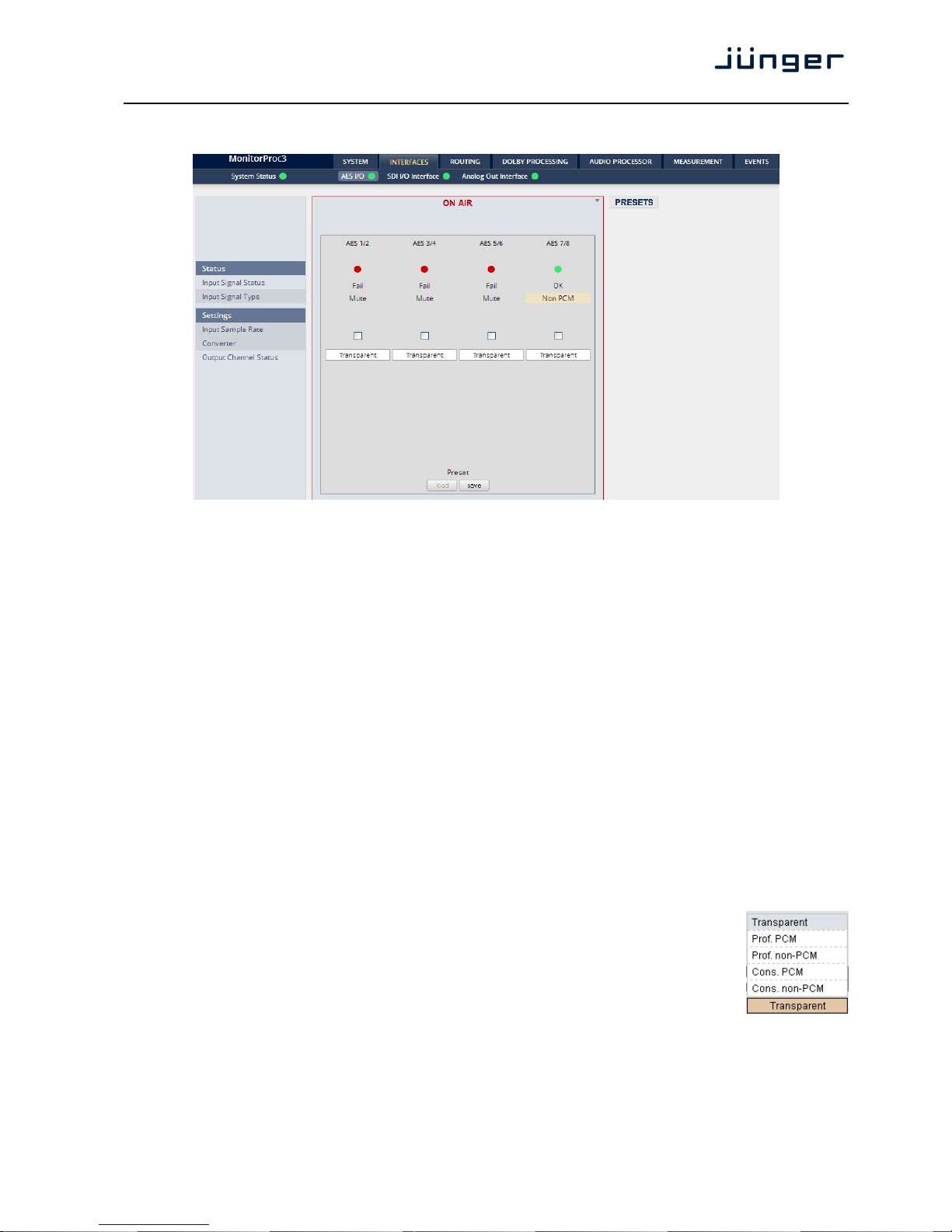

Setup GUI – INTERFACES – AES I/O

Status

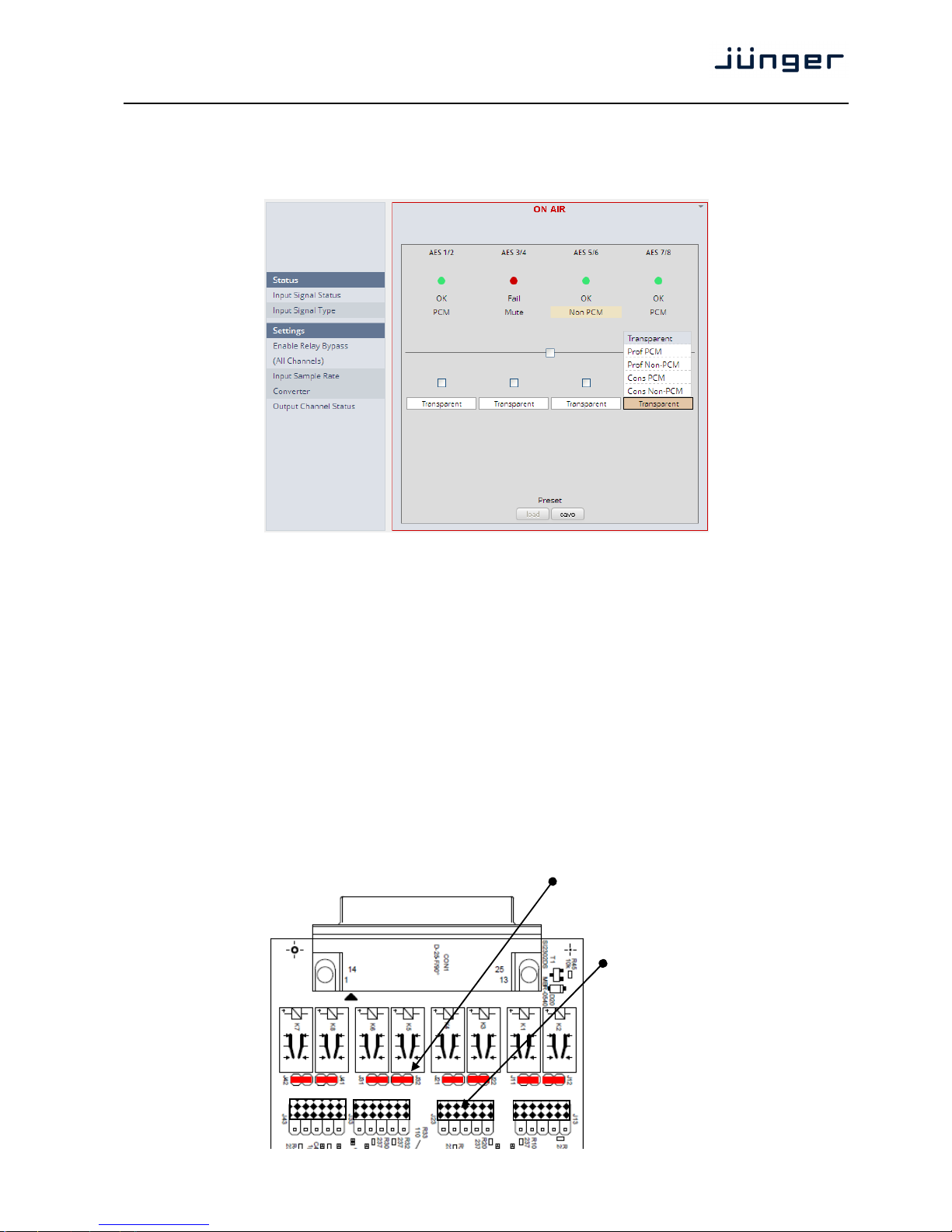

Input Signal Status [OK / Fail]

Each AES input has a status detection that may show OK or Fail

(no carrier, unlock, cranky [too much jitter]).

This corresponds to the color of the soft LED (green / red).
Input Signal Type [Mute / PCM / Non PCM]

The Non PCM (e.g. Dolby encoded signal) status will be retrieved

from a logical combination of the Validity flag and the channel

status.
Important Note! The input signal status is logically combined and represented as part of the
System Status. If one of the inputs is not assigned by the ROUTING matrix, its status will not be
incorporated into the System Status. If non of the inputs is routed the Interface Status > AES I/O status soft
LED becomes grey.

Settings

Input Sample Rate For asynchronous sources it is possible to turn a SRC on per input.
Converter For asynchronous sources it is possible to turn a SRC on.

If an SRC is turned on and the input status becomes Non-PCM, the

SCR will be turned OFF automatically in order to maintain the

original data structure of the encoded bit stream (e.g. Dolby E).

Output Channel Status [Transparent / Prof. PCM / Prof. Non-PCM /
Cons. PCM / Cons. Non-PCM]
The channel status can either be transparent from

the input source of the D*AP8 or may be overwritten.

D*AP8 MAP

28

Setup GUI – INTERFACES – SDI I/O interface – Overview

If the D*AP8 is equipped with an optional SDI interface the following settings will be available.
This pane has five sub panes imbedded:

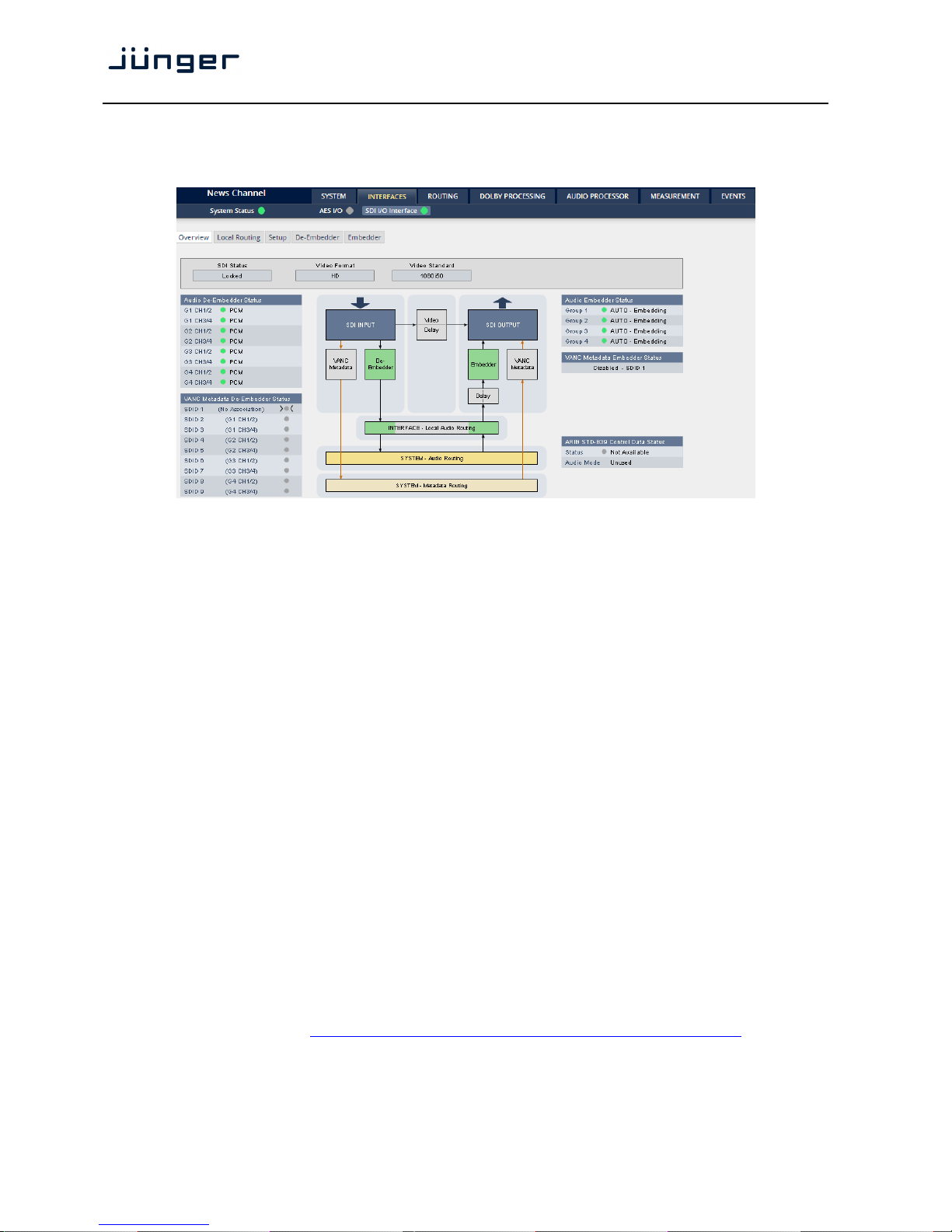

The overview pane shows all relevant information of that interface:

SDI Status [Locked / Unlocked]
Video Format [SD / HD /3G / N/A]
Video Standard [actual decoded standard (e.g. 1080i50) / No SDI Lock]
Audio De-Embedder [PCM / Dolby E / Dolby Digital / Dolby Digital Plus / MPEG-4 HE AAC /

Status MPEG-4 AAC / N/A]
VANC Metadata The respective soft LED will turn green to indicate the SDID found in the stream

De-Embedder Status while the angle brackets indicate the SDID one has selected in the de-embedder

set-up as a pre-selected stream.

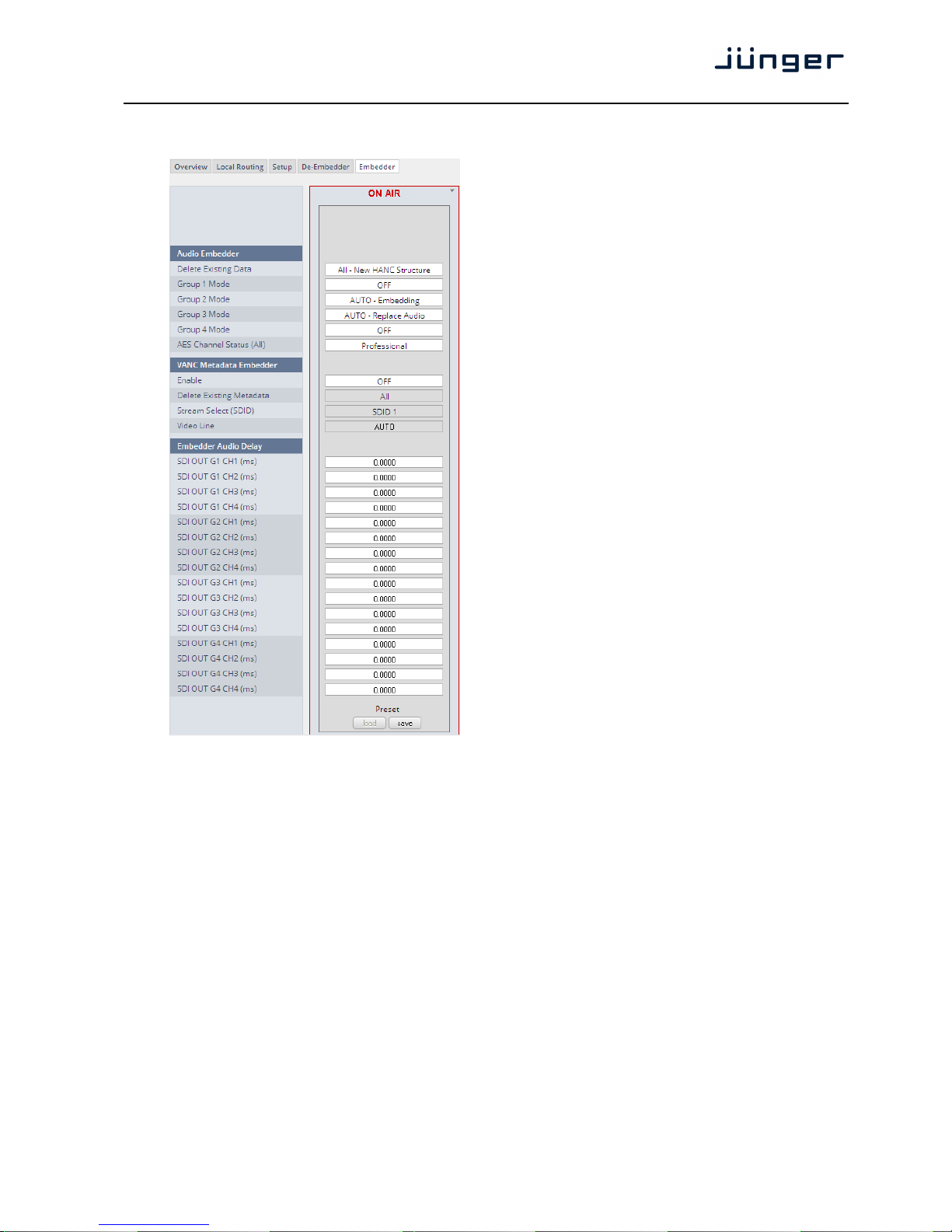

Audio Embedder [AUTO – Embedding / AUTO – Replace Audio / OFF / Delete]
Status

Group 1 – 4 The embedding process distinguishes between 4 different modes for each

group independently:

Embedding – a new group will be built

Replace – the structure of the group from the input is kept and the audio

content is simple replaced

Delete – the group from the input is deleted
OFF – the embedder fro that group is turned off

VANC Metadata [Enabled / Disabled & selected SDID#]
Embedder Status For details see SMPTE 2020-2 standard.

ARIB STD-B39 Meta information standard
Control Data Status

Status [Available / Not Available]
Audio Mode See ARIB Japanese standard "Structure of Inter-Stationary Control Data

Conveyed by Ancillary Data Packets"

http://www.arib.or.jp/english/html/overview/doc/2-STD-B39v1_2.pdf

D*AP8 MAP

29

Setup GUI – INTERFACES – SDI I/O interface – Local Routing

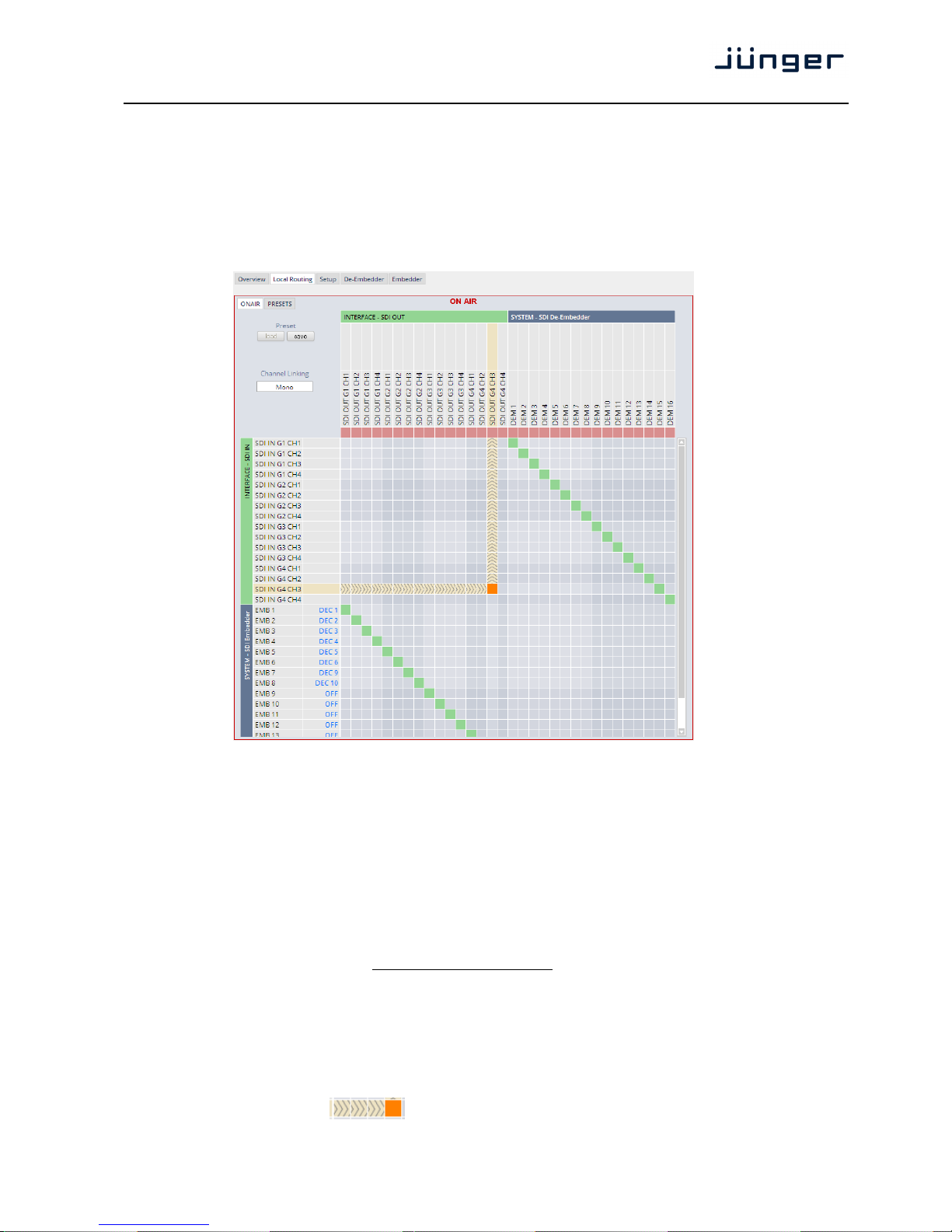

The SDI interface comes with a local routing matrix to shuffle audio signals from and to the system (device)
(i.e. to and from the central device router) and from and to the physical de-embedders / embedders.
The example below shows the default routing that sends all signals 1:1 from the physical de-embedders
[INTERFACE – SDI IN G1 CH1 … SDI IN G4 CH4] to the internal device matrix
[SYSTEM – SDI De-Embedder DEM 1 … DEM 16].
The signals from the device router [SYSTEM – SDI Embedder EMB 1 … EMB 16] are routed by default
1:1 to the physical embedders [INTERFACE – SDI OUT G1 CH1 … G4 CH4].

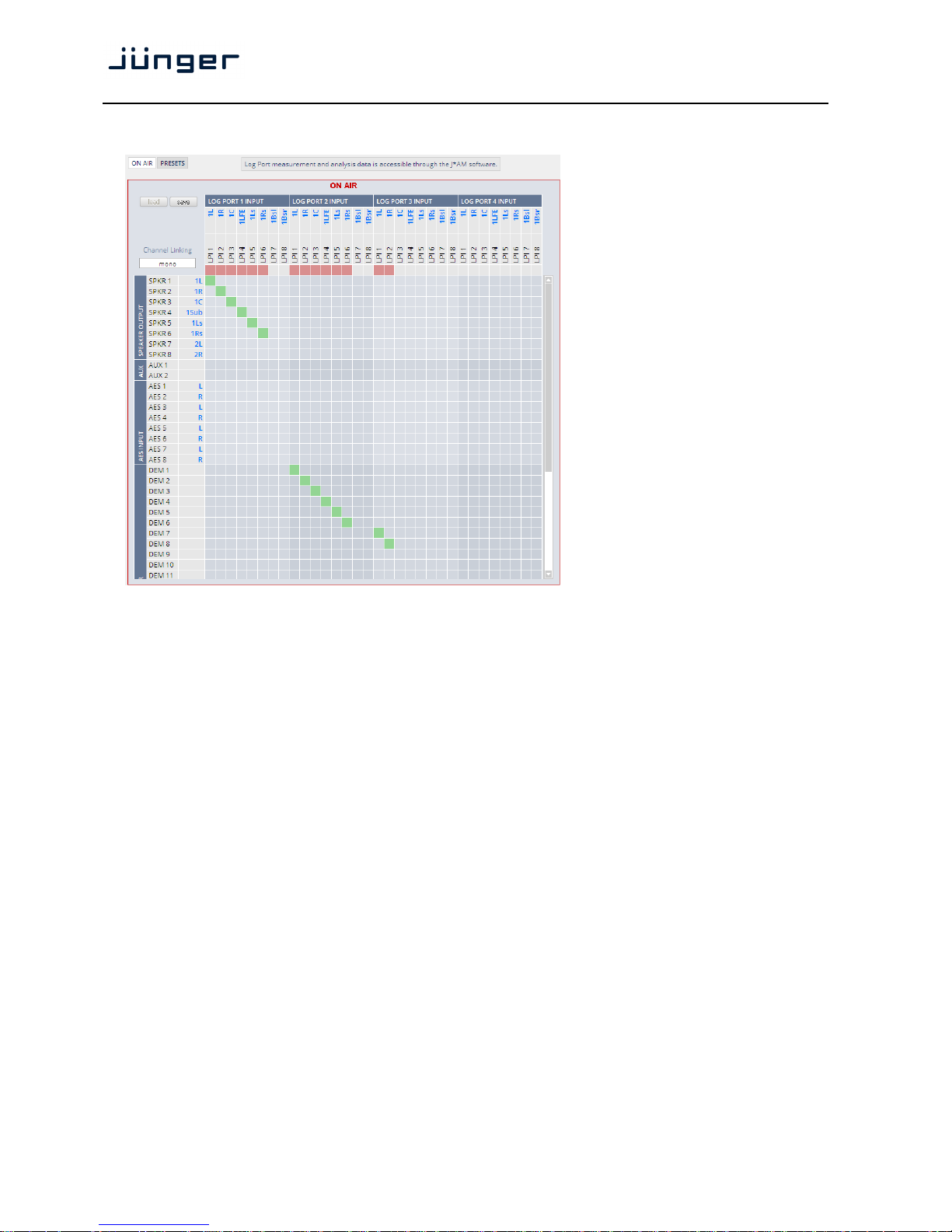

You must use the scroll bar to navigate through the matrix. In the upper left corner you can select between
the ONAIR and the PRESETS view of the matrix.

On the ON AIR page you will also see the device signal labels (see ROUTING section further below for
details).

Channel Linking [mono / stereo]
You can decide if the routing must be performed in mono or stereo mode

(where adjacent odd/even channels are routed at once).

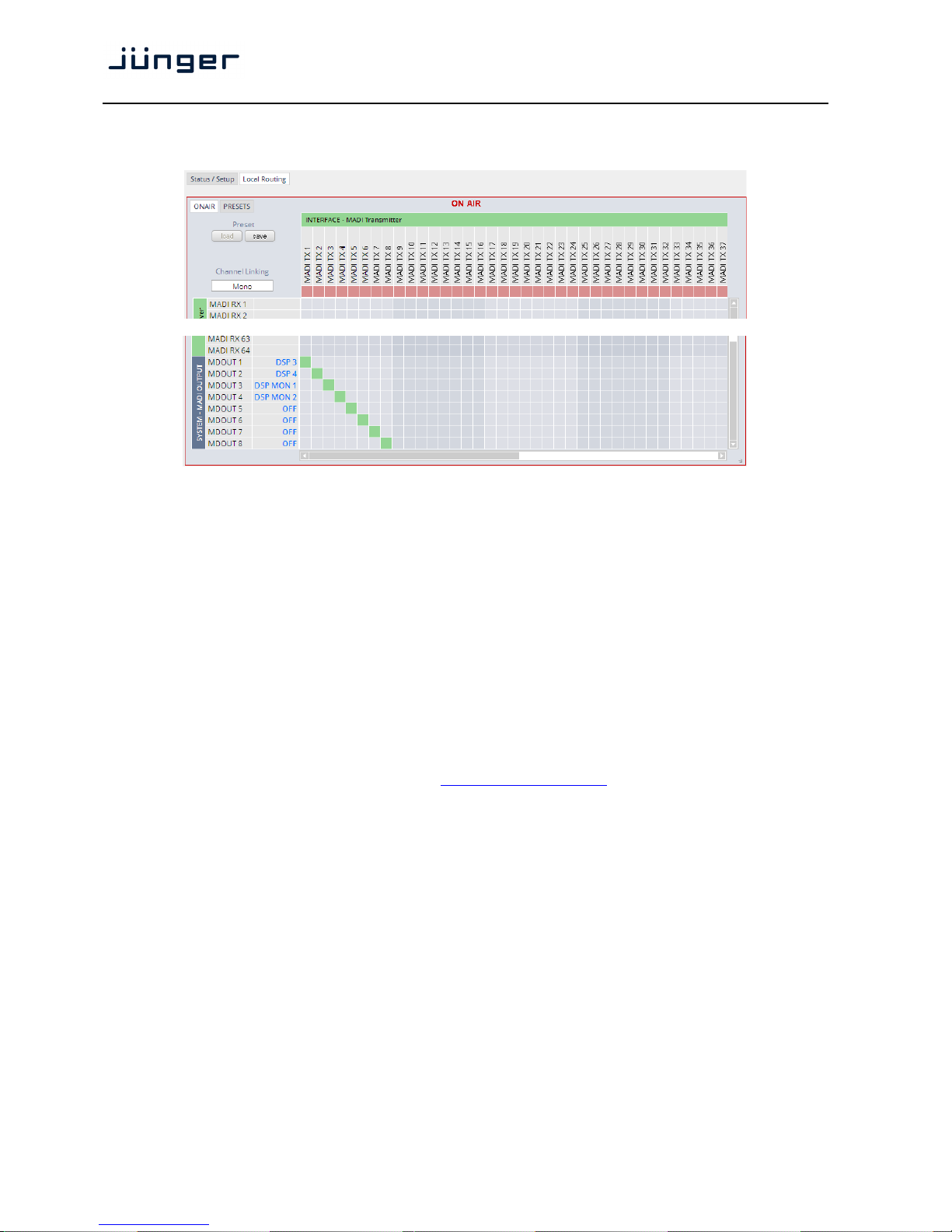

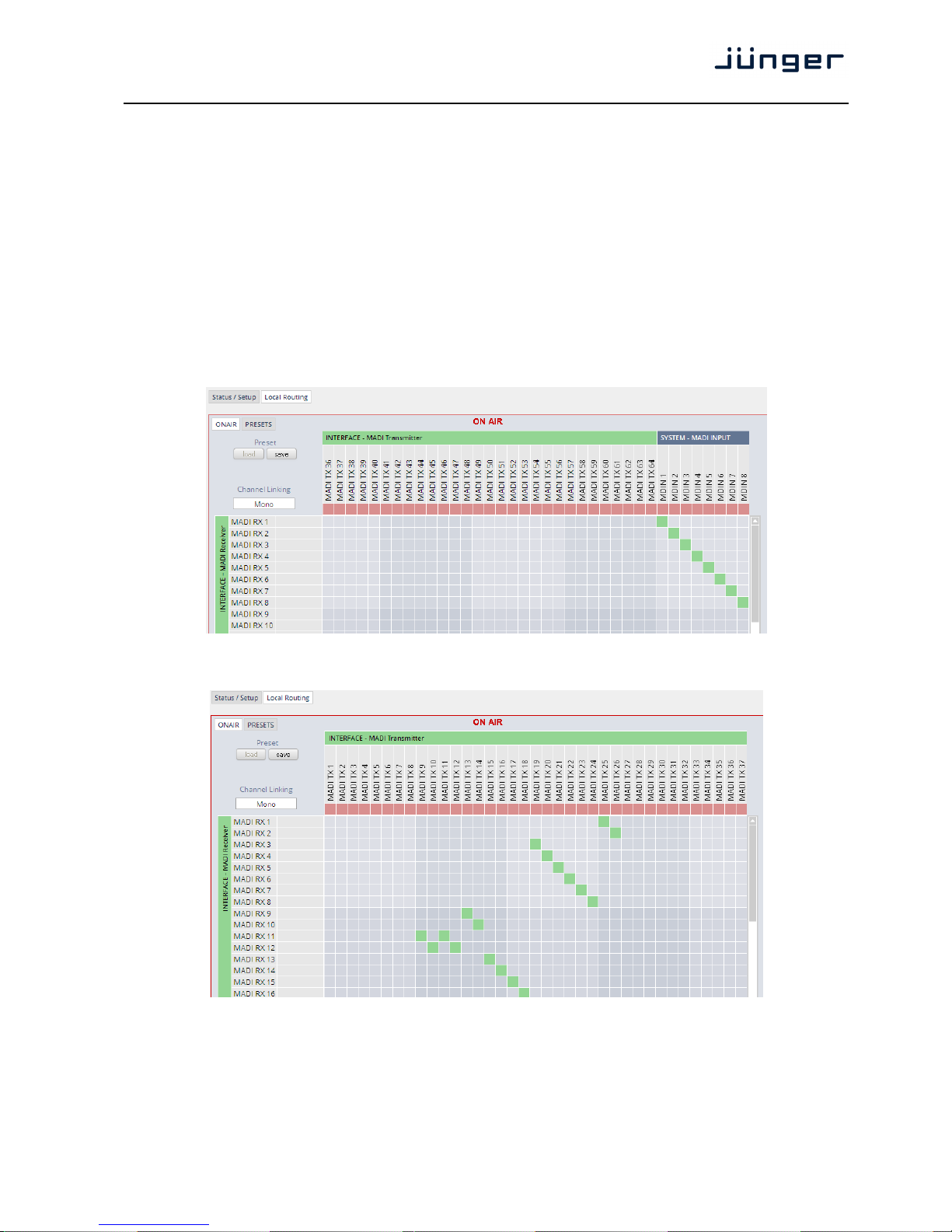

You may select cross points by hovering with the mouse over the little squares and select / deselect cross
points with a left mouse button click. A trace that symbolizes the signal flow is shown.
The color of the respective squares changes:

Mouse over Color codes of cross points:

dark blue Possible new cross point.

orange You are about to reconnect a cross point.

grey Cross point is not allowed (i.e. routing will cause a loop and will not

therefore be performed) or dedicated input is not activated.

red You are about to disable a cross point

An animated signal flow will help you when navigating through the matrix.

D*AP8 MAP

30

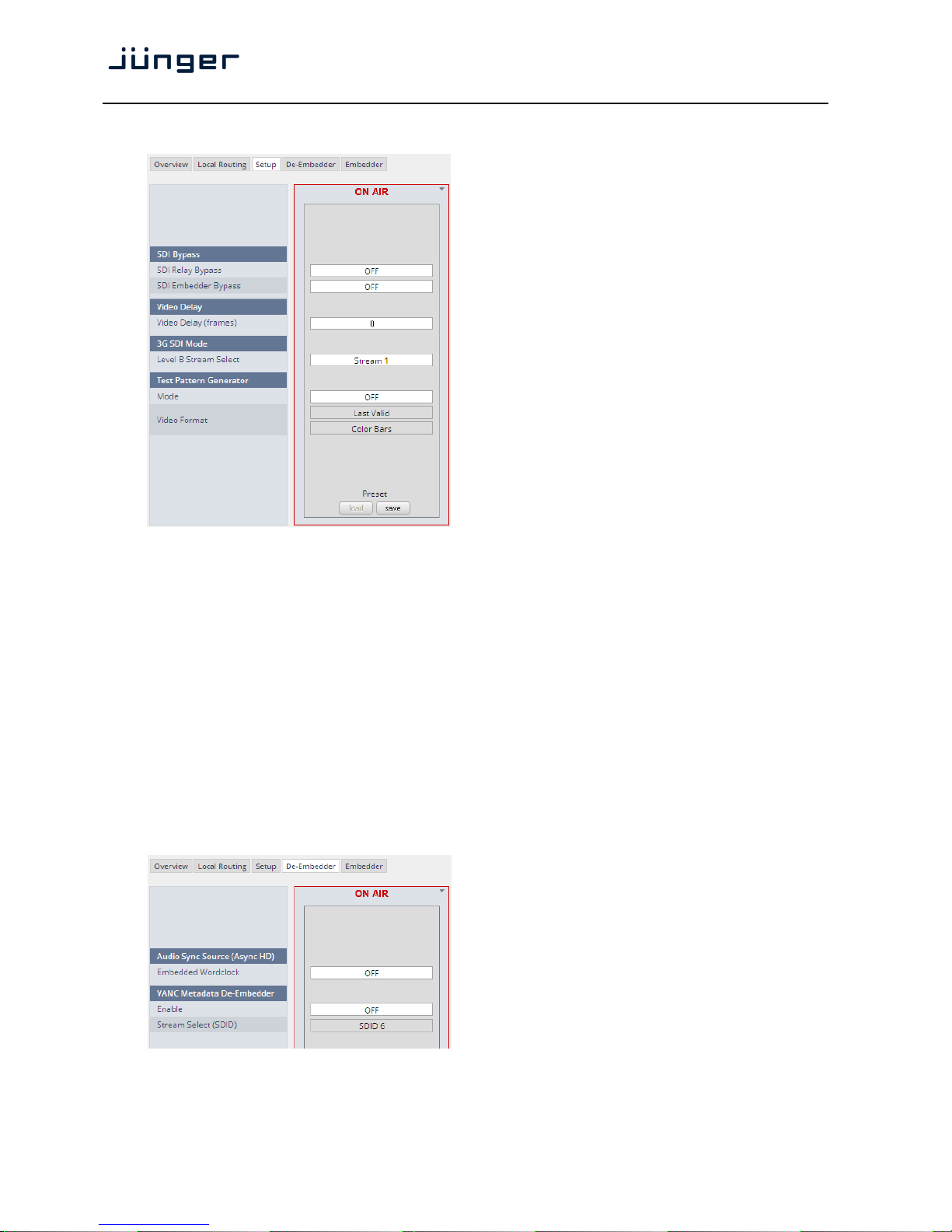

Setup GUI – INTERFACES – SDI I/O interface – Setup

SDI Bypass

SDI Relay Bypass Will deactivate the Bypass

Relay. It provides a shortcut from
SDI-IN to SDI-OUT1 and

disconnects the de-embedder
from the SDI input. This relay
also serves as a fail bypass if
the power is off. This feature
maintains the SDI signal for
downstream equipment.

SDI Embedder Will pass the embedded audio
Bypass data from the de-embedder to the

embedder 1:1. This function
preserves the original
Ancillary Data structure.

Video Delay

Video Delay [0 … 15]
(frames) For compensation of any kind of

audio processing delay within the
chain of devices you may use a
Video Delay. Position “0” turns
off the delay function.

3G SDI Mode

Level B Stream A 3G-SDI signal may have two HD sub streams (e.g. for 3-D TV),
Select AKN as 3G-B standard select between stream 1 or 2 for embedded

audio. See SMPTE 425M for details.

Test Pattern Generator The interface offers a test generator to either check downstream

connections during installation or for use in case of an input fail but you
may also use it to move 16 independent audio channels over a single
coax cable from point to point

Mode [OFF / AUTO (Input Loss) / Always ON]
Video Format [Last valid / one of the defined SD / HD 3G formats (see specs)]

[Color Bars / Black Frame]

Setup GUI – INTERFACES – SDI I/O interface – De-Embedder

Audio Sync Source The HD SDI standard allows
(Async HD) for asynchronous audio. This

critical if you have decided to
synchronize the device on such
signal. Here you find a solution.
You may either use the
embedded word clock

Embedded Word [Auto / De-Embedder CH1
Clock (DEM 1) / OFF
OFF = synchronized to the

SDI carrier

Auto = In case of a-sync audio it is synchronized automatically to the

SDI carrier

DEM1= from de-embedder channel 1

D*AP8 MAP

31

Setup GUI – INTERFACES – SDI I/O interface – Embedder

Audio Embedder Here you set the general

functions of the embedder

Delete Existing Data [ALL – New HANC Structure

/ OFF]

Group 1 – 4 Mode [OFF / AUTO – Embedding

/ AUTO – Replace Audio

/ Delete]
See SDI I/O Interface > Overview
For details

AES Channel [Transparent / Professional]
Status In case of Professional these

values are used:

Format: Professional

Audio Mode: [Audio / Non

Audio]
Emphasis: None
Freq. Mode: Locked
Sample Freq.: 48kHz
Channel Mode: Not Indicated
User Bits: None
Auxiliary Bits: 24Bit
Audio Word
Length: Not indicated

Important note! If you generate a new AES channel
status the Audio Mode will be automatically set to Non
Audio (AKA "other") for both channels, if an adjacent pair
(1/2, 3/4 …..) carries a Dolby E stream for example.

VANC Metadata The embedder can insert one
Embedder Dolby metadata stream into the

Vertical Ancillary Data

Enable [ON / OFF]

Delete Existing [AII / OFF]
Metadata

Stream Select [SDID 1 … SDID 9]
(SDID)

Video Line [Auto / 9 … 44]

The line number depends on the actual video standard 8how many VAN
lines are available for data insertion.

Embedder Audio Each embedder signal may be delayed independently. This may be useful
Delay for Lips Sync alignment if a video delay is used.

Important Note! You must take care that for Dolby encoded signals the adjacent pairs must be set to the

same delay values not to destroy the data structure.

SDI OUT G1 CH1 (ms) [0.0000 … 340.000]
to
SDI OUT G4 CH16 (ms) [0.0000 … 340.000]

D*AP8 MAP

32

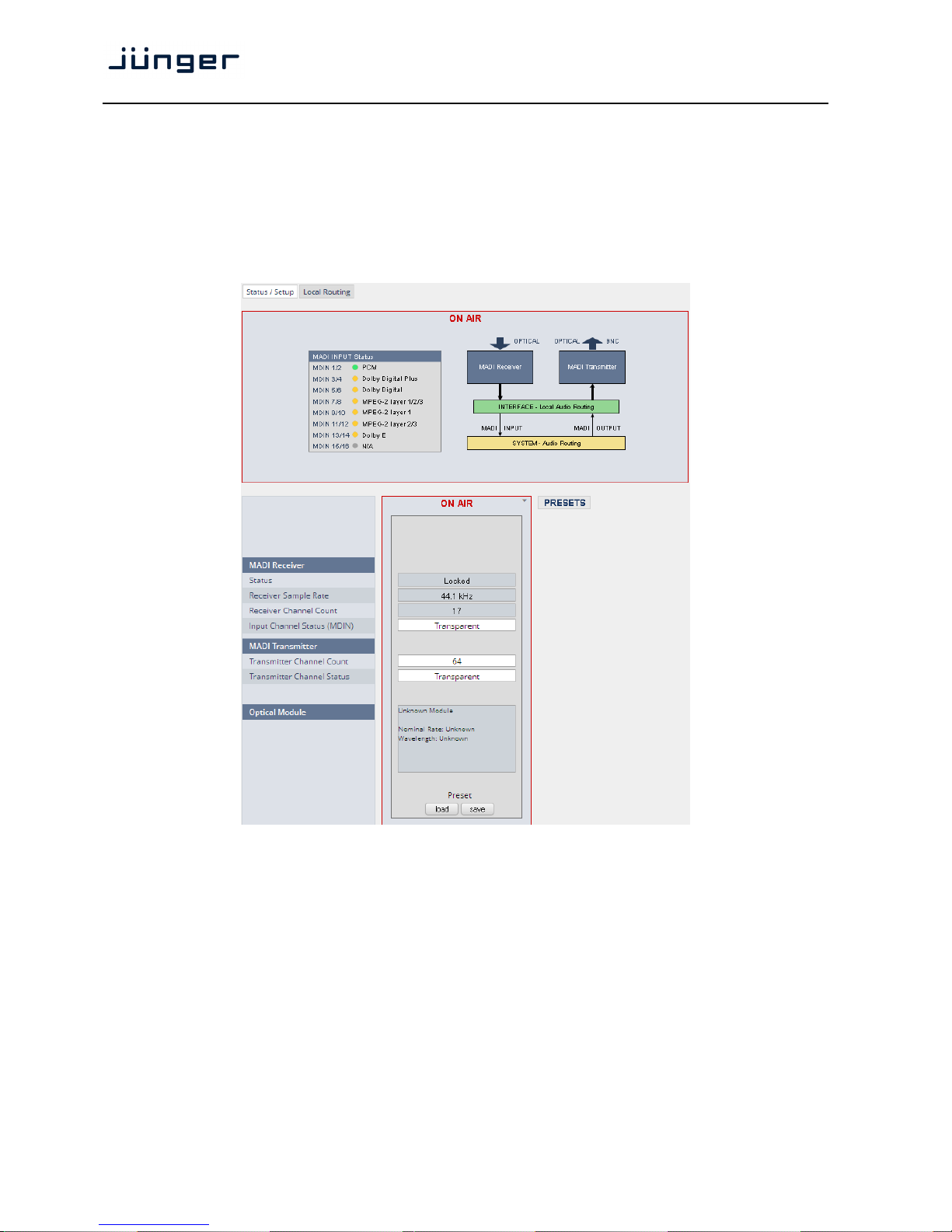

Setup GUI – INTERFACES – MADI Interface – Status / Setup

The implementation of MADI for the D*AP8 is based on the option module O_DAP_MB (BNC) or
O_DAP_MO_MM (MADI optical multi mode fiber) or O_DAP_MO_SM (MADI optical single mode fiber).
Since the MAP is an eight channel processing device not all 64 MADI channels are available for device I/O.
The first 16 channels are available via the MADI local router to the device router.
They appear at the device router pane as MDIN 1 .. 16 and MDOUT 1 … 16.
These channels can be routed to and from any of the local routing sources MADIRX 1 … 64
and MADITX 1 … 64 respectively.

MADI Receiver

Status [Locked / Locked-Async / Error]
The timing of the audio decoding is locked to the MADI clock. If the

internal timing of the D*AP8 is different "Locked-Async" is displayed.

Receiver Sample Rate [44.1 / 32 / 48 / 88.2 / 96kHz / Unknown]
The measured sample rate from the received MADI stream.

Receiver Channel Count [32 / 56 / 64]
Depends on the upstream MADI transmitter settings.

Input Channel Status (MDIN) [Transparent / Professional]
One may overwrite the input channel status by a set of professional

ones.

Channel Mapping @ 96 kHz [Normal]

D*AP8 MAP

33

MADI Transmitter

Transmitter Channel Count [64 (32) / 56 (28)]
Depends on the internal sample rate and the desired number of

MADI channels. The numbers in brackets are valid for 96kHz.

Transmitter Channel Status [Transparent / Professional]
Channel Mapping @ 96 kHz [Normal]

Setup GUI – INTERFACES – MADI Interface – Local Routing

Below are some excerpts from the local routing pane. Single channels from or to the D*AP8 may be
connected with the MADI transmitter or MADI receiver respectively.
The example below shows the first eight MADI channels from the receiver (MADI RX 1 … MADI RX 8)
connected with the device inputs SYSTEM - MADI INPUT (MDIN 1 … MDIN 8):

The Local Routing pane can also be used to route MADI signals from the receiver directly to the
transmitter and vice versa:

D*AP8 MAP

34

You can also assign device outputs (MAOUT 1 … MDOUT 16) to MADI transmitter channels
For better visibility the matrix has been divided by cutting off the middle part:

----------------------------------------------------------------------------------------------------------------------

You must use the scroll bars to navigate through the huge matrix.

Setup GUI – INTERFACES – Dante I/O Interface – Status

The DANTE interface connects a D*AP8 to an audio over IP (AoIP) network. Junger Audio has
committed itself to the quasi industry standard DANTE developed by the company Audinate.

"Based on industry standards, Audinate created Dante, an uncompressed, multi-channel digital media
networking technology, with near-zero latency and synchronization … One cable does it all. Dante does
away with heavy, expensive analog or multicore cabling, replacing it with low-cost, easily-available
CAT5e, CAT6, or fiber optic cable for a simple, lightweight, and economical solution. Dante integrates
media and control for your entire system over a single, standard IP network."

The network infrastructure for AoIP must be able to handle the IP multicast. The recommendation is to
separate the control network from the audio network.

For details pls. refer to the Audinate web-site: https://www.audinate.com. Here you will find many useful
application videos and FAQs.

To configure such an audio network you need the DanteController software. You can download it from
the Audinate web site. People who want to interface a PC or MAC to such an audio network can use
the VirtualSoundcard software from Audinate. It provides standard audio drivers to connect with
common sound tools.

We highly recommend to read the Audinate documents to understand how to set-up and operate
a real-time AoIP network.

Looking at the rear panel the RJ45 connector on the left is the primary port while the second connector
acts either as a redundant or as a switch port. Both RJ45s have built in LEDs. The left one shows
network activities (flashing green) while the right one indicates the interface speed,
with green=1Gbit/s and off=100MBit/s.

D*AP8 MAP

35

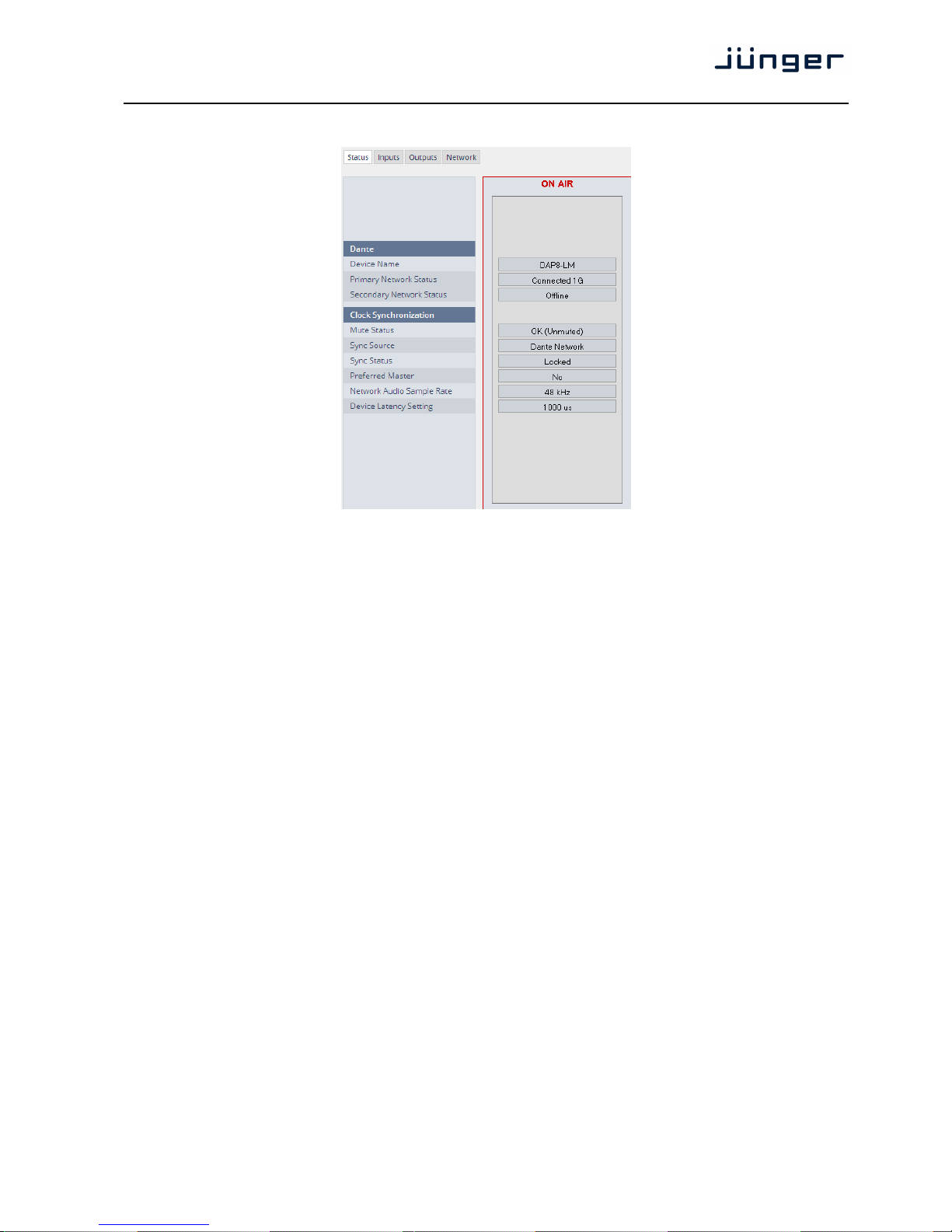

Below is the Status page of the DANTE interface board:

The parameters you see here must be set via the DanteController software.

Dante

Device Name The name you gave the interface board via the DanteController.
Primary Network Status [Offline / Connected + bandwidth]
Secondary Network Status [Offline / Connected + bandwidth]

Clock Synchronization

Mute Status [OK (Unmuted) / Muted]
Sync Source [Dante Network / DA*P is Master]

Here you define the reference clock for this DANTE module.

Important Note! If this parameter is set to "Dante Network", the MAP must be synchronized to the same

clock as the network clock master (whoever it is). It must be set to "Dante Network" if this module is to
become the "Preferred Master" of the network.

Sync Status [Unlocked / Locked / Locked-Async]
The sync source for the DANTE interface is the DANTE network.

If no network cable is connected the interface is "Unlocked". If it is

connected to a network it will be "Locked". If the D*AP8 is set to
synchronize to other than the DANTE interface it will show
"Locked-Async".

Preferred Master [No / Yes]
The Dante algorithm automatically looks for the best clock master

inside the network but one may force a DANTE module to become
the clock master.

Network Audio Sample Rate [44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz]
Depending on the A*P device type the sample rate is limited to the

device specification.

Device Latency Setting [1000 µs]
You can allow for a certain transmission latency if you face network

problems of any kind.

D*AP8 MAP

36

Setup GUI – INTERFACES – Dante I/O Interface – Inputs

The DanteController software gives you an overview of all members of such a DANTE network.
You can assign channel labels for the inputs (from the network to the device interface). Those labels will
automatically appear in the D*AP8 and will be displayed there.

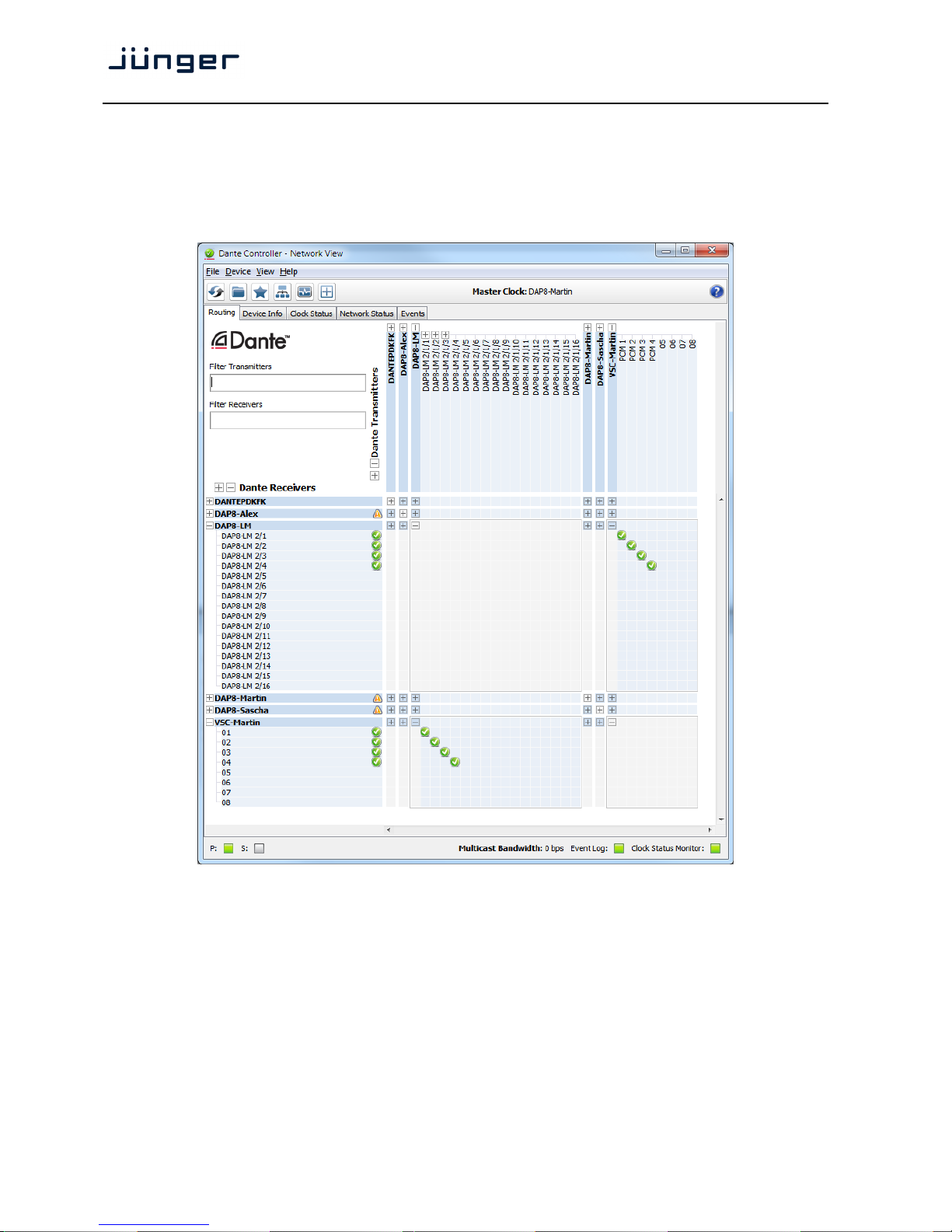

Here is a glimpse on the GUI of the DanteController:

As an example you see here a "DAP8-LM" (name given by the Dante Controller) that has assigned the
labels DAP8-LM 2/1 … 2/16 for the inputs and DAP8-LM 2/1/1 … 2/1/16 for the outputs.
For the outputs you can assign up to 16 different labels used for multi layer routing.

Beside a few more devices on that network, we see the unfolded outputs of a DanteVirtualSoundcard
(VSC) named "VSC-MARTIN" on the upper right hand side. The top horizontal area shows the
transmitters while the receivers are shown vertically on the left hand side.

The outputs PCM 1 … PCM 4 from the VCS are assigned to the D*AP8 inputs DAP8-LM 2/1 … 2/4
while four outputs DAP-8 LM 2/1/1 … 2/1/4 are assigned to the VSC inputs 01 … 04.

D*AP8 MAP

37

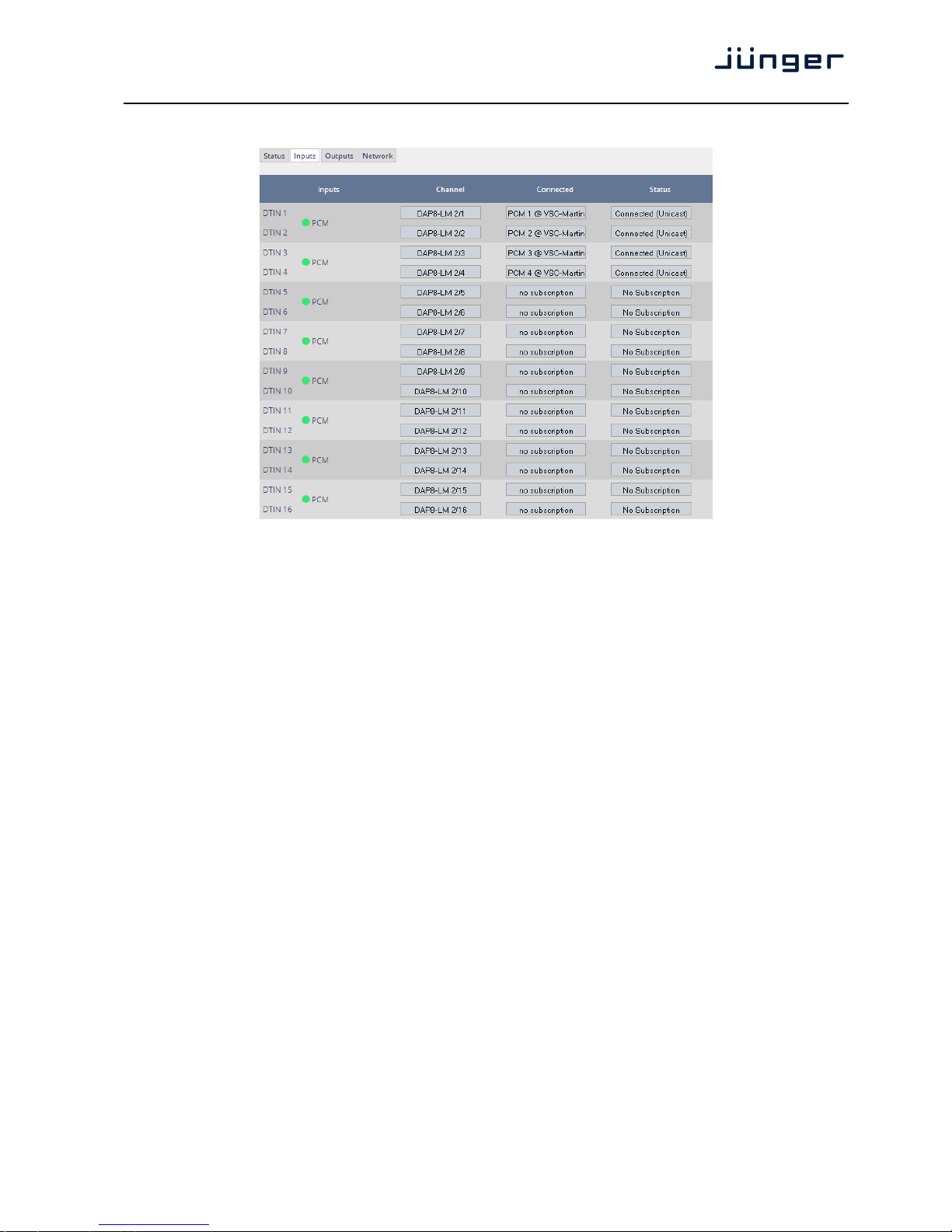

We see the labels assigned by the DanteController software in the "Channel" column:

Inputs 16 inputs are pre-defined for the DANTE interface installed in a

D*AP8. They are organized in pairs and the input status is shown by

soft LEDs (green = PCM audio / yellow = non audio/ grey no audio).

Channel The labels assigned to that channel by the DanteController.
Connected The source of the audio signal.
Status [No Subscription / Subcription Unresolved / Wait / Naming Problem /

Loopback / Idle / Subscription in Progress / Connected (Unicast) /
Connected (Multicast) / Manual Config / Format Problem /
QoS Problem / Latency Problem / Clock Domain Problem /
Link Down / Fail / Unknown]

The DANTE module provides very detailed status information. In

regular operation one will not see much of it.

D*AP8 MAP

38

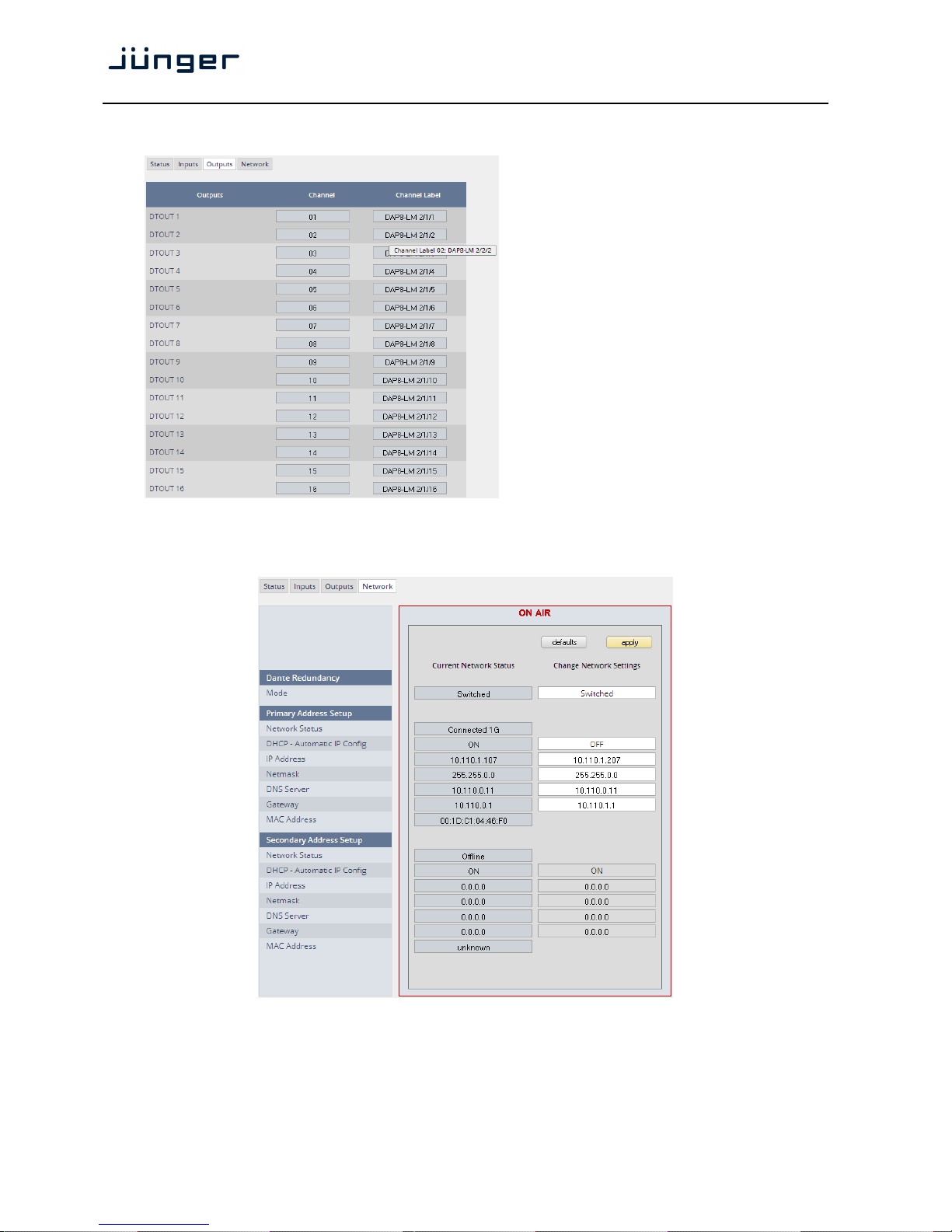

Setup GUI – INTERFACES – Dante I/O Interface – Outputs

Outputs The signals from the DANTE

board to the network. They will
also appear in the device

ROUTING section.
Channel Numeric count of the channels.
Channel Up to 16 labels can be assigned

Label for each stream from the

interface to the network.
When you hover with the mouse

over the channel labels, you will

get a tool tip that that shows the

other (if any) labels assigned to

the same outputs assigned fro

multi layer routing.

Setup GUI – INTERFACES – Dante I/O Interface – Network

Dante Redundancy The DANTE interface allows redundant network operation.

Pls. refer to manufacturer's documentations of your Ethernet
equipment on supported switching configuration and redundant
operation.

D*AP8 MAP

39

Mode [Switched / Redundant]

Redundant – The interface will duplicate the audio traffic to both

Ethernet ports. Both ports must have different
IP addresses.

Switched – The secondary port behaves like an Ethernet switch

port allowing daisy-chaining through the interface.

I.e. IP configuration of the second port is only

available for redundant mode.

Important Note! When set to switched mode, do not connect both ports to the same network
(same Ethernet switch) if it does not support STP (Spanning Tree Protocol). This is the case for most of
the off-the-shelf (office) switches. Doing so will cause a race condition where IP packets are circling around
from the external switch to the second DANTE (switch) port and back via the first port. This will tear down
your network and may create a bunch of new "friends" in your facility.

Primary Address Setup Setup of the primary network interface

Network Status [Offline / Connected + bandwidth]
DHCP – Automatic IP Config. [OFF / ON]
IP-Address
Netmask
DNS Server
Gateway
MAC Address

Secondary Address Setup Setup of the secondary network interface

Network Status [Offline / Connected + bandwidth]
DHCP – Automatic IP Config. [OFF / ON]
IP-Address
Netmask
DNS Server
Gateway
MAC Address [unknown / address]

D*AP8 MAP

40

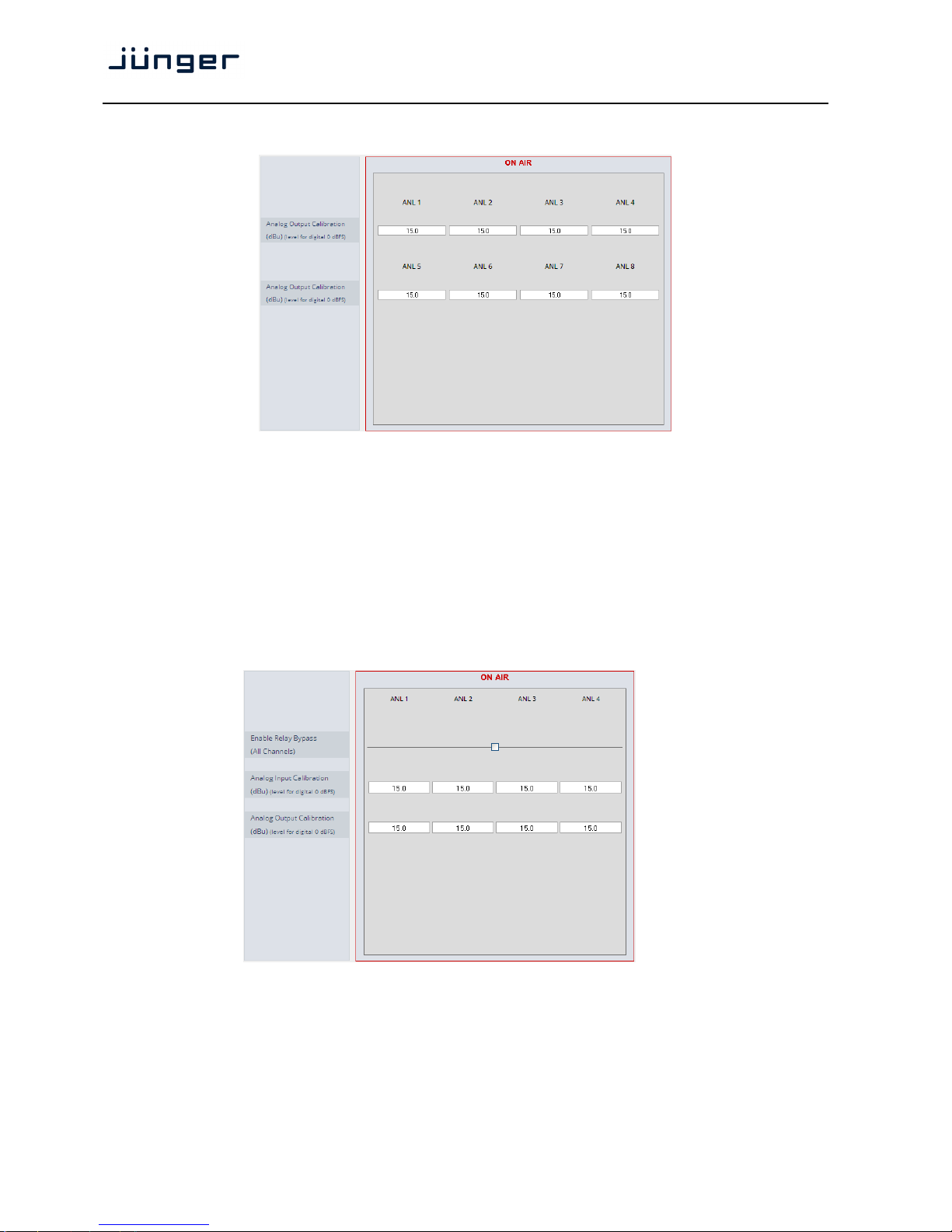

Setup GUI – INTERFACES – 8 Ch Analog Out Interface

Analog Output Calibration sets the factor for D/A conversion
(dBu) (level for digital 0 dBFS)

ANLx (dBu) [0.0 … 15.0 … 24.0]
output level for output "x" at 0dBFS.

The default setting of 15.0dBu correlates to the 6dBu = -9dBFS

conversion.

Setup GUI – INTERFACES – 4 Ch Analog I/O Interface

An additional analog interface can be installed in the Interface slot.
It provides 4 additional analog line inputs and outputs on a 25pin D-Sub connector:

Enable Relay Bypass [ON / OFF]
(All Channels) Power fail bypass relay that may be activated from the GUI

Analog Input Calibration [0 … 15.0 … 24.0]
(dBu)

(level for digital 0 dBFS)

A/D conversion parameter. It defines the analog input level in dBu to
reach a digital full scale signal.

Analog Output Calibration [0 … 15.0 … 24]
(dBu)

(level for digital 0 dBFS)

D/A conversion parameter. It defines the analog output level in dBU
for a digital full scale signal.

D*AP8 MAP

41

Setup GUI – INTERFACES – AES Interface – Status / Setup

An additional AES3 interface can be installed in the Interface slot.
It provides 4 additional AES3 inputs and outputs on a 25pin D-Sub connector:

Status

Input Signal Status green [OK] / red [Fail]
Input Signal Type [Mute / PCM / Non PCM]}

Settings

Enable Relay Bypass [ON / OFF]
(All Channels) Power fail bypass relay that may be activated from the GUI

Input Sample Rate [ON / OFF]
Converter

Output Channel Status [Transparent / Prof PCM / Prof Non-PCM / Cons PCM /

Cons Non-PCM]

Controls the channel status for the AES output. It provides a set of

useful channel status information (e.g. to prevent non audio signals
to be fed to speakers).

Important note! The AES relay bypass circuit of the I/Os is activated on the option board. It is possible to
deactivate it if necessary. You must open the cover plate from the D*AP8 unit and locate the jumper
shown in the schematic below. You must remove the jumpers to de-activate the AES I/O relay
power fail circuit.

The bulk jumpers J13, 23, 33, 43

at the bottom of the picture

are meant for setting the I/Os

to unbalanced operation.

Putting them into the lower position

will turn to unbalanced.

Factory default setting is balanced.

D*AP8 MAP

42

Setup GUI – ROUTING

This is the core of the D*AP8 MAP because it defines the audio signal flow inside the device:

Each functional block of the device has a source- and a destination-label.
Vertically at the left hand side you will find the outputs of function blocks / hardware interfaces.
The labels are organized hierarchically. I.e. we have source group names like SPEAKER OUTPUT,
AES INPUT etc. and single channel (AKA mono) signal labels like DEMx [x=1 … 16] for the SDI de­embedder or SPKRx [x=1 … 8] for the speaker outputs of the audio processor.

Horizontally at the top of the ROUTING pane you will find the group names for destinations
like PRIMARY INPUT, AES OUTPUT etc. and their respective single channel labels like

PRIMx [x=1 … 8] for the first 8 audio processor inputs or feeds to the hardware interfaces, like
AESx [x=1 … 8] for the AES outputs.

If applicable the labels have bluish dynamical signal descriptors [e.g. 1L / 1R / 1C and so forth].
Green quads show active cross points. Due to the number of I/Os in total one must scroll through the

matrix to set or disable cross points. To give you an indication while scrolling of which outputs have an
active connection, red quads are shown in the top of the matrix beneath the output labels .

The matrix is organized for single channel (AKA mono) routing but it may also be controlled in
2-channel (AKA stereo) mode:

Cannel Linking [mono / stereo]

You may set cross points either in mono mode or pair wise for stereo routing

D*AP8 MAP

43

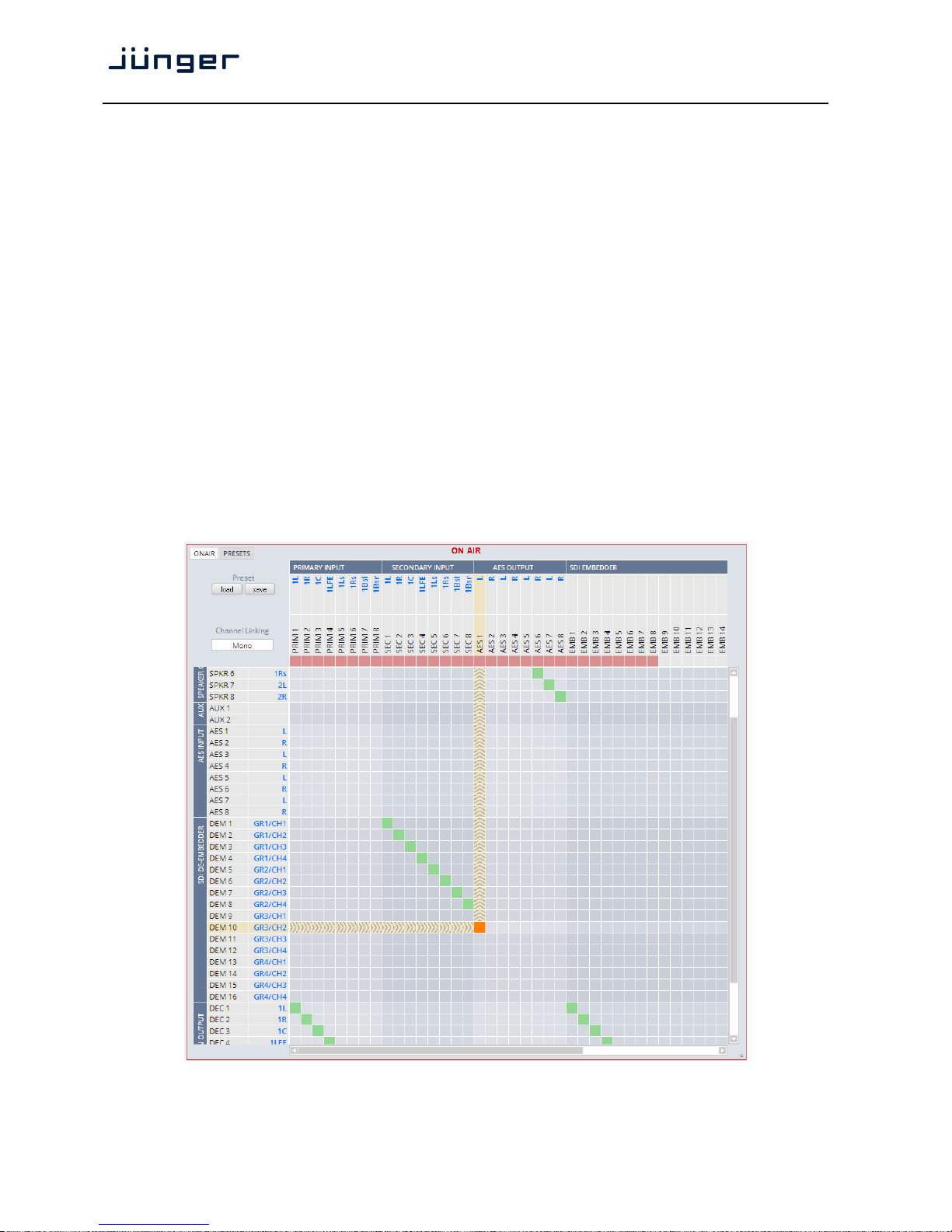

Due to the size of the graphic you must select between <ONAIR> and <PRESET> view in the
upper left corner.

Important Note! If a different optional interface board is installed the matrix will be expanded by the
pre-defined number of I/Os for the D*AP8 platform with their labels:

Signal: Option board: Input label: Output label:

SDI [O_DAP_SDI_a] DEM 1 … DEM 16 EMB 1… EMB 16
MADI [O_DAP_MB_a / MDIN 1 … MDIN 16 MDOUT 1 … MDOUT 16

O_MO_MM_a / _MS_a]

Dante [O_DAP_Dante_a] DTIN 1 ... DTIN 16 DTOUT 1 ... DTOUT 16
4 Ch ANALOG I/O [O_DAP_ADDA_a] ANL 1 … ANL 4 ANL 1 … ANL 4
8 Ch ANALOG out [O_DAP_8DA_a] ANL 1 ... ANL 8
AES [O_DAP_AES_a] AES 1 … AES 8 AES 1 … AES 8
Dolby Decoder [O_DAP_Dolby_DEC_b] DEC 1 … DEC 10 DEC 1 … DEC 8
Dolby E Encoder (A) [O_DAP_Dolby_EENC_b] ENC 1 … ENC 8 ENC 1/ENC 2
Dolby D Encoder (B) [O_DAP_Dolby_DENC_a] ENC 1 … ENC 8 ENC 1 … ENC 4
Dolby E Encoder (B) [O_DAP_Dolby_EENC_a] ENC 1 … ENC 8 ENC 1/ENC 2

Source label

SPKR x Outputs of the audio processor (DSP)
AES x Outputs from the hardware AES receiver on the motherboard
DEM x Outputs of the SDI local routing matrix
MDIN x Outputs of the MADI local routing matrix
DTIN x Outputs of the Dante Interface
DEC x Output of the optional Dolby decoder / emulation board
ENC x Output of the Dolby encoders

Destination label

PRIM x Primary inputs of the audio processor (DSP)
SEC x Secondary inputs of the audio processor (DSP)
AES x Inputs of the AES transmitters on the motherboard
EMB x Inputs of the SDI Local Routing matrix
MDOUT x Inputs of the MADI local routing matrix
DTOUT x Inputs of the Dante Interface
DEC x Input of the optional Dolby decoder / emulation board
ENC x Inputs of the optional Dolby encoders

Mouse over Pls. see "Setup GUI – INTERFACES – SDI I/O interface – Local Routing"

for details.

D*AP8 MAP

44

Setup GUI – DOLBY PROCESSING in general

The Dolby metadata system is quite complex to describe in detail in a product manual such as this.
If you are not familiar with it, we recommend you study the many publications from Dolby Inc.
Especially the Dolby Metadata Guide is essential for understanding the parameters.
For details please visit the Dolby web site:

http://www.dolby.com/gb/en/professional/technology/landing.html

We cannot guarantee that the link is active forever so you may browse other Dolby resources as well.
Specifically concerning metadata we also recommend the SMPTE document RDD6-2008.

So we must assume that you are familiar with this topic.
Metadata emulation means that Dolby metadata will be applied to listen to the effect of it without the need

for encoding / decoding that may become a costly setup and introduces a lot of latency.
The aim is to check the influence of the Dialnorm (dialog normalization) value and the DRC

(dynamic range control) settings.

Important Note! The D*AP8 platform is designed to operate an "all Dolby format" decoder and two
independent encoders A and B. Encoder B can be consumer format (D-D, D-D+, AAC) or Dolby E
professional while encoder A can be a second Dolby E. All solutions are based on the D*AP8 options
model and require extra hardware and/or licenses.

Setup GUI – DOLBY PROCESSING – Decoder/Emulation

The Decoder/Emulation functions are built from the Dolby OEM board CAT1100.
The graphic below illustrates the signal flow through it.

Important Note! The module must be routed into both the audio- and the metadata-signal paths.
In order to decode a Dolby stream you must feed it to input DEC1/2.
The metadata must be routed by the metadata router: DOLBY PROCESSING > Metadata > Routing.

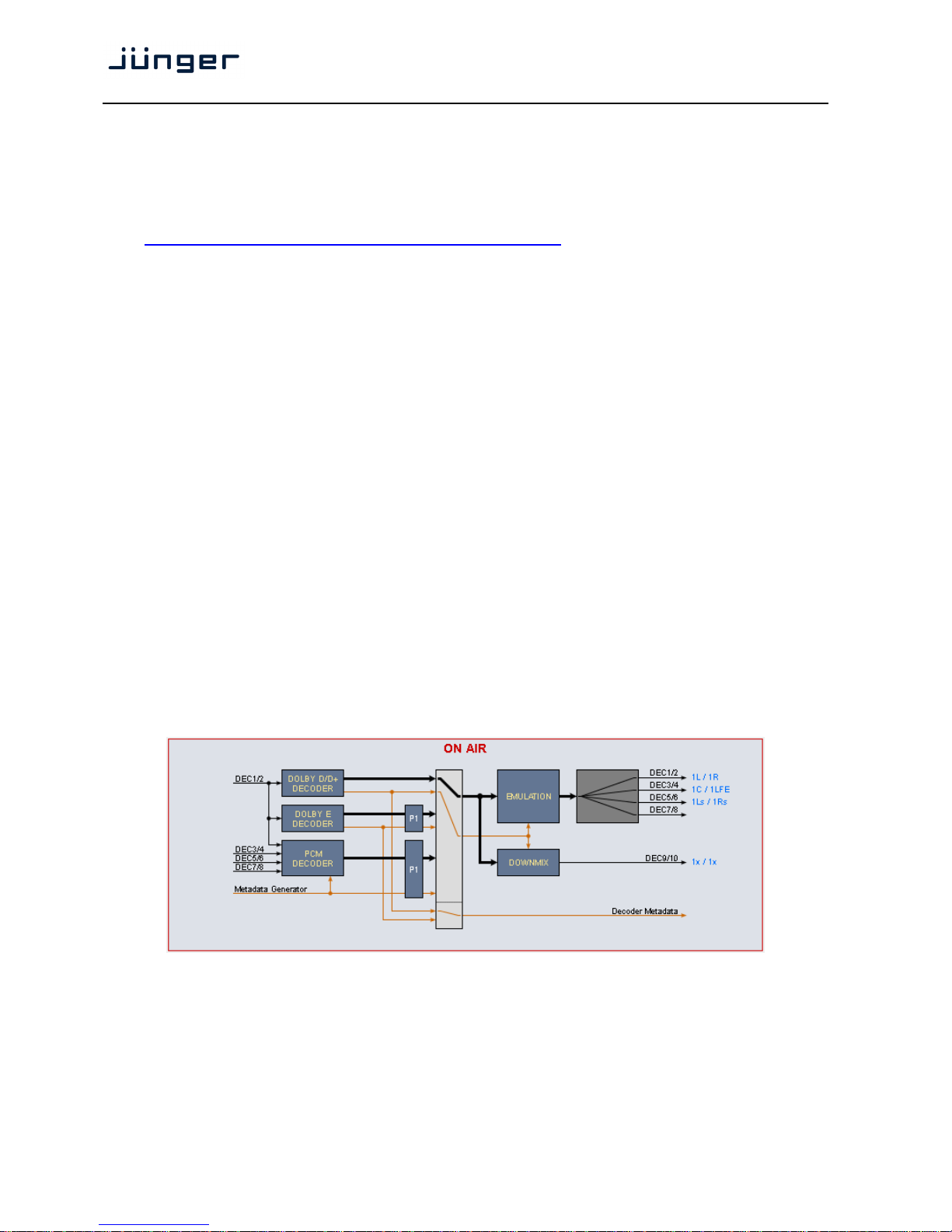

The page embedded graphic shows the building blocks of the CAT1100 module. On the left hand side
you have the decoding blocks, a signal router in the middle, and on the right hand side you have the
downmix and the emulation part. You also can see the actual signal flow and their labels depending on
the input signal status.

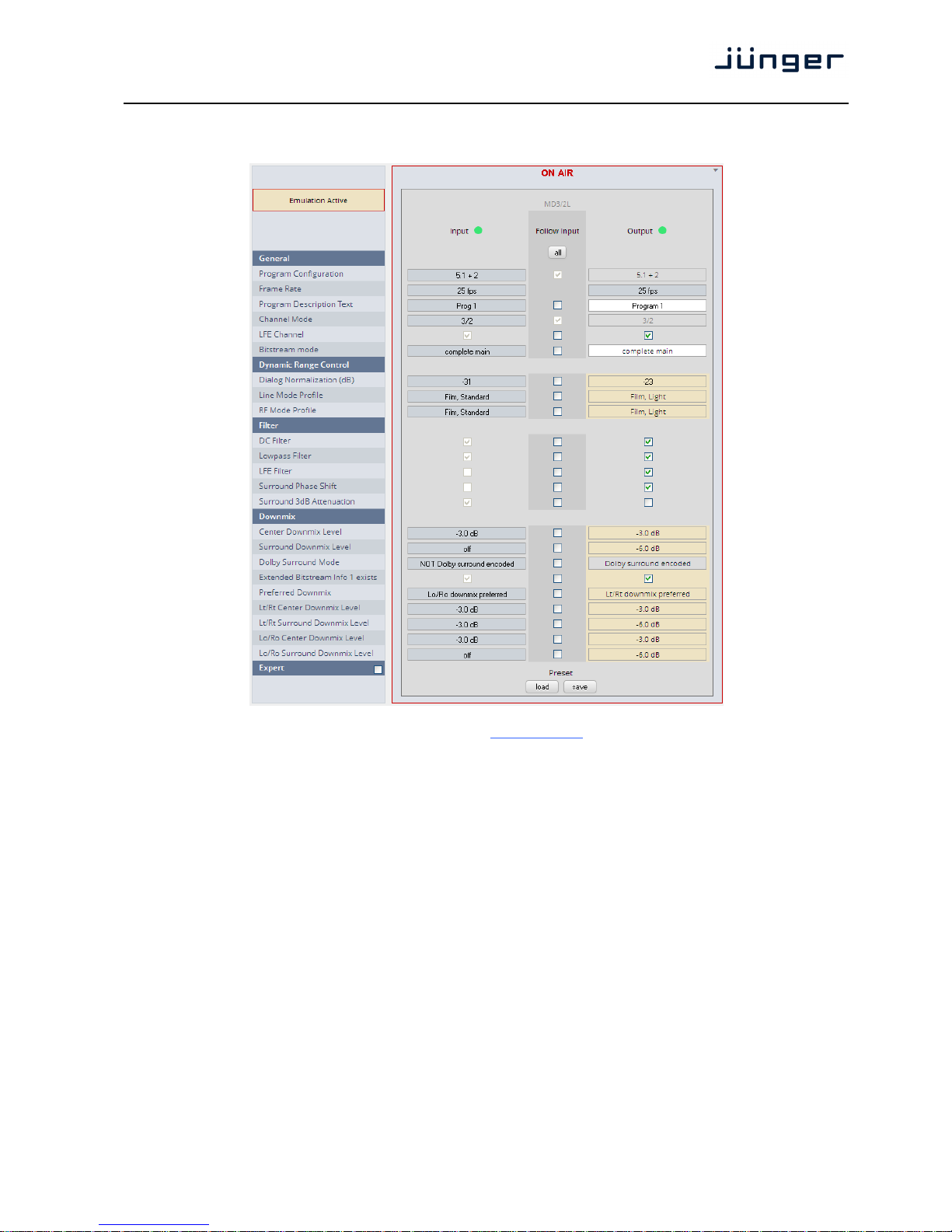

The emulation of the influence of metadata can be performed only on one program at a time.
In the above case program 1 "P1" is pre-selected for emulation. But the signal is actually coming from
the D/D+ decoder because a D+ signal is present at DEC 1/2 input and will be decoded automatically.
The metadata set of the D+ stream has a channel mode of 3/2. Therefore the output labels show a
surround signal 1L/1R, 1C/1LFE, 1Ls/1Rs, while the downmix output label is Lx/Rx.

If you feed PCM signals you have the setup mostly used for live or post pro mixing. The MAP may be
connected to a monitoring insert of the mixing desk. The sound engineer can now switch between his
mix and the emulated version of his surround mix or the downmix of it. He may now change DRC and
downmix metadata by the generator to see how it would sound at home.

D*AP8 MAP

45

But he can also use external metadata from 9-pin input or from a SDI VANC stream which are routed to
the metadata generator.
(see DOLBY PROCESSING > Metadata > Routing > Metadata Destination = D.Sub In).

Similar applies if one wants to listen to the influence of metadata from encoded streams.
A professional decoder would normally not apply metadata to the decoded audio as a TV set or a STB
implementation would do. With emulation you can listen to it. This example shows a Dolby E decoding

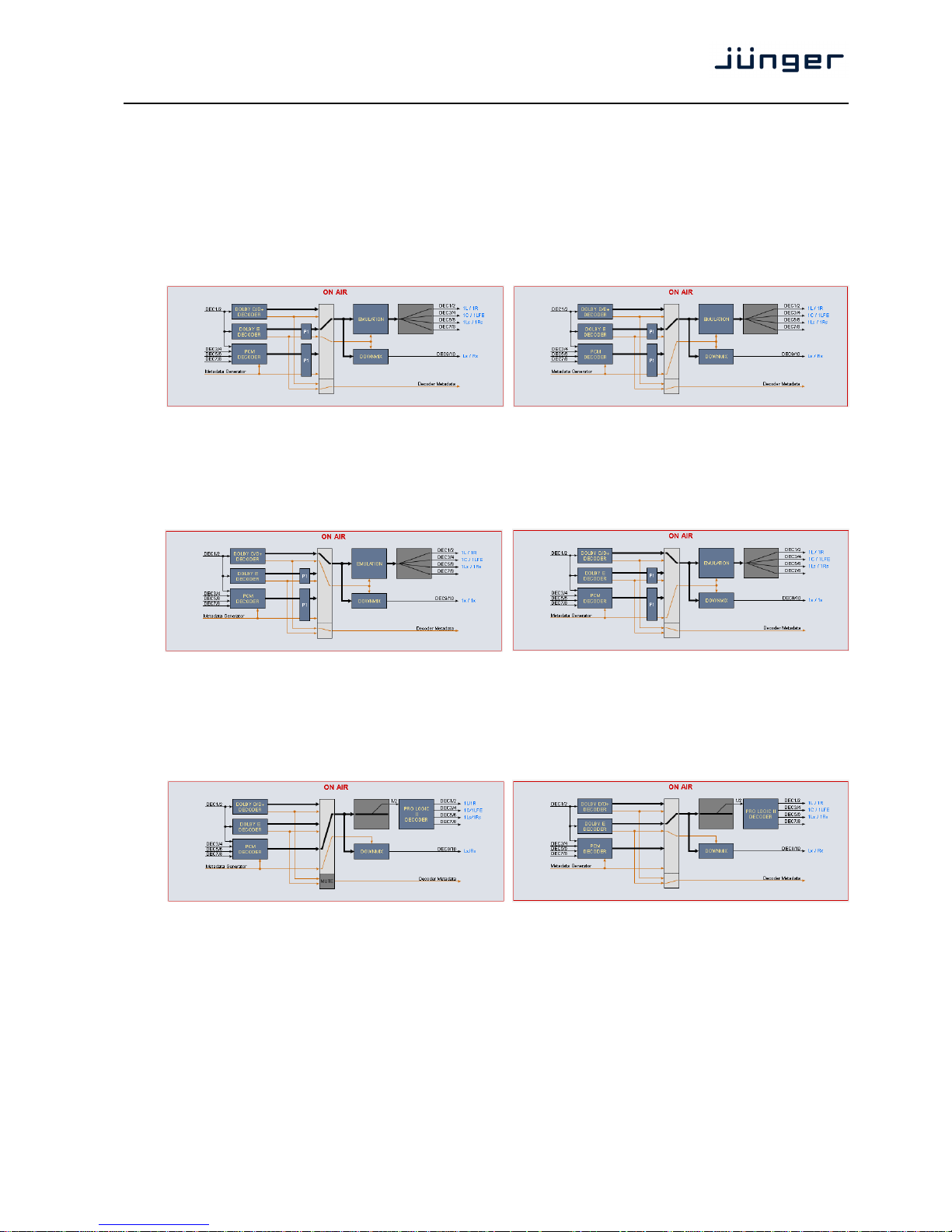

situation with metadata for emulation coming from

the decoder: and alternatively from the generator:

The right hand scenario allows for partially or fully overwriting the encoded metadata
(see DOLBY PROCESSING > DECODER/ EMULATION > Emulation > MD Generator overwrites
encoded Metadata = ON)

Same applies to Dolby D / D+ decoding.
Metadata from decoder: metadata from generator:

A special application is Dolby Pro Logic decoding. The Pro Logic technology does not have metadata
like its younger digital family members. So in case a Dolby Pro Logic signal must be evaluated it will
be passed straight through to the Pro Logic decoder.
But you may also listen to the Lt/Rt downmix (the Pro Logic format) by decoding it.

Decoding of Pro Logic from PCM input: Pro Logic decoding from a D-E stream:

The configuration at the right hand side will only work if the channel mode of the selected program is
2/0. It will be used if the Dolby Surround Mode is set to "Dolby surround encoded" and one wants to
listen to the decoded surround signals.

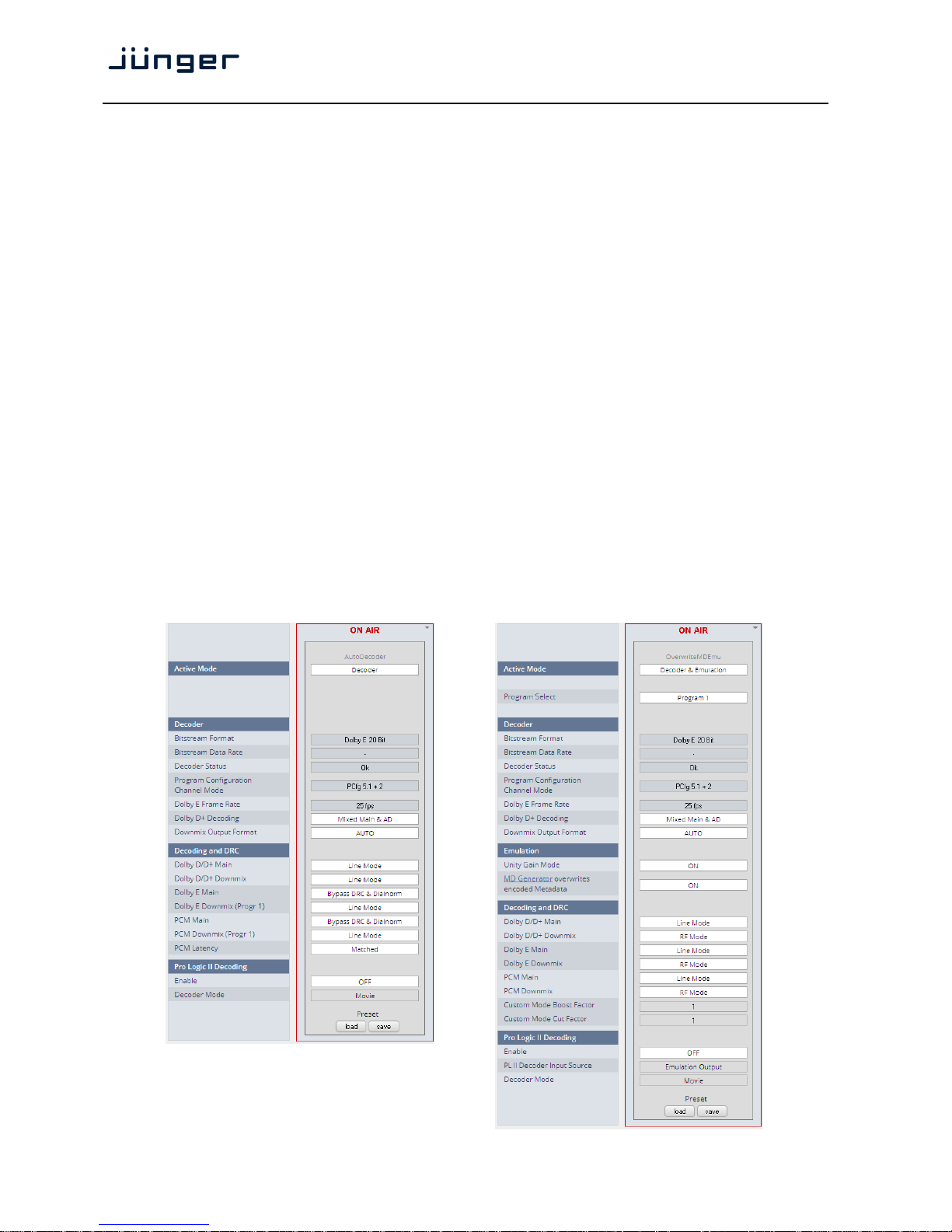

The D*AP8 distinguishes between two major modes: Decoding (only) and Decoding/Emulation.
For the decoding part we have pre-settings for each decoding type. The format detection is automatic
so the desired general settings like DRC modes must be set manually prior to decoding.

Important Note! For parameter consistency reasons the preset editor can only be used for the respective
active mode of the ON AIR area. If the preset active mode does not match the one from ON AIR, preset
set-up is disabled and you will get the message "Setup not available for this mode".

D*AP8 MAP

46

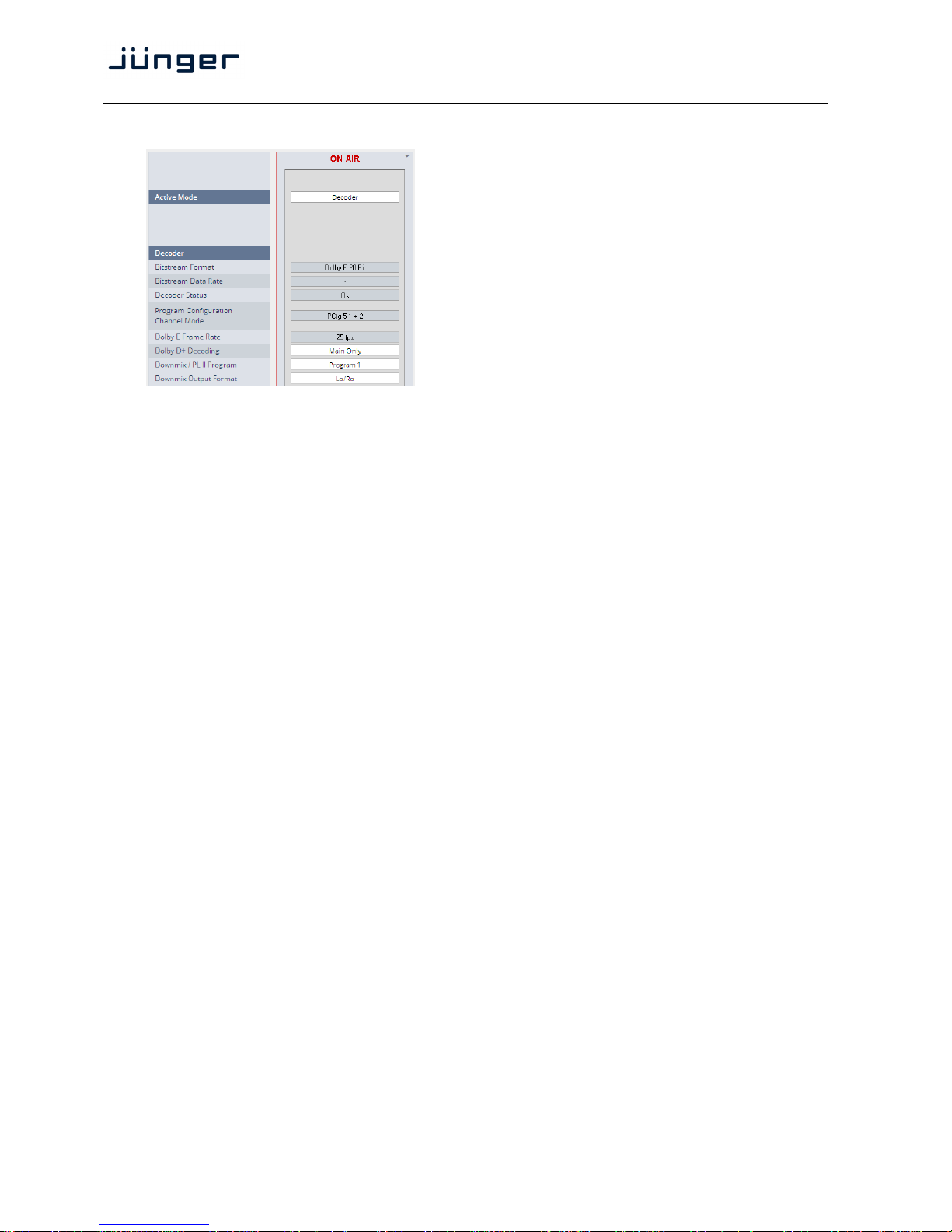

Setup GUI – DOLBY PROCESSING – Decoder/Emulation - Decoder

Active Mode = Decoder

Decoder

Bitstream Format [PCM / Dolby E 16/20/24 Bit

Dolby Digital / Dolby Digital
plus (I0, I0D0, I0I1, I0D0I1)]

where Ix and Dx stands for

independent and dependent
sub stream IDs

Bitstream Datarate [of a D-D or D-D+ stream]

Decoder Status [OK / Fail]
Program Configuration [in case of D-E]

Channel Mode [in case of D-D / D-D plus]
Dolby E Frame Rate [detected by the D-E decoder]
Dolby D+ Decoding [Main Only, Mixed Main & AD, AD Only]

Dolby Digital plus supports associated services like the provision of

extra dialog or sending an audio descriptive (AD) track for
visually impaired people or allows for separate commentary etc.

that may be mixed automatically or by user intervention (depending
on the consumer decoder implementation).
This selection allows you to listen to the main program only, the
main and the associated audio description (AD) signals mixed
together or the associated audio descriptive (AD) signal only.
It works only for streams where two Dolby Digital plus elementary
streams are multiplexed (AKA single PID operation). For dual PID
streams you may listen to the main and the associated signals
independently only, because the Dolby OEM module has only one
decoder input.

Downmix / PL II Program [Program 1 / Program 2]
Selects the program for downmix or PL II decoding. The drop down

field becomes red colored if there is no second program available
(e.g. PL II decoding from a D-D / D-D+ stream).

Downmix Output Format [AUTO / Lt/Rt / Lo/Ro / Pro Logic II]
AUTO=from Metadata, Lt/Rt (Pro Logic encoded), Lo/Ro (Stereo),

Pro Logic II encoded.

The decoding functions of the D*AP8 are implemented to meet all possible applications in the field.
Besides monitoring for QA, broadcasters use decoded consumer format (D-D/D+) streams for turn
around or backup applications. On the one hand they receive it from suppliers to add content to their
bouquet and on the other hand they must maintain older distribution systems (cable head ends)
which are based on AC3 encoding but (e.g.) are fed by D-D+. So often they can not / will not rely on
the received Dialnorm / DRC settings because they prefer to add automatic levelling and standard
DRC settings to all signals to have seamless loudness across their bouquet. That’s why we offer to
skip DRC & Dialnorm if it makes sense for the application.

Important Note! Metadata will be applied to the downmix output at any time. Either from the decoder or
from the MD Generator (if input format is PCM). The selection is only regarding the DRC profile which will
be used.

D*AP8 MAP

47

General settings are available for each of the possible input signal types (Dolby D/D+ / Dolby E / PCM):

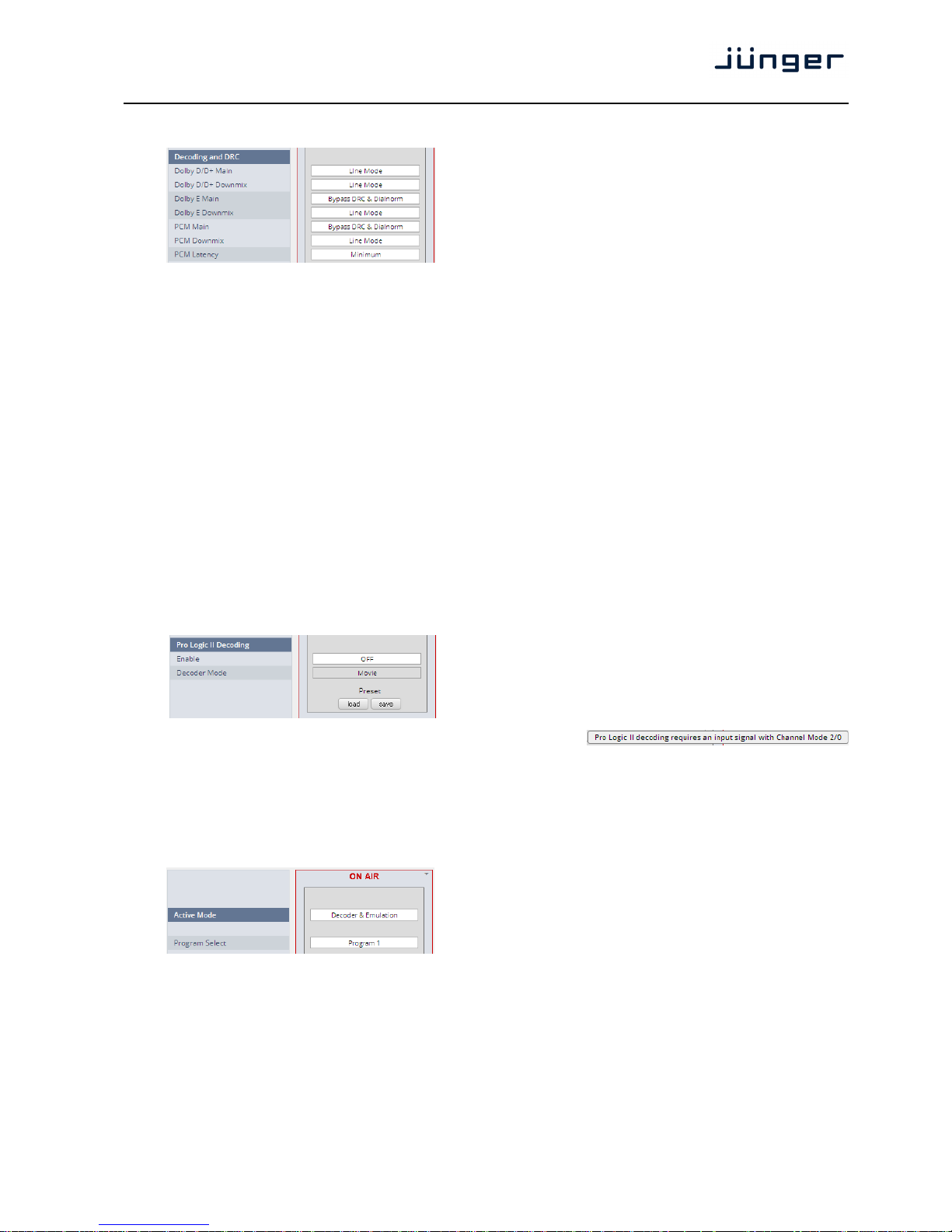

Decoding and DRC

Dolby D/D+ Main [Bypass DRC & Dialnorm,

Apply Dialnorm Only
Line Mode, RF Mode,
Mute Dolby D/D+]
This is a common setting for
both D-D or D-D+.

D/D+ Downmix [Line Mode, RF Mode]
Dolby E Main [Bypass DRC & Dialnorm / Mute Dolby E]
Dolby E Downmix [Line Mode / RF Mode]
PCM Main [Mute PCM / Bypass DRC & Dialnorm]

Mute PCM is useful if one expects corrupted Dolby E blocks

(if one runs a VTR or a switching device upstream is expected not
to switch within the Dolby E guard band). In this case other than
decoded Dolby E will not be audible.

Bypass DRC & Dialnorm must be used as an alternative setting

(Mute PCM=OFF).

PCM Downmix [Line Mode / RF Mode]
PCM Latency [Matched, Minimum]

ProLogic II Decoding

There are a lot of Pro Logic / Pro Logic II consumer decoders installed and a lot of archived footage
still has this sound track format. If you either must check such existing tracks or eventually produce
such a sound track using the Dolby DP563 (Pro Logic II encoder), you may also listen to the decoded
signal via the D*AP8.

Pro Logic II Decoding

Enable [OFF / ON]

When you hover with the

mouse over that pull down, a
hint will be displayed:

Decoder Mode [Movie / ProLogic Emulation]

Setup GUI – DOLBY PROCESSING – Decoder/Emulation – Decoder & Emulation

For emulation five more parameters are available:

Active Mode = Decoder & Emulation

Program Select [Program 1 … Program 8]

SMPTE RDD6 standard

defines up to 8 independent
programs. For the emulation
process you must select one
program at a time.

Pls. refer to the Decoder > Program Configuration to see how many programs belong to an actual
Dolby E stream.

D*AP8 MAP

48

Emulation

Unity Gain Mode [OFF / ON]
For applications like live

mixing or others where the

level must not be changed

but listening to the influence
of DRC is desired.

MD Generator overwrites [OFF / ON]

encoded Metadata If you want to see how different metadata will "sound" for already

encoded signals you may decode it and apply different ones to it.

Decoding and DRC

Custom Mode [0 … 0.5 … 1]
Boost Factor If you want to check out different DRC behaviour from the defined

profiles you may set the lower level boost factor here.

Custom Mode [0 … 0.5 … 1]
Cut Factor If you want to check out different DRC behaviour from the defined

profiles you may set the higher level cut factor here.

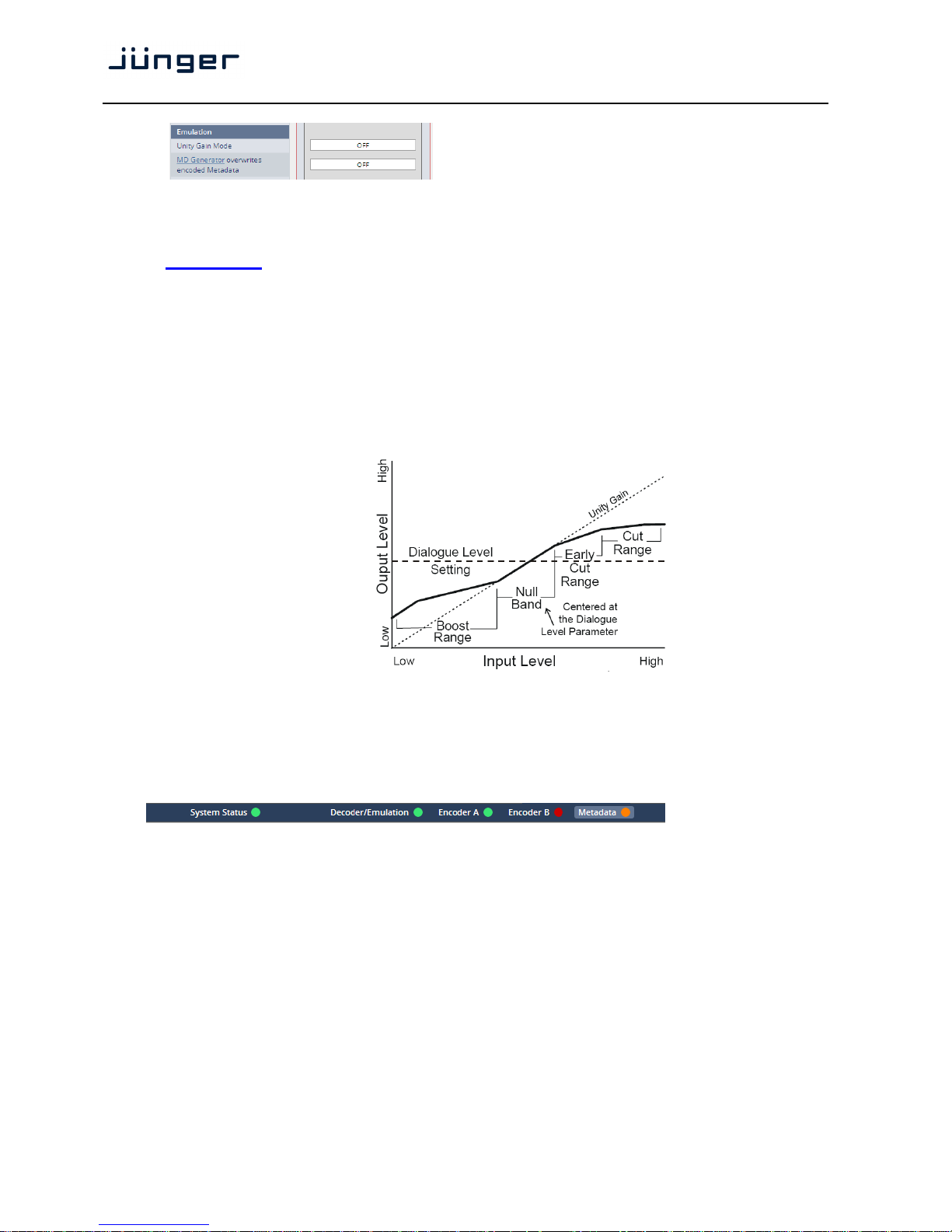

Here a simplified DRC
characteristic curve,
published by Dolby®:

Important Note! Dolby Digital and Digital plus encoded streams do not contain metadata for

DRC but pre-calculated gain words which may be applied to the decoded audio to decrease dynamic range
for home reproduction. That's why you will not get a display of such metadata from the Input if consumer
format streams are decoded. Similar applies to the professional metadata which is used to setup
consumer format encoders (e.g. filters) and which is not present in the metadata stream as well.

Status display of Decoder/Emulation / Encoder A / Encoder B / Metadata (soft LEDs)

Green * Dolby encoded stream at the input
* Metadata valid from the generator

Orange * Dolby E frame rate mismatch
* MD generator has entered the reversion mode
* Dolby E encoder has entered the reversion mode

Red * If the decoder receives corrupted (e.g. asynchronous)

or no metadata

* Internal error

Important Note! If no input metadata is available for PCM emulation and you tick a <Follow Input>
checkbox, the generator enters the reversion mode as well.

D*AP8 MAP

49

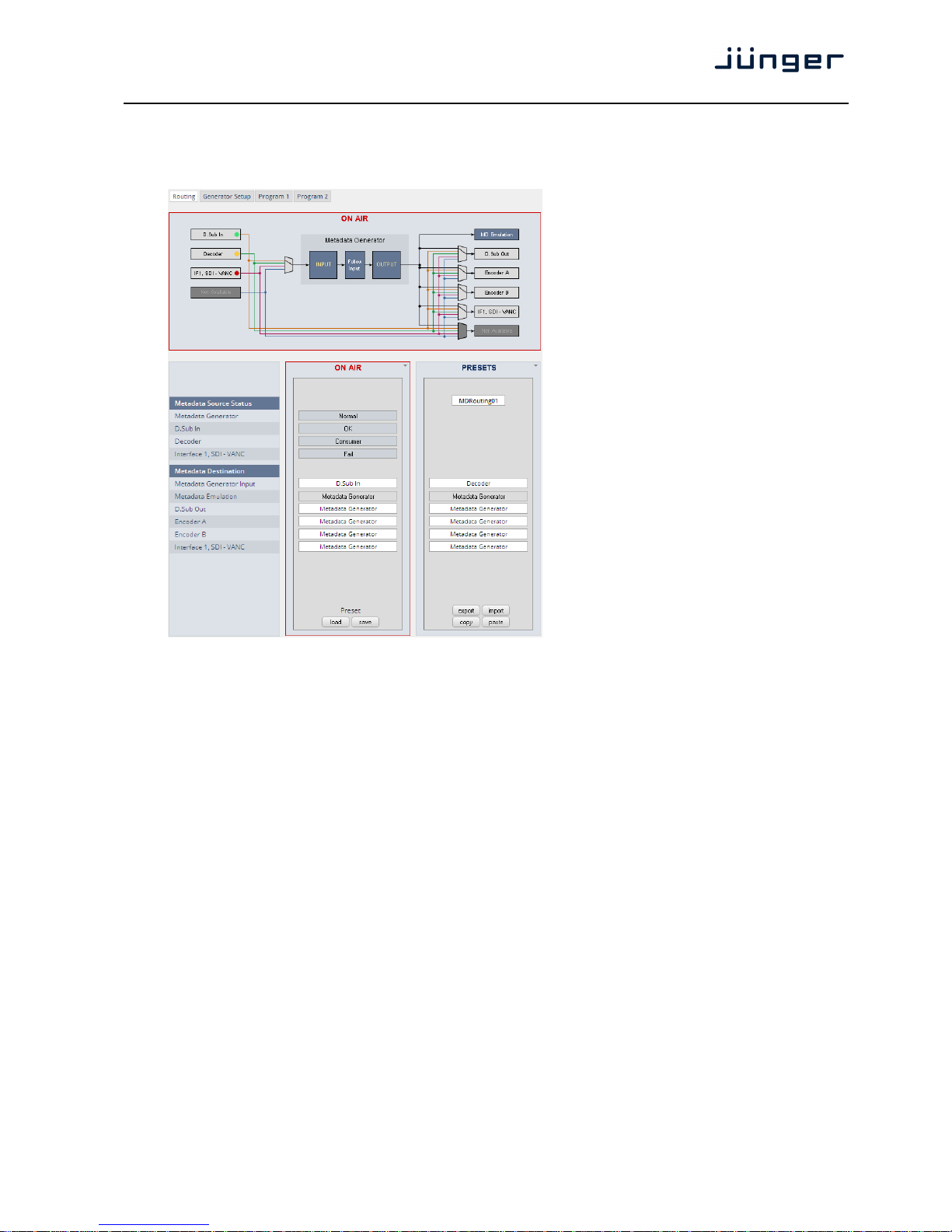

Setup GUI – DOLBY PROCESSING – Metadata – Routing

The center of the D*AP8 Dolby processing is the Metadata Processor. It can be the point of origin of
metadata but it may also modify existing metadata from available sources:

The metadata processor of the D*AP8 has a
maximum of seven metadata destinations
and four sources which can be routed
individually.

The Metadata Generator in the middle can
run independently but may take metadata
from an available source at the "Input",
may select some or all of it in the
"Follow Input" section and present a
complete set of metadata at the "Output".

Metadata Source Status - colors

The respective soft LED turns red if no
metadata is present or the metadata are
corrupted.
It turns green if a RDD 6 compliant
metadata stream is detected.
It turns yellow if an AC3 or similar (D-D+)
signal is decoded.

Metadata Source Status
[OK / Consumer / Fail / Not Available]
The word "CONSUMER" will be displayed to
indicate that only a metadata subset is
provided.

Metadata Destination [OFF / D.Sub In / SDIx - VANC (if present) / DECODER (if present)]
The destinations can have any of the system sources assigned except

of the emulation engine [MD Emulation].

Setup GUI – DOLBY PROCESSING – Metadata – Generator Setup

The metadata processor generates SMPTE RDD 6 standard compliant metadata. It supports the most
relevant program configurations for broadcast applications (5.1 / 5.1+2 / 3x2 / 4x2) used with Dolby E 16
or 20Bit bit depth. Since the number of programs from an external RDD 6 stream may differ from the
generator setup, "off-size" program configurations will be handled this way:

If the input program configuration has more programs (e.g. 4x2) than the generator setup (e.g. 5.1+2)
and you click on a "surplus" program (Program 3 or Program 4), only an Input table will be displayed
while for the other programs an input and an output table is shown.

If the input program configuration has less programs (e.g. 3x2) than the generator setup (e.g. 4 x 2)
and you click on a "surplus" program (e.g. Program 4), an empty input table will be shown.

If the metadata generator is set up for "Follow Input" and the input program configuration does not
match the possible ones of the metadata generator it enters the reversion mode.

The output from the metadata generator is the source for the emulator engine but may also be
selected for optional built-in encoders and for metadata transport interfaces like 9-pin (RS485) or
VANC (SMPTE 2020).

D*AP8 MAP

50

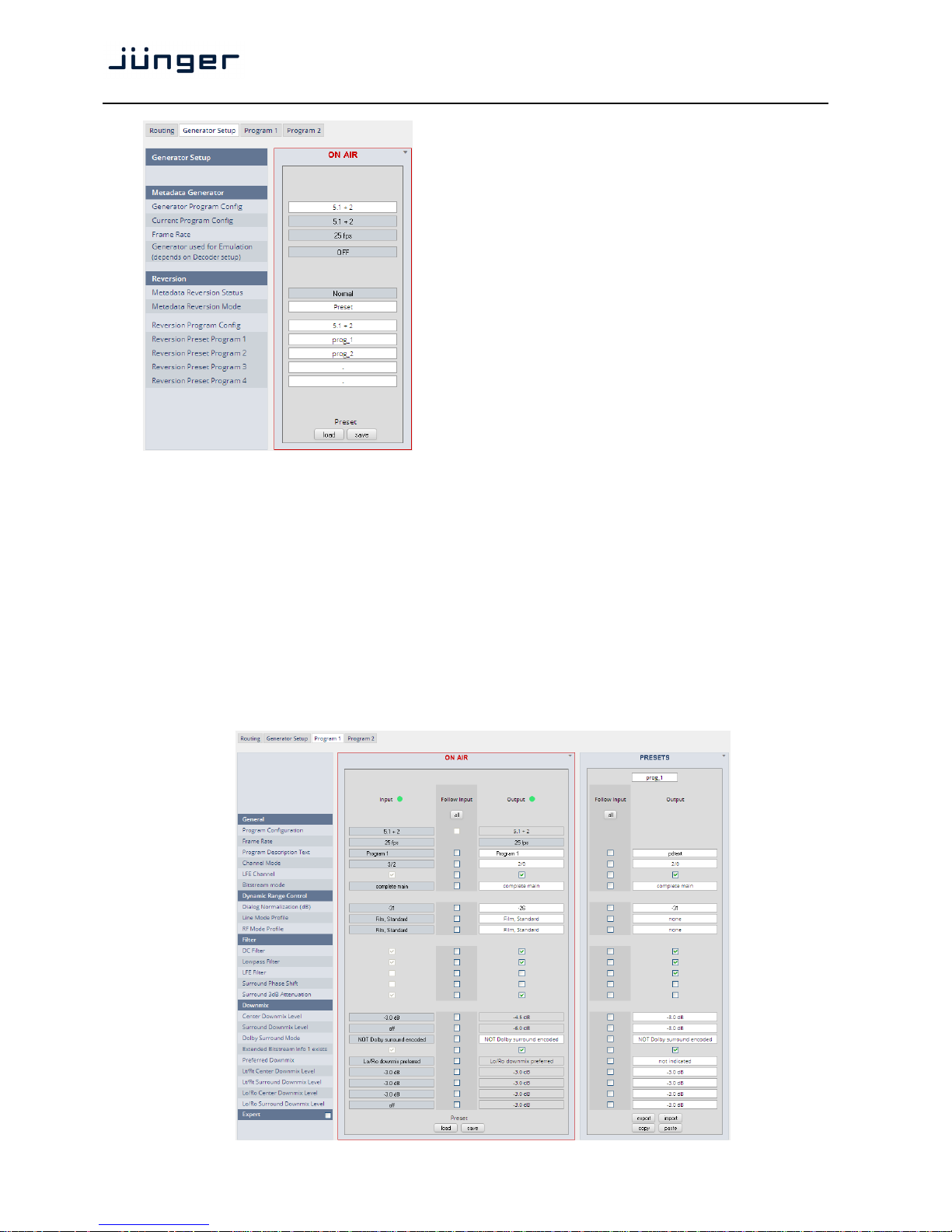

Metadata Generator

Generator [Follow Input / 5.1+2 / 4 x 2 /
Program Config. 5.1 / 3 x 2]

Current displays the actual program
Program Config. configuration used by the

generator.

Frame Rate display of the frame rate
SYSTEM > Setup >

Video Rate (fps).

Generator used for [OFF / ON]
Emulation (depends shows if the generator is
on Decoder Setup) used for emulation or not.

Reversion

Metadata Reversion [Normal / Reversion]
Status Display of the reversion

mode status.

Metadata Reversion [Last Valid / Preset]
Mode Selection of what happens in

case of input metadata
failure.

Reversion Program [5.1+2, 4 x 2, 3 x 2]
Program Config. Pre-selection of the program configuration for reversion mode.

Reversion Preset You can select a preset for Program x to become the
Program x Reversion preset for that program.

Important Note! There is only one set of reversion presets for all programs. You must be careful when you

assign reversion presets to programs. It may be a good idea to name the presets used for reversion mode
after the program number it is meant for.

Setup GUI – DOLBY PROCESSING – Metadata – Program x

D*AP8 MAP

51

Above you can see the input metadata of the processor and you can decide about the metadata output.
You may set it to follow the input or you may overwrite it. The table shows the most relevant metadata.

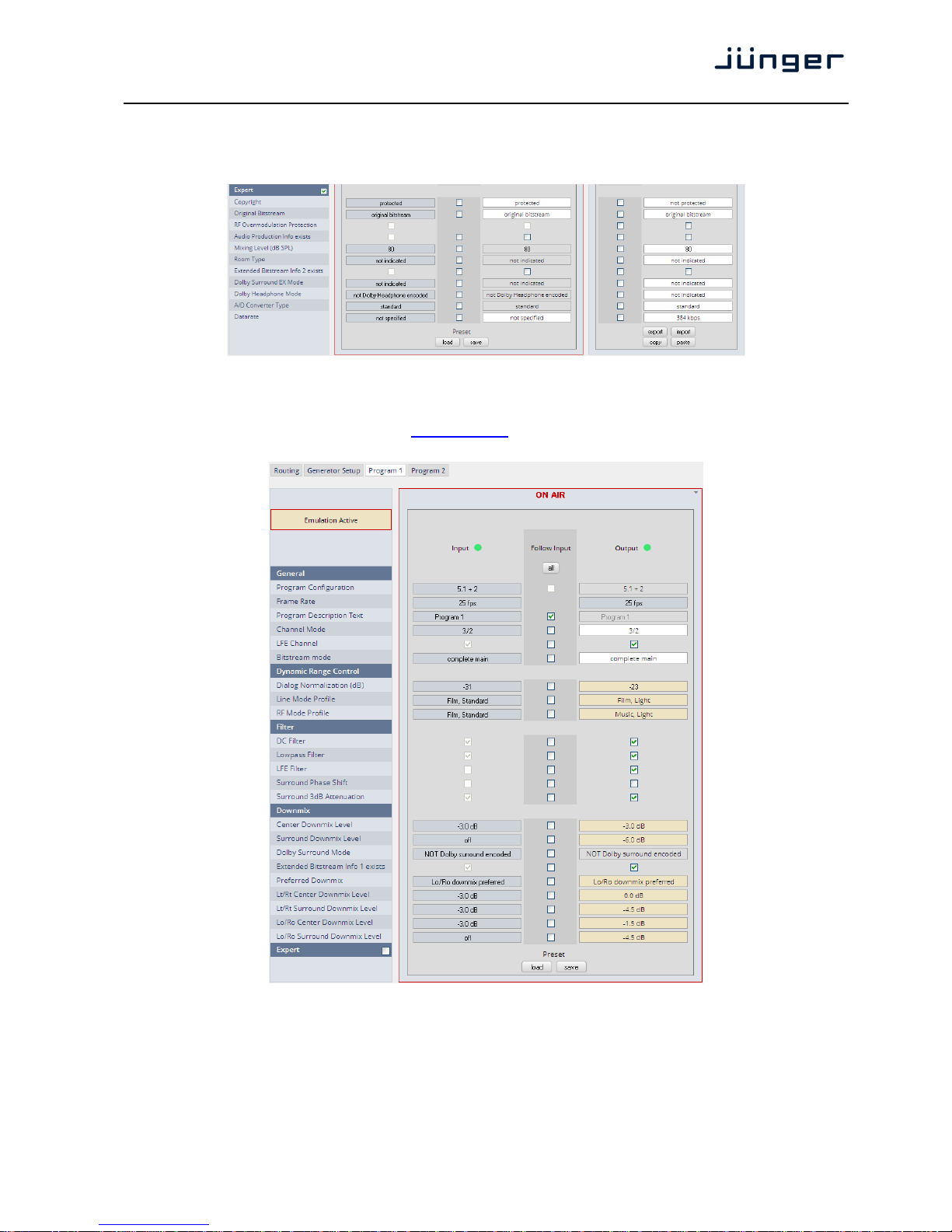

The Expert checkbox gives you access to more specific metadata:

Important Note! Dolby advises that the RF Overmodulation Protection must be off. Therefore Junger
automatically turns it off. You are not able to set this parameter and no <Follow Input> check box exists,
except for the preset parameters which will be ignored when loading it.

If Emulation is active and the option "MD Generator overwrites encoded Metadata" is turned on,
the metadata are used for emulation are highlighted by a yellowish background:

This example shows the metadata from Program 1 of a Dolby E encoded stream.

D*AP8 MAP

52

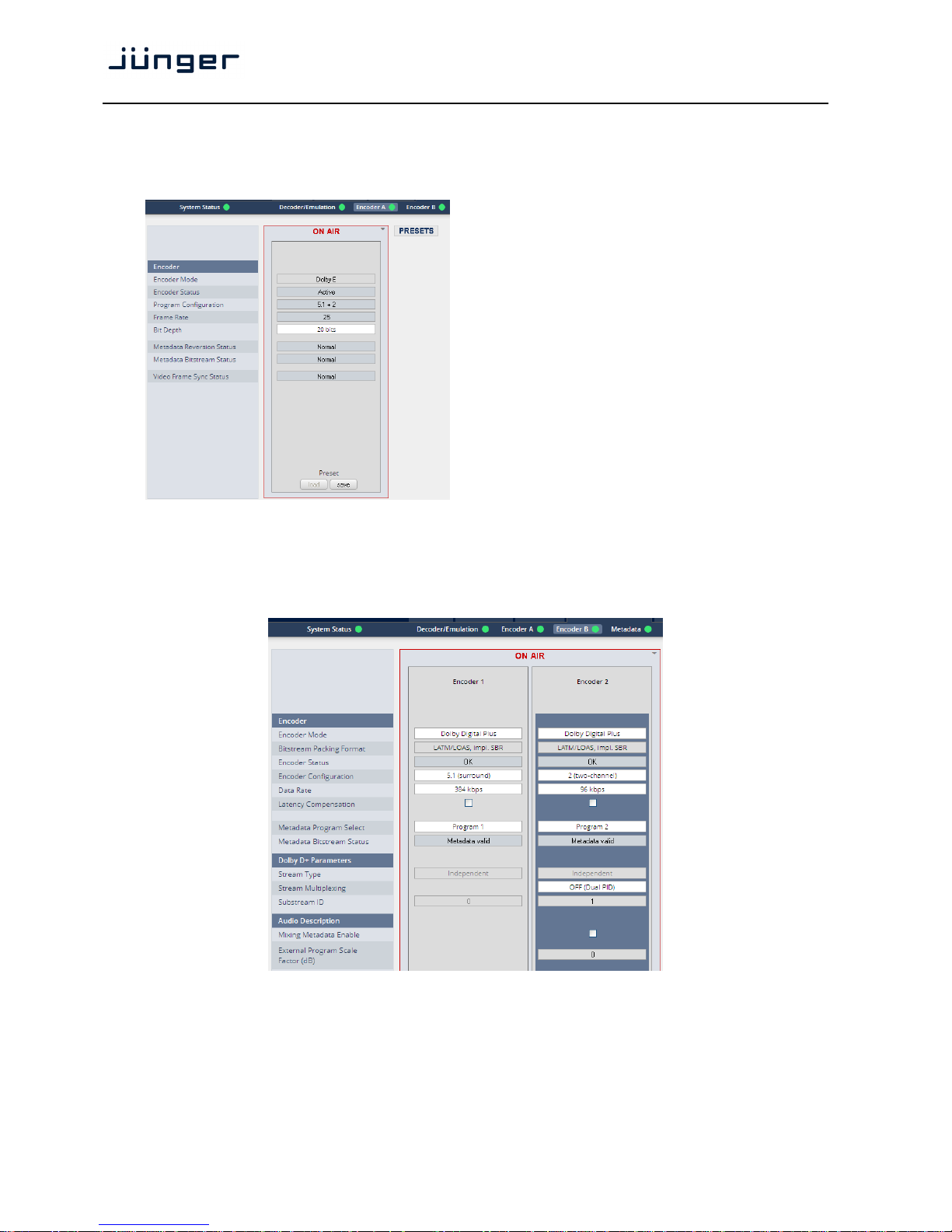

Setup GUI – DOLBY PROCESSING – optional Dolby E encoder – Encoder A

If the optional Dolby E encoder is licensed (see SYSTEM > Firmware Update > Licensing)
the UI shows it as Encoder A:

Encoder

Encoder Mode [Dolby E]
Encoder Status [Active / Metadata

Reversion / Fail]

Program [3x2 / 4x2 / 5.1 / 5.1 +2]
Configuration Set by the generator

Frame Rate [25 / 30 / 29,97 / Unknown]
Bit Depth [20 bits / 16 bits]
Metadata Reversion [Normal / Reversion]

Status
Metadata Bitstream [Normal / Fail]

Status
Video Frame Sync [present at Dolby E frame

Status rate]

Setup GUI – DOLBY PROCESSING – optional consumer format encoder – Encoder B

The D*AP8 offers the option to install a consumer format (Dolby Digital / Dolby Digital plus / HE-AAC
(v1/v2) / AAC) or another optional Dolby E encoder. If an encoder is installed it shows up under
DOLBY PROCESSING. This example has a consumer format encoder installed:

The OEM module from Dolby called CAT561. The implementation for the D*AP8 platform provides two
encoded outputs. Both outputs may have independent consumer formats. If both encoders are set for
Dolby Digital plus encoding special features like providing associated services (e.g. an extra audio track
for visually impaired people, AKA audio descriptive service - AD) are available.

D*AP8 MAP

53

Encoder Encoder 1 (similar applies to Encoder 2 accept from setup where

both encoders are used for associated services).

Encoder Mode [Dolby Digital plus, Dolby Digital, Dolby Digital Puls HE-AAC v1,

Dolby Digital Pulse HE-AAV v2, Dolby Digital pulse AAC]

Here you may select the encoding format for the respective encoder

Bitstream Packing Format AAC encoded bit-streams may be packed in different container

formats. This parameter allows you to select one from the many
possible formats.

Encoder Status [OK, Fail]
Encoder Configuration [2 (two-channel), 5.1 (surround)]
Data Rate The data rate that is used for encoding
Latency compensation [ON / OFF]

For parallel encoding of different formats the same latency may be

desirable. In this case both encoders will have the same latency of
305ms. If you turn latency compensation OFF, latency will be reduced
to 135ms for Dolby Digital.

Metadata Program Select [Program 1 … Program 8]
Here you can select a program number of the RDD6 metadata set that

shall be used for consumer encoding. If you are about to encode a 5.1
program that comes with a Dolby E stream as program 1, you must
select Program 1 here.

Metadata Bitstream Status [Metadata valid, Metadata not present]

Dolby D+ Parameters

Stream Type [Independent, Dependent]

The streams which are encoded by both encoders can either be

independent (i.e. there is no signal relationship of the audio signals)
or dependent (if you use both encoders to encode 8 audio channels for

7.1 encoding).

Stream Multiplexing [OFF (Dual PID) / ON /Single PID]]
Substream ID [1, 2, 3]

Since the encoded streams can be multiplexed by an on-board

multiplexer they must have individual (sub-) stream IDs,
so a de-multiplexer "knows" which data belong to which stream.
If there is no intention to multiplex them together, the MAP sets both
IDs to "0".

Audio Description Audio description service employs both encoders to allow for the so

called receiver mix. I.e. the mix between the program sound and the
narrator who performs the audible scene description can be done in
the decoder. This saves a lot of audio bandwidth compared to the so
called broadcast mix, where two independent audio mixes are
transmitted to the receiver at home.

Mixing Metadata Enable [ON / OFF]
External Program [-50 … 0 … 12]

Scale Factor To remote control the mixing of associated services you can change

the level of the main program with this parameter.

D*AP8 MAP

54

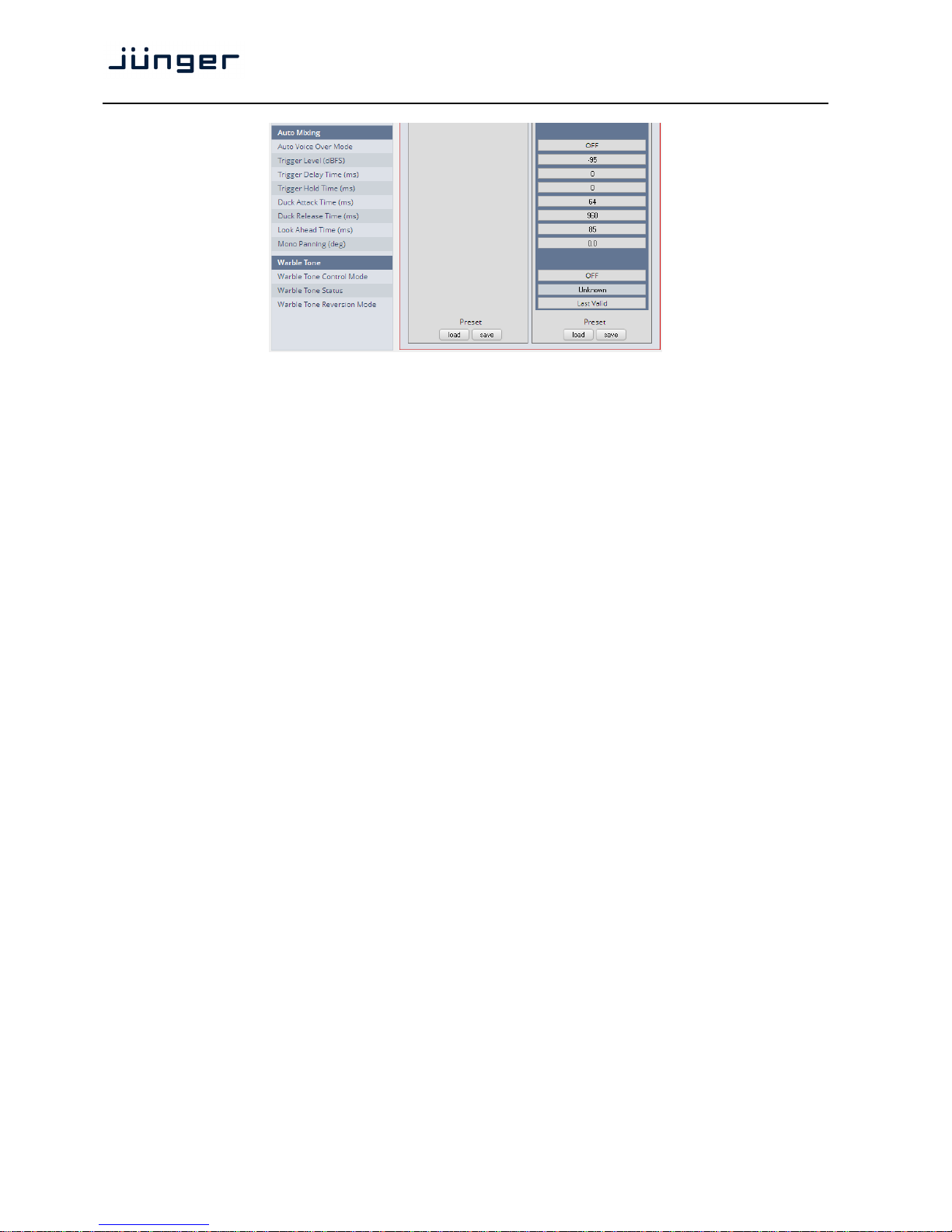

Audio Mixing

Auto Voice Over Mode [OFF / ON]
In case of ON, the ducking parameter below will be used by the

receiver to perform the mixing.

Trigger Level (dBFS) [-96 … 0]
Level of the associated audio channel that will turn on the ducking.

Trigger Delay Time (ms) [0 … 4992]
Time that must elapse before ducking becomes active after the trigger

detects a signal that is above the trigger level.

Trigger Hold Time (ms) [0 … 4992]
Time the ducker stays open after trigger becomes active.

[

Duck Attack Time (ms) [0 … 4992]
Time the ducker needs to fully open up.

Duck Release Time (ms) [0 … 4992]
Time the ducker needs to fully close.

Look Ahead Time (ms) [0 … 85]
Time to look in advance for the level in the associated channel.

Warble Tone Warble tone is a BBC invention to encode the volume and PAN values

into one audio track while the other track carries the narrators voice
signal.

Warble Ton Control Mode [OFF / ON]
Warble Tone Status [Unknown / Not Available / Not Valid / Valid]
Warble Tone Reversion Mode [Last Valid / Internal / Automatic]

D*AP8 MAP

55

Setup GUI – AUDIO PROCESSOR - Overview

The overview shows the active signal blocks of the audio processor, rendered by the DSPs.
This overview depends on the actual speaker configuration of the MAP.

Below an example for 5.1 + 2.0 (see SYSTEM > Setup > Speaker Configuration):

The processing blocks in use, which may be activated from their individual setup panes,
will be indicated in green. Blocks shown in grey are not activated by the user.

To navigate through the various processing blocks you may either use the mouse over function and
click on the respective block or use the tabs provides in the navigation bars below the bar graph
displays. The navigation is based on URLs so you may use the <Back> button of the browser to return
to this page.

Important Note! Don't be confused by the difference between speaker configuration and
the channel mode of a program. Both can be set differently and must not necessarily match.
E.g. you may configure the speaker set for 5.1 but listen to a stereo program via the left & right surround
speakers. On the other hand it makes no sense to listen to a 3/2L signal via a pair of stereo speakers
(except when you have selected the downmix ;-). You must always be careful to setup the router properly
to connect the correct audio channels with the primary or secondary input of the AUDIO PROCESOR.

Setup GUI – AUDIO PROCESSOR - Setup

Mono Attenuation

Mono Attenuation (dB) [0 / -3 / -4.5 / -6]

If a processing block is

turned into mono operation
this gain reduction will be
used.

D*AP8 MAP

56

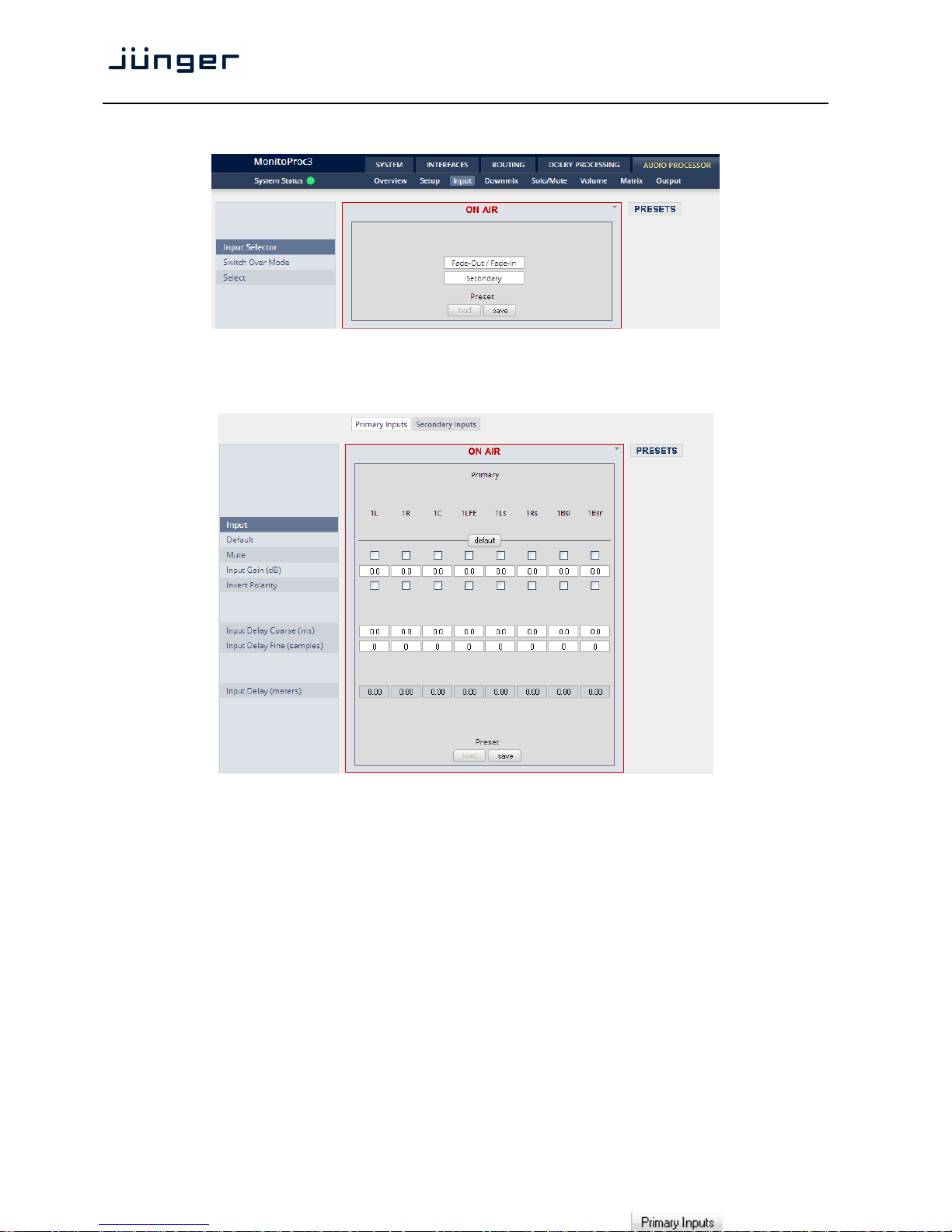

Setup GUI – AUDIO PROCESSOR - Input

Input Selector

Switch Over Mode [Fade-Out / Fade-In, Seamless]
Select [Primary, Secondary]

INPUT

Default pressing the <default> soft button will reset all values to "0" as

shown above

Mute [ON / OFF]
Turns the respective input channel off

Input Gain (dB) [-80.0 … 0.0 … 20.0]
Invert Polarity [ON / OFF]
Input Delay Coarse (ms) [0.0 … 2000.0]
Input Delay Fine (samples) [0 … 2000]
Input Delay (meters) shows the calculated distance in meters for a selected delay

(dry air, 20ºC ~ 343m/s).

D*AP8 MAP

57

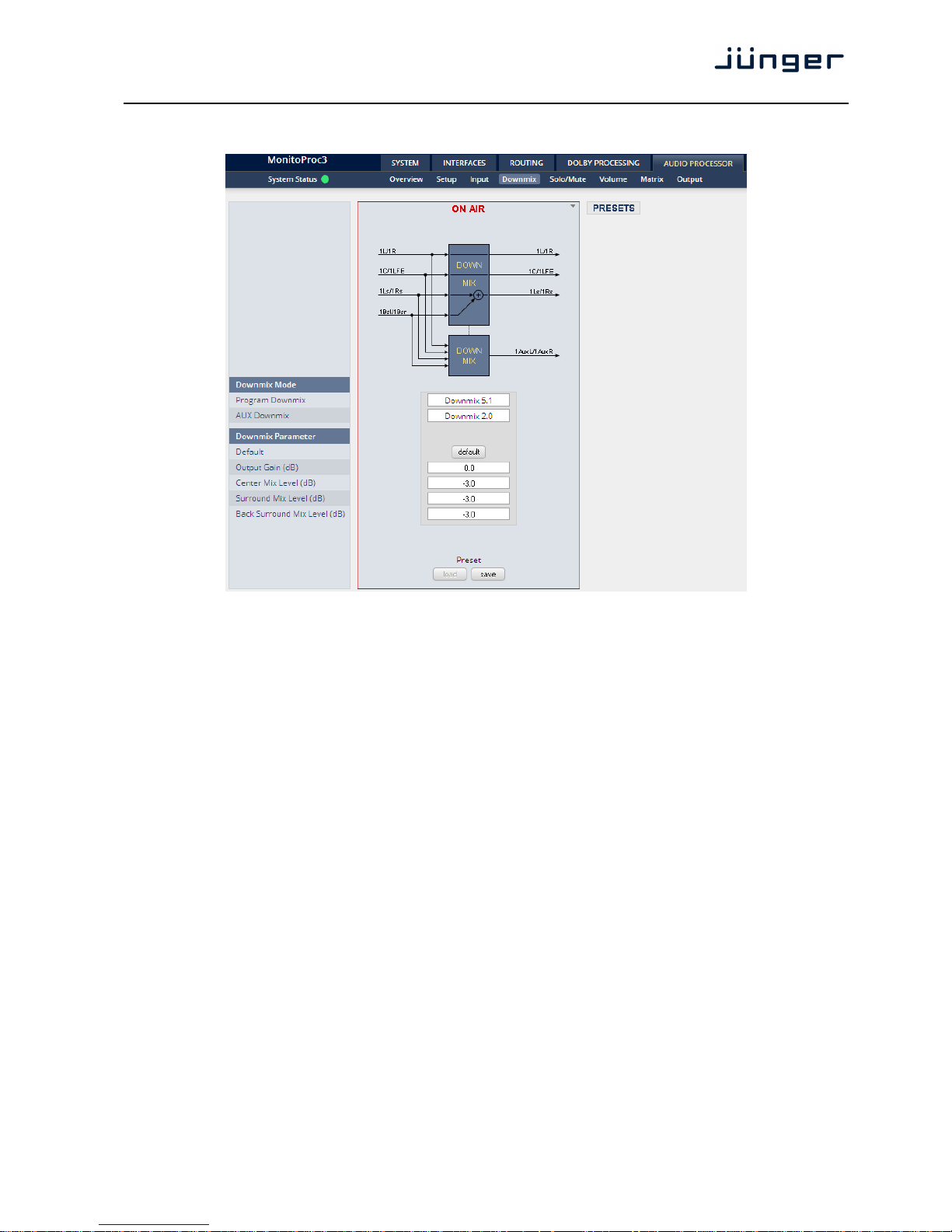

Setup GUI – AUDIO PROCESSOR – Downnmix

The MAP offers two independent downmix blocks (see AUDIO PORCESSOR > Overview).
The one in the top is part of the main signal path and maybe configured for 5.1 (if 7.1 is applied) or 2.0
Or it may be put into transparent mode. The one in the bottom always feeds the AUX output of the
audio processor.

Downmix Mode

Program Downmix [Transparent, Downmix 5.1, Downmix 2.0]
AUX Downmix [Transparent, Downmix 2.0]

Downmix Paramete

Default press <default> soft button to reset values
Output Gain (dB) [-20.0 … 0.0 … 20.0]
Center Mix Level (dB) [-12.0 … -3.0 … 0.0]
Surround Mix Level (dB) [-12.0 … -3.0 … 0.0]
Back Surround Mix Level (dB) [-12.0 … -3.0 … 0.0]

D*AP8 MAP

58

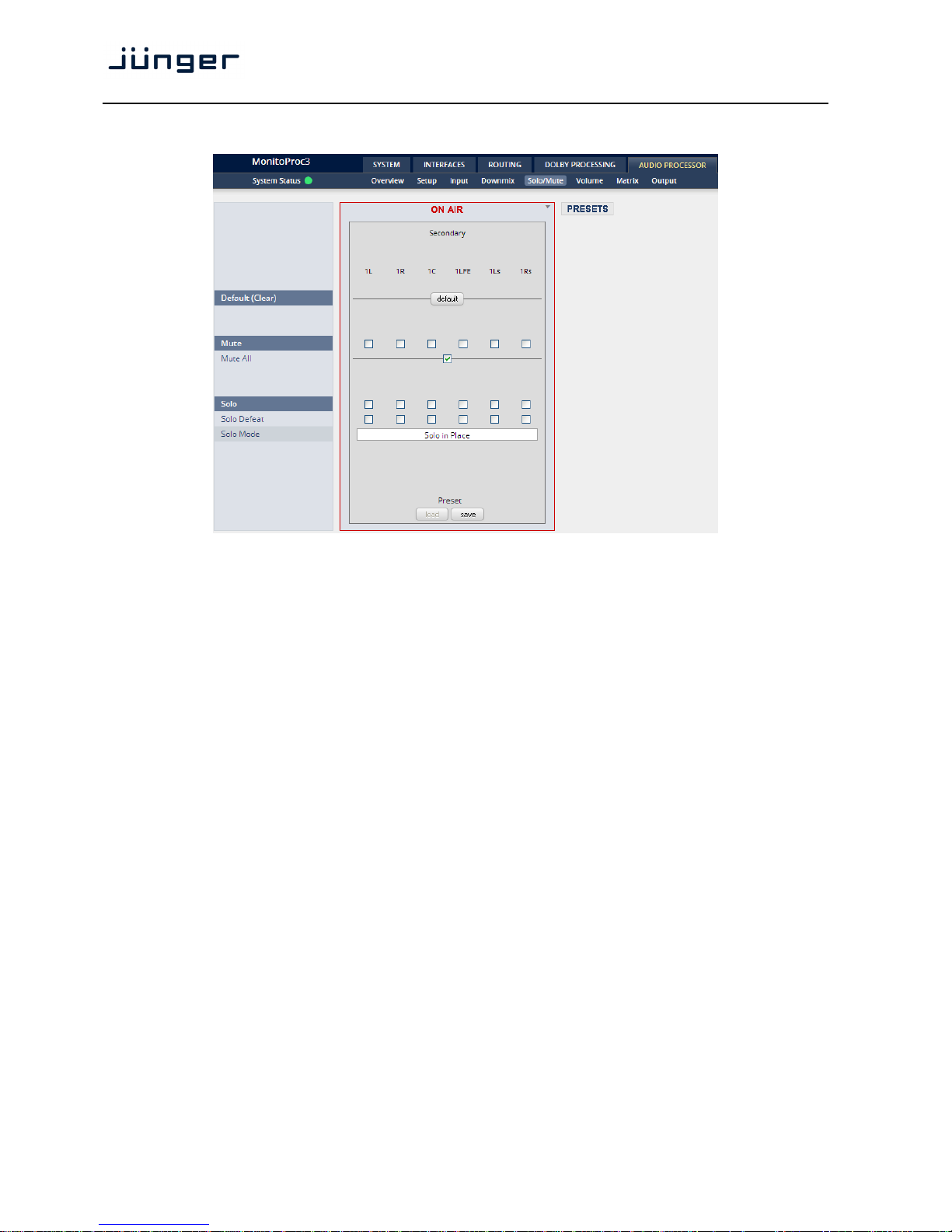

Setup GUI – AUDIO PROCESSOR – Solo/Mute

Default (Clear) press the soft button <default> to turn all solo and mute settings off
Mute [ON / OFF]

Tick check box to enable individual speaker mute.

Mute All Mutes all active speakers.

Solo [ON / OFF]
Tick check box to enable individual speaker solo.

Solo Defeat defeats respective speakers from solo
Solo Mode [Solo in Place, Solo to 1L+1R, Solo to C]

D*AP8 MAP

59

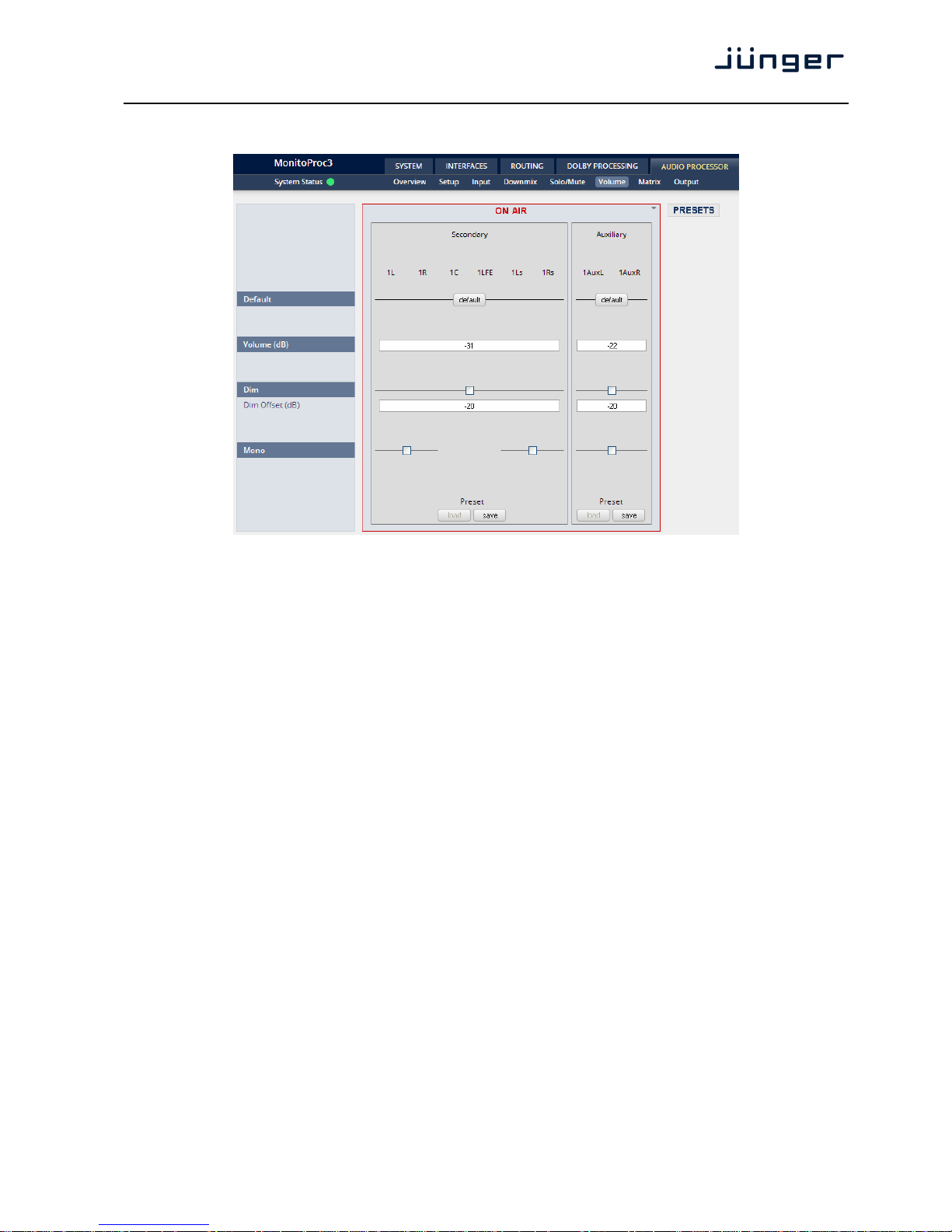

Setup GUI – AUDIO PROCESSOR – Volume

Default Soft button <default> turns master volume to -50dB

and DIM level to -20dB

Volume (dB) [-100 … -50 … 0]
This setting maybe overwritten by the rotary encoder of the X*AP

RM1 remote panel.

Dim [OFF / ON]
Tick checkbox to enable the dim function.

Dim Offset (dB) [-40 … -3]

Mono tick check box to turn mono circuit on.

D*AP8 MAP

60

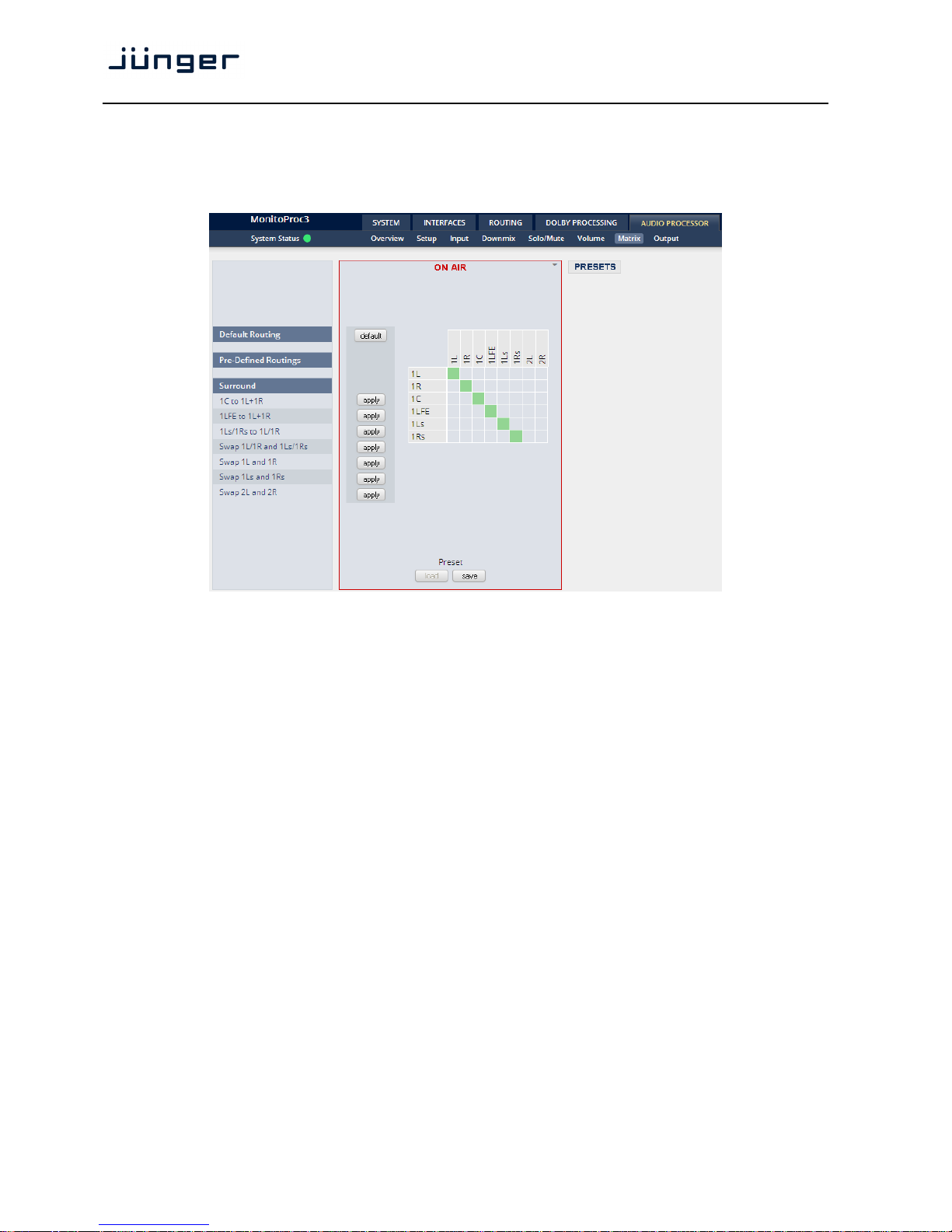

Setup GUI – AUDIO PROCESSOR – Matrix

Here you may change the relationship between inputs and connected speakers. The appearance depends
on the speaker configuration (SYSTEM > Setup > MAP Speaker Configuration).
Here an example for 5.1 + 2.0:

The speaker routing matrix works similarly to the central routing matrix of the device. You may set
(CONNECT) or DISCONNECT cross points by use of the mouse-over function.

Default Routing Press the <default> soft button to reset the matrix to 1:1 connection
Pre Defined Routings Provides a set of useful cases
Surround

Center to L+R
LFE to L+R
Ls/Rs to L/R
Swap Lefts and Rights
Swap L and R
Swap Ls and Rs
Swap 2L and 2R

D*AP8 MAP

61

Setup GUI – AUDIO PROCESSOR – Output – Bass Management

The Output block allows you to control the bass management, the speaker EQs and the speaker delay as
well as individual speaker gain settings, to adapt the speaker set to a given listening situation.

For a 5.1-channel monitor system with full-range speakers on every channel and a subwoofer, you may not
need bass management, and disable this feature. If no bass management is enabled, only the LFE
channel is sent to the subwoofer. But if your system consists of five satellite speakers and a subwoofer,
you can redirect the low frequencies from the five main channels to the subwoofer output:

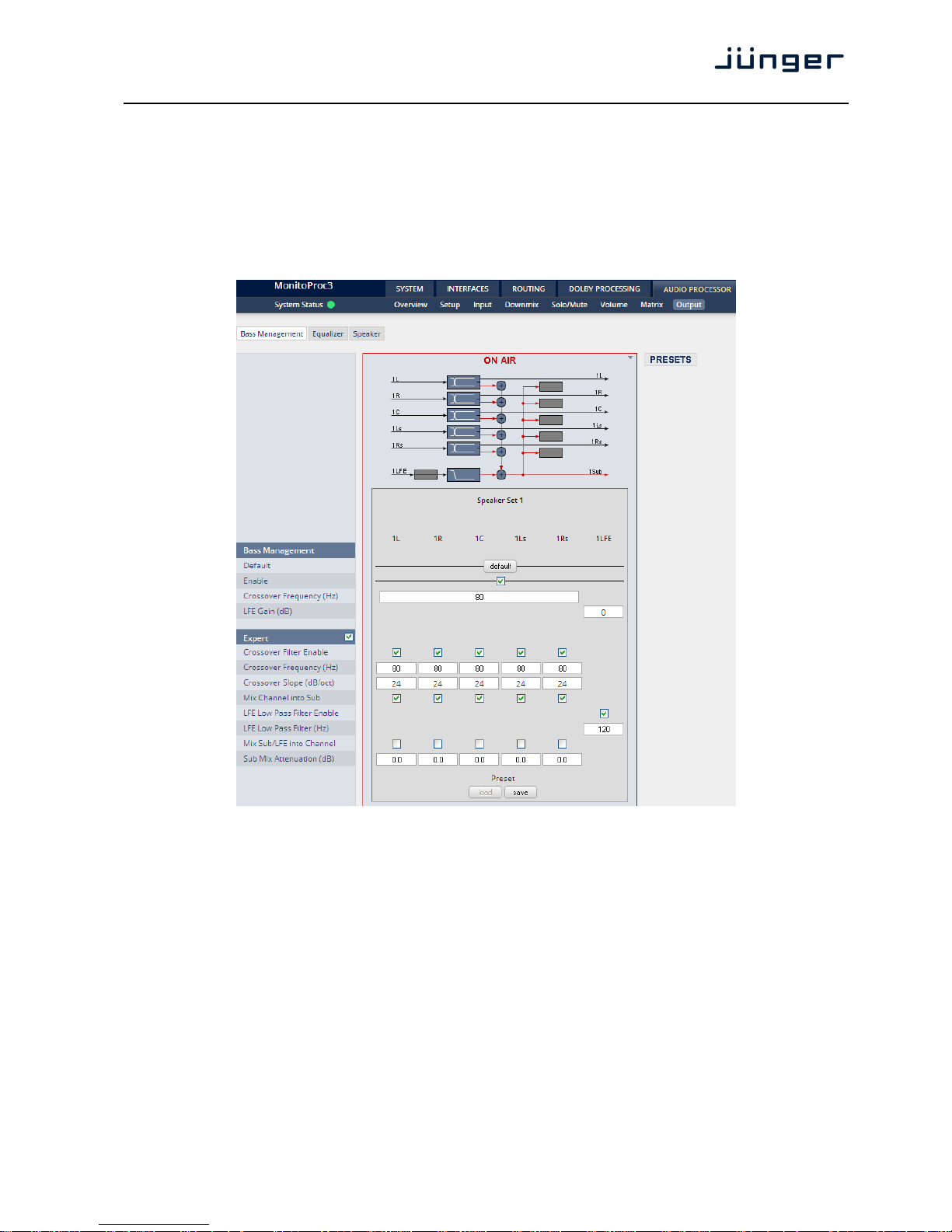

Bass Management

Default Pressing the soft button <default> will reset all settings to

factory default.

Enable [ON / OFF]
Turns the bass management on.

Crossover Frequency (Hz) [20 … 80 … 200]
LFE Gain (dB) [0, 10]

Expert Tick check box to gain further access to specialized parameters.

D*AP8 MAP

62

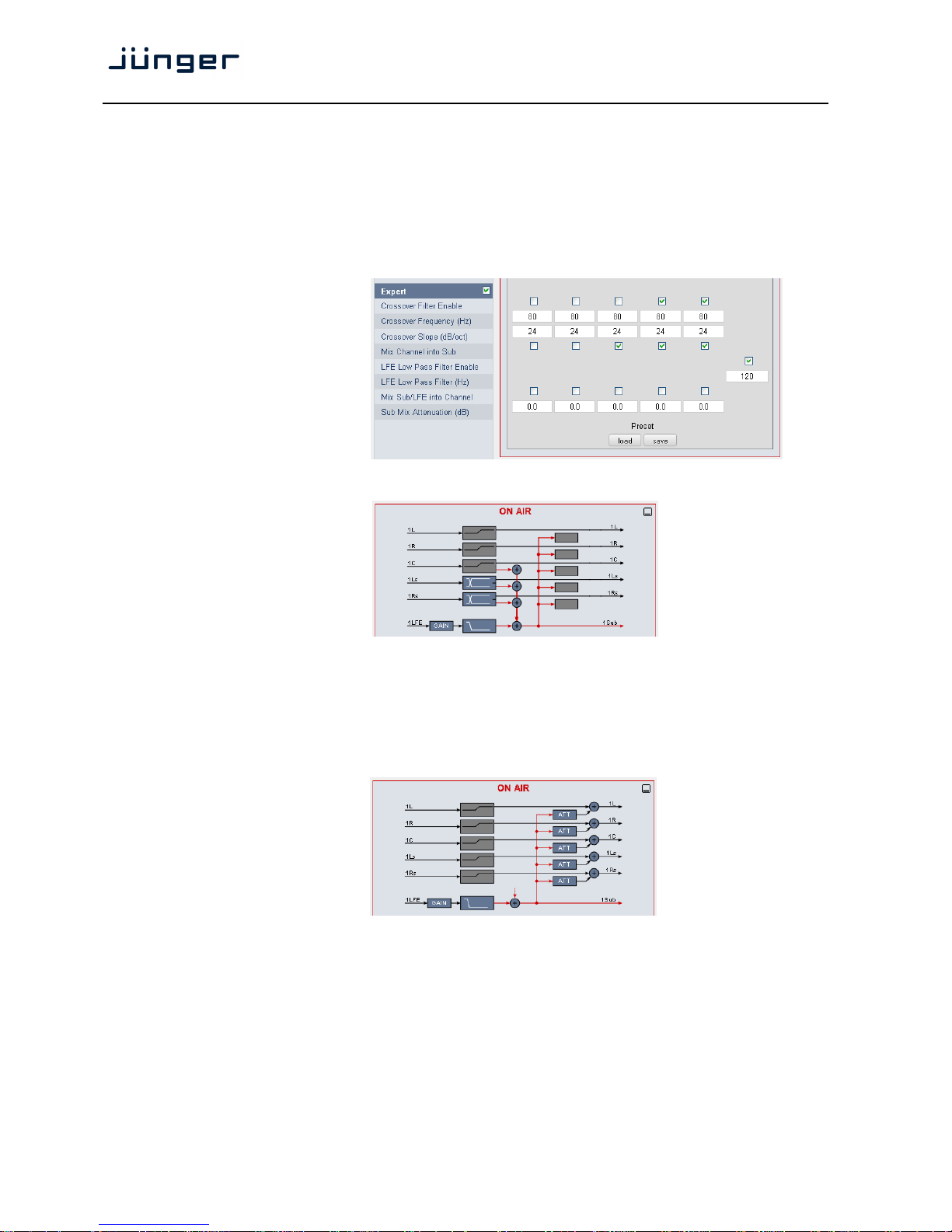

Crossover Filter Enable [ON / OFF]
You may change from a crossover filter to a high pass filter

Crossover Frequency (Hz) [20 … 80 … 200]
Crossover Slope (db/oct) [12, 24]
Mix Cannels [ON / OFF]

You may individually (depending on full-range speakers or not)

mix channels into the subwoofer channel:

This will result in the following example wiring diagram:

LFE Low Pass Filter Enable [ON / OFF]
LFE Low Pass Filter (Hz) [60 … 120 … 200]
Mix Sub/LFE into Channel [ON / OFF]

You can decide if the LFE signal shall be mixed into one or multiple

speakers (e.g. if no sub speaker is connected).
Here is an example for mixing it to all 5 channels:

Sub Mix Attenuation (dB) [-20.0 … 0.0]
The amount of LFE signal for the above mix may be set here.

D*AP8 MAP

63

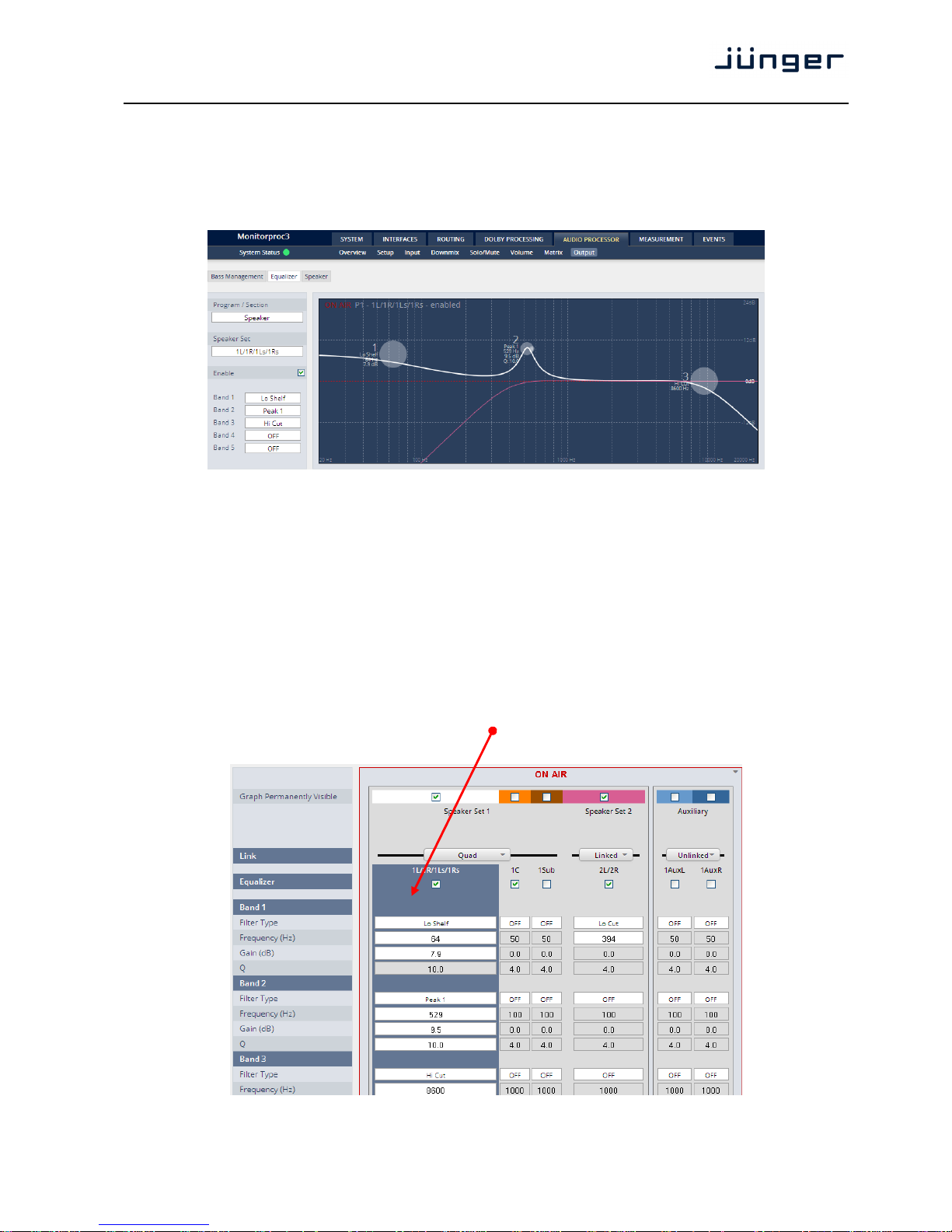

Setup GUI – AUDIO PROCESSOR – Output – Equalizer

The EQ section provides 5 fully parametric EQs for each speaker channel. The parameters may be linked
for set-up purpose only to ease settings of multiple speakers. The EQ setup may be either done by
numerical inputs and/or the graphical elements overlay above the frequency curve that results from the
combination of multiple filters. The below example has 3 filters involved:

Program / Section [Speaker, AUX, Preset Speaker, Preset AUX]
Which section of the audio processor will be represented in the

graphical window above.

Speaker Set [1L/1R/1Ls/1Rs, 1C, 1Sub, 2L/2R]

Depending on the global speaker configuration (5.1+2 in this case)
and the link mode, you can make a selection here, to show and
control the EQ settings for groups of speakers of a particular
speaker set. You can also make the selection below by clicking and

as a consequence, highlighting a different set (or single speakers).
Enable [ON / OFF]
Here an example: The Link soft button shows the link set to <QUAD> for which the parameters are the

same. The column is highlighted (bluish) to show the coincidence between graphic window and
numeric parameters. Clicking on a different row (e.g. C) will highlight that column:

D*AP8 MAP

64

Important Note! For numeric input double click into the parameter field. You must use the period as a
decimal separator. For graphical input use the left mouse button and drag it horizontally to change
frequency and vertical to change gain while the mouse wheel will change the Q value.

Graph Permanently [ON / OFF]
Visible The color code of the column headers in the display will change
depending on the selected speaker / speaker set. White color

represents the actual selected speaker set while all others have the
color of the display curve (pink represents Speaker set 2 in the
example above).

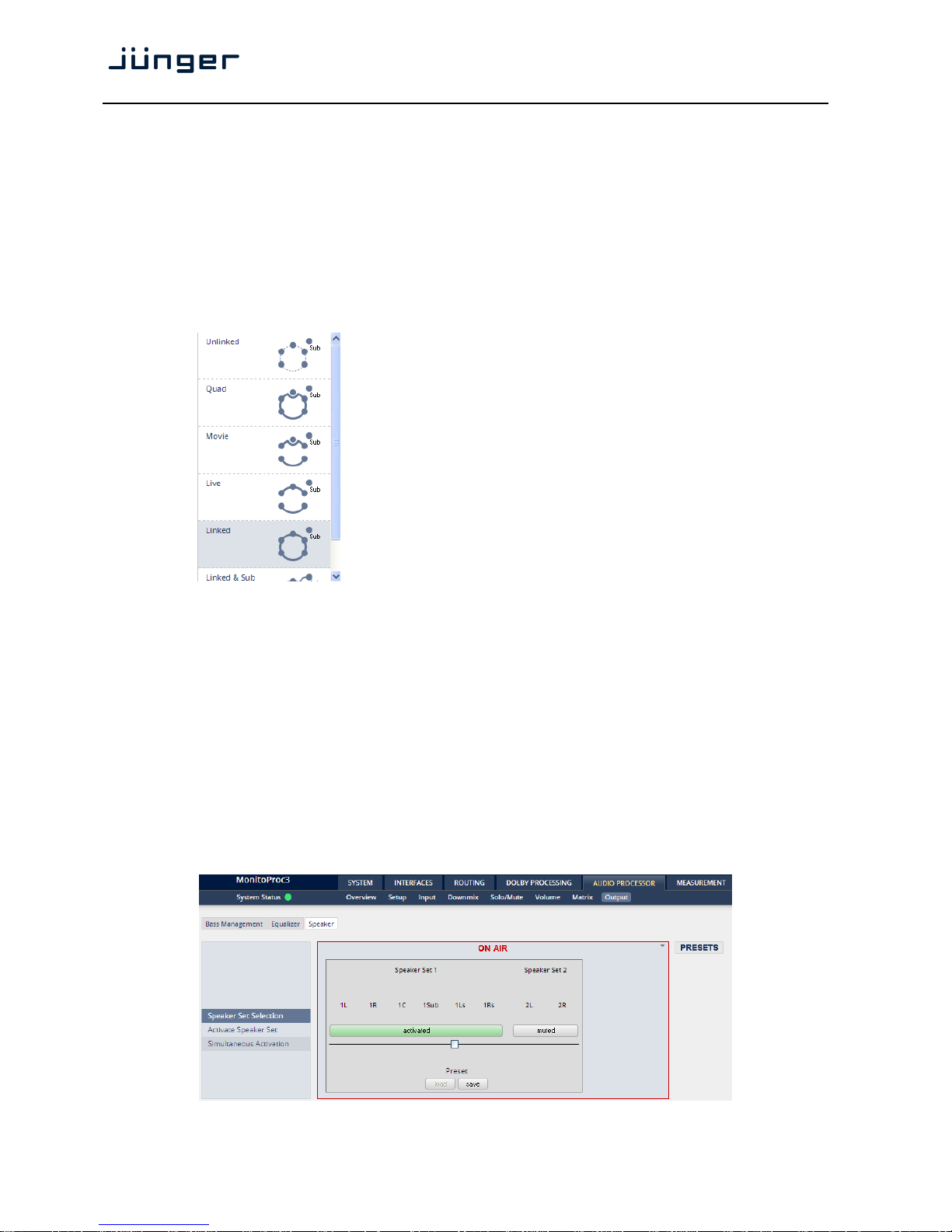

Link [Unlinked, Quad, Movie, Live, Linked, Linked & Sub]
If you press the Link mode soft button that has the label of the

actual link mode ("Quad" in the example above), the following
options will be displayed:

Quad 4 speakers are linked

Movie 2 pairs of speakers are linked

Live L/C/R and Ls/Rs are linked

Linked All 5 speakers are linked except the LFE
Linked & Sub All 6 speakers are linked

Equalizer [ON / OFF]
Enables / Disables the EQs for the highlighted section.

Band x [1 ... 5]
Each speaker feed has five filters. Parameters and ranges are the

same for all 5 bands.

Filter Type [OFF, Peak 1, Peak 2, Lo Shelf, Hi Shelf, Lo Cut, Hi Cut]
Frequency (Hz) [20 … 20000]
Gain (dB) [-20.0 … 0.0 … 20.0]
Q [0.4 … 1.0 … 10.0]

Setup GUI – AUDIO PROCESSOR – Output – Speaker

D*AP8 MAP

65

Speaker Set Selection Here you may select which set of speakers is active.

Activate Speaker Set [activated, muted]
Simultaneous Activation Tick the checkbox if you want to allow both sets of speakers to be

activated together.

Speaker Identification a taped description of the respective speaker / set of speakers.

Active Test Tone If you click on the dedicated soft button you will heare a verbal

description which set of speakers and which speaker of that set is

driven. Multiple selections will cause the test signal to go round in a

row through all activated speakers.

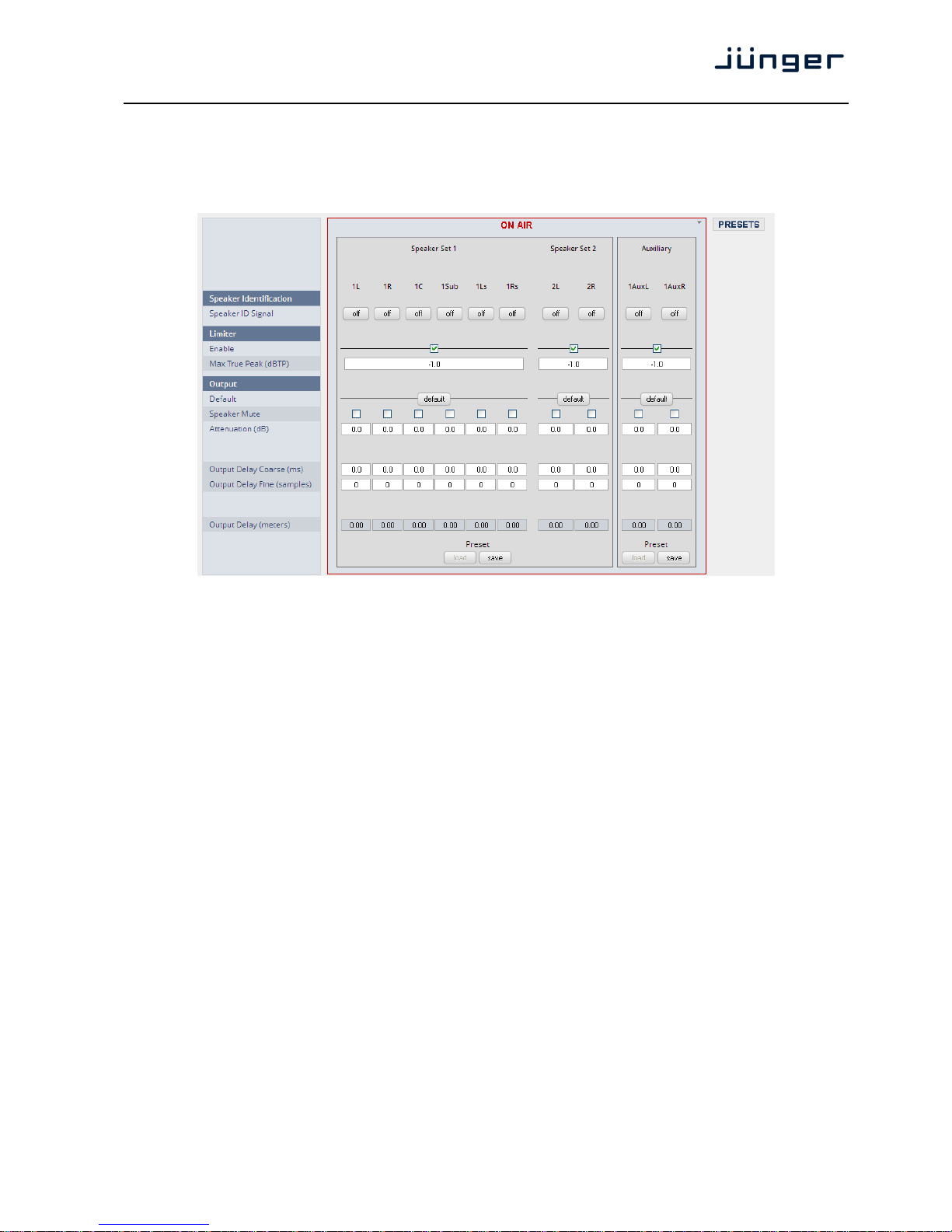

Limiter The individual feeds are equipped with a true peak limiter

for speaker protection.

Enable [ON / OFF]
Max True Peak (dBTP) [-20.0 … -1.0 … 0.0]

Output

Default The soft button will reset the values to default
Speaker Mute [ON / OFF]
Attenuation (dB) [-80.0 … 0.0]
Output Delay Coarse (ms) [0.0 … 2000.]
Output Delay fine (samples) [0 … 2000]
Output Delay (meters) displays the calculated distance in meters for a selected delay

(dry air, 20ºC ~ 343m/s).

D*AP8 MAP

66

Mobile UI

Beside the GUI the MAP can display an operator interface on mobile devices like a tablet or even a
mobile phone. It can be opened by a dedicated URL: "<IP-address>/mobile.xml" or via a link from the
Web UI (see upper right corner there).

Both will open a browser session to display it:

In the upper left hand corner you can open the Options settings:

You can enable / disable full screen display,
Here you can decide between three arrangements of the

soft buttons:
Buttons A shows the rectangle buttons with assigned

dark colors, active ones are highlighted.

Buttons B shows the greyish rectangle buttons, active

ones are highlighted.

List shows the initial button list display

Desktop Version But you can also open another tab where the GUI will be loaded.

The color scheme will be defined on the EVENTS > Triggers > Remote Hotkey page (see page 72 below).

D*AP8 MAP

67

The active status of a hotkey or the result of a specific action will be high lighted by the bright color.
Below is an example where the action "Default Routing" was performed involving the hotkey
"My Routing", so both are shown as active:

If you press a hotkey the color becomes
medium bright immediately.
Since many actions (e.g. reconfiguration
of the MAP) may take a few moments the
status of a button finally turns bright to
acknowledge the action.

The buttons at the bottom let you scroll
though multiple pages to display all
assigned hotkeys and actions.

The up and down arrows here will
change the size of the bar graph display to
allow for more room for buttons to be
displayed. This is a four stage feature:

Small > medium size > large >
no bar graph display.

Below is an example for the small size version:

D*AP8 MAP

68

Setup GUI – MEASUREMENT

The MAP has an independent measurement block (see AUDIO PROCESSOR > Overview) that offers a
comprehensive loudness meter. The measurement data are available for external applications like the
Junger Audio Application Manager J*AM for bar graph level display or loudness over time plot or for
logging of such data.

In the top of the GUI you can read these metering data of a preselected source:

When you click on the little triangle over
here you will get a selection of the
measurement formats available:

This display also shows the duration
of the measurement. If the Speech Gate
is active for the Dialogue Intelligence™
algorithm, the numbers become yellowish
when the measurement has paused because there
is no speech detected for the moment.

The other two buttons will control the measurement:
|| <start> / <pause> / <continue>
x <reset>.

Setup GUI – MEASUREMENT – Setup

Dialog Level (Dialnorm) Measurement:
Beside the ability to measure loudness by above standards, the MAP offers the feature to measure the

long-term A-weighted average level of dialogue within a presentation. A Dolby Digital / Digital plus
consumer decoder (e.g. a Set Top Box) will normalize the output level to -31dBFS by applying a shift
based on the Dialog Level parameter setting. The rule is: -31 - (dialog level value) = shift applied.

Example (dialog level measured = -23dB): -31 - (-23) = -8dB shift applied.

Loudness Measurement

Measurement Follows AUDIO PROCESSOR
Mode > Setup > Loudness Mode

Dialogue Level (Dialnorm) Measurement

Dialnorm [L / R / C / L+R / L+R+C]
Measurement
Channel Select

Dialnorm [ITU-BS.1770-1 / Leq(A)]
Measurement
Algorithm

Dialog Intelligence™ [OFF / Active]
Speech Gate The Dialog Intelligence™ algorithm developed by

Dolby® Inc. searches for portions of the audio content where

speech is present. Such portions may trigger the loudness
measurement. If it is activated and no speech is detected, the
number display becomes yellowish.

D*AP8 MAP

69

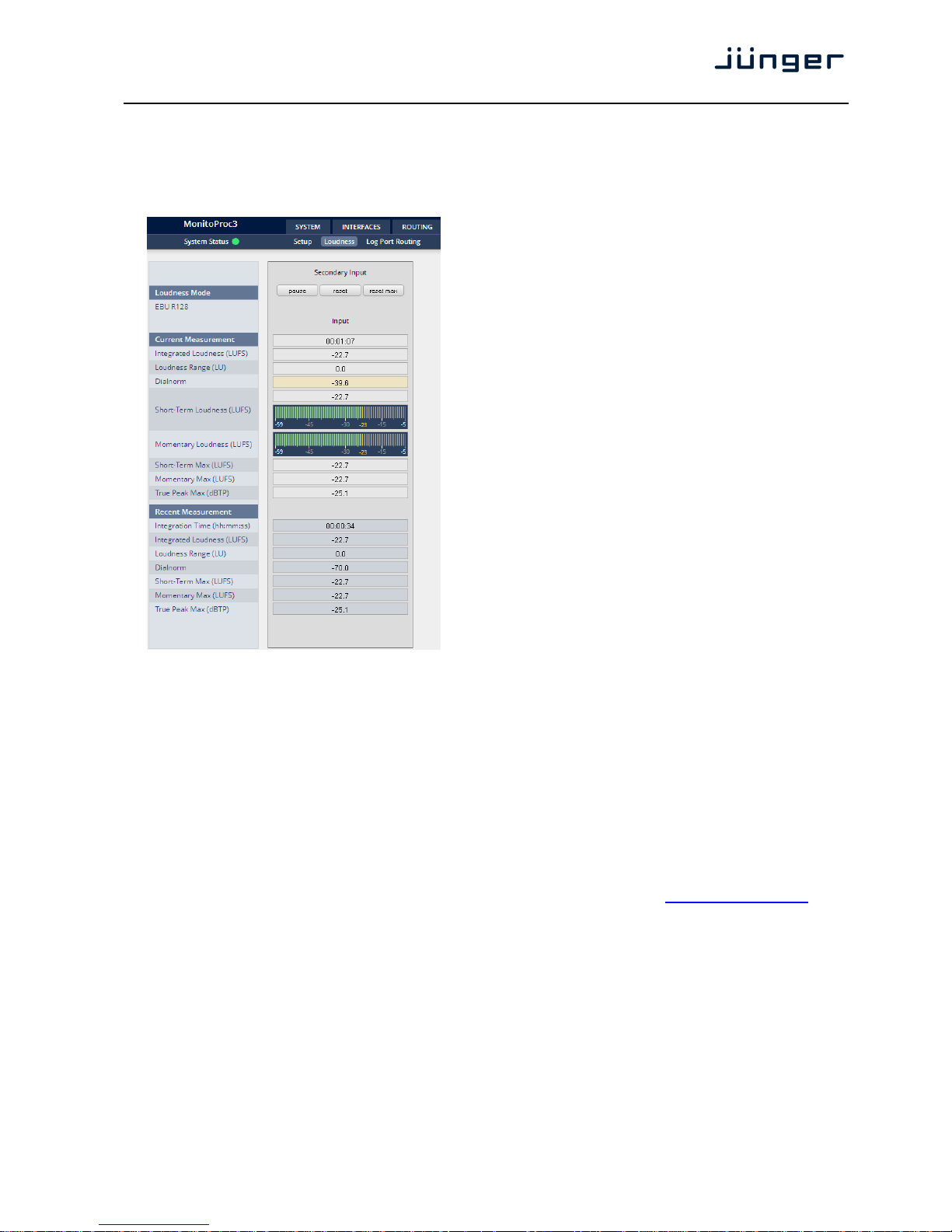

Setup GUI – MEASUREMENT – Loudness

The D*AP8 LM offers a sophisticated loudness measurement tool for the input and output of the program
path of the device. The three control buttons <pause>, <reset>, <reset max> may be used to manually
control the actual measurement.

Loudness Mode setting from AUDIO

PROCESSOR > Setup >
Loudness Mode

Current Measurement [hh:mm:ss]
Time elapsed since

measurement started (excluding
pauses).

Integrated Loudness
(LUFS)

Loudness Range (LU)
Dialnorm -70.0 indicates that no speech

has been detected. If it is
activated in the setup but no
speech is recognized by the
algorithm in this case, the
background of the display box
turns yellowish.

Short-Term Loudness numeric and convenient bar
(LUFS) graph display.

Momentary Loudness convenient bar graph display.
(LUFS)

Short Term Max (LUFS)
Momentary Max (LUFS)
True Peak Max (dBTP)

Resent Measurement values of the recent measurement are listed here for comparison.

Integration time [hh:mm:ss]
Total time of the recent measurement.

Important Note! The measures of the parameters above depend on the loudness mode selected at

AUDIO PROCESSOR > Setup pane.

The measurement data may also be streamed to the PC based J*AM (Junger Application Manager).
The J*AM is a graph display and logging tool that one can download from the Jungeraudio.com web
site. To perform loudness measurement and loudness logging one must buy a hardware (USB) dongle.

D*AP8 MAP

70

Setup GUI – MEASUREMENT – Log Port Routing

The MAP has four more
measurement facilities for
dedicated logging which you will
reach from the J*AM. The sources
you select for logging will be
measured, the measurement values
will be calculated and will be
provided for streaming over the
network to the J*AM.
Compared to other solutions this
saves a lot of bandwidth because
only measurement data are
transmitted and not the audio
samples themselves.

Similar to the general ROUTING all
relevant internal sources are
available for a Log Port:

You must keep in mind the
loudness measurement must be
performed over all audio channels
belonging to a program.

D*AP8 MAP

71

Setup GUI – EVENTS - Overview

As mentioned previously, the D*AP8 MAP offers a sophisticated event management system.
The event management system performs actions. These actions are built from events.
Actions may be triggered manually (via the X*AP RM1 remote panel Hotkeys), remotely (over the network
or via GPIs) and automatically (via changes of device parameters or internal status information)
or via a combination of all three.

The overview shows the building blocks of the EVENTS system of the MAP:

A trigger may be configured via a trigger equation (logically combined) from up to two sources. For both
sources you can define a trigger type and a specific source that is bound to the type. E.g. a GPI is a trigger
type while the hardware input (its input number) represents the trigger source. Other sources of specific
types like the X*AP RM1 Hotkeys must be configured before using it:

Remote Hotkeys You may assign hotkeys of the X*AP RM1 remote to become a

trigger source.

Network Received via the EmBER+ protocol designed by Co. l-s-b.
Parameters Device parameters / status information grouped into

system and Interfaces.
The MAP offers four different event types:

Preset Events for the System / Interfaces / Routing / Dolby Processing / Audio

Processor / Programs / AUX / Measurement

Parameter Events to control (external) measurements of the J*AM
Measurement Events to control the measurement block of the MAP
I/O Events for GPOs

D*AP8 MAP

72

The MAP has the action type – "Event Actions"

An action runs like a flip-book inside the MAP. This powerful technology spans from simply recalling
a certain system parameter over speaker or Dolby specific parameter combinations (household
name: "Preset") to the complete reconfiguration of the device including all signal routing, processing
parameters and so forth. It allows you to create your own snap shots where you decide what is part
of it and what is not! But it also enables several fail over scenarios where the MAP will automatically
react to the system and/or parameter status.

The steps to set up the EVENTS system are as follows:

1. Define - trigger sources

2. Configure - triggers by logical combination of the pre-defined trigger sources

3. Set up events - by selecting presets for function blocks

4. Create actions - which trigger will launch which event or what will happen in case someone presses
a function key at the X*AP RM1 or engages the <Force Trigger Active>
check box (see EVENTS

> Actions > Event Actions)

.

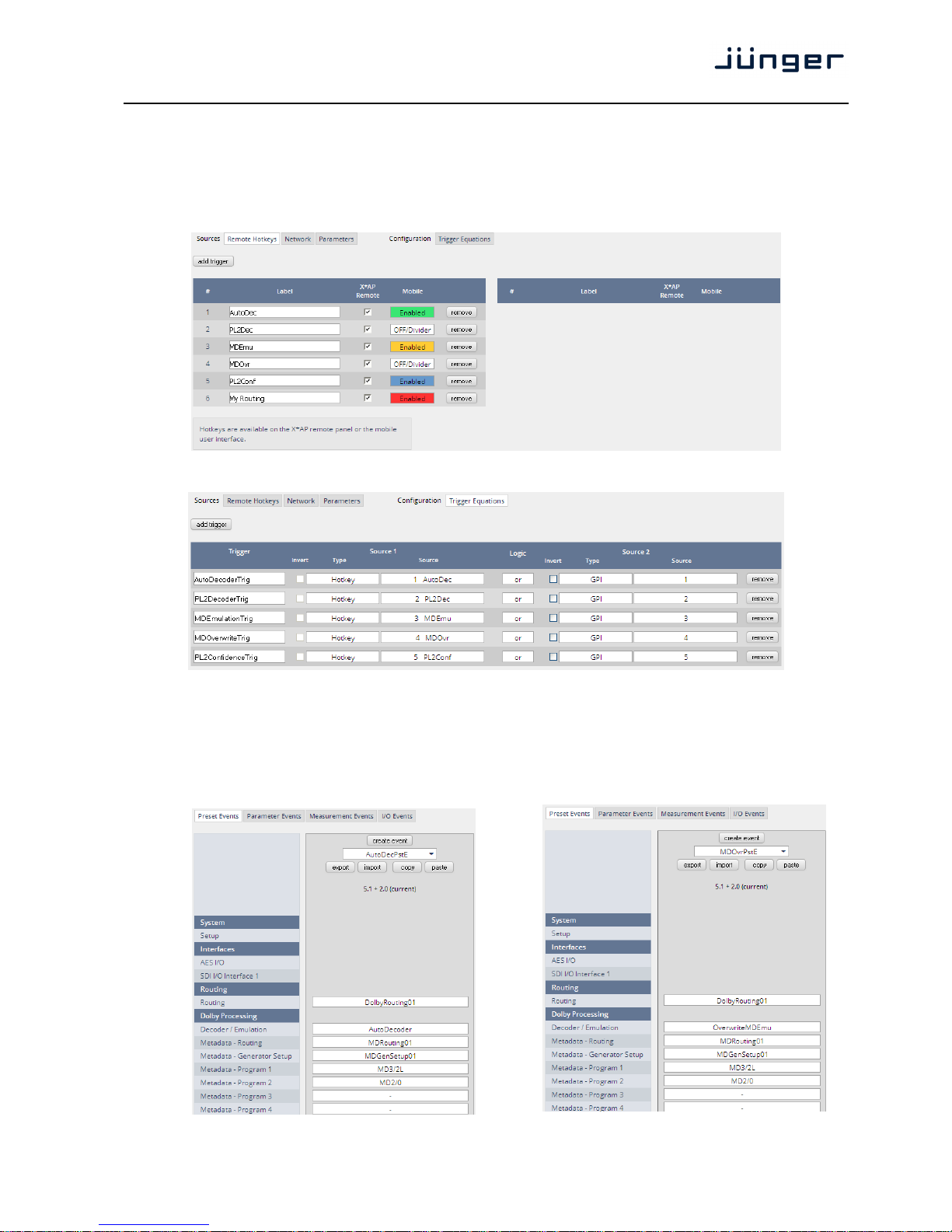

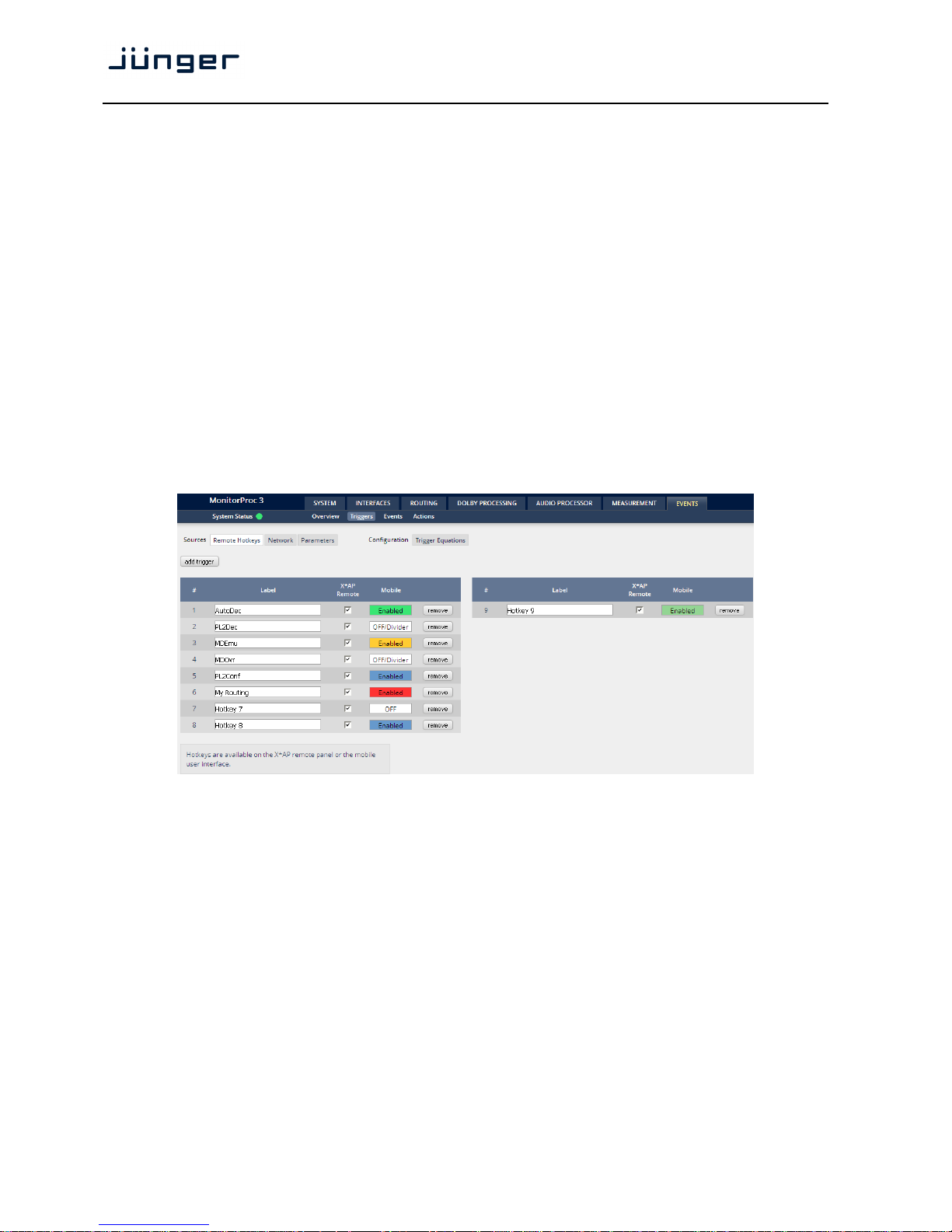

Setup GUI – EVENTS – Triggers – Sources – Remote Hotkeys

The Triggers tab opens the trigger setup pane that has 4 embedded sub tabs:

Sources: "Remote Hotkeys" / "Network" / "Parameters" and Configuration: "Trigger Equation"

<add trigger> You can add lines (number of entities of triggers) here.
# The number of the Hotkey. On the X*AP RM1 remote panel,

counting from left to right from 1 ... 8.

Label Each Hotkey may have a label that appears in the display of the

X*AP RM1 remote panel above that button and in the Mobile UI.

X*AP Remote [ON / OFF]

If you turn it off the respective Hotkey on the X*AP RM1 remote
panel becomes inactive - no label is displayed and the button
background light turns off.

Mobile [OFF / OFF/Divider / Enabled]
The buttons of the Mobile UI can be assigned an individual color.
You will get the bright color if the button is active and the dark color

if it is inactive. [OFF/Divider] acts as a place holder for a button that
is temporarily set to OFF.

<remove> will remove a line from the list. This will automatically disable the

respective front panel button.

D*AP8 MAP

73

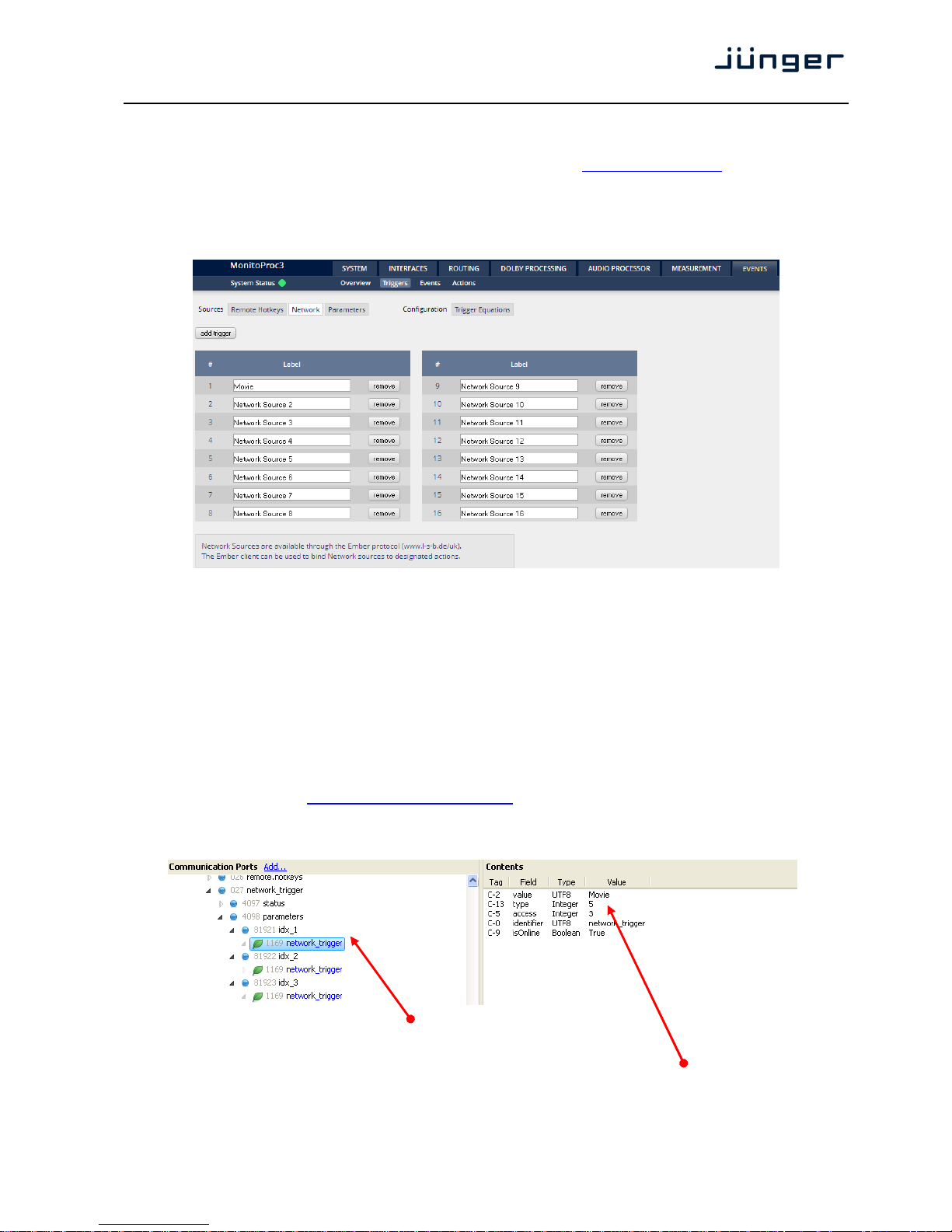

Setup GUI – EVENTS – Triggers – Sources – Network

Network triggers are based on the EmBER+ protocol from Co. l-s-b http://www.l-s-b.de/uk
The MAP receives such triggers over the TCP/IP network. The triggers are issued by a device that has
implemented the EmBER+ protocol (e.g. VSM server, broadcast automation system). You may assign
these triggers to virtual panels as well as physical (e.g. LBP) buttons of a VSM installation. But also a
broadcast automation system may have an EmBER+ server running that will trigger events in the MAP.

# Number of a network trigger.
Label Label of that network trigger. It will be used on the

Configuration pane and serves as a reference for 3rd party

software implementation (e.g. broadcast automation systems).

As an example you see the name of the first Trigger "Movie".

<remove> will remove a line from the list.

The name of the respective trigger may be selected via an EmBER+ enabled device to fire that
trigger. By means of a setup tool you must configure such network triggers in order to remote control
the D*AP8 MAP. You will find the Ember+ protocol details, the implementation guidelines as well as
an example here: code.google.com/p/ember-plus/

Below is a screen shot of the EmBER+ viewer tool:

In the EmBER tree you go to:
"Device" > controller_dsp > network_trigger > parameters > e.g. "idx_1"
As a value you will receive the trigger name from the MAP.

In this example it is the trigger named: "Movie".

D*AP8 MAP

74

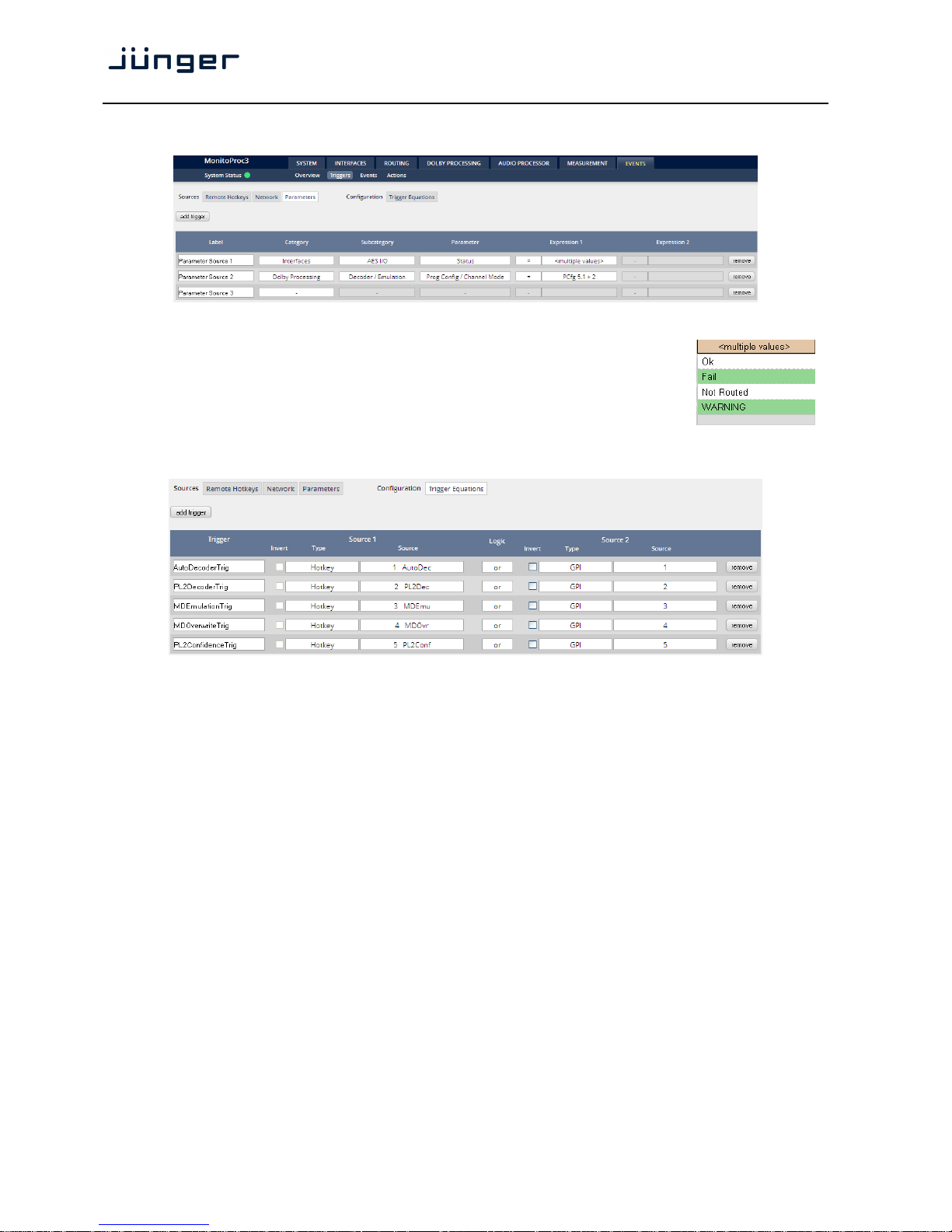

Setup GUI – EVENTS – Triggers – Sources – Parameters

Above is an example of parameter trigger sources. The phrase <multiple values> indicates that more
than one value of the parameter "Status" is bound to that trigger source:
If you click into the "Expression 1" box you see two greenish marked entries.
I.e. if one of these values is true, "Expression 1" is true.

Setup GUI – EVENTS – Triggers – Configuration – Trigger Equation

To form a trigger you may logically combine two trigger sources:

Trigger Here you define a name for the trigger ("Trigger 1").
Source 1 The first source of a logical combination of two trigger sources.

Invert [ON / OFF]

If the type of trigger allows an inverted operation it can be defined here.
Type [GPI / Hot Key, Network / Parameter / Event active / Trigger effective/

Bypass / Sync Lock]

Source [1 … 8]
It acts like an index for the trigger type (In case of GPI it is the physical

GPI number or in case of X*AP RM1 Hotkeys it is the key number ….

Logic [and / or / xor]
The kind of logical operation.

Source 2 Second source for the logical combination of two trigger sources.

If only one source exists, you may leave it unassigned [-].

D*AP8 MAP

75

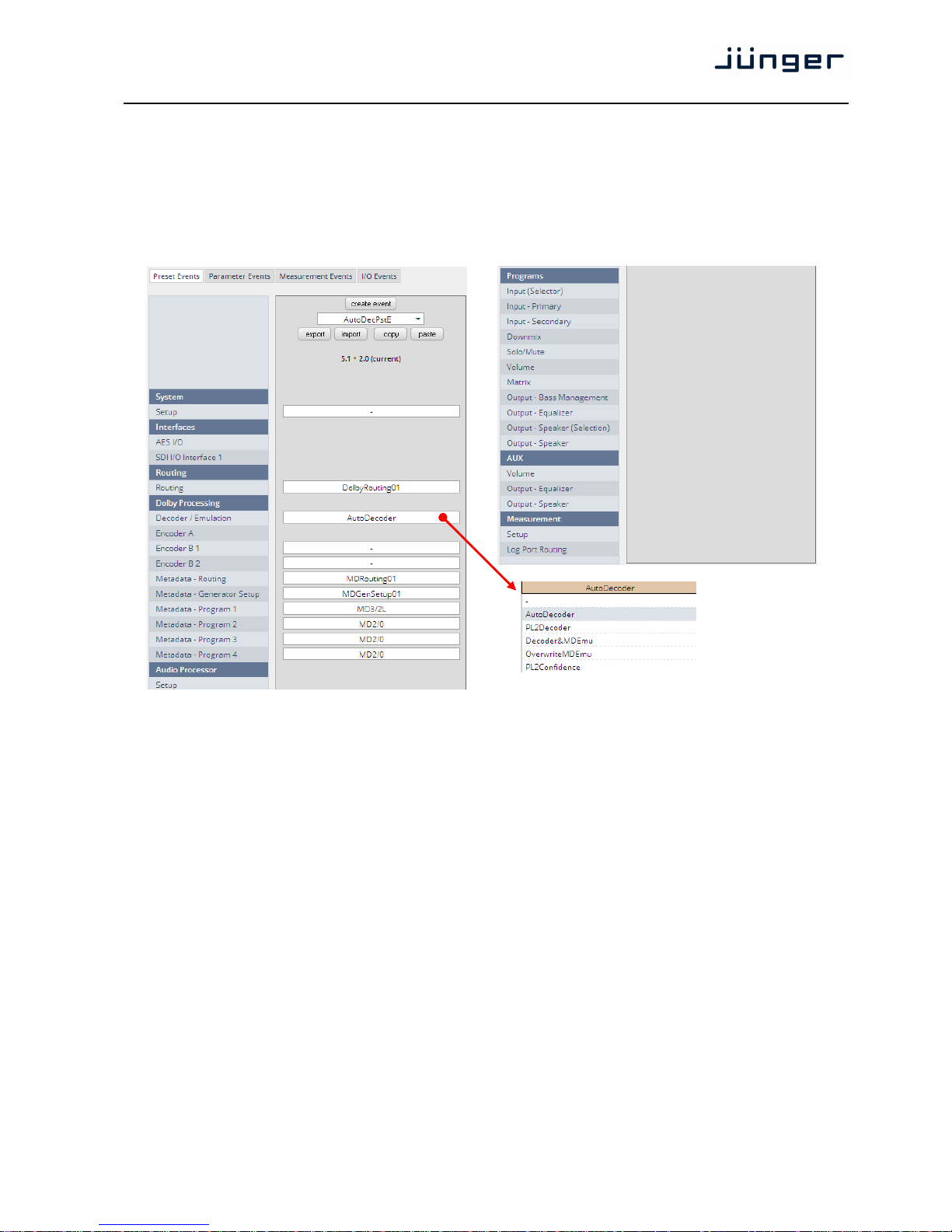

Setup GUI – EVENTS – Events – Preset Events

A Preset Event is a group of presets you may load on one occasion to the On Air parameters of function
blocks. When executing such an event you may for example change the routing, the Dolby processing, the
metadata set-up etc. by simply assigning the individual preset of your choice to the system, to an interface,
to the routing, to the program path or even to the measurement. This picture shows an excerpt from the
Preset Events pane where a few presets are pre-selected for the event: "AutoDecPstE". Due to the number
of function blocks the screen shot is split in two columns:

Pull down list of all presets available for the
Decoder / Emulation function block.

If no preset is selected you will get a dash in the drop down field. Some function blocks (e.g. AES I/O) even
have no preset assigned at all at the moment so there is no drop down box.

D*AP8 MAP

76

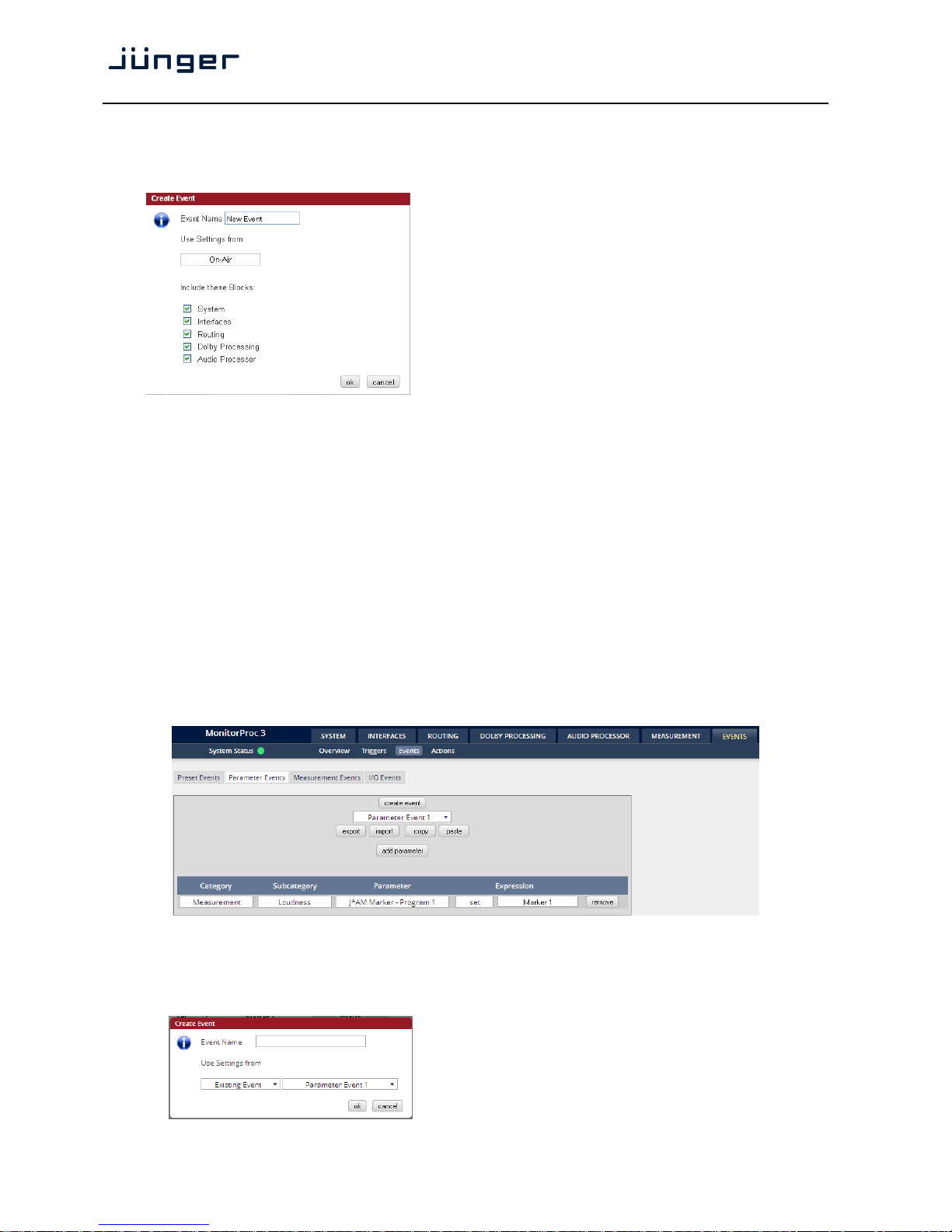

The Preset Events allow you to reconfigure the MAP completely, partially or to change a few audio
parameters marginally.

You are also able to create a new preset event semi-automatically by pressing <create event>:

Event name [New Event] default
A unique name to address this

preset event later in the action
manager.

.

Use Settings from [On Air / Existing Event / Empty]

"On Air" The events manager will copy

all On Air parameters to

new presets for the function blocks,

depending on the
"Include these Blocks"
check boxes.

"Existing Event" The presets of the selected event

will be copied to the new event and
may be tuned afterwards to form a
different event.

"Empty" Creates a set of empty boxes where you may select the preset of

your choice for the respective function block or leave it empty if no
changes are needed …

Include these Blocks: [System / Interface / Routing / Dolby Processing /Audio Processor]
Defines which blocks will be part of the creating process.

Important Note! This is the way to create a snap shot. The automatically created presets in all respective

function blocks will be given the (same) name of this event. So you must be careful when selecting names!

Setup GUI – EVENTS – Events – Parameter Events

Right now the MAP supports parameter events to remote control the measurement / logging related
features of the J*AM:

The above example selects the category "Measurement" with its sub category "Loudness".
From the list of possible parameters, the setting of a marker "J*AM Marker – Log Port1" has been
selected. This marker will appear in the log file if that preset event is executed. When you press

<create event> these choices are provided:

Event Name your choice
Use settings from [Existing Event / Defaults /

Empty]

D*AP8 MAP

77

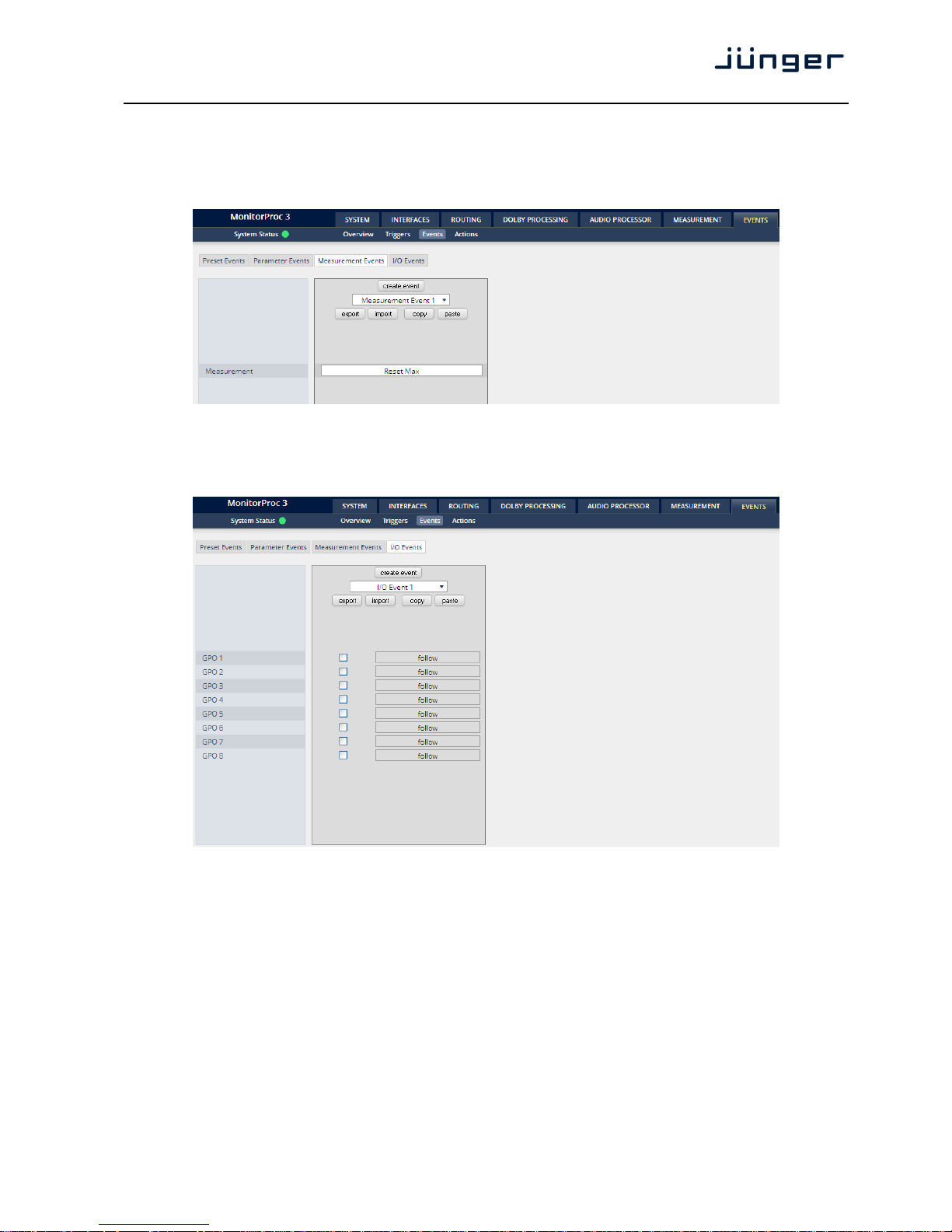

Setup GUI – EVENTS – Events – Measurement Events

A measurement event is used to control the MAP internal loudness meter.
(See MEASUREMENT > Loudness). For the example below "Reset Max" has been selected:

Setup GUI – EVENTS – Events – I/O Events

I/O Events at the moment control the GPOs of the MAP:

Each GPO (when enabled for that I/O event) can be set to one of these actions:

Clear Turns a GPO off that was previously turned on.
Set Turns a GPO on.
Follow The GPO follows the state of the trigger.
Toggle The trigger will toggle that GPO.

D*AP8 MAP

78

Setup GUI – EVENTS – Actions – Event Actions

This is the point where all previously created sub-functions are combined. Here you create the action!

You should give the action a meaningful name, select a trigger (from one of the trigger equations) and
select the respective event(s) you need to perform the desired action.

In the "Mobile" column you can define whether the action may be turned on via a soft button of the
Mobile UI. You can assign a specific color for that button.

D*AP8 MAP

79

Setup GUI – EVENTS – Actions – Event Actions – Factory Defaults

Above you see the factory default EVENTS > Actions that come with the D*AP8 MAP.
They are prepared to ease the setup of Dolby processing functionalities of the device.
All 5 actions may be triggered manually from the X*AP RM1 remote panel.
See the "Remote Hotkeys" settings below:

The remote hotkeys are used by the following "Trigger "Equations":

I.e. the trigger named "AutoDecoderTrig" will be fired if one depresses the hotkey # 1 that is named
"AutoDec". That name appears above the first hotkey of the X*AP RM1 (see page 10).

On the page EVENTS > Events > Preset Events you see the combinations of individual presets for
each of the factory default "Preset Events". Below are two examples of such preset events:

"AutoDecPstE" (automatic decoding) "MDOvrPstE" (Metadata overwrite)

D*AP8 MAP

80

In the examples above you can see the difference is the respective Decoder / Emulation preset.
The audio routing: "DolbyRouting01", the metadata routing: "MDRouting01", the metadata generator
setup: "MDGenSetup01" and the metadata presets for program 1: "MD3/2L"
and program 2: "MD2/0" are the same in both cases:

Audio routing (see ROUTING) assumes that you connect the D*AP8 MAP via the AES
inputs / outputs to a mixing desk. If you have connected analog speakers for a QA room, the outputs
are also routed to the analog interface card. If you have installed an SDI module, the decoder
outputs are sent to the SDI embedder. The SDI de-embedder outputs are conneted with the
secondary input

Important Note! If you receive the audio via SDI instead of AES you must probably modify that preset.
Pls. don't forget to adjust the SDI embdder / de-embedder routing accordingly so audio channels
appear in the correct position (e.g. encoded Dolby E must end up at decoder input 1/2 for decoding).

Metadata routing (see DOLBY PROCESSING > Metadata > Routing) connects the metadata
output of the decoder to the metadata generator input. The metadata generator output is connected
to the "D Sub Out" and "SDI1 – VANC" (for embedding).

Metadata generator setup (see DOLBY PORCESSING > Metadata > Generator Setup).
The generator program configuration is set to "Follow Input", reversion mode to "preset" and the
reversion program configuration to "5.1 + 2".

Metadata presets Program 1/Program 2 (see DOLBY PROCESSING > Metadata > Program 1 / 2)
are set to the values recommended by for FIFA World Cup 2014 for the international sound track
and used by HBS.

Below you see two of the five parameter sets that will be loaded by their presets for the
Decoder / Emulation processing block. The respective preset name is displayed in grayish
above the active mode display:

"AutoDecoder" "OverwriteMDEmu"

D*AP8 MAP

81

To round up the explanation of the factory default actions settings, here is the content of the metadata
preset "MD3/2L":

You can see that the emulation is turned on and that "MD Generator overwrites encoded Metadata"
is activated at the Decoder/Emulation pane.

D*AP8 MAP

82

Technical Data - 8 Channel Surround Monitoring Audio Processor [D*AP8 MAP EDITION]

General

• 8 channel monitoring audio processor (1 program, program
configuration 1.0 … 7.1)

• 2 channel (1 stereo) auxiliary output

• 4 additional programs can be logged over network using dedicated

software tools

• Expandable by hard and software options

Audio Sample Rate 44.1, 48kHz, (32 … 196kHz @ input with SRC)

±150ppm sync input capture, ±25ppm master-sync stability
Relevant specifications comply with AES3-X-2009, IEC 60985 and

AES11-2009
8 channels (4 stereo inputs), 4 BNC connectors
24bits, transparent forwarding of PCM and compressed audio (w/o SRC)

24bits, PCM, sample rate converter (SRC) activated
Impedance 75Ohm single-ended
Input level 0.3 … 5Vpp @ 75Ohm single-ended

AES/EBU Inputs

Sample Rate
Converter (SRC)

THD+N -120dB @ 0dBFS, 1kHz
Latency < 0.3ms

Relevant specifications comply with AES3-X-2009, IEC 60985 and
AES11-2009

8 channels (4 stereo outputs), 4 BNC connectors
24bits, transparent forwarding of PCM and compressed audio
Impedance 75Ohm single-ended

AES/EBU Outputs

Output voltage 1Vpp (typ.) @ 75Ohm single-ended
Multi-standard synchronization interface for AES/EBU, wordclock or video-

sync (black burst, tri level), complies with AES11-2009 and relevant audio
or video standards

Connector type BNC
AES/EBU input 0.3 … 5Vpp @ 75Ohm single-ended
Wordclock input 1 … 5Vpp @ 75Ohm single-ended

1Vpp (nom.) @ 75Ohm single-ended Video-sync input
Rates supported: 23.975, 24, 24.975, 25, 29.97,

30, 49.95, 50, 59.94, 60fps (SD and HD)

Sync Input

On-board audio ports and master-sync capable option boards may also be
selectable as sync source.

Word clock output, complies with AES11-2009
Connector type BNC

Sync Output

Wordclock output 2.4V (typ.) @ 75Ohm single-ended

Metadata Input Relevant specifications comply with SMPTE RDD6-2008 (Dolby Metadata).

D*AP8 MAP

83

Connector type D-Sub9 connector female
Input conditions 110Ohm RS485, 0.2 … 5Vpp differential
Relevant specifications comply with SMPTE RDD6-2008 (Dolby Metadata).
Connector type D-Sub9 connector female, same conn. as input,

D-Sub9 connector male, output only
Both connectors carry the same signal.

Metadata Output

Output conditions 3Vpp (typ.) @ 110Ohm differential, RS485
Timecode Input LTC timecode input, BNC, currently not supported (TBD)
Network Interface RJ45 connector, 10/100Mbit Ethernet auto sense, full duplex, auto MDI/X
USB Interface USB 2.0 connector to internal console interface

8 general purpose inputs (GPI), divided into 2 groups with separate

common signal, isolated

Connector type D-Sub25 connector female, same for GPO

Input conditions 3 … 24Vdc, < 5mA

GPI Signals

Auxiliary supply 5V (nom.), 200mA (max.), isolated

8 general purpose outputs (GPO), SPST, divided into 2 groups with

separate common signal, isolated

Connector type D-Sub25 connector female, same for GPI

GPO Signals

Output conditions 24Vac/dc (max.), 120mA (max.)
Expansion Slots 2 general purpose expansion slots for option boards,

2 internal expansion slots for Dolby encoding, decoding and emulation
Power Supply Dual power supply, automatic fail over,

85 … 264Vac, 50 … 60Hz, 58W (max.)
Environmental Operating temperature 0 … 50ºC, fan cooled (dual fan),

Non-operating -20 … 70ºC,

Humidity < 90%, non-condensing
Physical 19", 1RU, 27cm depth, net weight ca. 5kg, shipping weight ca. 7.5kg

Technical Data – Option Board SDI I/O (3G/HD/SD) [O_DAP_SDI_a]

Standards Video complies with SMPTE 424/425M (3G, Level A and B), SMPTE 292M

(HD) or SMPTE 259M (SD). Automatic format detection.
Audio embedding and de-embedding complies with SMPTE 299M (3G,
HD) or SMPTE 272M-AC (SD).

Metadata embedding and de-embedding complies with SMPTE 2020-2.
Video Data Rate 2970/2967Mbps (3G), 1485/1483.5Mbps (HD), 270Mbps (SD)
Video Formats 1080p23.975, 24, 25, 29.97, 30, 50, 59.94, 60

1080i50, 59.94, 60

720p23.975, 24, 25, 29.97, 30, 50, 59.94, 60

625i50, 525i59.94, …
Video Delay User selectable 0 …15frames, can be disabled
Audio 24bits, transparent forwarding of PCM and compressed audio
Audio Channels 16 inputs and 16 outputs (4 groups with 4 channels each)
Audio Sample Rate 48kHz (SDI compliant)
Audio Delay Embedder audio delay selectable 0 … 320ms per channel

D*AP8 MAP

84

Metadata (RDD6) 1 channel input and 1 channel output, SDID selectable

Impedance 75Ohm
Return loss > 15dB, 5 … 1485MHz

> 10dB, 1485 … 2970MHz

BNC Input

Cable length (max.) 250m @ SD for Belden 1694A cable

230m @ HD for Belden 1694A cable
140m @ 3G for Belden 1694A cable

Jitter tolerance > 0.7UI (Alignment)

Impedance 75Ohm
Output voltage 0.8Vpp (typ.)
Return loss > 15dB, 5 … 1485MHz

> 10dB, 1485 … 2970MHz

BNC Output

Output jitter < 0.2UI (Alignment), < 0.5UI (Timing)

Audio Latency Input to Output Embedder and de-embedder combined

HD, 3G < 0.6ms

SD typ. 1.5ms (< 2ms)
Video Latency Input to Output 120 … 200pixel, depends on video standard
General Features

• Power fail relay bypass (may be activated via GUI)

• Lip-Sync compensation for processed and non-processed audio

signals

• Dedicated routing for non-processed channels, all channels
(max. 16) can be routed to/from the device or looped through

• Test pattern generator

• Master-sync capable

• ITU-R BT.1685 / ARIB STD-B39 metadata support

Technical Data – Option Board 8 Ch Analog Out [O_DAP_8DA_a]

Audio 24bit D/A-converter
Audio Channels 8 output channels (e.g. for speakers)
Audio Sample Rate 44.1, 48, 88.2, 96kHz

8 channels
Connector type D-Sub25 connector female
Output Level (max.)

(0dBFS equiv.)

0 … 24dBu, adjustable in 0.5dB steps

Impedance 50Ohm (typ.), differential
THD+N -91dB @ 0dBFS = 15dBu, 1kHz
Dynamic range > 103dB (RMS)
Crosstalk attenuation > 103dB @ 0dBFS = 15dBu, 1kHz

Analog Outputs

Frequency response 20Hz … 22kHz (< ±0.3dB) @ 48kHz

20Hz … 43kHz (< ±0.3dB) @ 96kHz

General Features

• Power fail glitch prevention

• Balanced analog outputs

• Electrical isolation between outputs and device

D*AP8 MAP

85

Technical Data – Option Board 4 Ch Analog I/O [O_DAP_ADDA_a]

Audio 24bit sigma-delta A/D-converter, 24bit D/A-converter
Audio Channels 4 input channels, 4 output channels
Audio Sample Rate 44.1, 48kHz

4 channels
Connector type D-Sub25 connector female, same for outputs
Input Level (max.)

(0dBFS equiv.)

0 … 24dBu, adjustable in 0.5dB steps

Impedance 20kOhm (typ.), differential
THD+N -93dB @ 0dBFS = 15dBu, 1kHz
Dynamic range > 110dB (RMS)
Crosstalk attenuation > 93dB @ 0dBFS = 15dBu, 1kHz

Analog Inputs

CMRR > 71dB @ 0dBFS = 15dBu, 1kHz

Frequency response 20Hz … 22kHz (< ±0.1dB) @ 48kHz

20Hz … 43kHz (< ±0.1dB) @ 96kHz
4 channels
Connector type D-Sub25 connector female, same for inputs
Output Level (max.)

(0dBFS equiv.)

0 … 24dBu, adjustable in 0.5dB steps

Impedance 50Ohm (typ.), differential
THD+N -91dB @ 0dBFS = 15dBu, 1kHz
Dynamic range > 103dB (RMS)
Crosstalk attenuation > 103dB @ 0dBFS = 15dBu, 1kHz

Analog Outputs

Frequency response 20Hz … 22kHz (< ±0.3dB) @ 48kHz

20Hz … 43kHz (< ±0.3dB) @ 96kHz

General Features

• Power fail relay bypass between inputs and outputs

• Balanced analog inputs and outputs

• Electrical isolation between inputs, outputs and device

D*AP8 MAP

86

Technical Data – Option Board AES/EBU I/O [O_DAP_AES_a]

Standards Relevant specifications comply with AES3-X-2009, IEC 60985 and

AES11-2009

Audio 24bits, transparent forwarding of PCM and compressed audio (w/o SRC)

24bits, PCM, sample rate converter (SRC) activated

Audio Sample Rate 44.1, 48, 88.2, 96kHz, (32 … 196kHz @ inputs with SRC)

8 channels (4 stereo inputs)
Connector type D-Sub25 connector female, same for outputs
Impedance 110Ohm or 75Ohm, jumper selectable

(110Ohm default)

Input level 0.3 … 5Vpp @ 110Ohm differential

0.3 … 5Vpp @ 75Ohm single-ended

Inputs

Sample Rate
Converter (SRC)

THD+N -120dB @ 0dBFS, 1kHz

Latency < 0.3ms
8 channels (4 stereo outputs)
Connector type D-Sub25 connector female, same for inputs
Impedance 110Ohm or 75Ohm, jumper selectable

(110Ohm default)

Outputs

Output voltage 3Vpp (typ.) @ 110Ohm differential

1Vpp (typ.) @ 75Ohm single-ended

General Features

• Power fail relay bypass (can be deactivated by jumper)

• Input sample rate converters (SRC)

• Electrical isolation between inputs, outputs and device (if

configured for differential mode, 110Ohm)

• AES3 channel status management, non-audio detection

• Master-sync capable

Technical Data – Option Board MADI I/O, BNC [O_DAP_MB_a]

Standards Relevant specifications comply with AES10-2008 and AES11-2009.
Audio 24bits, transparent forwarding of PCM and compressed audio
Audio Sample Rate 44.1, 48, 88.2, 96kHz, (88.2, 96kHz short framing)

64/56 channels @ 44.1 and 48kHz, 32/28 @ 88.2 and 96kHz
Processable by D*AP8: 16 channels @ 44.1, 48kHz
Processable by D*AP4: 8 channels @ 44.1, 48, 88.2, 96kHz

Impedance 75Ohm
Input level 0.15 … 0.8Vpp @ 75Ohm

BNC Input

Cable length (max.) 150m (Belden 1694A)
64/56 channels @ 44.1 and 48kHz, 32/28 @ 88.2 and 96kHz

Processable by D*AP8: 16 channels @ 44.1, 48kHz
Processable by D*AP4: 8 channels @ 44.1, 48, 88.2, 96kHz

BNC Output

Impedance 75Ohm

D*AP8 MAP

87

Output voltage 0.6Vpp (typ.) @ 75Ohm
General Features

• Input cable equalizer for extended range and robustness

• Reference grade word clock recovery, master-sync capable

• Dedicated routing for non-processed channels, all channels

(max. 64) can be routed to/from the device or looped through

• AES3 channel status management, non-audio detection

Technical Data – Option Board MADI I/O, Optical [O_DAP_MO_MM_a, O_DAP_MO_SM_a]

Standards Relevant specifications comply with AES10-2008 and AES11-2009.
Audio 24bits, transparent forwarding of PCM and compressed audio
Audio Sample Rate 44.1, 48, 88.2, 96kHz, (88.2, 96kHz short framing)

64/56 channels @ 44.1 and 48kHz, 32/28 @ 88.2 and 96kHz
Processable by D*AP8: 16 channels @ 44.1, 48kHz
Processable by D*AP4: 8 channels @ 44.1, 48, 88.2, 96kHz

Connector type LC (IEC 61754-20)
Center wavelength 1310nm (typ.), 1270 … 1360nm

Optical Input, LC

Input optical power [O_DAP_MO_MM_a]:

-31 … -8dBm, OM2 multimode (50/125µm)
[O_DAP_MO_SM_a]:

-23 … -8dBm, singlemode (9/125µm)
(standard values, others on request)

Cable length (max.) [O_DAP_MO_MM_a]: 1.5km, OM2 multimode

[O_DAP_MO_SM_a]: 2km, singlemode
(standard values, others on request)

64/56 channels @ 44.1 and 48kHz, 32/28 @ 88.2 and 96kHz
Processable by D*AP8: 16 channels @ 44.1, 48kHz
Processable by D*AP4: 8 channels @ 44.1, 48, 88.2, 96kHz

Connector type LC (IEC 61754-20)
Center wavelength 1310nm (typ.), 1270 … 1360nm

Optical Output, LC

Output optical power [O_DAP_MO_MM_a]:

-23 … -14dBm, OM2 multimode (50/125µm)
[O_DAP_MO_SM_a]:

-15 … -8dBm, singlemode (9/125µm)

(standard values, others on request)
Optical and BNC output carry the same signal.
Impedance 75Ohm

BNC Output

Output voltage 0.6Vpp (typ.) @ 75Ohm

General Features

• Field-replaceable optical module (SFP)

• Reference grade word clock recovery, master-sync capable

• Dedicated routing for non-processed channels, all channels

(max. 64) can be routed to/from the device or looped through

• AES3 channel status management, non-audio detection

• Parallel outputs (BNC/LC) for media conversion

D*AP8 MAP

88

Technical Data – Option Board Audio-over-IP DANTE™ I/O [O_DAP_DANTE_a]

Standards Audio-over-IP by Dante™ Digital Audio Networking Standard
Audio 24bits, transparent forwarding of PCM and compressed audio
Audio Sample Rate 44.1, 48, 88.2, 96kHz
Inputs and Outputs 2 x Gigabit Ethernet RJ45 connectors (100M/1Gbit),

primary and secondary port

Inputs Processable by D*AP8: 16 channels @ 44.1, 48kHz

Processable by D*AP4: 8 channels @ 44.1, 48, 88.2, 96kHz

Outputs Processable by D*AP8: 16 channels @ 44.1, 48kHz

Processable by D*AP4: 8 channels @ 44.1, 48, 88.2, 96kHz

General Features

• AES67 compliant (when available)

• Network master-sync can be provided by D*AP device

• Master-sync capable (for D*AP device)

• Non-audio detection for input channels

• Glitch-free Dante™ audio redundancy using dual Ethernet

networks

Technical Data – Rear Connectors – pin assignment

connector:

GPI/O

female 25-pin D-Sub

1 GPI_1, 2, 3, 4 common
2 GPI_1
3 GPI_2
4 GPI_3
5 GPI_4
6 GPI_5, 6, 7, 8 common
7 GPI_5
8 GPI_6

9 GPI_7
10 GPI_8
11
12
13

Isolated 5V +
14 GPO_1, 2, 3, 4 common
15 GPO_1
16 GPO_2
17 GPO_3
18 GPO_4
19 GPO_5, 6, 7, 8 common
20 GPO_5
21 GPO_6
22 GPO_7
23 GPO_8
24

Isolated 5V -

25

Isolated 5V -

connector: Metadata IN

female 9-pin D-Sub

1 GND
2 Tx (-)
3 Rx (+)
4 GND
5
6 GND
7 Tx (+)
8 Rx (-)
9 GND

connector: Metadata OUT

male 9-pin D-Sub

1 GND
2
3 Tx (+)
4 GND
5
6 GND
7
8 Tx (-)
9 GND

D*AP8 MAP

89

Technical Data - Optional Interface Modules – pin assignment

4x analog I/O [O_DAP_ADDA_a] 4x AES I/O [O_DAP_AES_a] 8x analog out [O_DAP_8DA_a]

connector: 4 x analog I/O

female 25-pin D-Sub

1 OUT-4 +
2 GND
3 OUT-3 ­4 OUT-2 +
5 GND
6 OUT-1 ­7 IN-4 +
8 GND

9 IN-3 ­10 IN-2 +
11 GND
12 IN-1 ­13
14 OUT-4 ­15 OUT-3 +
16 GND
17 OUT-2 ­18 Out-1 +
19 GND
20 IN-4 ­21 IN-3 +
22 GND
23 IN-2 ­24 IN-1 +
25 GND

connector:

4x AES I/O

female 25-pin D-Sub

1 OUT-4 +
2 GND
3 OUT-3 ­4 OUT-2 +
5 GND
6 OUT-1 ­7 IN-4 +
8 GND

9 IN-3 ­10 IN-2 +
11 GND
12 IN-1 ­13
14 OUT-4 ­15 OUT-3 +
16 GND
17 OUT-2 ­18 OUT-1 +
19 GND
20 IN-4 ­21 IN-3 +
22 GND
23 IN-2 ­24 IN-1 +
25 GND

connector: 8 x analog out

female 25-pin D-Sub

1 OUT-8 +
2 GND
3 OUT-7 ­4 OUT-6 +
5 GND
6 OUT-5 ­7 OUT-4 +
8 GND

9 OUT-3 ­10 OUT-2 +
11 GND
12 OUT-1 ­13
14 OUT-8 ­15 OUT-7 +
16 GND
17 OUT-6 ­18 OUT-5 +
19 GND
20 OUT-4 ­21 OUT-3 +
22 GND
23 OUT-2 ­24 OUT-1 +
25 GND

D*AP8 MAP

90

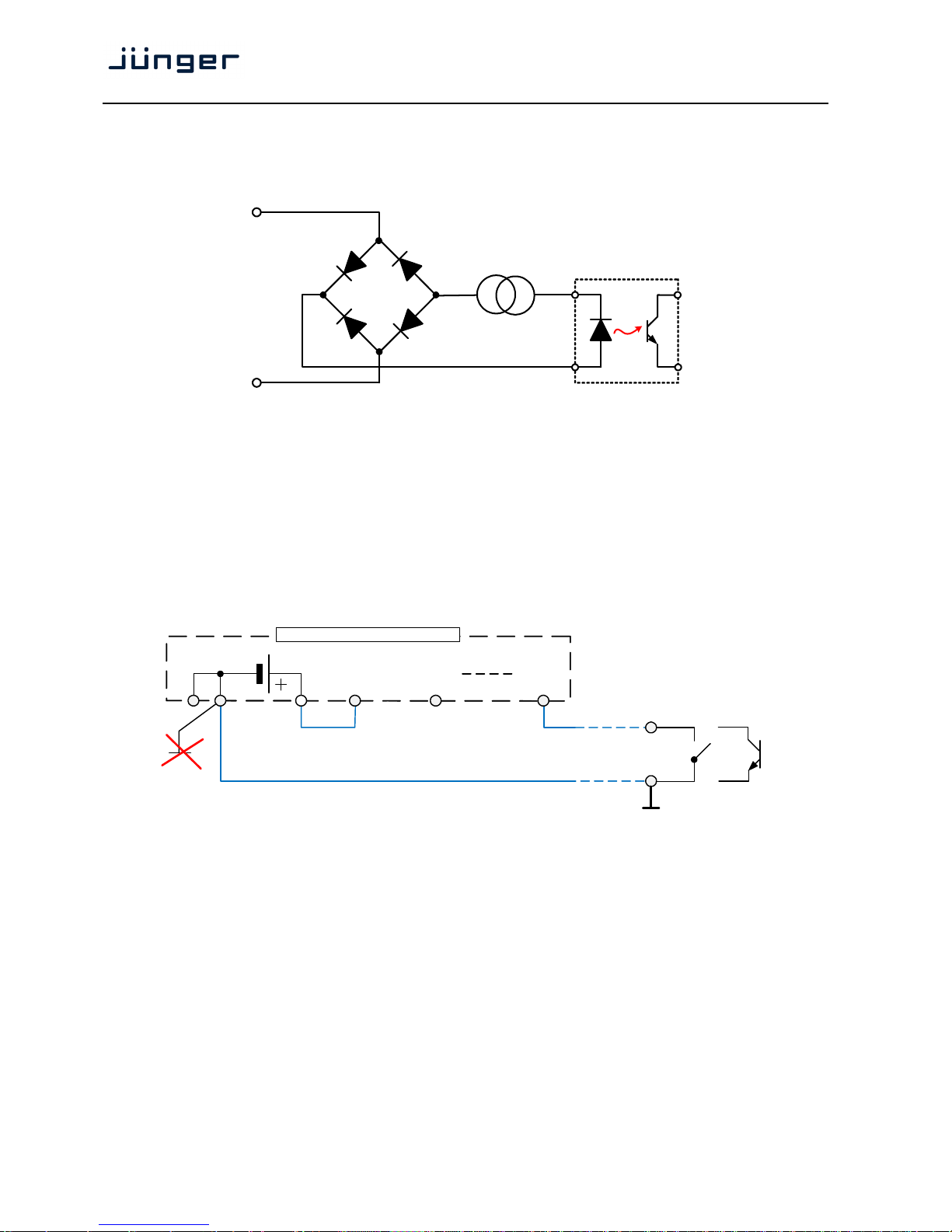

Technical Data - GPI wiring

The device offers a unique circuitry to save GPI setups from hum and noise influence in complex
installations. Here the principle circuit of one of the eight GPI inputs:

At the GPI input is a bridge rectifier I.e. you do not need to care about the polarity of the input voltage. A
constant current source in line with the optical coupler limits the current.
You must simply provide a voltage in the range from 5V to 30V to activate a GPI.

If you have open collector outputs or simple relay closures as the driving GPOs (this technique is commonly
known as "low active" and will be found in most legacy equipment),
you must wire up an auxiliary voltage supply.

The device provides such auxiliary power supply. It offers a balanced 5V source that you can imaging
as a battery.

Here an example how to wire up GPI #4:

We strongly recommend to spent a wire for ground connection instead of using the chassis common grounds
of an installation.

GPI
common

GPI_x

5 V balanced

1324 25

1

GPI 1, 2, 3, 4

common

GPI 1

2

GPI 4

5

GPO

relay or open collector

25 pin GPI/O connector

D*AP8 MAP

91

Safety Information

Electrical

Safety classification: Class 1 – grounded product / Schutzklasse 1
Corresponding to EN 60065:2002

Power connection: The device must be connected to a power socket that provides a

protective earthing conductor.

Power switch: The power switch is a toggle switch placed at the rear of the device.
The ON / OFF position is indicated by engravings [I] / [o] on the lever. It must be

reached without difficulty.
The devices may be equipped with dual power supply, in this case it will have
two power cords and switches. You must inform yourself about the location and
assignment of the switches.

Water protection: The device must not be exposed to splash or dripping water.
It is permitted to place a container filled with liquids (e.g. vases)
on top of the device.

Service safety Only qualified personnel should perform service procedures.

Do not service alone: Do not perform internal service or adjustments of the device unless another

person capable of rendering first aid and resuscitation is present.

Disconnect power: To avoid electrical shock, switch off the device power, then disconnect the

power cord from the mains power. Do not block the power cord; it must remain
accessible to the user at all times

To avoid fire or personal injury

Mounting: It must be placed on a flat surface or must be mounted into an 19" rack.

It is recommended to use metal brackets (sheet steel angle) to support the
device.

Provide proper this case and if the device has a built in fan, a gap of at least 1cm must be
Ventilation left between the device edge and the steel angle. It is highly recommended to

leave a gap of at least 1RU above and below the device.

Use proper power cord Use only the power cord specified for this product and certified for the country of

use.

Do not operate Do not operate this product with covers or panels removed.
without covers

Do not operate If you suspect that there is damage to this product, have it inspected by
with suspected failures by qualified service personnel.

Risk of explosion: The device contains a lithium battery. If replaced incorrectly or by a different or

inadequate type an explosion may occur.

Warranty

Standard Junger Audio two-year warranty on parts and labor.

Specifications are subject to change without notice

•

•

•
