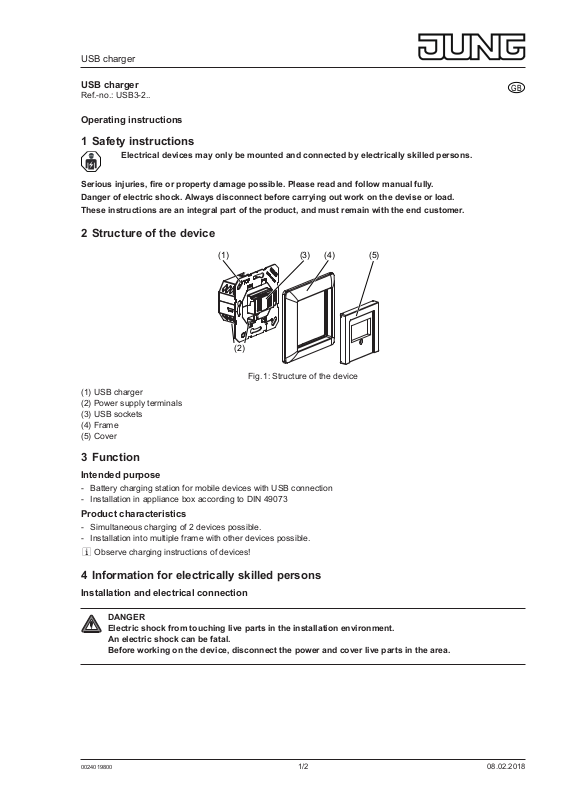

Jung USB 3-2 WW User Manual

USB charger

Ref.-no.: USB3-2..

Operating instructions

1 Safety instructions

Electrical devices may only be mounted and connected by electrically skilled persons.

Serious injuries, re or property damage possible. Please read and follow manual fully.

Danger of electric shock. Always disconnect before carrying out work on the devise or load.

These instructions are an integral part of the product, and must remain with the end customer.

2 Structure of the device

(1) (3)

(2)

Fig. 1: Structure of the device

(1) USB charger (2) Power supply terminals (3) USB sockets (4) Frame (5) Cover

3 Function

Intended purpose

- Battery charging station for mobile devices with USB connection

- Installation in appliance box according to DIN 49073

Product characteristics

- Simultaneous charging of 2 devices possible.

- Installation into multiple frame with other devices possible.

i Observe charging instructions of devices!

(4)

(5)

4 Information for electrically skilled persons

Installation and electrical connection

DANGER Electric shock from touching live parts in the installation environment. An electric shock can be fatal.

Before working on the device, disconnect the power and cover live parts in the area.

0024019800

08.02.20181/2

USB charger

• Connect the divice according to wiring diagram (g. 2).

L N

Fig. 2: Wiring diagram

• Install the device.

i For installation with hinged lid ..90KLUSB.. turn „TOP“ side of supporting frame to bottom (g 3).

TOP

Fig. 3: Installation with hinged lid

• Install frame and cover onto the device.

• Supply voltage can be switched on.

Technical data

Rated voltage AC 100-240 V ~ ± 10 % Mains frequency 50/60 Hz Ambient temperature 0 - 35 °C Storage/transport temperatur -20 ... +70 °C

Standby power AC 230 V~: ≤ 0,1 W

Terminal screw terminals Output voltage DC 5 V (+-5%) Output current AC 120 - 240 V~ max. 3000 mA AC 90 - 108 V~ max. 2500 mA Protection level IP 20

5 Accessories

Centre plate for mono/stereo loudspeaker socket ..569 T.. ..969 T.. ..2969 T..

6 Warranty

The warranty follows about the specialty store in between the legal framework as provided for by law.
