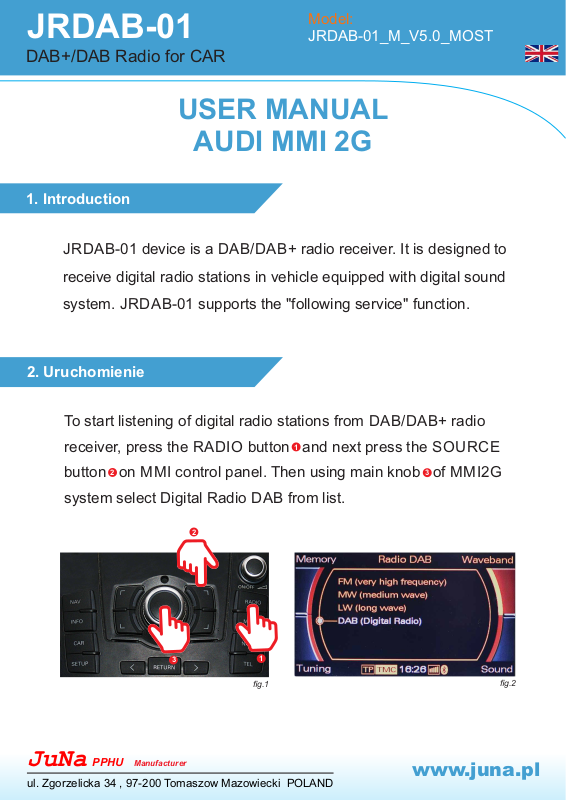

JRDAB-01
DAB+/DAB Radio for CAR
USER MANUAL
AUDI MMI 2G
1. Introduction
JRDAB-01 device is a DAB/DAB+ radio receiver. It is designed to
receive digital radio stations in vehicle equipped with digital sound
Model:
JRDAB-01_M_V5.0_MOST
system. JRDAB-01 supports the "following service" function.
2. Uruchomienie

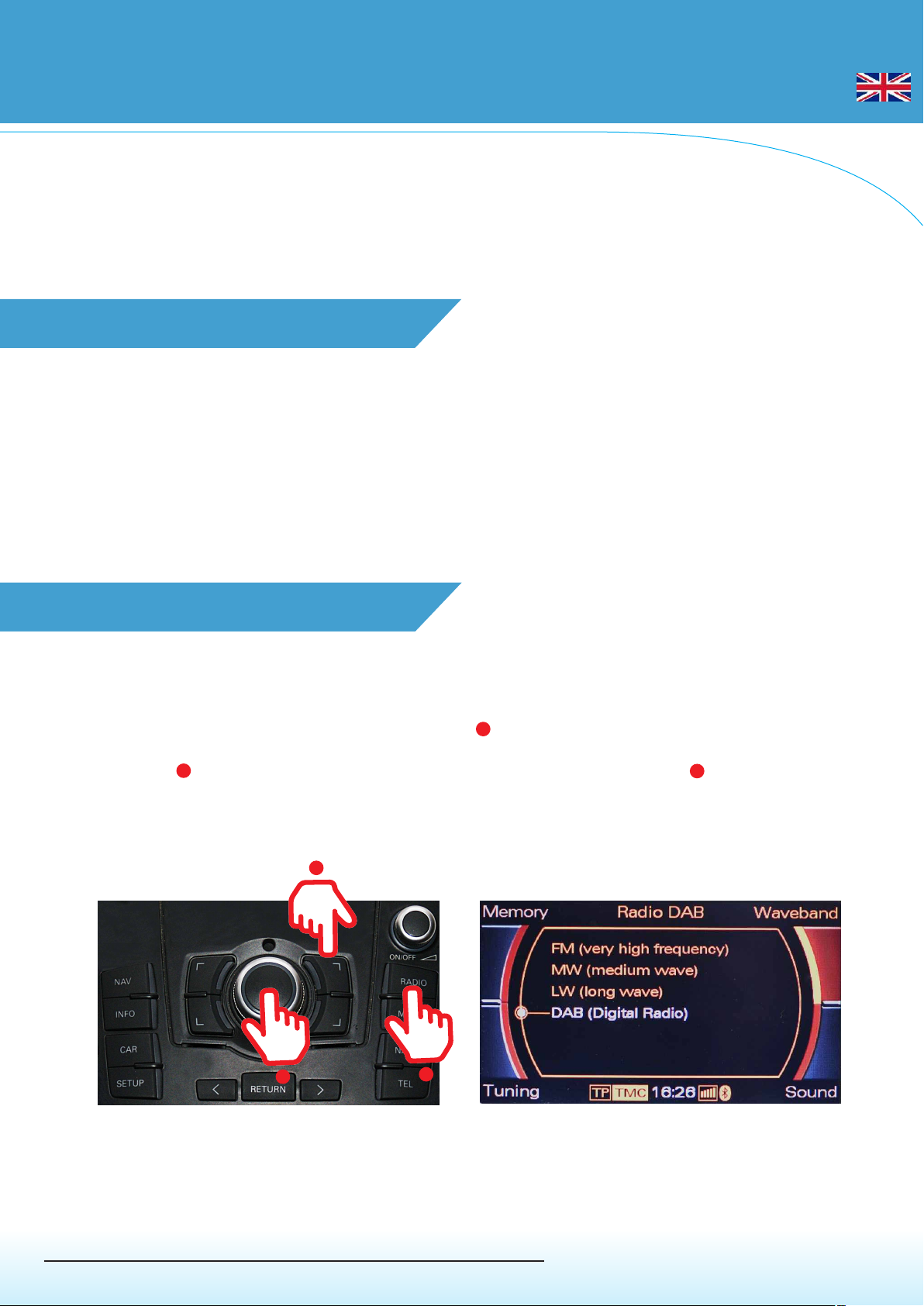

To start listening of digital radio stations from DAB/DAB+ radio
receiver, press the RADIO button and next press the SOURCE
button on MMI control panel. Then using main knob of MMI2G
11112
system select Digital Radio DAB from list.
11111
11113
11112
1111
3
JuNa
ul. Zgorzelicka 34 , 97-200 Tomaszow Mazowiecki POLAND
PPHU
Manufacturer
1
fig.1
fig.2
www.juna.pl
Page 2
3. Searching process
fig.3
3. Selecting and changing

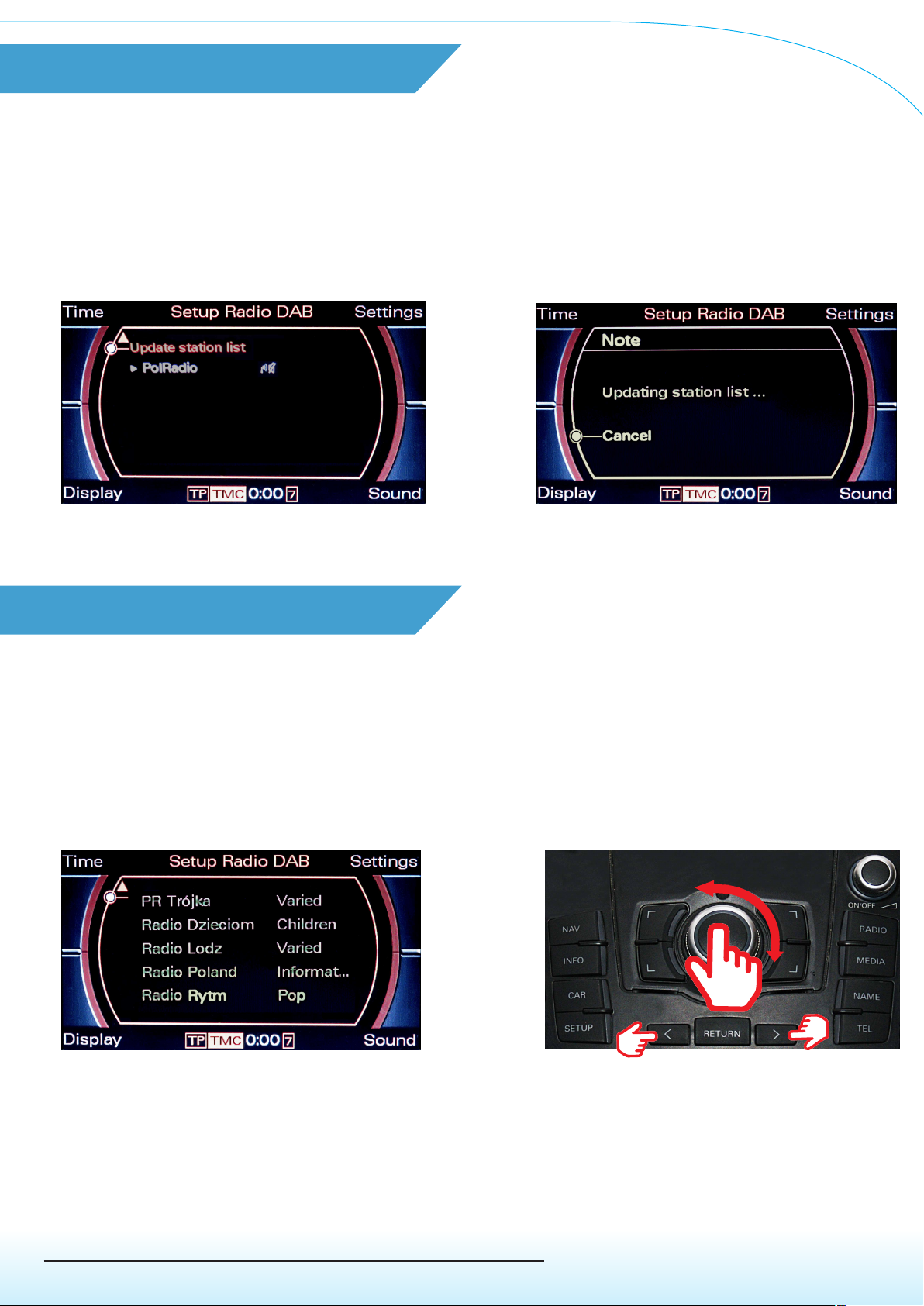

After scan process finish, system shows list of available radio services
(fig.5). To select next or previous service use main knob of MMI2G
system or buttons under the knob (fig.6).
4.2
fig.4
Sample list of available radio stations
fig.5
1
JuNa
ul. Zgorzelicka 34 , 97-200 Tomaszow Mazowiecki POLAND
PPHU
Manufacturer
fig.6
www.juna.pl
Page 3
3. Service Following

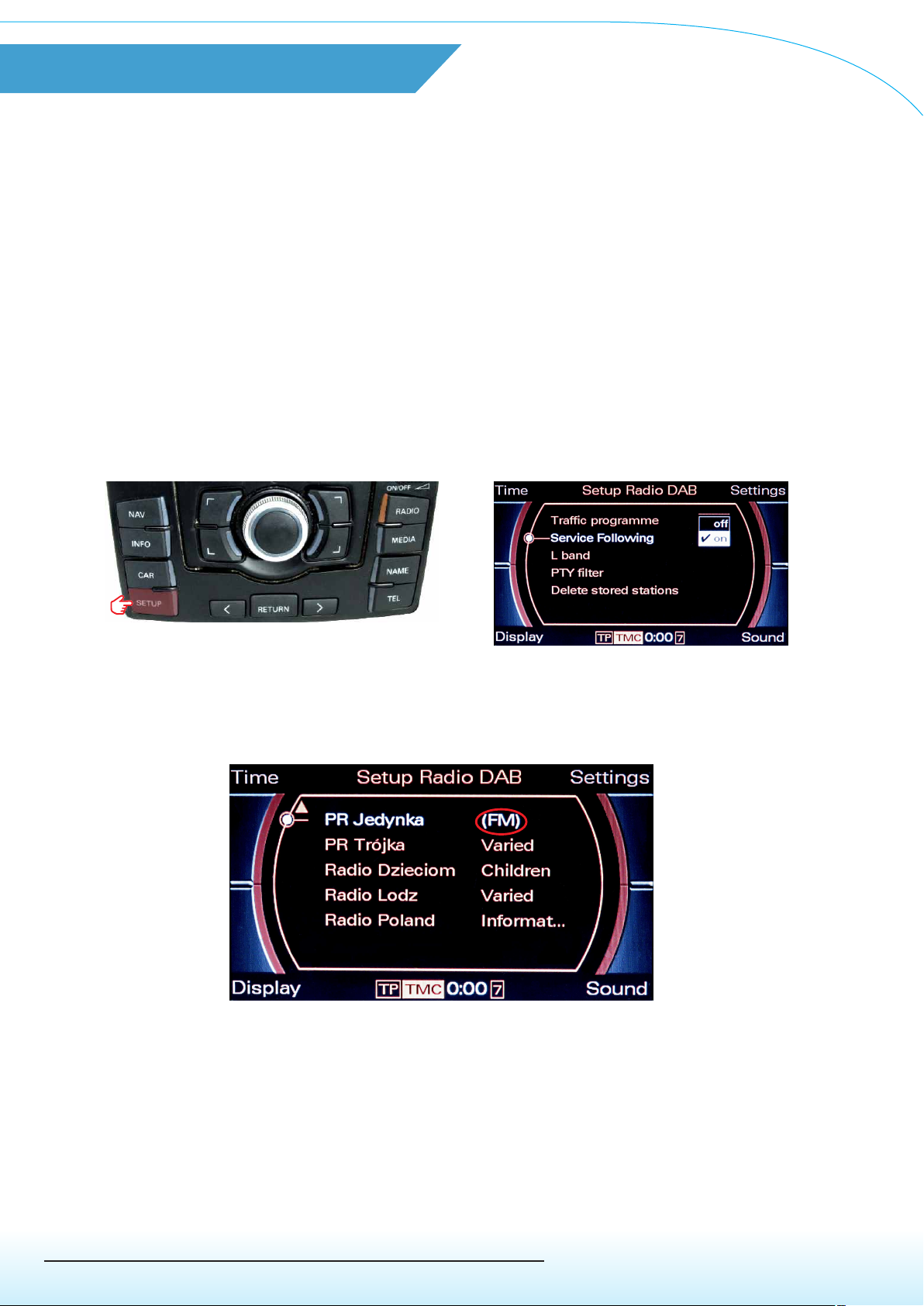

The JRDAB-01 device is equipped with the Service Following function
for automatic tracking of the selected radio station within the digital
transmitters area DAB/DAB+. An additional option is the ability to activate
the function in the MMI unit allowing automatic switching of the selected
radio station to receive from FM transmitters after DAB/DAB+ digital
signal loss. Radio automatically will return to digital reception when it
recovers DAB/DAB+ signal.
fig.7
An example of the operation of the Service Following function
fig.9
fig.8
1
JuNa
ul. Zgorzelicka 34 , 97-200 Tomaszow Mazowiecki POLAND
PPHU
Manufacturer
1
1111
www.juna.pl
