Jumpking JTR6 User Manual

®

PRODUCT MODEL JTR6

Round 6' Diameter Trampoline

Users Manual

ASSEMBLY, SAFETY, CARE AND MAINTENANCE,

USE, AND INSTRUCTIONAL MATERIALS ENCLOSED.

WARNING: USING THIS TRAMPOLINE EXPOSES YOU TO THE RISK OF SERIOUS

INJURY, INCLUDING PERMANENT PARALYSIS OR EVEN DEATH FROM LANDING
ON THE BACK, NECK OR HEAD. THIS RISK EXISTS EVEN IF YOU LAND ON THE
TRAMPOLINE MAT (BED). READ THIS MANUAL AND ALL MATERIALS FURNISHED
WITH THE TRAMPOLINE THOROUGHLY BEFORE ASSEMBLING OR ALLOWING
ANY PERSON TO USE THE TRAMPOLINE. RETAIN THIS MANUAL FOR FUTURE
REFERENCE.

COPYRIGHT © 9/93

WARNING

All Jumpking trampolines come equipped with important information regarding proper assembly,
usage and safety procedures. This information must be read by all supervisors and trampoline users
before allowing any person to jump on a trampoline.

Jumpking, Inc.

Limited Trampoline Warranty

Jumpking, Inc. (Jumpking) warrants its trampoline products to be free from defects in material and workmanship
under normal use and service conditions. The various component parts of the trampoline are warranted against
defects and workmanship as follows:

A. Steel frame - ten (10) years;
B. Sewing on stitched jumping mat (bed) - two

(2) years;
C. Stitched or stitchless jumping mat (bed) is

warranted one hundred percent (100%) the first
year, fifty percent (50%) for the second year,
thirty-five percent (35%) for the third year,
twenty percent (20%) for the fourth year, and ten
percent (10%) during the fifth year; and

D. Frame pads and springs - thirty (30) days.

All warranty coverage extends only to the original retail purchaser from the date of purchase. Jumpking’s obliga­tion under this Warranty is limited to replacing or repairing, at Jumpking’s option, the product at one of its autho­rized service centers. All products for which a warranty claim is made must be received by Jumpking at one of its
authorized service centers, freight prepaid, and accompanied by sufficient proof of purchase. All returns must be
preauthorized by Jumpking. Preauthorization may be obtained by calling Jumpking’s Customer Service Depart­ment at 1-800-322-2211. This Warranty does not extend to any product or damage to a product caused by or
attributable to freight damage, abuse, misuse, improper or abnormal usage, or repairs not provided by a Jumpking
authorized service center or for products used for commercial or rental purposes. No other Warranty beyond that
specifically set forth above is authorized by Jumpking.

JUMPKING IS NOT RESPONSIBLE OR LIABLE FOR INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES
ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCT OR
OTHER DAMAGES WITH RESPECT TO ANY ECONOMIC LOSS, LOSS OF PROPERTY, LOSS OF REVENUE
OR PROFITS, LOSS OF ENJOYMENT OR USE, COST OF REMOVAL, INSTALLATION OR OTHER CONSE­QUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDEN­TAL OR CONSEQUENTIAL DAMAGES. ACCORDINGLY, THE ABOVE LIMITATION MAY NOT APPLY TO
YOU.

THE WARRANTY EXTENDED HEREUNDER IS IN LIEU OF ALL OTHER WARRANTIES AND ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE IS LIMITED IN ITS
SCOPE AND DURATION TO THE TERMS SET FORTH HEREIN. SOME STATES DO NOT ALLOW LIMITA­TIONS ON HOW LONG AN IMPLIED WARRANTY LASTS. ACCORDINGLY, THE ABOVE LIMITATION MAY
NOT APPLY TO YOU.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

USE OF ANY TRAMPOLINE EXPOSES THE USER TO THE RISK OF SERIOUS INJURY, INCLUDING PERMA­NENT PARALYSIS OR EVEN DEATH FROM LANDING ON THE BACK, NECK OR HEAD. USE OF A TRAM­POLINE SHOULD ALWAYS BE UNDER THE DIRECT SUPERVISION OF A QUALIFIED INSTRUCTOR. AL­WAYS FOLLOW THE INSTRUCTIONS AND WARNINGS PROVIDED WITH YOUR TRAMPOLINE.

Page

Copyright © 11/92 Jumpking, Inc.

2

BEFORE YOU BEGIN

Thank you for selecting a Jumpking Trampoline.

The Jumpking Trampoline is designed and crafted to provide

you and your family with many years of fun and fitness.

For your benefit and safety, read this manual carefully before using this trampoline.

If you have additional questions, please call our Customer Service Department,
toll-free, at 1-800-322-2211, Monday through Friday, 8 a.m. until 5 p.m. Central Time
(excluding holidays).

WARNING:

USING THIS TRAMPOLINE EXPOSES YOU TO THE RISK OF SERIOUS INJURY,

INCLUDING PERMANENT PARALYSIS OR EVEN DEATH FROM LANDING ON THE

BACK, NECK OR HEAD. THIS RISK EXISTS EVEN IF YOU LAND

ON THE TRAMPOLINE MAT (BED).

1. Misuse and abuse of this trampoline is dangerous and can cause serious injuries. This trampoline (JTR6) is intended
for light recreational use by children weighing up to 100 lbs. as a jumping device and by adults up to 225 lbs. as a jogging
device.

2. Trampolines are rebounding devices which propel the user to unaccustomed heights, and into a variety of body move­ments. Rebounding off of the trampoline, striking the frame or springs, or improperly landing on the trampoline mat (bed)
may cause injury.

3. Read all instructions thoroughly before using this trampoline, or allowing its use by any person. Children should not be
allowed to use this trampoline without close adult supervision.

4. Inspect the trampoline before each use, and replace any worn, defective or missing parts.

5. All purchasers and all persons using the trampoline must become familiar with the manufacturer’s recommendations for
the proper assembly, use, and care of the trampoline. Each user must also be alert to his or her own limitations in the use
of this device. Assembly instructions, selected precautions, recommended usage, and suggestions for the care and
maintenance of the trampoline are included in this user’s manual to promote safe and enjoyable use of this equipment.

6. It is the responsibility of the owner to insure that all users of this trampoline are adequately informed of all warnings and
safety instructions.

7. Never allow more than one (1) person on the trampoline at a time. This trampoline is not a gymnastic device.

Do not perform or allow any gymnastic maneuvers such as flips or somersaults. Jumping or jogging are the only
activities to be conducted on this trampoline.

ASSEMBLY INSTRUCTIONS

This trampoline does not require any tools to assemble. It can easily be disassembled for compact and convenient storage
during periods of nonuse.

Before assembling:

1. The assembly instructions reference parts by name and by part number. Please refer to Page 12 for part descriptions
and numbers.

2. Make sure that all parts listed in the parts list are included.

3. The trampoline must be placed on a level surface. Indoors it should be placed on carpet. Outdoors it should be placed
on grass.

4. Adequate horizontal and vertical (overhead) clearance must be maintained from objects and possible hazards including
electric power wiring, tree limbs, ceilings, and furniture.

5. There must be no obstructions beneath the trampoline.

6. The trampoline must always be used in a well-lighted area.

7. The use of gloves to protect your hands from pinch points during assembly and disassembly is recommended.

Page

3

Top view

ASSEMBLY STEPS

Read through all assembly steps carefully before beginning the assembly process. Refer to drawings for clarification. No
additional tools are required for assembly. The use of gloves is recommended.

Step 1:

Lay out all frame sections in a circle (See Fig. 1).
The frame sections consist of 3 components:

Top rail - 4 pieces
(part no. JTR6TR)
Top rail with leg sockets - 4 pieces
(part no. JTR6TRS)
Leg base - 4 pieces
(part no. JTR6L)

These are all interchangeable and have no “left
hand” or “right hand” orientation. All connections
consist of sliding a section tube end into a slightly
larger tube end on the adjacent section. These are
called slip joints.

Top view

4

3

1

2

PARTS:

1 Top rail w/leg sockets
2 Leg base
3 Top rail

Step 2:

The frame will be assembled upside down. This
means all leg sockets will be facing away from
the assembly surface (See Fig. 2). First insert
the end of a top rail without leg sockets into the
corresponding end of a top rail with leg sockets
(Step 1). Then attach another top rail with leg
sockets to the top rail without leg sockets (Step

2). Then put a “W” shaped leg into the two leg
sockets closest to each other (Step 3). The leg
will now span the top rail without sockets and
connect the two top rails with sockets. Continue
adding top rail pieces and legs in the previously
described fashion.

Page

4

Step 1

FIGURE 1

Step 3

Step 2

FIGURE 2

Step 3:

After the metal frame has been assembled it
must be turned over so the base of the legs is in
contact with the assembly surface. Stand outside
the frame circle and lift one edge of the top rail to
a vertical position. The frame is now like a coin
on edge with the legs facing away from you.
Rotate the frame until the legs face you and
slowly lower the assembly to the ground or floor.
When lowering the unit, grab both upper legs to
prevent them from dropping out of their sockets
as the frame is lowered. Now check all connec­tions to see that they are fully seated and aligned
(See Fig. 3).

FRAME
ASSEMBLED

ROTATE

LOWER

LIFT

FIGURE 3

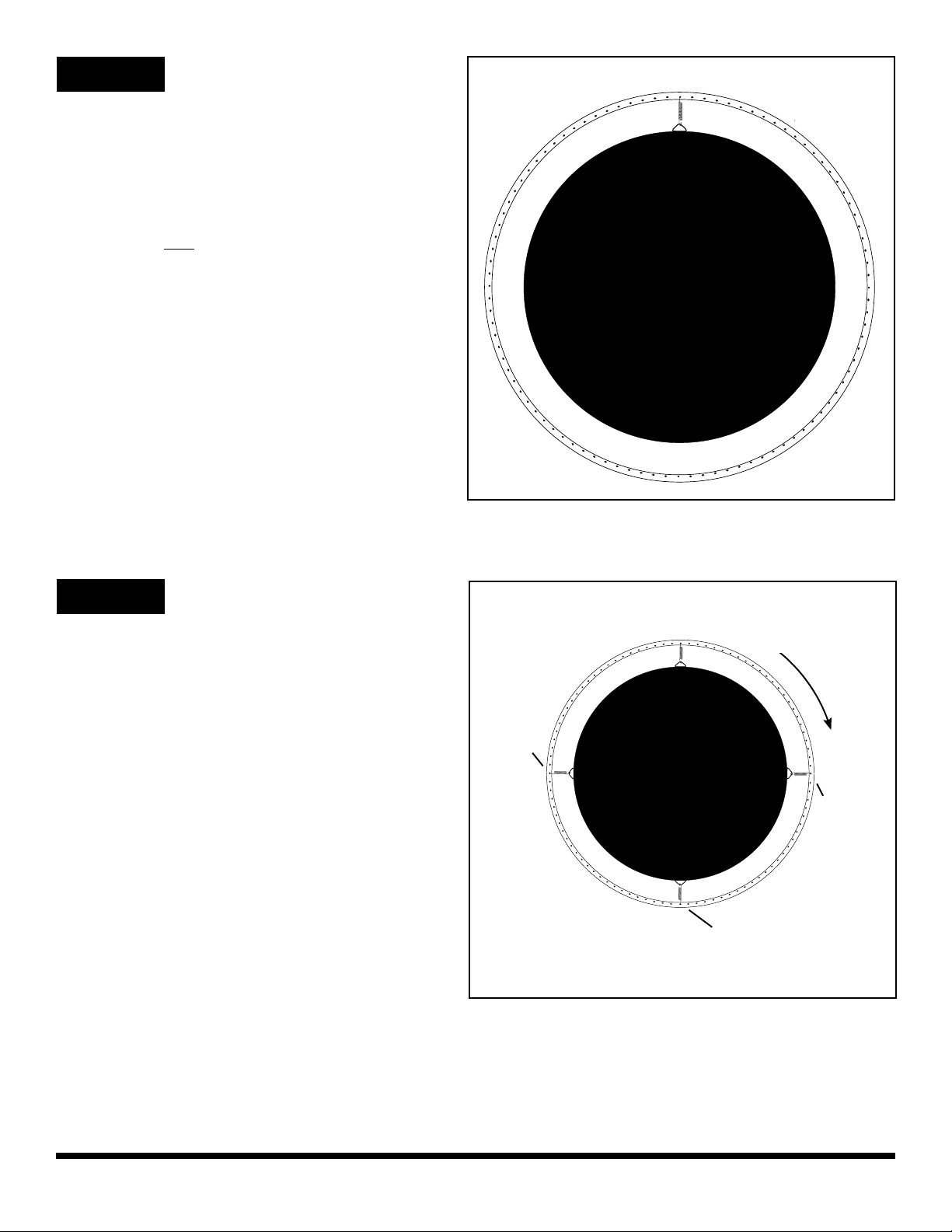

Step 4:

It is best to use a spring as a tool to pull and
attach the springs (part no. JTR6S) from the “V”
ring on the bed (mat) to the frame holes. Using
your hand can lead to getting “pinched” and also
doesn’t properly tension the spring. Attach the
spring to the “V” ring and using the “pull tool
spring", pull the attachment spring to the frame by
inter-connecting spring hooks and pulling with
one hand. When the attachment spring hook
reaches the frame, use your other hand to push it
into the frame hole while disengaging the “pull
tool” (See Fig. 4).

Hole

Mat (bed)

"V" ring

Pull with
spring pull tool

FIGURE 4

Mat (bed)

Top rail

Page

5
