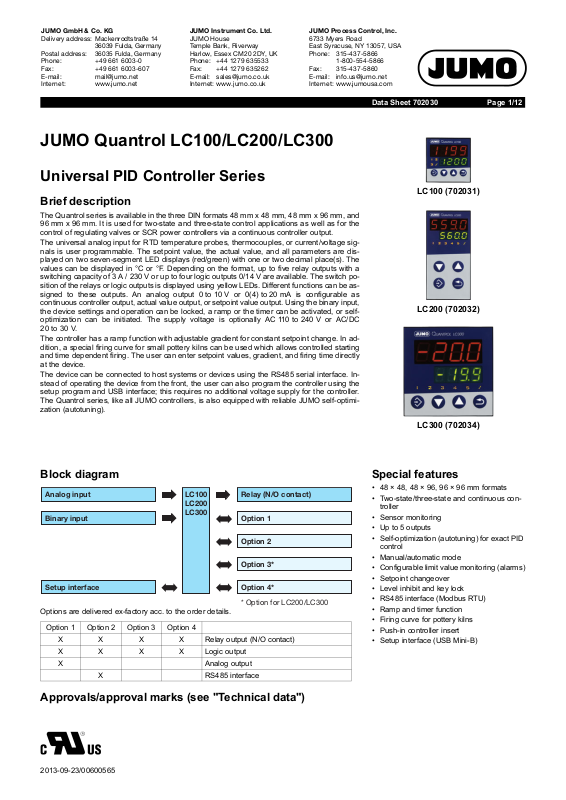

JUMO QUAN LC300 D 240 Datasheet

JUMO GmbH & Co. KG

Delivery address: Mackenrodtstraße 14

36039 Fulda, Germany

Postal address:

36035 Fulda, Germany
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.net

JUMO Instrument Co. Ltd.

JUMO House
Temple Bank, Riverway
Harlow, Essex CM20 2DY, UK
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.co.uk

JUMO Process Control, Inc.

6733 Myers Road
East Syracuse, NY 13057, USA
Phone: [phone]

1-800-554-5866
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumousa.com

JUMO Quantrol LC100/LC200/LC300

Analog input

Binary input

Setup interface

Option 4*

Relay (N/O contact)

Option 3*

Option 2

Option 1

LC100
LC200
LC300

* Option for LC200/LC300

Universal PID Controller Series

Brief description

The Quantrol series is available in the three DIN formats 48 mm x 48 mm, 48 mm x 96 mm, and
96 mm x 96 mm. It is used for two-state and three-state control applications as well as for the
control of regulating valves or SCR power controllers via a continuous controller output.

The universal analog input for RTD temperature probes, thermocouples, or current/voltage sig­nals is user programmable. The setpoint value, the actual value, and all parameters are dis­played on two seven-segment LED displays (red/green) with one or two decimal place(s). The
values can be displayed in °C or °F. Depending on the format, up to five relay outputs with a
switching capacity of 3 A / 230 V or up to four logic outputs 0/14 V are available. The switch po­sition of the relays or logic outputs is displayed using yellow LEDs. Different functions can be as­signed to these outputs. An analog output 0 to 10 V or 0(4) to 20 mA is configurable as
continuous controller output, actual value output, or setpoint value output. Using the binary input,
the device settings and operation can be locked, a ramp or the timer can be activated, or self­optimization can be initiated. The supply voltage is optionally AC 110 to 240 V or AC/DC
20 to 30 V.

The controller has a ramp function with adjustable gradient for constant setpoint change. In ad­dition, a special firing curve for small pottery kilns can be used which allows controlled starting
and time dependent firing. The user can enter setpoint values, gradient, and firing time directly
at the device.

The device can be connected to host systems or devices using the RS485 serial interface. In­stead of operating the device from the front, the user can also program the controller using the
setup program and USB interface; this requires no additional voltage supply for the controller.
The Quantrol series, like all JUMO controllers, is also equipped with reliable JUMO self-optimi­zation (autotuning).

Data Sheet 702030

LC100 (702031)

LC200 (702032)

Page 1/12

Block diagram

Options are delivered ex-factory acc. to the order details.

Approvals/approval marks (see "Technical data")

Option 1 Option 2 Option 3 Option 4

X X X X Relay output (N/O contact)

X X X X Logic output

X Analog output

X RS485 interface

LC300 (702034)

Special features

• 48 × 48, 48 × 96, 96 × 96 mm formats

• Two-state/three-state and continuous con­troller

• Sensor monitoring

• Up to 5 outputs

• Self-optimization (autotuning) for exact PID
control

• Manual/automatic mode

• Configurable limit value monitoring (alarms)

• Setpoint changeover

• Level inhibit and key lock

• RS485 interface (Modbus RTU)

• Ramp and timer function

• Firing curve for pottery kilns

• Push-in controller insert

• Setup interface (USB Mini-B)

2013-09-23/00600565

JUMO GmbH & Co. KG

Delivery address: Mackenrodtstraße 14

36039 Fulda, Germany

Postal address:

36035 Fulda, Germany
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.net

JUMO Instrument Co. Ltd.

JUMO House
Temple Bank, Riverway
Harlow, Essex CM20 2DY, UK
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.co.uk

JUMO Process Control, Inc.

6733 Myers Road
East Syracuse, NY 13057, USA
Phone: [phone]

1-800-554-5866
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumousa.com

Data Sheet 702030 Page 2/12

t

Setpoint value

°C

Actual value

Description

Self-optimization (autotuning)

Standard features include the tried and tested
self-optimization (oscillation method), which
makes it possible for the controller to be
matched to the control loop by a user who is
not a control technology expert. Here, the re­action of the control path to the specific vari­able changes is evaluated and the controller
parameters proportional band, reset time, de­rivative time, cycle time, and filter time con­stant are calculated.

Ramp function

The ramp function is used for a constant
change of setpoint value w up to the ramp limit
value SP (entered setpoint value). A rising or
a falling edge arises depending on the actual
value at the time of ramp start t0. The slope is
defined by a gradient which is entered during
the controller configuration.

Timer

The timer is started manually or automatically
(after power on, for example). When the timer
expires, the timer output signal changes its
state (configurable). The timer can be used to
implement functions like time-limited control or
setpoint changeover.

Setup program

The setup program provides the user with an
easy and comfortable way to configure the
controller using a PC.

The PC has to be connected to the controllers
USB interface (Mini-B type) with a USB cable.
Thereby the controller is powered over the
USB interface. As a result, no mains supply is
required during the configuration.

Firing curve

The firing curve is used for controlled starting
and time-dependent firing of small pottery
kilns. The user can enter setpoint values, gra­dient, and firing time directly at the device.

Limit value monitoring

The controller is equipped with two limit value
monitoring functions, each with eight configu­rable alarm functions. Any analog signals can
be selected as actual and setpoint value from
a selector. When a limit value is exceeded, a
signal can be displayed or an internal control­ler function initiated. With the limit value mon­itoring, extensive alarm and limit value
functions can be implemented.

2013-09-23/00600565

JUMO GmbH & Co. KG

Delivery address: Mackenrodtstraße 14

36039 Fulda, Germany

Postal address:

36035 Fulda, Germany
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.net

JUMO Instrument Co. Ltd.

JUMO House
Temple Bank, Riverway
Harlow, Essex CM20 2DY, UK
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.co.uk

JUMO Process Control, Inc.

6733 Myers Road
East Syracuse, NY 13057, USA
Phone: [phone]

1-800-554-5866
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumousa.com

Data Sheet 702030 Page 3/12

Controller parameters

All the parameters and their meanings are included in the table. Some parameters may be missing or meaningless for a particular type of controller.

Parameters Value range Factory setting Meaning

Proportional band 1 (Pb1) 0 to 9999 digit 0 digit Size of the proportional band

Proportional band 2 (Pb2) 0 to 9999 digit 0 digit

The controller structure is not effective with Pb = 0 (behavior identical
to limit value monitoring). For a continuous controller, Pb1 must be > 0.

Derivative time (dt) 0 to 9999 s 80 s Influences the differential component of the controller output signal

Reset time (rt) 0 to 9999 s 350 s Influences the integral component of the controller output signal

Cycle time 1 (Cy1) 0 to 999.9 s 20.0 s When using a switched output, the cycle time should be chosen so that

Cycle time 2 (Cy2) 0.0 to 999.9 s 20.0 sec

the energy supply to the process is as continuous as possible without
overloading the switching elements.

Contact spacing (db) 0.0 to 999.9 digit 0.0 digit Spacing between the two control contacts of the three-state controller

Switching differential 1 (HyS1) 0.0 to 999.9 digit 1.0 digit Switching differential of a switching controller with proportional band

Switching differential 2 (HyS2) 0.0 to 999.9 digit 1.0 digit

Pb = 0 (behavior identical to limit value monitoring)

Working point (y0) -100 to +100 % 0 % Output level for P and PD controller (if x = w then y = y0)

Output value limit 1 (y1) 0 to 100 % 100 % Maximum output value limit (only effective if Pb > 0)

Output value limit 2 (y2) -100 to +100 % -100 % Minimum output value limit (only effective if Pb > 0)

Technical data

Thermocouple input

Description Standard Measuring range

Fe-CuNi "L"
Fe-CuNi "J"
Cu-CuNi "T"
NiCr-Ni "K"
NiCr-CuNi "E"
NiCrSi-NiSi "N"
Pt10Rh-Pt "S"
Pt13Rh-Pt "R"

EN 60584
EN 60584
EN 60584
EN 60584
EN 60584
EN 60584
EN 60584

-150 to +900 °C

-200 to +1200 °C

-200 to +400 °C

-200 to +1372 °C

-200 to +1000 °C

-100 to +1300 °C

-40 to +1768 °C

-40 to +1768 °C

Cold junction: KTY internal

a

This information refers to the ambient temperature of 20 °C.

b

Incl. measuring accuracy at the cold junction.
The accuracy values refer to the measuring range.

RTD temperature probe input

Designation,
connection type

Pt100 EN 60751

2-wire connection
3-wire connection

Pt1000 EN 60751

2-wire connection
3-wire connection

KTY, R25 = 1000 Ω

2-wire connection

KTY, R25 = 2000 Ω

2-wire connection

Cu-50

3-wire connection

Measuring range Measuring accuracy

-200 to +650 °C

-200 to +650 °C

-50 to +150 °C

-50 to +80 °C

-50 to +200 °C

a

Measuring accuracy

b

Ambient temperature
influence

≤ 0.4 %
≤ 0.4 %
≤ 0.4 %
≤ 0.4 %
≤ 0.4 %
≤ 0.4 %
≤ 0.4 %
≤ 0.4 %

a

≤ 100 ppm/ K
≤ 100 ppm/ K
≤ 100 ppm/ K
≤ 100 ppm/ K
≤ 100 ppm/ K
≤ 100 ppm/ K
≤ 100 ppm/ K
≤ 100 ppm/ K

Ambient temperature
influence

≤ 50 ppm/K
≤ 0.4 %
≤ 0.4 %

≤ 50 ppm/K
≤ 0.4 %
≤ 0.4 %

≤ 50 ppm/K
≤ 1.0 %

≤ 50 ppm/K
≤ 1.0 %

≤ 50 ppm/K
≤ 1.0 %

2013-09-23/00600565

JUMO GmbH & Co. KG

Delivery address: Mackenrodtstraße 14

36039 Fulda, Germany

Postal address:

36035 Fulda, Germany
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.net

JUMO Instrument Co. Ltd.

JUMO House
Temple Bank, Riverway
Harlow, Essex CM20 2DY, UK
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.co.uk

JUMO Process Control, Inc.

6733 Myers Road
East Syracuse, NY 13057, USA
Phone: [phone]

1-800-554-5866
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumousa.com

Data Sheet 702030 Page 4/12

Designation,
connection type

Measuring range Measuring accuracy

a

Ambient temperature
influence

Probe wire resistance: max. 30 Ω per wire with 3-wire circuit

Measuring current: Pt100 approx. 1 mA; Pt1000 and KTY approx. 100 μA

Lead compensation: not required for 3-wire circuit. For a 2-wire circuit, the lead resistance can be compensated by correcting the actual value.

a

The accuracy values refer to the measuring range.

Input for standard signals

Measuring range Measuring accuracy

Voltage 0 to 10 V

≤ 0.4 % ≤ 150 ppm/K

Input resistance > 650 kΩ

Current 0(4) to 20 mA

≤ 0.4 % ≤ 100 ppm/K

Voltage drop > 2.2 V

a

The accuracy values refer to the maximum measuring range.

a

Ambient temperature influence

Binary input

Input for potential-free contact Open = inactive;

Closed = active

Measuring circuit monitoring

In the event of a malfunction, the outputs move to a defined (configurable) status.

Measuring probe Overrange/underrange Probe/cable short circuit Probe/cable break

Thermocouple • - •

RTD temperature probe • • •

Voltage 0 to 10V - - -

Current 4 to 20 mA • • •

Current 0 to 20 mA - - -

• = detected - = not detected

Outputs

Relay (N/O contact)

Contact rating
Contact life

Logic output 0/14V / 20mA max.

Voltage (option)

Output signal
Load resistance
Accuracy

Current (option)

Output signals
Load resistance
Accuracy

2013-09-23/00600565

Max. 3 A at 230 V AC resistive load
150,000 operations at nominal load
350,000 operations at 1
310,000 operations at 1 A and cosϕ > 0.7

0 to 10V

> 600 Ω
< 0.5 %

0 to 20 mA / 4 to 20 mA

< 450 Ω
< 0.5 %

JUMO GmbH & Co. KG

Delivery address: Mackenrodtstraße 14

36039 Fulda, Germany

Postal address:

36035 Fulda, Germany
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.net

JUMO Instrument Co. Ltd.

JUMO House
Temple Bank, Riverway
Harlow, Essex CM20 2DY, UK
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.co.uk

JUMO Process Control, Inc.

6733 Myers Road
East Syracuse, NY 13057, USA
Phone: [phone]

1-800-554-5866
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumousa.com

Data Sheet 702030 Page 5/12

Controller

Controller type Two-state controller, three-state controller, continuous controller

Controller structures P/PI/PD/PID

Sampling rate 250 ms

A/D converter 16-bit resolution

Timer

Accuracy 0.8 % ± 10 ppm/K ± 250 ms

Electrical data

Voltage supply (switch mode PSU) AC 110 to 240V +10/-15 %, 48 to 63Hz

AC/DC 20 to 30V, 48 to 63Hz

Electrical security Acc. to DIN EN 61010, part 1; overvoltage category III, pollution degree 2

Power consumption Max. 14 VA

Electrical connection On the rear via screw terminals; with core-end ferrule of a pipe shape, open cable lug or pin cable lug

Conductor cross section Fine-strand 0.25 to 1.5 mm

Tightening torque 0.5 Nm

Electromagnetic compatibility Acc. to DIN EN 61326-1

Interference emission Class A - only for industrial use -

Interference immunity Industrial requirements

Setup interface USB socket, type Mini-B 5-pole

2

Requirements for core-end ferrules and cable lugs

Core-end ferrule Pipe shape, without plastic sheath acc. to DIN 46228 part 1,

Cable lug Open crimp cable lug, dimensionally adapted to DIN 46237 for closed crimp cable lugs

Pin cable lug Acc. to DIN 46231

For UL applications Use of the cable lugs or ferrules acc. to UL 486A-B (UL listed or recognized)

with plastic sheath acc. to DIN 46228 part 4

Case and ambient conditions

Case type Plastic case for panel mounting acc to. IEC 61554 (indoor use)

Dimensions (front) LC100: 48 mm x 48 mm; LC200: 48 mm x 96 mm (portrait format);

LC300: 96 mm x 96 mm

Weight (fully fitted) LC100: approx. 150 g; LC200: approx. 200 g; LC300: approx. 300 g

Protection class Acc. to DIN EN 60529, at the front IP 65, at the rear IP 20

Operating position Any

Panel cut-out LC100: 45 mm x 45 mm; LC200: 45 mm x 92 mm;

LC300: 92 mm x 92 mm

Minimum spacing horizontal/vertical LC100: 11 mm / 30 mm (65 mm with USB cable);

LC200/LC300: 22 mm / 30 mm (65 mm with USB cable)

Depth behind panel LC100: max. 95 mm; LC200/LC300: max. 80 mm

Ambient/storage temperature range -5 to +55 °C / -40 to +70 °C

Climatic conditions Rel. humidity < 90 % annual average, without condensation

Site altitude Up to 2000 m above sea level

2013-09-23/00600565

JUMO GmbH & Co. KG

Delivery address: Mackenrodtstraße 14

36039 Fulda, Germany

Postal address:

36035 Fulda, Germany
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.net

JUMO Instrument Co. Ltd.

JUMO House
Temple Bank, Riverway
Harlow, Essex CM20 2DY, UK
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.co.uk

JUMO Process Control, Inc.

6733 Myers Road
East Syracuse, NY 13057, USA
Phone: [phone]

1-800-554-5866
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumousa.com

Interface

Interface type RS485

Protocol Modbus RTU

Baud rate 9600, 19200

Data format 8 data bits, no parity bit, 1 stop bit

Device address 0 to 254

No. of subscribers Max. 32

7-segment displays

Digit height

LC100, LC200 Upper display: 10 mm; lower display: 7 mm

LC300 Upper display: 20 mm; lower display: 13 mm

Color Upper display: red; lower display: green

Places 4 (including decimal places)

Decimal places 0, 1, 2 (configurable)

Display range -1999 to 9999

Approvals/approval marks

Data Sheet 702030 Page 6/12

Approval mark Testing agency Certificate/certification

Inspection basis Valid for

number

c UL us Underwriters Laboratories E201387 UL 61010-1,

CAN/CSA C22.2
No. 61010-1

all versions

2013-09-23/00600565

JUMO GmbH & Co. KG

Delivery address: Mackenrodtstraße 14

36039 Fulda, Germany

Postal address:

36035 Fulda, Germany
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.net

JUMO Instrument Co. Ltd.

JUMO House
Temple Bank, Riverway
Harlow, Essex CM20 2DY, UK
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.co.uk

JUMO Process Control, Inc.

6733 Myers Road
East Syracuse, NY 13057, USA
Phone: [phone]

1-800-554-5866
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumousa.com

Dimensions

45

+0.6

45

+0.6

(1)

(2)

LC100

Data Sheet 702030 Page 7/12

(1) Setup interface (USB)

on the device top

2013-09-23/00600565

(2) Panel cut-out

JUMO GmbH & Co. KG

Delivery address: Mackenrodtstraße 14

36039 Fulda, Germany

Postal address:

36035 Fulda, Germany
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.net

JUMO Instrument Co. Ltd.

JUMO House
Temple Bank, Riverway
Harlow, Essex CM20 2DY, UK
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.co.uk

JUMO Process Control, Inc.

6733 Myers Road
East Syracuse, NY 13057, USA
Phone: [phone]

1-800-554-5866
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumousa.com

LC200

92

+0.8

45

+0.8

(1)

(2)

Data Sheet 702030 Page 8/12

(1) Setup interface (USB)

on the device bottom

2013-09-23/00600565

(2) Panel cut-out

JUMO GmbH & Co. KG

Delivery address: Mackenrodtstraße 14

36039 Fulda, Germany

Postal address:

36035 Fulda, Germany
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.net

JUMO Instrument Co. Ltd.

JUMO House
Temple Bank, Riverway
Harlow, Essex CM20 2DY, UK
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.co.uk

JUMO Process Control, Inc.

6733 Myers Road
East Syracuse, NY 13057, USA
Phone: [phone]

1-800-554-5866
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumousa.com

LC300

92

+0.8

92

+0.8

(1)

(2)

Data Sheet 702030 Page 9/12

(1) Setup interface (USB)

on the device bottom

(2) Panel cut-out

Minimum spacing of panel cut-outs

Type Without USB cable With USB cable

Horizontal Vertical Horizontal Vertical

LC100 11 mm 30 mm 11 mm 65 mm

LC200 22 mm 30 mm 22 mm 65 mm

LC300 22 mm 30 mm 22 mm 65 mm

2013-09-23/00600565

JUMO GmbH & Co. KG

Delivery address: Mackenrodtstraße 14

36039 Fulda, Germany

Postal address:

36035 Fulda, Germany
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.net

JUMO Instrument Co. Ltd.

JUMO House
Temple Bank, Riverway
Harlow, Essex CM20 2DY, UK
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.co.uk

JUMO Process Control, Inc.

6733 Myers Road
East Syracuse, NY 13057, USA
Phone: [phone]

1-800-554-5866
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumousa.com

Display and control elements

(H)

(G)

(E)

(F)

(A)

(B) (C) (D)

(4)

(3) (2) (1)

(7)

(6)(5) (8)

30 V AC
50 V DC

2300 V

AC

30 V AC
50 V DC

2300 V

AC

13

14

76

12
11
10

9
8

N(L-)

5

L1(L+)

4

USB

N(L-)

L1(L+)

14
15

16
17

18
19

5

11

10

13

12

4

7
8

9

USB

N(L-)

L1(L+)

5

11

10

4

7
8

9

14
15

16
17

18
19

13

12

USB

The software version is displayed on the device when
simultaneously pressing keys (A) and (C).

Data Sheet 702030 Page 10/12

(A) Programming / one level deeper

(B) Value reduction / previous parameter

(C) Value increase / next parameter

(D) Function key / leave level

(E) Red 7-segment display (factory-set: actual value);

4-digit, configurable decimal place (automatic adjustment on display over­flow)

(F) Green 7-segment display (factory-set: setpoint value); 4-digit, configurable

decimal place; also display of level and parameter symbols

(G) LED 1 to 3(5): switching position of binary output (LED is lit = output active)

(H) LED ramp function or firing curve

Electrical isolation

(1) Analog input

(2) Binary input

(3) Setup interface (USB)

(4) Voltage supply

(5) RS485 interface

(6) Analog output

(7) Relay outputs

(8) Logic outputs

Connection diagram

The connection diagram in the data sheet provides preliminary information about the connection possibilities. For the electrical connection only
use the brief instructions or the operating manual. The knowledge and the correct technical execution of the safety information/instructions con­tained in these documents are mandatory for installation, electrical connection, and startup as well as for safety during operation.

The terminal strips on the device rear are equipped with screw terminals. Please refer to the technical data for specifications concerning the con­ductor cross section.

LC100 LC200 LC300

2013-09-23/00600565

JUMO GmbH & Co. KG

Delivery address: Mackenrodtstraße 14

36039 Fulda, Germany

Postal address:

36035 Fulda, Germany
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.net

JUMO Instrument Co. Ltd.

JUMO House
Temple Bank, Riverway
Harlow, Essex CM20 2DY, UK
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.co.uk

JUMO Process Control, Inc.

6733 Myers Road
East Syracuse, NY 13057, USA
Phone: [phone]

1-800-554-5866
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumousa.com

Data Sheet 702030 Page 11/12

+

-

U

+

-

x

I

x

+

-

xIx

U

,

-

+

U

+

-

x

RxD/TxD

+

-

AC/DC

Connection Symbol LC100 LC200/LC300

Analog input

Thermocouple 9 10

811

RTD temperature probe, 2-wire 10 9

811

RTD temperature probe, 3-wire 10 9

910

811

Voltage
DC 0 to 10 V
(usable alternatively to binary input)

Current
DC 0(4) to 20 mA

Binary input

for potential-free contact
(usable alternatively to analog input DC 0 to10 V)

Output:12312345

Analog output

DC 0 to 10 V, DC 0(4) to 20 mA

Relay output (N/O contact)
(max. 3 A at AC 230 V, resistive load)

Logic output (DC 0/14 V) 13 7 12 14 16 18

12 7

11 8

910

811

11 7

12 8

13 12

14 13

4136 412141618

5147 513151719

14 6 13151719

RS485 interface 714

615

Output 1 as standard; outputs 2 to 5 optional (options 1 to 4)

Voltage supply L1 (L+) L1 (L+)

N (L-) N (L-)

Setup interface USB socket, type Mini-B 5-pole

2013-09-23/00600565

JUMO GmbH & Co. KG

Delivery address: Mackenrodtstraße 14

36039 Fulda, Germany

Postal address:

36035 Fulda, Germany
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.net

JUMO Instrument Co. Ltd.

JUMO House
Temple Bank, Riverway
Harlow, Essex CM20 2DY, UK
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.co.uk

JUMO Process Control, Inc.

6733 Myers Road
East Syracuse, NY 13057, USA
Phone: [phone]

1-800-554-5866
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumousa.com

Order details

Data Sheet 702030 Page 12/12

(1) Basic type

702031 Quantrol LC100 (format 48 mm x 48 mm) 1x analog input (universal), 1x binary input

output (N/O contact)

702032 Quantrol LC200 (format 48 mm x 96 mm, portrait format) 1x analog input (universal), 1x binary

a

input

, 1x relay output (N/O contact)

702034 Quantrol LC300 (format 96 mm x 96 mm) 1x analog input (universal), 1x binary input

output (N/O contact)

(2) Version

X X X 8 Standard with factory settings

X X X 9 Customer-specific configuration (specifications in plain text)

(3) Option for expansion slot 1

X X X 0 Not used

X X X 1 1 relay output (N/O contact)

X X X 2 1 logic output

X X X 3 1 analog output (configurable)

(4) Option for expansion slot 2

X X X 0 Not used

X X X 1 1 relay output (N/O contact)

X X X 2 1 logic output

X X X 4 1 RS485 interface

(5) Option for expansion slot 3

X X X 0 Not used

X X 1 1 relay output (N/O contact)

X X 2 1 logic output

(6) Option for expansion slot 4

X X X 0 Not used

X X 1 1 relay output (N/O contact)

X X 2 1 logic output

(7) Voltage supply

X X X 23 AC 110 to 240 V +10/-15 %, 48 to 63 Hz

X X X 25 AC/DC 20 to 30 V, 48 to 63 Hz

a

Binary input for potential-free contact (usable alternatively to analog input DC 0 to 10 V).

a

, 1x relay

a

, 1x relay

(1) (2) (3) (4) (5) (6) (7)

Order code /- -

Order example 702034 / 8 - 3 4 1 2 - 23

Scope of delivery

1 controller in the ordered version (including seal and fastening elements)

1 Brief Instructions B 702030.7 in DIN A6 format (multilingual)

Accessories

Description Part no.

USB cable, A-connector to Mini-B-connector, length 3 m 00506252

2013-09-23/00600565
