JUMO CANtrans T
RTD temperature probe
with CANopen output

■ For temperatures from -50 to +450°C

■ Available as single or double RTD temperature probes

■ Vibration-proof design

■ Limit value monitoring

■ Configuration via standard CANopen software tools

RTD temperature probes are preferentially used for measuring temperatures in liquids and gas­es. A key feature is the reliable sealing of this installation type for vacuum and overpressure.
Areas of application are, amongst others, in medical technology, mechanical engineering, drive
technology, utility vehicles, and railroad systems.
The measuring insert is equipped with a Pt 1000 temperature sensor per DIN EN 60 751, Class
B, as a standard. The measured temperature value is digitized, linearized and provided via the
serial bus protocol CANopen for further processing (CAN slave). A large number of useful addi­tional functions are realized via the DS 404 device profile. All settings are possible via standard
CANopen software tools.

Also available, a pressure transducer with CANopen output, please refer to data sheet 40.2055

Data sheet 90.2910 Page 1/4

Technical Data

Connection Round plug M12x1, 5-pin per IEC 60 947-5-2
Process connection Threaded, stainless steel 1.4571
Sheath stainless steel 1.4571
Measuring insert Pt 1000 temperature sensor per DIN EN 60 751, Class B, two-wire circuit
Protection class IP67, per DIN EN 60 529, with connection plug screwed on
Response time t

= 12s, in water 0.2m/s

0,9

2010-06-11/00418901

JUMO GmbH & Co. KG

Delivery address: Mackenrodtstraße 14,

Postal address:
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.net

36039 Fulda, Germany
36035 Fulda, Germany

JUMO Instrument Co. Ltd.

JUMO House
Temple Bank, Riverway
Harlow - Essex CM20 2DY, UK
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.co.uk

JUMO Process Control, Inc.

8 Technology Boulevard
Canastota, NY 13032, USA
Phone: 315-697-JUMO

1-800-554-JUMO
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.us

Data sheet 90.2910 Page 2/4

CAN transducer

Protocol CiA DS 301, V4.02, CANopen Slave
Profile CiA DS 404, V1.2 Measuring Devices and Closed-Loop Controllers
Baud rate 20kBaud to 1MBaud, setting via LSS or SDO
Module ID 1 to 127, setting via LSS or SDO
PDO 0 Rx, 1 Tx
SDO 1 Rx, 1 Tx
Emergency yes
Heart Beat yes
LSS yes
SYNC yes
Operation, project planning All parameters are accessible via the CANopen object directory (EDS) and configurable via standard

CANopen software tools.

Input

Measurement input Pt 1000 DIN EN 60 751, Class B
Measurement range limits -50 to +150°C / -50 to +450°C
Measurement rate 250ms

Output

Output signal CANopen per CiA DS 404 V1.2, in °C, can be changed to °F, K

Decimal place selectable 0, 1, 2
Transmission behavior temperature linear
Electrical connection Round plug M12x1, 5-pin per IEC 60 947-5-2

Voltage supply

Voltage supply DC 10 to 30V
Current consumption max. approx. 45mA

Monitoring

Measuring circuit

- Measured value underrange (freely selectable lower limit)

- Measured value overrange (freely selectable upper limit)

Probe short-circuit

Probe break

Additional functions

min./max. measured value memory

Precise adjustment

Change-over °C, °F, K

Decimal places selectable 0, 1, 2

Environmental influences

Operating temperature range -20 to +85°C
Storage temperature range -40 to +85°C
Temperature influence ≤ ± 0.0025% / K Deviation from 22°C of the measuring range span
Accuracy Class B per DIN EN 60 751 max. ± 0.2% of the measuring range span
EMC EN 61 326
Emitted interference, interference

Class B, industrial standard
resistance

Mechanical shock per DIN IEC 68-2-27 EL 50mm -> 50g / 3 ms; EL 100mm -> 30 g / 3 ms

(for type 902910/10) EL 200mm -> 15g / 3 ms
Mechanical vibrations per DIN IEC 68-2-6 EL 50mm max. 10g at 10 to 2000Hz

(for type 902910/10) EL 100mm max. 5g at 10 to 300Hz

EL 200mm max. 2g at 10 to 100Hz

Protection class IP67, per EN 60 529, with connection plug screwed on

2010-06-11/00418901

JUMO GmbH & Co. KG

Delivery address: Mackenrodtstraße 14,

Postal address:
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.net

36039 Fulda, Germany
36035 Fulda, Germany

JUMO Instrument Co. Ltd.

JUMO House
Temple Bank, Riverway
Harlow - Essex CM20 2DY, UK
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.co.uk

JUMO Process Control, Inc.

8 Technology Boulevard
Canastota, NY 13032, USA
Phone: 315-697-JUMO

1-800-554-JUMO
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.us

Data sheet 90.2910 Page 3/4

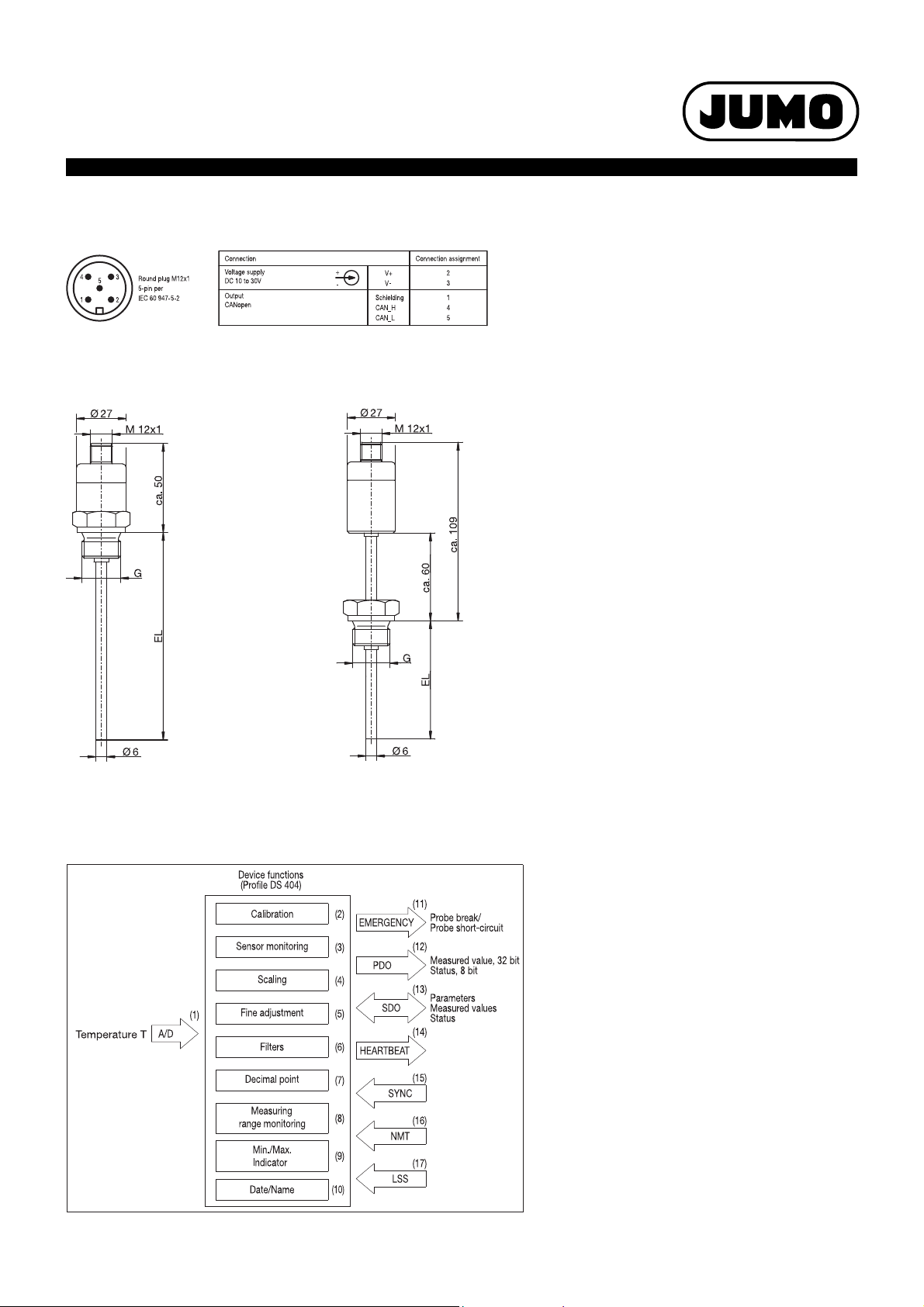

Connection diagram

Dimensions

Type 902910/10 Type 902910/12

Block diagram

Function

(1) The measured temperature value is dig-

itized.

(2) The temperature signal is digitally facto-

ry adjusted.

(3) The probe monitoring system perma-

nently checks the correct function of
the probe signal and initiates high-prior­ity emergency telegrams in the event of
an error.

(4) The measured temperature value can

be scaled to any measuring unit (or as
% of the measuring range).

(5) The precise adjustment has a freely set-

table characteristic curve offset.

(6) Undesirable signal fluctuations can be

suppressed using the configurable filter
constant.

(7) The measured value is transmitted with

a freely selectable decimal place.

(8) The measuring range monitoring has

freely selectable upper and lower limits.
The result is transmitted as a status
byte in addition to the measured value
in the PDO telegram.

(9) The fly back function saves the mini-

mum and maximum measured temper­ature value.

(10) Date and name of the last maintenance

work can be saved.

(11) The emergency telegram is initiated in

the event of a defective probe.

(12) The PDO telegram contains the 32 bit

measured value and the 8 bit status.
The measured value output can be con­trolled via various trigger conditions.

(13) SDO telegrams can be used to set pa-

rameters as well as request measured
values and the status.

(14) The heartbeat signal can be used to ad-

ditionally monitor the function of the
transducer.

(15) The Sync command can be used to ad-

ditionally control measured value trans­mission.

(16) The NMT telegrams serve to control the

operating status of the transducer.

(17) The CAN module ID and the CAN baud

rate are set optionally via LSS or SDO.

2010-06-11/00418901

JUMO GmbH & Co. KG

Delivery address: Mackenrodtstraße 14,

Postal address:
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.net

36039 Fulda, Germany
36035 Fulda, Germany

JUMO Instrument Co. Ltd.

JUMO House
Temple Bank, Riverway
Harlow - Essex CM20 2DY, UK
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.co.uk

JUMO Process Control, Inc.

8 Technology Boulevard
Canastota, NY 13032, USA
Phone: 315-697-JUMO

1-800-554-JUMO
Fax: [phone]
E-mail: [e-mail]
Internet: www.jumo.us

Order details: JUMO CANtrans T RTD temperature probe with CANopen output

(1) Basic type

Data sheet 90.2910 Page 4/4

902910/10

RTD temperature probes
with CANopen output

RTD temperature probes

902910/12

with CANopen output,
Neck tube for higher temperatures

(2) Operating temperature in °C

x 370 -50 to +150°C

x 404 -50 to +450°C

(3) Measuring insert

x x 1005 1x Pt 1000
x x 2005 2x Pt 1000

(4) Tolerance class per DIN EN 60 751

xx 1 Class B (standard)
xx 2 Class A

(5) Sheath diameter D in mm

xx 6 Ø 6mm

(6) Fitting length EL in mm (50 ≤ EL ≤ 500)

x x 50 50mm
x x 100 100mm
x x 150 150mm
x x 200 200mm
x x 250 250mm
x x ... Please specify in plain text (50mm steps)

(7) Process connection

x x 102 Screw connection thread 1/4“ pipe
x x 103 Screw connection thread 3/8“ pipe
x x 104 Screw connection thread 1/2“ pipe
x x 121 Screw connection M14x1.5
x x 126 Screw connection M18x1.5
x x 128 Screw connection M20x1.5
x x 144 Screw connection thread 1/2“-14NPT pipe

(8) Extra codes

x x 000 None
x x 100 Customer-specific factory setting
x x 310 Sheath stepped down

Order code ------/ , ...

(1) (2) (3) (4) (5) (6) (7) (8)

1

Order example 902910/10 - 370 - 1005 - 1 - 6 - 50 - 102 / 000

Accessories
for RTD temperature probe with CANopen output

Sales

No.:

5-pin contact box M12x1, straight, with fixed gated connection line, length 5m 90/00337625
5-pin contact box M12x1, angled, with fixed gated connection line, length 2m 90/00375164
5-pin contact box M12x1, straight, without connection line to be patched by the customer 90/00419130
5-pin contact box M12x1, angled, without connection line to be patched by the customer 90/00419133
T-shaped piece 90/00419129
Termination resistor for CANopen bus, with plug M12x1 40/00461591
Extension line, length 2m, 5-pin, with plug and socket M12x1 90/00461589
PC-CAN interface for USB interface 40/00449941
PC configuration software for CANopen 40/00449942
EDS files on disk 90/00434520
EDS files, per download (www.jumo.net, see product information) ­Operating manual, per download (www.jumo.net, see product information) -

1

List extra codes in sequence, separated by commas.
