Jumbuck HS-Gens-310 Assembly Instructions Manual
For outdoor use only.
Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death.
Read the installation instructions thoroughly before
installing this equipment.
Warning: accessible parts may be very hot. Keep young
children away.
Do not move the appliance during use.
Any modification of the appliance may be dangerous.
Installer to leave instructions with the consumer and
consumer to retain them for future reference.
Dispose of all polythene packing carefully and keep out of
the reach of children
This appliance must only be used in an above
ground open-air situation with natural ventilation,
without stagnant areas, where products of
combustion are rapidly dispersed by
wind and natural convection
This BBQ is an outdoor appliance only. Under no
circumstances should it be use indoors.
Do not store chemicals or flammable materials
near this appliance.
Unsupervised children should not be near the
BBQ while cooking or during warm up or cool
down.
People with flammable clothing such as nylon
etc. should keep well away from the BBQ when it
is operating.
DO NOT OPERATE THIS APPLIANCE
BEFORE READING THE
INSTRUCTION BOOKLET
DO NOT PLACE ARTICLES ON OR
AGAINST THIS APPLIANCE
DO NOT STORE CHEMICALS OR
FLAMMABLE MATERIALS OR
SPRAY AEROSOLS NEAR THIS
APPLIANCE
DO NOT OPERATE THIS APPLIANCE
INDOORS
DO NOT ENCLOSE THIS APPLIANCE
DO NOT LIGHT OR OPERATE WITH THE
COVER ON(COVER NOT
INCLUDED)
Jumbuck HS-Gens-310
Charcoal BBQ Grill & Smoker
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT: READ THE ASSEMBLY INSTRUCTIONS IN THIS
BOOKLET BEFORE REMOVING THE CONTENTS OF
THIS CARTON
IMPORTANT SAFETY INSTRUCTIONS
Lighting the Charcoal BBQ
solid fuel is to be used for this product (fire
wood, charcoal etc.)
place solid fuel onto the charcoal grid and
light using fire starters
let the solid fuel light (check occasional to
ensure fire is lit)
ensure air vents are in the open position to
enable solid fuel to burn
the air vent on the BBQ can be used
regulate the air circulation in the BBQ
closing the vent will reduce air circulation
and in turns reduces heat
opening the vent will increase air
circulation and increases heat
Cooking
ensure solid fuel is lit and that there is
sufficient heat for cooking
place food on the cooking grill
regularly monitor temperature to ensure
food is not under or over cooked
Cleaning
once finished cooking, remove left over
solid fuel from the BBQ
always ensure BBQ is clean and free from
oil or grease (internally and externally) to
ensure longevity of the BBQ
always keep BBQ dry and under cover to
protect from weather and moisture
Pre-caution
always ensure hands are protected when
putting or removing food from the BBQ
always ensure BBQ is cool before touching
or cleaning the internal areas
always ensure hands are protected when
making adjustments to the air vent
do not use flammable liquids for igniting
and re-igniting
open flames and burning embers must
never be left unattended
after use, make sure the BBQ is allowed to
cool before moving
Important Notes
do not use this BBQ indoors.
do not use this BBQ inside a tent, gazebo
or within a confined space.
this BBQ will become very hot during and
for some time after use. Keep children
away from the BBQ and do not touch
metal parts of the BBQ when in use
use suitable gloves for protection,
especially when loading the BBQ with coal
or charcoal
we recommend protecting your BBQ when
not in use with a cover to protect it from
weather exposure
Parts Number
Parts Name
Parts Code
1
Hood
GEN-310-01
2
Hood Handle
GEN-310-02
3
Temperature Gauge
GEN-310-03
4
Air Vent
GEN-310-04
5
Chimney
GEN-310-05
6
Hood Hinge
GEN-310-06
7
Cooking Grill
GEN-310-07
8
Charcoal Grid
GEN-310-08
9
Hood Hinge Support
GEN-310-09
10
BBQ Body
GEN-310-10
11
Leg
GEN-310-11
EXPLODED VIEW
PARTS CODE
Reference#
Description
Part#
Illustration
Quantity
1
Hood
GEN-310-01
1
2
Hood Handle
GEN-310-02
1
3
Temperature
Gauge
GEN-310-03
1
4
Air Vent
GEN-310-04
4
5
Chimney
GEN-310-05
1
6
Hood Hinge
GEN-310-06
2
7
Cooking Grill
GEN-310-07
1
8
Charcoal Grid
GEN-310-08
1
9
Hood Hinge
Support
GEN-310-09
2
10
BBQ Body
GEN-310-10
1
11
Leg
GEN-310-11
2

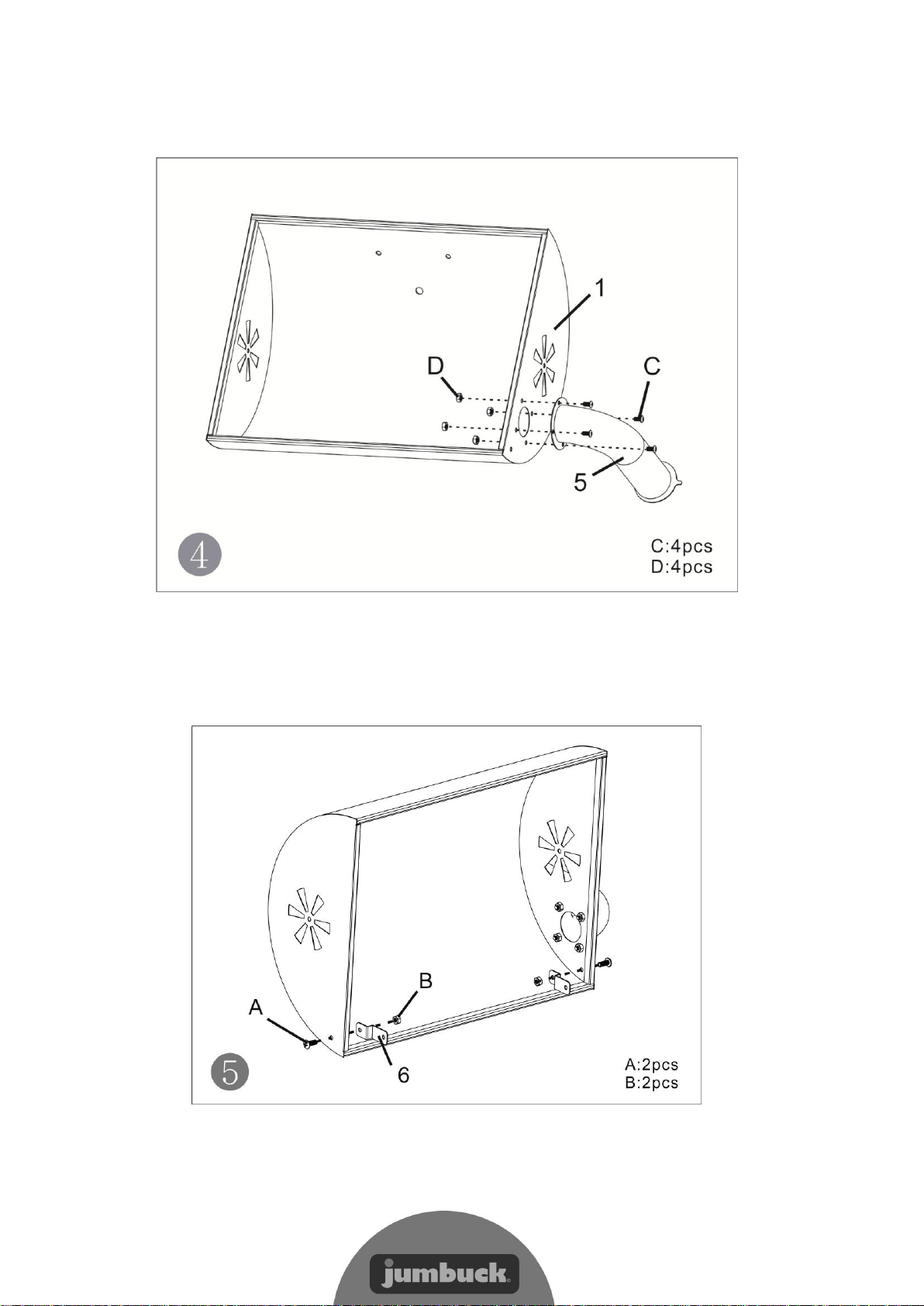

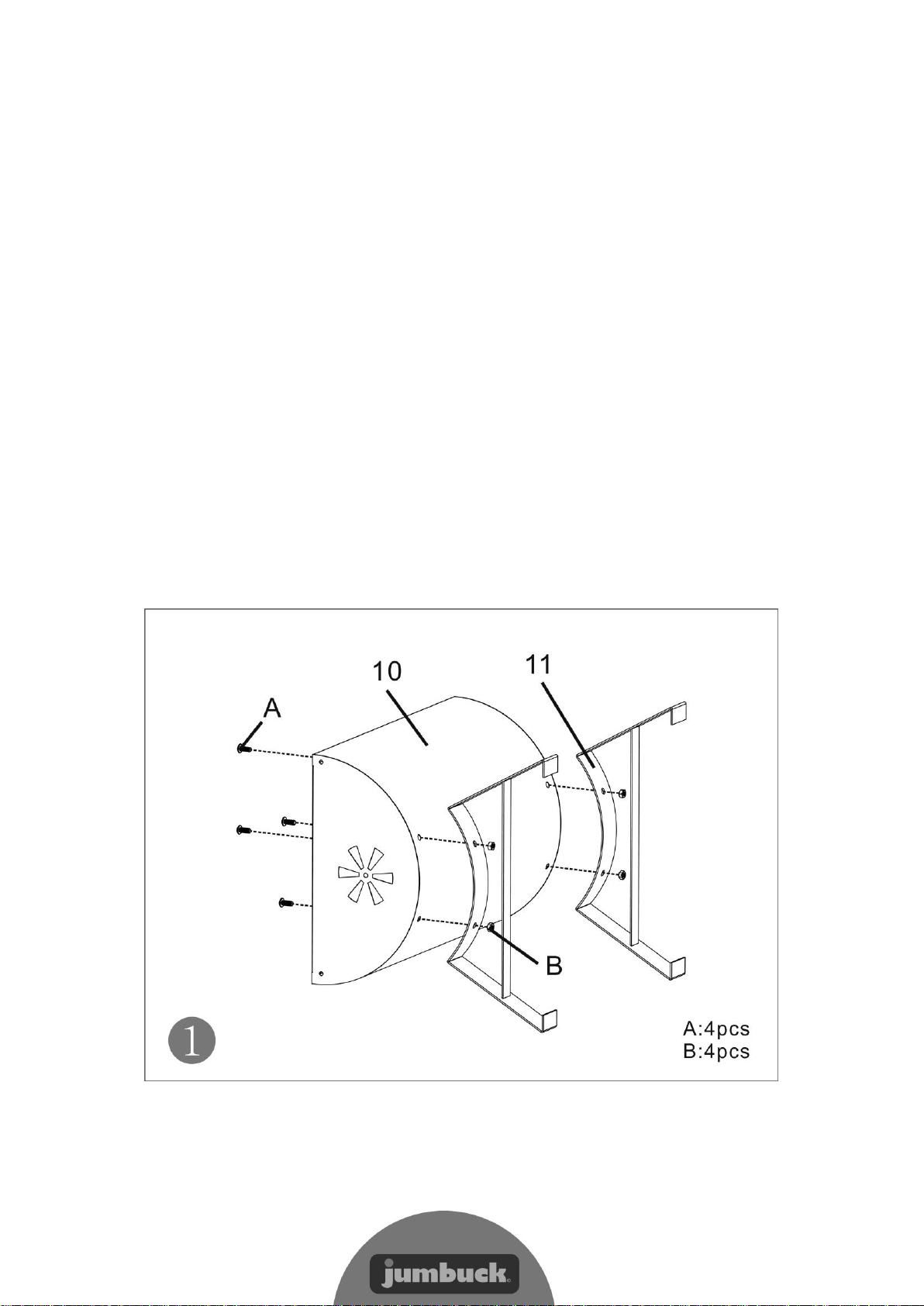

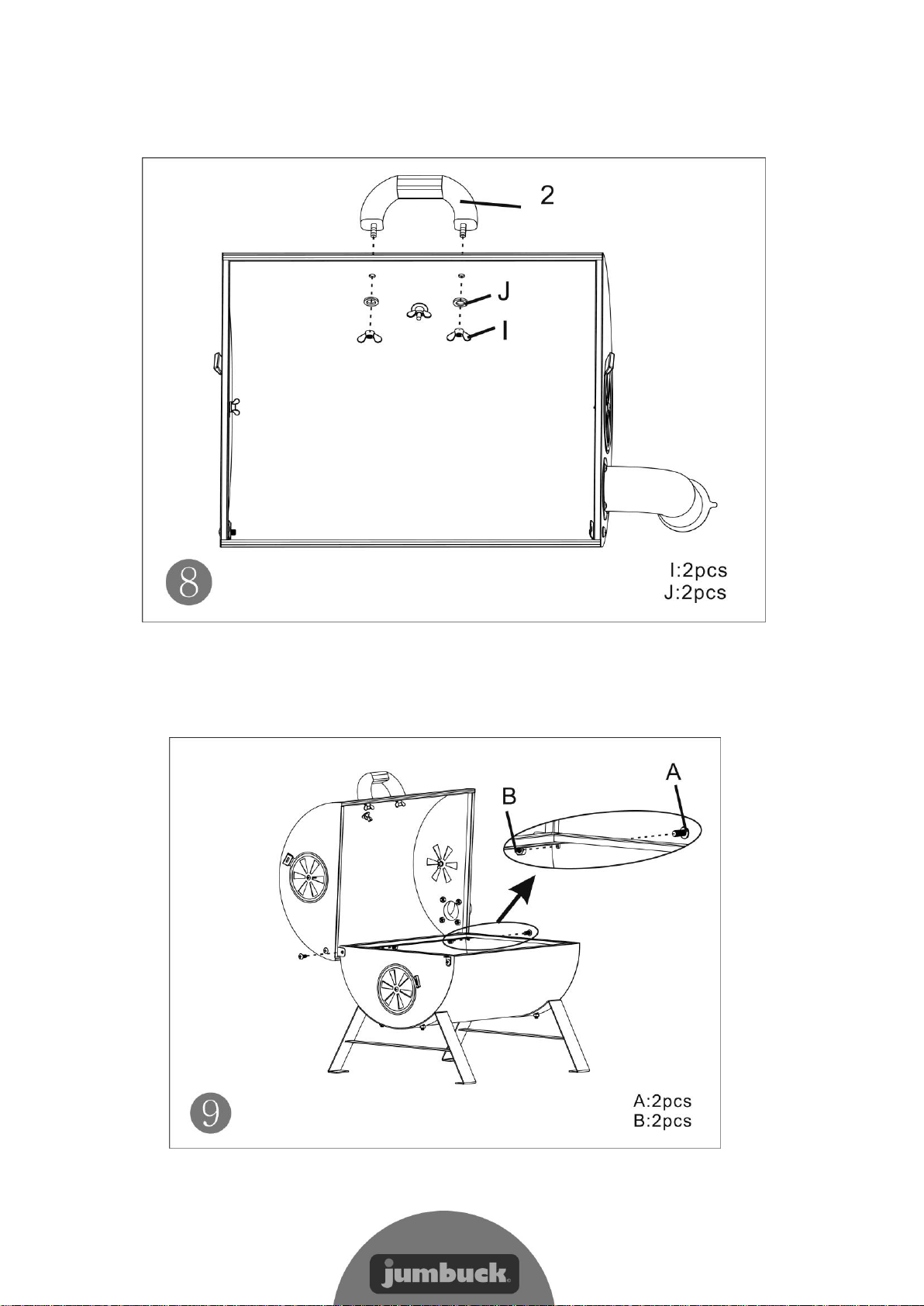

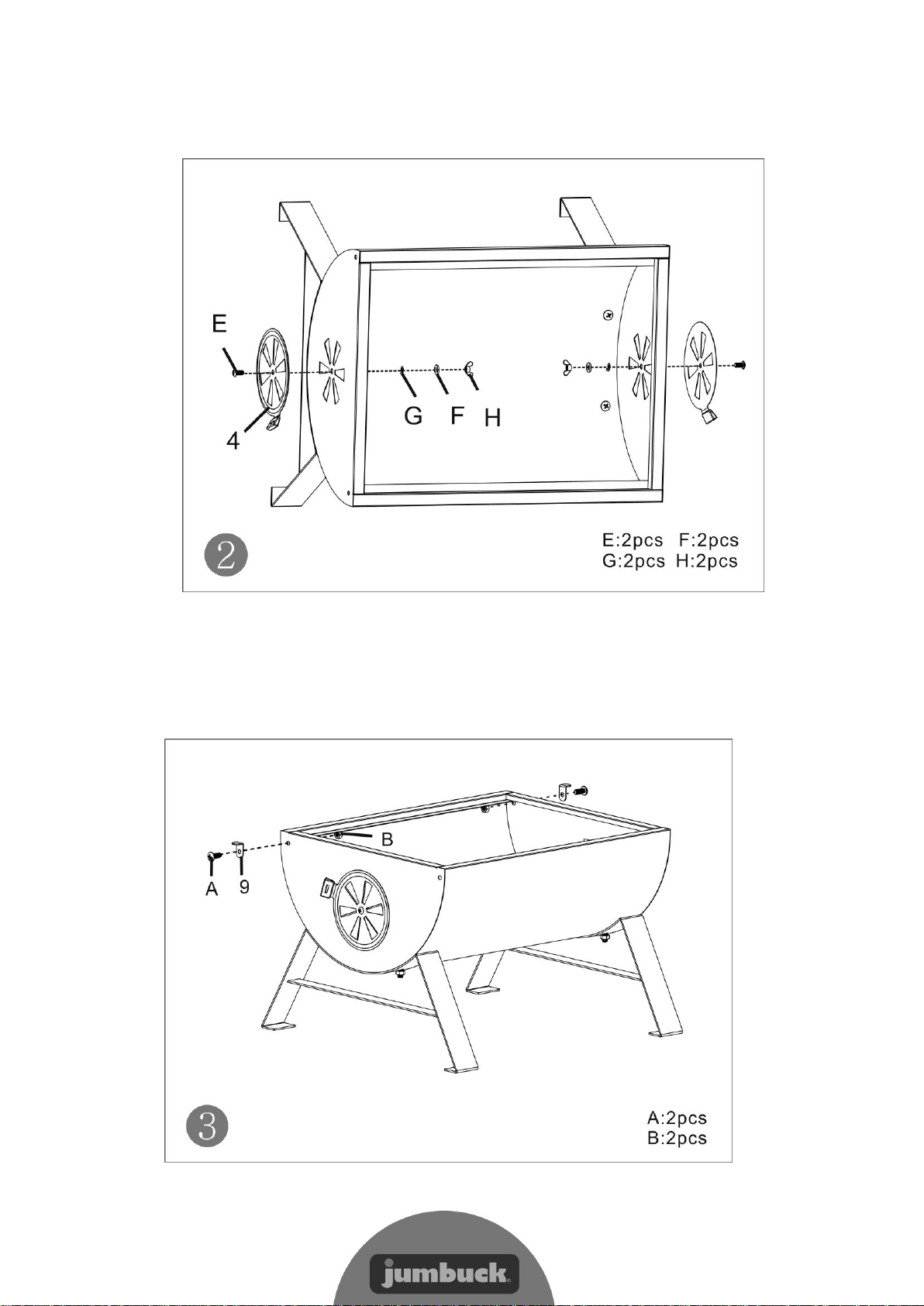

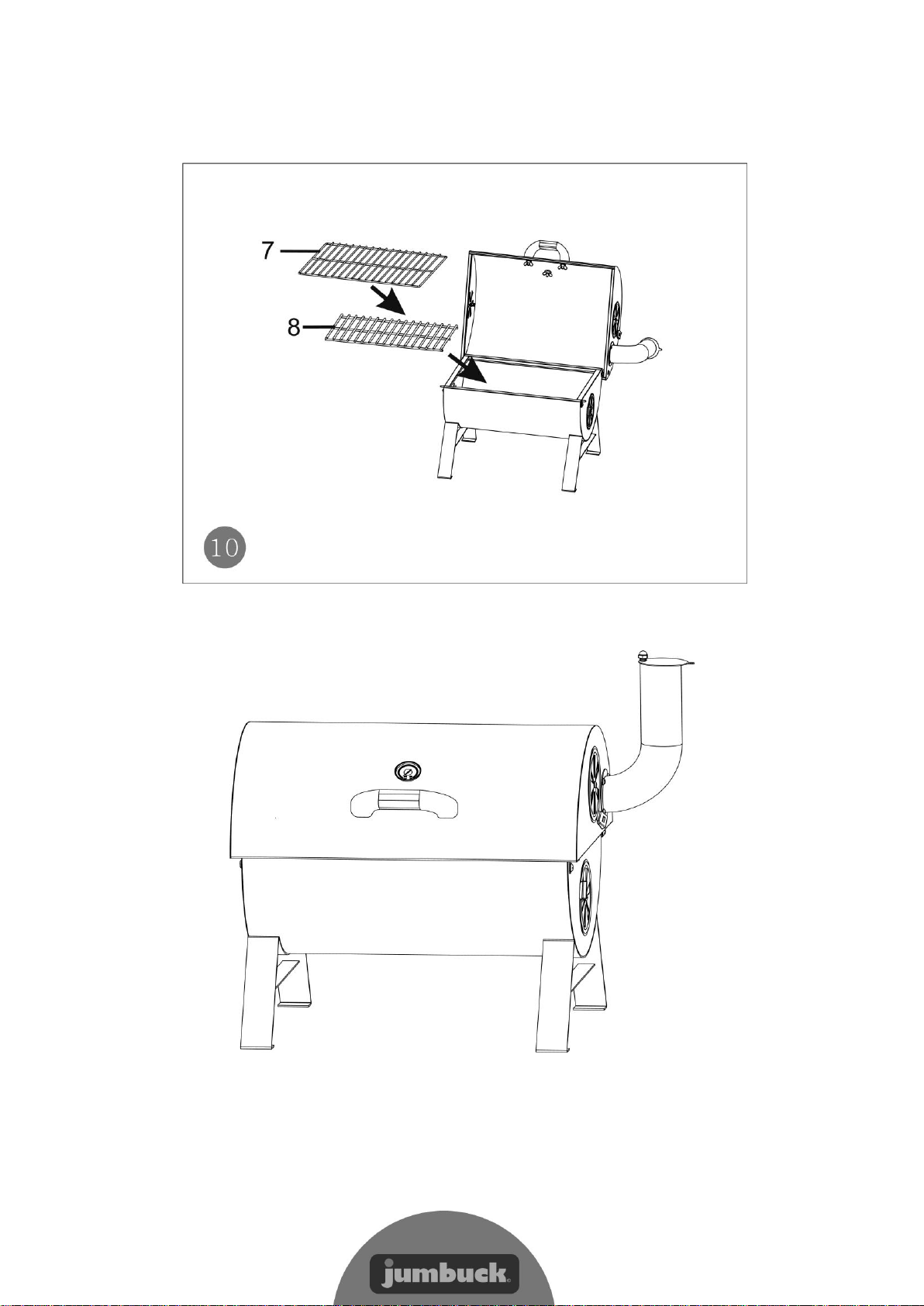

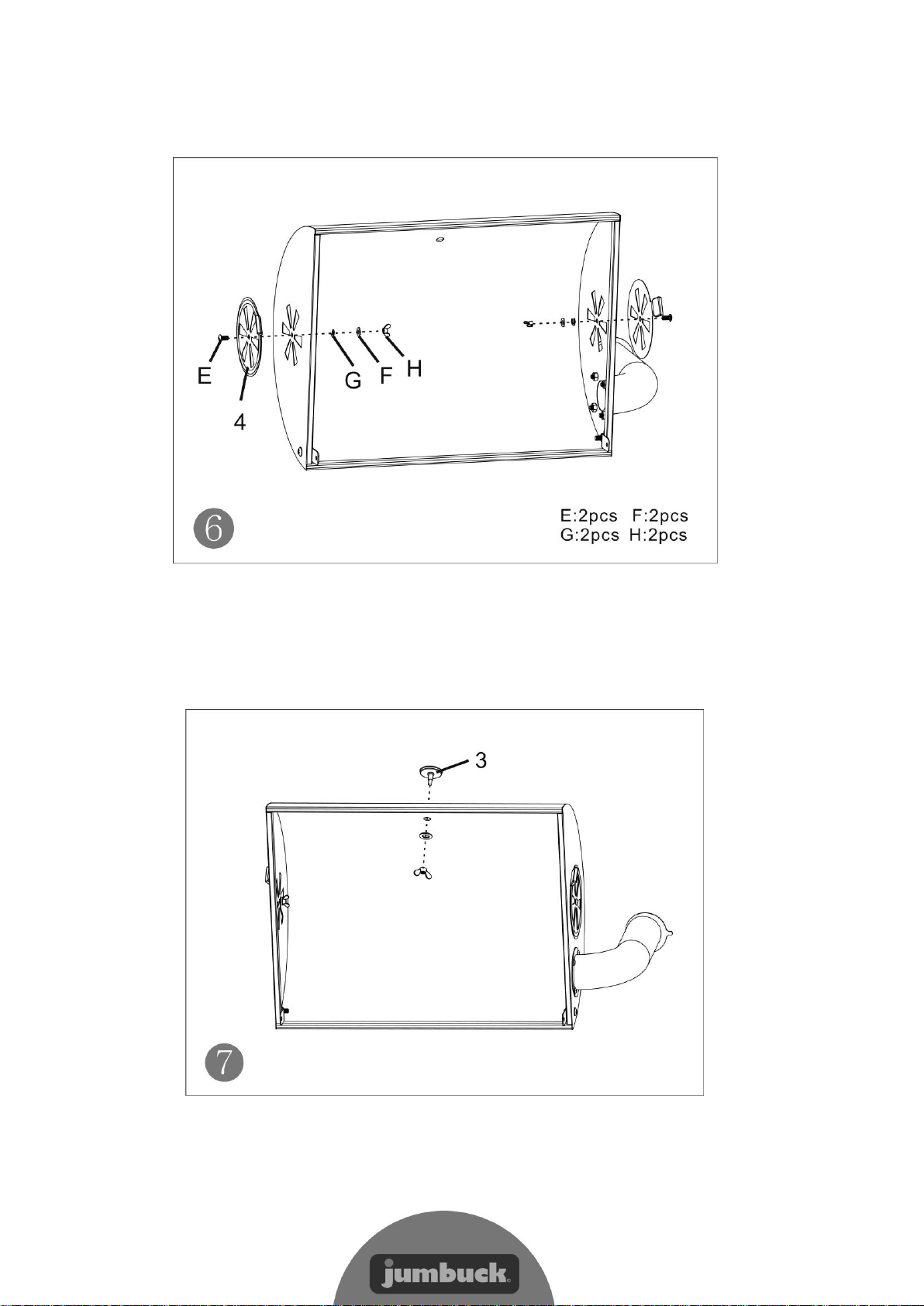

CARTON CONTENTS
