Jumbuck HS-FP002 User Manual
IMPORTANT! PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USE!
IMPORTANT: READ THE ASSEMBLY INSTRUCTIONS IN THIS BOOKLET
BEFORE REMOVING THE CONTENTS OF THIS CARTON
IMPORTANT SAFETY INSTRUCTIONS
JUMBUCK RONDO MEDIUM 3180887
CHARCOAL SPIT ROASTER (HS-FP002)
SAFETY INSTRUCTIONS
FOR
OUTDOOR
USE ONLY
For outdoor use only.
Improper installation, adjustment, alteration, service or maintenance can
cause property damage, injury or death.
Read the installation instructions thoroughly before installing this equipment.
Warning: accessible parts may be very hot. Keep young children away.
Do not move the appliance during use.
Any modification of the appliance may be dangerous and will void the
warranty.
Installer to leave instructions with the consumer and consumer to retain them
for future reference.
Please ensure all packaging and transit protection materials are removed prior
to using the spit roaster.
This appliance must only be used in an above
ground open-air situation with natural ventilation,
without stagnant areas, where products of
combustion are rapidly dispersed by
wind and natural convection
This SPIT ROASTER is an outdoor appliance only.
Under no circumstances should it be use indoors.
Do not store chemicals or flammable materials
near this appliance.
Unsupervised children should not be near the
SPIT ROASTER while cooking or during warm up
or cool down.
People with flammable clothing such as nylon
etc. should keep well away from the SPIT
ROASTER when it is operating.
DO NOT OPERATE THIS APPLIANCE
BEFORE READING THE
INSTRUCTION BOOKLET
DO NOT PLACE ARTICLES ON OR
AGAINST THIS APPLIANCE
DO NOT STORE CHEMICALS OR
FLAMMABLE MATERIALS OR
SPRAY AEROSOLS NEAR THIS
APPLIANCE
DO NOT OPERATE THIS APPLIANCE
INDOORS
DO NOT ENCLOSE THIS APPLIANCE
DO NOT LIGHT OR OPERATE WITH THE
COVER ON(COVER NOT INCLUDED)
SPIT ROASTER OPERATING GUIDELINES
Lighting the spit roaster
solid fuel is to be used for this product (fire
wood, charcoal etc.)
place solid fuel into the spit roaster and light
using fire starters
let the solid fuel light (check occasional to
ensure fire is lit)
Cooking
ensure solid fuel is lit and that there is
sufficient heat for cooking
secure the food on the skewer, position skewer
at desired height and switch on the motor
the cooking grid can also be used to cook
regularly monitor temperature to ensure food
in not under or over cooked
Cleaning
once finish cooking, remove left over solid fuel
from the spit roaster
always ensure spit roaster is clean and free
from oil or grease (internally and externally) to
ensure longevity of the spit roaster
always keep spit roaster dry and under cover to
protect from weather and moisture
Pre-caution
always ensure hands are protected when
putting or removing food from the spit roaster
always ensure spit roaster is cool before
touching or cleaning the internal areas
always ensure hands are protected when
making adjustments to the air vent
do not use flammable liquids for igniting and
re-igniting
open flames and burning embers must never
be left unattended
after use, make sure the unit is allowed to cool
before moving

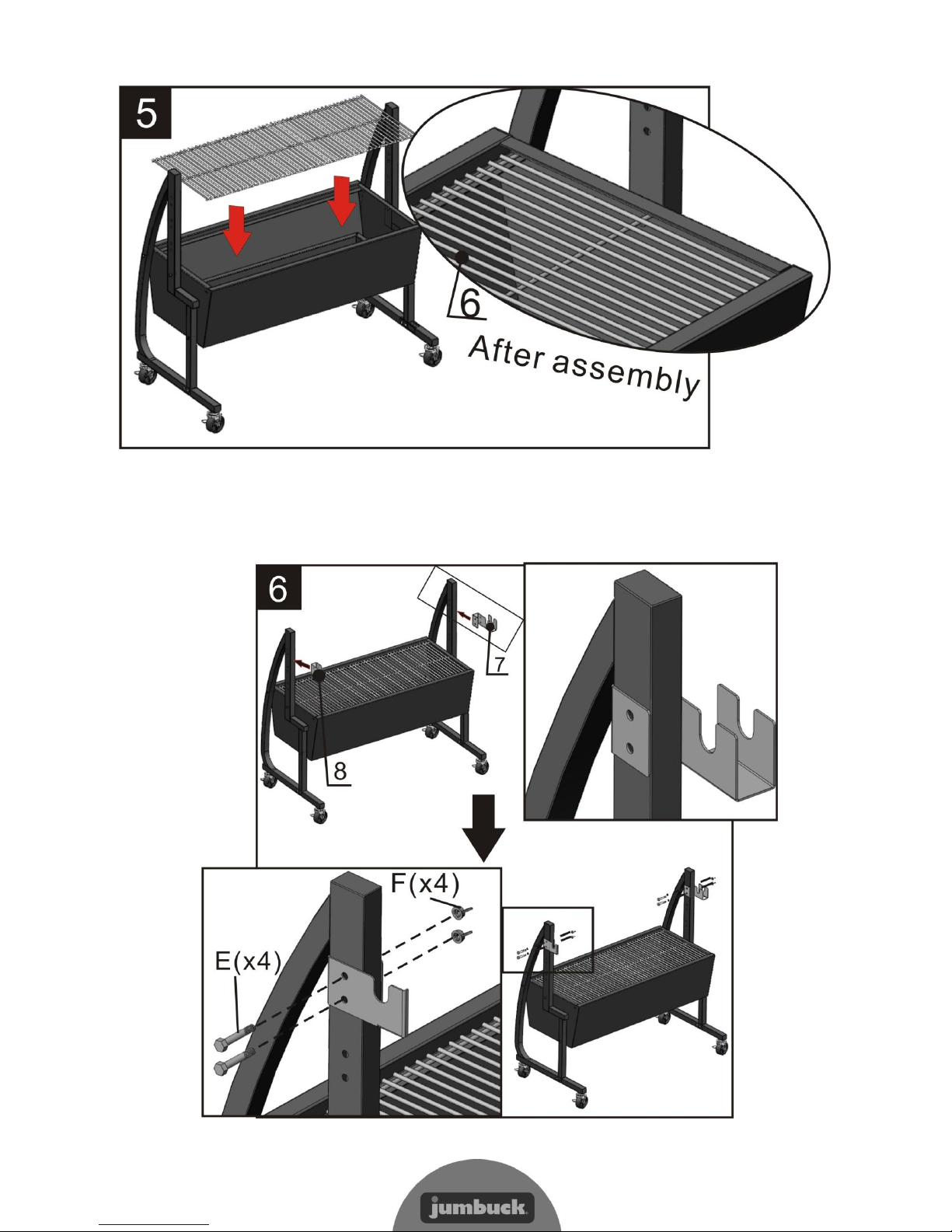

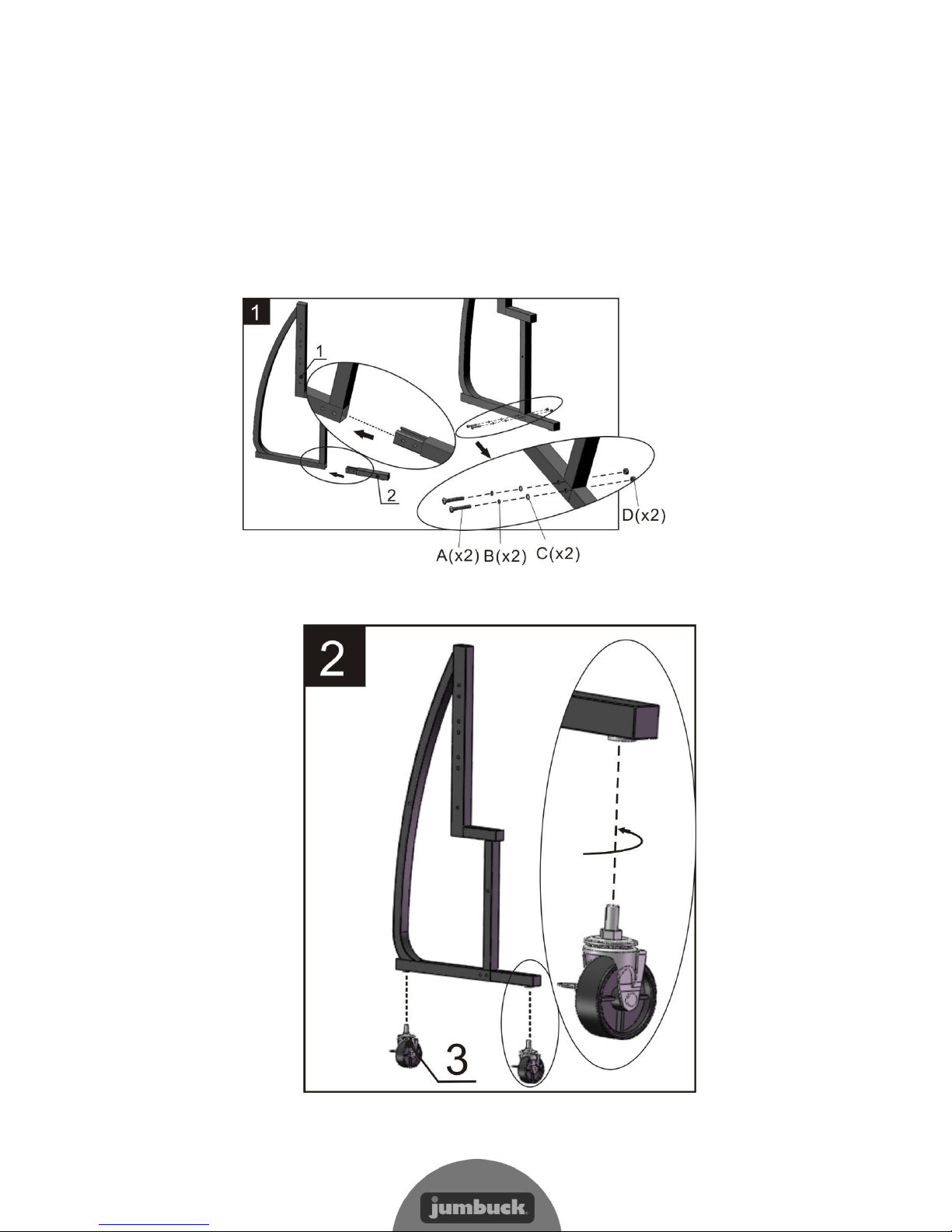

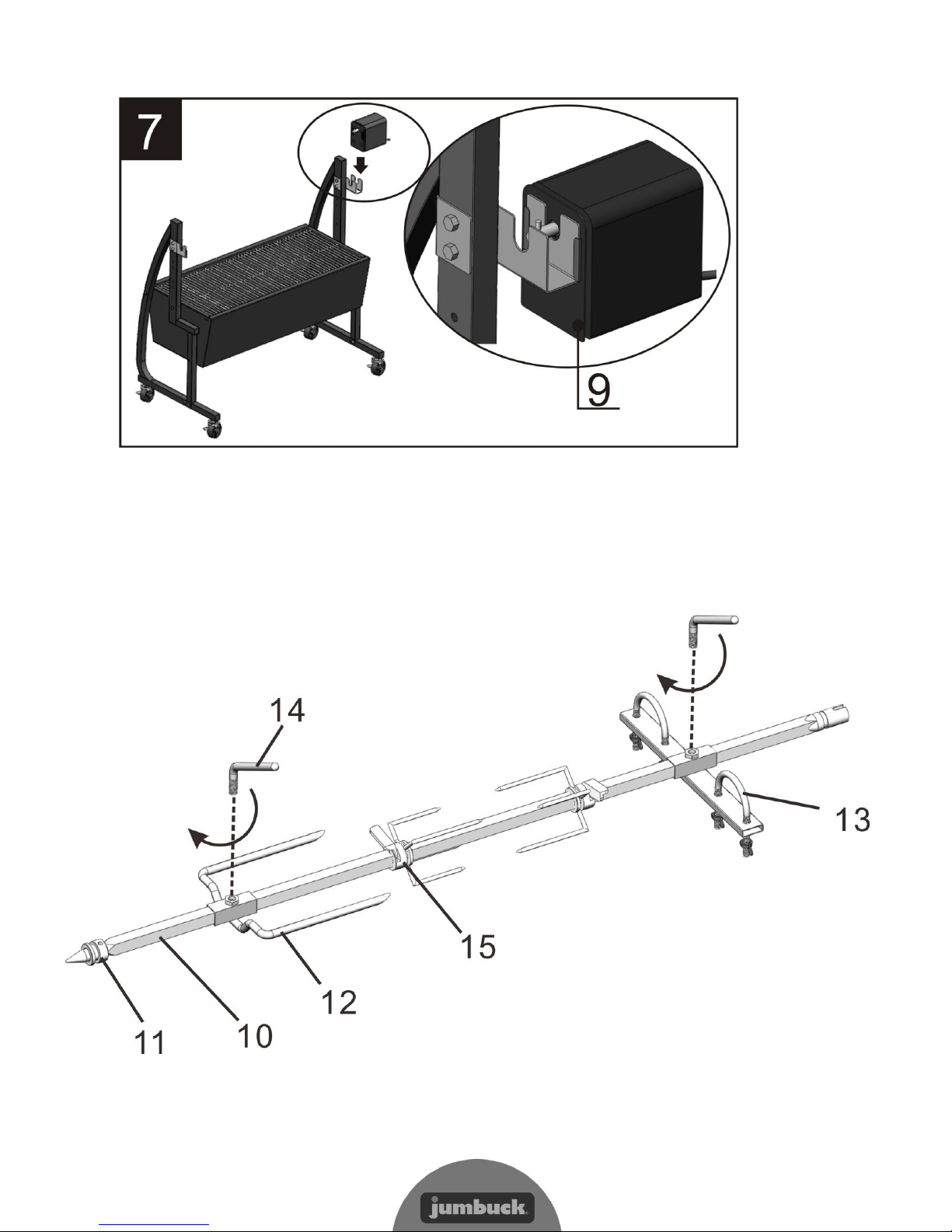

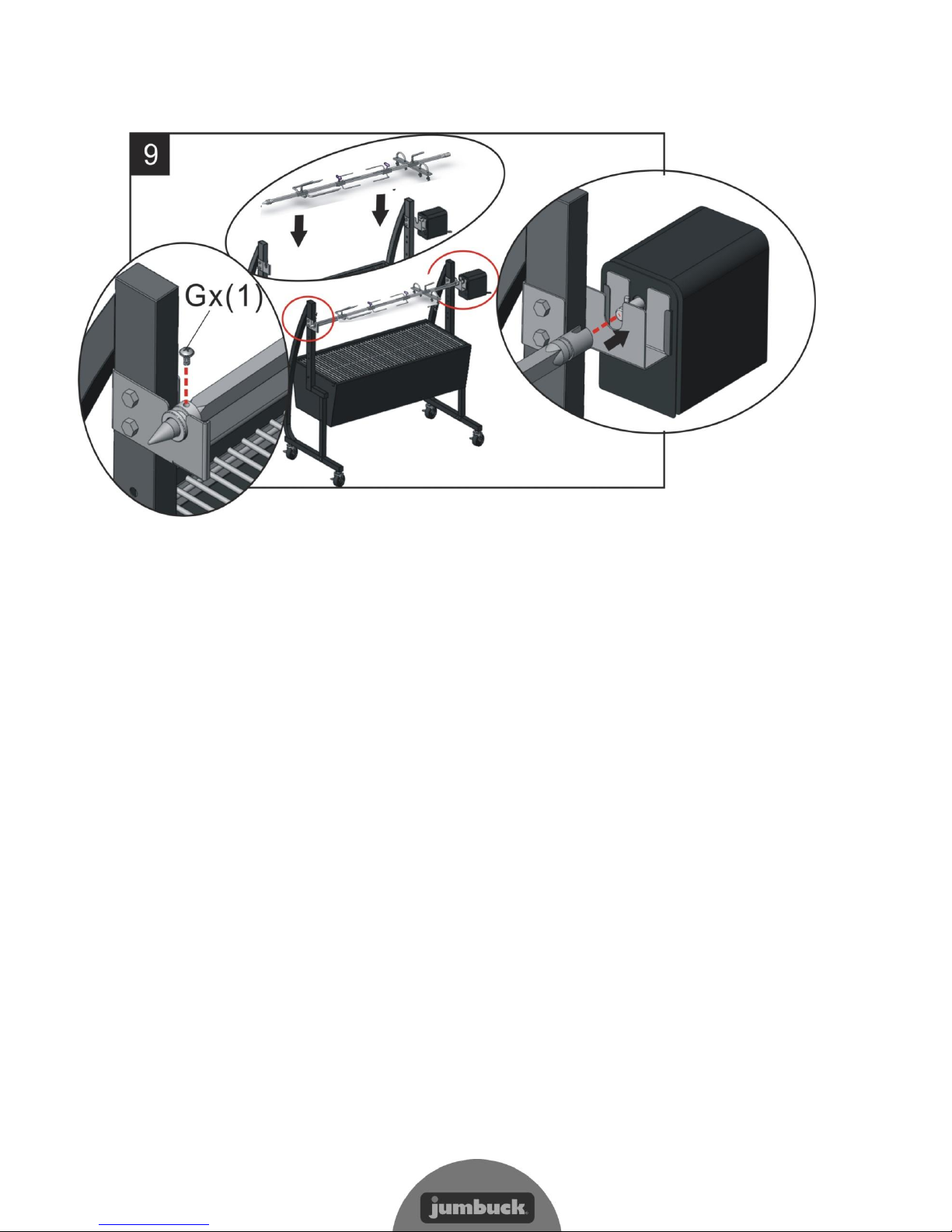

EXPLODED VIEW AND PARTS CODE
Part Number
Parts Description
Parts Code
1
Leg Back Asm
FP00201
2
Front Leg
FP00202
3
Wheel
FP00203
4
Body Asm
FP00204
5
Carbon Box
FP00205
6
Cooking Grid
FP00206
7
Right Motor Support
FP00207
8
Left Motor Support
FP00208
9
Motor
FP00209
10
Rotisserie Rod
FP00210
11
Rotisserie Brace
FP00211
12
Large Rotisserie Prong
FP00212
13
Rotisserie Support
FP00213
14
Rotisserie Handle
FP00214
15
Small Rotisserie Prong
FP00215

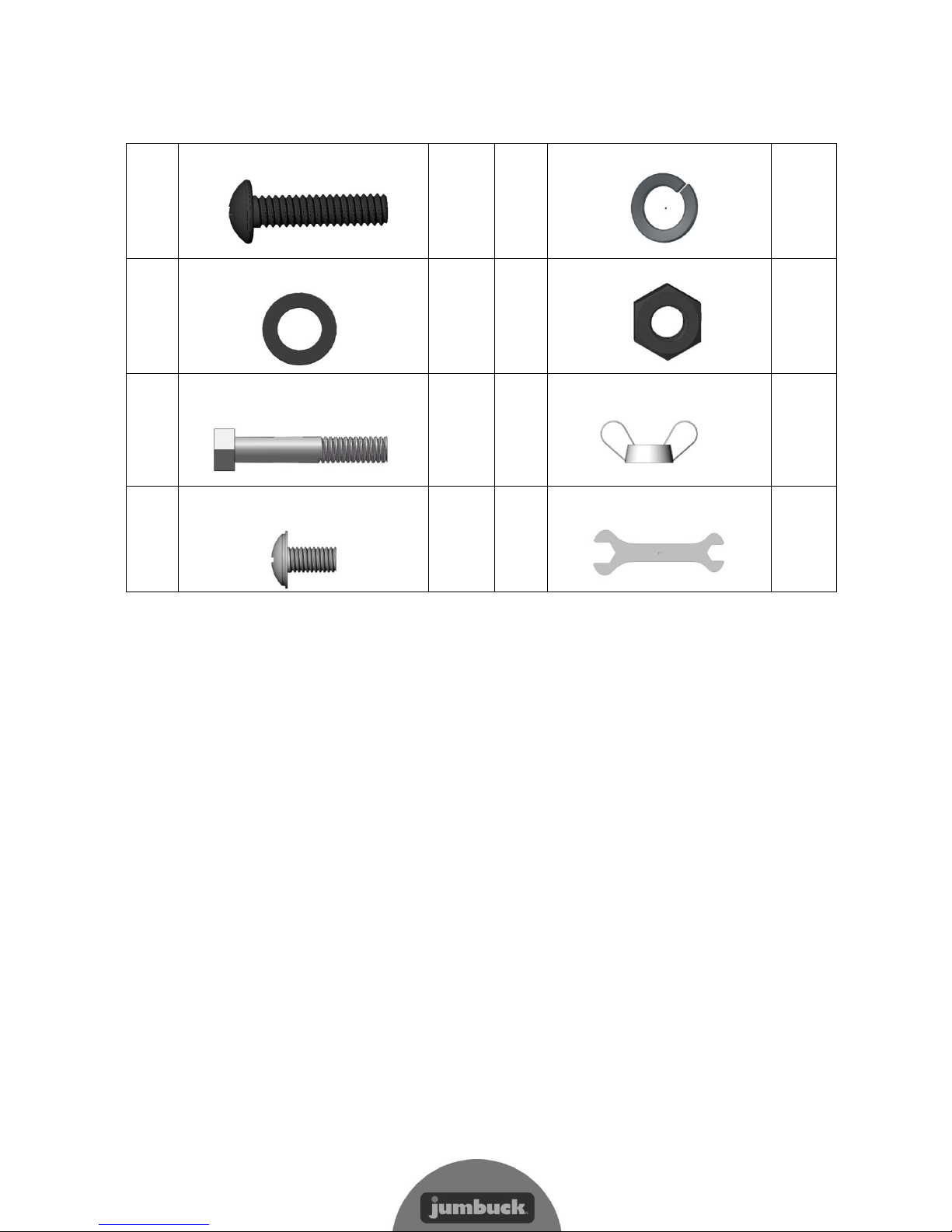

CARTON CONTENTS
1. Leg Back Asm ........ 2pcs
2.Front Leg.....….......... 2pcs
3. Wheel...…..…. 4pcs
4. Body Asm..………1pc
5. Carbon Box…….....1pc
6. Cooking Grid ..….…...2pcs
7.Right Motor Support…1pc
8.Left Motor Support…….1pc
9．Motor ……….1pc
10. Rotisserie Rod……….1pc
11. Rotisserie Brace…….1pc
12. Large Rotisserie Prong…….1pc
13.Rotisserie Support….1pc
14.Rotisserie Handle….2pcs
15. Small Rotisserie Prong….2pcs
