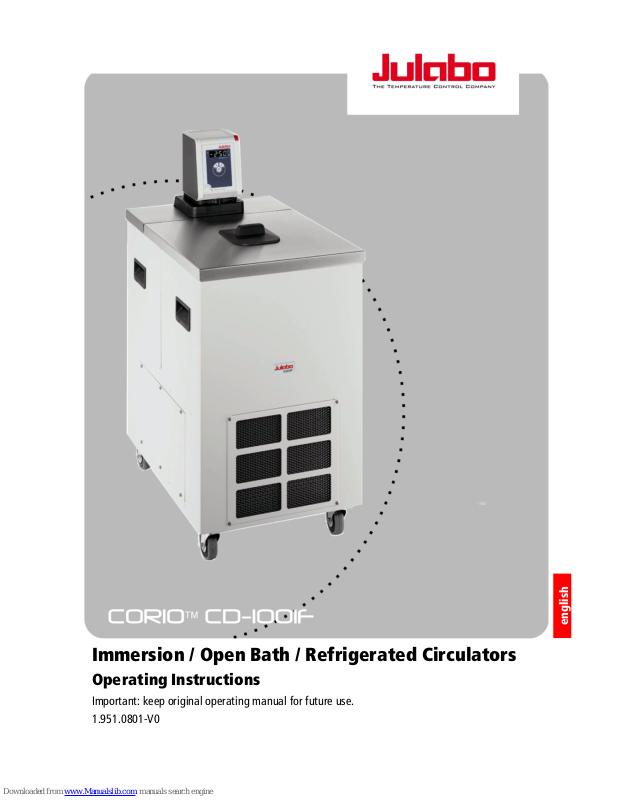

Immersion / Open Bath / Refrigerated Circulators

Operating Instructions

Important: keep original operating manual for future use.

1.951.0801-V0

2

Table of contents

1 Intended use ........................................................................................ 5

2 Description ........................................................................................... 6

3 Explanation of safety information ..................................................... 7

3.1 Explanation of other information ............................................................ 7

4 Safety instructions .............................................................................. 8

5 Operator's responsibility - safety instructions ............................... 10

5.1 Requirements for the operating personnel ............................................ 10

5.2 Operating and ambient conditions for using the unit ............................ 10

5.3 Operating the unit ................................................................................. 11

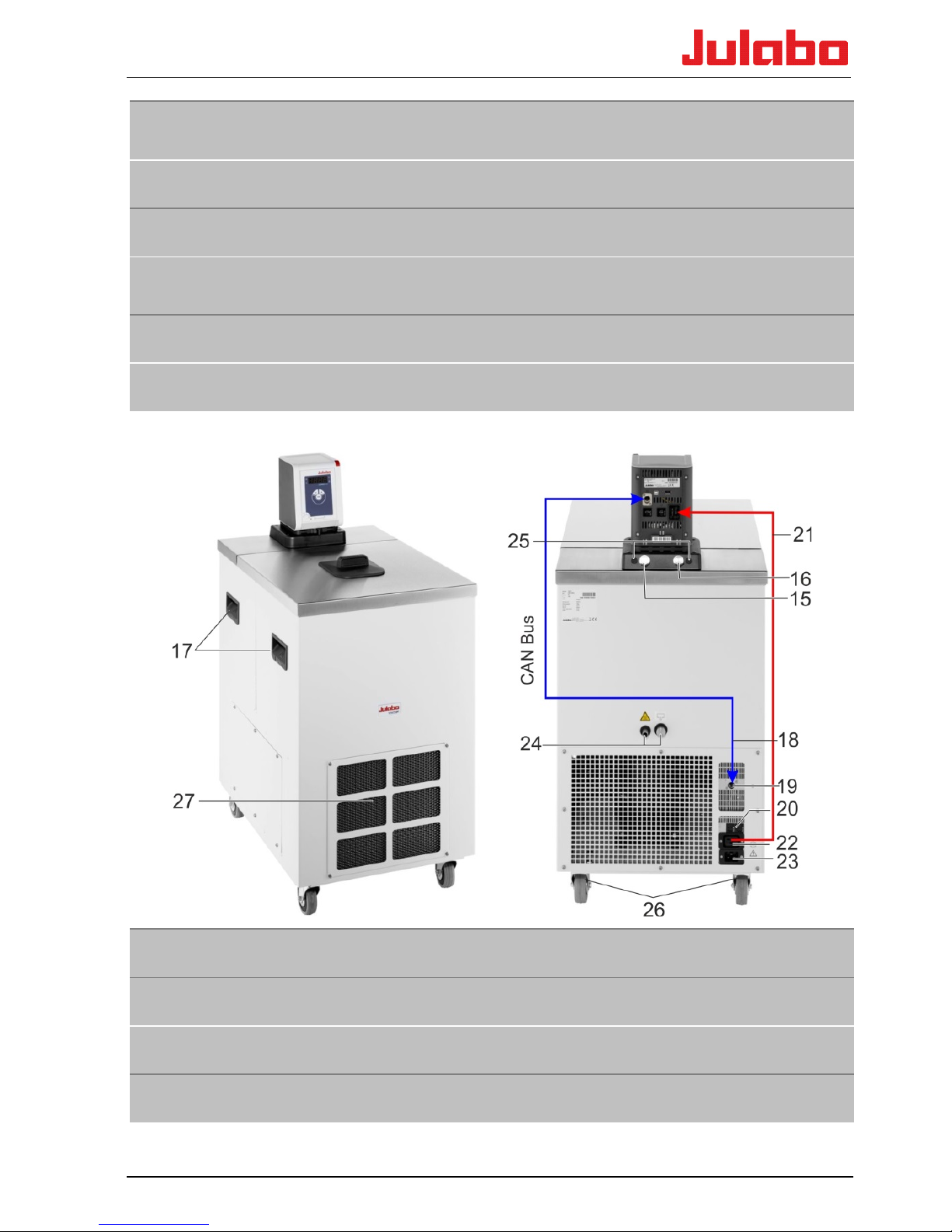

6 Control and function elements......................................................... 12

6.1 Installation of the circulator .................................................................. 15

6.2 Bath fluids ............................................................................................. 15

7 Commissioning .................................................................................. 17

7.1 Excess temperature and low level safety devices .................................. 18

7.2 Filling the 1001F ................................................................................... 19

7.3 Filling quantities and shut-off criteria ................................................... 19

7.4 Switching on / Start - Stop .................................................................... 20

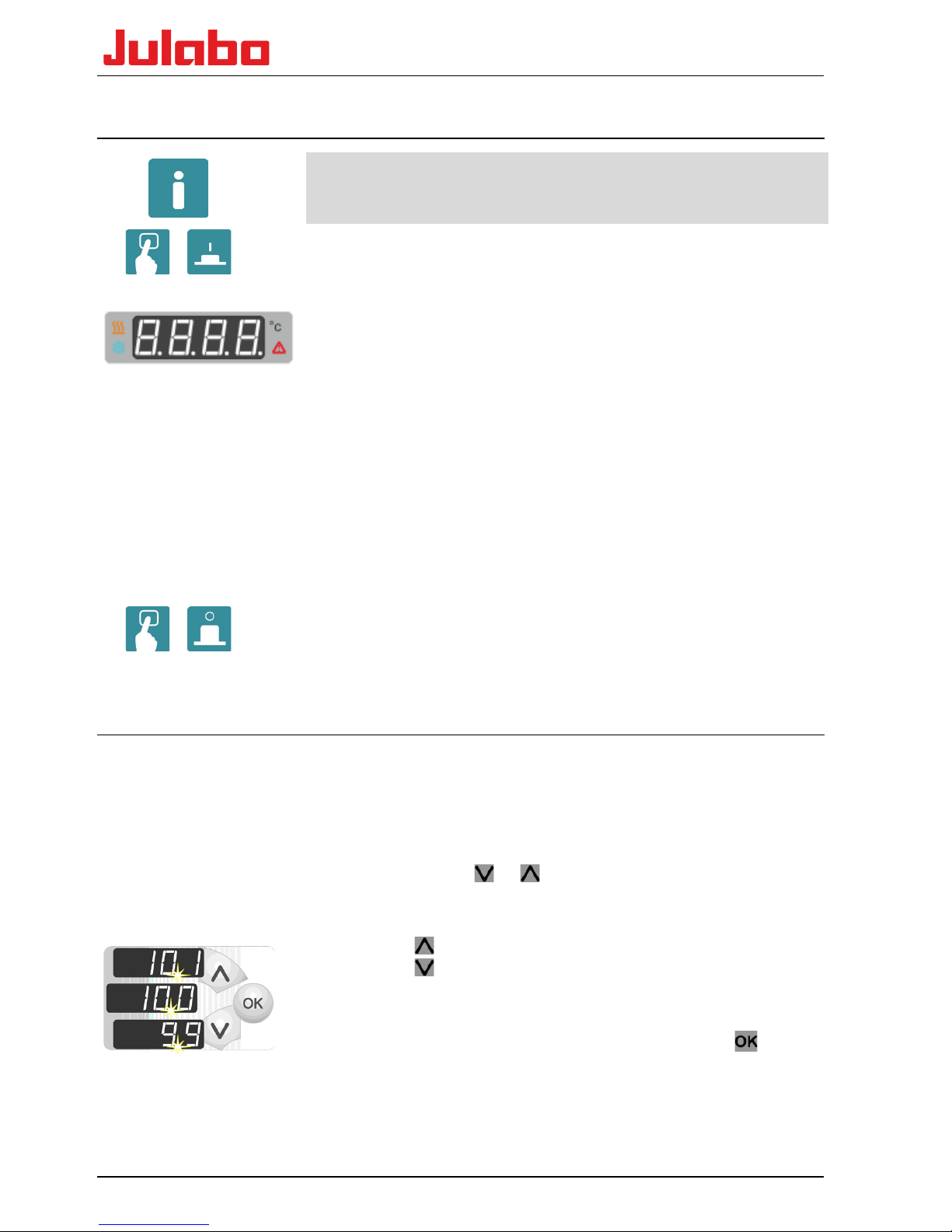

7.5 Adjusting of temperature setpoint ........................................................ 20

7.6 ATC - Absolute Temperature Calibration (1-point calibration) .............. 21

7.7 Switch Autostart on and off .................................................................. 22

8 Error messages / Possible causes of faults ...................................... 22

9 Operation of the CORIO CD via the USB interface .......................... 26

10 Emptying the bath tank .................................................................... 28

11 Technical data .................................................................................... 29

11.1 Technical data for circulator .................................................................. 29

11.2 Technical data for refrigeration circulation circulator ............................ 30

11.3 Refrigerant ............................................................................................ 31

12 Materials of parts in contact with the bath fluid ........................... 32

12.1 Circulator .............................................................................................. 32

Intended use

3

13 Accessories ........................................................................................ 33

13.1 For external connection ......................................................................... 33

13.2 For open baths ...................................................................................... 33

14 Maintenance, cleaning, storage ....................................................... 33

14.1 Maintain the refrigeration capacity. ...................................................... 33

14.2 Cleaning ................................................................................................ 34

14.3 Storage .................................................................................................. 34

15 Repair service .................................................................................... 34

15.1 Warranty ............................................................................................... 35

16 Waste disposal .................................................................................. 36

16.1 Packaging.............................................................................................. 36

16.2 Unit ....................................................................................................... 36

16.3 Refrigerant ............................................................................................ 36

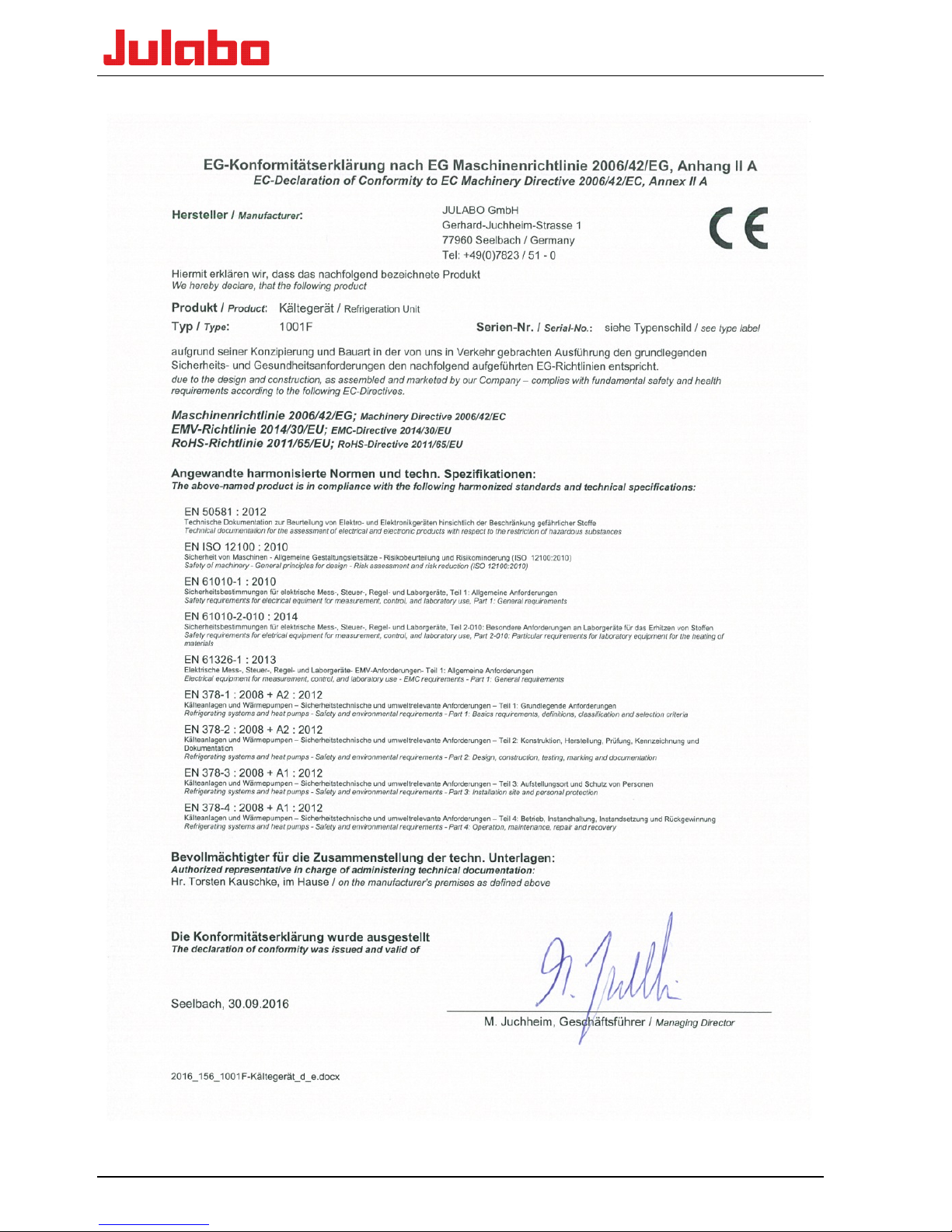

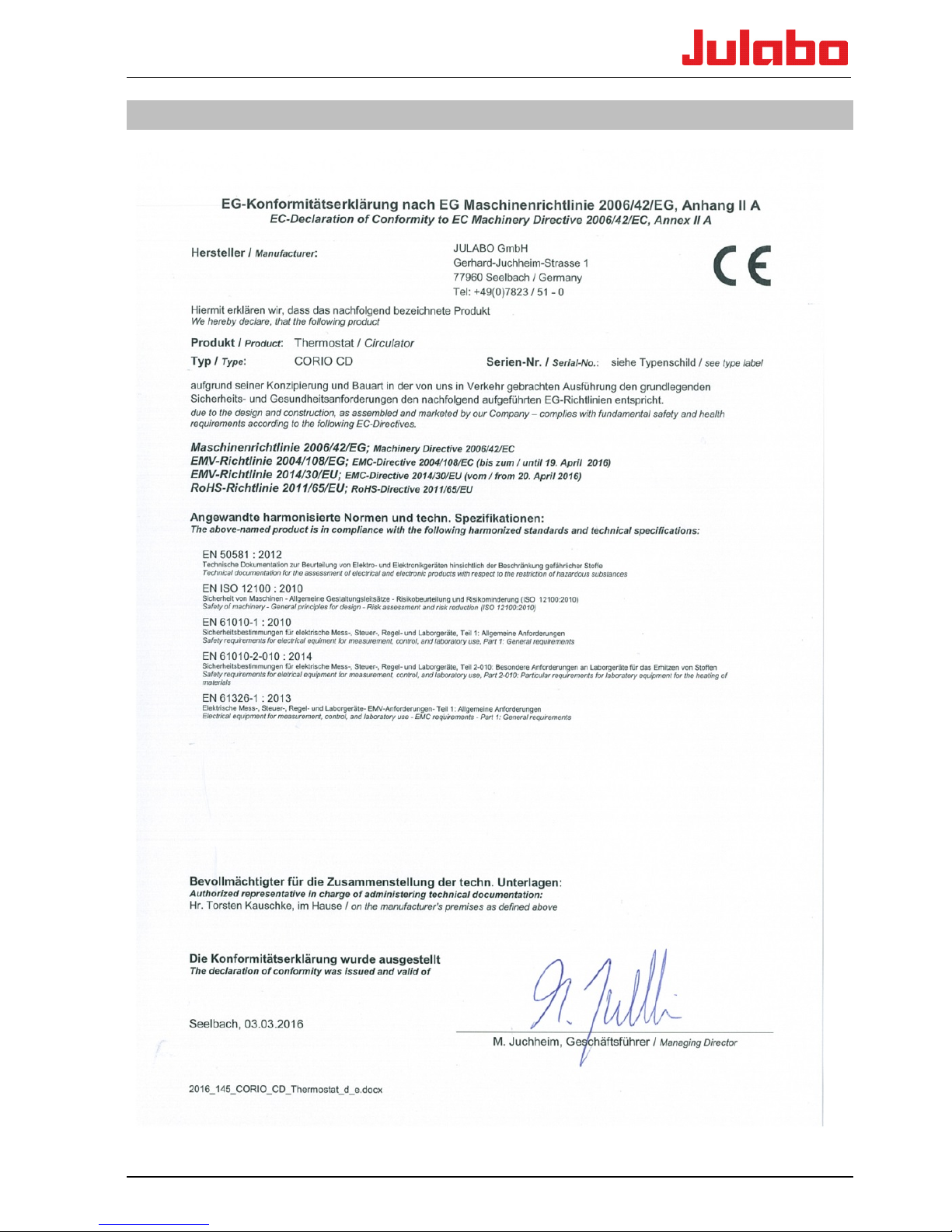

17 EC conformity .................................................................................... 37

Pos: 4 /Technische Dokumentation/Flash CORIO/Einhängethermostat CORIO C/Neue Seite @ 0\mod_1417593782389_ 0.doc x @ 7 630 @ @ 1

4

Pos: 5 /Technische Dokumentation/Flash CORIO/Glückwunsch - Einleitung @ 0\mod_ 13951 368662 01_18.do cx @ 4161 @ @ 1

Congratulations.

You have made an excellent choice.
JULABO thanks you for the trust.
This operating manual is designed to familiarize you with the operation

of our units and their possible applications. Please read the operating
manual carefully.

Please call us if you have any questions about the operation of the unit
or about the operating manual.

Contact:

JULABO GmbH
Gerhard-Juchheim-Strasse 1
77960 Seelbach / Germany
Tel. [phone] / 51-0
Fax [phone] / 2491
[e-mail]
www.julabo.com

The JULABO quality management system

The standards for the development, production and distribution of
temperature control devices for laboratory and industry use satisfy the
requirements of ISO 9001 and ISO 14001.
Registration certificate No. 01 100044846.

Unpacking and inspection

If the packaging is damaged or if you discover any concealed transport
damage when you have unpacked the devices and the accessories,
please notify the supplier in the form of a statement of damage.

The operating manual

• should be kept for future use.

• must be available to operating personnel at all times.

Pos: 6 /Technische Dokumentation/Flash CORIO/CORIO_CD_GESAMT/CD-Produktübers icht @ 0\mod _140930 4670926_18 .docx @ 7330 @ 1 @ 1

Intended use

5

1 Intended use

JULABO circulators are laboratory devices which are designed for the
temperature control of certain liquid media in a bath tank or with a
refrigeration unit. The bath fluids recommended by JULABO must be
used as tempering media.

Units with pump connections allow the tempering tasks to be carried out
in an external temperature control system.

JULABO circulators are not designed for the direct temperature control of
foods, semi-luxury foods and tobacco, or pharmaceutical and medical
products.

• Direct temperature control means unprotected contact between the
object and the tempering medium (bath fluid).

• The devices are not suitable for use in potentially explosive
environments.

Pos: 8 /Technische Dokumentation/Flash CORIO/Einhängethermostat CORIO C/Neue Seite @ 0\mod_1417593782389_ 0.docx @ 7630 @ @ 1

Pos: 9 /Technische Dokumentation/Flash CORIO/CORIO_CD_GESAMT/Beschreibung Thermostat CD @ 0\mod_1409218446802_18.doc x @ 6609 @ 1 @ 1

6

2 Description

• These circulators are operated via the splash-proof keypad. The
microprocessor technology allows the setpoint to be set, displayed
and saved using the temperature display LED.

• The PID temperature control automatically adjusts the heat supply to
the requirements in the bath.

• ATC - Absolute Temperature Calibration (1-point calibration)

• The pump function can be switched from internal to external

circulation by a simple switchover button.

• Safety equipment to IEC 61010-2-010:

- Excess temperature protector is a safety device which is

independent of the control circuit whose value is set using a
tool (screwdriver).

- A float switch acts as the low level safety device. If these

safety devices trip, the heater and circulating pump are
completely shut down.

• Interfaces:

- CAN bus to communicate with the refrigeration machine

- USB connector to act as host to update and read data. USB device

for remote control.

Pos: 10 /T ech nis che Doku men tat ion /Fl ash C OR IO/C ORI O_ CD_ GESAM T/ Verh alt en + BA les en @ 0\mod_ 140921846 1856_18.d ocx @ 7203 @ @ 1

It is important to follow these safety instructions to prevent personal
injury and property damage. These instructions apply in addition to the
safety instructions at your workstation.

It is essential that you read the user information before
starting the device.

Pos: 11 /T ech nis che Doku men tat ion /Fl ash C OR IO/Ei nh äng eth ermos tat CO RI O C/N eue Sei te @ 0\mod_ 141759 378238 9_0.do cx @ 7630 @ @ 1

Pos: 12 /Technische Dokumentation/Flash CORIO/CORIO_CD_GESAMT/Erklärung Sicherheits- und andere Hinweise @ 0\mod_140921844901 7_18.docx @ 6697 @ 12 @ 1

Explanation of safety information

7

3 Explanation of safety information

The operating manual contains warnings to increase safety when using
the unit. The general warning sign, consisting of an equilateral triangle
surrounding an exclamation sign and reproduced in various signal
colors, is preceded by the signal words.

"Warning of a dangerous situation".
The significance of the danger is classified with a signal word. Read the

instructions carefully and follow them.

This signal word designates a danger with a high level of risk which, if
it not prevented, will result in death or serious injury.

This signal word designates a danger with a medium level of risk
which, if it not prevented, may result in death or serious injury.

This signal word designates a danger with a low level of risk which, if it

not prevented, may result in minor or moderate injury.

Designates a possibly harmful situation. If it is not prevented, the
system or something near it may be damaged.

3.1 Explanation of other information

TIP

Your attention is drawn to something special by this.

Designates user tips and other useful information.

Dangers at second glance

Designates states which only occur after the start of an action and
could have been prevented if the warning had been heeded.



Informative note

Provides additional information.

Pos: 13 /Technische Dokumentation/Flash CORIO/CORIO_ CD_ GESAM T/ Sich erh eits an weis ung en @ 0\mod _1409 218454 274_18.d oc x @ 6917 @ 1 @ 4

8

4 Safety instructions

It is important to follow these safety instructions to prevent personal
injury and property damage. These instructions apply in addition to
standard safety practices for working places.

• It is essential that you read the user information before starting the
device

• Use PPE (safety gloves, safety shoes, safety goggles).

• Transport the unit carefully. The interior of the unit can also be

damaged by impacts or if it is dropped.

• Do not loiter under the unit during transportation and operation.

• The unit is not intended for use in potentially explosive areas.

• Please observe the specifications for the minimum space

requirement when setting up the unit in chapter 11.3 Refrigerant,
page 31.

• Only operate the unit in rooms that are well-ventilated, dry and free
of frost.

• Switch the unit off immediately if there is refrigerant leakage.

• Place the unit on a flat surface of non-flammable material.

• Operate the unit under an exhaust hood as much as possible.

• Do not start the unit if it is damaged or leaking.

• Compare the mains voltage and frequency with the specifications on

the type plate.

• Only connect the unit to a fused mains connection via a FI circuit
breaker (Ia=30 mA).

• Only connect the unit to a power socket with ground contact (PE –
protective earth)!

• The power supply plug serves as safe disconnecting device from the
power supply network and must be freely accessible at all times.

• Check the mains cable regularly for signs of damage.

• Do not start the unit if it has a damaged power cable.

• Keep the mains cable away from hot pump connections.

• Refer to the safety sticker. Parts of the unit can be hot or cold.

• Never use the unit without bath fluid.

• Do not reach into the thermal bath fluid.

• Check the filling level of the bath fluid at regular intervals. The pump

and heater must always be completely covered with bath fluid.

• Set the excess temperature protector to at least 25 °C below the
flash point of the bath fluid.

Safety instructions

9

• Monitor the heat expansion of the bath oils as the bath temperature

rises.

• Prevent water getting into hot bath oils.

• Use suitable tubing.

• Secure the tubing connections to prevent them sliding off.

• Do not bend the bath fluid tubing.

• Check the hoses at regular intervals for signs of material fatigue (for

example cracking).

• Do not drain the bath fluid when it is hot.

• Check the temperature of the bath fluid before draining it, for

example by switching on the unit briefly.

• Switch off the unit and pull the plug before moving the unit or

carrying out service or repair work.

• Have all service and repair work carried out by authorized specialists

only.

• Switch off the unit and disconnect it from the power supply before

cleaning it.

• Drain the unit completely before transporting it.

Pos: 14 /Technische Dokumentation/Flash CORIO/Verantwortung des Betreibers Therm. Kl. 3, brennbar @ 0\mod_139504675 4147_1 8.doc x @ 4104 @ 122 2 @ 1

10

5 Operator's responsibility - safety instructions

Products manufactured by JULABO GmbH ensure safe operation when
installed, operated and according to common safety regulations. This
section explains the potential dangers which may occur when operating
the unit and specifies the most important safety measures to prevent
these dangers as far as possible.

5.1 Requirements for the operating personnel

The operator is responsible for the qualifications of the personnel
operating the unit. Ensure that the personnel who operate the unit are
trained in the relevant work application by a trained person.

The operative must receive regular training about the dangers involved
with their work and about action to prevent such dangers.

Ensure that everybody involved with the operation, maintenance and
installation have read and understood the safety information and the
operating manual. The unit may only be configured, installed,
maintained and repaired by trained personnel.

If hazardous substances or substances which may become hazardous are
used, the unit may only be used by a person who is completely familiar
with these substances and the unit. This person must be able to assess
the possible dangers in full.

5.2 Operating and ambient conditions for using the unit

• Avoid impacts on the housing, vibrations, damage to the operative
keypad (keys and display) and heavy soiling.

• Ensure that the product is checked at regular intervals suitable for its
frequency of use to ensure that it is in perfect condition.

• Check the proper condition of the mandatory warning, prohibition,
and safety labels at least every 2 years.

• Ensure that the mains supply has a low impedance to prevent
influencing of other units powered in the same mains.

• The unit is designed for operation in a controlled electromagnetic
environment. This means that in an environment of this nature,
transmission equipment such as mobile phones should not be used
in the immediate vicinity.

• Other units with components which are suceptible to magnetic fields
may be influenced by magnetic radiation. We recommend to
maintain a minimum distance of 1 m.

• Permissible ambient temperature: max. 40 °C, min. 5 °C.

• The relative humidity should not exceed 50 % (40 °C).

• Do not store in an aggressive atmosphere. Protect from dirt.

• Protect from direct sunlight.

Operator's responsibility - safety instructions

11

5.3 Operating the unit

The bath may be filled with flammable materials. Fire hazard!
Chemical dangers may occur, depending on the bath medium.
Refer to all warnings on the substances used (bath fluids) and in the

relevant instructions (safety data sheets).
The formation of explosive mixtures is possible if the ventilation is

inadequate.
Only use the units in well ventilated areas. The unit is not suitable for

use in potentially explosive environments.
Special substance specifications (bath fluids) must be observed for

correct operation. Caustic or corrosive bath fluids must not be used.
When using hazardous substances or substances which may be

hazardous, the operator must apply the enclosed safety symbols (1 + 2a
or 2b) on the control side panel where they are clearly visible:

1

Warning of a danger zone. Attention!
Observe documentation. (Operating manual, safety data sheet)

2a

It is essential that you read the user information prior to operation.
Area of validity: EU

2b

It is essential that you read the user information prior to operation.
Area of validity: USA, NAFTA

As a result of the wide range of operating temperatures, special care and
caution is essential.

There are thermal dangers: Burns, scalds, hot steam, hot parts and
surfaces which may be touched.

Warning about hot surfaces.
(The label is applied by JULABO)

If external units are connected

Refer to the instructions in the manuals for the external units which you
connect to the JULABO unit, particularly the safety instructions.

The connection assignment of the plugs and the technical data for the
products must be observed at all times.

Pos: 15 /T ech nis che Doku men tat ion /Fl ash C OR IO/B edi en- und Funktionselemente CD-F300 @ 0\mod_139626531 1140_18 .docx @ 4387 @ 1 @ 1

12

6 Control and function elements

Front Rear

Position Designation

1 Main switch

2 Four-digit temperature display LED, menu display

3 Control indicator - alarm

4 Edit keys

Temperature setpoint increase or decrease
Press the key briefly for step-by-step changes.
Press and hold the key for fast change of setpoint.

5 OK key 1. Switch the device on/off.

2. Store value / parameter.

6 Pump switchover,

Delivery

external…….internal

7 Adjustable excess temperature safety device

8 Control indicator - cooling

9 Control indicator - heating

10 USB host interface (type A)

Control and function elements

13

11

Mains connection: Integrated connector for voltage supply (mains cable included as
accessory)

12 Fuses: Miniature circuit-breaker

13 CAN plug for connecting to the refrigeration machine.

14 USB device interface (type B) for data transfer to the PC, for example for control tasks

using the EasyTEMP software.

15 Pump connection: Return, IN M16x1, male

16 Pump connection: Supply, OUT M16x1, male

Refrigerated Circulators

17 Recessed handle (front, rear)

18 CAN connection cable for refrigeration machine circulator

19 CAN plug for connecting to the circulator.

20 Fuses: Miniature circuit-breakers, for refrigeration machine

14

21 Connection cable: Voltage supply, refrigeration machine  circulator

22 Electrical connection: Integrated connector to supply power to the circulator

23

Electrical connection: Integrated connector to supply power to the refrigeration
circulator

24 Drain cock and drain port (behind ventilation grille)

25 Caps (connectors for the cooling coil)

26 Equipment castors (front lockable)

27 Ventilation grille

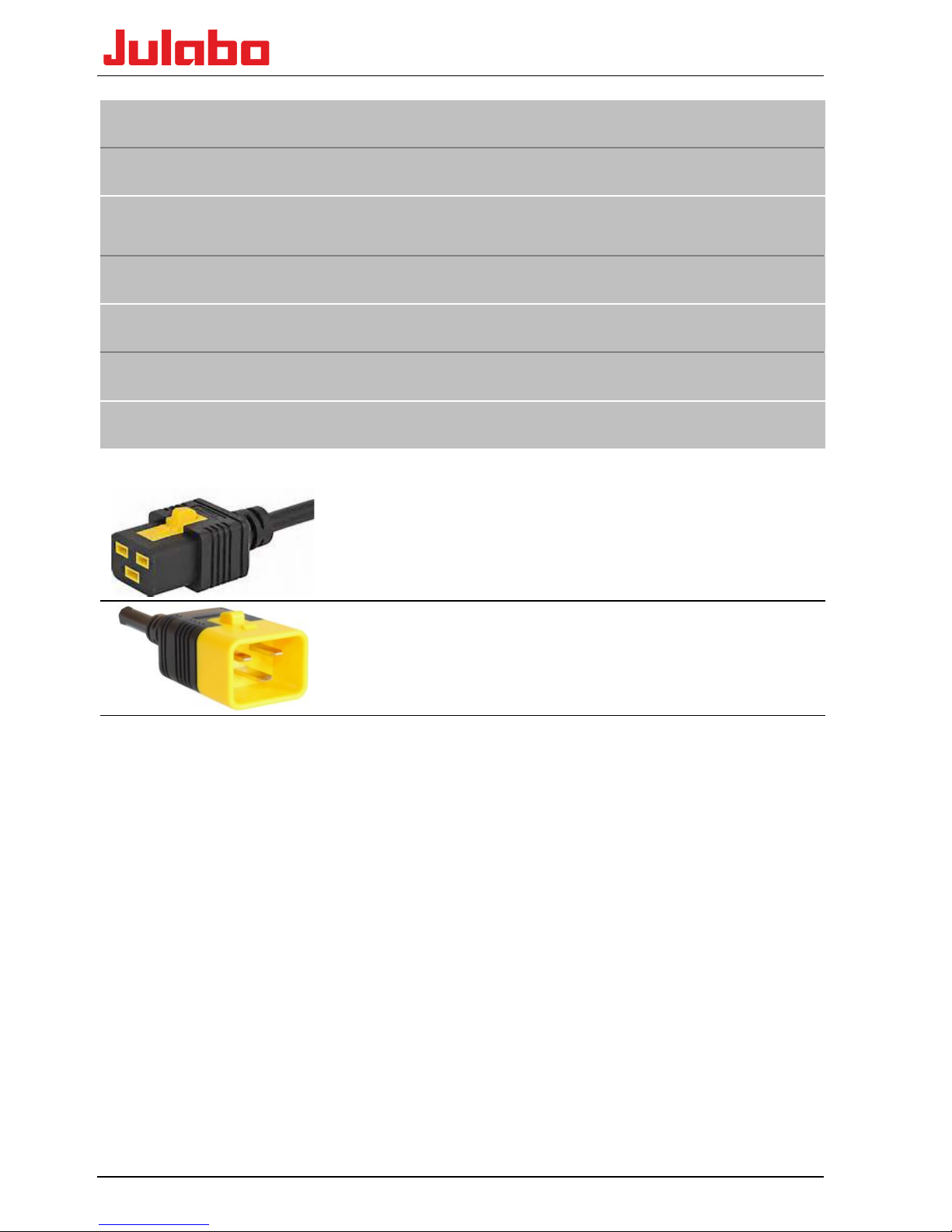

Accessories, included in the supply

1x Main cable for voltage supply for the
refrigeration machine (23) and circulator (11)
(use one only for refrigeration circulator)

1x Connection cable: Refrigeration machine (22)  Circulator
(11)

1x CAN connection cable (18, for refrigeration machine
circulator)

Mains cable, country-specific, order number, see www.julabo.com.

Pos: 16 /Technische Dokumentation/Flash CORIO/CORIO_CD_GESAMT/Aufstellen, Achtung @ 0\mod_1409218443994_1 8.docx @ 6532 @ 2 @ 4

Control and function elements

15

6.1 Installation of the circulator

Things to keep in mind during the installation process:

Risk of tipping due to improper transportation
Crushing, damage to the unit

• Use PPE (safety gloves, safety shoes, safety goggles).

• Carry the unit with 2 persons (see the Technical Data for the

weight).

• Transport the unit carefully on firm, level ground. The interior of
the unit can also be damaged by impacts or if it is dropped.

• Do not loiter under the unit during transportation and operation.

• The installation site should be a sufficiently large room to ensure

that it does not become too hot due to the heat emission.

• The surface for the device should be flat and made of non­flammable material.

• Lock the castors, once the device is at the operating location.

• A specific room size is prescribed for refrigerated circulators.

• At high temperatures, position the unit under an exhaust hood as

much as possible due to potential vapors from the thermal bath
fluid.

• Observe the safety sticker - do not remove!

Pos: 25 /T ech nis che Doku men tat ion /Fl ash C OR IO/C ORI O_ CD_ GESAM T/ Temp er ierf lüs sig keit, Aus wah l, b ren nb are, Wa rnu ng ( CD) @ 0 \mod_ 140921845 6099_18.d ocx @ 6983 @ 2 @ 1

6.2 Bath fluids

it - Wasser @ 0\mo d_140 921845 5850_18 .doc x @ 6972 @ 3 @ 1

Water as the bath fluid

If you use water as the bath fluid

Recommended water mixture:
70 % soft/decalcified water and 30 % tap water for a temperature
range from 5 °C to 80 °C.

The parts of the bath which come into contact with the bath fluid
may be damaged and cause the failure of the device.

The water quality depends on the local conditions.

• Hard water is not suitable for temperature control tasks due to
its high lime content and will produce lime deposits in the bath.

• Ferrous water can cause corrosion, even on stainless steel.

• Chloric water can cause pitting corrosion.

• Distilled and deionized water is not suitable. Their specific

properties cause corrosion in the bath, even on stainless steel.

 Check the quality of the water you use at regular intervals.

16



Evaporation and constant refilling may produce a concentration
of harmful substances in the bath.
You should therefore check the quality of the water in the bath
at regular intervals.

 Replace the water in the bath in full at regular intervals.

Water bath protection products

The water bath protection product "Aqua-Stabil" is recommended to
combat algae, bacteria and fungus formation.
Order No. Designation
8 940 006 6x 100 ml bottles
8 940 012 12x 100 ml bottles

Pos: 27 /T ech nis che Doku men tat ion /Fl ash C OR IO/C ORI O_ CD_ GESAM T/ Temp er ierf lüs sig keit en, Un g eeig ne te - SH KL 3 @ 0\mod_140 921845 7441_18 .doc x @ 7038 @ @ 1

Unsuitable bath fluids.

JULABO cannot accept any liability for damage caused by the selection
of an unsuitable bath fluid.

Unsuitable products include bath fluids which

• are highly viscous (much higher than recommended at the
relevant working temperature).

• tend to crack.

• have a toxic, caustic or corrosive effect.

Pos: 28 /T ech nis che Doku men tat ion /Fl ash C OR IO/C ORI O_ CD_ GESAM T/I ndir e kt te mper ier te F lüs sig kei t -Vors icht - @ 0\mod_ 140 921845 0811_18 .docx @ 6774 @ @ 1

Properties of indirectly temperature-controlled fluids and
substances

The intended use of the units includes the indirect temperature control
of fluids.

We do not know which substances these are.
Many substances are:

• inflammable, flammable or explosive

• harmful

• polluting

In other words: dangerous

The user bears sole responsibility for handling these substances!
Use personal protective equipment!

The following questions should help to identify possible dangers and
minimize risk.

• Are hazardous vapors or gases produced when heated?
Does operation of the bath has to be conducted in a fume hood?

• What should you do if a dangerous substance has been spilled on

or in the device?

Commissioning

17

Obtain information on the substance before starting work and

define a decontamination method.

• Are all hoses and electrical cables securely connected and routed?
Keywords: Sharp edges, hot surfaces during operation, moving
machine parts, etc.

Pos: 29 /Technische Dokum ent atio n/Fl ash COR IO /COR IO _CD_ GESAM T/ Temp er iers yst em, ext ern , Pu mp ens et @ 0 \mod_1 409218 458486 _18.doc x @ 70 82 @ 2 @ 1

7 Commissioning

Danger from mains voltage.

Risk of injury from electric power.

• Compare the mains voltage and frequency with the details on the
model plate.

• Only connect the unit to a fused mains connection via a FI circuit
breaker (Ia=30 mA).

• The device may only be connected to power outlets with a ground
contact (PE – protective earth).

• The mains plug serves as a safe disconnecting device from the
power supply network and must be freely accessible at all times.

• Do not start the device if it has a damaged mains cable.

• Check the mains cable regularly for signs of damage.

• We disclaim all liability for damage caused by incorrect line

voltages!

Commissioning the circulator with a refrigeration machine

Connect the circulator and refrigeration machine using the mains lead.
Connect them to the voltage supply using the fitted plug on the
refrigeration machine and the mains lead. Connect the CAN jacks on
both devices with the CAN connection cable to transfer data.

Pos: 32 /Technische Dokumentation/Flash CORIO/Warnung heiße Oberfläche @ 0\mod_138968 608832 0_18.do cx @ 36 68 @ @ 1

Cold or hot surface temperatures of the unit

• Unit parts may develop low or high surface temperatures. A hot
surface means it has a temperature of 60 °C / 140 °F or more.

• Let the device cool down to an uncritical safe temperature.

• Use safety gloves.

Pos: 33.1 /Technische Dokumentation/Flash CORIO/Schutzeinrichtung, Übertemperatur, Unterniveau - Erklärung @ 0 \mod_1 389688 531828_ 18.doc x @ 3728 @ 2 @ 1

18

7.1 Excess temperature and low level safety devices

The safety devices are not affected by the control circuit. When they trip
all actors are permanently shut down.

The alarm is displayed optically and acoustics with a continuous signal
tone and the reason for the alarm is shown on the display as a number.

Pos: 33.2 /Technische Dokumentation/Flash CORI O/Über tempe ratu r-, Un tern iv eau -Schutzeinrichtung -Warnung @ 0\mod_1389688599281_18.doc x @ 37 34 @ @ 1

+ +

E 14

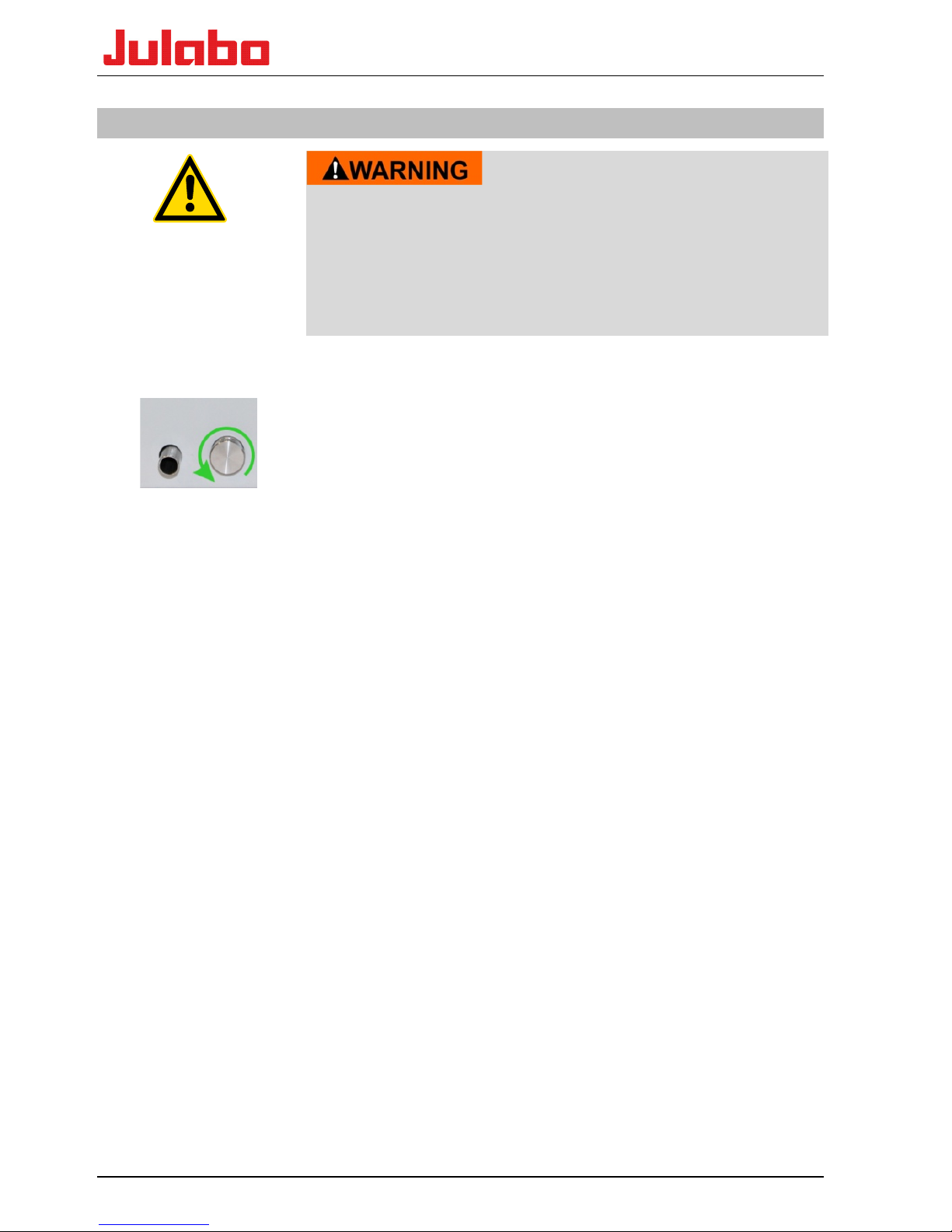

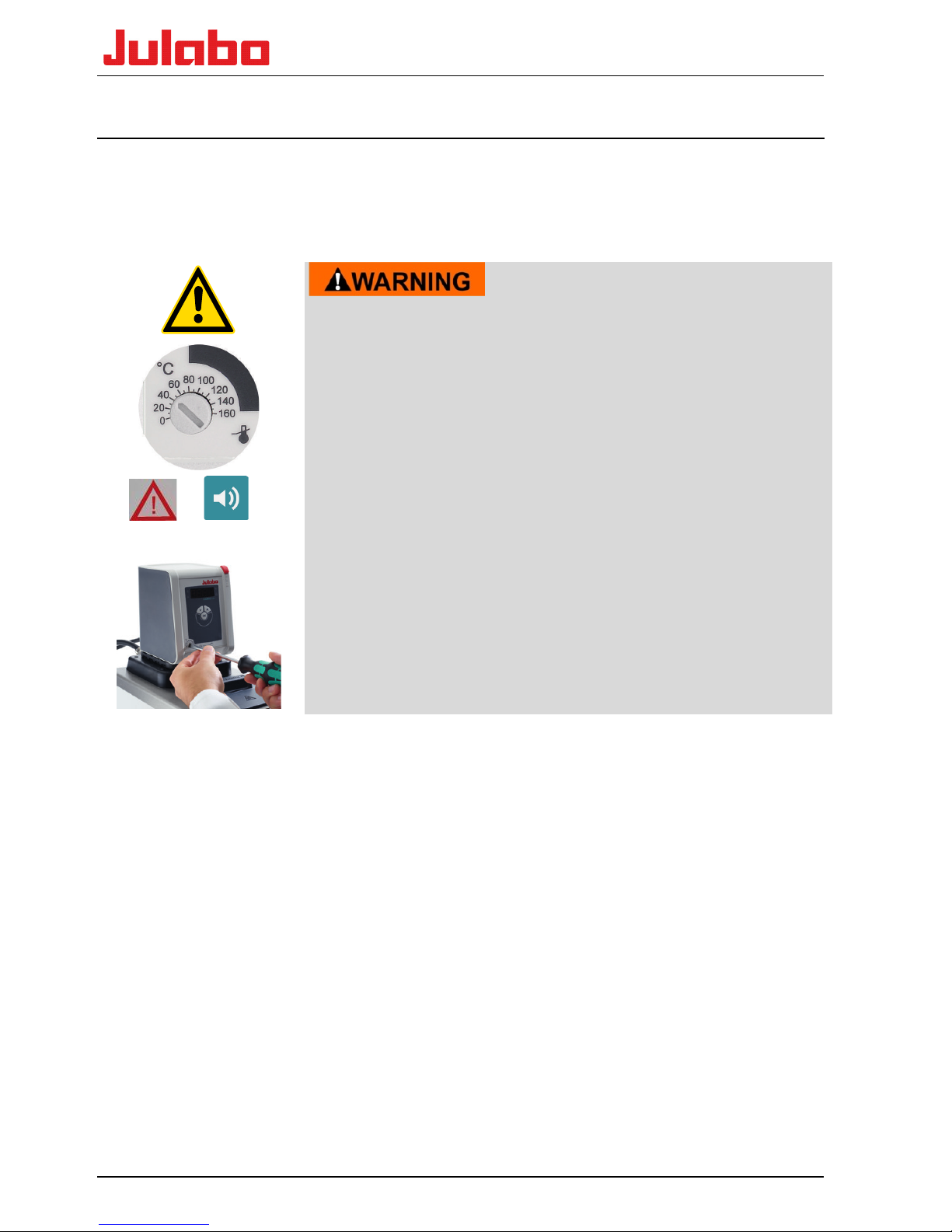

Danger from damaged safety devices

Possible serious consequences for personnel and working areas.

Check the safety devices at least twice per year.

Excess temperature protector, IEC 61010-2-010

Turn the adjustable excess temperature protector to the cut-out point
(actual temperature) using a screwdriver. The actors will be shut down
on all poles, the circulator will show error message E 14, the "Alarm"
control display will be lit and a continuous signal tone will sound.

Low level safety device, IEC 61010-2-010

The float switch in this device must be moved manually in the bath to
test the function, for example using a screwdriver.
Push down the float until its reaches the mechanical stop.

The actors will be shut down on all poles, the circulator will show error
message E 01, the "Alarm" control display will be lit and a continuous
signal tone will sound.

Pos: 34 /Tech nis ch e Doku m ent atio n/Fl ash COR IO /COR IO _CD_ GESAM T/F ü llen - Gru ndleg ende G efahren @ 0\mod_140 921844 9251_18 .doc x @ 6708 @ 2 @ 1

Commissioning

19

7.2 Filling the 1001F

Top up the tempering fluid timely.

Ensure that no tempering fluid gets into the thermostat during filling.

• By inserting the material, the tempering fluid is displaced. This
should be considered when filling the bath tank.

7.3 Filling quantities and shut-off criteria

Filling height
without basket
and bottles

Number of bottles Filling height with

basket an bottles

40 mm 5 bottles 20 mm

60 mm 10 bottles 20 mm

78 mm 15 bottles 20 mm

95 mm 20 bottles 20 mm

Fill the bath tank as per table (e.g., with Thermal G). Place the stainless
steel basket with bottles into the bath tank. The filling height should
now be approx. 20 mm below the edge of the bath tank.

Limit values:

The recommended filling height for water amounts to

• maximum approx. 20 mm below the edge of the bath tank

• minimum approx. 60 mm below the edge of the bath tank

Emptying

• Switch off the unit and pull the plug.

• Place a container under the drain port (24).

• Open the drain cock.

• Close the drain cock again after the tank is completely emptied.

Pos: 36 /Technische Dokumentation/Flash CORIO/CORIO_CD_GESAMT/Pumpeneinstellung @ 0\mod_1409218452964_1 8.docx @ 6873 @ 2 @ 4

Pos: 37 /Technische Dokumentation/Flash CORIO/Einschalten/Start-Stopp @ 0\mod_1395238 575986 _18.doc x @ 42 09 @ 2 @ 1

20

7.4 Switching on / Start - Stop

When pressing the keys, it is advisable to hold the
circulator head with one hand.

OFF

Switching on

• The device is switched on by pressing the power switch (1).

 The unit performs a self-test. All the segments of the four digit LED

temperature display will illuminate.
The "OFF" signal then indicates that the unit is ready to operate.

28.3

Start

• Press OK for approx. 1 second.
The current bath temperature will be shown on LED temperature
display.

Stop

• Press OK for approx. 1 second.

• Switch off the unit with the circulator's mains power switch.

Pos: 38 /Technische Dokum ent atio n/Fl ash COR IO /COR IO _CD_ GESAM T/ Temp er atu r-Sol lwe rt einst el lun g @ 0 \mod_140 921845 5522_ 18.do cx @ 69 61 @ 2 @ 1

7.5 Adjusting of temperature setpoint

Factory setting: 10 °C

Example:

The temperature can be set in the start/stop condition.

 The set value is saved so that it will be retained even after a power

outage.

1. Press the edit key or briefly to switch from displaying the

actual value to the desired value. The decimal point will flash.

2. Change the value:

Press the key to set a higher value.
Press the key to set a lower value.
Press the key briefly for single steps, press and hold the key to
adjust the values quickly.

3. Save the set value as the desired value by pressing the key.

4. The new desired value will flash three times.

Pos: 39 /Technische Dokumentation/Flash CORIO/CORIO_CD_GESAMT/ATC - CD @ 1 \mod_1 432892 086111_ 18.doc x @ 826 0 @ 2 @ 1

Commissioning

21

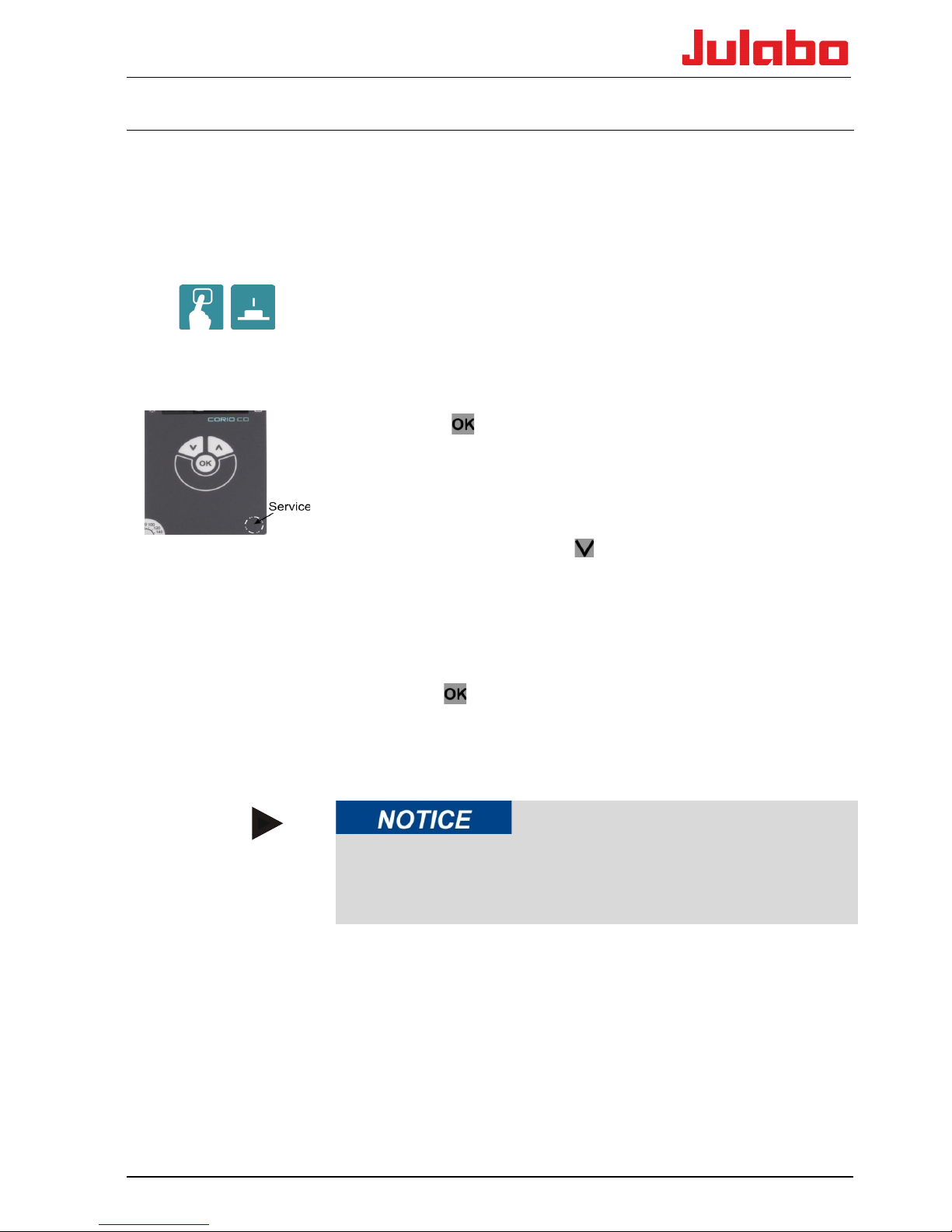

7.6 ATC - Absolute Temperature Calibration (1-point calibration)

1-point calibration:

The temperature sensor can be calibrated at any value in the working
temperature range.

Place a calibrated thermometer (resolution: 0.01°C) in the center of the
bath to measure the actual bath temperature.

50.0

50

.0

48.9
CAL

1. Switch on the circulator at its mains switch

2.

Set the required calibration value as described in "Adjusting

temperature setpoint" (example: 50.0°C).

3. Start the unit:
Press the key.

4. The bath will be heated to 50.0°C.
When the setpoint is reached, allow the bath temperature to settle
for approx. 3 minutes.

5. Start the calibration:

Press the “Service” and the key together until the comma in
the display starts to flash.

6. Read the bath temperature value on the calibrated thermometer

and round it up or down and set it.
(Example: 48.87 °C to 48.9 °C)

7. Press the key to confirm.

8. The circulator will confirm the process by displaying "CAL".

- Err

If the value is outside a window of

±5°C, its entry will be ignored!

Error message:

Err = Error

Pos: 40 /Technische Dokumentation/Flash CORIO/CORIO_CD_GESAMT/Autostart ein / aus @ 0\mod_1409218444899_1 8.doc x @ 6565 @ 2 @ 1

22

7.7 Switch Autostart on and off

The AUTOSTART function allows the device to be started as soon as the
main switch is pressure, which in turn allows you to use a timer.

Uncontrolled device start

If circulators are started using "AUTOSTART", ensure that even if it is
started accidentally, for example after a power outage, it does not pose
a danger to personnel or equipment.

•

Ensure that the circulator's safety equipment is set correctly.

+

1

. Press and hold the key and

2

. switch on the circulator using the main switch.

The switchover process is shown briefly on the temperature display LED.

AOn

Autostart on

AOFF

Autostart off

Pos: 41 /Technische Dokum ent atio n/Fl ash COR IO /COR IO _CD_ GESAM T/ Al armm eld ung en_C D @ 0\mo d_14092 184426 21_18.d ocx @ 6488 @ 1 @ 1

8 Error messages / Possible causes of faults

+

The following faults which trigger alarms result in the units's heater
and circulating pump being shut down permanently.

The alarm indicator lights up and a continuous signal tone will
sound. The reason for the alarm or warning will be shown on the LED
temperature display in coded form.

Warnings are displayed alternately with the actual value on the display.

The signal tone can be muted by pressing the OK key.

E 01

The device is being operated with no or too little bath fluid or the level
is below the minimum level. Top up the bath fluid.

A hose has burst (bath fluid level too low because it has been pumped
out). Replace the hose and top up the bath fluid.

E 05

The cable for the working temperature sensor has been interrupted or
short-circuited.

Error messages / Possible causes of faults

23

E 06

Defect of the working or excess temperature sensor.
The working and excess temperature sensors report a temperature

difference of more than 20 K.

E 14

The cut-out value of the excessive temperature protector is below the
defined working temperature .
Set the safety temperature to a higher value.

E 33

The cable for the overtemperature safety sensor has been broken or
short-circuited.

E 60

Internal error. Contact JULABO Service Department.

E 61

Connection error between Corio CD and refrigeration unit
The data communication between the Corio CD and the refrigeration

unit is permanently monitored. If communication cannot be established
(e.g. by a defective connection cable), the error message „E 61“ is
generated. By pressing the „OK“ key, the alarm is acknowledged. The
Corio CD continues operating purely as heating circulator until the next
interruption of the power supply (power-off). When the fault has been
repaired, the Corio CD controls the refrigeration unit according to the
settings in the menu (Off, Auto, On) after the next power-on.

E 63

Internal error. Contact JULABO Service Department.

E 70

Internal error. Contact JULABO Service Department.

E 72

Internal error. Contact JULABO Service Department.

E 80

Warning: Internal error. Contact JULABO Service Department.

E 82

Warning: Update error (incorrect hex file). Contact JULABO Service
Department.

E 83

Warning: Excessive power consumption via USB interface (<300 mA).

E108
E116

The self-locking alarm is still active. Switch off the device at the main
switch. Wait for approx. 4 seconds and then switch it on again.

E118

The internal AD converter is defective.

24

Alarms and warnings for refrigeration machines 200F,
201F, 300F

E431

Maximum compressor current exceeded.

E1431

Warning: No compressor current detected.

Alarms and warnings for refrigeration machine 600F,
601F, 900F, 1001F

E401

Temperature sensor evaporator outlet defective (short circuit).

E402

Temperature sensor evaporator outlet defective (break).

E413

Evaporation pressure sensor defective (short circuit).

E414

Evaporation pressure sensor defective (break).

E417

Condensation pressure sensor defective (short circuit).

E418

Condensation pressure sensor defective (break).

E425

Error in refrigeration system.

E426

Error in refrigeration system.

E427

Error in refrigeration system.

E1427

Warning: Error in refrigeration system

E431

Maximum compressor current exceeded.

E432

Error in refrigeration system.

E433

Error in refrigeration system.

E1431

Warning: No compressor current detected.

Error messages / Possible causes of faults

25

To cancel the alarm state

1. Switch off the device at the main switch.

2. Eliminate the cause of the alarm.

3. Eliminate the cause of the alarm or wait for approx. 4
seconds, depending on error type.

4. Switch on the device again at the mains power switch.

5. If the error occurs again, a remote diagnostic is to be made.

Faults which are not displayed:

Circulating pump motor overload protection.
The circulating pump motor is protected from overloads. After a cooling

phase the motor will restart automatically.
If necessary the unit should be inspected by a JULABO service technician.

JULABO Technical Service

Phone: [phone] / 5166
Fax: [phone] / 5199
Email: [e-mail]

Pos: 42 /T ech nis che Doku men tat ion /Fl ash C OR IO/C ORI O_ CD_ GESAM T/B et rieb USB - PC @ 1\mod _14303 928772 54_18.d ocx @ 8 190 @ 1 @ 1

26

9 Operation of the CORIO CD via the USB interface

• PC and CORIO CD are switched on.

• Connect the CORIO CD and PC with the USB cable.

The CORIO CD reports to the PC after the installation of the driver with
the identifier "STMicroelectronics virtual COM port" COM port in Device
Manager

For comfortable operation, you can use the JULABO software EasyTemp.
There are also interface commands to the direct query available:

Input Function

STATUS current operating status

VERSION device name + voltage variant + software version

IN_SP_00 Setpoint query

IN_PV_00 current value query

IN_PV_01 Variable query

IN_PV_03 Safety sensor query

IN_PV_04 Safety potentiometer query

IN_MODE_05 Start/Stopp query

OUT_SP_00 Send setpoint

OUT_MODE_05 Start/Stop device 1/0

Remote operation

The device can be controlled remotely via the USB interface. To do this,
connect the unit to a PC via the interface.

When remote operation is active (press and hold down and
simultaneously for approximately 3 seconds) the display alternates
between the current bath temperature or “OFF” and the message “-r-”.
Switching remote operation on and off is confirmed with a short

“

r On” or “r OFF”.

Operation of the CORIO CD via the USB interface

27

Data logging

Certain characteristic parameters can be read. To do this:

1. Attach the USB flash drive.

2. Start data logging using the and key combination. Activation
is indicated with

LO61.

3. Use the same key combination to stop data logging. Deactivation is
indicated with

LO60.

Cold Mode:

You can set the refrigeration unit operating mode. Here you can switch
between automatic operation, refrigeration unit always on, and
refrigeration always off.

To do this, press the button while switching on the power switch.
The mode changes one position each time the power switch is switched
on and the button pressed. The display shows:

- „

COn“



Refrigeration unit always on,

where the required cooling capacity to maintain the bath temperature is
available.

- „AUtO“  Automatic operation (factory setting)

where cooling capacity is available if needed

- „

COFF“



refrigeration unit always off,

where no cooling capacity is required.

Reading black box data:

The black box is integrated into the controller and stores all relevant
data from the last 30 minutes. In addition, persisting alarms and
warnings are logged to an alarm memory. This data can be read.

Installation is easy and is carried out step by step. Please follow the
instructions.

To do this, insert the USB flash drive into the thermostat interface and
press the “SERVICE button” + . The display then shows

“

-BB-”.

Pos: 46 /Technische Dokum ent atio n/Fl ash COR IO /COR IO _CD_ GESAM T/ Entl e eren @ 0\mod _14 0921844 8471_1 8.docx @ 6675 @ 1 @ 1

28

10 Emptying the bath tank

Danger of scalds from hot bath fluid or hot drain tap.
Please note the following when draining the bath fluid:

• Hot bath fluid:
Do not drain the bath fluid when it is hot.

• Environmental Hazard:

Refer to all regulations for disposing of bath fluids.

Emptying

• Switch off the unit and pull the plug or disconnect the connection
to the power supply on all poles.
For baths without a drain tap, remove the circulator from the bath
tank.

• Small bath tanks do not have a drain tap and can be carried for
drainging. The temperature of the bath fluid should not exceed
50 °C.

Enclosed baths and refrigeration machines

• Connect a suitable hose to the drain port (∅ 12 mm external).

• Route the hose to a vessel or drain.

• Open the drain valve with the knurled screw.

 To reduce the weight, the bath can be partly emptied using a hose

pump (transfer pump).

 Do not empty the bath in temperatures of ≤ 0 °C since the drain

tap may freeze.

Pos: 47 /Technische Dokumentation/Flash CORIO/CORIO_CD_GESAMT/Technische Daten -Thermostat C D @ 0\mo d_14092 184553 04_18.d ocx @ 6950 @ 12 @ 1

Technical data

29

11 Technical data

11.1 Technical data for circulator

Circulator

CORIO CD

Working temperature range

°C

20 ... 150

Temperature stability

°C

±0.03

Temperature setting

Digital

Temperature display

LED

Resolution

°C

0.1

ATC - Absolute Temperature Calibration

1-point

Temperature control

PID1

Heating capacity (at 230 V)

kW

2.0

Heating capacity (at 115 V)

kW

1.0

Heating capacity (at 100 V)

kW

0.8

Circulating pump:

200 V /

50 Hz

200 V /

60 Hz

230 V /

50 Hz

230 V /

60 Hz

Delivery rate at 0 bar L/min 12 14 15 17

Pressure at 0 liters bar 0.30 0.33 0.35 0.43

Max. viscosity

cSt

50

Dimensions (WxDxH) without bracket

cm

13.2 x 16.0 x 18.4

Useful immersion depth

cm

16.6

Weight

kg

2.6

Ambient temperature range

°C

5 ... 40

Operating temperature range

°C

-40 … 150

Mains power connection

V / Hz

230 ±10 % / 50

Current consumption (230 V)

A

10

For CH and GB model (at 230 V)

A

10

Mains power connection

V / Hz

230 ±10 % / 60

Current consumption (at 230 V)

A

10

Mains power connection

V / Hz

115 ±10 % / 60

Current consumption (at 115 V)

A

10

Mains power connection

V / Hz

100 ±10 % / 50-60

Current consumption (at 100 V)

A

9

Classification to DIN 12876-1

III (FL)

Pos: 48 /Technische Dokumentation/Flash CORIO/CORIO_CD_GESAMT/Technische Daten - CD200F-CD600F @ 0 \mod_1 409218 455054_ 18.docx @ 693 9 @ 2 @ 1

30

11.2 Technical data for refrigeration circulation circulator

Refrigeration circul. circulator

CD-1001F

Working temperature range

°C

-38 ... 100

Temperature stability

°C

±0.03

Temperature display

LED

Resolution

°C

0.1

ATC – Absolute Temperat. Calibration

1-point

Temperature control

PID1

Refrigeration capacity

°C

20

10 0 -10

-20

-30

(medium ethanol)

kW

1

0.95

0.9

0.63

0.35

0.13

Refrigerant

R452A

Dimensions (WxDxH)

cm

45 x 64 x 95

Useful bath opening (WxD)

cm

35 x 41

Bath depth

cm

30

Filling volume, from...to

Liter

42 ... 56

Weight, with circulator

kg

74

Ambient temperature range

°C

5 ... 40

Mains power connection

V/ Hz

200 - 230 ±5 % / 50/60

Current consumption (at 230 V / 50 Hz)

A

Nom. 5 / Tot. 16

at model CH (at 230 V / 50 Hz)

A

Nom. 5 / Tot. 10

at model GB (at 230 V / 50 Hz)

A

Nom. 5 / Tot. 13

Current consumption (at 230 V / 60 Hz)

A

Nom. 5 / Tot. 16

Current consumpt. (at 200 V / 50/60 Hz)

A

11

All measurements have been carried out at: rated voltage and frequency
ambient temperature: 20 °C Technical changes without prior notification reserved.

mgebung @ 0\mod_140929821505 4_18 .docx @ 7311 @ @ 1

Safety precautions to IEC 61010-2-010:

Excess temperature protection, adjustable 0°C ... 170°C
Low level protection Float switch
Classification to DIN 12876-1 Class III
Alarm Optical and audible (permanent)

Ambient conditions to IEC 61010-1:

• For indoor use only.

• Altitude up to 200 m - normal zero.

• Ambient temperature: +5 ... +40 °C

Technical data

31

EMC requirements

The device is an ISM device of group 1 per CISPR 11 (uses HF for internal
purposes) and is classified in class A (industrial and commercial sector).

• Devices of class A are intended for the use in an industrial
electromagnetic environment.

• When operating in other electromagnetic environments, their
electromagnetic compatibility may be impacted.

Humidity

• Maximum relative humidity 80%, for temperatures up to 31°C,

• Linear decrease to 50% relative humidity at a temperature of 40°C

• Max. voltage fluctuation of ±10% are permissible.

Protection class to EN 60 529: IP 21
The device complies with Safety class I
Overvoltage category II
Pollution degree 2

Pos: 52 /T ech nis che Doku men tat ion /Fl ash C OR IO/C ORI O_ CD_ GESAM T/ Kält emi ttel @ 1\mod_ 145752 950509 5_18.do cx @ 91 91 @ 2 @ 4

11.3 Refrigerant

In the event of an error in the refrigeration system (leak) a certain room
size is specified in standard EN 378 for each kg of refrigerant.

The refrigerant used and the quantity are stated on the type plate.

Refrigerant used in relation to
JULABO

Limit value for 1 m3
volume [kg]

R23 0.68

R134a 0.25

R404A 0.52

R507 0.53

R508B 0.2

R452A 0.423

Propane (R290) 0.008

Ethylene (R1150) 0.007

Pos: 53 /Technische Dokumentation/Flash CORIO/F-Gas-Verordnung @ 1\mod_1453 374700 170_18.do cx @ 8351 @ 3 @ 1

32

Information about the used refrigerants
The Regulation (EU) No. 517/2014 on fluorinated greenhouse

gases applies to all systems which contain fluorinated refrigerants and

replaces (EC) 842/2006.
The aim of the Regulation is to protect the environment by reducing

emissions of fluorinated greenhouse gases.
Among other things it regulates the emission limits, use and recovery of

these substances. It also contains requirements for operators of systems
which require / contain these substances to function.

Under Regulation 517/2014, the operator of a system of this nature has
the following duties:

• The operator must ensure that the equipment is checked at regular
intervals for leaks.

• These intervals depend on the CO

2

equivalent of the system. This is
calculated from the refrigerant fill volume and type of refrigerant.
The CO

2

equivalent of your system is shown on the model plate.

• The operator undertakes to have maintenance, repair, service,
recovery and recycling work carried out by certified personnel who
have been authorized by JULABO.

• All such work must be documented. The operator must keep records
and archive them for at least five years. The records must be
submitted to the relevant authority on request.

Refer to the text of the Regulation for further information.

Pos: 54 /T ech nis che Doku men tat ion /Fl ash C OR IO/C ORI O_ CD_ GESAM T/ Mat eri al, m edi ums berü hr ten Teil e, Th er mos tat @ 0\m od_14 092184 51950_1 8.docx @ 6829 @ 12 @ 1

12 Materials of parts in contact with the bath fluid

12.1 Circulator

Description Material

Motor 1.4301

Pump PPS

Heater 1.4404 / 316L

Sensor 2xPt 100 metal, fitted 1.4571

Sensor connection 1.4301

Float 1.4401

Float pipe 1.4571

Spring hinge clamp 1.1248, coated

Tubing FPM / FKM

Pos: 55 /Technische Dokum entat ion/Fl ash COR IO/C ORIO _CD_GE SAMT/ Zubeh ör @ 0\mod_ 142426 746469 1_18.d ocx @ 79 00 @ 1 22 @ 1

Accessories

33

13 Accessories

A wide selection of accessories is available for the following products at

www.julabo.com for optimum adaption to your temperature control

task.

13.1 For external connection

• Bath fluids

• Tubing

• Shut-off valve

• Barbed fittings

• Adapters

13.2 For open baths

Temperature applications for samples, preparation of samples for
serology and clinical chemistry, analysis, etc.

• Test tube racks

• Immersion-height adjustable platforms

Pos: 56 /Technische Dokumentation/Flash CORIO/CORIO_CD_GESAMT/Warten, Reinigen, Lagern @ 0\mod_1409218462355_18.do cx @ 7 225 @ 1 2211 @ 1

14 Maintenance, cleaning, storage

Danger of injury during maintenance, repair and transport
Danger from mains voltage.

• Have all service and repair work carried out by authorized
specialists only.

• Switch off the unit and pull the plug,

- before starting any cleaning work,

- before carrying out any service or repair work or

- before moving the unit.

• Empty the unit completely before moving it.

• Transport the unit carefully.

14.1 Maintain the refrigeration capacity.

The device is designed for continuous operation in normal conditions. No
regular maintenance work is required.

The condenser on the front should be cleaned from time to time to
maintain the full refrigeration capacity.

34

1. Switch off the device.

2. Pull the plug.

3. Let the unit cool down to room temperature.

4. Carefully extract the contamination at the condenser
through the ventilation grille at the front. Make sure that
the fins are not damaged.

14.2 Cleaning

Use low surface tension water (for example soap suds) to clean the bath
and the functional parts of the circulator which are immersed in it. Clean
the exterior device with a cloth and low surface tension water.

The circulator is designed for continuous use in normal conditions. No
regular maintenance work is required.

The bath tank should only be filled with suitable bath fluid. In the event
of contamination, the bath fluid must be replaced from time to time.

14.3 Storage

Units which are not to be reused must be stored in a dry, place,
protected from dust and frost, after cleaning. The system components
must be fully emptied and carefully dried, for example using compressed
air. Seal the connectors.

15 Repair service

Before asking for a service technician or returning a JULABO unit for
repair, please contact our Technical Service Department.

JULABO Technical Service
Phone: +49 7823 / 51-66
Fax: +49 7823 / 51-99
Email: [e-mail]
If you return a unit to JULABO:

• Clean the unit to avoid any harm to the service personnel.

• It is essential that you enclose a short fault description.

• Before returning the device, please complete an online return form

at http://www.julabo.com/en/support/rma.

• Ensure careful and adequate packing..

• JULABO cannot accept any liability for damage caused by incorrect

packaging.

• In the interest of product improvement, JULABO reserves the right to
make any necessary technical modifications during the repair to
ensure the proper functioning of the unit.

Pos: 57 /Technische Dokumentation/Flash CORIO/CORIO_CD_GESAMT/Gewährleistung EU @ 0\mod_1409218450062_1 8.doc x @ 6741 @ 2 @ 1

Repair service

35

15.1 Warranty

JULABO warrants the proper functioning of the unit when connected and
handled correctly and in accordance with the operating manual.

The warranty period is

one year.

Extension of warranty period – free of charge

With the ‘1PLUS warranty’ the user receives a free of charge extension to
the warranty of up to 24 months, limited to a maximum of 10 000
working hours.

To apply for this extended warranty the user must register the unit on
the JULABO web site www.julabo.de, indicating the serial no. The
extended warranty will apply from the date of JULABO GmbH’s original
invoice.

JULABO GmbH reserves the right to decide the validity of any warranty
claim. In case of faults arising either due to faulty materials or
workmanship, parts will be repaired or replaced free of charge, or a new
replacement unit will be supplied.

Any other compensation claims are excluded from this guarantee.

Pos: 58 /Technische Dokumentation/Flash CORIO/CORIO_CD_GESAMT/Entsorgen @ 0\mod_140921844 8783_18 .docx @ 6686 @ 1222 @ 1

36

16 Waste disposal

16.1 Packaging

Packaging materials must be disposed of as prescribed by the current
local regulations.

16.2 Unit

In the European Economic Area (EEA) the disposal of waste equipment is
regulated in the "Directive of the European Parliament and of

the Council on Waste Electrical and Electronic Equipment
(WEEE)". The current official journal on this matter is available on the

European Parliament's homepage.
The symbol for the separate collection of electrical and electronic

equipment is a crossed-out trash can.
Disposal with household waste (unsorted waste) or similar collections of

municipal waste is not permitted!
Contact an authorized waste disposal contractor in your country.

16.3 Refrigerant

Refrigerants must be disposed of as prescribed by the current local
regulations.
They may only be disposed of by trained personnel.

EC conformity

37

17 EC conformity

38

Pos: 60 /T ech nis che Doku men tat ion /Fl ash C OR IO/C ORI O_ CD_ GESAM T/ Adr ess e @ 0 \mod_1 418131 097154_ 18.docx @ 768 0 @ @ 1

JULABO GmbH

Gerhard-Juchheim-Strasse 1
77960 Seelbach / Germany
Tel. [phone] / 51-0
Fax [phone] / 2491
[e-mail]

www.julabo.com

Changes without prior notification reserved. 28.03.2017
