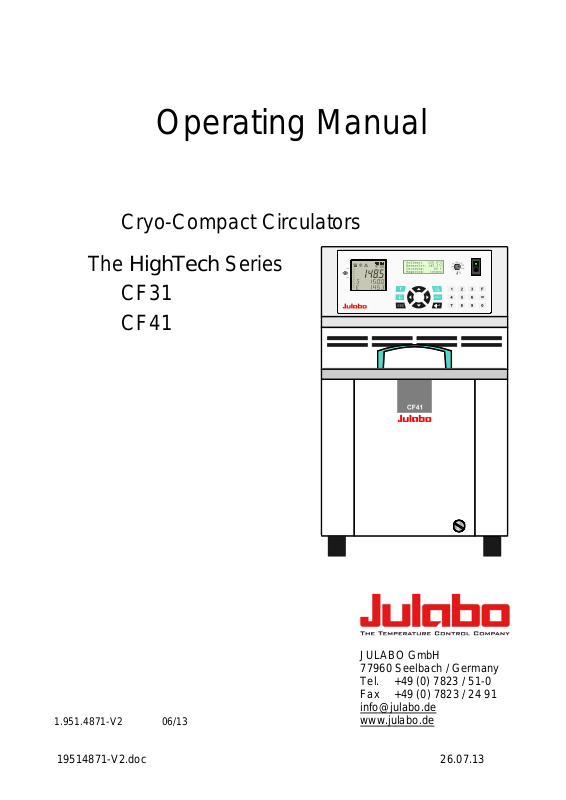

Operating Manual

Cryo-Compact Circulators

The HighTech Series

CF31 CF41

JULABO GmbH 77960 Seelbach / Germany Tel. +49 (0) 7823 / 51-0 Fax +49 (0) 7823 / 24 91

1.951.4871-V2 06/13

19514871-V2.doc 26.07.13

info@julabo.de www.julabo.de

Congratulations!

You have made an excellent choice. JULABO thanks you for the trust you have placed in us. This operating manual has been designed to help you gain an understanding of the operation and possible applications of our Cryo-Compact Circulators. For optimal utilization of all functions, we recommend that you thoroughly study this manual prior to beginning operation.

The JULABO Quality Management System

Temperature control devices for research and industry are developed, produced, and distributed according to the requirements of ISO 9001 and ISO 14001. Certificate Registration No. 01 100044846

Unpacking and inspecting

Unpack the Cryo-Compact Circulator and accessories and inspect them for possible transport damage. Damage should be reported to the responsible carrier, railway, or postal authority, and a damage report should be requested. These instructions must be followed fully for us to guarantee our full support of your claim for protecting against loss from concealed damage. The form required for filing such a claim will be provided by the carrier.

Printed in Germany Changes without prior notification reserved

Important: keep operating manual for future use

Cryo-Compact Circulators

TABLE OF CONTENTS

Operating manual ............................................................................................................................ 5

1. Intended use ............................................................................................................................. 5

1.1. Description ........................................................................................................................... 5

2. Operator responsibility – Safety instructions ............................................................................ 6

2.1. Disposal ............................................................................................................................... 7

2.2. EC Conformity ...................................................................................................................... 8

2.3. Warranty conditions ............................................................................................................. 8

2.4. Technical specifications ....................................................................................................... 9

3. Safety notes for the user ......................................................................................................... 12

3.1. Explanation of safety notes ................................................................................................ 12

3.2. Explanation of other notes ................................................................................................. 12

3.3. Safety instructions .............................................................................................................. 12

Operating instructions .................................................................................................................... 15

4. Operating controls and functional elements ........................................................................... 15

5. Preparations ........................................................................................................................... 19

5.1. Installation .......................................................................................................................... 19

5.2. Temperature application to external systems ..................................................................... 19

Tubing ................................................................................................................................ 21

5.3.

5.4. Bath fluids .......................................................................................................................... 22

6. Operating procedures ............................................................................................................. 23

6.1. Power connection ............................................................................................................... 23

6.2. Filling .................................................................................................................................. 23

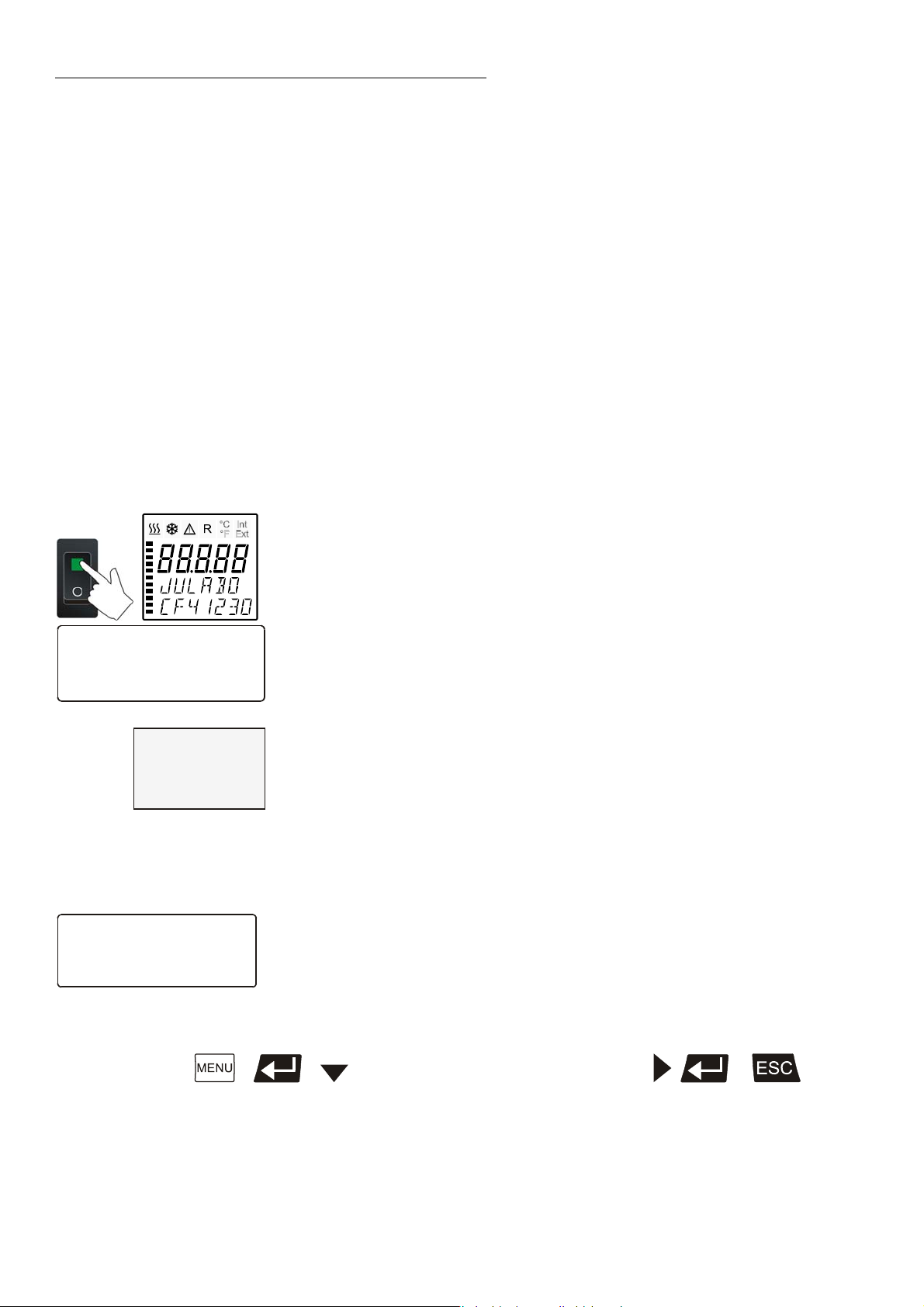

6.3. Switching on / Selecting the language ............................................................................... 24

7. Manual operation .................................................................................................................... 25

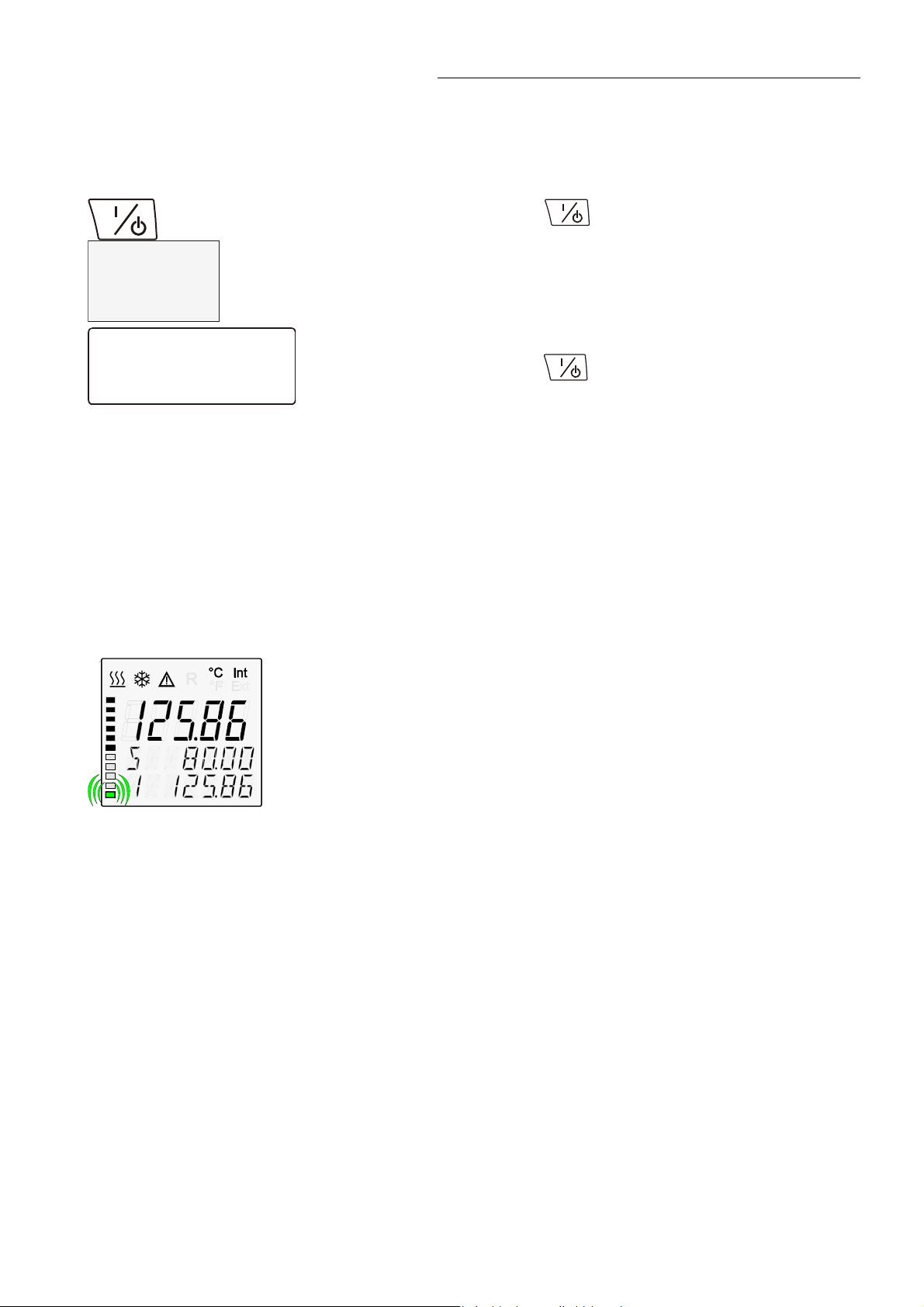

7.1. Start - Stop ......................................................................................................................... 25

7.2.  Control of the cooling machine ...................................................................................... 25

7.3.

7.4.

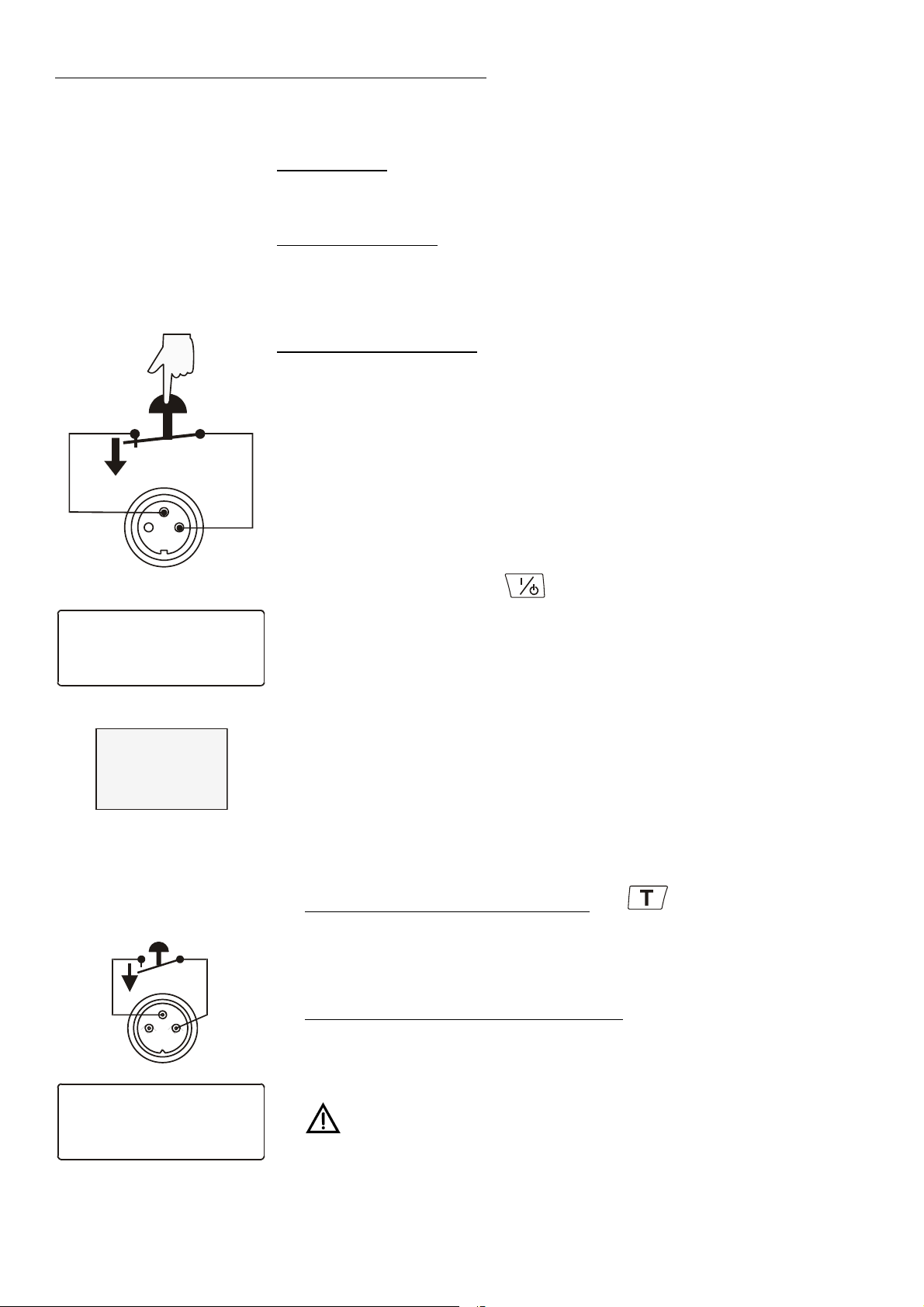

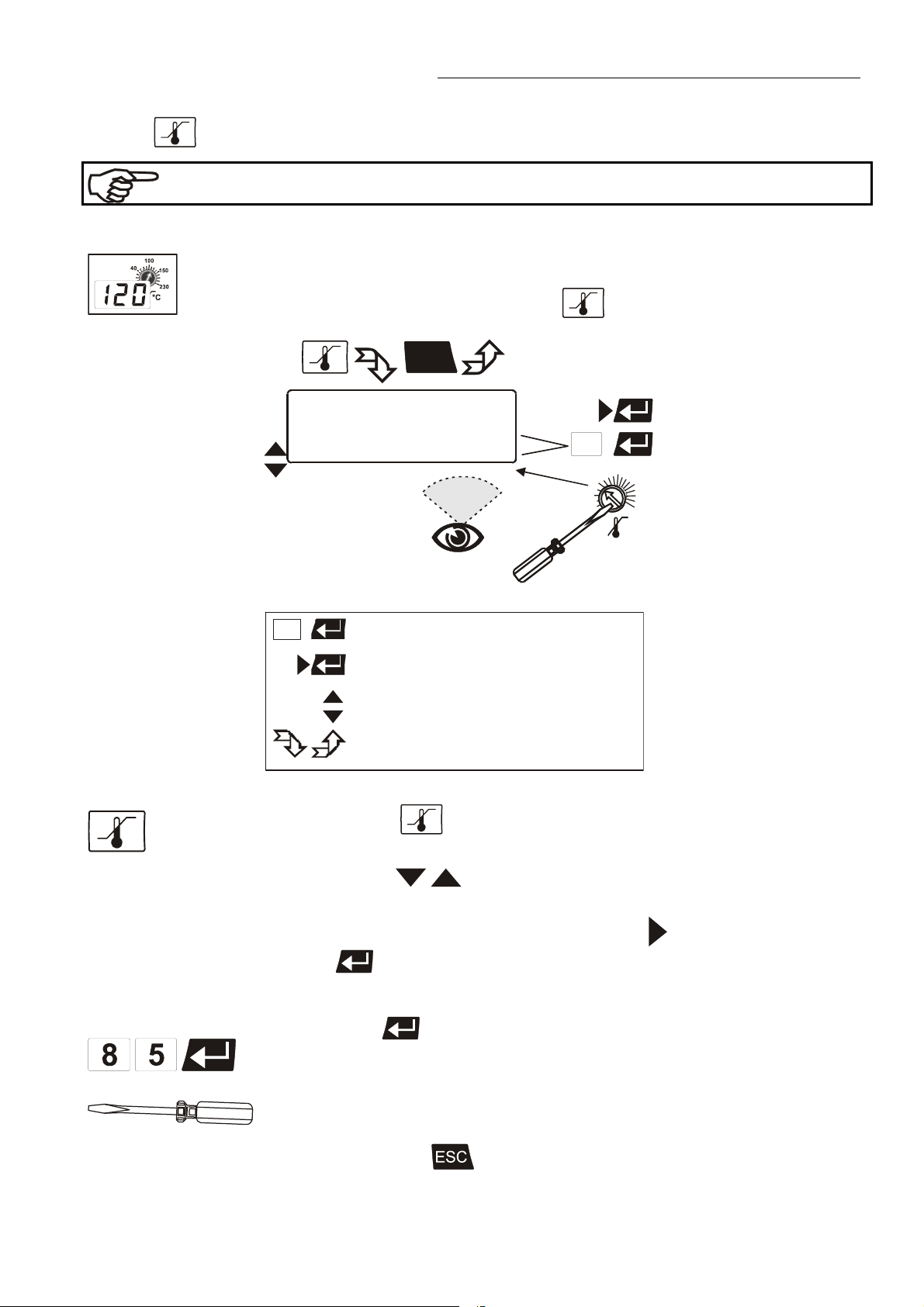

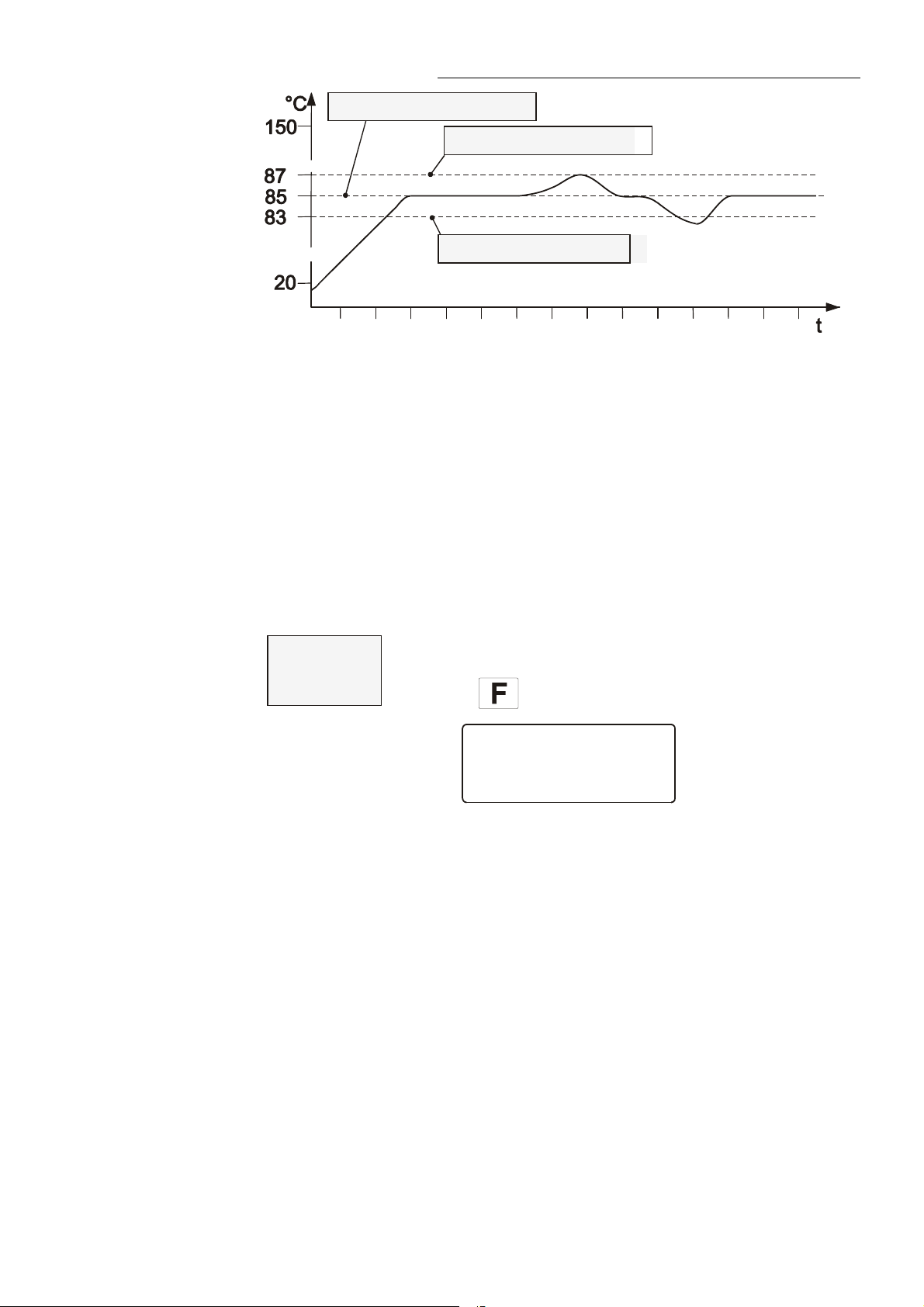

7.4.1. Excess temperature protection ................................................................................. 27

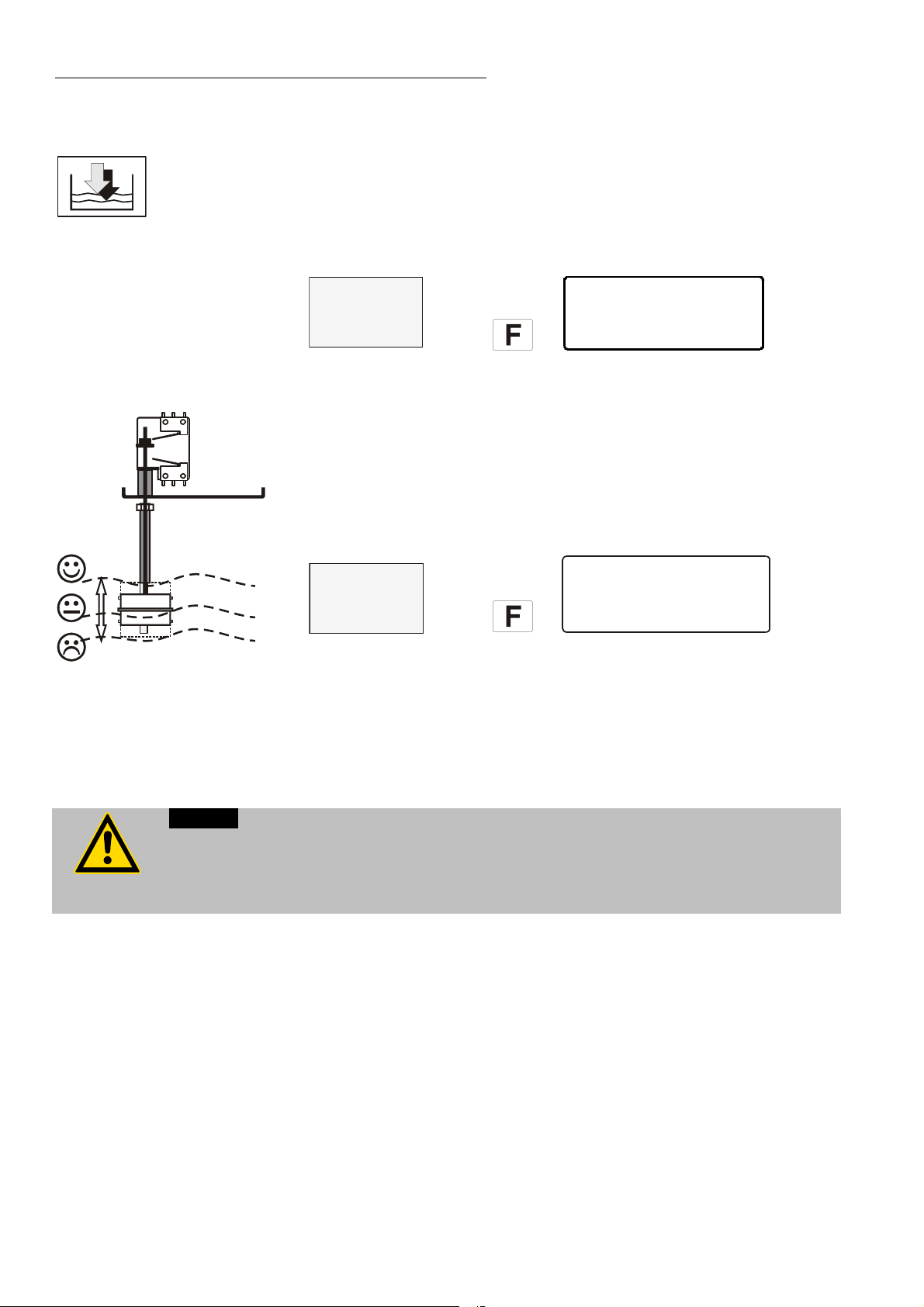

7.4.2. Early warning system, low level protection ............................................................... 30

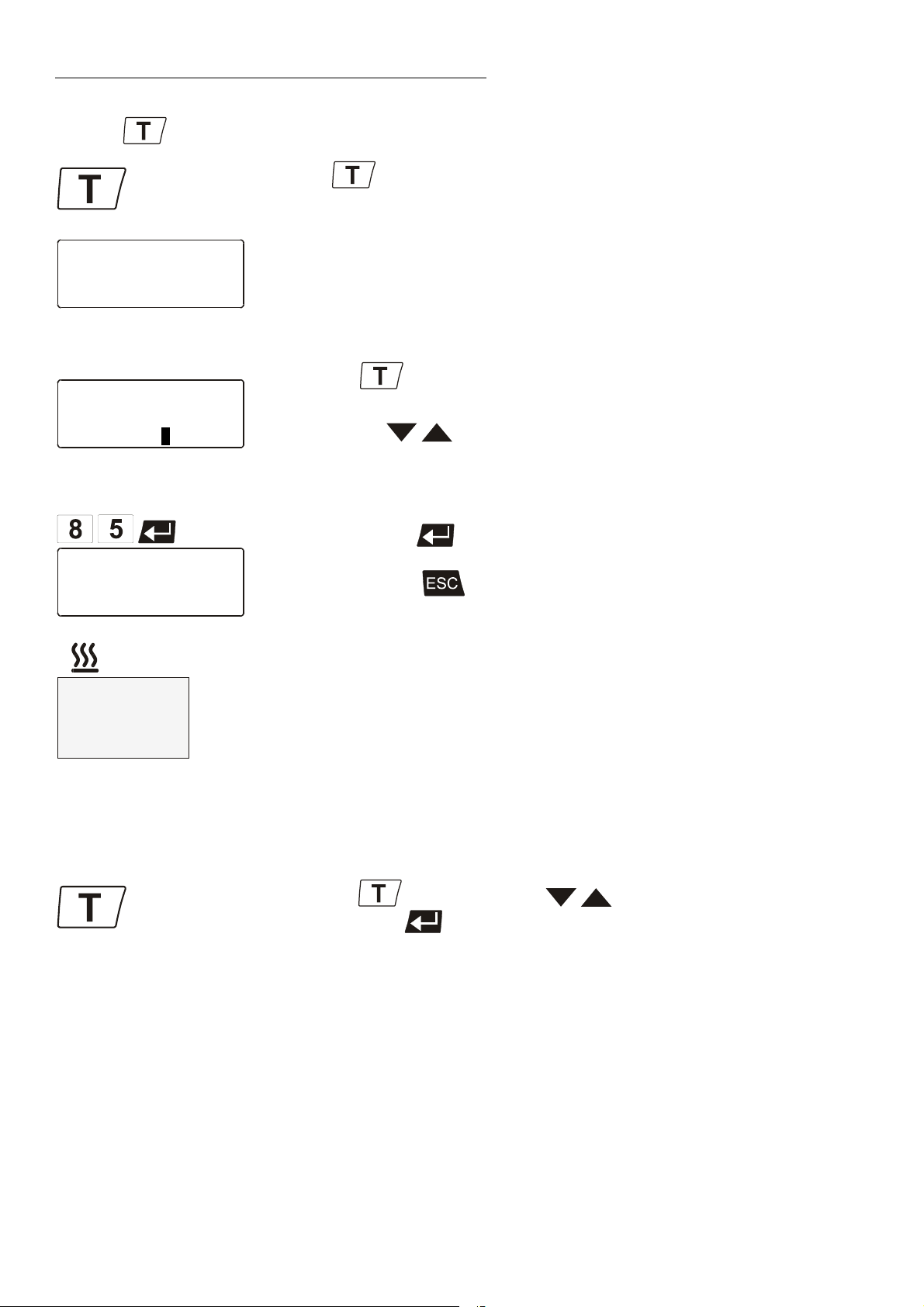

Setting the temperatures .......................................................................................... 26

Safety installations, warning functions ..................................................................... 27

8.1. Configuration ..................................................................................................................... 32

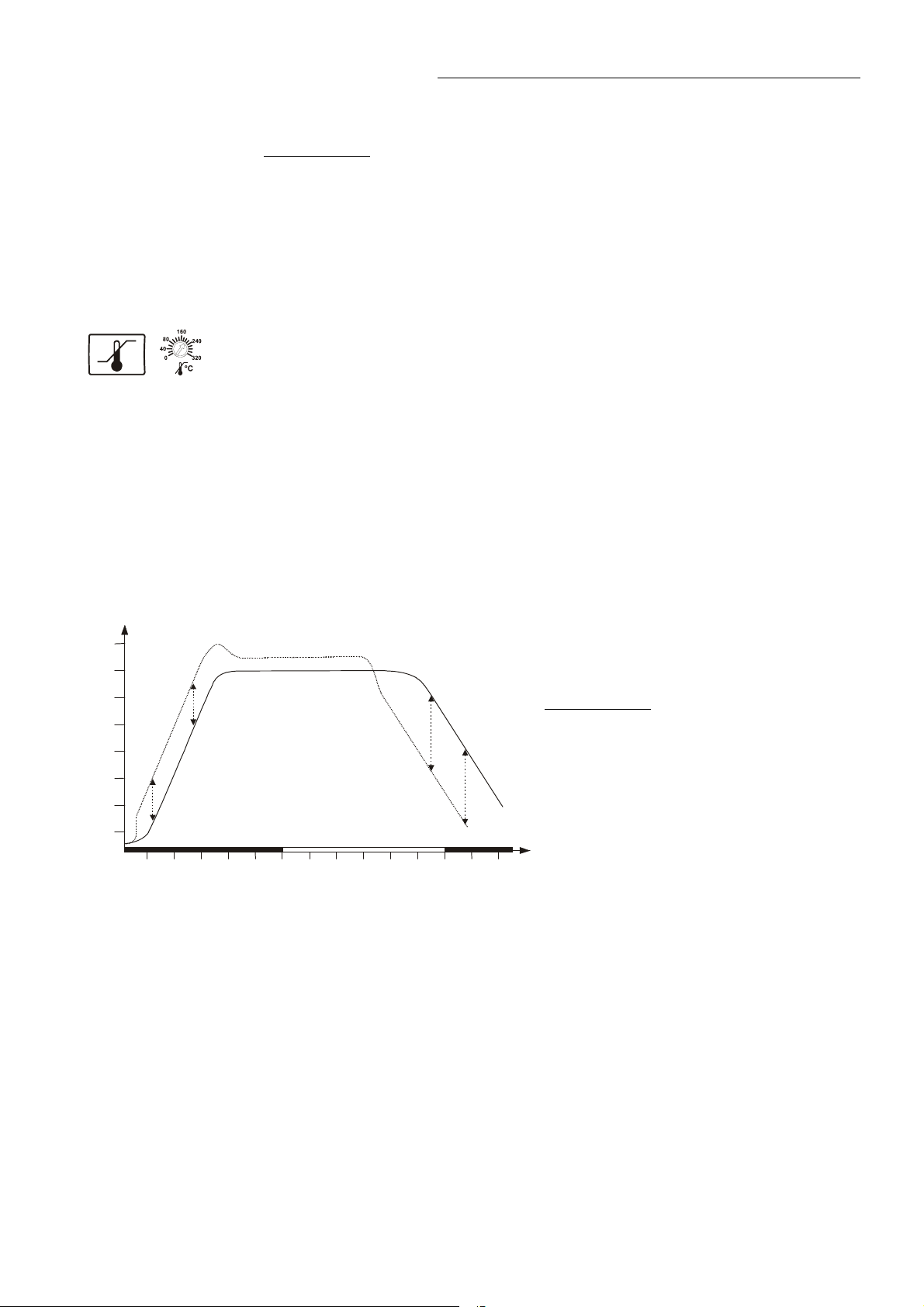

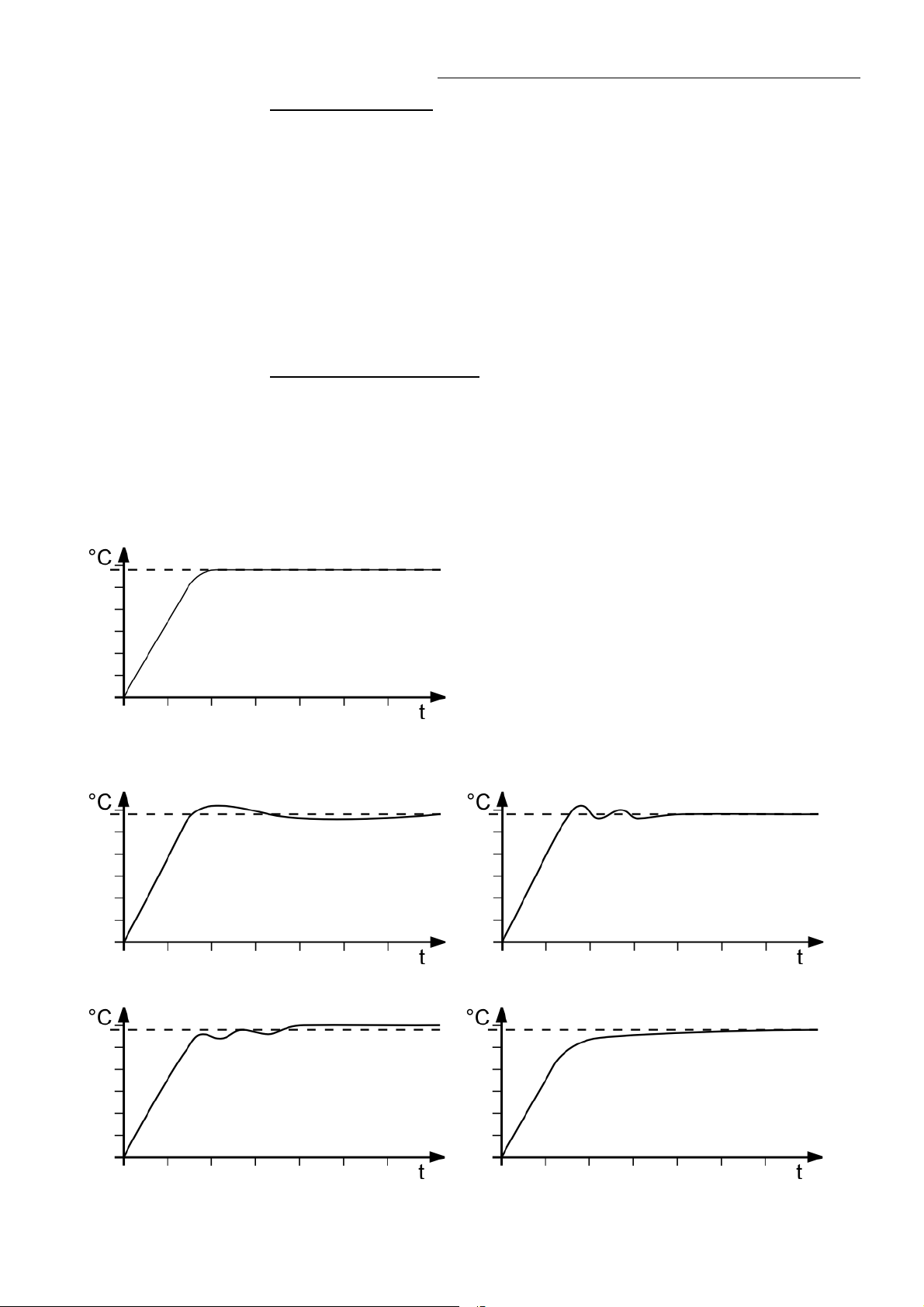

8.2. Control ............................................................................................................................... 36

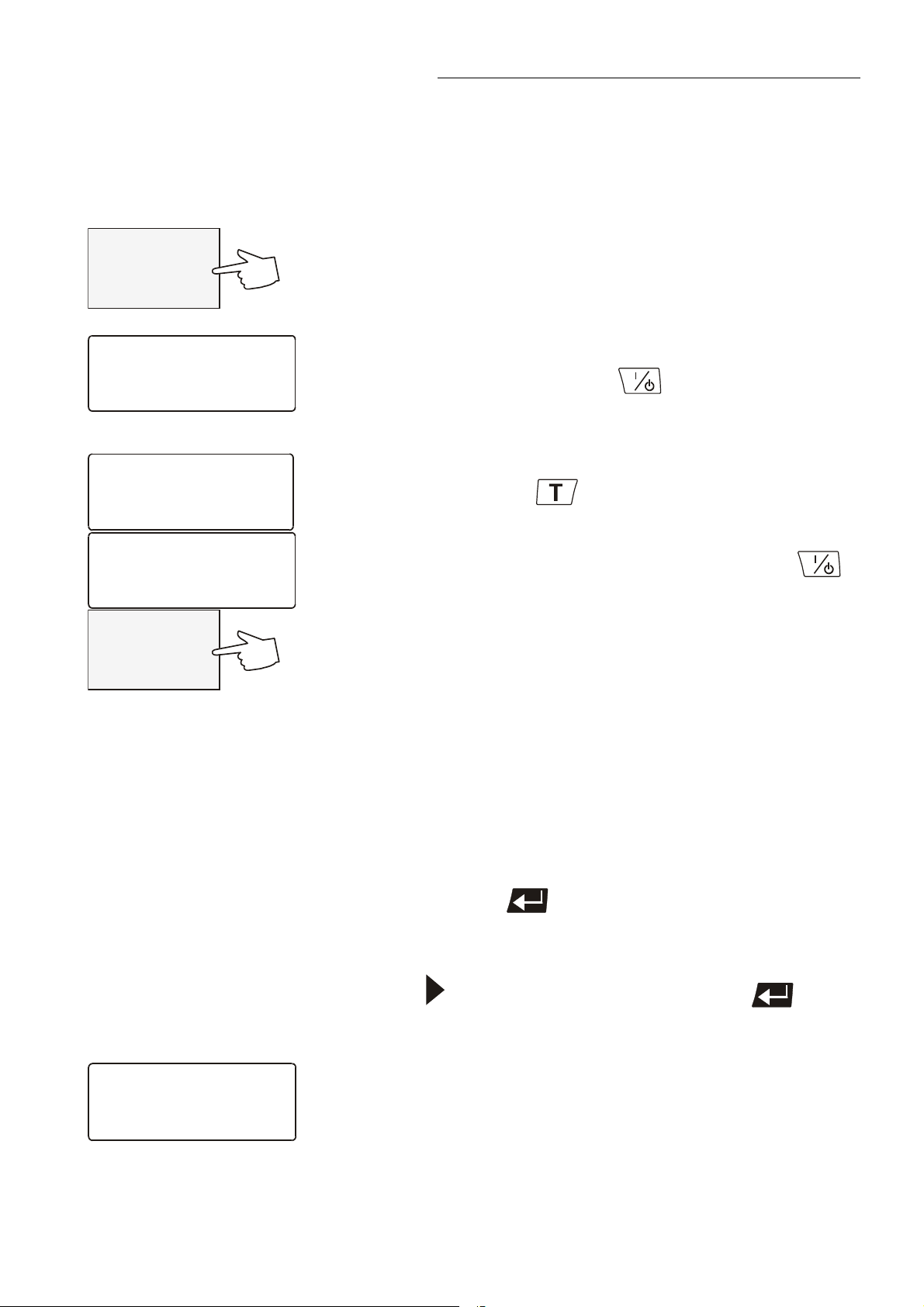

8.3. Start of a profile ................................................................................................................. 40

8.4. Integrated programmer ...................................................................................................... 46

8.5. Analog inputs/outputs ........................................................................................................ 49

8.6. Limits ................................................................................................................................. 56

8.7. Serial interface ................................................................................................................... 58

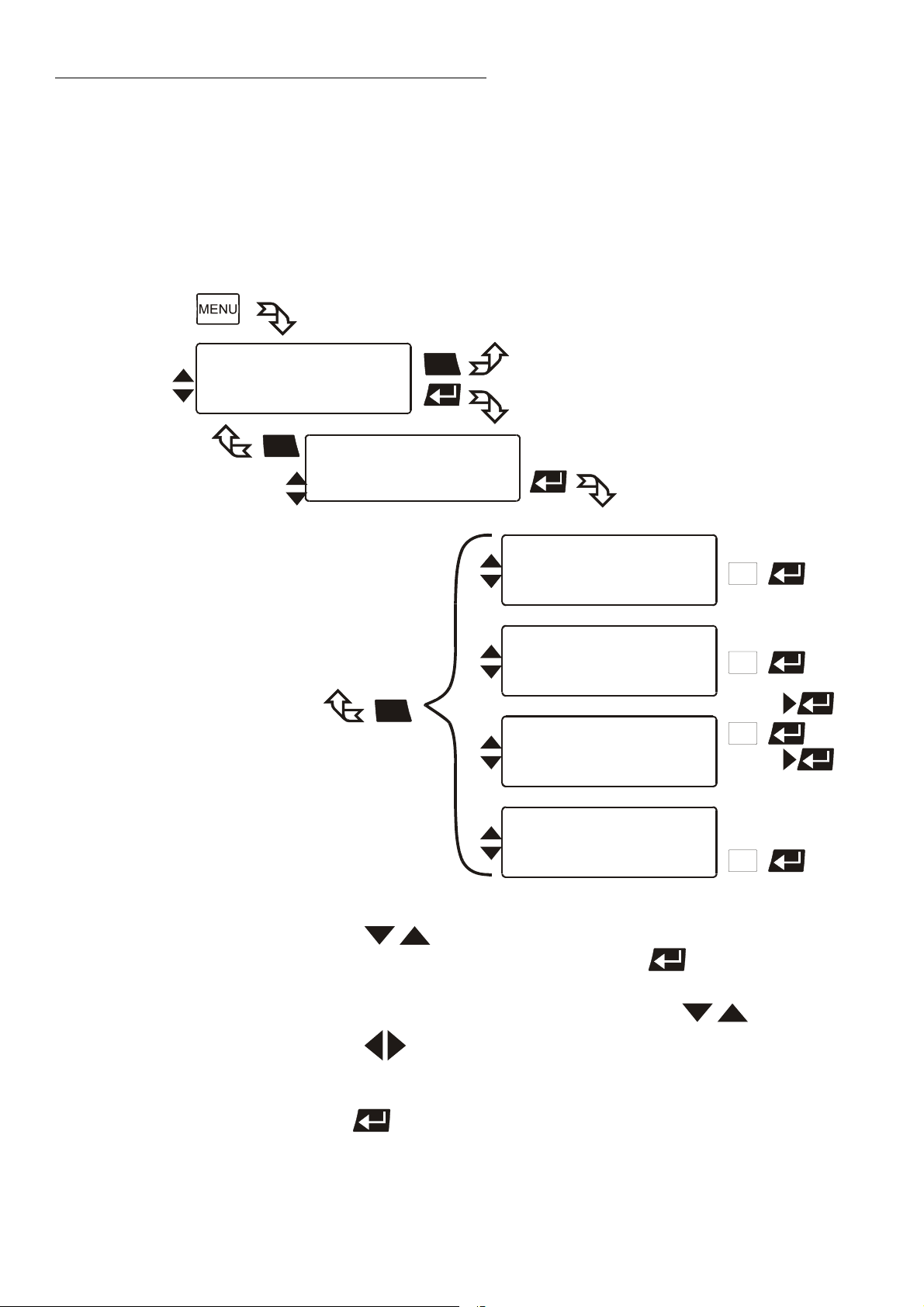

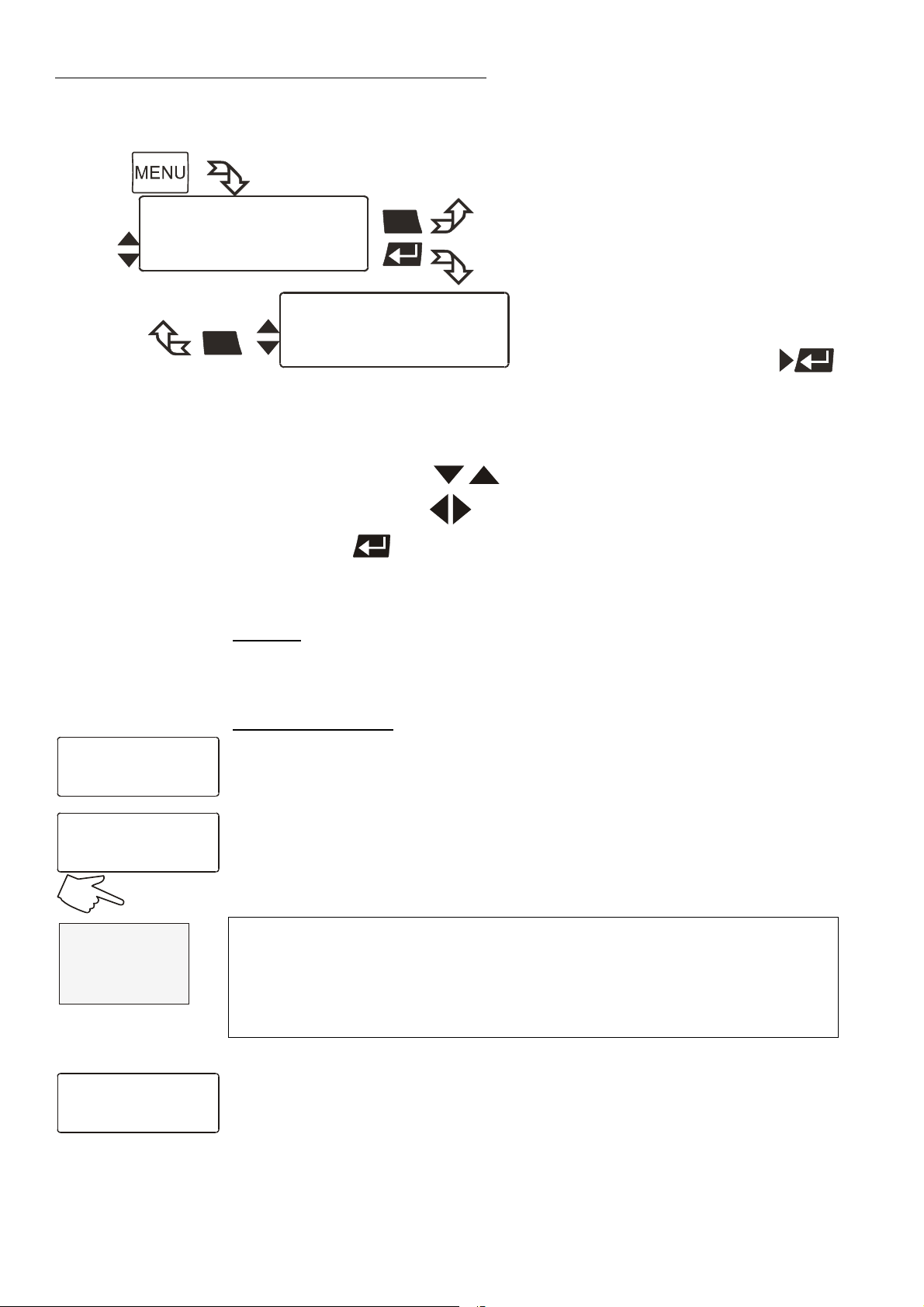

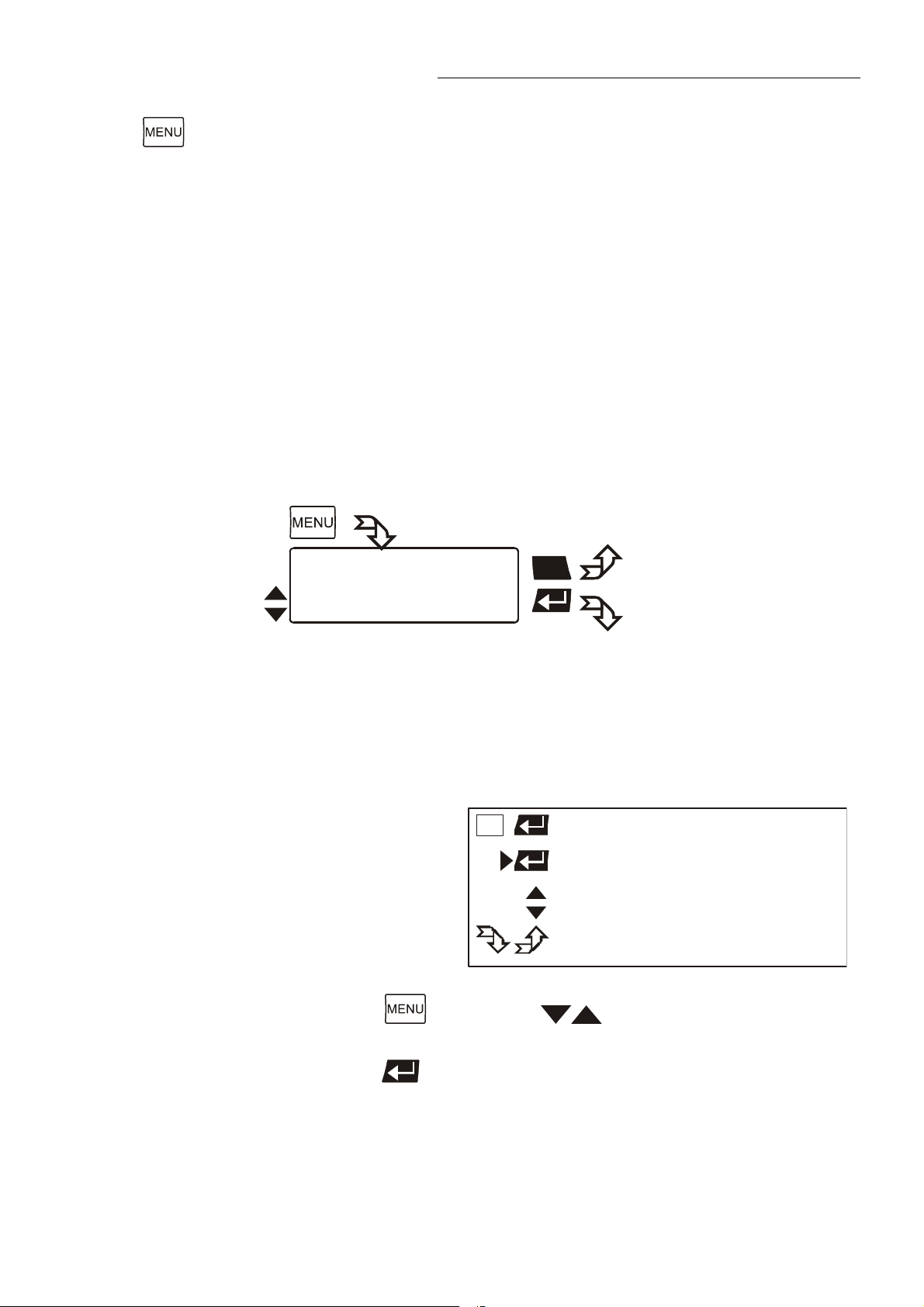

Menu functions ............................................................................................................. 31

8.3.1. Edit after start ........................................................................................................... 42

8.3.2. Interrupting a profile ................................................................................................. 44

8.3.3. Interruption after a power failure .............................................................................. 44

8.3.4. Termination of a profile ............................................................................................. 45

8.5.1. REG+E-PROG – temperature recorder outputs ....................................................... 51

8.5.2. REG+E-PROG - programmer input .......................................................................... 52

8.5.3. STAND-BY input ..................................................................................................... 54

8.5.4. ALARM output ......................................................................................................... 55

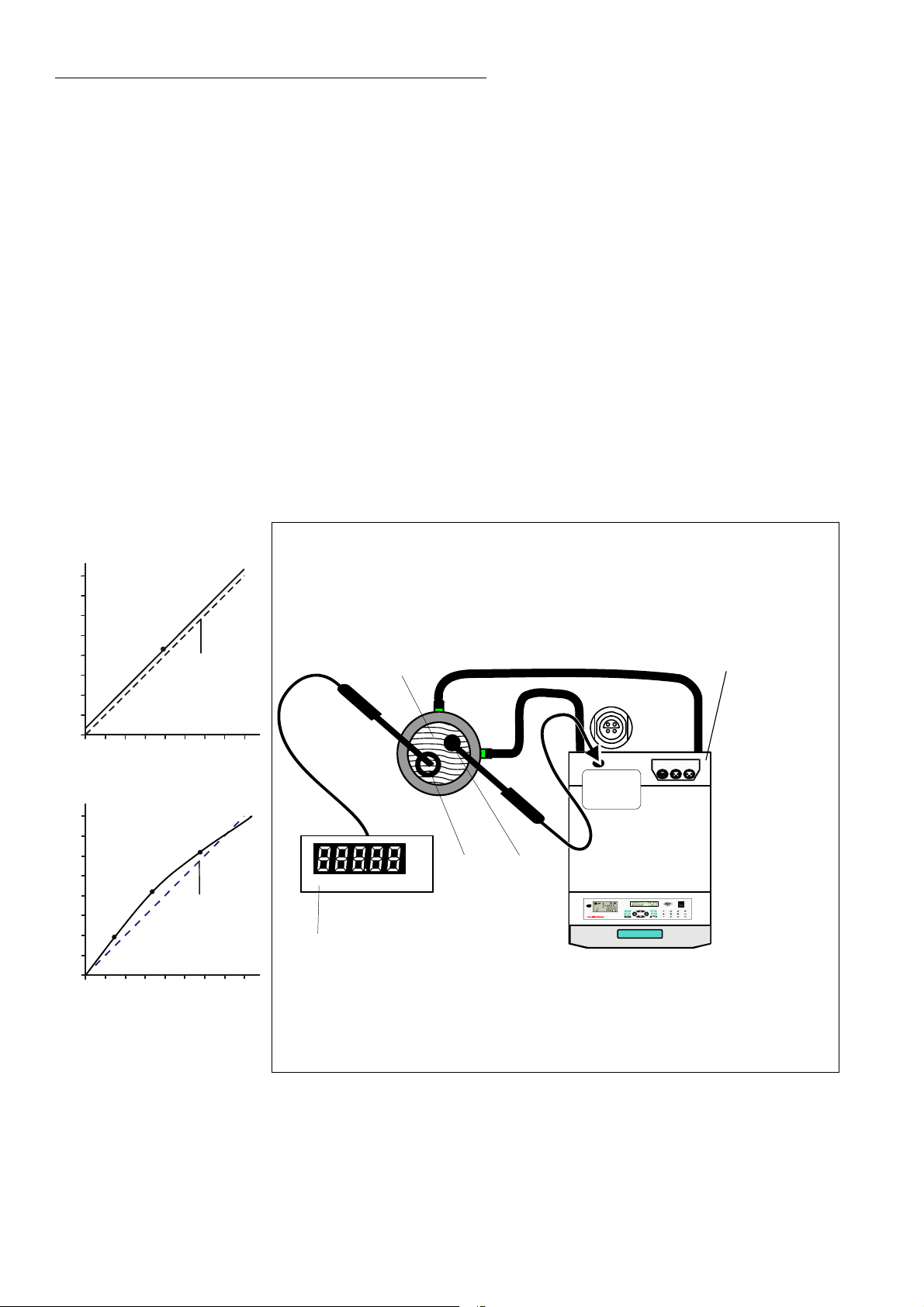

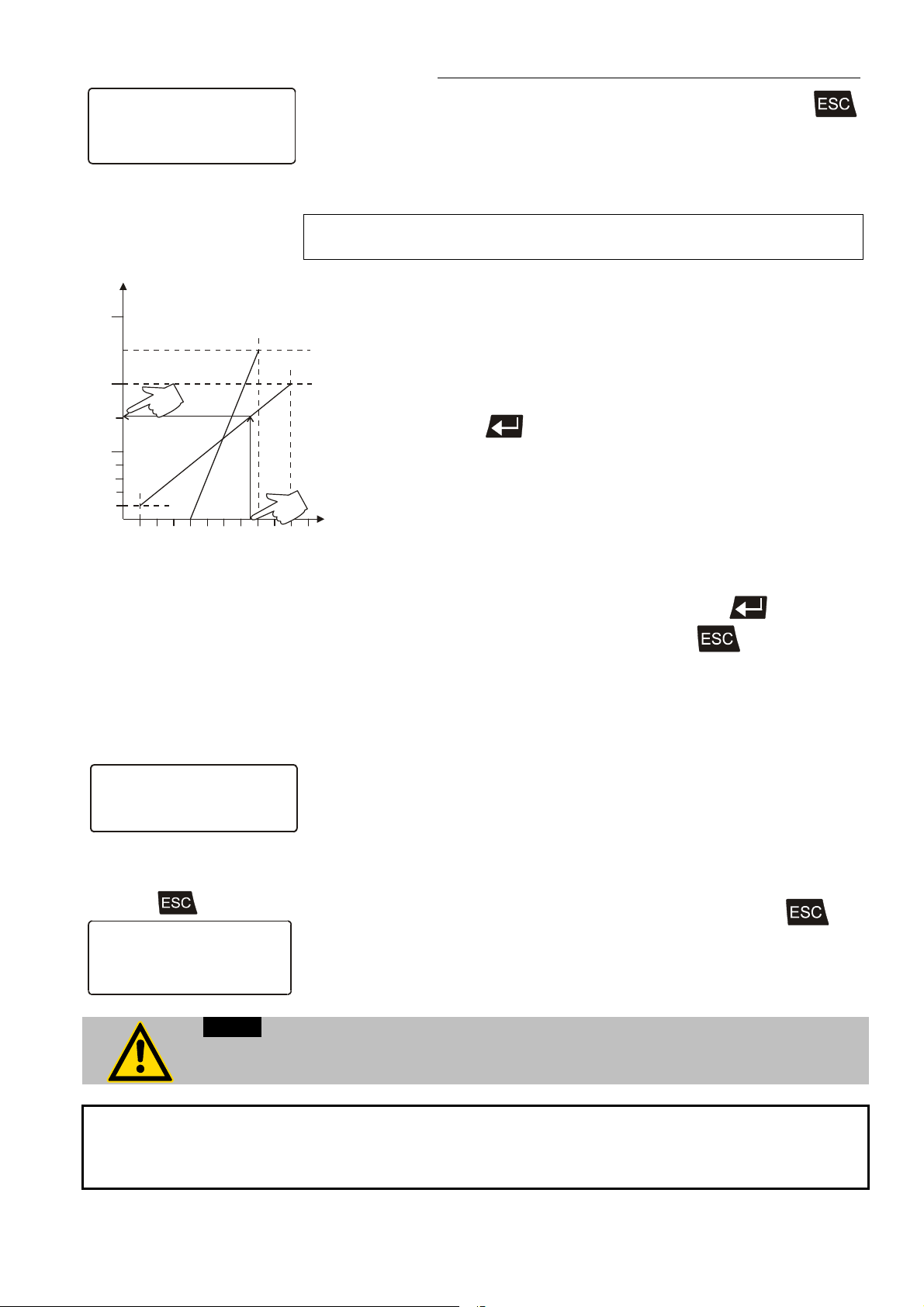

8.8. ATC Absolute Temperature Calibration, 3-point calibration .............................................. 59

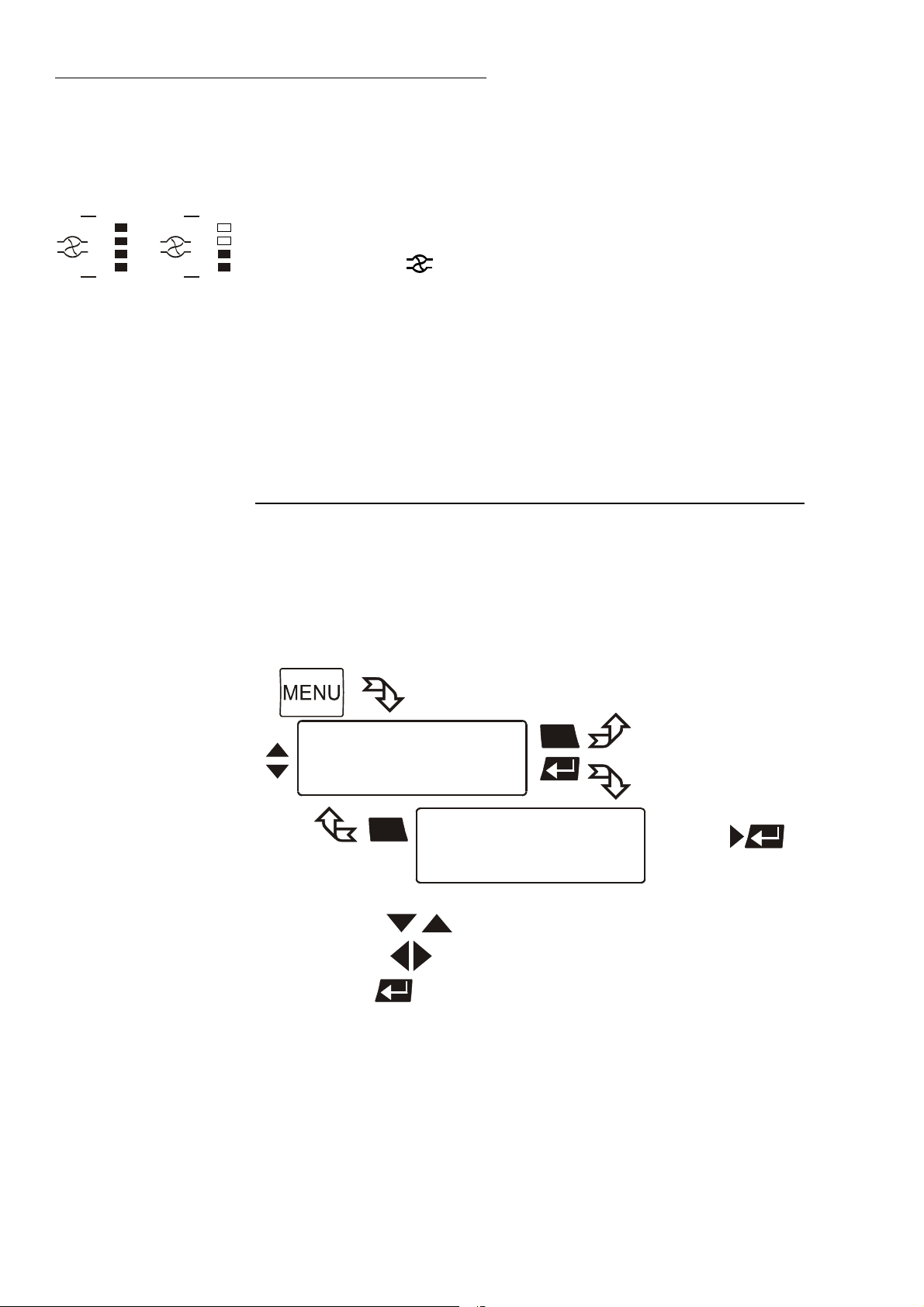

8.9. Setting the pump pressure ................................................................................................. 62

9. Troubleshooting guide / Error messages ............................................................................... 63

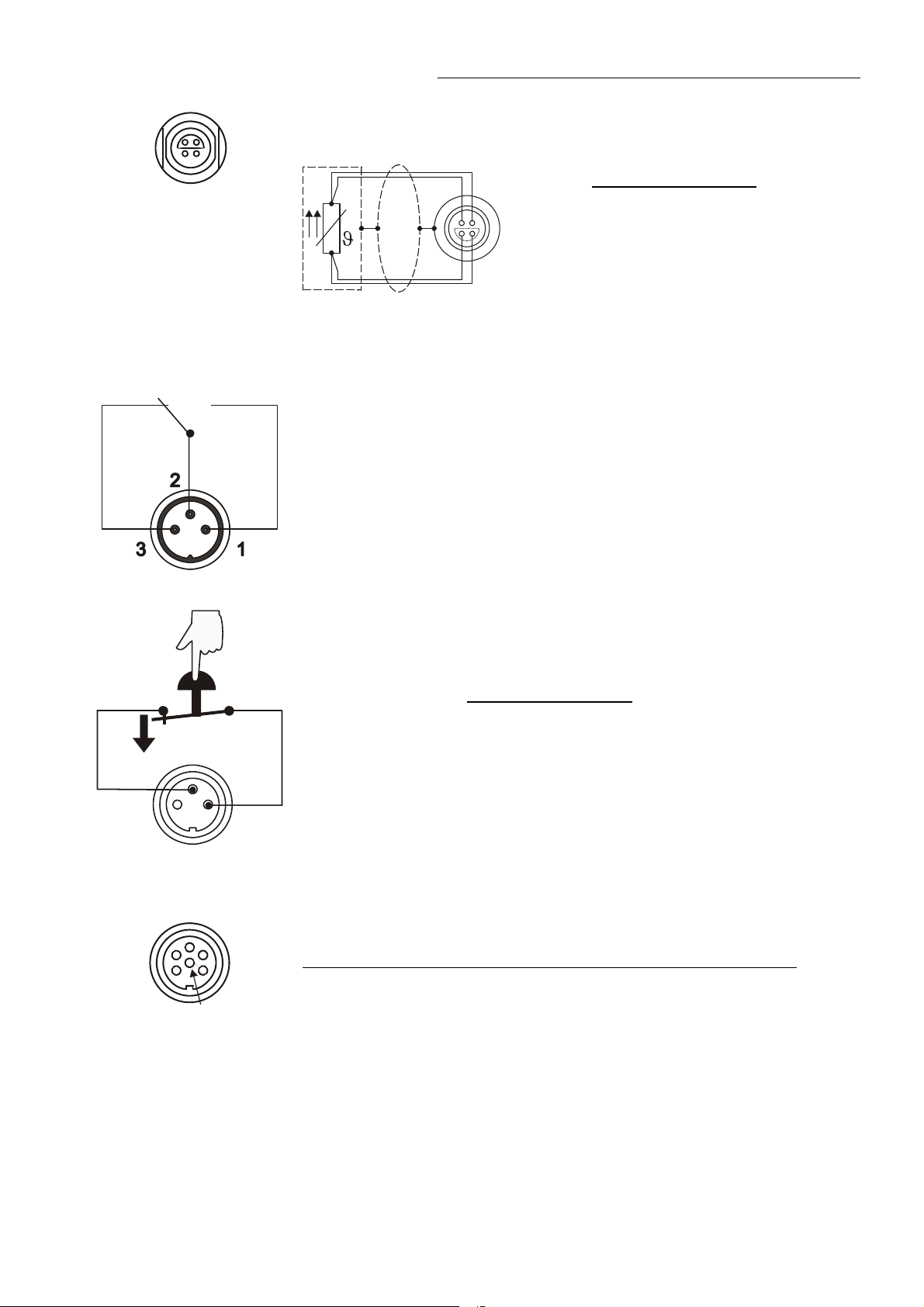

10. Electrical connections ............................................................................................................. 66

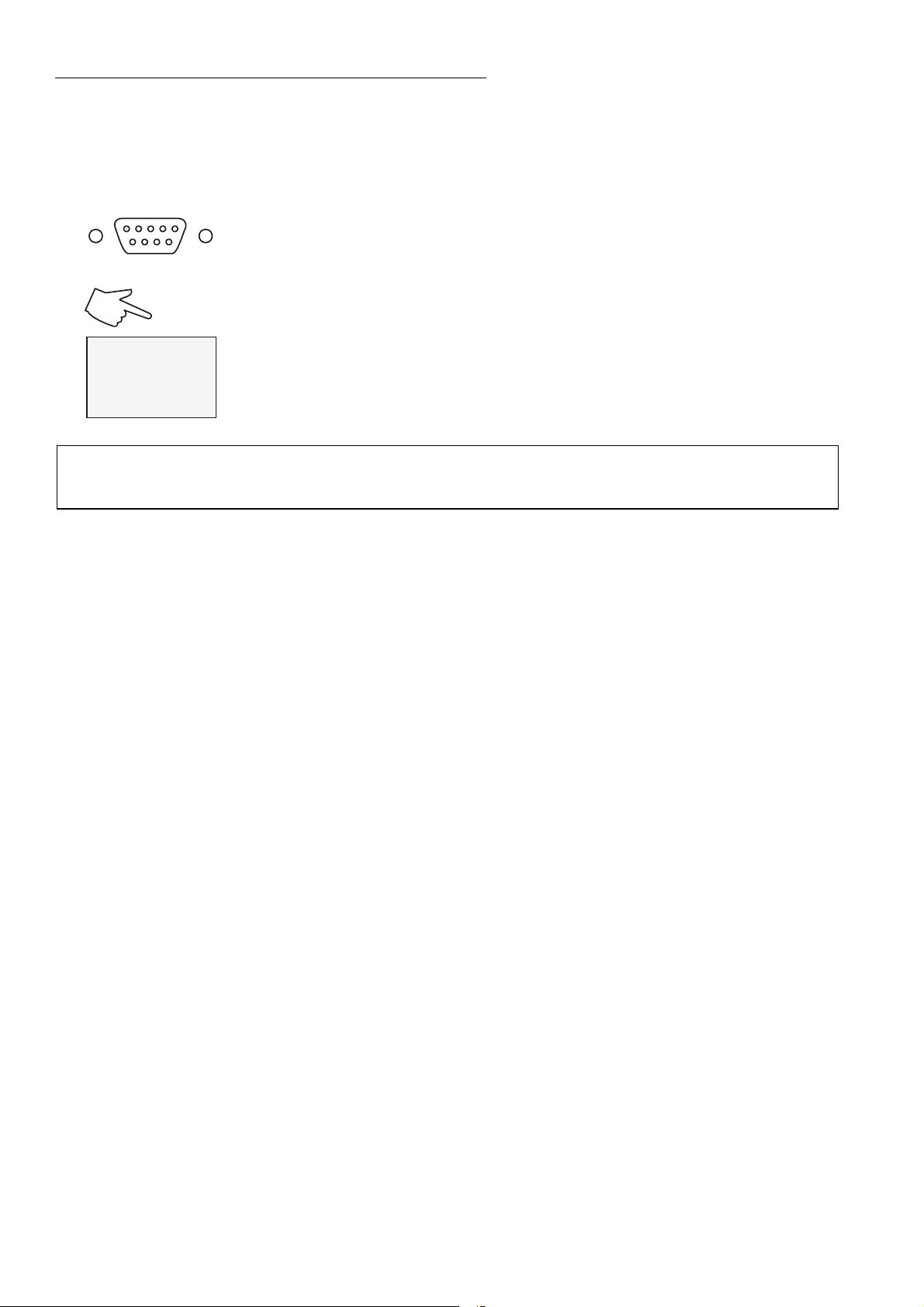

11. Remote control ....................................................................................................................... 68

11.1. Setup for remote control .................................................................................................... 68

11.2. Communication with a PC or a superordinated data system ............................................. 68

11.3. List of commands ............................................................................................................... 69

11.4. Status messages ............................................................................................................... 72

11.5. Error messages ................................................................................................................. 73

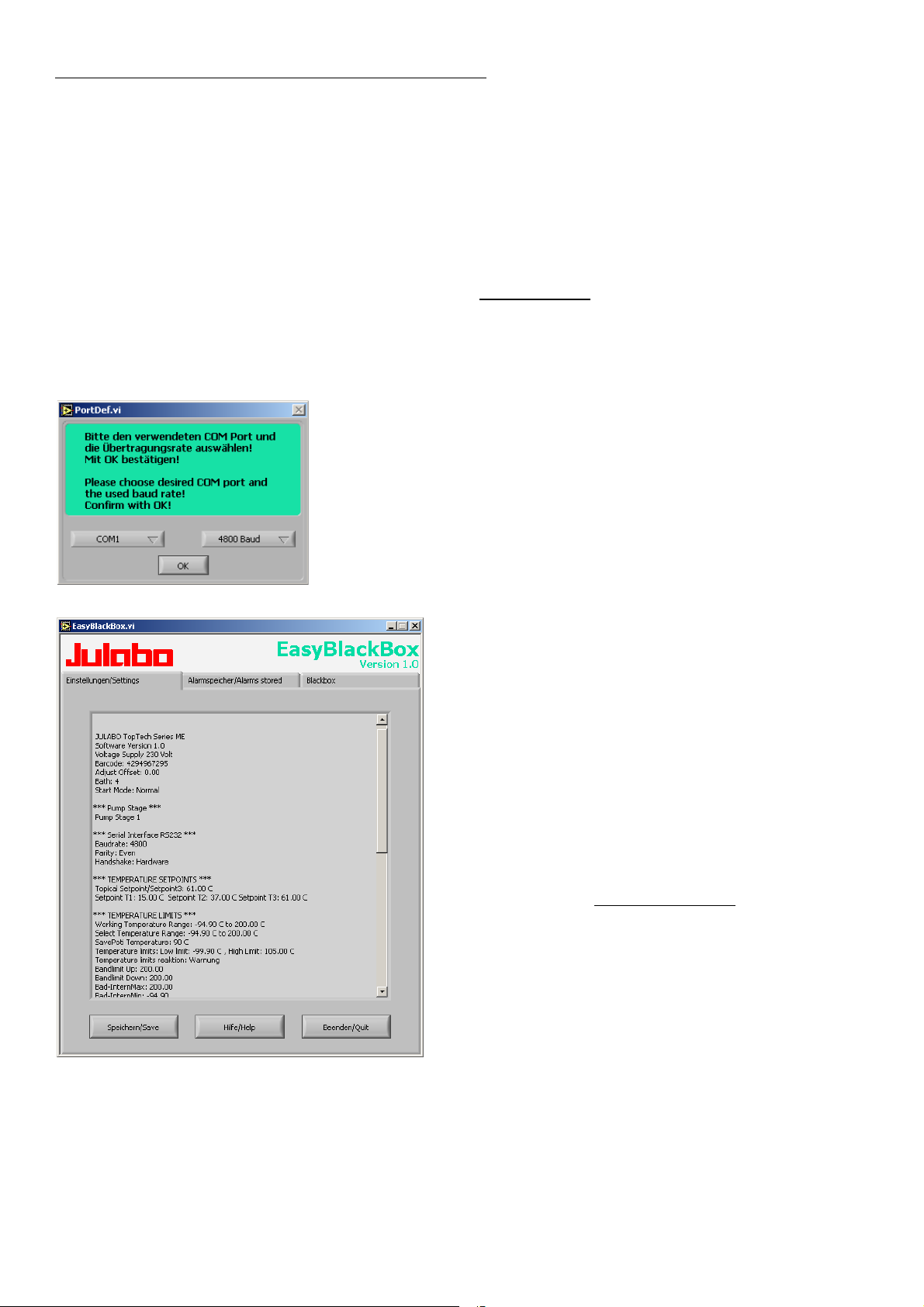

12. JULABO Service – Online remote diagnosis .......................................................................... 74

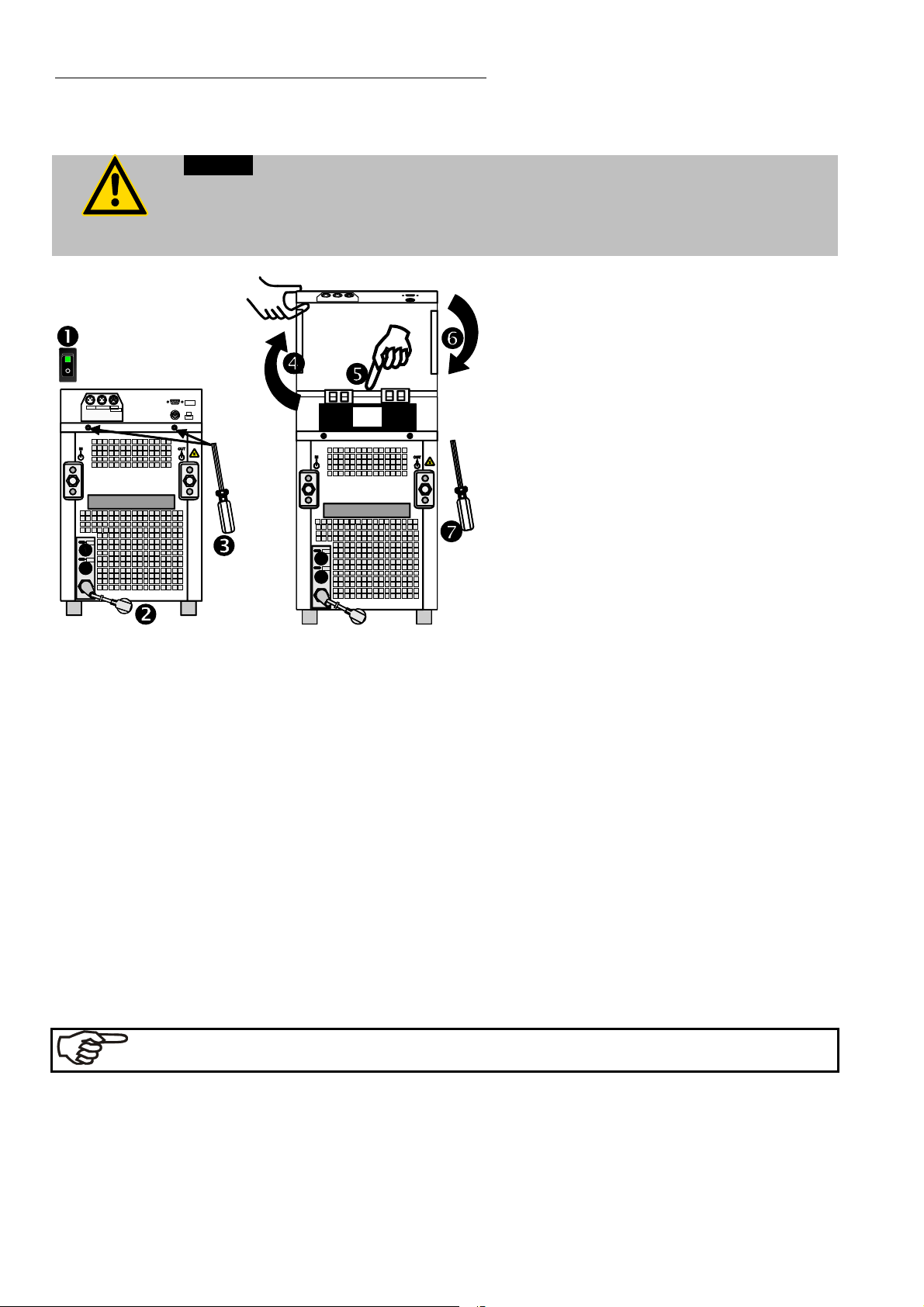

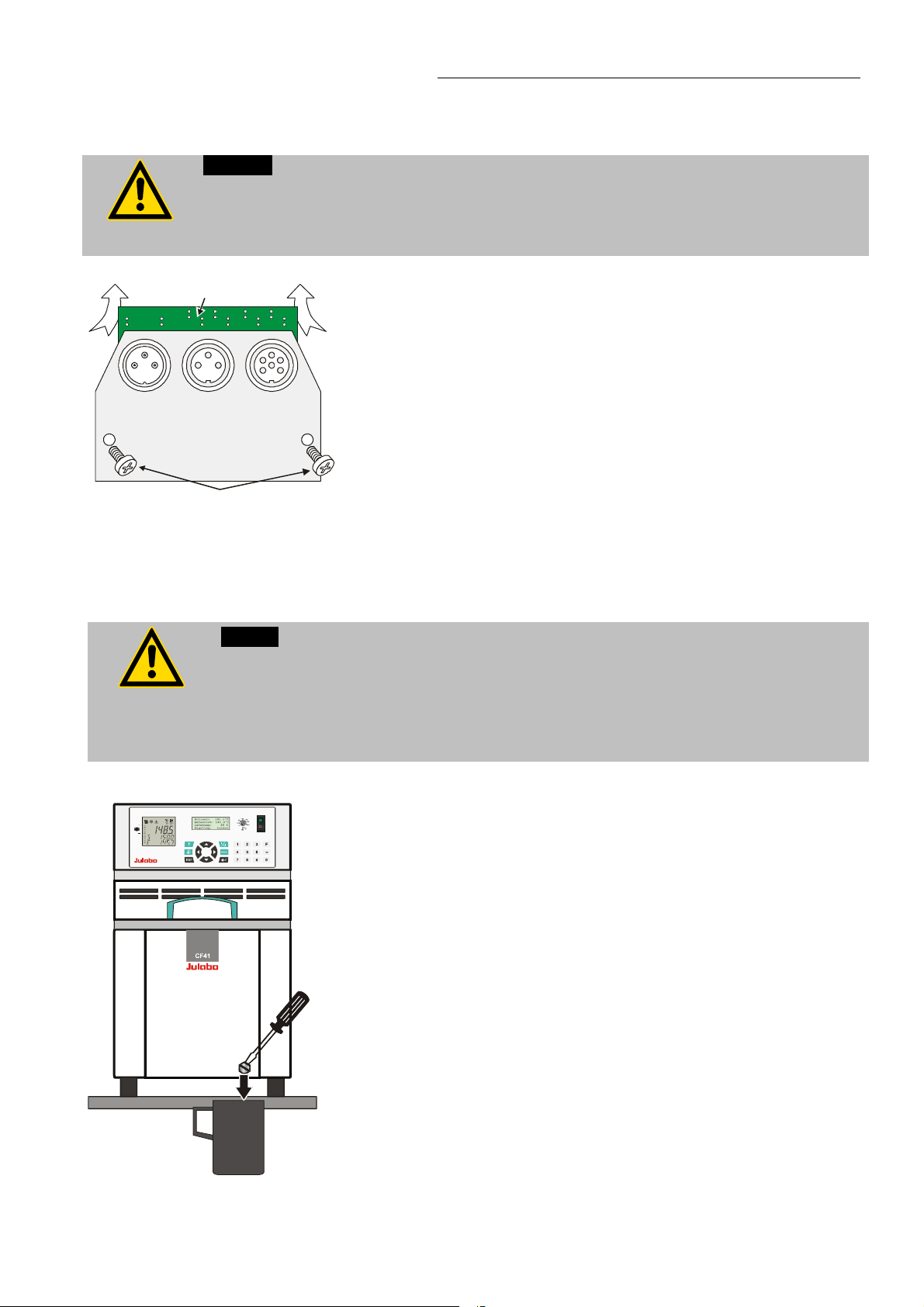

13. Installation of electronic module ............................................................................................. 75

13.1. Draining ............................................................................................................................. 75

14. Cleaning / repairing the unit ................................................................................................... 76

Cryo-Compact Circulators

Operating manual

1. Intended use

JULABO Cryo-Compact Circulators have been designed for temperature application to specific fluids in a bath tank. The units feature pump connections for temperature control of external systems (loop circuit).

JULABO circulators are not suitable for direct temperature control of foods, semi-luxury foods and tobacco, or pharmaceutical and medical products. Direct temperature control means unprotected contact of the object with the bath medium (bath fluid).

1.1. Description

 The Cryo-Compact circulators are operated via the splash-proof keypad. The

implemented microprocessor technology allows to set and to store different values that can be indicated on the VFD COMFORT-DISPLAY and LCD DIALOGDISPLAY. Three menu keys facilitate adjusting setpoints, warning and safety functions and menu functions.

ICC

TCF

ATC

RS232 RS485

Pt100

SMART

PUMP

 The integrated programmer allows storing and running temperature and time-

dependent processes.

 The control electronics including “ICC - Intelligent Cascade Control“ automatically

adapts the heat supplied to the thermal requirements of the bath.

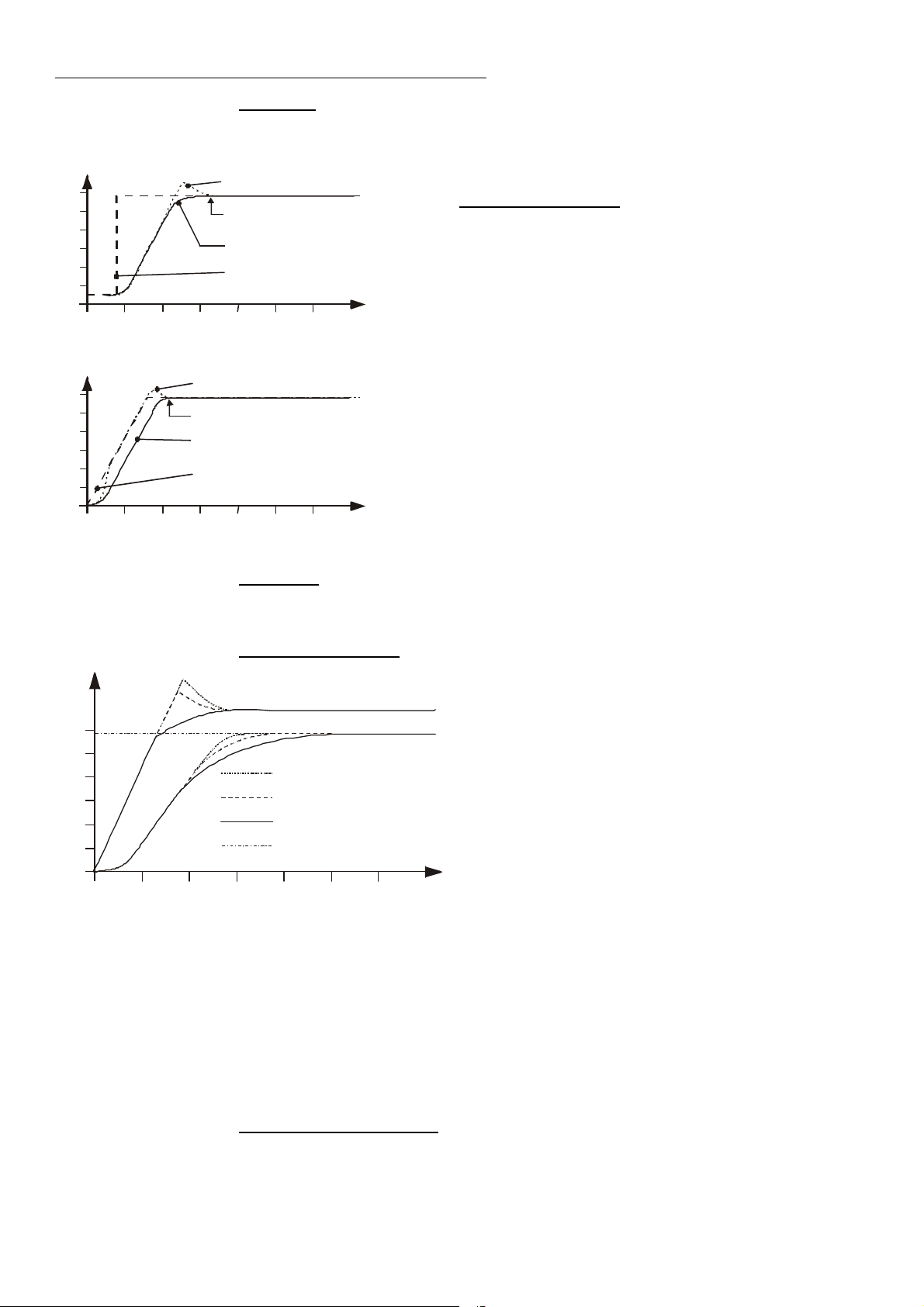

 The TCF - Temperature Control Features allow the user to have access to all

important temperature control parameters. This means: Full control on the control mode and the chance to manually adjust or adapt control to the specific application.

 Absolute Temperature Calibration (ATC3). With the 3-point calibration an offset is

adjusted at three temperatures to ensure an accurate temperature pattern at the selected spot in the bath over the full temperature range.

 Electrical connections:

The serial interface, switchable from RS232 to RS485, allows modern process technology without additional interface. Connection for Pt100 external sensor for external temperature measurement and control. Alarm output for external alarm message or control of JULABO refrigerating baths or solenoid valve (cooling water). The electronic module (option) provides 3 further analog connections (alarm input, standby input, recorder output, programmer input).

 The excess temperature protection conforming to IEC 61010-2-010 is a safety

installation independent from the control circuit. This protection can be indicated and set on the LCD DIALOG-DISPLAY.

 The early warning system for low level signals that bath fluid needs to be refilled

before the low level protection conforming to IEC 61010-2-010 causes a complete shut-down of the main functional elements.

 Intelligent pump system: The pump capacity (electronically adjustable via the motor

speed) enables to adapt to varying conditions for internal and external temperature applications..

Operator responsibility – Safety instructions

2. Operator responsibility – Safety instructions

The products of JULABO ensure safe operation when installed, operated, and maintained according to common safety regulations. This section explains the potential dangers that may arise when operating the circulator and also specifies the most important safety precautions to preclude these dangers as far as possible.

The operator is responsible for the qualification of the personnel operating the units.  The personnel operating the units should be regularly instructed about the dangers involved with

their job activities as well as measures to avert these dangers.

 Make sure all persons tasked with operating, installing, and maintaining the unit have read and

understand the safety information and operating instructions.

 When using hazardous materials or materials that could become hazardous, the circulator may be

operated only by persons who are absolutely familiar with these materials and the circulator. These persons must be fully aware of possible risks.

If you have any questions concerning the operation of your unit or the information in this manual, please contact us!

Contact:

JULABO GmbH Eisenbahnstraße 45 77960 Seelbach / Germany

Tel. +49 (0) 7823 / 51-0 info@julabo.de Fax +49 (0) 7823 / 24 91 www.julabo.de

Safety instructions for the operator:

 Avoid strikes to the housing, vibrations, damage to the operating-element panel (keypad, display),

and contamination.

 Make sure the product is checked for proper condition regularly (depending on the conditions of

use). Regularly check (at least every 2 years) the proper condition of the mandatory, warning, prohibition and safety labels.

 Make sure that the mains power supply has low impedance to avoid any negative effects on the

instruments being operated on the same mains.

 This unit is designed for operation in a controlled electromagnetic environment. This means that

transmitting devices (e.g., cellular phones) should not be used in the immediate vicinity.

 Magnetic radiation may affect other devices with components sensitive to magnetic fields (e.g.,

monitors). We recommend maintaining a minimum distance of 1 m.

 Permissible ambient temperature: max. 40 °C, min. 5 °C.  Permissible relative humidity: 50% (40 °C).  Do not store the unit in an aggressive atmosphere. Protect the unit from contamination.  Do not expose the unit to sunlight.

Appropriate operation

Only qualified personnel is authorized to configure, install, maintain, or repair the circulator. Persons who operate the circulator must be trained in the particular tasks by qualified personnel. The summarized user guidance (short manual) and the specification table with information on individual parameters are sufficient for this.

Use

The bath can be filled with flammable materials. Fire hazard! There might be chemical dangers depending on the bath medium used. Observe all warnings for the used materials (bath fluids) and the respective instructions (safety data

Cryo-Compact Circulators

sheets). Insufficient ventilation may result in the formation of explosive mixtures. Only use the unit in well ventilated areas. Only use recommended materials (bath fluids). Only use non-acid and non corroding materials.

When using hazardous materials or materials that could become hazardous, the operator must affix the enclosed safety labels (1 + 2) to the front of the unit so they are highly visible:

Warning label W00: Colors: yellow, black Danger area. Attention! Observe instructions.

or 2

(operating manual, safety data sheet) Mandatory label M018: Colors: blue, white

Carefully read the user information prior to beginning operation. Scope: EU

Semi S1-0701 Table A1-2 #9 Carefully read the user information prior to beginning operation. Scope: USA, NAFTA

Particular care and attention is necessary because of the wide operating range. There are thermal dangers: Burn, scald, hot steam, hot parts and surfaces that can be touched.

Warning label W26: Colors: yellow, black Hot surface warning. (The label is put on by JULABO)

Warning label W017: Colors: yellow, black Low temperature warning. (The label is put on by JULABO)

Observe the instructions in the manuals for instruments of a different make that you connect to the circulator, particularly the corresponding safety instructions. Also observe the pin assignment of plugs and technical specifications of the products.

2.1. Disposal

The product may be used with oil as bath fluid. These oils fully or partially consist of mineral oil or synthetic oil. For disposal, follow the instructions in the material safety data sheets.

This unit contains the refrigerants R-404A, and R-134a, which at this time are not considered harmful to the ozone layer. However, over the long operating period of the unit, disposal rules may change. Therefore, only qualified personnel should handle the disposal.

Valid in EU countries See the current official journal of the European Union – WEEE directive. Directive of the European Parliament and of the Council on waste electrical and electronic equipment (WEEE). This directive requires electrical and electronic equipment marked with a crossedout trash can to be disposed of separately in an environmentally friendly manner. Contact an authorized waste management company in your country. Disposal with household waste (unsorted waste) or similar collections of municipal waste is not permitted!

Operator responsibility – Safety instructions

2.2. EC Conformity

The products described in the operating instructions conform to the requirements of the following European guidelines:

Directive of the European Parliament and of the Council on the approximation of the laws of the

Member States relating to machinery.

Low voltage regulations with respect to legal harmonization of the member countries concerning

electric devices for use within certain voltage limits.

EMC guideline with respect to legal harmonization of the member countries concerning

electromagnetic compatibility.

JULABO GmbH Eisenbahnstr. 45 77960 Seelbach / Germany

2.3. Warranty conditions

JULABO GmbH warrants its products against defects in material or in workmanship, when used under appropriate conditions and in accordance with appropriate operating instructions

for a period of ONE YEAR.

Extension of the warranty period – free of charge

With the ‘1PLUS warranty’ the user receives a free of charge extension to the warranty of up to 24 months, limited to a maximum of 10 000 working hours.

To apply for this extended warranty the user must register the unit on the JULABO web site

www.julabo.de

GmbH’s original invoice. JULABO GmbH reserves the right to decide the validity of any warranty claim. In case of faults arising

either due to faulty materials or workmanship, parts will be repaired or replaced free of charge, or a new replacement unit will be supplied.

Any other compensation claims are excluded from this guarantee.

, indicating the serial no. The extended warranty will apply from the date of JULABO

Cryo-Compact Circulators

2.4. Technical specifications

CF31

Working temperature range °C -30 ... +200 Temperature stability °C ±0.02 Temperature selection digital via keypad indication on LCD DIALOG-DISPLAY (°C/°F) remote control via personal computer indication on monitor Temperature indication: VFD COMFORT-DISPLAY Resolution °C 0.01 Pump pressure stage indication on VFD COMFORT-DISPLAY Temperature control ICC - Intelligent Cascade Control Working temperature sensor Pt 100 Safety temperature sensor Pt 100 Absolute Temperature Calibration at internal control °C ±3 at external control °C ±10 Heater wattage (at 230 V) kW 2,0 Heater wattage (at 115 V) kW 1,0 Cooling capacity °C 20 0 -20 Medium ethanol kW 0.32 0.25 0.15 Cooling compressor 1-stage Refrigerant R134a Cooling machine Air-cooled

Electrical connections: see page 11

Electronically adj. pump capacity 1 ... 4 stages Flow rate min ... max. at 0 bar l/min 22 ... 26 Pressure max. at 0 liter bar 0,7 Suction max at 0 liter bar 0,4 Bath opening (WxL) cm 16x3 Bath depth cm 14 Filling volume liters 2.0 ... 3.0 Overall dimensions (WxDxH) cm 24x46x40 Weight kg 35 Ambient temperature °C 5 ... 40

Protection class according to IEC 60 529 IP 21 Mains power connection 230 V/50 Hz V/ Hz 207-253 / 50

Current draw (at 230 V) A 11 Mains power connection 230 V/60 Hz V/ Hz 197-242/60 Current draw (at 230 V) A 12 Mains power connection 115 V/60 Hz V/ Hz 103-127 / 60 Current draw (at 115 V) A 14

All measurements have been carried out at: rated voltage and frequency ambient temperature: 20 °C Technical changes without prior notification reserved.

Operator responsibility – Safety instructions

CF41

Working temperature range °C -40 ... +200 Temperature stability °C ±0.02 Temperature selection digital via keypad indication on LCD DIALOG-DISPLAY (°C/°F) remote control via personal computer indication on monitor Temperature indication: VFD COMFORT-DISPLAY Resolution °C 0.01 Pump pressure stage indication on VFD COMFORT-DISPLAY Temperature control ICC - Intelligent Cascade Control Working temperature sensor Pt 100 Safety temperature sensor Pt 100 Absolute Temperature Calibration at internal control °C ±3 at external control °C ±10 Heater wattage (at 230 V) kW 2,0 Heater wattage (at 115 V) kW 1,0 Cooling capacity °C 20 0 -20 -30 Medium ethanol kW 0.47 0.4 0.28 0.12 Cooling compressor 1-stage Refrigerant R404A Cooling machine Air-cooled

Electrical connections: see page 11

Electronically adj. pump capacity 1 ... 4 Flow rate min ... max. at 0 bar l/min 22 ... 26 Pressure max. at 0 liter bar 0,7 Suction max at 0 liter bar 0,4 Bath opening (WxL) cm 19x3 Bath depth cm 19 Filling volume Liter 4.0 ... 5.5 Overall dimensions (WxDxH) cm 28x46x46 Weight kg 42 Ambient temperature °C 5 ... 40

Protection class according to IEC 60 529 IP 21 Mains power connection 230 V/50 Hz V/ Hz 207-253 / 50

Current draw (at 230 V) A 13 Mains power connection 230 V/60 Hz V/ Hz 197-242/60 Current draw (at 230 V) A 13 Mains power connection 115 V/60 Hz V/ Hz 103-127 / 60 Current draw (at 115 V) A 18

All measurements have been carried out at: rated voltage and frequency ambient temperature: 20 °C Technical changes without prior notification reserved.

Cryo-Compact Circulators

Electrical connections:

Computer interface RS232 / RS485 External sensor Pt100

Optional: (Order No. 8900100 Electronic module with analog connections) Programmer input -100 °C to 400 °C = 0 - 10 V or 0 - 20 mA or 4 - 20 mA Input for the signal of a flow meter or external manipulated variable Temperature recorder outputs 0 - 10 V (0 V = -100 °C, 10 V = 400 °C) 0 - 20 mA (0 mA = -100 °C, 20 mA = 400 °C) 4 - 20 mA (4 mA = -100 °C, 20 mA = 400 °C) Standby input for external emergency switch-off Alarm output for external alarm signal

Warning functions and safety installations

Excess temperature protection adjustable from 0 °C ... 220 °C Low liquid level protection float switch Early warning system for low level float switch Classification according to DIN 12876-1 class III Alarm message optical + audible (permanent) Warning message optical + audible (in intervals)

Overload protection for compressor and pump motor

High temperature warning function optical + audible (in intervals) Low temperature warning function optical + audible (in intervals) Supervision of working sensor plausibility control Reciprocal sensor monitoring between working and safety sensors difference >35 K

Environmental conditions according to IEC 61 010-1:

Use indoors only. Altitude up to 2000 m - normal zero. Ambient temperature: see Technical specifications Humidity: Max. relative humidity 80% for temperatures up to +31 °C, linear decrease down to 50% relative humidity at a temperature of +40 °C Max. mains voltage fluctuations of ±10% are permissible.

Protection class according to IEC 60 529 IP21

The unit corresponds to Class I

Overvoltage category II Pollution degree 2

Caution:

The unit is not suitable for use in explosive atmosphere

EMC requirements according to EN 61326-1 This unit is an ISM device classified in Group 1 (using high frequency for internal purposes), Class A (industrial and commercial range).

Safety notes for the user

3. Safety notes for the user

3.1. Explanation of safety notes

In addition to the safety warnings listed above, warnings are posted throughout the manual. These warnings are designated by an exclamation mark inside an equilateral triangle. “Warning of a dangerous situation (Attention! Please follow the documentation).” The danger is classified using a signal word. Read and follow these important instructions.

Warning:

Describes a possibly highly dangerous situation. If these instructions are not followed, serious injury and danger to life could result.

Caution:

Describes a possibly dangerous situation. If this is not avoided, slight or minor injuries could result. A warning of possible property damage may also be contained in the text.

Notice:

Describes a possibly harmful situation. If this is not avoided, the product or anything in its surroundings can be damaged.

3.2. Explanation of other notes

Note!

Draws attention to something special.

Important!

Indicates usage tips and other useful information.

3.3. Safety instructions

Follow the safety instructions to avoid personal injury and property damage. Also, the valid

safety instructions for workplaces must be followed.

 Only connect the unit to a power socket with an earthing contact (PE – protective

earth)!

 The power supply plug serves as a safe disconnecting device from the line and

must always be easily accessible.

 Place the unit on an even surface on a base made of nonflammable material.  Do not stay in the area below the unit.  Make sure you read and understand all instructions and safety precautions listed

in this manual before installing or operating your unit.

 Set the excess temperature safety installation at least 25 °C below the fire point of

the bath fluid.

 Never operate the unit without bath fluid in the bath.  Pay attention to the thermal expansion of bath oil during heating to avoid

Cryo-Compact Circulators

overflowing of the fluid.

 Prevent water from entering the hot bath oil.  Do not drain the bath fluid while it is hot!

Check the temperature of the bath fluid prior to draining (e.g., by switching the unit on for a short moment).

 Use suitable connecting tubing.  Avoid sharp bends in the tubing, and maintain a sufficient distance from

surrounding walls.

 Make sure that the tubing is securely attached.  Regularly check the tubing for material defects (e.g., for cracks).  Never operate damaged or leaking units.  Always turn off the unit and disconnect the mains cable from the power source

before performing any service or maintenance procedures, or before moving the unit.

 Always turn off the unit and disconnect the mains cable from the power source

before cleaning the unit.

 Always empty the bath before moving the unit.  Transport the unit with care.  Sudden jolts or drops may cause damage in the interior of the unit.  Observe all warning labels.  Never remove warning labels.  Never operate units with damaged mains power cables.  Repairs are to be carried out only by qualified service personnel.

 Some parts of the bath tank and the pump connections may become extremely

hot during continuous operation. Therefore, exercise particular caution when touching these parts.

 Some parts of the bath tank and the pump connections may become extremely

cold during continuous operation. Therefore, exercise particular caution when touching these parts.

Caution:

The circulator may be used, for example, to control the temperature of fluids in a reactor.

We do not know what substances are contained in these vessels. Many substances are:

 inflammable, easily ignited, or explosive  hazardous to health  environmentally hazardous

i.e.: dangerous The user alone is responsible for the handling of these substances!

Safety notes for the user The following questions should help to recognize possible dangers and to reduce the

risks to a minimum.

 Are all tubes and electrical cables connected and layed?

Note: sharp edges, hot surfaces in operation, moving machine parts, etc.

 Do dangerous vapors or gases develop during heating?

Must the work be done in a fume hood?

 What to do when a dangerous substance was spilled on or in the unit?

Before starting to work, obtain information concerning the substance and determine the method of decontamination.

Notice:

Check the safety installations at least twice a year!



 Excess temperature protection according to IEC 61010-2-010

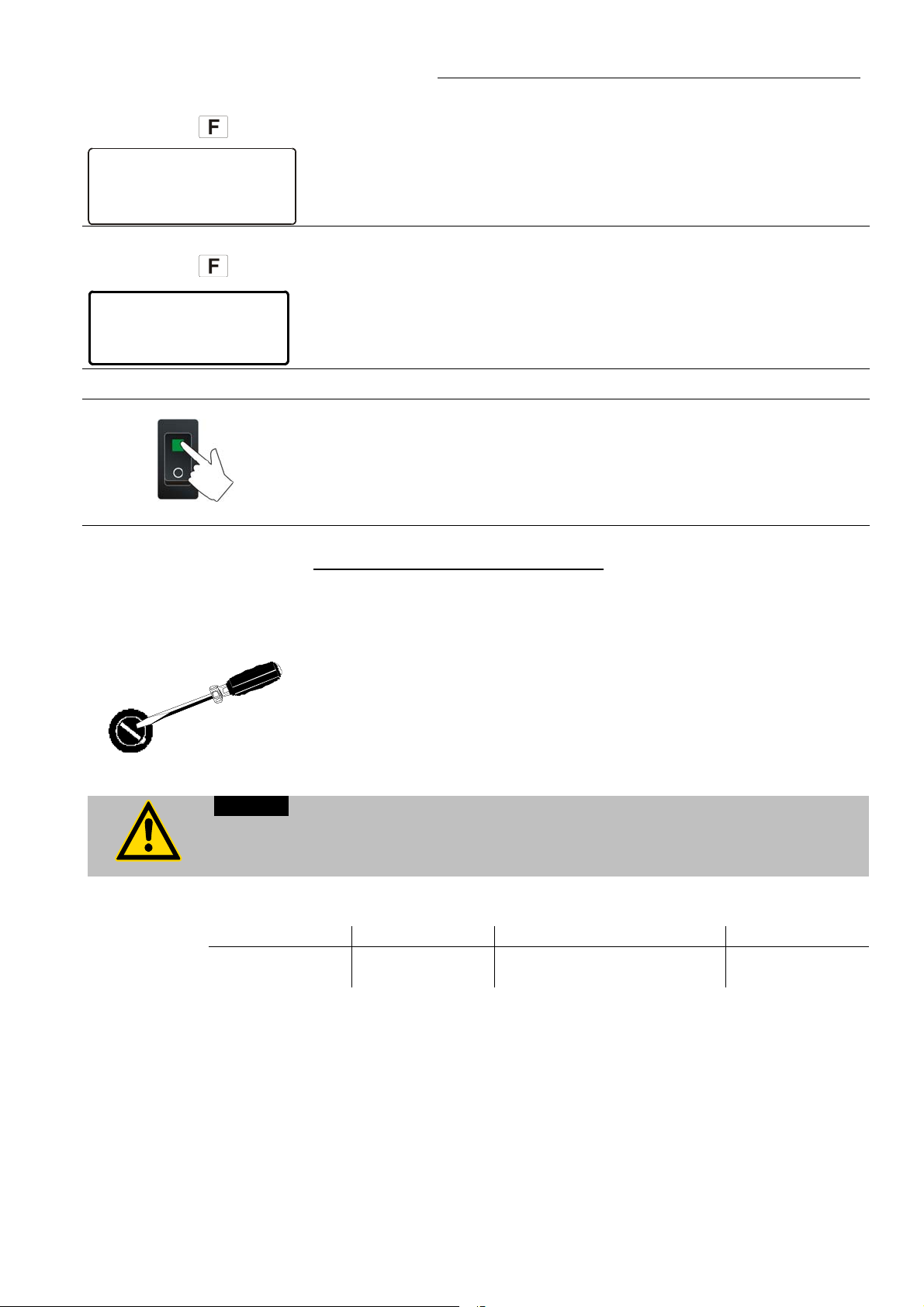

With a screwdriver, turn back the adjustable excess temperature protection until the shutdown point (actual temperature).

 Low level protection according to IEC 61010-2-010

To check the function of the float, it can be manually lowered with a screwdriver, for example.

Cryo-Compact Circulators

Operating instructions

4. Operating controls and functional elements

Front view CF41 / CF31 Rear view CF41/ CF31

1234

910111213

ALAR REG

STAND-

E-

15 8b

SERIAL

ext

Pt100

T16A

1234

910111213

LAR REG

STAND-

E-

15 8b

T16A

SERIAL

ext

Pt100

Operating controls and functional elements

100

140

180

220

°C

Mains power switch, illuminated

Adjustable excess temperature protection according to IEC 61010-2-010

Setpoint1: 150.00°C IntAct : 148.53°C Power : 80 % Control : intern

RS232 : 150.00°C ExtAct : 145.30°C Power : 80 % Control : extern

LCD DIALOG-DISPLAY

Line 1: Setpoint and origin of setpoint programming

(Key / RS232 or RS485 / ext. Pt100 / EProg)

Line 2: Actual value - internal or external,

identical to line 1 of the VFD-COMFORT-DISPLAY Line 3: Heating capacity in %. Line 4: Control type: internal / external

VFD-COMFORT-DISPLAY

Header: Control indicators see sections 4.1 and 4.2

4.1

4.2

Line 1: Actual value internal or external

The display is depending on the selected control mode in the

menu > Control < (internal or external). Line 2: Working temp. setpoint, constantly S xxx.xx Line 3: Actual value (E = external or I = internal)

Alternating with the display in line 1

Use the keys

to indicate further values in line 3. However, the functions of these keys are different with the programmer started. PI Capacity in % - with manipulated variable set to >control<* PS Capacity in % - with manipulated variable set to >serial<* or >eprog<* H Heater capacity in Watts U Mains voltage Volts F Flow rate in liters/minute (providing EPROG input set to >Flowrate<)

*see >Configuration> page 32

Control indicators in the header: Heating / Cooling / Alarm /

Remote control

Control indicators in the header: Temperature indication Internal or External actual value Temperature indication in °C or °F (see page 35)

Cryo-Compact Circulators

4.3

4.4

Keypad 1

Display for the adjusted pump pressure stage in the -OFF- mode. Display for the effective pump pressure stage (rotation speed) after start.

Four stages, adjustable via the

button, in the menu >PUMP<.

Segment at bottom blinks: Standstill of compressor

(compressor protection device, page 25)

Start / stop key

Key for selecting the working temperature - Setpoint 1, 2, 3

Key for selecting the warning and safety values

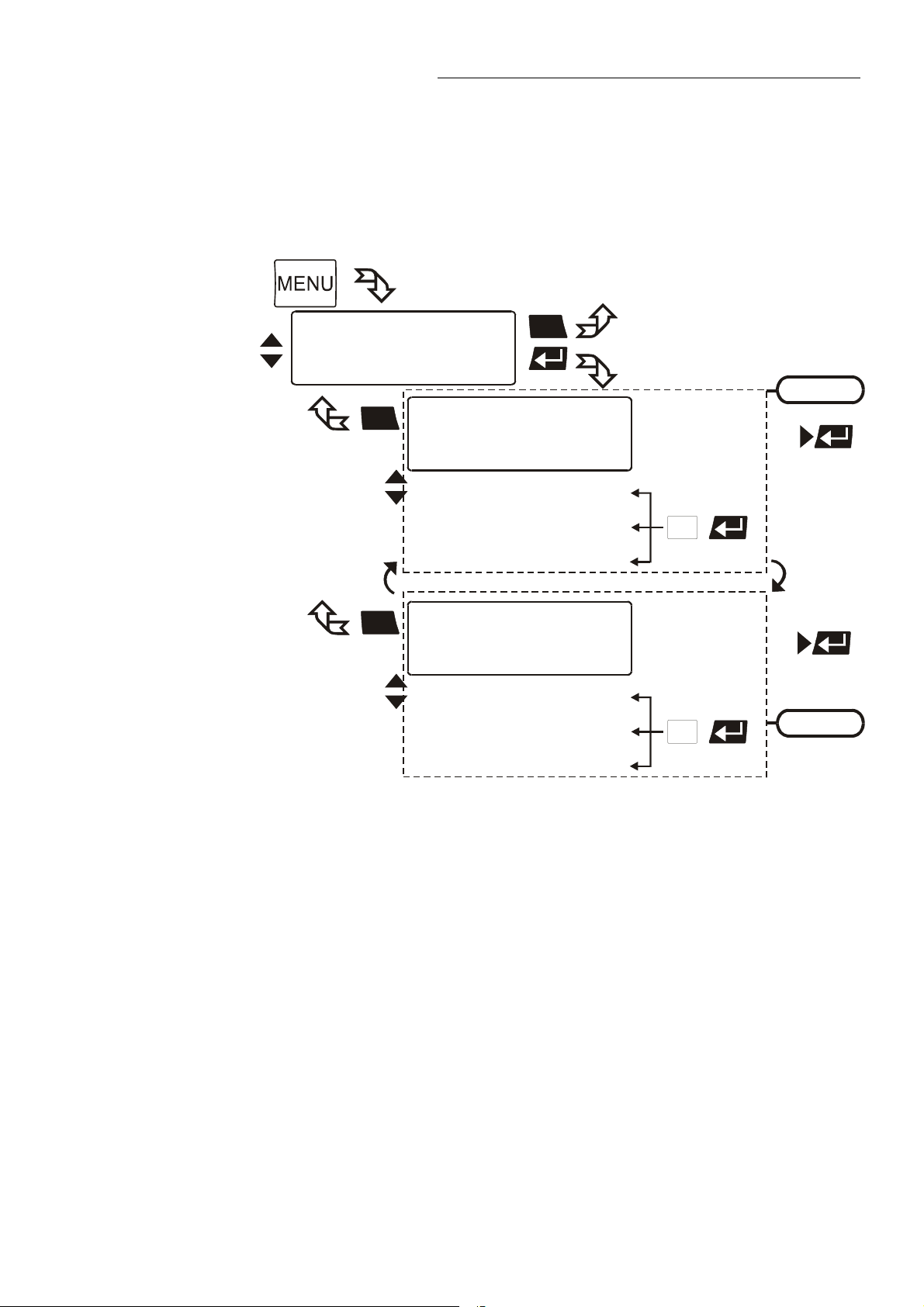

MENU key - for selecting the menu functions

Cursor keys (left or right)

7 Drain port

8a 8b

Keypad 2

Edit keys (increase or decrease)

Enter key 1) Store value / parameter

2) Next lower menu level Escape key 1. Cancel entries

2. Return to a higher menu level

Numeral keypad: numerals 0 to 9

minus / decimal point

F key: Shows the help text in the LCD DIALOG-DISPLAY when alarm messages appear.

Handle: front Handle: rear

Operating controls and functional elements

Option: Electronic module Order No. 8 900 100

The Cryo-Compact Circulator automatically recognizes the connected electronic module.

Alarm output (for external alarm signal)

ALARM

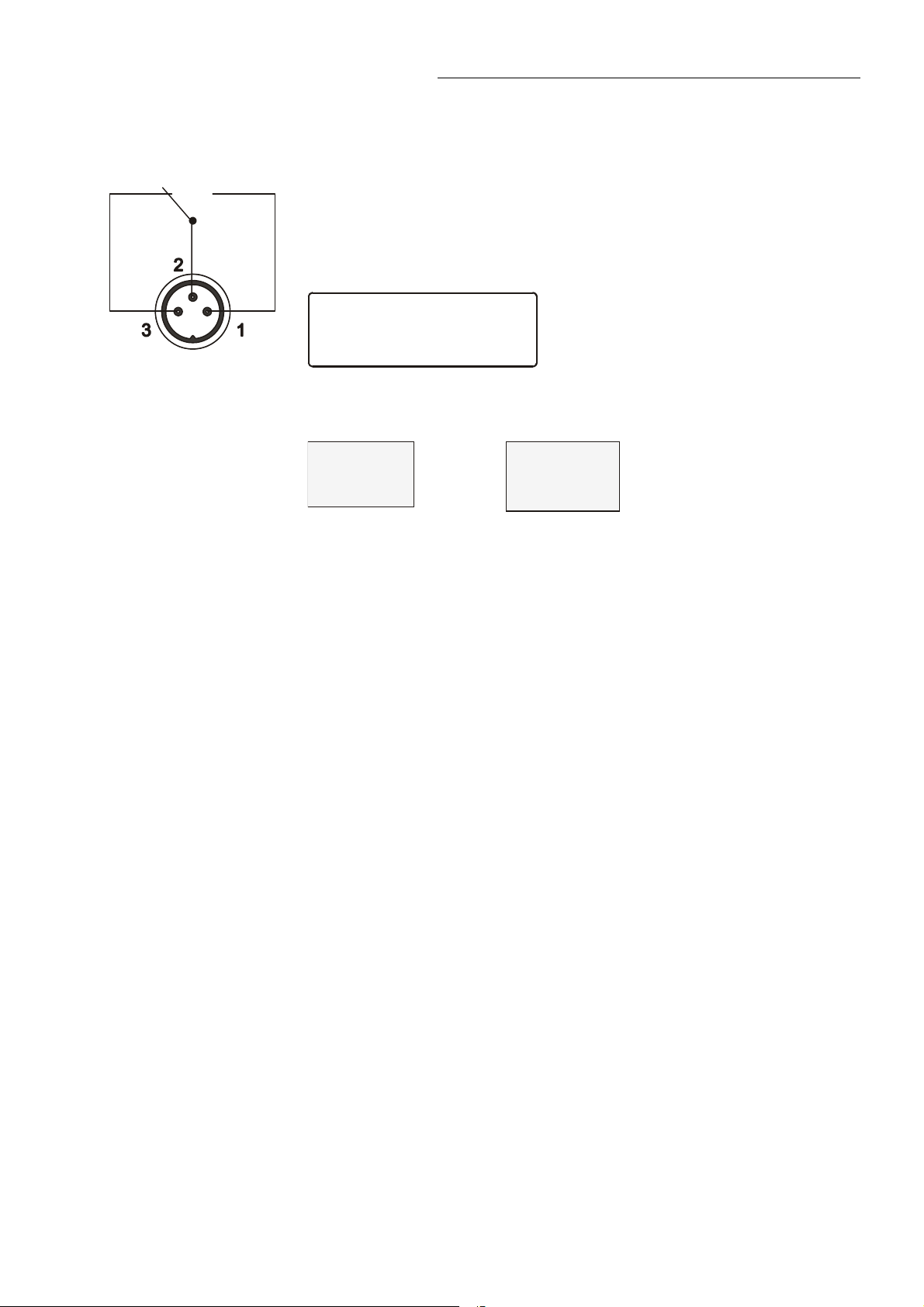

Standby input (for external emergency switch-off)

STAND-BY

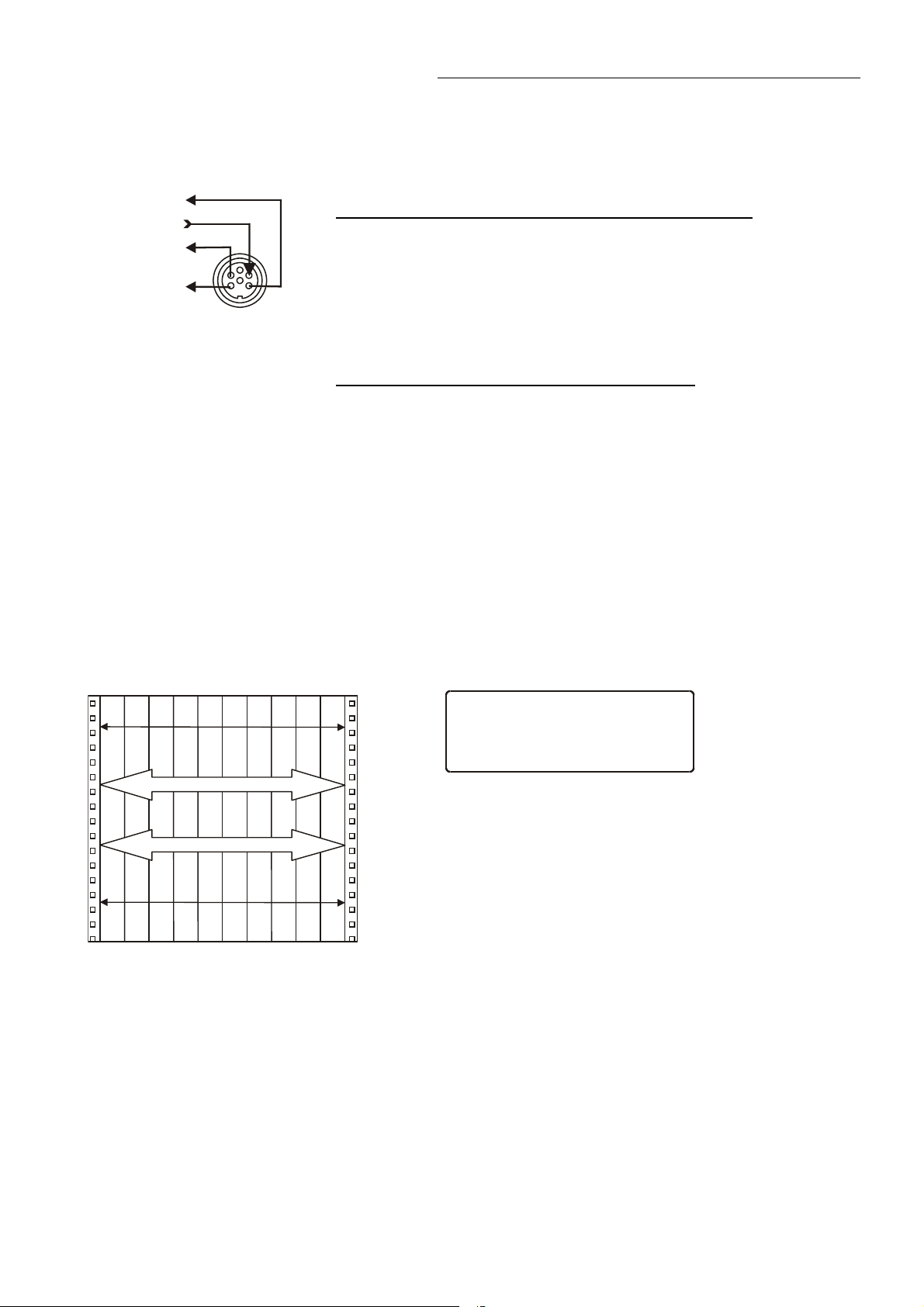

Programmer input and temperature recorder output

REG+E-PROG

ext Pt100

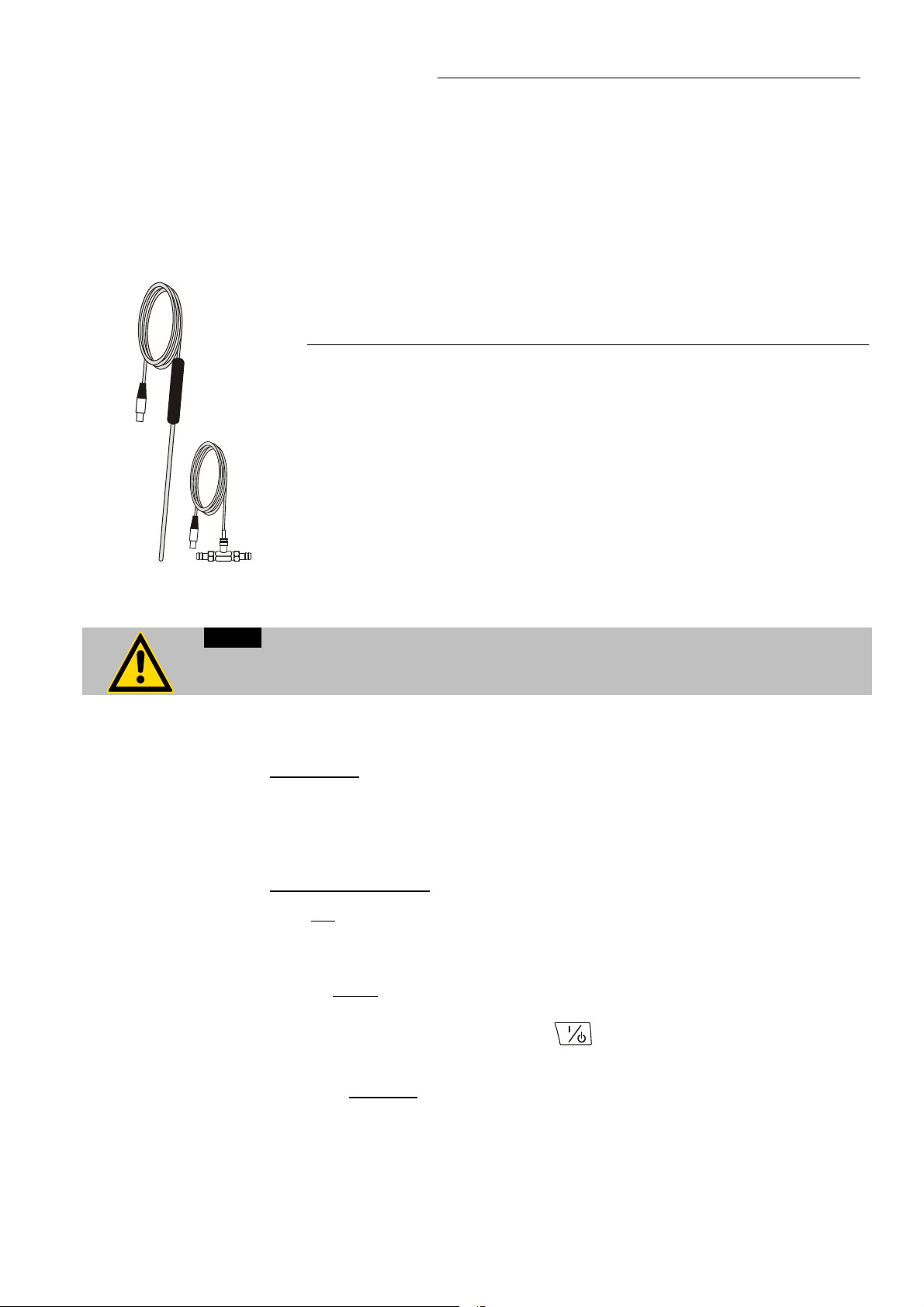

Socket for external measurement and control sensor or external setpoint programming

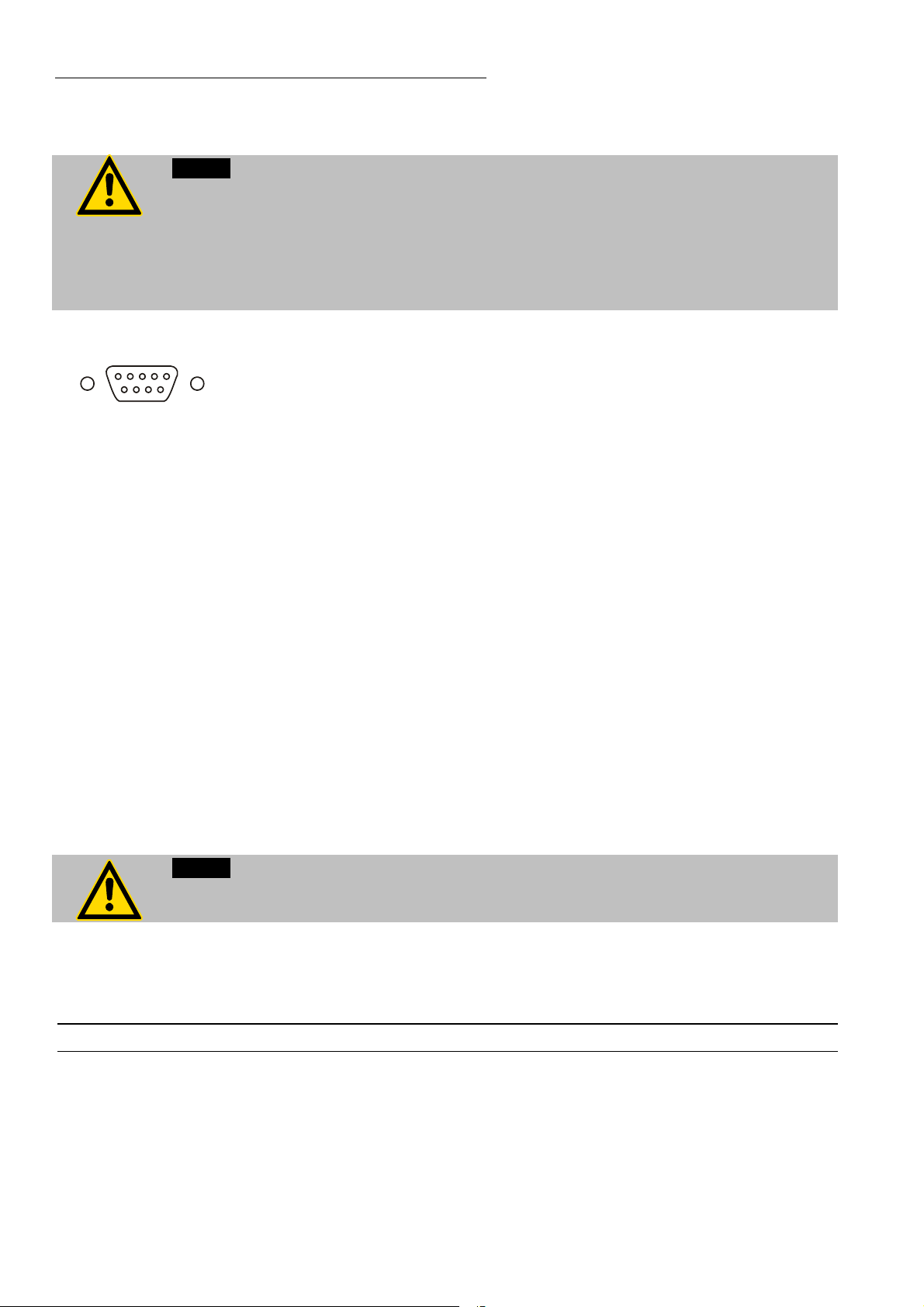

SERIAL

Interface RS232 / RS485: remote control via personal computer

Pump connection

OUT - pressure pump, M16x1 IN – suction pump, M16x1 (return)

Mains fuses, T16A

Mains power cable with plug

5. Preparations

5.1. Installation

Cryo-Compact Circulators

 Place the unit on an even surface on a base made of

nonflammable material.

 Cooling machine, pump motor and electronics produce intrinsic

heat that is dissipated via the venting openings.! Never cover these openings!

 Be sure that the flow of ventilation can exit under the

instrument.

 Keep at least 20 cm of open space on the front and rear

venting grids

 Do not set up the unit in the immediate vicinity of heat sources

and do not expose to sun light.

 Before operating the unit after transport, wait about one hour

after setting it up. This will allow any oil that has accumulated laterally during transport to flow back down thus ensuring

 The place of installation should be large enough and provide sufficient

maximum cooling performance of the compressor.

air ventilation to ensure the room does not warm up excessively because of the heat the instrument rejects to the environment. (Max. permissible ambient temperature: 35 °C). For a fault (leakage) in the refrigeration system, the standard EN 378 prescribes a certain room space to be available for each kg of refrigerant. The refrigerant quantity is specified on the type plate. > For 0.52 kg of refrigerant R404A, 1 m > For 0.25 kg of refrigerant R134a, 1 m Model CF41 with 0.16 kg filling quantity of refrigerant R404A = 0,33 m

of space is required.

volume Model CF31 with 0.15 kg filling quantity of refrigerant R134a = 0.6 m

volume

5.2. Temperature application to external systems

The Cryo-Compact Circulator is used for temperature application to external systems

(loop circuit)

Caution: Securely attach all tubing to prevent slipping.

Notice: Flood hazard!

If the liquid levels in the Cryo-Compact Circulator bath and the external system are at different heights, overflowing must be prevented after the power has been turned off.

Preparations

Return flow safety device

For this reason, shut-off valves can be integrated in the loop circuit. Order No. Description

8 970 456 Shut-off valve (suitable up to +90 °C) 8 970 457 Shut-off valve (suitable up to +200 °C)

Temperature application to external, closed systems

SERIAL

ALARM REG+

STAND-BY

E-PROG

 Unscrew the M16x1 collar nuts on the pump

ext

Pt100

connectors with a 19 mm (3/4“) wrench and remove the sealing disks. Using the collar nuts, screw on the tubing connection fittings (for tubing 8 mm or 12 mm in diameter) delivered with the unit and tighten firmly. (Pressure pump: 14, suction pump: 15)

 Push on the tubings, and secure with tube

clamps.

 Attach the tubing to the connectors of the

external closed system, e.g., an instrument with

T16A

a pressure-resistant temperature jacket or a temperature coil, and fasten with tube clamps to prevent slipping.

Temperature application to external, open systems

S = Suction pump connection D = Pressure pump connection K = Float H = Height adjustment

Tubing see page 21

The Cryo-Compact Circulator is equipped with both a pressure and suction pump for external temperature application in open systems.

Differing flow rates of the pressure and suction pumps should be compensated. To maintain a constant liquid level, the JULABO „D+S“ Level Adapter is recommended for the external bath tank. The flow rate of the pressure pump will be then regulated by a built-in float device. The liquid level may be changed by a height adjustment on the „D+S“ Level Adapter.

Accessory: „D+S“ Level Adapter Order No. 8 970 410

Important:

 The liquid level should be equal in the internal and external baths

(absolute height).

 If you take out samples (for example Erlenmeyer flasks) from the

external bath, turn the Cryo-Compact Circulator off with the Start/Stop key.

5.3. Tubing

Warning: Tubing:

At high working temperatures, the tubing used for temperature control and for the cooling water supply represents a danger source.

Recommended tubing:

A damaged tubing line may allow a large amount of hot bath fluid to be pumped out within a short time.

This may result in:

 Burning of skin  Breathing difficulties due to hot atmosphere

Safety instructions

 Use suitable connecting tubing.  Make sure that the tubing is securely attached.  Avoid sharp bends in the tubing and maintain a sufficient distance from

surrounding walls.

 Regularly check the tubing for material defects (e.g., for cracks), at least once a

year.

 Preventive maintenance: replace the tubing from time to time.

Cryo-Compact Circulators

Order No.

Suitable for

8930008 1 m CR®-tubing 8 mm inner dia. (-20 ... +120°C) CF31, CF41 8930012 1 m CR®-tubing 12 mm inner dia. (-20 ... +120°C) CF31, CF41 8930108 1 m Viton® tubing 8 mm inner dia (-50 °C bis 200 °C) CF31, CF41 8930112 1 m Viton® tubing 12 mm inner dia (-50 °C bis 200 °C) CF31, CF41

Tubing insulation

8930410 8930412

1 m Insulation, 14 mm inner dia.. 1 m Insulation, 18 mm inner dia.

-tubing 8 mm inner dia

Viton® tubing 12 mm inner dia.

Tube clamps

8970480 2 Tube clamps, size 1 CR

-tubing 8 mm inner dia

8970481 2 Tube clamps, size 2 Viton® tubing 12 mm inner dia.

Metal tubing, flexible, triple insulated

8 930 209 0.5 m 8 930 210 1.0 m 8 930 211 1.5 m

2 fittings M16x1 female

-100 °C ... +350 °C

8 930 214 3.0 m

Metal tubing, flexible, insulated

8 930 220 0.5 m 8 930 221 1.0 m 8 930 222 1.5 m

2 fittings M16x1 female

-50 °C to +200 °C

8 930 223 3.0 m

Preparations

5.4. Bath fluids

Caution:

Carefully read the material safety data sheet of the bath fluid used, particularly with regard to the fire point! If a bath fluid with a fire point of  65 °C is used, only supervised operation is possible.

Water:

The quality of water depends on local conditions.  Due to the high concentration of lime, hard water is not suitable for temperature

control because it leads to scale in the bath

 Ferrous water can cause corrosion, even on stainless steel.  Chlorinated water can cause pitting corrosion.  Distilled water and deionized water are unsuitable. Their special properties

cause corrosion in the bath, even on stainless steel.

Recommended bath fluids:

Bath fluid Temperature range soft/decalcified water 5 °C to 80 °C

See website for list of recommended bath fluids.

Contact: see page 6

Caution:

Fire or other dangers when using bath fluids that are not recommended:

Please contact JULABO before using other than recommended bath liquids.

JULABO assumes no liability for damage caused by the selection of an unsuitable bath fluid. Unsuitable bath fluids are fluids which, e.g.,  are highly viscous

(much higher than 70 mm2 x s-1 at the respective working temperature)

 have a low viscosity and have creep characteristics

 have corrosive characteristics or  tend to crack.

No liability for use of other bath fluids!

ATTENTION: The maximum permissible viscosity is 70 mm

6. Operating procedures

6.1. Power connection

Caution:

 Only connect the unit to a power socket with an earthing contact (PE – protective

6.2. Filling

earth)!

 The power supply plug serves as a safe disconnecting device from the line and

must always be easily accessible.

 Never operate the unit with a damaged mains power cable.  Regularly check the mains power cables for damage.

 We disclaim all liability for damage caused by incorrect line voltages!

Make sure that the line voltage and frequency match the supply voltage specified on the type plate.

Cryo-Compact Circulators

Notice:

Pay attention to the thermal expansion of bath oil during heating to avoid overflowing of the liquid.

Guideline: A volume change of 12 % per 100 °C temperature variation is to be considered.

Take care that no liquid enters the interior of the Cryo-Compact Circulator .

 Connect the tubing from the external system to the pump

connectors and check for leaks

 Check to make sure that the drain tap (7) is closed.

Recommendation: For filling, use for example an measuring jug with nuzzle.

 Recommended maximum filling level with water as bath fluid:

30 mm below the tank rim

 Recommended maximum filling level with bath oils:

40 mm below the tank rim

 Turn the mains switch (1) on

(Switching on - see page 24)

 Switch on unit by pressing the start/stop key  Tempering fluid is pumped into the externally connected system.

Refill fluid up to recommended filling level.

 The Cryo-Compact Circulator is ready for operation.

Operating procedures

Important:

 When using a bath fluid, the change in volume in case of change in

temperature has to be respected. Fill in a little amount of bath fluid only so that the low level alarm is not triggered.

 Low level alarm is triggered at the following liquid level:

CF31 75 to 80 mm below the tank rim CF41 80 to 85 mm below the tank rim

 When reaching the working temperature, check the liquid level. If the

cooling coil is not completely covered with bath fluid, refill it.

6.3. Switching on / Selecting the language

Switching on:

**** JULABO **** *** HighTech *** ** Compact ** * Version 1.02-41 *

-OFF-

S 150.0 I 24.6

Configuration Off-Mode : pump off >Language : english Reset : no

 The Cryo-Compact Circulator is turned on and off with the mains

switch. The integrated control light will illuminate to indicate that power has been applied.

 During the self-test all segments of the VFD-Info-Display and the LCD

DIALOG-DISPLAY light up. Then the type of unit and the software version is indicated. (example: JULABO CF41 230 Volt / Version 1.02-41. ) The display „OFF“ or „R OFF“ indicates the unit is ready to operate.

 The Cryo-Compact Circulator enters the operating mode activated

before switching the Cryo-Compact Circulator off:

keypad control mode (manual operation) or remote control mode (operation via personal computer).

Selecting the language:

There are two options for the language of the LCD DIALOG-DISPLAY: German or English. Select the desired language in the menu >Configuration< under the submenu >Language/Sprache<.

Press the respective keys in the following order:

[ up to submenu >Language/Sprache <] 2x

7. Manual operation

7.1. Start - Stop

Cryo-Compact Circulators

24.60

S 150.0 E -----

Setpoint1: 150.00°C IntAct : 24.60°C Power : 80 % Control : intern

Start: Press the start/stop key

The actual bath temperature is displayed on the VFD COMFORTDISPLAY. The LCD DIALOG-DISPLAY informs about adjustments and conditions on the Cryo-Compact Circulator (see example on the left).

Stop: Press the start/stop key

The VFD COMFORT-DISPLAY indicates the message „OFF“.

Autostart: see chapter 8.1. Configuration

The Autostart function enables the start of the Cryo-Compact Circulator directly by pressing the mains switch or using a timer.

7.2.  Control of the cooling machine

With the mains switch turned on, the circulator automatically switches the cooling machine off and on. To ensure protection of the compressor, the software only switches the compressor on after a delay of 200 seconds.

If the controller requires cooling performance during standstill of the compressor, the segment at the bottom of the display blinks.

It is switched off, if:

- at internal control >Int< the setpoint temperature is increased and the heat-up time calculated by the controller is longer than the intended time of compressor standstill (200 s).

- at external control >EXT< the actual working temperature is increased by >5 °C

It is switched on, if:

- cooling is necessary for maintaining the bath temperature.

(possibly after the 200 s time delay).

Manual operation

7.3. Setting the temperatures

Factory setting:

Setpoints >Setpoint1: 20.00°C Setpoint2: 37.00°C Sezpoint3: 70.00°C

Setpoints Setpoint1: 20.00°C Setpoint2: 37.00°C

>Setpoint3:

Setpoints Setpoint1: 20.00°C Setpoint2: 37.00°C >Setpoint3: 85.00°C



70.00°C

25.83

S 85.0 E -----



Press the 3 different working temperatures are adjustable. Their values are freely

selectable within the operating temperature range.

key to call up the menu for temperature selection.

 This setting may be carried out with the circulator being in the Start or

Stop condition!

Example: Setting working temperature „Setpoint 3“

1. Press the key.

The LCD DIALOG-DISPLAY indicates the valid settings.

2. Use the keys to select Setpoint 3.

(One segment of the line blinks)

Change the value to 85 °C.

3. Use the numeral keypad to enter 8 and 5.

Then press enter The value remains visible on the LCD DIALOG-DISPLAY for about 10

seconds, or press

to store the value.

to update the display immediately.

 In the >Start< condition this value is immediately used for controlling the

working temperature. The indication on the VFD COMFORT-DISPLAY is updated. The heater control indicator blinks.

Notice: See SetMax: and SetMin: in chapter 8.6. Limits on page 56

Example: Selecting the working temperature

 Press the

and press enter

 The Cryo-Compact Circulator uses the new working temperature value

for temperature control.

key. Use the keys to select setpoint 1, 2 or 3



7.4. Safety installations, warning functions

Check the safety installations at least twice a year! (See page 14)

7.4.1. Excess temperature protection

Settings for the excess temperature protection according to IEC 61010-2-010 and for the high and low temperature warning functions are made

Cryo-Compact Circulators

in a menu that is called up with the key

ESC

Safety-values >Warn-Type: Warning /Alar OverTemp : 85.00°C SubTemp : -99.99°C SafeTemp : 50.00°C SafeSens : xx.xx°C

100

°C

140

2200

°C

Legend:

Setting via keyp ad Select parameter

Select menu item Change menu leve l

scroll down / scroll up

Example:

1. Press the key

The LCD DIALOG-DISPLAY shows the valid settings (see example above).

2. Use the keys to select the menu item.

Settings:

Warn-Type: Select the parameter with the key

enter

(warning or alarm).

OverTemp and SubTemp: Use the numeral keypad to enter the value and press enter

SafeTemp: Set the new cut-out value using a screwdriver via the LCD DIALOG-DISPLAY. (Example: 50 °C)

The value remains visible on the LCD DIALOG-DISPLAY for about 10 seconds, or press

to update the display immediately.

and press

Manual operation

Warning:

The excess temperature protection >SafeTemp< should be set at least 25 °C below the fire point of the bath fluid used. In the event of wrong setting there is a fire hazard! We disclaim all liability for damage caused by incorrect settings!

Recommendation: Set the excess temperature protection >SafeTemp< at 5 to 10 °C above the working temperature setpoint.

Warn-Type: >Warning< or >Alarm<

For the two menu items >OverTemp< and >SubTemp< choose between a warning message being signaled or a complete shutdown of the main functional elements such as heater and circulating pump being effected.

OverTemperature: SubTemperature:

If for a sensitive temperature application task adherence to a working temperature value >Setpoint< is to be supervised, then set high and low temperature warning values. In the example below, the >Setpoint< of 85 °C is surrounded by the values >OverTemp< 87 °C and >SubTemp< 83 °C. The electronics immediately registers when the actual temperature attains a temperature out of the limits and it follows a reaction according to what is set in the menu item >Warn-Type<.

Warn-Type: >Warning< Warn-Type: >Alarm<

An audible warning (interval tone) sounds and a meassage appears on the VFD COMFORT-DISPLAY.

OverTemp SubTemp

XXXXX

WARNIN CODE 0

Press  

ctual temperature above high temperature value.

for help on the LCD.

ctual temperature elow low tempera-

ture value.

XXXX

ARNING ODE 04

A complete shutdown of heater and circulating pump is effected. An audible alarm (continuous tone) sounds and a message appears on the VFD COMFORT-DISPLAY.

OverTemp SubTemp

XXXX

LARM ODE 03

Press  

ctual temperature above high temperature value.

for help on the LCD.

ture value.

XXXXX

LARM

CODE 04

ctual temperature elow low tempera-

Cryo-Compact Circulators

Setting range: 20 °C ... 220 °C

Setpoint3 85.0°C

verTemp 87.0°C

ubTemp 83.0°C

 The warning functions are only triggered when the actual bath temperature,

after start from the „OFF“ or „rOFF“ mode, lies within the set limits for 3 seconds.

SafeTemperature: Indicated is the cut-out value set with a screwdriver on the

excess temperature protection device.

This safety installation is independent of the control circuit. When the temperature of the bath fluid has reached the safety temperature, a complete shutdown of the heater and pump is effected.

The alarm is indicated by optical and audible signals (continuous tone). The following error message appears on the VFD COMFORT-DISPLAY:

XXXXX

LARM

CODE 14

SafeSens: Indicated is the temperature value of the safety sensor.

Press for help on the LCD

orking temperature exceeds the adjusted safety temperature.



Manual operation

7.4.2. Early warning system, low level protection

This low level protection is independent of the control circuit and is divided in two sections.

(patented)

Caution:

When adding bath fluid, always use the same bath fluid type that is already in the bath. Bath oils must not contain any water and should be pre-heated approximately to the current bath temperature! Explosion hazard at high temperatures!

1. Switch in stage 1 recognizes a critical fluid level An audible warning (interval tone) sounds and a message appears on

the VFD COMFORT-DISPLAY

XXXXX

WARNIN CODE 4

Refill bath fluid!

2. witch in stage 2 recognizes a low fluid level If stage 2 of the low level protection device (according to IEC 61010-

2-010) is triggered, a complete shutdown of the heater and circulating pump is effected. A continuous alarm tone sounds and a message >ALARM< >CODE 01< appears on the VFD COMFORT-DISPLAY.

Press 

XXXXX

LARM

CODE 01

Turn off the unit with the mains switch, refill bath fluid and turn the unit on again!

Important: Check the safety installations from time to time.

Press 

iveau level warning Critical fluid level Replen ish the bath tank with bath fluid

nsufficient liquid level or float is defective.

.

.

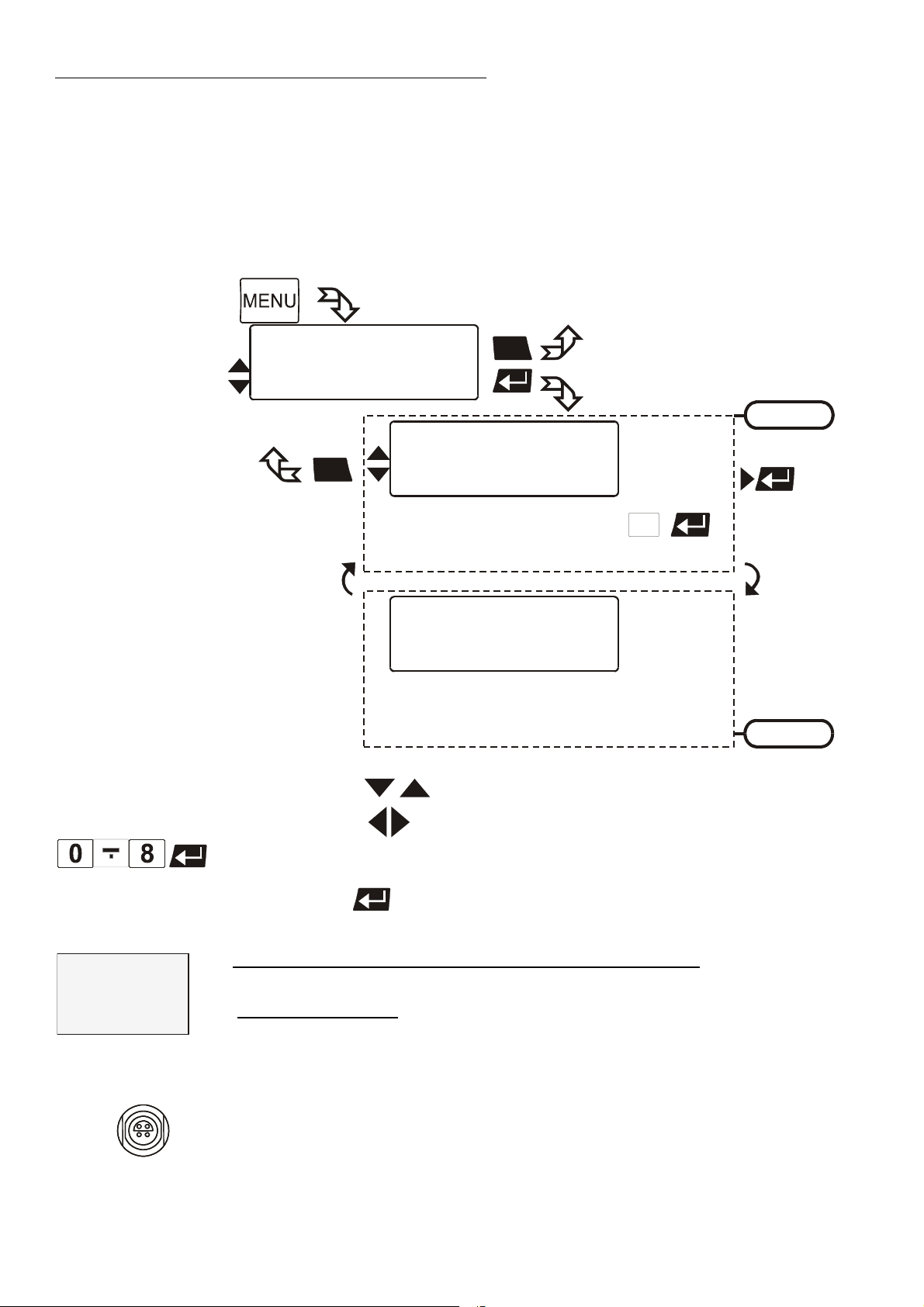

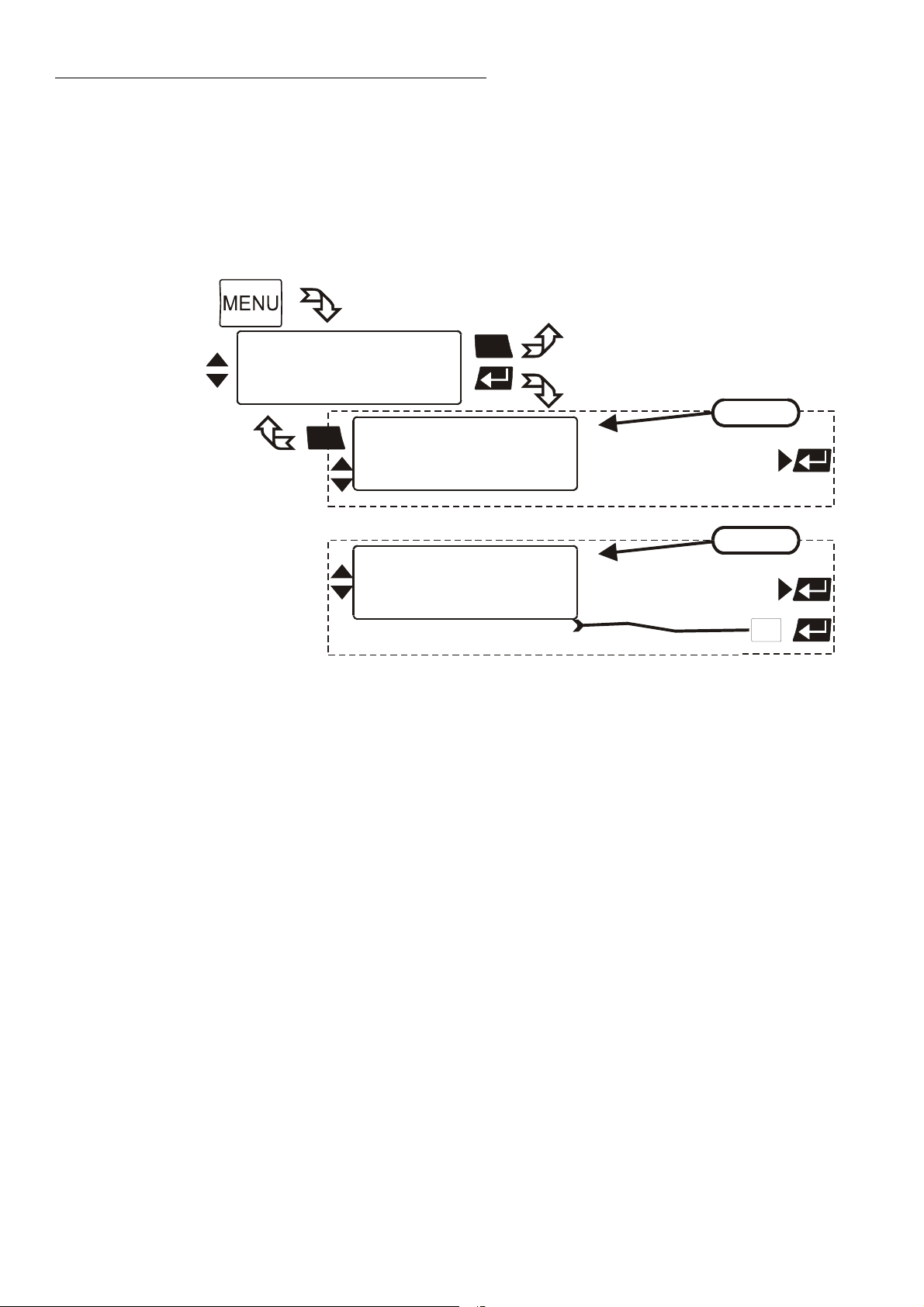

8. Menu functions

Cryo-Compact Circulators

The term „menu functions“ refers to adjustments such as

 Configuration of the Cryo-Compact Circulator  Internal and external control with adjustable control parameters  Start menu for the integrated programmer  Integrated programmer; 6 profiles with 60 sections each  Configurable inputs and outputs; analog recorder outputs, input for external

programmer or manipulated variable or flow rate

 Determination of limits for all important setting ranges and capacity

variables

 Online communication, with adjustable interface parameters  Absolute temperature calibration; sensor calibration  Electronically adjustable pump capacity

ain menu

>Configuration

Control Profile Start Int.Programmer Inputs/Outputs Limits Interface serial ATCalibration Pump

 If the electronic module is not fitted, the item >inputs/outputs<

will be missing in the menu.

Legend

ESC

etting via keypad elect parameter

elect menu item hange menu level

croll down / scroll up

1. If you press , use the keys to move in menu level 1.

2. If the desired menu item is highlighted on the LCD DIALOG-DISPLAY (>),

press enter

to change to menu level 2.

Menu functions

8.1. Configuration

ain menu

>Configuration

Control Profile Start

ESC

Configuration >Setpoint : keypad /RS232/ext.Pt100/eprog Autostart: off /on OFF-Mode : pump off /pump on Language : German /Englich Reset : no /yes Variable : control /serial/eprog

Unit : °C /°F

Setpoint1: 150.00°C IntAct : 148.53°C Power : 80 % Control : intern

RS232 : 150.00°C ExtAct : 145.30°C Power : 80 % Control : extern

-OFF-

S xxxx I xxxx

1. Use the up/down keys to select the desired menu item.

2. Use the left/right keys to select the parameter (parameter blinks).

3. Press enter to store the new parameter.

Setpoint

The Cryo-Compact Circulator provides four possibilities for setpoint setting. The selected mode is indicated in line 1 on the LCD DIALOG-DISPLAY.

Possible parameters:

keypad – Setpoint setting via keypad or via the integrated programmer.

RS232 or RS485 - Setpoint setting via the serial RS232/RS485 interface

(factory setting)

through a PC or superordinated data system. In the header of the VFD COMFORT-DISPLAY an „ It indicates that remote control mode is set.

R“ illuminates.

 RS232 or RS485: see menu > Serial interface < page 58.

Important:

Connect the Cryo-Compact Circulator to a PC using an interface cable. Check the interface parameters of both interfaces (on Cryo-Compact Circulator and PC) and make sure they match. (see 11.1. on page 68 )

Pt100 : 150.00°C ExtAct : 145.30°C Power : 80 % Control : extern

ext.Pt100 – Setpoint setting via the analog socket „ext. Pt100“ using an

external temperature sensor or an appropriate voltage/current source.

Cryo-Compact Circulators

eprog : 50.0°C IntAct : 24.7°C Power : 80 % Control : intern

eprog – Can only be adjusted when an electronic module with analog

connections is used (option). Setpoint setting via the analog interface REG+E-PROG connection with an external voltage or current source or a programmer.

Important:

Connect the external voltage or current source or a programmer to the circulator via the socket REG+E-PROG (see page 51). In the menu >Inputs/Outputs< set the parameter >EPROG< and the input variables (see page 52).

The E-Prog input can only be used either under menu item >Setpoint< or under menu item >Variable< (page 34).

Autostart

Possible parameters:

on - AUTOSTART on off - AUTOSTART off (Factory setting)

Note:

The temperature system has been configured and supplied by JULABO according to N.A.M.U.R. recommendations. This means for the start mode, that the unit must enter a safe operating state after a power failure (non-automatic start mode). This safe operating state is indicated by „ OFF „, resp. R OFF on the VFD-COMFORT-DISPLAY. A complete shutdown of the main functional elements such as heater and circulating pump is effected simultaneously.

The values set on the Cryo-Compact Circulator remain stored, and the unit is returned to operation by pressing the start/stop key (in manual control mode). In remote control mode, the values need to be resent by the PC via the interface.

Should such a safety standard not be required, the AUTOSTART function (automatic start mode) may be activated, thus allowing the start of the instrument directly by pressing the mains power switch or using a timer.

 The AUTOSTART function can only be used, if setpoint setting is carried

out via >keyboard< or >eprog< or >ext. Pt100<.

Warning:

For supervised or unsupervised operation with the AUTOSTART function, avoid any hazardous situation to persons or property. The instrument does no longer conform to N.A.M.U.R. recommendations.

The safety and warning functions of the instrument should always be used to their fullest capacity.

Menu functions

OFF-Mode

Normally the circulating pump is switched via the start/stop signal. However, if circulation should be maintained also for the -OFF- condition, the parameter >pump on< needs to be set.

Possible parameters:

pump off (factory setting) pump on

Language

There are two options for the language of the LCD DIALOG-DISPLAY: German or English.

Possible parameters:

deutsch / englisch German / English

Reset

Use this to reset all values to factory setting (except date and time). Possible parameters:

yes no (factory setting)

Variable

The variable corresponds to the extent to which the heater or cooling machine of the Cryo-Compact Circulator is controlled. Heat or cold is applied to the bath according to this variable. If this happens with the control electronics of the Cryo-Compact Circulator , called >control< in this particular case, the bath temperature is exactly heated and maintained constant at the adjusted setpoint.

- actuating variable

 Programming of variables for the parameters > serial < or > eprog < is only

accepted, if the unit is in Start mode.

Possible parameters: control – The internal control electronics of the Cryo-Compact Circulator

controls the heater and cooling machine. Self-tuning is possible.

serial – The heater or cooling machine receives the control signal via the serial

interface. Self-tuning is not possible.

eprog - The heater or cooling machine receives the control signal via the E-

Prog input. Self-tuning is not possible. (option). Important:

Set the parameter >EPROG< and the input variables also in the menu >Inputs/Outputs< (see page 52).

Note: The E-Prog input can only be used either under menu item >Setpoint< (page 32) or under menu item >Variable< (see above).

Warning:

The working temperature range of the Cryo-Compact Circulator is determined during configuration. If set to >Control<, this range cannot be exceeded. If set to > serial < and > eprog <, heat or cold is applied to the bath without control. The permissible maximum temperature can be exceeded. The user has to take adequate precautions for temperature control. Materials, such as gaskets or insulations for example, may be damaged or destroyed, if the permissible maximum temperature is exceeded.

The safety and warning functions of the instrument should always be used to their fullest capacity. (See page 27)

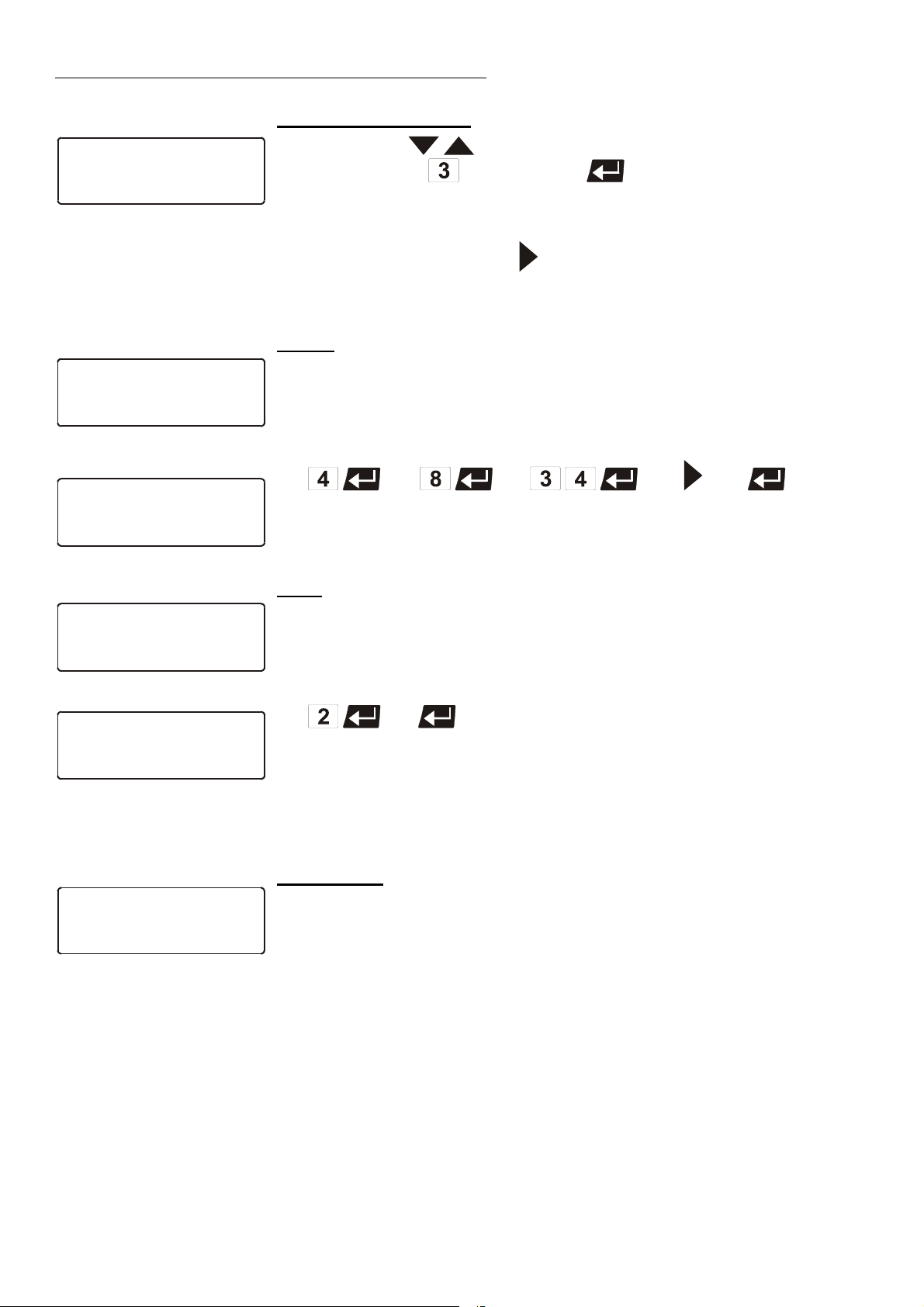

Example:

Setpoints >Setpoint1: 20.00°C Setpoint2: 37.00°C Sezpoint3: 70.00°C

°C  °F 

Setpoints >Setpoint1: 68.00°F Setpoint2: 98.60°F Setpoint3: 158.00°F

Cryo-Compact Circulators

Unit

Temperature values can be displayed in the unit °C or °F. With this change all adjusted temperature values are converted and displayed

into the new unit.

°F

-OFF-

S xxxx I xxxx

Possible parameters:

°C (factory setting) °F

Menu functions

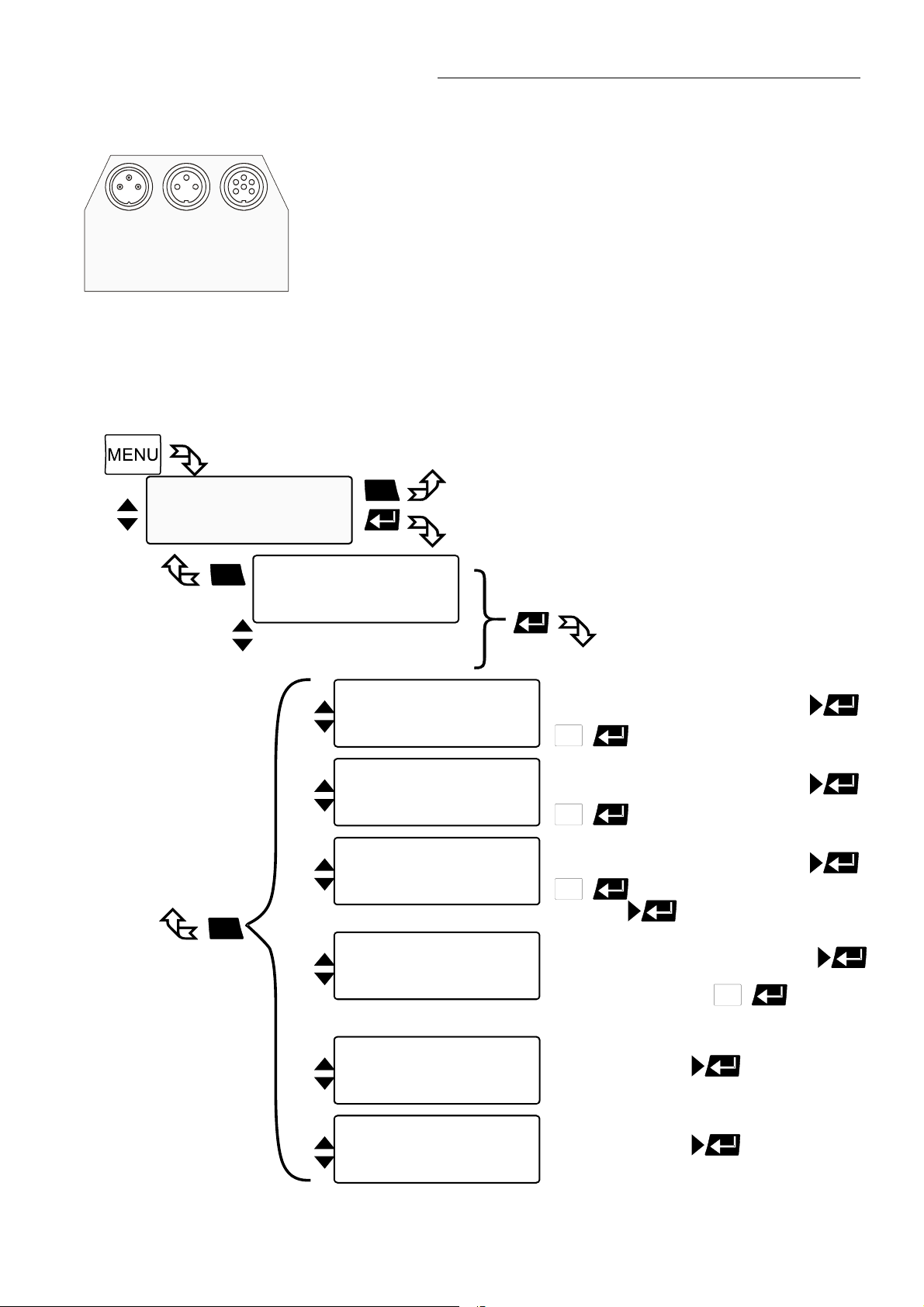

8.2. Control

The Cryo-Compact Circulator is conceived for internal and external temperature control. Switching is carried out in this submenu. Depending on what is set, only the respective set of parameters is indicated.

ain menu

>Control

Profile Start Int. Programmer

ESC

internal

ontrol ControlType:

ESC

Selftuning : once /always/off Dynamic : aperio /normal Xp : 1.0K Tn : 100s Tv : 5s

ontrol ControlType: extern Selftuning: once /always/off CoSpeed : 0.0 Xp : 0.7K Tn : 720s Tv : 55s Xpu : 5.0K

ntern

external

Example: 0.8

-OFF-

S xx.xx E xx.xx

Pt100

1. Use the keys to select the menu item.

2. With the keys select the parameter (parameter blinks)

or use the numeral keypad to enter the numbers (number segment blinks).

3. Press enter to store the new parameter or value.

ControlType: Can only be adjusted in the -OFF- condition

Possible parameters:

intern internal temperature control extern external temperature control with external Pt100 sensor

IMPORTANT:

Additional measures for external temperature control.

 For external control and temperature measurement an external Pt100

sensor must be connected to the socket (7) on the rear of the CryoCompact Circulator .

 Sensor calibration of the external Pt100 sensor is carried out in the menu

>ATCalibration<, with the > Status< set to >no< (see page 59).

 Suggested adjustments for external temperature control:

AreaUp/ AreaDown and IntMax / IntMin see chapter >Limits< on page 56.

 External temperature control does not allow for setpoint setting via the

socket „ext. Pt100“ (see page 32).

Accessory: Pt100 external sensor

Order No. Description Material Cable 8981003 200x6 mm Ø, stainless steel 1.5 m

8981005 200x6 mm Ø, glass 1.5 m 8981006 20x2 mm Ø, stainless steel 1.5 m 8981010 300x6 mm Ø, stainless steel 1.5 m 8981015 300x6 mm Ø, stainless steel / PTFE coated 3 m 8981013 600x6 mm Ø, stainless steel / PTFE coated 3 m 8981016 900x6 mm Ø, stainless steel / PTFE coated 3 m 8981014 1200x6 mm Ø, stainless steel / PTFE coated 3 m 8981103 Extension cable for Pt100 sensor 3.5 m 8981020 M+R in-line Pt100 sensor

Pt100 M+R

Notice:

Place the external sensor into the bath medium and securely fix the sensor.

The M+R in-line Pt100 sensor is a flow sensor and can be installed loop circuit

Cryo-Compact Circulators

Selftuning:

When performing an selftuning for the controlled system (temperature application system), the control parameters Xp, Tn and Tv are automatically determined and stored.

Possible parameters:

off - no

The control parameters ascertained during the last identification are used for control purposes.

once – single

The instrument performs a single selftuning of the controlled system after each start with the start/stop key

via the interface.

always – continual

The instrument performs a selftuning of the controlled system whenever a new setpoint is to be reached. Use this setting only when the temperature application system changes permanently.

selftuning.

selftuning (factory setting)

or after receiving a start command

selftuning

Menu functions

°C

Dynamic:

This parameter affects the temperature pattern only in case of internal control.

normal

Possible parameters:

temp. stabi l i ty

normal –Allows for reaching the setpoint faster,

aperiodic

setpoint

normal temp. stabi l i ty

but overshooting of up to 5 % is possible.

aperiodic – (factory setting)

Target temperature is attained without overshooting.

 With both adjustments an adequate

temperature stability is reached after approximately the same time.

aperiodic temperature ramp

CoSpeed:

This parameter affects the temperature pattern only in case of external control.

Possible parameters:

Control parameters – intern / extern

The control parameters preset in factory are in most cases adequate for achieving an optimum temperature pattern for the samples requiring temperature application. Each parameter may be manually set via the keypad if necessary, to allow optimum control performance.

Temp. intern

Temp. ex t ern

3 0

setpoint

0 ... 5

During selftuning, the control parameters Xp, Tn and Tv of a controlled system are automatically determined and stored. Depending on the controlled system, time for tuning can be unequally longer. This controller layout allows protection of sensitive objects requiring temperature application. As soon as a co-speed factor is set, it is considered for calculating the control parameters. As shown in the diagram, tuning times become shorter the higher the co-speed factor is, but overshooting can happen in the internal system.

Setting range: internal / external

0.1 ... 99.9 K

Proportional range >Xp<

The proportional range is the range below the selected temperature value in which the control circuit reduces the heating power from 100 % to 0 %.

Cryo-Compact Circulators

Setting range: internal / external 3 ...9999 s

Setting range: internal / external 0 ... 999 s

Setting range:

0.1 ... 99.9 K

optimum setting

Resetting time >Tn<

Compensation of the remaining control deviation due to proportional regulation. An insufficient resetting time may cause instabilities to occur. Excessive resetting time will unnecessarily prolong compensation of the control difference.

Lead time >Tv< (Differential component)

The differential component reduces the control settling time. An insufficient lead time will prolong the time required to compensate for disturbance effects and cause high overshooting during run-up. An excessive lead time could cause instabilities (oscillations) to occur.

Proportional range >Xpu<

The proportional range Xpu of the cascaded controller is only needed for external control.

Optimization instructions for the PID control parameters:

(Integral component)

The heat-up curve reveals inappropriate control settings.

Xp too high or Tv too high

Inappropriate settings may produce the following heat-up curves:

Xp too low

Tv/Tn too high or Xp too high

Tv/Tn too low

Menu functions

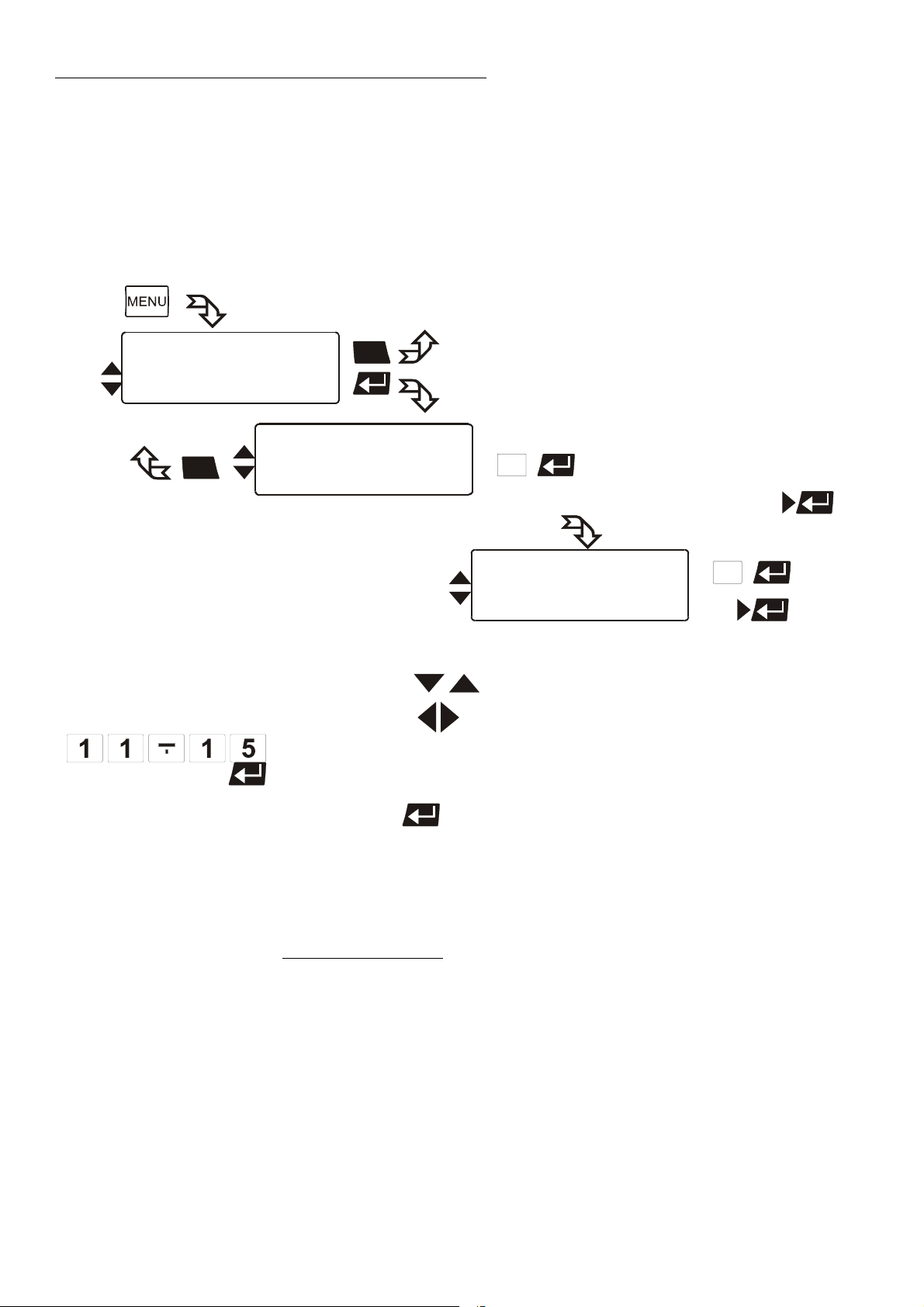

8.3. Start of a profile

ain menu

Control

>Programmer Start

Int.Programmer

ESC

The start menu of the integrated programmer allows calling up and defined starting of one of six previously stored temperature profiles. The profiles are started manually or via the integrated timer.

ESC

>Programmer Start >Start Profile 0

at Step 0 Runs 1 Profile End Stdby /SetpPG/Setp 1/Setp 2/Setp 3 Start no /yes/time

hour.min 11:15 Day.Mon 11.12 Year 2004 Start no /yes

Example: 11:15

1. Use the keys to select the menu item.

2. With the keys select the parameter (parameter blinks)

or use the numeral keypad to enter the numbers (number segment blinks).

3. Press enter to store the new parameter or value.

 If the parameter time is selected, a further submenu opens for

setting the start time.

Possible parameters: Start Profile 1 to 5

Select the profile that should be started.

at Step 1 to 60.

Select the section with which the profile should be started.

Runs 1 to 99

Select the number of profile repetitions.

Start no / yes  (manual start)

or time  (via integrated timer)

Cryo-Compact Circulators

Examples:

-OFF-

S 25.0 E -----

Setpoint3: 80.00°C IntAct : 80.00°C Power : 2% Control : intern

Setpoint

Setpoint1: 25.00°C

>Setpoint2: 58.00°C

Setpoint3: 85.00°C

Setpoint2: 58.00°C IntAct : 60.00°C Power : 0% Control : intern

60.00

S 58.0 E -----

Profile End Stdby / SetpPG / Setp 1 / Setp 2 / Setp 3

This parameter is used to determine if the unit switches to the -OFFcondition at the end of a profile, or if temperature control is continued and the working temperature setpoint that is be used in such case.

Stdby – If the end of the profile is reached, the Cryo-Compact Circulator switches to the -OFF- condition. The VFD display indicates the working temperature setpoint, that was displayed in line 2 already before the program was started (example: S 25.00 °C ).

SetpPG – (Setpoint of the ProGrammer) At the end of the profile, the setpoint of the last program section is written to the position of setpoint 3 (example: 80.00 °C) and indicated in line 1 of the LCD display. The Cryo-Compact Circulator operates and controls this

temperature until the Start/Stop key profile is started.

Setp 1, Setp 2, Setp 3 – („Setp“ short for Setpoint) Before starting the programmer, a temperature value is set for one of

the three setpoints in the (example: Setpoint 2 58.00 °C) The Cryo-Compact Circulator operates and controls this

temperature at the end of the profile until the Start/Stop key pressed or a new profile is started.

Start no / yes  (manual start)

or time  (via integrated timer)

menu.

is pressed or a new

Starttime: 06:00 Date : 15:12 *** wait ***

cttime 02:34:45

When selecting the parameter time, a new submenu is called up for entry of the start time. A flashing segment indicates that a start time needs to be entered.

hour.min Start time Day.Mon day and month Year year

Set each entry with enter Start no / yes

A flashing line indicates that the parameter „yes“ needs to be entered. Press the key

The temperature system switches to waiting mode and a flashing line „wait“ appears on the LCD DIALOG-DISPLAY. The start time and actual time are permanently indicated on the display.

to select the parameter and press enter

Menu functions

[

Examples:

Setp. : 125.8°C IntAct: 124.7°C Prof. : 4 Step: 12 Remain: 00:03:45

Setp. : 125.8°C IntAct: 124.7°C Prof. : 4 Step: 12

ll : 00:03:45

Setpoint : 125.8°C IntAct : 124.7°C Prof : 4 Step:12 S12:150:00 h:m 01:10

Edit >Edit Profile: 4 Step: 12 Setp: 150.00°C Time [hh:mm] 01:10

Indication after successful start:

The started programmer displays the actually calculated setpoint in line

1. The value changes until the final temperature of the section is reached (temperature ramp).

line: Setpoint of the programmer

line: Actual temperature value

2 at internal control = IntAct: xxx.xx at external control = ExtAct: xxx.xx

line: Selected profile and the actual section (step).

line: With the keys the following information can be

displayed in line 4.

 Remaining time of the actual section (standard display)  Remaining total time: Profile x number of repetitions

All: Days/hours:minutes:seconds)

(

Particularitys:

1. If a total time of more than 999 days is calculated, only the hours are displayed on the unit. (

All: hours:minutes:seconds)

2. If the time period of a section is edited after total time can no longer be displayed.

start, then the remaining

 The data of a section as stored under „Edit Profile“.

Use the keys

to successively indicate the sections of a profile.

Unused sections or incorrect data are skipped.

8.3.1. Edit after start

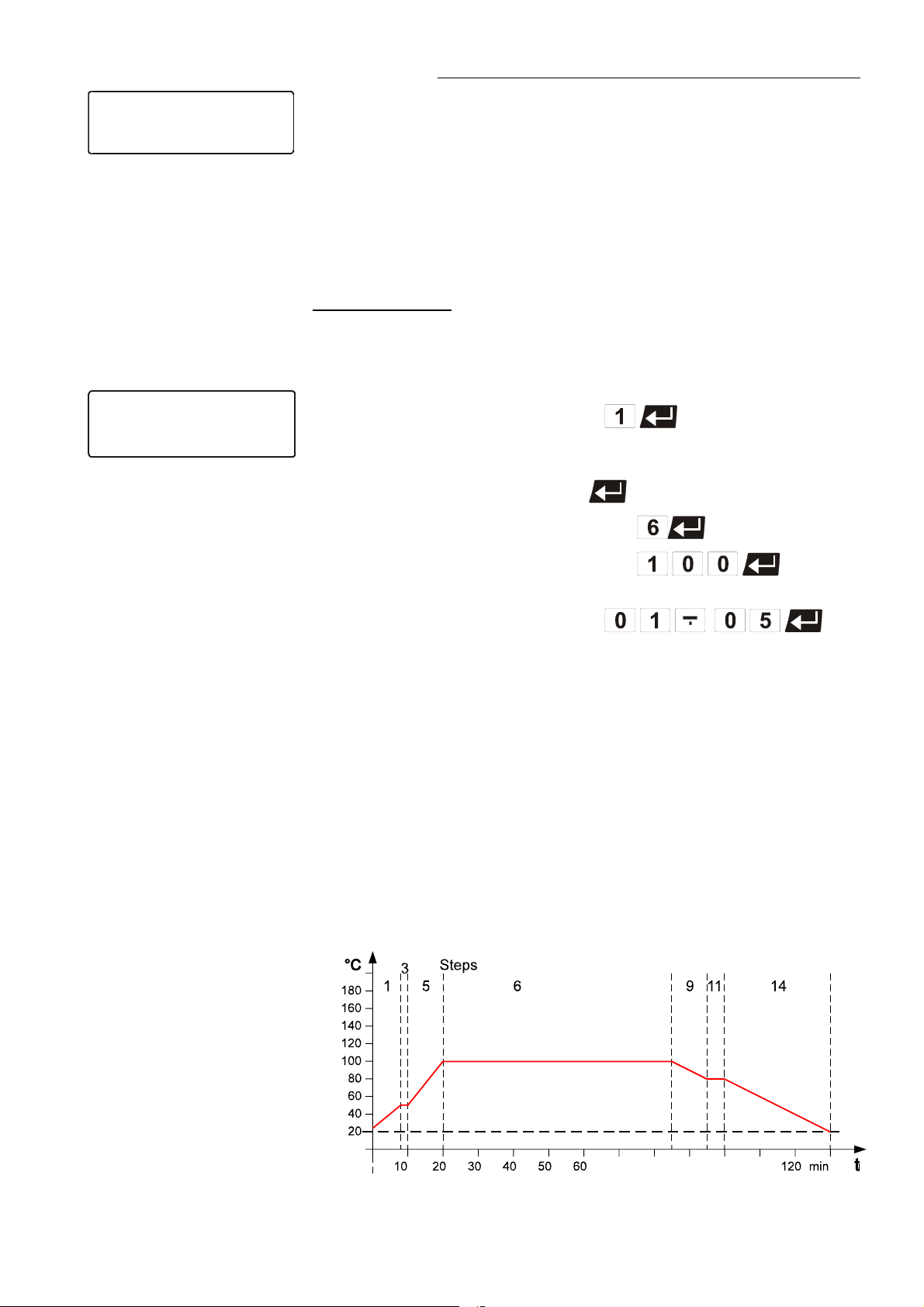

A JULABO programmer of generation II allows editing of a running profile. A programmer of the previous generation requested the profile to be interrupted, edited and then started again.

Edit >Edit Profile: 1 Step: 6 Setp: 100.00°C Time

hh:mm] 01:05

Start and quit the edit mode:

 After start, press the Press

to quit the edit mode.

key to enter the submenu „Edit Profile“.

Cryo-Compact Circulators

Edit >Edit Profile: 1 **Step is deleted ** Setp: °C Time [hh:mm]

Edit >Edit Profile: 1 ** Step is active ** Setp: 100.00°C Time [hh:mm] 01:05

Edit Step: 6 >Setp: 83.00°C time [hh:mm] 01:25

Particularity for changes in a section that is currently in process.

Deleting a complete section:

 Use the keys  Use the keys  Press the

If the desired section is already chosen, the section is deleted even if the

cursor > is in line 1, 3 or 4. Deletion is indicated in the respective line of the LCD display: ** Step is deleted **

The section that is currently processed cannot be deleted. If you still try it, the message ** Step is active ** appears on the LCD display.

Changing a section:

to move to line 2.

to choose the desired section.

key to delete the complete section.

 The values in lines 3 and 4 can be changed, even on the section that

is currently processed.

 In the input window, select the menu item with the keys  Use the numeral keypad to enter the numbers and press enter

Examples:

Setpoint: target temperature 83 °C Time time period 1 hour:25 minutes

 If the target temperature is changed, the slope of the ramp is

automatically calculated on basis of the remaining time of the section.

 If the time period is changed, the slope of the ramp is automatically

calculated on basis of the new total time of the section.

Menu functions

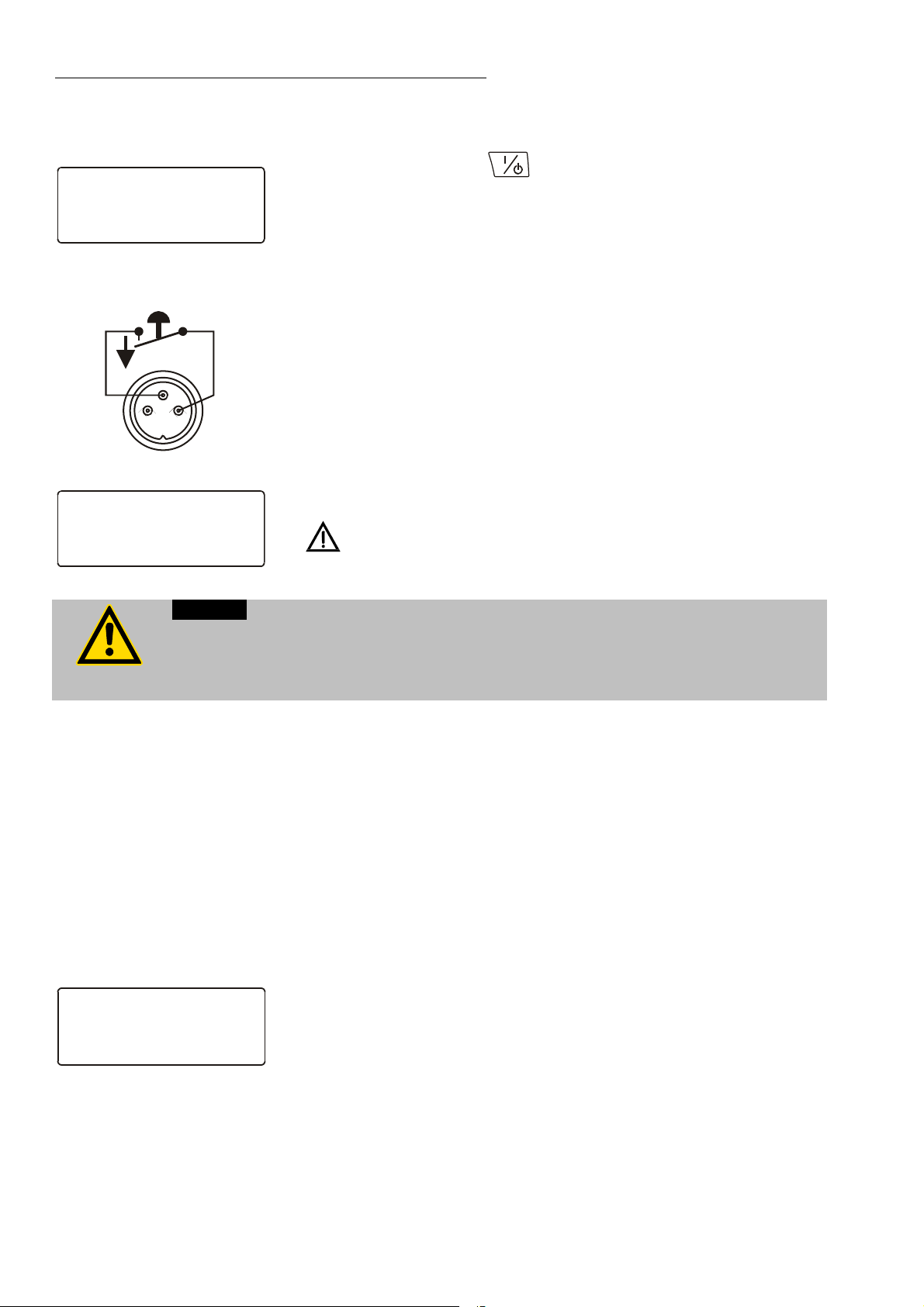

8.3.2. Interrupting a profile

Setp. : 125.80°C IntAct: 124.70°C Prof. : 4 Step:12 *** pause ***

2 1 STAND-BY

Setp. : xxx.xx°C IntAct: xxx.xx°C Prof. : 4 Step:12 *** STAND-BY ***

Warning:

Following a power interruption, it would be possible in this condition for the instrument to restart automatically. The safety and warning functions of the instrument should always be used to their fullest capacity. See Warning page 33.

 Press the start/stop key to interrupt or continue a profile.

The setpoint and time period set for the corresponding section are thus stopped at the values presently achieved. The instrument is put on hold and the message „pause“ flashes on the LCD DIALOG DISPLAY.

 A profile can be interrupted or restarted by an external emergency

shut-off. Important: For this, in the menu >Inputs/Outputs< the menu item >Ext. StBy < must be set to >activ< (see page 54) and in the menu >Configuration< >Autostart< needs to be set (see page 33).

 Setpoint control and timer are interrupted by breaking the contact

„AK”. The instrument is put on hold and the message „Stand-By“ flashes on the LCD DIALOG-DISPLAY.

Notice: This is not an actual emergency switch-off.

8.3.3. Interruption after a power failure

Starttime: 06:00 Date : 15:12 *** wait ***

cttime 02:34:45

There is every possibility to operate the programmer safe to power failures. Important: For this in the menu >Configuration< >Autostart< needs to be set (see page 33).

 If the AUTOSTART function is activated, the programmer starts

again at a point approx. 20 seconds before the interruption took place. However, an uncontrolled change of the bath temperature happened.

 Power failure when the instrument is on hold if start is effected via

the built-in timer: If the starting time is not yet reached, the programmer is put on hold again. If the starting time is exceeded, the programmer starts immediately.

8.3.4. Termination of a profile

Cryo-Compact Circulators

Setp : 125.80°C IntAct: 124.70°C Prof. : 4 Step:12 Remain: 00:03:45



Programmer Start >Start Profile x

at Step x Runs 1

Start no

Example:

Setpoint1: 150.00°C IntAct : 83.24°C Power : 0 % Control : intern

-OFF-

S 150.0 E -----

 A profile can be terminated by pressing . The programmer

switches back to the Start menu.

 Press

or use the keys

The start of another temperature profile can now be prepared if necessary.

Interruption after a power failure

In case of a power failure, the reaction of the Cryo-Compact Circulator is the same as when switched off and on again with the mains switch.

The LCD DIALOG-DISPLAY gives information on the adjustments and conditions of the Cryo-Compact Circulator .

The VFD COMFORT-DISPLAY indicates "OFF".

again to quit the menu

to remain in the Start menu.

Menu functions

[

]

8.4. Integrated programmer

The integrated programmer allows any desired temperature program

sequences to be realized. Such a temperature sequence is called profile. A profile consists of individual sections defined by duration (t:) and target temperature. Target temperature is the setpoint (T:), that is achieved at the end of a section. The programmer uses time and temperature difference values within a section to calculate a temperature ramp.

ain menu

>Int. Programmer

Inputs/Outputs Limits

ESC

Int. Programmer >Edit Delete Print Set Clock

ESC

dit Edit Profile: 0

Step: 0 Setp: °C Time

elete Delete Prof. 0 from Step 0 to Step 60 delete no /yes

rint Print Profile 0

Print yes /no

hh:mm

et Clock hour.min 14:24

Day.Mon 07.12 Year 2006 14:24:36

1. Use the keys to select the desired menu item in menu level 2

on the LCD DIALOG-DISPLAY (>) and press enter level 3. An input window opens for each menu item.

to change to menu

2. In the input window, select the menu item with the keys .

3. Use the keys to select the parameter (parameter blinks)

or use the numeral keypad to enter the numbers (number segment blinks).

4. Press enter to store the new parameter or value.

Cryo-Compact Circulators

Int. Programmer >Edit Delete Print Set Clock

Example:

Edit >Edit Profile: 1

Step: 6 Setp: 100.00°C Time [hh:mm] 01:05

Edit Compile profiles Display sections Important: Also a running profile can be changed. See „Edit after start“ page 42

Delete Delete sections Print Print a programmed profile Set clock Set the real time on the instrument

Compile profiles:

A flashing segment indicates that a number needs to be entered. Under submenu „Edit Profile“ enter a profile number. Six profiles may be stored (nos. 0 to 5).

Edit Profile: Profile No.1 Then programme the desired values for each section.

Use the keypad to set section number, target temperature and time period. Set each entry with enter

Step: Section No. 6

Setpoint: target temperature - 100 °C Time time period - 1 h:05 minutes

When the program is running, only sections having complete

information for target temperature and time period are considered. It makes sense, to leave out section numbers in the profile, in order to use them later for corrections in the profile

Important:

If a time of 00:00 is set for a profile, the profile is continued with the next section only after the setpoint temperature (±0.2 °C) is reached.

Example: Step (No.) 1 3 5 6 9 11 14 Setpoint (°C) 50 50 100 100 80 80 20 Time (h.m) 00:08 00.02 00:10 01:05 00:10 00:05 00:30

Menu functions

Edit >Edit Profile: 1

Step: 3 Setp: 50.00°C Time [hh:mm] 00:02

Example:

Delete >Delete Prof. 4 from Step 8 to Step 34 delete



Delete >Delete Prof. 4 from Step 8 ****** delete ******

Example:

Print >Print Profile 2 Print yes



Display sections (Step):

1 Use the keys to select the submenu „Step“, enter the

desired number

and press enter

2 If the submenu „Step“ is selected, section by section can be shown in

ascending order by the key .

 Each previously set value is displayed.

Delete:

Line 4 indicates the deletion.

Print:

A flashing segment indicates that the respective profile number needs to be entered in which one or more consecutive sections are to be deleted. Example: Delete step 8 to step 34 in profile 4.

yes

Each profile may be printed via the serial interface for control or documentation. A flashing segment indicates that the number of the profile to be printed needs to be entered. Example: Print profile 2

Print >Print Profile 2 ****** print *******

Set Clock >hour.min 14:24

Day.Mon 07.12 Year 2006 14:24:36

Setting clock

yes

Printing is indicated in line 2.

The integrated clock allows starting a profile at any date and time. The clock is preset in the factory.

 Lines 1 to 3:

Check for correctness of the preset date and time and correct if necessary.

The time is diplayed permanently in line 4.

20mA

8.5. Analog inputs/outputs

 In order to use the analog inputs and outputs, the Cryo-Compact

Circulator must be equipped with the electronic module available as

LAR

STAND-BY

REG+ E-PROG

option. Order No. 8 900 100 Electronic module

This submenu enables setting of the input and output values for the programmer input and the temperature recorder outputs of socket REG+E-PROG.

The >STAND-BY< input and the >ALARM< output are configurable.

 If the electronic module is not fitted, the item >inputs/outputs< will be

missing in the menu.

Cryo-Compact Circulators

ain menu

>Input/Output

Limits Interface serial

Inputs/Outputs

ESC

>Chan.1 : ActInt

Chan.2 : Setpoint

Chan.3 : Power EPROG : Setpoint Ext.StBy : inactiv Alarmout : StdBy

ESC

Output Chan.1 >Value of: ActInt /Ac 0V = -50.00°C 10V = 200.0°C

tExt/Power/Setpoint

Output Chan.2 >Value of: Setpiont /ActInt/Ac 0V 0.00°C 10V 100.00°C

tExt/Power

Output Chan.3 >Value of: Power /Setpoint/Ac 0mA 0% 20mA 100% Region: 0-20mA /4-

: :

Input EPROG >Value as: Setpoint /Variable

nal : Voltage /Current

Si L Value

H Value 200.00°C

Setpoint : xx.xx°C

0.00°C REM: % / L/min

EM: % / L/min

REM: % / L/min

(%)/FlowRate(L/min)

tExt/ActInt

Input Standby >Status : inactiv /activ

AlarmOut >Function: StdBy /Alarm/Al+StdBy Type : normal /invers

Menu functions

Menu level 2

Inputs/Outputs >Chan.1 : Ac tI nt

Chan.2 : ActInt Chan.3 : Setpoint EPROG : Set point Ext.StBy : inactiv /acti AlarmOut : StdBy

1. Use the keys to select the desired (>) menu item in

menu level 2 on the LCD DIALOG-DISPLAY.

2. Use the keys and to store the desired parameter or

press enter for each menu item.

3. In the input window in menu level 3 select the menu item with

the keys

to enter menu level 3. An input window opens

4. Use the keys to select the parameter (parameter blinks)

or use the numeral keypad to enter the numbers (number segment blinks).

5. Press enter to store the new parameter or value.

Menu level 2 Channel 1 voltage output for recorder (V)

Channel 2 voltage output for recorder (V)) Channel 3 current output for recorder (mA) EPROG external programmer input External standby Standby input

(for external emergency switch-off) Alarm output Output for external alarm signal

8.5.1. REG+E-PROG – temperature recorder outputs

Cryo-Compact Circulators

CHANNEL 3

EPROG

CHANNEL 2

REG+E-PROG (11): Outputs of the connector

1. First define the desired output value for channels 1 to 3

ActInt internal actual temperature value (bath temperature) ActExt external actual temperature value (external sensor)

CHANNEL 1

Power periodic or intermittent heating or cooling Setpoint active setpoint temperature

REG+E-PROG

(Setpoint1, 2, 3,/ integr. programmer /external programmer)

2. Then select the display size for channels 1 to 3: Voltage outputs channels 1 and 2

Assign the voltage values of 0 V to the lowest and 10 V to the highest necessary temperature or power rating required as an output value (°C / %). Current output channel 3 Assign the current values 0 mA or 4 mA to the lowest and 20 mA to the highest temperature or power rating required as an output value (°C / %).

3. The current output (chanell 3) offers 2 ranges for selection: 0 to 20 mA or 4 to 20 mA

0 V

10 °C 210 °C



200 K

197 °C 202 °C



5 K

0 mA 4 mA

20 mA

Examples:

Chan.1 Value of : ActInt

0V = 10°C

lowest temperature value: 10 °C highest temperature value 210 °C Fig. shows 200 C scaled to paper width rise: 50 mV/°C

lowest temperature value: 197 °C highest temperature value: 202 °C Fig. shows 5 C scaled to paper width rise: 2000 mV/°C

10V = 210°C

Menu functions

8.5.2. REG+E-PROG - programmer input

Menu >Configuration<

Configuration >Setpoint : eprog Autostart: off Standby : pump off Language : english Reset : no Variable : Control /

Menu >Inputs/Outputs<

Input EPROG >Value as: Flowrate

Signal : Voltage L Value 0.0L H Value 50.0L Flowrate: xx.xL

Example:

Input EPROG >Value as: Setpoint

Signal : Current L Value : 20.0°C H Value : 300.0°C Setpoint: 50.0°C

E-PROG - Input

Keypad/RS232/extPt100

serial/

eprog

Setpoint/Variable

(Liters/Minute)

Setting needs to be carried out, if

1. setpoint programming is to be made via an external voltage or current source or programmer For this, in the menu >Configuration< first set the menu item >Setpoint< to >eprog<.

2. the heater variable should be controlled via an external control pulse. For this, in the menu >Configuration< set the menu item > Variable.< to >eprog<.

3. the signal of an external flow meter should be registered.

 The E-Prog input can only be used either under menu item

>Setpoint< or under menu item > Variable <. If the input is neither occupied by >Setpoint< or > Variable <, the signal of a flow meter can be connected.

 First set menu >Configuration<, then menu >Inputs/Outputs<.

 Connect the external voltage or current source or programmer to

socket (12) REG+E-PROG of the circulator.

Selecting the signal:

The programmer (E-PROG) input of the circulator can be matched to the output signal of the external voltage or current source.

Voltage voltage input Current current input

„L Value“ - Setting the LOW value: (See below

First adjust and set the lowest voltage or current on the external voltage or current source (e.g. 0 V or 0 mA). Then after approx. 30 secs enter the corresponding temperature value (e.g. 20.00°C).on the circulator by pressing the appropriate

buttons on the keypad and press enter

„H Value“ - Setting the HIGH value: (See below

First adjust and set the highest voltage or current on the external voltage or current source (e.g. 10 V or 20 mA). Then after approx. 30 secs enter the corresponding temperature value (e.g. 300 °C).on the circulator by pressing the appropriate

)

to set.

)

buttons on the keypad and press enter

to set.

Example:

 Set the external voltage or current source output for the equivalent of

50 °C temperature setpoint.

 The value adjusted and set on the external programmer is displayed

in line 4 of the LCD DIALOG-DISPLAY for control purposes.

Cryo-Compact Circulators

Eprog : 50.0°C IntAct : 24.7°C Power : 80 % Control : intern

300

250

200

150

100

80 60 40 20

12345678910V 246810 14 18 20 m

 After returning the LCD display to standard display by pressing

the temperature value adjusted and set on the external voltage or current source is displayed in line 1 (Example: Eprog : 50.00 C).

This EPROG input enables the use of different voltage and current values as program parameters.

 L Value“ - Setting the LOW value: (See below

1) Adjust and set the lowest desired value on the voltage or current source resp. (Example A: 1 V). Wait appr. 30 seconds.

2) Assign a lower temperature threshold value to this adjusted voltage/current value by pressing the appropriate buttons on the

keypad of the instrument (Example A: 20 C ) and set by pressing enter

 „H Value“ - Setting the HIGH value: (See below

1) Adjust and set the highest desired value on the voltage or current source resp. (Example A: 10 V). Wait appr. 30 seconds.

2) Assign an upper temperature threshold value to this adjusted voltage/current value by pressing the appropriate buttons on the keypad of the instrument

)

Input EPROG >Value as: Setpoint

Signal : Voltage L Value : 20.0°C H Value : 200.0°C Setpoint: 152.0°C



Eprog : 152.00°C IntAct : 50.76°C Power : 100 % Control : intern

Notice:

If this adjustment is not correctly performed at two different points, the setpoint setting will be incorrect.

Important:



The usable temperature range between > L Value < and > H Value < is limited to the configured working temperature range of the Cryo-Compact Circulator resp. of the unit combination (working temperature range see technical specifications on page 9)

(Example A: 200 C) and set by pressing enter

 Return to the standard display by pressing

 Example B in the diagram serves to illustrate that the end point

values are freely selectable (Ex: 8 mA and 16 mA).

Example out of diagram A:

 Adjusting the voltage source for an output of 7.6 V!

Line 5 of the LCD DIALOG-DISPLAY shows the externally set setpoint value. The instrument calculates this value from the rise angle of the two pre-decided end points (in example A: 7.6 V correspond to an external setpoint temperature of 152.0 C ).

After returning the LCD display to standard display by pressing this value is displayed in line 1 (Example: EPROG 152.00 C).

Menu functions

8.5.3. STAND-BY input

STAND-BY

Setpoint1: 150.00°C IntAct : xxx.xx°C Power : xx % STAND-BY

E OFF

S xx.xx E -----

Setpoint : xxx.xx°C IntAct : xxx.xx°C Profil : 4 Step:12 *** STAND-BY ***

Ext. StBy (10)

(for external emergency switch-off) (Connector see page 67)

Possible parameters:

inactiv - standby input is ignored activ - standby input is active

Activate the standby input:

1. Under menu item >Ext. StBy<, set the parameter to >activ<.

2. Connect an external contact ‚AK‘ (e.g. for emergency switch-off) or an alarm contact of the superordinated system.

In case the connection between Pin 2 and Pin 3 is interrupted by opening the contact ‚AK‘, a complete shutdown of the circulating pump and heater is effected, and the unit enters the condition „E OFF“. As long as the contact remains open, line 4 of the LCD DIALOGDISPLAY flashes and displays the message „STAND-BY“.

If the contact is reclosed, the instrument returns to the standby state and „ E OFF „ is displayed. Press

to start.

 Additional tips for using the STANDBY input:

The standby function can be used in conjunction with the AUTOSTART feature (see page 33).

1. If the Autostart function is NOT turned ON, the standby input is used as described above.

2. If the Autostart function is enabled, the instrument will revert back to the original method of entering the setpoint (i.e. keypad, RS232, Analog input, etc.).

 Entering the setpoint with the keypad.

As described above, a bipolar shut-down is accompanied by the „STAND-BY“ display and the OFF state. The programmable controller starts again when the contact is reclosed. The temperature of the bath fluid changed during the STAND-BY state.

 Entering the setpoint with the programmer

display „STAND-BY“ appears. The setpoint value and the time are both held at the current value. The temperature of the bath fluid will be held constant at this temperature. The programmer continues once the contact is reclosed.

Notice: this is not an actual shutoff feature.

e.g.

(see pages 44). The

8.5.4. ALARM output

Cryo-Compact Circulators

ALARM

Alarm output (9)

(for external alarm signal) This socket is a potential-free change-over contact. With the

adjustments in the menu >Inputs/Outputs< all operating conditions can be signaled without having to change the pin assignments.

Menu >Inputs/Outputs<

larmOut >Function: StdBy /Alarm/Al+StBy Type : normal /invers

Signification of the terms under menu item >Function< : The Cryo-Compact Circulator is in condition

>StandBy< or >Alarm<

-OFF-

S xx.xx E -----

For >Type: normal< pins 2 and 3 are connected in any case according to the selected >Function<.

For >Type: invers< pins 2 and 1 are connected in any case according to the selected >Function<.

Switching capacity max. 30 W / 40 VA Switching voltage max. 125 V/ Switching current max. 1 A

XXXX

LARM ODE xx

Menu functions

8.6. Limits

The menu >Limits< allows for setting the minimum and maximum values for all important setting ranges and capacity variables.

Main menu

>Limits

Interface serial ATCalibration

ESC

Limits >SetMax :300.00°C SetMin :-94.99°C HeatingMax: 100% CoolingMax: 0% IntMax :300.00°C IntMin :-94.99°C Upper band: 200K Lower band: 200K

ESC

In case of external control these menu items are additionally indicated

SetMax: and SetMin: Maximum and minimum setpoint Restriction for the adjustable temperature range. Setting range:

see working temperature range The limitation of the operating temperature range effects the temperature setting under the menu called up with the

key - Setpoint 1, 2, 3. It is possible to adjust only working temperatures that lie within the limit range set here. Existing settings for Setpoint 1, 2, 3 and also for >OverTemp< and >SubTemp< (see page 27) are automatically defered within the limit range.

HeatingMax: and CoolingMax: Adjusted maximum heating / cooling. Setting range:

0 to 100 % in steps of 1 %

Heating and cooling powers of the Cryo-Compact Circulator are adjustable. 100 % corresponds to the values in the technical specifications of the equipment.

Factory setting: CoolingMax CF31 100 % (fixed value) CF41 0 to 100 % in steps of 1 %

Cryo-Compact Circulators

[

]

°C

>SafeTemp:<

200

150

100

75 50 25

reaUp

IntMax: and IntMin: Limit setting

Setting range:

The limits IntMax and IntMin are only valid for external control. IntMax and IntMin are used to limit the expected internal bath temperatures to any upper and lower values. The temperature controller cannot exceed these limits even if it would be required for reaching the temperature in the external system. Consequently the external setpoint may thus not be reached.

Sense of a limit setting:

see working temperature range page 9

 Protects the bath fluid from overheating.  Prevents an undesired alarm shut-down by the excess temperature

protection - >ALARM CODE 14<. Set >IntMax:< to a value at least 5 °C below the >SafeTemp:< value.

 Protects the pump motor from high viscosity of the bath fluid at low

temperatures.

 For refrigerated Cryo-Compact Circulator s: Freezing protection when using

water as bath fluid.

Upper band: and Lower band: Band limit The band limit is active for external control.

For the heat-up and cool-down phases

internal bath external system

reaDown

different settings to conform to the requirements of the particular application are possible.

Setting range:

Using Upper band and Lower band, the difference between the temperatures in the internal bath and the external system can be limited to any maximum value for the heat-up or the cool-down phase.

0 ... 200 °C

10 20 30 40 50 60 10 20 30 40 50 60 10

During the heat-up phase the difference value always adds to the actual external temperature. During the cool-down phase, the difference value is subtracted.

Sense of a band limit:

min

 Ensures gentle heating for the objects requiring temperature application.  Protects glass reactors, for example, from thermal shock.

 The IntMax: and IntMin: values are superordinated to this band limit.

Menu functions

8.7. Serial interface

For communication between Cryo-Compact Circulator and a PC or a superordinated process system the interface parameters of bath units must be identical. The adjustment is usually carried out one time only in the menu >Interface serial<.

Main menu Limits

>Interface serial

ATCalibration

ESC

Interface >Type RS232 Baudrate 4800 /9600/19200/38400 Parity even /no/od Handshake hardw / softw

ESC

RS232

RS485/PROFI

RS485

Interface >Type RS485 Baudrate 4800 /9600/19200/38400 Parity even /no/od

Address 0

Type RS232 / RS485 Baud rate 4800/9600/19200/38400 Parity none/even/odd Handshake software handshake/hardware handshake

Address 0 to 127

Factory settings: 4800 Bauds even hardware handshake

PROFI/RS232

Cryo-Compact Circulators

8.8. ATC Absolute Temperature Calibration, 3-point calibration

ATC serves to compensate a temperature difference that might occur between Cryo-Compact Circulator and a defined measuring point in the bath tank because of physical properties.

Main menu Interface serial

>ATCalibration

Pump

ESC

internal

ESC

TCalibration Sensor : intern Status : no /yes Type : 3-point /1-point/2-point TmpValue1: xx.xx°C CalValue1: xx.xx°C

mpValue2: xx.xx°C CalValue2: xx.xx°C TmpValue3: xx.xx°C CalValue3: xx.xx°C

TCalibration Sensor : extern Status : no /yes Type : 3-point /1-point/2-point TmpValue1: xx.xx°C CalValue1: xx.xx°C

mpValue2: xx.xx°C CalValue2: xx.xx°C TmpValue3: xx.xx°C CalValue3: xx.xx°C

external

Sensor: >intern<, >extern<

Calibration can be carried out for the internal temperature sensor and for the external temperature sensor connected to the socket „ext. Pt100“. The Cryo-Compact Circulator is able to store both parameter sets. However, only the one set under this menu item is indicated.

Status:

>no< The controller of the Cryo-Compact Circulator uses the

original curve of the temperature sensor. Important: During the calibration process >no< needs to be set.

>yes< The controller of the Cryo-Compact Circulator uses the new calibration curve.

Menu functions

Example: 1-point calibration

°C

T 1

Type:

A >1-point<, >2-point < or >3-point < calibration can be carried out. First geometrically define the location for calibration (measuring point T

), then determine the temperature values of of the calibration

points. The calibration type also determines the number of pairs of values indicated on the LCD DIALOG-DISPLAY.

TmpValue: 1 or 2 or 3

Defined temperature value of the calibration point. This value is automatically stored with >CalValue< and can be indicated for control purposes.

CalValue: 1 or 2 or 3

The „Calibration value“ is determined with a temperature measuring device and stored under menu item >CalValue<.

Principle: For ATC calibration, in steady state the bath temperature at the location of the temperature sensor (T

) is determined at the respective adjusted

working temperature. This value is then set on the Cryo-Compact Circulator in the menu >ATCalibration< under menu item >Calvalue X<. This can be a 1-point, 2-point or 3-point calibration.

B (EXT)

3-point calibration

°C

1 = Original curve

T 1

°C

Pt100

ext

M = Temperature measuring instrument with temperature sensor

°C

B = Bath tank (internal or external) T = Cryo-Compact Circulator

= Temperature on measuring point

= Temperature on Cryo-Compact Circulator

Cryo-Compact Circulators

Examples:

= 80.00 °C

= 79.73 °C

= 120.00 °C

= 119.51 °C

= 160.00 °C

= 159.34 °C

Control >ControlType: intern Selftuning: once Dynamic : aperio

Setpoints >Setpoint1: 80.00°C Setpoint2: 37.00°C Setpoint3: 70.00°C

TCalibration >Sensor : intern Status : no Type : 3.point TmpValue1: 80.00°C CalValue1: 79.73°C

TmpValue2: xx.xx°C CalValue2: xx.xx°C TmpValue3: xx.xx°C CalValue3: xx.xx°C

1. Use the keys to select the menu item.

2. With the keys select the parameter (parameter blinks)

or use the numeral keypad to enter the numbers (number segment blinks).

3. Press enter to store the new parameter or value.

Example: 3-point calibration for internal control. In the temperature range of 80 °C to 160 °C the calibration curve of the

temperature sensor (T on the measuring point (T

 Press the

to >intern< and press enter (ControlType: Can only be adjusted in the –OFF– condition)

 Press start/stop

Calibration procedure:

1. Press

and set the first temperature value under

>Setpoint1< for example (example 1

2. Wait until this temperature is maintained constant in the bath for about 5 minutes.

3. Press the

4. Set the following: Menu item >Sensor< to >intern< , Menu item >Status< to >no< , Menu item >Type< to >3-point<.

5. Read the value of T the value under menu item >CalValue 1< (79.73 °C) using the numeral keypad.

) should be assimilated to the actual temperatures

button. Under the menu >Control< set >ControlType<

value = 80 °C).

button and open the menu >ATCalibration<.

on the temperature measuring device and enter

Press enter value of T

as value for >TmpValue 1< (80.00 °C) .

and the Cryo-Compact Circulator also stores the

The first of the 3 points is now calibrated.

6. Repeat the calibration procedure for 120 °C and 160 °C.

Menu functions

8.9. Setting the pump pressure

Examples:

Adjusted Effective

The pressure of the circulating pump is adjustable in four grades. After setting, the VFD-Info-Display indicates the corresponding value.

Adjustable pump capacity stage 1 ... 4 Illuminated display:

for pump pressure

 Display for the adjusted pump pressure stage in the –OFF- mode.  Display for the effective pump pressure stage (rotation speed) after start.

For protecting the pump motor, the rotation speed changes with the load applied, for example depending on the viscosity of the bath fluid at different working temperatures.

Flow rate: 22 ... 26 l/min Pump capacity stage 1 2 3 4 Pump pressure: [bar] 0,4 0,5 0,6 0,7 Suction pump [bar] 0,2 0,26 0,33 0,4 Total capacity [bar] 0,6 0,76 0,93 1,1

in a loop circuit

Main menu Interface serial ATCalibration

>Pump

ESC

1. Use the keys to select the menu item.

2. With the keys select the parameter (parameter blinks).

ump Pump level: 1 /2/3/4

ESC

3. Press enter to store the new parameter or value.

9. Troubleshooting guide / Error messages



Cryo-Compact Circulators

XXXXX

LARM

CODE 01

+

XXXXX

WARNIN CODE 4

ALARM CODE 01

Insufficient liquid level or float is defective.

WARNING CODE 03

ctual temperature above high temperature value.

WARNING CODE 04 

ctual temperature

elow low temperature value.

ALARM CODE 05

Internal working sensor short-circuited or interrupted.



Alarm with a complete shutdown of the unit Whenever the microprocessor electronics registers a failure, a complete shutdown of the compressor, heater and circulating pump is performed.

The alarm light „ The VFD-COMFORT-DISPLAY indicates the cause for the alarm in form of a code.

Warning without a complete shutdown of the unit The VFD-COMFORT-DISPLAY indicates the cause for the warning in

form of a code and an acoustic signal sounds in regular intervals. These messages appear every 10 seconds.

Press enter

Press

alarm messages appear.

 The Cryo-Compact Circulator is operated without bath fluid, or the

liquid level is insufficient. Replenish the bath tank with the bath fluid.

 Tube breakage has occurred (insufficient filling level due to

excessive bath fluid pumped out). Replace the tubing and replenish the bath tank with the bath fluid.

 The float is defect (e. g., because damaged in transit). Repair by

authorized JULABO service personnel.



to indicate the help text in the LCD DIALOG-DISPLAY when

ALARM CODE 03

ctual temperature above high temperature value.

ALARM CODE 04 

ctual temperature

elow low temperature value.

 Cable of the working temperature sensor interrupted or short-

circuited.

“ illuminates and a continuous signal tone sounds.

to quit the audible signal.

Excess temperature warning



or Excess temperature alarm

Warn-Type: Set to >Warning< or >Alarm<

Low temperature warning

or Low temperature alarm.

Warn-Type: Set to >Warning< or >Alarm<

Troubleshooting guide / Error messages



ALARM CODE 06 

Difference between working- and safetytemp. Bigger than

ermissible value.

ALARM CODE 07

The internal I2C

us-system shows

a failure.



ALARM CODE 12

Error in A/Dconverter of the internal measuring system.



ALARM CODE 14

orking temperature exceeds the adjusted safety temperature.



Defect of the working or excess temperature sensor.

Working temperature and excess temperature sensors report a temperature difference of more than 35 K.

 Other errors (I

 Error in A/D converter

 Excess temperature sensors defect.  The excess temperature value lies below the working temperature

setpoint. Set the excess temperature to a higher value.

C-BUS errors)

ALARM CODE 15

External control selected, but ext. sensor not connected or defective.



WARNING CODE 20

Cooling is affecte or ambient temperature to high Clean condenser



WARNING CODE 21

Compressor does not

ork. Compressor ill be automatic-

ally reconnected.



ALARM

 External control selected, but external Pt100 sensor not connected

or defect.

 Cooling of the condenser is affected. Clean air-cooled condenser.

Check the flow rate and cooling water temperature on water-cooled condenser.

 Compressor does not work.

After a short cooling interval, the compressor motor will be automatically reconnected and the message "CODE 21" no longer appears.

 Cable of the excess temperature sensor interrupted or short-circuited

CODE 33

Internal safetytemperature sensor short-circuited or interrupted.



Cryo-Compact Circulators

ALARM CODE 38 

Ext. Sensor input without signal but setpoint programming set to ext. Pt100.

WARNING CODE 40

iveau level warning Critical fluid level Replenish the bath tank with bath fluid



 Ext. Pt100 sensor input without signal, but setpoint programming set

to external Pt100.

 The early warning system for low level signals a critical fluid level.

Replenish the bath tank with the bath fluid.

Cancel the alarm state.

Press the mains power switch off. After eliminating the malfunction, press the mains power on again to cancel the alarm state. If the unit cannot be returned to operation, contact an authorized service station.

Disturbances that are not indicated.

The electronic pump motor is overload-protected by an electronic current limiter. If viscosity of the bath fluid is or becomes too high, the motor stops running.

Mains fuses: The mains fuses on the rear of the unit may easily be exchanged as

shown on the left. Fine fuses (16a)– T 16 A, 250 V~ , D5 x 20 mm

Warning:

Before exchanging the fuses, turn off the mains power switch and disconnect the power plug from the mains socket! Only use fine fuses with a nominal value as specified.

Example:

Manufacturer Supplier Type Order No. Schurter Schurter G-fuse insert SPT

T16A 5x20mm

No. 0001.2516

Electrical connections

10. Electrical connections

Notice:

Use shielded cables only. The shield of the connecting cable is electrically connected to the plug housing.

The unit ensures safe operation if connecting cables with a maximum length of 3 m are used. The use of longer cables does not affect proper performance of the unit, however external interferences may have a negative impact on safe operation.

1 6

SERIAL

Notice: RS485 serial interface

RS232/RS485 serial interface

This port can be used to connect a computer with an RS232 or RS485 cable for remote control of the Cryo-Compact Circulator .

Pin assignments RS232:

Pin 2 RxD Receive Data Pin 3 TxD Transmit Data Pin 5 0 V Signal GND Pin 7 RTS Request to send Pin 8 CTS Clear to send

Pin 1, 4, 6; 9 Reserved - do not use!

Pin assignments RS485:

Pin 3 B Pin 5 0 V Signal GND Pin 6 +5 V (50 mA max. load current) Pin 8 A

Pins 1; 2; 7; 9 are reserved - do not use!

The max. load current between Pin 5 and Pin 6 is 50 mA.

Accessories:

Order No. Description

8 980 073 RS232 interface cable 9-pol./9-pol. , 2,5 m 8 900 110 USB interface adapter cable

Cryo-Compact Circulators

ext. Pt100

ALARM

The shield of the connecting cable is electrically connected to the plug

Socket for external Pt100 sensor

Pt100

housing and the sensor tube.

Alarm output

(for external alarm signal) This potential-free change-over contact is activated in case of an alarm

when pins 2 and 3 are connected.

Switching capacity max. 30 W / 40 VA Switching voltage max. 125 V/ Switching current max. 1 A

hield Plug

Look on

soldering side.

Pin assignment: Pin Signal 1 I+ 2 U+ 3 U 4 I-

STAND-BY input

STAND-BY

REG+E-PROG

(for external emergency switch-off) Pin assignment: Pin Signal

1 not connected 2 5 V / DC

3 0 V

Functional description see page 54

Programmer input / temperature recorder output

Pin Signal

1 Voltage output Channel 1 0 ... 10 V 2 Voltage output Channel 2 0 ... 10 V 3 GND for outputs 0 V 4 Programmer input EPROG 0 to 10 V / 0 to 20 mA 5 Current output Channel 3 0 to 20 mA / 4 to 20 mA 6 GND for Programmer 0 V

Functional description see page 51

Remote control

11. Remote control

11.1. Setup for remote control

1 6

SERIAL

-OFF-

S xxxx

I xxxx



1. Check the interface parameters for both interfaces (on Cryo-Compact Circulator and PC) and make sure they match. In the menu >Interface< set the menu item >Type< to >RS232< or >RS485<.( Serial interface see page 58)

2. In the menu >Configuration< set the menu item >Setpoint< to >RS232< or >RS485<. (>Configuration< see page 32)

3. Connect both units with an interface cable..

Like all parameters which can be entered through the keypad, interface

parameters are stored in memory even after the Cryo-Compact Circulator is turned off.

11.2. Communication with a PC or a superordinated data system



If the Cryo-Compact Circulator is put into remote control mode via the configuration level, the VFD COMFORT-DISPLAY will read „R -OFF-„ = REMOTE STOP. The Cryo-Compact Circulator is now operated via the computer. In general, the computer (master) sends commands to the Cryo-Compact Circulator (slave). The Cryo-Compact Circulator sends data (including error messages) only when the computer sends a query.

In remote control mode: After a power interruption the order to start and all values which have to be adjusted must be resent from the personal computer via the interface. AUTOSTART is not possible.

A transfer sequence consists of:

 address (RS485 interface only)  command  space (; Hex: 20)

 parameter (the character separating decimals in a group is the period)  end of file (; Hex: 0D)

 The response (data string) after an in command is always followed by a

line feed (LF, Hex: 0A).



Important times for a command transmission:

To ensure a safe data transfer, the time gap between two commands should be at least 250 ms. The Cryo-Compact Circulator automatically responds to an in command with a data string followed by a LF (Line Feed). The next command should only be sent after 10 ms.

Cryo-Compact Circulators



The commands are divided into in or out commands.

in commands: asking for parameters to be displayed out commands: setting parameters

The out commands are valid only in remote control mode. Examples:

When the RS485 interface is used, the three-digit instrument address stands in front of each command. (example: address Ad32 = A032)

Command to set the working temperature >Setpoint1< to 55.5 °C

out_sp_00  55.5 A032_out_sp_00  55.5

Command to ask for the working temperature >Setpoint1<

in_sp_00 A032_in_sp_00

Response from the Cryo-Compact Circulator :

55.5 LF A032_55.5 LF

Notice: out-commands

Temperature values can be displayed on the Cryo-Compact Circulator in °C or °F. The settings sent via the interface must also be made in the selected unit according to this setting.

11.3. List of commands

out commands: Setting parameters or temperature values.

Command Parameter Response of Cryo-Compact Circulator

out_mode_01 0 Use working temperature >Setpoint1< out_mode_01 1 Use working temperature >Setpoint2< out_mode_01 2 Use working temperature >Setpoint3< out_mode_02 0 Selftuning „off“.

Temperature control by using the stored parameters.

out_mode_02 1 Selftuning „once“

Single selftuning of controlled system after the next start.

out_mode_02 2 Selftuning „always“

Continual selftuning of controlled system whenever a new setpoint is to be reached.

Remote control

Command Parameter Response of Cryo-Compact Circulator

out_mode_03 0 Set external programmer input to voltage.

Voltage 0 V ... 10 V

out_mode_03 1 Set external programmer input to current.

Current 0 mA ... 20 mA

out_mode_04 0 Temperature control of internal bath. out_mode_04 1 External control with Pt100 sensor. out_mode_05 0 Stop the unit = R –OFF-. out_mode_05 1 Start the unit. out_mode_08 0 Set the control dynamics - aperiodic out_mode_08 1 Set the control dynamics - standard

out_sp_00 xxx.xx Set working temperature. „Setpoint 1“ out_sp_01 xxx.xx Set working temperature. „Setpoint 2“ out_sp_02 xxx.xx Set working temperature. „Setpoint 3“ out_sp_03 xxx.xx Set high temperature warning limit „OverTemp“ out_sp_04 xxx.xx Set low temperature warning limit „SubTemp“ out_sp_06 xxx.xx Set manipulated variable for the heater via serial interface

-100 ... +100 [%]

out_sp_07 x Set the pump pressure stage. (1 ... 4)

out_par_04 x.x CoSpeed for external control 0 ... 5.0

out_par_06 xxx Xp control parameter of the internal controller. 0.1 ... 99.9 out_par_07 xxx Tn control parameter of the internal controller. 3 ... 9999 out_par_08 xxx Tv control parameter of the internal controller. 0 ... 999 out_par_09 xxx Xp control parameter of the cascade controller. 0.1 ... 99.9 out_par_10 xxx Proportional portion of the cascade controller. 1 ... 99.9 out_par_11 xxx Tn control parameter of the cascade controller. 3 ... 9999 out_par_12 xxx Tv control parameter of the cascade controller. 0 ... 999 out_par_13 xxx Maximum in ternal temperature of the cascade controller. out_par_14 xxx Minimum internal temperature of the cascade controller. out_par_15 xxx Band limit (upper) 0 ... 200 °C out_par_16 xxx Band limit (lower) 0 ... 200 °C out_hil_00 -xxx Set the desired maximum cooling power (0 % to 100 %).

Note: Enter the value with a preceding negative sign! This command only valid with the CF41.

out_hil_01 xxx Set the desired maximum heating power (10 % to 100 %).

Cryo-Compact Circulators

in commands: Asking for parameters or temperature values to be displayed.

Command Parameter Response of Cryo-Compact Circulator

version None Number of software version (V X.xx) status none Status message, error message (see page 72)

in_pv_00 none Actual bath temperature. in_pv_01 none Heating power being used (%). in_pv_02 none Temperature value registered by the external Pt100 sensor. in_pv_03 none Temperature value registered by the safety sensor. in_pv_04 none Setpoint temperature („SafeTemp“) of the excess temperature

protection

in_sp_00 none Working temperature „Setpoint 1“ in_sp_01 none Working temperature „Setpoint 2“ in_sp_02 none Working temperature „Setpoint 3“ in_sp_03 none High temperature warning limit „OverTemp“ in_sp_04 none Low temperature warning limit „SubTemp“ in_sp_05 none Setpoint temperature of the external programmer

(REG+E-PROG) . in_sp_06 none Temperature indicatio in °C or °F in_sp_07 none 1. Adjusted pump stage in the -OFF- condition.

2. Pump stage corresponding to the effective rotation speed

after start. in_sp_08 none Value of a flowrate sensor connected to the E-Prog input

in_par_00 none in_par_01 none Te - Time constant of the external bath. in_par_02 none Si - Internal slope in_par_03 none Ti - Time constant of the internal bath. in_par_04 none CoSpeed - Band limit (max. difference between the temperatures

Temperature difference between working sensor and safety sensor

in the internal bath and external system). in_par_05 none Factor pk/ph0:

Ratio of max. cooling capacity versus max. heating capacity in_par_06 none Xp control parameter of the internal controller. in_par_07 none Tn control parameter of the internal controller. in_par_08 none Tv control parameter of the internal controller. in_par_09 none Xp control parameter of the cascade controller. in_par_10 none Proportional portion of the cascade controller.

Remote control

Command Parameter Response of Cryo-Compact Circulator

in_par_11 none Tn control parameter of the cascade controller. in_par_12 none Tv control parameter of the cascade controller. in_par_13 none Adjusted maximum internal temperature of the cascade controller. in_par_14 none Adjusted minimum internal temperature of the cascade controller. in_par_15 none Band limit (upper) in_par_16 none Band limit (lower)

in_mode_01 none Selected setpoint:

0 = Setpoint 1 1 = Setpoint 2 2 = Setpoint 3

in_mode_02 none Selftuning type:

0 = Selftuning „off“ 1 = Selftuning „once“ 2 = Selftuning „alway“

in_mode_03 none Type of the external programmer input:

0 = Voltage 0 V to 10 V

1 = Current 0 mA to 20 mA

in_mode_04 none

Internal/external temperature control: 0 = Temperature control with internal sensor.

1 = Temperature control with external Pt100 sensor.

in_mode_05 none

Cryo-Compact Circulator in Stop/Start condition: 0 = Stop

1 = Start

in_mode_08 none

Adjusted control dynamics 0 = aperiodic

1 = standard

in_hil_00 none Max. cooling power (%). in_hil_01 none Max. heating power (%).

11.4. Status messages

Status messages Description

00 MANUAL STOP 01 MANUAL START 02 REMOTE STOP 03 REMOTE START

Cryo-Compact Circulator in „OFF“ state. Cryo-Compact Circulator in keypad control mode. Cryo-Compact Circulator in „r OFF“ state. Cryo-Compact Circulator in remote control mode.

11.5. Error messages

Cryo-Compact Circulators

Error messages

-01 LOW LEVEL ALARM

-03 EXCESS TEMPERATURE WARNING

-04 LOW TEMPERATURE WARNING

-05 WORKING SENSOR ALARM

-06 SENSOR DIFFERENCE ALARM

-07 I2C-BUS ERROR

-08 INVALID COMMAND

-09 COMMAND NOT ALLOWED IN CURRENT OPERATING MODE

-10 VALUE TOO SMALL

-11 VALUE TOO LARGE

-12 TEMPERATURE MEASUREMENT ALARM

-13 WARNING : VALUE EXCEEDS TEMPERATURE LIMITS

Description Low liquid level alarm High temperature warning

Low temperature warning. Working temperature sensor short-circuited or interrupted. Sensor difference alarm.

Working temperature and safety sensors report a temperature difference of more than 35 K.

Internal error when reading or writing the I

C bus. Invalid command. Invalid command in current operating mode.

Entered value too small. Entered value too large. Error in A/D converter.

Value lies outside the adjusted range for the high and low temperature warning limits. But value is stored.

-14 EXCESS TEMPERATURE PROTECTOR ALARM

-15 EXTERNAL SENSOR ALARM

-20 WARNING: CLEAN CONDENSOR OR CHECK COOLING WATER CIRCUIT OF REFRIGERATOR

-21 WARNING: COMPRESSOR STAGE 1 DOES NOT WORK

-26 WARNING: STAND-BY PLUG IS MISSING

-33 SAFETY SENSOR ALARM

-38 EXTERNAL SENSOR SETPOINT PROGRAMMING ALARM

-40 NIVEAU LEVEL WARNUNG

Excess temperature protector alarm External control selected, but external Pt100 sensor not

connected. Cooling of the condenser is affected.

Clean air-cooled condenser. Check the flow rate and cooling water temperature on water-cooled condenser.

Compressor stage 1 does not work.

External standby contact is open. (see page 54and 67)

Excess temperature sensor short-circuited or interrupted. Ext. Pt100 sensor input without signal and setpoint

programming set to external Pt100. Low liquid level warning in the internal reservoir.

JULABO Service – Online remote diagnosis

12. JULABO Service – Online remote diagnosis

JULABO Cryo-Compact Circulator s of the HighTech series are equipped with a so-called black box. This box is implemented in the controller and records all significant data for the last 30 minutes. In case of a failure, this data can be read out from the unit by using special software. The respective program is available for free download from www.julabo.de

 Installation is easy and carried out step by step.

Please observe the instructions.

 Data read-out is possible in the conditions

„OFF“, „R OFF“ or „ALARM“.

 Connect the Cryo-Compact Circulator to the computer using

an interface cable.

 Start the EasyBlackBox program.

The program asks for the used port (COM1, ......) and the baud

rate of the unit. You do not have this information on hand? Simply try it out! The program keeps on sending this request until the actually used port and correct baud rate are entered.

 Data is read out and shown on the monitor

divided in the sections >Einstellungen/Settings<, >Alarmspeicher/Alarms stored<, >Blackbox<

 see example

 After pressing >Speichern/Save< a text file is

compiled. The program proposes a filename >C:\model description and barcode no.<. Modifications are possible.

 E-mail this file to service@julabo.de

service department. JULABO is thus able to provide rapid support.

\ EasyBlackBox.

, JULABO's

13. Installation of electronic module

Caution:

Always turn off the unit and disconnect the mains cable from the power source before performing any service or maintenance procedures, or before moving the unit. Configuration, installation, maintenance and repairs on the Cryo-Compact Circulator may only be carried out by qualified personnel.

LARM

STAND-BY

REG+ E-PROG

 Turn off the unit with the mains switch and disconnect the

power plug.

 Open the screws (A) and remove the dummy plate.  Carefully insert the upper edge (B) into the rear panel from

below, align the electronic module at top and bottom and applying light pressure connect the 15-pole connector.

 Attach the electronic module using the screws (A).  The Cryo-Compact Circulator is ready for use. It automatically

recognizes the installed electronic module.

Cryo-Compact Circulators

13.1. Draining

Notice:

Do not drain the bath fluid while it is hot! Check the temperature of the bath fluid prior to draining (by switching the unit on for

a short moment, for example). Store and dispose the used bath fluid according to the laws for environmental

protection.

Draining

 Turn off the unit and disconnect the mains cable from the

power source.

 Place the Cryo-Compact Circulator near the rim of the table.

Use a suitabel vessel as recipient for the bath liquid

 Unscrew the drain tap and empty the unit completely.  Tighten the drain tap.

Cleaning / repairing the unit

14. Cleaning / repairing the unit

Caution:

Always turn off the unit and disconnect the mains cable from the power source before cleaning the unit. Prevent humidity from entering into the circulator. Service and repair work may be performed only by authorized electricians.

OFF

LARM

REG+

STAND-BY

E-PROG

T16A

SERIAL

ext

Pt100

T16A

Cleaning: Clean the outside of the unit using a wet cloth and low surface tension water.

The Cryo-Compact Circulator is designed for continuous operation under normal conditions. Periodic maintenance is not required.

The tank should be filled only with a bath fluid recommended by JULABO. To avoid contamination, it is essential to change the bath fluid from time to time.

Repairs:

To maintain the full cooling performance, clean the condenser (C) from time to time.

1. Switch off device by pressing the main power switch and

2. disconnect mains cable from power source.

3. Remove 2 screws

4. Lift cover upwards.

5. Remove dirt at condenser by suction cleaning.

6. Close cover and

7. Fix by means of screws.

8. Unit is ready for operation.

Before asking for a service technician or returning a JULABO instrument for repair, please contact an authorized JULABO service station.

When returning the unit:

 Clean the unit in order to avoid any harm to the service personnel  Attach a short fault description.  When returning a unit, take care of careful and adequate packing.  JULABO is not responsible for damages that might occur from insufficient packing.

JULABO reserves the right to carry out technical modifications with repairs for providing improved performance of a unit.

JULABO CF41 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
