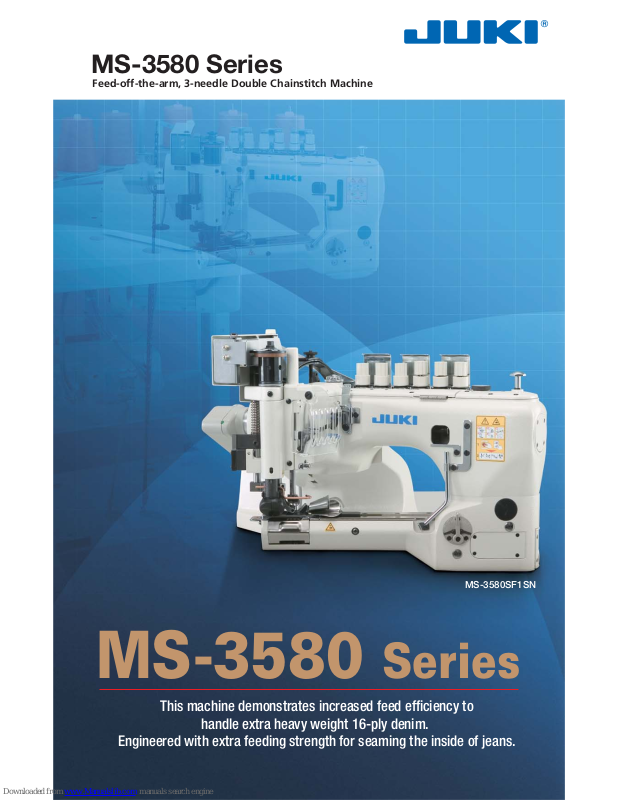

MS-3580 Series
Feed-off-the-arm, 3-needle Double Chainstitch Machine
This machine demonstrates increased feed efficiency to
handle extra heavy weight 16-ply denim.
Engineered with extra feeding strength for seaming the inside of jeans.
MS-3580
Series
MS-3580SF1SN
Page 2

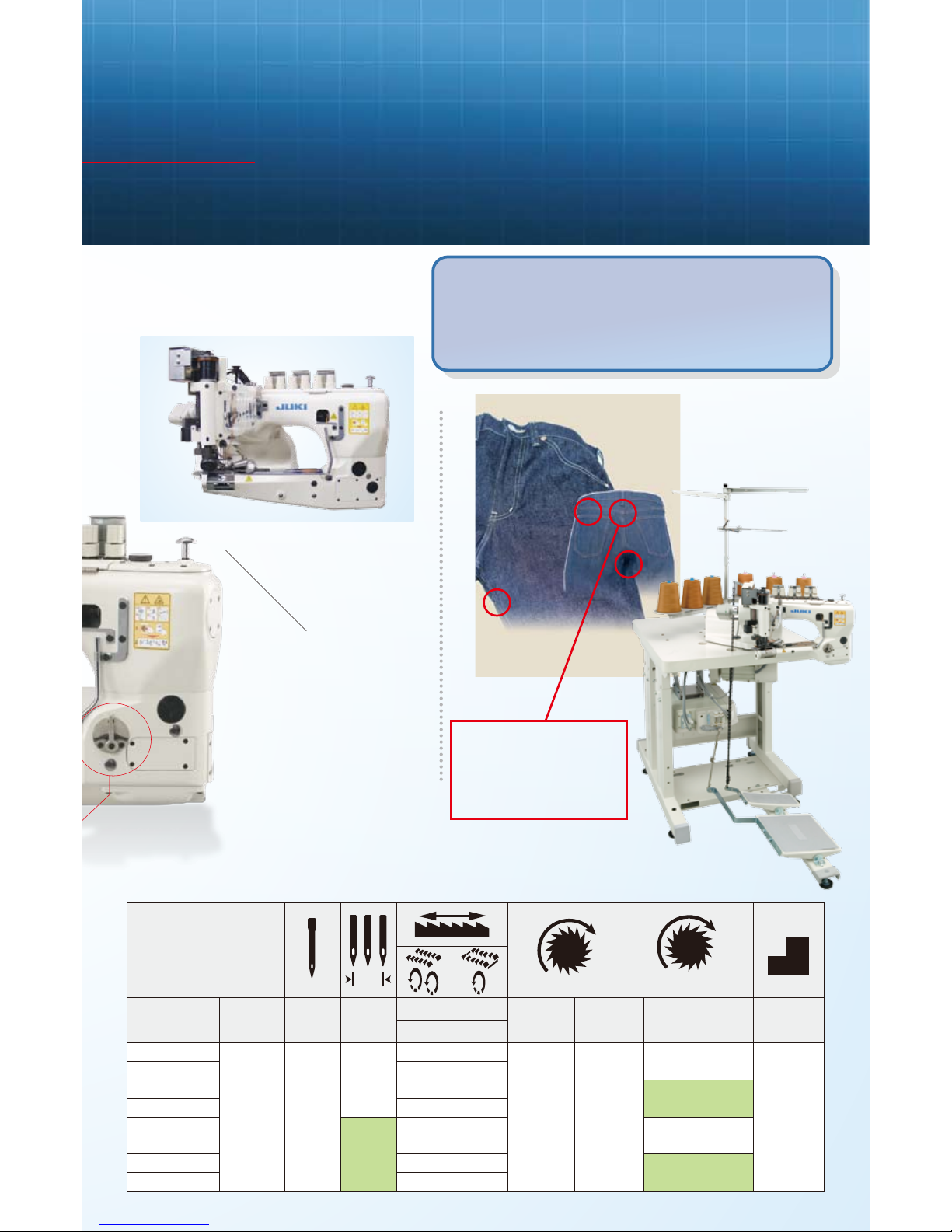

◎Strong feeding
mechanism of the puller
The puller incorporates a one-way clutch
mechanism which contributes to consistent
feeding of the material.
(The mechanical part is protected by a cover for added safety.)
The feeding amount of needle thread is automatically
adjusted to the pressure foot height during sewing,
thereby producing even stitches with
consistency.
When the looper pushbutton (*) located on the operator
side of the top of the machine head is pushed, the tip
of the looper moves downward to allow the operator to
thread the machine head with ease.
The differential feed adjusting lever can be adjusted
even during sewing, thereby effectively preventing
cloth slippage between two plies.
◎Thread take-up device which helps
produce even stitches with consistency
◎The machine has been designed to
achieve the best possible ease of
threading.
◎The differential feed adjusting lever
is located on the front face of the
machine head.
t
er for added safety.)
tomaticall
y
helps
consistenc
y
MS
-
3580
Se
MS
-
3580
Se
Feed-off-the-arm, 3-needle Double Chainstitch Machine
Smooth, efficient feeding of extra heavy weight 16-Ply,
14 oz denim for seaming inside seams.
Page 3
MS-3850SF0SN
MS-3580SF1SN
MS3580SF0SN
MS3580SF1SN
MS3580SF0RN
MS3580SF1RN
MS3580SG0SN
MS3580SG1SN
MS3580SG0RN
MS3580SG1RN
7.2
6.4
Mechanical
driving method
3
Medium- to
heavy-weight
materials
(10~14oz)
2.38
●
●
●
●
●
●
●
●
11.9
Steel teeth (standard)
Steel teeth (reverse teeth)
Steel teeth (standard)
Steel teeth (reverse teeth)
Parts No.40068568
Parts No.40077682
Parts No.40068568
Parts No.40077682
Model No.
■SUBCLASS
Materials
Number of
needles
Needle gauge
(mm)
Provided
Differential-feed
Not provided
Top feed puller
driving method
(Standard) (Reverse teeth)
Roller configuration
Difference in height
of the throat plate
(mm)
Top feed roller
width (mm)
*Looper pushbutton
◎The machine type without the
differential feed capability
The machine is best suited
for lap seaming jeans, denim jackets,
work uniforms, etc.
constructed of heavy weight materials.
The machine demonstrates
increased efficiency of feed
even when seaming a yoke
part (16-layered) in hip
seaming processes.
Page 4
3-needle, 6-thread, double chainstitch machine
For medium- to heavy-weight materials: jeans, denim jackets, work uniforms, etc.
4,500rpm
3,500rpm
2.1mm〜3.6mm (standard 3.2mm)
UY130GS (standard) /Nm140 (＃22)
33mm
6
23.5kg
Max. 9mm (at the time of delivery 6.5mm)
11.9mm
Automatic rotary-pump type oiling
JUKI MACHINE OIL No. 18
To be installed on the table by means of an auxiliary drive assembly MT03
6.4mm, 7.2mm
Main feed: Slide-type stitch-length adjusting method
MS-3580S＊1SN MS-3580S＊0SN
Stitch type
Application
Max. sewing speed
Normal sewing speed
Needle gauge
Stitch length
Needle (standard)
Needle bar stroke
Number of pieces of thread used
Weight of the machine head
Lift of the presser foot
Top feed roller width
Feed adjusting method
Lubrication
Lubricating oil
Installation method

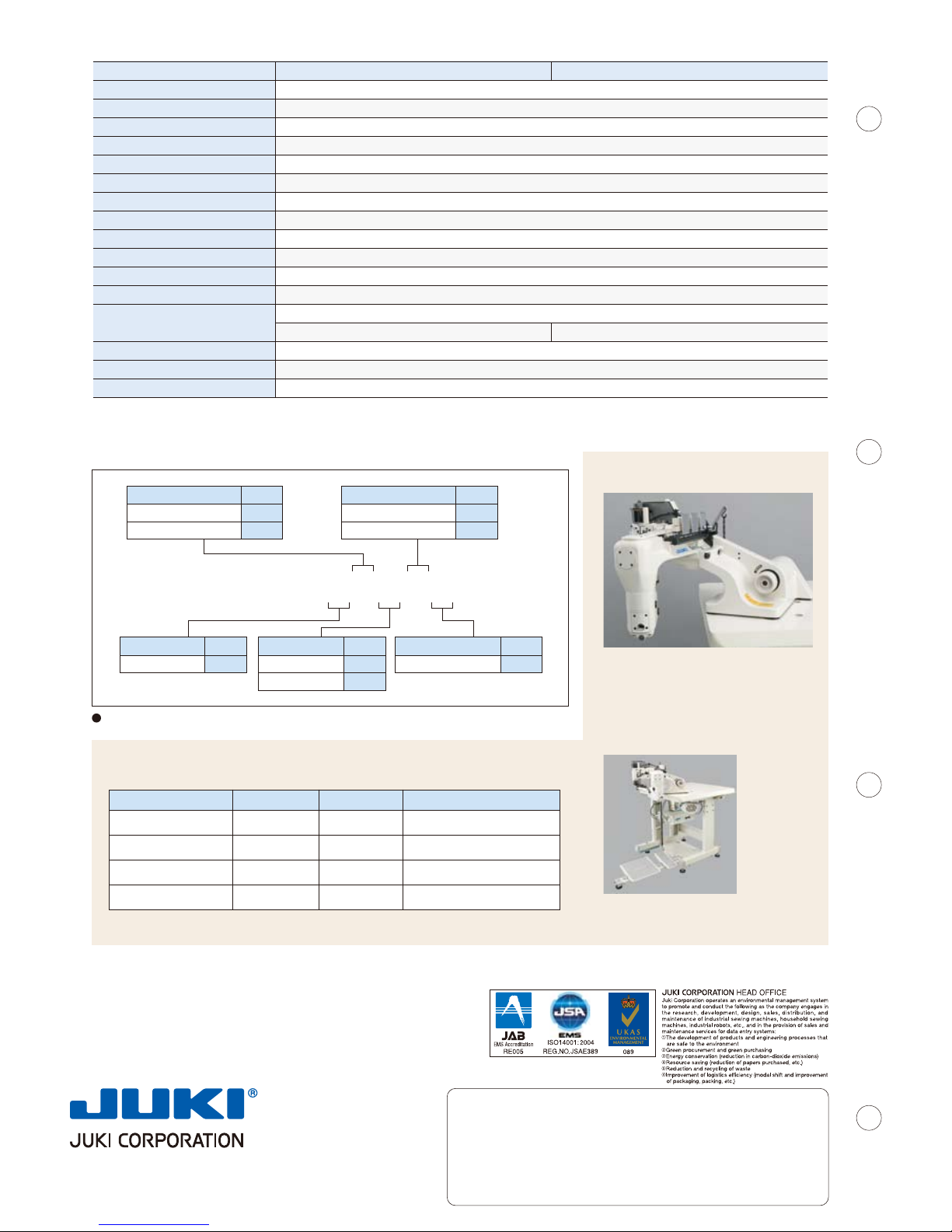

■SPECIFICATIONS
■WHEN YOU PLACE ORDERS ■OPTIONS
MARKETING & SALES H.Q.
✽
Specifications and appearance are subject to change without prior notice for improvement.
✽
Read the instruction manual before putting the machine into service to ensure safety.
✽
This catalogue prints with environment-friendly soyink on recycle paper.
SEPTEMBER, 2008 Printed in Japan(C)
8-2-1
, KOKURYO-CHO, CHOFU-SHI,
TOKYO
182-8655
, JAPAN
PHONE :
(81)
3-3480-2357, 2358
FAX :
(81)
3-3430-4909
http://www.juki.com
Model name
Differential feed: Lever adjusting method Without the differential feed capability
●
Auxiliary drive assembly
MT03
●
Folder assembly
●
Table stand
JTMS5
Table stand for the MS-3580 (without casters)
Various folder assemblies are available according to
the properties and weight of the material to be used.
M S3580S □□□N
Needle gauge Code
F
G
6.4mm (1/4")
7.2mm (9/32")
Roller configuration Code
S
R
Standard
Reverse teeth
Description
Outlet dimension
ApplicationParts No.
3/32" folder
18-1/8" folder
5/32" folder
9-1/8" folder
＊
40072322
40066942
40072324
40072328
2.4mm
3.2mm
4.0mm
3.2mm
Medium-weight materials
Extra heavy-weight materials
Stitch type Code
S
Standard
Roller width Code
N
11.9mm
Differential-feed
Code
0
1
Not provided
Provided
★This table stand is specifically designed
for the SC-510.
The M-51 motor should be used.
＊
Since the top of the folder is shorter than the standard one, the material can be handled with ease.
★To install the machine on the table,
the auxiliary drive MT03 is required.
Medium- to heavy-weight
materials (standard)
Medium- to heavy-weight
materials
To order, please contact your nearest JUKI distributor.
Please note when placing orders, that the model name should be written as follows:
