MODEL : FU-07
List No : 1547-00
PARTS LIST
Published:09/10/2017
CONTENTS
TUAN AROUND MECHANISM COMPONENTS (1) ...................................................................................................
TUAN AROUND MECHANISM COMPONENTS (2) ...................................................................................................
PNEUMATIC COMPONENTS .............................................................................................................................................
HOW TO MAKE USE OF THIS PARTS LIST ...............................................................................................................
1
3
5
7
TOC - 1
8
2
4
22
20
21
19
23
24
3
15
18
10
6
12
13
11
14
7
9
5
17
16
1
TUAN AROUND MECHANISM COMPONENTS (1)
- 1 -

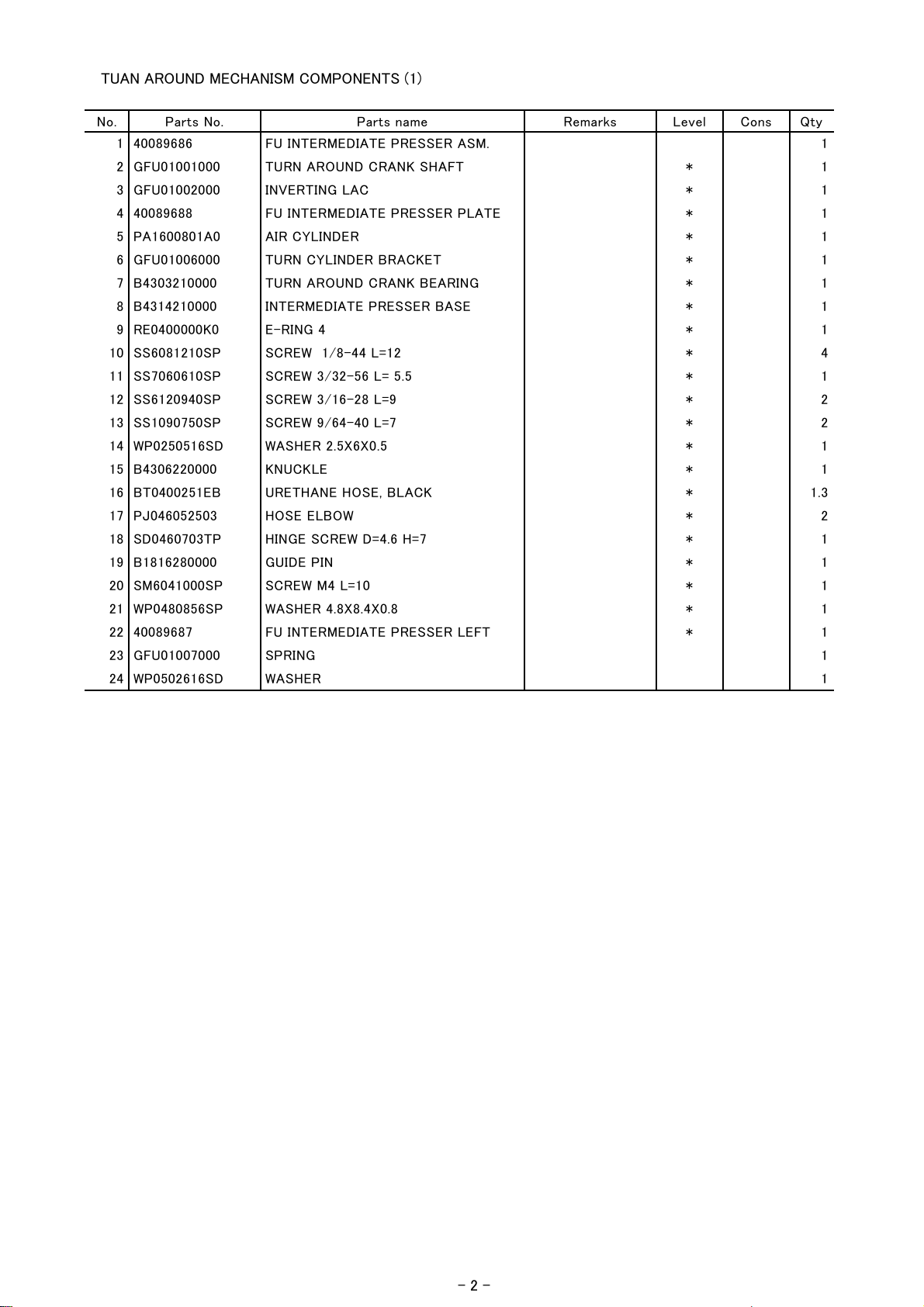

TUAN AROUND MECHANISM COMPONENTS (1)
No. Parts No. Parts name Remarks Level Cons Qty
1 40089686 FU INTERMEDIATE PRESSER ASM. 1
2 GFU01001000 TURN AROUND CRANK SHAFT * 1
3 GFU01002000 INVERTING LAC * 1
4 40089688 FU INTERMEDIATE PRESSER PLATE * 1
5 PA1600801A0 AIR CYLINDER * 1
6 GFU01006000 TURN CYLINDER BRACKET * 1
7 B4303210000 TURN AROUND CRANK BEARING * 1
8 B4314210000 INTERMEDIATE PRESSER BASE * 1
9 RE0400000K0 E-RING 4 * 1
10 SS6081210SP SCREW 1/8-44 L=12 * 4
11 SS7060610SP SCREW 3/32-56 L= 5.5 * 1
12 SS6120940SP SCREW 3/16-28 L=9 * 2
13 SS1090750SP SCREW 9/64-40 L=7 * 2
14 WP0250516SD WASHER 2.5X6X0.5 * 1
15 B4306220000 KNUCKLE * 1
16 BT0400251EB URETHANE HOSE, BLACK * 1.3
17 PJ046052503 HOSE ELBOW * 2
18 SD0460703TP HINGE SCREW D=4.6 H=7 * 1
19 B1816280000 GUIDE PIN * 1
20 SM6041000SP SCREW M4 L=10 * 1
21 WP0480856SP WASHER 4.8X8.4X0.8 * 1
22 40089687 FU INTERMEDIATE PRESSER LEFT * 1
23 GFU01007000 SPRING 1
24 WP0502616SD WASHER 1
- 2 -
2
11
12
7
7
9
9
13
10
4
3
8
8
6
6
5
5
1
TUAN AROUND MECHANISM COMPONENTS (2)
- 3 -
TUAN AROUND MECHANISM COMPONENTS (2)
No. Parts No. Parts name Remarks Level Cons Qty
1 40089689 FU OUTER PRESSER ASM. 1
2 40089691 FU OUTER PRESSER PLATE * 1
3 D255121XX00 WALKING FOOT (A) * 1
4 D255221XX00 WALKING FOOT (B) * 1
5 D255421XX00 COMPENSATING FOOT * 2
6 SS5090610SP SCREW 9/64-40 L=6 * 2
7 SS7110840SP SCREW 11/64-40 L=7.8 * 4
8 WP0371026SD WASHER 3.7X7X1 * 2
9 WP0480856SP WASHER 4.8X8.4X0.8 * 4
10 B1816280000 GUIDE PIN * 1
11 SM6040800SP SCREW * 1
12 WP0480856SP WASHER 4.8X8.4X0.8 * 1
13 40089690 FU OUTER PRESSER RIGHT * 1
- 4 -
6
2
1
5
4
3
PNEUMATIC COMPONENTS
- 5 -
PNEUMATIC COMPONENTS
No. Parts No. Parts name Remarks Level Cons Qty
1 PV150209100 SOLENOID VALVE 1
2 PF0205030A0 REGULATOR 1
3 PJ301040505 HALF UNION 2
4 40035324 SOLENOID VALVE CONNECTER ASM. 1
5 EA9500B0100 CABLE BAND 3
6 PJ301040507 UNION 1
- 6 -
1.As to "#01" and "#02" refer to the "Note" given at the bottom of the respective pages.
2.Codes on the "Qty" column
・Each numeral indicates the number of parts required.
・"0.1" and "2.5" indicate the length (in meters) of the respective parts.
3.Parentheses mean that the corresponding part is a subpart that constructs an assembly part.
4.Dotted lines on the Figures indicate assembly parts.
１．リストページの＃０１、＃０２の印は、ページ下の”注記”の説明を参照下さい。
２．数量欄の数字は、個数を表し、０．１、２．５等の数値は、長さ（単位メートル）を表します。
３．数量欄の（ ）は、組部品を構成している子部品であることを意味します。
４．イラストページの－－－－－枠は、組構成であることを意味します。
HOW TO MAKE USE OF THIS PARTS LIST
- 7 -
NUMERICAL INDEX OF PARTS
PART NO PAGE REF NO.
40035324 6 4
40089686 2 1
40089687 2 22
40089688 2 4
40089689 4 1
40089690 4 13
40089691 4 2
B1816280000 2 19
B1816280000 4 10
B4303210000 2 7
B4306220000 2 15
B4314210000 2 8
BT0400251EB 2 16
D255121XX00 4 3
D255221XX00 4 4
D255421XX00 4 5
EA9500B0100 6 5
GFU01001000 2 2
GFU01002000 2 3
GFU01006000 2 6
GFU01007000 2 23
PA1600801A0 2 5
PF0205030A0 6 2
PJ046052503 2 17
PJ301040505 6 3
PJ301040507 6 6
PV150209100 6 1
RE0400000K0 2 9
SD0460703TP 2 18
SM6040800SP 4 11
SM6041000SP 2 20
SS1090750SP 2 13
SS5090610SP 4 6
SS6081210SP 2 10
SS6120940SP 2 12
SS7060610SP 2 11
SS7110840SP 4 7
WP0250516SD 2 14
WP0371026SD 4 8
WP0480856SP 2 21
WP0480856SP 4 12
WP0502616SD 2 24
INDEX - 1
