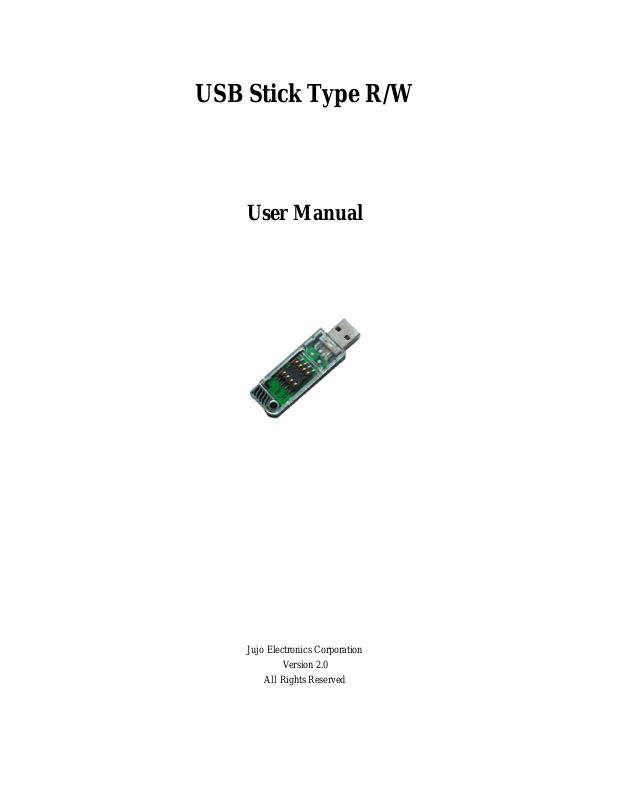

Jujo Electronics 8018 Users Manual
USB Stick Type R/W
User Manu al
Jujo Electronics Corporation
Version 2.0
All Rights Reserved
Page
SER MANUAL
U
............................................................................................1
1. PRODUCT FEATURES................................................................3
2. OPERATING ENVIRONMENT..................................................5
MINIMUM SYSTEM REQUIREMENTS
2.1
2.2
SUPPORTING OPERATING SYSTEM
2.3
NECESSARY SUPPORTS OF
USB H
.........................................................5
...........................................................5
OST CONTROLLER
..............................5

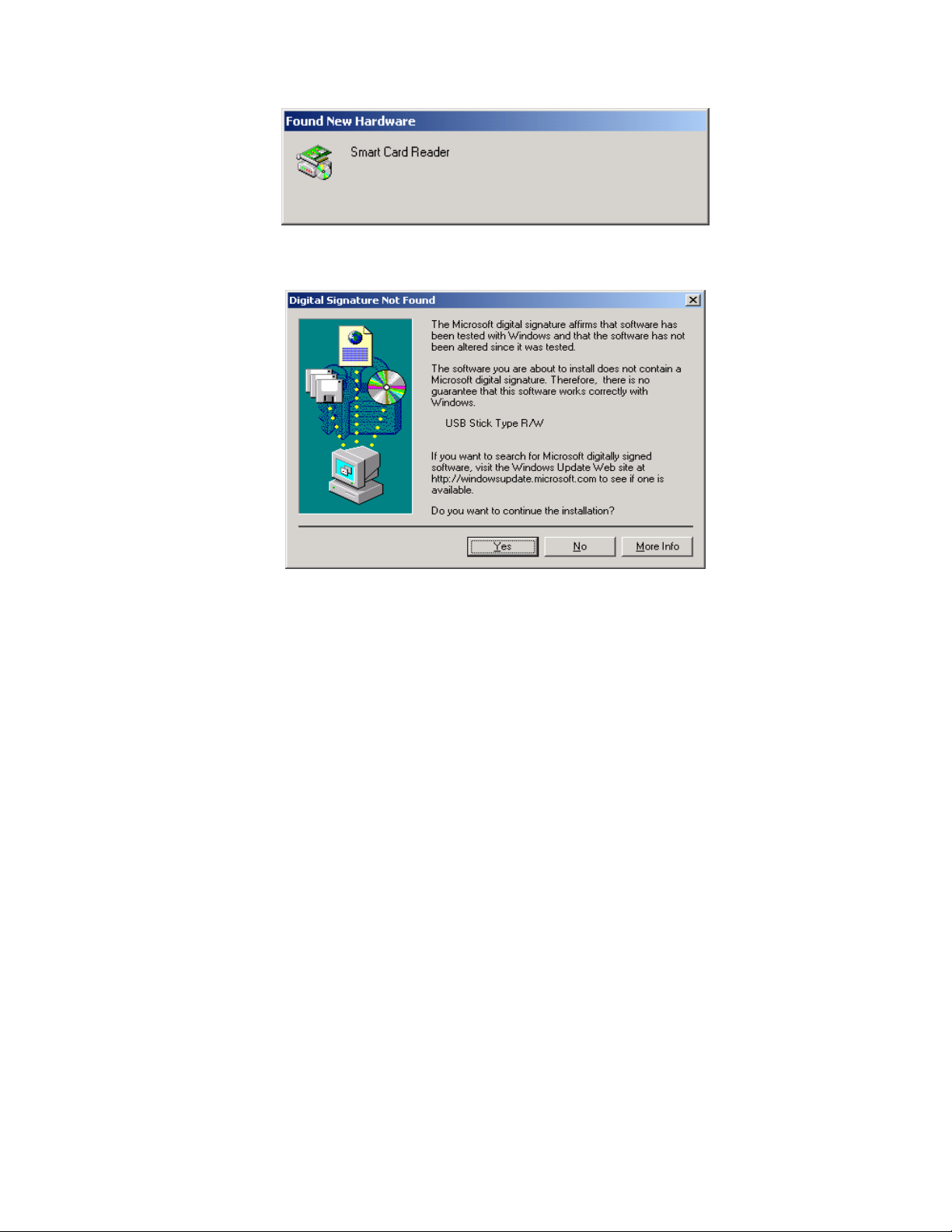

3. INSTALLATION OF THE DRIVERS.........................................6
INSTALLATION IN WINDOWS
3.1
3.2
INSTALLATION IN WINDOWS
OTHERS
3.3
................................................................................................11
98 SE.........................................................6
2000 PRO...................................................8
4. TROUBLESHOOTING..............................................................12
5. INSTALLATION OF SIM CARD AND NOTES ......................13
DIAGRAM OF
5.1
INSTALLATION OF
5.2
TAKING OUT OF
5.3
5.4
OTHERS
USB S
：.........................................................................................15
TICK TYPE
SIM
CARD
SIM
R/W ................................................13
CARD
............................................................13
................................................................14
2
t
FCC-B Radio Frequency Interference Statement
FCC ID: PIT-8018
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device mus
accept any interference received, including interference that may cause undesired operation.
Instruction Manual
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instru ctions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be de termin ed by turning the equip ment off and
on, the user is encouraged to try to correct the interference by one of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to w hich the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate this equipment.
3
1. Product Features
USB Stick Type R/W is a novel, small smart SIM Card Reader. It not only provides
an economic, universal and safe interface for Smart Card and PC users, but also
boasts such features as easy-to-use (Plug and Play), fast transmission speed,
small and serviceable. USB Stick Type R/W will be widely used in such areas as
e-commerce.
Main Features：
◎ Fully com patible with USB1.1；
◎ In line with ISO7816；
◎
Up to the requirements of Microsoft WHQL USB Smart Card Reader；
◎ With WDM drivers, can be unfailingly used in various operating systems；
◎ Small in dimension and convenience in carrying (dimension：Height 8.2mm, Length
58.2mm, W i dth 17.3mm)；
◎ Fast transmission speed（low speed 1.5M/s，full speed：12M/s）。
Note：* WHQL is Windows Hardware Quality Labs
* WDM is Windows Driver Model
4
2. Operating Environment
2.1 Minimum system requirements
◎ PC/AT or compatible PC (desktop computer or Notebook PC) with USB interface；
◎ CPU: Pentiu m® 100MHz，200MHz or higher is recommended；
◎
RAM: 32Mbyte，64Mbyte is recommended；
◎ Hard Disk: 20Mbyte free hard disk space or more；
2.2 Supporting Operating System
Supports the following Windows operating environment：
◎
Windows 98
◎ Windows 98 Second Edition
◎ Windows Millennium Edition
◎ Windows 2000 Professional (SP1, SP2)
◎
Windows 2000 Server
◎ Windows XP Home Edition
◎ Windows XP Professional
2.3 Necessary supports of USB Host Controller
Your computer should have：
◎
UHCI Universal Hub Controller Interface
◎ OHCI Open Host Controller Interface
5
