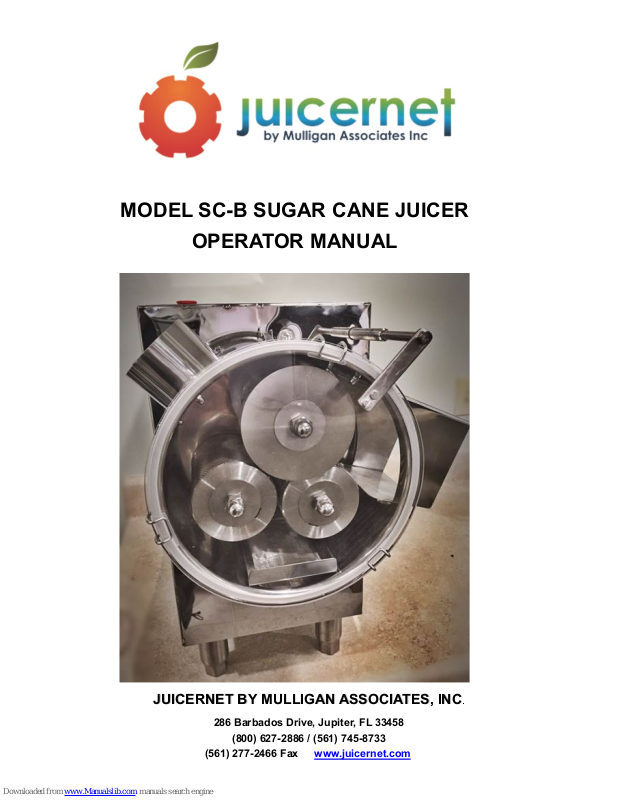

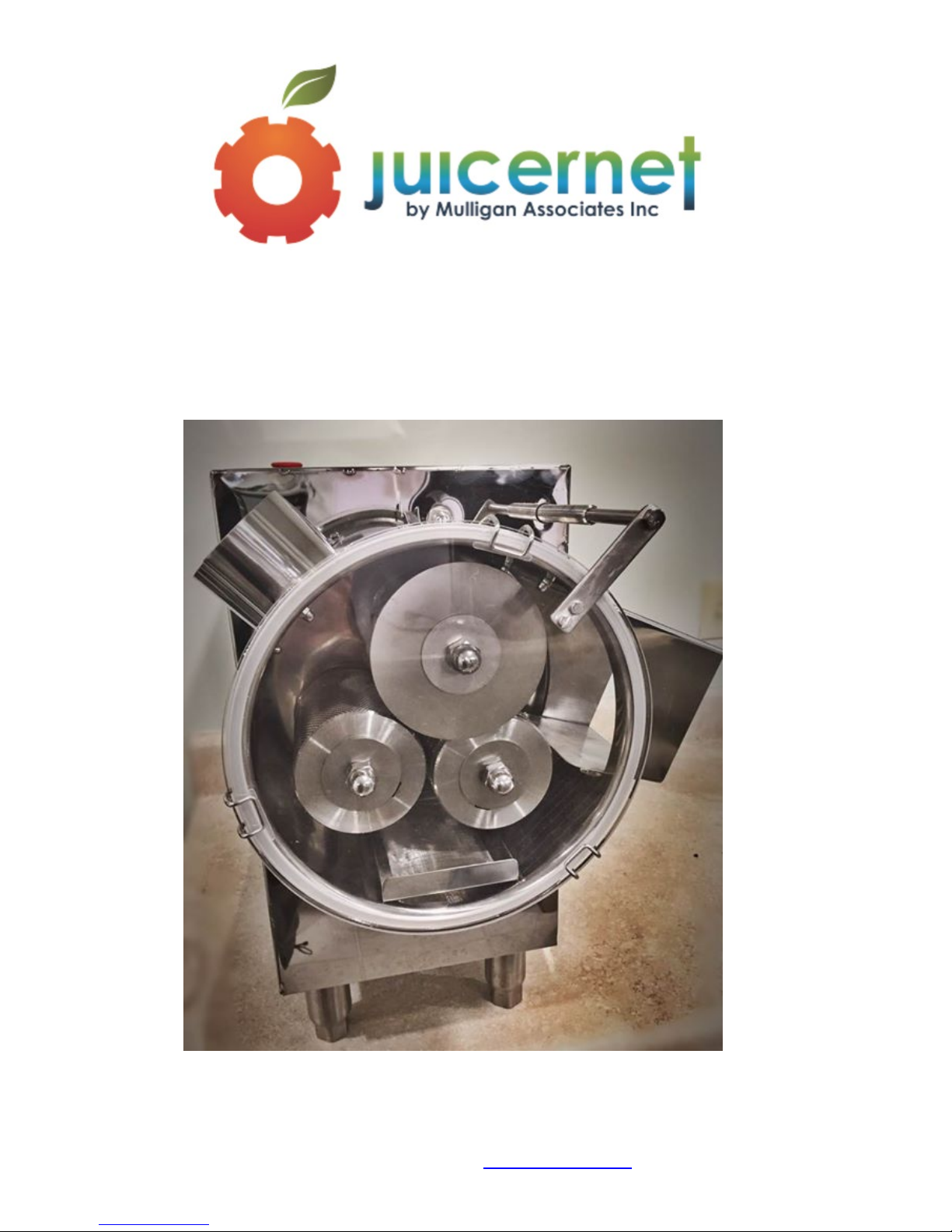

MODEL SC-B SUGAR CANE JUICER
OPERATOR MANUAL
JJUUIICCEERRNNEETT BBYY MMUULLLLIIGGAANN AASSSSOOCCIIAATTEESS,, IINNC
(561) 277-2466 Fax www.juicernet.com
286 Barbados Drive, Jupiter, FL 33458
(800) 627-2886 / (561) 745-8733
.
C
Page 2
1. Introduction

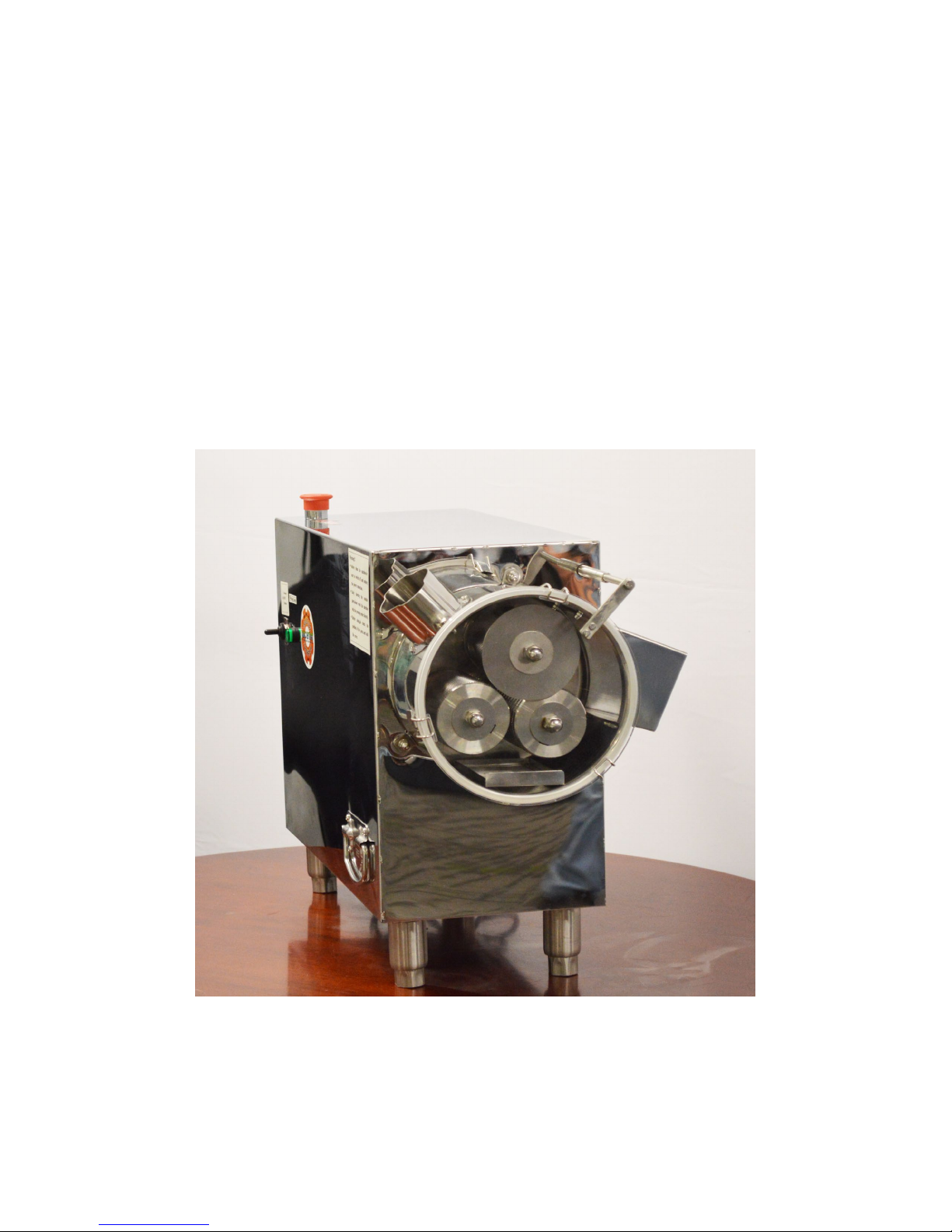

The Model SC-3 sugar cane juicer is unlike the traditional commercial juicer. It is highly efficient and easy to
clean because of the removable rollers and juice cabinet. This machine is ideal for Juice Bars, Restaurants,
Hotels, Supermarkets, Health Clubs, etc. The machine can also be used to make juice from crispy celery,
ginger, cactus plant extract and aloe, etc.
Page 3

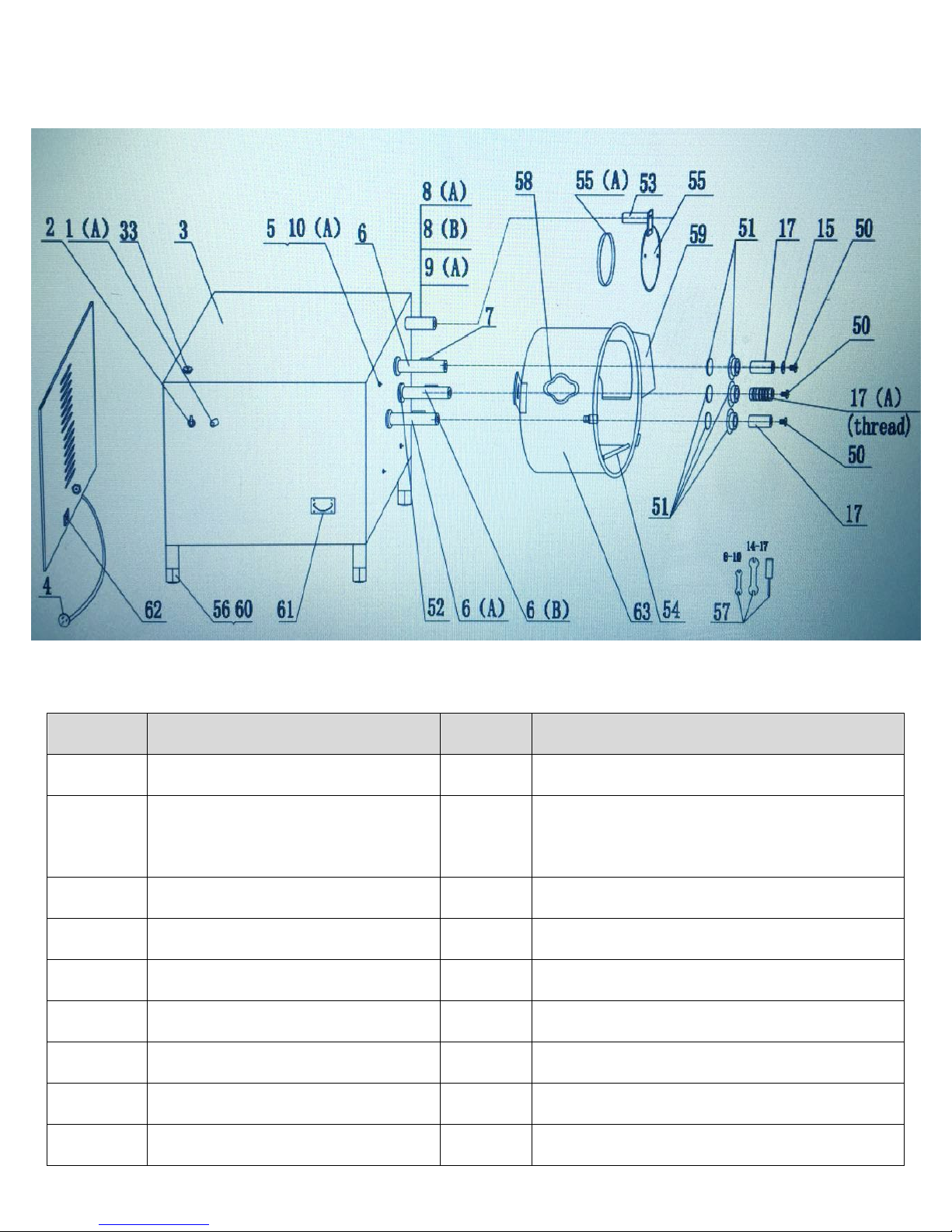

2. Diagram of Main Parts
Part No.
Description
Part No.
Description
SC-1 (A)
Power Light (infix type)
SC-9
Safety Switch (110v)
(A)
SC-3
Top Body of Machine
SC-15
Washer for Roller
SC-4
Plug (USA type / 110v)
SC-17
Roller (Threaded Roller #SC-17A)
SC-5
Cabin Screw
SC-33
Emergency On/Off Switch (110v)
SC-6
Roller Shaft (up/motor)
SC-50
Roller Screw
SC-6 (A)
Roller Shaft (left side)
SC-51
Seal and Cover
SC-6 (B)
Roller Shaft (right side)
SC-52
Small Nylon Spacer
SC-7
Key of Shaft (10x50)
SC-53
Safety Switch Rod
Description of Main Parts
SC-2 (L) Power Switch (On/Off, 25 amp) SC-10
Screw (cap nut M6)
Page 4
Part No.
Description
Part No.
Description
SC-8 (A)
Safety Switch Stick (shorter M12)
SC-54
Filter
SC-8 (B)
Safety Switch Stick (shorter M5)
SC-55
Lexan Door
SC-55 (A)
Silicone Seal for Cabin
SC-60
100mm Legs
SC-56
Adjust Legs (750-105mm)
SC-61
Handles
SC-57 New Tool (8-10#, 14-17# wrenches
and straight screwdriver)
SC-58
Entry Chute
SC-63
Juice Cabin
SC-59
Exit Chute
Type/name
Model SC-3 Sugarcane juicer
Net/gross：
165 / 187 lbs.
Power
10 amp
Size（w*l*h）
13” x 27” x 21”
Supply
110V/60hz /1/2 hp
Crate dimensions（w*l*h）
16” x 32” x 27”
Efficiency
15 rpm
Sugarcane diameter
Smaller than 2 ¼”
3. Features
• Roller (17) and juice cabinet (63) is easy to remove for cleaning
• Cover of cabinet (55) is stainless steel.
• Stainless steel exterior finish and rollers, easy cleaning and fine appearance.
• Sugarcane juice and residue automatically divide, getting high efficiency.
• All gear driven, quiet and long life.
• Forward-reverse switch (2); overload switch (62).
• Safety switch (9A), emergency switch (33)
4．Main Technical Data
SC-62 Circuit Breaker (10 amp)
Page 5
5． Operating Steps
• Preparations
o Place the machine on the table/counter after it is taken out of the box. Make sure that no parts are
missing. Connect the power plug (4) into a standard 15amp electrical outlet, (make sure the
connected outlet is grounded), then turn on the power switch (2) into forward position. Run the
machine without load and make sure it sounds smooth and there are no obstructions.
Emergency switch must be in the on position for the juicer to operate
o For best results cut the sugarcane into shorter pieces, 8-20 inches long, with an angle for easy
feeding into the machine. The diameter should be smaller than 2 ¼ inches.
o Check the position of the filter (18) and container to collect juice.
o Before using you must clean the parts. Do not use any strong acid detergents to clean the cover
of cabinet (55/55A). Do not directly spray or soak the outside of the machine by water, to avoid
the leakage of electricity. It is best to wipe down with a damp cloth. The juicer is NOT hosable.
• Juicing Steps
o Turn on the forward switch (2) and let the machine run without load for 30 seconds. Then feed
the short pieces of sugarcane into the roller. WARNING!!! It is dangerous to get your hand or fingers
too close or inside of the intake feed chute. After squeezing juice, be sure to remove and clean all of the
juicing parts. Always make sure to turn off the machine and disconnect the power cord before cleaning
or trouble-shooting.
Page 6
Problem
Possible Cause
Troubleshooting
Work lamp (1)
1. Cover of cabinet (55) is not in
1. Insert the cover of cabinet (12)
make sure it is on
Work lamp (1)
1. Check the power to machine is
lamp (1A) is bad.
1. Check power cord is plugged in.
No juice is
1. Check the position of the power
1. Put the switch in forward
Broken bits in
1. The position of the filter (54) is
2. Roller needs to be cleaned.
1. Change the filter (54).
Loud Noise
1. No oil in the gear box of motor.
1. Add oil or change the motor.
6. Troubleshooting
is lighted, but
machine is not
working.
does not light,
and machine is
not working.
coming out
juice
the correct position.
2. Safety switch (9A) is wrong.
3. Power switch (2) is bad.
correct.
2. Check the circuit breaker to see
if it is ok.
3. Power switch (62) and power
switch (2).
2. Sugarcane is dry.
3. Bearing and Seal needs
replacing
not good.
to correct position.
2. Change the safety switch (9).
3. Change the power switch (2).
4. Change the switch (33)
5. Check emergency switch and
2. Change the power switch (10A)
and power lamp (1A).
position.
2. Wash and change the type of
sugarcane.
3. Change the bearing.
2. Clean the roller (17).
Turbid juice 1. Sugarcane is not fresh.
2. Sugarcane is not washed.
Little juice 1. Bearing is wrong. 1. Change the bearing or gear box.
1. Change the sugarcane
2. Wash the sugarcane carefully.
