Juiceman JM480S User Manual
Enjoy the Fresh Side of Life
Enjoy the Fresh Side of Life
TM
All-in-One Juice Extractor
& Citrus Juicer
Extractor de jugo
y exprimidor de cítricos
todo en uno
TM
CustomerCare Line:
USA/Canada
1-800-231-9786
Mexico
01-800 714-2503
Accessories/Parts
(USA / Canada)
Accesorios/Partes
(EE.UU / Canadá)
1-800-738-0245
For online
customer service
and to register
your product, go to
www.prodprotect.com/applica
MODEL/MODELO
❍
JM480S
1
Please Read and Save this Use and Care Book
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always
be followed including the following:
❍
Read all instructions.
❍
To protect against risk of electrical shock do not put cord, plugs or
appliance in water or other liquid.
❍
Close supervision is necessary when any appliance is used by or near
children.
❍
Unplug from outlet when not in use, before putting on or taking off
parts, and before cleaning.
❍
Avoid contacting moving parts.
❍
Do not operate any appliance with a damaged cord or plug or after
the appliance malfunctions, or is dropped or damaged in any manner.
Return appliance to the nearest authorized service facility for
examination, repair or electrical or mechanical adjustment. Or, call
the appropriate toll-free number on the cover of this manual.
❍
The use of attachments not recommended or sold by the
manufacturer may cause fire, electric shock or injury.
❍
Do not use outdoors.
❍
Do not let cord hang over edge of table or counter.
❍
Always make sure juicer cover is clamped securely in place before
motor is turned on. Do not unfasten clamps while juicer is in
operation.
❍
Be sure to turn switch to OFF (0) position after each use of your juicer.
Make sure the motor stops completely before disassembling.
❍
Do not put your fingers or other objects into the juicer opening while
it is in operation. If food becomes lodged in opening, use food pusher
or another piece of fruit or vegetable to push it down. When this
method is not possible, turn the motor off and disassemble juicer to
remove remaining food.
❍
Do not use the appliance if the rotating sieve is damaged.
❍
Do not operate without the pulp container in place.
SAVE THESE INSTRUCTIONS
This product is for household use only.
POLARIZED PLUG (10V Models Only)
This appliance has a polarized plug (one blade is wider than the other). To reduce
the risk of electric shock, this plug is intended to t into a polarized outlet only
one way. If the plug does not t fully into the outlet, reverse the plug. If it still
does not t, contact a qualied electrician. Do not attempt to modify the plug in
any way.
TAMPER-RESISTANT SCREW
Warning: This appliance is equipped with a tamper-resistant screw to prevent
removal of the outer cover. To reduce the risk of re or electric shock, do not
attempt to remove the outer cover. There are no user-serviceable parts inside.
Repair should be done only by authorized service personnel.
ELECTRICAL CORD
a) A short power-supply cord (or detachable power-supply cord) is to be provided
to reduce the risk resulting from becoming entangled in or tripping over a
longer cord.
b) Longer detachable power-supply cords or extension cords are available and
may be used if care is exercised in their use.
c) If a long detachable power-supply cord or extension cord is used,
1) The marked electrical rating of the detachable power-supply cord or
extension cord should be at least as great as the electrical rating of the
appliance,
2) If the appliance is of the grounded type, the extension cord should be a
grounding-type 3-wire cord, and
3) The longer cord should be arranged so that it will not drape over the
countertop or tabletop where it can be pulled on by children or tripped over.
Note: If the power supply cord is damaged, it should be replaced by qualied
personnel or in Latin America by an authorized service center.
Note: The maximum wattage is obtained with the centrifugal juicer attachment.
Other recommended attachments draw signicantly less power.

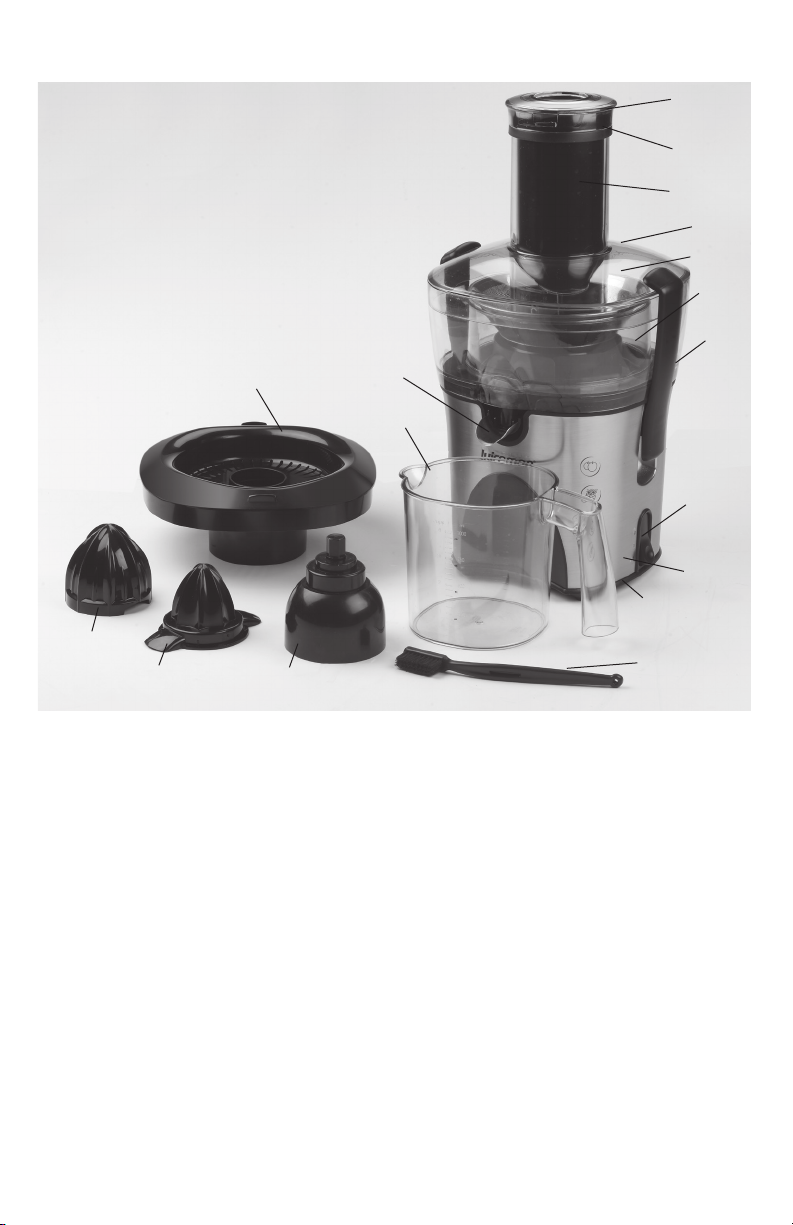

GETTING TO KNOW YOUR JUICE EXTRACTOR & CITRUS JUICER
† 1. Small food pusher
(Part # JM480S-01)
† 2. Large food pusher
(Part # JM480S-02)
3. Feed chute
† 4. Lid
(Part # JM480S-03)
† 5. Stainless steel filter
(Part # JM480S-04)
† 6. Integrated pulp container
(Part # JM480S-05)
7. Locking latches (both sides)
8. Speed control switch
9. Base
10. Cord wrap (under base)
11. Slip-resistant feet
12. Snap up juice spout
† 13. Juice pitcher
† 14. Citrus juicer drive shaft
(Part # JM480S-07)
† 15. Citrus juicer attachment
(Part # JM480S-08)
† 16. Small juicing cone
(Part # JM480S-09)
† 17. Large juicing cone
(Part # JM480S-10)
† 18. Cleaning brush
(Part # JM480S-11)
(Part # JM480S-06)
Note: † indicates consumer replaceable/
removable parts
How to Use
This product is for household use only.
GETTING STARTED
• Remove all packing material and, if applicable, any stickers from the product.
Remove and save literature.
• Please go to www.prodprotect.com/applica to register your warranty. For
additional information and recipes for your product go to www.juiceman.com.
• Take the appliance apart following instructions in DISASSEMBLING THE
CITRUS JUICER and wash all removable parts as instructed in CARE
AND CLEANING. This will remove any traces of dust or residue left from
manufacturing and shipping.
Important: Do not rinse or immerse base in water or any other liquid.
• Place base on a dry, level counter to prepare and assemble, following
instructions in ASSEMBLING THE JUICE EXTRACTOR.
• Once assembled place the appliance on a level dry space, allowing air space
on all sides to provide proper ventilation for the motor.
PREPARATION
How to prepare fruits and vegetables for juicing.
Purchasing and Storing Ingredients:
• Always use fresh fully ripened fruits and vegetables.
• When purchasing consider selecting fruits and vegetables in season for best
freshness and avor.
• Choose fruits that are plump, tender and have bright color. Fruits should be
heavy for their size without bruises, cuts or blemishes.
• To ripen fruit, place in a small clean paper bag. Close the bag loosely and
let stand at room temperature. (To speed ripening, add a ripe apple or
banana to the bag.) Once ripened, store in the refrigerator for a day or 2 until
ready to use.
• Store perishable vegetables in the refrigerator until ready to use.
Preparing Fruits and Vegetables for the Juice Extractor:
• Wash fruits and vegetables thoroughly just before using in the juice extractor
using a natural bristle brush and a biodegradable cleaner to help remove
pesticide residue.
• If desired, remove the skin. The skin may be left on all produce with the
exception of:
o All citrus fruits, including
• Oranges
• Grapefruit
• Lemons
• Limes
• Tangerines
Note: The oil in the skin of these fruits tastes bitter and is difcult to digest.
Hint: Although the skin may be left on melons and pineapple, you may choose to
remove them to maximize the fruit avor in the nished drink.
• All pits and large seeds should be removed from fruits, including:
o Apricots
o Cherries
o Nectarines
o Mangoes
o Peaches
o Plums
o Melons
• Remove and discard outer leaves of non-organic produce. Peel away any
wax coatings.
• Trim any bruised or discolored sections of fruits and vegetables.
• The design of the feed chute accommodates larger produce. It will easily
accommodate most whole fruits and vegetables, such as, apples, beets,
carrots and celery. If necessary, cut into large pieces before inserting into
feed chute.
• Be sure all parts of the juice extractor and clean and dry. See the CARE AND
CLEANING instructions section of the manual on page 12.
DISASSEMBLING THE JUICE EXTRACTOR
1. Pull open at the bottom of each locking latch
to disengage from the tab on the cover (B). The
locking latches will raise up, so you can release
them from the lid.
2. To remove the lid, take out the food pusher,
grasp the feed chute and pull up.
B
3. To remove the integrated pulp container, grip the
snap up juice spout with one hand and the back
edge of the pulp container with the other. Pull up
with the stainless steel lter in place (C).
C
4. To remove the stainless steel lter, hold the juice
spout and grasp the stainless steel lter by the rim
to pull it out (D).
Caution: The stainless steel lter cutting teeth are
very sharp. Handle it carefully.
ASSEMBLING THE JUICE EXTRACTOR
1. Place integrated pulp container on the base with
D
the juice spout facing you.
2. Insert the stainless steel lter in the center of the
integrated pulp container and press down until it
snaps into place (E).
3. Place the lid on top of the integrated pulp
container.
4. Insert the desired food pusher into the feed
chute (see USING THE SMALL AND LARGE FOOD
PUSHERS). Place the food pusher into the feed
E
chute, matching the indentations on the food
pusher to the projections on the feed chute.

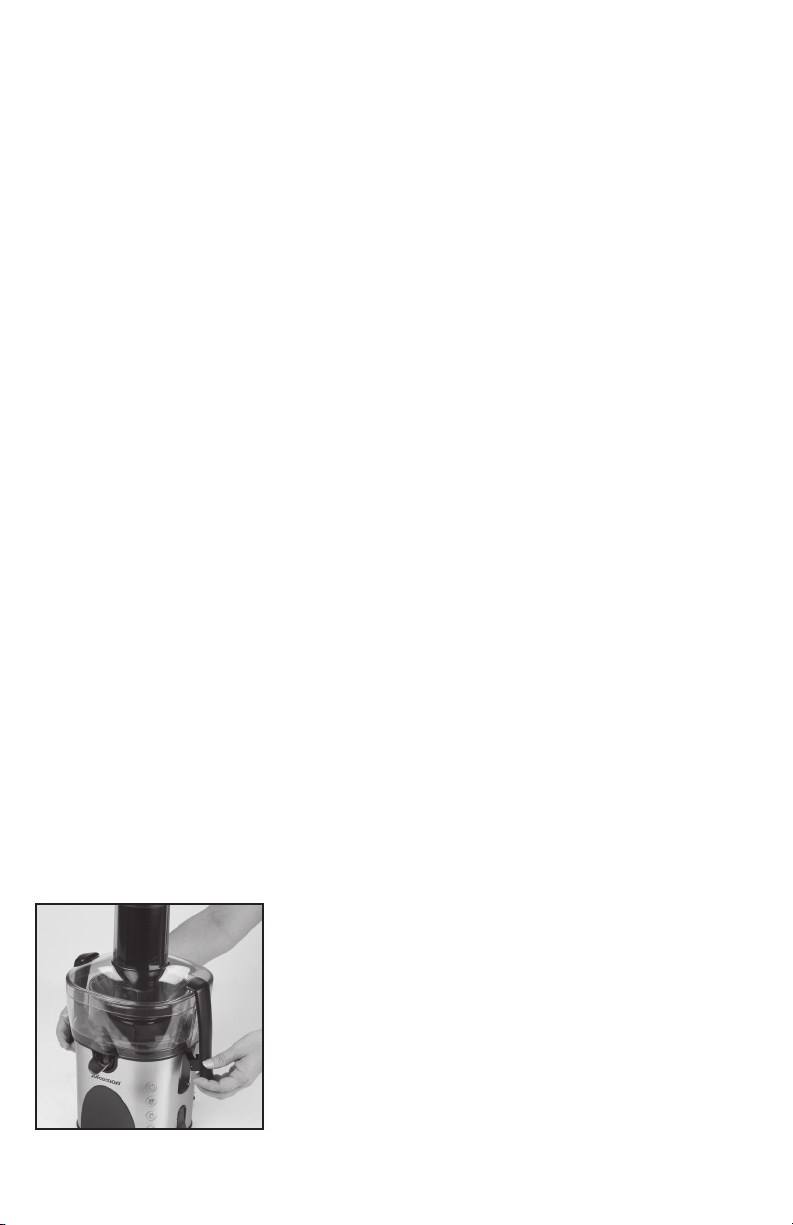

5. Lock the locking latches by holding down the cover
as you t the locking mechanism at the top of each
latch over the tab on each side of the lid (F). Press
the bottom of each latch until you hear it click into
place.
Important: The appliance will not operate until the
locking latches are locked.
F
6. Tilt the juice spout down into the open ( )
position (G).
7. Place the juice pitcher under the juice spout.
G
USING YOUR JUICE EXTRACTOR
Note: To begin, assemble the fruits and or vegetables to be used on the counter
or in a bowl next to the extractor, following the tips in PREPARATION.
Important: The integrated pulp container holds about ½ cups of pulp.
Do not allow the integrated pulp container to overll. This may cause the
appliance to stall.
1. Plug appliance into a standard electrical outlet. Press the speed control switch
to the low setting (1) and allow it to run 10 seconds before placing any food into
the feed chute.
2. Place food in the feed chute and press lightly with food pusher.
3. Use the food pusher as a guide to gently direct the produce through the feed
chute. To get the most juice from the fruits and vegetables, do not force or
rush the food through the appliance.
4. When the pulp container or juice pitcher is almost full (the pulp container
holds about 3½ cups of pulp and the juice pitcher holds about 4 cups of juice)
turn off (0). Allow the motor to come to a complete stop before emptying either
part.
5. Follow the instructions in DISASSEMBLING YOUR JUICE EXTRACTOR to
remove the pulp container, then replace following instructions in ASSEMBLING
YOUR JUICE EXTRACTOR. Be sure to replace the containers before resuming
extraction.
Caution: The stainless steel lter cutting teeth are very sharp. Handle the
lter carefully.
6. When juicing is complete, lift the snap up juice spout into the closed
position ( ).
7. Turn off and unplug from outlet.
Note: Never place ngers or hand into the feed chute.
USING THE SMALL AND LARGE FOOD PUSHERS
Note: The food pusher has 2 parts; the smaller clear inner section locks into
the larger outer section.

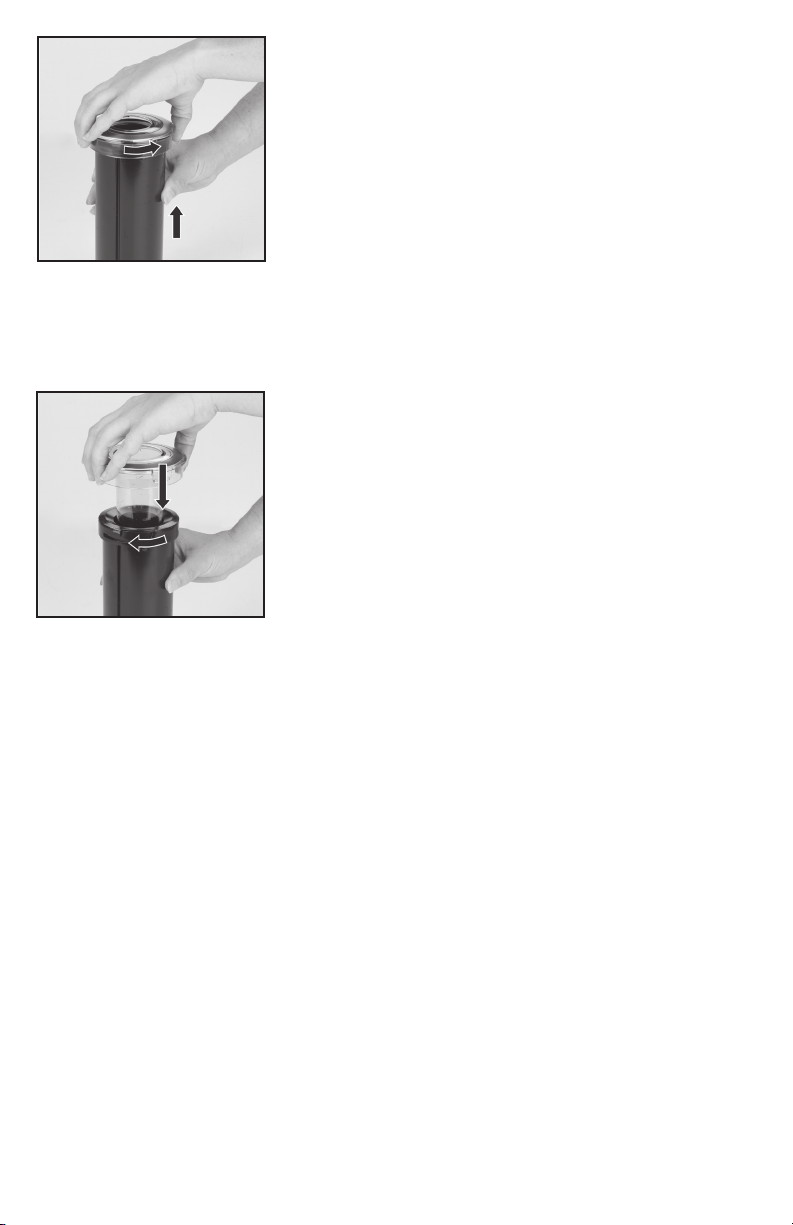

1. To remove the small food pusher, hold the
large food pusher with one hand and twist
counterclockwise until the lock of the inner
section is disengaged;
lift the small food pusher straight up (H).
2. Place the large food pusher into the feed chute,
matching the indentations on the food pusher to
the projections on the feed chute.
Note: Use the smaller opening for small fruits and
H
vegetables. Use the small food pusher to help guide
the fruits and vegetables through the opening in the
large food pusher.
3. When using larger pieces of fruits and vegetables,
replace the small food pusher into the large food
pusher and use the assembled piece to help guide
the larger fruits and vegetables through the feed
chute. Match the notches to the opening. The clear
center will drop into the slot; turn the top clockwise
until the small pusher is locked in place (J).
J
JUICE EXTRACTOR TIPS
• Do not put food into the extractor before turning the appliance on.
• Let the appliance run for at least 10 seconds before placing any food into the
feed chute.
• Do not let the juice or pulp container overll while using the machine. Turn
the appliance off (0), wait for the motor to stop running and any juice to stop
owing. Empty the juice and/or pulp container. Be sure they are properly
replaced before resuming operation of the extractor.
• Do not process bananas, avocados or coconut. They have no juice and will clog
the appliance.
• Be sure to remove all pits and large seeds from fruits.
• For maximum nutritional benets, drink your processed juice right a way.
FOR OPTIMUM JUICING
• Avoid excessive build up of pulp on the underside of the lid.
• Remove rind of melons; because they are so thick, they water down drinks.
• Refrigerate washed ripe fruits and vegetables until ready to use.
USES FOR THE PULP
The pulp from the fruits and vegetables is high in nutritional value. Use it to add
ber and avor to mufns and quick breads. Use it to thicken soups, casseroles
and sauces. Use fruit pulp to add nutrition and avor to desserts, such as,
puddings and cakes. Be sure to use it the same day you extract the juice.
Pulp is also food for your garden. You can use it as compost.

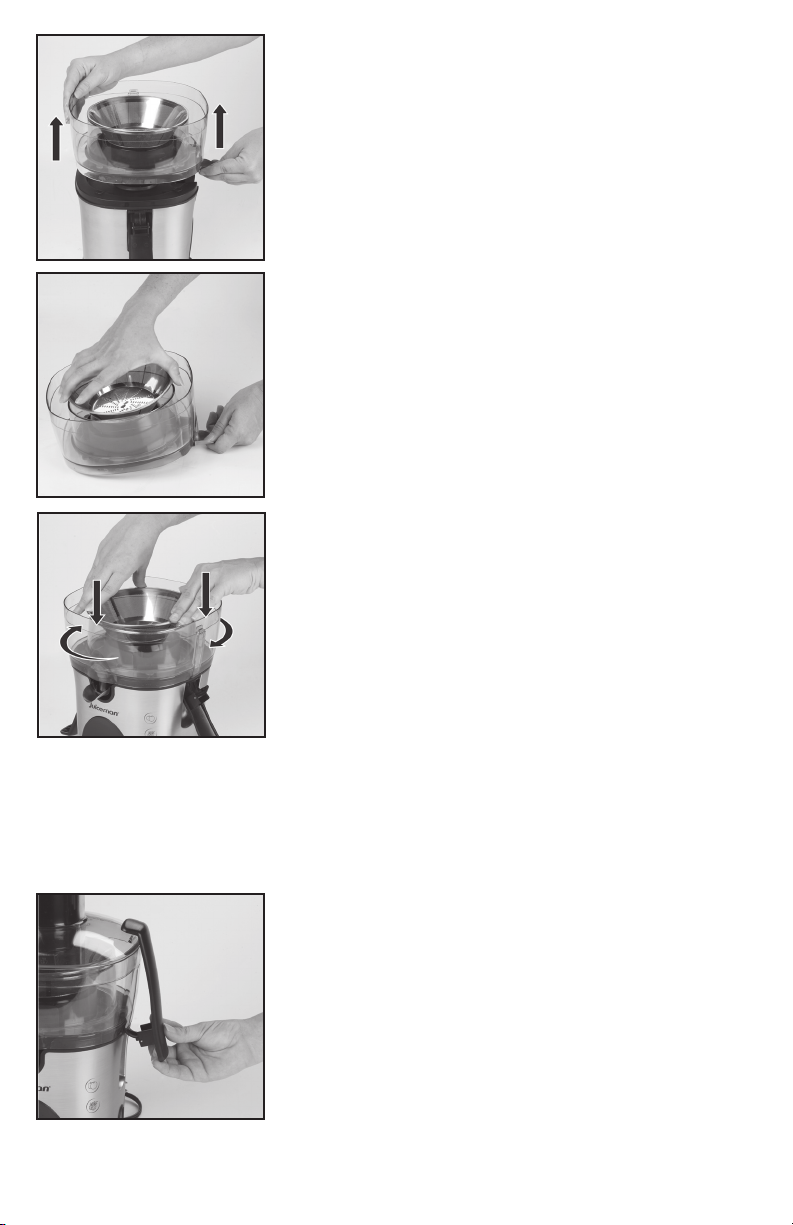

DISASSEMBLING THE CITRUS JUICER
1. Lift the juice spout into the closed ( ) position.
2. Remove the juice pitcher from under the spout.
3. To unlock the locking latches, pull open at the bottom of each latch to
disengage from the tabs on the cover. The latches will raise and be released
from the cover (see M).
4. Lift the juicing cone assembly from the citrus juicer attachment.
5. Lift the citrus juicer attachment from the integrated pulp container.
6. Lift the pulp container and the drive shaft from the base.
ASSEMBLING THE CITRUS JUICER
1. Place the integrated pulp container on the motor
base.
2. Place the citrus juicer drive shaft into the center
of the integrated pulp container and press down to
make sure it is seated securely on the base (K).
3. Place the citrus juicer attachment on top of the
integrated pulp container so that the two small lock
K
tabs are to the right and left (L).
4. Lock the locking latches by holding down the cover
as you as you t the locking mechanism at the
top of each latch over the tab on each side of the
attachment (M). Press the bottom of each latch
until you hear it click into place.
Important: The appliance will not operate until the
locking latches are locked.
5. Place the juice pitcher under the juice spout.
6. Tilt the juice spout into the open ( ) position
L
(see G on page ).
7. Choose your desired citrus cone and place on the
drive shaft (see USING THE JUICING CONES).
USING THE JUICING CONES
Note: The small cone is recommended for small
fruits, such as lemons and limes and the large cone
for larger fruits, such as oranges and grapefruit.

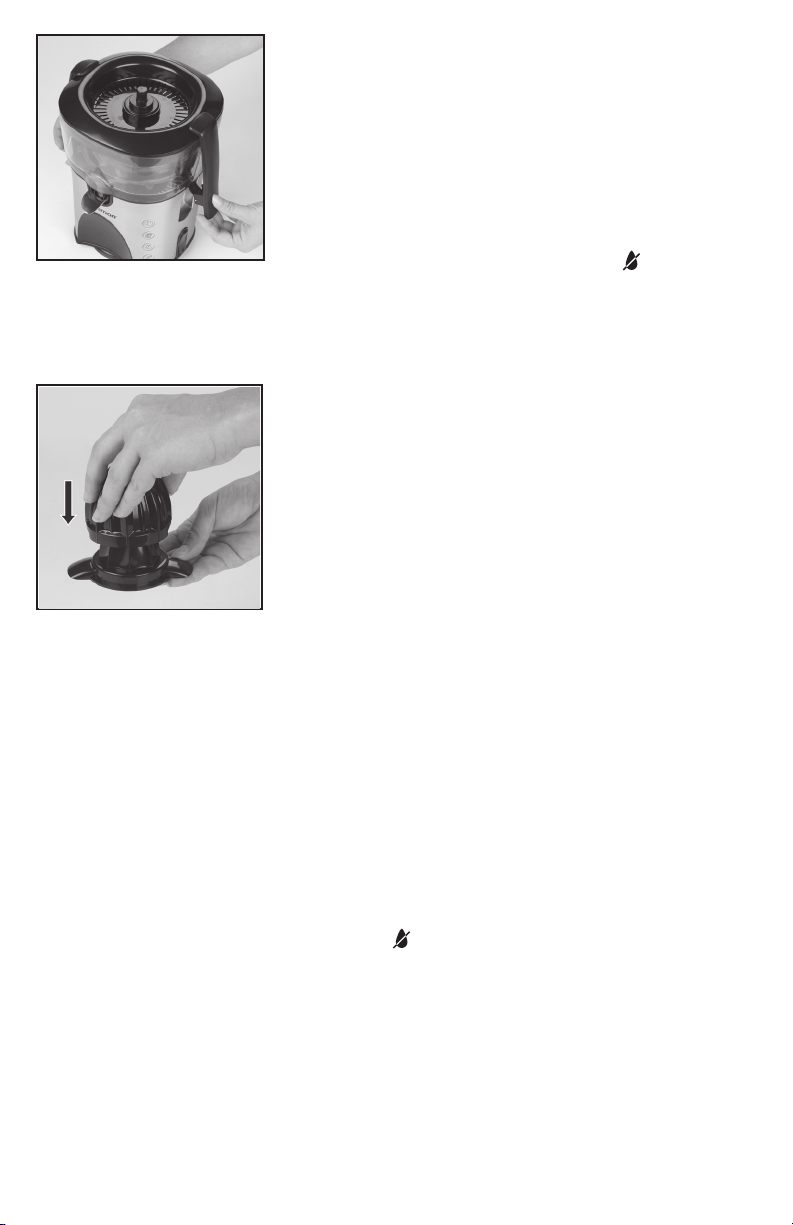

1. Hold the small juicing cone in one hand by
the 2 prongs. Place the thumb and forenger of
the other hand on the large juicing cone
M
directly above the prongs. Press lightly and lift the
conecompletely off. The small juicing cone will be
revealed.
10
2. To replace the large juicing cone, simply place the
large juicing cone with the openings on either side
directly above the prongs on the small juicing cone
and press down (N).
USING THE CITRUS JUICER
1. Assemble the citrus juicer as instructed in the
ASSEMBLING THE CITRUS JUICER.
2. Unwrap the cord from the base and plug the cord
into a standard electrical outlet.
N
3. Cut citrus fruit in half.
4. Place the cut-side of the fruit on top of the selected cone.
5. Press the speed control switch to low (1).
6. Using rm-to-moderate pressure, press down on the fruit to start the
juicing action
7. When done juicing, press the speed control switch to off (0) to stop rotation of
juicer and remove the fruit from the cone.
8. Lift the spout into the closed position ( ).
9. Unplug the cord from the outlet.
CITRUS JUICER TIPS
• Before juicing a citrus fruit, roll the fruit under your hands on the countertop
exerting slight pressure. This helps to release the juice.
• Drop rind into disposal in your sink to clear out lingering odors from other
foods.
• Add the zest of a lemon, lime or orange to simple syrup to add a fresh taste to
iced or hot teas
• Process 1 cup sugar with the zest of 1 lime or lemon and store in closed
container in your refrigerator. Use to decorate cookies, mufns and
doughnuts.
11
Care and Cleaning
This product contains no user serviceable parts. Refer service to qualied service
personnel.
Important: Always unplug your juice extractor from the outlet before cleaning.
CLEANING
1. Disassemble the appliance following the instructions for disassembly.
Tip: Pulp from integrated pulp container can be used in many different ways:
making breads, mufns, cakes, soup stocks, compressed facial packs and garden
compost material. See USES FOR THE PULP.
2. Using a sponge or damp cloth, clean the base, feet and underside of the
appliance. If necessary, you may use a damp toothbrush or cloth to clean juice
from the inside the motor shaft (on top of motor base).
Important: Do not immerse the base in water or spray with water. Clean only by
wiping with a damp sponge, cloth or paper towel.
3. All parts – except the base – are dishwasher-safe (top-rack only) or you may
wash in warm, soapy water, using any mild liquid dishwashing detergent. Do
not use any products containing ammonia or scouring powders, as these can
dull, scratch or mar the surface. Use the cleaning brush provided to remove
pulp left on any of the removable parts. Do not use metal brushes or pads.
4. To clean the food pusher properly, twist to unlock and remove the small food
pusher from the large food pusher. Clean with other removable parts; once
parts are dry, put back together.
5. To clean the lter, use cleaning brush provided to make sure tiny holes in
mesh lter are not clogged. This can be accomplished by holding lter under a
running faucet while brushing the mesh lter screen from both the inside and
outside of the lter mesh with the cleaning brush.
REMOVING TOUGH STAINS
1. Due to powerful staining properties of carotenoids found in many vegetables,
particularly carrots, we suggest soaking any stained parts overnight in one of
the following solutions:
• Biodegradable soap in enough warm water to cover juice extractor parts
• ¼ cup bleach added to a sink full of warm water
• 1 part warm water to 1 part cider vinegar
• ½ small box of baking soda in enough warm water to cover juicer parts.
Important: Never use ammonia or abrasive cleansers!
2. After soaking overnight, lightly scrub with soft bristle brush and liquid
detergent.
STORAGE
Store your appliance in a clean, dry place. Never wrap cord tightly around the
appliance. Do not put any stress on cord where it enters juicer, as this could
cause cord to fray and break.
1
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
Appliance will not
start when speed
switch is pressed.
The motor of the
appliance seems to
be struggling.
The juice extractor
has stopped
producing juice.
The juice extractor
is not producing
as much juice as
expected.
Appliance stops
running
The appliance may not
be assembled correctly.
• Pulp container may be
full.
• Pulp may have
collected under the
cover.
• The speed selected
may not be correct for
the type of produce
you are juicing.
• The juice spout may be
in the closed position.
• The integrated pulp
container or the
stainless steel filter
may be blocked.
High fiber fruits and
vegetables may be
clogging the stainless
steel filter.
Motor may be
overheating
Check the ASSEMBLING
directions found on
page 7 or page 10.
• Turn the appliance off
and empty the pulp
container. Remember,
the pulp container holds
about 3½ cups of pulp;
do not allow to get too
full.
• Turn off and unplug.
Follow the directions
for disassemblY to take
the lid off. Wash lid
thoroughly and return to
appliance following the
assembly directions
• Hard fruits and
vegetables require speed
2; softer fruits and
vegetables use speed 1.
• Check to see if the spout
is closed ( ) or
open ( ).
• Turn appliance off
and unplug. Follow
the directions for
disassembly. Wash all
parts thoroughly and
return to appliance
following the assembly
directions.
Turn off and unplug the
appliance. Follow the
directions for disassembly.
Wash all parts thoroughly
and return to appliance
following the assembly
directions.
Unplug appliance and allow
it to cool approximately
5 minutes before continuing
use.
1
RECIPES
DRINK YOUR VEGGIES
4 medium carrots
1 large apple
2-inch piece cucumber
1-inch piece fresh ginger
Process vegetables and fruit through juice extractor into juice pitcher. Stir to
blend avors. Pour into short cocktail glasses.
To serve, garnish with lemon wedges.
Makes about 2 cups (2 to 3 servings).
ENERGY ON THE RUN
1 small wedge of cabbage (about 4 oz.)
2 medium stalks celery
1 medium carrot
½ large beet
½ large red pepper
½ lemon, peel and white pith removed
Process vegetables and fruit through juice extractor into juice pitcher. Stir to
blend avors. Pour into short cocktail glasses.
To serve, garnish with a small celery stalk.
Makes about 1¾ cups (2 to 3 servings).
CINCO DE MAYO
2 tomatoes
1
/8 small onion
½ red bell pepper
¼ cup rmly packed cilantro
½ lemon, trimmed of peel and pith
Process vegetables and fruit through juice extractor into juice pitcher. Stir to
blend avors. Pour into short cocktail glasses.
Makes about 1¼ cups (1 to 2 servings).
1
Loading...
