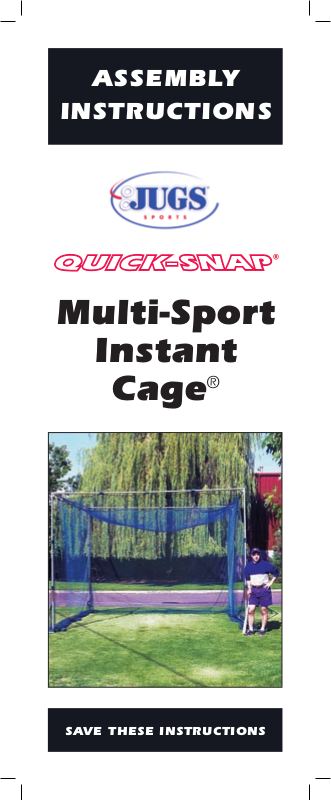

SAVE THESE INSTRUCTIONS
Multi-Sport
Instant
Cage
®
ASSEMBLY
INSTRUCTIONS
• Adult supervision is required for set up
and use of this cage. Follow Assembly
Instructions.
• Nylon netting will fray, tear or break
from normal use or abuse.
BEFORE EACH USE:
• Thoroughly inspect the cage netting for
any holes or signs of wear.
• Be sure that all frame tubing
is undamaged and properly assembled
on a level surface.
• The netting is designed to deflect when
it is impacted by balls or other objects.
Therefore, be sure that bystanders,
other waiting participants, any
structures or vehicles are no nearer than
8 feet from the outer sides of the cage
when it is set up and in use.
• Be sure only one participant at a time
uses the cage.
• Be sure the player’s position is in line
with, and in the center of, the cage
opening.
• To avoid injuries or accidents, dismantle
and store your JUGS Multi-Sport
Instant Cage
®
when wind velocities are
anticipated to be greater than 15 mph.
See warranty information.
WARNING
JUGS Multi-Sport
Instant Cage
®
ASSEMBLY
INSTRUCTIONS
Remove the frame sections and netting
from your carrying bag and group
them as you see in the inventory
below. Then follow these easy steps.
carrying bag
snap
button
PARTS INVENTORY
QTY. DESCRIPTION
3
carrying bag & netting
6 3-way fitting
2 4-way fitting
close-up
14 3-ft. tube
7 6-ft. bungied tube
4 9-ft. bungied tube
4 foot tube
4 ground anchor loop
IMPORTANT: When using your JUGS Multi-Sport
Instant Cage® outdoors, you must stake it down
with the ground-anchor loops.
9-foot bungied tube
3-way fitting
4-way fitting
4-way fitting
3-way fitting
3-way fitting
3-way fitting
3-foot tube 6-foot bungied tube 3-foot tube
foot tube
foot tube
ground anchor loop
ground anchor loop
foot tube
foot tube
warning
label
9-foot bungied tube
IMPORTANT: (BE SURE THE 9-FOOT BUNGIED
TUBES WITH THE WARNING LABELS ARE ON
THE FRONT SIDE OF THE CAGE AND THAT THE
LABELS ARE RIGHT-SIDE UP.)
The JUGS Multi-Sport Instant Cage® frame is guaranteed
for five (5) years, and The JUGS Multi-Sport Instant
Cage® netting is guaranteed for one (1) year, against
defects in material or workmanship, unless it is damaged
by misuse, negligence, or accident—or exposed to
extremes of weather such as snow, ice, high winds, or
other acts of God.
Important Warranty Note:
For easy set-up and dismantling, your JUGS Multi-Sport
Instant Cage® is made of lightweight materials. If left
outside, it will be exposed, like all outdoor structures,
to stresses from wind, snow and ice. However, it is not
designed to withstand wind more than a moderate
breeze. In order to prevent your cage from being
damaged, you must dismantle it and store it indoors
whenever wind velocities for your area are anticipated
to be in excess of 15 miles per hour. Never leave your
cage set up outside during snow storms or in freezing
rain. Failure to comply with these restrictions will void
your warranty.
3-way fitting
3-way fitting
ground anchor loop
ground anchor loop
No tube here.
warning
label
9-foot bungied tube
9-foot bungied tube
QUICK-SNAP® BASICS
When erecting the Multi-Sport
Instant Cage®, connect the
sections of bungied tubes
together, as shown below.
Twist them to align the lock
button with the lock hole, as
shown below.
Depress the lock button and slide
the two sections of tubing
together. Be sure the lock button
springs back securely inside the
lock hole.
STEP 1
Erecting the Roof Frame:
Insert the wider end of a 3-foot
tube into a 3-way fitting. Next,
insert the narrow end into a
6-foot bungied tube, as shown
below.
Insert another 3-foot tube into the
other end of the 6-foot bungied
tube. You will now have a 12-foot
length of tubing, as shown below.
Repeat this process three times,
and assemble the resulting four
12-foot lengths into a square. The
roof frame is now complete.
STEP 2
Erecting the Wall Frame:
Insert a 9-foot bungied tube into
one of the 3-way fittings in your
square, as shown below.
Repeat this process until all four
9-foot bungied tubes are
attached, as shown below.
STEP 3
Attaching the Netting:
Remove the netting from the box.
The netting is marked to identify
“TOP FRONT,” “TOP REAR” and
“BOTTOM REAR.” Position the
netting over the square frame
according to these markings, as
shown below.
Using the hooks attached to the
net, fasten all four corners of the
top of the net to the top holes
in the 3-way fittings, as shown
below.
After attaching the four corners
of the net to the frame, it should
look like the one below.
Attach the remainder of the top
part of the net, by wrapping
the Velcro® strips (sewn onto the
edges of the net) around the
frame. It should look like the one
in the photo below.
STEP 4
Erecting the Corner Posts
Connect the middle section of
the 9-foot bungied tube to the
top section of the 9-foot bungied
tube as shown below.
Connect the bottom section of
the 9-foot bungied tube to the
middle section of the 9-foot
bungied tube as shown below.
Repeat this process until all four
corners of your frame have a
straight 9-foot bungied tube. The
corner posts are now nine feet
high.
IMPORTANT:
(BE SURE THE 9-FOOT BUNGIED
TUBES WITH THE WARNING
LABELS ARE ON THE FRONT SIDE
OF THE CAGE AND THAT THE
LABELS ARE RIGHT-SIDE UP.)
STEP 5
Attaching the Wall
Netting:
Attach the Velcro® strips, on the
sides of the net, to the frame
by wrapping them around the
corner post sections, as shown
below.
After completing steps 1 through
5, your cage should look like the
one in the photo below.
STEP 6
Assembling the Base
Frame:
Using the remaining tubes and
fittings, lay out the base frame
and assemble it, as shown below.
Attach a foot tube to each
outside fitting in the base frame,
as shown below.
IMPORTANT: When using your JUGS Multi-Sport
Instant Cage® outdoors, you must stake it down
with the ground anchor loops.
STEP 7
Attaching the Base Frame
to the Corner Posts:
Move the base frame under the
corner posts. For best results, we
recommend one person be at
each corner of the base frame.
Then connect the corner post
tubes to the fittings in the base
frame.
STEP 8
For Outdoor Use:

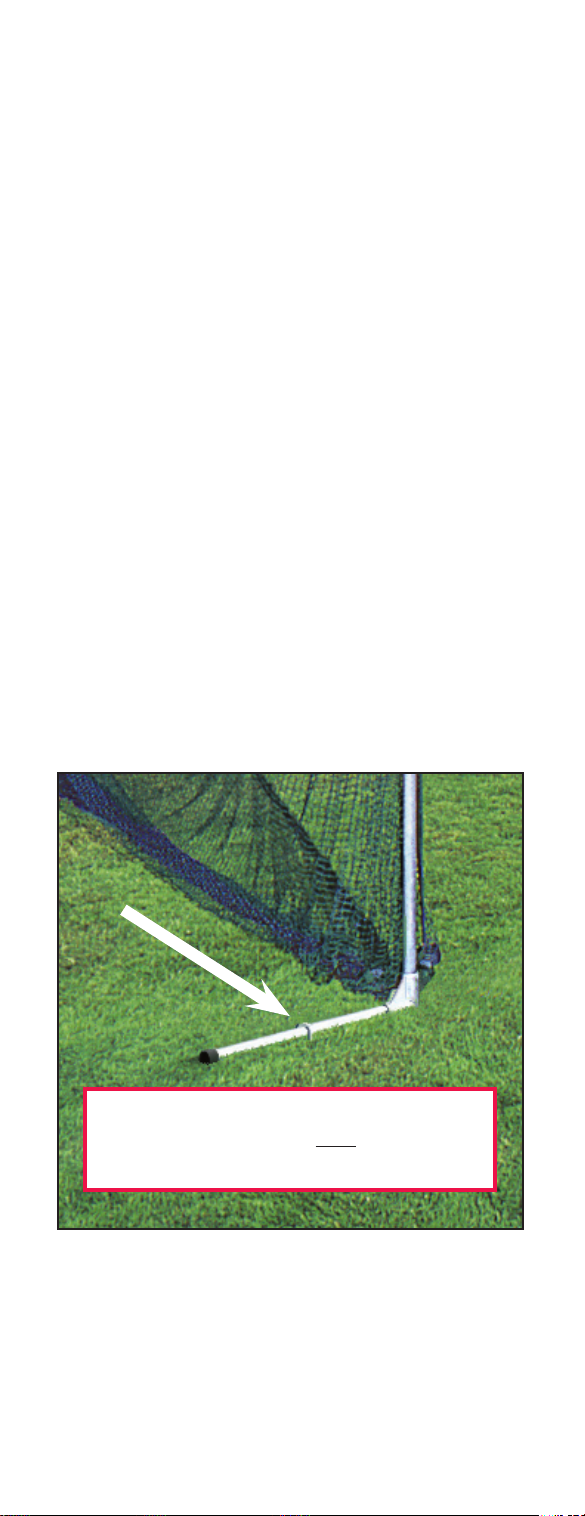

Put ground-anchor loops into the
ground so that they completely
engage the foot tubes, as shown
in the photo below.
Below, is a view of the Multi-Sport
Instant Cage®, fully assembled.
If you need
more information about
this product
or any other
JUGS product or service,
please contact
the manufacturer:
In the USA and Canada,
call toll-free:
1-800-547-6843.
For International Orders,
call collect:
0-503-692-1635.
Our fax number is
1-503-691-1100.
Visit our website at
www.jugssports.com.
Se habla español.
© 2008 JUGS Sports
QSMSICI-1108
