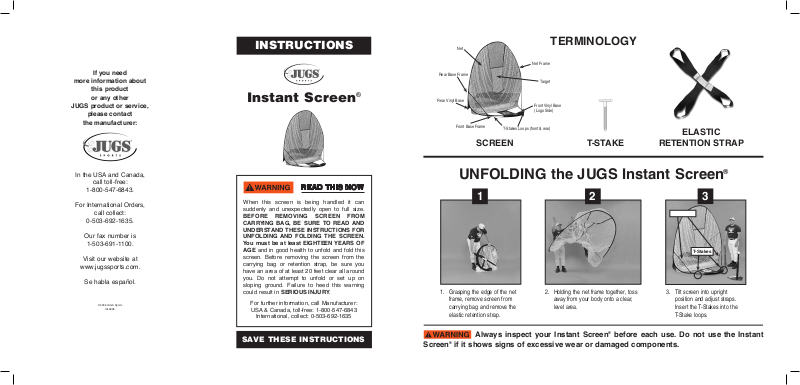

JUGS Sports Instant Screen User Manual

TERMINOLOGY

INSTRUCTIONS

Instant Screen

Net Frame

T-Stakes Loops (front & rear)

Front Base Frame

Front Vinyl Base (Logo Side)

Target

Net

Rear Base Frame

Rear Vinyl Base

SCREEN

ELASTIC

RETENTION STRAP

UNFOLDING the JUGS Instant Screen

1. Grasping the edge of the net frame, remove screen from carrying bag and remove the elastic retention strap.

2. Holding the net frame together, toss away from your body onto a clear, level area.

T-Stakes

3. Tilt screen into upright position and adjust straps. Insert the T-Stakes into the T-Stake loops.

T-STAKE

If you need

more information about

this product or any other

JUGS product or service,

please contact

the manufacturer:

In the USA and Canada,

call toll-free:

1-800-547-6843.

For International Orders,

call collect:

0-503-692-1635.

Our fax number is

1-503-691-1100.

Visit our website at

www.jugssports.com.

Se habla español.

ISI-0808

Always inspect your Instant Screen

before each use. Do not use the Instant

Screen® if it shows signs of excessive wear or damaged components.

READ THIS NOW

When this screen is being handled it can suddenly and unexpectedly open to full size.

BEFORE REMOVING SCREEN

FROM CARRYING BAG, BE SURE TO READ AND UNDERSTAND THESE INSTRUCTIONS FOR UNFOLDING AND FOLDING THE SCREEN. You must be at least EIGHTEEN YEARS OF AGE and in good health to unfold and fold this

screen. Before removing the screen from the carrying bag or retention strap, be sure you have an area of at least 20 feet clear all around you. Do not attempt to unfold or set up on sloping ground. Failure to heed this warning could result in SERIOUS INJURY.

For further information, call Manufacturer: USA & Canada, toll-free: 1-800-547-6843

International, collect: 0-503-692-1635

SAVE THESE INSTRUCTIONS

10. Place your folded and strapped screen into the carrying bag.

9. Keeping control of the circle (if you release too early the screen can pop open), put on the retention strap.

6. Place your right foot on the top of the net frame above the JUGS logo.

5. With both hands, push the top of the net frame down to the top of the vinyl bases above the JUGS logo.

4. Grasping the top middle of the net frame, walk around to the JUGS logo on the vinyl base.

3. Put the two black vinyl bases together with the JUGS logo on top.

1. Loosen the strap buckles and remove all T-Stakes.

2. Tip your JUGS Instant Screen® over backwards.

T-Stakes

1 3 4 5

7. Keeping your right foot on top of the net frame, grasp both the left and right semi-circles.

8. With your right hand, push the right side down towards the JUGS logo forming a 36"-diameter circle. With your left hand, push the left side down towards the JUGS logo forming another 36"-diameter circle.

FOLDING the JUGS Instant Screen

Always remember to place the ELASTIC RETENTION STRAP onto the folded screen.

Always transport the screen folded and STRAPPED in its CARRYING BAG.
