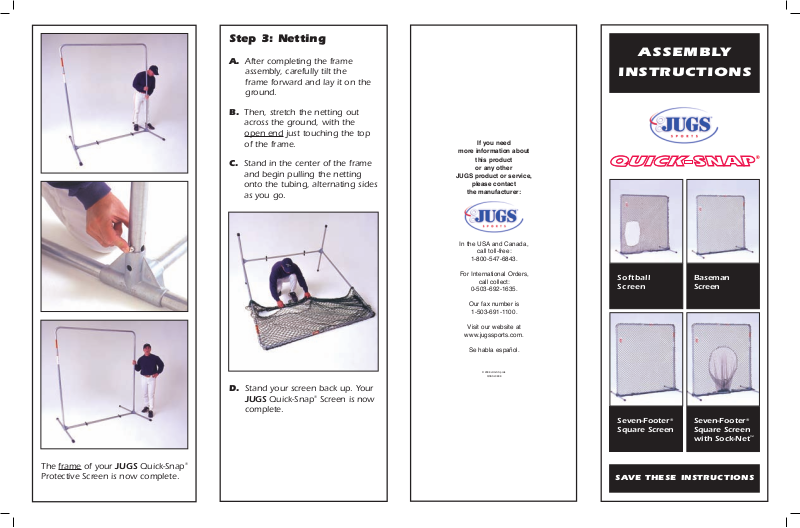

JUGS Sports Baseman Screen User Manual

Step 3: Netting

A. After completing the frame

assembly, carefully tilt the
frame forward and lay it on the
ground.

B. Then, stretch the netting out

across the ground, with the
open end just touching the top
of the frame.

C. Stand in the center of the frame

and begin pulling the netting
onto the tubing, alternating sides
as you go.

ASSEMBLY

INSTRUCTIONS

If you need

more information about

this product
or any other

JUGS product or service,

please contact

the manufacturer:

D. Stand your screen back up. Your

JUGS Quick-Snap® Screen is now
complete.

In the USA and Canada,

call toll-free:

1-800-547-6843.

For International Orders,

call collect:

0-503-692-1635.

Our fax number is

1-503-691-1100.

Visit our website at

www.jugssports.com.

Se habla español.

© 2008 JUGS Sports

QSSSI-0808

Softball
Screen

Seven-Footer®

Square Screen

Baseman
Screen

Seven-Footer®

Square Screen

with Sock-Net

™

The frame of your JUGS Quick-Snap®
Protective Screen is now complete.

SAVE THESE INSTRUCTIONS

JUGS Quick-Snap®

WARNING

Step 1: Base

Step 2: Top Section

-

READ NOW

Thi s protective
s c r e e n m a y
n o t p r o v i d e
protection from
batted or pitched
balls which have
reb o u n d e d or
ricocheted off
t h e p i t c h i n g
m a c h i n e , t h i s
screen, or other
structures.

THE MACHINE
O P E R A T O R ,
P I T C H E R ,
B A T T E R ,
O R F I E L D E R
MUST REMAIN
ALERT AT ALL
TIMES.

-

Protective Screen

Assembly Instructions

Take the frame sections and netting
from your bag and separate them.
Then follow these three easy steps.

A. Snap the two legs on one end of

the base into its 4-way fitting.

B. Do the

same
with the
two legs
on the
other
end
of the
base.

A. Snap together the six pieces of

the top section.

B. Connect the top section to the

two 4-way fittings on the base,
making sure the lock buttons are
secure.

T h e m a c h i n e
operator m u s t
wea r a batting
h e l m e t a n d
eye pro tection
while operating
t h e m a c h i n e .
Failure to heed
t h i s w a r n i n g
m a y re s u l t i n
serious injury or
death.

Top Section

C. Snap the two long parts of the

base together, making sure the
lock button is secure in the hole.

Base

lock

button
