Thank you for choosing the JTS wireless system. In order to obtain the best efficiency from the
system, you are recommended to read this instruction manual carefully.

1. Important Caution

01

2. Features

3. Specification

3-1 Receiver// UR-816D (DB)

3-2 Miniature Transmitter// UT-16GT/UT-16GTP

4. Part Identification & Accessories

4-1 Receiver// UR-816D (DB)

4-2 Miniature Transmitter// UT-16GT/UT16GTP

4-3 Accessories

5. Preparing Procedures & Basic Operation

5-1 Receiver

5-2 Battery Insertion of The Transmitter

5-3 Install The Transmitter

6. System Operation

7. Rack Mounting

8. Recommendation

01

02

02

02

03

03

04

05

06

06

07

08

11

12

13

9. Important Notice

14

INDEX

1. Important Caution

Always make all connections before plugging the unit into an AC power outlet.

Do not leave the devices in a place with high temperature or high humidity.

Do not handle the power cord with wet hands!

Keep the devices away from fire and heat sources.

This is a general user’s manual. To check out standard accessories please find them

on the product packing box.

2. Features

UT-16GT/UT-16GTP provides true wireless experience to musicians. Within limited

space it delivers uncompromised features.

Innovative combo design good for guitar , accordion , winds & brass

UHF PLL 16 channels

At least 60 meter operation distance

Tone Key Squelch

Higher signal to noise ratio

One AAA 1.5V battery runs for 8 hours

01 MINIATURE MUSIC INSTRUMENT WIRELESS SYSTEM

3. Specification

3-1 Receiver// UR-816D (DB)

Frequency Preparation...

Carrier Frequency Range

S/N Ratio....................

T.H.D.........................

Display.......................

Display Contents...........

Controls......................

Audio Output Level.......

AF Output Impedance....

Squelch.......................

Operation Voltage.........

Output Connector..........

Dimension(m/m)...........

PLL Synthesized Control

502~960 MHz

> 105dB

<0.6%@1KHz

LED

Antenna A/B, RF/AF Status

Power On/Off, Channel Selecting, Audio Level

-12dB

600Ω

Pilot Tone, Noise and Mute

12-18 VDC, 200mA

1 Balanced XLR socket

1 Unbalanced Ø6.3mm phone jack

816D 210mm (W)* 40mm (H)* 171mm (D)
816DB 210mm (W)* 40mm (H)* 181mm (D)

3-2 Miniature Transmitter// UT-16GT/UT-16GTP

Frequency Preparation.....

Carrier Frequency Range..

RF Outputs....................

Stability........................

Frequency Deviation........

LED Display...................

Controls........................

Spurious Emissions..........

Audio Frequency Response

Battery.........................

PLL Synthesized Control

502~960 MHz

Maximum 10mW

±10KHz

±48KHz

Power On/Off, Low battery, Mute

Power On/Off, AF Level, Channel Selecting, Mute

<-50 dBC

40~18,000 Hz

LR03, AAA 1.5V*1

02

4. Parts Identification & Accessories

4-1 Receiver// UR-816D（DB)

Front panel

1

Antenna

2

Power On/Off Switch

3

Power LED

4

Channel selector

5

RF indicator

6

AF indicator

7

Volume control

(UR-816D) (UR-816DB)

1 1

4

3

2

5 667 7

PLL SINGLE CHANNEL DIVERSITY RECEIVER

UR-816DB

10

OUTPUT

CAUTION

RISK OF ELECTRIC SHOCK

LEVEL

DO NOT OPEN

Freq.Range:

1856

0dB

-20dB

12 11 8

AF OUTPUT

BALANCED

UNBALANCED

9

Made in Taiwan

DCV INPUT

12-18V/200mA

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Freq.Range:

1856

4

5

2

VOL.

RF

CHPOWER

9

8

10

7

11

6

12

5

13

AF

14

4

15

3

16

2

1

10

OUTPUT
LEVEL

0dB

-20dB

12 11 8

AF OUTPUT

BALANCED

UNBALANCED

9

Made in Taiwan

Rear panel

8

Power Supply Jack (12-18V/200mA): for connecting the power supply unit.

9

Strain Relief: for the connection cable of the power supply unit, which
leads the cable around the hook to prevent accidental disconnection of the
plug from the jack.

10

AF Output (6.3mm jack, unbalanced): for connection to a unbalance input,
e.g. of a mixer or amplifier.

11

Balanced XLR Output: for connection to the balanced input, e.g.
of a mixer or an amplifier.

12

Output Level Attenuation(-20dB): to attenuate the balanced XLR output
level by -20dB.

MAX.MIN.

DCV INPUT

12-18V/200mA

03 MINIATURE MUSIC INSTRUMENT WIRELESS SYSTEM

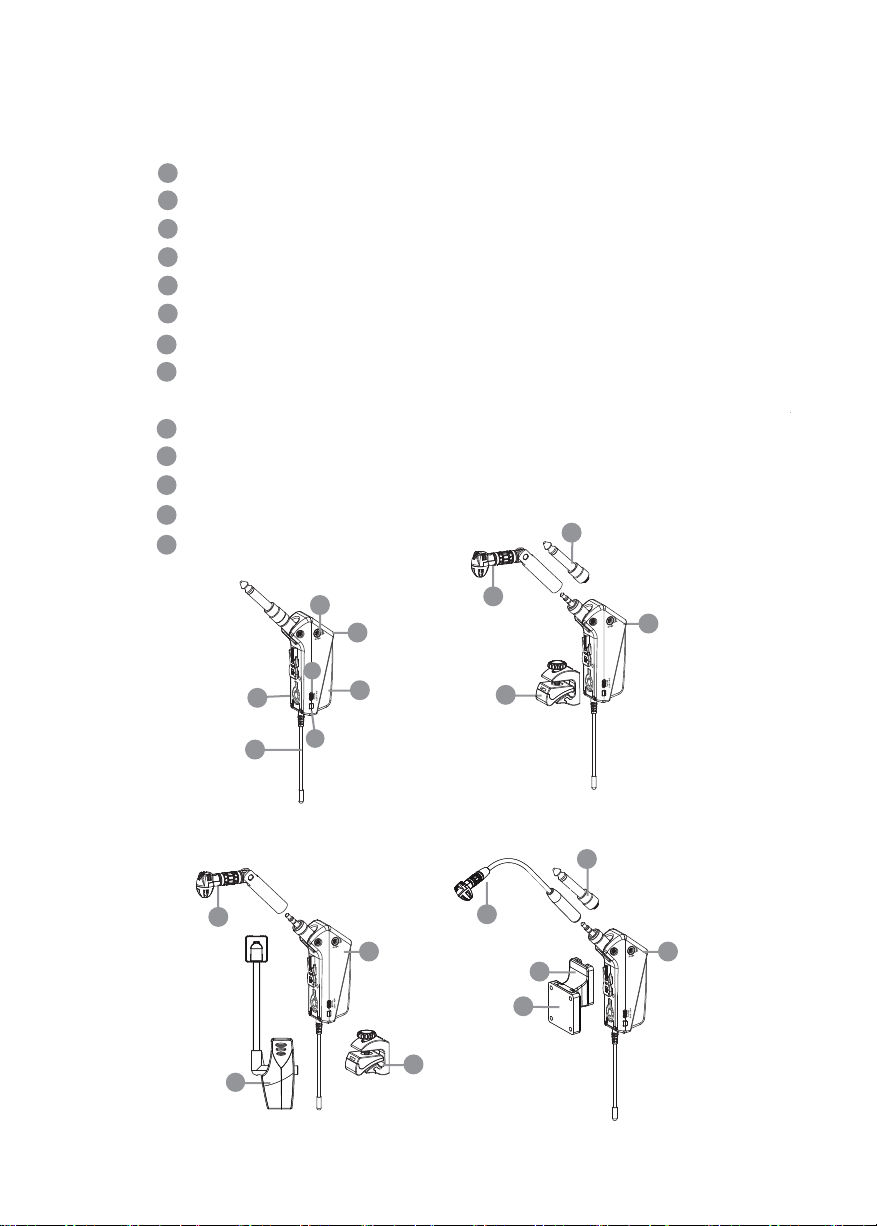

4-2 Miniature Transmitter

1

UT-16GT/UT-16GTP

2

Power On/Mute/Off switch

3

LED indicator for power On/Off, battery status and mute

4

Channel selector

5

Input gain

6

Antenna

6.3GT plug: Jack plug

7

516GT: Accordion microphone module

8

508GT: Winds & Brass microphone module
16GT Adapter

9

516 Bracket

10

11

16GT Clip: Winds clip
Battery Lid (Color ID): Orange / White / Silver included

12

13

CLP-UT

5

2

4

(UT-16GTP)

1

12

8

(508GT)

11

7

1

(UT-16GT)

6

8

(508GT)

13

3

Guitar Pack

1

(UT-16GT)

Guitar/Winds Pack

7

8

(516GT)

9

10

11

Winds/Brass Pack Accordion/Guitar Pack

(UT-16GT)

1

04

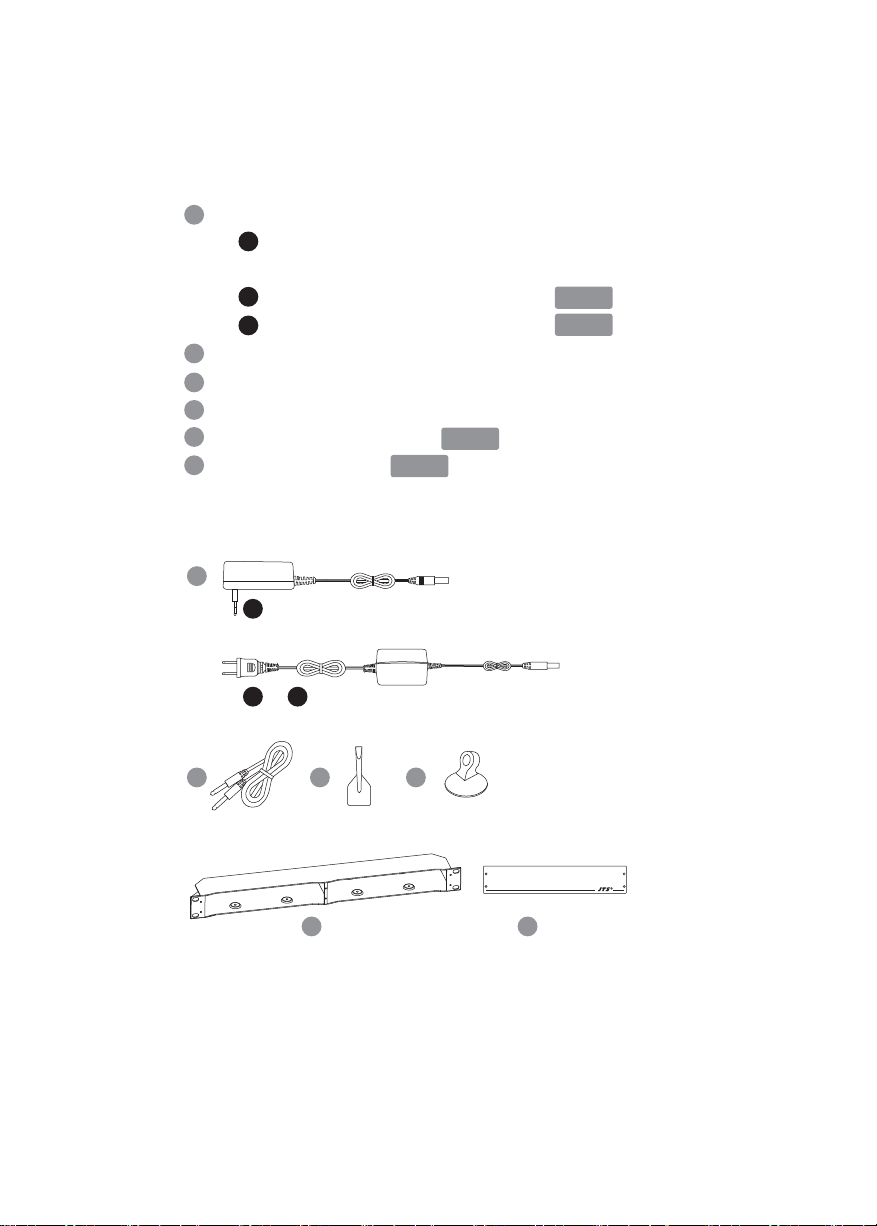

4-3 Accessories

AC/DC adaptor

14

Switching Power Supply

A

(100~240V, 50~60Hz)
Linear Power Supply (220V , 50Hz)

B

Linear Power Supply (220V , 60Hz)

C

AF output cable

15

Screwdriver

16

Sucker Holder

17

DR-900 dual rack adaptor

18

RP-900 panel cover

19

14

A

B

Option
Option

Option

Option

C

/

15

05 MINIATURE MUSIC INSTRUMENT WIRELESS SYSTEM

16

18 19

17

5. Preparing Procedures & Basic Operation

5-1 Receiver

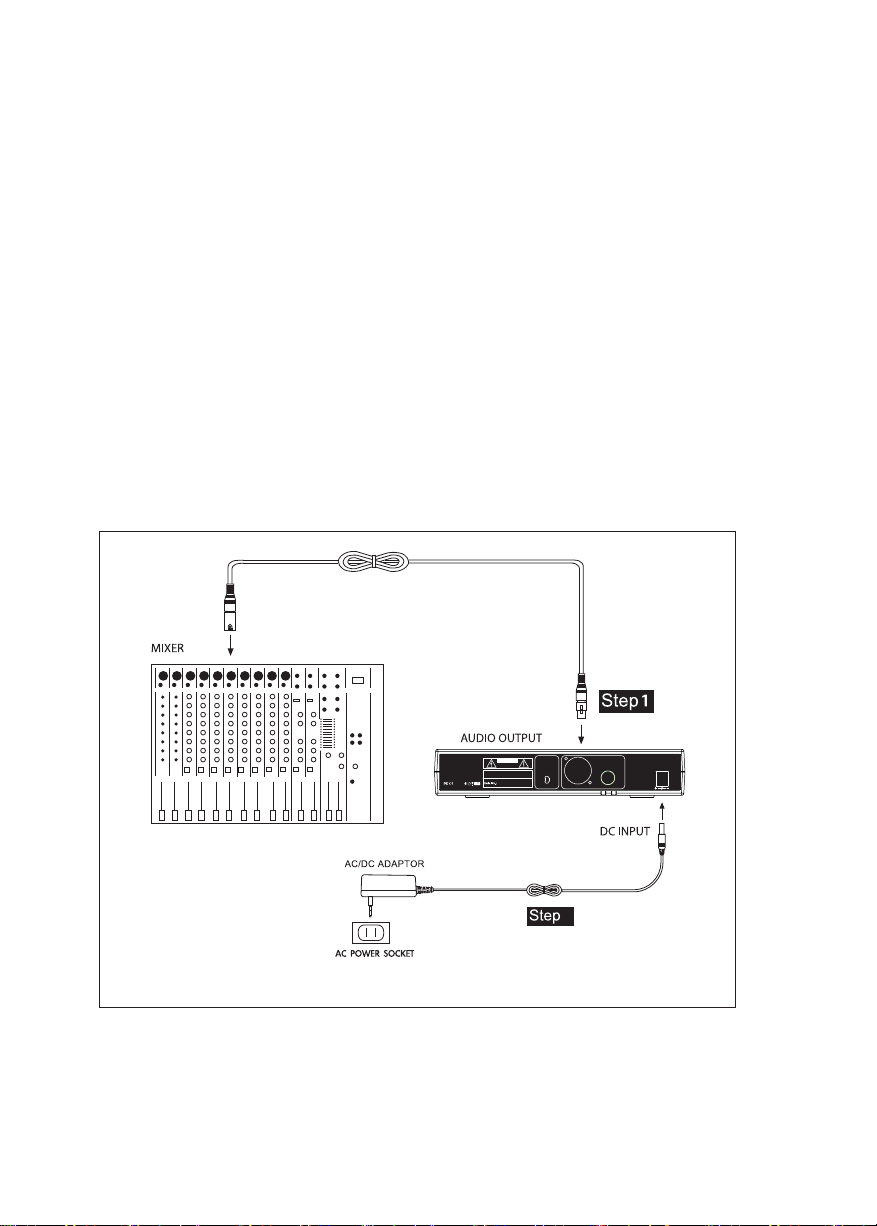

(1) Connect to the subsequent unit (e.g. mixer, or amplifier)

Connect one end of a proper AF cable to the AF Output or Balanced XLR
Output socket, then plug another end to the “MIC IN” input socket of a
mixer or a amplifier (Step 1)

(2) Connect the power supply unit

Plug in one end of AC/DC adaptor cable to Power Supply Jack in the rear
panel of receiver, and plug another end into an AC outlet (Step 2)

Caution

To prevent accidental disconnection of the plug from the jack, lead the cable
around the hook of the strain relief.

CAUTION

LEVEL

0dB

Freq.Range:

1856

-20dB

DCV INPUT

BALANCED

12-18V/200mA

Made in Taiwan

UNBALANCED

AF OUTPUT

OUTPUT

2

06

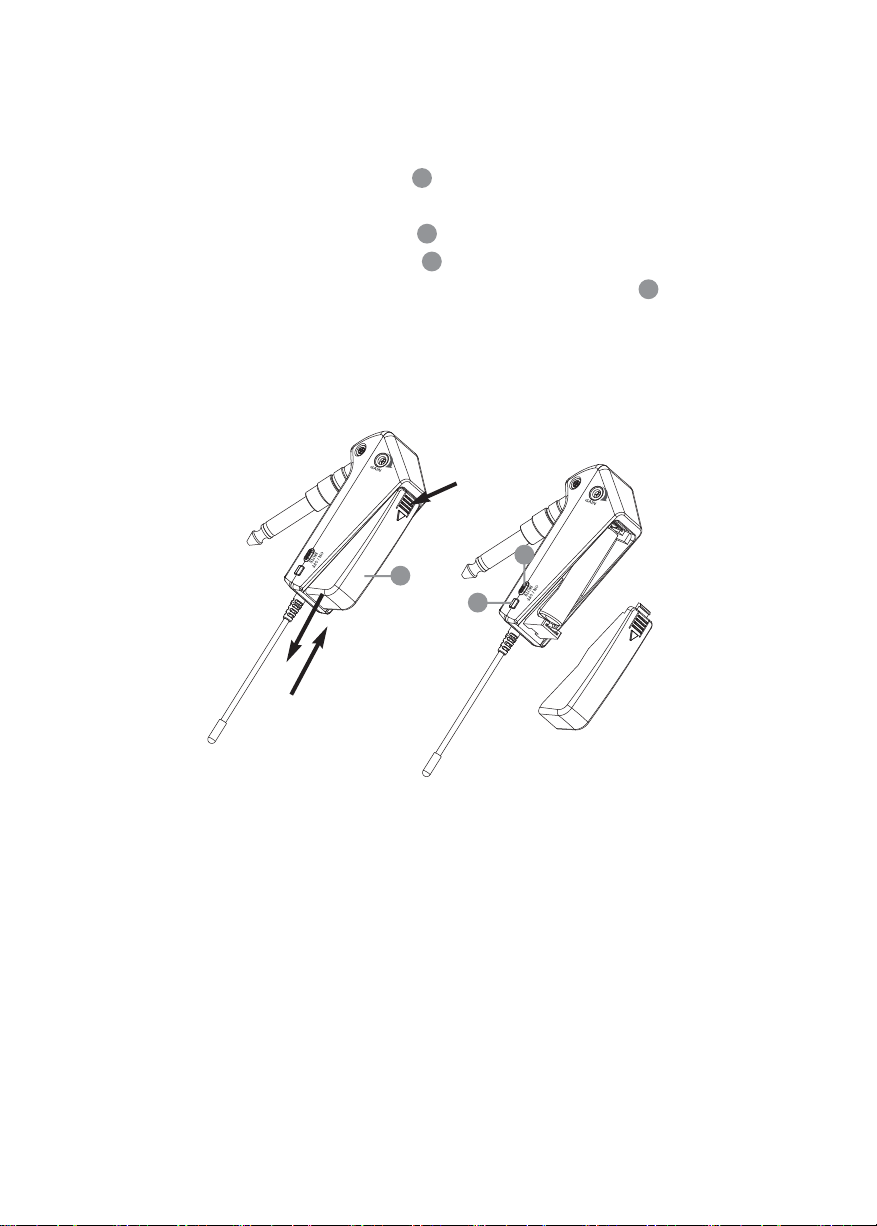

5-2 Battery Insertion Of The Transmitter

(1) Press Down the battery lid and slide it out.

12

(2) Insert or replace with a new battery according to the polarity indication.
(3) Switch the ON/MUTE/OFF switch to ON. If the battery is in good

condition the LED indicator will light in Green constantly. As soon as

2

3

the battery goes below a preset level the LED indicator will turn to Red
constantly. Then the remaining battery life will last for 30 minutes only.

(4) Slide and push back the battery lid.

12

3

2

3

07 MINIATURE MUSIC INSTRUMENT WIRELESS SYSTEM

5-3 Install the transmitter

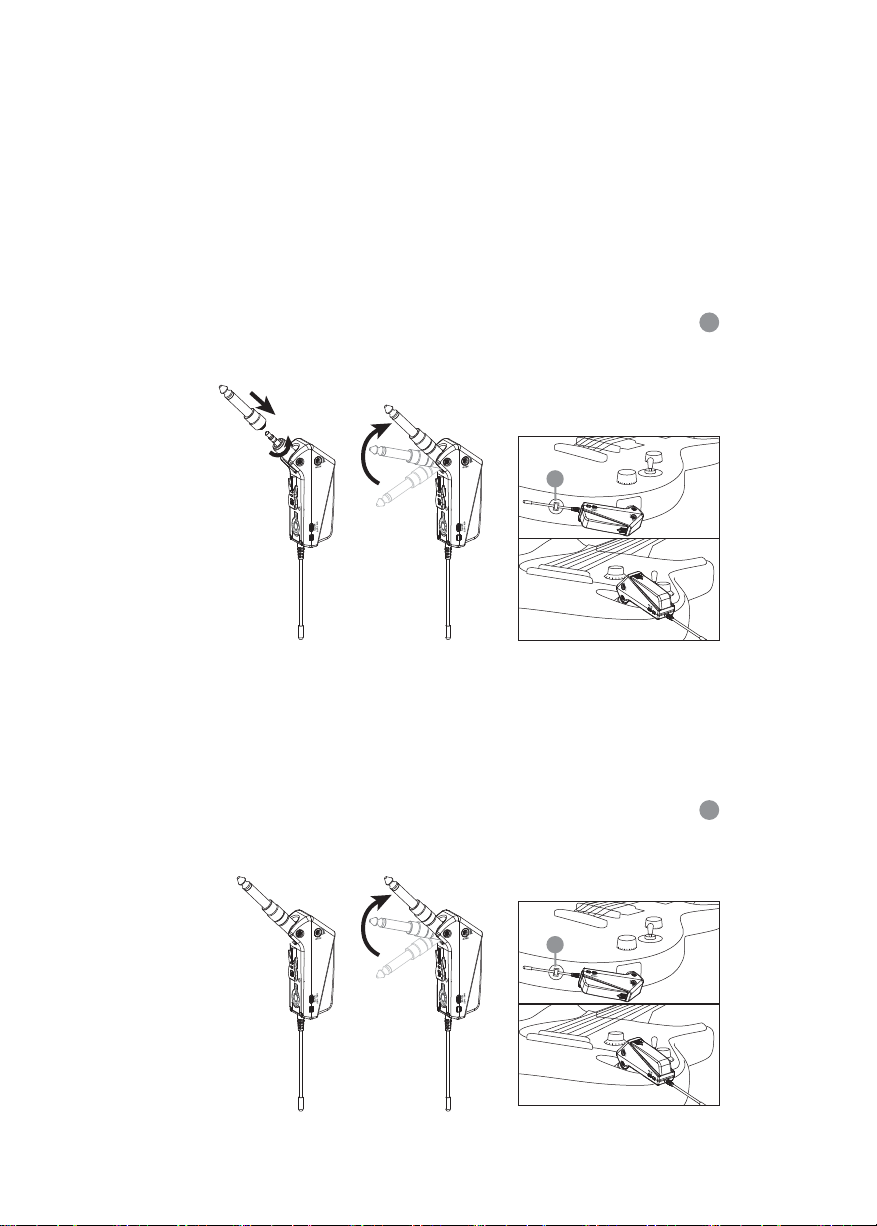

(1) Use the UT-16GT+6.3GT plug for guitar application

1. Insert the plug to the transmitter and turn it to the end.

2. Plug the transmitter into the instrument to be used.

3. Push down the transmitter towards the instrument. The step positioning
mechanism will hold the transmitter firmly on the instrument.

4. For traditional Gibson style end-mount input a sucker holder is provided
to prevent swiveling of the transmitter.

17

(2) Use the UT-16GTP for guitar application

1. Plug the transmitter into the instrument to be used.

2. Push down the transmitter towards the instrument. The step positioning
mechanism will hold the transmitter firmly on the instrument.

3. For traditional Gibson style end-mount input a sucker holder is provided
to prevent swiveling of the transmitter.

17

17

17

08

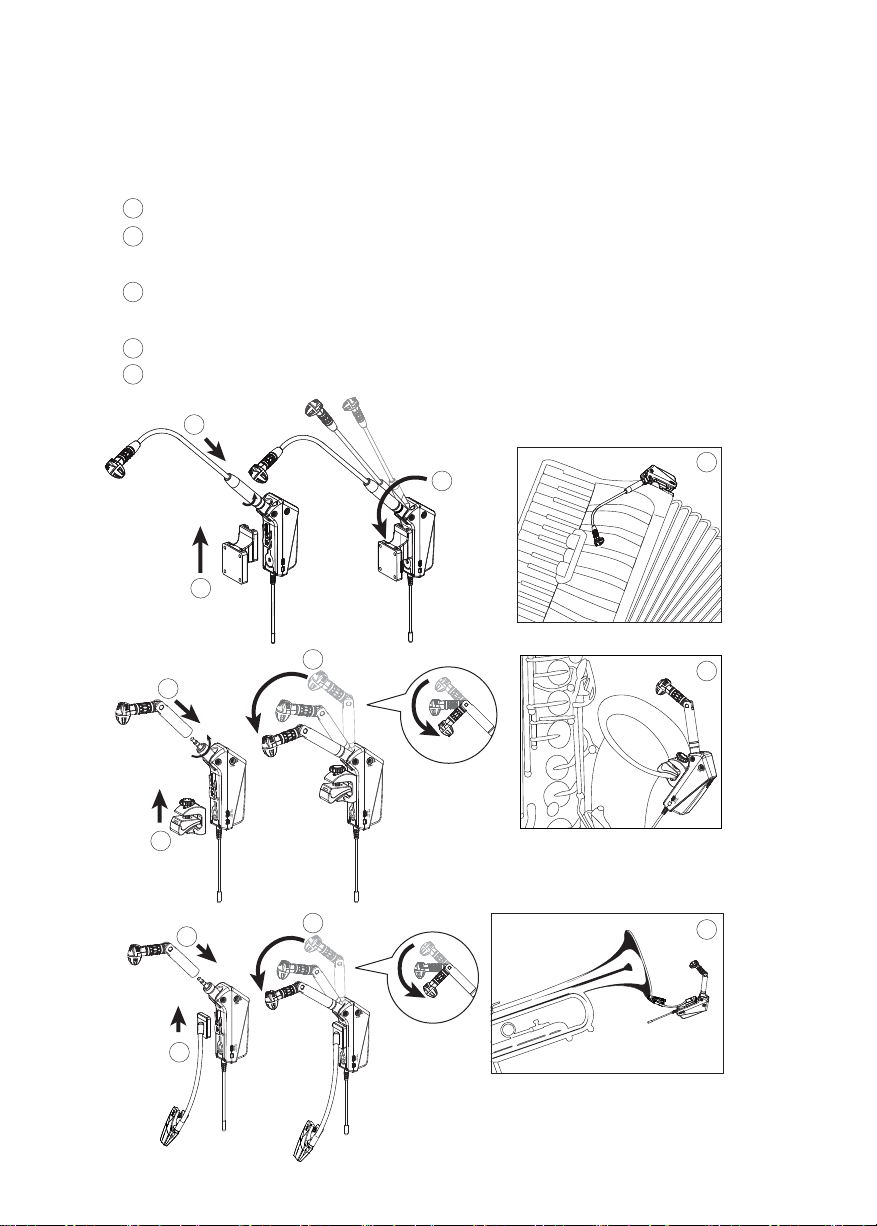

(2) Use the 516GT/508GT microphone module for accordion/winds/brass application

1 Insert the 516GT/508GT to the transmitter and turn it to the end.
2 Slide the 16GT Adapter/16GT CLIP/CLP-UT
into the transmitter and push it to the end.
3 Fix the 16GT Adapter + 516 Bracket to the accondion by
double-sided adhesive tape.
4 Fix the 16GT CLIP / CLP-UT to the instrument.
5 Adjust the 516GT/508GT to a position for desired sound performance.

1

5

3

2

5

4

1

2

1

5

4

2

09 MINIATURE MUSIC INSTRUMENT WIRELESS SYSTEM

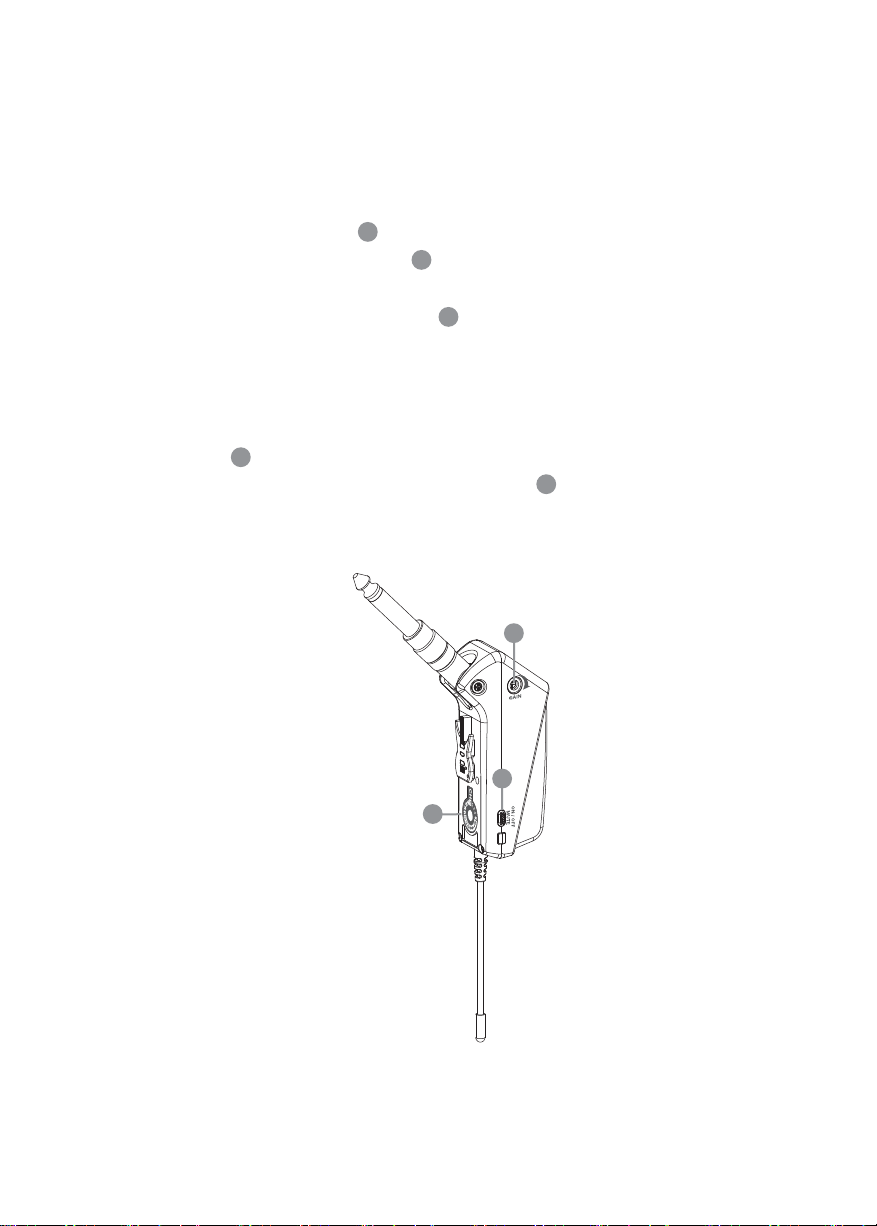

(3) Setting Levels

1. Set a common frequency for both the receiver and transmitter by turning
the Channel Selector with supplied screw driver.

2. Turn the input gain control on the transmitter to a position halfway
between the left and right stops.

3. Set the ON/MUTE/OFF switch to ON to switch on transmitter.

4. Switch on the receiver and sound system.

5. Turn the volume control on the transmitter to maximum level (clockwise)
and play a few notes.

6. If the instrument sounds distorted turn down (count clockwise) the Input

5

Gain to a point where no distortion is heard. If the instrument sounds
too low, turn up (clockwise) the Input Gain just before distortion is
heard.

4

5

2

5

5

2

4

10

6. System Operation

4

Be sure to mute the audio signal of a mixer or amplifier before turning on the
receiver and transmitter.
(1) Power on

Turn AF level on the receiver completely counter-clockwise to the minimum
level, and switch on the receiver. As soon as you turn power of the receiver
on, the power LED lights red, meanwhile the RF signal and AF LED

3

5 6

light up to indicate the system is ready for operating.

2 3 5 6

PLL SINGLE CHANNEL DIVERSITY RECEIVER

UR-816DB

It is always a good idea to keep “open space” between transmitter and
receiver, that will improve RF reception.

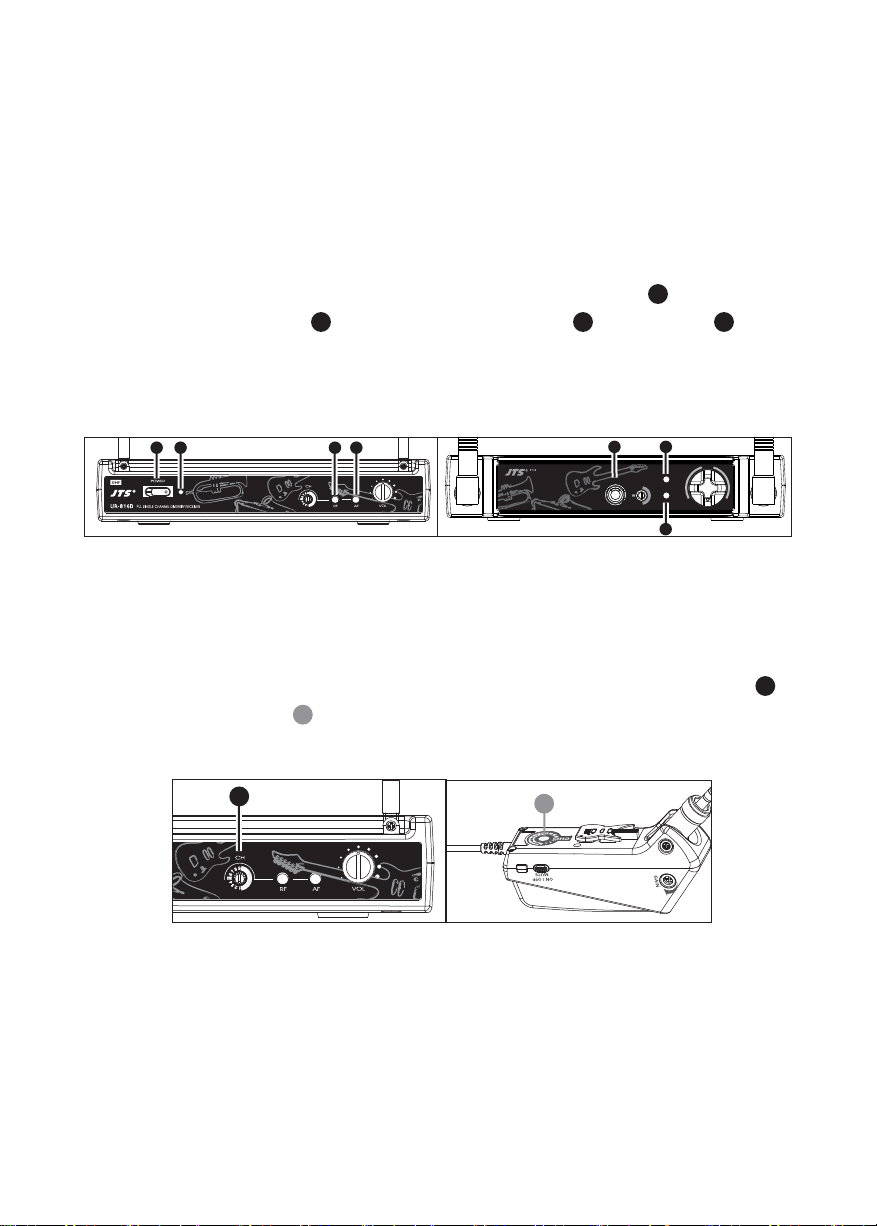

(2) Selecting channel for the receiver and transmitter

1. Use the supplied screwdriver to select a desired channel for the receiver
and transmitters . Both receiver and transmitters are preprogrammed with

4

16 channels.

2

5

2

RF

CHPOWER

9

8

10

7

11

6

12

5

13

AF

14

4

15

3

16

2

1

6

VOL.

MAX.MIN.

4

2. Make sure the channel of receiver matches that of the transmitter.

3. When 2 or more system are being used in the same location, they must be
set up to use different channels. If existing channel is being interfered, please
change to another non-interference channel.

11 MINIATURE MUSIC INSTRUMENT WIRELESS SYSTEM

4

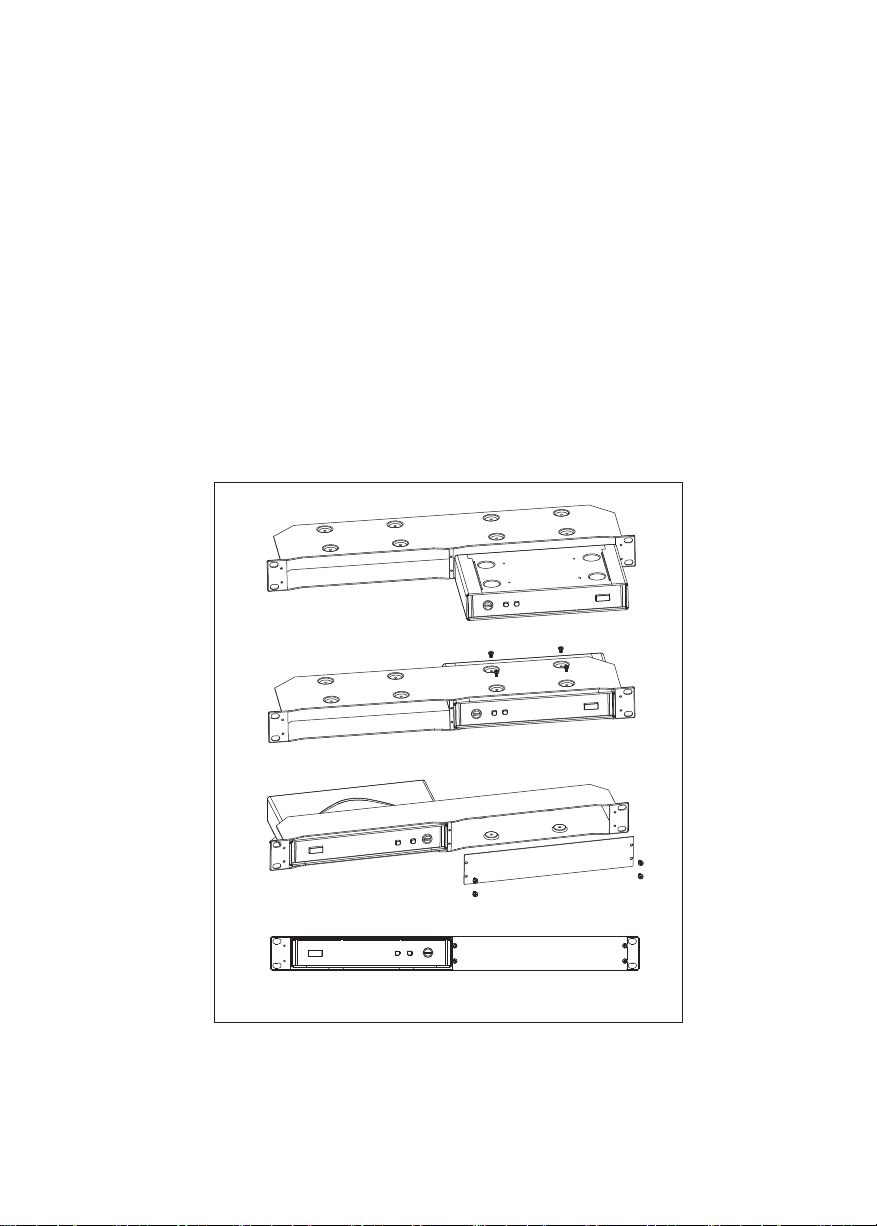

7. Rack Mounting

(1) Before mount receivers onto DR-900 rack adaptor, please release any cables

from the rear of the receiver.

(2) Turn over receiver and DR-900 rack adaptor simultaneously, there are 4

threaded holes at the bottom of receiver and rack adaptor for inserting
screws.

(3) Single receiver

Insert in a receiver through the front of DR-900 until it is firmly attached
to the rack, then screw on a RP-900 to another side of the rack.

(4) Dual receivers

The same way as above, put one receiver to each rack space.

12

8. Recommendation

(1) In order to achieve the optimum reception condition and also extend the

operating distance, please leave on “open space” between the receiver
and transmitter.

(2) Keep the devices away from the metal objects or any interference sources at

least 50 cm.

(3) To avoid the feed-back effect, don’t leave the mic. to aim at the speakers

directly.

(4) Remove batteries from the battery compartment when the transmitter will

not be used for a long time.

13 MINIATURE MUSIC INSTRUMENT WIRELESS SYSTEM

9. Important Notice

(1) JTS offers wireless systems in a selection of bands that conform to the

different government regulations of specific nations or geographic regions.
These regulations help limit radio frequency (RF) interference among
different wireless devices and prevent interference with local public
communications channels, such as television and emergency broadcasts.

(2) For information on bands available in your area, consult your local dealer or

phone JTS. More information is also available at JTS’s website
(www.jts.com.tw).

(3) This Radio apparatus may be capable of operating on some frequencies not

authorized in your region. Please contact your national authority to obtain
information on authorized frequencies and RF power levels for wireless
microphone products.

14
