JTS US-901D, US-9001D Instruction Manual

Instruction Manual

UHF PLL

WIRELESS SYSTEMS

US-901D

ank you for choosing the JTS wireless system. In order to obtain the best eciency from the system,

you are recommended to take few minutes to read this instruction manual carefully.

1. Important Caution

2. Features

3. Specication

3-1 Receiver// US-901D

3-2 Handheld Transmitter // Mh-950 Mh-960

3-3 Body-pack Transmitter // PT-950B(mi)

3-4 Optional Condenser Microphone

4. Part Identication & Accessories

4-1 Receiver // US-901D

4-2 Handheld Transmitter // Mh-950 Mh-960

4-3 Body-pack Transmitter // PT-950B(mi)

4-4 Optional Condenser Microphone

4-5 Accessories

5. Preparing Procedures & Basic Operation

5-1 Receiver// US-901D

5-2 Handheld Transmitter // Mh-950 Mh-960

5-3 Body-pack Transmitter // PT-950B(mi)

6. Recommendation

7. Important notice

1

1

2

2

3

4

4

7

7

8

9

9

12

13

13

16

18

22

23

INDEX

WIRELESS MICROPHONE SYSTEM

1

1. Important Caution

2. Features

Always make all connections before plugging the unit into an AC power outlet. •

Do not leave the devices in a place neither with high temperature nor high humidity.•

Always do not handle the power cord with wet hands !•

Keep the devices away from re and heat sources. •

Operated in UHF band where there is less RF interference than the VHF band. •
Due to the PLL synthesized technology, the system can oer up to 961 selectable frequencies for •
choosing simultaneously.

e true diversity reception with 2 independent RF receivers ensure the stable transmission and •

reception.

Adjustable Pilot tone squelch control can eectively reduce the noise. •

Equipped with S.A.W. lter benets the interference-resistant. •

Tuned antennas can benet the stable RF reception.•

Built-in Noise Squelch circuity & Mute function are available to restrain the interference for •
signals.

Compact half-rack receiver design is considerable for the space saving.

•

Rugged metal housing can pass through the dicult environment. •
Equipped with balanced XLR and unbalanced output allow great convenience.•

Anti-interference design is available to work with every computer device.•

2

3. Specication

3-1 Receiver // US-901D

Frequency Preparation......

Carrier Frequency Range

S/N Ratio...................................

T.H.D..................................

Display..............................

Display Contents...................

Controls............................

Audio Output Level............

AF Output Impedance......

Squelch.............................

Operation Voltage.................

Output Connector................

Dimension(m/m)...............

PLL Synthesized Control
502~960 MHz
> 105dB

<0.6%@1KHz

LCD

Frequency, Antenna A/B, Mute Display, RF/AF Level Meter,

Baery Fuel Gauge

Power On/O, Frequency Up/Down, Frequency

Scan, Audio Level, Lock-on

-12dB
600Ω

Pilot Tone & Noise Mute
12-18 VDC, 200 mA
1 XLR Balanced Socket
1 Ø6.3mm Unbalanced phone jack
211mm (W)* 40mm (H)* 125mm (D)

WIRELESS MICROPHONE SYSTEM

3

3-2 Handheld Transmitter // Mh-950 Mh-960

Frequency Preparation............

Carrier Frequency Range......

RF Outputs.....................................

Stability...............................................

Frequency Deviation................

LCD Display...................................

Controls.............................................

Spurious Emissions...................

Audio Frequency Response

Baery..................................................

PLL Synthesized Control
502~960 MHz
10mW
±10KHz
±48KHz

Frequency, Baery Fuel Gauge, Sensitivity

Power On/O, Mode Seing, AF Level,

Frequency Up/Down, Lock-on Mode

<-50 dBC

50~16,000 Hz

UM3, AA 1.5V*2

4

3-3 Body-pack Transmitter // PT-950B(mi)

3-4 Optional Condenser Microphone

Frequency Preparation............

Carrier Frequency Range......

RF Outputs......................................

Stability.................................

Frequency Deviation................

LCD Display...................................

Controls................................

Spurious Emissions...................

Audio Frequency Response

Battery...................................

Model No...............................

Connector..............................

Frequency Response......

Polar Paern..........................

Sensitivity (at 1000Hz)

Impedance.............................

Max. SPL for 1% THD

Dimension(mm)..............

Net Weight............................

PLL Synthesized Control
502~960 MHz
10mW
±10KHz
±48KHz

Frequency, Baery Fuel Gauge

Power On/O, AF Level,

Frequency Up/Down, Lock-on Mode

<-50 dBC

40~18,000 Hz

UM3, AA 1.5V*2

CM-501
4P Mini XLR

100~15,000 Hz

Cardioid

-60±3 dB

2.2kΩ

130dB

Ø10.1mm(W)

* 26.4mm(H)

21.5g

CM-201
4P Mini XLR
60~15,000 Hz
Omni-directional

-60±3 dB

2.2kΩ

130dB

Ø5mm(W)*
9mm(H)

20.7g

CM-125
4P Mini XLR
50~18,000 Hz
Omni-directional

-53±3 dB

4.4kΩ

130dB

Ø4mm(W)*

11mm(H)

7g (cable excluded)

Lavaliere Microphone // CM-501 CM-201 CM-125

WIRELESS MICROPHONE SYSTEM

5

Model No...............................

Connector..............................

Frequency Response......

Polar Paern..........................

Sensitivity (at 1000Hz)

Impedance.............................

Max. SPL for 1% THD

Dimension(mm)..............

Net Weight............................

CM-225
4P Mini XLR
50~18,000 Hz
Omni-directional

-53±3 dB

4.4kΩ
130dB
155mm(W)

* 134mm(H)
* 157mm(D)

17g (cable excluded)

CX-504
4P Mini XLR
30~18,000 Hz
Cardioid

-68±3 dB
680Ω

130dB

285mm(W)
* 55mm(H)
* 111.3mm(D)

56.3g

Model No...............................

Connector..............................

Frequency Response......

Polar Paern..........................

Sensitivity (at 1000Hz)

Impedance.............................

Max. SPL for 1% THD

Dimension(mm)..............

Net Weight............................

CM-204
4P Mini XLR

60~15,000 Hz
Omni-directional

-60±3 dB

2.2kΩ
130dB
125mm(W)

* 134mm(H)
* 157mm(D)

32.9g

CM-204U

4P Mini XLR

30~18,000 Hz
Cardioid

-68±3 dB
680Ω

130dB

205mm(W)
* 134mm(H)
* 157mm(D)

38.4g

CM-204UL
801C3 (3 pin mini XLR)
801C4 (4 pin mini XLR)
801CS (3.5 stereo plug)

100 ~ 18,000Hz

Cardioid

-75±3 dB

1.5kΩ
120dB
125mm(W)* 134mm(H)

* 157mm(D)

18g (cable excluded)

Headset Microphone // CM-204 CM-204U CM-204UL CM-225 CX-504

6

Model No...............................

Connector..............................

Frequency Response......

Polar Paern..........................

Sensitivity (at 1000Hz)

Impedance.............................

Max. SPL for 1% THD

CX-508W
4P Mini XLR
50~18,000 Hz
Cardioid

-67±3 dB
220Ω

130 dB

CX-516W
4P Mini XLR
50~18,000 Hz

Cardioid

-67±3 dB
220Ω

130 dB

Instrument Microphone // CX-508W CX-516W

Model No...............................

Connector..............................

Frequency Response......

Polar Paern..........................

Sensitivity (at 1000Hz)

Impedance.............................

Max. SPL for 1% THD

CM-801/CM-804i
801C3 (3 pin mini XLR)
801C4 (4 pin mini XLR)
801CS (3.5 stereo plug)
60 ~ 15,000Hz
Omni-directional

-64±3 dB

1.8kΩ
130dB

CM-8015/CM-825i
801C3 (3 pin mini XLR)
801C4 (4 pin mini XLR)
801CS (3.5 stereo plug)
50 ~ 18,000Hz
Omni-directional

-53±3 dB

1.2kΩ
130dB

Ear-hook Microphone // CM-801 CM-804i CM-8015 CM-825i

WIRELESS MICROPHONE SYSTEM

7

4. Parts Identication & Accessories

4-1 Receiver // US-901D

Power On/O switch
Up buon (frequency adjustment)
Down buon (frequency adjustment)
Set buon (frequency adjustment)
LCD Display
Volume control
DC socket for connection of main unit

AF output, jack socket (AF UNBAL)

Balanced XLR socket
Antenna input socket
Antenna

1

4

7

10

11

2

5

8

3

6

9

14

11

2

5

3

6

200

1856

POWER

SET

MIN. MAX.

DIVERSITY RECEIVER

US-901D

7

10

108 9

8

Interchangeable dynamic capsule

LCD display

Down buon
UP buon

Set buon

Baery tray buon

Baery tray
Power On/O switch
Mute On/O switch

4-2 Handheld Transmitter // Mh-950 Mh-960

12

15

13

16

18

14

17

19

20

Mh-950

Mh-960

17

12

18

13 14

15

19

16

17

12

18

13

14

16

15

19

WIRELESS MICROPHONE SYSTEM

9

Mic. input
Power On/o switch
Antenna

LCD display

Set buon
Up buon

Down buon

Baery tray buon
AF level control

Belt clip

Baery tray
Aenuation pad

Clip
4 Pin Mini XLR
Windscreen

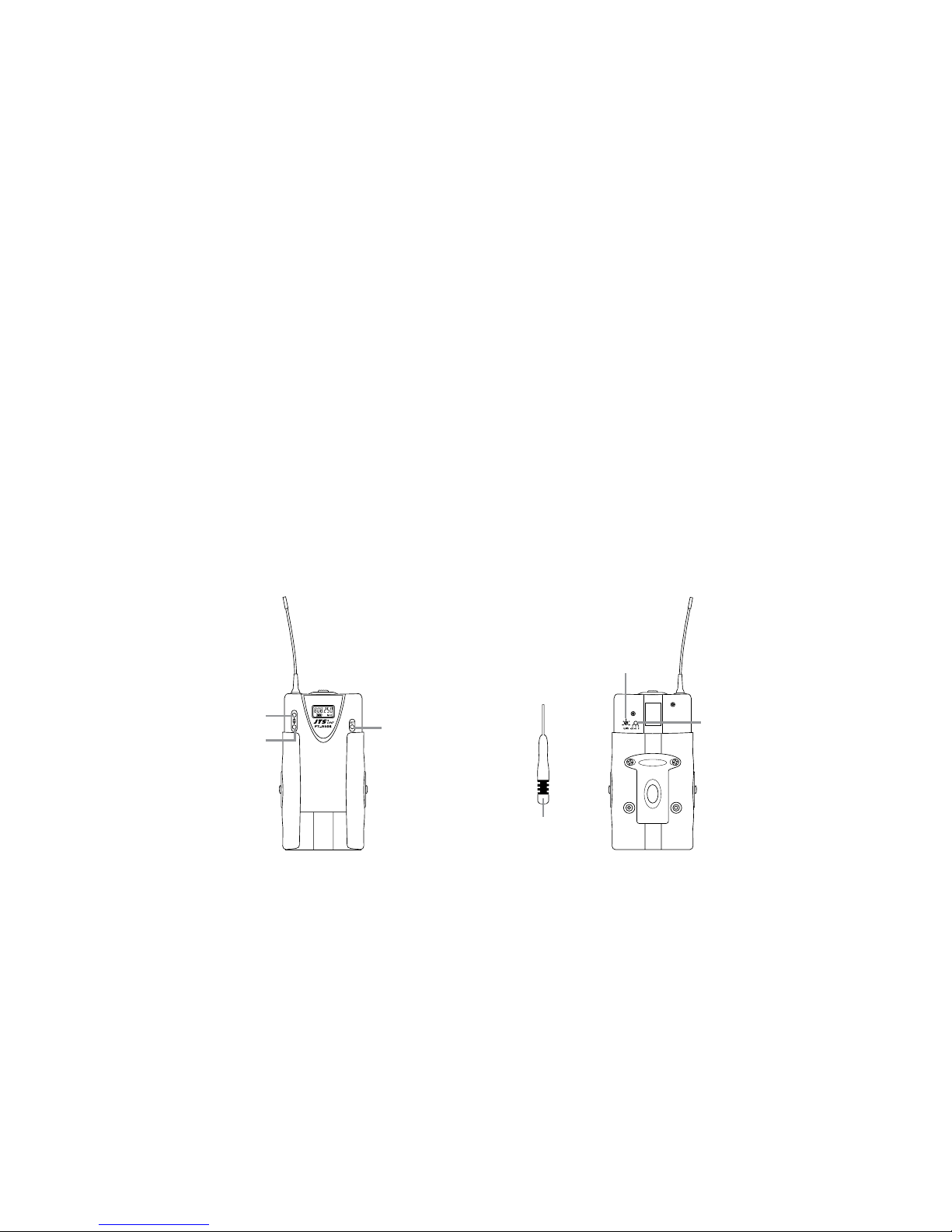

4-3 Body-pack Transmitter // PT-950B(mi)

21

33

23

35

25

30

27

32

22

34

24

29

26

31

28

4-4 Optional Condenser Microphone

Lavaliere Microphone // CM-501 CM-201 CM-125

CM-501 CM-201 CM-125

35

35

35

34

33

33 33

21

23

30

32

22

29

31

28

25

27

24

26

10

Gooseneck
Headband
4 Pin Mini XLR
Windscreen

36

38

39

39

39

39

39

39

37

Headset Microphone // CM-204 CM-204U CM-204UL CM-225 CX-504

38

36

36

36

36

36

37 3737

3737

CM-204 CM-204U

CM-225

CM-204UL

CX-504

WIRELESS MICROPHONE SYSTEM

11

Boom
Adjustable Headband
Adjustable ear hook

Detchable Cable
Cable Clip
Windscreen
4 Pin Mini XLR
3 Pin Mini XLR

3.5 Stereo Plug

Gooseneck
Clip
4 Pin Mini XLR
Windscreen

40

49

43

52

46

42

51

45

48

41

50

44

47

Instrument Microphone // CX-508W CX-516W

Ear-hook Microphone // CM-801 CM-804i CM-8015 CM-825i

CX-508W

CX-516W

CM-801

CM-8015

CM-804i

CM-825i

45

43

44

42

40

40

45

46 47 48

43

44

42

40

45

42

40

45

43

44

41

42

41

43

44

49 49

52 52

50

51

12

AC/DC adaptor
Switching Power Supply(100V~240V , 50~60Hz)
Linear Power Supply (220V , 50Hz)
Linear Power Supply (220V , 60Hz)

Screwdriver

DR-900 Dual Rack Adaptor
RP-900 Panel Cover
AF output cable (with Φ6.3 plug at both ends)
GC-80/GC-100 Guitar Cable
GC-80L/GC-100L Guitar Cable

4-5 Accessories

56

58

59

55

57

54

53

56

55

58 5957

54

53

Option

Option

Option

Option

A

B

C

A

B C

WIRELESS MICROPHONE SYSTEM

13

5. Preparing Procedures & Basic Operation

5-1 Receiver // US-901D

(1) Power output connector

Plug in one end of AC/DC adaptor cable to DC input socket in the rear panel of receiver, and
plug another end into an AC outlet.(Step 1)

(2) Audio Output Connector

Connect one end of the AF output cable to the AF output socket in the rear panel, then plug
another end to the “MIC IN” input socket of a mixer or amplier.(Step 2)
Receiver equipped with balanced XLR output and Unbalanced φ6.3mm output, choose the
proper way for use.

MIXER

AC/DC ADAPTOR

AC POWER SOCKET

AUDIO OUTPUT

DC INPUT

2

1

250

1856

14

(3) LCD panel

AF signal

RF signal
Display for SCAN mode
Display for set FREQ. mode
Main display
Diversity display (A or B antenna)
Baery display for the transmier

(4) Seing the rubber pad

Four self-adhesive rubber pads are provided
to ensure the stability.

ey are to be placed on the boom side of

the receiver.

(5) Connecting the antennas

e user-friendly receiver antenna comes

with easy mount on socket for eortless
connection. Connect two antennas on the
back of the receiver and align them upward.

(6) Connecting the main unit

Plug in the DC connector on the back of the
receiver (DCV INPUT).

(7) Connecting the amplier/mixer console

Plug in the amplier/mixer console to the

(AF OUT UNBAL / BAL ) sockets.

62

64

61

63

66

60

65

61

62

65

63

65

64

6660

250

1856

250

1856

250

1856

ANT.1 / ANT.2

DCV INPUT

AF OUT UNBAL/BAL

WIRELESS MICROPHONE SYSTEM

15

POWER

SET

MIN. MAX.

DIVERSITY RECEIVER

US-901D

(8) Turning the receiver on/o

Turn the receiver on by pressing the
(POWER) buon.

(9) Adjusting the AF output level

Use the AF output level control located on
the front side of the receiver to adjushe AF
signal level that appears at output.

(10) Dual Rack Adaptor set

e dual rack adaptor is available to unify the

half rack space into a standard EIA size with
single or dual units.

AF OUTPUT LEVEL

POWER

POWER

SET

MIN. MAX.

DIVERSITY RECEIVER

US-901D

POWER

16

(1) Turning the transmier on/o
e on/o switch is located on the boom of the microphone.

(2) Inserting and changing the baery

1. Loosen the microphone head counter-clockwise. (Figure 1)

2. Hold on to both baery tray buons to release it. (Figure 2)

3. Insert 2 pieces of UM-3 1. 5 V baeries, remember to match
correct polarity. (step1 of Figure3)

4. Directly push the baery tray back. (step2 of Figure3)

5. Aim the connectors exactly for screwing on the microphone
head clockwise. (Figure 4)

(3) LCDpanel
Main display
Baery indicator

5-2 Handheld Transmitter // Mh-950 Mh-960

2

1

Figure 1

Figure 2

Figure 3

Figure 4

69

70

69

70

WIRELESS MICROPHONE SYSTEM

17

(4) Mh-950 Press the SET buon to select between frequency and sensitivity.

1. Frequency adjusting
Press the UP or DOWN buon to adjust the seing of a menu.
1-1 Hold SET buon for 3 seconds to activate frequency.
1-2 Once you see ”MHz” blanking , you are ready to select your desired frequency
by using UP and DOWN buons.
1-3 Press the SET buon again to store your changes.

2. Sensitivity adjusting
2-1 Press the SET buon twice to select sensitivity. Lasting for 3 seconds at the rst
press, then 1 second for the second press, and the display appears .
2-2 Use UP and DOWN buons to adjust changes.
2-3 Finally press EET buon again to store your changes.

(5) Mh-960 Press the SET buon to select between frequency and sensitivity.

1. Frequency adjusting
Press the UP or DOWN buon to adjust the seing of a menu.
1-1 Hold SET buon for 3 seconds to activate frequency.
1-2 Once you see ”MHz” blanking , you are ready to select your desired frequency
by using UP and DOWN buons.
1-3 Press the SET buon again to store your changes.

2. Sensitivity adjusting
2-1 Press the SET buon twice to select sensitivity. Lasting for 3 seconds at the rst
press, then 1 second for the second press, and the display appears .
2-2 Use UP and DOWN buons to adjust changes.
2 -3 Finally press SET buon again to store your changes.

UpSetDown

Up

Set

Down

18

5-3 Body-pack Transmitter // PT-950B(mi)

(1) Turning the transmier on/o

e on/o switch is located on the top of the transmier.

(2) Inserting and changing the baery

1. e baery tray is located on the back of the transmier.

2. Hold on to both belt clip buons to release it.

3. Insert 2 pieces of UM-3 1.5V baeries. Remember to match correct polarity.

4. Directly slide the belt clip back.

(3) With Lavalier microphone

Aach Lavalier microphone to clothing, tie, lapel, where is the suitable place of sound

pick-up. Plug the mini XLR on the microphone cable into the “MIC. IN” on the body-pack
transmier.

WIRELESS MICROPHONE SYSTEM

19

(4.) With Headset microphone

Put the neck-frame behind your neck meanwhile x the temples on your ears. Adjust the
gooseneck to aim the microphone toward the suitable sound source, which is about 1.5-2
inches distance from your mouth. Plug the mini XLR on the microphone cable into the

“MIC. IN” on the body-pack transmier.

(5) With Wind Microphone

1. Outsanding for saxophone, brass, woodwind instruments.

2. Flesible gooseneck together with adjustable axis allow accurate sound source aiming.

3. Clamp with elastic grip ensures stable holding instrument without damaging.

4. Windscreen to prevent pop noise eectively.

MIC IN

20

(6) Ear-hook Microphone

1. Lightweight Dual Ear Hook Microphone
Try on whether the headset is t.
Adjust the headband to a suitable width.
Tighten or loosen the curve of the ear-hook by twisting the loop or expanding it.
Curve and bend the boom to t your face.
Aach the detachable cable to a suitable place by a cable clip.

2. Lightweight Single Ear Hook Microphone
Try on whether the original curve is tight or loose.
Re-try and push the xed curve against your earlobe.
Curve and Bend the boom to t your face.
Aach the detachable cable to a suitable place by a cable clip.

WIRELESS MICROPHONE SYSTEM

21

(7) Basic operation

1. Frequency adjusting
1-1 Hold SET buon for 3 seconds to activate frequency.
1-2 Once you see “MHz” blanking, you are ready to select your desired frequency by

using UP and DOWN buons.

1-3 Press the SET buon again to store your changes.

2. Sensitivity adjusting
e sensitivity control(AF level control) is in the up-le of the transmier’s back. Please

use the adjusting sticker to adjust the proper level.

3. To activate “Lock mode”

Hold on to UP buon for 3 seconds to activate “Lock mode”, press again to unlock.(Pre­vent accidental programming or switching o)

ATTENUATION PAD

AF LEVEL CONTROL

AUDIO ADJUSTING STICKER

DOWN

UP

SET

22

6. Recommendation

(1) In order to achieve the optimum reception condition and also extend the operating distance,

please leave a “open space” between the receiver and transmier.
(2) Keep the devices away from the metal objects or any interference sources, at least 50 cm.
(3) To avoid the feed-back eect, don’t leave the mic. to aim at the speakers directly.
(4) For best pick-up paern, please hold the middle of the mic. body.
(5) Remove baeries from the baery compartment when the transmier will not be used for a

long time.
(6)When you need to replace the baeries, please replace both baeries at the same time with

new ones.

WIRELESS MICROPHONE SYSTEM

23

7. Important notice

(1) JTS oers wireless systems in a selection of bands that conform to the dierent government

regulations of specic nations or geographic regions. ese regulations help limit radio
frequency (RF) interference among dierent wireless devices and prevent interference with

local public communications channels, such as television and emergency broadcasts.

(2) For information on bands available in your area, consult your local dealer or phone JTS.
More information is also available at JTS’s website (www.jts.com.tw).

(3) is Radio apparatus may be capable of operating on some frequencies not authorized in
your region. Please contact your national authority to obtain information on authorized

frequencies and RF power levels for wireless microphone products.

24

US-901D/
Mh-950/Mh-960/PT-950B(mi)

59506-028-04

1856
