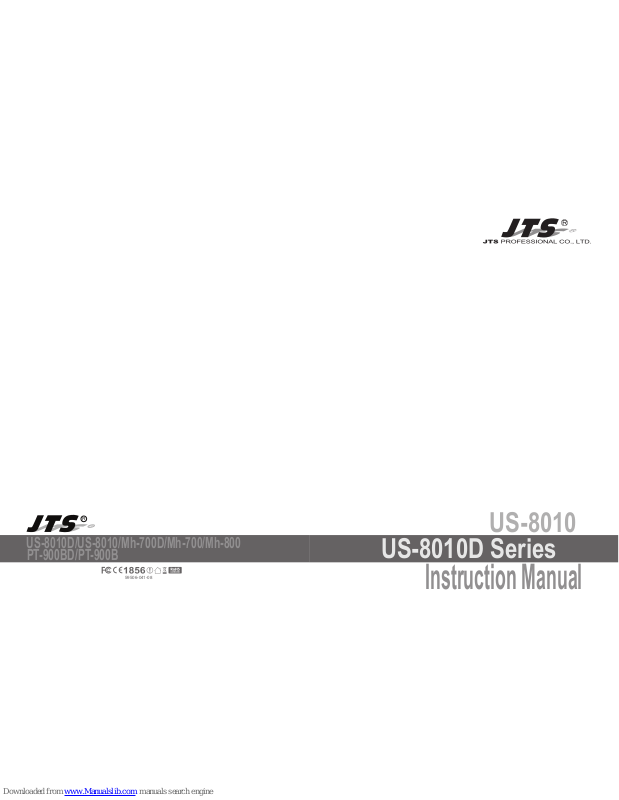

JTS US-8010D, US-8010, Mh-700D, Mh-700, Mh-800 Instruction Manual

Instruction Manual

US-8010D/US-8010/Mh-700D/Mh-700/Mh-800

59506-041-08

US-8010

US-8010D Series

PT-900BD/PT-900B

ank you for choosing the JTS wireless system. In order to obtain the best eciency from the system,
you are recommended to take a few minutes to read this instruction manual carefully.

1. Important Caution

2. Features

3. Specication

3-1 Receiver// US-8010D/ US-8010

3-2 Handheld Transmitter // Mh-700 / Mh-800 / Mh-700D

3-3 Body-pack Transmitter // PT-900B / PT-900BD

3-4 Optional Condenser Microphone

4. Part Identication & Accessories

4-1 Receiver// US-8010D/ US-8010

4-2 Handheld Transmitter // Mh-700 / Mh-800 / Mh-700D

4-3 Body-pack Transmitter // PT-900B / PT-900BD

4-4 Optional Condenser Microphone

4-5 Accessories

5. Preparing Procedures & Basic Operation

5-1 Receiver// US-8010D/ US-8010

5-2 Rack Mounting

5-3 System Operation

5-4 Handheld transmitter // Mh-700 / Mh-800 / Mh-700D

5-5 Body-pack Transmitter // PT-900B / PT-900BD

5-6 Installation of Condenser Microphones

7. Important Notice

1

1

2

2

2

3

3

6

6

6

7

7

11

12

12

13

13

14

15

16

18

19

INDEX

6. Recommendation

WIRELESS MICROPHONE SYSTEM

1

2

1. Important Caution

2. Features

Always makes all connections before plugging the unit into an AC power outlet.•
Do not leave the device in a place neither with high temperature nor high humidity.•
Always do not handle the power cord with wet hands!•
Keep the devices away from re and heat sources.•

Operated in UHF band where there is less RF interference than the VHF band. •
Equipped with a SAW lter can benet to reducing spurious RF content.•
Including balanced XLR output and unbalanced 1/4” output.•
Integrated antenna of the handheld transmier benets less hindrance for performer.•
Built-in noise mute and squelch circuit mode can validly resist extraneous noise. •
Body-pack transmier is available to work together with a lavalier mic. or headset mic.•
Space-saving half-rack housing design.•

3. Specication

3-1 Receiver

3-2 Handheld Transmitter

Model No....................................

Frequency Preparation......

Carrier Frequency Range

Frequency Stability...............

S/N Ratio...................................

T.H.D..................................

Display..............................

Display Contents...................

Controls............................

Audio Output Level............

AF Output Impedance.......

Squelch.............................

Operation Voltage.................

Output Connector................

Dimension(m/m)...............

US-8010D / US-8010
Crystal
600~960 MHz
±10KHz
> 105dB

<0.6%@1KHz

LED
Antenna, RF/AF Status Power On/O,
Audio Level

-12dB

600Ω

Pilot Tone, Noise and Mute
12-18 VDC, 150mA
1 XLR Balanced Socket
1 Unbalanced Ø6.3mm Phone Jack

210mm (W)* 40mm (H)* 171mm (D)

Mode No.............................................

Frequency Preparation..............

Carrier Frequency Range.........

RF Outputs........................................

Stability.................................

Frequency Deviation..................

LED Display......................................

Controls................................

Spurious Emissions.....................

Audio Frequency Response..

Battery..................................

Mh-700 / Mh-800 / Mh-700D
Crystal

600~960 MHz
10mW
±10KHz
±48KHz

Low Baery, Power On/O

Power On/O
<-50 dBC
50~16,000 Hz

UM3, AA 1.5V*2

WIRELESS MICROPHONE SYSTEM

3

4

3-3 Body-pack Transmitter

3-4 Optional Condenser Microphone

Model No..........................................

Frequency Preparation............

Carrier Frequency R ange......

RF Outputs......................................

Stability.................................

Frequency Deviation................

LED Display....................................

Controls.................................

Spurious Emissions...................

Audio Frequency Response

Battery...................................

PT-900 / PT-900BD
Crystal

600~960 MHz
10mW
±10KHz
±48KHz

Power On/O, Low Baery

Power On/O, AF Level
<-50 dBC
40~18,000 Hz

UM3, AA 1.5V*2

Headset Microphone

Model No...............................

Connector..............................

Frequency Response......

Polar Paern..........................

Sensitivity (at 1000Hz)

Impedance.............................

Max. SPL for 1% THD

Dimension(mm)..............

Net Weight............................

CM-235
4P Mini XLR
50~18,000 Hz
Omni-directional

-53±3 dB

1.8kΩ
130dB
155mm(W)
* 134mm(H)
* 157mm(D)
17g (cable excluded)

CX-504
4P Mini XLR
30~18,000 Hz
Cardioid

-68±3 dB
680Ω
130dB
285mm(W)
* 55mm(H)
* 111.3mm(D)

56.3g

Model No...............................

Connector...............................

Option Connector...........

Frequency Response......

Polar Paern..........................

Sensitivity (at 1000Hz)

Impedance.............................

Max. SPL for 1% THD

Dimension(mm)..............

Net Weight............................

CM-214
801C4
(4P Mini XLR)

801C3 (3P Mini XLR)
801CS (3.5 stereo plug)
801CR
60~15,000 Hz
Omni-directional

-60±3 dB

1.8kΩ
130dB
125mm(W)
* 134mm(H)
* 157mm(D)

32.9g

CM-214U
4P Mini XLR

30~18,000 Hz
Cardioid

-68±3 dB
680Ω
130dB
205mm(W)
* 134mm(H)
* 157mm(D)

38.4g

CM-214UL
801C3 (3P Mini XLR)
801C4 (4P Mini XLR)
801CS (3.5 stereo plug)
801CR

100 ~ 18,000Hz
Cardioid

-65±3 dB

1.8kΩ
120dB
125mm(W)
* 134mm(H)
* 157mm(D)
18g (cable excluded)

Model No...............................

Connector..............................

Frequency Response......

Polar Paern..........................

Sensitivity (at 1000Hz)

Impedance.............................

Max. SPL for 1% THD

Dimension(mm)..............

Net Weight............................

CM-501
4P Mini XLR
100~15,000 Hz
Cardioid

-60±3 dB

2.2kΩ
130dB
Ø10.1mm(W)
* 26.4mm(H)

21.5g

CM-201
4P Mini XLR /
60~15,000 Hz
Omni-directional

-60±3 dB

2.2kΩ
130dB
Ø5mm(W)
* 9mm(H)

20.7g

CM-125
4P Mini XLR
50~18,000 Hz
Omni-directional

-53±3 dB

4.4kΩ
130dB
Ø4mm(W)
* 11mm(H)
7g (cable excluded)

Lavaliere Microphone

WIRELESS MICROPHONE SYSTEM

5

6

4. Parts Identication & Accessories

4-1 Receiver // US-8010D / US-8010

Power On/O
RF indicator
AF indicator
Volume control
Antenna
DCV Input (12-18V DC/150mA)
Unbalanced 6.3mm jack socket
Balanced XLR socket

Interchangeable capsule module
Baery tray release knobs
Baery tray
Power On/O switch
LED Indicator
ID housing

4-2 Handheld Transmitter // Mh-800 / Mh-700D / Mh-700

1

4

7

9

12

10

13

11

14

2

5

8

3

6

Mh-800 Mh-700 / Mh-700D

1 2 3 4

5

6 8 7

1 2 3 4

5

6 8 7

9

11

13

14

10

12

9

11

13

14

10

12

Model No...............................

Connector..............................

Frequency Response......

Polar Paern..........................

Sensitivity (at 1000Hz)

Impedance.............................

Max. SPL for 1% THD

Good For.................................

Model No...............................

Connector..............................

Frequency Response......

Polar Paern..........................

Sensitivity (at 1000Hz)

Impedance.............................

Max. SPL for 1% THD

Good For.................................

CX-500
4P Mini XLR
20~20,000 Hz
Omni-directional

-58±3dB

1.5kΩ
130 dB
Violin

CX-508W
4P Mini XLR
50~18,000 Hz
Cardioid

-67±3 dB
220Ω
130 dB
Winds

CX-500F
4P Mini XLR
20~20,000 Hz
Omni-directional

-58±3dB

1.5kΩ
130 dB
Flutes

CX-520
4P Mini XLR
50~16,500 Hz
Supercardioid

-78±3dB
600Ω
148 dB
Harmonica

CX-516W
4P Mini XLR
30~18,000 Hz
Cardioid

-67±3 dB
220Ω
130 dB
Accordion

Compatible Instrument Microphone

Model No...............................

Connector..............................

Option Connector...........

Frequency Response......

Polar Paern..........................

Sensitivity (at 1000Hz)

Impedance.............................

Max. SPL for 1% THD

CM-801/CM-804i
801C4 (4P Mini XLR)
801C3 (3P Mini XLR)
801CS (3.5 stereo plug)
801CR
60~15,000 Hz
Omni-directional

-64±3 dB

1.8kΩ
130dB

CM-8015/CM-825i
801C4 (4P Mini XLR)
801C3 (3P Mini XLR)
801CS (3.5 stereo plug)
801CR
50~18,000 Hz
Omni-directional

-53±3 dB

1.8kΩ
130dB

Ear-hook Microphone

WIRELESS MICROPHONE SYSTEM

7

8

Mic. input
Power On/o switch
Power Indicator
Antenna
AF level control
Baery tray
Baery tray cover
Carry case
Belt-loop

Clip
4 Pin Mini XLR
Windscreen

4-3 Body-pack Transmitter // PT-900B / PT-900BD

15

24

17

26

21

16

25

18

23

20

19

22

4-4 Optional Condenser Microphone

Lavaliere Microphone // CM-501 / CM-201 / CM-125

31

31

31

31

31

Headset Microphone // CM-214 / CM-214U / CM-214UL / CM-235 /

CX-504

CM-501 CM-201 CM-125

26

26

26

25

30

24

24 24

27

27

27

27

27

28 2828

2928

CM-214 CM-214U

CM-235

CM-214UL

Standard :
4 Pin Mini XLR
3 Pin Mini XLR

3.5 Stereo Plug

CX-504

22

23

16 15 19

18

17

20

21

Gooseneck
Adjustable headband
Headband
4 Pin Mini XLR
Windscreen

28

30

31

27

29

WIRELESS MICROPHONE SYSTEM

9

10

Gooseneck
Clip
Bracket
Volume Control
Windscreen

4 Pin Mini XLR

Compatible Instrument Microphone // CX-500 / CX-500F / CX-520

CX-508W / CX-516W

CX-508W CX-516W

43

43

42

42 42

45

46

47

47

44

46 46

46

CX-500

46

CX-500F

42

43

CX-520

45

44

Boom
Adjustable Headband
Adjustable ear hook
Detchable Cable
Cable Clip
Windscreen
4 Pin Mini XLR
3 Pin Mini XLR

3.5 Stereo Plug

4Pin Hirose connecter

Ear-hook Microphone // CM-801 / CM-804i / CM-8015 / CM-825i

37

39

39

38

40

41

40

34

36

38

35

32

33

CM-825i

36

37

32

34

35

33

Option

Option

Option

CM-801

36

37

32

34

35

CM-804i

36

37

32

34

35

33

CM-8015

36

37

32

34

35

41

WIRELESS MICROPHONE SYSTEM

11

12

AC/DC adaptor
Switching Power Supply(100V~240V , 50~60Hz)
Linear Power Supply (220V , 50Hz)
Linear Power Supply (220V , 60Hz)
Screwdriver
DR-900 dual rack adaptor
RP-900 panel cover
AF output cable (with Φ6.3 plug at both ends)
GC-80/GC-100 Guitar Cable
GC-80L/GC-100L Guitar Cable

4-5 Accessories

51

53

50

52

49

48

53

54

54

52

49

48

Option

Option

Option

Option

Option

Option

A

B

C

A

B C

5. Preparing Procedures & Basic Operation

5-1 Receiver // US-8010D / US-8010

(1) Audio Output Connector
e receiver equipped with both balanced XLR output and unbalanced φ 6.3mm jack output;
you can choose the proper way for using.
Connect one end of the Audio cable to the AF output socket in the rear panel of the receiver and
plug another end to the “MIC IN” input socket of a mixer or amplier. (Step 1 of Figure 1)

(2) Power connection
Connect one end of AC/DC adaptor cable to DC input socket in the rear panel of the receiver,
and plug another end into an AC outlet. (Step 2 of Figure 1)

MIXER

AC/DC ADAPTOR

AC POWER SOCKET

AUDIO OUTPUT

DC INPUT

2

1

50

51

WIRELESS MICROPHONE SYSTEM

13

14

5-2 Rack Mounting

5-3 System Operation

(1) Before mount receivers onto DR-900 rack adaptor, please release any cables from the rear of
the receiver.

(2) Turn over receiver and DR-900 rack adaptor simultaneously, there are 4 threaded holes each
in the boom of receiver and rack adaptor for inserting screws.

(3) Single receiver
Insert in a receiver through the front of DR-900 until it is rmly aached to the rack, then
screw on a RP-900 to another side of the rack.

(4) Dual receivers
e same way as above, put one receiver to each rack space.

Be sure to mute the audio signal of mixer or amplier before turning on the receiver and
transmier.

5-4 Handheld transmitter // Mh-700D / Mh-700 / Mh-800

(1) Mh-700D & Mh-700 & Mh-800 Handheld Transmier

1. Turn the microphone ball grille counter-clockwise
( Figure 1), press both release knobs to remove the
baery tray from the mic. housing ( Figure 2).

2. Insert two 1.5V baeries according to the correct polarity
(Step 1 of Figure 3) and return the baery tray back to
housing (Step 2 of Figure 3).
Aim the connecting pins exactly toward the cavities on the
boom side of detachable mic. capsule module ( Figure 4)
and tighten it clockwise!

2

1

Figure 1

Figure 2

Figure 3

Figure 4

WIRELESS MICROPHONE SYSTEM

15

16

5-5 Body-pack Transmitter // PT-900B / PT-900BD

(1) Basic operation

1. Slide the baery tray cover in the direction of the
arrow to open it, insert two 1.5V baeries according
the correct polarity, and return the cover.

2. Switch the transmier On
e On/O switch is located on the top of the
transmier.

3. Sensitivity adjusting
ere is a gain control adjustor in the up-le of its
back, you can adjust the level in 3 steps from 0 dB
to 30 dB.

AUDIO ADJUSTING STICKER

AF LEVEL CONTROL

ON/OFF

(2) Wearing the Body-pack transmier

e carry case allows body-pack transmier to be aached on performer’s belt, place the

antenna towards the back of his body. e Velcro tag around the belt and x it.

5-6 Installation of Condenser Microphones

(1) Lavaliere microphone

Aach lavaliere microphone to a tie, lapel, where is suitable for sound pick-up. Plug the

connector into input socket on the body-pack transmier.

(2) Headset microphone

Put the headband behind your head, and x the temples on your ears as shows, then
adjust the gooseneck to have best miking. Plug the connector into input socket on the
body-pack transmier.

(3) Instrument Microphones
e system is compatible with JTS various instrument microphones.
For detail please refer to user’s manuals of these microphones.

MIC IN

WIRELESS MICROPHONE SYSTEM

17

18

(4) Ear-hook Microphone

1. Lightweight Dual Ear Hook Microphone
Try on whether the headset is t.
Adjust the headband to a suitable width.
Tighten or loosen the curve of the ear-hook by twisting the loop or expanding it.
Curve and bend the boom to t your face.
Aach the detachable cable to a suitable place by a cable clip.

2. Lightweight Single Ear Hook Microphone
Try on whether the original cur ve is tight or loose.
Re-try and push the xed cur ve against your earlobe.
Curve and Bend the boom to t your face.
Aach the detachable cable to a suitable place by a cable clip.

6. Recommendation

(1) In order to achieve the optimum reception condition and also extend the operating distance,

please leave a “open space” between the receiver and transmier.
(2) Keep the devices away from the metal objects or any interference sources, at least 50 cm.
(3) To avoid the feed-back eect, don’t leave the mic. to aim at the speakers directly.
(4) For best pick-up paern, please hold the middle of the mic. body.
(5) Remove baeries from the baery compartment when the transmier will not be used for a

long time.
(6)When you need to replace the baeries, please replace both baeries at the same time with

new ones.

WIRELESS MICROPHONE SYSTEM

19

7. Important Notice

(1) JTS oers wireless systems in a selection of bands that conform to the dierent government

regulations of specic nations or geographic regions. ese regulations help limit radio

frequency (RF) interference among dierent wireless devices and prevent interference with

local public communications channels, such as television and emergency broadcasts.

(2) For information on bands available in your area, consult your local dealer or phone JTS.
More information is also available at JTS’s website (www.jts.com.tw).

(3) is Radio apparatus may be capable of operating on some frequencies not authorized in
your region. Please contact your national authority to obtain information on authorized

frequencies and RF power levels for wireless microphone products.
