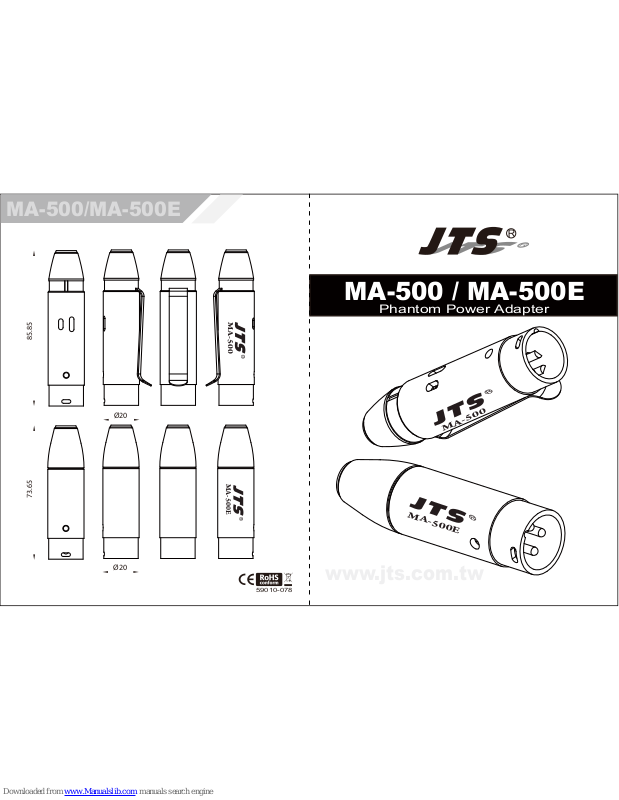

JTS MA-500, MA-500E User Manual

MA-500 / MA-500E

MA-500/MA-500E

59010-078

Phantom Power Adapter

www.jts.com.tw

MA-500

MA-500E

MA-500

MA-500E

85.85

Ø20

73.65

Ø20

MIC Input
Output
Phantom Power
Frequency Response
Impedance
THD% (1KHz -40dB)
S/N
Weight
Dimensions(mm)

4P Mini XLR(Male)
XLR(Male)
12~48V

30~20,000Hz

220Ω
<0.045%
>95 dB
31g

Ø

20(W)*72.5(H)

MA-500E

MIC Input
Output
Phantom Power
PAD
Low Cut

Frequency Response
Impedance
THD% (1KHz -50dB)
S/N
Weight
Dimensions(mm)

4P Mini XLR(Male)
XLR(Male)
12~48V

-10dB
100Hz -6dB
400Hz -4dB
30~20,000Hz
220Ω
<0.045%
>95 dB
40g

Ø

20(W)*84.5(H)

MA-500

MA-500/MA-500E

MA-500/MA-500E

This product provides power to miniature condenser
microphones through phantom power. It works with
CM series condenser microphones and part of CX
series microphones with mini XLR connecter.

1 2

3

PIN2 OUT(+)

PIN3 OUT(−)

TUPTUO

123

4

MIC IN

+V

NI CIM

(Phantom Power Supply)

Input: 4P Mini XLR (Male)
Pin 1: GND
Pin 2: V+
Pin 3,4: Audio signal

Output: XLR (Male)
Pin 1: GND
Pin 2,3: Audio signal

MA-500/MA-500E can be powered by JTS’s PS-1,
Phantom Power Supply or 12~48V phantom power
from other devices.

MA-500 / MA-500E

Phantom Power Adapter

Mixer
