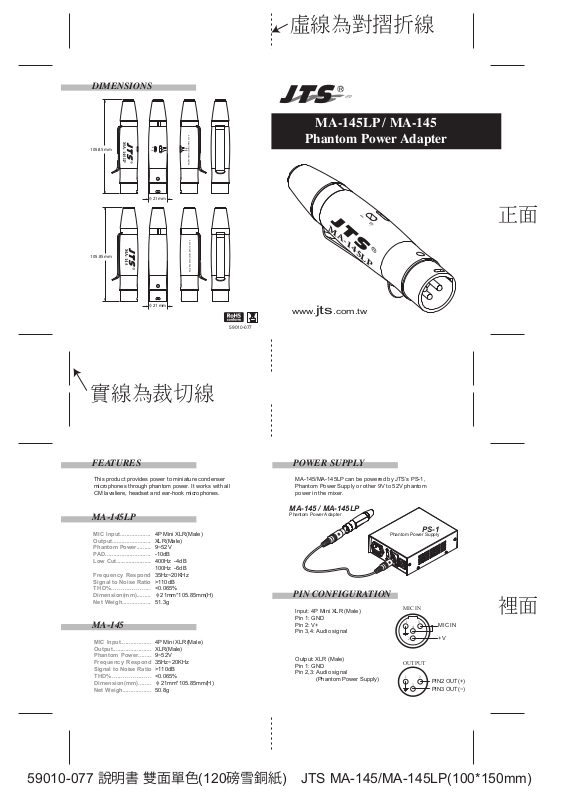

JTS MA-145LP, MA-145 User Manual

DIMENSIONS

虛線為對摺折線

9-52V PHANTOM POWER ADAPTER

100Hz 400Hz

9-52V PHANTOM POWER ADAPTER

105.85 mm

MA-145LP

MA-145

-10

φ21 mm

實線為裁切線

59010-077

MA-145LP / MA-145

Phantom Power Adapter

-10

www.

MA-145LP

jts

.com.tw

正面

FEATURES

This product provides power to miniature condenser microphones through phantom power. It works with all CM lavaliere, headset and ear-hook microphones.

MA-145LP

MIC Input...................

Output........................

Phantom Power.........

PAD............................

Low Cut......................

Frequ ency Respond Signal to Noise Ratio

THD%.....................

Dimension(mm).........

Net Weigh..................

4P Mini XLR(Male) XLR(Male) 9~52V

-10dB 400Hz -4dB 100Hz -6dB 35Hz~20KHz >110dB <0.065% φ21mm*105.85mm(H)

51.3g

MA-145

MIC Input...................

Output........................

Phantom Power........

Frequency Respond Signal to Noise Ratio

THD%.....................

Dimension(mm)........

Net Weigh..................

4P Mini XLR(Male) XLR(Male) 9~52V 35Hz~20KHz >110dB <0.065% φ21mm*105.85mm(H)

50.8g

POWER SUPPLY

MA-145/MA-145LP can be powered by JTS’s PS-1, Phantom Power Supply or other 9V to 52V phantom power in the mixer.

MA-145 / MA-145LP

Phantom Power Adapter

Phantom Power Supply

PIN CONFIGURATION

Input: 4P Mini XLR (Male) Pin 1: GND Pin 2: V+ Pin 3,4: Audio signal

Output: XLR (Male) Pin 1: GND Pin 2,3: Audio signal (Phantom Power Supply)

123

1 2

NI CIM

PS-1

TUPTUO

PIN2 OUT(+)

PIN3 OUT(−)

裡面

MIC IN
