JTS FGM-62 Carbon Dual, FGM-170 Carbon Dual, FGM-62 Carbon, FGM-170 Carbon, FGM-62T Carbon User guide
...Page 1

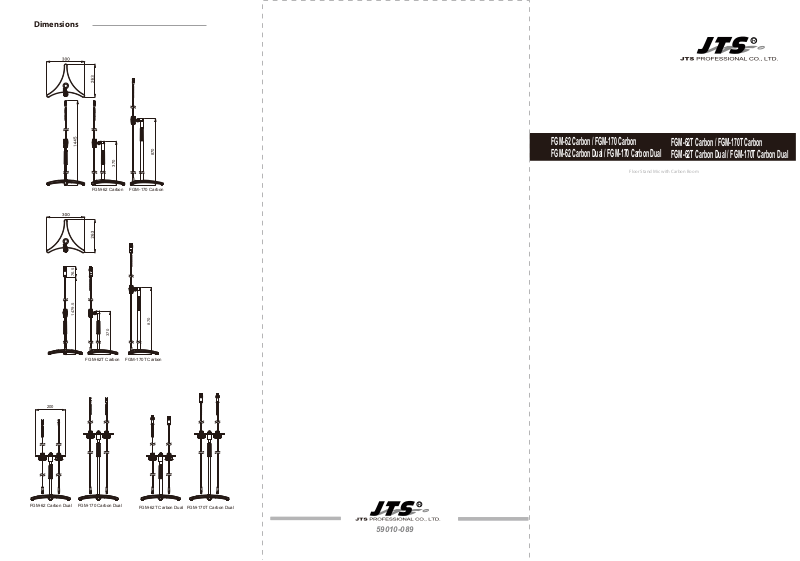

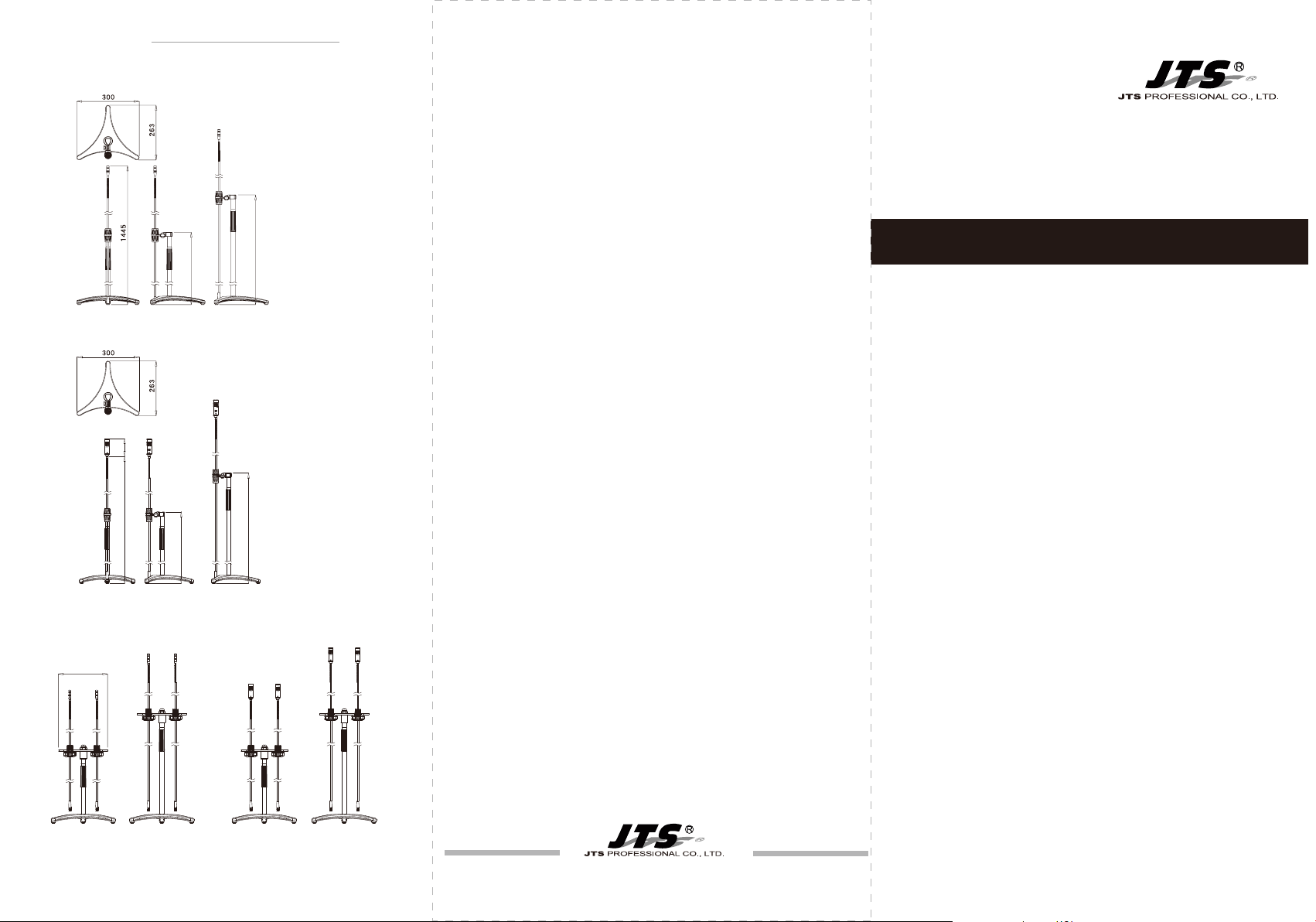

Dimensions
FGM-62 Carbon / FGM-170 Carbon
870
370
FGM-62 Carbon FGM-170 Carbon
1479.5 76.5
870
370
FGM-62T Carbon FGM-170T Carbon
200
FGM-62 Carbon Dual / FGM-170 Carbon Dual
Floor Stand Mic with Carbon Boom
FGM-62T Carbon / FGM-170T Carbon
FGM-62T Carbon Dual / FGM-170T Carbon Dual
FGM-62 Carbon Dual FGM-170 Carbon Dual
FGM-62T Carbon Dual FGM-170T Carbon Dual
59010-089
Page 2
FGM-62 Carbon / FGM-170 Carbon
FGM-62 Carbon Dual / FGM-170 Carbon Dual
Floor Stand Mic with Carbon Boom Floor Stand Mic with Carbon Boom
Thanks for choosing JTS FGM-62 Carbon/FGM-170 Carbon
oor stand mic with carbon boom. In order to obtain the best
e iciency, you are recommended to read this manual before
applying.
Features
This product has the same mics as GML series with
omni-directional (GML-O), cardioid (GML-C) and super cardioid
(GML-S) capsule module included. The very light carbon boom
makes remote miking an easy job.
A cable with mini XLR and XLR on each end is supplied. -10 dB
pad and Low cut functions are provided.
Application:
* Choirs
* Presentation
* Also as normal mic stand
FGM-170 Carbon: With mic stand height 170 cm
the rest is identical to FGM-62.
Accesories
1
Windscreen
2
Interchangeable Capsules in Wooden Box
(Cardioid and Omnidirection)
FGM-62 Carbon
FGM-170 Carbon
PHANTOM POWER 48V
0
-10
FGM-62T Carbon / FGM-170T Carbon
FGM-62T Carbon Dual / FGM-170T Carbon Dual
The FGM-T Series bring studio quality microphone to live stage.
Features
Based on the successful experience of JS-1 series
JS-22MXC is designed for instrument miking from
strings to percussions. The JS-22MXC is built on a
solid brass with accurate processing. The 1/2”
golden plated diaphragm is manually assembled
by JTS craftsman. The precise designed circuit with
low cut and pad feature provides at response.
This microphone royally reproduces any kinds of
instruments and vocals.
Application:
*Choirs
*Presentation
*Also as normal mic stand
JS-22MXC
1/2” Condenser Microphone
FGM-62T Carbon
0
-10dB
JS-22
MXC
FGM-170T Carbon
Specication
Model Number...............
Type...................................
Frequency Response...
Polar Pattern...................
Sensitivity........................
Impedance......................
Max. SPL For 1% T.H.D.
Connector........................
Cable Connector............
Power Supply..................
Cable Length..................
Model Number................
Type.....................................
Frequency Response.....
Sensitivity..........................
Directional Pattern.........
Attenuation Switch........
Low Frequency Roll-o
Impedance........................
Max. SPL For 1% T.H.D.
Signal To Noise Ratio.....
Power Supply...................
Current consumption....
Output................................
FGM-62 Carbon / FGM-170 Carbon
FGM-62 Carbon Dual / FGM-170 Carbon Dual
Back Electret Condenser
50~18,000 Hz
Cardioid, Supercardioid,Omnidirectional
-56±3dB(15.8mV) 0dB=1V /Pa,1kHz
200Ω
125 dB
3P mini XLR(M)
Input: 3P mini-XLR(F)
Output: 3P XLR (Power Module)
9-52VDC phantom power (LED standard
Operation voltage 48V)
8m
FGM-62T Carbon / FGM-170T Carbon
FGM-62T Carbon Dual / FGM-170T Carbon Dual
1/2” golden plated true condenser capsule
20~20,000 Hz
-36±3 dB* (15.8mV) 0dB=1V /Pa,1kHz
Cardioid
-10dB
80Hz
100Ω
140 dB
78dB
36~52VDC phantom power
≤3mA
3-pin XLR

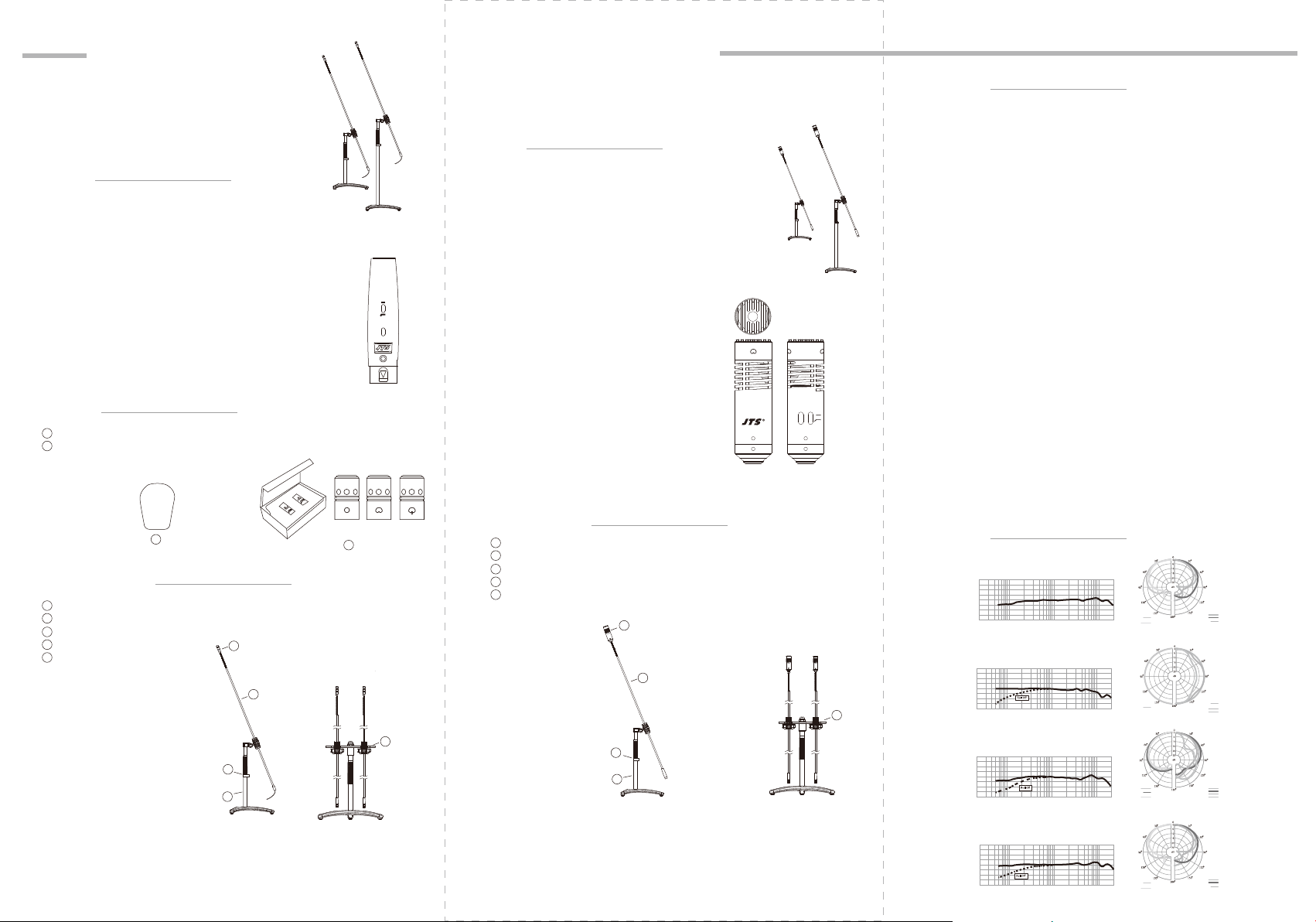

Parts Identication
Interchangeable Capsule
3
4
Carbon Boom
Floor Stand and Base
5
Cable Guide
6
FGM-Dual Adapter
7
GML-O GML-C GML-S
1
omni-direction cardioid supercardioid
2
Parts Identication
1/2” Studio Condenser Microphone
8
9
Carbon Boom
10
Floor Stand and Base
11
Cable Guide
12
FGM-Dual Adapter
Polar Pattern
JS-22MXC
8
1/2” Gooseneck Microphone
+10
0
-10
20 100 200 500 1k 2k 5k 10k 20kHz
125Hz
250Hz
}
500Hz
1000Hz
2000Hz
4000Hz
8000Hz
}
16000Hz
3
GML-O
Installation Microphone Capsule
9
4
12
7
6
11
10
5
+10
0
-10
20 100 200 500 1k 2k 5k 10k 20kHz
GML-C
Installation Microphone Capsule
+10
0
-10
20 100 200 500 1k 2k 5k 10k 20kHz
GML-S
Installation Microphone Capsule
+10
0
-10
20 100 200 500 1k 2k 5k 10k 20kHz
125Hz
}
250Hz
500Hz
}
1000Hz
125Hz
250Hz
}
500Hz
1000Hz
125Hz
250Hz
}
500Hz
1000Hz
2000Hz
4000Hz
8000Hz
16000Hz
2000Hz
4000Hz
8000Hz
16000Hz
2000Hz
4000Hz
8000Hz
}
16000Hz
