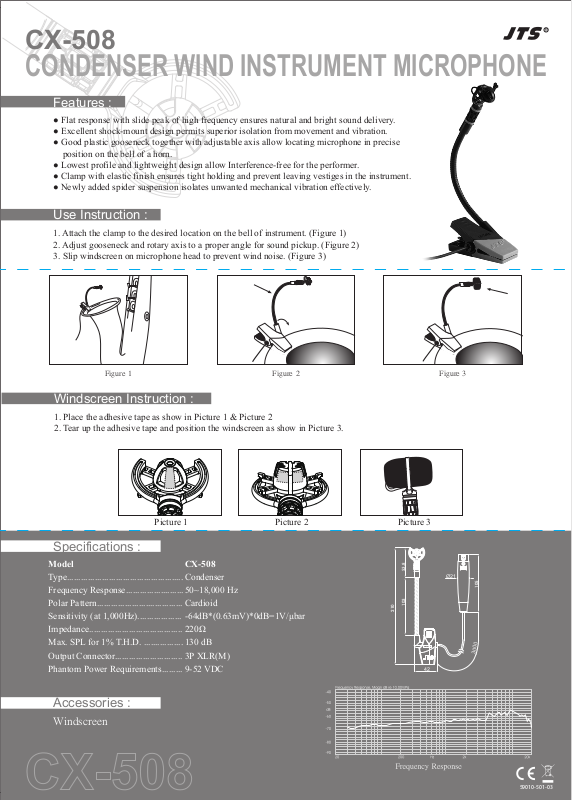

CX-508
CONDENSER WIND INSTRUMENT MICROPHONE
Features :
● Flat response with slide peak of high frequency ensures natural and bright sound delivery.
● Excellent shock-mount design permits superior isolation from movement and vibration.
● Good plastic gooseneck together with adjustable axis allow locating microphone in precise
position on the bell of a horn.
● Lowest profile and lightweight design allow Interference-free for the performer.
● Clamp with elastic finish ensures tight holding and prevent leaving vestiges in the instrument.
● Newly added spider suspension isolates unwanted mechanical vibration effectively.
Use Instruction :
1. Attach the clamp to the desired location on the bell of instrument. (Figure 1)
2. Adjust gooseneck and rotary axis to a proper angle for sound pickup. (Figure 2)
3. Slip windscreen on microphone head to prevent wind noise. (Figure 3)
Figure 1
Figure 2 Figure 3
Windscreen Instruction :
1. Place the adhesive tape as show in Picture 1 & Picture 2
2. Tear up the adhesive tape and position the windscreen as show in Picture 3.
Specifications :
Model
Type..................................................
Frequency Response.........................
Polar Pattern.....................................
Sensitivity (at 1,000Hz)...................
Impedance........................................
Max. SPL for 1% T.H.D. .................
Output Connector.............................
Phantom Power Requirements.........
CX-508
Condenser
50~18,000 Hz
Cardioid
-64dB*(0.63mV)*0dB=1V/μbar
220Ω
130 dB
3P XLR(M)
9-52 VDC
Picture 3Picture 1 Picture 2
Ø21
105
103 53.8
210
CX-508
42
3000
Accessories :
Windscreen
59010-501-03
CX-508W
IN
6
TB
WIRELESS CONDENSER WIND INSTRUMENT MICROPHONE
Features :
● Flat response with slide peak of high frequency ensures natural and bright sound delivery.
● Good plastic gooseneck together with adjustable axis allow locating microphone in precise
position on the bell of a horn.
● Clamp rim with elastic finish ensures tight holding and prevent leaving vestiges in the instrument.
● Newly added spider suspension isolates unwanted mechanical vibration effectively.
Use Instruction :
1. Attach the clamp to the desired location on the bell of instrument. (Figure 1)
2. Adjust gooseneck and rotary axis to a proper angle for sound pickup. (Figure 2)
3. Slip windscreen on microphone head to prevent wind noise. (Figure 3)
4. Plug the connector into the input socket of body-pack transmitter, then turn on the power for
operation. (Figure 4)
Figure 1
Figure 2
Windscreen Instruction :
1. Place the adhesive tape as show in Picture 1 & Picture 2
2. Tear up the adhesive tape and position the windscreen as show in Picture 3.
Specifications :
Model
Type..................................................
Frequency Response.........................
Polar Pattern.....................................
Sensitivity (at 1,000Hz)...................
Impedance........................................
Max. SPL for 1% T.H.D. .................
Output Connector.............................
Phantom Power Requirements.........
CX-508W
Electret Condenser
50~18,000 Hz
Cardioid
-67±3 dB*(0.45mV)*0dB=1V/μbar
220Ω
130 dB
4P Mini XLR
3-5 VDC
-
2
4
SET
-
Figure 3 Figure 4
Picture 3Picture 1 Picture 2
103 53.8
+
210
Accessories :
Windscreen
59010-501-03
