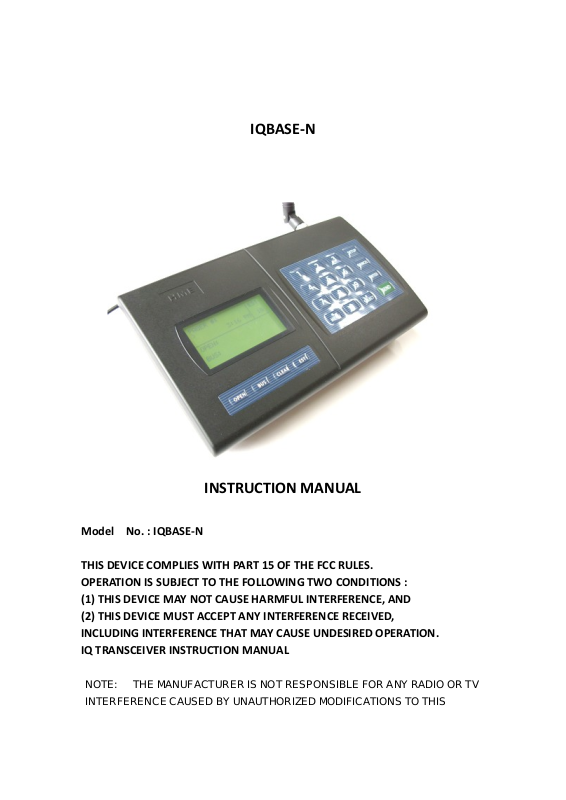

IQBASE-N

INSTRUCTION MANUAL

Model No. : IQBASE-N

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS :
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
IQ TRANSCEIVER INSTRUCTION MANUAL

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER�S AUTHORITY

TO OPERATE THE EQUIPMENT.

Thank you for purchasing our brand-new “IQ Paging System”

We are confident our cutting edge products and first rate service will satisfy your needs

for years to come. Please read these instructions carefully before setting up your IQ

Paging System!

1. Equipment Setup

1) Keypad Sending Unit

Unwrap all sending unit components. Lock the antenna into the hole in the upper

right hand corner of the sending unit. Plug the power supply with the large tip into a

standard 110 outlet and plug into the back of the sending unit. We recommend

some type of surge suppressor on the power supply for protection. Power surges are

not covered under system warranty.

2) Initial Display

2. Placement & Mounting Instructions

1) DESKTOP

You can use your transmitter with the 20 degree wedge attached or remove the

wedge and lay the transmitter flat.

2) WALL MOUNT

To mount your transmitter on a wall

 Remove the plastic bracket (included) under the transmitter unit by

unlocking the 2 latches

 Place the plastic bracket against the wall and with the aid of a pencil, mark

the position of the mounting holes. (Refer to figure below) Mount the

transmitter in a convenient location where a power outlet is available.

 Drill a hole on the market position. Install the 3 mounting screws (and use

anchors where necessary) Ensure that the screws are not fully tightened so

that the unit can be easily removed from the wall.

 Place the transmitter onto the wall (without the plastic bracket) Plug the 2-

amp wall transformer into any suitable AC outlet. Plug the power connector

into the power jack on the top left hand side of the unit. Transmitter is now

ready for use. Be certain to mount the transmitter away from phones, heat,

moisture and exposed power circuits. These items can damage your system

and shorten transmission range.

3) SYSTEM CONFIGURATION

Your system was set at the factory and will function as soon as it is powered up.

Default setup is as below:

Current time

Sleep shutdown - OFF

Range Test - OFF

Default Alert Type - Vibe only

Duty Alert - OFF

Out of Range – OFF

Baud Rate – 1200 BPS

Transmission Frequency - 11 kinds selectable

Reception Frequency - 457.5750 MHz fixed

3. System Programming (Transmitter Version 1.01A)

To enter programming mode, press the “SETUP” button and enter the password

“2580” followed by “ENTER” If the password is accepted, the display will show “use *

to scroll to menu options”

1) Set Current Time

 At the “Set Current Time” menu, set the hour then press “ENTER” key.

 Set the minutes and press “ENTER” key.

 Use the “#” key to select AM or PM

 After the time is set, press the “ENTER”, and “Time Saved” will show on

display. If the time is not correct, press the “CANCEL” key twice to exit the

system programming menu.

2) Set Sleep Shutdown Time (Factory Default: OFF)

This system has an “ALL SLEEP” function that turns off all battery pagers at once

automatically.

To turn this feature off

 Press “#” key to turn the sleep shutdown “OFF”

 Press “ENTER” to go back to the main menu.

To change the shutdown time

 Press “#” key to turn the sleep shutdown “ON”

 Set the hour then press “ENTER” key.

 Set the minutes and press “ENTER” key.

 Use “#” key to select AM or PM.

 After the time is set, press the “ENTER”, and “Time Saved” will show on
