JTECH J1701, J1702 User Manual
User Manual
800.321.6221
©2017 JTECH, an H ME Company logo and prod uct names are registered t rademarks of HM Electron ics, Inc. All rights res erved. Part Number: MPGCP-1

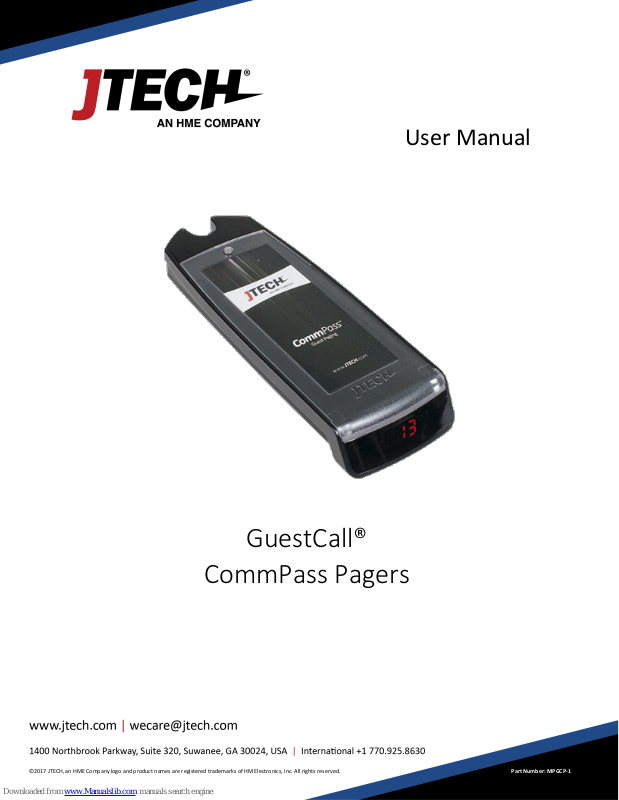

GuestCall®
CommPass Pagers
User Manual
2
800.321.6221
GuestCall Paging, CommPass Pagers
Model Number: J1701, J1702
Components
Your GuestCall® CommPass paging system:
> IQ Base / ISTATION Transmitter
> The CommPass Pagers
> The CommPass Charger
Quick Setup
> Lock the antenna to the connector on the transmitter by placing the antenna on the connector and twisting
left to lock in place.
> Plug the power supply into the transmitter and then into a standard 110-240v outlet. A surge protector is
recommended.
> Compile charger bases and plug charger power supply into charger and then into a standard outlet. Surge
protection is recommended for charging bases.
> Add pagers to charger slots. You will see a BLUE light on each pager. This light indicates the charging status.
o ‘LO’ on the number display: Battery is below 20% charged and SHOULD NOT currently be used.
o Flashing BLUE: Pager is charging and CAN BE available for use.
o Solid BLUE: Pager is fully charged.
o Allow 4 hours for a complete charge of the pagers.
System Use
User Manual
3
800.321.6221
GuestCall Paging, CommPass Pagers
Model Number: J1701, J1702
Distributing a Pager
> Remove a CommPass pager from the charger.
> The pager will flash and vibrate to preview what the alert will look like for the guest.
> Hand the pager to the guest, stating that the pager will go off with they have been paged.
Paging a Guest
> To page a guest, enter the 1 to 3-digit pager number into the transmitter and press SEND.
> The pager will alert until it is returned to the charger.
Setup is Complete
If you have any additional questions, please contact us at the addresses below.
System Configurations
System Default Configuration
The paging system was set to default settings listed below prior to shipment.
> Current time is set.
> Out of Range is set to OFF
> Audible (voice alert) is set to OFF
To enter programming mode, on the transmitter, press SETUP, use password 1379 and press ENTER.
Use the */MENU button to scroll and the # / SELECT button to choose the menu option.
Once you have saved your changes, press CANCEL until you return to the main PAGER # screen.
Set Current Time
> Scroll to SET CURRENT TIME.
> Set Hours, Press ENTER.
> Set Minutes, Press ENTER.
> Press SELECT for AM/PM.
> Press ENTER to save.
> Press CANCEL to exit.
Turn Pager Off
This system has an “ALL SLEEP” function that turns off all battery pagers (for example, manager pagers) at once
automatically.
To turn this feature on:
> Scroll to the TURN PAGER OFF menu screen.
