JSW Pacific APC23 User Manual

Network Camera

Installation and Operating Instructions

Version 1.0

Model: APPCAM23

These instructions should be retained in a safe place for future reference.

CONTENTS

1. INTRODUCTION..............................................................................2

PLEASE READ BEFORE YOU START ........................................2

WIRELESS DEVICES OPERATING RANGE..............................2

IMPORTANT SAFETY PRECAUTIONS.......................................2

2. KIT CONTENT..................................................................................4

3. SAFETY AND INSTALLATION TIPS............................................5

Planning your layout..........................................................................6

Camera Installation............................................................................7

Connection Diagram ..........................................................................8

4. CAMERA OVERVIEW.....................................................................9

5. DOWNLOAD AND USE THE APP ...............................................10

Download the App ............................................................................10

App Setup..........................................................................................10

App Operation..................................................................................15

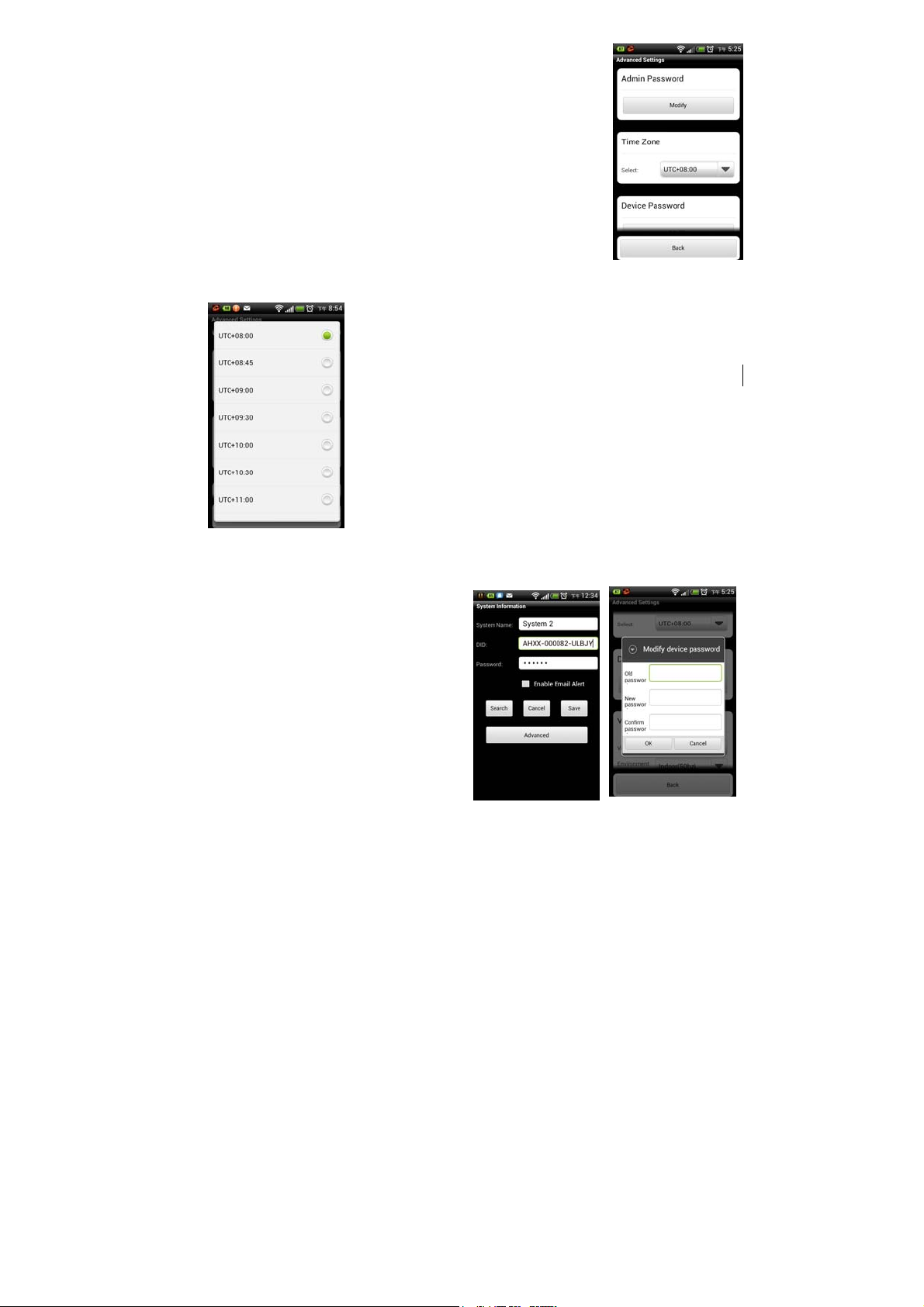

Advanced Setting..............................................................................16

Admin Password.......................................................................17

Time Zon e..................................................................................17

Device Password.......................................................................17

Video Setting.............................................................................18

WiFi Setting ..............................................................................18

Sensitivity Setting.....................................................................19

Email Setting.............................................................................19

SD Card Format.......................................................................19

Device Information...................................................................20

6. TROUBLE SHOOTING..................................................................21

7. ABOUT DIGITAL WIRELESS TECHNOLOGY........................23

8. PRODUCTION SPECIFICATION ................................................24

9. STORAGE MEDIA MANAGEMENT...........................................25

1

1. INTRODUCTION

The WIP APP Camera is a wireless security system designed for easily creating your
home security network. Downloading the free App, you can view and capture video
clips of any motion detected by the wireless camera(s) and store them onto the
memory card via smart phones and/or tablets running iOS/Android. Snapshot
function captures images and stored them directly to smart phones and/or tablets.
Guarding your love ones and properties, the wireless camera offers superior quality
video with true-color. It is weatherproof, suitable for day/night use and reliable that
you can trust for your home security.

PLEASE READ BEFORE YOU START:

Always use discretion when installing CCTV equipment, especially when there is
perceived policy. Enquire relevant local regulations applicable to the lawful
installation of video recording/surveillance. Third party consent may be required.

WIRELESS DEVICES OPERATING RANGE:

Ensure the signal reception viewed from the wireless camera(s) is the best possible
reception between the camera(s) and the WiFi router. If necessary, reduce the
distance between the camera(s) and the WiFi router to improve overall system
performance. Wireless Color Camera Recordable CCTV Kit operating on a secure
digital 2.4GHz frequency which could greatly reduce interference from product such
as wireless routers, cordless phones or microwave ovens.

IMPORTANT SAFETY PRECAUTIONS:

Please read before installing and using this product.
Damages caused by non-compliance with this operating manual will void the
warranty! We will not assume any liability for damages to items or persons caused by
improper handling or non-compliance with the safety notices! Any warranty claim
will be null and void in such cases.
(1) Do not drop, puncture or disassemble the camera; otherwise the warranty will be

voided.

(2) Avoid all contact with water, and dry hands before using.
(3) Never tug on the power cords. Use the plug to unplug it from the wall outlet.
(4) Do not expose the camera to high temperature or leave it in direct sunlight.

Doing so may damage the camera or cause camera temporary malfunction.

(5) Use the devices with care. Avoid pressing hard on the camera body.
(6) For your own safety, avoid using the camera or power off the camera when there

is a storm or lightning.

(7) Remove the power adapter during long periods between usages.
(8) Use only the accessories and power adapters supplied by the manufacturer.
(9) To meet the regulations pertaining to parental responsibility, keep the devices out

of the reach of infants.

2

(10) Check power cables, do not get crushed or damaged by sharp edges whenever the

devices are in operation.

FCC Compliance Statement: This
device complies with Part 15 of the
FCC rules. Operation is subjected

to the following two conditions: (1)
this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.

Commission of the European Community.
Compliance with these directives implies conformity
to the following European Norms:
EMC: EN 301 489
LVD: EN 60950
Radio: EN 300 328

FCC/CE WARNING
This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part
15 of the FCC rules and ETSI(EN) 300328. These limits are designed to provide reasonable protection against
harmful interference in residential installations. This equipment generates, uses, and can radiate radio
frequency energy, and if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does interference to radio or television equipment reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures: -Reorient or relocate the receiving antenna.-Move the
equipment away from the receiver.-Plug the equipment into an outlet on a circuit different from that to which
the receiver is connected.-Consult the dealer or an experienced radio/television technician for additional
suggestions. You are cautioned that any change or modifications to the equipment not expressly approved by
the party responsible for compliance could void your authority to operate such equipment.

DISPOSAL

If the camera system no longer functions or can no longer be repaired, it must be disposed
of according to the valid statutory regulations. Disposal of spent batteries/accumulators:
You are required by law (Battery Ordinance) to return all spent batteries and accumulators.

Disposing of spent batteries/accumulators with common household waste is prohibited!
Batteries/accumulators that contain hazardous substances are marked with the symbols on the side. These
symbols indicate that it is prohibited to dispose of these batteries/accumulators in the household waste. The
abbreviations for the respective heavy metals are: Cd=cadmium, Hg=mercury, Pb=lead. Y ou can return
spent batteries and accumulators that can no longer be charged to the designated collection points in your
community, outlets or wherever batteries or accumulators are sold. Following these instructions will allow
you to fulfill the legal requirements and contribute to the protection of our environment!

Changes or modifications not expressly approved by the party responsible for compliance could void the

user’s authority to operate the equipment

Products with CE Marking comply with
EMC Directive (2004/108/EC); Low
Voltage Directive (73/23/EEC);
R&TTE(1999/5/EC) issued by the

3

2. KIT CONTENT

A App Camera x 1

C Camera Antenna x 1

E Ethernet Cable x 1

B Camera Stand x 1

D 5V/1A Power Adapter for Camera

F Screw Bag x 1

G Manual x 1

Tools Required:

 Electric drill
 5mm masonry drill bit
 15mm masonry drill bit

 No. 2 Philips screwdriver

4

3. SAFETY AND INSTALLATION TIPS

Do not attempt to open the units with the power adaptor plug connected to avoid any risk of
personal injury.

When installing CCTV camera(s), always follow manufacturer's advice when using power
tools, steps, ladders, etc. and wear suitable protective equipment (e.g. safety goggles) when
drilling holes. Before drilling holes through walls, check for hidden electricity cables and
water pipes. The use of cable/pipe detector is advisable.

It is also advisable to avoid exposing any cameras to extreme weather conditions (e.g, under a
gutter which is prone to any water leaks). When installing any cameras with this unit, it is
advisable to use cable conduit to protect any video/power extension cables from being
exposed externally and to prevent/reduce the chances of the cables being tampered with. After
drilling any hole though an external wall for a cable, ensure the hole is sealed up around the
cable using a sealant to prevent drafts.

To prevent a fire or electrical shock hazard, do not attempt to open the housing while the unit
is exposed to rain, water or wet conditions. There are no user serviceable parts inside. Refer
servicing to qualified service personnel. Avoid pointing the camera(s) directly at the sun or
any bushes, tree branches or moving objects that might unnecessarily cause the camera to
record.

5

Planning your layout

Night Vision

The camera has built-in infra-red LEDs to allow you to view at night for 24hrs
surveillance. The LEDs will automatically activate at night and the picture viewed will
turn to black and white. The night viewing range is up to 5 meters.

6

Camera Installation

A. Secure camera stand on the
wall

B. Loosen up the Thumb screw

C. Adjust proper view angle then
secure the joint with T-bolt.

7
