HM-12RGB8A3-DMX512 USER MANUAL
1
HM-12RGB8A3-DMX512
Controller Manual
(Version V5.00)
Overview
Thanks for choosing JS LED POWER INC. Multifunctional LED Controller. We strongly
recommend you to read this manual carefully before the installation and usage. Make sure
you have completely understood the instructions so as to ensure normal working of the
controller, be familiar with all of the operating skills.
Before opening the package, please check if there’s damage or defect during transportation,
if damage occurs, please don’t use it and inform your supplier immediately.
Safety
In order to ensure a perfect quality of the product and a safe usage, please kindly follow the
instructions.
Suppliers don’t take charge of any problems or damages that occur due to mishandling such
as an operation not permitted in this manual.
In order to avoid careless damages and bringing you loss, please read the
HM-12RGB8A3-DMX512 USER MANUAL
2
following statements carefully.
1、 To avoid getting on fire or a shock, don’t put the controller in rainy or humid area.
2、 Please avoid install this controller in lightening, intense magnetic and high-voltage
fields.
3、 The controller for indoor use only, makes sure to put it in a waterproof housing for outdoor use.
4、 Make sure correct connection to avoid fire and damage caused by short circuit.
5、 Please install the controller at drafty area to ensure a fitting temperature.
6、 Please check if local vol tage and power adapter m eet the controller requireme nts,
and if power positive or negative pole definition is the same as controller.
7、 Choose an install place where can withstand 10 times the weight of the product to
ensure a solid installation
8、 Wipe the cover with soft cloth dipped a little neutral detergent, be sure not to use any
sandpaper, polishing powder or alcohol, gasoline and so on liquor
9、 Don’t connect cables with power on; make sure a correct connection and no short
circuit checked with instrument before power on.
10、 Don’t alter or tear up the label on controller for future system maintenance.
11、 Please don ’t dismantle or modify the product.
12、 If you need spare parts, please choose authentic version.
13、 If you have any questions, please contact your supplier.
This manual applies to this model product only, for more information, please contact our
staff.
Function Brief
HM-12RGB8A3-DMX512 Multifunction Full-color Controller is dedicated to control color
changes of Led lig hts w ith 4-pin 3-loop cables (common anode), this compact unit has a s mall
LCD panel, we adopt hi-performance micro processor as its core part with powerful function,
built-in DMX512 decoder (3 addresses) & up to 34 color changing modes. This unit can run
standalone or networking with multi controller, or work with DMX 512 console to receive
signals.
Ⅰ. Performance Parameter:
Input Voltage:
12/24 VDC
Input Signal:
DMX512(1990)
Transition
speed:
250Kbps
Output channel:
3 Channels
Output current:
8A/Channel(totall y 24A)
HM-12RGB8A3-DMX512 USER MANUAL
3
Remote control distance:
50m
Working temperature:
0~70℃
Description:
Within 36 modes, ,such as flash, fade, etc.
Ⅱ. Basic function:
1、 34 color jumping, color smooth patterns, each pattern’s parameter can be configured
separately.
2、 LED light dimming or color-depth selecting with 0-100 dimming levels per RGB.
3、 Edit auto running Mode & choose designated pattern.
4、 Supports universal DMX512 protocol, remote control with exterior DMX512 devices.
5、 Built-in a DMX512 Decoder (3 addresses).
6、 Used separately or connected to HM-12RGB8A3-EX power extension module,
unlimited quantities, t o hav e an unli mited power extension output
7、 All led lights can be controlled by operating the function button on the main controller,
easy and flexible when net working.
8、 Auto store parameter, don’t need repeat configuration next time.
9、 Restore default parameter(ex-factory parameter)
Ⅲ. Dimension Diagram:
HM-12RGB8A3-DMX512-AC110V-AC220V
IV. Top Panel Instruction
HM-12RGB8A3-DMX512 USER MANUAL
4

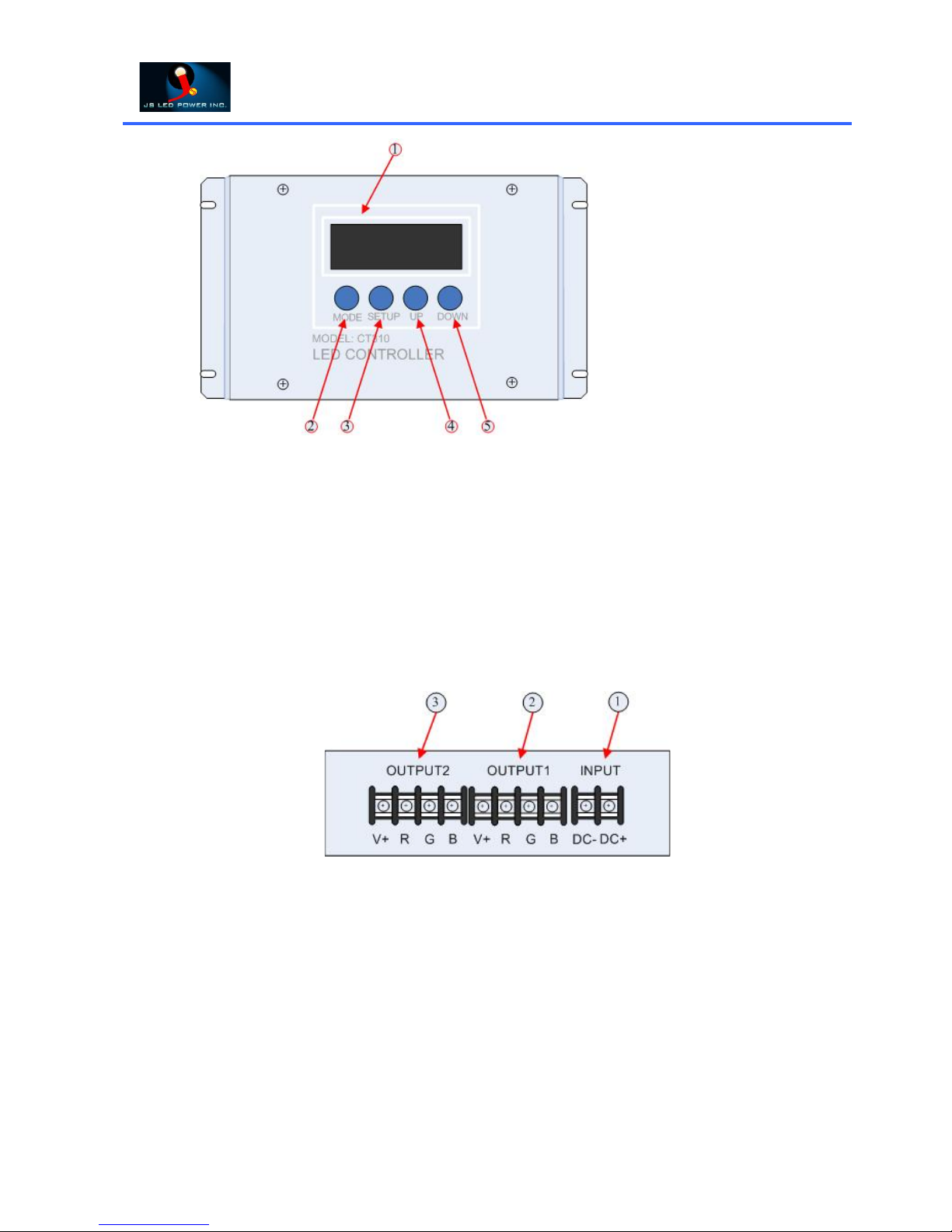

① LCD screen
② MODE: Change mode by pressing this button
③ SETUP: Press this button to set the pr og r am acc or ding to user's need
④ UP: Press this button to increase the parameter value of currently item ( keep pressing to
increase continuously), or choose next changing mode or reload default setting
⑤ DOWN: Press this button to decrease the parameter value of currently item (keep
pressing to decrease continuously), or choose last changing mode or reload default
setting.
V. Front Panel Instruction
① Power input terminals: 12V/24V DC. Make sure the right connection.
② Drive output terminals 1: Connect to LED modul es.
③ Signal output terminals 2: Connect to LED modules.
Remark: the signal of output port 1 is same with output port 2.
VI. Back Panel Instruction
HM-12RGB8A3-DMX512 USER MANUAL
5
① Switch of DMX512 signal terminator, turn to "on" to terminate DMX512 signal.
② RJ45 input/output interface: connect to DMX512 signal cable
③ XLR-3 male input/output interface: connect to DMX512 signal cable
④ XLR 3 Female output interface: connect to DMX512 signal cable
VII. Signal Interface Instruction
A. RJ45 interface
B. XLR 3 interface
VIII. Button Function of Remote Controller
HM-12RGB8A3-DMX512 USER MANUAL
6
T he usage of this remote controller is same with the buttons on panel; please refer to
"HM-12RGB8A3-DMX512 Top Panel Instruction" for details.
IX. Instruction
The controller has 4 function setting buttons: MODE、SETUP、UP、DOWN.
1. Press MODE or UP & DOWN to set color pattern in turn：
No
Display
Description
1
BLACK
All Off
2
STATIC RED
Static red
3
STATIC GREEN
Static green
4
STATIC BLUE
Static blue
5
STATIC YELLOW
Static yellow
6
STATIC PURPLE
Static purple
7
STATIC CYAN
Static cyan
8
STATIC WHITE
Static white
9
COLOR CHANGE
7 color jumping
10
COLOR CHANGE2
7 color jumping(flicker)
11
SIX COLOR CHANGE
6 color jumping
12
SIX COLOR CHANGE2
6 color jumping（flicker）
13
RGB CHANGE
3 color jumping
14
RGB CHANGE2
3 color jumping（flicker）
15
RG CHANGE
RG jumping
16
RB CHANGE
RB jumping
17
GB CHANGE
GB jumping
18
WHITE CHANGE
White screen flicker
19
COLOR SMOOTH
7 color gradual
20
RGB SMOOTH
3 color gradual
21
RG SMOOTH
RG gradual
HM-12RGB8A3-DMX512 USER MANUAL
7
22
RB SMOOTH
RB gradual
23 GB SMOOTH GB gradual
24 COLOR GRADUAL 7 color gradual fade &
change
25 RGB GRADUAL 3 color gradual fade &
change
26
WHITE GRADUAL
White fade
27
RG GRADUAL
Red/Green fade & change
28
RB GRADUAL
Red/Blue fade & change
29
GB GRADUAL
Green/Blue fade & change
30
R GRADUAL
Red fade
31
G GRADUAL
Green fade
32
B GRADUAL
Blue fade
33
ADJUST MODE
RGB 0-100 color depth
34 DMX512 DECODER Auto running selected
pattern
35
DMX512 MODE
DMX512 mode
36
AUTO PROGRAM
DMX512 decoder
2. HM-12RGB8A3-DMX512 Controller Programming Instructions
Mode 1-8 are static color mode without adjusting functions; Mode 9-32 (preset changing
mode), can be set the program speed, run times in the automatic mode, or reload default
value.
3. Press " SETUP" in stand by status:
Times Description Operation Parameter Remark
1 RUN SPEED
Press "UP"/"DOWN" to change
parameter value
0-100
Press "
MODE" to
exit
2 RUN TIMES
0-100
3
LOAD
DEFAULT
Press "UP"/"DOWN" to load default
factory
default
Remark: “RUN TIMES“is the running times of this mode under automatic mode.
4. RGB color adjustable mode program instruction:
User can adjust the brightness of R, G, and B separately, and the value will display on
LCD screen:
Step 1: Press “MODE" to select Mode
Step 2: Press “SETUP” to set brightness of Red, change value by "UP" / " DOWN"
Step 3: Press “SETUP" again to set brightness of Green, change value by "UP" / " DOWN"
HM-12RGB8A3-DMX512 USER MANUAL
8
Step 4: Press “SETUP" again to set brightness of Blue, change value by "UP" / " DOWN"
Step 5: Press “SETUP" again to reload default value, press “UP" or "DOWN", the R, G, B
brightness will reload factory default.
Step 6: Press “MODE" to exit.
DMX512 decoder program instruction:
X. DMX512 decoder program instruction:
The controller can be set as a DMX512 decoder (3 channels), and select desire DMX512
address as follows:
Step 1: Press "MODE" to select mode 34: DMX512 decoder
Step 2: Press “SETUP” to set DMX512 address, change value by "UP" / " DOWN"
Step 3: Press “MODE" to exit
XI.DMX512 mode program instruction:
The controller can be set as a 3 channels controller which was controlled by a DMX512
controller. Set the DMX address as follows:
Step 1: Press "MODE" to select mode 35: DMX512 mode
Step 2: Press “SETUP” to set DMX512 address, change value by "UP" / " DOWN"
Step 3: Press “MODE" to exit
to select the led c olor c hanging mode accor di ng to t he dmx51 2 par amet er v alue i n thi s mo de. the
DMX512 value with corresponding mode as following:
0: Black(all off) 8: 7-color jumping 16: GB jumping 24: RGB fade in, fade out
1: Static Red
9: 7-color flicker 17: White jumping 25: White fade in, fade out
2: Static Greed 10: 6-color jumping 18: 7-color gradual change 26: RG fade in, fade out
3: Static Blue 11: 6 color flicker 19: RGB gradual change 27: RB fade in, fade out
4: Static yellow 12: RGB jumping 20: RG gradual change 28: GB fade in, fade out
5: Static purple 13: RGB flicker 21: RB gradual change 29: Red fade in, fade out
6: Static cyan 14: RG jumping 22: GB gradual change 30: Green fade in, fade out
7: Static white 15: RB jumping
23: 7-color fade in, fade out 31: Blue fade in, fade out
Automatic mode program instruction:
User can select some of 9-32 modes or all of them to run automatically under this mode
according to each mode's speed and run times value.
To reload factory default:
Step 1: Press “mode to select mode 36
Step 2: Press “SETUP”, then press ' UP' / ' DOWN" to reload default
Step 3: Press “MODE" to exit
HM-12RGB8A3-DMX512 Wiring Diagram
HM-12RGB8A3-DMX512 USER MANUAL
9
