Installation Instructions
Page 1 of 3Apogee
Recommended Tools
Screw Gun
Tape Measure
Level
Hardware Used
3
/
”
#8 x
4
Flat Head Wood Screws
1
/
#8 x 1
”
4
Wall Storage
Configuration
#2 Phillips Head Bit
#2 Phillips Screw Driver
Flat Head Wood Screws

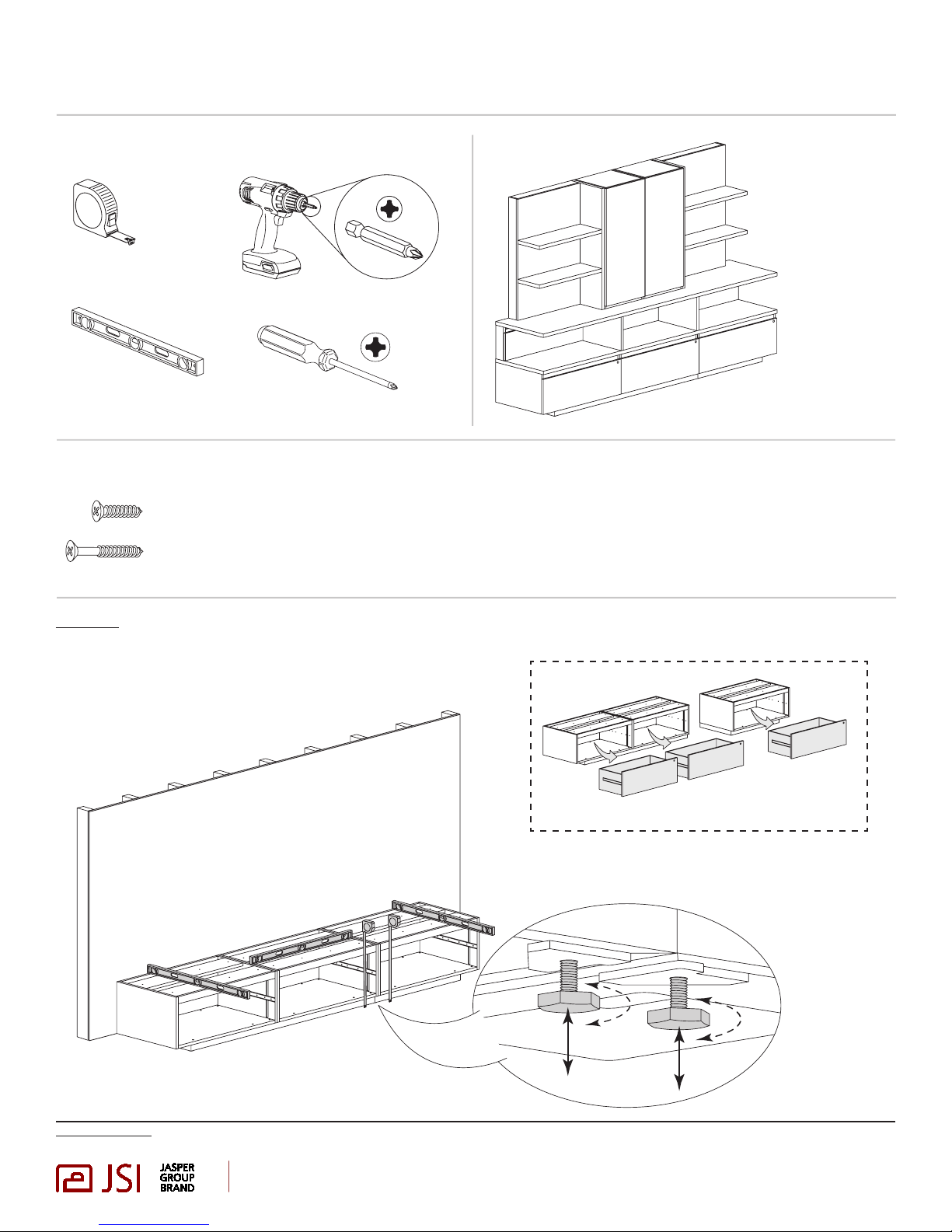

Step 1
Level Lateral Files
• Position lateral files in desired location against wall.
• Level all lateral files front-to-back and side-to-side
by rotating adjustable glides.
• Lateral files that share same worksurface are to
be adjusted to same height.
Note: Remove Drawers for easier installation
Notice To Installers: Failure to comply with installation instructions will compromise the safety, durability and performance of this product, which may risk injury to the user of this
product and/or diminish the product life cycle. Jasper Group assumes no liability in these instances.
jsifurniture.com
800.457.4511
812.482.3204 O
812.482.1548 F
225 Clay Street / PO Box 231
Jasper, Indiana 47546
Form No. INST-AP001
12/13/16
Apogee
Installation Instructions
Page 2 of 3

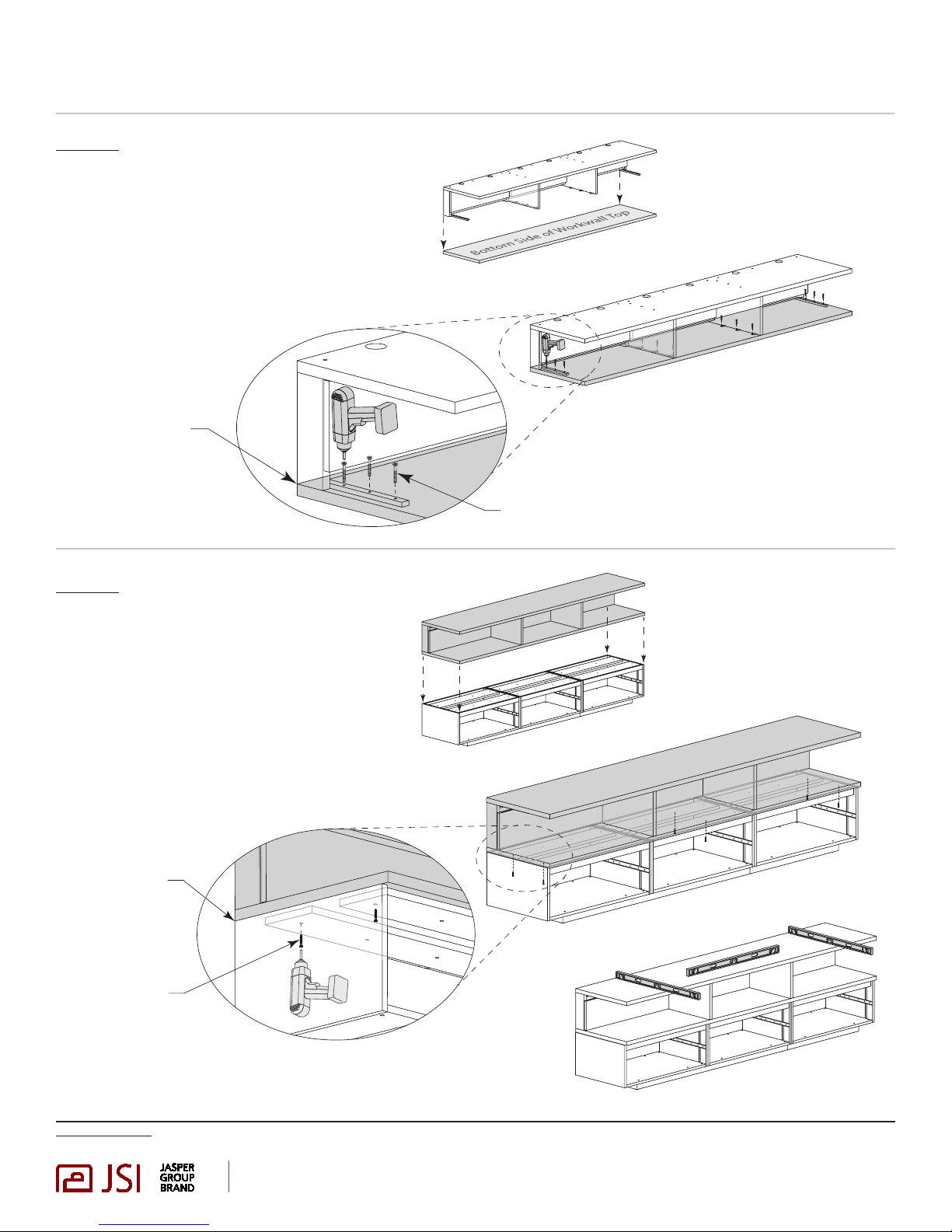

Step 2
Attach Workwall Top to
Kneespace Access Panel
• Place workwall top face down on flat, smooth,
soft floor, as not to scratch/mar surface.
• Carefully flip kneespace access panel upside
down and place onto workwall top. Position
unit flush with back and ends of workwall top.
• Fasten unit to top using #8 x 1
Flush to back
and ends
1
/
”
4
wood screws.
Step 3
Attach Kneespace Access
Panel to Lateral Files
• Carefully lower kneespace access panel onto
storage units. Position unit flush with back
and ends of storage units.
• Fasten units to top using factory predrilled holes,
#8 x 1
• Check that unit is level, adjust accordingly.
1
/
”
4
wood screws.
#8 x 1
Wall Storage
Configuration
(continued)
1
/
”
4
Flush to back
and ends
1
/
#8 x 1
Notice To Installers: Failure to comply with installation instructions will compromise the safety, durability and performance of this product, which may risk injury to the user of this
product and/or diminish the product life cycle. Jasper Group assumes no liability in these instances.
”
4
jsifurniture.com
800.457.4511
812.482.3204 O
812.482.1548 F
225 Clay Street / PO Box 231
Jasper, Indiana 47546
Form No. INST-AP001
12/13/16
Apogee
Installation Instructions
Page 3 of 3

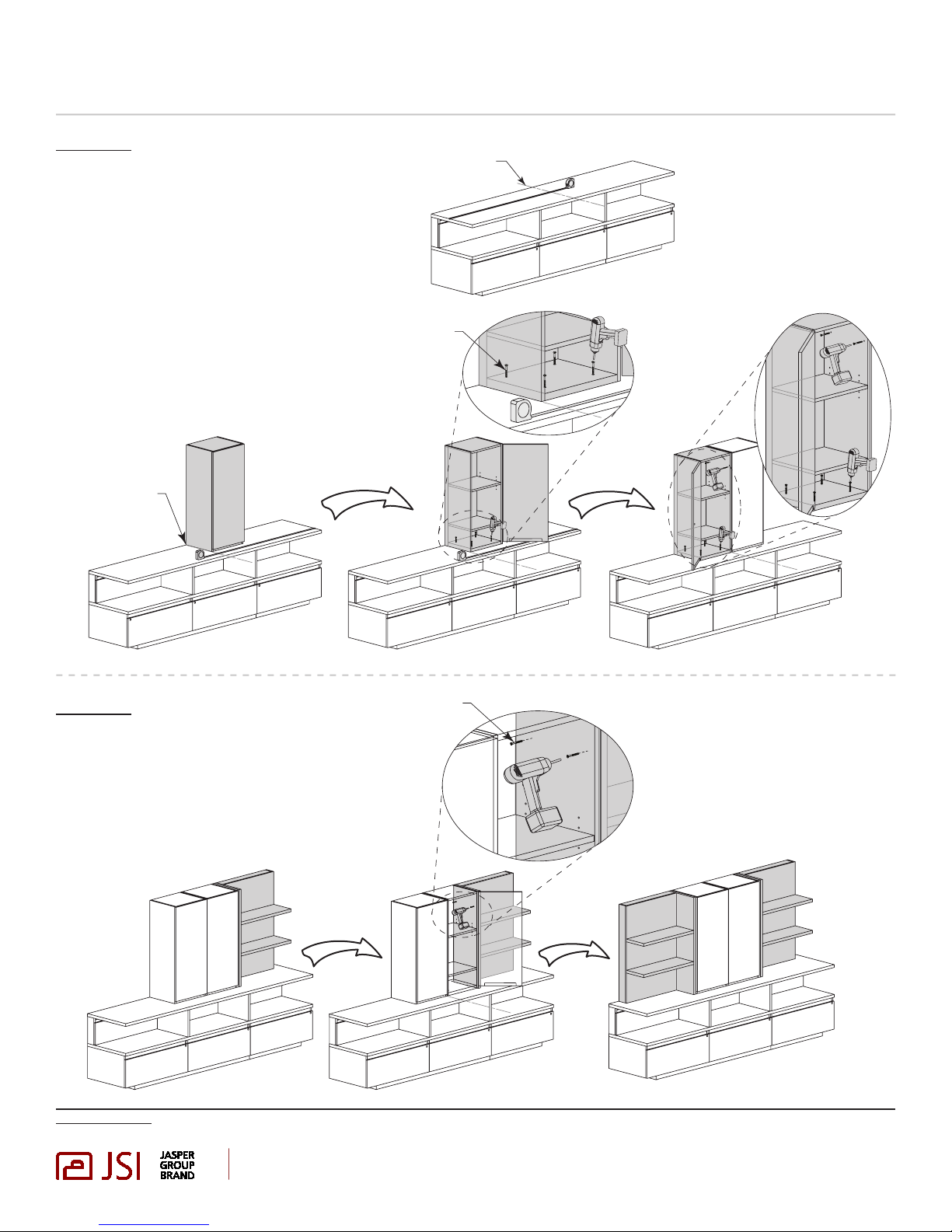

Step 4a
Attach Central Storage Towers to
Kneespace Access Panel
• Use tape measure to locate center of
workwall top.
• Carefully place storage tower onto
worksurface. Position unit flush with back,
and edge of unit flush to centerline of
workwall top.
• Fasten unit to worksurface using factory
pre-drilled holes, #8 x 1
• Place opposite handed storage tower flush
and adjacent to previous unit. Secure to
both worksurface to and adjecnt unit using
#8 x 1
Flush to back
and flush with
centerline
1
/
”
4
wood screws.
1
/
”
4
wood screws.
#8 x 1
Centerline
1
/
”
4
Wall Storage
Configuration
(continued)
1
/
Step 4b
#8 x 1
”
4
Attach Asymmetric Shelves to
Storage Towers
• Carefully place shelving unit flush with
back and fasten to adjacent storage
tower using #8 x 1
• Repeat step for opposite handed
shelving unit to complete assembly.
Notice To Installers: Failure to comply with installation instructions will compromise the safety, durability and performance of this product, which may risk injury to the user of this
product and/or diminish the product life cycle. Jasper Group assumes no liability in these instances.
1
/
”
4
wood screws.
