USER GUIDE
Nano SPY
Ref : 11816C
TABLE OF CONTENTS
I. INTRODUCTION ........................................................................................................................................ 3
a) Product contents ....................................................................................................................................................... 3
b) Symbols ...................................................................................................................................................................... 3
II. INSTALLATION RECOMMANDATION ................................................................................................................ 3
a) Sources of disturbances or attenuation .................................................................................................................... 3
b) Positioning ................................................................................................................................................................. 4
III. PRESENTATION ........................................................................................................................................ 4
a) Control unit ................................................................................................................................................................ 4
b) Mounting ................................................................................................................................................................... 4

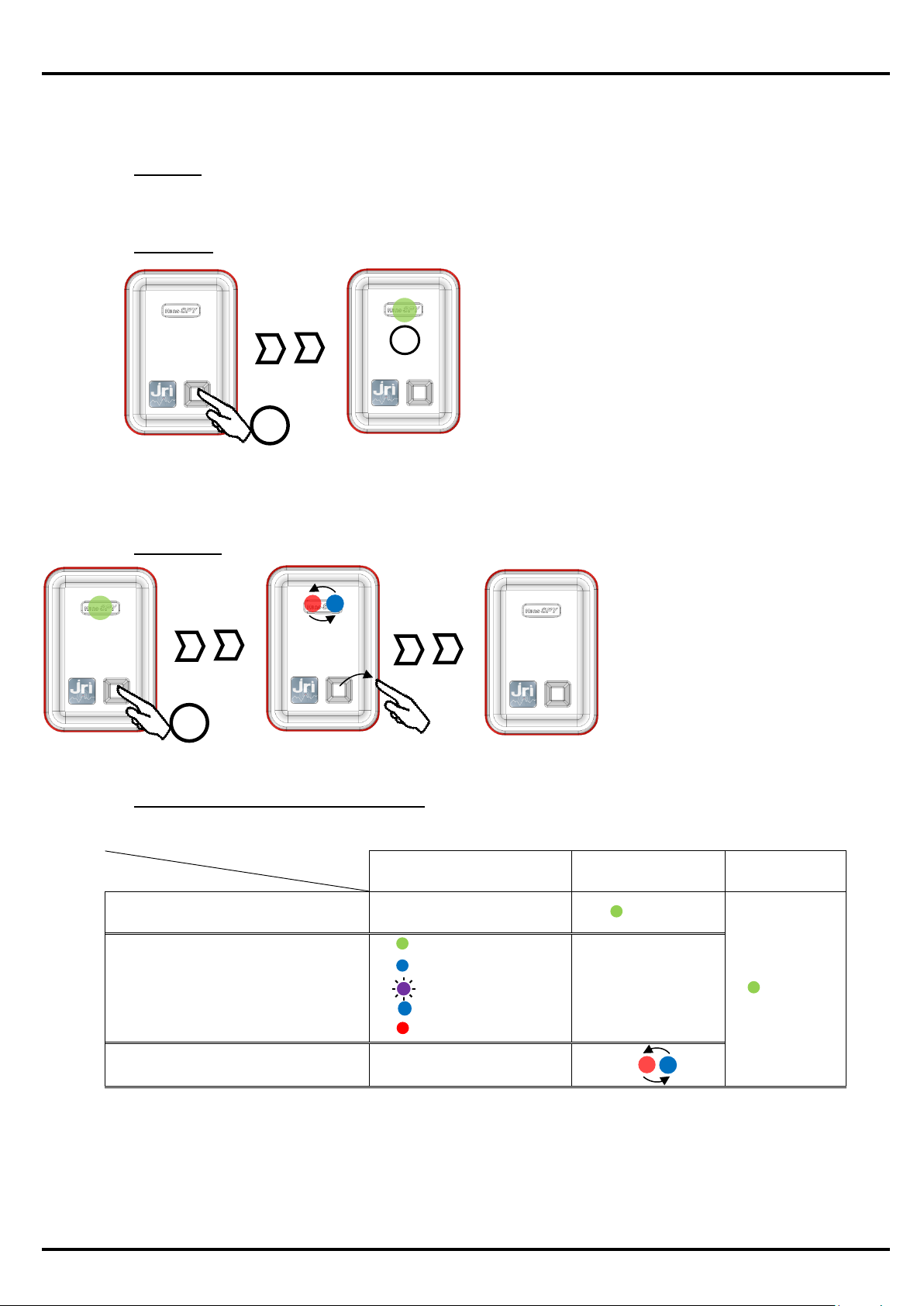

IV. USE ...................................................................................................................................................... 5
a) Off state ..................................................................................................................................................................... 5
b) Activation ................................................................................................................................................................... 5
c) Turning Off ................................................................................................................................................................. 5
d) Actions on the touch-sensitive button ...................................................................................................................... 5

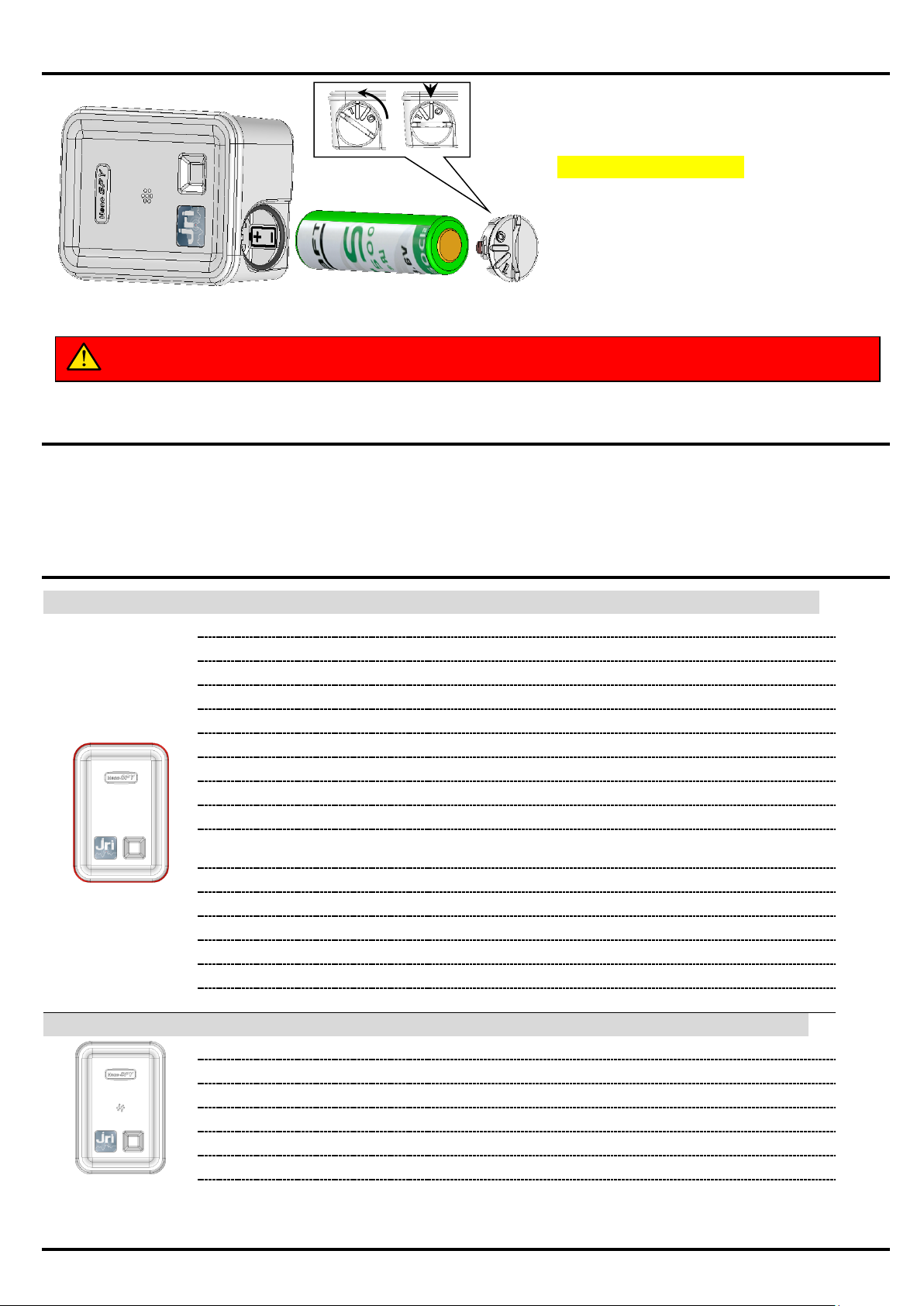

V. BATTERY REPLACEMENT ............................................................................................................................. 6
VI. MAINTENANCE ........................................................................................................................................ 6

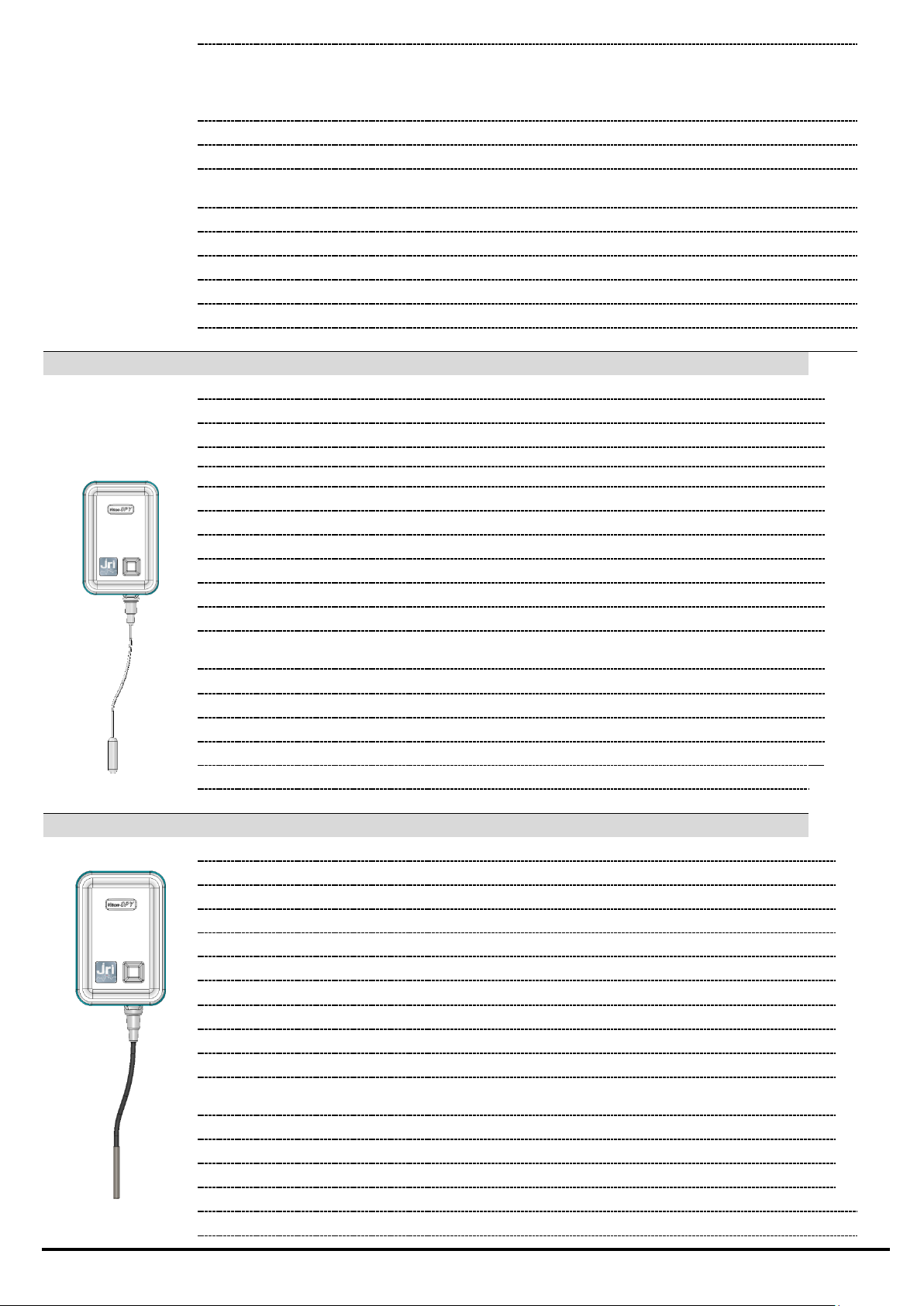

VII. CHARACTERISTICS ..................................................................................................................................... 6
a) Compliance ................................................................................................................................................................ 9

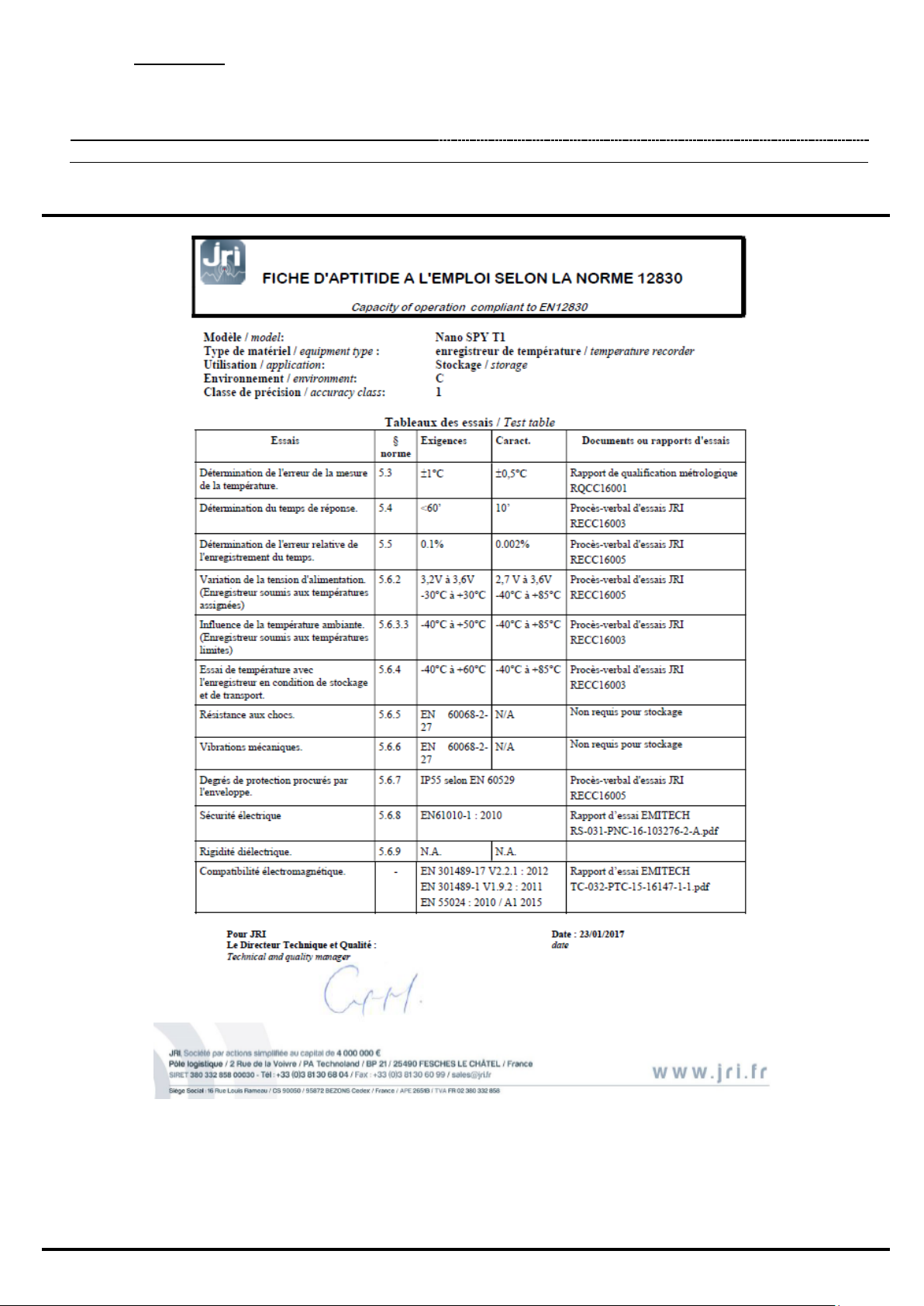

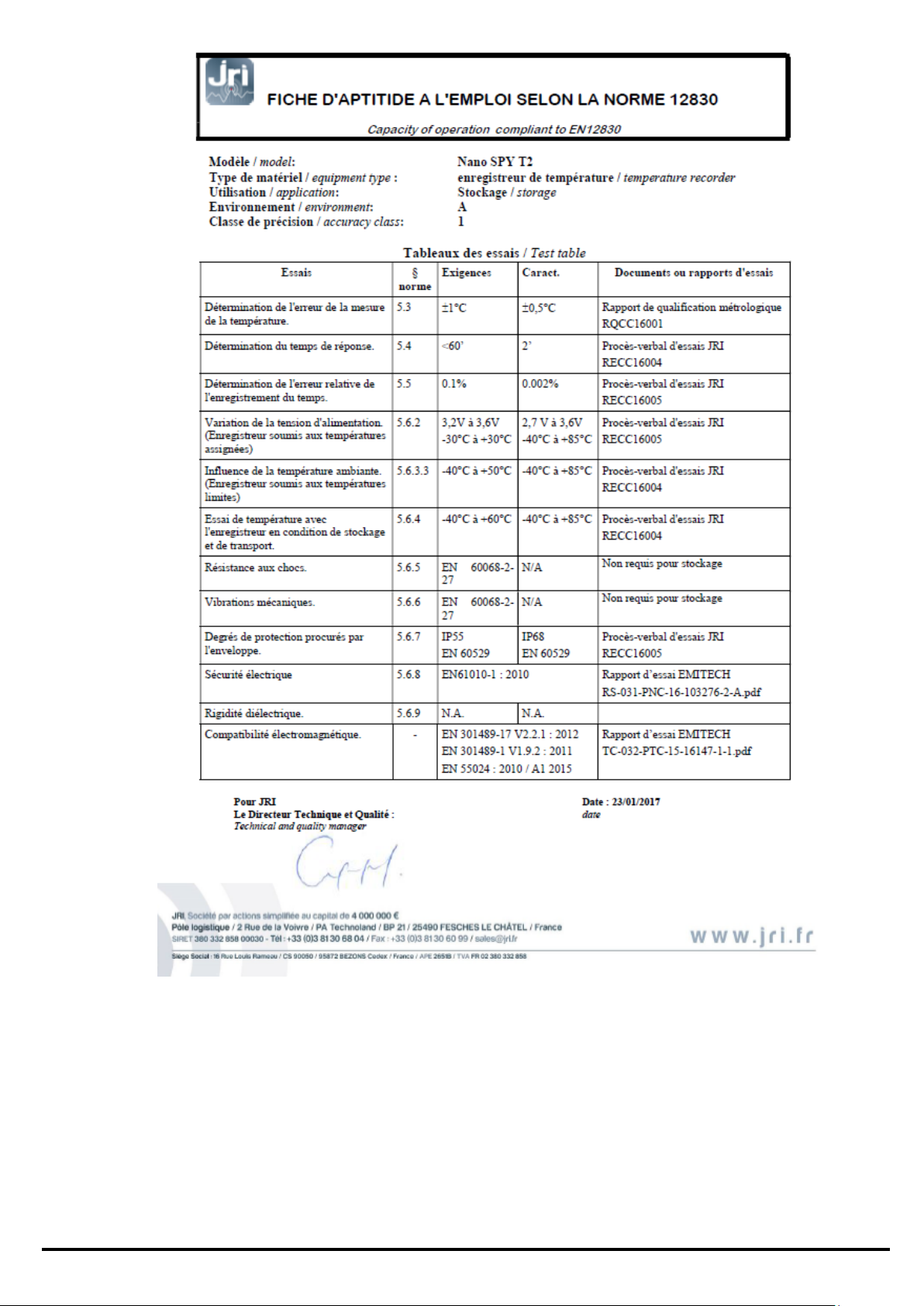

VIII. SUITABILITY FOR USE ................................................................................................................................. 9
IX. WARANTY ............................................................................................................................................. 11
X. MAINTENANCE CONTRACT ......................................................................................................................... 11
XI. ENVIRONMENTAL PROTECTION .................................................................................................................... 11
©JRI 2
I. INTRODUCTION
RECYCLING: do not dispose of in a refuse dump or waste disposal bin. Comply with existing legislation for disposal.
Power source: this device is powered by a 3.6VDC type AA lithium battery (§ ch. V).
CE LABELING: this device is certified to conform to European regulations for electrical safety, flammability, disruptive
electromagnetic emissions, and immunity to environmental electrical disturbances.
FCC ID : W45 11560
This device complies with part 15 of the FCC rules. Operation is subject to the following two condition:
1. This device may not harmful interference,
2. This device must accept any interference received, including interference that may cause undesired operation.
The grantee is not responsible for any changes or modification not expressly approved by the party responsible for compliance.
Such modifications could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
The Nano SPY is a digital probe pe capable of measuring 1 or 2 physical quantities (T or TH depending on the
model) and transmitting by radio to monitoring software hosted on a Web platform through a Nano Link.
The Nano SPY complies with EN 12830 with temperature probes only, and is compatible with EN 13486
which defines procedures for periodic verification.
a) Product contents
1 Nano SPY
1 User guide
b) Symbols
Do not use the device under conditions other than those described in the technical
characteristics
Risk of fire or explosion in the case of improper use:
- Recharging of the battery
- Short circuiting of the battery
If the device is used in a manner not specified by the manufacturer, the protection
provided by the device may be compromised.
II. INSTALLATION RECOMMANDATION
To ensure optimal radio transmission, a certain number of recommendations must be respected, as any
wireless transmission is subject to disturbances.
a) Sources of disturbances or attenuation
The presence of obstacles in the wave path between the Nano SPY and the Nano SPY Link (wall,
furniture, people…) or near the antenna.
©JRI 3
The thickness of an obstacle in the wave path. The attenuation is greater diagonally than
perpendicularly.
A solid metal wall will not allow transmission by radio. A perforated metal wall will allow waves
Modèle T1/TH
Model T2/T3
Status LED
Touch-sensitive
button
Battery access
(All models)
Identifying ring
(All models)
To sensor
Mounting eyelets
(All models)
Mounting eyelets
(All models)
Magnetic wall
support bracket
to pass while attenuating them.
b) Positioning
The Nano SPY units can be placed either inside or outside the enclosures.
For installations outside the enclosure, mount the units sufficiently high on the walls to avoid
interference with obstacles and foot traffic.
Insofar as is possible, place the Nano SPY LINK in a central position relative to the measurement
points.
Try to place them in locations where they are visible
Never place the Nano SPY unit horizontally.
If difficulties persist it is possible to use Nano SPY ALARMs (repeaters) or connect to another
Nano SPY LINK on the Ethernet network.
To ensure your safety during installation or an intervention on a device placed in a high
position, use proper equipment which is in good condition and provides adequate
stability, wear appropriate, non-slip shoes and install warning signs around the work
area if the intervention takes place in an area of foot traffic.
III. PRESENTATION
a) Control unit
b) Mounting
The Nano SPY can be mounted in 2 different ways
Using a tie wrap to attach it to the monitored product
Magnetically
The Nano SPY has 2 internal magnets for mounting on magnetic metal walls. A magnetic support
bracket is available as an option (Ref: 11796)
©JRI 4
