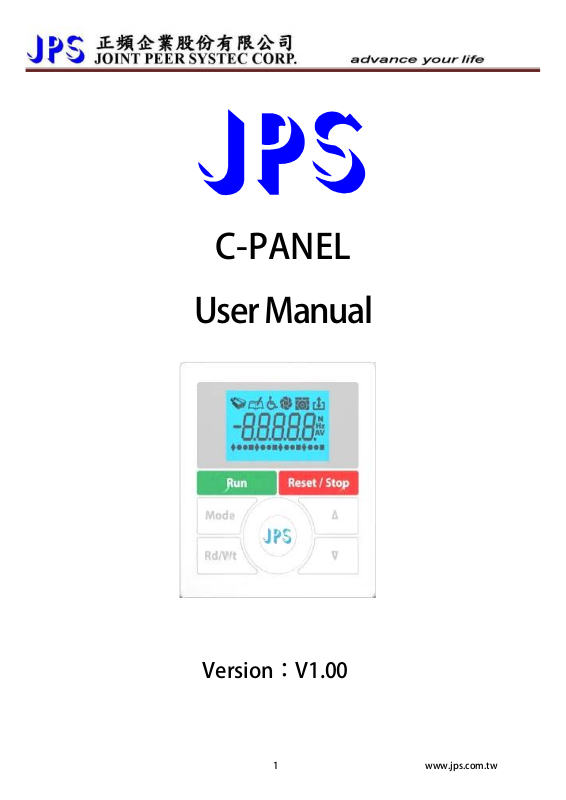

C-PANEL
User Manual
Version：V1.00
1 www.jps.com.tw
目錄:
1. C-Panel Description .......................................................................................................................................3
1.1 C-Panel Appearance Introduction ................................................................................................3
1.2 Monitor Graphical Description ......................................................................................................3
1.3 The Start up Message of Panel.......................................................................................................4
2. C-Panel Opearation Guide............................................................................................................................5
2.1 Lock and unlock ...............................................................................................................................5
2.2 Change Mode ...................................................................................................................................5
2.3 Monitor Mode...................................................................................................................................5
2.3.1 Select the monitoring item .......................................................................................................5
2.3.2 To Run or Stop the motor ..........................................................................................................5
2.3.3 Use th fly wheel function in the monitor mode.....................................................................6
2.3.4 Use fly wheel and up/down keys to edit data........................................................................6
2.4 Parameter Mode (Select，Read，Edit，Write) ..........................................................................7
2.4.1 Select the parameter to edit or read........................................................................................8
2.5 Alarm Mode ......................................................................................................................................9
2.6 (RESET)...............................................................................................................................................9
3. C-Panel SIZE ..................................................................................................................................................10
2 www.jps.com.tw
1. C-Panel Description
k
r
1.1 C-Panel Appearance Introduction
LCD Display
Run the Drive
Mode Switch
Read / Write
Lock / Unloc
1.2 Monitor Graphical Description
Alarm Mode
Parameter Mode
Monitor Mode
5-digital Numerical Displahy
Negative Symbol
Reset or Stop the Driver
Move Up or Add
Move Down or Decrease
Fly Wheel
Fly Wheel Mode
Status of Touch Key
Communication Status
N, Hz ,A, V
data type indicator
DI Status Bar
Status of DI1 Status of DI16
The DI Status Bar shows the on/off status of DI1 ~ DI16 for real time.
。
3 www.jps.com.tw
1.3 The Start up Message of Panel
(1). After Start up the display will show the panel’s software version firstly.
P8b10
v8b15
)
)
(the sample shows the version
(2). Then the display changes the message to show company’s logo.
(the sample shows
(3). Then the display changes the message to show the fitting motor type.
(the sample shows
(4). Then the display changes the message to show the driver’s software version.
(the sample shows the version
(5). At last, the display changes the status to show the monitor mode.
-JPS-
)
Induc
- Induction type)
Only
, and keys can be operated at this status.
4 www.jps.com.tw
2. C-Panel Opearation Guide
When power-on start or reset the panel, the key will be locked and need user to unlock it. After user left it after 10
minutes for not using, the panel will lock the keys automatically。
2.1 Lock and unlock
at least 1 sec, till 4 beeps sound.
Press
The panel will be unlocked.
After unlock the panel, to do this proceedure again will lock the panel.
Keep unprocees this panel for 10 minutes, the panel will lock the key function automatically.
After unlock process, the display will show “unloc”; after lock process, the display will show “loc”
2.2 Change Mode
At any status
By pressing this bottom, can enter these different modes sequentially:
Monitor mode
Parameter mode
Alarm mode
Press
2.3 Monitor Mode
2.3.1 Select the monitoring item
When in
Monitor mode
By using the up/down keys, can select the monitoring item:
N Motor’s speed.
Hz The output frequency.
A Output current.
V Output voltage.
Press
or
2.3.2 To Run or Stop the motor
When in
monitor mode
Press
Will start the motor to run, or
When in
monitor mode
Press
Will stop the motor.
In order to operate the run and stop function on the control panel, the condition list below should be satisfied:
Pr.065=0 FWD terminal function: no function.
Pr.068=73 Set the virtual input function: FWD function.
Pr.059=1 Control panel RUN / STOP function switch: enable.
5 www.jps.com.tw
twice (within 0.5sec)
twice (within 0.5sec)
2.3.3 Use th fly wheel function in the monitor mode
In monitor mode, can enter the fly wheel mode by touching and draw on the wheel.
or
If enter the fly wheel mode successfully, the icon
display will show the present speed, and the latest digital will flash to notice that the data is ready to be edit.。
will be showed on the display; in the mean time, the
2.3.4 Use fly wheel and up/down keys to edit data
Change the edit position
Touch the right or left side
of the wheel lightly
By using this way, can change the edit positon to save the operation time.
Edit the value
1. Using the fly wheel to change the value
to change the edit
position.
or to increase or decrease the value.
2. Using up/down keys to change the value
press
Bothe of these two ways can be used to change the value.
Write
Press
twice within 0.5sec, the value will be written into memory.
or
to change the value.
6 www.jps.com.tw
2.4 Parameter Mode (Select，Read，Edit，Write)
Press to enter parameter mode.
After enter parameter mode, LCD display will show Pr.000.
In the parameter mode should follow the steps list below to read or change the parameter’s value.
1. Select parameter.
2. Read out the value of parameter.
3. Enter edit mode to change the value, if you wish.
4. Write down the value into the parameter and save in memory.
5. Exit from edit mode to select another parameter, or
exit to the top level to change to another operation mode.
7 www.jps.com.tw
2.4.1 Select the parameter to edit or read
【NOTICE】All the operation described below can only work under the condition of the (parameter mode) or
(edit mode).
By using the operation described below, can select parameter, read value, edit value and write the value into
parameter.
1. Select parameter
Enter select parameter mode
Press
or
Touch one of the left or
right side of wheel
lightly.
By these processes, the least digital of displayed data will be flashed to indicate that is ready to be edit.
Change the edit position
Touch the left or right
Enter parameter number
to enter select parameter mode.
to enter select
parameter mode.
to change the edit
position.
or
Press
or
to increase or decrease value.
or
Draw on the fly wheel
to change the value.
circularly
2. Read the value of parameter
In
3. Edit parameter value
4. Write down the parameter value
The proceedures of editing and writing the parameter value are same with the proceedure that are
introduced in paragraph 02.3.4 .
5. Return
mode to read parameter value.
press
Press to return to previous mode sequentially.
8 www.jps.com.tw
2.5 Alarm Mode
Press to select alarm mode.
then
In mode
Press
By using Up or Down keys, can show A0 ~ A3 alarm messages sequentially:
A0 Showing the present alarm message.
A1 Showing the alarm message previous than A0.
A2 Showing the alarm message previous than A1.
A3 Showing the alarm message previous than A2.
** After power on or reset, all alarm record will be shift by the sequence A0A1A2A3, and the record A0 will
be refresh by present status.
or
2.6 (RESET)
In
mode Press
This procedure will reset the driver and panel itself, and the effect like power-on restart.
Twice within 0.5sec.
9 www.jps.com.tw
3. C-Panel SIZE
C- PANEL
面板尺寸
(PANEL SIZE)
開孔建議
(hole size recommendation)
(Unit:mm)
10 www.jps.com.tw
