JOYTECH DKC500DC Original Operating Instructions

DKC500DC GATE OPENER

ORIGINAL OPERATING INSTRUCTIONS

DEAR CUSTOMER,

THANK YOU FOR PURCHASING THIS PRODUCT. PLEASE READ ALL THE INSTRUCTIONS IN THIS
MANUAL CAREFULLY, BEFORE YOU ASSEMBLE OR USE THE PRODUCT. SHOULD YOU PASS ON THIS
PRODUCT TO THIRD PARTIES, PLEASE HAND OVER THE INSTRUCTION MANUAL ALONG WITH IT.

IMPORTANT SAFETY INFORMATION

MAKE SURE THE POWER SUPPLY (AC110V OR AC220V) OF THE GATE OPERATOR IS SUITABLE FOR THE POWER SUPPLY OF THE ELECTRICAL
OUTLET YOU ARE USING.

DO NOT ALLOW CHILDREN TO PLAY WITH FIXED CONTROLS. KEEP REMOTE CONTROLS AWAY FROM CHILDREN.

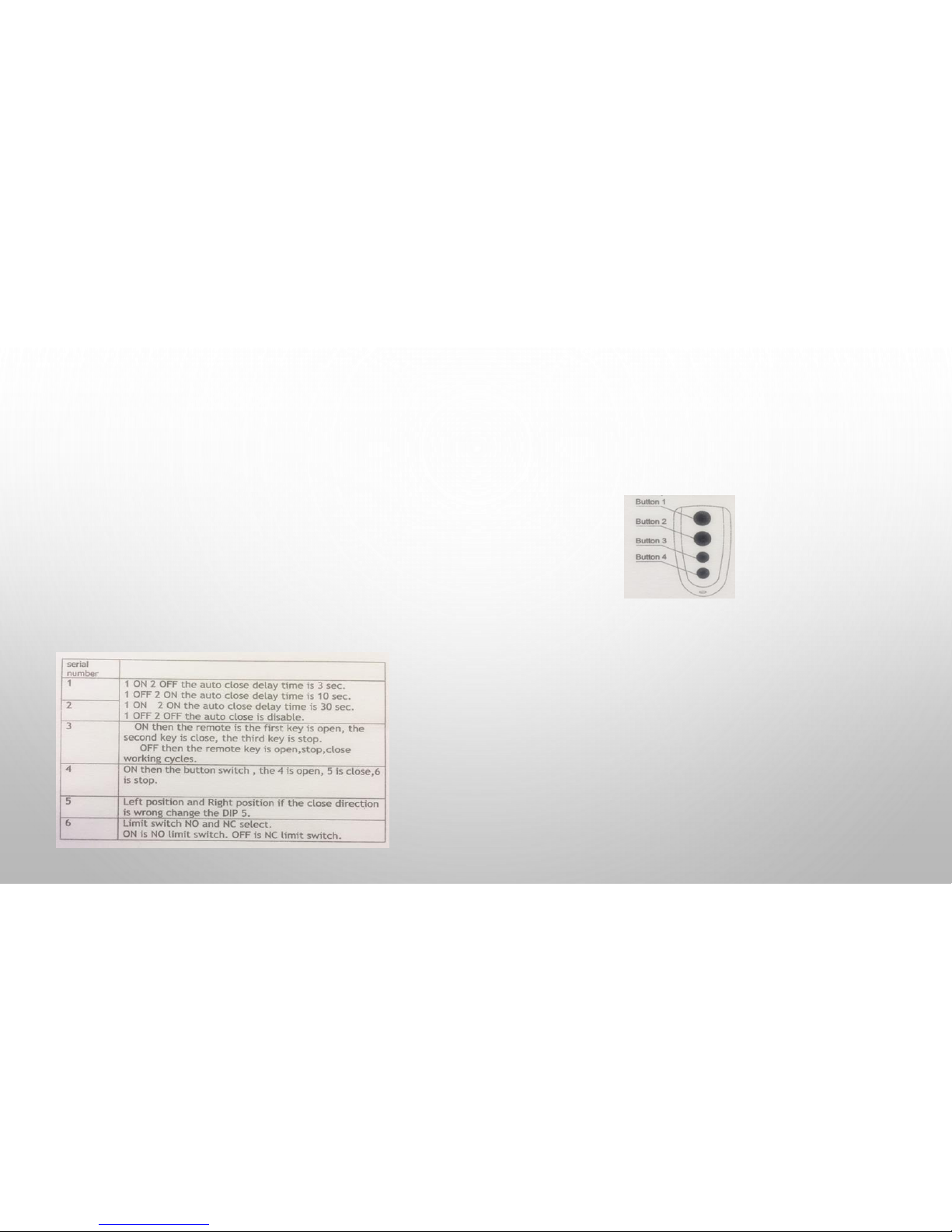

REMOTE CONTROL IS SINGLE BUTTON CONTROL, IT MEANS THAT ONE BUTTON CONTROL ON, STOP, OFF MOLD, WHEN PRESSING BUTTON
FOR EACH MOLD, THE INDICATOR LIGHTENED.

IN ADDITION TO THE REMOTE CONTROL OPERATING MOLD, MANUALLY FREE THE KEY CAN BE USED TO LIBERATING THE MOTOR AND DOOR,

THE DOOR CAN BE RUN MANUALLY, PULL DOWN THE RELIEF HANDLE 90 DEGREES INTO HORIZONTAL POSITION FOR RELIEF, RELIEF THE
HANDLE AND CLOSE FOR LOCKING.

SEE INSTRUCTIONS 9.

WHEN OPERATING A BIASED-OFF SWITCH, MAKE SURE THAT OTHER PEOPLE ARE KEPT AWAY.

FREQUENTLY EXAMINE THE INSTALLATION FOR IMBALANCE AND SIGNS OF WEAR OR DAMAGE TO CABLES, SPRINGS AND MOUNTING. DO
NOT USE IF REPAIR OR ADJUSTMENT IS NECESSARY.

THIS EQUIPMENT IS NOT SUITABLE FOR PERSONS WITH REDUCED PHYSICAL OR SENSORY AND MENTAL CAPABILITIES, LACK OF EXPERIENCE
OR KNOWLEDGE (INCLUDING CHILDREN),

UNLESS THEY HAVE BEEN GIVEN SUPERVISION BY A PROFESSIONAL PERSON.

REPAIRS MAY ONLY BE CARRIED OUT BY PROFESSIONALS WITH THE APPROPRIATE KNOWLEDGE ABOUT THE DEVICE.

PARTS LIST

GATE OPERATOR 1

MAGNETIC LIMIT BLOCK & MAGNET 1

SCREW M6X20 FOR SPRING LIMIT BLOCK 4

REMOTE CONTROL 2

KEY (MANUAL OPERATION) 2

HOOK FOR GATE OPERATOR 4

NUT (M8) FOR GATE OPERATOR 8
