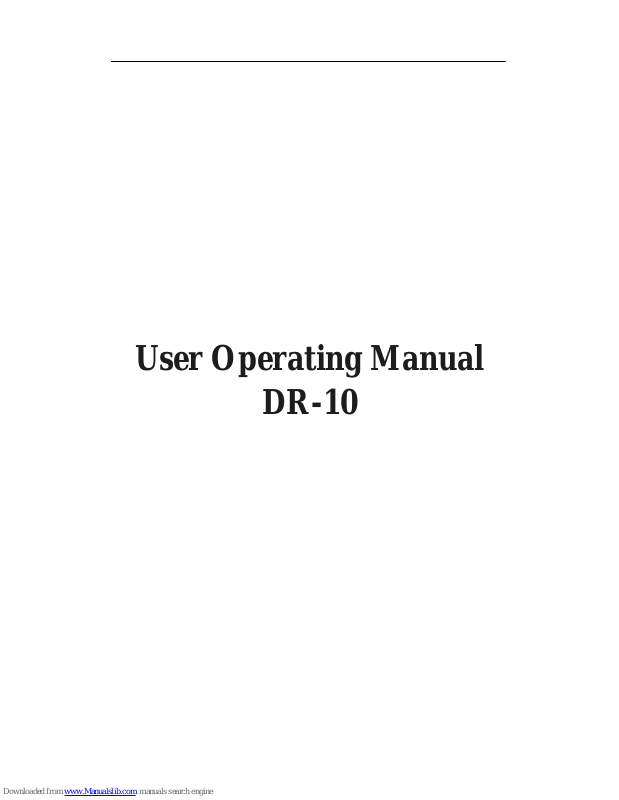

User Operating Manual
DR-10
Contents
Contents ....................................................................................................................................... - 2 -
1 Introduction ................................................................................................................................ 1
1.1 Acknowledgements .......................................................................................................... 1
1.2 Precautions ....................................................................................................................... 1
1.3 Safety Notice .................................................................................................................... 2
2 Brief introduction for MID product ........................................................................................... 3
2.1 Diagram for MID complete machine ............................................................................... 3
2.2 Introduction to accessories of MID .................................................................................. 5
2.3 Use and preparation of MID Battery charging ................................................................. 5
3 Quick start .................................................................................................................................. 5
3.1 Key function..................................................................................................................... 5
3.2 Starting up and turning off ............................................................................................... 6
3.3 Unlocking and closing of the screen ................................................................................ 6
3.4 Use of touch screen .......................................................................................................... 7
3.5 Homepage interface ......................................................................................................... 8
3.6 Access to application program ....................................................................................... 11
3.7 USB connection ............................................................................................................. 12
3.8 Memory card .................................................................................................................. 14
3.9 Character input ............................................................................................................... 14
3.10 Application Technique ................................................................................................... 16
4 Connection Establishment ........................................................................................................ 18
4.1 WIFI Connection ........................................................................................................... 18
4.2 3G Connection .......................................................... Chyba! Záložka není definována.
4.3 Bluetooth Connection .................................................................................................... 19
5 Communication ........................................................................................................................ 20
5.1 E-mail ............................................................................................................................. 20
6 Multi-media .............................................................................................................................. 22
6.1 Music ............................................................................................................................. 22
6.2 Camera ........................................................................................................................... 24
6.3 HDMI ............................................................................................................................. 25
6.4 Media Browser ............................................................................................................... 26
7 Internet ..................................................................................................................................... 28
7.1 Browser .......................................................................................................................... 28
8 Other Applications ................................................................................................................... 32
8.1 Alarm clock .................................................................................................................... 32
8.2 Calculator ....................................................................................................................... 33
8.3 File Management ........................................................................................................... 33
9 Basic Settings ........................................................................................................................... 34
9.1 Sound and Display ......................................................................................................... 34
9.2 Security and Location .................................................................................................... 35
9.3 Storage ........................................................................................................................... 36
9.4 Date and Time ................................................................................................................ 37
9.5 Language and Input Method .......................................................................................... 37
9.6 About Tablet PC ............................................................................................................ 38
10 Installation and Management of Program ................................................................................ 38
10.1 Installation ..................................................................................................................... 38
10.2 Management and Uninstall ............................................................................................ 39
11 Troubleshooting ....................................................................................................................... 39
1
1 Introduction
1.1 Acknowledgements
Many thanks for you choosing this product. The product belongs to MID(Mobile Internet
Device), which is a kind of mobile internet device, delicate, small and exquisite, and
also portable. It is also equipped with a piece of touch LCD of high definition, which
can be used to watch vedios and pictures of high definition. It supports installation of
multiple application programs on office and entertainment. The fantastic operation
interface will give you a brand-new user experience.
This manual systematically introduces diversified functions, using skills and matters needing
attention of this MID, please read this manual carefully before using it.
1.2 Precautions
Maintenance and Curing
Please keep the device dry. Please don’t let the device, battery and charger contact water
and water vapor or operate device or charger with wet hand, so as not to result in short
circuit of the device, breakdown caused by corrosion and electric shock of personnel.
Please don’t let the device, battery and charger receive strong impact or shock, for fear
of bringing about breakdown, catching fire or explosion of device, battery and charger.
Please don’t place the device, battery and charger in regions with too high or too low
temperature, otherwise, breakdown, catching fire or explosion of device, battery and
charger may be led to.
Please don’t strike, throw or pinprick the MID, and falling, extrusion and bending of
MID must be avoided.
2
Please don’t dismantle the device and its accessories on yourself, otherwise, the device
and its accessories will be out of warranty scope by our company.
1.3 Safety Notice
Before using MID, please read information in this section, and make your children learn
about the information. About more detailed information, please refer to safety instructions
and matters needing attention.
Please don’t use MID when you are driving, for fear of hindering safe driving.
In medical places, please observe relevant stipulations and regulations. And in regions
near the medical devices, please shut down MID.
Please shut down MID or enable the airplane mode when boarding, so that the wireless
signals will not interfere control signal of the airplane.
Please shut down MID neighboring electronic equipments with high accuracy, otherwise,
breakdown of electronic equipments may be brought about.
Please don’t dismantle the MID and its accessories on yourself, and only the authorized
agency can maintain this MID.
Please keep MID far away from magnetic equipment, radiation from MID will erase
information stored on the magnetic equipment.
Please don’t use MID in places with high temperature and inflammable gas (such as
nearby gas station).
Please put MID and its accessories in places beyond children’s touch, please don’t let
children use MID without supervision.
During using of this MID, please observe related laws and regulations, respect privacy
and legitimate rights of others.
3
Please strictly abide by relevant explanations in this manual when using USB data line,
otherwise, MID or personal computer may be damaged.
Please don’t use the MID in humid environment such as bathroom, etc., and the MID
being soaked or rinsed by liquid must be avoided.
2 Brief introduction for MID product
2.1 Diagram for MID complete machine
DR-10 front view:
4
Figure 2-1
DR-10 underside view:
Figure 2-2
5
2.2 Introduction to accessories of MID
Packing list
The following articles are included in your packing box of MID:
Complete machine of MID
Power adaptor
USB connecting line
User’s manual
2.3 Use and preparation of MID
Battery charging
Before using MID for the first time, the battery must be charged firstly.
Use power adaptor to charge MID.
In order to guarantee full battery, please charge for over 4 hours.
3 Quick start
3.1 Key function
Descriptions for key function:
Power key
Press this key for a long time to start up
Under starting up state, press this key for a long time to pop up
shutdown option
Under starting up state, press this key to close the screen
Volume key
Press it can increase or decrease machine volume
6
3.2 Starting up and turning off
Starting up
Press the power key for 3 seconds, you can see the starting up picture. After the system is
started, the machine enters into screen lock state, please unlock according to direction
indication of sliding icon on the interface.
Turning off
1． After pressing the power key for a long time, the shutdown option will pop up.
2． Click OK.
3.3 Unlocking and closing of the screen
The machine will close automatically when the screen is left unused
1．After the screen being left unused for a period of time, the machine will close screen
automatically, so as to save battery power.
2．Under screen on state, press the power key, the screen will close immediatey.
Turninng on under screen off state
If the screen is in off state, you can unlock the screen by pressing power key for a short time
or the return key for a long time. After opening, the screen will enter lock state, press “lock”
icon by your finger and slide rightwards, the screen will be unlocked, press “lock” icon and
slide leftwards, you can enter the camera function.
7
Figure 3-1
3.4 Use of touch screen
Operating mode in MID
There are various ways to skim the main screen, menu and application program, etc. on your
MID.
Click to select
When you want to use screen keyboard entry, and you want to select items on the homepage
interface such as aplication program, you only use your finger to click.
Press on
If you want to unlock the available option of a certain item (such as textbox or interlinkage in
the webpage), or move shortcut on the homepage interface and menu of main program, only
press the item.
Slide quickly or slide
Quick sliding or sliding means doing rapid vertical or horizontal drag movement by using
finger on the picture.
Drag
Before you starting to drag, you must press it with your finger and impose a certain pressure,
and don’t loosen the finger before draging to the wanted position.
8
Rotate
Aiming at most of pictures, only turn the MID in side direction, the screen direction can be
shifted from cross direction to vertical direction. For example, when you input characters,
watch cinema, etc.
3.5 Homepage interface
All application programs on the machine will be displayed on the main menu screen. You
may use application program, shortcut and user-defined mode to set wallpape of your
homepage interface.
Figure 3-2
Skill: in any application programs, you can press homepage key to return homepage
interface.
Outstretched homepage interface
Homepage interface may extend beyond the width of screen, so as to provide more space, so
that you can place the newly increased shortcut, widget, etc. Press blank of homepage
Notice bar
Connection
state
Application program
menu button
Application
program
Search
bar
Wallpaper
9
interface, then slide around quickly in vertical direction by finger to jump to left side or right
side outside the screen. There are more than 2 stretched pictures on the homepage interface.
Figure 3-3
Custom homepage interface
Change desktop wallpaper
1. Press blank region on the homepage interface to pop up the menu.
2. When the menu popping up, choose source of homepage interface wallpaper you want to
change.
3. After clicking source of wallpaper, click picture you want, and then select “setting
wallpaper”.
10
Figure 3-4
Add widgets
1. Please click application program menu. As shown in Figure 3-5.
2. After entering application program menu, click “WIDGETS” button on the top left of
interface.
3. After pressing the desktop widgets you want, the system will return back main interface,
put the selected widget to the wanted place, then loose.
11
Figure 3-5
3.6 Access to application program
How to visit aplication program of MID:
1. Please click application program menu. As shown in Figure 3-5.
2. Select the application program you want to visit.
3. If you want to exit the program interface, press the return key to the last interface, or
press the homepage key to return homepage interface directly.
Widgets
12
Figure 3-6
3.7 USB connection
Storage setting of MID
Before transmitting document, you must set storage mode for your MID firstly:
1. Connect MID with computer by using USB transmission line. Notice bar will show the
notice prompt.
2. Click status bar, options of status bar show.
3. Among options of status, click to choose USB connected, then click to open USB
storage device.
4. At this time, USB has already been connected.
Application
program
Widget
13
Figure 3-7
Copy the document to storage card
1. Connect MID and computer together with USB cable.
2. After setting according to storage of MID, connect with computer successfully.
3. Open your computer, in my computer, examine content in “removable disk (x)”.
4. Find the document you want to copy, copy it to “removable disk(x)”.
5. After completion of copying, click “safely remove hardware” in taskbar of your
computer to unload.
Content of MID storage device
1. NAND FLASH storage device, space for MID to store document itself.
2. TF removable memory card.
3. The two above-mentioned storage devices both can be visited through connection with
your computer with USB.
Attention: when your MID is connected with USB cable, if you start up USB storage
device, you will cannot visit the memory card through MID, if you want to
visit memory card in MID, only disconnect USB cable.
14
3.8 Memory card
Copy the document to storage card
You can transmit document between MID and computer, such as music and picture, etc. If
you want to see documents in MID, only click the file browser to look through content in the
SD card.
Delete documents on the storage card of MID
1. Find document you want to delete.
2. Press the document name you need to delete, a file menu will pop up.
3. Click delete.
Removing storage card when the MID is in starting up state
If need to remove storage card under starting up state of MID, you must unload the storage
card firstly, for fear of failure or damage of the storage card.
1. In the homepage interface, press the mennu key, then click setting.
2. Pull the setting menu downwards, then click storage.
3. Click SD card setting.
4. Click to uninstall the SD card.
3.9 Character input
Use screen keyboard
When you start the program or select text edit box needing to input characters or numbers,
screen keyboard will show. The following input methods are provided for the keyboard to
select.
1. Android keyboard
2. Input method of a third party (user can install them by himself)
Select the input method you need to use
According to presetting, MID will display Android keyboard when you want to inut
characters.
1. Press menu key in homepage interface, then click setting.
2. Click language and keyboard.
15
3. All of the input methods already installed on your MID will be listed in the text setting
region.
4. Select the input method you want..
Use and switch input method
1. In the character input interface, click keyboard icon under the status bar, until popping
up of editing text menu.
2. Select input method you need.
Figure 3-8
1
Switch input capital and small letters
2
Switch character input mode and symbol/figure input mode
3
Click to insert space
4
Click to execute carriage return
5
Click and press on to delete characters on the left of the cursor
①
③⑤④
②
⑥
16
6
Click here to switch input method
3.10 Application Technique
Open the application procedure that is employed recently.
Click the third button under the lower left side at any procedure interface, pop up the
procedure windows on the screen, the application procedure that is used recently can appear
in the windows, referring to Figure 3-9.
Figure 3-9
Add the small tool on the desk
On the application procedure menu, click “WIDGETS”button and enter into the interface of
small parts, the icon and name for added small parts can appear on this interface, such as:
music, photo frrame, clock and searching.
Switch of Input Language
Click the keyboard icon at the lower right corner of interface for input box; after clicking, pop
up all input methods installed on this equipment by you, click and select the Input method.
Application procedure used
recently
17
Rapidly shut off the procedure
Click the Back Key to return to the superior interface, or click the Homepage key to return
to homepage interface.
Factory Default
Whe your MD produces the major error or the unlocking password is forgetten, the Factory
Default can be employed to return to the ex-factory status.
1. On the homepage interface, click the menu key and pop up the setting menu.
2. Click and select the Setting
3. Click and select the Backup and Reset
4. lick and select the Factory Default
5. Click and select the Tablet Computer Resetting
6. Wait for system resetting
Speedily Set Such Functions as Fly Mode
Click the status bar on the lower right corner of interface, pop up two windows, there are
some prompt messages for your equipment on the windows below. Click the windows above
and enter into the setting for Fly Mode,WIFI, G-sensorSwitch, Volume Control and
Backlight Regulating and speedy operation for Setting Function .
18
4 Connection Establishment
4.1 WIFI Connection
Your MID can be connected onto Wi-Fi network to connect the operation:
1. On the homepage interface, click and select the meun key and pop up the meun setting;
2. Click and select the System Setting;
3. Click Wi-Fi and open wi-fi switch;
4. After openingWi-Fi, the searched Wi-Fi network can be scanned automatically from the
equipment in the windows on the right.
5. Select the Wi-Fi network required to be connected, if the password is added, pop up the
password input windows and input the corresponding password.
6. Click the Connection
Figure 4-1
Advanced Wifi setting option
Click here and select
WIFI network
19
4.2 Bluetooth Connection .
Application of bluetooth (Figure 4-3)
1. Setting procedure of entering into bluetooth: set -> bluetooth set, open the bluetooth
equipment
2. Name of equipment: you can randomly change the name of bluetooth for your MID by
pressing Menu key.
3. Detectability: open this function by clicking the place for name of bluetooth, which
indicates that your MID bluetooth can be searched by other bluetooth equipments, this
default time for this opening is of 120 seconds.
4. Scan and look for equipment: you can detect the equipment desired to be connected by
utilizing this function.
5. Bluetooth: after employing the scan to look for the equipment, all bluetooth equipments
searched by your MID can display under this function.
Figure 4-3
Click this scan to search
for the equipment
Click this and open the
detectability function
20
5 Communication
5.1 E-mail
Setting for E-mail
The E-mail application procedure is attached with the setting guide for E-mail, the external
POP3 or IMAP E-mai account for common Web E-mail service provider ( such as: Yahoo,
Gmail, Hotmail and163 manufacturers) can be added.
Figure 5-1
Setting guide for E-mail
1. After clicking and selecting the E-mail icon, the produced E-mail setting guide will help
you perfom the setting;
2. Click and select Next button;
3. Input E-mail address and password of your E-mail account;
4. Click and select Next button to select that your E-mail type either is POP3 or IMAP.
5. Click and select Next button again to inspect whether the send-receive server of E-mail
is available.
6. Input the name of account and display the name of E-mail to be sent, and then, click and
select OK.
21
7. If the E-mail is available, automatically enter into your inbox.
Figure 5-2
Delete the E-mail account
You can delete the account of POP3 or IMAP E-mail that is set properly from your mobile
phoe.
1. Click and select the E-mail;
2. Enter into your inbox;
3. Click the menu key;
4. Click and select the Account;
5. Press the account that you want to delete.
6. Pop up the menu list; click and select the Deleted Account.
7. Click OK to remove it.
Send E-mail information
1. Click and select the E-mail to show your inbox.
2. Click inbox to enter, automatically refresh the new e-mail, click and read it.
3. Press down the menu key and pop up the menu.
4. Click and select the Composing to enter into the new E-mail interface;
5. Input the E-mail address of your recipient in the recipient bar;
6. Input the theme and information contents;
7. If want to add the attachment, press the menu kay and pop up the menu option.
22
8. Click and select the Add Attachment.
9. Select the attachment that you will send ( such as: picture and video).
10. After clicking and selecting the “ Send”, send out the E-mail.
Notice: if you have more than one account and hope to send out a E-mail in certain
account, prior to clicking the main menu and composing the E-mail, click
that account name in advance.
6 Multi-media
6.1 Music
Your music can be divided into such 4 types as Artist, Special Edition, Songs, Play List and
Playing. select a classification to view the contents in the list therein. If enter into one
classification, always perform the selection until appear the songs that you want to play. For
example, if you select Artist classification, you will see the name list of artists ranked
according to A-Z sequence. If select an artist, the special edition of artist and song list for
special edition will be presented in the list.
23
Figure 6-1
Visit and play the music
1. Click and select the music;
2. Click and select the songs, click and select the Artist, Special Edition and Song List.
3. Select one of songs for play.
Add the songs onto the new play list
1. Click and select the music;
2. Click and select the songs,
3. Press the songs that you will add onto the play list ;
4. Pop up the music setting menu, click and select add onto the play list.
5. Click and select the Newly-established;
6. Input the name of play list;
7. Click and select the Save;
8. Click and select certain song, serve this song as the ring to be added.
Play progress bar
Remaining time
Played time
Replay all songs
The cycle has been
Check current play lis
Cover of special edition
Artist
Special edition
Music
24
Delete the play list
1. Click and select the music;
2. Click and select the songs,
3. Press the songs that you will add onto the play list ;
4. Pop up the music setting menu, click and select Delete.
6.2 Camera
Camera functions
1. Click and select the camera;
2. The system enters into the camera interface;
3. Click and select the Photo button and easily take the photos;
4. Set such functions as photo sixe, storage location, white balance and focal length
regulating;
5. After completion of taking photo, there is the display for previewed minimap.
Figure 6-2
Photo function
Videotape function
Before and after
switching
25
Videotape function
1. Click the videotape icon and convert it as video recorder mode;
2. Click and select the red videotape button to take video ;
3. Set such setting functions as color effect, white balance and video quality;
4. Click and select the videorecording button, end the videorecording, and observe the
previewed video.
Figure 6-3
6.3 HDMI
HDMI High-definition video interface
The MID and the high-definition television are connected by a standard HDMI cable. This
interface supports the picture with highest quality of 1080p resolution ratio.
1. MID is in the boot status.
2. The MID and the high-definition television are connected by a standard HDMI cable.
3. The system interface on MID is automatically synchronized with the high-definition TV
screen
26
6.4 Media Browser
The media browser application capable of automatically searching and classifying all photos
and video files in the MID and the TF card in accordance with the folder can be used to view
and edit photos, to use photos as desktop and to watch videos.
View pictures
1. Click the folder containing the pictures that you want to see.
2. Select the picture you want to see, and the system will automatically view in full screen
mode.
3. Drag the picture to left or to right to browse the previous or the next picture.
4. Doubld-click the picture to zoom in or zoom out the picture.
Tips: the picture browser is capable of automatic rotation. When the MID is
rotated, the picture will automatically adjust along with the rotation
direction.
Fig. 6-4
Edit and set the picture
When view the pictures in full screen mode, press the Menu key to show the menu options,
through which the pictures are edited and set.
Slide show
Press the Menu key to show the menu options, and then click Play slideshow, which
27
shows the pictures in all folders.
Share
1. Press the Menu key to show the menu options, and then click Share.
2. The picture will be shared with your friends through the attachments in the E-mail and
Bluetooth.
Rotation
1. Press the Menu key to show the menu options, and then click Rotation.
2. Click Rotate to left or Rotate to right.
Cut
1. Press the Menu key to show the menu options, and then click Cut.
2. Click and drag relevant area to adjust the cutter.
3. Click and drag the cutter to adjust the size.
4. Adjust the size and click Save.
5. Click Return to go back to the picture browse.
Video preview and playback
The Media Browser will scan all video files in the MID and TF card, and preview the
playable ones. Click one to play the video files.
In the video preview interface, press the Menu key, and the function window of editing video
files appears, as in Fig. 6-5
28
Fig. 6-5
7 Internet
7.1 Browser
Enter Homepage
The browser always opens the last web page that the user has visited, and the home page will
appear after clicking the browser.
Change your Home Page
1. Click Browser.
2. Press the Main menu button to pop up browser setting menu.
3. Click Settings.
4. Click Set Home page.
29
5. Enter URL and Click OK.
Fig. 7-1
Visit web page
1. Click Browser.
2. Enter your URL in the address bar.
3. Click Start on the soft keyboard.
Address bar
Browser menu
30
Fig. 7-2
Browse the webpage
When the page finishes loading, you can slide your finger to browse and view other parts of
the page.
Zoom in or zoom out webpages
The webpage can be zoomed in or out by double-clicking the screen or by dragging through
two fingers.
Find texts within the webpage
1. While browsing the web, press the Menu key to pop up the menu options.
2. Click Find on web.
3. Enter the item you want to search.
4. The matched texts are highlighted in green while inputting the characters.
5. Click left-to-right arrow before the search bar to move to the previous or the next
matched word.
Click here to edit
your browser
Click here to add a web
page as bookmark
Input the contents
that you want to
search
Click here to
enter the
31
Manage bookmarks
Set web page bookmark
1. Go to certain web page in the browser interface.
2. Click the icon ‘Click here to add a web page as bookmark’ in Fig. 7-2, and a
Bookmark this page window pops up, click OK to set the page you want as the
bookmark.
Open bookmark
1. Enter the interface similar to Fig. 7-3 by clicking the icon ‘Click here to enter the
Manage bookmarks’ as in fig. 7-2 in the browser interface.
2. Click the bookmark that you want to open the web page.
Edit bookmark
1. Enter the interface similar to Fig. 7-3 just like opening the bookmark in the browser
interface.
2. Click and press down the bookmark to open the menu options.
3. Click Edit bookmark to edit and click OK.
Fig. 7-3
Use browser window
Bookmarks
History
Enter setup menu
Saved pages
32
Open a new browser window
1. In the browser window, press the Menu key and click New window or simply click
the + at the top of the address bar to open a new window.
Switch browser window
1. In the browser window, the pages you have visited appear above the address bar.
2. Click the window that you want to switch to the page you want.
Set browser
In the browser interface, press the Menu key and click Set to set the browser.
8 Other Applications
8.1 Alarm clock
1. Click clock icon in the main interface.
2. Enter program interface. (Fig. 8-1)
3. Click the time periods need to set, and the alarm setup menu pops up.
4. After setup, click Done on the corresponding clock.
33
Fig. 8-1
8.2 Calculator
1. Click Calculator.
2. Enter the basic panle of the calculator to operate. (Fig. 8-2)
Fig. 8-2
8.3 File Management
Browse files
Slide the desktop to locate the File browser.
You can use the file browser to manage, edit and delete the files and folders.
34
Fig. 8-3
9 Basic Settings
9.1 Sound and Display
Volume setting
1. Click the application icon to enter the settings application on the Homepage.
2. Click Sound.
3. Click Volume to control the volume of the ringtones, media, alarm clock and
notification.
4. Pop up volume setup panel, and control it by dragging the progress bar to left or to right.
Screen key tone and screen lock alert tone
You can set the MID to emit sound when you use the soft keyboard or touch screen as well as
lock the screen.
1. Click the application icon to enter the settings application on the Homepage.
35
2. Click Sound.
3. Click the Screen key tone and screen lock alert tone.
Display settings
Adjust screen brightness
1. Click the application icon to enter the settings application on the Homepage.
2. Click Display.
3. Click Brightness.
4. Pop up the brightness setup panel, and drag the brightness bar to left or to right to adjust
the brightness.
5. Click OK.
Adjust screen standby time
1. Click the application icon to enter the settings application on the Homepage.
2. Click Display.
3. Scroll down the screen and then click Sleep.
4. Pop up screen standby time settings and choose the standby time you want.
9.2 Security and Location
1. Set unlock pattern
You can set your own unlock pattern (equivalent to the password) to protect the privacy of
your MID.
1. Click the application icon to enter the settings application on the Homepage.
2. Click Security.
3. Click Set screen lock.
4. Click Pattern.
5. Pop up unlock pattern panel with 9 contacts, at least four of which are connected
vertically, horizontally or diagonally. Put fingers away from the screen upon completion
and the system will record the pattern you set.
6. Click Continue.
7. Draw the screen unlock pattern again when the prompt appears and click OK.
Tips: If you do not want the unlock graphics display on the screen while unlocking,
please clear the check box of Use visible pattern.
36
Fig. 9-1
2. Other settings
In the security settings, functions such as encryption setup, equipment management and
credential storage can be added to the tablet PC.
9.3 Storage
View storage settings
1. Click the application icon to enter the settings application on the Homepage.
2. Click Storage.
3. View storage space of SD card.
4. View storage space of NAND FLASH.
5. View usb setup, which is the storage space of U disk.
Safe uninstall of SD card
Safe removal of the SD card can effectively protect and prolong the service life of the SD
card.
1. Click the application icon to enter the settings application on the Homepage.
2. Click Storage.
3. Click Uninstall SD card.
4. The system prompts that the SD card is safely removed.
37
Tips: the uninstall method for usb is as described above.
9.4 Date and Time
Adjust the date, time and time zone
1. Click the application icon to enter the settings application on the Homepage.
2. Scroll down the screen and then click the Date and time settings.
3. Click Select time zone to select the one you want. Scroll down the list to see more time
zones.
4. Click Set date, then click the up button or the down button to adjust the date, month and
year, and click Settings when finish.
5. Click Set time, then click the up button or the down button to adjust hours and minutes,
click AM or PM to change between morning and afternoon. Click Settings to complete.
6. Select 24-hour check box to switch between 12-hour and 24-hour. Selected time format
will be applied to the alarm clock.
7. Click Select date format and then select the date format to be displayed on the MID.
8. You can choose Automatically determine date and time, which automatically uses the
time from the network, so effective network is required.
9.5 Language and Input Method
Select language for the device
1. Press the Menu key to pop up Settings menu on the Homepage.
2. Click Settings.
3. Click Language and Input Method
4. Click Select language areas and choose the language you need.
Keyboard and input method
The default input keyboard is the Android keyboard, and you can select your favorite
keyboard and input method by installing third-party software.
38
9.6 About Tablet
View MID status
1. Click the application icon to enter the settings application on the Homepage.
2. Click About Tablet .
3. Click Status Message to view the Battery status, Network status, Bluetooth address,
Serial number and Running time, etc.
System Update
1. Click the application icon to enter the settings application on the Homepage.
2. Click About Tablet .
3. Click System Update.
4. If the window shows this is the latest version, there is no need to update.
5. If the window prompts to download the new version, click Download. (Ensure the
device is equipped with the TF card before download, the system automatically
downloads the update package into TF)
View system version
1. Click the application icon to enter the settings application on the Homepage.
2. Click About Device.
3. View MID model, Android version, Firmware version and Build-in version, etc.
10 Installation and Management of Program
10.1 Installation
Install third-party applications
You can get third-party applications fit for the Android system from the Internet and for use
on the MID. Copy the application to the SD card and insert into the MID.
Method 1：
1. Click File Manager to find the applications need to install in the SD card.
2. Click the applications that you want to install.
39
3. Pop up installation option and click Install.
4. Operate after completion in accordance with the installation guide.
Method 2：
You can download and install your favorite third-party software according to the Method 1,
and after that, you can install the software you want through this software.
Note: search files with the suffix of .apk for the third-party programs from the Internet
10.2 Management and Uninstall
Management applications
You can enter the applications and select one to Forcibly stop, Clear data, Uninstall, and
Remove storage location.
Uninstall applications
1. Click the application icon to enter the settings application on the Homepage.
2. Click Applications.
3. Click Management applications, and list all the applications installed in the system.
4. Click Uninstall.
5. Click OK to complete uninstall.
11 Troubleshooting
1. slow initial boot for MID
After system upgrade of MID, initial boot needs installation of the pre-installed
software applications, and for about 2-3 minutes, it runs faster.
2. Poor 3G network signal for MID
Ensure the MID built-in antenna is not blocked.
It might be in unsignalized status when the signal is weak or is of poor
reception.
3. MID can not be connected to WIFI
Ensure that the wireless router providing the network services works properly.
40
Ensure the MID and the wireless router are kept with certain distance, and
between which no wall or other obstacles exist.
Ensure the user name and the password are correct
4. MID feels hot
When multiple applications are running at the same time, or the screen is adjusted
to the brightest, or it is recharging, this situation is normal.
5. System is disordered and does not work properly
Installation of some third-party applications may lead to system failure, and you
can press the reset button to reset the system.
6. Unable to create e-mail or regist applications
Ensure your network is properly connected to the Internet.
Ensure the e-mail is set up correctly.
Ensure your system time and the local time are consistent.
Loading...
