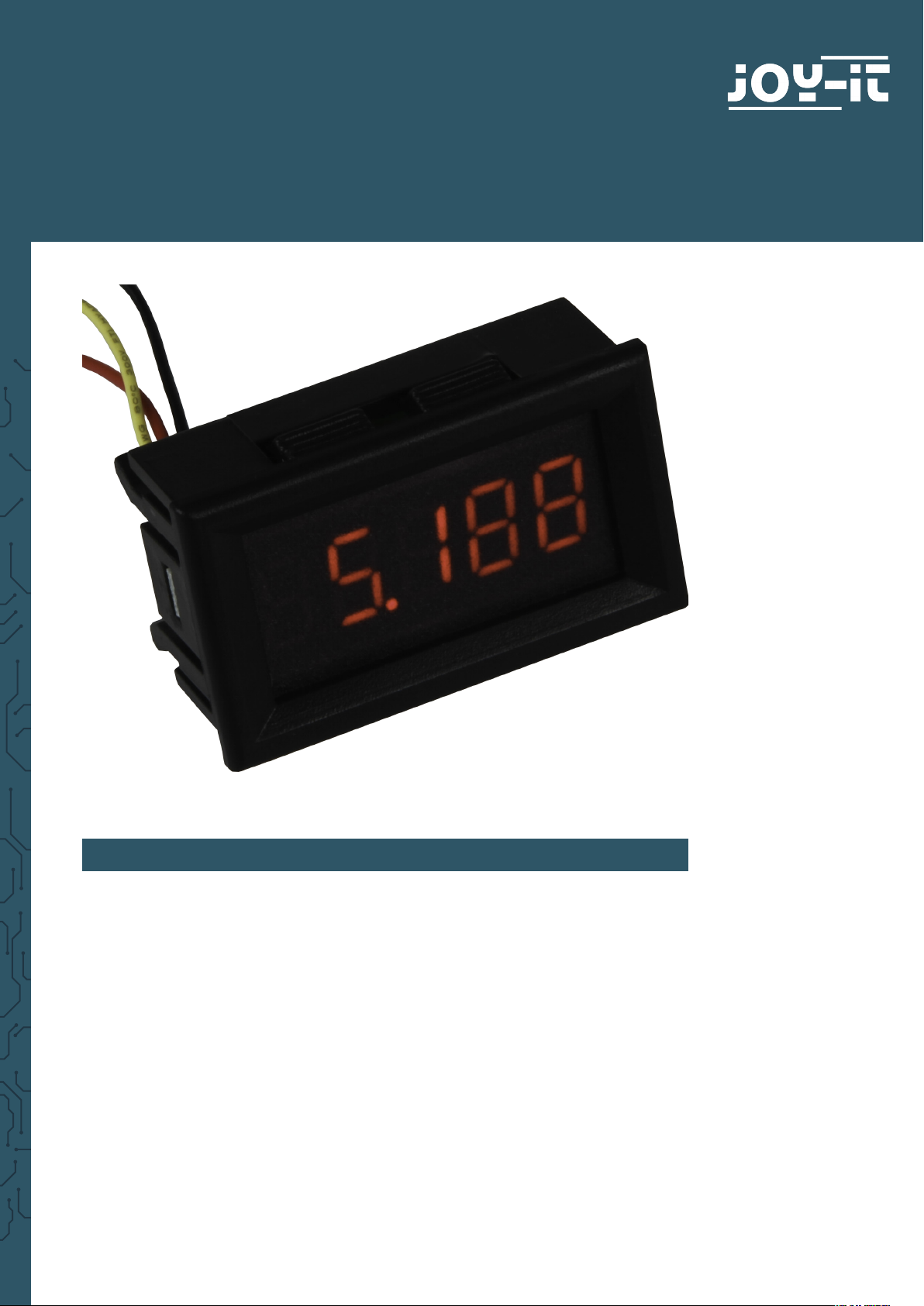

JOY-IT VM-533 User manual

VM-533

Digital voltmeter 5 digits

1. GENERAL INFORMATION

Dear customer,

thank you for choosing our product. In the following, we will show you how
to use your product.

Should you encounter any unexpected problems during use, please do not
hesitate to contact us.

2. TECHNICAL SPECIFICATIONS

Operating voltage 3.5 - 30 V

Current at 3.6 V

Current at 12 V

Measuring range

Operating

temperature

measurement

accuracy

Dimensions

Weight

3. CONNECTION

approx. 8 mA

approx. 9.5 mA

-10 − 65 °C

48 x 29 x 22 mm

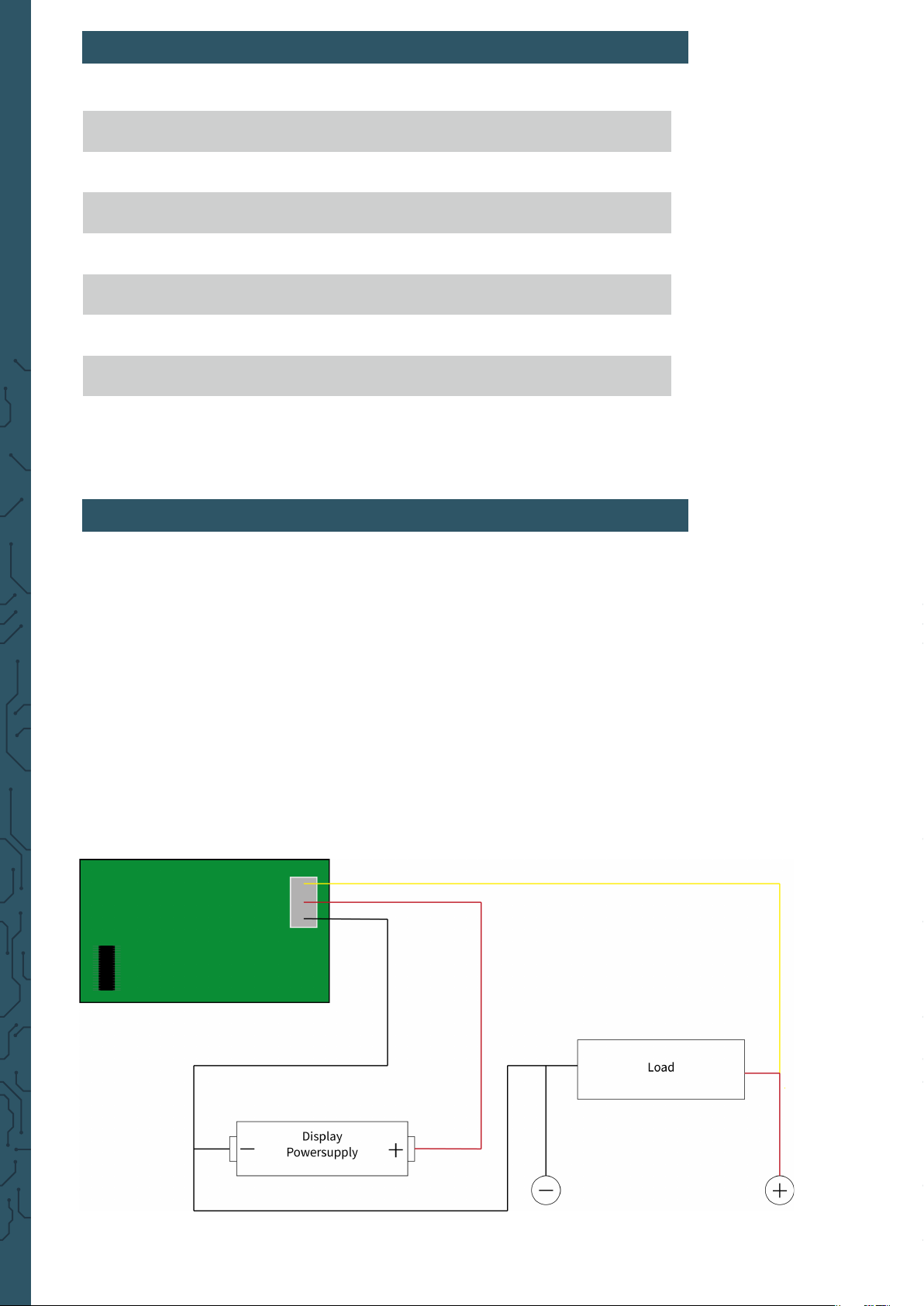

The provided plug of the digital voltmeter has 3 cables.

0- 33 V

± 0,3 %

16 g

The red cable is the positive pole for the power supply of the display.
The black cable is the negative pole for the power supply of your display.
The yellow cable is used for the measuring voltage.

Connect the red cable to the positive pole of your operating voltage.
Connect the black cable to the negative pole of your operating voltage.
The yellow cable is connected with the voltage source which is being
measured.
The display shows you now the electric voltage.

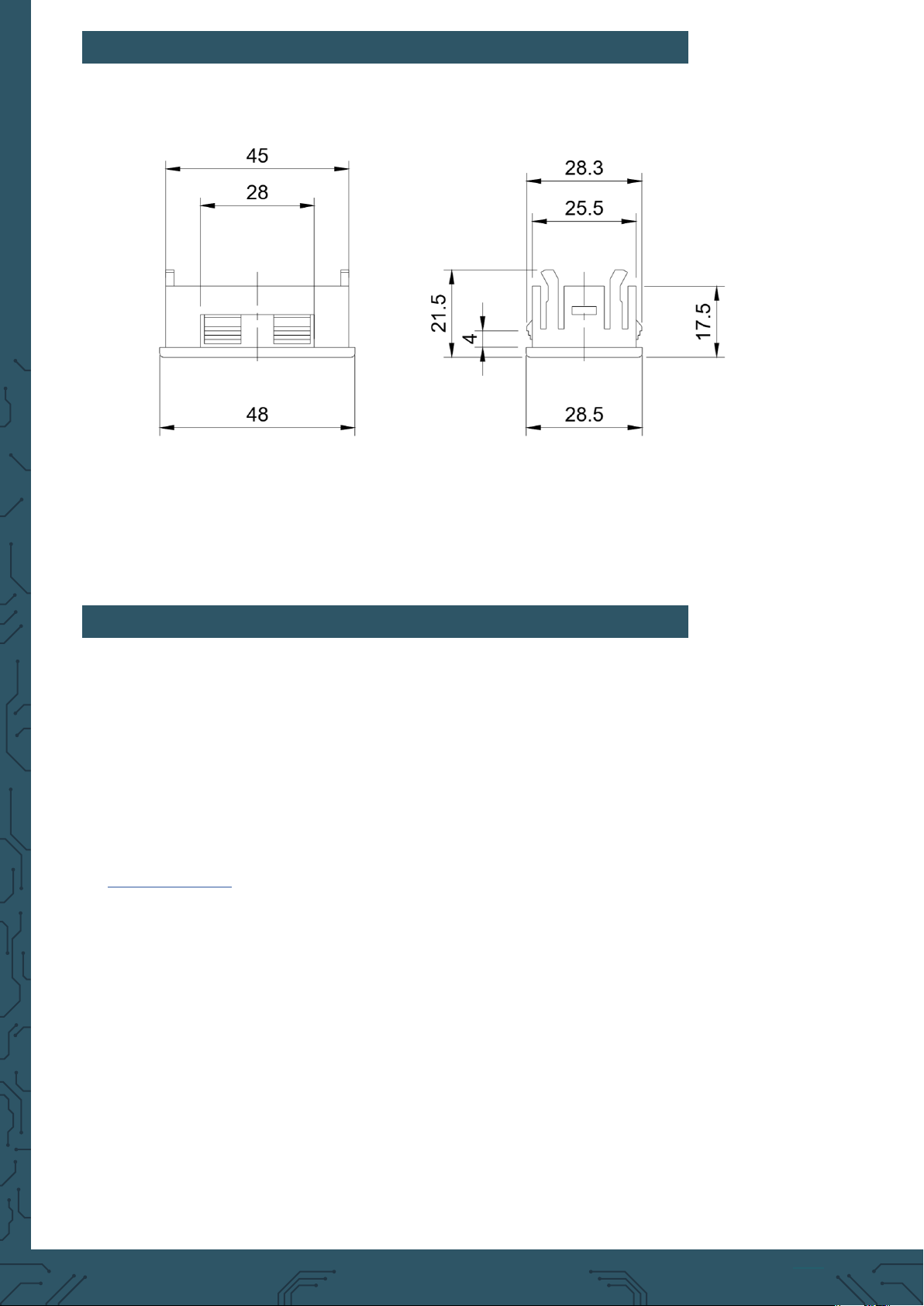

4. TECHNICAL DRAWING

5. SUPPORT

If any questions remain open or problems arise aer your purchase, we are

available by e-mail, telephone and with a ticket support system to answer
these.

E-Mail: [email protected]
Ticket-System: http://support.joy-it.net
Telephone: [phone] – 66 (10 - 17 o‘clock)

For further information visit our website:

www.joy-it.net

Published: 16.03.2021
