Joy-it SBC-USR-ES1 User guide

SPI-ETHERNET INTERFACE CONVERTER

SBC-USR-ES1

1. GENERAL INFORMATION

Dear customer,
thank you very much for choosing our product.
In following, we will introduce you to what to observe while starting up
and using this product.
Should you encounter any unexpected problems during use, please do
not hesitate to contact us.

2. USE WITH THE ARDUINO

Wiring:

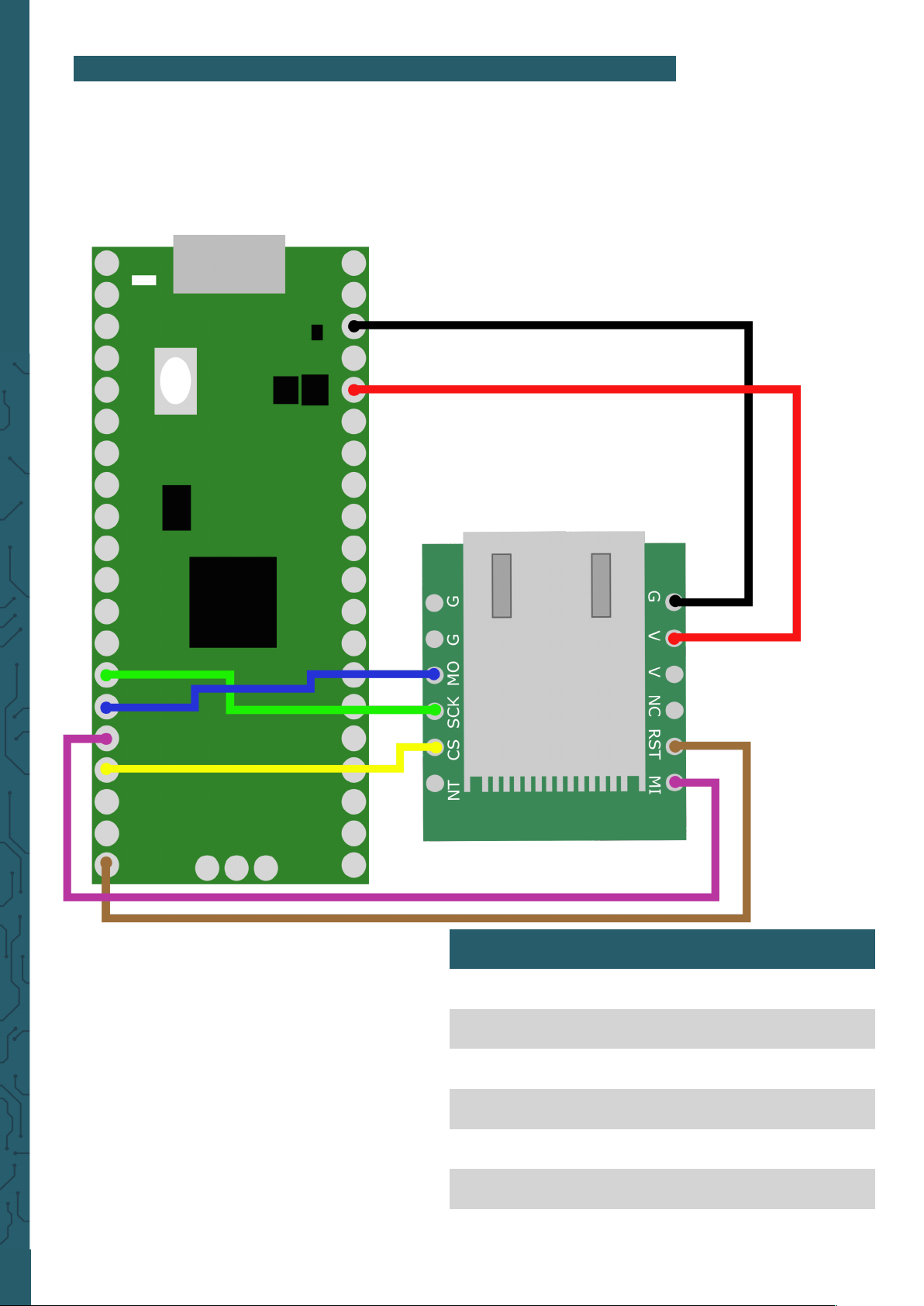

Connect your Ethernet module to your Arduino as shown in the diagram
and table below. In this example, we use an Arduino Uno.

Arduino Ethernet module

3.3 V V

GND G

Pin 13 SCK

Pin 12 MI

Pin 11 MO

Pin 10 CS

Installation of the library:

In the code example, we will use the Ethernet library to create a
webserver that displays the status of the analog pins.

First, if you have not already done so, you need to install the Ethernet

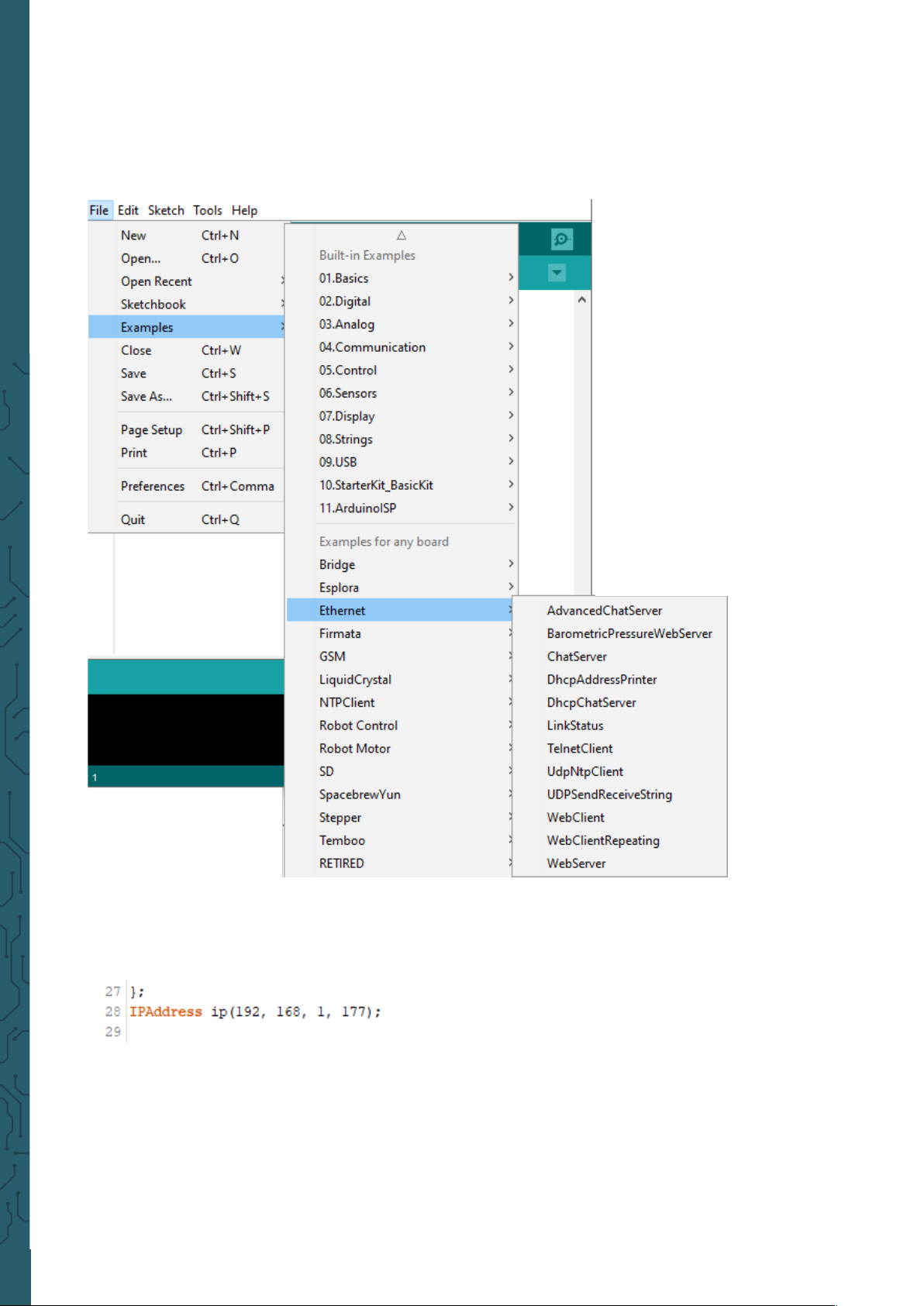

library. To do this, click:
Sketch -> Include Library -> Manage libraries...
There, enter Ethernet in the search bar and install the library Ethernet by
Various.
