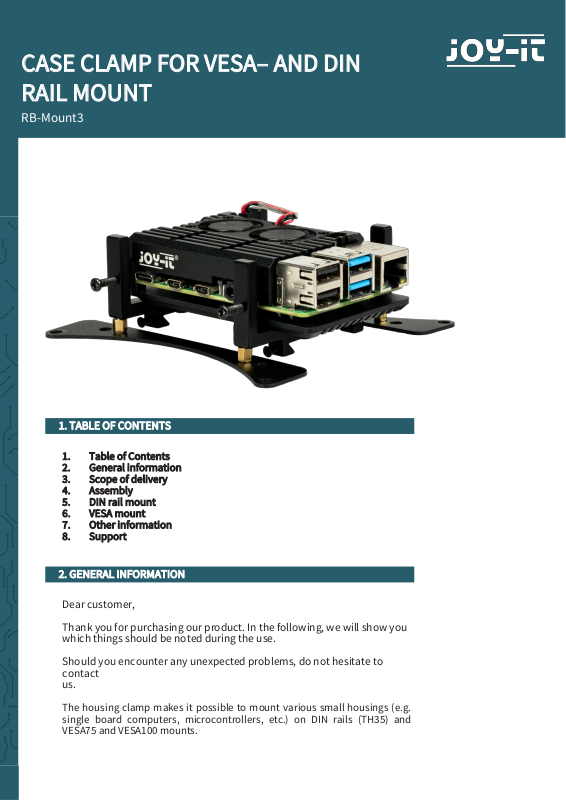

CASE CLAMP FOR VESA– AND DIN
RAIL MOUNT
RB-Mount3
2. GENERAL INFORMATION
Thank you for purchasing our product. In the following, we will show you which things should be noted during the use.
Should you encounter any unexpected problems, do not hesitate to contact us.
The housing clamp makes it possible to mount various small housings (e.g. single board computers, microcontrollers, etc.) on DIN rails (TH35) and VESA75 and VESA100 mounts.
1. TABLE OF CONTENTS
1. Table of Contents
2. General information
3. Scope of delivery
4. Assembly
5. DIN rail mount
6. VESA mount
7. Other information
8. Support
www.joy-it.net
Pascalstr. 8 47506 Neukirchen-Vluyn
3. SCOPE OF DELIVERY
2x case clamp 2x VESA adapter 1x mounting plate 1x adhesive rubber 4x M3 x 5mm stando 4x screw M3 x 16 mm 4x screw M3 x 5 mm 4x countersunk screw M3 x 5 mm 2x countersunk screw M2.5 x 10 mm
ATTENTION: The screws for mounting on the VESA device are not included due to die­rent designs.
www.joy-it.net
Pascalstr. 8 47506 Neukirchen-Vluyn
4. ASSEMBLY
4.1 Use the M3 x 5 mm screws to attach the housing clamps to the mounting pla­te. Make sure that the DIN rail mounting device is mounted in the same di­rection for both housing clamps.
4.2 Screw the M2.5 x 10 mm countersunk screws into the threads provided on the DIN rail mounting device.
www.joy-it.net
Pascalstr. 8 47506 Neukirchen-Vluyn
4.3 Screw the M3 x 16 mm screws into the housing clamps. Depending on your housing you can use eit­her only 2 screws (see picture) or 4 screws.
4.4 Now you have the possibility to place small pieces for protection at suitable places with the help of the self-adhesive rubber coating. To protect your housing from the screws, it is recommended to at­tach the adhesive pad to the housing at the height of the screw. This step is optional, if you do not use the rubber coating, the mounting can leave marks on your case, which, depending on the materi­al, are similar to the damage shown in the picture below right.
www.joy-it.net
Pascalstr. 8 47506 Neukirchen-Vluyn
4.5 Now you can mount your housing as shown in the picture. The mounting of the case can vary from case to case.
5. DIN RAIL MOUNT
5.1 First, screw back the locking screws of the top-hat rail mounting so that they do not hinder the mounting. Aerwards, insert the housing clamps first with the side with the locking screws on the top-hat rail.
www.joy-it.net
Pascalstr. 8 47506 Neukirchen-Vluyn
5.2 Now you can press the housing clamps onto the top-hat rail and lock them with the screws if necessary.
6.1 Screw the 4 M3 x 5 mm standos into the housing terminals from below.
6. VESA MONTAGE
www.joy-it.net
Pascalstr. 8 47506 Neukirchen-Vluyn
6.2 Attach the VESA adapter to the previously screwed-in standos using 4 M3 x 5 mm countersunk screws. Make sure that the side of the VESA adapters with the countersink is facing upwards.
6.3 Now mount the housing clamp with the screws suitable to your VESA device (not included in the scope of delivery).
www.joy-it.net
Pascalstr. 8 47506 Neukirchen-Vluyn
PR
7. OTHER INFORMATION
Our Information and Take-back Obligations according to the
German Electronic Law (ElektroG)
Symbol on Electrial and Electronic Products: This crossed-out bin means that electrical and electronic products do not belong into the household waste. You must hand over your old appliance to a registration place. Before you can hand over the old appliance, you must remove used batteries and replacement batteries which are not enclosed by the device.
Return Options: As the end user, you can hand over your old appliance (which has essentially the same functions as the new one bought with us) free of charge for disposal with the purchase of a new device. Small devices, which do not have outer dimensions bigger than 25 cm
can be handed in for disposal independently of the
purchase of a new product in normal household quantities.
1. Possibility of return at our company location during our opening hours Simac Electronics Handel GmbH, Pascalstr. 8, D-47506 Neukirchen-Vluyn
2. Possibility of return nearby We will send you a parcel stamp with which you can send us your old appliance free of charge. For this possibility, please contact us via e-mail at service@joy-it.net or via telephone.
Information about Package: Please package your old appliance safe for transport. Should you not have suitable packaging material or you do not want to use your own material, you can contact us and we will send you an appropriate
8. SUPPORT
If any questions remained open or problems may arise aer your purchase,we are available by e-mail, telephone and ticket support system to answer these.
E-Mail: service@joy-it.net Ticket-system: http://support.joy-it.net Telephone: +49 (0)2845 98469 – 66 (10 - 17 o'clock)
