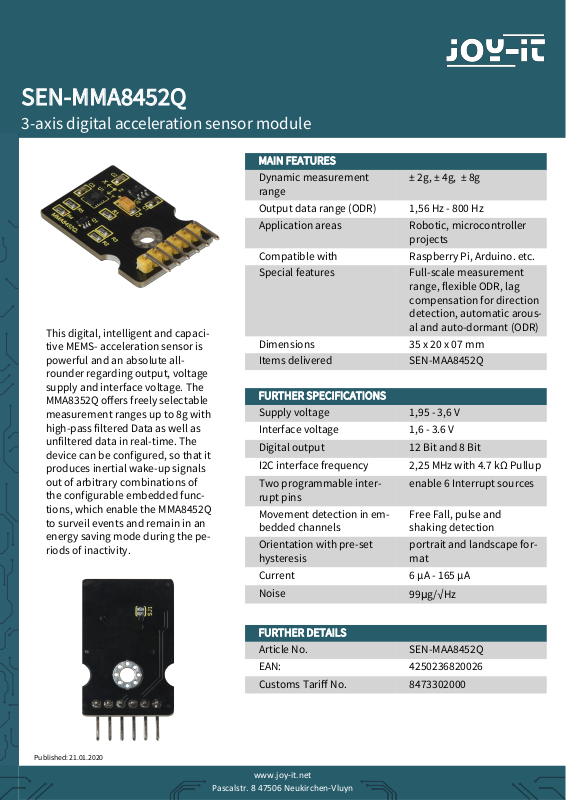

SEN-MMA8452Q

3-axis digital acceleration sensor module

MAIN FEATURES

Dynamic measurement
range

± 2g, ± 4g, ± 8g

Output data range (ODR) 1,56 Hz - 800 Hz
Application areas Robotic, microcontroller

projects

Compatible with Raspberry Pi, Arduino. etc.

Special features Full-scale measurement

range, flexible ODR, lag
compensation for direction
detection, automatic arous-

al and auto-dormant (ODR)
Dimensions 35 x 20 x 07 mm
Items delivered SEN-MAA8452Q

FURTHER DETAILS

Article No. SEN-MAA8452Q
EAN: 4250236820026
Customs Tari No. 8473302000

This digital, intelligent and capaci­tive MEMS- acceleration sensor is
powerful and an absolute all­rounder regarding output, voltage
supply and interface voltage. The
MMA8352Q oers freely selectable
measurement ranges up to 8g with

high-pass filtered Data as well as

unfiltered data in real-time. The
device can be configured, so that it
produces inertial wake-up signals
out of arbitrary combinations of
the configurable embedded func­tions, which enable the MMA8452Q
to surveil events and remain in an
energy saving mode during the pe­riods of inactivity.

FURTHER SPECIFICATIONS

Supply voltage 1,95 - 3,6 V

Interface voltage 1,6 - 3.6 V

Digital output 12 Bit and 8 Bit
I2C interface frequency 2,25 MHz with 4.7 kΩ Pullup
Two programmable inter-

rupt pins

enable 6 Interrupt sources

Movement detection in em­bedded channels

Free Fall, pulse and

shaking detection
Orientation with pre-set

hysteresis

portrait and landscape for-

mat
Current 6 µA - 165 µA

Noise

99μg/√Hz
