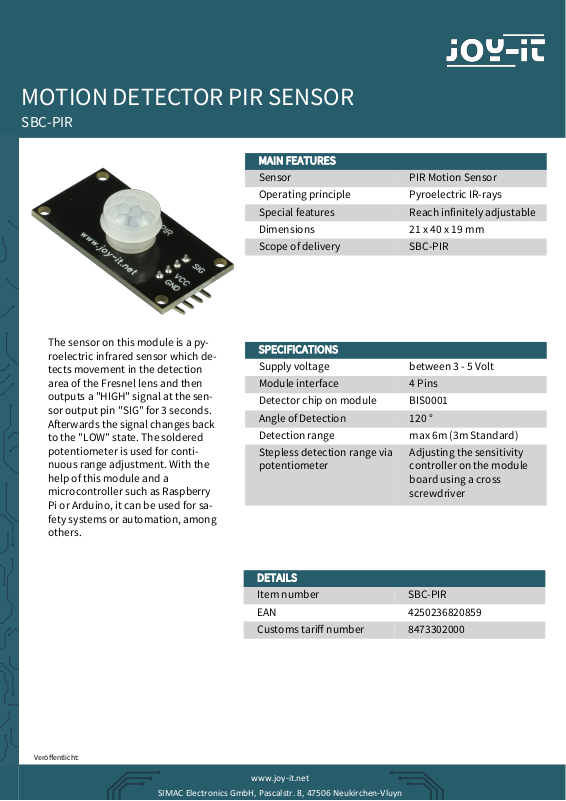

JOY-IT DEBO PIR MOTION Datasheet

Veröentlicht:

MOTION DETECTOR PIR SENSOR

SBC-PIR

MAIN FEATURES

Sensor PIR Motion Sensor
Operating principle Pyroelectric IR-rays
Special features Reach infinitely adjustable
Dimensions 21 x 40 x 19 mm
Scope of delivery SBC-PIR

DETAILS

Item number SBC-PIR

EAN 4250236820859

Customs tari number 8473302000

The sensor on this module is a py­roelectric infrared sensor which de­tects movement in the detection
area of the Fresnel lens and then
outputs a "HIGH" signal at the sen­sor output pin "SIG" for 3 seconds.
Aerwards the signal changes back
to the "LOW" state. The soldered
potentiometer is used for conti­nuous range adjustment. With the
help of this module and a
microcontroller such as Raspberry
Pi or Arduino, it can be used for sa­fety systems or automation, among
others.

SPECIFICATIONS

Supply voltage between 3 - 5 Volt
Module interface 4 Pins
Detector chip on module BIS0001
Angle of Detection 120 °

Detection range max 6m (3m Standard)

Stepless detection range via
potentiometer

Adjusting the sensitivity
controller on the module
board using a cross
screwdriver
