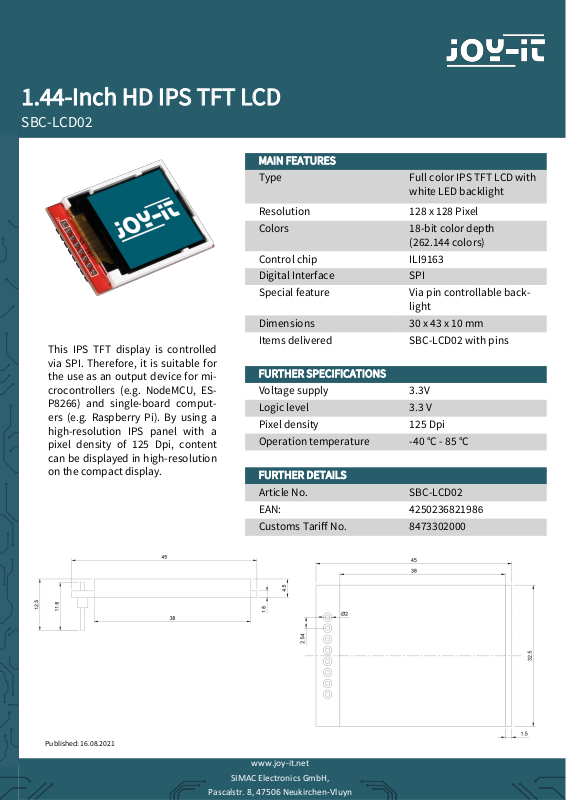

JOY-IT DEBO LCD1.44 IPS Datasheet

www.joy-it.net

SIMAC Electronics GmbH,

Pascalstr. 8, 47506 Neukirchen-Vluyn

Published: 16.08.2021

1.44-Inch HD IPS TFT LCD

SBC-LCD02

MAIN FEATURES

Type Full color IPS TFT LCD with

white LED backlight

Resolution 128 x 128 Pixel
Colors 18-bit color depth

(262.144 colors)
Control chip ILI9163
Digital Interface SPI
Special feature Via pin controllable back-

light
Dimensions 30 x 43 x 10 mm
Items delivered SBC-LCD02 with pins

FURTHER DETAILS

Article No. SBC-LCD02
EAN: 4250236821986
Customs Tari No. 8473302000

This IPS TFT display is controlled
via SPI. Therefore, it is suitable for
the use as an output device for mi­crocontrollers (e.g. NodeMCU, ES­P8266) and single-board comput­ers (e.g. Raspberry Pi). By using a

high-resolution IPS panel with a

pixel density of 125 Dpi, content
can be displayed in high-resolution
on the compact display.

FURTHER SPECIFICATIONS

Voltage supply 3.3V
Logic level 3.3 V
Pixel density 125 Dpi
Operation temperature -40 °C - 85 °C
